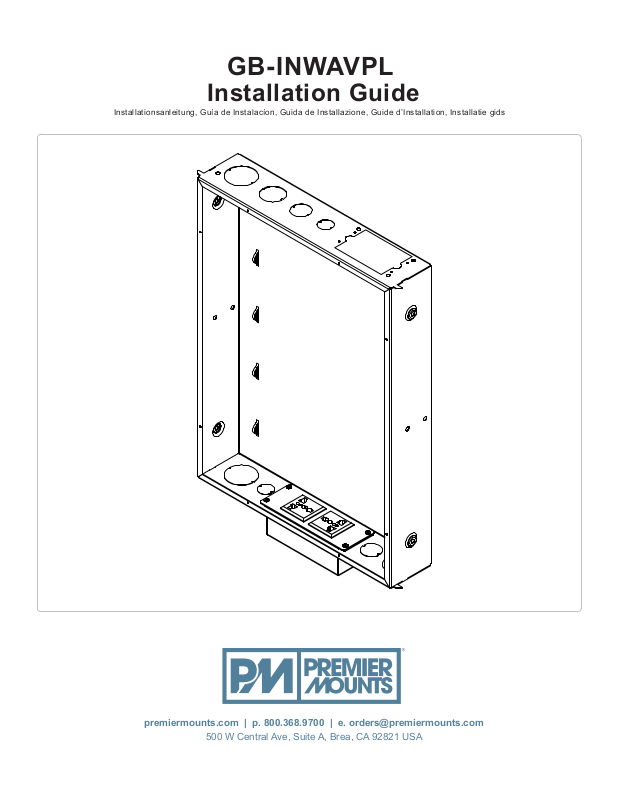

Page 1
GB-INWAVPL
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
premiermounts.com | p. 800.368.9700 | e. [email protected]
500 W Central Ave, Suite A, Brea, CA 92821 USA
Page 2
GB-INWAVPL
Installation Guide
Installationsanleitung, G uía de Instalací on, Guida de Installaz ione, Guide d’ Inst allation, Installatie g ids

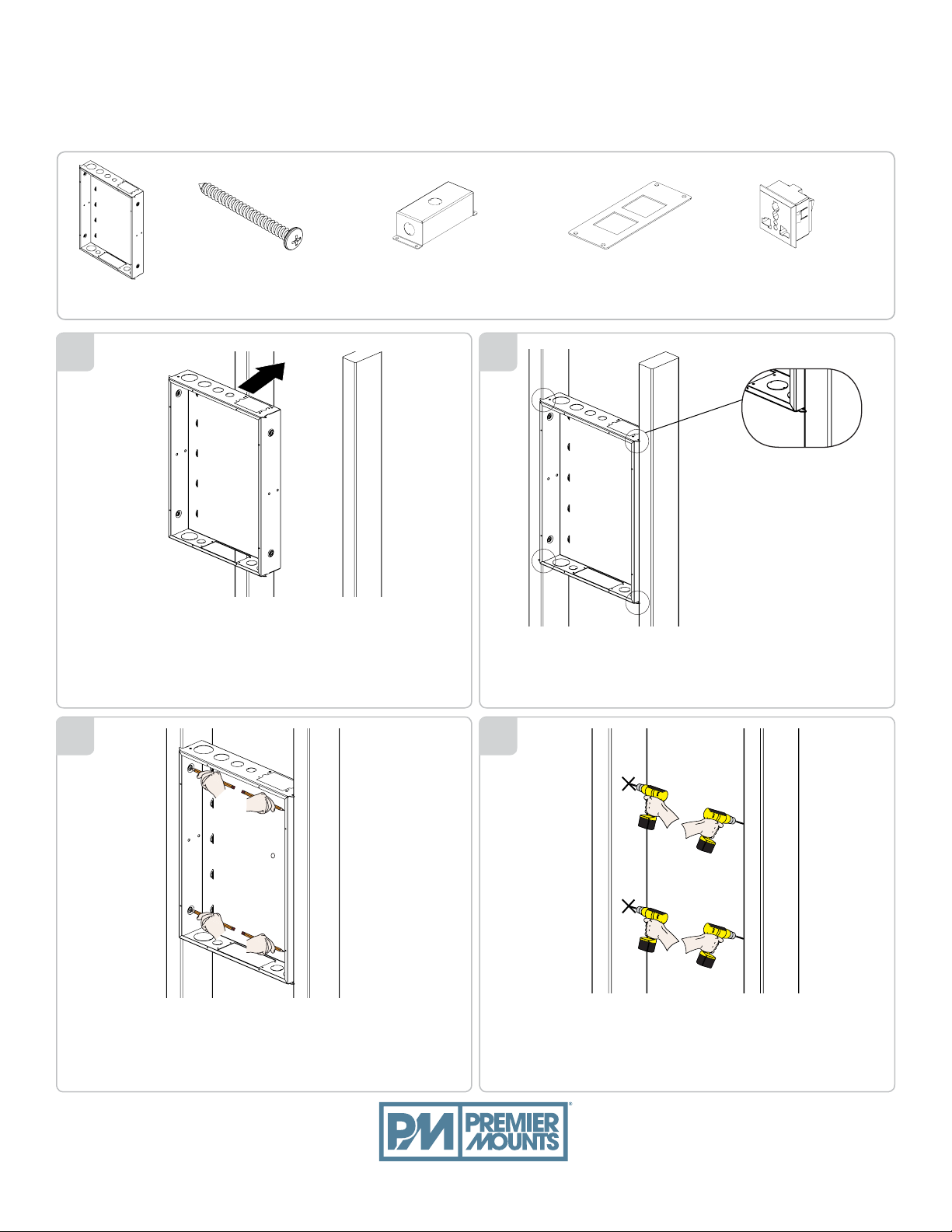

Hardware
x1 x4
#10 x 2” Screw Snap In Socket Snap in Plug Plate Universal Power

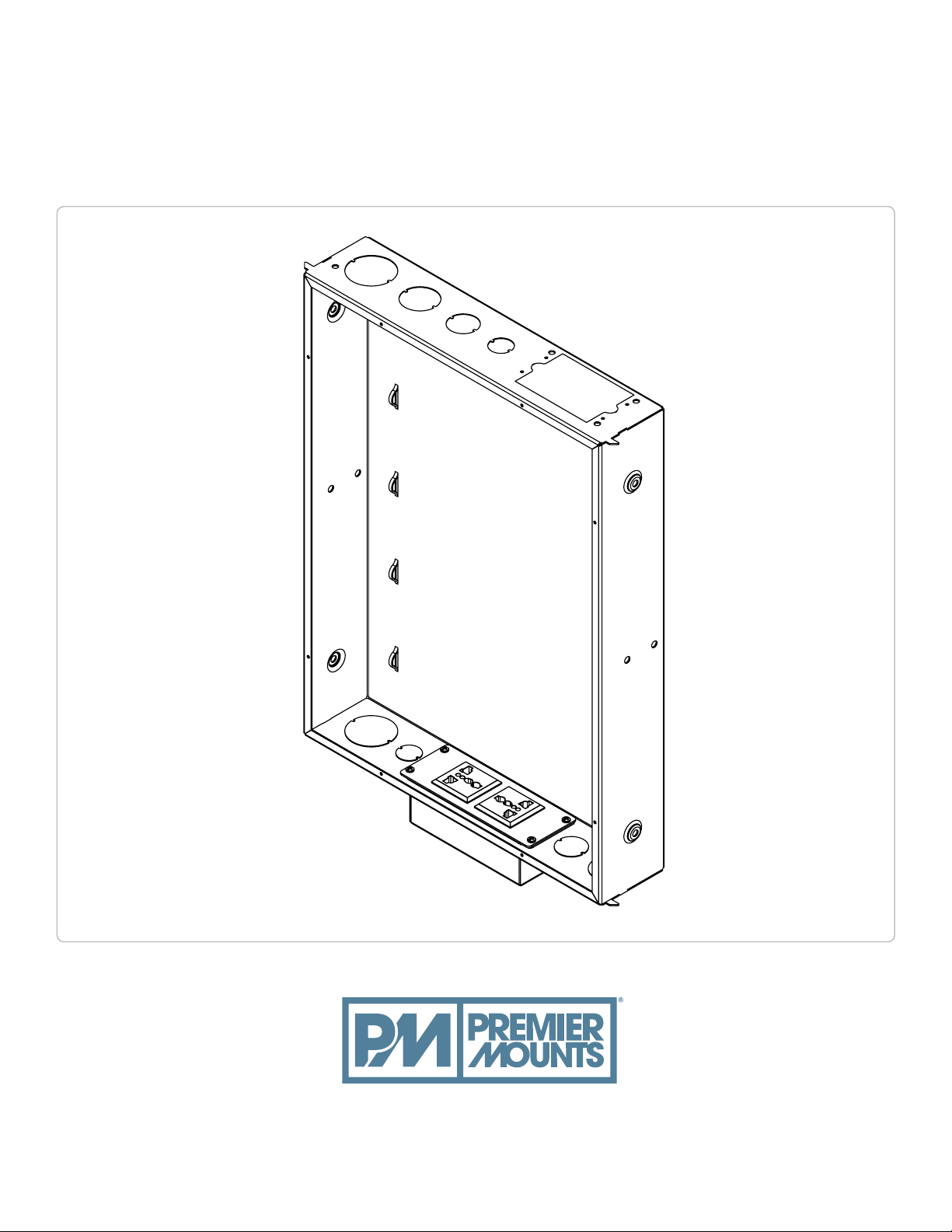

In-Wall
#10 x 50.8 mm Screw
1
The GB-INWAVPL is design to mate inside between 16”
(406.4mm) and larger width wood or sheet metal stud walls.
The in-wall box can mated to both stud sides or one only
depending on the clear space between the studs.
x1 x1 x1
Socket
2
There are four (4) tabs on the in -wall box. The tabs
act as install stop guide for wood or met al studs.
3
Find the desired location and mark the mounting locations. Drill a pilot hole using a 5/32” (3.7 mm) drill bit.
Page 2
premiermounts.com | p. 800.368.9700 | e. [email protected]
4
Page 3
GB-INWAVPL
Installation Guide
Installationsanleitung, G uía de Instalací on, Guida de Installaz ione, Guide d’ Inst allation, Installatie g ids
3
(4) #10 X 2” (50.8 mm)
Screw
Power drill driver may require you to pilot drill at a slight angle due
to the width on the in-wall box interior.

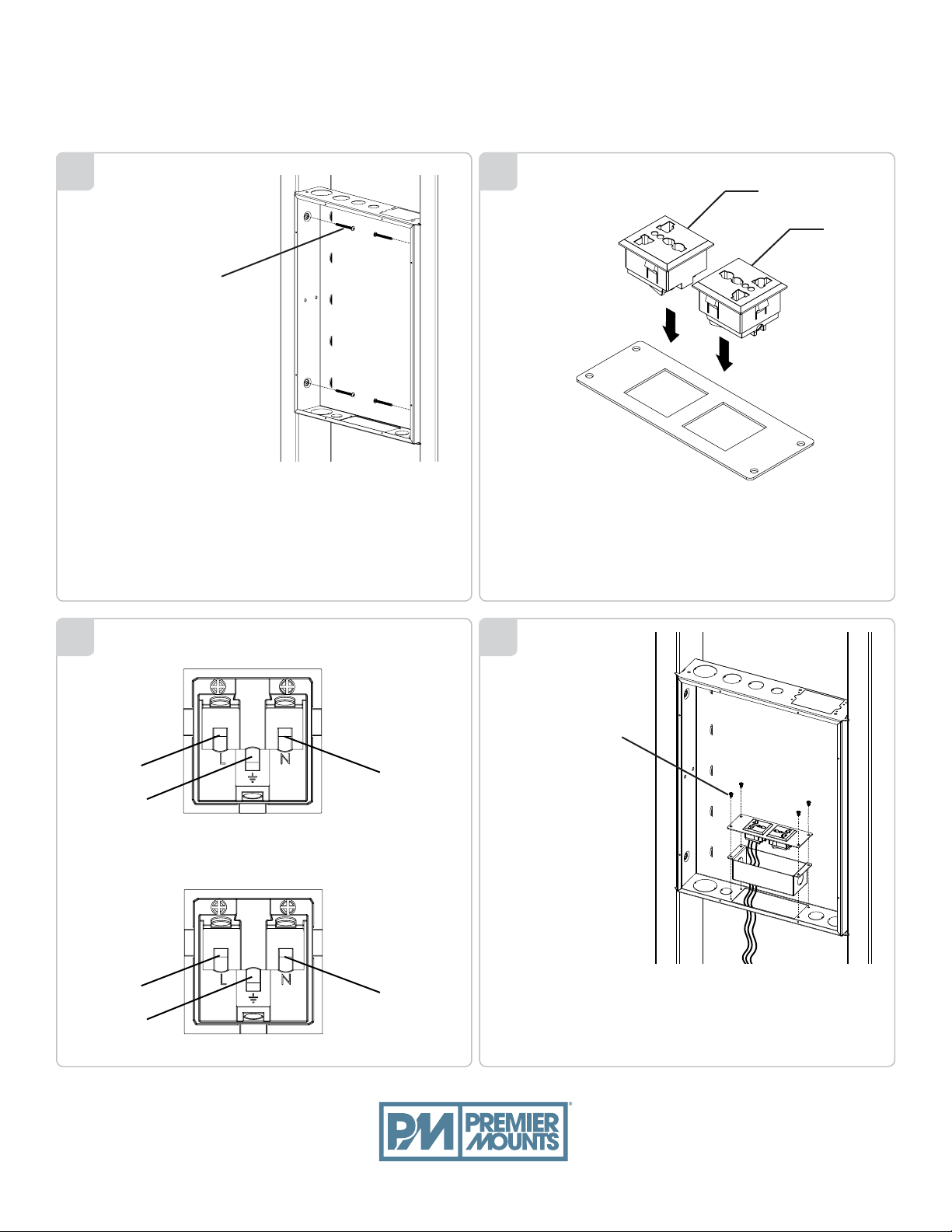

If you are mounting to only a single stud use two of each screw
and follow the same basic procedure as above.
4A
A
B
A. Media Player / Set top Box
B. Display
4B
Load Wire
Ground
Load Wire
Ground
110V
220V
Neutral Wire
Load Wire
5
(4) M4 x 6mm
Screw
1. Put the w ires up through J-Box.
2. Use a #2 Phillips screw driver to install four (4) M4 x 6mm
Scr ew.
Page 3
premiermounts.com | p. 800.368.9700 | e. [email protected]
9533-000-010-0X_1
