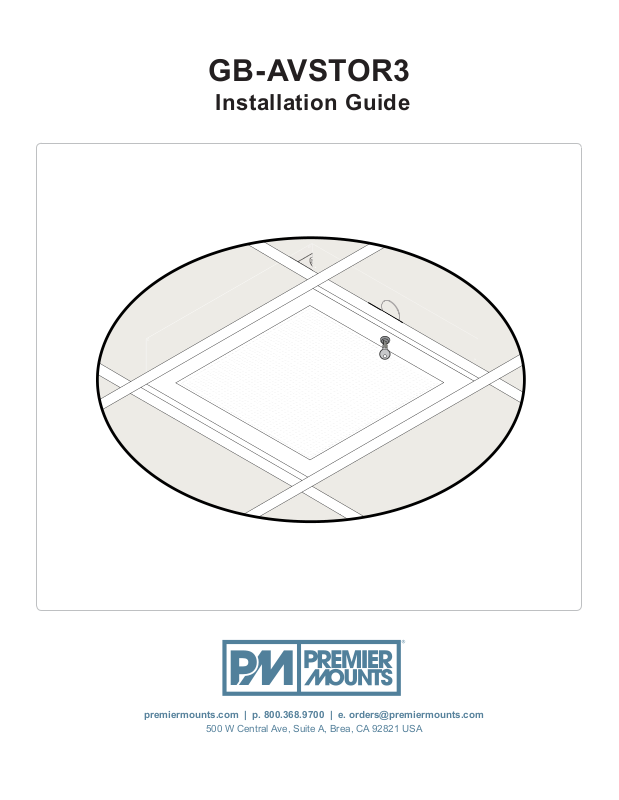

Page 1
GB-AVSTOR3
Installation Guide
premiermounts.com | p. 800.368.9700 | e. [email protected]
500 W Central Ave, Suite A, Brea, CA 92821 USA
Page 2
GB-AVSTOR3
Installation Guide
Weight Limit
Maximum Weight:
Warning Statements
PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS MUST BE READ AND
COMPLETELY UNDERSTOOD. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION
FOR FUTURE REFERENCE.
PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN MUST BE FOLLOWED, AS OUTLINED
IN THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE, SERIOUS
PERSONAL INJURY, OR EVEN DEATH.
SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE
PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.
PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS
PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY
UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS,
DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR
IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.
At least two people should perform the assembly procedure. Personal injury and/or property damage can result
from dropping or mishandling the projector.
This product is intended for indoor use only. Use of this product outdoors could lead to product failure and/or serious
personal injury.
Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of
impact.
50 lbs.
THE CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING
AT LEAST FOUR TIMES THE WEIGHT OF THE CEILING BOX. IF NOT,
THE CEILING STRUCTURE MUST BE REINFORCED.
Required for Installation:
Hand Held DrillLadder
1/8” Drill Bit
Included Components:
x1
Ceiling Box
x1
1/4” Masonry Drill
Bit
x2
Key
M5 X 8mm Phillips
Head Screw
Protective Eyewear
x12 x4 x4
Zip Ties 1/4” x 3” Eye Lag Screws M6 x 2.4” Eye Anchor Bolts
Hammer Screwdriver Pencil 24” T-Bar
QUICK LOCK CABLE KIT
x6
x1
Page 2
Equipment Mounting Tray
Page 3

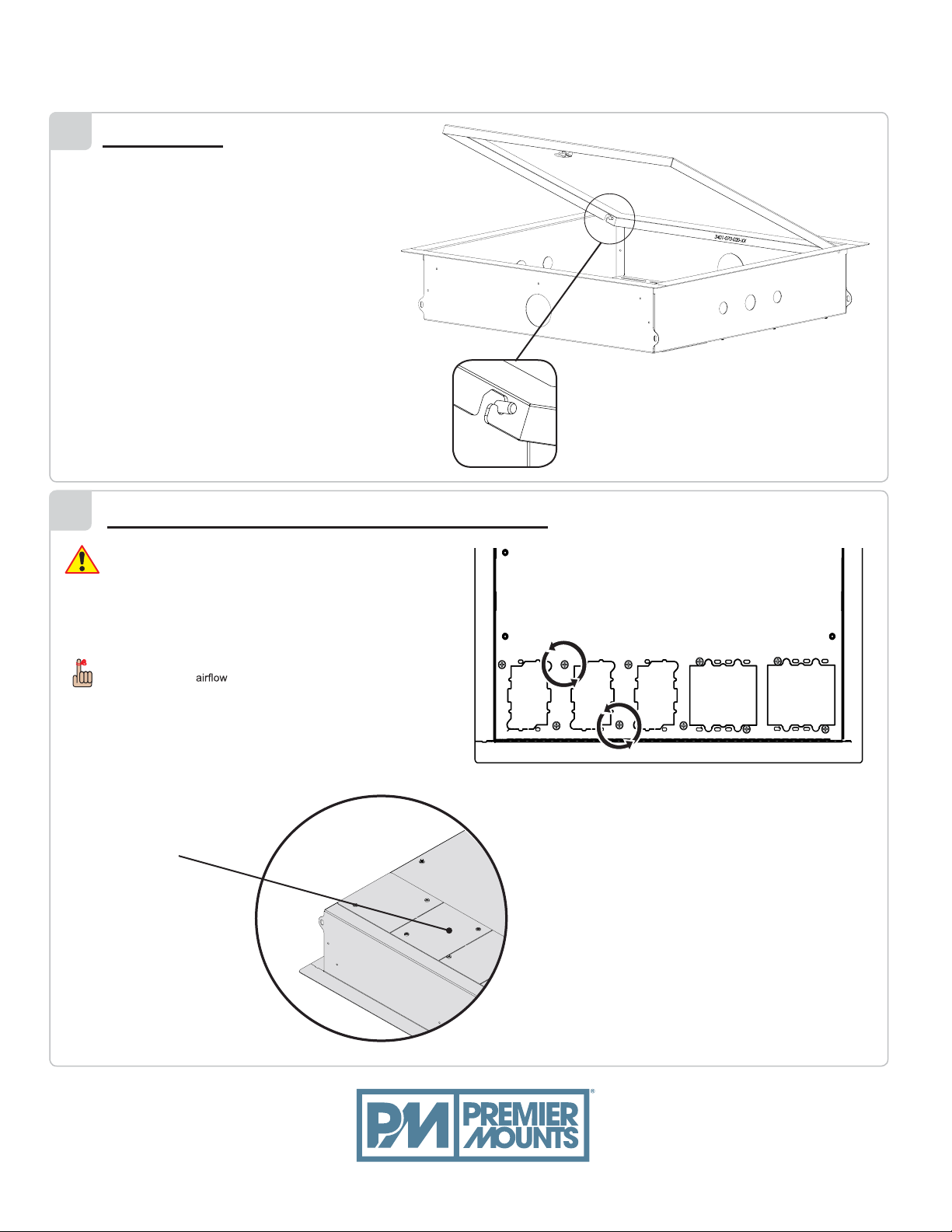

1
Lid Removal
1) Unlock and swing open the lid.
2) Push the lid in and away from the metal hinges
3) Push the lid toward the closest edge of the ceiling box.
4) Pull the lid carefully out from the ceiling box.
2
Removing the Electrical Knockouts (Optional)
GB-AVSTOR3
Installation Guide
Installation of the power must be done by an electrician.
1) Remove screws from around the desired electrical knockouts (Figure 1) to
detach their covers.
2) Remove the knockout covers from the top of the GB-AVSTOR3 (Figure 2).
3) Remove the knockouts.
If you have opened a knockout and no longer want to use it, re-attach
its cover to prevent
Detach the knockout cover after
removing its screws.
into the ceiling.
Figure 1
1- and 2-gang electrical knockouts inside the GB-AVSTOR3
Figure 2
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 3
Page 4
GB-AVSTOR3
Installation Guide

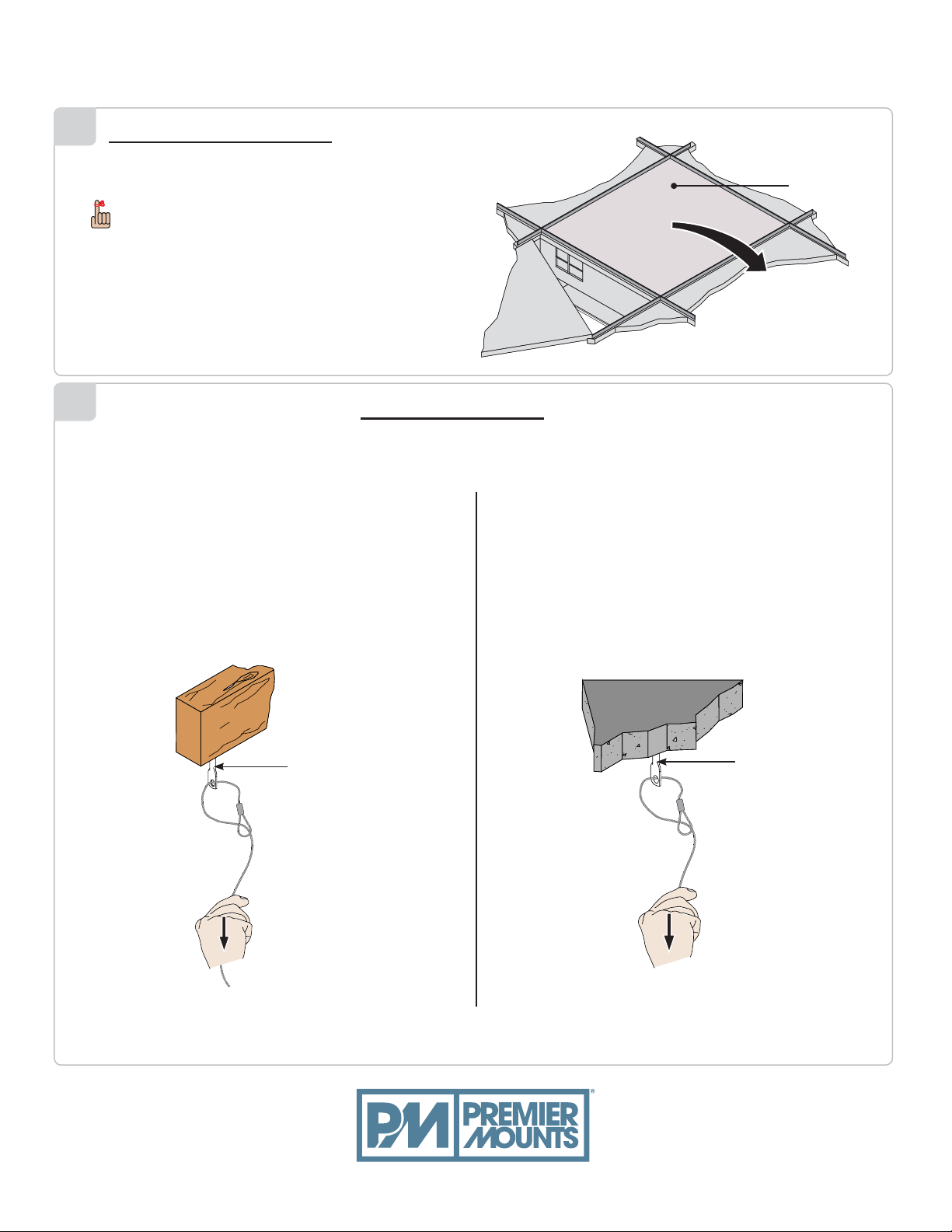

3
Ceiling Box Installation
1) Determine the placement of the GB-AVSTOR3.
2) Remove the ceiling tile where the ceiling box will be mounted.
Store the ceiling tile in a safe location in the event that it needs to
be reused.
Ceiling Tile
4
The ceiling box must be secured using the Quick Locks and 1/16” braided cables (supplied).
Ceiling Attachment
Wood Stud Ceiling Concrete Ceiling
1) Determine the mounting location.
2) Use a 1/8” drill bit to pre-drill the mounting holes.
3) Secure the four (4) 1/4” eye lag screws to the wood stud in the ceiling.
4) Run the open end of the 1/16” braided cable through the hole
in an eye lag screw.
5) Run the open end through the loop.
6) Pull the open end down until the 1/16” braided cable tightens
around the eye lag screw.
7) Repeat steps 4-6 for the remaining three mounting points.
Eye Lag Bolt
1) Determine the mounting location.
2) Use a 1/4” concrete drill bit to drill the mounting holes.
3) Place the concrete eye anchor bolts into the pre-drilled holes
and gently tap into place using a rubber mallet or hammer.
4) Run the open end and 1/16” braided cable through the hole in
an eye anchor bolt.
5) Run the open end through the loop.
6) Pull the open end down until the braided cable tightens around
the eye anchor bolt
7) Repeat steps 4-6 for the remaining three mounting points.
Eye Anchor Bolt
Page 4
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 5

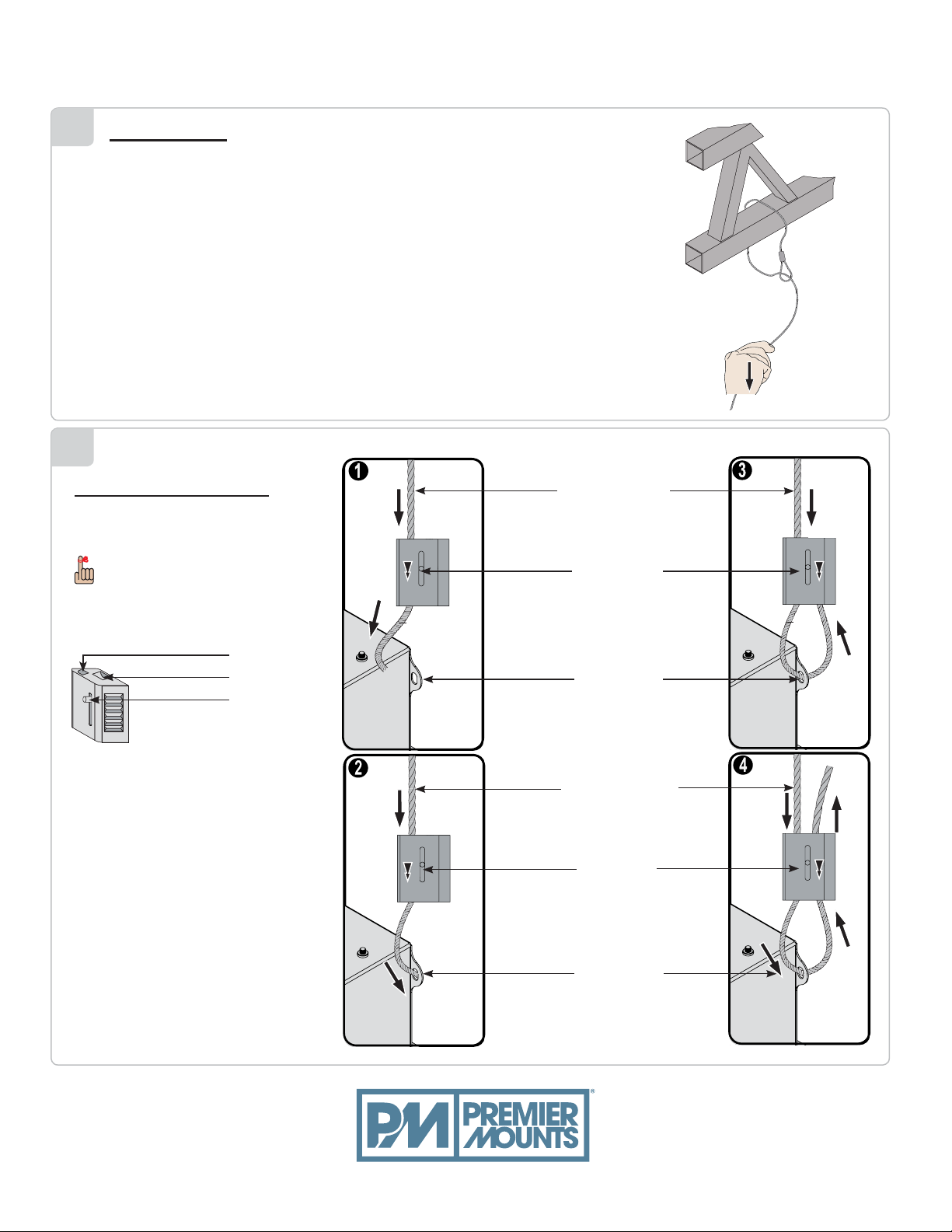

5
Truss Ceiling
1) Loop the braided cable around the truss.
2) Run the open end 1/16” braided cable through the loop.
3) Pull the open end down until the 1/16” braided cable tightens around the truss.
4) Repeat steps 1-3 for the remaining three mounting points.
6
GB-AVSTOR3
Installation Guide
Quick Lock Operation
Please follow the steps below in numerical
order 1, 2, 3, and 4 to correctly install the Quick
Lock Cable Kit.
To Release or relieve tension on the 1/16”
braided cable, slide the release pin to
disengage.
Cable Output
Cable Input
Release Pin
1/16” Braided Cable
Release Pin
Mounting Hole
1/16” Braided Cable
Release Pin
Mounting Hole
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 5
Page 6
GB-AVSTOR3
Ceiling
Framework
Installation Guide

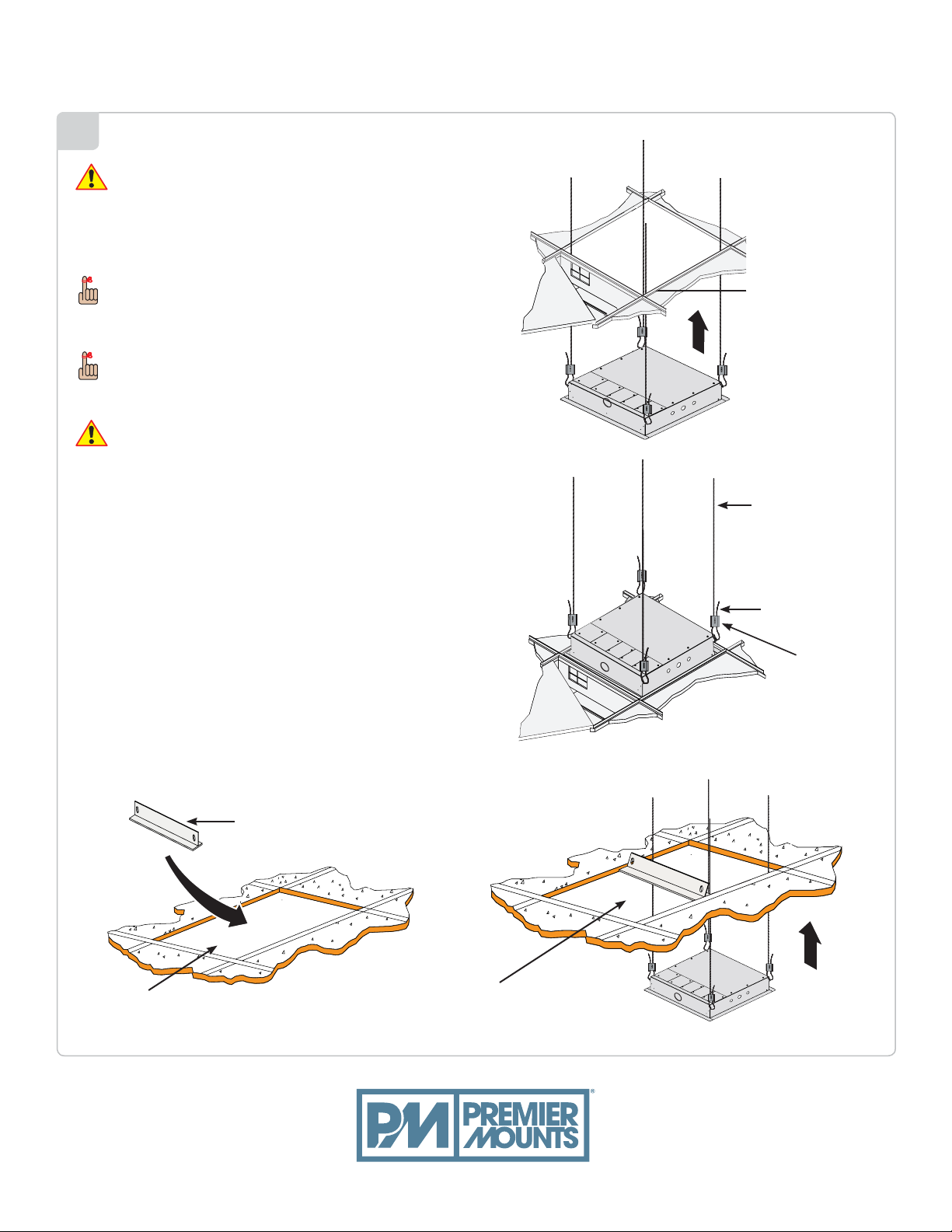

7
It is recommended that the following steps be performed by two people.
1) Lift the ceiling box from the exposed ceiling framework until the
ceiling box’s outer lip rests against the bottom of the ceiling
framework (Figure 1).
2) Adjust the 1/16” braided cable tension, but do not over tighten.
When adjusting the tension of the weight-bearing side of the Quick Lock,
the 1/16” braided cable must be pulled through the Quick Lock until the
desired tension is attained.
3) When you have the desired tension, pull the 1/16” braided cable through
the other side of the Quick Lock.
Once the tension has been adjusted, be sure that there a minimum of
6” of excess 1/16” braided cable on the non-weight bearing side of the
Quick Lock (Figure 2).
4) Use cable cutters to remove any remaining 1/16” braided cable (optional).
If you installing the GB-AVSTOR3 through a 24” x 48” ceiling tile opening,
attach a 24” T-bar frame ( commercially available) in the 24” x 48” ceiling tile
frame for support and place a 2’ x 2’ ceiling tile adjacent to the GB-AVSTOR3
(Figures 3 and 4).
Ceiling Framework
Figure 1
1/16” Braided Cable To
Ceiling Attachment
24” x 48” Ceiling Tile
Opening
24” T-Bar Frame
6” Excess 1/16”
Braided Cable
Quick Lock
Figure 2
Figure 3 Figure 4
The replacement 2’ x 2’
ceiling tile goes here.
Page 6
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 7

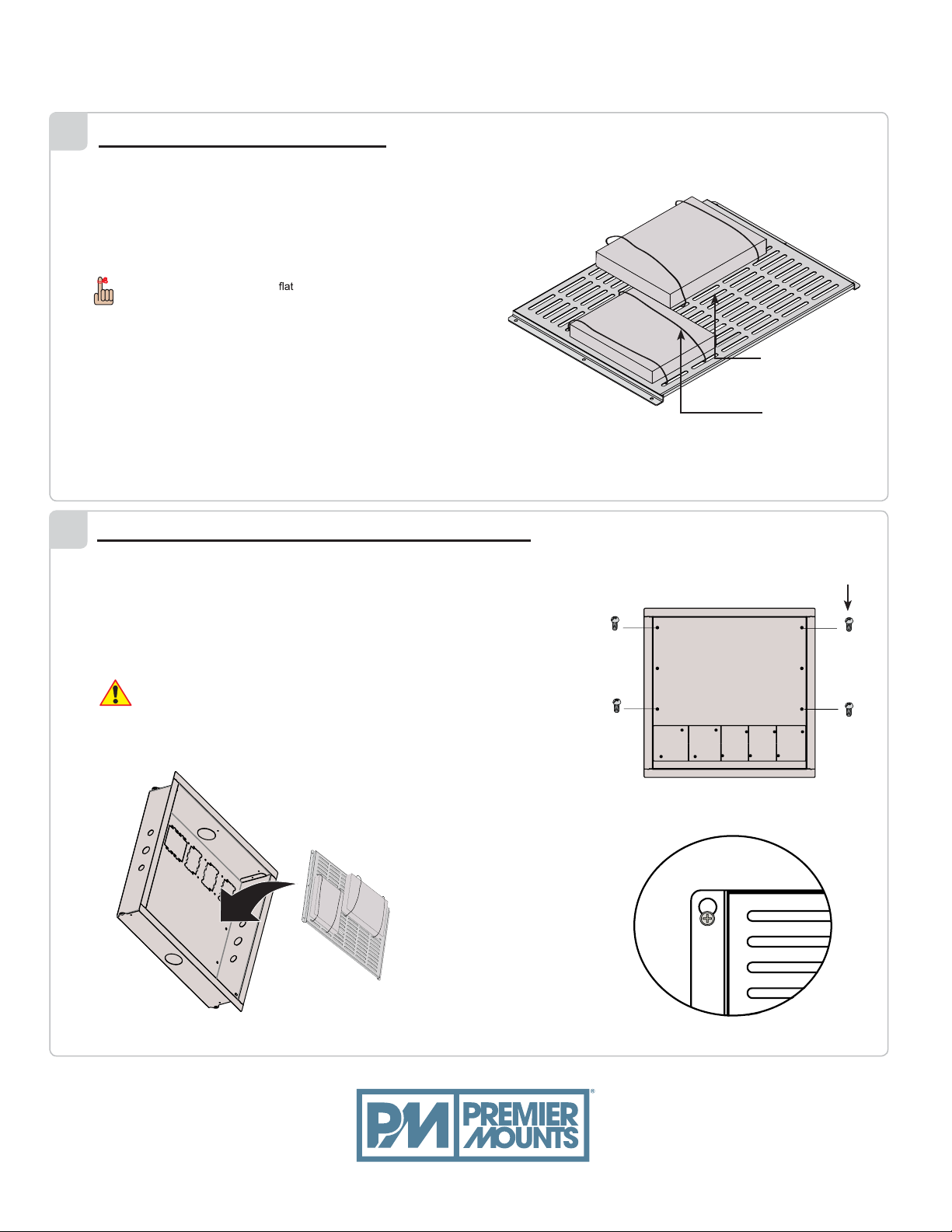

8
Attaching Equipment to the Tray
1) Place your electronic components onto the mounting tray.
2) Align the electronic components so that the weight is distributed as
evenly as possible.
3) Run the zip ties through the mounting slots on the tray, underneath
the mounting tray and up though the mounting slot on the other side
of the electronic component.
4) Tighten the zip tie down and cut off any excess zip tie.
GB-AVSTOR3
Installation Guide
As a reminder, small screws and
attach electronic components to the grid.
Attaching the Mounting Tray to the GB-AVSTOR3
9
1) Insert four (4) M5 x 8mm Phillips head screws loosely into the outer holes
inside the GB-AVSTOR3 (Figure 1).
2) Place the mounting tray into the middle section of the GB-AVSTOR3 (Figure 2).
3) Hook the mounting tray onto the heads of the M5 x 8mm Phillips head screws on the
GB-AVSTOR3 (Figure 3).
4) Insert two (2) M5 x 8mm Phillips head screws into the middle mounting holes of the
mounting tray.
5) Use a Phillips tip screwdriver to tighten all six (6) screws.
Do not over tighten the mounting screws.
washers may also be used to
Mounting Tray
Zip Tie
M5 x 8mm Phillips head
Screw
Figure 2
premiermounts.com | p. 800.368.9700 | e. [email protected]
Figure 1
Figure 3
Page 7
Page 8
GB-AVSTOR3
Installation Guide

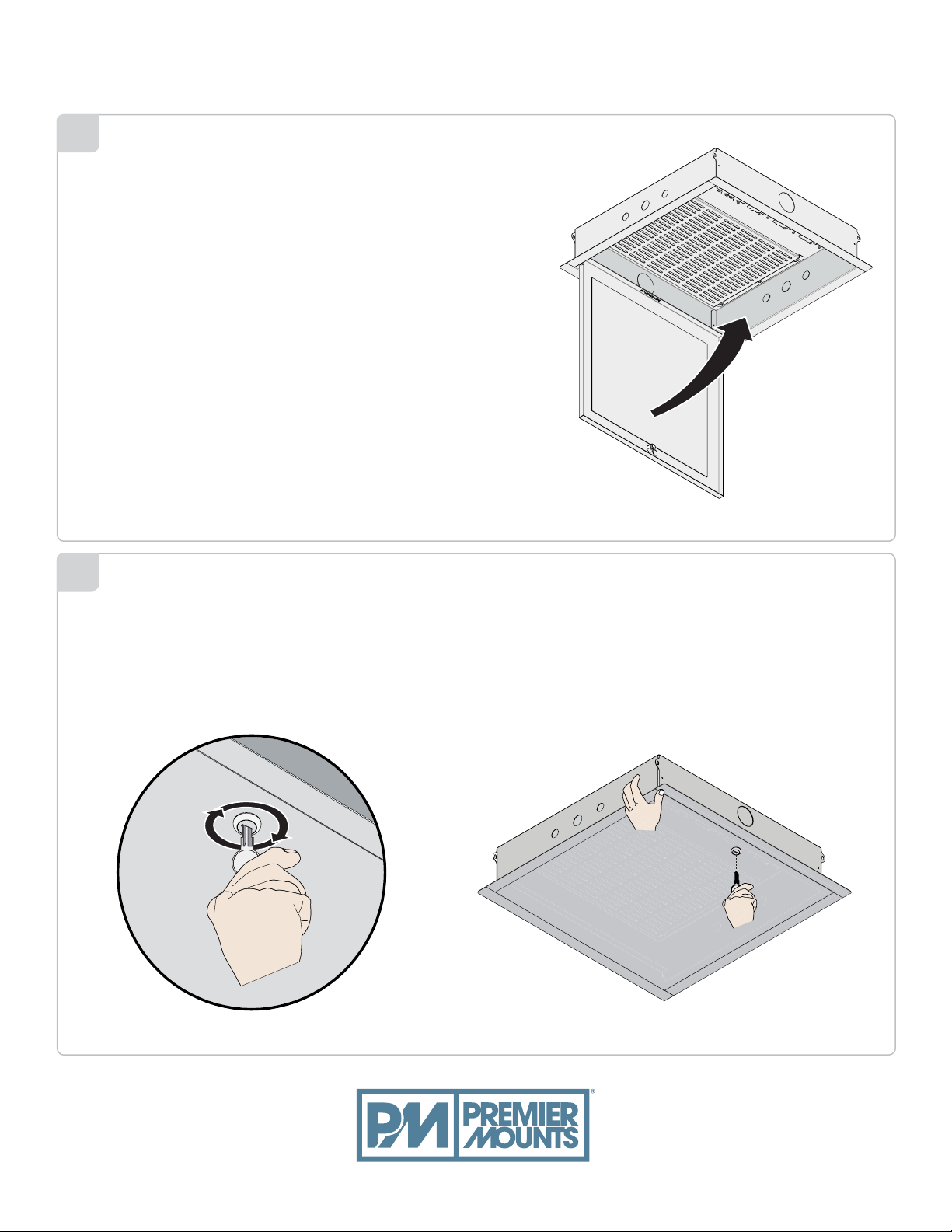

10
1) Re-attach the ceiling box lid to the ceiling box.
2) Swing the ceiling box lid up into place.
11
1) Hold the lid in place.
2) Use a key (supplied) to lock the lid in place.
3) Do not release the ceiling box lid until you are sure
that the lock has been engaged and the lid is secure.
Page 8
premiermounts.com | p. 800.368.9700 | e. [email protected]
Page 9
PREMIER MOUNTS
LIMITED LIFETIME WARRANTY
What and Who is Covered by this Limited Lifetime Warranty
Premier Mounts warrants all mounting products to be free from defects in material and workmanship for the
lifetime of the original installation of the product.
What Premier Mounts Will Do
At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will
be shipped to you at no charge, but you must pay any related labor costs.
What is Not Covered: Limitations
Premier Mounts disclaims any liability for damage to mounts, adapters, displays, projectors, other property,
products.
NOTWITHSTANDING ANYTHING TO THE CONTRARY IN THIS WARRANTY, THIS WARRANTY IS
LIMITED TO FIVE YEARS FROM THE DATE OF PURCHASE IN THE EVENT THAT THE WARRANTED PRODUCT IS COMMERCIALLY RENTED OUT.
electrical items, are backed by a 3-year warranty.
Premier Mounts disclaims all other warranties, express or implied, including warranties of merchantability and
including but not limited to, inability to use its products or labor costs for removing and replacing defective
products or parts. Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
What Customers Must Do for Warranty Service
If you discover a problem that you think may be covered by the warranty, you must report it in writing to the
address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer
purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,
the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts
Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.
PREMIER MOUNTS
ATTN: Warrenty Claims
500 W Central Ave, Suite A
Brea, CA 92821
How State Law Applies
Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this
document is subject to change without notice or obligation of any kind. Premier Mounts makes no representation of warranty, expressed or implied, regarding the
information contained herein. Premier Mounts assumes no responsibility for accuracy
PREMIER MOUNTS
©
500 W Central Ave, Suite A
Brea, CA 92821
USA & CANADA
Phone: 800-368-9700
Fax: 800-832-4888
Page 9 9534-500-001-0X_5
