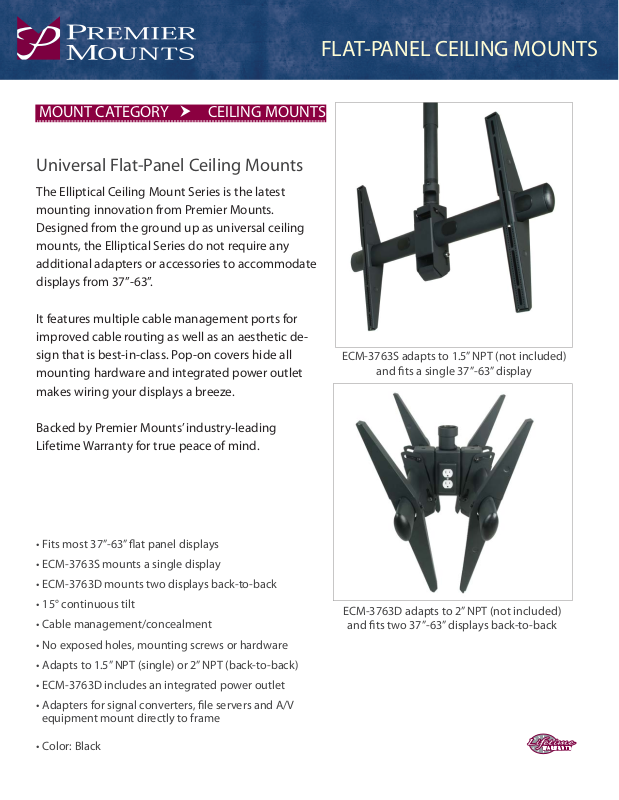

Premier Mounts ECM-3763D, ECM-3763S User Manual

MOUNT CATEGORY  CEILING MOUNTS

Universal Flat-Panel Ceiling Mounts

The Elliptical Ceiling Mount Series is the latest
mounting innovation from Premier Mounts.
Designed from the ground up as universal ceiling
mounts, the Elliptical Series do not require any
additional adapters or accessories to accommodate
displays from 37”-63”.

It features multiple cable management ports for
improved cable routing as well as an aesthetic de-

FLAT-PANEL CEILING MOUNTS

sign that is best-in-class. Pop-on covers hide all
mounting hardware and integrated power outlet
makes wiring your displays a breeze.

Backed by Premier Mounts’ industry-leading
Lifetime Warranty for true peace of mind.

• Fits most 37”-63”  at panel displays

• ECM-3763S mounts a single display

• ECM-3763D mounts two displays back-to-back

• 15° continuous tilt

• Cable management/concealment

• No exposed holes, mounting screws or hardware

ECM-3763S adapts to 1.5” NPT (not included)

and  ts a single 37”-63” display

ECM-3763D adapts to 2” NPT (not included)

and  ts two 37”-63” displays back-to-back

• Adapts to 1.5” NPT (single) or 2” NPT (back-to-back)

• ECM-3763D includes an integrated power outlet

• Adapters for signal converters,  le servers and A/V
equipment mount directly to frame

• Color: Black

Part Number: ECM-3763S

Part Number: ECM-3763D

506.06

19.924

914.40

36.000

632.18

24.889

914.40

36.000

253.55

9.982

TOP VIEW

253.54

9.982

550.71

21.682

Dimensions are in inches and millimeters [mm].

3130 East Miraloma Ave. , Anaheim, CA 92806

FRONT VIEW

SIDE VIEW

800.368.9700 | www.mounts.com
