INSTALLATION INSTRUCTIONS
NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada
Phone: 1.800.368.9700
Fax: 1.800.832.4888
Other Locations
Phone: (001).714.632.7100
Fax: (001).714.632.1044
Short-Throw Projector Wall Mount
Model: CPD10WALLARM
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
9533-019-A03-00
AUSTRALIA AND OCEANIA
Distributed by Amber Technology Limited
Phone: +61 2 9452 8600 Sydney Offi ce
Email: mounts@ambertech.com.au
Unit B, 5 Skyline Place
Frenchs Forest NSW 2086
Australia
Toll Free: 1-800-368-9700
CPD10WALLARM
Contents
Weight Capacity. ........................................................................................................................................................ 2
Warning Statements. ................................................................................................................................................. 2
Installation Tools. ....................................................................................................................................................... 3
Parts List.................................................................................................................................................................... 3
Determining the Installation Height............................................................................................................................ 4
Wood Stud Installation. .............................................................................................................................................. 5
Removing the End Cover........................................................................................................................................... 6
Attaching the Projector Arm. ...................................................................................................................................... 7
Extension Arm Installation. ........................................................................................................................................ 8
Adjustable Mounting Bracket Installation................................................................................................................... 8
Adjustable Mounting Bracket Installation (cont.) . ..................................................................................................... 9
Base Box Installation. ................................................................................................................................................ 9
Projector Bracket Installation. .................................................................................................................................. 10

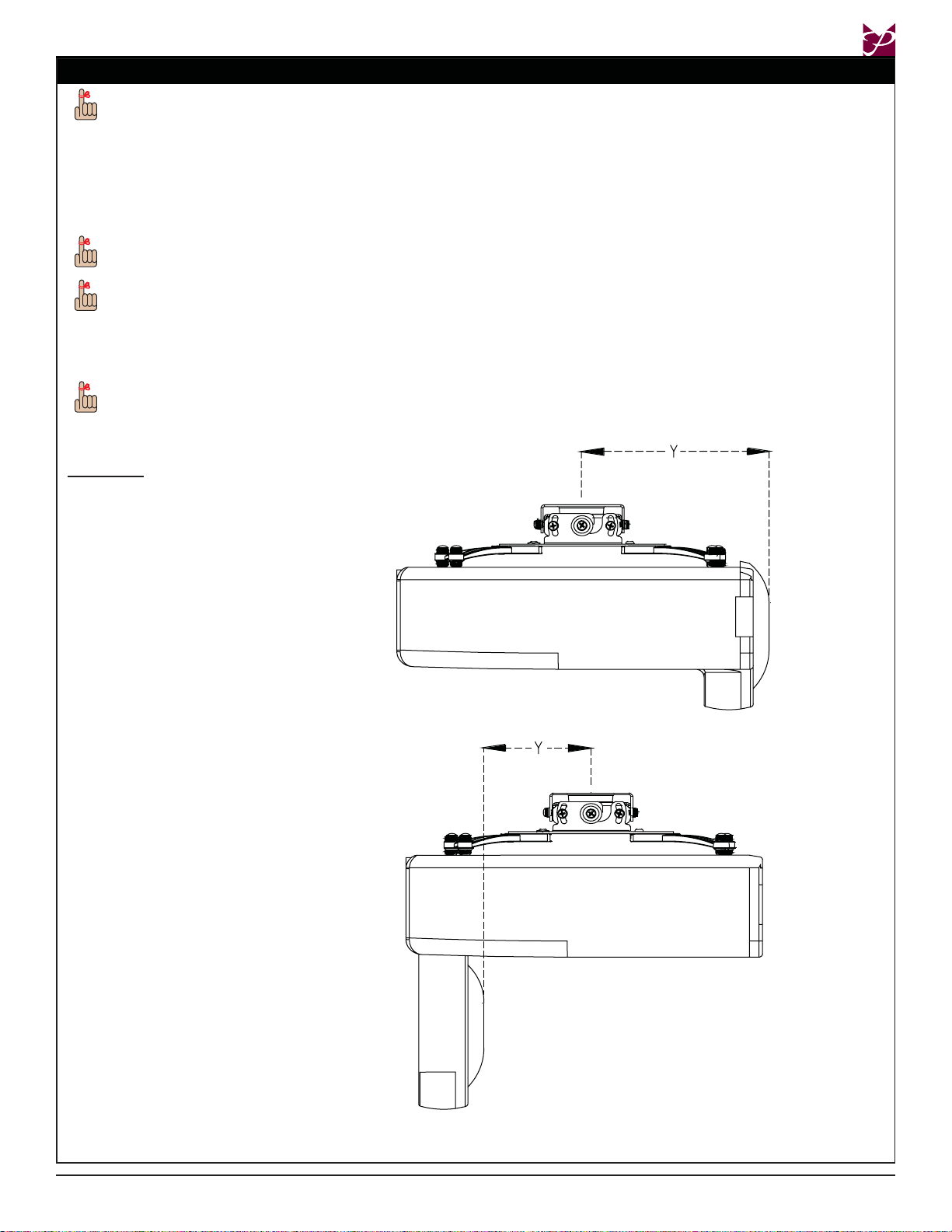

Throw Distance Calculation. .....................................................................................................................................11

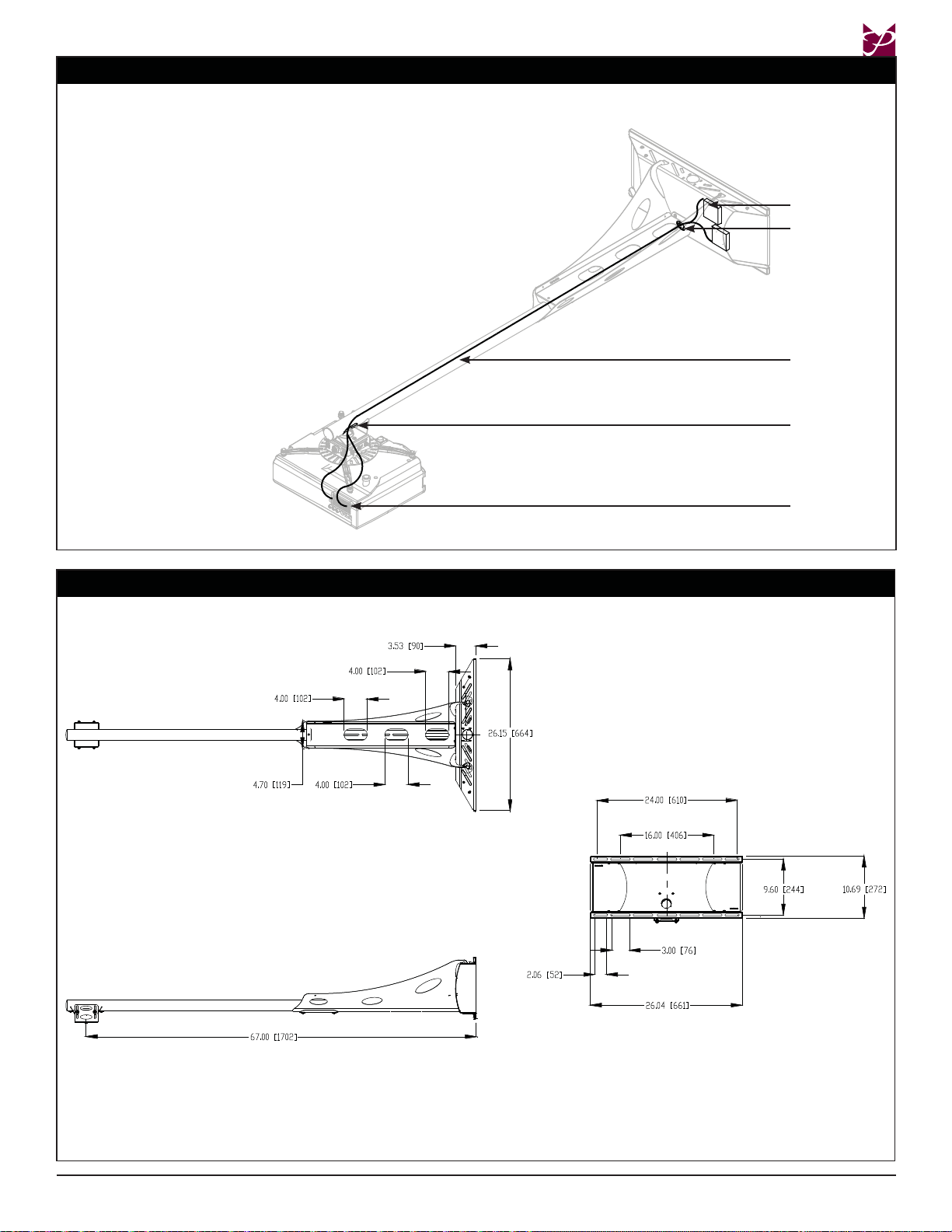

Utilizing the Storage Feature. .................................................................................................................................. 12
Cable Management. ................................................................................................................................................ 13
Technical Specifi cations. ......................................................................................................................................... 13
Warranty. ................................................................................................................................................................. 14
Disclaimer. ............................................................................................................................................................... 14
Weight Capacity
Maximum Projector Weight:
50lbs.
THE WALL STRUCTURE MUST BE CAPABLE OF HOLDING
FIVE (5) TIMES THE WEIGHT OF THE PROJECTOR. IF NOT,
THEN THE WALL STRUCTURE MUST BE REINFORCED.
Warning Statements
PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS MUST BE READ AND
COMPLETELY UNDERSTOOD. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION
FOR FUTURE REFERENCE.
PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN MUST BE FOLLOWED, AS OUTLINED
IN THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE, SERIOUS
PERSONAL INJURY, OR EVEN DEATH.
SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE
PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.
PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS
PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY
UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS,
DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR
IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.
At least two qualifi ed people should perform the assembly procedure. Personal injury and/or property damage can result
from dropping or mishandling the projector.
If mounting to wall studs or ceiling studs, make sure that the mounting screws are anchored into the center of the wall studs
or ceiling studs. Use of an edge-to-edge stud fi nder is recommended.
Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there
are no electrical wires in wall. Cutting or drilling into an electrical line may cause serious personal injury.
Make sure there are no water or natural gas lines inside the wall where the mount is to be located. Cutting or drilling into a
water or gas line may cause severe property damage or personal injury.
This product is intended for indoor use only. Use of this product outdoors could lead to product failure and/or serious
personal injury.
Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of
impact.
Contact Premier Mounts with any questions:
(800) 368-9700
techsupport@mounts.com
Page 2
Visit Premier Mounts website at http://www.mounts.com Installation Instructions
CPD10WALLARM
Installation Tools
The following tools may be required, dependent upon your particular installation. These tools are not provided by
Premier Mounts, but you can purchase them at your local hardware store.
2
Phillips Tip
Screwdriver
Hand Held Drill
½˝ Socket and
Socket Wrench
Pencil
¼˝ Wood Drill Bit Electronic Stud Finder
Protective Eyewear
1
Tape Measure
M5
M3
Security Wrenches
Level
Parts List
Your Premier Mounts product is shipped with all proper installation hardware and components. Make sure that none
of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged,
please stop the installation and contact Premier Mounts (800) 368-9700.
CPD10WALLARM Media Box Hardware
Projector Bracket Hardware Hardware
Wall Plate
(Qty 1)
End Cover
(Qty 1)
M6 x 12mm Security
Head Screws (Qty 2)
Arm Assembly
Wall Plate Covers
M6 Flat Washer
(Qty 2)
(Qty 1)
(Qty 1)
Extension Arm
(Qty 1)
Adjustable Mounting Assembly
Pre-Assembled (Qty 1)
Square Washers
(Qty 4)
External Slide Plate
(Qty 1)
Projector
Bracket (Qty 1)
M4 x 10mm Combo Screw
(Qty 4)
M4 x 10mm Lock-It™
Security Screw
(Qty 4)
Inner Slide Plate
(Qty 1)
M6 Set Screws
Non-Security
(Qty 1)
Security
(Qty 1)
M5 x 8mm Security Head
Screws (Qty 7)
M6 x 25mm Security
Head Screws (Qty 2)
5
˝ x 3˝ Lag Bolts (Qty 4)
16
¼˝ Nylon Spacer
(Qty 4)
Installation Instructions Visit Premier Mounts website at http://www.mounts.com Page 3
Determining the Installation Height
In order to determine the installation height and
throw distance, the projector bracket must be
mounted to the projector. Please refer to the
Installation Instructions prior to performing the
following steps.
Refer to the projectors User’s Manual to
determine the offset of the projector lens to the top
of the screen/whiteboard (B).
Measure distance from center of lens to the top of
the bracket (C).
Add the distance from the ground to the top of
the screen (A). Add the projector manufacturers
recommended offset from the projector manual
(B). Add the measurement from Step 1 (C), and
then add 2.5” to the total.
(Example: A + B + C + 2.5” = ?)
Add the measurements to determine the mounting
height mark. Place a mark at the top of the total
calculated height measurement starting from the
ground up. This mark will represent the lower
edge of the wall plate.
CPD10WALLARM
Legend
A - Distance from ground to the top of the
screen/whiteboard (viewable area).
B - Manufacturers recommended offset
measurement. This measurement will
be listed in the Users Manual.
C - Center of the lens to the top of the
projector bracket.
Add 2.5” to the calculated total.
This total distance will be the location for
the bottom rail on the wall plate.
Projector
Projector
Bracket
Lens
Mark
Top of
Screen
Page 4
Ground
Visit Premier Mounts website at http://www.mounts.com Installation Instructions
CPD10WALLARM
Wood Stud Installation
Step 1
THE EXACT CENTER OF THE STUD MUST
BE LOCATED FOR CORRECT AND SAFE
INSTALLATION.
Do NOT overtighten lag bolts when attaching the
mount to the wall. Improper installation may result
in personal injury or damage to property.
Use a stud fi nder to determine the exact center of wall
studs in the vicinity of the wall plate.
Step 2
Use a pencil to mark the fi rst mounting point, just
above your height mark (from the "Determining the
Installation Height" section).
X
X
X
X
Mounting Point
Mark
Height Mark
(from page 4)
Step 3
Use the level to make sure the wall plate is level
from side to side.
Place the wall plate over the fi rst mounting point
mark and use a pencil to mark the rest of the
mounting points.
Four (4) mounting points must be used. Two (2)
upper mounting points and two (2) lower
mounting points.
Step 4
Use a ¼” drill bit and portable drill to drill the pilot holes.
Marking
Level
X
X
X
X
X
X
Wall Plate
Installation Instructions Visit Premier Mounts website at http://www.mounts.com Page 5

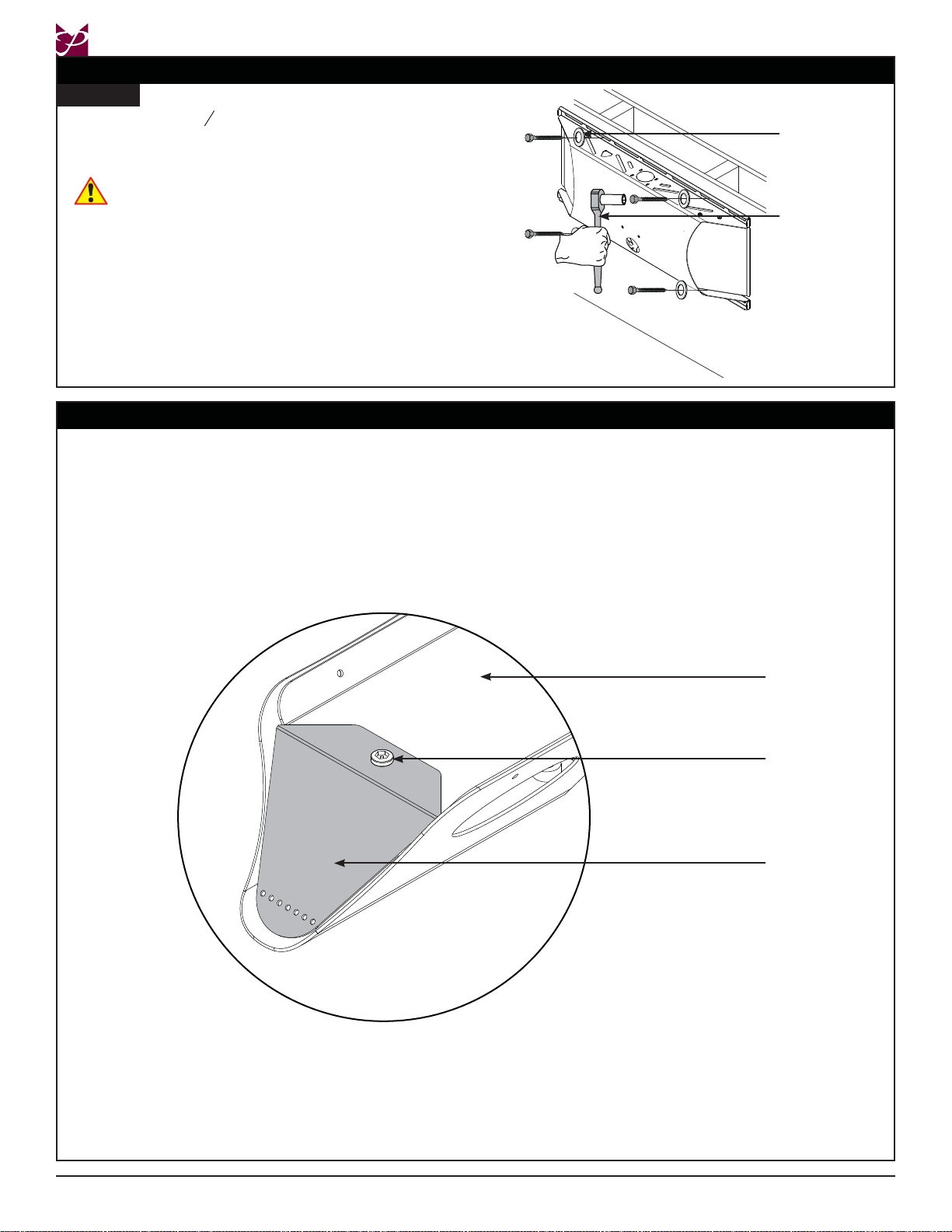

Wood Stud Installation (cont'd)
Step 5
5
Use four (4)
washers to mount the wall plate to the wooden
studs. Use a ½” socket and socket wrench to
fi nish this step.
Do not overtighten the lag bolts.
Insert and gently tap the wall plate covers into
place.
Proceed to the "Removing the End Cover" section.
˝
x 3” lag bolts and four (4) fl at
16
Removing the End Cover
Locate the end cover.
Remove the M5 x 8mm security screw using a M5
security wrench (supplied).
Discard the end cover.
Proceed to the "Attaching the Projector Arm" section.
CPD10WALLARM
Lag Bolt and
Flat Washer
X
X
½˝ Socket and
Wrench
CPD10WALLARM
M5 x 8mm
Security Screw
End Cover
Page 6
Visit Premier Mounts website at http://www.mounts.com Installation Instructions
CPD10WALLARM

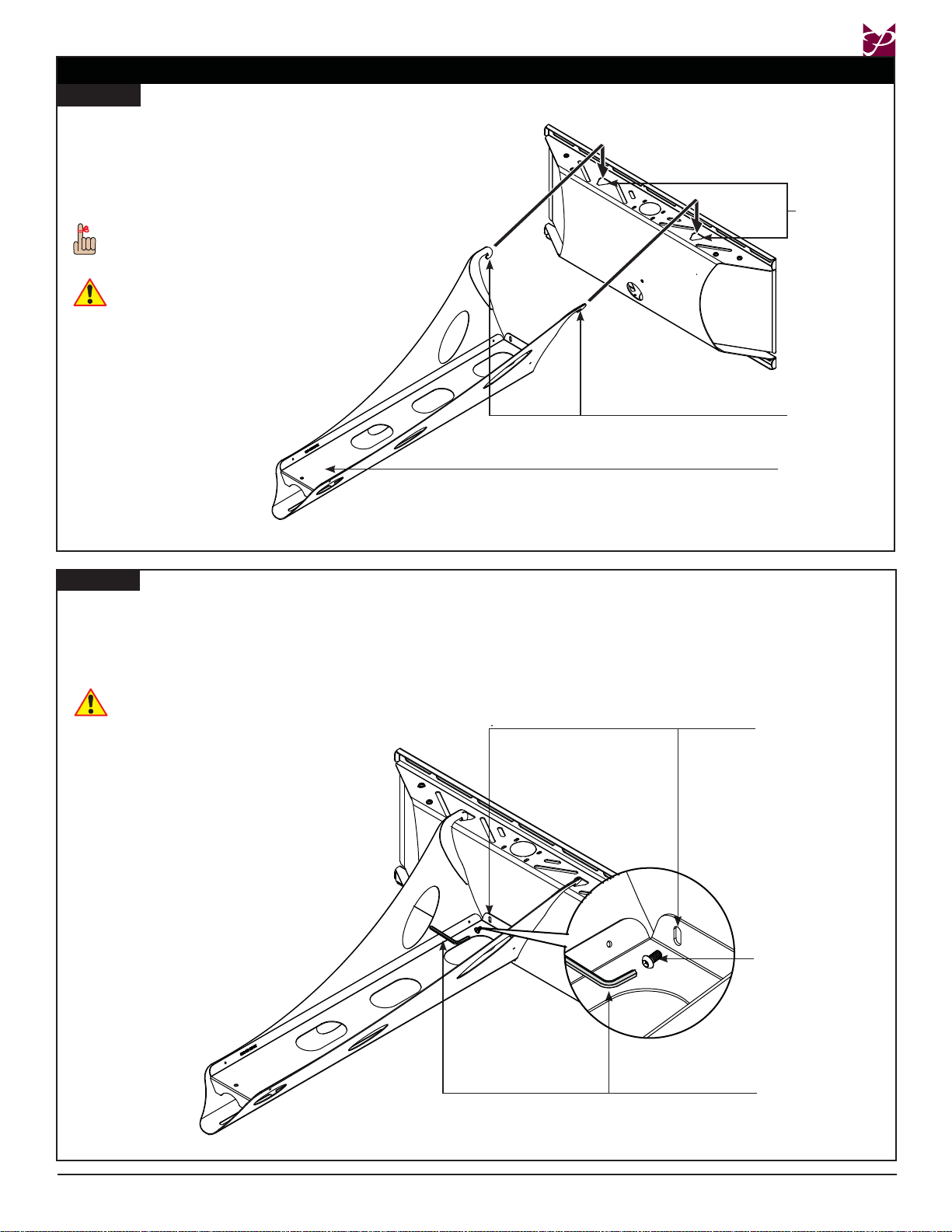

Attaching the Projector Arm
Step 1
Locate the mounting hook cutout on the top of the
wall plate.
Tilt the arm slightly and gently insert the mounting
hooks into the mounting hook cutouts.
Slowly lower and let the projector arm rest against
the wall plate.
If using the storage feature of the product, it may
be easier to route any wiring at this time (please
see the "Cable Management" section).
MAKE SURE THE PROJECTOR ARM IS FULLY
SEATED BEFORE RELEASING THE UNIT.
Mounting Hook
Cutout
Mounting Hooks
CPD10WALLARM
Step 2
Locate the two (2) lock mounting points on the
projector arm. These two points will be aligned
with the lock mounting points on the wall plate.
Using a security wrench, insert and tighten two (2)
M5 x 8mm security head screws.
Do NOT overtighten these screws.
Proceed to the "Extension Arm Installation" section.
Lock Mounting Point
M5 x 8mm Security
Head Screw
Security Wrench
Installation Instructions Visit Premier Mounts website at http://www.mounts.com Page 7
CPD10WALLARM

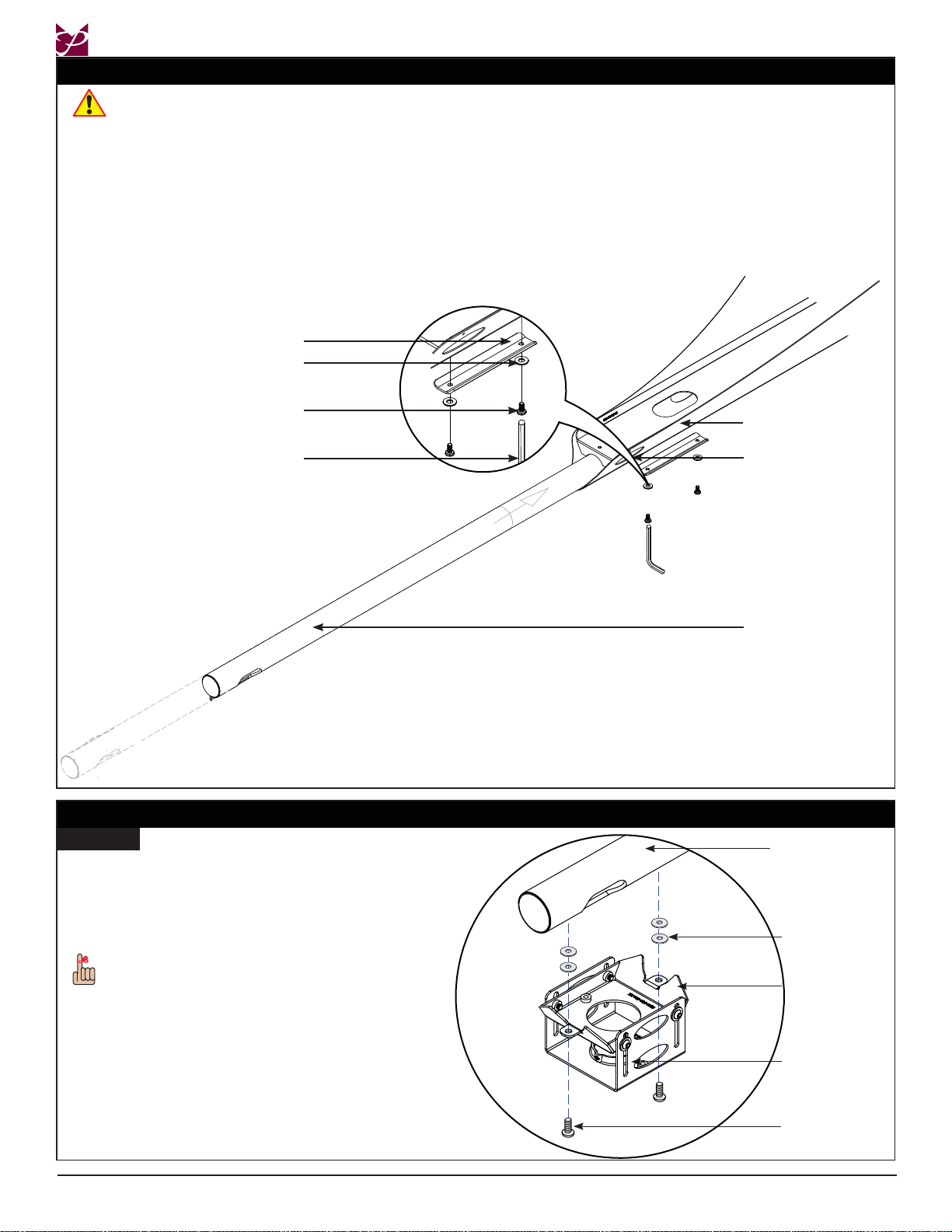

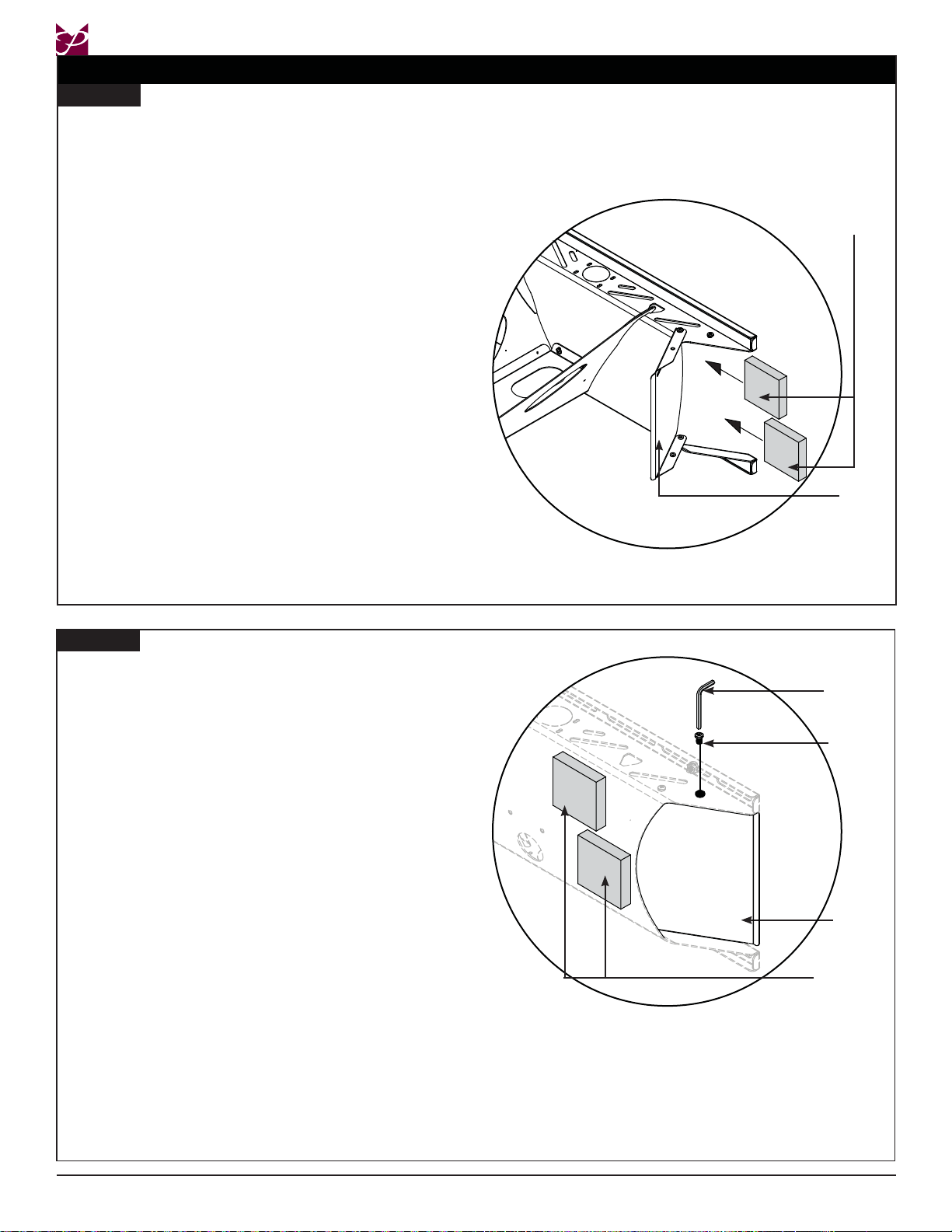

Extension Arm Installation
Please see the Operator’s Manual to determine the correct throw distance (the distance from the projector to the
screen). The throw distance must be determined prior to mounting the projector.
Slide the extension arm into the open end of the CPD10WALLARM (the front of the mount).
Adjust length so that the center of the adjustable mounting bracket matches the throw distance calibration.
Line up the mounting holes on the extension arm with the mounting slots on the CPD10WALLARM.
Using a screwdriver, insert and fi nger-tighten two (2) M6 x 12mm security head screws and M6 fl at washers
through the external slide plate.
Attach the projector.
Proceed to the "Adjustable Mounting Bracket Installation" section.
External Slide Plate
M6 Flat Washers
M6 x 12mm Security Screw
Security Wrench

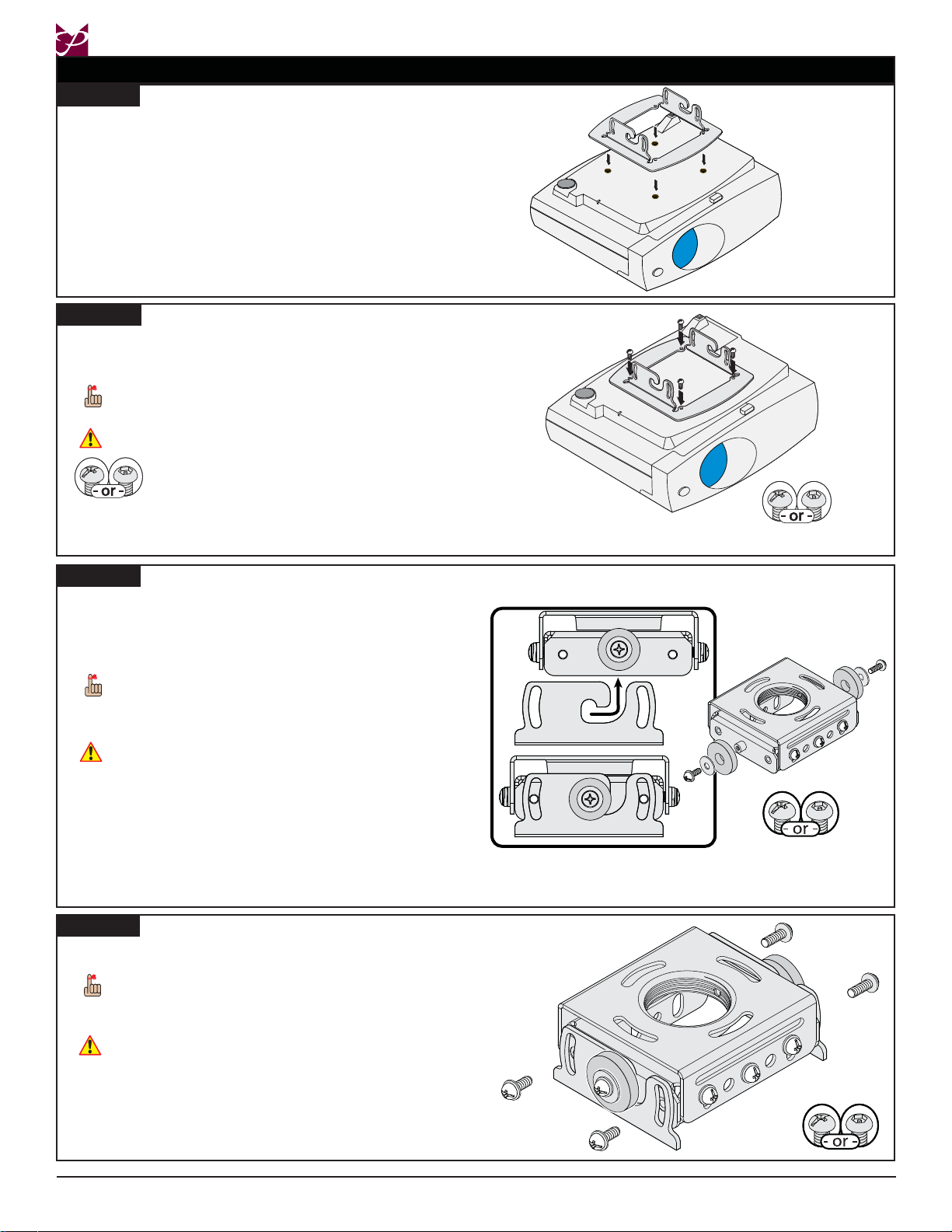

Adjustable Mounting Bracket Installation
Step 1
Raise the adjustable mounting bracket into
position.
Align the mounting holes of the upper mounting
plate with the mounting holes on the projector
arm.
Four (4 - two per screw) ¼˝ nylon washers must
be placed between the adjustable mounting
bracket and the projector arm (see illustration to
the right).
CPD10WALLARM
External
Slide Plate
Extension Arm
CPD10WALLARM
¼˝ Nylon
Washer
Upper Mounting
Plate
Page 8
Adjustable
Mounting
Bracket
M6 x 25mm
Security Screw
Visit Premier Mounts website at http://www.mounts.com Installation Instructions
CPD10WALLARM

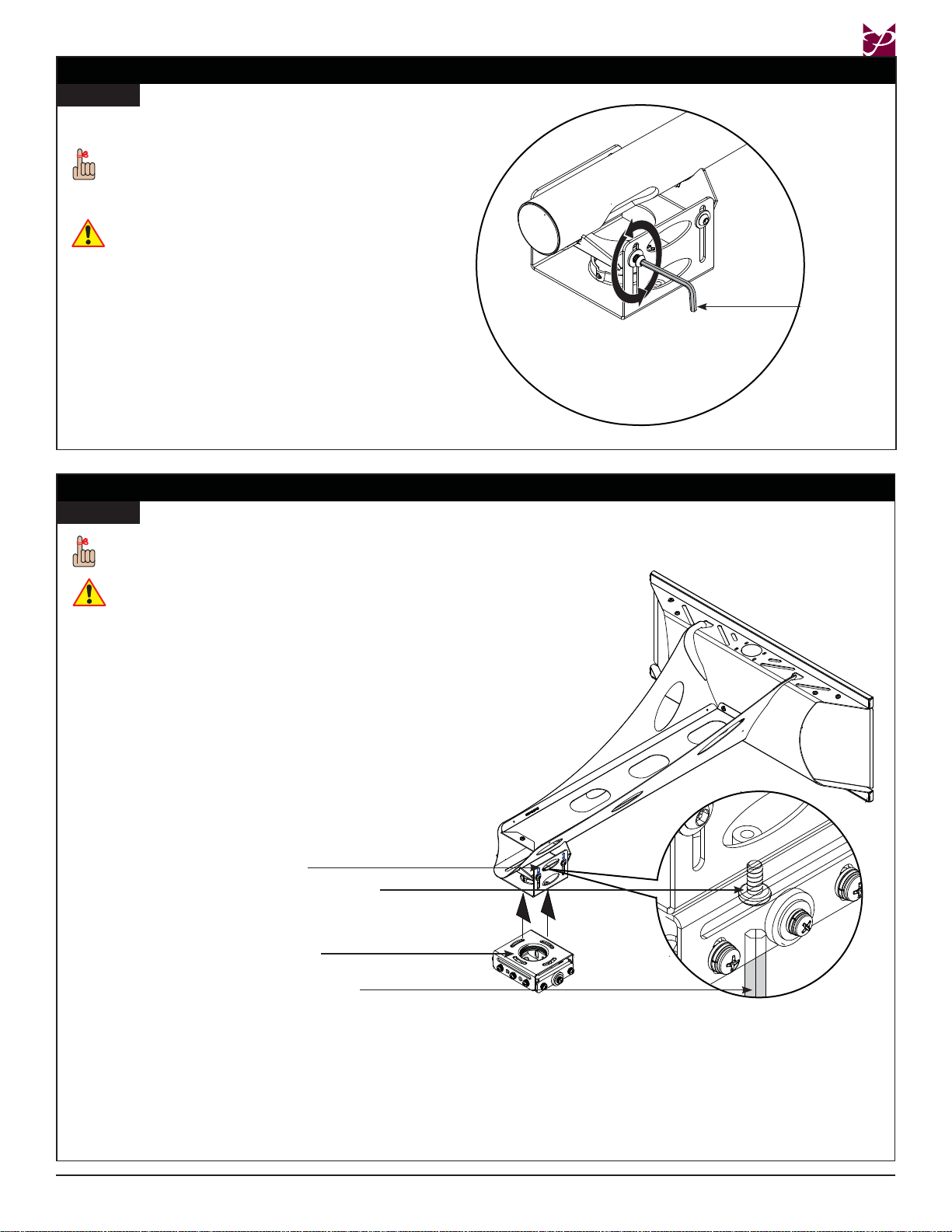

Adjustable Mounting Bracket Installation (cont.)
Step 2
Secure and fi ngertighten two (2) M6 x 16mm
security head screws.
If the adjustable mounting bracket needs to be
adjusted, the four (4) M6 x 12mm security screws
may be loosened so that the bracket can be
moved ±2˝. Fingertighten all hardware.
Do not tighten the mounting hardware at this time.
Proceed to the "Base Box Installation" section.
Base Box Installation
Step 1
Security
Wrench
The M6 x 12mm security head screws must be
mounted from the underside of the base box.
Do not overtighten the screws.
Raise the base box to the upper mounting
bracket.
Align the two (2; one each side) mounting holes.
Using a security wrench, insert and tighten two (2)
M6 x 12mm security head screws.
Attach the projector to the base box, referring to
the projector bracket installation instructions.
Proceed to the "Projector Bracket Installation"
section.
Adjustable Mounting
Bracket
M6 x 12mm Screws
Base Box
Security Wrench
Installation Instructions Visit Premier Mounts website at http://www.mounts.com Page 9
Projector Bracket Installation
Step 1
Invert the projector and place it on a soft, fl at
surface.
Remove any foot levelers that might prevent
bracket installation.
Locate the mounting points on the projector.
Place the bracket on the projector.
Align the mount holes on the bracket with the
mounting points on the projector.
Step 2
Insert one (1) M4 x 10mm screw into each
mounting point.
Tighten the mounting hardware.
You can use either the standard hardware or
Lock-It™ security hardware.
Do not overtighten the mounting screws.
Your Premier Mounts bracket comes with the option of using
Lock-It™ Security Screws. Simply replace any of the combo head
screws with the corresponding sized Lock-It™ Security screws and
tighten using the M3 Security Allen wrench. When you see these
graphics associated with a step, you have the option of using the
standard mounting hardware or the Lock-It™ Security hardware.
CPD10WALLARM
Projector shown is for example purposes only.
Images not to scale.
Step 3
Place one (1) nylon washer and one (1) ¼″ fl at
washer over the hinge pin.
Insert and tighten one (1) M6 x 12mm screw.
Repeat and for the opposite hinge pin.
You can use either the standard hardware or
Lock-It™ security hardware. Replace eight (8)
M6 x 12mm screws and one (1) M6 x 8mm set
screw.
Do not overtighten the M6 x 12mm screws or the
M6 x 8mm set screw.
Install the base box onto your ceiling or 1½” NPT
pipe as per the base box installation instructions.
Slide the projector / projector plate assembly onto
the base box.
Hook the projector plate over the hinge pins, as
shown.
Step 4
Insert the four (4) M6 x 12mm tilt adjustment
screws, two (2) per side.
You can use either the standard hardware or
Lock-It™ security hardware.
Tighten all screws.
Do not overtighten the mounting screws.
Follow the installation instructions that were
packaged with the base box to complete the
installation.
Proceed to the "Throw Distance Calculation" section.
Page 10
Visit Premier Mounts website at http://www.mounts.com Installation Instructions
CPD10WALLARM
Throw Distance Calculation
Please review the Operator’s Manual that came packaged with your projector before attaching the upper
mounting bracket. The correct throw distance (the distance from the projector to the screen) must be determined
prior to mounting the projector.
Refer to the projectors Users Manual to determine the distance from the lens to the front of the screen (X).
Measure the distance from the front of the lens to the center of the projector (Y).
Measure the distance from the wall to the face of the whiteboard/screen (Z).
Add all measurements (X + Y + Z) to determine projector placement on the arm assembly.
This measurement will determine where the center of the mount bracket will be located on the arm assembly.
Please make note of this measurement.
The CPD10WALLARM can be also used as a wall-mounted standard projector mount as well as a short throw
projector mount. Align the projector facing the opposite direction from the wall plate to project the image across
the room. Please take into account the projectors throw capabilities prior to mounting in the projector opposite
direction.
Proceed to the "Utilizing the Storage Feature" section.
Note!
Once the throw distance has been calculated, all mounting hardware must be tightened.
Calculations
X = Manufacturers
recommended throw distance
Z = Distance from wall to face of
whiteboard/screen
Front Lens Throw Distance =
(X + Y + Z)
Rear Lens Throw Distance =
(X - Y + Z)
Front
Lens
Rear
Lens
Installation Instructions Visit Premier Mounts website at http://www.mounts.com Page 11
CPD10WALLARM
Utilizing the Storage Feature
Step 1
The storage feature may be used to store electronic components. There is an accessible door on each side of the
storage enclosure. It may be securely held shut with the use of four (4) M5 x 8mm security head screws. It may be easiest to
pre-wire all cables down the arm (or extension) at this time.
Open the storage door that is located on the
side of the wall plate.
Place the electronic components inside the
storage enclosure.
Make all electronic connections at this time.
Electronic
Components
Door
Step 2
Close the storage door and secure using two
(2; 1 upper and 1 lower) M5 x 8mm security
head screws. Tighten using a security wrench.
Repeat this process for the remaining side as well.
Proceed to the "Cable Management" section.
Security
Wrench
M5 x 8mm
Security
Screw
Door
Electronic
Components
Page 12
Visit Premier Mounts website at http://www.mounts.com Installation Instructions
CPD10WALLARM
Cable Management
The cable access holes are located at the end of
the short throw mount and on the wall plate.
Route the cables through one end of the
CPD10WALLARM and out the other end.
Attach the end cover with an M5 x 8mm security
head screw.
CPD10WALLARM
Electronic
Components
Cable Opening
Cables
Cable Opening
Technical Specifi cations
All measurements are in inches(mm).
Projector
Connections
Installation Instructions Visit Premier Mounts website at http://www.mounts.com Page 13
CPD10WALLARM
Warranty
PREMIER MOUNTS
LIMITED LIFETIME WARRANTY
What and Who is Covered by this Limited Warranty and for How Long
Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of the
original owner of this product. The limited warranty is valid only for the original purchaser of the product.
What Premier Mounts Will Do
At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be
shipped to you at no charge, but you must pay any labor costs.
What is Not Covered; Limitations
PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS, DISPLAYS,
PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR IN PART, FROM
IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.
PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER MOUNTS IS NOT
RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO,
INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING DEFECTIVE
PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
What Customers Must Do for Limited Warranty Service
If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to the
address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer
purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,
the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts
Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.
Premier Mounts
Attn: Warranty Claim
3130 East Miraloma Ave.
Anaheim, CA 92806
How State Law Applies
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE.
Disclaimer
Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that
the information contained herein covers all details, conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this product. The information contained in this document
is subject to change without notice or obligation of any kind. Premier Mounts makes no representation of warranty,
expressed or implied, regarding the information contained herein. Premier Mounts assumes no responsibility for
accuracy, completeness or suffi ciency of the information contained in this document.
Page 14
Visit Premier Mounts website at http://www.mounts.com Installation Instructions
Loading...
