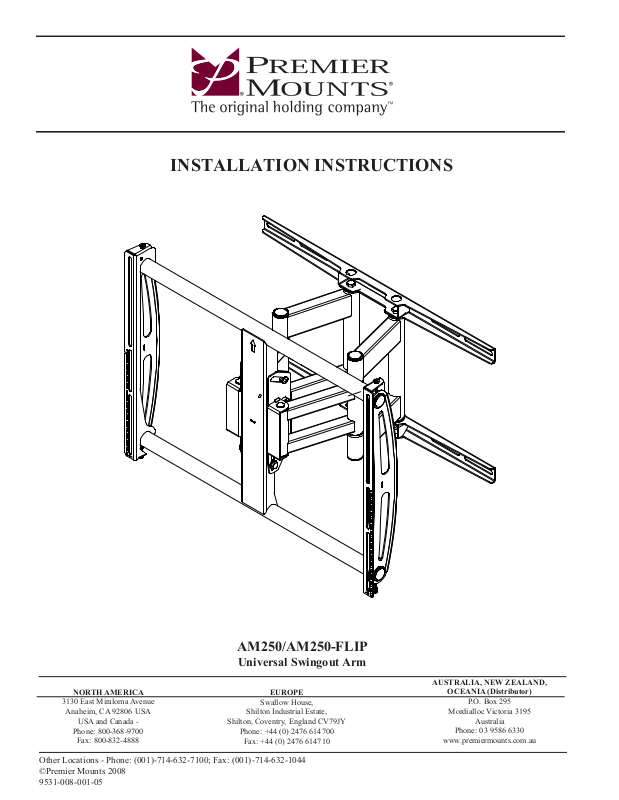

Premier Mounts AM250, AM250-FLIP User Manual

INSTALLATION INSTRUCTIONS

AM250/AM250-FLIP

Universal Swingout Arm

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada -

Phone: [phone]

Fax: [phone]

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: [phone]

Fax: [phone]

Other Locations - Phone: [phone]; Fax: [phone]
©Premier Mounts 2008
9531-008-001-05

AUSTRALIA, NEW ZEALAND,

OCEANIA (Distributor)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: [phone]

www.premiermounts.com.au

AM 250

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY
UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY
DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR
PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR
MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF
ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE,
ATTACHMENTS OR MODIFICATIONS.

THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE DISPLAY. IF NOT, THE
MOUNTING STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN
INSTALLATION , AS OUTLINED IN THE INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN
SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY
GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualified people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the display.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud finder is
recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in
wall. Cutting/drilling into an electrical line may cause serious injury.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water damage
to the mounting surface.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions
[phone]
[e-mail]

Table of Contents

Warning Statements 2
Parts List 3
Installation Tools 3
Thread Depth Indicator 6
Mount Installation 7
Concrete Mounting 8
Universal Mounting Bracket Assembly 8
Attaching the Display 9
Securing and Leveling the Display 10
Tilt Positioning 10
Technical Specifications 11
Warranty 12

Warning Statements

Page 2 Installation Instructions

AM250

Installation Instructions Page 3

Parts List

This mount is shipped with all installation hardware and components. Make sure that none of these parts

are missing and/ or damaged before beginning installation. If there are parts missing and/or damaged, please
stop and contact Premier Mounts [phone].

Swingout Arm
(Qty 1)

5/16" Flat Washers
(Qty 6)

Universal Mounting
Bracket (Qty 2)

Griplate™ (Qty 8)

5/16" x 3" Lag Bolts
(wooden studs only)
(Qty 6)

Installation Tools

Phillips Head Screw Driver Soft Material/ Blanket 1/2" Socket and Wrench

l Tape Measure Drill GunicneP

Level (Supplied) Thread Depth Indicator (Supplied)

¼" Drill Bit (Pilot Holes)

Masonry Drill Bit (Concrete Applications - Commercially Available)

AM250

Page 4 Installation Instructions

Parts List (Cont.)

M4 x 16

M4 x 25

M5 x 12

M5 x 16

M5 x 20

M5 x 25

M5 x 50

(Qty 8)

(Qty 8)

(Qty 6)

(Qty 4)

(Qty 6)

(Qty 4)

M6 x 20

M6 x 30

M8 x 20

M8 x 25

M8 x 30

(Qty 4)

(Qty 6)

(Qty 6)

(Qty 6)

(Qty 6)

(Qty 6)

M6 x 12

(Qty 8)

M8 x 35

M8 x 70

(Qty 4)

(Qty 4)

Installation Instructions Page 5

AM250

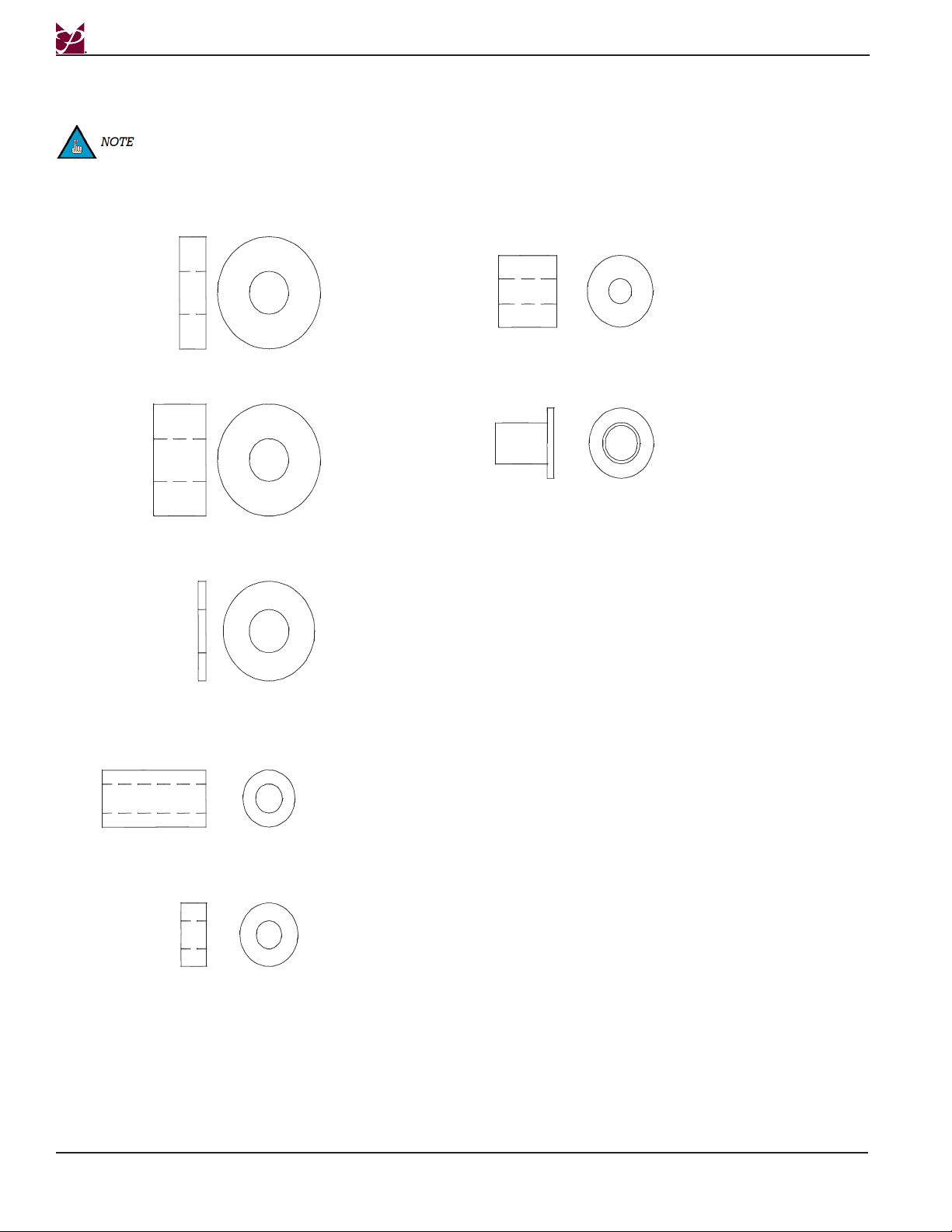

Parts List (Cont.)

Nylon spacers and flat washers' actual size.

The nylon spacers may be stacked to achieve proper spacing.

1/4" Nylon spacers

(large)

(Qty 6)

1/2" Nylon spacers

(large)

(Qty 12)

5/16" Flat washers
(metal)

(Qty 6)

9/16" Nylon spacers

(Qty 6)

5/16" Nylon sleeves

(Qty 4)

1" Nylon spacers

(Qty 6)

1/4" Nylon spacers

(small)

(Qty 6)

Page 6 Installation Instructions

AM250

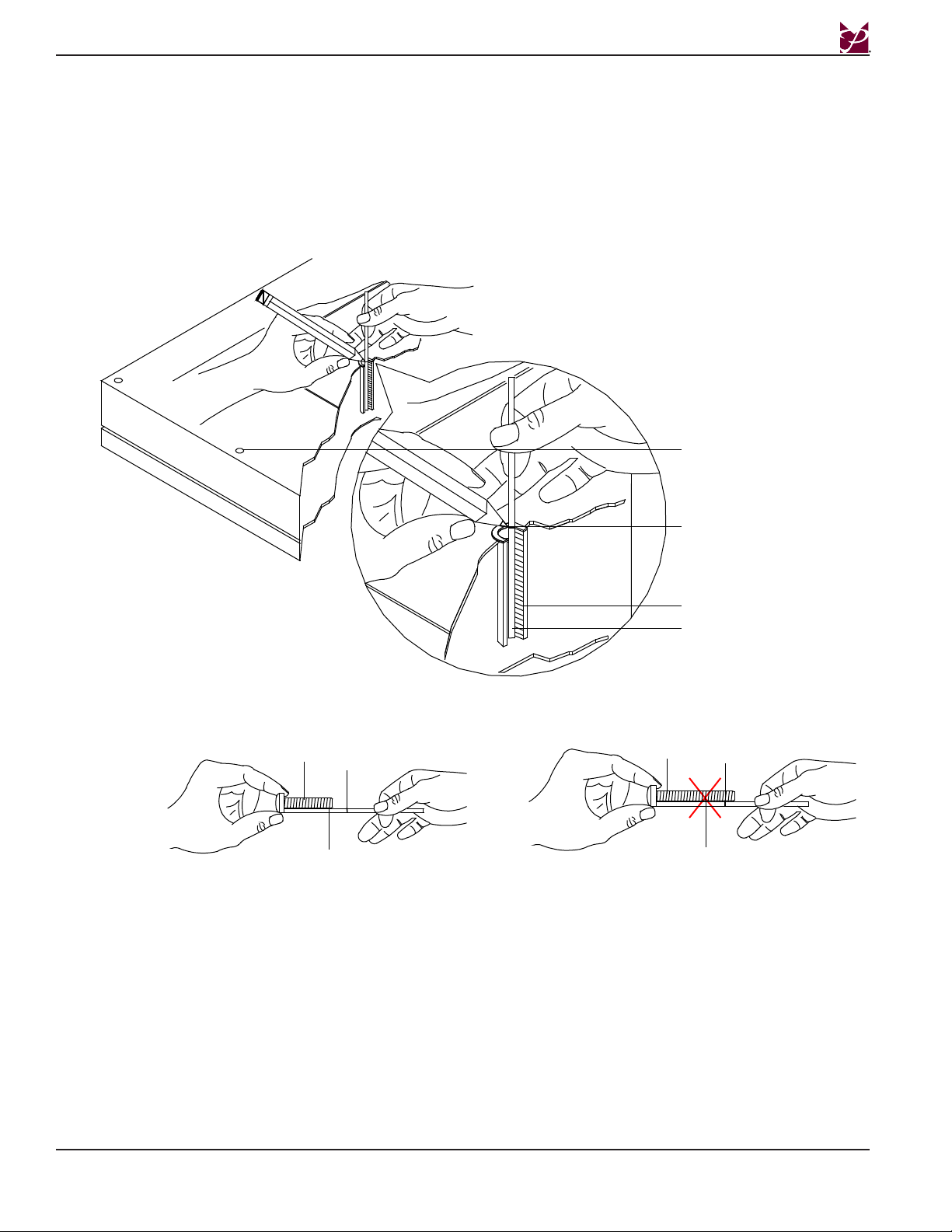

Thread Depth Indicator

Step 1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure

the inserts measure the same full depth and mark it (Figure 1).

Step 2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
Step 3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.
Step 4. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you find one that comes

closest to your mark without going past.

Inverted Flat
Panel Display

Screw

Thread Depth
Indicator

Figure 2

Marking

Figure 1

Marking the
Depth

Thread Insert

Thread Depth
Indicator

Screw

Thread Depth
Indicator

Figure 3

Marking

AM250

Installation Instructions Page 7

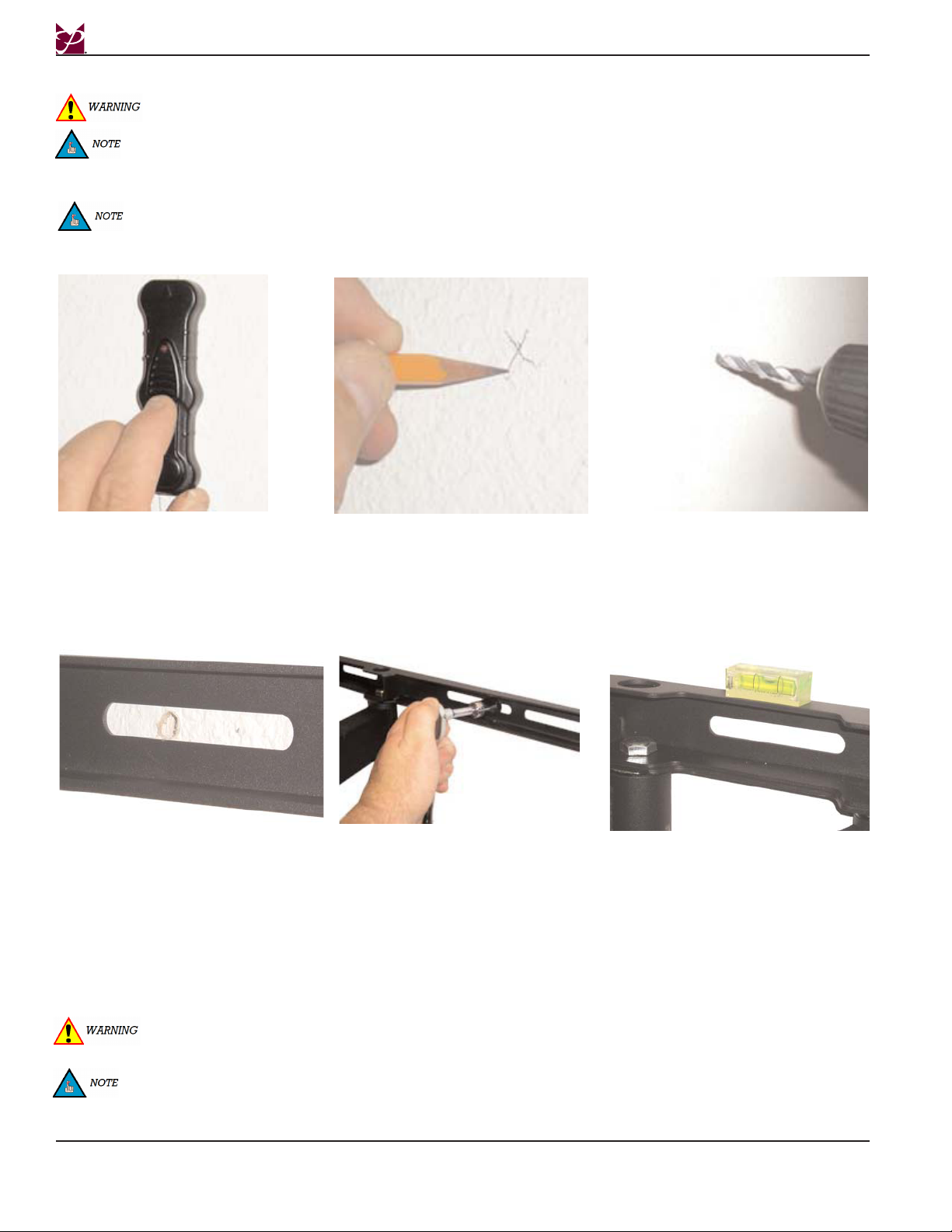

Mount Installation

THE FOLLOWING STEPS SHOULD BE PERFORMED BY TWO PEOPLE.

For ease of installation, it is recommended that two people perform the installation. One person should hold the mount
while the other person installs the lag bolt and washer. Making sure that the mount is level, the person not holding the
mount must mark and drill the second mounting hole and secure the second lag bolt and washer.

If the studs are 12” apart, use three 3” lag bolts for the top row of mounting points and three 3” lag bolts for the lower row
mounting points. If the studs are 16”, 18” or 24” apart, use two 3” lag bolts for the top row of mounting points and two 3”
lag bolts for the lower row of mounting points.

Step 1

Determine where to mount the
AM250/AM250-FLIP. Use a stud
finder to find the exact center of
each stud.

Step 4

After the pilot hole has been drilled, line
up the mounting slot opening to the drilled
hole.

Step 2

Once all of the studs have been located, use
a pencil to mark the spots. Place the mount
against the wall and align the mount to the
marked stud locations.

Step 5

Insert one (1) 5/16" x 3" lag bolt and
washer into the mounting hole and
tighten (see WARNING: below).

Step 3

Using a 1/4” drill bit, drill a pilot
hole at the first aligned and marked
location.

Step 6

With the help of an assistant, place a level
on the center of the mounting rail and level
the mount. Mark and drill the second
mounting hole.
Insert one (1) 5/16" x 3" lag bolt and
washer into the mounting hole and tighten
(see WARNING: below). Repeat steps 5
and 6 for the remaining mounting points.

Do NOT over-tighten lag bolts when attaching the mount to the wall. Improper installation may result in personal
injury or damage to property.

If the studs are 12” (304.8mm) apart, use three 3” (76.2mm) lag bolts for the top rail and three 3” (76.2mm) lag bolts for
the lower rail. If the studs are 16”(406.4mm), 18” (457.2mm) or 24” (609.6mm) apart, use two 3” lag bolts for the top
rail and two 3” lag bolts for the lower rail.

AM250

Page 8 Installation Instructions

Concrete Mounting

Concrete anchors must be used for concrete installation. They can be purchased at your local hardware store. The
mounting surface must be a minimum 6” thick.

Step 1. Begin by placing the mount into position against the wall, keeping it level.

Step 2. Mark off four holes to be used for securing the mount.

Step 3. Next, drill holes using a masonry bit for your anchors (recommended 5/16” masonry bit).

Step 4. Insert a commercially available concrete anchor into each hole (recommended 3/8” wedge anchors).

Step 5. If necessary, a hammer can be used to lightly tap each anchor into place so that they are flush with the wall.

Step 6. Once all of the anchors are in place, move the wall bracket into position.

Step 7. Attach the nut onto the threaded shaft that is protruding from the wall.

Step 8. Do not tighten until all nuts are in place.

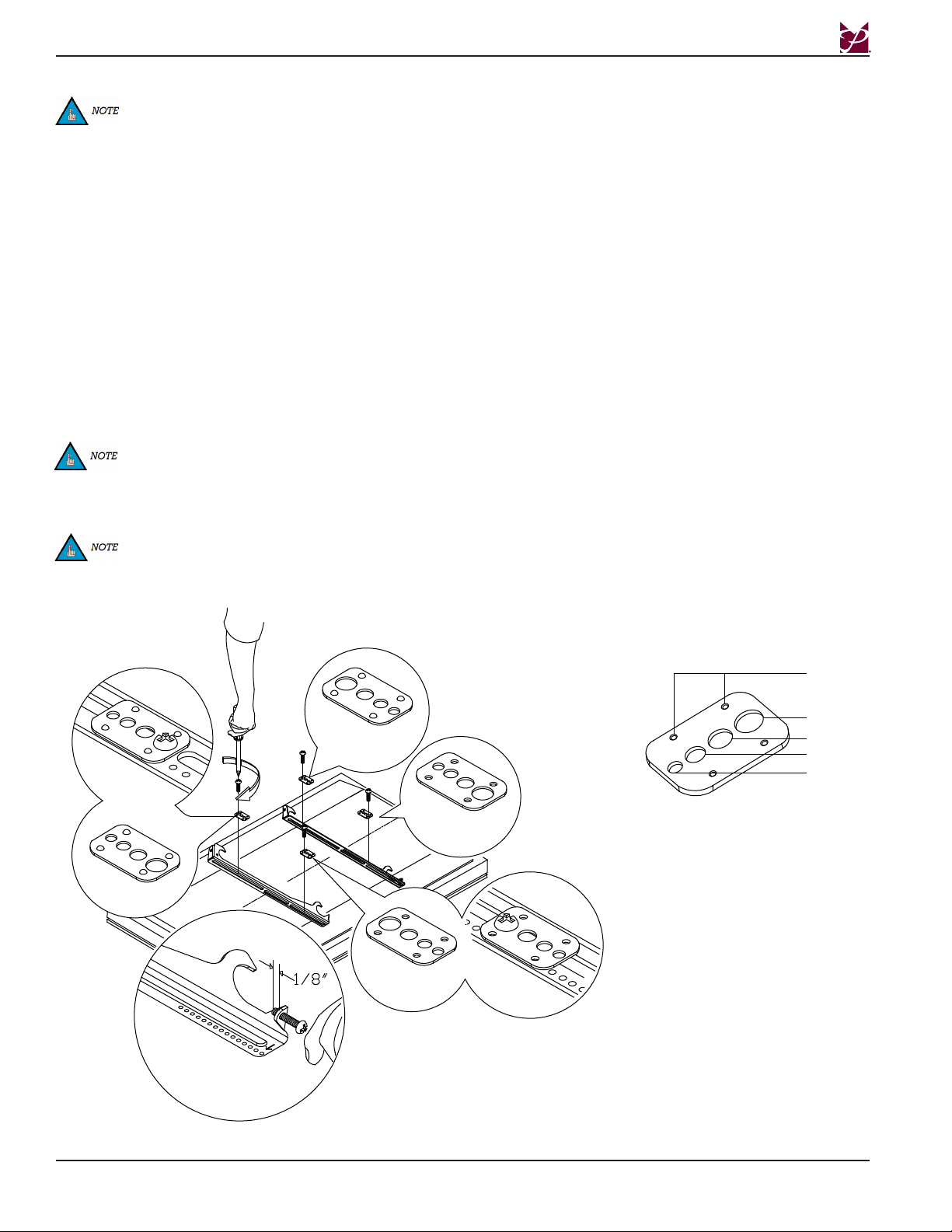

Universal Mounting Bracket Assembly

Step 1. Place the display on a soft, flat surface, face-down.

Step 2. Determine where the mounting points are located.

Step 3. Place the universal brackets over the mounting points.

If the mounting surface is not completely level, use the spacers (see Page 6) to ensure that the universal brackets are
level on the display.

Step 4. Once the desired position has been determined, place the Griplate™ over each mounting point (dimples facing
up) and secure them using the appropriate hardware (see Page 5).

For the two upper mounting points, the dimples (Griplate™) must be facing up. For the two lower mounting points,
the dimples (Griplate™) must be facing down.

DIMPLES
FACING UP

DIMPLES

FACING UP

Dimples

M8
M6

M5
M4

DIMPLES
FACING DOWN

DIMPLES
FACING DOWN

AM250

Installation Instructions Page 9

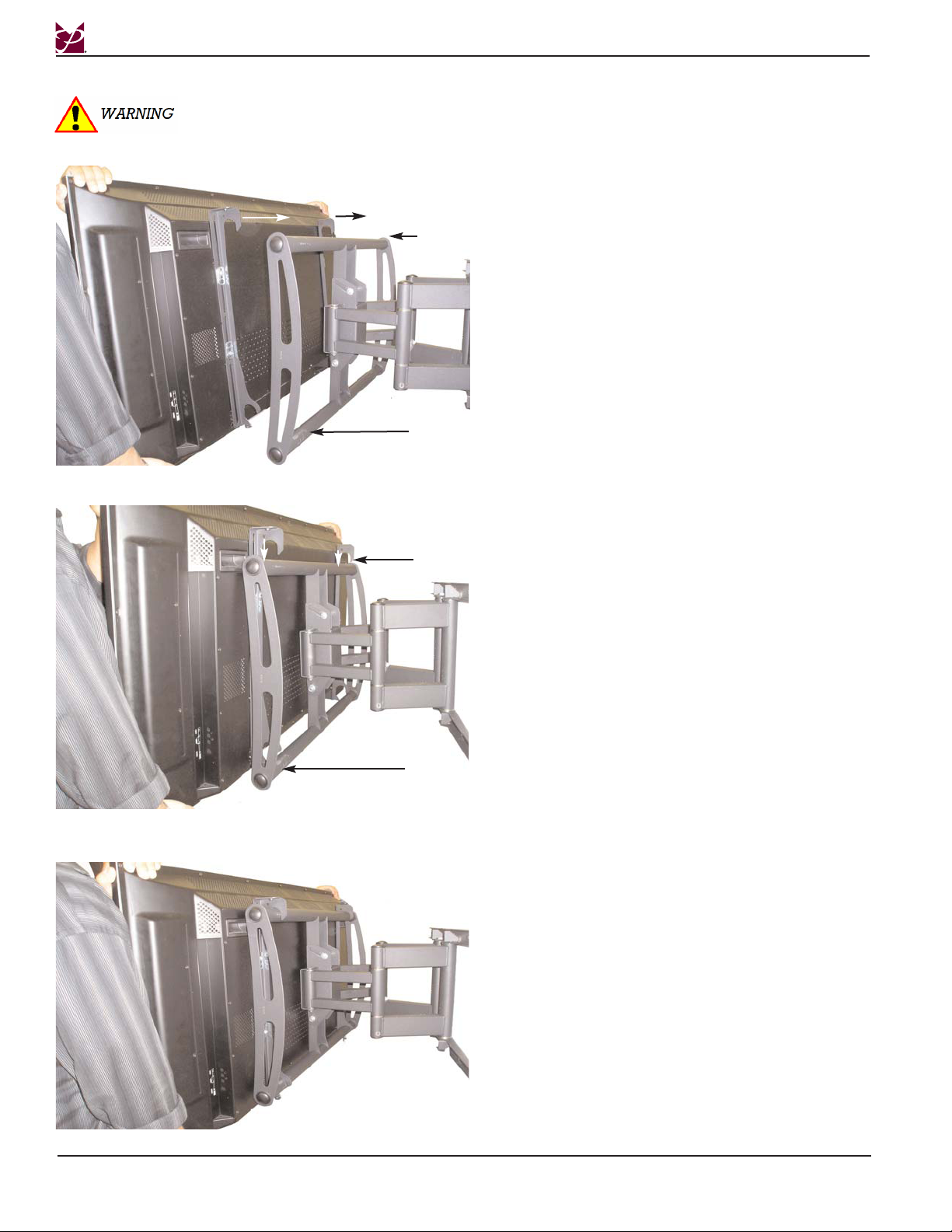

Attaching the Display

IT IS RECOMMENDED THAT TWO PEOPLE MOUNT THE DISPLAY, AS THE UNIT IS
HEAVY AND, IF DROPPED, WILL DAMAGE THE MOUNT, THE DISPLAY, AND/OR PERSONNEL.

Upper Mounting
Bar

Lower Mounting
Bar

Upper Mounting
Bar

Step 1. Place the universal brackets and the display
over the upper mounting bars of the AM250.

Step 2. Lower the universal mounting brackets

and display onto the mounting bars of the
AM250.

Lower Mounting
Bar

Step 3. This is what the two units will look like after
the universal mounting brackets and display
are mounted to the AM250.

AM250

Page 10 Installation Instructions

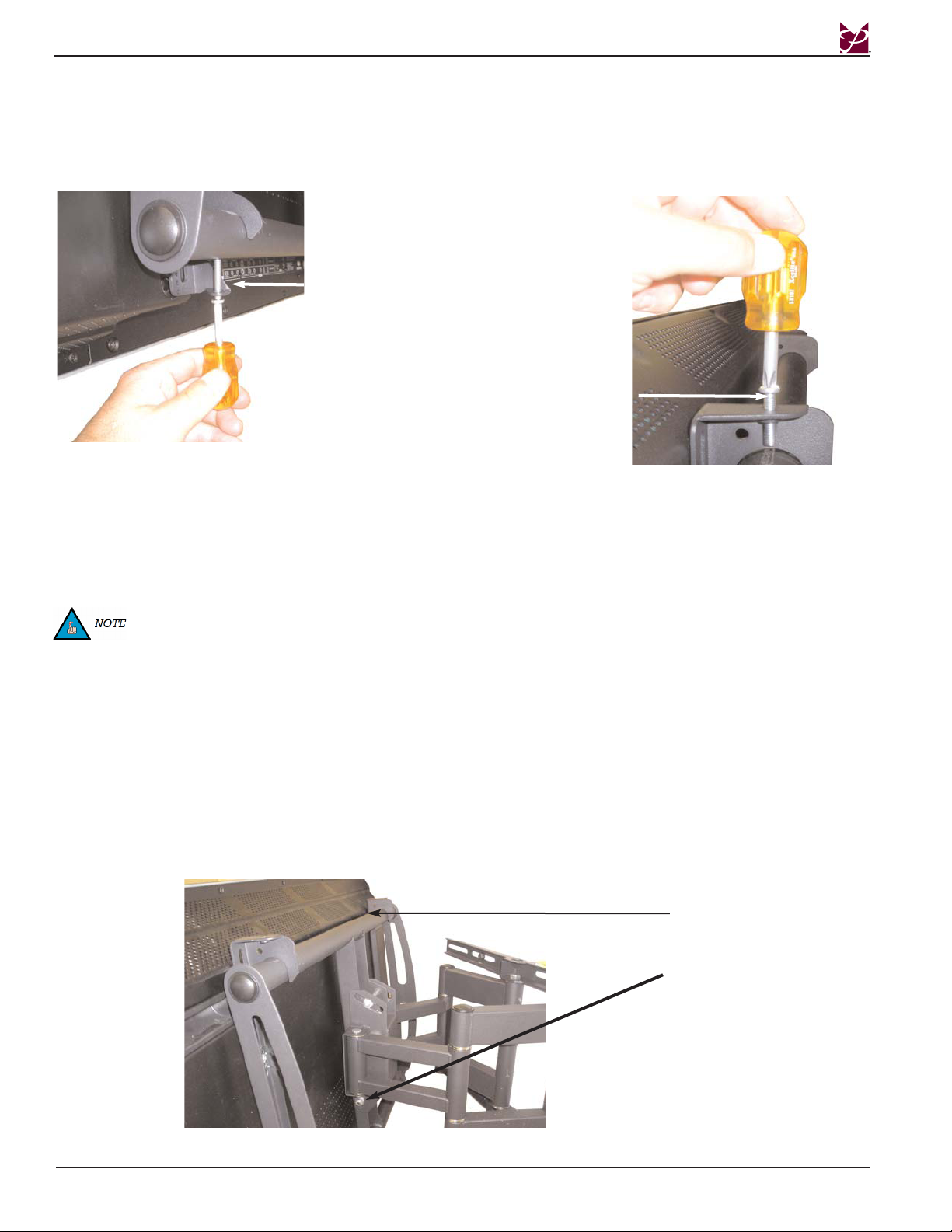

Securing and Leveling the Display

Once the brackets have been placed over the upper mounting bars on the AM250, use two (2) M6 x 30mm Phillips Head locking
screws to secure the brackets to the bottom of the mounting bars. This will prevent lateral shift movement. Level your flat panel
by installing the two additional M6 x 30mm Phillips Head screws to the upper bracket assembly as shown below. Once the display
is level, tighten the locking screws.

M6 x 30mm Phillips
Head Screw

M6 x 30mm Phillips

Head Screw

Lower Locking Point

Upper Bracket Leveling

Adjustment Screw

Tilt Positioning

TO ADJUST THE TILT TENSION OF THE AM250, LOOSEN THE TENSION BOLTS LOCATED ON THE BOTTOM
RIGHT AND LEFT SIDE OF THE MAIN ARM ASSEMBLY. RE-TIGHTEN THESE BOLTS TO ACHIEVE YOUR
DESIRED TENSION.

To adjust the tilt of the display, place a hand in the top middle of the display and the other hand at the bottom middle of the display.

To Tilt the Display Forward

Gently pull on the upper portion of the display while pushing the lower end of the display away from you. This motion will cause the
display to tilt forward.

To Tilt the Display Back

Gently push on the upper portion of the display and pull the lower end of the display towards you. This motion will cause the display
to tilt back.

Display

Tilt Tension Adjustment

AM250

Installation Instructions Page 11

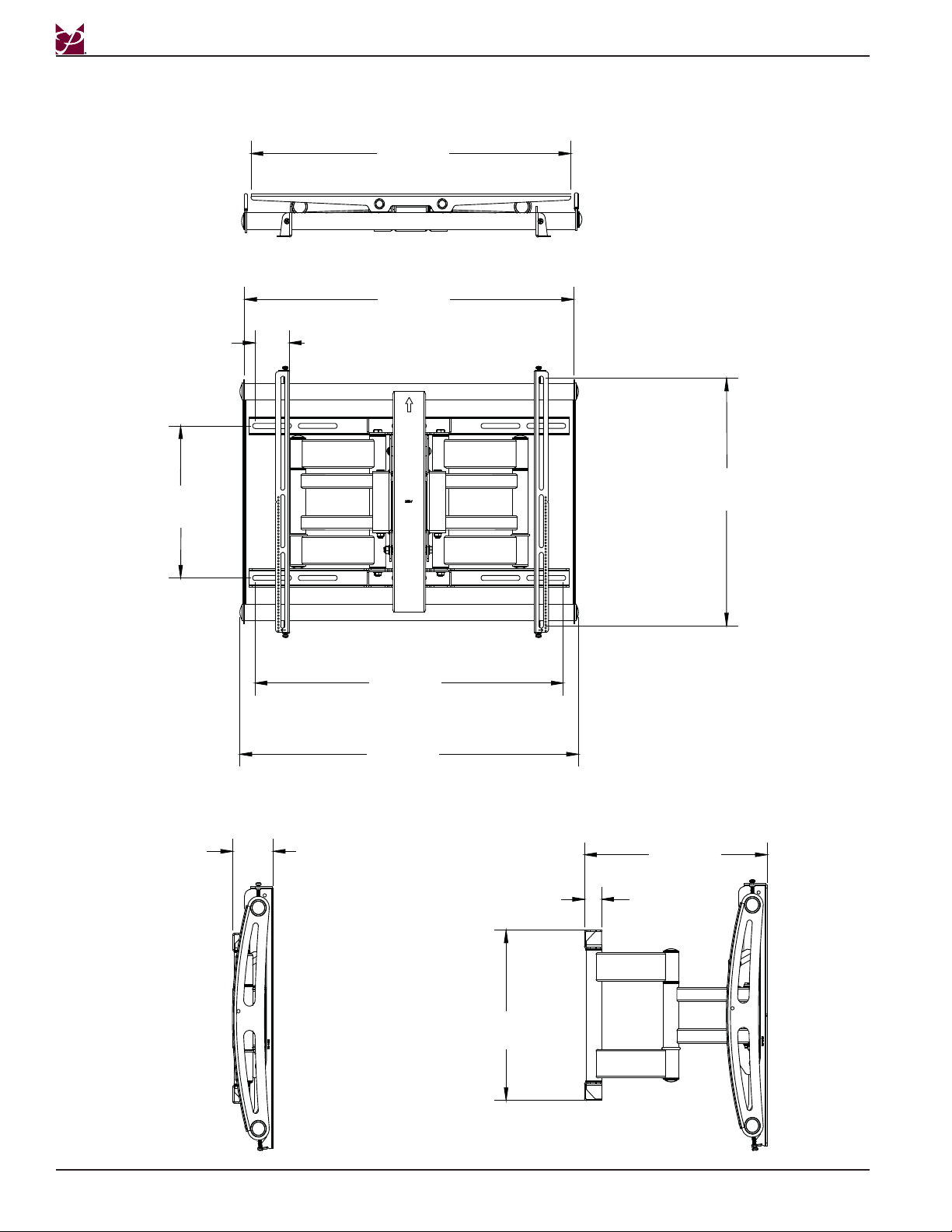

Technical Specifications

All measurements are in inches (mm).

12.53
(317.5)

28.00
(711.20)

28.79
(731.79)

3.00
(76.20)

20.40
(510.54)

3.55
(90.17)

27.00
(685.80)

29.64
(752.86)

16.00
(406.40)

1.50
(38.04)

14.03
(356.36)

AM250

Page 12 Installation Instructions

Warranty
PREMIER MOUNTS
LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Warranty and for How Long

Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of
the original installation of this product. The limited warranty is valid only for the original purchaser of the
product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that
is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part
will be shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations

PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS,
DISPLAYS, PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR
IN PART, FROM IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.

PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER
MOUNTS IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING
BUT NOT LIMITED TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOVING
AND REPLACING DEFECTIVE PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to
the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original
consumer purchaser must accompany all warranty claims. Warranty claims must also include a description of
the problem, the purchaser’s name, address, and telephone number. General inquiries can be addressed to
Premier Mounts Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone
or by fax.

Premier Mounts
Attn: Warranty Claim
3130 E. Miraloma Avenue
Anaheim, CA 92806

How State Law Applies

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
