Premier Mounts AM175 Data Sheet

FLAT PANEL MOUNTS

FLAT PANEL MOUNTS

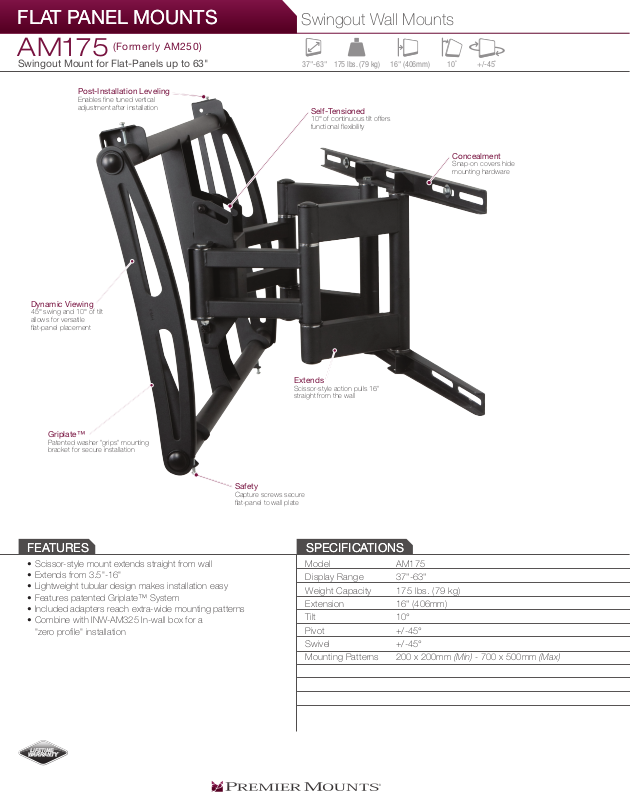

Swingout Wall Mounts

AM175

(Formerly AM250)

Swingout Mount for Flat-Panels up to 63"

Post-Installation Leveling

Enables fine tuned vertical
adjustment after installation

Dynamic Viewing

45° swing and 10° of tilt
allows for versatile
flat-panel placement

37"-63" 16" (406mm)175 lbs. (79 kg)

Self-Tensioned

10° of continuous tilt offers
functional flexibility

10˚ +/-45˚

Concealment

Snap-on covers hide
mounting hardware

Extends

Scissor-style action pulls 16"
straight from the wall

Griplate™

Patented washer "grips" mounting
bracket for secure installation

Safety

Capture screws secure
flat-panel to wall plate

FEATURES SPECIFICATIONS

FEATURES SPECIFICATIONS

• Scissor-style mount extends straight from wall

• Extends from 3.5"-16"

• Lightweight tubular design makes installation easy

• Features patented Griplate™ System

• Included adapters reach extra-wide mounting patterns

• Combine with INW-AM325 In-wall box for a
"zero profile" installation

Model AM175
Display Range 37"-63"
Weight Capacity 175 lbs. (79 kg)
Extension 16" (406mm)
Tilt 10°
Pivot +/-45°
Swivel +/-45°
Mounting Patterns 200 x 200mm (Min) - 700 x 500mm (Max)

LIFETIME

WARRANTY

DIMENSIONAL DRAWING

3.55
[90]

33.52
[851]

32.42
[823]

29.64
[753]

28.15
[715]

AM175

Swingout Mount for Flat-Panels up to 63"

(Formerly AM250)

10°

14.02
[356]

21.60
[549]

16.00

[406]

26.43
[671]

16.00
[406]

18.00
[457]

24.00
[610]

20.40
[518]

ø .38

[10]

21.73
[552]

25.71
[653]

Dimensions in inches and millimeters [mm].
Drawings subject to change without notice.
