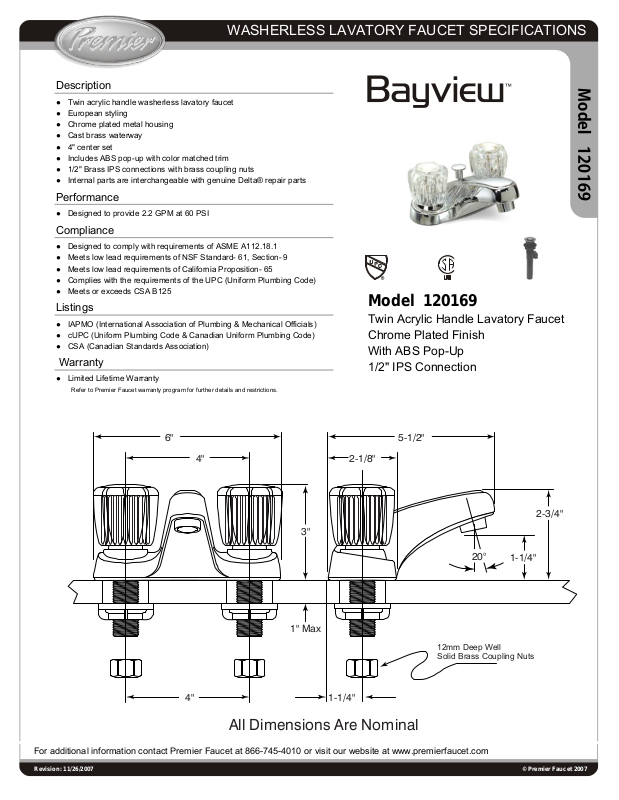

WASHERLESS LAVATORY FAUCET SPECIFICATIONS
Description
● Twin acrylic handle washerless lavatory faucet
● European styling
● Chrome plated metal housing
● Cast brass waterway
● 4" center set
● Includes ABS pop-up with color matched trim
● 1/2" Brass IPS connections with brass coupling nuts
● Internal parts are interchangeable with genuine Delta® repair parts
Performance
● Designed to provide 2.2 GPM at 60 PSI
Compliance
● Designed to comply with requirements of ASME A112.18.1
● Meets low lead requirements of NSF Standard- 61, Section- 9
● Meets low lead requirements of California Proposition- 65
● Complies with the requirements of the UPC (Uniform Plumbing Code)
● Meets or exceeds CSA B125
Listings
● IAPMO (International Association of Plumbing & Mechanical Officials)
● cUPC (Uniform Plumbing Code & Canadian Uniform Plumbing Code)
● CSA (Canadian Standards Association)
Warranty
● Limited Lifetime Warranty
Refer to Premier Faucet warranty program for further details and restrictions.
Model 120169
Twin Acrylic Handle Lavatory Faucet
Chrome Plated Finish
With ABS Pop-Up
1/2" IPS Connection
6"
4" 2-1/8"
3"
1" Max
4"
1-1/4"
All Dimensions Are Nominal
5-1/2"
20°
12mm Deep Well
Solid Brass Coupling Nuts
1-1/4"
2-3/4"
For additional information contact Premier Faucet at 866-745-4010 or visit our website at www.premierfaucet.com
Revision: 11/26/2007 © Premier Faucet 2007
