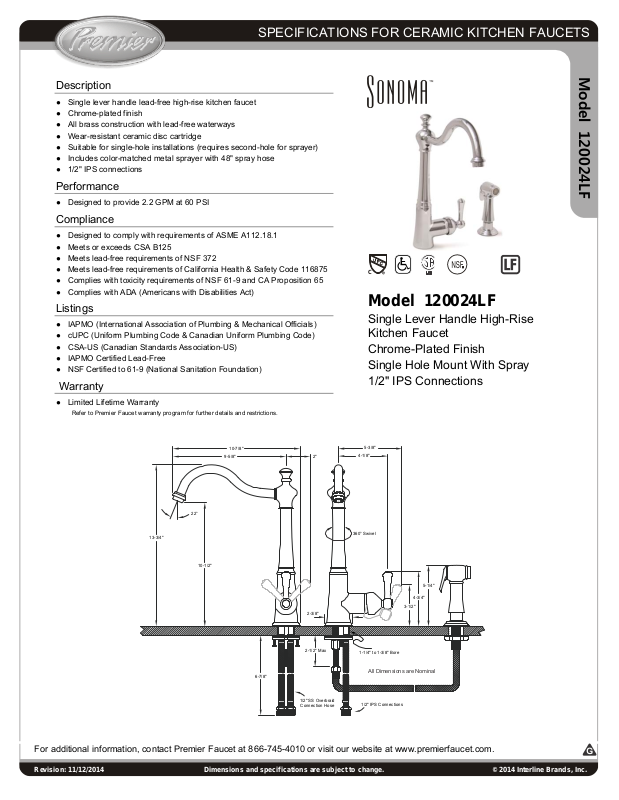

SPECIFICATIONS FOR CERAMIC KITCHEN FAUCETS
©
Description
● Single lever handle lead-free high-rise kitchen faucet
● Chrome-plated finish
● All brass construction with lead-free waterways
● Wear-resistant ceramic disc cartridge
● Suitable for single-hole installations (requires second-hole for sprayer)
● Includes color-matched metal sprayer with 48" spray hose
● 1/2" IPS connections
Performance
● Designed to provide 2.2 GPM at 60 PSI
Compliance
● Designed to comply with requirements of ASME A112.18.1
● Meets or exceeds CSA B125
● Meets lead-free requirements of NSF 372
● Meets lead-free requirements of California Health & Safety Code 116875
● Complies with toxicity requirements of NSF 61-9 and CA Proposition 65
● Complies with ADA (Americans with Disabilities Act)
Listings
● IAPMO (International Association of Plumbing & Mechanical Officials)
● cUPC (Uniform Plumbing Code & Canadian Uniform Plumbing Code)
● CSA-US (Canadian Standards Association-US)
● IAPMO Certified Lead-Free
● NSF Certified to 61-9 (National Sanitation Foundation)
Warranty
● Limited Lifetime Warranty
Refer to Premier Faucet warranty program for further details and restrictions.
C
R
Model 120024LF
Single Lever Handle High-Rise
Kitchen Faucet
Chrome-Plated Finish
Single Hole Mount With Spray
1/2" IPS Connections
M
o
d
e
l
1
2
0
0
2
4
L
F
13-3/4"
10-7/8"
9-5/8"
22°
10-1/2"
6-7/8"
2"
2-3/8"
2-1/2" Ma x
1/2" SS Overbraid
Connection Hose
5-3/8"
4-1/8"
360° Swivel
1-1/4" to 1-3/8" Bore
All Dimensions are Nominal
1/2" IPS Connections
5-1/4"
4-3/4"
3-1/2"
For additional information, contact Premier Faucet at 866-745-4010 or visit our website at www.premierfaucet.com.
Dimensions and specifications are subject to change.Revision: 11/12/2014
