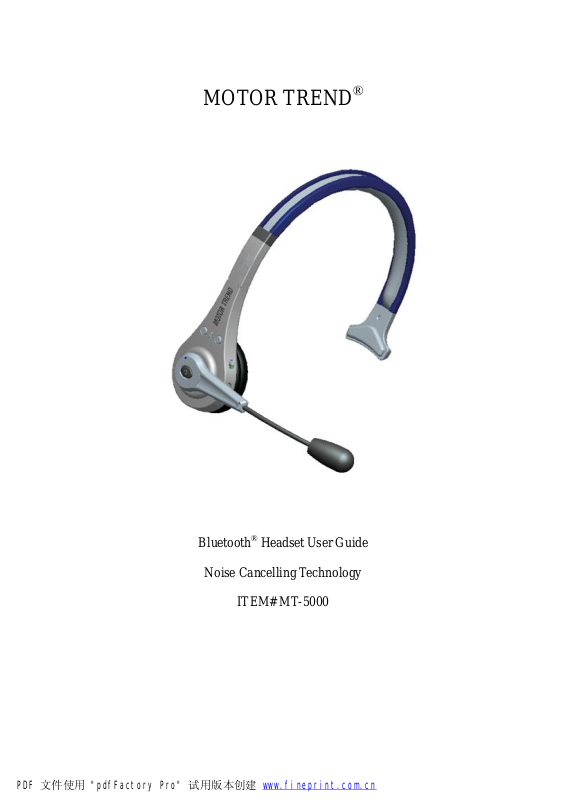

MOTOR TREND®
Bluetooth® Headset User Guide
Noise Cancelling Technology
ITEM# MT-5000
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Index
1. Notice Before Using
2. Package Contents List
3. Product Introduction
4. Charging the Headset
5. Power On/Off
6. Pairing the Headset with a Bluetooth Device
7. Pairing to 2 devices
8. Wearing the Headset
9. Answering Calls
10. Refusing Calls
11. Ending Calls
12. Voice Dialing
13. Redialing
14. Mute
15. Transferring Calls
16. Adjusting the Volume
17. Safety Instructions
18. UEGENT HANDLING
19. Specifications
20. Diagnosing Problems
21. Headset Storage
22. Travel Charger
23. Car Charger
24. BATTERY
25. Q&A
26. Declaration of Conformity
27. Limited Warranty
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
1. Notice before Using
Thank you for purchasing the MOTOR TREND® Bluetooth® Headset MT-5000. Please check the
contents of this package to verify the items listed in the Package Contents List below to has been
included in your package. Be sure and read this User Guide before you use the Headset. The
MT-5000 has been developed using Bluetooth wireless technology and is capable of connecting
with Bluetooth devices designed with Audio Gateway and PDAs, Desktop and notebook
computers can be connected and paired with the Headset using a USB Bluetooth Dongle. Before
using the Headset please verify your Bluetooth device (PS3, phone, PDA) complies with
Bluetooth V1.1/V1.2/V2.0/2.1 and supports the Bluetooth Headset or Handsfree profile.
2. Package Content List
Please inspect this package and refer to the package contents list how to verify all items were
included in this package:
Item Name Quantity
Ø MT-5000 Bluetooth® Headset…………………..1
Ø User Guide………………………………………1
Ø Easy Pairing Sheet………………………………1
Ø Travel Charger…………………………………..1
INPUT: AC100-240V, 50/60Hz
OUTPUT: DC 5.1V, 120mA
Ø Car Charger………………………………………1
Ø USB Cable………………………………………..1
Ø Extra Ear Cushion………………………………..1
Ø Extra Mic Cover………………………………….1
If you find any items were not included please contact your retailer where you purchased this
product.
3. Product Introduction
Functions (Answering / Ending) Button
ON/OFF Button
LED Indicator Light
Receiver / Speaker
Microphone
Power Interface / Adapter for Charging the Unit
Ear Hook
Decrease Volume Key (-)
Increase volume key (+)
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
NOTE:
Before using the Headset for the first time, be sure and fully charge the unit at least 3 hours.
4. Charging the Headset
The MT-5000 comes with a built in Lithium Polymer battery. To charge the unit:
a. Plug the travel charger into an electrical outlet or plug the car charger into cigar lighter..
b. Plug the unit end of the Travel Charger or car charger into the Power Interface Adapter
on the Headset.
c. While charging, the LED Indicator Light will turn red. When charging is complete, the
red Indicator light will shut off or flash blue to alert you that the unit is fully charged and
ready to use.
NOTE:
· For first time use, make sure to fully charge the Headset at least 3 HOURS, preferably
overnight (8-10 hours).
· If Headset has not been used for more than 21 days, when recharging it please charge unit at
least 3 hours, preferably overnight (8-10 hours) as the battery will need a full charge and be aware
the LED Indicator Light may take several hours to show recharging is complete.
·While charging the unit, please do not use the Headset.
·Please use the original charger included with the Headset to charge/recharge the unit.
·When the LED Indicator Light flashes red during usage or while on standby, the battery is low
and you should recharge the unit as soon as possible.
·Please recharge the Headset in room temperatures of no less than +14。F(-10℃) to + 113。F
(+45℃).
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
5. Power On / Off
a. Push the ON/OFF button to ON side. The power will turn on after the LED Indicator Light
flashes the blue light 3 times.
b. Push the ON/OFF button to OFF side. The power will turn off after the LED Indicator Light
flashes the blue light 1 time.
NOTE:
·While the Headset is turned on, it will automatically search for the paired device. Under the
“ON” mode and within the effective range of 30 feet from the Headset, the Indicator will flash the
blue light to indicate that it entered the connecting mode.
6. Pairing the Headset with a Bluetooth Device
Before you use the Headset the first time, you must pair the unit with a Bluetooth device i.e.
cellular phone. To set up the pairing:
a. Insure your mobile phone is Bluetooth capable
b. Make sure the Headset is turned off.
c. Push the ON/OFF button to ON side.
d. Press and hold the Function button for 5 seconds until the Indicator Light flashes
alternating “Red – Blue – Red – Blue” to enter the pairing mode.
e. On your mobile device start the Bluetooth search function. Refer to the mobile device
manufacturer’s instructions regarding pairing the device to the MT-5000 Bluetooth
Headset.
f. When your mobile device is in the stage of searching for a new Bluetooth device, it should
locate and pair with the MT-5000.
g. On your mobile device, please choose and confirm the MT-5000 as your Bluetooth paired
device.
h. Key in the Headset Passcode “0000” and press “YES”. If the pairing is successful, the
Indicator light on the Headset will flash the blue light only. For some mobile phones, after
pairing you may have to select and reconfirm MT-5000 PAIRING EACH TIME YOU
TURN ON THE PHONE. Please read you phone manufacturer’s instructions regarding
Bluetooth devices.
i. The Headset should now be in standby mod – ready to send and receive calls.
NOTE:
If the pairing is not successful the first time, the Headset will return to standby mode. Please
repeat the pairing process and refer to the mobile device’s manufacturer’s instructions for
additional information.
a. While pairing, it is better to keep the distance between the mobile device and the Headset
to approximately 3 inches to 1 foot and make sure no metal objects are between them.
b. While pairing the Headset with other Bluetooth devices, when the device asks for the
Passcode, key in “0000” the Headset Passcode. For more details, refer to the mobile
device’s manufacturer’s instructions for ad MT-5000 additional information.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
c. Should one of the following occur, the paired devices should remain paired:
1. The power for or of the devices is off.
2. The service or one of the devices is off.
3. One of the devices is re-switched on.
7. Pairing to 2 devices
This headset contains a dual-link function for connecting with 2 mobile phones simultaneously.
a. Pair the first phone following the steps above.
b. Turn off the headset
c. Turn on the headset and push the function button for 5 seconds until the Indicator Light flashes
alternating “Red – Blue – Red – Blue” to enter the pairing mode
d. Turn on the second phone’s Bluetooth to pair with headset like steps above
e. Turn off the headset
f. Turn on the headset, and it will re-connect to both devices automatically.
8. Wearing the Headset
According to your preference, adjust the headset on your left or right ear.
9. Answering Calls
a. When a call is received, wait until you hear the ringing from your Headset receiver to press
the Function button to answer the call.
b. If the mobile device is ringing first, wait until the Headset is ringing, then press the
Function button.
c. Before answering calls, the blue Indicator light flashes 4 times each second.
d. If the mobile device is ringing and your Headset is off, turn the Headset on first, then press
the Function button to answer the call.
e. If your mobile device has “automatic answer” feature and it already set up to answer using
this function, while the call is coming in, your Headset can receive the call automatically without
pressing the Function button.
NOTE:
· For some mobile phones, the ringing sound of the Headset may be the same as the ringing
sound of the phone i.e. Nokia.
· For some mobile phones, the ringing sound of the Headset is different than the phone i.e.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Motorola.
10. Refusing Calls
To refuse a call, wait to hear from our receiver, and then press the VOL+ 2 twice quickly to
refuse the call. If you have the mobile device set to automatically answer calls, refusing call as
described here will not apply.
11. Ending Calls
a. When the call is complete, press the Function button to end the call.
b. You can also wait until your caller hangs up and the call will be disconnected automatically.
12. Voice Dialing
a. If your mobile phone supports Voice Dialing, you can use this Function with your Headset
also.
b. Under the standby or connecting mode, press the Function button once on the Headset and
follow the mobile devices’ manufacturer’s instructions to proceed with Voice Dialing.
NOTE:
· The activation of Voice Dialing will depend on the design of your mobile device.
· The working range of the Bluetooth Headset is approximately 15 feet indoors and 15 -30 feet
outdoors.
13. Redialing
a. If your mobile device supports the Redialing feature, you can also use this function with
your Headset.
b. Under the Standby or Connecting mode, double click the function button of the Headset to
redial the last call.
14. Mute
a. During a phone conversation, press the Decrease Volume Key (-) and Increase Volume Key
(+) at the same time until you hear the “Du” sound to begin the Mute function of the Headset.
b. While in Mute mode, you will hear an intermittent “Du” sound
c. To cancel the Mute mode, press either Decrease Volume Key (-) or the Increase Volume Key
(+) to end this function.
15. Transferring Calls
a. Transfer a call from the headset to the mobile device. While a call is in progress, press the
Increase Volume Key (+) for 2-3 seconds until you hear one “Du” sound.
b. Transfer a call from the mobile device to the headset. While a call is in progress, press the
function button once.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
NOTE:
To activate this function, your mobile device must support the Handsfree mode. For more
details, please check your mobile device’s manufacturer’s instructions for additional information.
16. Adjusting the Volume
During a call, you may adjust the Headset’s volume.
a. To increase the volume, press the Increase Volume Key (+).
b. To decrease the volume, press the Decrease Volume Key (-).
NOTE:
You will hear the “ Du Du” sound while adjusting the volume to the highest and lowest
settings.
17. Safety Instructions
a. Read this Headset manual carefully and use the Headset correctly at all times by following
the instructions.
b. THIS IS NOT A TOY. Keep the Headset away from children and avoid children chewing on
the Headset or its components or accidentally swallowing any pieces.
c. To clean the Headset, wipe it with a soft, dry static-free cleaning cloth.
d. NEVER use cleaning liquids, solvents, or sprays to clean the Headset.
e. Do not clean the Headset while charging.
f. Do not dissemble the Headset. If you encounter any problems, contact the retailer
immediately.
18. UEGENT HANDLING
· If you encounter a problem, turn the Headset off immediately.
· If the inside component(s) break, please contact Premier Accessory Group, toll free
866-446-4327, for immediate service and support.
19. Specifications
Model NO. MT-5000
Standard Convention/Signal Output Bluetooth V2.1+EDR, Class II
Frequency Band 2.4GHz~2.4835GHz,ISM Band
Talk/ Stand by Time Up to 12 hours/ Up to 350 hours
Supporting Profile Headset & Handsfree
Connection Multi Point (Pair two phones at one time)
Data Encryption 128 bits encrypted
Power Capacity Rechargeable Li-Polymer
Power Supply 5V DC, 100~240V AC adapter
PDF 文件使用 "pdfFactory Pro" 试用版本创建 Ù www.fineprint.com.cn
Operation Temperature -10 ~ 55℃
Facility Saving Temperature -20 ~ 60℃
Operation Moisture 10% ~ 90%(non-concrete status)
20. Diagnosing Problems
a. If the Headset LED Indicator Light is flashing red-the battery is low and recharges the unit
immediately.
b. If, after recharging for 20 minutes, the Headset does not turn on: For initial use, the power
will be on after charging the Headset at least 40 minutes. The manufacturer’s recommended initial
charging time is no less than 3 hours, preferably overnight (8-10hours).
c. If the Headset does not show the recharging sign: The battery is completed depleted or the
Headset has not been used for 21 days, when charging the red Indicator Light will be lit after a
few minutes.
d. You hear no sound coming from the Headset:
★ Make sure the Headset is turned on.
★ Make sure the headset has been paired with a Bluetooth enabled device.
★ Make sure the distance between the Headset AND THE PAIRED Bluetooth device is no
more than 30 feet.
★ Some Bluetooth mobile phones support only one Headset. In this case, if you pair the
MT-5000 Headset with the device, the other Bluetooth Headsets may be deactivated. Likewise, if
you pair other Bluetooth headsets with this type of mobile device, the MT-5000 Headset may
become deactivated.
21. Headset Storage
﹥ Use of accessories other than the manufacturer’s originally supplied accessories may cause
the Headset to malfunction or fail. In addition, product damage, electrical conflicts with
non-manufacturer chargers may occur resulting in the cancellation of the product warranty.
﹥ Do not disassemble the headset for any reason. This may damage the Headset accidentally
and void the manufacturer’s warranty.
﹥ Please store the Headset away from dust, heat and areas where it might accidentally fall or
other damage may occur.
﹥ Use a clean, soft static-free cloth to clean the Headset’s surfaces.
﹥ You can put the Headset in a pocket while not in use.
﹥ Do not let children play with the Headset as it may cause damage to the unit and avoid any
danger to young children.
﹥ Avoid storing the Headset and chargers in extreme temperatures.
22. Travel Charger
1. The Travel Charger is designed for indoor use and not to be used outdoors.
2. Connect the Travel Charger with the appropriate power supply.
3. Do not unplug the Travel Charger from the electrical outlet by the cord. Use the wall plug to
pull the charger from the electrical outlet.
23. Car Charger
PDF 文件使用 "pdfFactory Pro" 试用版本创建 Ù www.fineprint.com.cn
1. The Car Charger is designed for car use only.
2. Connect the Car Charger with the appropriate power supply.
3. Do not unplug the Car Charger from the electrical outlet by the cord
24. BATTERY
1. New battery: For first time use, charge the battery at least 4 hours, preferably overnight
(8-10 hours).
2. Only manufacturer authorized personnel can perform battery replacement.
3. Under normal usage, the built in battery should be viable for up to 24 months or longer
depending on usage.
4. The battery must be recharged in room temperatures of no less than +14。F(-10℃) to +
113。F (+45℃) to remain under warranty and to maximize the life of the battery.
5. Using the Headset in normal room temperatures enables the battery to maximize its life.
6. When used in colder weather, the Headset’s battery life may decrease.
7. Recharge the Headset at least every two months whether it is used or not.
25. Q&A
Q: Why does the fully charged headset under the “ON” mode not work with my Bluetooth mobile
device?
A: You must activate the Bluetooth function of the mobile device and complete the device paring
process between the device and the Headset.
Q: Can the MT-5000 work with any mobile device?
A: No, only Bluetooth enabled mobile devices and phones.
Q: How far is the working distance between the Headset and the mobile device?
A: The MT-5000 is certified by BQB, is compatible and compliant with Bluetooth V 2.1,Class II,
the longest working distance between the devices is 30 feet. Please be aware, this distance may be
affected by interference with surrounding i.e. metal surfaces and the capability of the Bluetooth
mobile devices that the Headset is paired with.
Q: Why does my Bluetooth mobile device find many Bluetooth devices while searching for the
new Bluetooth Headset?
A: Most of today’s mobile phones allow for more than one Bluetooth device within a given
(working) range. When searching for a new device i.e. Headset, the mobile device or phone’s LCD
should recognize and display the MT-5000 or some “Unknown Device”. Please select and confirm
the MT-5000.
Q: Why can’t my mobile device or phone find the MT-5000?
A: Check to make sure you are in “pairing” mode on the mobile device or phone. If in this mode
and still unable to locate the Headset, please refer to your mobile device’s manufacturer’s
instructions for additional information.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Q: Must I pair the Headset every time I use it?
A: No. The paired devices should remain paired regardless of turning the power off, reopening the
devices or charging the respective devices’ batteries.
Q: Why is the voice from the Headset not clear?
A: Possibly for one or both of the following reasons:
1. Your location has an insufficient signal. You must move to a better signal area or location.
2. The working range between the Headset and the mobile phone has been exceeded. Please
make sure the headset and mobile phone are within the working range of 30 feet and there
is no obvious interfering factor between them.
Q: What can I do if the voice from the Headset is not clear?
A: Make sure your mobile phone is in a location with a better signal and increase the volume of
the phone or Headset.
Q: Why is the Headset suddenly not working?
A: (1) The Headset battery may need recharging. When the battery is low, the Headset flashes the
red indicator light, please recharge it as soon as possible.
(2) The Bluetooth function of your mobile device or phone “crashes”. To renew this feature,
turn off the Bluetooth function on the phone, turn it back on and “re-pair” it with the Headset. You
may need to perform this more than once to re-sync the device with the Headset after this type of
interruption.
Q: Why is the Voice Dialing function of the Headset not switched on?
A: (1) You may need to re-record the “voice tag”.
(2) Some mobile devices and phones do not support the Voice Dialing feature. Please refer to
your mobile device’s manufacturer’s instructions for additional information.
26. Declaration of Conformity
FCC
The MT-5000 is FCC certified and complies with part15 of the FCC rules.
BQB Qualification:
The MT-5000 Bluetooth Headset, a BQB Qualified Bluetooth product is listed as qualified End
Product in accordance to Section 6.2.4 of the PRD.
27. Limited Warranty
This warranty covers defects in materials and workmanship of Premier Accessory Group,
LLC and their respective MOTOR TREND® line of Bluetooth® products manufactured and
sold by Premier Accessory Group, LLC which were purchased and used in the United States
or Canada.
The warranty period is for 2 years from the date of purchases of the original product.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Obtaining Original Warranty Service
To return the Bluetooth® Product(s) to Premier Accessory Group, LLC for Warranty Service,
you must include:
-The original receipt or copy of the receipt for proof of purchase.
-All the headset including any charger that came as original to the headset.
-If less than 7 days from purchase, please return the original packaging.
-Provide information regarding the nature of the problem and reason for return.
-Provide your name, address and telephone number.
-When returning products for Warranty Service, if purchase was made within the last 90 days,
no additional Shipping & Handling is due to manufacturer for replacement product.
-If product was purchased more than 90 days prior to return of product for Warranty Service, a
Shipping & Handling fee of 14.95 is due to manufacturer for replacement product.
-Manufacturer is not responsible for lost headsets if mailed via first class mail without
insurance or delivery confirmation.
Return the product and Shipping & Handling fee (when applicable) to the address below:
Premier Accessory Group, LLC
ATTN. Customer Service-Warranty (Toll Free 866-446-4327)
11-11 44th Drive
Long Island City, New York 11101 USA
LEGAL NOTICE: This product is manufactured under license for SOURCE INTERLINK
MAGAZINES, LLC, the publisher of MOTOR TREND® Magazine and a SOURCE
INTERLINK MEDIA company.
Premier Accessory Group, LLC-2011 All Rights Reserved, U.S. & International patents,
trademarks, copyrights and registrations issued and pending.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
FCC ID: ZJVMT-5000
IMPORTANT REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules: Operation is subject to the
following two conditions:
1. This device may not cause harmful interference
and
2. This device must accept any interference that is received, including
any interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Loading...
