(above) E quiLine fence at P remier. It’s a safe, clean, attractive,
effective, reliable, “no maintenance ” horse fence. EquiLine fe nces work
best with an energized offset rope (inset abo ve) that keeps horse s from
rubbing or leaning on it. The rop e can be offs et or inser ted in place of a
strand of EquiLine.

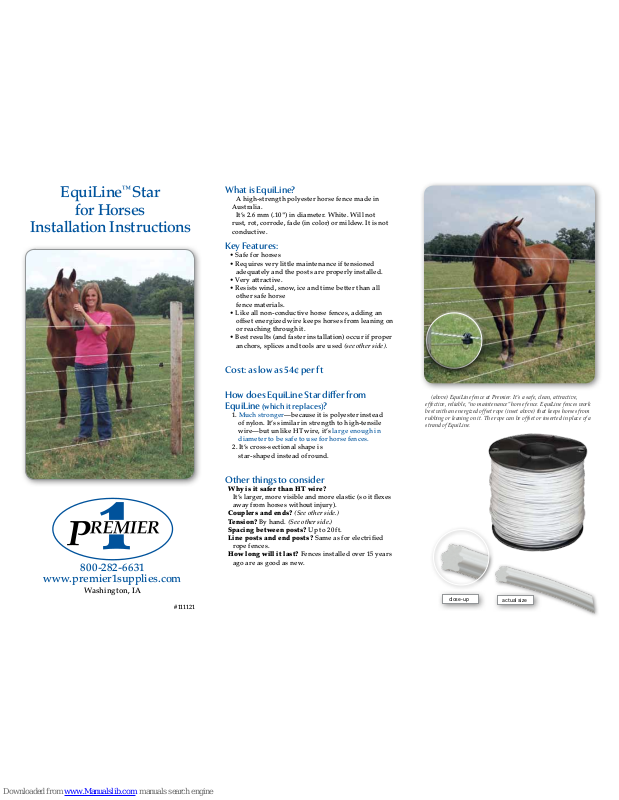

EquiLine™ Star
for Horses
Installation Instructions
#111121
800-282-6631
www.premier1supplies.com
Wash ington, IA
What is EquiLine?
A high-strength polyester horse fence made in
Australia.
It’s 2.6 mm (.10") in diameter. White. Will not
rust, rot, corrode, fade (in color) or mildew. It is not
conductive.
Key Features:
• Safe for horses
• Requires very little maintenance if tensioned
adequately and the posts are properly installed.
• Very attractive.
• Resists w ind, snow, ice and time better than all
other safe horse
fence materials.
• Like all non-conductive horse fences, adding an
offset energized wire keeps horses from leaning on
or reaching through it.
• Best results (and faster installation) occur if proper
anchors, splices and tools are used (see other side) .
Cost: as low as 54¢ per ft
How does EquiLine Star differ from
EquiLine
(which it replaces)?
1. Much stronger—because it is polyester instead
of nylon. It’s similar in strength to high-tensile
wire —but unlike HT w ire, it’s large enough in
diameter to be safe to use for horse fences.
2. It’s cross-sectional shape is
star-shaped instead of round.
Other things to consider
Why is it sa fer than HT wire?
It’s larger, more visible and more elastic (so it exes
away from horses without injury).
Couplers and ends? (S ee other side. )
Ten si on? By hand. (See o ther side. )
Spacing between posts? Up to 20 ft.
Line posts and end posts? Same as for electrified
rope fences.
How long will it last? Fences installed over 15 years
ago are as good as new.
actual size
close-up
Page 2
INTELLISHOCK
_
+
10"
20"
30"
40"
50"
WARNING
ELECTRIC FENCE
REMIER
P
2031 300th Street
Washington IA 52353
800-282-6631
319-653-7622
C. 5-Li ght
Tester
D. Surge
Protector
E. Insulated
Cable
H. EquiLine I. Conductor J./K./L. Insulators
N. HT Wire
Staples
O. Gripple P. Gripple
Tensioning Tool
Q. P Spring Combin ation
3. 2. 1.
Up to 20 ft between line post s
B.
E.
I.
J.
N.
F.
G.
Q.
H.
A.
L.
O.
K.
Insert End and Cor ner
Wood Posts 42"–48"
Insert
T Posts 18"
Insert Line
Wood Post 38"–48"
O.
M. Premier
Hot Top
Fence diagram
A. Bat tery or Plug- in Energizer s
B. Gal v. Rod, 6' x 5/8" #151000
Stainless Clamp #151800
C. 5- Light Tester #134100
D. Surge Protect or #156500
E. Insulated Cab le
F. Warning Sign #346000
G. Cut-O ut Switch #333000
M. P remier Hot Top #381000
N. HT Wire Staples, 1.6" #360200
HT Wire Sta ples, Box #360210
O. Gripple, larg e, 8 g #336810
P. Gr ipple Tensioning Tool #336830
Q. P Spring Combinatio n
1. TuffRing II Ins. #380705
2. SS P Spring #255010
3. RopeLi nk 2.0 #256210
Illustrate s how to attac h the insulator,
P spring, ro pe and RopeLink to a wood post.
To install EquiLine Star
• Use 5 or 6 strands spaced 10 to 12 in. apart.
• Total height: 50 to 60 in.
• Either thread through the posts or use staples to attach it to
the post. Attach a stra nd of offset electrical rope at 36 in.
Vary this to match size of horse(s).
• Attach EquiLine Star to end-posts v ia knots or A nchors.
Anchors a re inserted into end posts with EquiLine Star
passing through them. Anchors a re held in posit ion via
strain from the EquiLine. EquiLine Star can be tensioned
through a n Anchor v ia a Strainer.
• Strainer pulls EquiLine Star through the Anchor. Coupler
can be used to connect two ends of EquiLine Star, t ypica lly
used to splice rol ls together.
• Coupler operates sim ilar to a nger trap, EquiLine is inserted
into both ends of the Coupler and are held via tension.
H. EquiLine, 2000 ' #47000 0
I. E nduraSof t 6.0, 660' # 256500
Intell iBraid, 660' #256710
Intell iRope PE 6.0, 660' #256900
Intell iRope PE 4.5, 660' #245100
J. Rotat ing Corner Post Ins. #380900
K. Split Ball Offs et Ins. #390300
L. Premie r Combo Ins. #380321
The option to G ripples
or Anchors are hand-tied
knots. B ecause nylon
monofila ment is so smooth
and elast ic, the knot
should be m ade as shown.
Anchor s are inserted in to end posts with Equ iLine Star
passin g through them. An chors are held in p osition via
strain from the EquiLine. Strainer pulls EquiLine Star
through the Anchor.
Ways to terminate at ends
Gripple s used to
terminat e EquiLine at an
end post. Th ey are quick,
simple an d effective.
Gripple s can also be used
as a splic e.
Anchor
Coupler
Wire Anchor
Strainer
A coupler (spl ice) can be used
to connec t 2 ends of EquiLin e Star,
typically used to splice rolls together.
Operate s similar to a finger tra p.
EquiLin e is inserted into b oth ends of
the coupl er and held via tensio n.
See detailed information for
installation on our website.
