EH1932

INSTRUCTION MANUAL

12 Litre / Day Dehumidifier

Please keep this manual for further reference!

Thank you for selecting this Prem-i-air dehumidifier. Be sure to read this manual carefully before use.

1. BEFORE YOU BEGIN

Please read the operating instructions carefully before using your dehumidifier for the first time.

1.1 PRODUCT DESCRIPTION

The dehumidifier is used to remove excessive moisture from the air. The resulting reduction in relative
humidity protects buildings and their contents from the adverse effects of excess humidity.

The environmentally friendly R290 is used as the refrigerant. R290 has no damaging influence on the ozone
layer (ODP), a negligible greenhouse effect (GWP) and is available worldwide. Because of its efficient
energy properties, R290 is highly suitable as a coolant for this application. Special precautions must be
taken into consideration due to the coolant's high flammability.

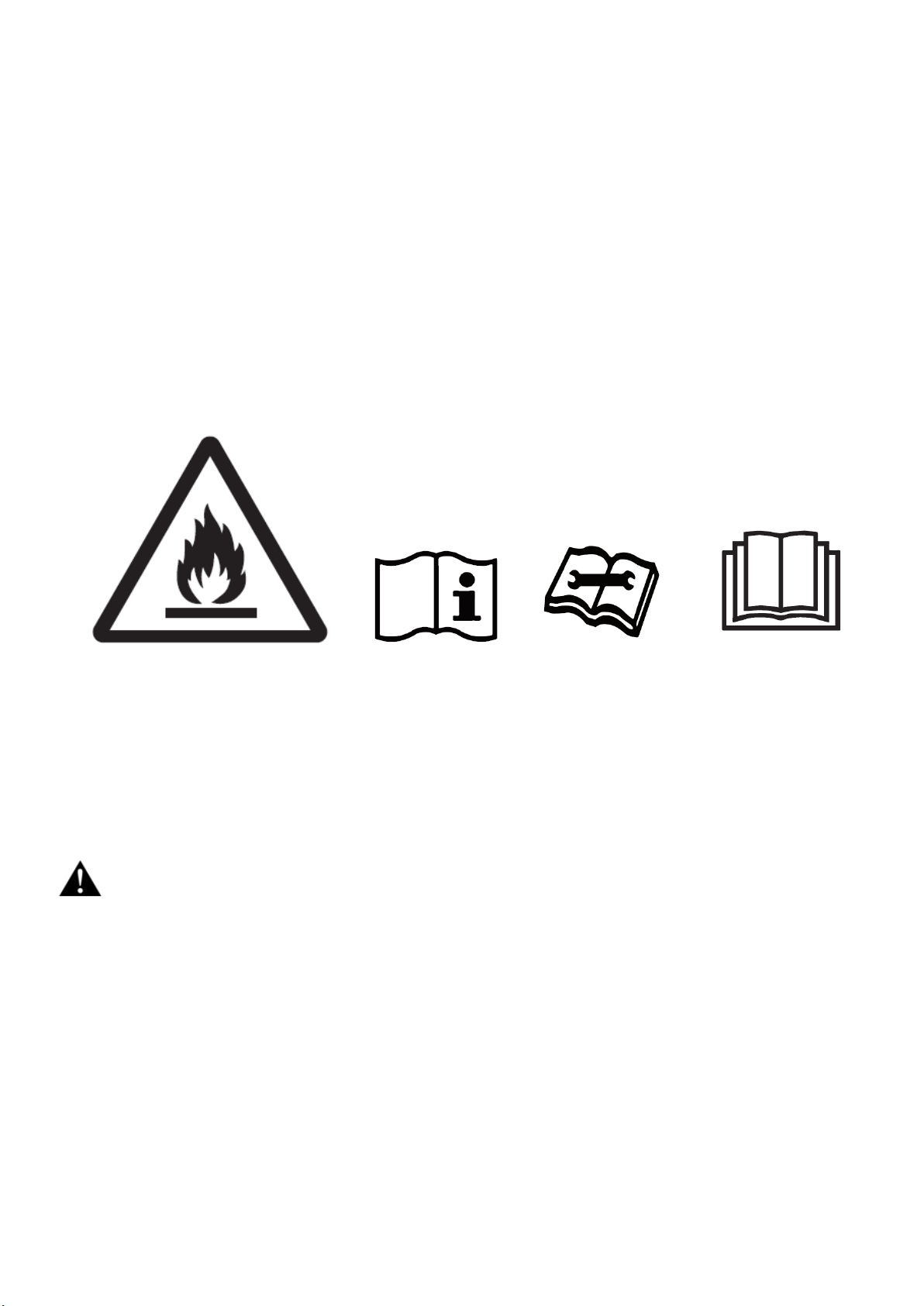

SYMBOLS FROM THE UNIT AND USER MANUAL

warning

This unit uses a flammable refrigerant.

There is a risk of fire if refrigerant leaks and comes in contact with

a spark or other ignition source.

Read the USER MANUAL carefully before operation.

Further information is available in the USER MANUAL, SERVICE

MANUAL, and the like.

Service personnel are required to carefully read the USER

MANUAL and SERVICE MANUAL before operation.

1.2 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY

⚫ This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory, or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved.

⚫ Children shall not play with the appliance.
⚫ Cleaning and user maintenance shall not be made by children without supervision.
⚫ This unit is designed only for use with R-290(propane) gas as the designated refrigerant.
⚫ The refrigerant loop is sealed. Only a qualified technician should attempt to service!
⚫ Do not discharge the refrigerant into the atmosphere.
⚫ R-290 (propane) is flammable and heavier than air. It collects first in low areas but can be

circulated by the fans. If propane gas is present or even suspected, do not allow untrained

personnel to attempt to find the cause. The propane gas used in the unit has no odor. The lack of
smell does not indicate a lack of escaped gas.

⚫ If a leak is detected, immediately evacuate all persons from the area, ventilate the room and

contact the fire brigade to advise them that a propane leak has occurred.

⚫ Do not let any persons back into the room until the qualified service technician has arrived and

that technician advises that it is safe to return.

⚫ No open flames, cigarettes or other possible sources of ignition should be used inside or in the

vicinity of the units.

⚫ Component parts are designed for propane and non-incentive and non-sparking. Component

parts shall only be replaced with identical parts.

FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN
EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE

2. FOR YOUR SAFETY

Please read this manual carefully and fully understand before operating your dehumidifier.

2.1 OPERATING PRECAUTIONS

WARNING- to reduce the risk of fire, electric shock or injury to persons or property:

⚫ If the supply cord is damaged, it must be replaced by the manufacturer or similarly qualified persons

in order to avoid a hazard.

⚫ The appliance shall be disconnected from its power source during maintenance.
⚫ Always operate the unit from a power source of equal voltage, frequency and rating as indicated on

the product identification plate.

⚫ Always use a power outlet that is earthed.
⚫ Unplug the power cord when cleaning or when not in use.
⚫ Do not operate with wet hands. Prevent water from spilling onto the unit.
⚫ Do not immerse or expose the unit to rain, moisture or any other liquid.

⚫ Do not leave the unit running unattended. Do not tilt or turn over the unit.
⚫ Do not unplug while the unit is operating, this may cause damage and unwanted wear.
⚫ Do not unplug by pulling on the power cord.
⚫ Do not use in bathrooms.
⚫ Use only on firm flat surfaces and this unit is not intended for use in Caravans, boats or other

unstable locations.

⚫ Do not use an extension cord or an adapter plug.
⚫ Do not put objects on the unit.
⚫ Do not climb or sit on the unit.
⚫ Do not insert fingers or other objects into the air outlet.
⚫ Do not touch the air inlet or the aluminum fins of the unit as they have sharp edges.
⚫ Do not operate the unit if it is dropped, damaged or showing signs of product malfunction.
⚫ Do not clean the appliance with any chemicals.
⚫ Ensure the unit is kept away from fire.
⚫ Do not use where paint, petrol or other flammable liquids are stored.
⚫ The unit shall be installed in accordance with national wiring regulations.
⚫ Do not use means to accelerate the defrosting process or to clean, other than those recommended

by the manufacture.

⚫ The appliance shall be stored in a room without continuously operation sources (for example: open

flames, an operating gas appliance or an operating electric heater).

⚫ The appliance shall be stored so as to prevent mechanical damage from occurring.
⚫ Do not piece or burn, even after use.
⚫ Be aware that refrigerants may not contain an odor.
⚫ Pipework shall be protected from physical damage and shall not be installed in an unventilated

space, if that space is smaller than 4m².

⚫ Compliance with national gas regulations shall be observed.
⚫ Keep any required ventilation openings clear of obstruction.
⚫ Do Not use this appliance for other than its intended use.
⚫ The appliance shall be stored in a well-ventilated area where the room size corresponds to the room

area as specified for operation.

Any person who is involved with working on or breaking into a refrigerant circuit should hold a

current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry, recognized assessment
specification.

Servicing shall only be performed as recommended by the equipment manufacturer.

Maintenance and repair requiring the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of flammable refrigerants.
If you don't understand something or need help, please contact the dealer services

2.2 SAFETY PRECAUTIONS ON SERVICING

Please follow these warnings when to undertake the following when servicing a dehumidifier with R290.

2.2.1 Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to
ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following
precautions shall be complied with prior to conducting work on the system.

2.2.2 Work procedure

Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or
vapor being present while the work is being performed.

2.2.3 General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work
being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be
sectioned off. Ensure that the conditions within the area have been made safe by control of flammable
material.

2.2.4 Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure
the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment
being used is suitable for use with flammable refrigerants, i.e. no sparking, adequately sealed or
intrinsically safe.

2.2.5 Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate
fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher
adjacent to the charging area.

2.2.6 No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work
that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner
that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking,
should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during
which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking
place, the area around the equipment is to be surveyed to make sure that there are no flammable
hazards or ignition risks. “No Smoking” signs shall be displayed.

2.2.7 Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or
conducting any hot work. A degree of ventilation shall continue during the period that the work is
carried out. The ventilation should safely disperse any released refrigerant and preferably expel it
externally into the atmosphere.

2.2.8 Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct
specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in
doubt consult the manufacturer’s technical department for assistance.
The following checks shall be applied to installations using flammable refrigerants:
– The charge size is in accordance with the room size within which the refrigerant containing parts are
installed.
– The ventilation machinery and outlets are operating adequately and are not obstructed.
– If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence
of refrigerant.
– Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall
be corrected.
– refrigeration pipe or components are installed in a position where they are unlikely to be exposed to
any substance which may corrode refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being corroded or are suitably protected
against being so corroded.

2.2.9 Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component
inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be
connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be
reported to the owner of the equipment, so all parties are advised.
Initial safety checks shall include:

-those capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking.

-that there no live electrical components and wiring are exposed while charging, recovering or purging
the system.

-that there is continuity of earth bonding

3. PRODUCT OVERVIEW

3.1 PRODUCT VIEW

Touch Panel

3 Colour Display

Front Shell

Castors

Air Outlet

Water Tank

Air Filter

Visible Water Level
Back Shell

Continuous Drain Outlet

4. INSTALLATION

4.1 LOCATION

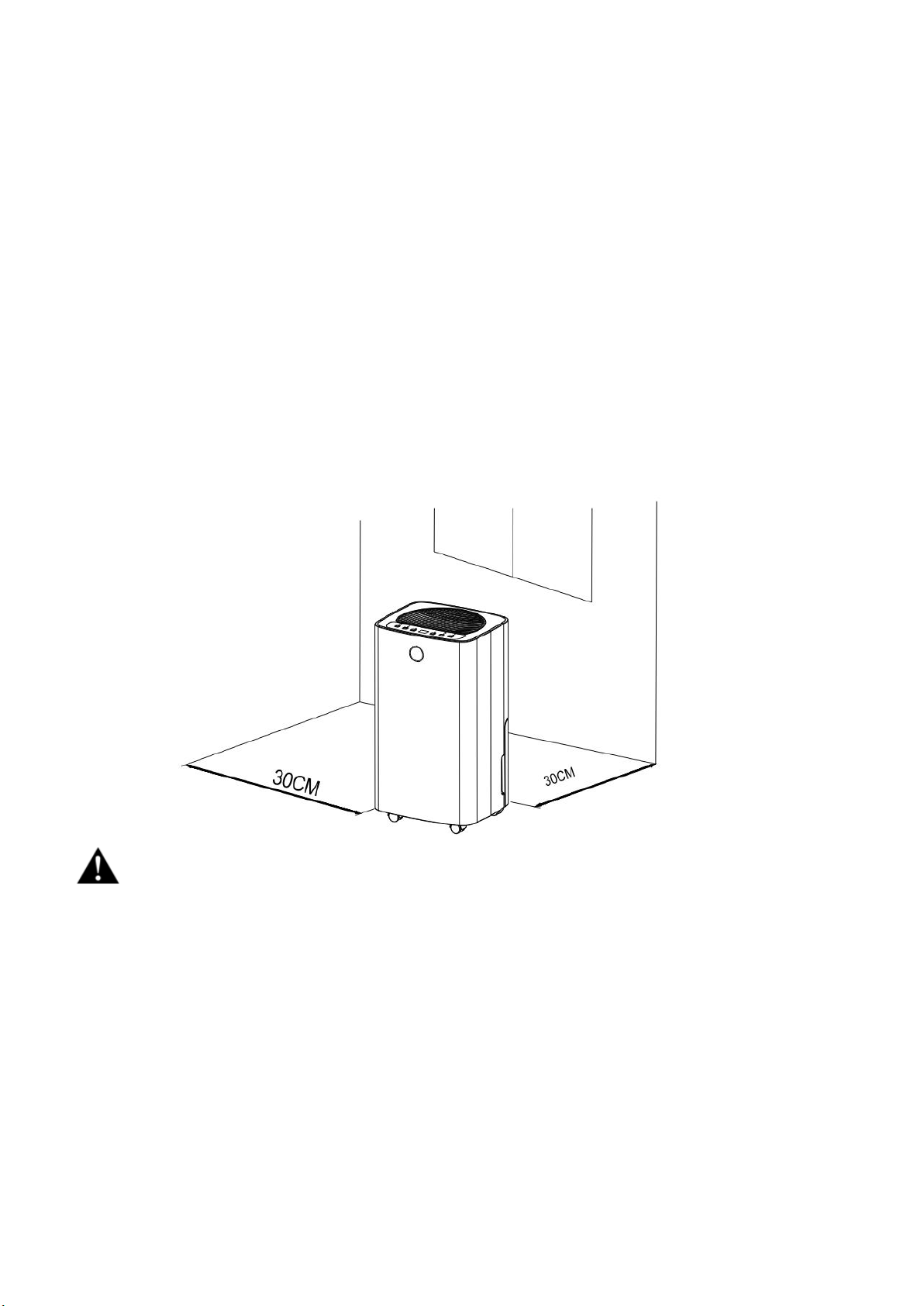

1. Place the unit on a firm, level surface in an area with at least 30cm of free space around it to allow

for proper air circulation.

2. Never install the unit where it could be subject to：

⚫ Heat sources such as radiators, stoves, or other products that products that produce heat.
⚫ In an area where oil or water may be splashed
⚫ Direct sunlight
⚫ Mechanical vibration or shock
⚫ Excessive dust
⚫ Lack of ventilation, such as cabinet or bookcase
⚫ Uneven surface

WARNING

Install the unit in rooms which exceed 4 m².

Do not install the unit in a place where flammable gas may leak.

4.2 OPERATING THE DEVICE SAFELY

⚫ Check the device after unpacking for any damages or scratches on it.
⚫ Operate this unit in an ambient temperature from 5°C to 35°C.
⚫ Do not use outdoors. This dehumidifier is intended for indoor residential applications only.
⚫ Do not operate in close proximity to walls, curtains, or other objects that may block inlet and outlet.
⚫ Keep the air inlet and outlet free of obstacles.
⚫ Adjusting the wind deflector in the upward direction prior to start up.
⚫ If tipped more than 45°, allow the unit to sit upright for at least 24 hours before starting up.

⚫ Keep doors and windows closed for better energy saving.

⚫ Do not operate or store the unit in direct sunlight or rain.
⚫ It is normal for air outlet to feel warm to touch after continuous operation on hot days.
⚫ Empty the water tank before moving the appliance.
⚫ Make sure the Water tank is correctly fitted otherwise the unit will not operate properly.
⚫ The dehumidifier starts up in the mode selected when the unit was last used.
⚫ The dehumidifier starts dehumidifying if the room humidity is 3% higher than the selected humidity.
⚫ There is a protective 3-minutes time delay before operation or shutting down of the compressor.

Wait 3 minutes for the dehumidifier to resume operation.

5. OPERATION

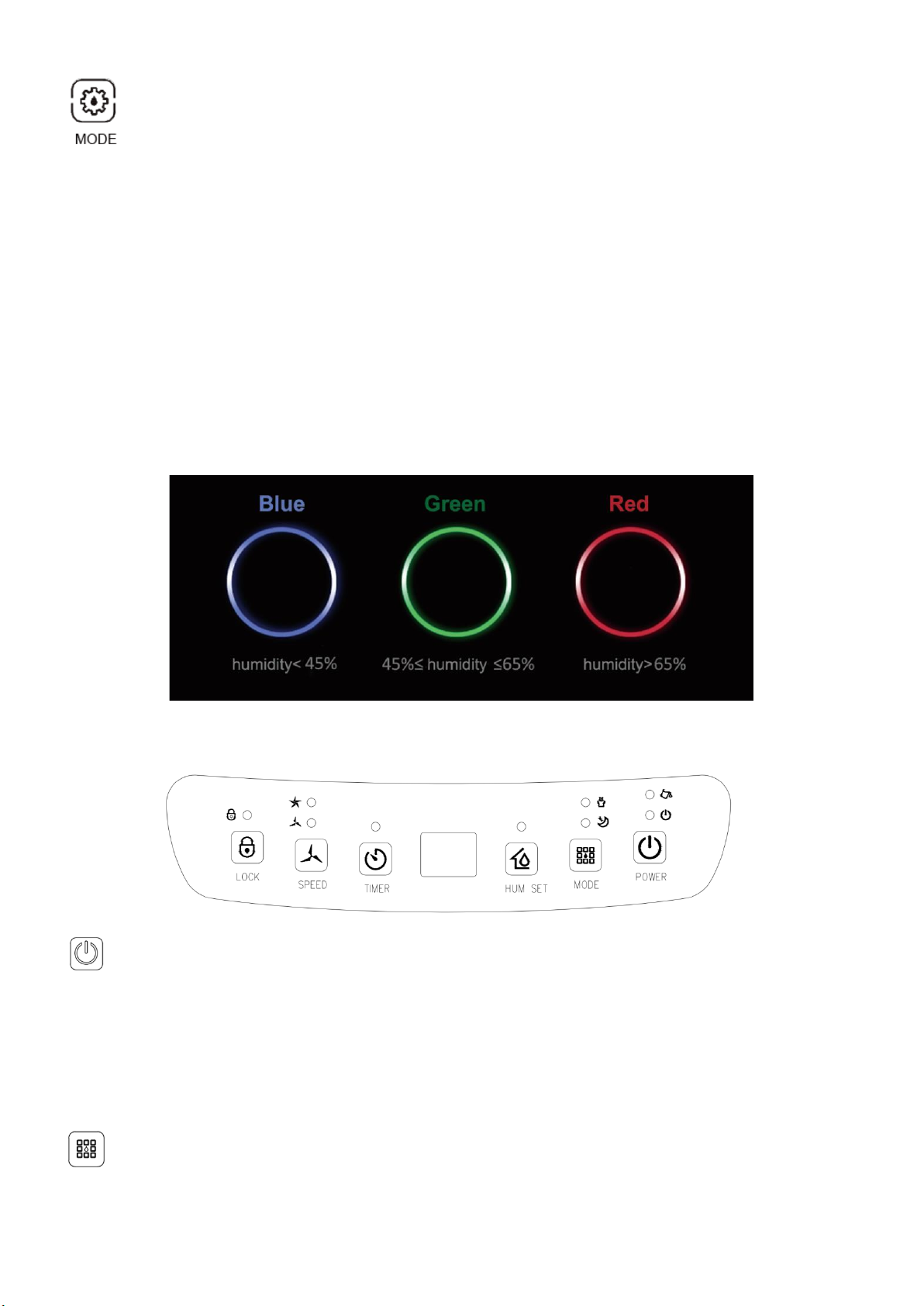

5.1 DIGITAL DISPLAY

5.2 CONTROL PANEL

Power

After switching on the power, all the indicators and the screen will be lit for 1 second and then turn off. A
buzzer will sound and the power indicator light will be on and the machine will be in standby mode.
Press the power button again and the appliance will start, the machines default initial humidity setting is
50%RH, the mode is set to automatic and the fan operation to high.
Press this key again, the machine will stop running, and the fan will stop after approx. 30s.

Mode

Auto mode - Continuously drying mode - Sleep mode. Press once to switch the mode from one to
another, the corresponding indicator lights up.

● Auto mode: when room humidity ≥ set humidity +3%, the fan starts working and compressor starts
working after 3 seconds.

When room humidity ≤ set humidity -3%, the compressor stops working and the fan will shut down after
a short 30s delay.

Both fan speed and humidity can be adjusted under auto mode.

● Continuously drying mode: The machine continues to run, but the humidity cannot be adjusted.

● Sleep mode: After no operation in 10 seconds, all indicators gradually darken, and the fan speed is
automatically switched from high to low. Touch any button to wake up the display. Touch sleep button
again to exit the sleep mode. When humidity level ≤ 57%, the compressor stops and the fan will shut
down after 30s. When the humidity ≥ 63% the fan starts then the compressor after 3s.

In sleep mode the fan speed and humidity cannot be modified.

Humidity

In auto mode you can use this button to adjust the set humidity: every time you press the humidity will
increase by 5%. The humidity can range from a minimum of 30% to a maximum of 80%. One long press
of this button, > 3s, will display the current room temperature, after 5 seconds to display will return to
displaying the current humidity.

Timer

Press this key to set the timer function of 0-12 hours. The interval is 1 hour. Each time you press

this button, the value increases by 1 hour and then the corresponding timing value is displayed on
the screen. Set the value to “00” to cancel the timer function and the timer indicator will turn off.
After the timer is set and completed, the timer LED is on during the timing period. After the timing
period the timer LED turns off automatically.
In the running state, set the time to turn off the machine.
in the standby state, set the time to turn on the machine.

Fan Speed

The fan speed can only be adjusted in the automatic mode. Press this key to switch between the high
and low fan speeds. The corresponding fan speed indicator lights

Child Lock

A long press this button to operate the child lock function. The child lock indicator lights. All the keys are
locked and cannot be operated. Press this button again, the indicator light will go out, and the button
operation will be restored.
Shutdown or power off will automatically cancel the child lock function.

5. DRAINAGE

EMPTYING THE WATER TANK

⚫ When the tank is full, The unit will make a buzzing sound, and

the “Water Full” light will turn on.

⚫ Press the POWER button to turn off the unit.
⚫ Pull on the water tank and simply slide out of the body of the

dehumidifier.

⚫ Empty the water into an area with a drain or outside.
⚫ Clean the inside of the tank as well as the outside.
⚫ Replace the empty tank back into the unit.
⚫ Press the POWER button to resume operating.
⚫ If the Water Full light does not extinguish, check that the float is correctly in place.

Warning

1. Do not discard water tank magnets and plastic rivets. Otherwise, the machine will not automatically
stop when the water tank is full, and the condensed water will overflow.

2. If the water tank is dirty, rinse with clean water. Avoid using detergents or other solvents as this may
cause the water tank to be damaged and leak

3. Replace the empty tank back into the unit. Otherwise, the water full indicator may remain red, and
the machine cannot restart.

CONTINUOUS DRAINING

For continuous operation or unattended dehumidification, please connect the
drain hose to the unit. Condensate water can automatically drip into a bucket or
drain by gravity.

1. Straighten the drainage pipe

2. Insert one end of the drain pipe into the drain hole and place the other end
into the bucket, container, or drain.

Warning

1. Please do not block the drain or drainpipe, if the pipe is blocked the
condensed water will flow into the water tank.

2. Please do not bend the drainpipe. The height of the drainpipe should be lower
than the outlet.

3. The drainpipe should be securely connected to the outlet.

4. Do not submerge the end of the drain hose as this can cause an ‘air lock’ in
the hose and prevent the water from draining.

MAINTENANCE

Note: before cleaning and maintaining the machine, be sure to turn off the machine and pull the power
plug to prevent electric shock.

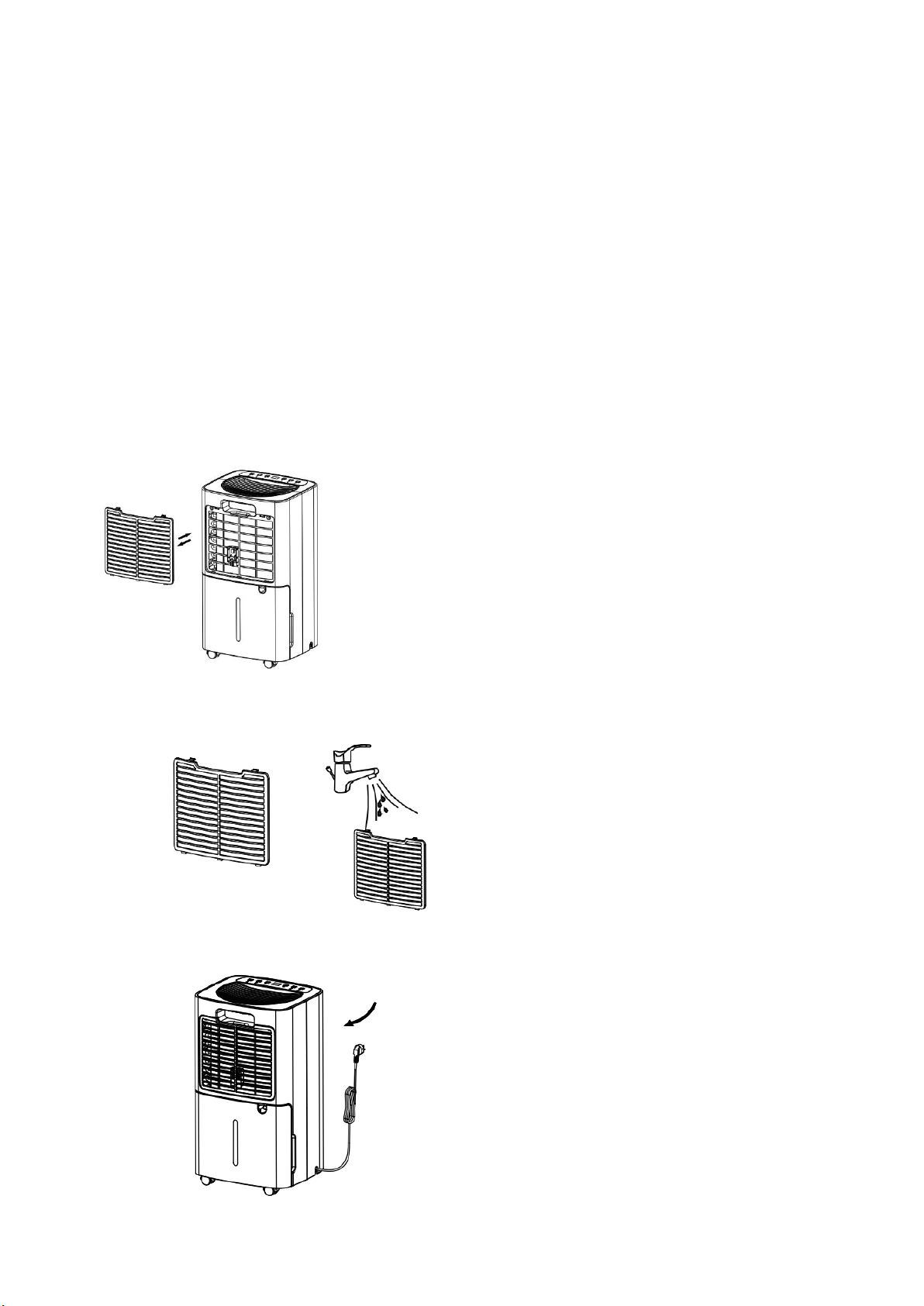

CLEANING THE AIR FILTER

The filter should be cleaned every 2 weeks.
Dust collects on the filter and restricts the airflow. The restricted airflow reduces the efficiency of the
system and if it becomes blocked it can cause damage to the unit.

The air filter requires regular cleaning. The air filter is removable for easy cleaning. Do not operate the
unit without an air filter, or the evaporator may be contaminated.

1. Remove the filter from the back of the unit.

2. Use a vacuum cleaner to gently absorb the dust on the surface. If the filter is very dirty, wash it with

water and a soft detergent and dry it thoroughly afterwards.

3. Return the filter to the unit.

TROUBLE SHOOTING

NORMAL OPERATING TEMP.

5°C ≤ to ≤ 35°C
When the ambient temp is lower or higher than the normal operating temperature, the dehumidifier
stops.
When the room temperature is between 5°C ≤ & ≤ 16°C, the compressor automatically defrosts at
regular intervals; during defrosting, the compressor stops, and the fan keeps running.

BEFORE CALLING THE SERVICE HELPLINE

Before contacting a service professional, please review the trouble shooting list below that include
common issues that are not the result of a defect in workmanship or materials.

Problem

Possible Cause

Solution

Not working

No power supply

Connect to a functioning outlet and switch on

Water Full Indication Flashes

Drain water tank and reset it, or check water
tank is correctly fitted.

Room temperature ˂ 5°C,or ˃

35 °C

Unit will not operate to protect the unit. Unit
will not work at such temperatures.

Poor

function

Is the air filter clogged?

Clean the air filter as instructed

Is the intake duct or discharge
duct obstructed?

Remove the obstruction from the discharge
duct or intake duct.

No air
intake

Is the filter clogged?

Wash / clean the filter

Loud noise

when

running

Is the machine put on a flat
surface?

Reposition on flat surface.
Is the filter clogged?

Wash the filter

E2

Humidity sensor problem

Change sensor

LO

Environmental humidity is
below 20%

The dehumidifier shuts down for self­protection

HI

Environmental humidity is
above 90%

CL

Low temperature protection,
the environmental temperature
＜5℃

CH

High temperature protection,
the environmental temperature
＞38℃

STORAGE

Long-term storage - If you will not be using the unit for an extended period of time (more than a few
weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps:

1. Press power button to switch off and unplug the unit.

2. Drain the remaining water from the unit and dry thoroughly.

3. Clean the filter and let the filter dry completely.

4. Replace filter in the unit.

5. Place the power cord in the dry water tank.

6. The unit must be kept in upright position when in storage.

7. Store the machine indoors in a dry, well-ventilated place.

ATTENTION:

The condenser inside the machine should be dried out before the unit is packed away to avoid
component damage and mold. Unplug the unit and place it in a dry open area for at least 24 hours to dry
it out. Another way to dry the unit is to set the humidity point more than 5% higher than the ambient
humidity to force the fan to dry the condenser.

DISPOSAL

WARNING!!!

Releasing refrigerant into the atmosphere is strictly forbidden!

Do not dispose of this electrical appliance as unsorted municipal waste, use separate collection facilities
designated for refrigerators. Contact your local authority for information regarding the collection
systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can
leak into the groundwater and get into the food chain, damaging your health.

TECHNICAL SPECIFICATION

Weight:

11kg

Power supply:

230V ~

Power consumption:
Tank Capacity:
Refrigerant / Charge:
Moisture Removal:

185W
2 litre
R290 / 55g
12l / Day

SERVICE WARRANTY

Prem-I-Air guarantees the product free from defects in materials and workmanship for a period
of 1 year. Should this unit be operated under conditions other than those recommended, at
voltages other than the voltage indicated on the unit, or any attempts made to service or modify
the unit, then the warranty will be rendered void. The product you buy may sometimes differ
slightly from illustrations. This warranty is in addition to, and does not affect, your statutory rights.
If you have any problems with this product, please call our help desk on [phone].

Prem-I-Air Appliances Ltd.

Lancots Lane

Sutton

St. Helens

Merseyside

WA9 3EX

www.prem-i-air.co.uk
