20” (50cm) HV Pedestal Fan with
360° Head
EH1864
Instruction Manual
Page 2
2 | P a g e
INTRODUCTION:
Please read the entire instruction manual before using the product and then save it for future
reference. We reserve the right for any errors in text or images and any necessary changes
made to technical data. If you have any questions concerning technical problems please
contact our Customer Services on 01928 581 284
IMPORTANT SAFETY INFORMATION:
This appliance is intended for use as a cooling fan. Use it for domestic purposes and
in the way indicated in this instruction manual.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Place the appliance on a firm flat surface. Do not place on soft surfaces.
For Indoor Use Only
Do not use in close proximity to gas appliances.
Do not use the appliance in locations where paint, petrol or other flammable liquids are
used or stored.
Do not move the appliance whilst it is operating.
Do not use in bathrooms, or in wet or damp locations.
Do not use this appliance in the immediate surroundings of a bath, a shower or a
swimming pool.
Do not place the mains lead beneath a carpet or rug.
Do no insert any object into the appliance through the grilles. This may damage the
appliance or result in overheating or electric shock.
The appliance is fitted with an overload cut-out which will operate if the motor overheats
or is stalled. If this happens, disconnect from the mains supply immediately, and allow
the motor to cool down.
Page 3
3 | P a g e

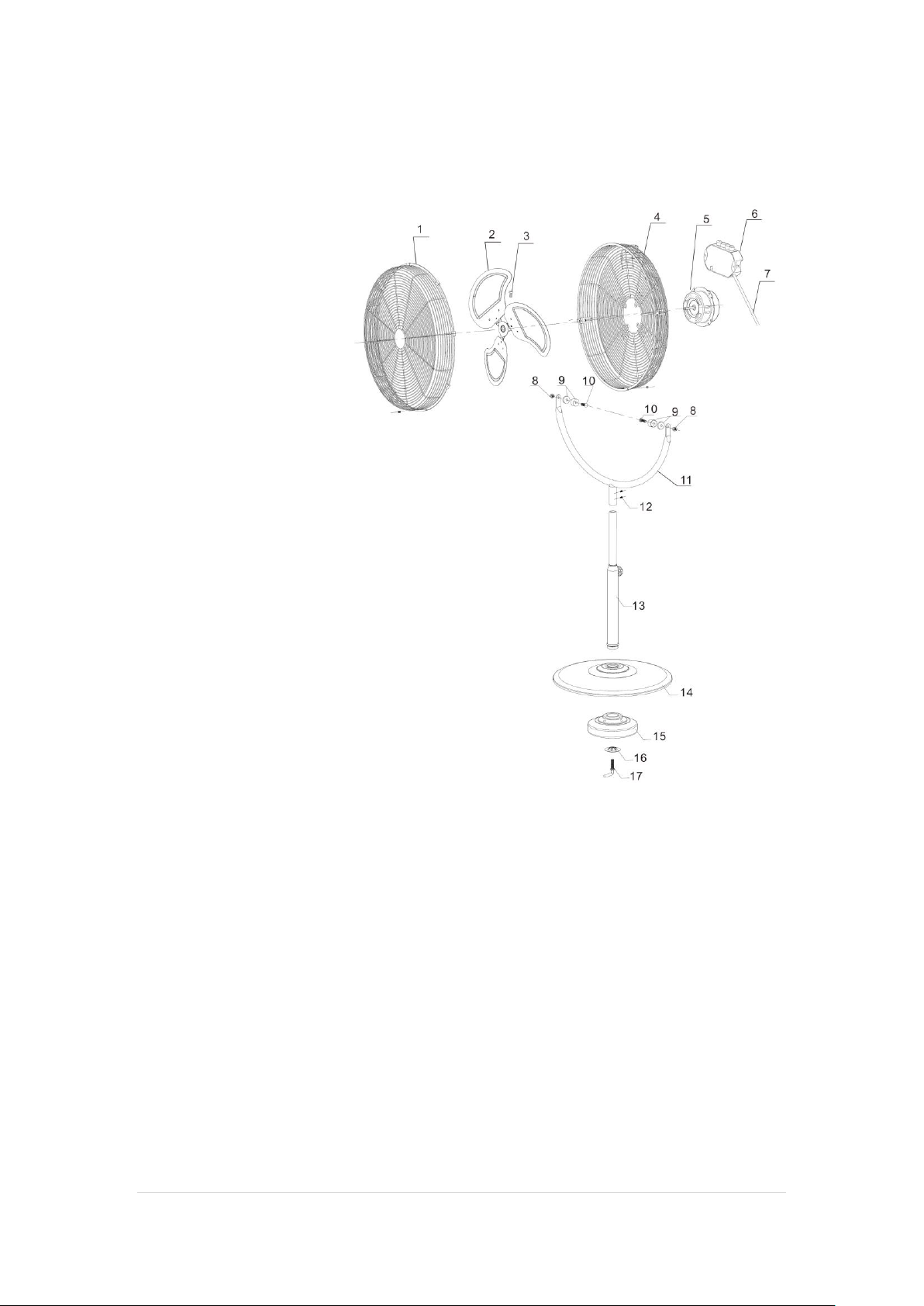

PRODUCT DIAGRAM
1. Front Guard
2. Fan Blade
3. Blade Securing Screw
4. Securing Screw
4. Back Grill
5. Fan Motor
6. Speed Control Box
7. Power Cord
8. Locking Nut
9. Plastic Spacer
10. Locking Screw
11. Supporting Tube
12. Screw
13. Stand Tube
14. Base
15. Weight Block
16. Fixing Plate
17. Base Locking Screw
Page 4
4 | P a g e
ASSEMBLY

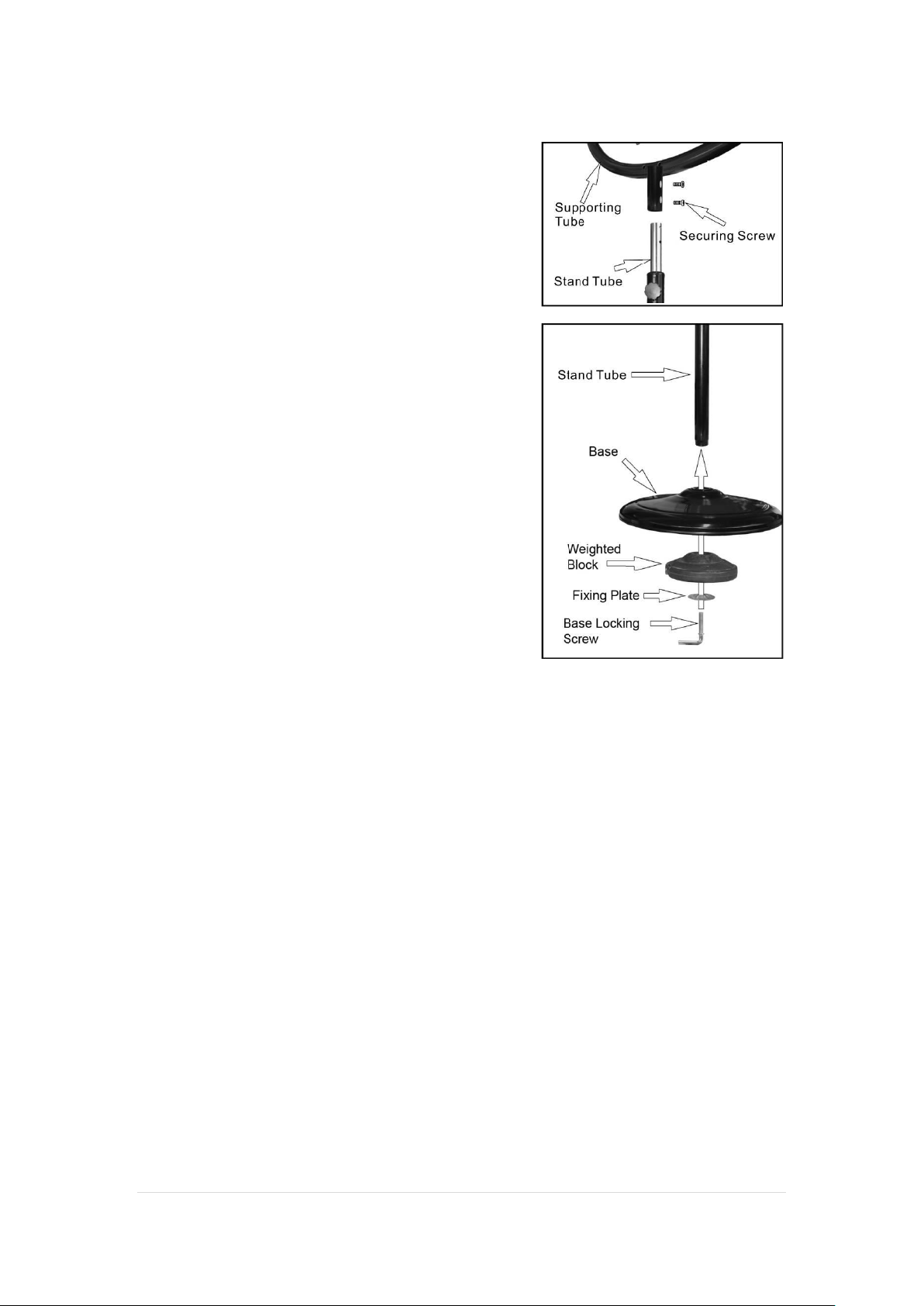

1. Slide the Supporting Tube over the Stand Tube
and tighten using the Securing Screw.
2. Pass the base locking screw up through the
fixing plate, weighted block and base and screw
securely into the bottom of the stand tube as
shown
Page 5
5 | P a g e
OPERATION:
Plug the mains lead into a 13 Amp mains socket.
If connecting via an extension lead, make sure
that the lead is rated at 3 Amps or more, and that
it is fully unwound. If any other appliances are
connected to the same extension lead, make
sure that it is rated for the total power of all
appliances connected.
Switch the appliance on at the mains socket.

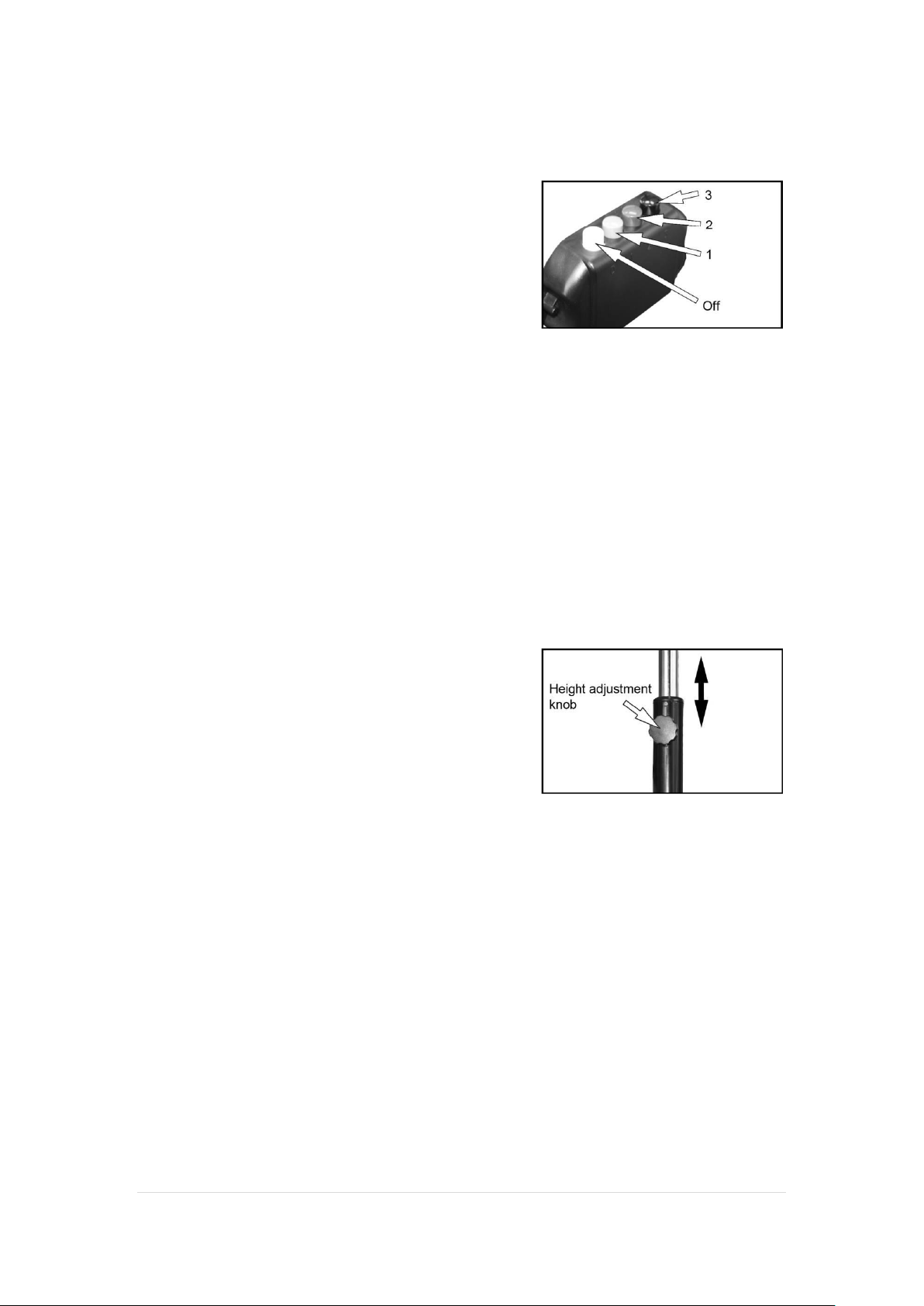

Connect the power and press Speed buttons (1,
2, 3). The fan will start to operate to the speed
level chosen.
TILTING THE FAN
You can adjust the angle of the fan by holding
the supporting tube and tilting the fan to the
required angle.
Tighten the nuts on the side of the fan slightly if
the fan will not stay in position.
ADJUSTING THE HEIGHT
(a) Loosen the height adjustment knob.
(b) Raise or lower the fan to the required height.
(c) Tighten the height adjustment knob to lock
the fan in the new position.
OPERATING COSTS
At time of going to press, the average cost of electricity is £0.12 per unit (kilowatt-hour).
The amount you are being charged will be shown on your electricity bill. At this cost, the appliance will
cost 8p per day to run on the "low speed" setting, 10p per day on the "medium speed" setting or 12p per
day to run on the "high speed" setting.
PAT TESTING
When used in an office environment, this product must be safety-tested yearly by a qualified electrician
(PAT Tested) in order to comply with the Electricity at Work. Regulations We recommend that it is PAT
tested regularly when used in a domestic environment.
Page 6
6 | P a g e
GENERAL SAFETY REQUIREMENTS
Domestic wiring must be tested periodically by a qualified electrician at least once every 10 years or at
every change of occupancy. For office and retail premises, and buildings such as village halls, the wiring
must be inspected at least once every 5 years. It is recommended that all building be fitted with smoke
alarms (it is mandatory for new buildings).
MAINTENANCE
Before cleaning, turn the appliance off, and disconnect from the mains supply. The appliance
may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust
or dirt from the case. Do no use stronger detergents or solvents as these may damage the paint
finish. Using a dry 1" (25mm) paint-brush, remove any dust from the grilles. If the mains lead
is damaged, it must be replaced by the manufacturer or and
authorised service centre.

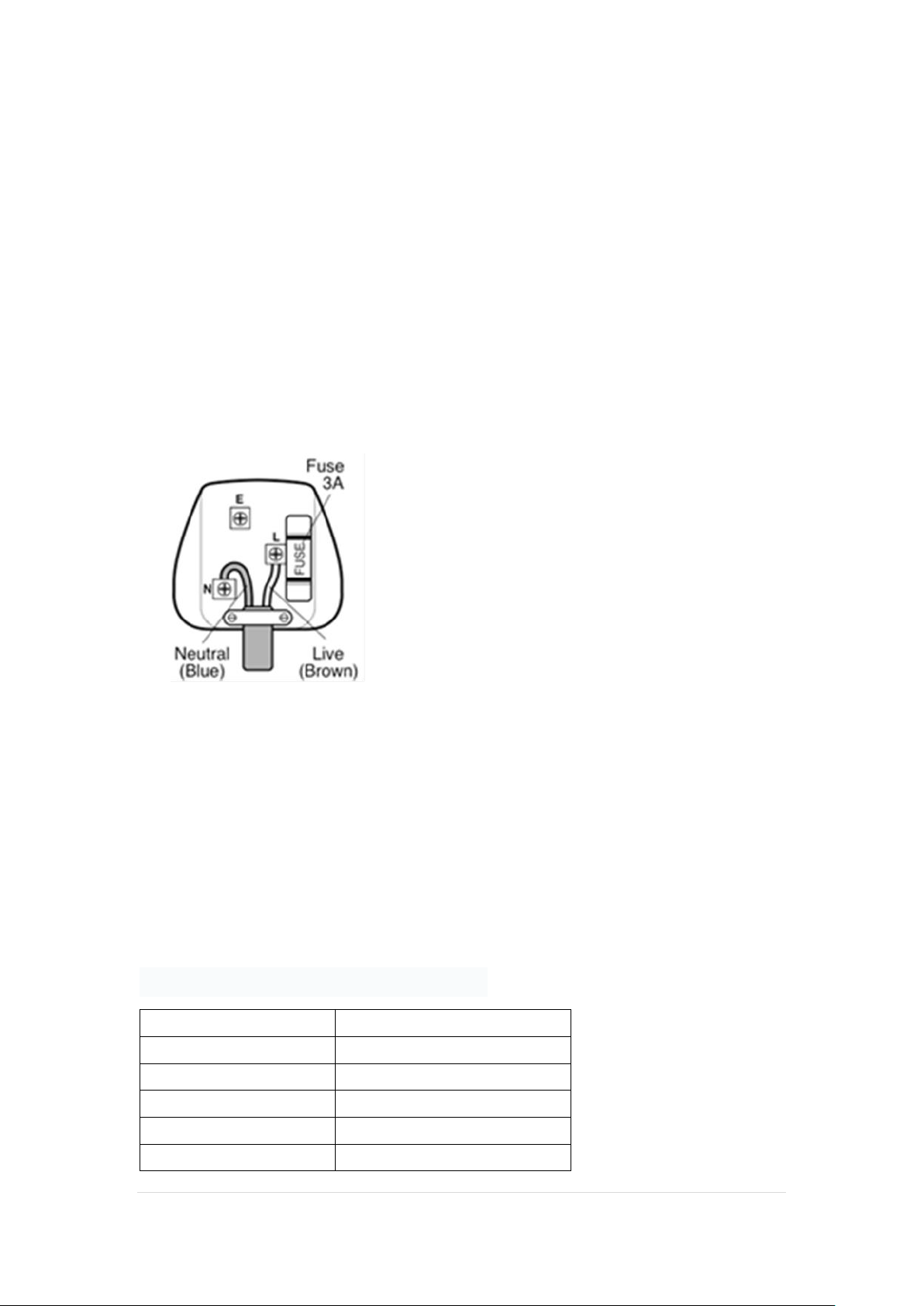

If the mains plug needs to be replaced, proceed as follows:
Connect the brown wire to the terminal
labelled "L".
Connect the blue wire to the terminal labelled
"N".
Make sure that the cord-grip is positioned
correctly (over the outer sheath of the cable)
and it fully tightened.
If the plug is fitted with a 13 A or 5 A fuse,
replace it by a 3 A fuse.
DISPOSAL AND RECYCLING
You must not dispose of this appliance with domestic household waste. Most local authorities
have specific collection system for appliances and disposal is free of charge to the end-user.
When replacing an existing appliance with a similar new appliance your retailer may take the
old appliance for disposal.
TECHNICAL SPECIFICATION:
Model
EH7060
Main Supply
220~240V
Frequency
50 Hz
Output
100W
Speeds
3
Service Value
1 ,29 (M
3
/Min)/W
Page 7
7 | P a g e
ENVIRONMENTAL RESPONSIBILITIES:
Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities.
Contact your local council for information regarding the collection systems
available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain
damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your
old appliance for disposal free of charge
SERVICE WARRANTY:
Prem-I-Air guarantees the product free from defects in materials and workmanship for a period
of twelve months. Should this appliance be operated under conditions other than those
recommended, at voltages other than the voltage indicated on the appliance, or any attempts
made to service or modify the appliance, then the warranty will be rendered void.
The product you buy may sometimes differ slightly from illustrations. This warranty is in addition
to, and does not affect, your statutory rights. Our guarantee is administered by our retailers.
If your product arrives damaged, you must contact the retailer from whom you bought it. The
retailer's contact details will be on the invoice that arrived with the product, or on the e-mail you
received when you placed the order. Do not contact Netagon Limited, only your retailer can
arrange a replacement. If your product fails within the guarantee period, firstly read the "fault
finding" section of this manual, because temperature and weather conditions can affect the
performance of certain products. If the product needs to be repaired or replaced, you must
contact the retailer from whom you bought it. The retailer's contact details will be on the
invoice that arrived with the product, or on the e-mail you received when you placed the order.
If you have just received your product and require technical help in using it, please call our Help
Desk on 01928 581 284
If you have any other technical queries about the product, please call our Help Desk on 01928
581 284
Prem-I-Air Appliances Ltd.
Lancots Lane, Sutton,
St. Helens
Merseyside
WA9 3EX
www.Prem-I-Air.com
