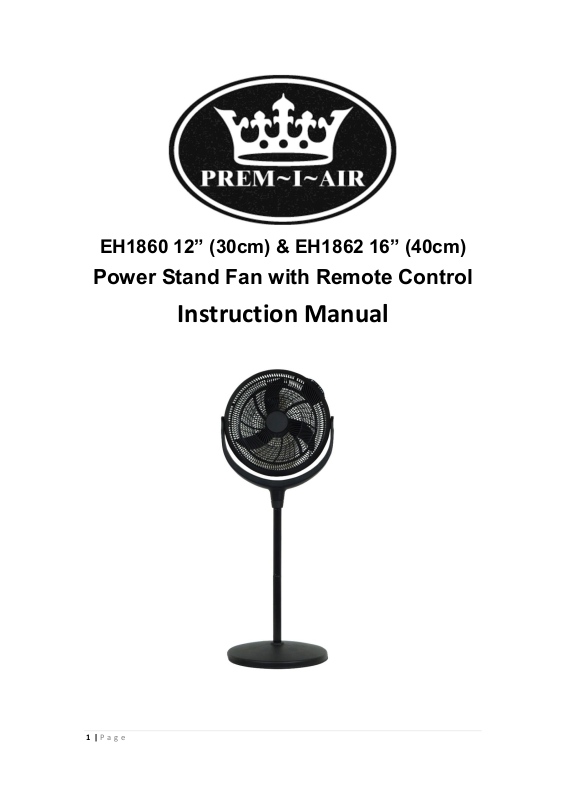

EH1860 12” (30cm) & EH1862 16” (40cm)
Power Stand Fan with Remote Control
Instruction Manual
Page 2
2 | P a g e
INTRODUCTION:
Please read the entire instruction manual before using the product and then save it for future
reference. We reserve the right for any errors in text or images and any necessary changes
made to technical data. If you have any questions concerning technical problems please
contact our Customer Services on 0845 459 4816
IMPORTANT SAFETY INFORMATION:
• This appliance is intended for use as a cooling fan. Use it for domestic purposes and
in the way indicated in this instruction manual.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Place the appliance on a firm flat surface. Do not place on soft surfaces.
• For Indoor Use Only
• Do not use in close proximity to gas appliances.
• Do not use the appliance in locations where paint, petrol or other flammable liquids are
used or stored.
• Do not move the appliance whilst it is operating.
• Do not use in bathrooms, or in wet or damp locations.
• Do not use this appliance in the immediate surroundings of a bath, a shower or a
swimming pool.
• Do not place the mains lead beneath a carpet or rug.
• Do no insert any object into the appliance through the grilles. This may damage the
appliance or result in overheating or electric shock.
• The appliance is fitted with an overload cut-out which will operate if the motor overheats
or is stalled. If this happens, disconnect from the mains supply immediately, and allow
the motor to cool down.
Page 3
3 | P a g e
Description of parts
1. Front Grill
2. Blade
3. Speed Selector Knob
4. Carry Handle
5. Tilt Axis
6. Rear Grille
7. Pole
8. Base
9. Pole connector
10. Remote control unit
Assembly
1. Carefully remove the fan from the carton. Place the base flat on the floor.
2. Stand Fan Option - Line up the notch on the base connector (9) and insert into the base
(8) to snap it in place. Twist the pole (7) until secured.
3. Floor Fan Option - Line up the notch on the base connector (9) and insert into the base
(8) to snap it in place.
4. Place the head assembly onto the end of the pole and continue turning unit it is
secured on the pole.
Page 4
4 | P a g e
How to Operate
❖ Set the fan on a level and dry surface.
❖ Plug the power cord into the socket. Making sure the speed control is at OFF
position.
❖ Using the Remote Control – Open the cover at the bottom of the remote control and
insert the batteries (Not Included)
OFF: To switch off the fan.
ON/SPEED: To switch on the fan and set the speed.
TIMER: The fan has an automatic timer to turn the unit OFF of up to 7 hours.
❖ You may also access the controls above using the touch buttons located on the units
control panel.
❖ Adjust the fan to your desired angle by moving the head up or down.
❖ After turning the Fan off, unplug the unit from the electrical outlet.
OPERATING COSTS
At time of going to press, the average cost of electricity is £0.12 per unit (kilowatt-hour).
The amount you are being charged will be shown on your electricity bill. At this cost, the
appliance will cost 8p per day to run on the "low speed" setting, 10p per day on the "medium
speed" setting or 12p per day to run on the "high speed" setting.
PAT TESTING
When used in an office environment, this product must be safety-tested yearly by a qualified
electrician (PAT Tested) in order to comply with the Electricity at Work. Regulations We
recommend that it is PAT tested regularly when used in a domestic environment.
GENERAL SAFETY REQUIREMENTS
Domestic wiring must be tested periodically by a qualified electrician at least once every 10
years or at every change of occupancy. For office and retail premises, and buildings such as
village halls, the wiring must be inspected at least once every 5 years. It is recommended that
all building be fitted with smoke alarms (it is mandatory for new buildings).
Page 5
5 | P a g e
MAINTENANCE
Before cleaning, turn the appliance off, and disconnect from the mains supply. The appliance
may then be cleaned using a damp cloth with a drop of washing-up liquid to remove any dust
or dirt from the case. Do no use stronger detergents or solvents as these may damage the paint
finish. Using a dry 1" (25mm) paint-brush, remove any dust from the grilles. If the mains lead
is damaged, it must be replaced by the manufacturer or and authorised service centre.
If the mains plug needs to be replaced, proceed as follows:
▪ Connect the brown wire to the terminal
labelled "L".
▪ Connect the blue wire to the terminal labelled
"N".
▪ Make sure that the cord-grip is positioned
correctly (over the outer sheath of the cable)
and it fully tightened.
▪ If the plug is fitted with a 13 A or 5 A fuse,
replace it by a 3 A fuse.
DISPOSAL AND RECYCLING
You must not dispose of this appliance with domestic household waste. Most local authorities
have specific collection system for appliances and disposal is free of charge to the end-user.
When replacing an existing appliance with a similar new appliance your retailer may take the
old appliance for disposal.
TECHNICAL SPECIFICATION:
Model Main Supply Frequency Output Speeds Service Value
EH1860 220 - 240V 50 Hz 45W 3 0.37 (m3/min)/W
EH1862 220 - 240V 50 Hz 55W 3 0.54 (m3/min)/W
Page 6
6 | P a g e
ENVIRONMENTAL RESPONSIBILITIES:

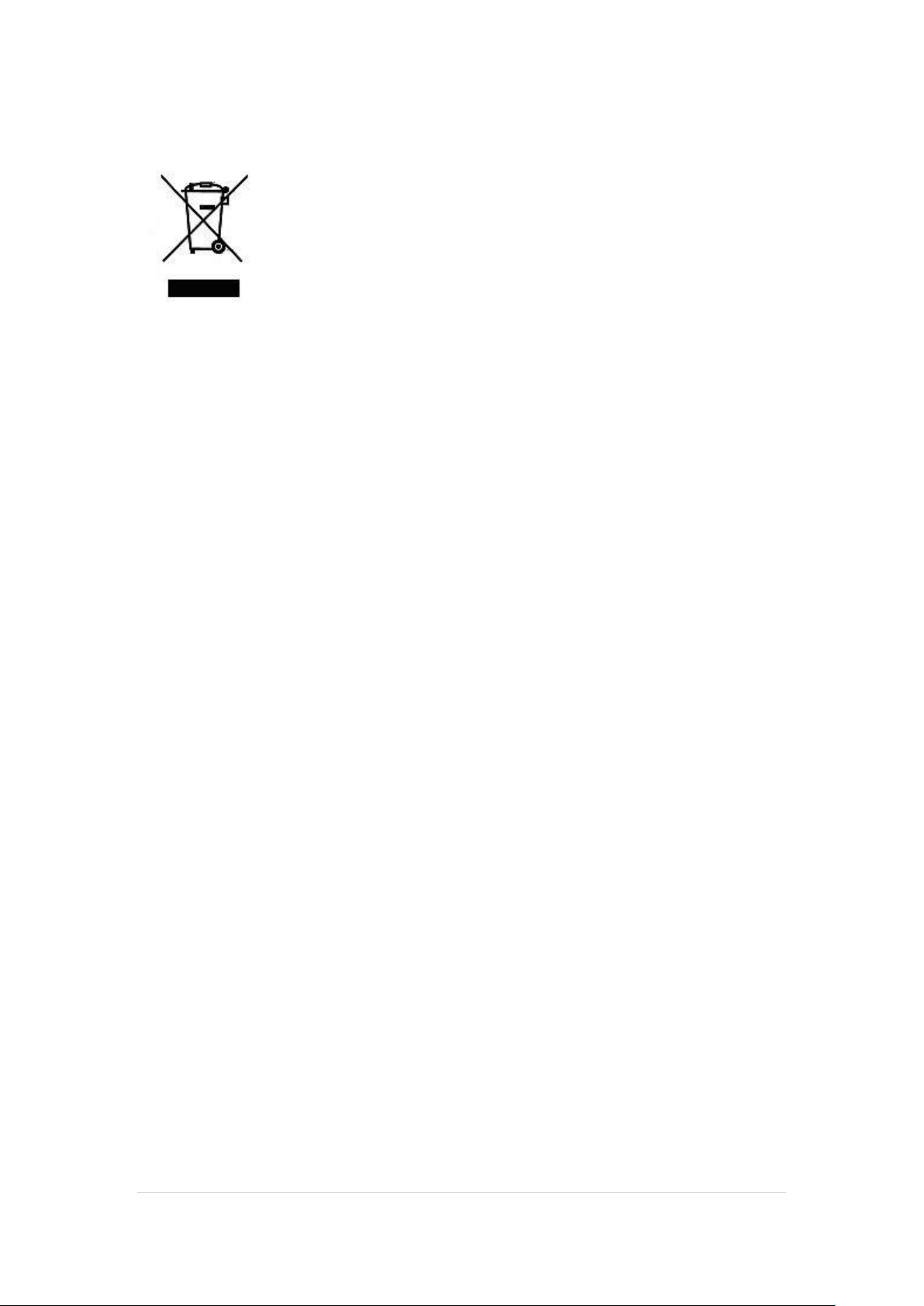

Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities.
Contact your local council for information regarding the collection systems
available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain
damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your
old appliance for disposal free of charge
SERVICE WARRANTY:
Prem-I-Air guarantees the product free from defects in materials and workmanship for a period
of twelve months. Should this appliance be operated under conditions other than those
recommended, at voltages other than the voltage indicated on the appliance, or any attempts
made to service or modify the appliance, then the warranty will be rendered void.
The product you buy may sometimes differ slightly from illustrations. This warranty is in addition
to, and does not affect, your statutory rights. Our guarantee is administered by our retailers.
If your product arrives damaged, you must contact the retailer from whom you bought it. The
retailer's contact details will be on the invoice that arrived with the product, or on the e-mail you
received when you placed the order. Do not contact Prem-I-Air Appliances Limited, only your
retailer can arrange a replacement. If your product fails within the guarantee period, firstly
read the "fault finding" section of this manual, because temperature and weather conditions can
affect the performance of certain products. If the product needs to be repaired or replaced, you
must contact the retailer from whom you bought it. The retailer's contact details will be on the
invoice that arrived with the product, or on the e-mail you received when you placed the order.
If you have just received your product and require technical help in using it, please call our Help
Desk on 0845 459 4816
If you have any other technical queries about the product, please call our Help Desk on 0845
459 4816
Prem-I-Air Appliances Ltd.
Lancots Lane, Sutton,
St. Helens
Merseyside
WA9 3EX
www.Prem-I-Air.com
