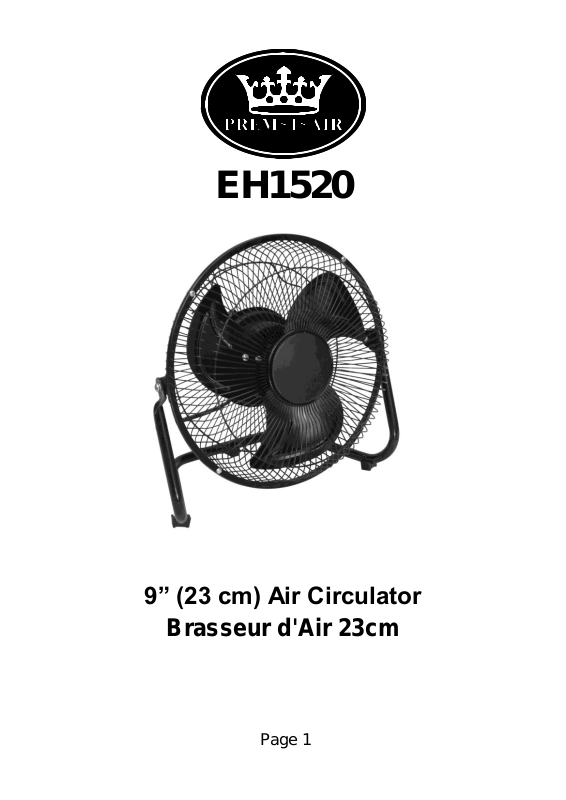

Premiair EH1520 User guide

EH1520

9” (23 cm) Air Circulator

Brasseur d'Air 23cm

Page 1

IMPORTANT

Installer and Users please note:

These instructions should be read carefully and left with the user of the product
for future reference.

OPERATION

Plug the mains lead into a 13 Amp mains socket.
If connecting via an extension lead, make sure that the lead is rated at 3

Amps or more, and that it is fully unwound.
Switch the appliance on at the mains socket.
Use the rocker switch to the speed required:

o O = OFF
o I = low speed
o II = high speed

It is normal for the motor to become warm in normal use.
Unplug the appliance from the mains when not in use.

OPERATING COSTS

At time of going to press, the average cost of electricity is £0.12 per unit (kilowatt­hour). The amount you are being charged will be shown on your electricity bill. At
this cost, the EH1520 will cost 10p per day to run on the "low speed" setting, or
13p per day to run on the "high speed" setting.

PAT TESTING

When used in an office environment, this product must be safety-tested yearly by
a qualified electrician (PAT Tested) in order to comply with the Electricity at Work
Regulations.

We recommend that it is PAT tested regularly when used in a domestic
environment.

GENERAL SAFETY REQUIREMENTS

Domestic wiring must be tested periodically by a qualified electrician at least
once every 10 years or at every change of occupancy.

For office and retail premises, and buildings such as village halls, the wiring must
be inspected at least once every 5 years.

It is recommended that all building be fitted with smoke alarms (it is mandatory
for new buildings).

Page 2

PRODUCT SAFETY

This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without

supervision.
Do not use in close proximity to gas appliances
Do not use unless correctly installed.

Do not cover when in use.
Do not place the mains lead beneath a carpet or rug.
Do not use the appliance in locations where paint, petrol or other flammable

liquids are used or stored.
Do no insert any object into the appliance through the grilles. This may

damage the appliance or result in overheating or electric shock.
Do not use this appliance in the immediate surroundings of a bath, a shower

or a swimming pool.
The appliance is fitted with an overload cut-out which will operate if the motor

overheats or is stalled. If this happens, disconnect from the mains supply

immediately, and allow the motor to cool down.

MAINTENANCE

Before cleaning, turn the appliance off, and disconnect from the mains supply.
The appliance may then be cleaned using a damp cloth with a drop of washing­up liquid to remove any dust or dirt from the case. Do no use stronger detergents
or solvents as these may damage the paint finish.

Using a dry 1" (25 mm) paint-brush, remove any dust from the grilles.

If the mains lead is damaged, it must be replaced by the
manufacturer or and authorised service centre.
If the mains plug needs to be replaced, proceed as
follows:

Connect the brown wire to the terminal labelled "L".
Connect the blue wire to the terminal labelled "N".
Make sure that the cord-grip is positioned correctly

(over the outer sheath of the cable) and it fully
tightened.

Page 3

DISPOSAL AND RECYCLING

You must not dispose of this appliance with domestic household waste.
Most local authorities have specific collection system for appliances and disposal

is free of charge to the end-user.
When replacing an existing appliance with a similar new appliance your retailer

may take the old appliance for disposal.

TECHNICAL SPECIFICATION

Dimensions: 275×155×280 mm
Weight: 1.9 kg
Power supply: 230V AC
Power consumption: 25 W (max)
Air flow 1500 m3/h (max)
Operating current: 0.1 A (max)
Air speed: 4.67 m/s
Noise: high speed: 37 dBA
Low speed: 33 dBA
Service value: 1 m3/W.min

SERVICE WARRANTY

Prem-i-Air guarantees the product free from defects in materials and
workmanship for a period of twelve months.

Should this appliance be operated under conditions other than those
recommended, at voltages other than the voltage indicated on the appliance, or
any attempts made to service or modify the appliance, then the warranty will be
rendered void.

The product you buy may sometimes differ slightly from illustrations. This
warranty is in addition to, and does not affect, your statutory rights.

If you have any problems with this product, please call our Help Desk on (0845)
459 4816.

Prem-i-Air Appliances Ltd.,

Lancots Lane, Sutton,

St. Helens, Merseyside.

WA9 3EX

website: www.prem-i-air.com
