Product Manual

9410

Power control unit

TEMPERATURE | I.S. INTERFACES | COMMUNICATION INTERFACES | MULTIFUNCTIONAL | ISOLATION | DISPLAY

No. 9410V103-UK
Product version: 9410-001

Communication

Display

I.S. Interface

Isolation

Multifunction

Temperature

6 Product Pillars

to meet your every need

With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six
product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial
and factory automation. All our products comply with or surpass the highest industry standards, ensuring reliability in even
the harshest of environments and have a 5-year warranty for greater peace of mind.

Individually outstanding, unrivalled in combination

Our range of temperature transmitters and sensors provides the highest level of signal integrity from the
measurement point to your control system. You can convert industrial process temperature signals to analog, bus or
digital communications using a highly reliable point-to-point solution with a fast response time, automatic self­calibration, sensor error detection, low drift, and top EMC performance in any environment.

Our unique range of single devices covering multiple applications is easily deployable as your site standard. Having
one variant that applies to a broad range of applications can reduce your installation time and training, and greatly
simplify spare parts management at your facilities. Our devices are designed for long-term signal accuracy, low
power consumption, immunity to electrical noise and simple programming.

We provide inexpensive, easy-to-use, future-ready communication interfaces that can access your PR installed base
of products. All the interfaces are detachable, have a built-in display for readout of process values and diagnostics,
and can be configured via push-buttons. Product specific functionality includes communication via Modbus and
Bluetooth and remote access using our PR Process Supervisor (PPS) application, available for iOS and Android.

Our display range is characterized by its flexibility and stability. The devices meet nearly every demand for display
readout of process signals, and have universal input and power supply capabilities. They provide a real-time
measurement of your process value no matter the industry, and are engineered to provide a user-friendly and
reliable relay of information, even in demanding environments.

We deliver the safest signals by validating our products against the toughest safety standards. Through our
commitment to innovation, we have made pioneering achievements in developing I.S. interfaces with SIL 2 Full
Assessment that are both efficient and cost-effective. Our comprehensive range of analog and digital intrinsically
safe isolation barriers offers multifunctional inputs and outputs, making PR an easy-to-implement site standard.
Our backplanes further simplify large installations and provide seamless integration to standard DCS systems.

Our compact, fast, high-quality 6 mm isolators are based on microprocessor technology to provide exceptional
performance and EMC-immunity for dedicated applications at a very low total cost of ownership. They can be
stacked both vertically and horizontally with no air gap separation between units required.

9410 - Product version 9410-001 3

Power control unit

9410

Table of contents

Warning ................................................................................................ 4

Symbol identification .................................................................................... 4

Safety instructions ...................................................................................... 4

How to demount system 9000 ........................................................................... 5

Application and advanced features ....................................................................... 6

Technical characteristics ................................................................................. 6

Applications ............................................................................................ 7

Order ................................................................................................... 8

Electrical specifications.................................................................................. 8

Connections ............................................................................................ 10

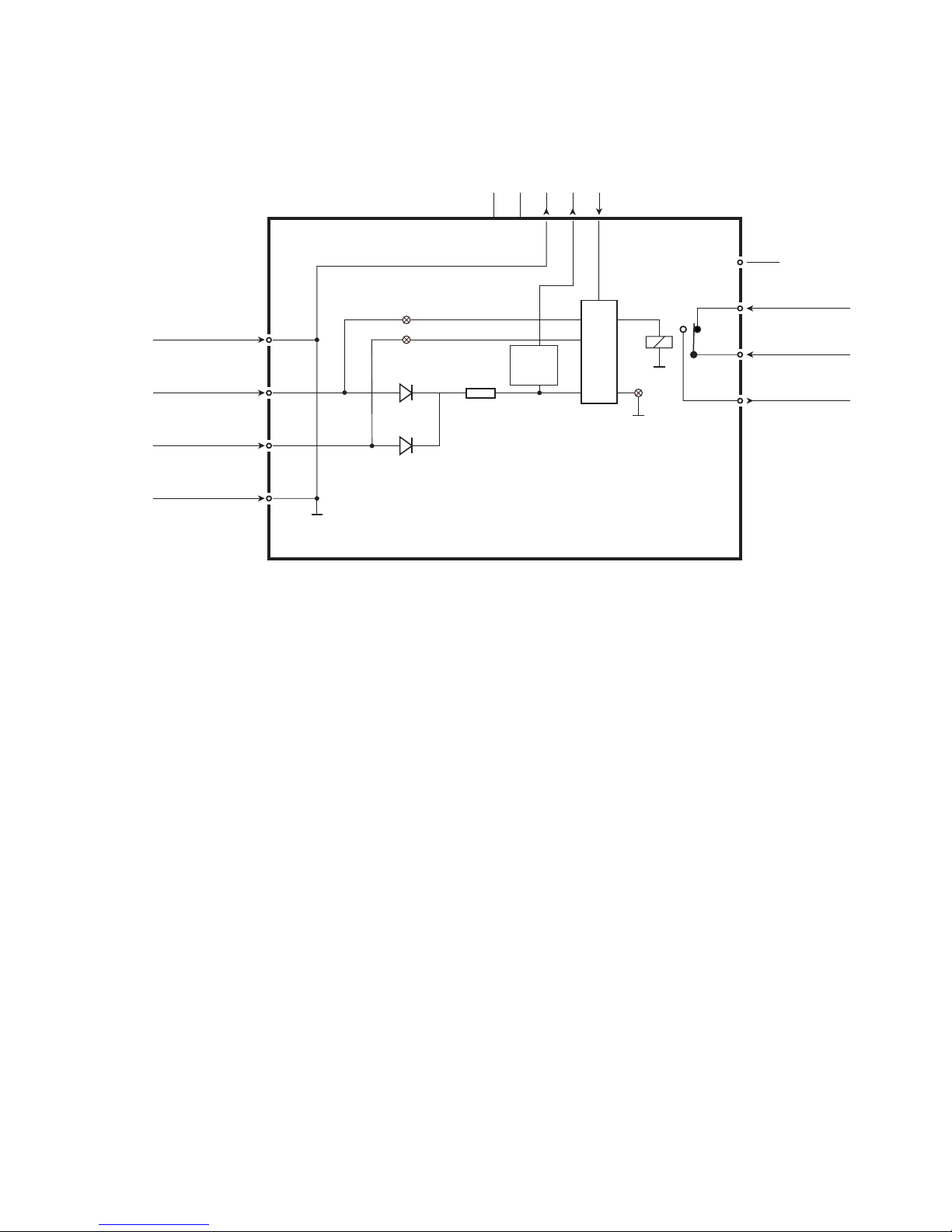

Block diagram........................................................................................... 11

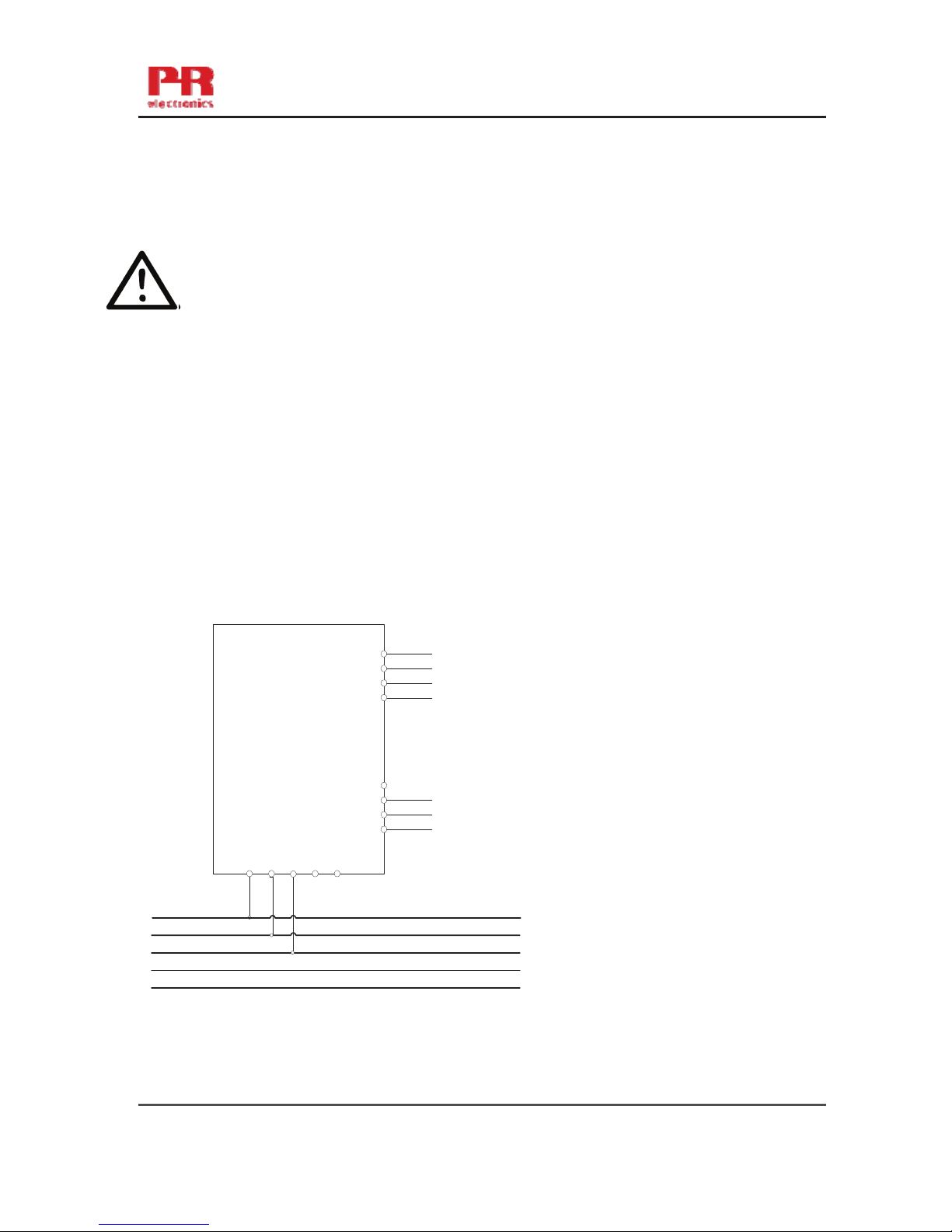

ATEX Installation Drawing................................................................................ 12

IECEx Installation Drawing ............................................................................... 15

FM Installation Drawing.................................................................................. 18

INMETRO Installation Drawing............................................................................ 21

Document history ....................................................................................... 24

4 9410 - Product version 9410-001

Warning

The following operations should only be carried out on a disconnected device and under ESD-safe
conditions:
General mounting, wire connection and disconnection.
Troubleshooting the device.

Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only.

Symbol identification

Triangle with an exclamation mark: Read the manual before installation and commissioning of the

device in order to avoid incidents that could lead to personal injury or mechanical damage. Warning/
demand. Potentially lethal situations.

The CE mark proves the compliance of the device with the essential requirements of the directives.

The double insulation symbol shows that the device is protected by double or reinforced insulation.

Ex devices have been approved according to the ATEX directive for use in connection with installations

in explosive areas. See installation drawings in appendix.

Safety instructions

Definitions

Hazardous voltages have been defined as the ranges: 75 to 1500 Volt DC, and 50 to 1000 Volt AC.
Technicians are qualified persons educated or trained to mount, operate, and also trouble-shoot technically correct and in

accordance with safety regulations.
Operators, being familiar with the contents of this manual, adjust and operate the knobs or potentiometers during normal
operation.

Receipt and unpacking

Unpack the device without damaging it and check whether the device type corresponds to the one ordered. The packing
should always follow the device until this has been permanently mounted.

Environment

Avoid direct sun light, dust, high temperatures, mechanical vibrations and shock, and rain and heavy moisture. If necessary,
heating in excess of the stated limits for ambient temperatures should be avoided by way of ventilation.
The device must be installed in pollution degree 2 or better.
The device is designed to be safe at least under an altitude up to 2 000 m.

Mounting

Only technicians, who are familiar with the technical terms, warnings, and instructions in the manual and who are able to
follow these, should connect the device. Should there be any doubt as to the correct handling of the device, please contact
your local distributor or, alternatively,

PR electronics A/S

www.prelectronics.com

Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.a. wire
cross section, protective fuse, and location.

The use of stranded wires is not permitted for mains wiring except when wires are fitted with cable ends.

Descriptions of input / output and supply connections are shown in the block diagram and on the side label.

9410 - Product version 9410-001 5

The device is provided with field wiring terminals and shall be supplied from a Power Supply having double / reinforced
insulation. A power switch shall be easily accessible and close to the device. The power switch shall be marked as the
disconnecting unit for the device.

Year of manufacture can be taken from the first two digits in the serial number.

Calibration and adjustment

During calibration and adjustment, the measuring and connection of external voltages must be carried out according to the
specifications of this manual. The technician must use tools and instruments that are safe to use.

Normal operation

Operators are only allowed to adjust and operate devices that are safely fixed in panels, etc., thus avoiding the danger of
personal injury and damage. This means there is no electrical shock hazard, and the device is easily accessible.

Cleaning

When disconnected, the device may be cleaned with a cloth moistened with distilled water.

Liability

To the extent the instructions in this manual are not strictly observed, the custom er cannot advance a demand against PR
electronics A/S that would otherwise exist according to the concluded sales agreement.

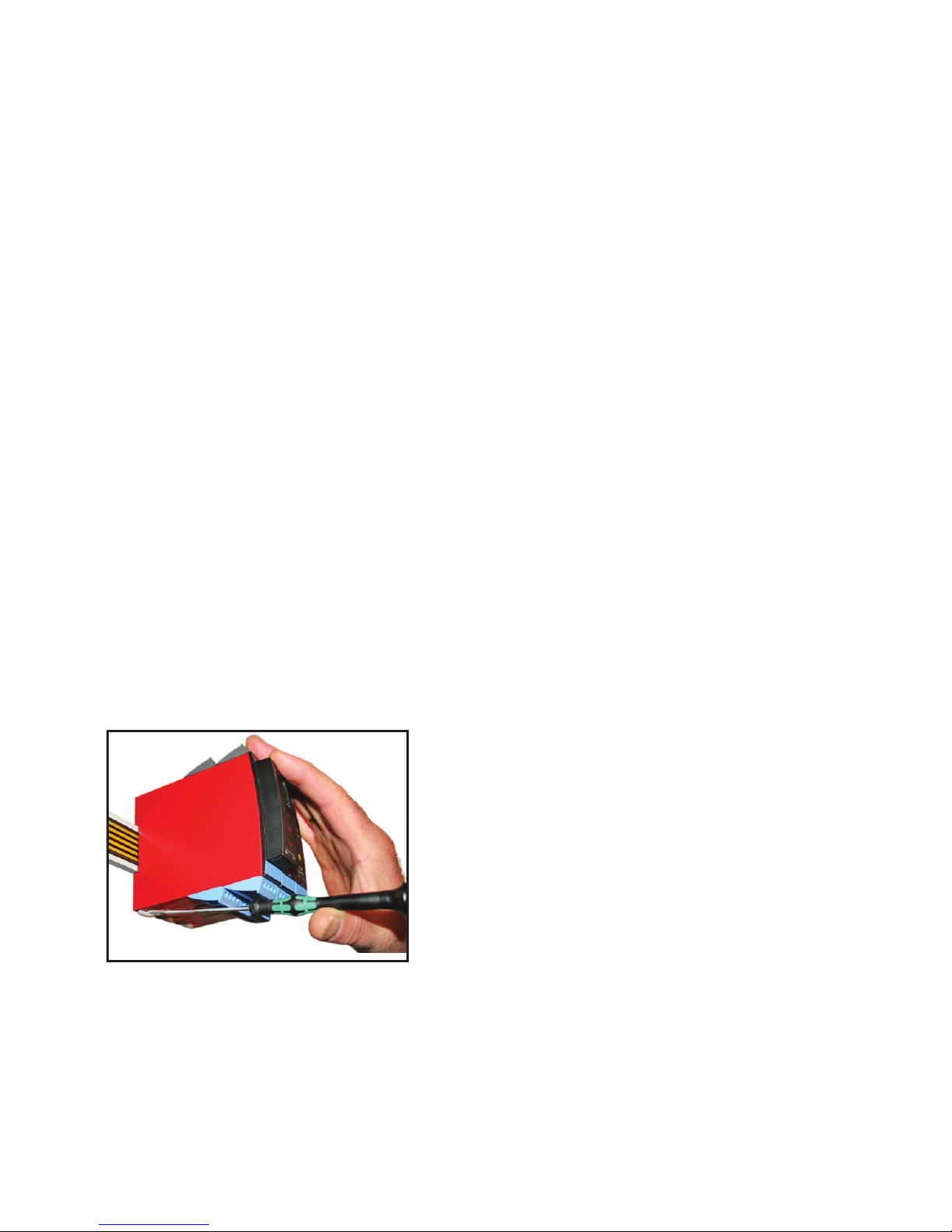

How to demount system 9000

Picture 1:

By lifting the bottom lock, the device is detached from the DIN rail.

6 9410 - Product version 9410-001

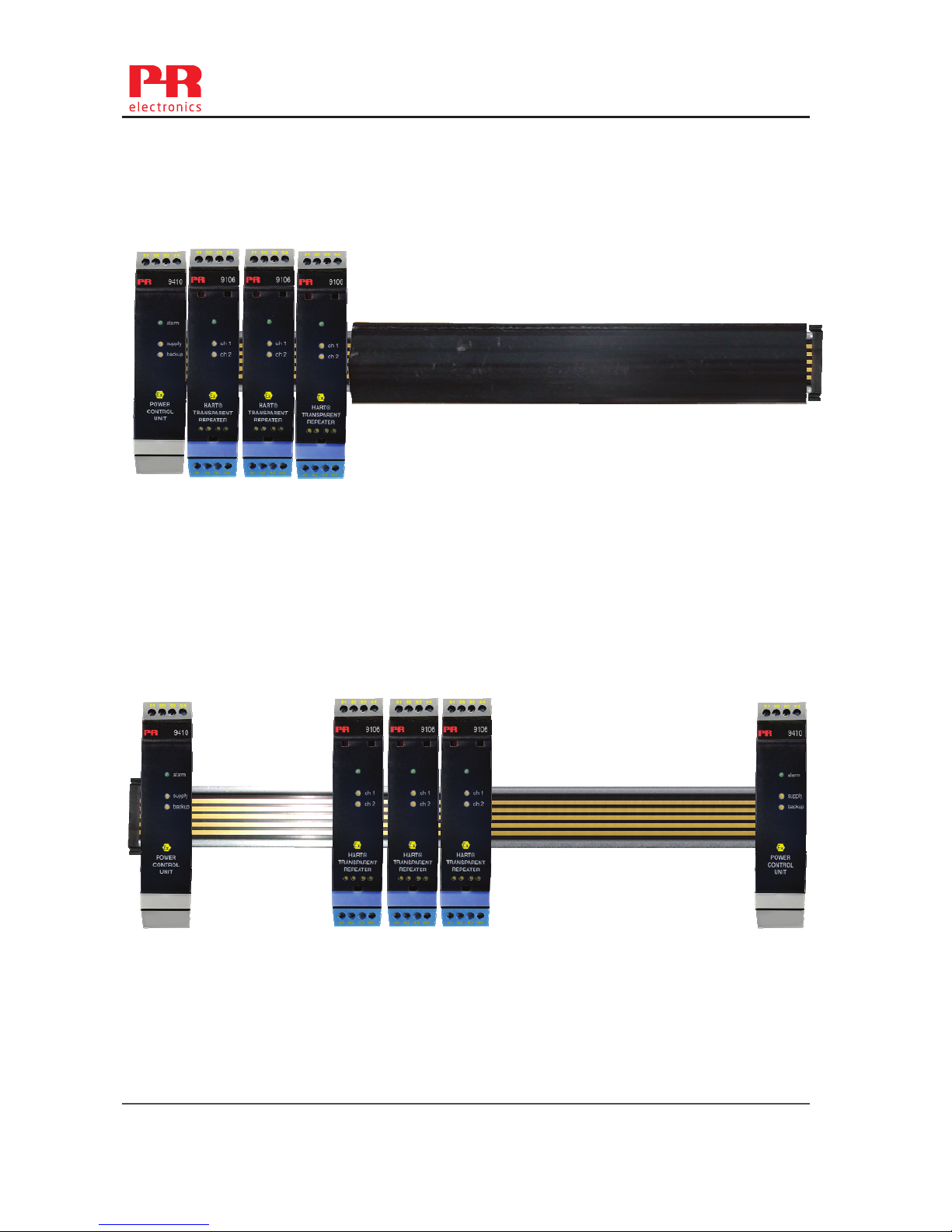

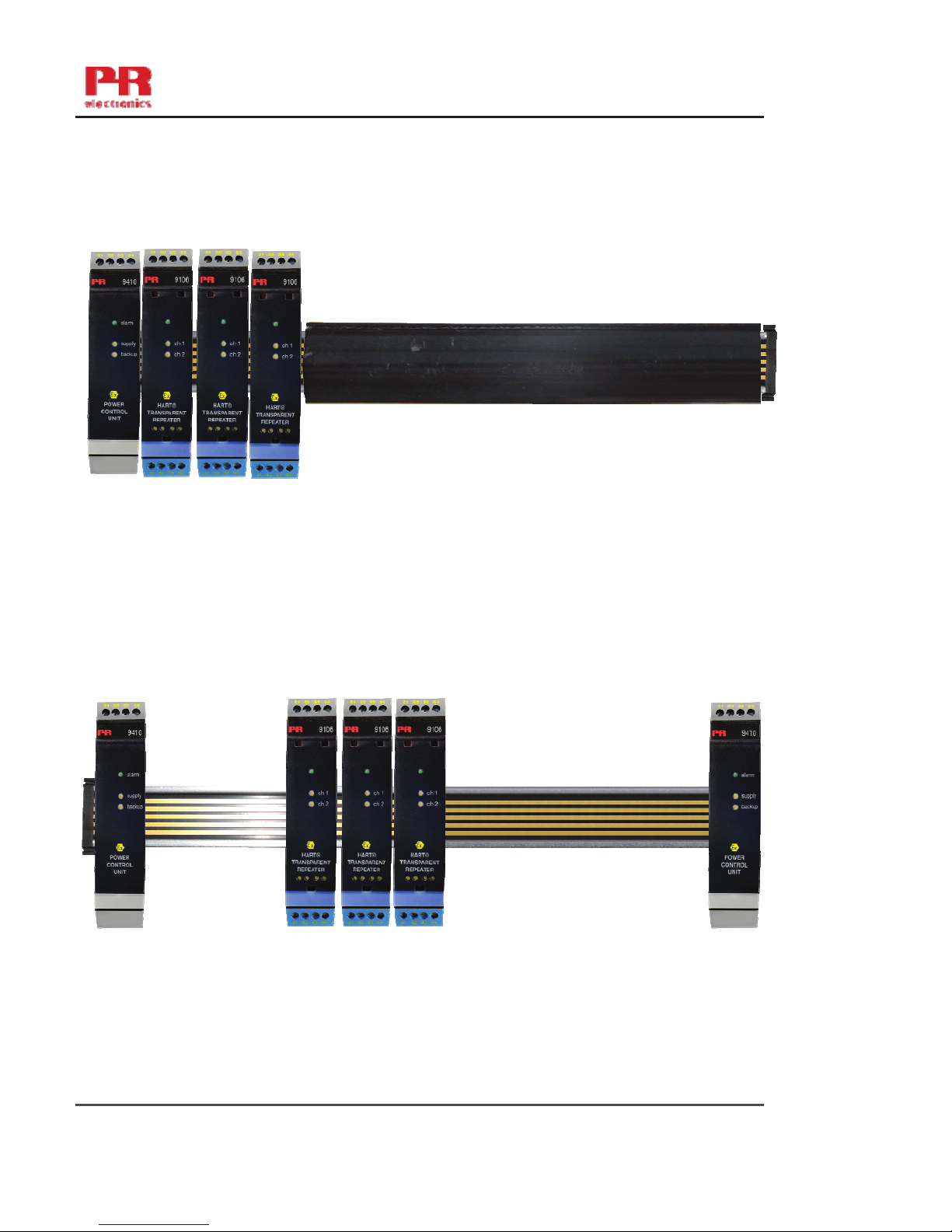

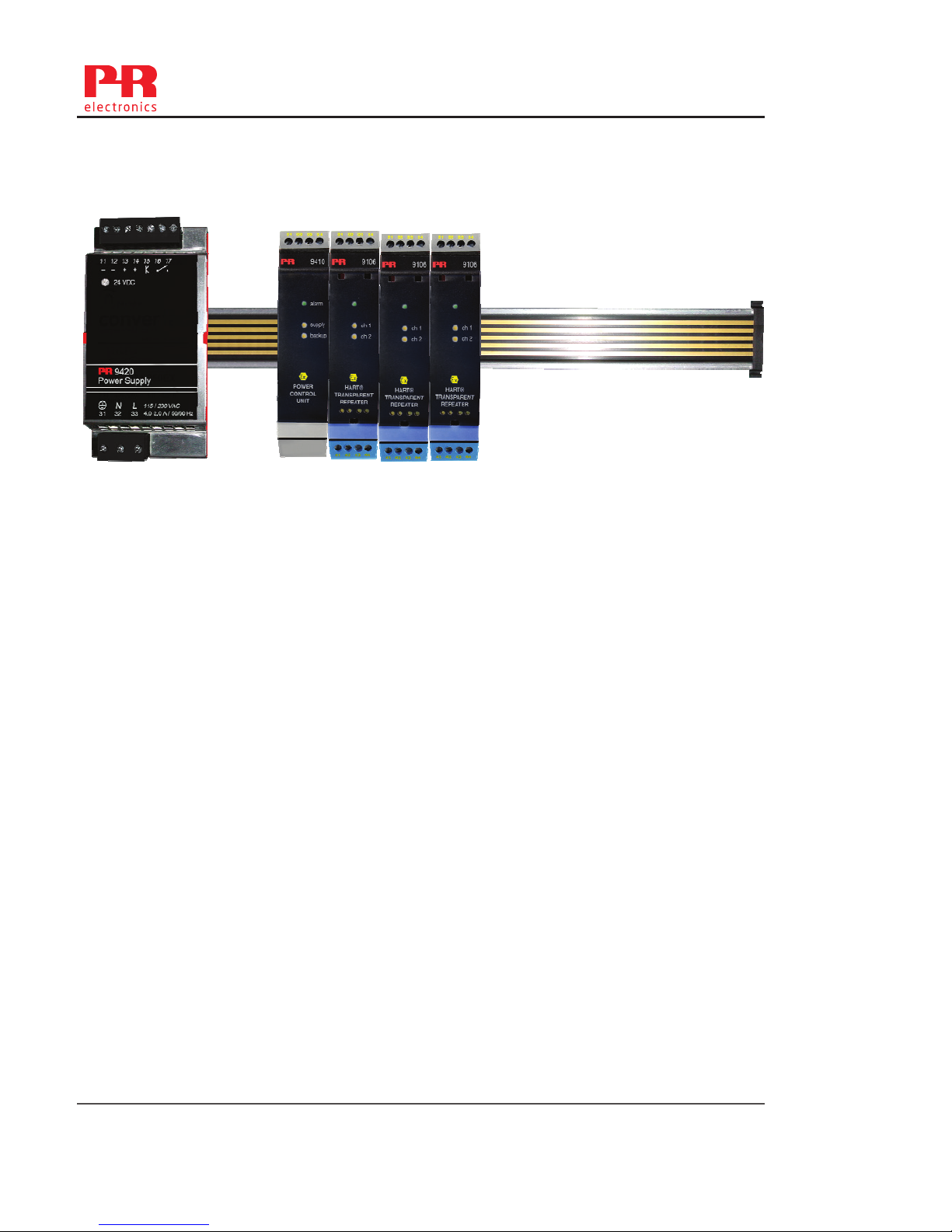

Application and advanced features

• The power control unit detects errors from any of the devices mounted on the power rail and transmits a collective alarm
to the control system via the internal status relay.

• Optional connection of two power supplies - a primary supply and a backup supply.

• Redundant supply for the power rail can be obtained by mounting two 9410 devices connected to 2 separate power
supplies.

Technical characteristics

• The status relay will be energised (pins 11 & 12) when the following three conditions are met:

1. Supply voltage is present on pins 31 and 32.

2. Backup supply voltage is present on pins 34 and 33. (If the backup supply is not in use, a jumper must be placed

between pins 32 and 33 - the jumper is delivered with the device).

3. There are no error signals from the devices connected to the power rail.

• When a collective alarm is activated via the power rail, the status relay in the 9410 will be de-energised (pins 13 & 12).

• Two green front LEDs indicate connection of supply and backup.

• A red LED indicates error status.

Power control unit

9410

• Distributes supply voltage to the power rail

• Optional connection of backup supply

• Approved for installation in Ex zone 2 / Div. 2

• Optional redundant supply for the power rail

• Must be installed on power rail, PR type 9400

44

43

42

41

31

32

33

34

11

12

13

14

9410 - Product version 9410-001 7

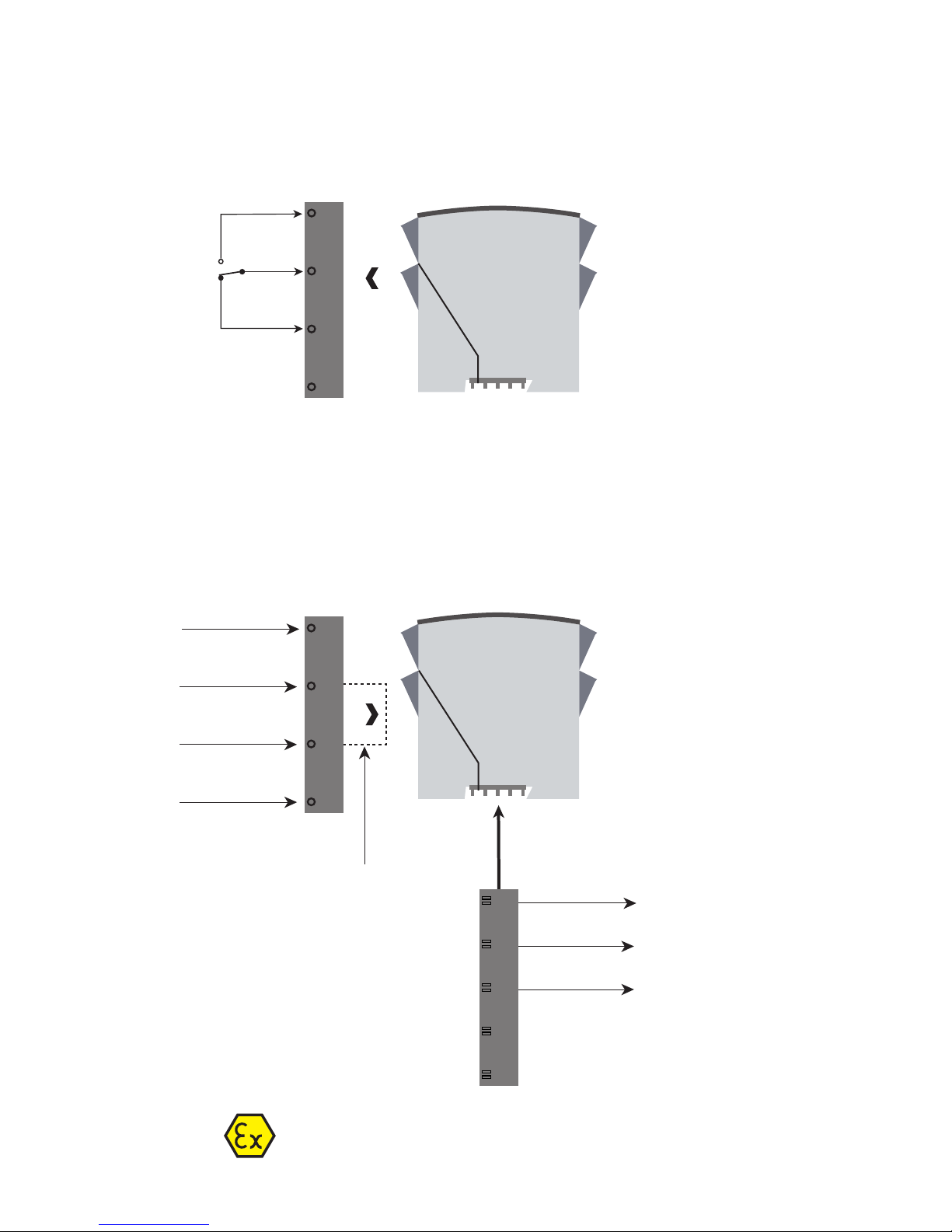

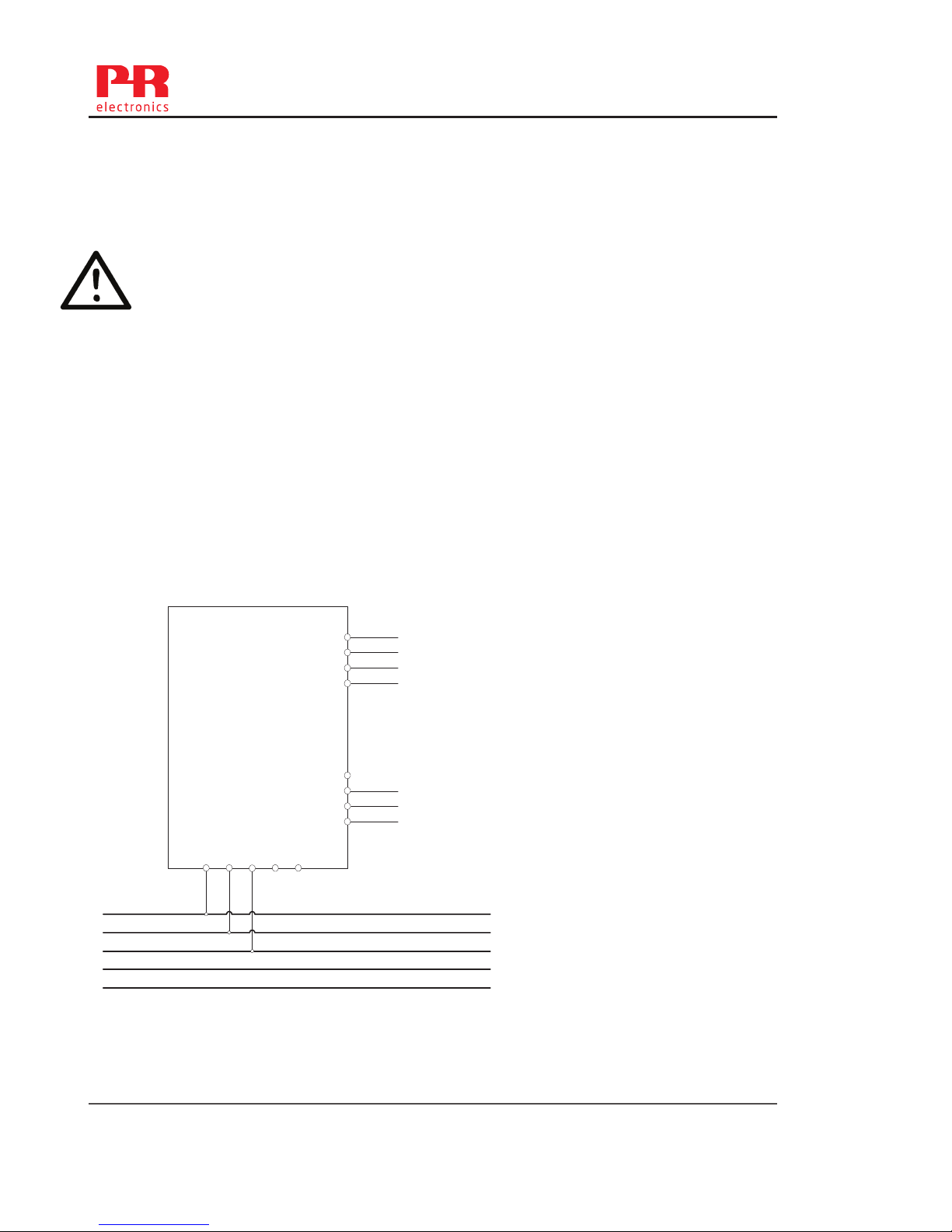

Applications

Rail, +24 VDC

Rail, Gnd.

Power rail

Status relay signal

Zone 2 / FM Cl. 1, div. 2 or safe area

N.C.

Device status relay from power rail

If no backup supply:
Place a jumper between
pin 32 and 33

N.O.

Supply, +24 VDC

Supply backup, +24 VDC

Supply, Gnd

Supply backup, Gnd

Power connection

8 9410 - Product version 9410-001

Order

9410 = Power control unit

Electrical specifications

Environmental conditions:

Specifications range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20...+60°C

Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20...+85°C

Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 95% RH (non-cond.)

Protection degree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP20

Installation in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pollution degree 2 & measurement /

overvoltage category II

Mechanical specifications:

Dimensions (HxBxD). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 x 23.5 x 104 mm

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 g

DIN rail type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIN EN 60715 / 35 mm

Wire size (min. / max.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.13...2.08 mm

2

/ AWG 26...14 stranded wire

Screw terminal torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 Nm

Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IEC 60068-2-6

2...13.2 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1 mm

13.2...100 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.7

Common specifications:

Max. consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 W

Eciency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 97,9%

Max. internal consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 W

Input:

Supply voltage,

double / reinforced isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.6...26.4 VDC

Backup supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.6...26.4 VDC

Trig levels for voltage surveillance . . . . . . . . . . . . . . . . . . . . . . . . . Error < 21 VDC

Output:

Output voltage @ 4 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Input voltage - 0.5 VDC

Output power, max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 W

Output current, max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 A

Output ripple . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Samme as input ripple

Status relay in safe area:

Max. voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 VAC / 30 VDC

Max. current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 AAC / 2 ADC

Max. AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 VA / 60 W

9410 - Product version 9410-001 9

Observed authority requirements:

EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/30/EU

LVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/35/EU

ATE X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/34/EU

RoHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2011/65/EU

Approvals:

DNV-GL, Ships & Oshore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard for Certification No. 2.4

ClassNK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TA18527M

c UL us, Standard for Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL 61010-1

EAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TR-CU 020/2011

I.S. / Ex:

ATE X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . KEMA 07ATEX0152 X

IECEx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IECEx KEM 08.0025X

c FM us. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3034431-C

INMETRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DEKRA 16.0007 X

10 9410 - Product version 9410-001

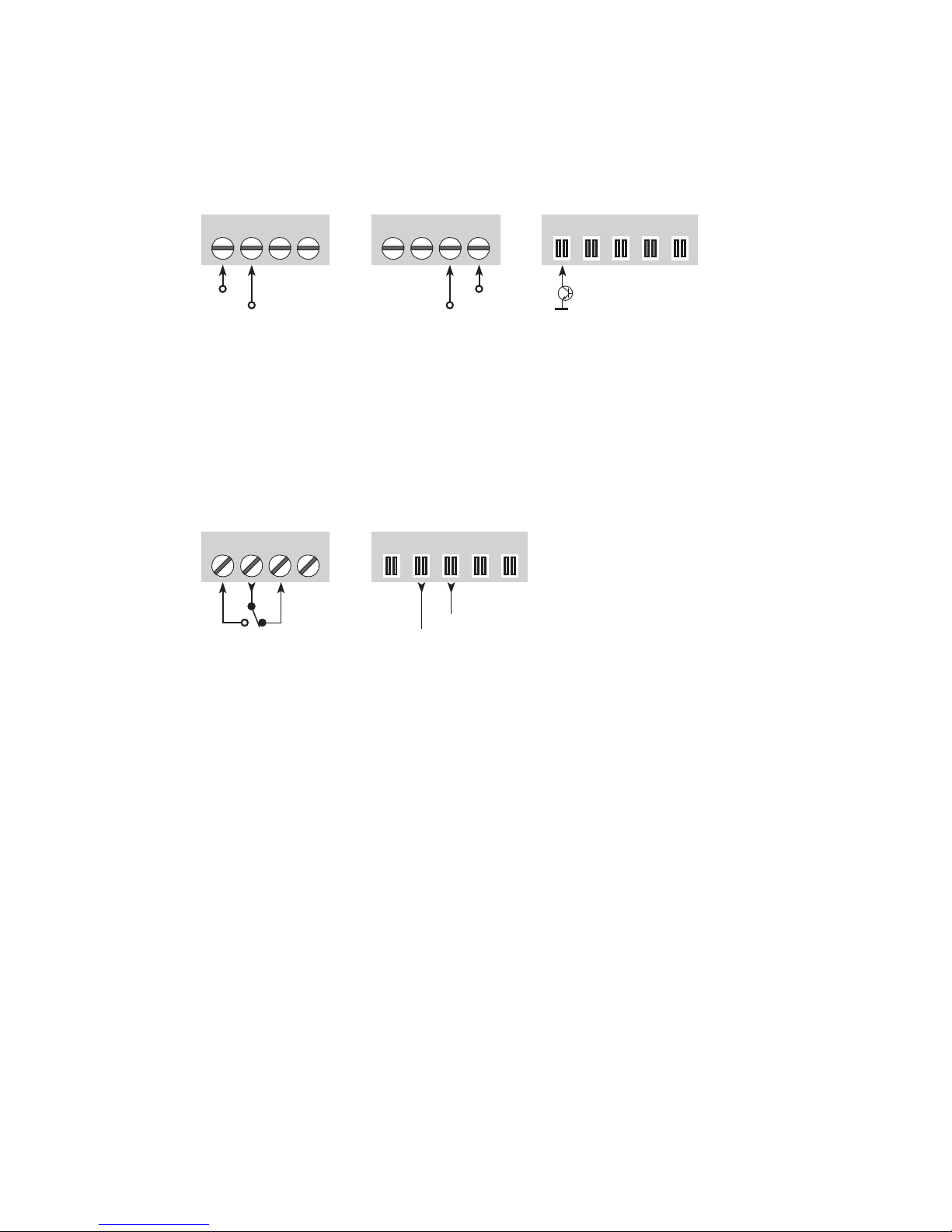

Connections

31 32 343331 32 3433

91 92 93 94 95

11 12 1413

91 92 93 94 95

Backup
voltage Device status

Supply

voltage

N.C.N.O.

Error

+ 24 V+ 24 V

Outputs:

Inputs:

Supply to

power railStatus relay

GndGnd

+ 24 V

Gnd

If no backup supply:
Place a jumper between
pin 32 and 33

9410

11

12

13

31

32

33

34

14

9410 - Product version 9410-001 11

Block diagram

Status relay, common

Green

Green

Group

Alarm

Rail, status

Status relay, N.C.

Status relay, N.O.

Red

Supply, Gnd

Supply, +24 VDC

Backup, +24 VDC

Backup, Gnd

NC

Rail, +24V

Rail, Gnd.

NC

NC

Electronic

Current
Limiter

6.3 A fuse

NC = no connection

12 9410 - Product version 9410-001

9410QA01

LERBAKKEN 10, 8410 RØNDE DENMARK WWW.PRELECTRONICS.COM

Revision date:

2014-06-27

Version Revision

V3 R0

Prepared by:

PB

Page:

1/3

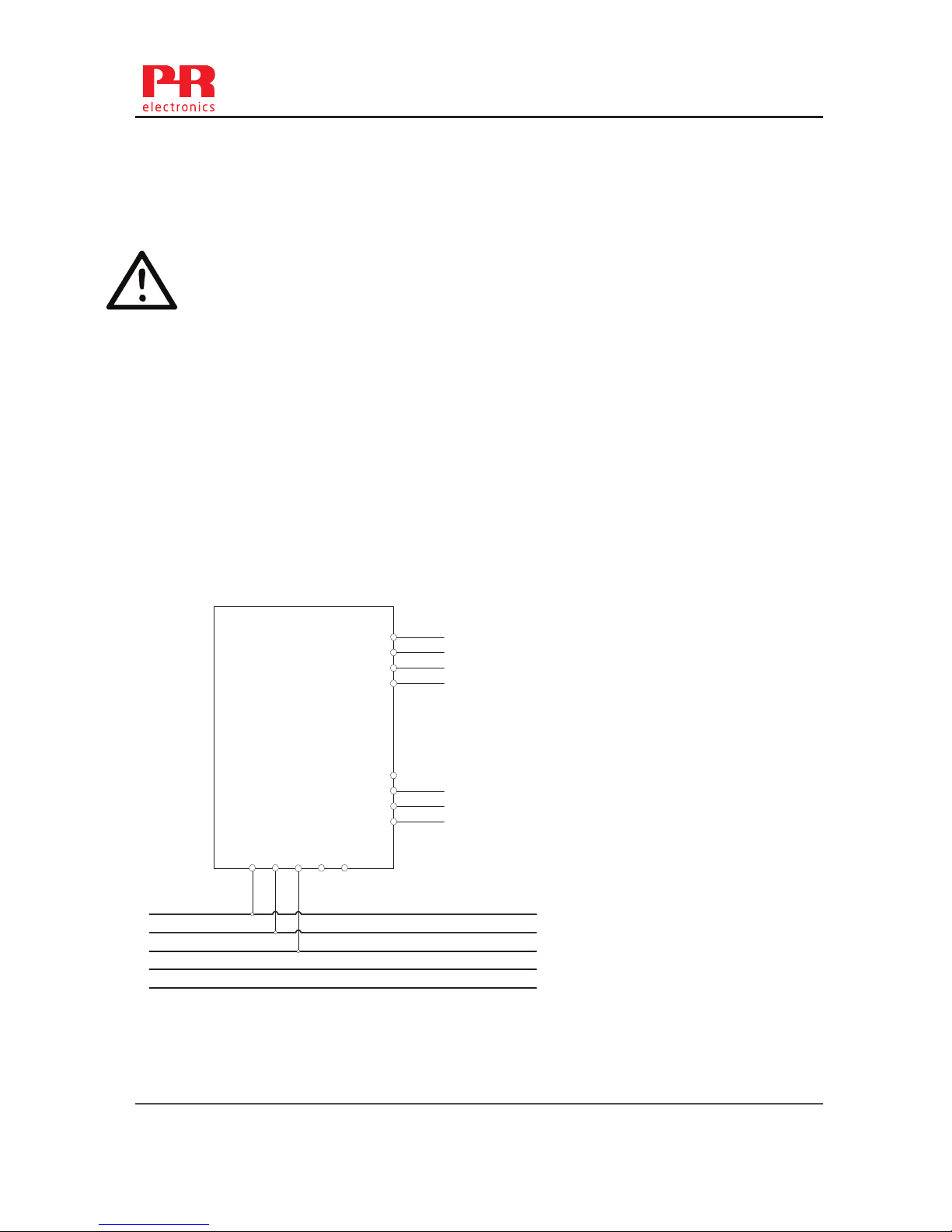

ATEX Installation drawing

9410

For safe installation of 9410 the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.

9410 Power Control Unit

ATEX Certificate KEMA 07ATEX0152X

Marking: II 3G Ex nA nC IIC T4 Gc

Standard: EN60079-0:2012, EN60079-15:2010

34
33
32
31

14
13
12
11

9410

91 92 93 94 95

Power

Rail

Supply +
Supply -

Backup ­Backup +

COM

NC

NO

Status

24 V

GND

Non Hazardous Area or Zone 2

T4: -20 ºC <Ta < +60ºC

Terminal 34-33
Backup: 21.6 VDC – 26.6 VDC / 4 ADC

Terminal 31-32
Supply: 21.6 VDC – 26.6 VDC / 4 ADC

Terminal 11, 12, 13
Power Rail Status Relay

Unclassified installation
250 VAC, 2 A, 500 VA / 30 VDC, 2 A, 60 W

Zone 2 installation:
32 VAC

,

2A, 64 VA / 30 VDC, 2 A, 60 W

9410 - Product version 9410-001 13

9410QA01

LERBAKKEN 10, 8410 RØNDE DENMARK WWW.PRELECTRONICS.COM

Revision date:

2014-06-27

Version Revision

V3 R0

Prepared by:

PB

Page:

2/3

9410 Power Control with backup

Redundant 9410 Power Control with Backup

Use Endcaps to prevent
the Power Rail from
being short circuit by the
outer enclosure.

Power is supplied to the Power
Rail from two 9410 Power
Control Modules. Both modules
have connections for Normal
Supply and Backup Supply.

Use 9400 Cover to prevent
open Power Rail from
unintentional short circuit.

14 9410 - Product version 9410-001

9410QA01

LERBAKKEN 10, 8410 RØNDE DENMARK WWW.PRELECTRONICS.COM

Revision date:

2014-06-27

Version Revision

V3 R0

Prepared by:

PB

Page:

3/3

General

The 9410 must be supplied from a Power Source with Double or Reinforced insulation to
Mains.
Alternatively use PR9420 Power Supply for installation inside or outside Zone2.

Terminal blocks:
Wire size 0.13-2.08 mm² / AWG 26-14 stranded wire
Screw terminal torque 0.5 Nm

For installation in Zone 2

The 9410 Power Control Unit and 9400 Power Rail must be installed in an outer enclosure
having an IP protection of at least IP54 conforming to the requirements of explosion
protection Ex-n or Ex-e.
Transients are suppressed by an internal transient protection device, which is set to a
level not exceeding 40% of the rated voltage.

WARNING: Do not separate connectors when energized and an explosive gas mixture is
present.

WARNING: Do not install or remove modules from the Power Rail unless Area is known
to be Non Hazardous.

.

9420 Power Supply and 9410 Power Control with Backup

Maintain a minimum distance of 50 mm
between the 9420 Power Supply and
other modules.

9410QI01

LERBAKKEN 10, 8410 RØNDE DENMARK WWW.PRELECTRONICS.COM

Revision date:

2012-06-27

Version Revision

V3R0

Prepared by:

PB

Page:

1/3

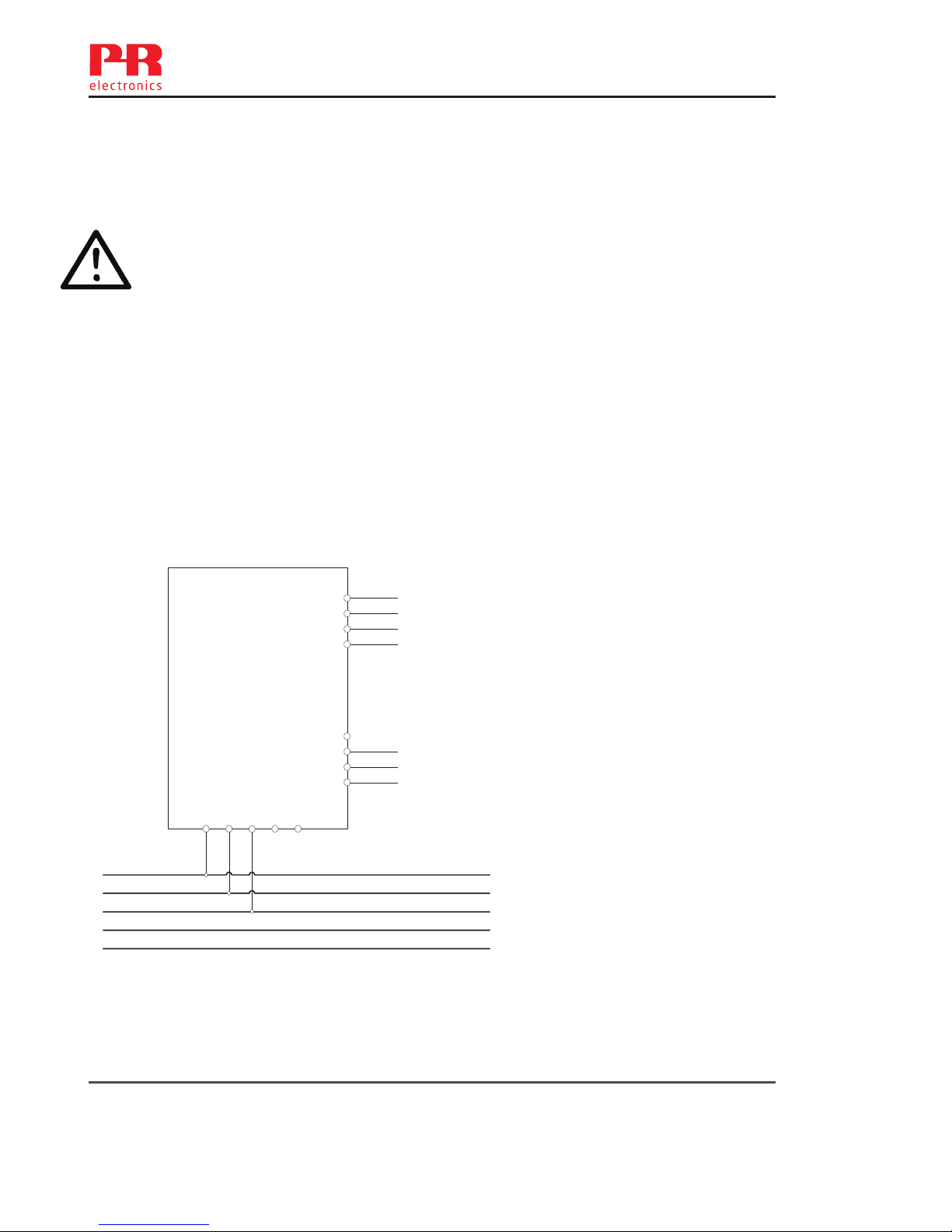

IECEx Installation drawing

9410

For safe installation of 9410 the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.

9410 Power Control Unit

IECEx Certificate IECEx KEM 08.0025 X

Marking: Ex nA nC IIC T4 Gc

Standards: IEC60079-0:2011, IEC60079-15:2010

34
33
32
31

14
13
12
11

9410

91 92 93 94 95

Power

Rail

Supply +
Supply -

Backup ­Backup +

COM

NC

NO

Status

24 V

GND

Non Hazardous Area or Zone 2

T4: -20 ºC <Ta < +60ºC

Terminal 34-33
Backup: 21.6 VDC – 26.6 VDC / 4 ADC

Terminal 31-32
Supply: 21.6 VDC – 26.6 VDC / 4 ADC

Terminal 11, 12, 13
Power Rail Status Relay

Unclassified installation
250 VAC, 2 A, 500 VA / 30 VDC, 2 A, 60 W

Zone 2 installation:
32 VAC

,

2A, 64 VA / 30 VDC, 2 A, 60 W

9410 - Product version 9410-001 15

9410QI01

LERBAKKEN 10, 8410 RØNDE DENMARK WWW.PRELECTRONICS.COM

Revision date:

2012-06-27

Version Revision

V3R0

Prepared by:

PB

Page:

2/3

9410 Power Control with backup.

Redundant 9410 Power Control with Backup.

Use Endcaps to prevent
the Power Rail from
being short circuit by the
outer enclosure.

Power is supplied to the Power
Rail from two 9410 Power
Control Modules. Both modules
have connections for Normal
Supply and Backup Supply.

Use 9400 Cover to prevent
open Power Rail from
unintentional short circuit.

16 9410 - Product version 9410-001

9410QI01

LERBAKKEN 10, 8410 RØNDE DENMARK WWW.PRELECTRONICS.COM

Revision date:

2012-06-27

Version Revision

V3R0

Prepared by:

PB

Page:

3/3

Installation notes:

General

The 9410 must be supplied from a Power Source with Double or Reinforced
insulation to Mains.

Terminal blocks :
Wire size 0.13-2.08 mm² / AWG 26-14 stranded wire
Screw terminal torque 0.5 Nm

For installation in Zone 2

The 9410 Power Control Unit and 9400 Power Rail must be installed in an outer

enclosure having an IP protection of at least IP54, conforming to the

requirements of explosion protection Ex-n or Ex-e.

Transients are suppressed by an internal transient protection device, which is

set to a level not exceding 40% of the rated voltage.

WARNING: Do not separate connectors when energized and an explosive gas

mixture is present.

WARNING: Do not install or remove modules from the Power Rail unless Area

is known to be Non Hazardous.

WARNING:Terminals 91,92,93,94,95 may only be connected to Power Rail

9400.

.

9410 - Product version 9410-001 17

9410QF01

LERBAKKEN 10, 8410 RØNDE DENMARK

Revision date:

2009-03-30

Version Revision

V2 R3

Prepared by:

PB

Page:

1/3

FM Installation drawing

9410 Power Control Unit

For safe installation of 9410 the following must be observed. The module shall only be
Installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.

c-FM–us Certificate 3034431
Marking NI, Class I, Division 2, Group A,B,C,D T4 or
Class I, Zone2, AEx nA nC IIC T4

Class I, Zone2, Ex nA nC IIC T4

Standard: Class 3600,Class 3611, Class 3810, ANSI/ISA 12.00.01 / 12.12.02
ISA 60079-15:2002, CSA-E79-15, CSA-C22.2-213

34
33
32
31

14
13
12
11

9410

91 92 93 94 95

Power

Rail

Supply +
Supply -

Backup ­Backup +

COM

NC

NO

Status

24 V

GND

Non Hazardous Area or Division 2 / Zone 2

T4: -20 ºC <Ta < +60ºC

Terminal 34-33
Backup: 21,6 VDC – 26,6VDC / 4ADC

Terminal 31-32
Supply: 21,6 VDC – 26,6VDC / 4ADC

Terminal 11, 12, 13
Power Rail Status Relay

Unclassified installation
250VAC, 2A, 500VA / 30VDC, 2A, 60W

Zone 2 installation:
32VAC

,

2A, 64VA / 30VDC, 2A, 60W

18 9410 - Product version 9410-001

9410QF01

LERBAKKEN 10, 8410 RØNDE DENMARK

Revision date:

2009-03-30

Version Revision

V2 R3

Prepared by:

PB

Page:

2/3

9410 Power Control with backup.

Redundant 9410 Power Control with Backup.

Use Endcaps to prevent
the Power Rail from
being short circuit by the
outer enclosure.

Power is supplied to the Power
Rail from two 9410 Power
Control Modules. Both modules
have connections for Normal
Supply and Backup Supply.

Use 9400 Cover to prevent
open Power Rail from
unintentional short circuit.

9410 - Product version 9410-001 19

9410QF01

LERBAKKEN 10, 8410 RØNDE DENMARK

Revision date:

2009-03-30

Version Revision

V2 R3

Prepared by:

PB

Page:

3/3

Installation notes:

The installation and wiring shall be in accordance with the Canadian Electrical Code for Canada
and National Electrical Code NFPA 70, Article 500 or 505 for installation in USA.

The module must be supplied from a Power Supply having double or reinforced insulation.

The use of stranded wires is not permitted for mains wiring except when wires are fitted with cable
ends.

For installation in Zone 2 or Division 2, the module must be installed in a suitable outer enclosure
according to the regulations in the CEC for Canada or NEC for USA.

Install in pollution degree 2 or better.

Substitution of components may impair the suitability for division 2 / zone 2 installation.

Warning: To prevent ignition of the explosive atmospheres, disconnect power before servicing and
do not separate connectors when energized and an explosive gas mixture is present.

WARNING: Do not install or remove modules from the Power Rail and do not remove connectors
from the module unless Area is known to be Non Hazardous.

20 9410 - Product version 9410-001

9410QB01

LERBAKKEN 10, 8410 RØNDE DENMARK

Revision date:

2016-02-10

Version Revision

V4 R0

Prepared by:

PB

Page:

1/3

INMETRO Desenhos para Instalação

9410

Para instalação segura do 9410 o manual seguinte deve ser observado. O módulo deve
ser instalado somente por profissionais qualificados que estão familiarizados com as leis
nacionais e internacionais, diretrizes e normas que se aplicam a esta área.
Ano de fabricação pode ser obtido a partir dos dois primeiros dígitos do número de série.

9410 Unidade de Controle de Potência

INMETRO Certificado …… DEKRA 16.0007X

Marcas: Ex nA nC IIC T4 Gc

Normas: ABNT NBR IEC60079-0:2013

ABNT NBR IEC60079-15:2012

34
33
32
31

14
13
12
11

9410

91 92 93 94 95

Trilho de Energia

Fonte +
Fonte -

Fonte reserva ­Fonte reserva +

COM

NF

NA

Estado

24 V

Fonte -

Área não classificada ou Zone 2

T4: -20 ºC <Ta < +60ºC

Terminais 34-33
Fonte reserva: 21,6 VDC – 26,4 VDC / 4 ADC

Terminais 31-32
Fonte: 21,6 VDC – 26,4 VDC / 4 ADC

Terminal 11, 12, 13
Trilho de Energia Estado
Instalação em uma zona não classificada
250 VAC, 2 A, 500 VA / 30 VDC, 2 A, 60 W

Instalação na zona 2:
32 VAC, 2 A, 64 VA / 30 VDC, 2 A, 60 W

9410 - Product version 9410-001 21

9410QB01

LERBAKKEN 10, 8410 RØNDE DENMARK

Revision date:

2016-02-10

Version Revision

V4 R0

Prepared by:

PB

Page:

2/3

9410 Controle de Potência com reserva.

Controle de Potencia 9410 redundante com reserva

Use Tampas para evitar que o
trilho de alimentação entre em
curto-circuito com invólucro
externo.

A energia é fornecida ao barramento de
alimentação de dois módulos de controle de
energia 9410. Ambos os módulos têm
conexões para a fonte de alimentação
normal e a fonte reserva.

Use a capa do 9400 para
prevenir que a abertura do
trilho de energia e causar
curto-circuito não intencional

22 9410 - Product version 9410-001

9410QB01

LERBAKKEN 10, 8410 RØNDE DENMARK

Revision date:

2016-02-10

Version Revision

V4 R0

Prepared by:

PB

Page:

3/3

Notas para Instalação:

Geral

O 9410 deve ser energizado por uma fonte de alimentação com isolamento duplo ou
reforçado vindo da rede elétrica.

Blocos de terminais :
tamanho do fio 0,13-2,08 mm² / AWG 26-14 encalhado
Torque terminal < 0,5 Nm

Para instalação em Zona 2

O Unidade de controle de Potência Modelo 9410 e Trilho de Alimentação

Modelo 9400 deve ser instalado dentro de um invólucro adequado em

conformidade com o tipo de proteção ‘Ex n’ ou ‘Ex e’, fornecendo no mínimo

grau de proteçao IP54.

Transientes são suprimidos por um dispositivo interno, que é definido para um

nível não superior a 40% da tensão nominal.

Atençao: Não desconecte conectores quando energizado e uma mistura

explosiva de gás estiver presente.

Atençao: Não instalar ou remover os módulos do trilho de energia a menos que

área seja conhecida como área não classificado.

Atençao: Terminais 91, 92, 93, 94 e 95 só podem ser conectados ao Trilho de

Energia Typo 9400.

9410 - Product version 9410-001 23

24 9410 - Product version 9410-001

Document history

The following list provides notes concerning revisions of this document.

Rev. ID Date Notes

103 1907 New INMETRO certificate and installation drawing

We are near you,

all over the world

All our devices are backed by expert service and a 5-year
warranty. With each product you purchase, you receive
personal technical support and guidance, day-to-day
delivery, repair without charge within the warranty period
and easily accessible documentation.

We are headquartered in Denmark, and have offices and
authorized partners the world over. We are a local

business with a global reach. This means that we are
always nearby and know your local markets well.
We are committed to your satisfaction and provide
PERFORMANCE MADE SMARTER all around the world.

For more information on our warranty program, or to
meet with a sales representative in your region, visit
prelectronics.com.

Our trusted red boxes are supported wherever you are

PR electronics is the leading technology company specialized in making industrial process
control safer, more reliable and more efficient. Since 1974, we have been dedicated to
perfecting our core competence of innovating high precision technology with low power
consumption. This dedication continues to set new standards for products communicating,
monitoring and connecting our customers’ process measurement points to their process
control systems.

Our innovative, patented technologies are derived from our extensive R&D facilities and
from having a great understanding of our customers’ needs and processes. We are guided
by principles of simplicity, focus, courage and excellence, enabling some of the world’s
greatest companies to achieve PERFORMANCE MADE SMARTER.

Benefit today from

PERFORMANCE MADE SMARTER

www.prelectronics.com
