PR electronics 5334 User Manual
5334
CCOE
2-Wire Programmable
Transmitter
No. 5334V110-UK
From ser. no. 141365001
1707
Revision Notes
The following list provides notes concerning revisions of this document.
Rev. ID Date Notes
108 13/45 IECEx and INMETRO approvals added
109 15/14 PESO/CCOE approval added
GOST approval replaced with
EAC approval
115 17/07 INMETRO installation drawings updated
5334V110-UK 1
2-WIRE
PROGRAMMABLE TRANSMITTER
5334
CONTENTS
Application ................................................................................................. 2
Technical characteristics ...................................................................... 2
Mounting / installation ......................................................................... 2
Applications............................................................................................... 3
Order: 5334 ............................................................................................... 4
Electrical specifications........................................................................ 4

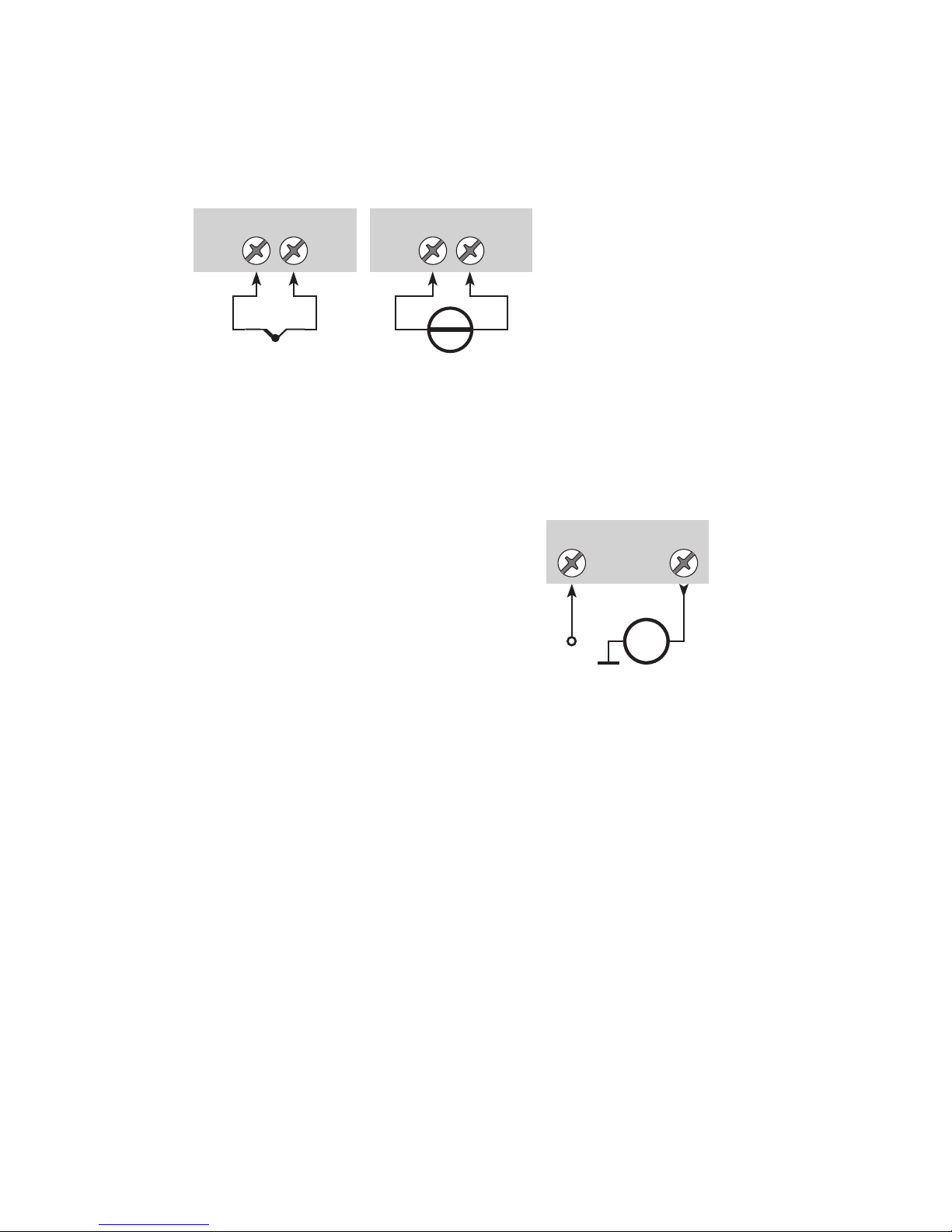

Connections .............................................................................................. 7

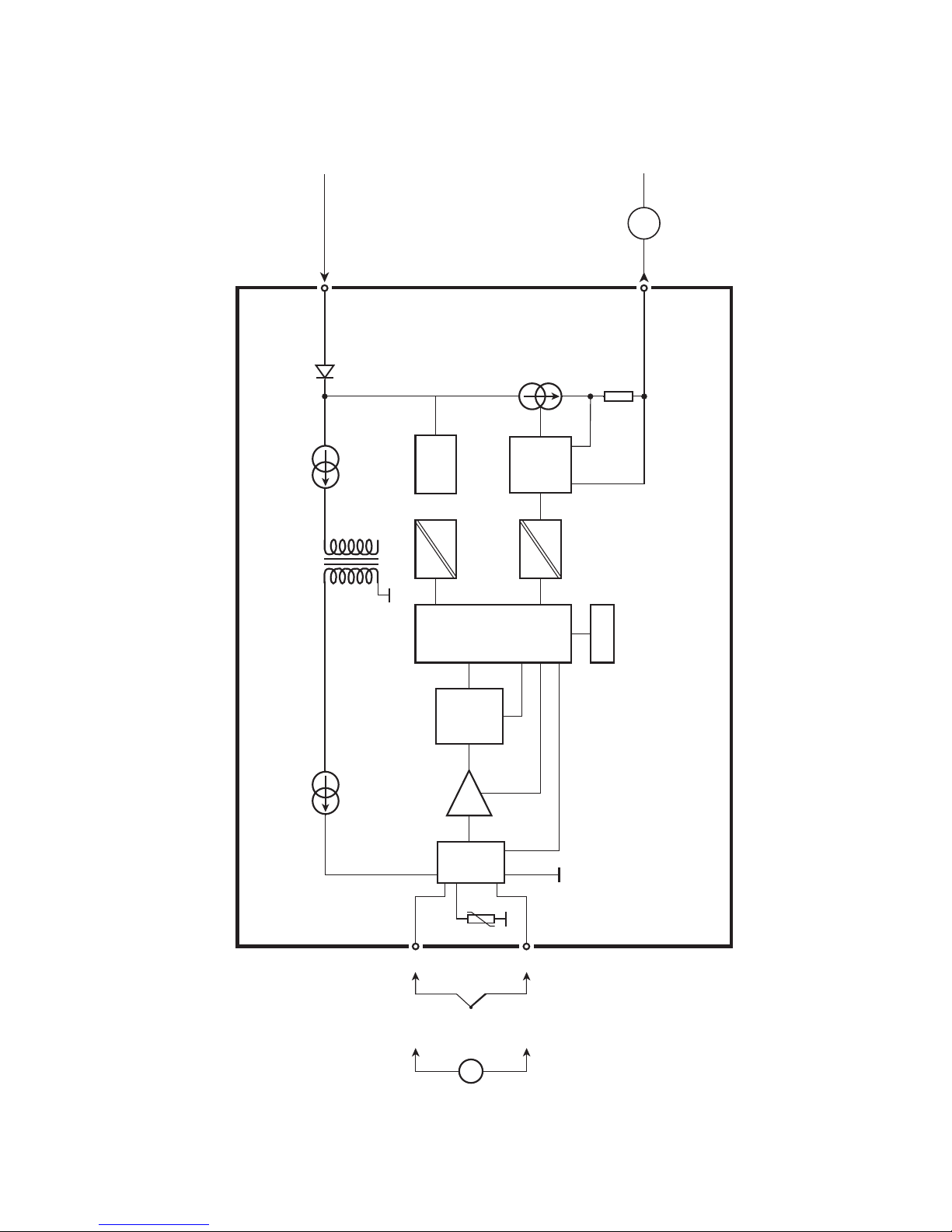

Block diagram ........................................................................................... 8

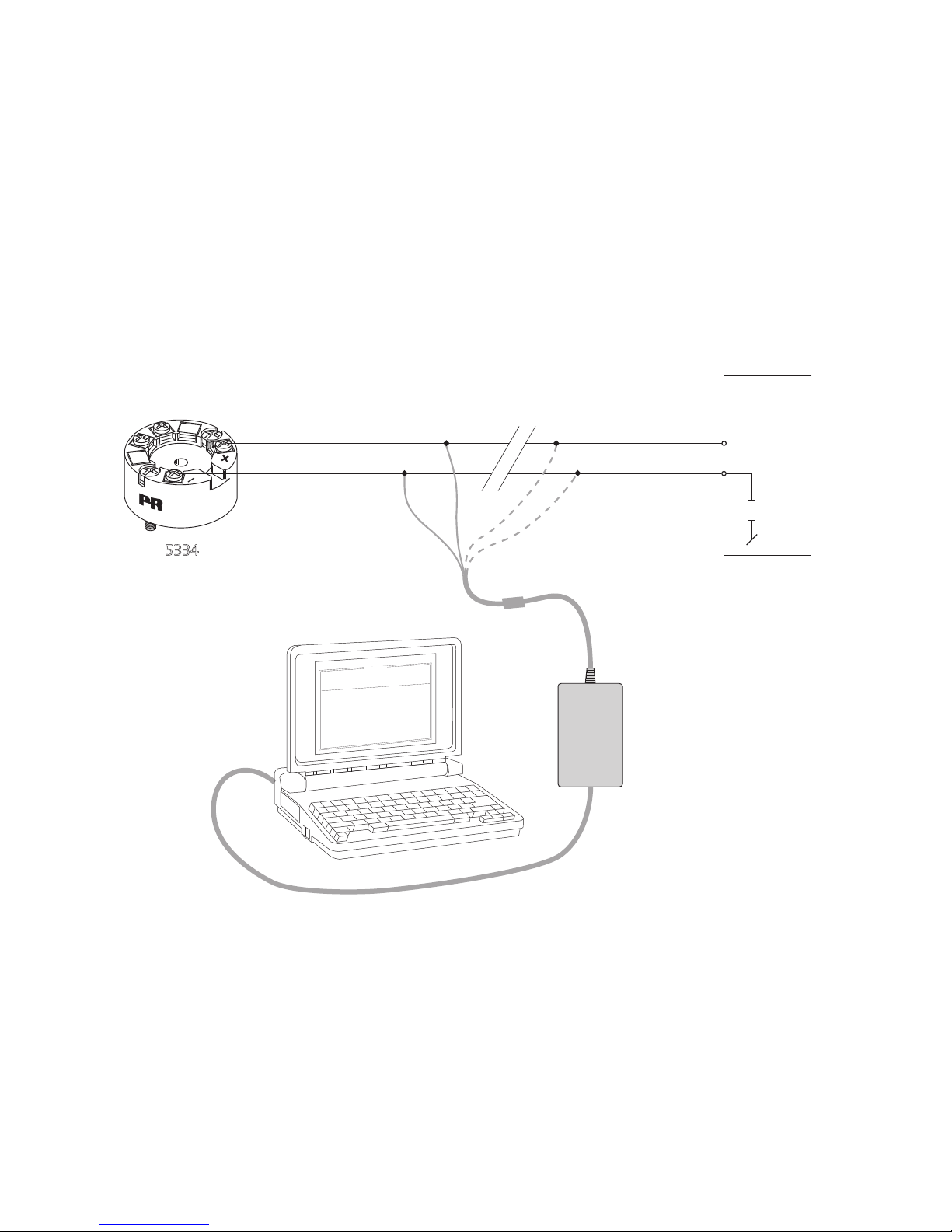

Programming ............................................................................................ 9

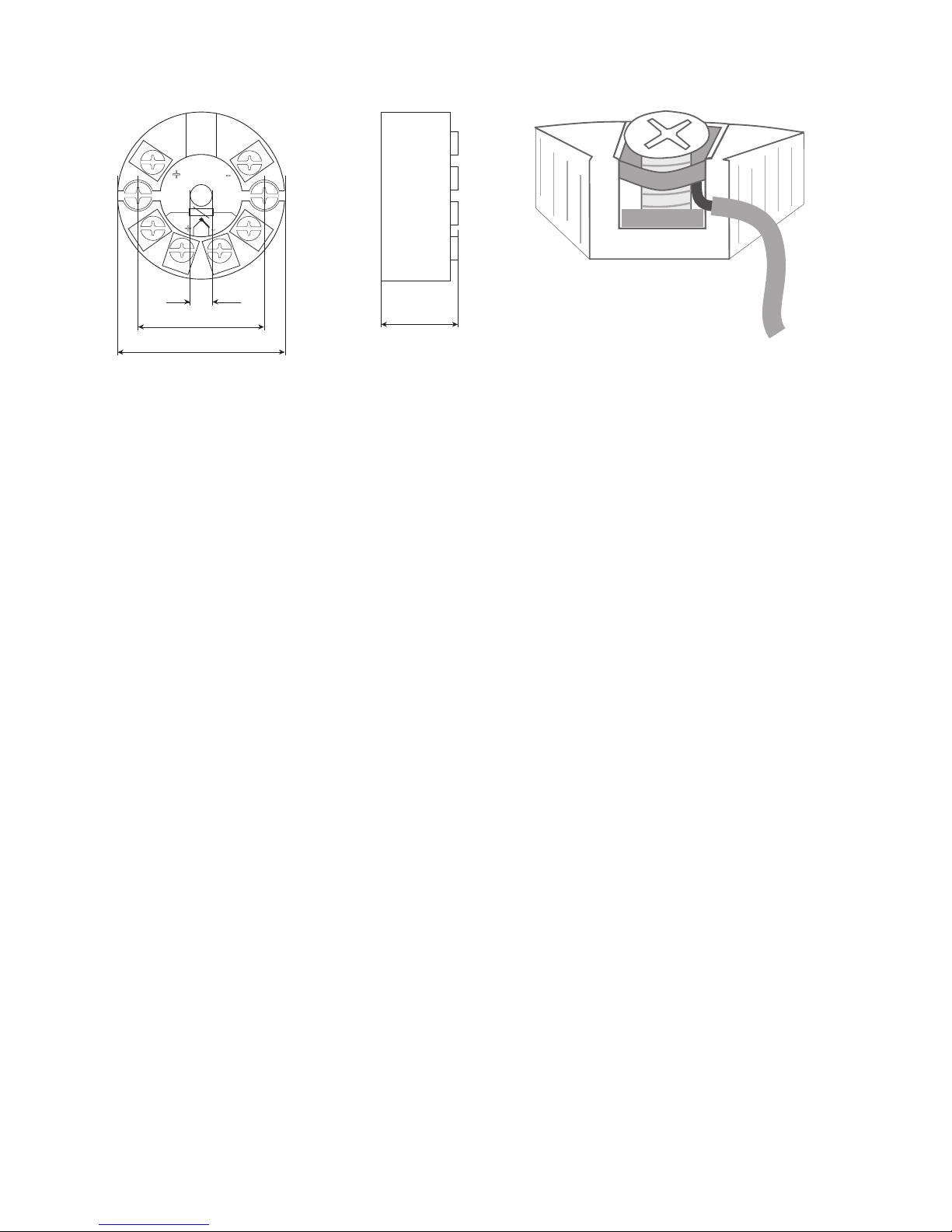

Mechanical specifications ................................................................... 10
Mounting of sensor wires ................................................................... 10
Appendix .................................................................................................... 11

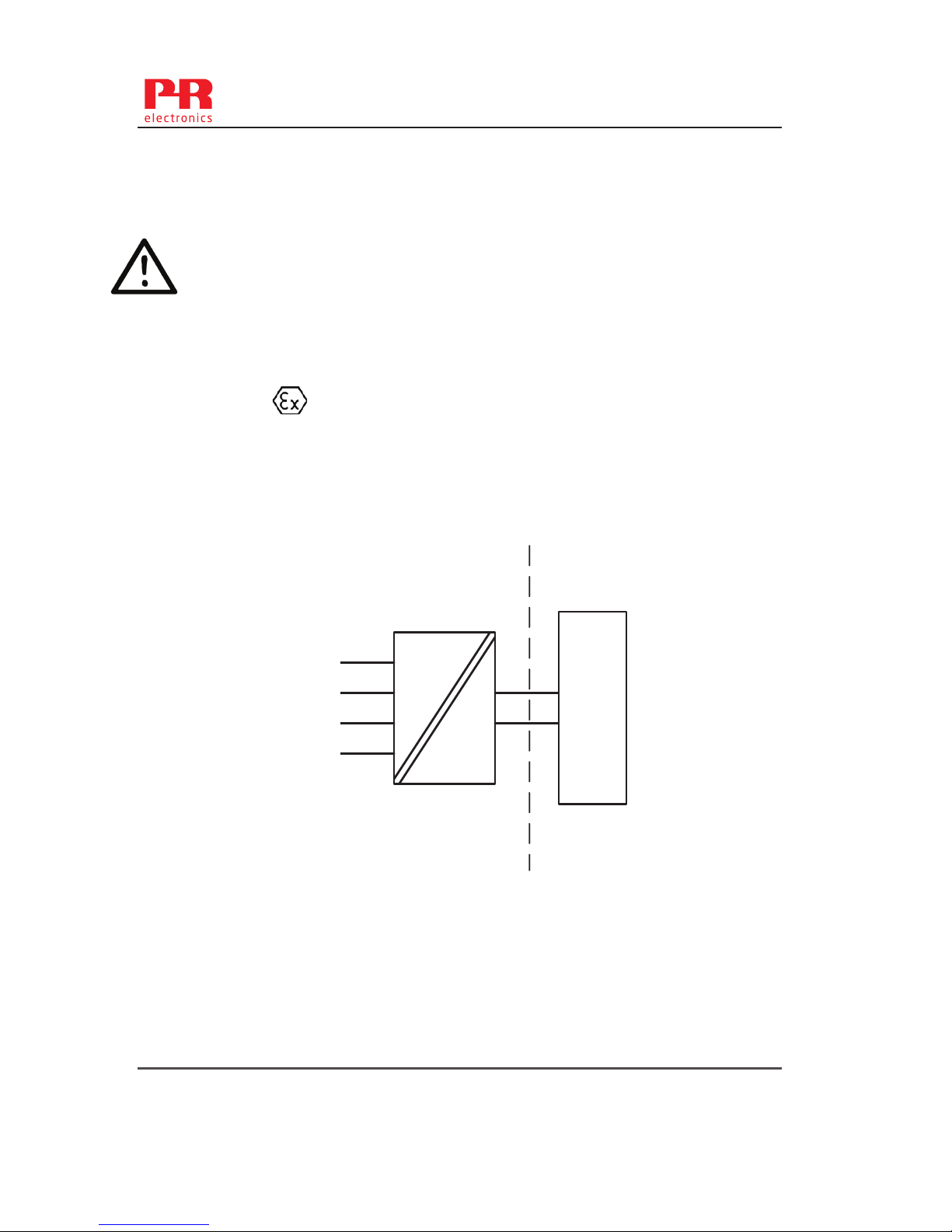

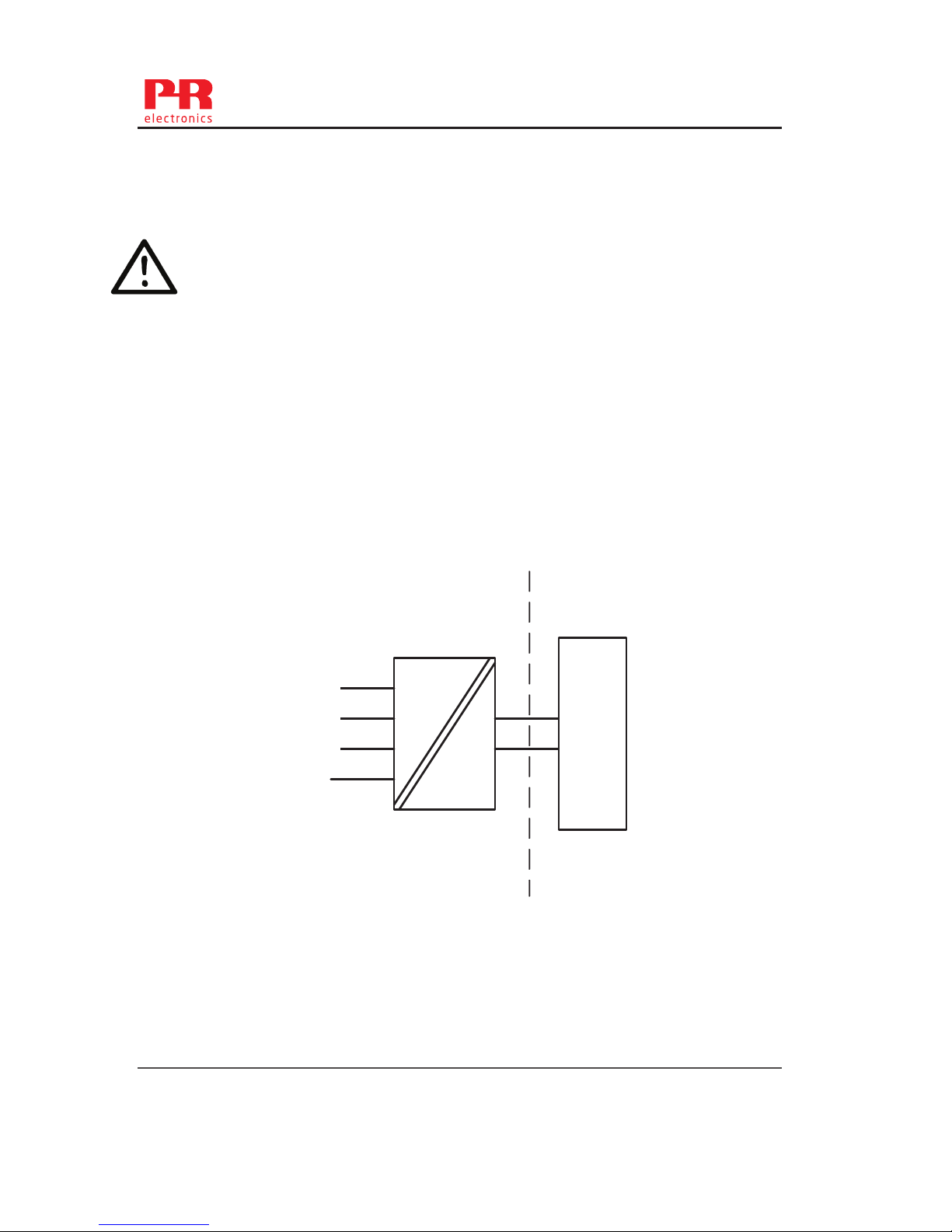

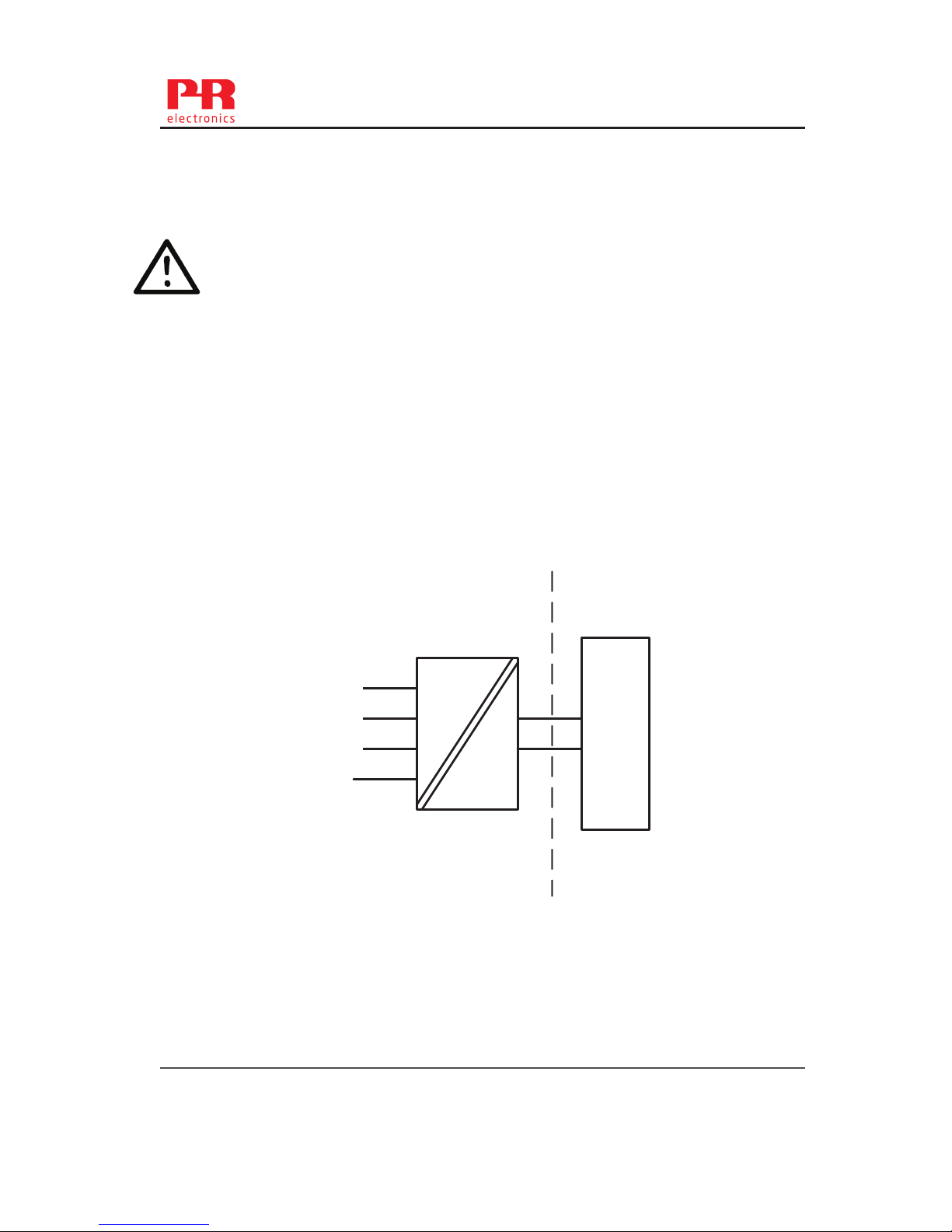

ATEX Installation Drawing - 5334A ............................................ 12
ATEX Installation Drawing - 5334B ............................................ 13
IECEx Installation Drawing - 5334A ............................................ 15
IECEx Installation Drawing - 5334B ............................................ 16
INMETRO Instruções de Segurança - 5334A ........................... 18
INMETRO Instruções de Segurança - 5334B ........................... 19
2 5334V110-UK
2-WIRE PROGRAMMABLE TRANSMITTER
5334
• TC input
• High measurement accuracy
• Galvanic isolation
• Programmable sensor error value
• For DIN form B sensor head mounting
Application
• Linearised temperature measurement with TC sensor.
• Amplification of bipolar mV signals to a 4...20 mA signal, optionally linearised
according to a defined linearisation function.
Technical characteristics
• Within a few seconds the user can program PR5334 to measure temperatures
within all TC ranges defined by the norms.
• Cold junction compensation (CJC) with a built-in temperature sensor.
• Continuous check of vital stored data for safety reasons.
Mounting / installation
• For DIN form B sensor head mounting. In non-hazardous areas the 5334 can be
mounted on a DIN rail with the PR fitting type 8421.
5334V110-UK 3
APPLICATIONS
+
-
+
-
V+
mA
+
-
-
+
V+
mA
+
-
-
+
2-wire installation
in control room
mV to 4...20 mA
2-wire installation
in control room
TC to 4...20 mA
4 5334V110-UK
Electrical specifications
Specifications range:
-40°C to +85°C
Common specifications:
Supply voltage, DC
Standard .................................................................. 7.2...35 V
ATEX Ex, IECEx & INMETRO ............................ 7.2...30 VDC
Internal power dissipation
Standard .................................................................. 25 mW...0.8 W
CSA, FM, ATEX, IECEx & INMETRO ................ 25 mW...0.7 W
Voltage drop .............................................................. 7.2 VDC
Isolation voltage, test / operation .................... 1.5 kVAC / 50 VAC
Warm-up time ............................................................ 5 min.
Communications interface ................................... Loop Link
Signal / noise ratio .................................................. min. 60 dB
Response time (programmable) ......................... 1...60 s
EEprom error check ................................................. < 3.5 s
Signal dynamics, input ........................................... 18 bit
Signal dynamics, output ....................................... 16 bit
Calibration temperature ........................................ 20...28°C
Accuracy, the greater of general and basic values:
Order: 5334
Type Version
Ambient
temperature
Galvanic
isolation
5334 Standard : A
ATEX Ex, IECEx &
INMETRO : B
-40°C...+85°C : 3 1500 VAC : B
General values
Input type
Absolute
accuracy
Temperature
coefficient
All ≤ ±0.05% of span ≤ ±0.01% of span / °C
5334V110-UK 5
Effect of supply voltage variation .................... < 0.005% of span / VDC
Vibration ...................................................................... IEC 60068-2-6 : 2007
2...25 Hz .................................................................. ±1.6 mm
25...100 Hz ............................................................ ±4 g
Max. wire size ............................................................ 1 x 1.5 mm
2
stranded wire
Screw terminal torque ........................................... 0.4 Nm
Humidity ...................................................................... < 95% RH (non-cond.)
Dimensions ................................................................. Ø 44 x 20.2 mm
Protection degree (enclosure / terminal) ....... IP68 / IP00
Weight .......................................................................... 50 g
Electrical specifications, input:
Max. offset ................................................................. 50% of selec. max. value
TC input:
Basic values
Input type
Basic
accuracy
Temperature
coefficient
Volt ≤ ±10 µV ≤ ±1 µV / °C
TC type:
E, J, K, L, N, T, U
≤ ±1°C
≤ ±0.05°C / °C
TC type: B, R, S,
W3, W5, LR
≤ ±2°C
≤ ±0.2°C / °C
EMC immunity influence ................................................ < ±0.5% of span
Extended EMC immunity:
NAMUR NE 21, A criterion, burst ............................... < ±1% of span
Type
Min.
temperature
Max.
temperature
Min.
span
Standard
B
E
J
K
L
N
R
S
T
U
W3
W5
LR
+400°C
-100°C
-100°C
-180°C
-100°C
-180°C
-50°C
-50°C
-200°C
-200°C
0°C
0°C
-200°C
+1820°C
+1000°C
+1200°C
+1372°C
+900°C
+1300°C
+1760°C
+1760°C
+400°C
+600°C
+2300°C
+2300°C
+800°C
100°C
50°C
50°C
50°C
50°C
50°C
100°C
100°C
50°C
50°C
100°C
100°C
50°C
IEC584
IEC584
IEC584
IEC584
DIN 43710
IEC584
IEC584
IEC584
IEC584
DIN 43710
ASTM E988-90
ASTM E988-90
GOST 3044-84
6 5334V110-UK
Cold junction compensation ................................ < ±1.0°C
Sensor error detection ........................................... Yes
Sensor error current:
When detecting ................................................... Nom. 33 mA
Else ........................................................................... 0 mA
Voltage input:
Measurement range ................................................ -12...150 mV
Min. span ..................................................................... 5 mV
Input resistance........................................................ 10 MΩ
Output:
Current output:
Signal range ............................................................... 4...20 mA
Min. signal range ...................................................... 16 mA
Updating time ........................................................... 440 ms
Output signal at EEprom error ............................ ≤ 3.5 mA
Load resistance......................................................... ≤ (V
supply
- 7.2) / 0.023 [Ω]
Load stability ............................................................. < ±0.01% of span / 100 Ω
Sensor error detection:
Programmable ........................................................... 3.5...23 mA
Namur NE43 Upscale ............................................. 23 mA
Namur NE43 Downscale ....................................... 3.5 mA
Of span = Of the presently selected range
Approvals:
EMC ................................................................................ 2014/30/EU
CCOE .............................................................................. P337392/1
RoHS ............................................................................. 2011/65/EU
EAC ................................................................................. TR-CU 020/2011
Marine approval:
DNV-GL, Ships & Offshore .................................... Standard for Certification No. 2.4
Ex / I.S.:
ATEX 2014/34/EU
5334A ...................................................................... KEMA 10ATEX0002 X
5334D...................................................................... KEMA 06ATEX0062 X
IECEx ............................................................................. DEK 13.0035 X
INMETRO ..................................................................... DEKRA 16.0013 X
CCOE .............................................................................. P337392/2
EAC Ex TR-CU 012/2011 ..................................... RU C-DK.GB08.V.00410
