Product Manual

4590

ConfigMate USB
communications interface

TEMPERATURE | I.S. INTERFACES | COMMUNICATION INTERFACES | MULTIFUNCTIONAL | ISOLATION | DISPLAY

No. 4590V101-UK
From ser. no. 110404001

Communication

Display

I.S. Interface

Isolation

Multifunction

Temperature

6 Product Pillars

to meet your every need

With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six
product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial
and factory automation. All our products comply with or surpass the highest industry standards, ensuring reliability in even
the harshest of environments and have a 5-year warranty for greater peace of mind.

Individually outstanding, unrivalled in combination

Our range of temperature transmitters and sensors provides the highest level of signal integrity from the
measurement point to your control system. You can convert industrial process temperature signals to analog, bus or
digital communications using a highly reliable point-to-point solution with a fast response time, automatic self­calibration, sensor error detection, low drift, and top EMC performance in any environment.

Our unique range of single devices covering multiple applications is easily deployable as your site standard. Having
one variant that applies to a broad range of applications can reduce your installation time and training, and greatly
simplify spare parts management at your facilities. Our devices are designed for long-term signal accuracy, low
power consumption, immunity to electrical noise and simple programming.

We provide inexpensive, easy-to-use, future-ready communication interfaces that can access your PR installed base
of products. The detachable 4501 Local Operator Interface (LOI) allows for local monitoring of process values,
device configuration, error detection and signal simulation. The next generation, our 4511 Remote Operator
Interface (ROI) does all that and more, adding remote digital communications via Modbus/RTU, while the analog
output signals are still available for redundancy.
With the 4511 you can further expand connectivity with a PR gateway, which connects via industrial Ethernet,
wirelessly through a Wi-Fi router or directly with the devices using our Por table Plant Supervisor (PPS) application.
The PPS app is available for iOS, Android and Windows.

Our display range is characterized by its flexibility and stability. The devices meet nearly every demand for display
readout of process signals, and have universal input and power supply capabilities. They provide a real-time
measurement of your process value no matter the industry, and are engineered to provide a user-friendly and
reliable relay of information, even in demanding environments.

We deliver the safest signals by validating our products against the toughest safety standards. Through our
commitment to innovation, we have made pioneering achievements in developing I.S. interfaces with SIL 2 Full
Assessment that are both efficient and cost-effective. Our comprehensive range of analog and digital intrinsically
safe isolation barriers offers multifunctional inputs and outputs, making PR an easy-to-implement site standard.
Our backplanes further simplify large installations and provide seamless integration to standard DCS systems.

Our compact, fast, high-quality 6 mm isolators are based on microprocessor technology to provide exceptional
performance and EMC-immunity for dedicated applications at a very low total cost of ownership. They can be
stacked both vertically and horizontally with no air gap separation between units required.

4590V101-UK 3

USB communications interface

ConfigMate 4590

Table of contents

Warning ................................................................................................ 4

Symbol identification .................................................................................... 4

Safety instructions ...................................................................................... 5

Application ............................................................................................. 6

Docking Mode........................................................................................... 6

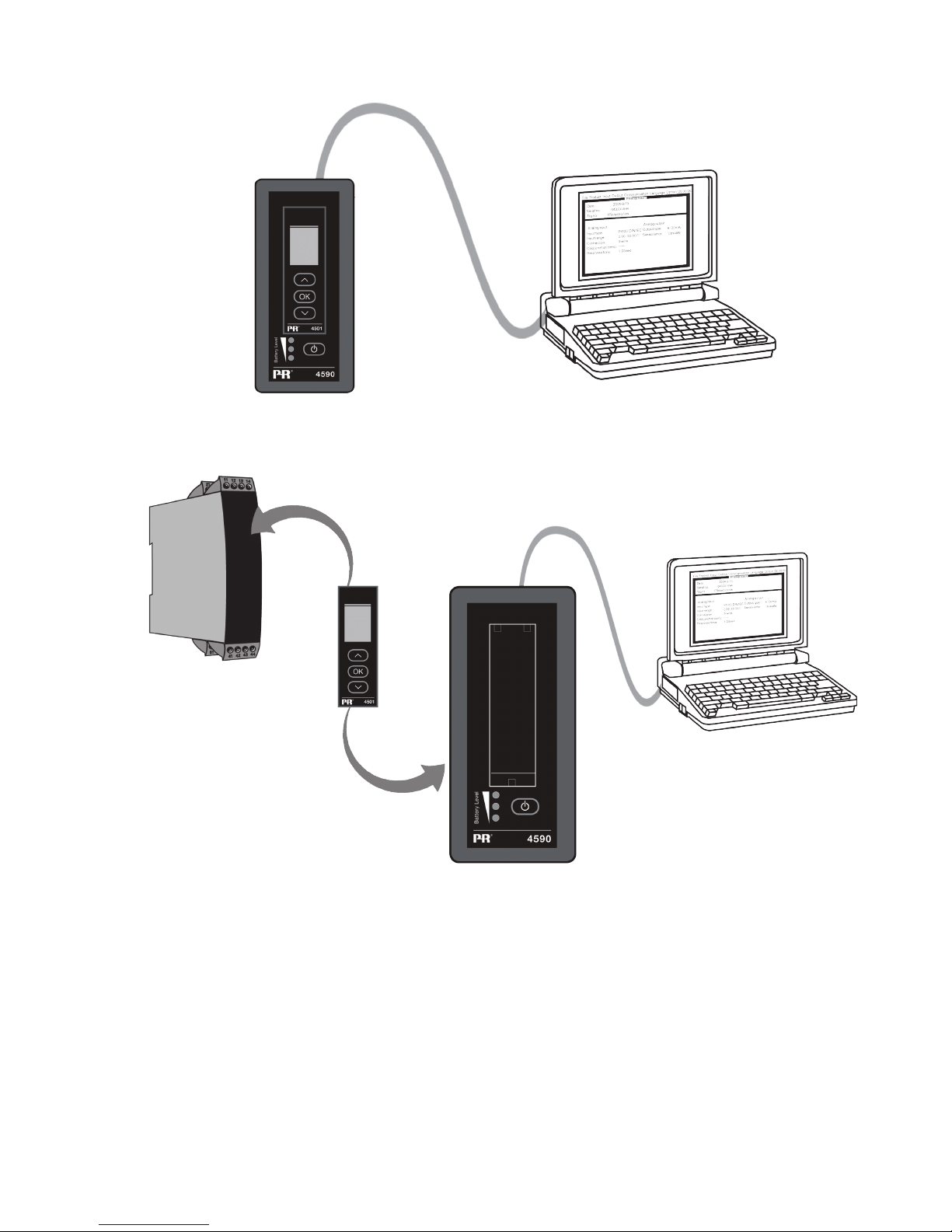

Connection of ConfigMate 4590 to a PC in Docking Mode ............................................... 7

Connection of ConfigMate 4590 to a PR 4000/9000 Device............................................. 7

Adaptor Mode........................................................................................... 8

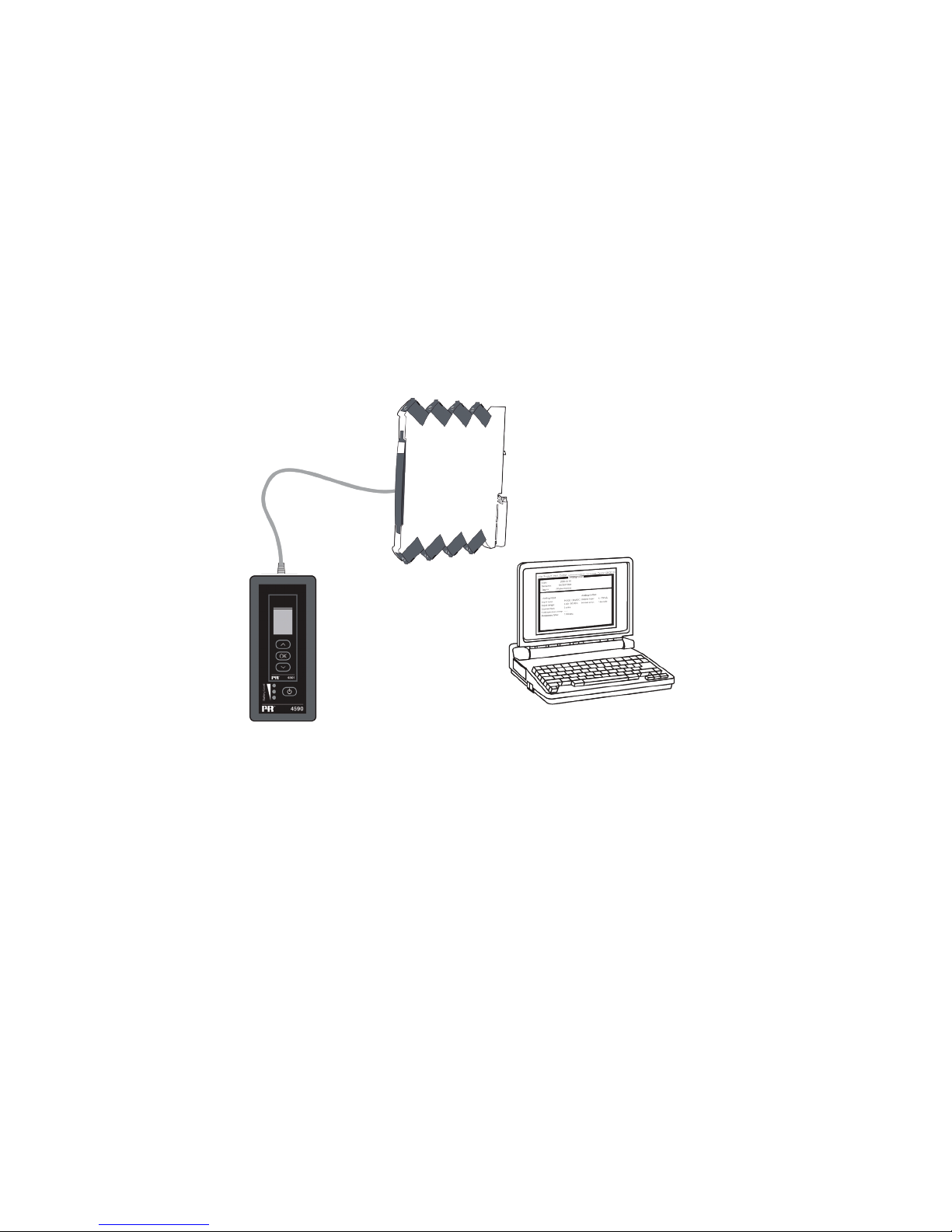

Connection of ConfigMate 4590 to a PR 3000 Device...................................................... 8

USB and PReset installation (Docking Mode Only).......................................................... 8

Technical characteristics .............................................................................. 8

System requirements ................................................................................. 8

Installation of PReset.................................................................................... 9

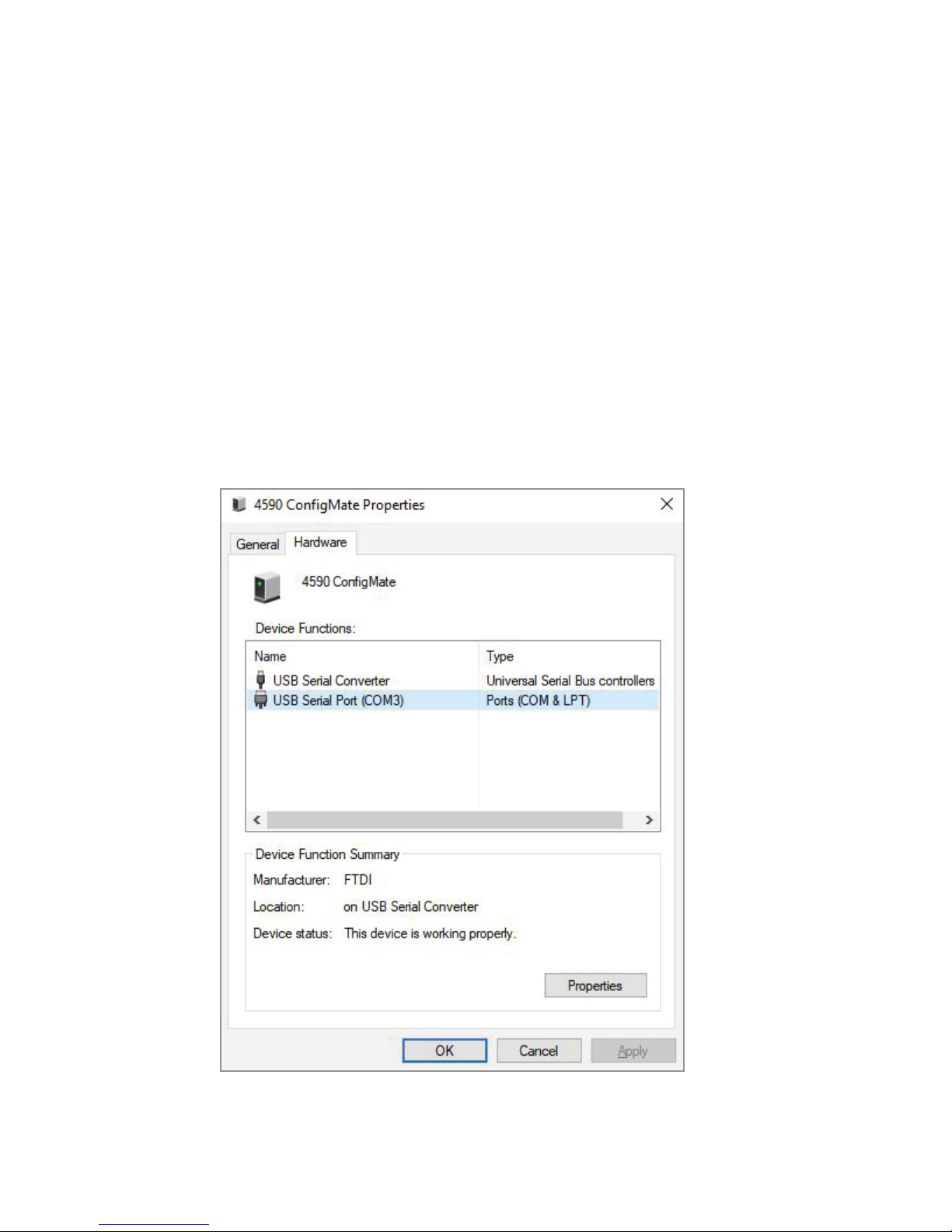

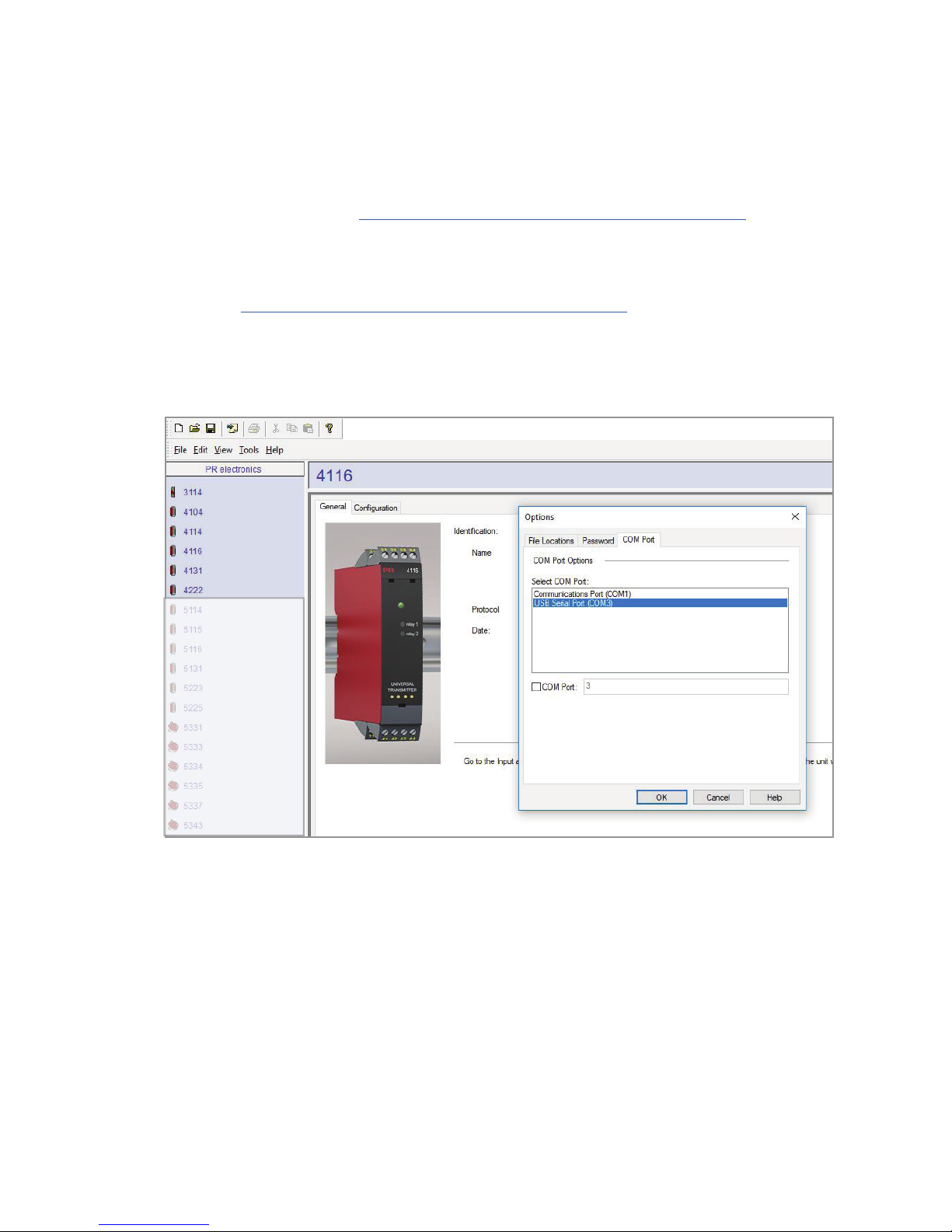

Configuration of USB communication in PReset......................................................... 9

4 4590V101-UK

Warning

This device is designed for connection to hazardous electric voltages. Ignoring this warning can result in
severe personal injury or mechanical damage.
To avoid the risk of electric shock and fire, the safety instructions and warnings of this guide must be
observed and the guidelines followed. The specifications must not be exceeded, and the device must
only be applied as described in the following.
Prior to the commissioning of the device, this guide must be examined carefully.
Only qualified personnel (technicians) should operate this device. If the equipment is used in a manner
not specified by the manufacturer, the protection provided by the equipment may be impaired.

Repair of the device must be done by PR electronics A/S only.

Warning - risk of explosion hazard

To avoid risk of explosion and injury:

• Do not use this equipment when a flammable or combustible atmosphere is present

• Do not replace batteries unless area is known to be safe.

• Use 3 x 1.5 V TYPE AAA batteries only and insert correctly as stipulated in battery compartment.

Warning - risk of electrical shock

To avoid risk of electrical shock and injury:

• Do not disconnect the cable from ConfigMate 4590 while cable is connected to a SYSTEM 3000
device.

• Do not remove 4501 while the cable is connected to a SYSTEM 3000 device.

• Do not replace batteries while the cable is connected to a SYSTEM 3000 device.

Symbol identification

Triangle with an exclamation mark: Warning / demand. Potentially lethal situations.

The CE mark proves the compliance of the device with the essential requirements of the directives.

The double insulation symbol shows that the device is protected by double or reinforced insulation.

GENERAL

EXPLOSION

ELECTRICAL

SHOCK
