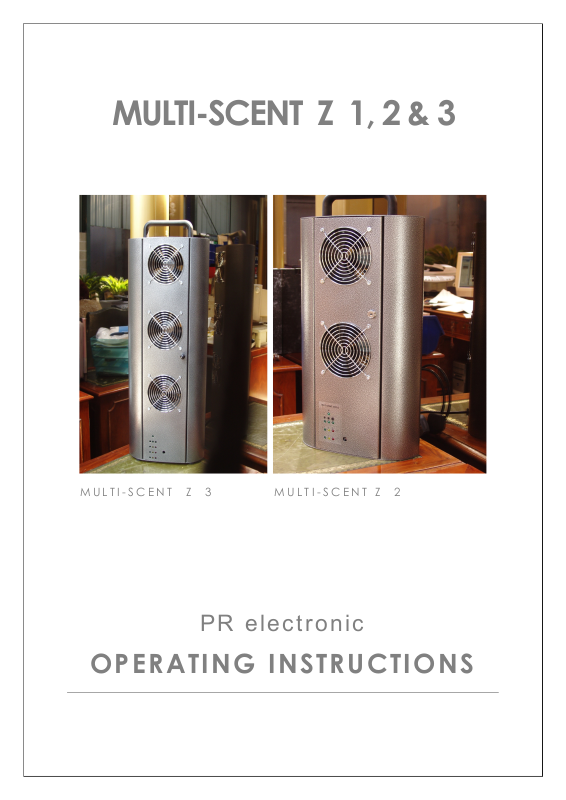

MULTI-SCENT Z 1, 2 & 3

MULTI-SCENT Z 3 MULTI-SCENT Z 2

PR electronic

OPERATING INSTRUCTIONS

Table of Contents

Introduction 3

•

Specifications 4

•

Installation / Use

•

Portable Applications 4

-

Fixed Installations 5

-

Programming the Unit 5

-

Cartridge Usage Indicator 7

-

Page No:

Changing the Fragrance Cartridge 7

-

How to contact us 8

-

2222

Introduction

This fragrancing systems are designed to provide controlled fragrance delivery to indoor environments.

The units are programmable for fragrance intensity, fragrance dispersal and hours of operation (see
“Programming the Unit”).

The ceramic cartridge at the heart of all systems stores fragrance for release over time through the
application of heat.

The cartridge is designed to be quick and easy to change and may be stored for up to 1 year if unopened
and in its original foil packaging.

The systems use a dynamic solid-state low temperature heat source to achieve optimum fragrance
dispersal. The cartridge is gently heated and airflow is directed over the cartridge dispensing fragrance into
the atmosphere. There is no visible evidence of the fragrance, which makes Multi-Scent ideal for use in
any application.

NB:

Please read these instructions fully before attempting to install or use your unit. Failure to comply
with these operating instructions may invalidate product warranty and impair performance.

The systems carry a 1 Year Warranty against defects in parts and workmanship.

3333

Specifications Z 1 / 2 / 3 /

Voltage rating

Power Rating

Frequency Rating

Dimensions

Boxed Dimensions

Dry Weight

Boxed Weight

Fuse Rating

Fan Specifications

Heater Specifications

Fragrance Media

Standards

220Vac – 240Vac

140 / 210 / 280 Watts

50Hz

420 / 520 / 620mmH x 275mmW x 125mmD

520 / 620 / 720mmH x 375mmW x 225mmD

4.5 / 5.6 / 7.2Kgs

6.5 / 7.6 / 9.2Kgs

3.15 amp slo-blo (20mm)

92mm Axial fan - 12Vdc / 2.8Watt

PTC – 220Vac / 240Vac 70Watts

1 / 2 / 3 x Ceramic Cartridge

CE – European Conformity

Coverage

Up to 500 / 1000 / 1500m

3

Portable Applications

Select a location adjacent to a suitable 220 Vac – 240 Vac power outlet positioned so that the

•

mains cable will not become a trip hazard.

4 Self Adhesive feet are supplied for portable use (located in the Instructions For Use pack) these

•

should be fixed to the bottom of the machine

Ensure that the unit is located on a flat surface and is stable.

•

Ensure that there is sufficient space all around the unit to provide free airflow.

•

Ensure that the unit is located beyond the reach of children.

•

Do not locate the unit in a position in which it may be splashed.

•

4444

Fixed Installations

The units must be installed by a qualified Electrician in accordance with current I.E.E. Wiring
Regulations or, where these do not apply, in accordance with applicable Local Wiring Regulations.

Select a suitable location that is away from doors, windows air-conditioning vents, is not beneath

•

pipe work on which condensation forms and allows free air-flow all around the unit.

It is recommended that if possible the base of the unit should be at least 2mtrs above the level of

•

the floor.

Programming the Unit

Power On Indicator

Control Panel

On / Off
Switches

Fan Output Speed

Cartridge Usage
Indicators

The Multi-Scent 1 is equipped with 1 fragrance cartridge “channel” that can be operated.

The Multi-Scent
independently of each other or simultaneously in order to alternate fragrance type in a single unit or
boost the overall intensity of a single fragrance.

The Multi-Scent
independently of each other or simultaneously in order to alternate fragrance type in a single unit or
boost the overall intensity of a single fragrance.

Whilst each channel can be operated independently, the Fragrance Intensity, Fan Speed and
Day/Night/24hour option settings are common to all three “channels”.

The programmability of Multi-Scent
dispersal to room volume and location requirements. A certain amount of trial and error may be required
and it is always advisable to begin with lower intensity and fan speed settings increasing these until the
desired intensity and dispersal are achieved. (It should be noted that fragrance dispersal is not
instantaneous and that the unit should be left to operate for 15-30 minutes before adjustments are made).

2 is equipped with 2 fragrance cartridge “channels” that can be operated

3 is equipped with 3 fragrance cartridge “channels” that can be operated

systems is designed to enable the user to match fragrance intensity and

Day/Night
24 Hour Selector

Intensity Control

5555

TURN ON THE POWER

Intensity Control

Variation in fragrance intensity is achieved by interruption of power to the heating circuit, when power is
being supplied the intensity LED’s are illuminated and during periods when the power has been interrupted
the fragrance intensity LED’s flash.

By reference to the chart below and location conditions/requirements use the intensity control button to set
the fragrance intensity to the desired level. (Repeatedly pressing the intensity control button will cause the
intensity level to cycle from minimum through maximum back to minimum).

INTENSITY LEVEL INDICATOR INTENSITY LEVEL

Level 1 20%

25%

40%

55%

75%

100%

NB:

Level 2

Level 3

Level 4

Level 5

Level 6

The life of the fragrance cartridge is directly related to the intensity setting – the higher the setting
the shorter the cartridge life.

Fan Speed Control

The fan speed determines the speed and extent of fragrance dispersal. Select low for small rooms
and medium or high for larger rooms. (Repeatedly pressing the Fan Speed Control button will cause the
fan speed to cycle from low through high back to low).

Day / Night / 24 Hour Selector

The unit can be programmed to operate 24 hours per day or only when dark or only when light.
This feature is designed to extend cartridge life when circumstances allow for day only / night only operation.
Use the control button to select the desired option. (Repeatedly pressing the Selector Control button will
cause the option selected to cycle from night through 24 hour and back to night only operation).

Cartridge Usage Indicator

Since each of the 3 “channels” can be operated independently, for ease of servicing the unit
incorporates a separate visual cartridge status indicator for each “channel”. When the Green L.E.D. is
illuminated the cartridge is less than 50% used. When the Yellow L.E.D. illuminates the cartridge is more
than 50% used. When the Red L.E.D. illuminates the cartridge is exhausted and should be changed.
When a new cartridge is inserted and the reset button pressed the Red L.E.D. will extinguish and the Green
L.E.D. will be illuminated signifying the status of the new cartridge.

6666

Changing the Cartridge

The cartridge should be changed as soon as the Red L.E.D. illuminates.
Disconnect the unit from the mains power supply. Unlock and open the hinged cover. Remove the old
cartridge by lifting at one end.

Take care – internal surfaces may be HOT !

Remove the new cartridge from its packaging carefully inserting it into the cartridge housing ensuring that
the small indentation is on the uppermost surface. Check that the cartridge is located correctly and is flat to
the base of the housing. Switch the power on.

Using a pen or small screwdriver depress the Cartridge Usage Indicator reset switch located adjacent to the
Red L.E.D. The Red L.E.D. will extinguish and the Green L.E.D. will illuminate. When the power is restored
the control settings will be as they were when the unit was switched off.

Indentation in
Top of Cartridge

NB:

Use of any fragrance medium other than Multi-Scent

will invalidate the product warranty.

Fragrance Cartridge

®

brand cartridges may damage the unit and

7777

How to Contact Us

PR electronic

Im Steinenbächle 3

D-73569 Eschach

Fax: [phone]

Germany

Tel: [phone]

e.mail [e-mail]

www.pr-electronic.com
