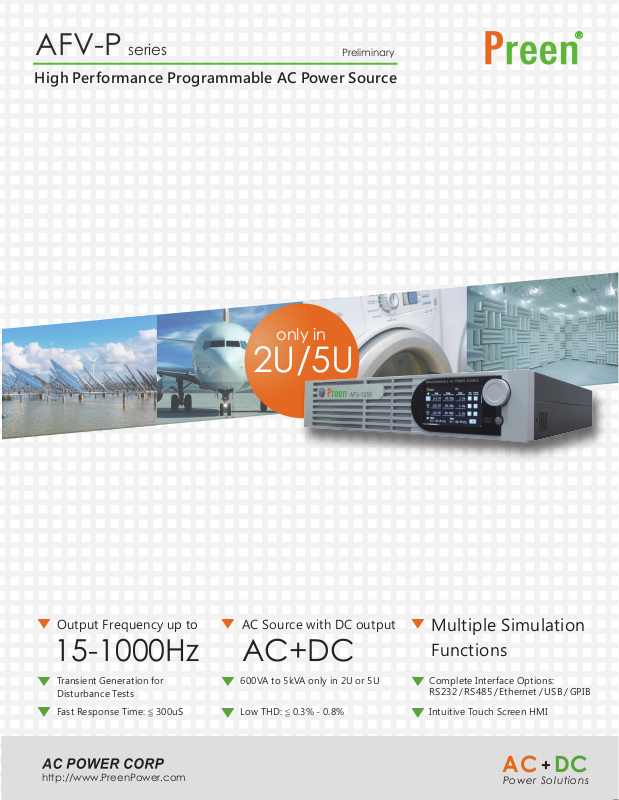

Preen AFV-P-600B Data Sheet

AFV-P

High Performance Programmable AC Power Source

series

Preliminary

only in

Output Frequency up to

15-1000Hz

2U/5U

AC Source with DC output

AC+DC

Multiple Simulation
Functions

Transient Generation for
Disturbance Tests

Fast Response Time: ≦ 300uS

http://www.PreenPower.com

600VA to 5kVA only in 2U or 5U

Complete Interface Options:
RS232 / RS485 / Ethernet / USB / GPIB

Intuitive Touch Screen HMILow THD: ≦ 0.3% - 0.8%

AC+DC

Power Solutions

AFV-P

series

USB RS232 GPIB

RS485

Ethernet

Analog
Control

High Performance Programmable AC Power Source

Preen’s AFV-P Series is a programmable AC power source with DC output and precision measurements. This compact

power source comes in four power levels, 600VA, 1250VA, 2500VA and 5000VA, providing clean power with distortion less

than 0.3% at 50/60Hz. The AFV-P series can deliver output voltage from 0 to 310VAC and frequency from 40 to 500Hz (Opt.

15 to 1000Hz). It is ideal for commercial, defense and aerospace test applications from design verification, quality assur-

ance, ATE to mass production.

Total 1200 test steps in 50 built-in memories and transient generation functions provide simulation of voltage variations,

surges, drops and frequency disturbances. With the state-of-the-art PWM technology, the AFV-P series is capable deliver-

ing up to 4.5 times of peak current from its max. rated current that makes it ideal for inrush current test. Users can also set

up starting and ending phase angle from 0 to 360 degrees.

The AFV-P series comprises measurement features of rms voltage, rms current, true power, apparent power, power factor,

crest factor, reactive power and etc. Its 4.3" touch screen with rotary knob allows quick adjustments and configurations of

voltage, current, and frequency. Users can also remotely control the AC source via standard interfaces of USB,

RS232/RS485, LAN or optional GPIB and analog control. Free control software and LabVIEW driver are available for easy

programming and remote control.

Compact & High Power Density

2U: 600VA / 1250VA / 2500VA

2U/5U

5U: 5000VA

Ideal for Inrush Current

4.5

peak/rms

Capable of delivering up to 4.5 times

of peak current

Low Distortion (THD)

≦

0.3%

THD is only <0.3% when output is <100Hz

PANEL DESCRIPTION

1. Power Switch

2. Touch Screen HMI

3. Rotary Knob

4. Output / Reset

10. RS232 / RS485

11. Input Range Selector

12. PLC Remote In/Out

13. USB for System (not used)

AC Source with DC Output

DC

Extend the applications to DC type testing

Wide Output Voltage & Frequency

0-310V 15-1000Hz

Current Foldback Feature

Current foldback feature will have output

CC

Front Panel Overview

1 2 43

current maintain constant based on the
load while output voltage varies

5. AC Output Terminal

6. Output Terminal

7. Remote Sense

8. USB Interface

9. Ethernet Interface

14. Sync. Singal I/O

15. Input Terminal

Rear Panel Overview

5 6 7 8 9 10 11 121513 14

Prelimiary

Key Features of AFV-P Series

Sweep & Ramp Test

The AFV-P series offers an easy and convenient method to execute a single step or continuous output changes. The sweep function is ideal for voltage
and frequency variation tests. The response time of voltage and frequency changes are within one cycle. User can also use the ramp function to adjust
slew rate of voltage and frequency changes. Ramp function can also effectively reduce the inrush current during motor startup. There are up to 50
memories can be stored and recalled; each memory has 24 steps for user to set up.

Transient Generation

Transient generation is an extended feature that provides the
users an easy setup for power line disturbance simulation.
Common waveform disturbances such as surge, sag, spikes, and
dropouts can be generated for application like immunity test.

Start/End Angle & High Peak Current for Inrush Current

90° Start Angle 90° End AngleInrush Current for 90° Start Angle

Intuitive Touch Panel

Users can quickly select the parameters via 4.3 inches touch panel
or rotary knob, which provides an easy operation and measure­ment display.

AFV-P Series is capable of providing high output
peak current (max. 4.5 peak/rms), and this feature
makers it ideal for inrush current happened in
motor testing. Users can also define the start and
end phase angle from 0° to 360°, which is suitable
for switching power inrush testing.

Control Software

AFV-P series provides control software and Labview driver that
allow users to easily setup the remote control for the power source
without further need of programming.

Fast Slew Rate

Measurement

<300 µs

For tests like sags, surges, dropouts, or spikes, slew rate is a critical
factor. AFV-P series is a high performance AC source that has a
high slew rate of less than 300 µs from 0~90% output voltage. It
allows users to do pre-compliance test such as IEC-61000-4-11 or
MIL-STD-704F.

http://www.PreenPower.com

SPECIFICATIONS

Model

INPUT

Phase

Voltage

Frequency

Max. Current

OUTPUT

Power

Phase

Voltage Ranges

Voltage Resolution

Frequency Resolution

Max. Current (RMS)

Max. Current (Peak)

Total Harmonic Distortion (THD)

Line Regulation

Load Regulation

Response Time

Crest Factor

Inrush Current

VA

W

DC OUTPUT

Power

Voltage Ranges

Max. Current

Ripple & Noise (RMS)

MEASUREMENT

Voltage Range

Voltage Accuracy

Voltage Resolution

Frequency Range

Frequency Accuracy

Frequency Resolution

Current Range

Current Accuracy

Current Resolution

Peak Current Range

Peak Current Accuracy

Peak Current Resolution

Power Range Hi: 200 - 2400W / Lo: 0 - 240W Hi: 0 - 4800WHi: 100 - 1200W / Lo: 0 - 120W

Power Accuracy

Power Resolution

GENERAL

Efficiency

Protection

Remote Interface

Over Current Foldback

Output Sync Signal

Memories

Operating Temperature

Dimensions (HxWxD)

Weight

* All specifications are subject to change without notice.

AFV-P-600 AFV-P-1250 AFV-P-2500 AFV-P-5000

98~132VAC / 196~264VAC 196~264VAC or 175~235VAC

10A 20A 20A 40A

600VA 1250VA 2500VA 5000VA

500W 1000W 2000W 4000W

5A / 2.5A 10A / 5A 20A / 10A 40A / 20A

22.5A / 11.3A 45A / 22.5A 90A / 45A 180A / 90A

≦0.3% at 40-100Hz, ≦0.5% at 101-500Hz, ≦0.8% at 501-1000Hz (Resistive Load)

300W 600W 1250W 2500W

2.5A / 1.25A 5A / 2.5A 10A / 5A 20A / 10A

±(1% of reading + 5 counts) at 40.0 - 500Hz, ±(1% of reading + 10 counts) at 501 - 1000Hz

±(1% of reading + 5 counts) at 40.0 - 500Hz, ±(1% of reading + 10 counts) at 501 - 1000Hz

±(2% of reading + 10 counts) @ 40 - 500Hz, ±(2% of reading + 15 counts) @ 501 - 1000Hz

Standard: RS232 / RS485 / Ethernet / USB / PLC Remote In&Out, Option: GPIB / Analog Control

ON, Event for Voltage or Frequency Change (Output signal 5V , BNC type)

approx. 16 kg approx. 20 kg approx. 31.3 kg approx. 70 kg

Preliminary

Single

47 Hz - 63 Hz

1Ø / 2 Wire + G

0 - 155Vrms / 0 - 310Vrms, user selectable

0.1Vrms

40-500Hz (opt. 15-1000Hz)Frequency

0.1Hz, 1Hz at >100Hz

± 0.1V

≦0.07% F.S. (Resistive Load)

≦ 300uS

≧ 3

≧ 4.5 times max. output current (r.m.s)

0 - 210V / 0 – 420V

≦ 0.15% ≦ 0.24%

0 - 420Vrms

±(0.2% of reading + 5 counts)

0.1V

15 - 1000Hz

±0.1Hz at 40.0 - 500Hz, ±0.2Hz at 501 - 1000Hz

0.1Hz

Hi: 2 - 24A / Lo: 0.005 - 2.4A Hi: 0.05A - 48.00AHi: 1 - 12A / Lo: 0.005 - 1.2A

Hi: 0.01A / Lo: 0.001A Hi: 0.01A

0 - 90A 0 - 180A0 - 45A

0.1A

Hi: 1W / Lo: 0.1W Hi: 1W

≧ 80% at max. power

OVP, OCP, LVP, OPP, OTP, RCP, Fan Fail

CC Mode (Constant Current)

50 Memories & 1200 Steps (24 Steps/Memory)

0℃ - 40℃

89 x 442 x 600 mm 222.5 x 442 x 600 mm 89 x 442 x 450 mm
