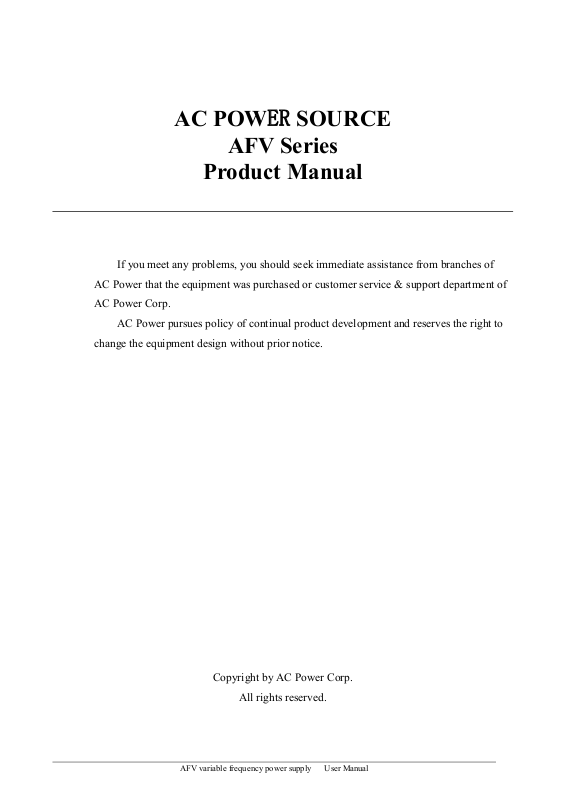

AC POWER SOURCE
AFV Series
Product Manual
If you meet any problems, you should seek immediate assistance from branches of
AC Power that the equipment was purchased or customer service & support department of
AC Power Corp.
AC Power pursues policy of continual product development and reserves the right to
change the equipment design without prior notice.
Copyright by AC Power Corp.
All rights reserved.
AFV variable frequency power supply User Manual
Safety instructions
Danger
Dangerous high voltages exist inside this machine. Do not open any covers of this machine unless authorized
and done by trained technicians. Otherwise, electrical shock to persons may happen.
In case the machine needs to be moved or re-wired, all electricity to the machine must be disconnected and
removed. After electricity is removed, please wait for at least 20 minutes before touching any live parts of this
machine or electrical shock may occur: the electrical charges on the bulky capacitors inside the machine need some
time to be fully discharged.
For optimal safety protection to the users, this machine must have solid connections to the earth. Do not use
this machine if it is not grounded.
In case of fire, use an extinguisher with powder chemicals instead of liquid agents. Electrical shock may occur
if liquid extinguishing products are used.
Any foreign objects and/or liquid are strictly prohibited from entering to the inside of this machine.
Caution
Storage and operating environment have a certain degree of influence on the life and reliability of this product.
Therefore, avoid placing and/or operating this machine in environments with the following:
(i). Having extreme ambient temperature or humidity that exceeds the allowable limit stated in the
specification, temperature: 0℃～45℃, humidity: 0～90%.
(ii). Having direct sunlight exposure, or being near a heat source.
(iii). Places that tend to be vibrated or hit by other objects.
(iv). Having heavy dust, heavy salt, corrosive chemicals or inflammable chemicals in the air.
Please keep air ventilation inlets and outlets clear and clean. Obstruction on the inlet or outlet will have
significant negative impact on the machine’s quality and reliability.
If the machine will not be used for a long time, please store it in a dry and clean environment with temperature
in the range of -40℃～+70℃.
Caution
i
This machine is composed of many delicate and precision devices. Please do not open any covers of this
machine unless authorized and done by trained technicians. Warranty is voided if the quality seal is broken.
AFV variable frequency power supply User Manual
Contents
Chapter I Product Introduction .................................................................................................... 1
Chapter II Working Principle ....................................................................................................... 2
2.1 Functional block diagram of complete machine ................................................................ 2
2.2 Description of functional block diagram ............................................................................ 3
2.3 Constitution of main control circuit .................................................................................... 3
Chapter III Transportation and Installation ............................................................................... 4
3.1 Transportation precautions ................................................................................................. 4
3.2 Unpacking inspection ............................................................................................................ 4
3.3 Installation environment requirements .............................................................................. 5
3.4 Description of cable connection ........................................................................................... 6
3.4.1 Single-phase input and single-phase output connection terminal .......................................................... 6
3.4.2 Three-phase input and single-phase output connection terminal ........................................................... 6
3.4.3 Three-phase input and three-phase output connection terminal ............................................................. 7
3.5 Cable wiring........................................................................................................................... 8
Chapter IV Product Specifications .............................................................................................. 11
4.1 Technical specifications ...................................................................................................... 11
4.2 Shape structure ................................................................................................................... 16
Chapter V Operation ....................................................................................................................... 19
5.1 Initial power-up of system .................................................................................................. 19
5.2 Menu description................................................................................................................. 19
5.3 Parameter setting ................................................................................................................ 20
5.3.1 Start-up ............................................................................................................................................... 20
5.3.2 User mode ........................................................................................................................................... 21
5.4 Application interface ........................................................................................................... 22
5.4.1 General mode ..................................................................................................................................... 22
5.4.2 Step mode ............................................................................................................................................ 23
5.4.3 Gradual mode ..................................................................................................................................... 24
5.4.4 Measurement mode ............................................................................................................................ 25
5.4.5 System maintemance interface ......................................................................................................... 26
5.4.6 System log ........................................................................................................................................... 27
6.1 Communication interface ................................................................................................... 29
6.2 Operations of remote control on PC ................................................................................. 30
Chapter VII Maintenance ............................................................................................................ 44
7.1 Routine maintenance ....................................................................................................... 44
AFV variable frequency power supply User Manual
7.2 Periodic maintenance ....................................................................................................... 45
Chapter VIII Troubleshooting and Solutions ............................................................................ 46
Appendix Guarantee Card ............................................................................................................. 48
AFV variable frequency power supply User Manual
Chapter I Product Introduction 1
Chapter I Product Introduction
AFV series power supply is a programmable power supply for grid simulation. By virtue of
advanced SPWM technology and direct digital frequency synthesis (DDS) waveform technology,
the power supply has stable output frequency and good continuity. AFV series power supply not
only can provide continuous, pure and stable sinusoidal voltage, but also can achieve local control
and remote control by the user’s PC for the power supply system through internal control and
communication modules. At the same time, the internal electronic circuit can quickly detect over
current, overload, overvoltage and output short circuit, automatically protect and cut off the output,
and send out an alarm. The integrative laminated busbar technology and modular configuration are
applied in the power supply inverter unit to improve reliability and stability. The touch screen
display and control are utilized for easier operation.
The main performance characteristics of AFV series variable frequency power supply are as
follows:
By virtue of advanced SPWM technology and direct digital frequency synthesis (DDS)
waveform technology are used, the power supply has stable output frequency and good
continuity;
The patented inner loop energy-saving test design is used to save the energy consumption;
High precision settings and output;
Comprehensive and stable protection, perfect self-diagnostic maintenance function and
higher system reliability;
The laminated busbar structure is used to effectively reduce the inductance of the inverter
circuit and improve the reliability of the inverter;
Intelligent fan speed regulation control is used with built-in dust filter to achieve efficient
heat dissipation and effective protection function under harsh environment;
Communication interface: Communication way RS485 (standard configuration) and
Ethernet (optional configuration);
Running event recording function is provided, and the number of records may be up to 255.
AFV variable frequency power supply User Manual
Chapter II Working Principle 2
Chapter II Working Principle
2.1 Functional block diagram of complete machine
All functional units of AFV series variable frequency power supply control system from input
to output according to the functional sequence are shown in Fig. 2-1.
Fig. 2-1 Functional block diagram of complete machine
AFV variable frequency power supply User Manual
Chapter II Working Principle 3
2.2 Description of functional block diagram
1) input: Connect from power supply endpoint to the input terminal disk of the equipment.
2) Input air switch: Control the commercial power input equipment.
3) Input filter: Input inductor and capacitor filter.
4) Rectifier filter: Convert the input alternating current into direct current.
5) Soft start: DC capacitor is charged slowly to reduce the impulse current.
6) Inverter circuit: Convert the direct current into PWM waveform.
7) Transformer filter: Boost the output voltage of IGBT and output the voltage after LC filter.
8) Output: The output voltage is transferred to the output terminal disk (or output copper bar)
through the contactor.
9) Lightning protection device: Overvoltage protection, lightning protection, restraining surge
current, absorbing spike pulse, etc.
10) Voltage sampling: Input voltage sampling conditioning circuit.
11) SCR drive: Drive control circuit of soft start SCR.
12) IGBT drive: Amplify PWM signals to drive IGBT power components.
13) Voltage feedback: Steadily output voltage amplitude.
14) Voltage/current sampling circuit: Sampling conditioning circuit of output voltage and
current.
15) Power supply: Power supply of all PCB.
16) Main control circuit: The processing of all input and output signals.
17) Display: Touch screen display.
18) EPO: Emergency stop signal.
19) FUSE detection: Transmit the FUSE power-off signal to the control circuit for trip
protection.
20) Over-temperature detection: Transmit the over-temperature signal to the control circuit for
trip protection.
2.3 Constitution of main control circuit
The main control circuit is mainly divided into the three parts, namely protection sampling
module, main control module and display control module. The relationships between these three
parts are shown in Fig. 2-2.
Protection sampling
module
Main control module
Fig. 2-2 Block diagram of control parts
AFV variable frequency power supply User Manual
Display control
module
Chapter III Transportation and Installation
3.1 Transportation precautions
Chapter III Transportation and Installation 4
Fig. 3-1 Schematic diagram of transportation
Because the equipment is heavy, the lifting operations need to be slow during the
transportation of the forklift, so as to prevent damaging the equipment itself or the surroundings.
During the transportation that the equipment needs to be fixed firmly to prevent the equipment
from sliding or dumping due to vehicle bumps. Although the shockproof packaging was design in, it
is recommended that more cautious should be taken in consideration in case of driving on bumpy
roads.
3.2 Unpacking inspection
When open the wooden boxes which contain the equipment, pay extra attention on handling
it due to heavy weight consideration. Avoid dropping or dumping occurs.
Before turn on the equipment check the equipment condition if any damage was found. You
should inform service staff of our company to take proper treatment.
Check the accessories according to the delivery accessory list. If any accessories are missed,
please contact the customer service.
AFV variable frequency power supply User Manual
Chapter III Transportation and Installation 5
3.3 Installation environment requirements
When selecting the installation environment, the following matters should be followed:
1) Install the equipments in indoor and keep the environment air flow. Try to keep the
equipment air inlet/outlet free of dust;
2) The ground on which the equipment is installed should have sufficient strength and flatness,
and the equipment shall not shake after the installation is in place;
3) The equipment adopts incoming line and outgoing line. Therefore, it is recommended to
arrange these lines and cables connected to the external from the cable trenches, so as to
facilitate the installation and maintenance;
4) Where the equipment placed should give sufficient space to allow the heat which produced
by the equipment to radiate. (see Fig. 3-2) At the same time, do not cover the air inlet of
the front panel, for allowing heat to radiate;
5) Do not use the equipment in the environment with dust, volatile gases, too high saline matter
or corrosive substances, because this may affect the product life;
6) Do not place the equipment in the environment with too high temperature or humidity; and
away from water, flammable gases, corrosive or heat sources and avoid direct sunlight;
7) Use correct power distribution way to guarantee the safety of the equipment and user‘s
equipment.
Fig. 3-2 Schematic diagram of bottom of fixing device
AFV variable frequency power supply User Manual
Chapter III Transportation and Installation 6
3.4 Description of cable connection
The cable connection of the main circuit is as follows:
3.4.1 Single-phase input and single-phase output connection terminal
Input connection terminal is Copper bar as shown 3-3(b),while the machine capacity is greater
than 20k;
Fig. 3-3-(a)
Fig. 3-3-(b)
Fig. 3-3 Single phase input and single phase output connection terminal
3.4.2 Three-phase input and single-phase output connection terminal
Output connection terminal is Copper bar as shown 3-5(b),while the machine capacity is greater
than 15k; Input and Output connection terminal are Copper bar as shown 3-5(c),while the machine
capacity is greater than 60k;
Fig. 3-4-(a)
AFV variable frequency power supply User Manual
Fig. 3-4-(b)
Chapter III Transportation and Installation 7
Fig. 3-4-(c)
3.4.3 Three-phase input and three-phase output connection terminal
Input and Output connection terminal are Copper bar as shown 3-5(b),while the machine
capacity is greater than 60k;
Fig. 3-5-(a)
Fig. 3-5-(b)
Fig. 3-5 Schematic diagram of wiring terminal
AFV variable frequency power supply User Manual
Chapter III Transportation and Installation 8
Before installing the equipment, all the switches need to be disconnected. The circuit cables
should be connected properly according to the above diagram.
3.5 Cable wiring
1) Use the voltmeter to confirm whether there is no voltage output in the distribution lines;
2) Confirm whether all the switches of the variable frequency power supply are in the “OFF”
position;
3) The input and output cables can be selected according to the cables recommended in Tables
3-1 ;
Table 3-1 Input table of distribution cables
(a) Input high voltage
Input：△ 380V,400V,415V,480V
model Input current (A)
AFV-11008
AFV-11010
AFV-11015
AFV-11020
AFV-11030
AFV-31010
AFV-31015
AFV-31030
AFV-31045
AFV-31060
AFV-31080
AFV-31100
AFV-31120
AFV-33010
AFV-33015
AFV-33030
AFV-33045
AFV-33060
AFV-33080
AFV-33100
AFV-33120
AFV-33160
55.9
64.6
96.9
129.1
193.8
22
33
66A
99
132
197
246
296
22
33
66
99
132
197
246
296
394.7
Input live wire (mm2)
A B C
ground wire (mm2)
10mm2 10mm2
16mm2 16mm2
25mm2 16mm2
35mm2 16mm2
70mm2 35mm2
2
2.5mm
2.5mm2 2.5mm2 2.5mm2
4 mm2 4 mm2 4 mm2 4 mm2
16mm2 16mm2 16mm2 16mm2
25mm2 25mm2 25mm2 16mm2
35mm2 35mm2 35mm2 16mm2
70mm2 70mm2 70mm2 35mm8
95mm2 95mm2 95mm2 50mm9
2
120mm
2.5mm
120mm2 120mm2 70mm10
2
2.5mm2 2.5mm2 2.5mm2
4 mm2 4 mm2 4 mm2 4 mm2
16mm2 16mm2 16mm2 16mm2
25mm2 25mm2 25mm2 16mm2
35mm2 35mm2 35mm2 16mm2
70mm2 70mm2 70mm2 35mm16
95mm2 95mm2 95mm2 50mm17
2
120mm
70mm2*2 70mm2*2 70mm2*2
120mm2 120mm2 70mm18
70mm19
AFV variable frequency power supply User Manual
(b) Input low voltage
Input：△ 200V,208V
Chapter III Transportation and Installation 9
model Input current (A)
AFV-11008
AFV-11010
AFV-11015
AFV-11020
AFV-11030
AFV-31010
AFV-31015
AFV-31030
AFV-33010
AFV-33015
AFV-33030
101.0
126.3
189.4
252.6
378.9
42.1
63.1
126.3
42.1
63.1
126.3
Table 3-2 Output table of distribution cables
model
Output
current (A)
Input live wire (mm2)
A B C
ground wire (mm2)
25mm2 16mm2
35mm2 16mm2
70mm2 35mm2
95mm2 50mm2
70mm2*2
70mm2
6mm2 6mm2 6mm2 6mm2
16mm2 16mm2 16mm2 16mm2
35mm2 35mm2 35mm2 16mm2
6mm2 6mm2 6mm2 6mm2
16mm2 16mm2 16mm2 16mm2
35mm2 35mm2 35mm2 16mm2
Output live wire (mm2)
U V W
zero line
(mm2)
ground wire
(mm2)
AFV-11008
AFV-11010
AFV-11015
AFV-11020
AFV-11030
AFV-31010
AFV-31015
AFV-31030
AFV-31045
AFV-31060
AFV-31080
AFV-31100
AFV-31120
HI：33.3A
LO：66.7A
HI：41.7A
LO：83.3A
HI：62.5A
LO：125A
HI：83.3A
LO：166.7A
HI：125A
LO：250A
HI：41.7A
LO：83.3A
HI：62.5A
LO：125A
HI：125A
LO：250A
HI：187.5A
LO：375A
HI：250A
LO：500A
HI：333.3A
LO：666.7A
HI：416.7A
LO：833.3A
HI：500A
LO：1000A
16mm2 16mm2 16mm2
16mm2 16mm2 16mm2
35mm2 35mm2 16mm2
50mm2 50mm2 25mm2
95mm2 95mm2 50mm2
16mm2 16mm2 16mm2
35mm2 35mm2 16mm2
95mm2 95mm2 50mm2
70mm2*2
95mm2*2
70mm2*3
70mm2*4
95mm2*4
70mm2*2 70mm2
95mm2*2 95mm2
70mm2*3 70mm2*2
70mm2*4 70mm2*2
95mm2*4 95mm2*2
AFV variable frequency power supply User Manual
Chapter III Transportation and Installation 10
AFV-33010
AFV-33015
AFV-33030
AFV-33045
AFV-33060
AFV-33080
AFV-33100
AFV-33120
AFV-33160
HI：13.9A
LO：27.8A
HI：20.8A
LO：41.7A
HI：41.7A
LO：83.3A
HI：62.5A
LO：125A
HI：83.3A
LO：166.7A
HI：111.1A
LO：222.2A
HI：138.9A
LO：277.8A
HI：166.7A
LO：333.3A
HI：222.2A
LO：444.4A
4mm2 4mm2 4mm2 4mm2 4mm2
10mm2 10mm2 10mm2 10mm2 10mm2
16mm2 16mm2 16mm2 16mm2 16mm2
35mm2 35mm2 35mm2 35mm2 16mm2
50mm2 50mm2 50mm2 50mm2 25mm2
70mm2 70mm2 70mm2 70mm2 35mm2
120mm2 120mm
150mm2 150mm
70mm2*2 70mm2*2 70mm2*2
2
120mm2 120mm2 60mm2
2
150mm2 150mm2 75mm2
70mm2*2 70mm2
The reference cables recommended in the above-mentioned tables are multi-core flexible
copper cables, and the user can select different cables according to the input and output current
conditions by themselves. When the length of the input or output lines exceed 20 meters, it is
recommended that the wire diameter of the cable should be doubled.
4) Properly connect the input distribution lines to the corresponding wiring terminals at the input
terminal of the equipment successively, and connect the output load lines to the corresponding
wiring terminals at the output terminal of the equipment.
AFV variable frequency power supply User Manual
Chapter IV Product Specifications
4.1 Technical specifications
1）Single–phase input/Single-phase output specification
Chapter IV Product Specifications 11
Model
Output capacity (kVA)
Phase number
Voltage
Voltage Range
AC input
AC output
Complete
machine
performance
Display
Environment
Frequency
range
Power factor
(resistive)
Phase number
Waveform Standard sinusoidal wave
Voltage
Frequency
Frequency
stability rate
Power voltage
regulation
Load
regulation
Waveform
distortion
(THD)
Efficiency
Reaction time ≤2ms
Protection
device
Display
interface
Voltage
Current
Frequency
Real power
Apparent
power
Power factor
Insulation
reactance
Withstand
voltage
insulation
Cooling device
Working
temperature
Relative
humidity
Altitude Below 1,500m
Low
High
AFV-11008 AFV-11010 AFV-11015 AFV-11020 AFV-11030
8 10 15 20 30
Single phase
115V/200V,120V/208V,220V/380V,230V/400V,240V/415V,277V/480V
±15﹪
47Hz-63Hz
0.9
Single phase
0V-150.0V（L-N）
0V-300.0V（L-N）
45Hz-65Hz(option45-500Hz)
≤0.01%
≤1%
±1% (linear load)
≤2% (linear load)
≥90%
Input no-fuse switch, output over/under voltage, over current, overload,
input over/under voltage, reverse current protection, over temperature &
short circuit, conduct fast protection and lock fault, display fault;
Touch screen
0.2V+0.1％FS resolution：0.1V
0.2A+0.1％FS resolution：0.1A
0.01Hz+0.01％FS resolution：0.01Hz
0.2kW+0.1％F, Resolution：0.1kW
0.2kVA+0.1％FS, Resolution：0.1kVA
±0.01 resolution：0.01 Hz
≥DC500V 10MΩ
AC 1800V 10mA/ 1 minute
Fan cooling
0°C-45°C
0-90% (non-condensing state)
AFV variable frequency power supply User Manual
2）Three –phase input/Single-phase output specification
Chapter IV Product Specifications 12
Model
Output capacity (kVA)
Phase number
Voltage
AC input
AC output
Voltage range
Frequency range
Power factor
(resistive)
Phase number
Waveform Standard sinusoidal wave
Voltage
Frequency
Low
High
AFV31010
10 15 30 45 60 80 100 120
AFV31015
AFV31030
AFV31045
3φ3W+G
AFV31060
AFV31080
AFV31100
115V/200V,120V/208V,
220V/380V,230V/400V,
240V/415V,277V/480V
0.9 0.85
0V-150.0V（L-N）
0V-300.0V（L-N）
45Hz-65Hz(option 45-500Hz)
230V/400V,240V/415V,277V/480V
±15﹪
47Hz-63Hz
3φ4W+G
AFV31120
Complete
machine
performance
Display
Frequency
stability rate
Power voltage
regulation
Load regulation
Waveform
distortion (THD)
Efficiency
Reaction time ≤2ms
Protection
device
Display interface
Voltage
Current
Frequency
Real power
For input no-fuse switch, output over/under voltage, over current, overload,
input over/under voltage, reverse current protection, over temperature & short
circuit, conduct fast protection and lock fault, display fault;
≥90% ≥85%
0.2V+0.1％FS resolution：0.1V
0.2A+0.1％FS resolution：0.1A
0.01Hz+0.01％FS resolution：0.01Hz
0.2kW+0.1％F, Resolution：0.1kW
≤0.01%
≤1%
±1% (linear load)
≤2% (linear load)
Touch screen
Apparent power
Power factor
AFV variable frequency power supply User Manual
0.2kVA+0.1％FS, Resolution：0.1kVA
±0.01 resolution：0.01 Hz
Loading...
