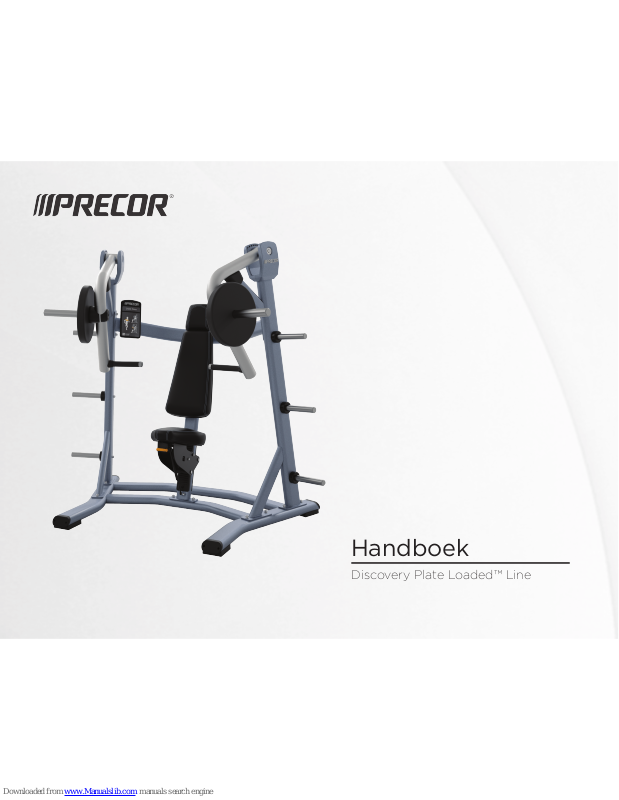

Handboek
Discovery Plate Loaded™ Line
Page 2
Page 3
Handboek (Discovery Plate Loaded Line): Belangrijke veiligheidsrichtlijnen voor eigenaren 1
Volg deze richtlijnen om de goede werking van de apparatuur te handhaven.
Het reguliere onderhoud moet worden uitgevoerd door erkende technici.
Zorg ervoor dat trainers, medewerkers van uw fitnessclub en
onderhoudstechnici bekend zijn met het gebruik van de apparatuur, de belangrijke veiligheidsrichtlijnen kennen en potentiële problemen zoals een versleten kabel of gebroken las kunnen herkennen.
Krachttraining vereist aanzienlijke aandacht van het fitnesscentrum en de
medewerkers om de kwaliteit van de fitnessomgeving te waarborgen. In het fitnesscentrum moet, indien mogelijk, altijd direct toezicht zijn op de fitnessapparatuur door mensen die de veilige werking van de apparatuur kennen en zijn getraind in het herkennen van mogelijke problemen.
Als een medewerker van het fitnesscentrum onveilig gebruik van het
apparaat waarneemt, dient de medewerker de klant onmiddellijk aan te spreken, hem/haar de juiste techniek te tonen en de Belangrijke
Veiligheidsinstructies voor Gebruikers te raadplegen. Precor raadt aan om een kopie van de Belangrijke Veiligheidsinstructies voor Gebruikers op een opvallende plaats in de buurt van het apparaat te bewaren.
Zorg ervoor dat het apparaat stabiel is en op een stevige ondergrond
staat. Het apparaat is als vrijstaand apparaat ontworpen maar kan toch met bouten aan de vloer worden bevestigd voor extra stabiliteit. Precor raadt u aan het apparaat met bouten aan de vloer te bevestigen om het risico op omvallen van het apparaat door verkeerd gebruik te beperken. Omdat er verschillende soorten vloerconstructies zijn, is het aanbevolen om een professionele bouwkundige voor de juiste bevestiging te raadplegen.
Zorg dat er aan alle kanten een afstand van minimaal 1 meter is tot
wanden en meubilair en een afstand van minimaal 1 meter tot objecten achter het apparaat.
Controleer de apparatuur grondig op basis van de aanbevolen
inspectieschema's in dit handboek, inclusief de dagelijkse, wekelijkse, maandelijkse en jaarlijkse controles.
Plaats een bordje met “buiten werking” op het apparaat tijdens onderhoud
van het apparaat of de omgeving. Klanten mogen de apparatuur niet gebruiken totdat deze is geïnspecteerd en weer goed werkt. Als een onderdeel van de apparatuur een servicebeurt nodig heeft, houdt u het apparaat buiten gebruik totdat alles is gerepareerd. Plaats een bordje met “buiten werking” op het apparaat en zorg ervoor dat de medewerkers van het fitnesscentrum weten dat niemand het apparaat mag gebruiken totdat het goed werkt.
Probeer niet in uw eentje vastzittende onderdelen los te maken. Dit kan
letsel veroorzaken. Plaats de machine met hulp van een tweede persoon voorzichtig terug in zijn normale rustpositie.
Plaats de apparatuur niet buiten of op natte oppervlakken.
Veiligheidsgoedkeuring
Bepaalde commerciële krachttrainingsapparaten zijn Class S/B- of C-gecertificeerde machines volgens EN957 -1/2-normen. Neem contact op met een erkende dealer van Precor voor een volledige en actuele lijst van gecertificeerd apparatuur.
Belangrijke veiligheidsrichtlijnen voor eigenaren
Page 4
Handboek (Discovery Plate Loaded Line): Belangrijke veiligheidsinstructies voor gebruikers 2
Alvorens aan een fitnessprogramma te beginnen, dient u een volledig medisch onderzoek te ondergaan.
Franstalige versie van de vorige alinea, voor de Canadese markt: Il est conseillé
de subir un examen médical complet avant d'entreprendre tout programme d'exercise. Si vous avez des étourdissements ou des faiblesses, arrêtez les exercices immédiatement.
Neem bij gebruik van trainingsapparaten altijd elementaire voorzorgsmaatregelen in acht, waaronder de volgende:
Als u niet begrijpt hoe u een onderdeel van het apparaat bedient, vraagt u
iemand van het fitnesscentrum, zoals een trainer, te demonstreren hoe u dit gebruikt en de veiligheidsinstructies uit te leggen.
Houd kinderen uit de buurt van dit apparaat. Laat zonder toezicht geen
kinderen in de buurt komen van het apparaat.
Gebruik het apparaat alleen zoals dit is bedoeld. Gebruik geen accessoires
die niet door de fabrikant worden aanbevolen, omdat dergelijke accessoires letsel kunnen veroorzaken.
Draag tijdens een training passende sportkleding en sportschoenen. Draag
geen loshangende kleding.
Put uzelf niet uit. Gebruik uw gezond verstand wanneer u met gewichten
werkt. Vermijd het gebruik van excessief gewicht, omdat het letsel kan veroorzaken.
Stop onmiddellijk de training en raadpleeg een arts als u pijn of abnormale
symptomen voelt.
Houd bij gebruik van de apparatuur uw hoofd, ledematen, vingers en haar
uit de buurt van alle bewegende delen. Houd uw handen uit de buurt van bewegende pennen.
Plaats nooit voorwerpen in openingen van het apparaat.
Controleer het apparaat altijd voordat u dit gebruikt. Als u een mogelijk
probleem aantreft, neemt u onmiddellijk contact op met iemand in het fitnesscentrum. Gebruik het apparaat niet totdat een medewerker van het fitnesscentrum heeft vastgesteld dat het apparaat goed werkt. Probeer geen kapotte of geklemde apparatuur te repareren.
Gebruik de apparatuur niet buiten of op natte oppervlakken.
Gebruik het apparaat niet als dit is voorzien van het bordje "buiten
werking".
Lees alle vermelde instructies, waaronder alle veiligheidsinstructies en
waarschuwingen.
Belangrijke veiligheidsinstructies voor gebruikers
Page 5
Handboek (Discovery Plate Loaded Line): Inhoudsopgave 3
Belangrijke veiligheidsrichtlijnen voor eigenaren ..................... 1
Veiligheidsgoedkeuring ........................................................................1
Belangrijke veiligheidsinstructies voor gebruikers ................... 2
Voordat u begint ........................................................................ 4
Aanbevolen gereedschappen ............................................................ 4
Service ...................................................................................................... 5
Dagelijkse inspectie ................................................................... 6
Bekleding reinigen .................................................................................6
Kussens inspecteren op slijtage ........................................................6
Frames reinigen en inspecteren.........................................................6
Waarschuwings- en instructielabels controleren ......................... 7
Wekelijkse inspectie .................................................................. 9
Bekleding verzorgen en diep reinigen .............................................. 9
Lagers en bussen inspecteren en smeren ....................................... 9
Verstelbare zitting controleren en smeren ................................... 10
Maandelijkse inspectie ............................................................. 11
Frames en bewegingsarmen inspecteren ...................................... 11
Alle bevestigingen inspecteren ......................................................... 11
Inhoudsopgave
Page 6
Handboek (Discovery Plate Loaded Line): Voordat u begint 4
Precor raadt u aan een grondig onderhoudsprogramma te implementeren met inbegrip van de reguliere veiligheidsinspecties door erkende onderhoudstechnici, zoals omschreven in dit handboek.
In deze handleiding wordt uitgelegd hoe u apparaten uit de Precor Discovery-lijn met schijfgewichten voor commercieel gebruik onderhoudt. U vindt hierin gegevens over de onderdelen die inspectie behoeven en dagelijks, wekelijks, maandelijks en jaarlijks moeten worden onderhouden. U dient de specifieke taken voor het onderhoud van de apparatuur uit te voeren en de taken over te slaan die niet van toepassing zijn.
In dit handboek worden de algemene onderhoudsprocedures behandeld die u in het fitnesscentrum kunt uitvoeren. Als er echter service nodig is naast de in dit handboek genoemde onderhoudsprocedures, raadpleeg Service.
Belangrijk! Schaf vervangingsonderdelen en hardware altijd aan bij Precor. Veel onderdelen zijn specifiek getest en geproduceerd voor de commerciële krachttrainingsapparaten van Precor. Uw beperkte Precor-garantie kan vervallen indien u onderdelen gebruikt die niet door Precor zijn goedgekeurd. Het gebruik van onderdelen die niet door Precor zijn goedgekeurd, kan letsel veroorzaken.
Precor raadt onderhoudstechnici aan de veiligheidsrichtlijnen en onderhoudsprocedures in dit handboek goed door te lezen en te begrijpen.
Opmerking: Als de apparatuur in elkaar moet worden gezet, wordt een afzonderlijke montagehandleiding bijgeleverd. Meer informatie over het gebruik van bepaalde apparatuur vindt u op het instructielabel op het apparaat.
Aanbevolen gereedschappen
Wij raden u de volgende gereedschappen aan voor de inspectie en het onderhoud van de apparatuur:
Volledige reeks combinatieringsleutels (gebruikelijke metrische maten)
Volledige reeks steeksleutels (gebruikelijke metrische maten)
Volledige reeks inbussleutels (gebruikelijke metrische maten)
Verstelbare 12-inch bahco
Rubberen hamer
Voordat u begint
Page 7
Handboek (Discovery Plate Loaded Line): Voordat u begint 5
Service
Verricht aan het krachttrainingsapparaat geen andere werkzaamheden dan de onderhoudswerkzaamheden die staan beschreven in dit handboek. Neem contact op met uw dealer als er onderdelen ontbreken. Meer informatie over onze klantenservice of een overzicht van erkende Precor-servicediensten kunt u vinden op de website van Precor op www.precor.com.
Bij vragen over een onderdeel zoekt u het serienummer op en neemt u contact op met de klantenservice van Precor. Aan de hand van het serienummer kan Precor het model en bouwjaar van het product bepalen. Over het algemeen vindt u het serienummer onder de zadelsteun.
Noteer in de voorziene ruimte de serienummers, modelnummers en datum van aankoop van het Precor-krachttrainingapparaat, zodat u deze informatie snel bij de hand hebt. Schrijf alle gegevens van het apparaat hieronder op.
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Modelnummer: Serienummer:
Datum van aankoop:
Page 8
Handboek (Discovery Plate Loaded Line): Dagelijkse inspectie 6
Voer de onderstaande taken elke dag uit om de apparatuur te onderhouden en soepel te laten werken:
Alle bekleding van de apparatuur reinigen
Kussens op slijtage inspecteren
Frames van de apparatuur reinigen en inspecteren
Waarschuwings- en instructielabels controleren.
Bekleding reinigen
Reinig de bekleding dagelijks met een oplossing van milde zeep en water in een spuitfles om oppervlakkig vuil en zweet te verwijderen. Spuit de bekleding licht in en wrijf droog met een schone doek.
Belangrijk! Gebruik voor het reinigen van de bekleding geen reinigingsproducten met een van de volgende ingrediënten: oplosmiddelen, alcohol, ammonia of aardolie. Gebruik in plaats daarvan een mild schoonmaakmiddel.
Kussens inspecteren op slijtage
Inspecteer kussens op scheurtjes in de bekleding, losse nietjes en losse montagebouten. Vervang de kussens, indien nodig (raadpleeg Service voor het aanschaffen van nieuwe kussens).
Belangrijk! Bekleed kussens niet opnieuw en gebruik geen kussens die niet zijn goedgekeurd door Precor.
Frames reinigen en inspecteren
Reinig frames dagelijks met een oplossing van milde zeep en water in een spuitfles om vet en vuil te verwijderen. Veeg de apparatuur af met een vochtige doek en maak deze weer helemaal droog. Veeg zowel de geverfde als de chromen delen af.
Gebruik een chroomreiniger om de glans van chromen delen te herstellen en te behouden.
Controleer de frames tijdens het reinigen op scheurtjes, roest of andere beschadigingen. Zorg ervoor dat lassen intact zijn en bevestigingen juist zijn vastgezet.
Dagelijkse inspectie
Page 9
Handboek (Discovery Plate Loaded Line): Dagelijkse inspectie 7
Waarschuwings- en instructielabels controleren
Inspecteer dagelijks de waarschuwings- en instructielabels om te controleren of alle informatie duidelijk leesbaar is. Als een gedeelte niet zichtbaar of een deel van het label niet goed meer plakt, vervangt u die label onmiddellijk (raadpleeg Service voor informatie over aanschaf).
Reinig labels indien nodig met een oplossing van milde zeep en water in een spuitfles en droog deze met een zachte doek.
In de volgende afbeelding wordt een voorbeeld weergegeven van een instructieplaatje, met daarin labels voor de naam van de apparatuur en de instructies voor de training.
Afbeelding 1: Voorbeeld instructieplaatje
Page 10
Handboek (Discovery Plate Loaded Line): Dagelijkse inspectie 8
Producten van Precor zijn uitgerust met een aantal standaardwaarschuwingslabels. Op de volgende twee afbeeldingen staan waarschuwingslabels die kunnen voorkomen op de apparatuur, afhankelijk van het model en de productlijn:
Afbeelding 2: Waarschuwingslabel die risico op beknelling aangeeft
Afbeelding 3: Algemeen waarschuwingslabel, gemonteerd op het frame van het apparaat
Page 11
Handboek (Discovery Plate Loaded Line): Wekelijkse inspectie 9
In dit gedeelte worden de taken beschreven die u elke week moet uitvoeren om de apparatuur te onderhouden. Voer de volgende taken uit zoals aanbevolen voor het onderhoud van de apparatuur.
Bekleding verzorgen en diep reinigen.
Lagers en bussen inspecteren en smeren.
Controleer en smeer het zadelverstellingsmechanisme.
Bekleding verzorgen en diep reinigen
Verzorg en reinig de bekleding wekelijks diep met behulp van een handreiniger op basis van lanoline of bekledingsreiniger.
Belangrijk! Gebruik voor het reinigen van de bekleding geen reinigingsproducten met een van de volgende ingrediënten: oplosmiddelen, alcohol, ammonia of aardolie. Gebruik in plaats daarvan een mild schoonmaakmiddel.
Lagers en bussen inspecteren en smeren
Precor gebruikt kwalitatief hoogstaande lagers die speciaal zijn ontwikkeld voor krachttraining en een lange levensduur. Voer elke week het volgende onderhoud uit aan de lagers en bussen van de apparatuur:
Bronzen bussen: Precor raadt u aan om een kleine hoeveelheid
siliconenspray te gebruiken om deze bussen, die doorgaans de draaiassen ondersteunen, te smeren. Spuit direct op de as en roteer deze vervolgens verschillende keren door de volledige bewegingsreeks. Controleer de bussen op overmatige slijtage of schade. Wees voorzichtig met smeerspray; het kan vlekken in vloerbedekking en kleding veroorzaken. Veeg overtollig smeermiddel af met een doek.
Gesealde lageraspunten: Deze plaatsen zijn beschermd tegen de externe
omgeving en vereisen geen smering. Veeg de assen en de externe lageroppervlakken tijdens het reinigen van de apparatuur af met een doek om ophoping van stof en zweet te voorkomen.
Wekelijkse inspectie
Page 12
Handboek (Discovery Plate Loaded Line): Wekelijkse inspectie 10
Verstelbare zitting controleren en smeren
Het zittingverstelmechanisme vereist weinig onderhoud. Aangezien de veiligheid van de zitting belangrijk is voor de veiligheid van een training, moet u echter regelmatig controleren of de zittinghendel bij gebruik op zijn plaats blijft.
Als u wilt testen of de zittinghendel gesmeerd moet worden, tilt u de zitting even op terwijl u de hendel indrukt en weer loslaat. De hendel moet gemakkelijk terugschieten. Als de hendel blijft steken, smeert u de scharnierpen met siliconenspray. Veeg overtollig smeermiddel af met een doek.
Page 13
Handboek (Discovery Plate Loaded Line): Maandelijkse inspectie 11
In dit gedeelte worden de taken beschreven die u elke maand moet uitvoeren om de apparatuur te onderhouden. Voer de volgende taken uit zoals aanbevolen voor het onderhoud van de apparatuur.
Frames en bewegingsarmen inspecteren.
De hendel van de verstelbare zitting met pal controleren en smeren.
Alle bevestigingen inspecteren.
Frames en bewegingsarmen inspecteren
Inspecteer de frames en bewegingsarmen maandelijks op een goede werking en integriteit. Let op barstjes, geschilferde verf of roest. Werk afgebladderde verf zo nodig bij. Vervang onderdelen bij de eerste tekenen van slijtage.
Opmerking: Bijwerkverf van Precor bestelt u via de klantenservice. Raadpleeg Service.
Inspecteer frames op barstjes, met name bij verbindingsstukken. Als u barstjes ziet, neemt u het apparaat onmiddellijk uit bedrijf en laat u dit repareren door een erkende onderhoudstechnicus. Raadpleeg en Service.
Als u oppervlakkige roest van het frame wilt verwijderen, schuurt u lichtjes met een fijn nat/droog schuurpapiertje of fijne schuurwol. Werk indien nodig af met bijwerkverf van Precor. Onderhoud de verfglans met een milde autowax.
Voor het onderhoud van poedercoatings en verchroomde onderdelen gebruikt u een mild schoonmaakmiddel voor het verwijderen van lichte vervuiling. Voor het verwijderen van zwaarder vuil en vet en voor polijsten, gebruikt u een polijstmiddel voor auto's. Voor krasjes en strepen die u met de bovengenoemde methoden niet wegkrijgt, gebruikt u een fijn schuurmiddel. Gebruik geen oplosmiddelen, thinner, aceton of nagellakremover.
Alle bevestigingen inspecteren
Bevestigingen kunnen losgaan bij normaal gebruik. Inspecteer alle moeren, bouten, schroeven en andere bevestigingen om er zeker van te zijn dat deze goed zijn vastgedraaid en juist zijn geïnstalleerd.
Controleer de bevestigingen bij boutverbindingen om er zeker van te zijn dat de verbindingen veilig zijn. Als een bevestiging los is, maar wel in een goede conditie verkeert, draait u deze weer vast. Als u zich zorgen maakt over de integriteit van de bevestiging, verwijdert u deze, maakt u de schroefdraad schoon en inspecteert u deze op schade, zoals scheurtjes, slechte windingen, corrosie of roest. Maak de bevestiging weer vast als deze goed lijkt te zijn. Neem anders het apparaat uit bedrijf totdat een nieuwe bevestiging goed kan worden geïnstalleerd. U kunt nieuwe bevestigingen bestellen bij de klantenservice. Voor aanvullende informatie, raadpleeg Service.
Maandelijkse inspectie
Page 14
Handboek (Discovery Plate Loaded Line): Opmerkingen 12
Opmerkingen:
Page 15
Page 16
Precor Incorporated 20031 142nd Ave NE P.O. Box 7202 Woodinville, WA USA 98072-4002 1-800-347-4404
Copyright 2012 Precor Incorporated. Specificaties kunnen zonder voorafgaande kennisgeving worden gewijzigd.
www.precor.com
LET OP:
Precor staat alom bekend om zijn innovatieve, bekroonde ontwerpen van fitnessapparatuur. Precor streeft er op agressieve wijze naar om voor zowel de mechanische constructie als de uiterlijke aspecten van zijn productontwerpen U.S.-patenten en buitenlandse patenten te verkrijgen. Partijen die overwegen de productontwerpen van Precor te gebruiken, worden daarom bij voorbaat gewaarschuwd dat Precor inbreuk op de eigendomsrechten van Precor als een zeer ernstige zaak beschouwt. Precor zal alle (rechts)middelen aanwenden om inbreuk op de eigendomsrechten van Precor te bestrijden.
Handboek (Discovery Plate Loaded™ Line)
CWP997777-571 rev A, nl
30 april 2012
Page 17
Assembly Guide
Discovery Plate Loaded™ Line Incline Press
Page 18
Page 19
Incline Press Assembly Guide: Table of Contents 1
Getting Started ............................................................................ 2
Opening the Boxes ................................................................................ 2
Installation Requirements ................................................................... 2
Hardware Kit (not to scale) ................................................................ 3
Assembling the Equipment ........................................................ 6
Stabilizing the Equipment .................................................................... 7
Attaching the Side Uprights to the Base Frame ........................... 8
Installing the Crossbar .........................................................................9
Installing the Center Upright Assembly ........................................ 10
Installing the Movement Arms ......................................................... 11
Attaching the Back Pads .................................................................... 12
Attaching the Seat Pad ....................................................................... 13
Connecting the Gas Spring ............................................................... 14
Adjusting the Seat Rollers ................................................................. 15
Attaching Weight Horns to the Movement Arms ...................... 16
Attaching Weight Storage Horns .................................................... 16
Attaching the Instructional Placard and Safety Labels ............. 17
Table of Contents
Page 20
Incline Press Assembly Guide: Getting Started 2
Opening the Boxes
Open the boxes and remove the packing materials. Be careful to open the boxes and assemble the components in the sequence presented in this manual.
Box
Contents
1 Frame members
Movement armsWeight hornsWeight storage hornsInstructional placard Warning labelsHardware kit
2 Seat pads
Installation Requirements
WARNING
You will need assistance to assemble this unit. DO NOT attempt assembly by yourself.
Follow these installation requirements when assembling the unit:
Assemble the unit near the place where you plan to use it.
Locate the equipment at least 40 inches (1 meter) away from walls or
furniture on either side of the equipment, and 40 inches (1 meter) away from objects behind the equipment.
Set up the unit on a solid, flat surface, so that it remains level and stable. A
level unit has fewer malfunctions.
Open the box and assemble the components in the sequence presented in
this guide.
Insert, align, and thread all fasteners with your fingers. This helps prevent
cross-threading. Do not wrench tighten fasteners until instructed to do so.
Important: Before you wrench tighten a fastener, check that its head is flush with the surface of the product. If not, cross-threading may have occurred. Do not attempt to rework the assembly as more damage to the equipment will occur. Instead, contact Customer Support as described in Obtaining Service.
If you plan to move the unit, get help and use a hand truck.
Getting Started
Page 21
Incline Press Assembly Guide: Getting Started 3
Hardware Kit (not to scale)
The following pieces of hardware are provided on a shrink-wrapped card. Each part is labeled on the card for easy reference.
Table 1. Hardware kit contents
Fastener
Quantity
Socket head cap screw (M12 x 35 mm)
20 Flat washer (9 mm internal diameter)
9
Buttonhead cap screw (M8 x 15 mm) 1
Set screw (M8 x 6 mm) 10
Flat washer (13 mm internal diameter)
20
Hex head cap screw (⁵₁₆-inch x 1¹₂-inch)
8
Axle mount end 4
Page 22
Incline Press Assembly Guide: Getting Started 4
Fastener
Quantity
Frame plug 4
Flat head hex cap screw (M12 x 30 mm)
6
⁵₁₆-inch nylon lock nut
2
Table 2. Other Components
Part
Quantity
Weight horn
2 Weight storage horn
6
Arm pivot axle 2
Weight horn bumper 2
Page 23
Incline Press Assembly Guide: Getting Started 5
Part Quantity
Weight horn end cap 2
Weight storage horn bumper
6
Gas spring
1
Instructional placard 1
Page 24
Incline Press Assembly Guide: Assembling the Equipment 6
CAUTION: At least two people are required to position the parts of this equipment successfully. Do not attempt to assemble the equipment by yourself.
Proper alignment and adjustment of the equipment is critical. When you install fasteners, leave room for adjustments. Do not tighten the fasteners completely until you are instructed to do so.
Make sure the equipment is stable and placed on a solid surface. The equipment is designed to be freestanding, but it can be bolted to the floor for extra stability. Precor highly recommends that the equipment be bolted to the floor to reduce the risk of toppling due to improper use. Because floor construction varies, consult a professional building engineer for proper fastening.
The following figure shows the names used in this manual for the major components of the equipment.
Figure 1: Major Incline Press components
Assembling the Equipment
Page 25
Incline Press Assembly Guide: Assembling the Equipment 7
Stabilizing the Equipment
Once you have positioned the base frame where you want the equipment to be used, test it for stability by pushing down on its corners. If the base frame rocks or wobbles at all, the height of the adjustable foot will need to be set.
To stabilize the equipment:
1. Locate the round, adjustable foot at one of the corners of the base frame.
2. Remove the two small buttonhead screws retaining the end cap at that corner of the frame, as shown in the following figure. Pull out the end cap, then set the cap and the screws aside.
Figure 2: End cap removal
3. Using an open-end wrench, turn the jam nut to the left to loosen it.
4. Using the same open-end wrench, turn the positioning bolt to the left or the right to move the adjustable foot to the appropriate level, as shown in the following figure.
If you want to move the adjustable foot ... Then turn the bolt ...
Upward To the right
Downward To the left
Figure 3: Adjustable foot positioning
5. Once the foot appears to be positioned correctly, test it by pressing down on the corners of the base frame. If it continues to shift or rock, readjust the foot as needed.
6. Re-tighten the jam nut.
7. Reinsert the end cap and its retaining screws. Tighten the screws completely.
Page 26
Incline Press Assembly Guide: Assembling the Equipment 8
Attaching the Side Uprights to the Base Frame
Perform the following procedure to attach both side uprights to the base frame.
To attach the side uprights to the base frame:
1. Position the left side upright on the base frame so that the screw holes on the base frame and the upright line up.
Note: Ask that your assistant hold the side uprights while you secure them into position.
2. Add one M12 x 35mm socket head cap screw and one 13mm flat washer to each of the screw holes. Finger tighten the fasteners.
Figure 4: Side upright attachment
3. Repeat steps 1 and 2 to attach the right side upright.
Page 27
Incline Press Assembly Guide: Assembling the Equipment 9
Installing the Crossbar
Before beginning this procedure, obtain two weight storage horns. The upper screw and washer used to attach the crossbar to each side upright also attach a weight storage horn to the side upright.
Note: Have your assistant hold the crossbar in place while you perform this procedure.
To attach the crossbar to the side uprights:
1. Position the crossbar between the side uprights so that the curve of the crossbar extends backward and the screw holes at either end line up with the screw holes on the side uprights.
2. Place a 13 mm flat washer over a M12 x 35 mm socket head cap screw. Insert the screw into the lower screw hole at one end of the crossbar and tighten it partially.
3. Insert a weight storage horn into the socket opposite the upper screw hole.
4. Insert a M8 x 6mm set screw into the small hole in the socket. Position the weight storage horn, then tighten the set screw completely.
5. Place a 13 mm flat washer over a M12 x 35 mm socket head cap screw. Insert the screw through the upper screw hole and into the weight storage horn, then tighten the screw partially.
6. Repeat steps 2 through 5 to attach the crossbar and an additional weight storage horn on the other side of the frame.
Figure 5: Crossbar attachment
Page 28
Incline Press Assembly Guide: Assembling the Equipment 10
Installing the Center Upright Assembly
Attaching the center upright assembly and the accompanying seat mechanism completes the frame of the equipment.
To attach the assembly:
1. Position the assembly on the base frame and against the crossbar as shown in the following figure.
Figure 6: Center upright assembly positioning
2. Place two M12 x 35 mm socket head cap screws and two 13 mm flat washers into the screw holes in the base frame. Partially tighten the fasteners.
3. Place two M12 x 35mm socket head cap screws and two 13mm flat washers into the screw holes in the crossbar. Partially tighten the fasteners.
4. Check that the frame is correctly aligned, then tighten all fasteners completely.
Page 29
Incline Press Assembly Guide: Assembling the Equipment 11
Installing the Movement Arms
You will need an assistant to hold the movement arms in place while you complete this procedure.
To install the movement arms:
1. Position the axle end of one movement arm within its pivot bracket on the frame so that the openings in the bracket and the movement arm are aligned.
2. Press an axle through the openings in the bracket and the movement arm.
Note: The axle should slide easily through the openings. You should not need to do anything more than tapping it lightly with a rubber mallet to move it into place. If the axle becomes jammed during this step, check to make sure the movement arm and the bracket are still aligned. If the axle remains jammed, remove it and contact Customer Support.
3. Place an axle mount end on each end of the axle and attach a M12 x 30 mm flat head screw to each end, as shown in the following figure.
Figure 7: Movement arm axle installation
4. Check that the axle is properly positioned and centered, then tighten the screws completely.
Important: The screws should be tight enough to prevent the movement arm from rocking from side to side when in use.
5. Repeat steps 1 through 4 to install the other movement arm.
Important: Test the operation of the movement arms after you have installed them. Make sure they move smoothly through their entire range, without binding or shifting.
Page 30
Incline Press Assembly Guide: Assembling the Equipment 12
Attaching the Back Pads
Note: The back pads are common to several models of exercise equipment, so they have more screw holes than you can use in this procedure.
To attach the back pads:
1. Place the lower back pad against the center upright assembly so that the screw holes on the assembly line up with the outermost screw holes on the pad, as shown in the following figure.
Figure 8: Back pad attachment
Important: In the following step, be careful not to drop screws or washers into
the center upright. Inserting each screw into a socket wrench, then using the wrench to position and tighten the screw, is recommended.
2. Place a 9mm flat washer over a ⁵₁₆-inch x 1¹₂ hex head screw, then insert the screw through a screw hole in the center upright assembly and into the corresponding hole in the pad. Partially tighten the screw. Repeat this step to insert the other screw and washer.
3. Place the upper back pad against the center upright assembly, so that the screw holes on the assembly and the pad line up.
Figure 9: Head pad attachment
4. Repeat step 2 to attach the upper back pad to the center upright assembly.
5. Position the back pads if necessary, then tighten all four screws completely.
6. Press frame plugs into the screw hole openings on the center upright assembly.
Page 31
Incline Press Assembly Guide: Assembling the Equipment 13
Attaching the Seat Pad
The seat mechanism is preassembled, except for the seat pad and the gas spring.
To attach the seat pad:
1. Position the pad over the seat bracket so that the screw holes in the seat and the bracket line up.
2. Insert four ⁵₁₆-inch x 1¹₂-inch hex head screws with 9mm flat washers into the screw holes in the pad, as shown in the following figure.
Figure 10: Seat pad attachment
3. Position the pad if necessary, then tighten the fasteners completely.
Page 32
Incline Press Assembly Guide: Assembling the Equipment 14
Connecting the Gas Spring
The gas spring, which lifts the seat assembly when an exerciser adjusts the seat height, is attached to the seat assembly and the frame through two ball-shaped stems. the underside of the seat assembly; the other is on the center upright near the base frame.
To attach the gas spring:
1. Insert the threaded end of the upper stem through the hole in the small bracket on the underside of the seat, as shown in the following figure.
Important: Place the wide end of the gas spring up. Also, note that the seat adjustment handle has been omitted from this figure to keep the gas spring and its fasteners visible.
Figure 11: Gas spring attachment, upper end
2. Place a nylon lock nut over the end of the stem and tighten it partially.
3. Insert the threaded end of the lower stem through the hole in the small bracket on the base frame, as shown in the following figure.
Figure 12: Gas spring attachment, lower end
4. Place a nylon lock nut over the end of the lower stem. Tighten both nylon lock nuts completely.
Page 33
Incline Press Assembly Guide: Assembling the Equipment 15
Adjusting the Seat Rollers
After you have installed the gas spring, test the seat. It should not rock from side to side or from front to back, and it should move smoothly up and down when you adjust it. If the seat is not stable or cannot be positioned smoothly, you will need to adjust the seat rollers.
Note: You will need assistance to complete this procedure.
To adjust the rollers:
1. Loosen the screws securing the upper front roller. The following figure shows the location of one of these screws.
Figure 13: Upper front roller location
2. Have your assistant press the seat pad down until the back roller contacts the black plastic plate on the back of the frame.
3. Move the upper front roller until it contacts the black plastic plate on the front of the frame, then tighten the screws again.
4. Have your assistant release the seat pad, then adjust the seat position up and down a few times. Make sure that the seat moves upward and downward freely but does not rock or shift in any direction. If the seat cannot be adjusted easily, or if it continues to rock or shift, repeat this procedure to readjust the upper front roller.
Page 34
Incline Press Assembly Guide: Assembling the Equipment 16
Attaching Weight Horns to the Movement Arms
The weight horns that attach to the movement arms are slightly larger than the weight storage horns. Before you begin this procedure, compare the available parts to make sure you are installing the correct weight horns on the movement arms.
Figure 14: Weight horn attachment
To attach the weight horns:
1. Insert a weight horn into the outward side of the weight horn fitting on the movement arm. Slide the weight horn into the fitting until it stops.
2. Place a weight horn cap over the inward side of the fitting.
3. Insert a M12 x 30 mm flat head cap screw through the cap, the movement arm, and the weight horn. Tighten the screw completely.
4. Insert two M8 x 6 mm set screws into the screw holes on the weight horn fitting. Tighten the set screws completely.
5. Slide a bumper down over the weight horn until it rests against the movement arm.
6. Repeat steps 1 through 5 to attach a weight horn to the other movement arm.
Attaching Weight Storage Horns
Repeat this procedure as needed to attach all of the weight storage horns to the equipment.
Figure 15: Weight storage horn attachment
To attach a weight storage horn:
1. Insert the horn into one of the weight storage horn fittings on the equipment frame. Slide the horn in until it stops.
2. Insert a M12 x 35 mm socket head cap screw with 13 mm flat washer through the screw hole opposite the weight storage horn fitting and into the horn itself. Tighten the screw completely.
3. Insert a M8 x 6 mm set screw into the screw hole in the fitting. Position the weight storage horn as needed, then tighten the set screw completely.
Page 35
Incline Press Assembly Guide: Assembling the Equipment 17
Attaching the Instructional Placard and Safety Labels
The equipment includes a metal bracket for the instructional placard. The placard slides over a metal button near the bottom of the bracket. A small screw then holds it in place.
To attach the instructional placard:
1. Remove the protective backings from the machine name label. Attach the label carefully to the recess at the upper front of the placard, as shown in the following figure.
Figure 16: Placard label positioning
2. Place the large hole near the bottom of the placard over the button, then slide the placard downward to lock it into place as shown in the following figure.
Figure 17: Placard mounting
Page 36
Incline Press Assembly Guide: Assembling the Equipment 18
3. Insert an M8 x 15 mm buttonhead screw with 9mm flat washer into the screw hole near the top of the bracket, as shown in the following figure. Tighten the screw completely.
Figure 18: Securing the placard in place
Note: If you are installing labels in a language other than English, remove
the general warning label attached to the equipment. Apply the general warning label in the appropriate language where the English label was originally applied.
Page 37
Incline Press Assembly Guide: Assembling the Equipment 19
Notes:
Page 38
Incline Press Assembly Guide: Assembling the Equipment 20
Notes:
Page 39
Page 40
Precor Incorporated 20031 142nd Ave NE P.O. Box 7202 Woodinville, WA USA 98072-4002 1-800-347-4404
Precor is a registered trademark of Precor Incorporated. Copyright 2012 Precor Incorporated. Specifications subject to change without notice.
www.precor.com
NOTICE:
Precor is widely recognized for its innovative, award winning designs of exercise equipment. Precor aggressively seeks U.S. and foreign patents for both the mechanical construction and the visual aspects of its product design. Any party contemplating the use of Precor product designs is hereby forewarned that Precor considers the unauthorized appropriation of its proprietary rights to be a very serious matter. Precor will vigorously pursue all unauthorized appropriation of its proprietary rights.
Discovery Plate Loaded™ Incline Press Assembly Guide
CWP057777-101 rev A, en
March 2012
Loading...
