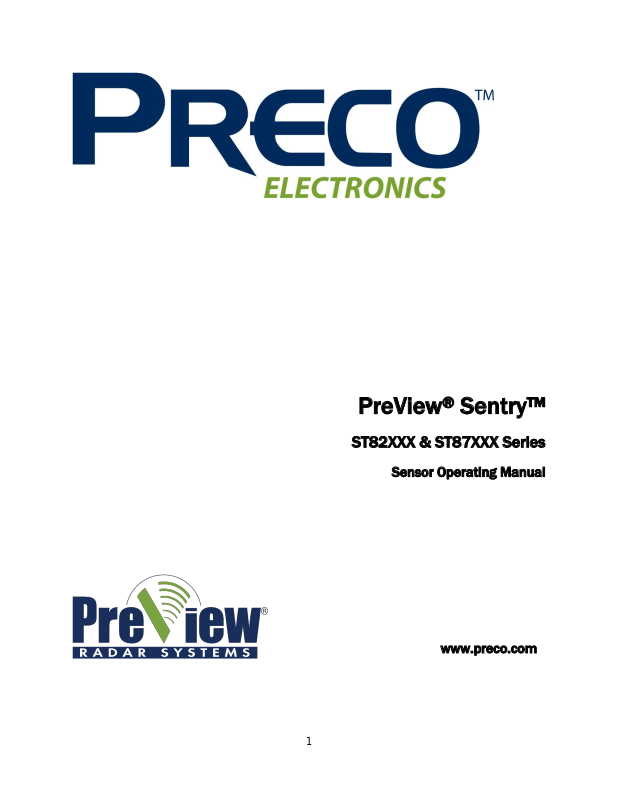

www.preco.com
PreView® Sentry™
ST82XXX & ST87XXX Series
Sensor Operating Manual
1
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the interference.
INDUSTRY CANADA STATEMENT
Per RSS-Gen, Section 8.4 This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Par RSS - Gen, Section 8.4 Cet appareil est conforme à Industrie Canada exempts de licence
standards RSS. Le fonctionnement est soumis aux deux conditions suivantes : (1 ) ce dispositif
ne peut pas provoquer d'interférences et ( 2) cet appareil doit accepter toute interférence , y
compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
TRADEMARKS
The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Any rights not
expressly granted herein are reserved.
2
Contents
Overview .............................................................................................................................................. 1
Product Description ................................................................................................................................. 1
Other Sensor Features ............................................................................................................................. 4
Sensor Interfaces and Configuration .............................................................................................. 5
Communication ........................................................................................................................................ 5
Alarm Output ............................................................................................................................................ 5
Sensor Input ............................................................................................................................................. 5
Cable Connection ..................................................................................................................................... 5
Technical Data ......................................................................................................................................... 6
Regulatory Compliance ............................................................................................................................ 9
Installation ......................................................................................................................................... 10
Sensor Mounting ................................................................................................................................... 10
Mounting Tolerances ............................................................................................................................ 10
Keep Out/Interference Zones .............................................................................................................. 11
Sensor Mounting Procedure ................................................................................................................. 13
Initial System Power Up and Test .................................................................................................. 15
Object Detection Capability ............................................................................................................ 16
Notes on Safety and Risks .............................................................................................................. 18
Owner Responsibilities ......................................................................................................................... 18
PreView® Sentry™ Daily Maintenance ......................................................................................... 19
Warranty Information ...................................................................................................................... 21
Tables
Table 1. PreView® Sentry™ Models .......................................................................................... 2
Figures
Figure 1. PreView® Sentry™ Radar Sensor .............................................................................. 1
Figure 2. Adjustable Detection Zone .......................................................................................... 2
Figure 3. Detection Zone (FOV) 3M ........................................................................................... 3
Figure 4. Detection Zone (FOV) 10M ......................................................................................... 3
Figure 5. Deutsch Connector Pin Out (ST87xxx Series) ............................................................. 6
Figure 6. Conxall Connector Pin Out (ST82xxx Series). ............................................................. 6
Figure 7. PreView® Sentry™ Radar Sensor Dimensions ........................................................... 7
Figure 8. Sensor Specifications .................................................................................................. 8
Figure 9. Vertical and Horizontal Angle Mounting Tolerances ...................................................11
Figure 10. Mounting Angle Height Exceptions ................................ ...........................................11
Figure 11. Keep Out Zones .......................................................................................................12
Figure 12. Adjustable Mounting Bracket ....................................................................................14
i
Figure 13. Object Reflection ......................................................................................................17
ii
Overview
This document describes the PreView® Sentry™ radar sensor manufactured by Preco™
Electronics, Inc., located in Boise, Idaho, USA. The document does not claim to cover all the
possible applications or deployment areas for these devices. This document may be
amended, corrected, and enhanced in keeping with the sensor development progress.
Product Description
The PreView® Sentry™ is a small, rugged, short/medium range radar sensor (operating at
24.00 – 24.25GHz ISM band) designed by Preco™ Electronics for use in heavy duty
applications, such as trucks/busses, construction, mining, waste, utilities, and other
applications requiring a robust, high-performance radar. This frequency band is legal
throughout most of the world, but check with PRECO or your country’s regulations before
purchasing.
Figure 1. PreView® Sentry™ Radar Sensor
The PreView® Sentry™ radar sensor works in adverse weather conditions, has a wide
operating temperature range, is sealed to meet IP69K, withstands high vibration and shock
levels, and is maintenance free.
Using a frequency modulated transmit waveform, the PreView® Sentry™ radar sensor
measures radial range, speed and angle, reflectivity, and other parameters of multiple
stationary and moving targets simultaneously. This radar sensor has a wide horizontal field
of view up to +/-75°, providing coverage flexibility to be a solution for virtually any
application. Figure 2 below illustrates an example of Preco’s adjustable detection zone.
1
Sentry Model
Number
Detection
Range (m)
Detection
Range (ft)
Detection
Width (m)
Detection
Width (ft)
ST8703
3
10
3
10
ST8704
4.5
15
4
13
ST8706
6
20
5
16
ST8710
10
33
6
20
ST8720
20
66
8
26
ST8730
30
98
10
33
Figure 2. Adjustable Detection Zone
The PreView® Sentry™ radar sensor has multiple models with preconfigured detection
zones: both Range and Width of detection zone. Note: the Preco.com website contains the
most current data on radar sensor models.
PreView® Sentry™ ST87xxx Series radar sensors include an 8-pin Deutsch connector pigtail
as shown in Figure 1. The PreView® Sentry™ ST82xxx Series radar sensors use an 8-pin
Conxall connector on the back of the radar.
Table 1. PreView® Sentry™ Models
Figure 3 below illustrates a truck backing application with the radar detection zone set to a
Range of 10m and a Width of 3m.
2
Figure 3. Detection Zone (FOV) 3M
Figure 4 below illustrates a mining haul truck backing application with the radar detection
zone set to a Range of 30m and a Width of 10m.
Figure 4. Detection Zone (FOV) 10M
The PreView® Sentry™ radar sensor utilizes a single beam monopulse radar architecture.
This architecture uses a single radar beam across the field of view to determine the range,
velocity, and angle of targets. The transceiver design is based on a SiGe MMIC chipset
operating in the 24 GHz ISM band.
The sensor is active and starts reporting detections within 300 milliseconds (ms) after power
up. The radar scans approximately every 100 ms. The sensor reaction time (time to report a
validated detection) is also 300 ms. A valid target is one which has been tracked for three
radar scans.
The PreView® Sentry™ radar sensor performance is not affected by other PreView® Sentry™
or similar sensors operating in close proximity with each other.
3
Other Sensor Features
The PreView® Sentry™ radar sensor has a continuous Built-In-Self-Test (BIST) that notifies the
operator display of sensor failure within a fraction of a second. This test functions by
monitoring the transmit and receive performance as well as other internal operations.
The PreView® Sentry™ radar sensor can also determine if the face of the sensor is blocked
with excessive ice, mud, or snow that is impeding proper operation. This blockage is then
reported to the operator display.
Both the self-test and blockage detection features are important to fail-safe operation.
4
Sensor Interfaces and Configuration
Communication
The PreView® Sentry™ radar sensor has one CAN interface as specified in ISO 11898-2 with
a transmission rate of 250 KBits/second. The CAN Bus is internally terminated with a 120
ohm resistor between CAN H and CAN L. The sensor communicates with the operator display
(HMI) using this interface.
Since CAN is a standard communication interface, the sensor can be connected to other
CAN controllers, telematics interfaces, displays, etc. For custom installations, the CAN bus
protocol is available from Preco™ Electronics. However, it is not described in this document.
Alarm Output
The PreView® Sentry™ radar sensor provides an auxiliary output that can be used to activate
an external backup alarm or other devices as desired. The output is switched from a high
impedance state to ground when active and is protected against an over-current or electrical
short condition. The maximum operating current is approximately 1 amp, including any inrush
current.
Sensor Input
The PreView® Sentry™ radar sensor provides an auxiliary input that can be used to…
Cable Connection
The PreView® Sentry™ radar sensor comes equipped with a pigtail harness terminated with
either a Deutsch DT connector (ST87xxx series) or a Conxall Connector (ST82xxx Series). The
pinout for the Deutsch connector is defined in Figure 5. The mate for this connector is a
Deutsch DT04-08PA-CE01.
5
Figure 5. Deutsch Connector Pin Out (ST87xxx Series)
Figure 6 below shows the pinout for the Conxall connector (ST82xxx Series). The mate for
the Conxall connector is P/N 6280-8SG-XXX
Insert Figure 6 for Conxall Connector Pin Out (ST82xxx Series).
Figure 6. Conxall Connector Pin Out (ST82xxx Series).
Preco™ Electronics provides a variety of different cable lengths and configurations for the
PreView® Sentry™ radar sensor, as well as solution kits of radar, cabling and displays.
Please contact Preco™ Electronics for a list of available cables and kits.
Technical Data
The following figures provide the dimensions and specifications for the PreView® Sentry™
radar sensor.
6
Figure 7. PreView® Sentry™ Radar Sensor Dimensions Model ST87XXX
Need to include drawing of ST82XXX series
7
Measuring Performance
Range: 0 – 30m (10dBsm target) depending on model number
Range Accuracy: 0.3m
Azimuth Field of View: ±75 degrees (10dBsm target)
Elevation Field of View: ±10 degrees (10dBsm target)
Angle Accuracy: ±2° @ ±10° FOV, ±5 @ ±30° FOV, ±10 @ ±75° FOV
Velocity Range: ± 9 meters/sec (± 20 mph)
Velocity Accuracy: 0.2 meter/sec (0.5 mph)
Target Resolution: 1.4m for static targets, approaching 0.3 meters for dynamic targets
Cycle Time: 120ms (A CAN bus target message is provided in every cycle.)
Operating Conditions
Frequency: 24.05 – 24.25GHz
Power Supply: 9 – 33VDC, Reverse polarity and over-voltage protected
Current: <0.5A
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +105°C
Shock: 50G
Vibration: 25G, random, all three axis
Protection Rating: IP69K
Operating Modes
Detection Pattern: Fixed based on model number
Target Detection Time: 300ms
Power On to Active Time: 300ms
Communications Interface
J1939 CAN Bus: 250Kbits/sec, terminated with 120 ohm resistor
LED Interface Switch to ground, sink up to 1A, over current protected
Physical Characteristics
Sealing: IP69K
Housing Material: Polycarbonate radome
Dimensions: 4.90” (w) x 4.06” (h) x 1.28” (d) (12.4cm x 10.3cm x 3.25cm)
Weight: 1.0 lb (0.45kg).
Mounting: Four 0.22" (5.6mm) diameter mounting holes.
Figure 8. Sensor Specifications
8
Regulatory Compliance
The PreView® Sentry™ radar sensor is compliant with the following countries/regions and
their regulations as of the published date of this manual. The sensor may be compliant in
other countries/regions. Please check your local regulations.
United States - Federal Communications Commission - Part 15.249
o FCCID: OXZJCKP2016
Canada - RSS-210 Radio Standards Specification
European Union - ETSI EN300 440-1 Electromagnetic Compatibility and Radio
Spectrum Matters (ERM)
Australia/New Zealand - AS/NZ 4268 Radio Equipment and Services – Short Range
Devices
9
Installation
Sensor Mounting
The PreView® Sentry™ radar sensor mounting location is important for proper system
operation. Ideally the sensor should be mounted on the rear of the vehicle as close to the
center as possible at roughly 36” (1m) above the ground. The sensor face should be
perpendicular to the ground with the small end of the “V” graphic on the sensor face pointing
down. Select a location that will provide some protection from impact and debris while
allowing an unobstructed view of the target hazard area. Refer to the Keep Out/Interference
Zones listed below.
Mounting Tolerances
Mounting height tolerance at 36” should be within +/- 12” (0.3m). For optimal performance,
the vertical angle (Up/Down) tolerances are +5 degrees (up) and -2 degrees (down), and the
horizontal angle tolerance is +/- 5 degrees.
10
Figure 9. Vertical and Horizontal Angle Mounting Tolerances
Exceptions: if mounting higher than 4 feet (1.3m), the sensor can be angled down a few
degrees as necessary.
(Insert diagram/chart showing mounting heights vs. angles)
Figure 10. Mounting Angle Height Exceptions
The performance of the sensor can be negatively impacted if the sensor is angled down,
causing false detection from the ground. Any time the sensor is not perpendicular to the
ground, the performance should be tested.
Keep Out/Interference Zones
Metallic and any other strong radar reflecting objects must remain outside of the keep out
zones defined in Figure 10. If radar reflecting objects reside within the keep out zones,
testing must be performed to determine their influence on the sensor’s performance.
11
Horizontal “Keep Out” Zone
Vertical “Keep Out” Zone
Figure 11. Keep Out Zones
12
The sensor’s horizontal field of view is +/- 75 degrees and the vertical field of view is +/- 10
degrees. For optimal performance, the sensor should protrude beyond any other portion of
the vehicle.
Important!
Before permanently installing the PreView® Sentry™ radar sensor on the vehicle, verify that
the selected sensor mounting location provides a clear detection zone. Take the machine to
a clear area, temporarily attach the sensor in the proposed mounting location, apply power to
the system, and verify that nothing is being detected.
Sensor Mounting Procedure
Preco™ Electronics supplies a variety of brackets for the PreView® Sentry™ radar sensor. If
the provided 90°bracket is not appropriate, an adjustable mounting bracket is available
(see Figure 12 below).
If mounting directly to the vehicle, follow the procedure outlined below.
1. Select the appropriate sensor mounting location.
2. The standard mounting configuration is with the small end of the “V” graphic pointing
down, as shown below.
13
Figure 12. Adjustable Mounting Bracket
3. Using the provided drill template, scribe position marks through the holes. Drill 1/4”
(6mm) holes centered at the marks.
4. A 1.5” (40mm) diameter clearance hole is required for the sensor connector and mating
cable connector.
5. Secure the sensor to the vehicle with the four supplied #10-24 UNC button head screws,
washers, and locking nuts or equivalent. Apply a maximum torque of 22 lb-inch (25 kg-cm)
when securing the sensor.
14
Initial System Power Up and Test
This is more of a system (Quick Start Guide) thing, but do we want to put it here as well?
15
Object Detection Capability
The PreView® Sentry™ system is a blind spot collision warning system designed to
supplement other safety practices and/or devices. The machine operator is always the first
line of defense when safely operating a vehicle. The person or owner responsible for the
equipment must ensure that all operators understand the installation, operation, limitations
and safe use of the system.
The PreView® Sentry™ radar sensor can detect most objects within the detection zone.
However, there are some instances where objects can go undetected. Obstacle size, shape,
relative location, and composition are all factors determining if, when, and where an object is
detected. The PreView® Sentry™ radar sensor operates by transmitting low power
electromagnetic energy. Any energy that strikes an object reflects a certain amount of this
energy back to the PreView® Sentry™ radar sensor. If the returned energy is of sufficient
magnitude, it is used to indicate object presence and determine the object’s distance. While
the PreView® Sentry™ radar sensor can resolve multiple objects, only the object closest to
the vehicle is reported to the operator display since it represents the most significant collision
threat.
The amount of energy returned is based on a few factors:
Size – a la rg er ob ject us ual ly re flect s more en er gy th an a sm all er obj ect .
Composition – a metal object typically reflects more energy than a non-metallic object.
A metallic object at the edge of the maximum detection zone might be detected,
whereas a wood object may not.
Scattering – a solid object reflects more energy than a non-solid object such as tree
branches, gravel, bushes, etc.
Shap e – c ompl ex s hape s ca use e ner gy to b e ret urn ed in a ver y n on uni for m way . Very sma ll va riati ons or mov eme nt ca n c hang e det ect io n
sta tus.
Angle – an object flat side perpendicular to the sensor will reflect more energy than an
object at an angle. See below for an example of how angle can affect return energy.
16
Pre
Vie
w
™
se
n
sor
Ref
lec
t
e
d
sig
n
al
d
oes
n’t
ret
u
r
n
to
the
Pre
Vie
w
™
s
ens
o
r
Tra
nsm
itt
e
d
s
ign
a
l
Obj
e
ct
i
n t
h
e P
reV
iew
™ s
yst
e
m
d
ete
cti
o
n
z
one
Obj
ect
su
r
fac
e
at
A
45
de
gre
e a
ngl
e t
o
th
e
P
reV
iew
™ s
ens
o
r
M
i
n
i
m
a
l
re
fle
c
t
i
o
n
Pre
Vie
w
™
sen
sor
F
u
l
l
re
fle
c
t
i
o
n
Tra
nsm
i
t
ted
s
i
g
nal
Obj
ect
in
the
Pr
e
Vie
w
™
sys
tem
det
ect
ion
z
o
n
e
Ref
lec
t
ed
sig
n
al
r
etu
rns
to
the
Pre
Vie
w
™
se
n
sor
Object surface at a 90 degree angl
e to
the PreView™s
ensor
°
Figure 13. Object Reflection
17
Notes on Safety and Risks
Owner Responsibilities
The owner is responsible for ensuring that the device (and equipment) are used for their intended
purpose, for the actions of the employees, for giving instruction to the employees, and for the
operational safety of the equipment. The owner must understand the safety information for the
device and the instructions given in the operating manual.
Lacking or incomplete training can lead to incorrect operation or improper usage. This may result in
accidents involving serious injury or damage to property, assets, or the environment.
Always make sure that the device or equipment is not operated, serviced, or used by personnel who
have not been properly trained to do so.
18
PreView® Sentry™ Daily Maintenance
Detach this page and place with daily operator maintenance procedures.
Safety Message to Operators of Vehicles with PreView® Sentry™ Systems
1. The PreView® Sentry™ system is intended as an Object Detection System and should not be relied upon as your first
line of defense for the safe operation of the vehicle. It should be used in conjunction with established safety programs
and procedures to augment the safe operation of the vehicle, ground personnel, and adjacent property. Should the
system become inoperative, it could jeopardize the safety or lives of those who depend on the system for safety.
2. Testing and inspection of the system in accordance with these instructions and a record of the results should be listed
on the daily maintenance report. The units on operating vehicles must be tested each day prior to the vehicle's operation.
Results of this test must be recorded in the maintenance log.
3. People operating this equipment MUST check for proper operation at the beginning of every shift or safety inspection
period.
4. If a PreView system is found to be inoperative upon test, the operator should flag or cover the driver display and mark
as “inoperative” prior to the machine/vehicle operation.
5. People's lives depend on the proper installation of this product in conformance with these instructions. It is necessary
to read, understand, and follow all instructions shipped with the product.
6. Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death.
7. The PreView Object Detection System is intended for commercial use. Proper installation requires a good understanding
of vehicle/machine electrical systems and procedures, along with proficiency in the installation.
8. Store these instructions in a safe place and refer to them when maintaining and/or reinstalling the product.
Testing and Maintenance
NOTE: A walk-around test shall be performed every day to verify proper function of the system and to familiarize the operator
with the zone of detection. More frequent inspections should be performed when:
The vehicle is operating in a particularly dirty or harsh environment.
The operator has reason to suspect the system has been damaged.
This test should be performed with two people, one who remains in the cab (the operator), and one who walks through the
sensor detection field (the assistant). The below example illustrates the test for a backing sensor application. Use a similar
procedure for front, side or multiple radar systems by confirming detection of each radar sensor in the operator display.
1. Clean the sensor face of any accumulation of dirt, mud, snow, ice, or debris.
2. Visually inspect the attached wiring and cable and verify that they are properly secured, not chafing or dangling free
where they could become snagged and damaged. Inspect the Radar Sensor and Operator Display Module and verify that
they are securely attached to the vehicle.
3. Set the park brakes, start the vehicle, depress and hold the vehicle brake, and place the vehicle in reverse.
4. Verify the green “POWER” light is illuminated on the in-cab display, or if using an in-cab video monitor, verify that the
radar indicator is showing a green (operating) status.
5. The area to the rear of the vehicle should be clear of obstacles for a distance of 26.25 feet (8 meters). If the display
shows any indicator other than the green light, then there are objects to the rear of the vehicle that will interfere with
the test. Move the vehicle to a clear area and proceed.
6. The assistant should move to just behind the rear corner of the vehicle in sight of the operator's mirrors. He should then
walk toward the centerline of the vehicle parallel to the rear, while the operator notes when the display buzzer sounds,
signifying the sensor has detected the object.
7. The assistant should continue walking through the area at the rear of the vehicle while the operator notes the area
where detection occurs.
8. Next, walk from the center of the rear of the vehicle straight back, away from the vehicle. When the display quits
sounding, the detection limit has been reached.
9. Move halfway back and remain still for a few seconds. The display should continue to sound, demonstrating the system’s
ability to detect a still object.
19
10. The assistant should walk the complete rear of the vehicle while the operator notes the detection edges of the entire
coverage area.
11. After the test, the operator and the assistant need to communicate the details on the detection zone.
For questions, call 1-866-977-7326 toll free in the USA, send a fax request to 1-866-929-6769, or submit an
online request at www.preco.com/contact-us/ . A safety specialist will respond within 24 hours.
20
Warranty Information
MANUFACTURER STANDARD LIMITED WARRANTY AND LIMITATION OF LIABILITY
Manufacturer warrants that on the Date of Purchase this Product will conform to Manufacturer's published specifications for the product,
which are available from Manufacturer on request, and Manufacturer warrants that the product is free from defects in materials and
workmanship. This Limited Warranty for the sensor extends for sixty (60) months from the date of shipment. Manufacturer will, at its option,
repair or replace any product found by Manufacturer to be defective and subject to this Limited Warranty.
This Limited Warranty does not apply to parts or products that are misused; abused; modified; damaged by accident, fire or other hazard;
improperly installed or operated; or not maintained in accordance with the maintenance procedures set forth in Manufacturer's Installation
and Operating Instructions.
To obtain warranty service, you must ship the product(s) to the specified Manufacturer location within thirty (30) days from expiration of the
warranty period. To obtain warranty service, call Preco™ Customer Service at 866-977-7236 or 208-323-1000, or fax your request to 208323-1034. Customer Service will issue warranty authorization and further instructions. You must prepay shipping charges and use the
original shipping container or equivalent.
EXCLUSION OF OTHER WARRANTIES: MANUFACTURER MAKES NO OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY. THE IMPLIED
WARRANTIES FOR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED AND SHALL NOT APPLY TO THE
PRODUCT. BUYER'S SOLE AND EXCLUSIVE REMEDY IN CONTRACT, TORT OR UNDER ANY OTHER THEORY AGAINST MANUFACTURER
RESPECTING THE PRODUCT AND ITS USE SHALL BE THE REPLACEMENT OR REPAIR OF THE PRODUCT AS DESCRIBED ABOVE.
LIMITATION OF LIABILITY: IN THE EVENT OF LIABILITY FOR DAMAGES ARISING OUT OF THIS LIMITED WARRANTY OR ANY OTHER CLAIM
RELATED TO MANUFACTURER'S PRODUCTS, MANUFACTURER'S LIABILITY FOR DAMAGES SHALL BE LIMITED TO THE AMOUNT PAID FOR THE
PRODUCT AT THE TIME OF ORIGINAL PURCHASE. IN NO EVENT SHALL MANUFACTURER BE LIABLE FOR LOST PROFITS, THE COST OF
SUBSTITUTE EQUIPMENT OR LABOR, PROPERTY DAMAGE, OR OTHER SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES BASED UPON
ANY CLAIM FOR BREACH OF CONTRACT, NEGLIGENCE OR OTHER CLAIM, EVEN IF MANUFACTURER OR A MANUFACTURER'S
REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Manufacturer shall have no further obligation or liability with respect to the product or its sale, operation and use, and Manufacturer neither
assumes nor authorizes the assumption of any other obligation or liability in connection with such product.
This Limited Warranty gives you specific legal rights, and you may also have other legal rights, which vary, from state to state. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
Any oral statements or representations about the product, which may have been made by salesmen or Manufacturer representatives, do
not constitute warranties. This Limited Warranty may not be amended, modified or enlarged, except by a written agreement signed by an
authorized official of Manufacturer that expressly refers to this Limited Warranty.
21
Loading...
