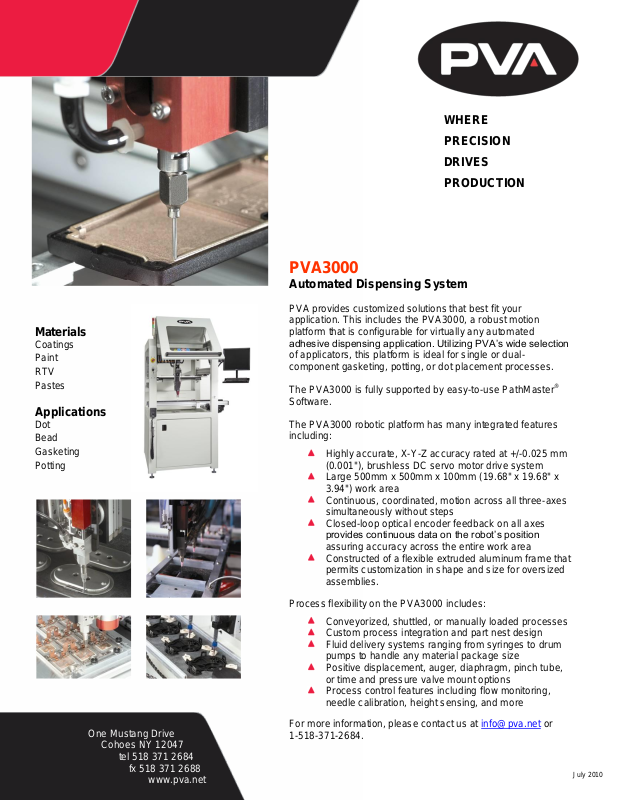

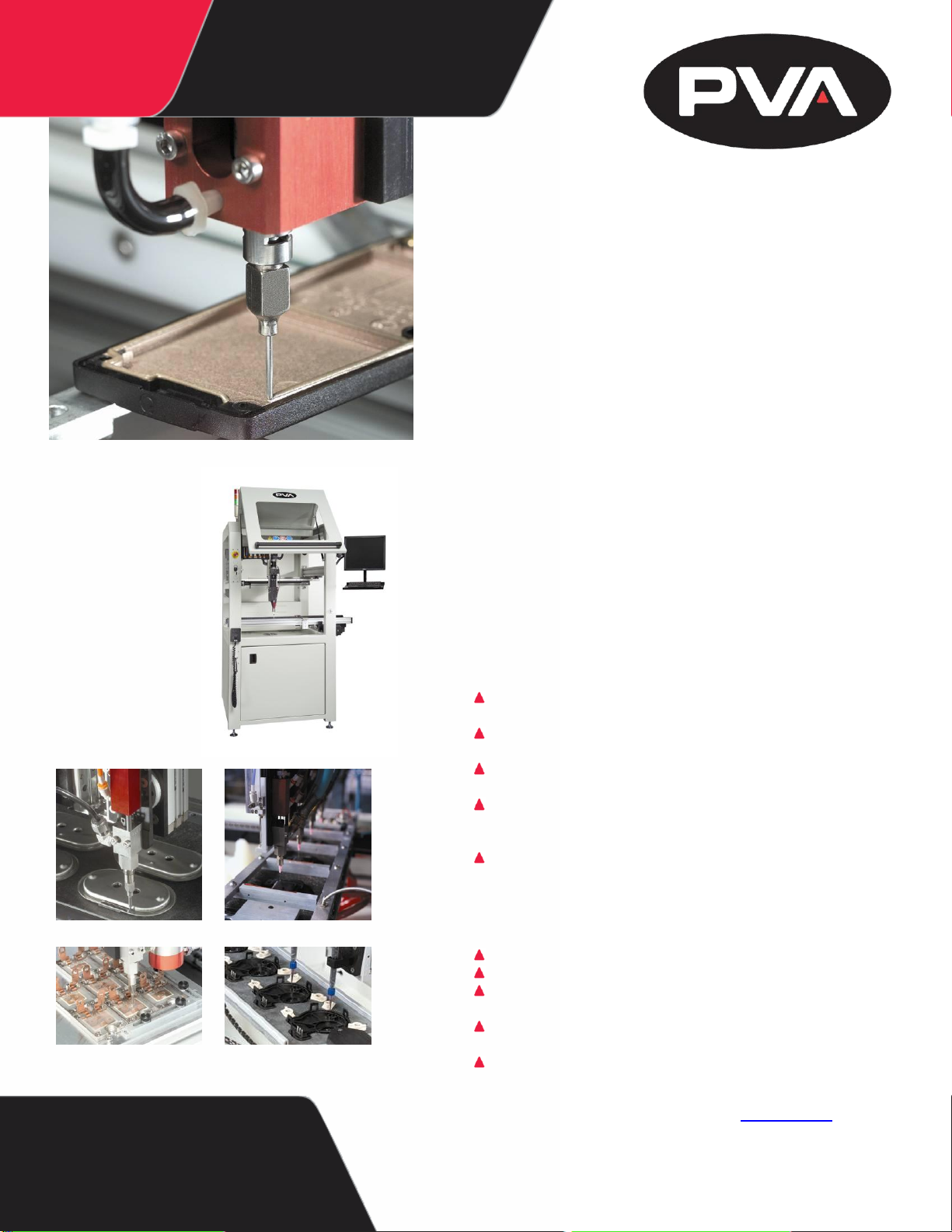

PVA3000
Automated Dispensing System
PVA provides customized solutions that best fit your
application. This includes the PVA3000, a robust motion
platform that is configurable for virtually any automated
adhesive dispensing application. Utilizing PVA’s wide selection
of applicators, this platform is ideal for single or dualcomponent gasketing, potting, or dot placement processes.
The PVA3000 is fully supported by easy-to-use PathMaster®
Software.
The PVA3000 robotic platform has many integrated features
including:
Highly accurate, X-Y-Z accuracy rated at +/-0.025 mm
(0.001"), brushless DC servo motor drive system
Large 500mm x 500mm x 100mm (19.68" x 19.68" x
3.94") work area
Continuous, coordinated, motion across all three-axes
simultaneously without steps
Closed-loop optical encoder feedback on all axes
provides continuous data on the robot’s position
assuring accuracy across the entire work area
Constructed of a flexible extruded aluminum frame that
permits customization in shape and size for oversized
assemblies.
Process flexibility on the PVA3000 includes:
Conveyorized, shuttled, or manually loaded processes
Custom process integration and part nest design
Fluid delivery systems ranging from syringes to drum
pumps to handle any material package size
Positive displacement, auger, diaphragm, pinch tube,
or time and pressure valve mount options
Process control features including flow monitoring,
needle calibration, height sensing, and more
For more information, please contact us at [email protected] or
1-518-371-2684.
Materials
Coatings
Paint
RTV
Pastes
Applications
Dot
Bead
Gasketing
Potting
One Mustang Drive
Cohoes NY 12047
tel 518 371 2684
fx 518 371 2688
www.pva.net
July 2010
Page 2
www.pva.net
PVA3000 Specifications
MOTION PLATFORM
X-Y-Z Axes
Brushless DC servo motor driven precision ball screw with closedloop, high-resolution encoder feedback
Encoder Resolution
0.005 mm
(0.0002")
X-Y-Z Accuracy
+/-0.025 mm
(0.001")
Single Valve Dispense Area
500 mm x 500 mm
(19.68" x 19.68")
Z-Axis Travel
100 mm
(3.94")
Travel Speed
0 to 700 mm/sec
(0 to 27.6"/sec)
Payload Capacity
11.4 kg
(25 lbs)
OPTIONAL CONVEYOR
Transport
Edge carrying belt or pin chain conveyor
Compatibility
SMEMA
Edge Clearance
4.8 mm standard
(0.189" standard)
Drive
Variable speed and direction
Height
Adjustable between 940mm and 965mm (37" and 38")
SOFTWARE
User Environment
PathMasterTM for Windows®
Operating System
Windows® 95, 98, 2000, Me, and NT formats
FACILITY REQUIREMENTS
Power Requirements
120V, 220V, +/-10%, 50-60 Hz
Air Supply Requirements
80 PSI dry, unlubricated air
Windows® is a registered trademark of Microsoft Corporation

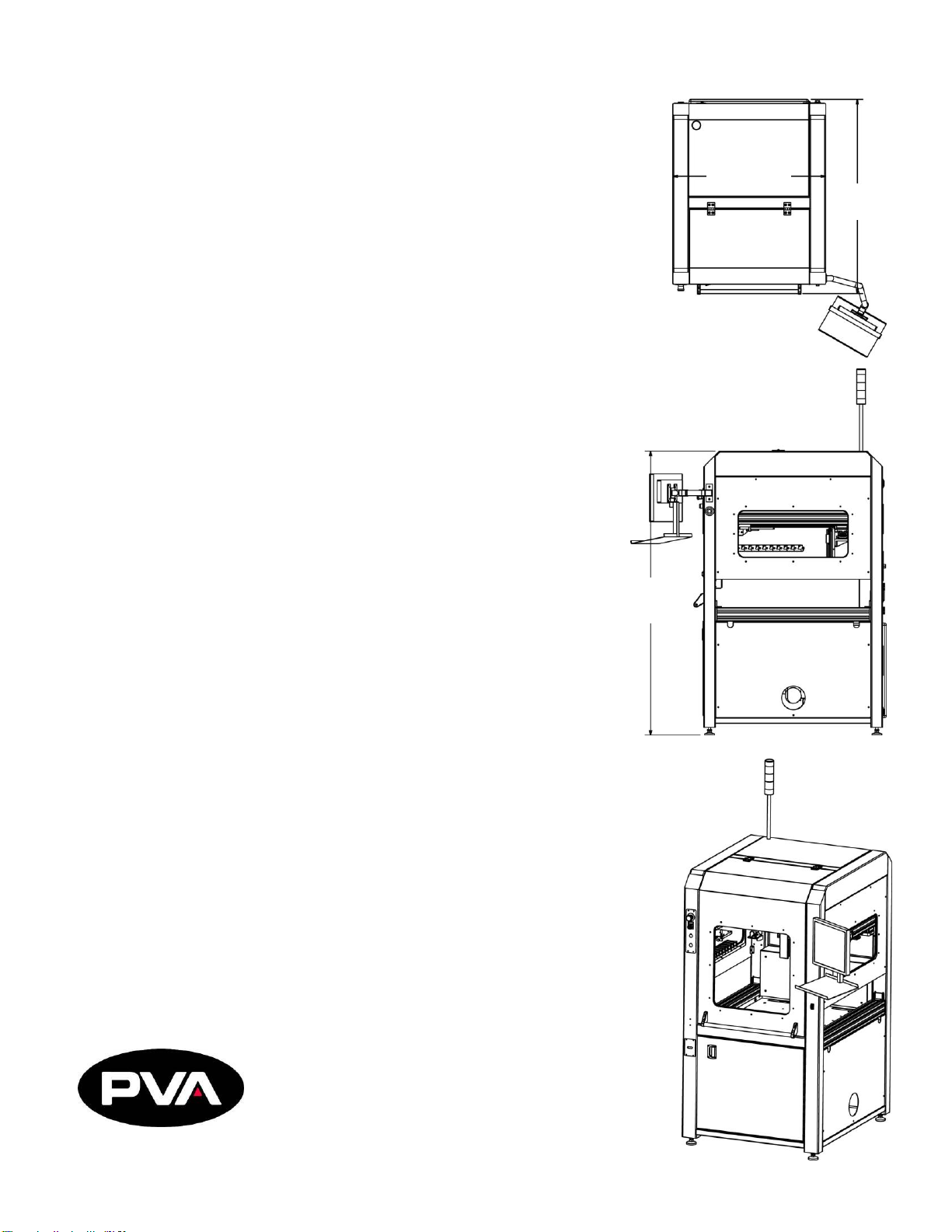

971.55 mm
(38.25")
1241.55 mm
(48.88")
1835.15 mm
(72.25")
