AMPLIFIER MODELS
D500/1 D1000/1 D2000/1 D3000/1
TABLE OF CONTENTS
Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CEA Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Amplifier Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Tools/Parts for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Ground Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Charging System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Current Draw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Power Wire Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
PowerLock Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Front Plate Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
End Plate Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Advanced Instrumentation Input . . . . . . . . . . . . . . . . . . . . . . . . .15
QBASS PLUS Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .16
QBASS PLUS/QBASS Remote . . . . . . . . . . . . . . . . . . . . . . . . . .17
TC-X Crossover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Crossover Detent Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Adjusting Input Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
High Mass Internal Heatsink . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
AP-IV Protection Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
1
CONGRATULATIONS
Thank you for choosing
Precision Power
TM
audio equipment.
Designed and engineered in the USA, this product combines
innovative technology with the finest materials to consistently deliver
Absolutely State of the Art
™
performance, sound quality, reliability,
and value. This
Precision Power
TM
product reflects our commitment
to offer you unparalleled performance and quality for years of
dependable service and listening enjoyment.
SERVICE
Do not attempt to service
Precision Power
TM
products yourself.
Performing maintenance on your audio equipment will void the
warranty. Many parts of the
Precision Power
TM
product are custom
built to our specifications. Our factory parts are not made
available to anyone else nor are they for sale. Our goal is to
make sure that your
Precision Power
TM
product will always sound as
good as the day it was purchased. Contact your
Authorized
Precision PowerTMDealer
about obtaining any warranty service
through
Precision Power
TM
. (See the Warranty on the outside of the
back cover).
CAUTION
Extended use of a high powered audio system may result in hearing
loss or damage. While
Precision Power
TM
systems are capable of
“Concert Level” volumes with incredible accuracy, they are also
designed for you to enjoy at more reasonable levels all of the sonic
subtleties created by musicians. Please observe all local sound
ordinances.
FEATURES
Advanced Instrumentation Input Stage.
24dB/Octave; HP/LP/FULL; 30-4kHz Crossover.
Independent Line Output Crossover 30-4kHz
PWM Power Supply
Triple Darlington Output Stage.
AP-IV
Protection Circuity
QBASS
TM
Bass Boost
High Voltage Input Capability with -12dB Attenuation Switch.
Gold Plated RCA Input and Output Connectors.
PowerLock
TM
Speaker and Power Wire Connectors.
WHAT’S INCLUDED
Amplifier (with speaker and power plugs mounted)
(4) Mounting screws and washers
2mm hex wrench
2.5mm hex wrench
3mm hex wrench
CEA SPECIFICATIONS
3
DD550000//11
Power Output: 125 Watts RMS x 1 at 4 ohms and <
1% THD+N
Signal to Noise Ratio: -70 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 270 Watts RMS x 1 at 1 ohm at 14.4 Supply<
1% THD+N
DD11000000//11
Power Output: 185 Watts RMS x 1 at 4 ohms and <
1% THD+N
Signal to Noise Ratio: -68 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 495 Watts RMS x 1 at 1 ohm at 14.4 Supply<
1% THD+N
DD22000000//11
Power Output: 375 Watts RMS x 1 at 4 ohms and <
1% THD+N
Signal to Noise Ratio: -71 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 1150 Watts RMS x 1 at 1 ohm at 14.4 Supply<
1% THD+N
DD33000000//11
Power Output: 495 Watts RMS x 1 at 4 ohms and <
1% THD+N
Signal to Noise Ratio: -60 dBA (reference 1 Watt into 4 ohms)
Additional Power Output: 1475 Watts RMS x 1 at 1 ohm at 14.4 Supply<
1% THD+N
SPECIFICATIONS
Nominal Power Ratings
MODEL
4ohm MONO 2ohm MONO 1ohm MONO
D500/1 1 X 125 1 X 200 1 X 250
D1000/1 1 X 175 1 X 275 1 X 500
D2000/1 1 X 375 1 X 600 1 X 1000
D3000/1 1 X 500 1 X 1000 1 X 1500
General Specifications
Conversion Efficiency >80% @4 ohms
Frequency Response 20Hz - 200Hz +0, -1dB
Total Harmonic Distortion <0.02%
Input Sensitivity 200mv - 5 Volts RMS
Phase Adjust 0° or 180°, selectable switch
RCA Output Jacks HP/LP/Full; 30Hz to 4kHz
Input Impedance 40 kohms
Supply Voltage 9 - 16 Volts
Damping Factor >150
Slew Rate >50V/µs
QBASS PLUS
TM
Up to +18dB Boost @30, 36, 44, or 60Hz
Crossovers Type/Range LP—30Hz to 250Hz
HP—off/24dB switch 20Hz to 100Hz
LP—off/24dB switch 30Hz to 250Hz
Protection Functions Short, thermal, over voltage (16V) and
under voltage (9V)
4
5
Fuse Requirements
You will need to install an in-line fuse or circuit breaker in the power
wire within 18” of the battery. This fuse or circuit breaker is to protect
your vehicle from fire in case the power wire shorts to the vehicle
body. If you are only using one amplifier, use the fuse rating
indicated in this chart. If you are using more than one amplifier, add
up the fuse ratings for all the amplifiers. This sum is the rating for
your fuse or circuit breaker. You may also want to add a power
distribution block near your amplifiers to distribute large gauge
power cable to multiple amplifiers.
Dimensions
Length Width Height
D500/1 12-½” 10-½” 2-¾”
D1000/1 21-½” 10-½” 2-¾”
D2000/1 24-¾” 10-½” 2-¾”
D3000/1 29-
3
/8
” 10-½” 2-¾”
Amp Fuse
D500/1 40 A
D1000/1 50 A
D2000/1 100 A
D3000/1 150 A
AMPLIFIER STATUS LEDS
The LEDs provide the following indications:
1. Power - These LEDs illuminates the center Precision Power logo
background when the amplifier power is turned on.
2. Short - These LEDs behind the PPI logo will flash to indicate a
short on the output.
2. Thermal - These LEDs behind the PPI logo will extinguish if the
amplifier is in thermal shutdown protection.
Note: Read the AP-IV Protection Circuit section for additional
information regarding Short and Thermal protection.
6
1
2
TOOLS/PARTS FOR INSTALLATION
NOTE: TOOLS ARE NOT SUPPLIED.
Small flat blade screwdriver
Phillips screwdriver (#2 or medium sized)
Wire cutters
Wire strippers
4 - #6 round head screws, and 1 - #8 sheet metal screw. (or nut, bolt,
flat washer, star washer) (see details)
2 - Ring connectors (large enough to accommodate your method of
grounding)
In-line fuse or circuit breaker
Power and ground wire
Speaker wire - 12-16 gauge
Grommets (sized to work with the power wire you plan to use in your
installation)
Tube of silicone sealant
WIRING
Before beginning, disconnect the negative (-) terminal of the battery
prior to connecting the amplifier to the positive (+) 12V terminal to
prevent a short to ground and potential damage to wiring and
equipment. Some vehicle radios have an anti-theft feature where
when the radio is removed from 12V the radio will no longer function
and must be code reset.
7

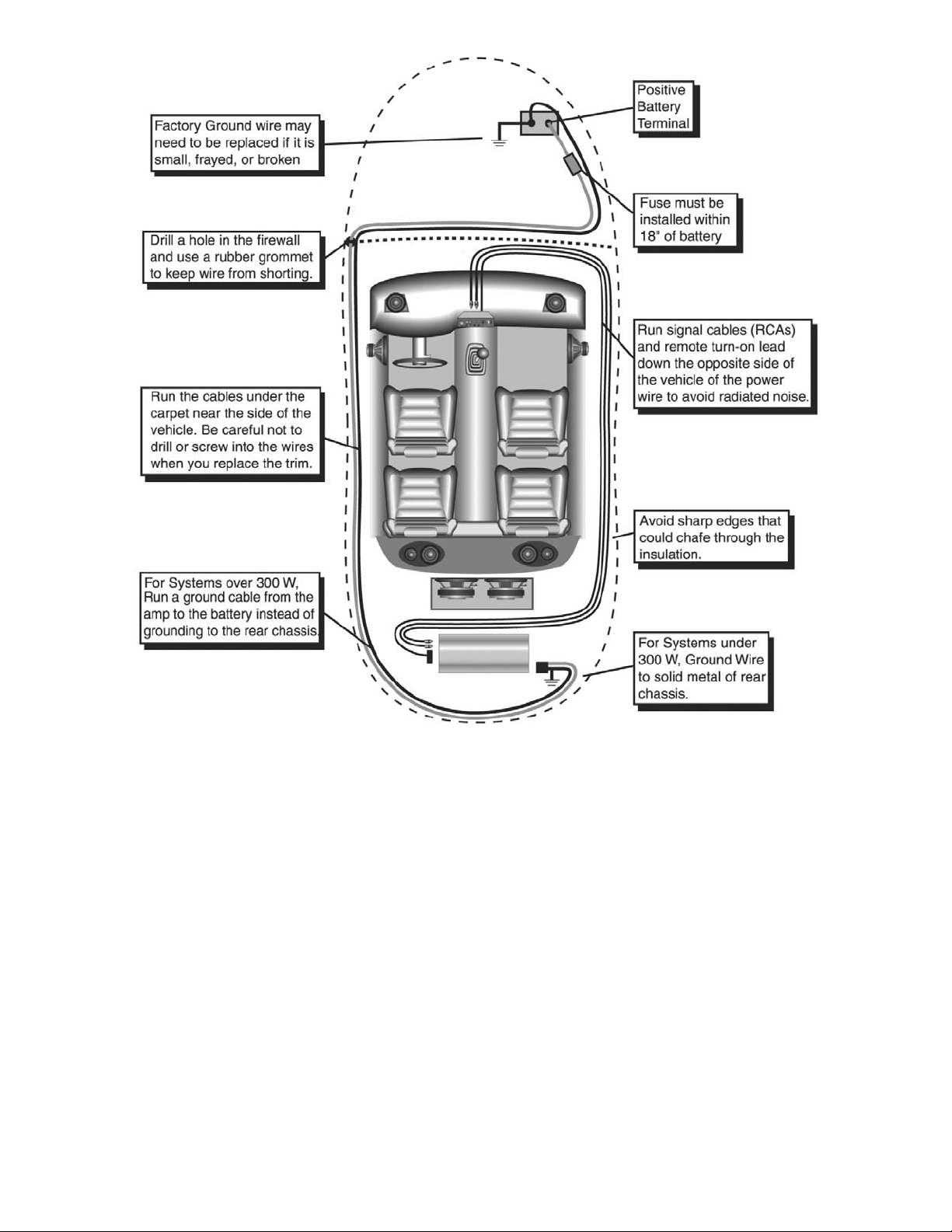

Note: The cables running from the battery to the rear of the car
should be installed on the side of the car opposite to the antenna.
When using 16 gauge wire or larger, run the speaker wires from the
amplifier location through the vehicle to the speakers. Observe the
same precautions for routing these wires that you followed for running
the power and remote turn on wires. Cut off excess and, using wire
strippers, strip 1/4-inch of insulation. Locate the speaker/remote turnon
PowerLock
TM
connector. Using a hex wrench loosen the screws on
the upperside of the connector. Insert the speaker leads into the end
and secure with the hex wrench. Check to be sure you've maintained
proper polarity before securing each wire.
8
Note: The amplifier comes with the connector inserted into the
amplifier with the wire clamping screws in the up position as
shown below. Use a 2mm hex head wrench to secure the wires
to the connector. If the connector needs to be unplugged from
the amplifier, use a 2.5mm hex head wrench to remove the
retaining screw from the connector (set aside and save the
retaining screw).The two negative outputs are common to each
other as are the two positive outputs. A speaker may be
connected to either terminal.
GROUND WIRING
Locate an area near the amplifier(s) that is metal and clean an area
about the size of a quarter down to bare metal. Inspect the area
around and underneath to be sure you will not drill into wires, brake
or fuel lines, etc. Drill a pilot hole in the middle of this area. Terminate
the ground wire with a ring connector and attach it to the bare metal
using a #8 sheet metal screw and washer or preferable, a bolt, nut
and a star washer. (not supplied). We suggest crimping and
soldering this connection. After the
connection is complete, coat the area
(on both sides) with silicone or some
similar material to prevent rust from
developing on the bare metal. If your total current draw is over 80
amps (
or total power is over 500 watts
). Keep the ground and power
g
9
Speaker
TM
POWERLOCK
Connector
2mm hex
wrench
Speaker positive
Speaker positive
Remote turn on
Speaker negative
Speaker ne
ative
Remove retaining
screw with a
2.5mm hex wrench
wires as close together as possible, and use the same gauge wire
for both.This will ensure that you have a good ground path, and may
eliminate such potential problems as engine noise and overheated
amplifiers.
CHARGING SYSTEM
If your total current draw is over 100 amps (
or total output power is
over 600 watts
), you are probably exceeding the capability of your
charging system. Dimming lights and fluctuating voltage are solid
indicators that you need to upgrade your alternator, battery, or both.
You should also check the condition and current capacity of the
stock battery negative cable and connections, and replace or
upgrade as necessary. Keep in mind that your amplifiers simply
convert electrical energy to acoustical energy, and any electrical
deficiency will compromise the performance of your sound system.
For more information about charging system upgrades, see you
local authorized
Precision Power
TM
Dealer or call
Precision Power
TM
Technical Support
at
1-800-62POWER x2033
.
CURRENT DRAW
The following is a basic formula to be used as a guide to determine
current draw. Your new amplifier is more efficient than most other
amplifiers. This formula is to be used as a guideline. Using wire of a
larger gauge can only improve the current transfer of your system.
Do NOT use smaller wire gauge.
Total RMS output X 1.3 = Total Input Wattage
T
otal Input Wattage
= Current Draw (in Amps)
Supply Voltage
Example:
A PPI
amplifier has one channel at 1000 watts RMS
rating into 4 ohms.
You would use the formula in the following way:
1000 W X 1.3 = 1300 watts
10
1300W
= 108 Amps total current draw
12V
If the same amplifier is driven into a 2 ohm load, double it’s 4 ohm
RMS rating. These amplifiers will effectively double their power at
this load.
1000W X 1.3 X 2 = 2600 watts
2600W
= 217 Amps total current draw
12V
If you are using more than one amplifier, add up the total current
draw for all of them and choose the appropriate gauge based on the
grand total.
POWER WIRE SIZE
A minimum of 8 gauge or a maximum of 4 gauge wire is
recommended dependent on the application.
The ground wire must be the same gauge as the power wire.
11
POWERLOCK
CONNECTORS
Once you have run both the power and ground wires, then connect
the cables to the amplifier. Cut off excess wire, and using wire
strippers, strip the ends of the power and ground cables
approximately 1/4 inch. Locate the
PowerLock
TM
power and ground
connector (supplied). Using a hex wrench, loosen the screws before
attempting to insert the cable wires. Insert the wires into the
appropriate hole, and tighten the screws. The Power/Ground
PowerLock
TM
will accommodate 4 gauge wire for these amplifiers.
Note: The amplifier comes with the connector inserted into the
amplifier with the wire clamping screws in the up position as
shown below. Use a 3mm hex head wrench to secure the wires
to the connector. If the connector needs to be unplugged from
the amplifier, use a 2.5mm hex head wrench to remove the two
retaining screws from the connector (set aside and save the
retaining screws).
12
3mm hex
Power wires
wrench
Remove retaining
screw with a 2.5mm hex
wrench
Connection to
amplifier
FRONT PLATE DIAGRAMS
1. Cooling Plenums: Maintain a minimum 2” clearance around
cooling plenums for proper amplifier cooling.
2. Speaker/Remote Connector: The
PowerLock
TM
speaker
connector.
3. Output Freq. Control: Use this control to adjust the sub bass
output signal crossover frequency from 30Hz to 4kHz. (See the
Crossover Frequency chart in this manual).
4. Output HP/LP/FULL Switch: Select the desired crossover
setting HP/LP/FULL for the signal of the RCA outputs.
5. LPF Frequency Control: Allows adjustment of the LPF between
30Hz and 250Hz.
6 & 7. QBASS
TM
1 and QBASSTM2 Freq.: Use these switches,
QBASSTM1
and
QBASSTM2
to program the
QBASS PLUS
TM
circuit
frequency.
8. Xover FULL/LP/HP Switch: Select the desired crossover setting
FULL/HP.
9. Sub Sonic Adjustment: Adjusts the crossover between 20Hz
and 100Hz.
10. Gain: Use this control to match the output level of the source
unit to the amplifier.
11. Input: Plug in the RCA leads from your source here.
13
1011121314
R
L
OUTPUT
OUTPUT XOVER
LP
30 4k
FREQ
FULL HP LPF QBASS QBASS INPUT GAIN FULL HP HPF
REM
1 7 8 9
30 250
5432 6
PHASE ATT
0° 180° -12dB
1
R
MIN MAX
XOVER
20 100
2
L
12. -12dB Input Attenuation: Push this switch ‘IN’ for high voltage
(4V-12V) capability. This button pushed ‘IN’ must be used for
speaker level input on common ground head-units or for high
voltage line drivers.
13. Phase: These switch sets the phase of the output relative to the
amplifier input.
14. RCA Outputs: RCA outputs provide HP/LP/FULL 30-4kHz
signal to another amplifier.
END PLATE DIAGRAMS
1. Power/Ground
PowerLock
TM
: Note that the D2000/1 and
D3000/1 have two of these receptacles. You must connect the
power and ground cables to both
PowerLock
TM
terminals for
optimum operation.
2.
QBASS REMOTE
TM
: Plug in the data cable from the optional
QBASS REMOTE
TM
dash mounted level control here. (The remote
level control will bypass the amplifier’s on board
QBASS
TM
control.
3.
QBASS
TM
Level Control: Controls bass boost, centered at 40Hz
with up to 18dB of boost.
14
1 2 3 4
D500/1, D1000/1
+18 0
QBASS
REMOTE
QBASS
QBASS
REMOTE
2 3 41
+18 0
QBASS
D2000/1, D3000/1
1
4. Cooling Plenums: Maintain a minimum 2” clearance around
cooling plenums for proper amplifier cooling.
INPUTS
There are two sets of RCA jacks on the front end of your amplifier.
The RCA cables from your source unit go in the set labeled
INPUTS. If your source unit doesn’t have RCA outputs, then add a
set of RCA plugs (available at your dealer) to your front or rear set
of speaker leads (see drawing below). Plug them into the input
jacks, and push in the -12dB input attenuation switch.
ADVANCED INSTRUMENTATION INPUT
The Advanced Instrumentation Input has been incorporated from
the legendary
Precision PowerTM2500F1
. This circuit completely
isolates the chassis ground from the audio circuit of the amplifier
and reduces noise radiated into your signal cables by up to 40dB.
This is equivalent to a noise reduction of approximately one hundred
times what the noise level would be without this circuitry. It provides
all the benefits of a true balanced line without the need of any
special cables (see diagram below). This type of input works with
any conventional RCA cables.
t
15
SOURCE Headunit
VOLUME
eject
BASS
LEFT
BALANCE
123
4
REVERSE
Trk 1
876
MAR KET
PPI
ING DPT
(+) Positive
LEFT input
(-) Negative
(+) Positive
5
TREBLE
TRACK
RIGHT
FOWARD
RIGHT inpu
(-) Negative
QBASS PLUS SPECIFICATIONS
QBASS PLUS
TM
Up to 18dB of boost with selectable center frequency at 30Hz, 36Hz,
44Hz or 60Hz, with a Q-factor of 2.
Optional
QBASS REMOTE
TM
This boost control can be mounted in the dash and will supersede
the boost control on the amplifier endplate.
16
QBASS PLUS/QBASS REMOTE
On these amplifiers, we’ve taken bass control to a higher level with
QBASS PLUS
TM
. The two
QBASS
TM
switches (labeled 1 and 2) on
the front end of the amplifier allow you to select one of four
frequency centers 30Hz, 36Hz, 44Hz and 60Hz. On the rear end
plate you will find the
QBASS
TM
level control and plug-in for an
optional
QBASS REMOTE
TM
dash mounted level control. Adjust the
level control clockwise for up to +18dB of boost at your selected
frequency.
CAUTION:
QBASS PLUS
TM
should only be used in systems with a
strong subwoofer section. +18dB is a tremendous amount of bass
boost and may damage your speakers or create excessive distortion
if abused.
The optional
QBASS REMOTE
TM
: This boost control can be
mounted in the dash and will supersede the boost control on the
endplate.
The
Precision Power
TM
amplifiers no longer need an optional
QPORT
TM
to connect multiple
QBASS PLUS
TM
equipped amplifiers
while using one
QBASS REMOTE
TM
. The new
QBASS PLUS
TM
circuitry in the
DCX
amplifiers is now positioned before the
crossover circuit. In doing this,
Precision Power
TM
engineers have
allowed you to daisy chain your RCA output to the next amplifier
input, causing the first amplifier’s
QBASS REMOTE
TM
to become the
master control amplifier. See your authorized
Precision Power
TM
dealer for more information!
QBASS
TM
Settings
1 2 Freq.
IN IN 30Hz
IN OUT 36Hz
OUT IN 44Hz
OUT OUT 60Hz
17
TC-X CROSSOVER
Your new amplifier has a
TC-X
Crossover (Total Control X-over®)
30Hz-4kHz (see this guide for Crossover Chart).12dB per octave
phase correlated crossover built-in to provide superior system
flexibility without the added expense and installation of an outboard
crossover. The speaker outputs of your amplifier are high pass, low
pass, or all-pass according to the HP/LP/FULL switch on the front
endplate. You would choose low pass (middle position of switch) to
use this amplifier for subwoofers, choose high pass (left position of
switch), or full (right position of switch) to use this amplifier for full
range speakers.
The RCA outputs are controlled by a separate HP/LP/FULL switch,
and are always independent of the speaker output crossover. As
well as being able to independently select HP/LP/FULL, your new
amplifier allows independent selection of frequencies from 30Hz4kHz (see Crossover Detent Chart in this guide).
D500/1, D1000/1, D2000/1, and D3000/1
Output - 24dB/Octave, Detented High Pass 30Hz-4kHz
Output - 12dB/Octave, Detented; HP/LP/FULL
Sub-Sonic - 12dB/Octave Detented; High Pass; 5Hz-80Hz
QBASS PLUS
TM
- on Front Channel - up to 18dB @ 30, 36, 44, 60Hz
18
CROSSOVER DETENT CHART
Detent #
Low Pass
Frequency (Hz)
@ -3dB
High Pass
Frequency (Hz)
@ -3dB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
31
31
31
32
32
34
36
39
42
45
50
55
58
65
71
78
88
100
115
119
124
131
137
142
149
157
165
176
190
205
210
213
216
220
224
228
234
238
242
242
27
28
28
28
28
29
30
31
33
35
37
40
42
45
48
50
52
55
58
62
70
75
75
80
80
82
85
85
90
95
100
100
103
108
108
108
108
110
110
110
110
19
ADJUSTING INPUT GAIN
1. Adjust all amplifier input gain controls to just above minimum
sensitivity (fully counterclockwise).
2. Using the cleanest music source (CD) playing, turn up the head
unit source volume until you can hear distortion. Now turn it down a
bit until you cannot hear the distortion (usually just below full
volume).
3. Increase the amplifier gain (clockwise) until the onset of audible
distortion. Then decrease the gain to the point just before the
distortion starts. This setting minimizes background noise and
prevents overload.
4. Repeat step 3 for any remaining independently controlled
amplifiers (rear and subwoofer gain controls) in the system.
HIGH MASS INTERNAL HEATSINK
The unique heatsink on your amplifier has been designed with fins
on the inside of the aluminum extrusion. This allows for the transfer
of heat from the circuitry to the heatsink fins and out through the
vents in the endplates. Be sure you provide ample space around the
amplifier for cooling: at least 2” on all sides.
AP-IV PROTECTION CIRCUIT
Short Circuit Protection engaged: These amplifiers will turn off and
try to come back on immediately. The amplifier will cycle like this
indefinitely with “blips” of sound each time. If this is the case, check
your speakers and wiring for low impedance and short circuits.
Thermal Protection engaged. The amplifier will turn off and after a
minute or so will come back on. In this case, ensure that there is
nothing blocking the normal convection airflow of the amplifier. No
obstruction should be within 2” of the amplifier on all sides.
Note: Low battery voltage will cause the amplifier to run
warmer and possibly damage the amplifier.
TROUBLESHOOTING
20
NO SOUND
Is the LED illuminated?
YES NO
Check Power and Remote
turn-on wire for voltage.
Make sure the ground wire
is secure.
STILL NO SOUND
See your Authorized
Precision Power
TM
Dealer or call 1-800-62POWER.
SOUND IN ONE CHANNEL ONLY
Reverse the left and right speakers by unplugging the speaker connector,
turning it over and plugging it back in.
SOUND IS NOW IN
OPPOSITE CHANNEL SAME CHANNEL
Reverse RCA inputs. Problem is in the speaker or
speaker wire of the silent
channel.
SOUND IS NO
W IN
OPPOSITE CHANNEL SAME CHANNEL
Reverse RCA inputs Problem is in the amplifier.
at head unit. See your local Authorized
Precision Power
TM
Dealer or
call 1-800-62POWER.
SOUND IS NO
W IN
OPPOSITE CHANNEL SAME CHANNEL
Problem is in the head Problem is in the RCA
unit or before the amplifier. cables.
21
LIMITED TWO YEAR CONSUMER WARRANTY:
Directed Electronics promises to the original purchaser, to replace this product
should it prove to be defective in workmanship or material under normal use, for
a period of two years from the date of purchase by the dealer as indicated by the
date code marking of the product PROVIDED the product was installed by an
authorized Directed dealer. During this two-year period, there will be no charge for
this replacement PROVIDED the unit is returned to Directed, shipping pre-paid. If
the unit is installed by anyone other than an authorized Directed dealer, the
warranty period will be 1 year from the date of purchase by the dealer as indicated
by the date code marking of the product. During this 1-year period there will be no
charge for this replacement PROVIDED the unit is returned to Directed, shipping
pre-paid. This warranty is non-transferable and does not apply to any unit that has
been modified or used in a manner contrary to its intended purpose, and does not
cover damage to the unit caused by installation or removal of the unit. This
warranty is void if the product has been damaged by accident or unreasonable
use, neglect, improper service or other causes not arising out of defects in
materials or construction. ALL WARRANTIES INCLUDING BUT NOT LIMITED
TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF
MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND
WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE
EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY LAW,
AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO
ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE
PRODUCT. DIRECTED HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL
ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR
INSTALLERS. Unit must be returned to Directed, postage pre-paid, with:
consumer’s name, telephone number, and address, authorized dealer’s name and
address, and product description. IN ORDER FOR THIS WARRANTY TO BE
VALID, YOUR UNIT MUST BE SHIPPED WITH PROOF OF INSTALLATION BY
AN AUTHORIZED DIRECTED DEALER. ALL UNITS RECEIVED BY DIRECTED
FOR WARRANTY REPAIR WITHOUT PROOF OF DIRECTED DEALER
INSTALLATION WILL BE COVERED BY THE LIMITED 1-YEAR PARTS AND
LABOR WARRANTY. Note: This warranty does not cover labor costs for the
removal and reinstallation of the unit. BY PURCHASING THIS PRODUCT, THE
CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE
CONSUMER AND Directed SHALL BE RESOLVED IN ACCORDANCE WITH
CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA.
© 2005 Directed Electronics, All rights reserved. G48300.05.10.15 12-05
Loading...
