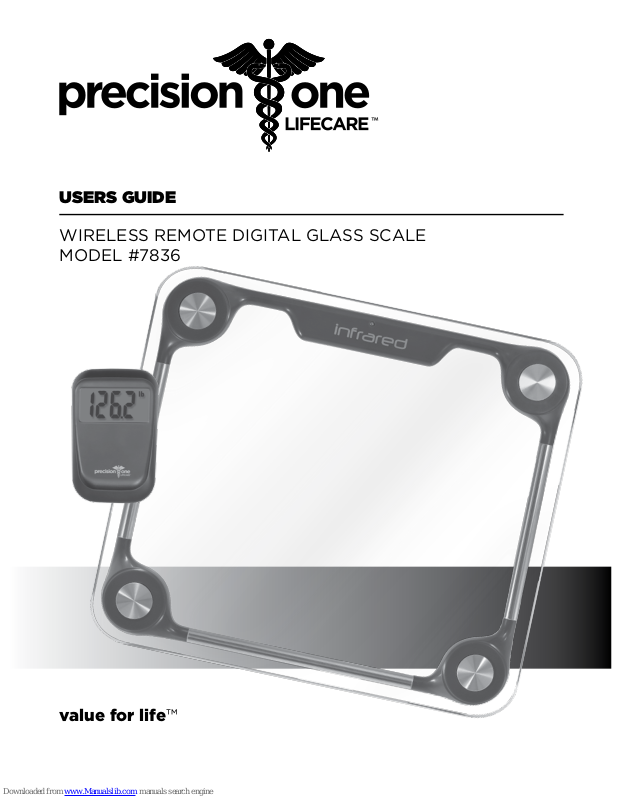

Page 1
value for life™
USERS GUIDE
WIRELESS REMOTE DIGITAL GLASS SCALE
MODEL #7836
Page 2
Understanding Your Scale
OPERATION
1. Place the scale on a flat, dry surface.
2. Gently step on the scale. The scale will automatically turn on.
3. Stand evenly until on the scale without moving and wait until your weight shown on display is
stable and locked.
You can receive your weight reading in two ways: Wired transmission mode (remote is housed in
the main unit, as shown below)
Step onto the scale
platform directly
2
WIRELESS REMOTE DIGITAL GLASS SCALE
MODEL #7836
Congratulations! You have purchased a precision health monitoring
product that should provide you with years of accurate use. To assure
you obtain the best performance pleaseread the following set-up and
use instructions carefully before using the scale.
Remove plastic strip below 3V battery in both compartment on bottom of scale
and remote before use. Be sure to check that they are installed properly.
If display does not appear when scale is turned on, check this first.
This scale is calibrated to weigh in pounds (lbs), but can also measure in
kilograms and stones. You can covert the weight unit as follows:
1. Find unit button near the battery compartment in the remote.
2. Press the button to convert scale unit between kg and lb.
Always stand reasonably still. If there is too much movement, the scale cannot provide accurate
weight. Place scale on a hard surface. The scale will not weigh accurately on carpet.
Weight reading stabilized
and flashes for 3 times
Engaged wired
readout display
Read-out display
Infrared receiver
Infrared transmitter
Main unit
Page 3
3
OVERLOAD INDICATION
Scale overload. (Max. weight capacity is indicated on the scale).
Please step off to avoid damage.
LOW BATTERY INDICATION
Battery power is low. Please install new battery.
RE-TEST
Display “C” when you step off the scale, means an error has
occurred with the weight reading. Please re-weigh.
TROUBLESHOOTING
ADVICE FOR USE & CARE
1. The glass platform will be slippery when it is wet. Keep dry.
2. Keep standing still during the course of weighing.
3. Treat the scale with care as it is a precise instrument.
4. Clean the scale with a damp cloth and avoid water getting inside the scale. DO NOT use
chemical/abrasive cleaning agents.
5. Keep the scale in cool place with dry air.
6. If scale fails to turn on, check whether battery is installed properly, or battery power is low. Insert or
replace new battery.
7. If there is error on display or the scale will not turn off for a long period of time,
please take out the battery for about 3 seconds, then install it again to correct error. If you cannot resolve the
problem, please contact Precision One Customer Service for consultation.
8. Do not use for commercial purposes.
2. Wireless transmission mode (you are holding the remote, as shown below)
AUTOMATIC SWITCH OFF
Auto shut-off occurs if display shows “0.0” for 8 seconds, or shows the same
weight reading for 8 seconds.
Step onto the scale platform directly
(DO NOT cover the infrared receiver.)
Weight reading stabilized
and flashes 3 times.
Page 4
For additional information regarding this
product or its warranty, please contact us:
Precision One Lifecare
A Division of Lava Lite LLC
1200 Thorndale Avenue
Elk Grove Village, IL 60007
1-800-336-5282
email: [email protected]
www.precisiononescales.com
* Precision One Lifecare is a registered trademark of Precision One Lifecare Ltd. in the U.S.A
and other countries around the world and used under license. All rights reserved.
LIMITED 10 YEAR WARRANTY
Your Precision One product is warranted to the original consumer only, for the lifetime of the product,
to be free from defects in materials and workmanship under normal use. This product is designed for
personal use only. Precision One, a division of Lava Lite LLC reserves the right to nullify the Warranty
Agreement should the product be used in a commercial environment. This warranty is void if the
product has been tampered with, misused, abused or modified. Our obligation under this Warranty
is limited solely to the charge of repairing the product, including the cost of parts, or, at our option,
replacing the product with an equivalent model. There are no express or implied warranties except
as listed above. PRECISION ONE, A DIVISION OF LAVA LITE LLC IS NOT LIABLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR FAILURE OR MALFUNCTION OF THE PRODUCT AND ANY
RECOVERY MAY NOT BE GREATER THAN THE PURCHASE PRICE PAID FOR THIS PRODUCT.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED
TO A PERIOD OF ONE (1) YEAR FROM THE PURCHASE DATE. Some states do not allow limitations
on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations may not apply to you. This Warranty gives you specific legal rights
and you may have other rights which vary from state to state.
To obtain warranty service, you must return the product freight pre-paid, in either its original packaging
or packaging affording an equal degree of protection, to Precision One, a division of Lava Lite LLC at
1200 Thorndale Avenue, Elk Grove Village, IL 60007.
