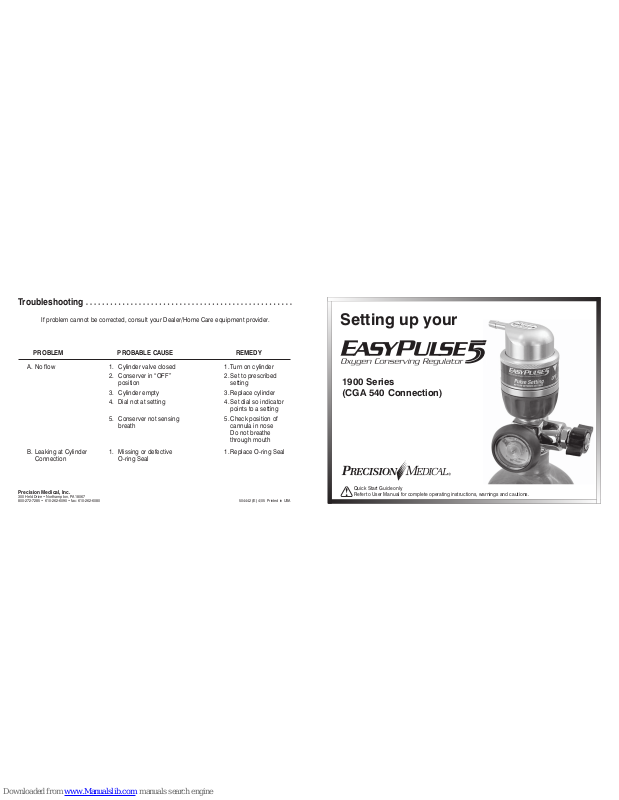

Page 1
Setting up your
Troubleshooting
PROBLEM PROBABLE CAUSE REMEDY
Precision Medical, Inc.
300 Held Drive • Northampton, PA 18067
800-272-7285 • 610-262-6090 • fax: 610-262-6080 504442 (E) 4/05 Printed in USA
A. No fl ow 1. Cylinder valve closed 1. Turn on cylinder
2. Conserver in “OFF” 2. Set to prescribed
position setting
3. Cylinder empty 3. Replace cylinder
4. Dial not at setting 4. Set dial so indicator
points to a setting
5. Conserver not sensing 5. Check position of
breath cannula in nose
Do not breathe
through mouth
B. Leaking at Cylinder 1. Missing or defective 1. Replace O-ring Seal
Connection O-ring Seal
If problem cannot be corrected, consult your Dealer/Home Care equipment provider.
Quick Start Guide only
Refer to User Manual for complete operating instructions, warnings and cautions.
1900 Series
(CGA 540 Connection)
Page 2
When using a Precision Medical Carry Bag, slide the cylinder into
the bag with the gauge facing the mesh. Attach the cannula to the
Conserver’s Outlet Connection.
Slowly open the cylinder valve. Turn Dial to the prescribed setting.
Zip the bag closed.
Carry
Bag
Cannula
EasyPulse5 Oxygen Conserving Regulator (Conserver)
Dial
Outlet
Connection
4
3
5
6
1
2
P
A
R
T
S
S
T
E
P
S
T
E
P
S
T
E
P
S
T
E
P
S
T
E
P
S
T
E
P
I
D
When fi nished using:
Turn the cylinder valve to the OFF position. Turn Conserver Dial to “2 LPM Continuous”
position. Wait for Oxygen to stop fl owing from Conserver. Remove Conserver from
Cylinder Valve. Store Conserver and Carry Bag in a safe place.
Place cannula in
nostrils and breathe
through nose to begin
Oxygen fl ow. If using a
bag adjust the straps
for maximum comfort.
Typical bag carrying confi gurations
Cannula prongs in
nostrils
View of
properly
attached
conserver
Inspect Conserver and Cylinder Valve for damage or contaminants.
Do NOT use if any are found. “Crack” cylinder valve by opening the
valve slightly and closing.
Ensure Conserver is in the OFF position and O-ring Seal is in
place. Align Nipple with recessed hole in the cylinder. Hand
tighten Knob. Do NOT use tools.
Inlet
Nipple
O-ring
Cylinder Valve
Knob
