Features
• Vernier scale
• Black anodized
aluminum (clear) anodized w/black markings
• Available with brake lever
w
/white markings or natural

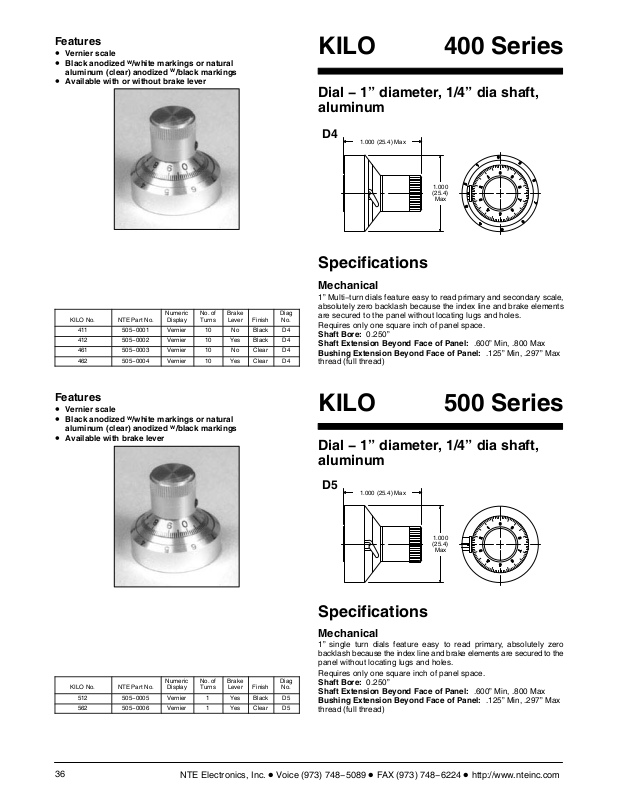

KILO 500 Series
Dial − 1” diameter, 1/4” dia shaft,
aluminum
Numeric
KILO No. NTE Part No.
512 505−0005 Vernier 1 Yes Black D5
562 505−0006 Vernier 1 Yes Clear D5
Display
36
No. of
Brake
Turns
Lever
NTE Electronics, Inc. D Voice (973) 748−5089 D FAX (973) 748−6224 D http://www.nteinc.com
Finish
Diag
No.
D5
1.000 (25.4) Max
1.000
(25.4)
Max
Specifications
Mechanical
1” single turn dials feature easy to read primary, absolutely zero
backlash because the index line and brake elements are secured to the
panel without locating lugs and holes.
Requires only one square inch of panel space.
Shaft Bore: 0.250”
Shaft Extension Beyond Face of Panel: .600” Min, .800 Max
Bushing Extension Beyond Face of Panel: .125” Min, .297” Max
thread (full thread)
