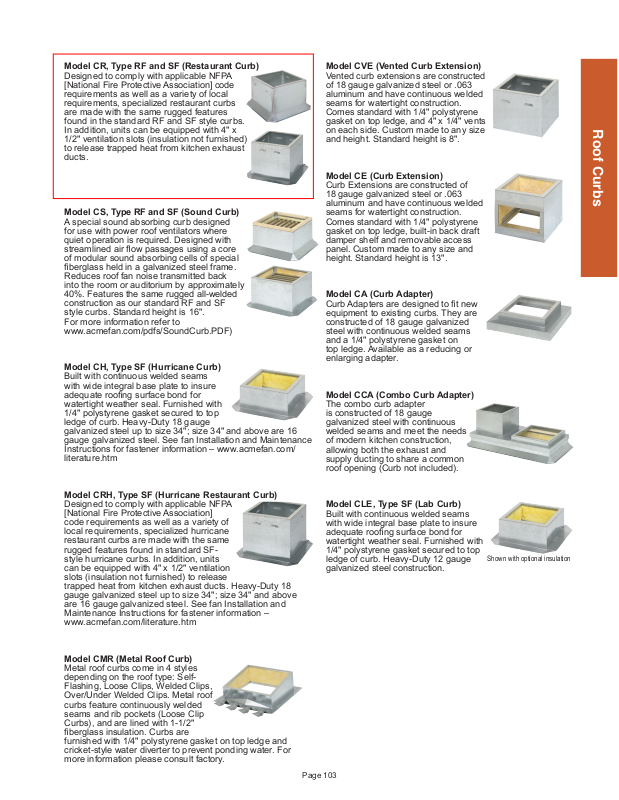

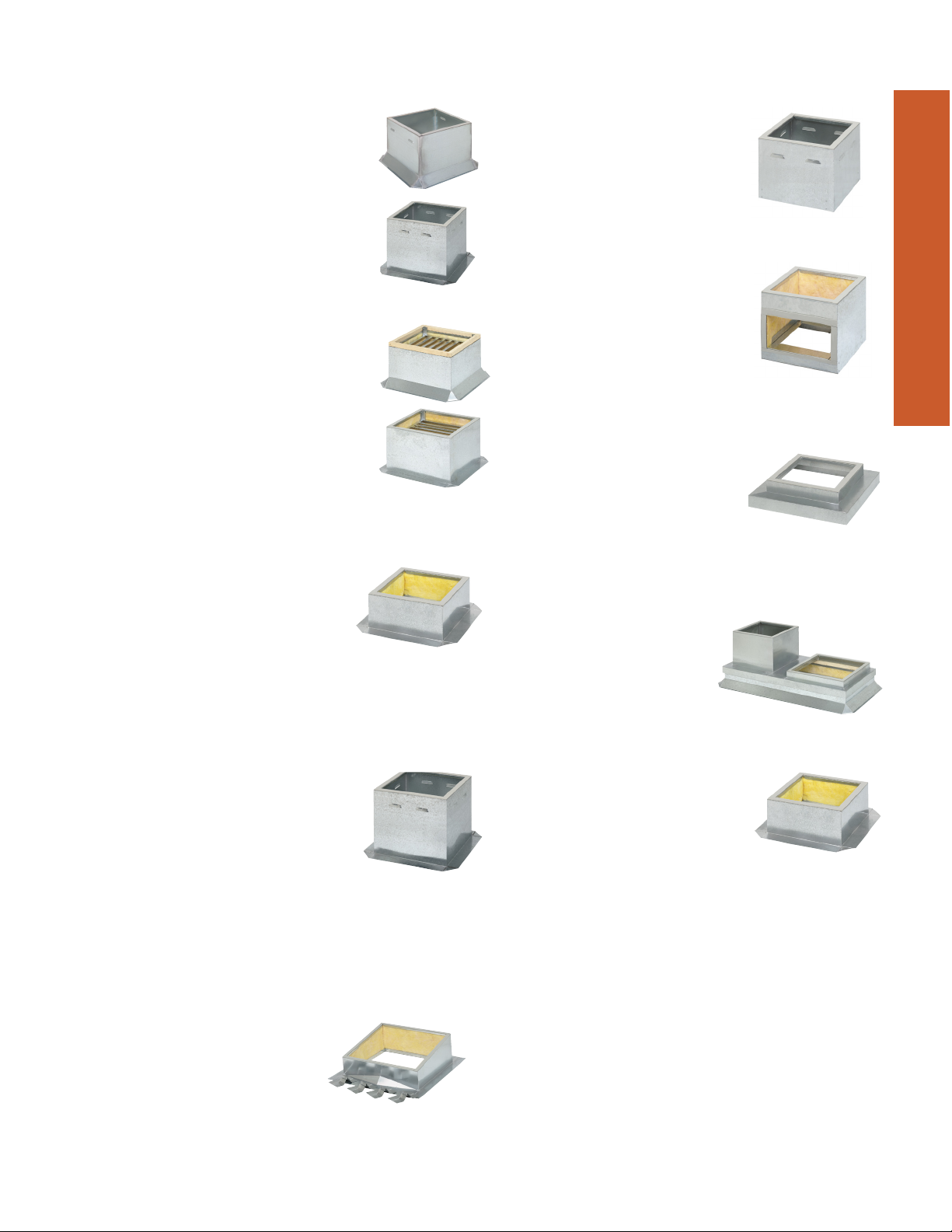

Model CR, Type RF and SF (Restaurant Curb)
Designed to comply with applicable NFPA
[National Fire Protective Association] code
requirements as well as a variety of local
requirements, specialized restaurant curbs
are made with the same rugged features
found in the standard RF and SF style curbs.
In addition, units can be equipped with 4" x
1/2" ventilation slots (insulation not furnished)
to release trapped heat from kitchen exhaust
ducts.
Model CS, Type RF and SF (Sound Curb)
A special sound absorbing curb designed
for use with power roof ventilators where
quiet operation is required. Designed with
streamlined air ow passages using a core
of modular sound absorbing cells of special
berglass held in a galvanized steel frame.
Reduces roof fan noise transmitted back
into the room or auditorium by approximately
40%. Features the same rugged all-welded
construction as our standard RF and SF
style curbs. Standard height is 16".
For more information refer to
www.acmefan.com/pdfs/SoundCurb.PDF)
Model CH, Type SF (Hurricane Curb)
Built with continuous welded seams
with wide integral base plate to insure
adequate roong surface bond for
watertight weather seal. Furnished with
1/4" polystyrene gasket secured to top
ledge of curb. Heavy-Duty 18 gauge
galvanized steel up to size 34"; size 34" and above are 16
gauge galvanized steel. See fan Installation and Maintenance
Instructions for fastener information – www.acmefan.com/
literature.htm
Model CVE (Vented Curb Extension)
Vented curb extensions are constructed
of 18 gauge galvanized steel or .063
aluminum and have continuous welded
seams for watertight construction.
Comes standard with 1/4" polystyrene
gasket on top ledge, and 4" x 1/4" vents
on each side. Custom made to any size
and height. Standard height is 8".
Model CE (Curb Extension)
Curb Extensions are constructed of
18 gauge galvanized steel or .063
aluminum and have continuous welded
seams for watertight construction.
Comes standard with 1/4" polystyrene
gasket on top ledge, built-in back draft
damper shelf and removable access
panel. Custom made to any size and
height. Standard height is 13".
Model CA (Curb Adapter)
Curb Adapters are designed to t new
equipment to existing curbs. They are
constructed of 18 gauge galvanized
steel with continuous welded seams
and a 1/4" polystyrene gasket on
top ledge. Available as a reducing or
enlarging adapter.
Model CCA (Combo Curb Adapter)
The combo curb adapter
is constructed of 18 gauge
galvanized steel with continuous
welded seams and meet the needs
of modern kitchen construction,
allowing both the exhaust and
supply ducting to share a common
roof opening (Curb not included).
Roof Curbs
Model CRH, Type SF (Hurricane Restaurant Curb)
Designed to comply with applicable NFPA
[National Fire Protective Association]
code requirements as well as a variety of
local requirements, specialized hurricane
restaurant curbs are made with the same
rugged features found in standard SF-
style hurricane curbs. In addition, units
can be equipped with 4" x 1/2" ventilation
slots (insulation not furnished) to release
trapped heat from kitchen exhaust ducts. Heavy-Duty 18
gauge galvanized steel up to size 34"; size 34" and above
are 16 gauge galvanized steel. See fan Installation and
Maintenance Instructions for fastener information –
www.acmefan.com/literature.htm
Model CMR (Metal Roof Curb)
Metal roof curbs come in 4 styles
depending on the roof type: SelfFlashing, Loose Clips, Welded Clips,
Over/Under Welded Clips. Metal roof
curbs feature continuously welded
seams and rib pockets (Loose Clip
Curbs), and are lined with 1-1/2"
berglass insulation. Curbs are
furnished with 1/4" polystyrene gasket on top ledge and
cricket-style water diverter to prevent ponding water. For
more information please consult factory.
Model CLE, Type SF (Lab Curb)
Built with continuous welded seams
with wide integral base plate to insure
adequate roong surface bond for
watertight weather seal. Furnished with
1/4" polystyrene gasket secured to top
ledge of curb. Heavy-Duty 12 gauge
galvanized steel construction.
Page 103
Shown with optional insulation
