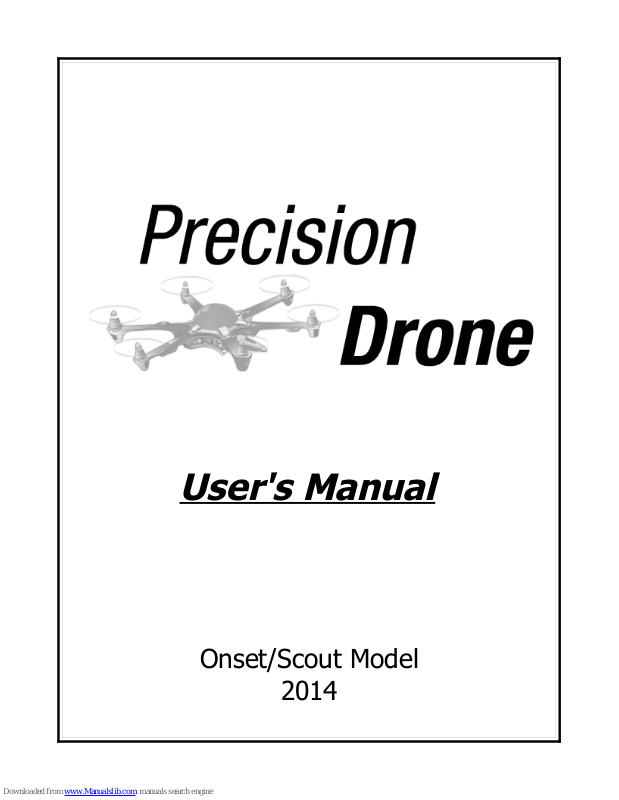

Precision Drone Onset, Scout User Manual

User's Manual

Onset/Scout Model

2014

Table of Contents

(1) Warnings........................................................................................2

(2) What's in the case?.........................................................................4

(3) Detailed Components......................................................................5

(4) Getting Everything Charged.............................................................9

(5) GPS Recalibration..........................................................................10

(6) Pre-Flight......................................................................................11

(7) Flight............................................................................................12

(8) Post-Flight.....................................................................................14

(9) Crop Health Imaging......................................................................14

(10) Rotation Diagrams.........................................................................15

1 2 Page 1

WARNINGS

 Obey all federal, state, and local regulations

 Do not fly in rain or other harsh conditions

 Do not fly in wind more than 20mph

 Do not fly faster than 10 m/s (22.5mph)

 Operating in temperatures below 50° Fahrenheit (10° Celsius) will result in

decreased flight times

 Operating in temperatures below 32° Fahrenheit (0° Celsius) and below the

mechanical and electrical components run the chance of seizing, resulting in

drone malfunction and ultimately property damage, injury, and/or death

 Always use the provided battery chargers

 The drone will land in place when it reaches 10.5v

 Keep away from spinning motors at ALL TIMES.

 Do not attempt to modify the drone

 Do not attempt to repair the drone

 NEVER allow minors to charge battery packs

 NEVER drop power supply or batteries

 NEVER attempt to charge damaged batteries

 NEVER let batteries fully discharge unless you are disposing of them

 NEVER attempt to charge a battery pack containing different types of batteries

 NEVER charge a battery if the cable has been pinched or shorted

 NEVER allow batteries to come into contact with moisture at any time

 NEVER charge batteries in extremely hot or cold places or in direct sunlight

 ALWAYS disconnect the battery after charging

 ALWAYS end the charging process if the charger or battery becomes too hot

1 3 Page 2

*Failure to exercise caution while using this product and comply with the warnings above
could result in product malfunction, electrical issues, excessive heat, fire, and ultimately
injury, property damage, or death. Never allow use of this product by anyone without
providing them with these instructions. You must read, understand, and follow all instructions
and warnings for any product(s) to which this product is used in conjunction with or installed.
The operator is choosing to use this product and does so at his or her own risk. Save these
instructions with the product for use as a reference in the future

1 4 Page 3

What's in the case?

List of Case Components

1x Precision Drone Onset OR Scout
3x 4000mAh 3S LiPo Battery (Onset model) OR 4x 5000mAh 3S LiPo Battery (Scout model)
1x Live Feed Monitor (Scout model)
1x Live Feed Monitor Charger (Scout model)
1x Precision Vision Camera (RGB)
1x Precision Vision Camera (IR) (If equipped)
1x Camera Charge Cable
1x DX8 Controller
1x Controller Charger
1x Controller Strap
1x Bind Plug
1x Battery Charger
1x Balancing Board
1x Gator Clips
1x Charger Wall Plug
1x Charger Battery Plug
1x 16GB SD card (pre-installed in camera)
OEM Manuals (Located under first layer of foam)

1 5 Page 4

DX8 Controller:

Components

1 6 Page 5
