LOW-COST OEM PROCESS METER
Sabre Series
Sabre P • Model PD603
• 0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs
• Input Current Overload Protection
• NEMA 4X, IP65 Front
• Shallow Depth 1/8 DIN Case 3.6” Behind Panel
• 4 Digit Display, 0.56” (14 mm) High, Red LEDs
• Easy Front Panel Programming
• Scale without a Signal Source
• Calibrate with a Signal Source
• Maximum/Minimum Display
• Universal Power Supply 85-265 VAC
• 12-36 VDC/12-24 VAC Power Option
• 24 VDC @ 200 mA Transmitter Supply Option
Precision Digital corPoration
www.predig.com
Page 2
SABRE • MODEL PD603 PROCESS METER

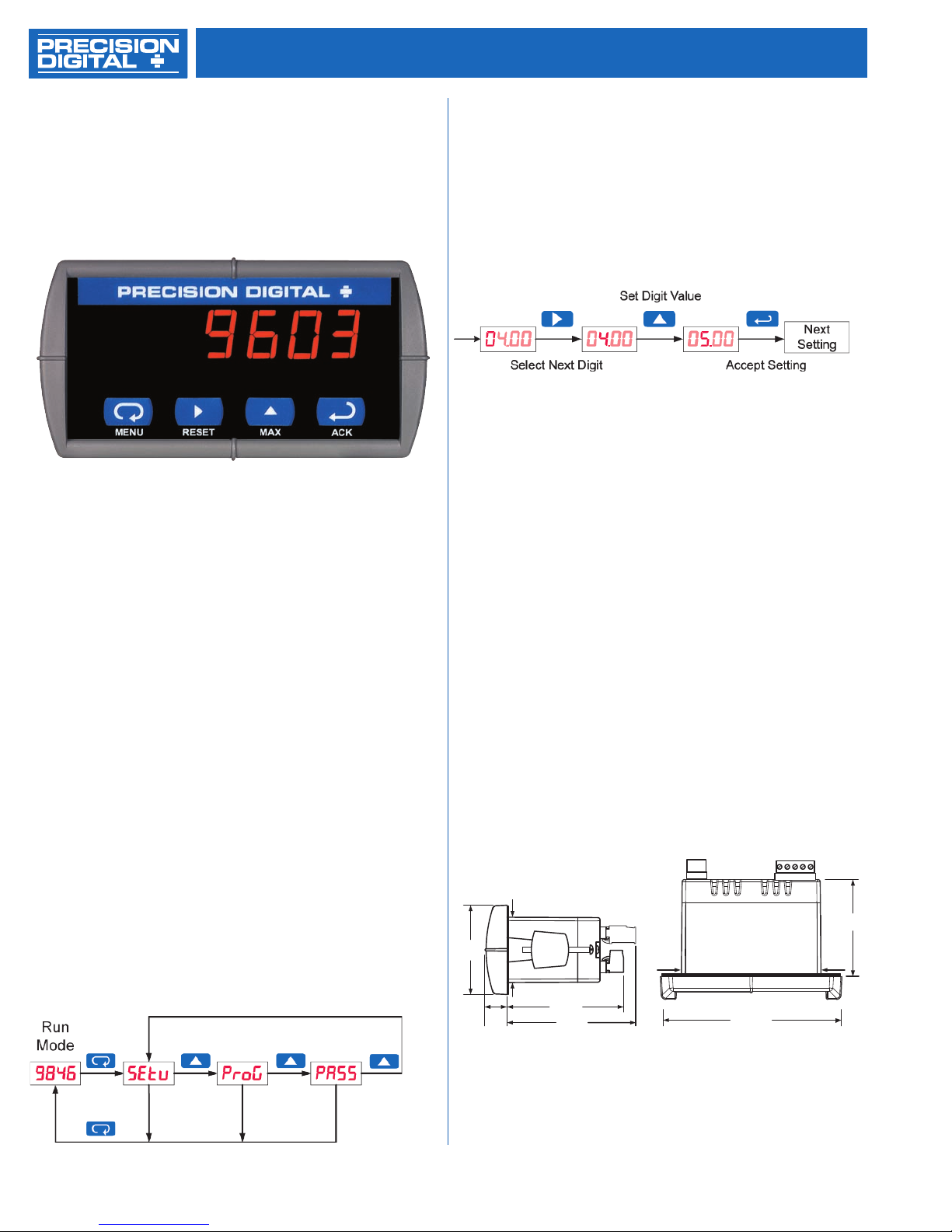

EASY SETUP & PROGRAMMING
The Sabre P process meter is easily programmed using the
four front panel buttons. There are no jumpers or switches to
configure and there is no need to ever open the case.
Front Panel Buttons
User Friendly Menu Structure
To simplify programming, one menu handles all the setup
functions.
• Press the Menu button to enter or exit the Programming
Mode at any time.
• Press the Right arrow button to move to the next digit
during digit programming.
• Press the Up arrow button to scroll through the menus,
decimal point, or to increment the value of a digit.
• Press the Enter/Ack button to access a menu or to
accept a setting.
Menu Structure
The menu consists of the following functions: Setup,
Program, and Password. Press the Menu button to enter
the Programming Mode then press the Up arrow button to
scroll through the menu.
The Setup menu is used to select the input signal and
decimal point. The Program menu is used to scale or
calibrate the meter. The Password menu is used to
program a password.
The display moves to the next menu after the Enter/ACK
button is pressed.
Setting Numeric Values
The numeric values are set using the Right and Up arrow
buttons. Press the Right arrow button to select next digit
and the Up arrow button to increment the digit value.
The digit being changed is displayed brighter than the rest.
Press the Enter/ACK button, at any time, to accept a setting
or the Menu button to exit without saving the changes.
SIMPLE OPERATION
Look to the Sabre P process meter for the key features
you want and don’t worry about getting bogged down in
a confusing array of things you don’t need. The Sabre P
provides all the utility needed to handle your application with
accuracy and simplicity.
Maximum/Minimum Readings
To display the maximum and minimum readings since the
last reset/power-up, use the Up arrow/Max button.
QUICK INSTALLATION
The Sabre P is housed in a 1/8 DIN shallow depth case that is
designed for easy installation and servicing. The extra large
front bezel is rated Type 4X, IP65. The mounting brackets
are locked in place to make it easy to mount the meter in
the panel. The removable screw terminal connectors make
for easy and convenient wiring.
Mounting Dimensions Units: Inch (mm)
1.76 (45)
2.50
(64)
2.45
(62)
0.59
(15)
3.2 (81)
3.6 (91)
3.61
(92)
4.68 (119)
Notes:
1. Panel cutout required: 1.772 x 3.622 (45 x 92)
2. Panel thickness: 0.040 – 0.250 (1.0 – 6.4)
3. Mounting brackets lock in place for easy mounting
2
Page 3
SABRE P • MODEL PD603 PROCESS METER
PROCESS INPUTS
The Sabre P meter is factory calibrated to accept 0-20,
4-20 mA, 0-5, 1-5, 0-10, and ±10 VDC. The meter can
be scaled with or without applying an input signal for any
display range required.

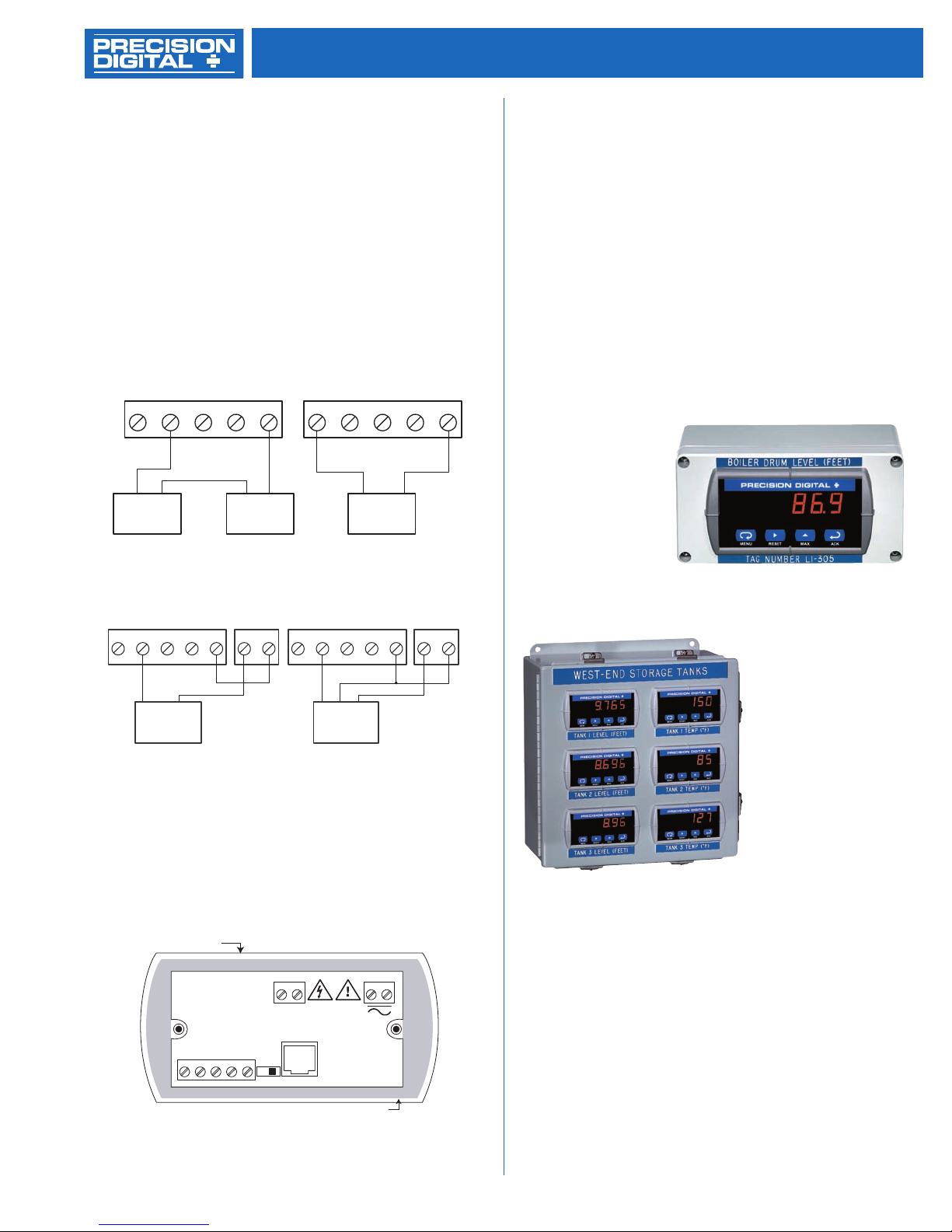

Current & Voltage Inputs
Setting up the meter to accept current or voltage input could
not be easier. All setup is performed with the front panel
buttons and there are no switches or jumpers to deal with.
The removable screw terminal connectors are clearly
labeled to prevent wiring errors.
SIGNAL
CONNECTOR
X
mA+
V+ X
21 3 54
COM
V+ X
- + + -
4-20 mA
Transmitter
External
Power
Supply
Transmitter Powered by External Supply
SIGNAL
CONNECTOR
X
mA+
21 3 54
+ -
Voltage
Signal
COM
OPTIONAL FIELD ENCLOSURES
The Sabre P process meter is available with a wide variety of
NEMA 4, NEMA 4X, and explosion-proof enclosures.
NEMA 4 & NEMA 4X Enclosures
The NEMA 4 and NEMA 4X enclosures are available
in stainless steel, steel, and plastic. They come with
pre-punched 1/8 DIN cutouts for up to ten meters. The
meters are mounted in the enclosure door so they can be
programmed without opening the enclosure. Options include
2" pipe mounting kits and engraved plastic labels.
Visit our website www.predig.com for complete details and
specifications of the NEMA 4 & NEMA 4X Enclosures.
Low-Cost Plastic NEMA 4X Enclosure
The PDA2801 is a
low-cost, compact,
plastic NEMA 4X
enclosure that will
house one meter.
SIGNAL SIGNAL
CONNECTOR
X
mA+
V+
21 3 54
- +
2-Wire
4-20 mA
Transmitter
X
COM
24V OUT
P+ P-
2 1
CONNECTOR
mA+
V+ X
Signal
X
21 3 54
+
-
3-Wire
4-20 mA
Transmitter
COM
24V OUT
P+ P-
2 1
Transmitters Powered by Internal Supply (optional)
Current Overload Protection
To protect the meter from unexpected current overload the
current input circuit contains an auto-resettable fuse. The
fuse limits the current to a safe level when it detects a fault
condition, and automatically resets itself when the fault
condition is removed.
Connectors Location
Front Bezel
24V OUT POWER
P+ P-
X
XV+ mA+ COM
3 41 2 5
Factory
Use
Only
Rear View
Meter with 24 V Transmitter Supply option
2 12 1
+
Gasket
-
Plastic, Steel & Stainless Steel
These NEMA 4
& 4X enclosures
house from one
to ten meters and
feature a hinged
door.
Enclosures and
meters are ordered
and packaged
separately.
Engraved Plastic Labels
These custom engraved plastic labels are the perfect
solution for identifying both the enclosure and labeling each
individual meter
Whether the meters are mounted in one of our
enclosures or installed into your existing control panel
these custom engraved plastic labels are the answer
you’re looking for!
Explosion-proof Enclosures
These explosion-proof enclosures house one or two meters
and are UL & C-UL Classified as NEMA 4, 7 & 9 for location
in Class I, Groups C & D; Class II, Groups E, F, G; and
Class III. Enclosures and meters are ordered and packaged
separately.
3
Page 4
SABRE P • MODEL PD603 PROCESS METER
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
Display: 0.56" (14.2 mm) red LED, 4 digits (-1999 to 9999)
Front Panel: NEMA 4X, IP65; panel gasket provided
Programming Methods: Four front panel buttons
Display Update Rate: 5/sec
overrange: Display flashes 9999
Underrange: Display flashes -1999
Recalibration: All inputs are calibrated at the factory;
recalibration is recommended at least every 12 months.
Max/Min Display: Stored until reset by user or meter is turned off.
Password: Restricts modification of programmed settings.
Non-Volatile Memory: Settings stored for a minimum of 10 years.
Power options:
or 12-36 VDC; 12-24 VAC, 6 W max.
Required Fuse: UL Recognized, 5 A max, slow-blow;
up to 6 meters may share one fuse.
Normal Mode Rejection: 64 dB at 50/60 Hz
Isolation: 4 kV input/output-to-power line;
500 V input-to-24 VDC supply
operating Temperature: 0 to 65°C
Storage Temperature: -40 to 85°C
Relative Humidity: 0 to 90% non-condensing
Connections: Removable screw terminal blocks accept
12 to 22 AWG. Note: RJ11 header for factory use only.
Enclosure: 1/8 DIN, high impact plastic, 94V-0, color; gray
Weight: 8.5 oz (241 g)
UL File Number: E160849; 508 Industrial Control Equipment
Warranty: 1 year parts & labor
Process Inputs
Inputs: Field selectable: 0-20 mA, 4-20 mA, 0-5, 1-5 V, ±10 V
Accuracy:
Function: Linear
Decimal Point: Up to 3 decimals: d.ddd, dd.dd, ddd.d, or dddd
Calibration: Scale without signal or calibrate with signal source
Calibration Range:
Input Impedance: Voltage range: greater than 1 MΩ,
Current Range: 50-100 Ω, varies with resettable fuse impedance
Input overload: Protected by auto-resettable fuse
Temperature Drift: ±50 PPM/°C
Transmitter Supply:
85-265 VAC, 50/60 Hz; 90-265 VDC, 20 W max
±0.05% FS ±1 count
User programmable over entire range of meter
Isolated, P+, P-: 24 VDC ±10% @ 200 mA max
ORDERING INFORMATION
Sabre P •Model PD603
85-265 VAC Model** 12-36 VDC** Model Description
PD603-6R0-0* PD603-7R0-0 Process Meter
PD603-6R0-1*
** All models may be powered from AC or DC, See Specifications for Details
* Quick Shipment Program product, typically shipped within 2 working days
Note: Factory orders for Sabre products require a ve (5) piece minimum of any
combination of Sabre (PD603 & PD743) products. For instance, an order of three (3)
PD603-6R0-0 and two (2) PD743-7R0-0 qualies. For information on individual unit
sales, please contact your local distributor.
NEMA 4 & NEMA 4X Enclosures
Model
PDA2501 1 Plastic NEMA 4X Enclosure Through Door
PDA2502 2 Plastic NEMA 4X Enclosure Through Door
PDA2503 3 Plastic NEMA 4X Enclosure Through Door
PDA2504 4 Plastic NEMA 4X Enclosure Through Door
PDA2505 5 Plastic NEMA 4X Enclosure Through Door
PDA2506 6 Plastic NEMA 4X Enclosure Through Door
PDA2508 8 Plastic NEMA 4X Enclosure Through Door
PDA2510 10 Plastic NEMA 4X Enclosure Through Door
PDA2512 2 Plastic NEMA 4X Enclosure (Large) Through Door
PDA2601 1 Stainless Steel NEMA 4X Enclosure Through Door
PDA2602 2 Stainless Steel NEMA 4X Enclosure Through Door
PDA2603 3 Stainless Steel NEMA 4X Enclosure Through Door
PDA2604 4 Stainless Steel NEMA 4X Enclosure Through Door
PDA2605 5 Stainless Steel NEMA 4X Enclosure Through Door
PDA2606 6 Stainless Steel NEMA 4X Enclosure Through Door
PDA2701 1 Steel NEMA 4 Enclosure Through Door
PDA2702 2 Steel NEMA 4 Enclosure Through Door
PDA2703 3 Steel NEMA 4 Enclosure Through Door
PDA2704 4 Steel NEMA 4 Enclosure Through Door
PDA2705 5 Steel NEMA 4 Enclosure Through Door
PDA2706 6 Steel NEMA 4 Enclosure Through Door
PDA2801* 1 Plastic NEMA 4X Enclosure Through Cover
* Quick Shipment Program product, typically shipped within 2 working days
# of
Meters
Description Mounting
