PD6080/PD6081 Modbus® Scanner

Instruction Manual

ERIES

Modbus Scanner

 Modbus® RTU Master, Slave, or Snooper Mode  Poll and Display up to 16 Process Variables  Two (2) 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs  Math functions Capabilities  Isolated 24 VDC @ 200 mA Transmitter Power Supply  Multi-Pump Alternation Control  Signal Input Conditioning for Flow & Round Horizontal Tank  Programmable Displays & Function Keys  32-Point, Square Root, or Exponential Linearization  Up to Three 4-20 mA Analog Outputs Available  Dual-Line Display  NEMA 4X and IP65 Rated Front Panel  UL Listed & CE Marked  Display Features 0.6" & 0.46" Digits  Six Full Digits on Each Line  Superluminous Sunlight Readable Display  Free USB Programming Software & Cable

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990

www.predig.com

Page 2

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents hereof; and specifically disclaim any implied warranties of merchantability or fitness for a particular purpose.

CAUTION

Read complete instructions prior to installation and operation of the scanner.

Risk of electric shock or personal injury. Hazardous

WARNING!

voltages exist within enclosure. Installation and service should be performed only by trained service personnel.

This product is not recommended for life support applications or applications where malfunctioning could

WARNING!

result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.

Registered Trademarks

PROVU® is a registered trademark of Precision Digital Corporation. Modbus® is a Registered Trademark of Schneider Automation Inc. All other trademarks mentioned in this document are the property of their respective owners.

www.predig.com

Page 3

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Table of Contents

Table of Contents ----------------------------------------- 3 Table of Figures ------------------------------------------- 4 Introduction ------------------------------------------------- 5 Ordering Information ------------------------------------ 6 Specifications ---------------------------------------------- 7

Operating Modes ---------------------------------------------- 7 Master & Snooper Settings --------------------------------- 7 PV Settings ------------------------------------------------------ 7 Display Settings ------------------------------------------------ 7 Math Functions ------------------------------------------------- 8 Serial Communications -------------------------------------- 8 General ------------------------------------------------------------ 8 Relays ------------------------------------------------------------- 9 Isolated 4-20 mA Transmitter Output ------------------- 9 Dual Process Input -------------------------------------------- 9  MeterView Pro -------------------------------------------------- 9

Compliance Information ------------------------------ 10

Safety ------------------------------------------------------------ 10 Electromagnetic Compatibility -------------------------- 10

Safety Information -------------------------------------- 11 Installation ------------------------------------------------ 11

Unpacking ------------------------------------------------------ 11 Panel Mounting ----------------------------------------------- 11

Mounting Dimensions ------------------------------------ 12

Transmitter Supply Voltage Selection (P+, P-) ---- 13 Connections --------------------------------------------------- 1 4 

Connectors Labeling -------------------------------------- 14 Power Connections --------------------------------------- 14 Serial Communications Connection ------------------ 15 Serial Communications Connections Table --------- 16 F4 Digital Input Connections ---------------------------- 16 Relay Connections ---------------------------------------- 17 Switching Inductive Loads ------------------------------- 17 4-20 mA Output Connections --------------------------- 18 Analog Output Transmitter Power Supply ----------- 18 External Relay, Analog Output, & Digital I/O Connections ------------------------------------------------- 18 Interlock Relay Feature ---------------------------------- 18 Analog Input Signal Connections ---------------------- 19

Setup and Programming ------------------------------ 20

Overview -------------------------------------------------------- 20 Front Panel Buttons and Status LED Indicators -- 20 Display Functions & Messages ------------------------- 21 ScanView Software ----------------------------------------- 24

ScanView Installation ------------------------------------- 24

Menu Navigation Tip ---------------------------------------- 25 Setting Numeric Values ----------------------------------- 25 Main Menu ----------------------------------------------------- 2 5  Serial Communications (serial) ----------------------- 26 Scanner Mode Selection ---------------------------------- 27 Operating Modes (nmode) --------------------------------- 27 How to Enable Process Variables (PVs) ------------- 27

Master Mode (nmastr) ----------------------------------- 28

Snooper Mode (Snoopr) ----------------------------------- 29 How to Select 5 or 6-Digit Registers ------------------ 30

Slave Mode (Slave) -------------------------------------- 30

Setting Up the Scanner (setup) ------------------------- 31

Setting Up the Process Variables (PVs) (pv setup)

----------------------------------------------------------------- 32 Setting the Display Decimal Point (disp.dp) -------- 32 Setting the Float Decimal Point (Flot..dp) ----------- 32 Scaling the PV Display Values (sCale) -------------- 33 Scale Menu ------------------------------------------------- 33

Setting Up the Displays (dsplay setup) ------------- 34

Display Line 1 Parameters (Line 1 dsplay) ------ 34 Display Line 2 Parameters (Line 2 dsplay) ------ 34 Display Intensity (d-IntY) ------------------------------- 34 Display Line 1 Menu (Line 1 dsplay) -------------- 35 Display Line 2 Menu (Line 2 dsplay) -------------- 36 Setting the Tags (tAg) & Units (units) -------------- 37 Application Example 1 ----------------------------------- 37 Application Example 2 ----------------------------------- 40

Setting the Relay Operation (relay) ------------------ 41

Relay Setup Menu (relay setup) ------------------- 41 Setting the Relay Action (act 1) ---------------------- 42 Programming Set (set) & Reset (rst) Points ------ 42 Setting Fail-Safe Operation (failsf) ---------------- 42 Programming Time Delay (delay) -------------------- 42 Relay Action for Communications Break (break) - 43 Relay Action for Loss of 4-20 mA Input (Loop Break)

----------------------------------------------------------------- 43

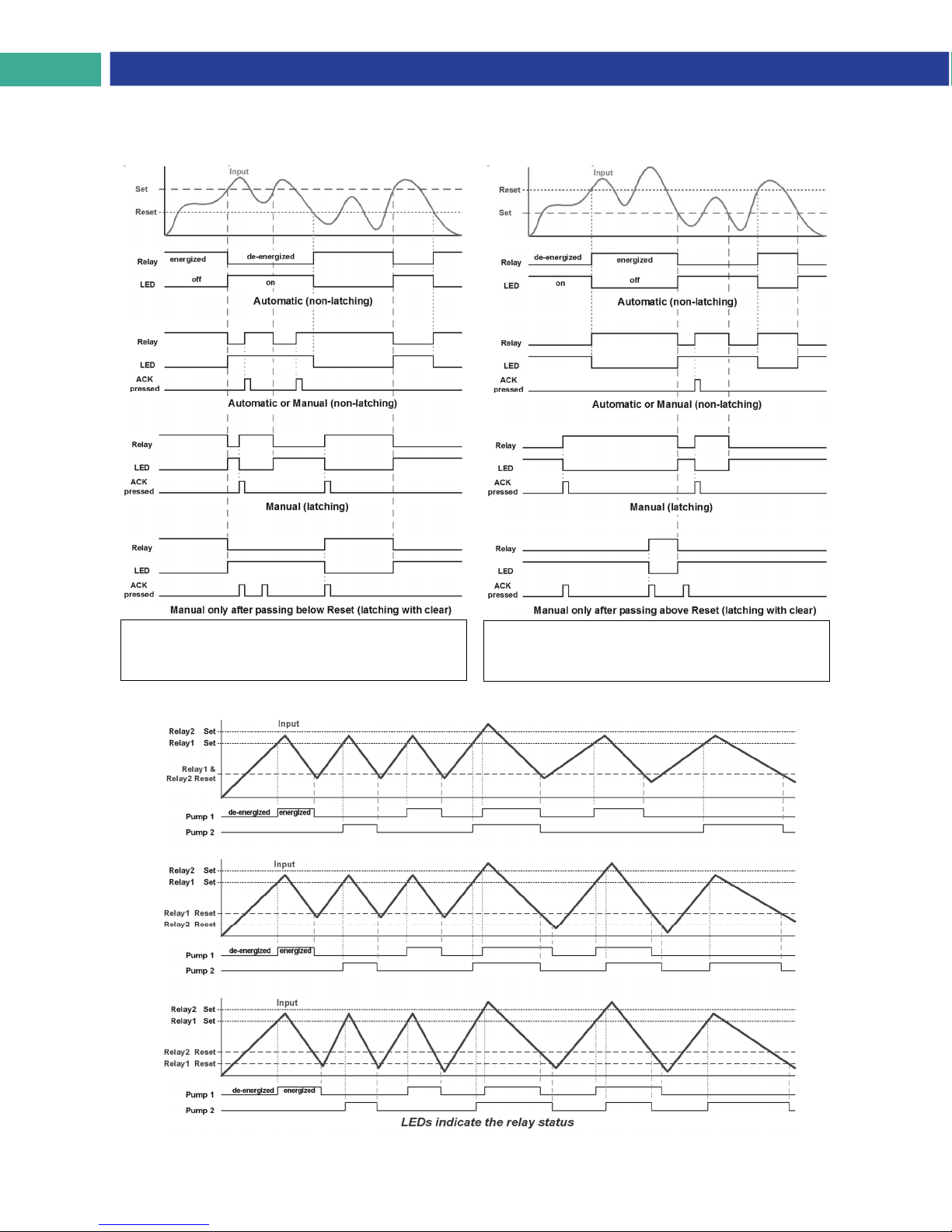

Relay and Alarm Operation Diagrams ---------------- 43

High Alarm Operation (Set > Reset) ------------------ 43 Low Alarm Operation (Set < Reset) ------------------ 43 High Alarm with Fail-Safe Operation (Set > Reset)

----------------------------------------------------------------- 44 Low Alarm with Fail-Safe Operation (Set < Reset) 44 Pump Alternation Control Operation ------------------ 44 Relay Sampling Operation ------------------------------ 45 Relay Operation After Communications Break ---- 45 Signal Loss or Loop Break Relay Operation ------- 46 Time Delay Operation ------------------------------------ 46

Relay Operation Details ----------------------------------- 47

Overview ----------------------------------------------------- 47 Relays Auto Initialization -------------------------------- 47 Fail-Safe Operation (failsf) -------------------------- 47



Front Panel LEDs ----------------------------------------- 47 Latching and Non-Latching Relay Operation ------- 48 Non-Latching Relay (Auto) ----------------------------- 48 Non-Latching Relay (A-man) ------------------------- 48 Latching Relay (LatcH) ---------------------------------- 48 Latching Relay (Lt-Clr) --------------------------------- 48 Acknowledging Relays ----------------------------------- 49 Pump Alternation Control Applications (Altern) -- 49 Setting Up the Interlock Relay (Force On) Feature 50

Scaling the 4-20 mA Analog Output (Aout) --------- 51 Setting Up the Password (pass) ------------------------ 52

Protecting or Locking the Scanner -------------------- 52 Making Changes to a Password Protected Scanner

----------------------------------------------------------------- 52 Disabling Password Protection ------------------------ 52

Advanced Features Menu -------------------------------- 53 Advanced Menu Navigation Tips: ---------------------- 53

Advanced Features Menu & Display Messages --- 54 Scan Function (SCan) ------------------------------------ 56 Control Menu (Contrl) ---------------------------------- 56 Noise Filter (filter) ------------------------------------- 57 Noise Filter Bypass (bypass) --------------------------- 57



Page 4

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Rounding Feature (round) ------------------------------ 57 Select Menu (SELect) ------------------------------------ 57 Low-Flow Cutoff (CutofF) ------------------------------- 65 Analog Output Source Programming (aoutpr) ---- 66 User Menu (user) ----------------------------------------- 67 Digital Input Menu (dI 1) -------------------------------- 68 Digital Output Menu (dO 1) ----------------------------- 68 Reset Menu (reset) -------------------------------------- 68 4-20 mA Output Calibration ----------------------------- 69 Input Calibration (ICAL) ---------------------------------- 70 Recalibrating the Analog Input Channels (Ch-A & Ch-B) --------------------------------------------------------- 7 0

Diagnostics Menu (diag) ---------------------------------- 72

Determining Software Version ------------------------- 72 Reset Scanner to Factory Defaults ------------------- 72 Testing the Display LEDs ------------------------------- 72

Scanner Operation -------------------------------------- 73

Front Panel Buttons Operation ------------------------- 73 Function Keys Operation --------------------------------- 73 F4 Operation -------------------------------------------------- 73 Maximum/Minimum Readings --------------------------- 73 Factory Defaults & User Settings ---------------------- 74

EU Declaration of Conformity ----------------------- 77



Troubleshooting ----------------------------------------- 71

Table of Figures

Figure 1. 1/8 DIN Panel Cutout Dimensions & Panel

Mounting Details ------------------------------------------ 11

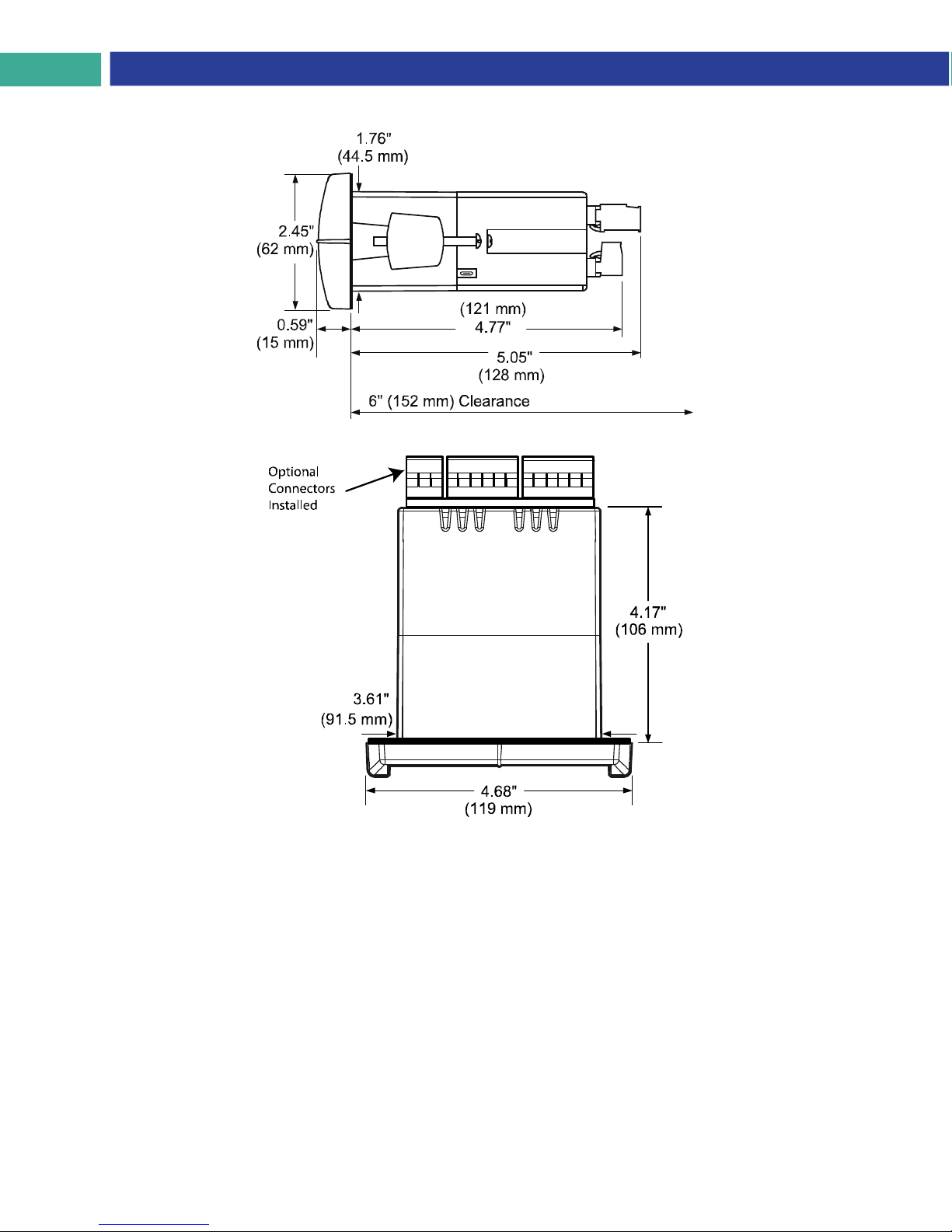

Figure 2. Scanner Dimensions - Side View ------------- 12 Figure 3. Scanner Dimensions - Top View -------------- 12 Figure 4. Transmitter Supply Voltage Selection ------ 13 Figure 5. Connector Labeling for Fully Loaded

PD6080/6081 ----------------------------------------------- 14

Figure 6. Power Connections ------------------------------- 14 Figure 7. Serial Communications Connections ------- 15 Figure 8. Three-Wire RS485 Connection ---------------- 16 Figure 9. F4 Digital Input Connections------------------- 16 Figure 10. Relay Connections ------------------------------ 17

Figure 11. AC and DC Loads Protection ---------------- 17



Figure 12. Low Voltage DC Loads Protection --------- 17 Figure 13. 4-20 mA Output Connections ---------------- 18 Figure 14. Interlock Connections -------------------------- 18 Figure 15. Transmitters Powered by Internal Supply 19 Figure 16. Transmitter Powered by Ext. Supply or

Self-Powered ----------------------------------------------- 19



Figure 17. Voltage Input Connections ------------------- 19 Figure 18. Acknowledge Relays with F4 Function Key

------------------------------------------------------------------ 49

Figure 19. Acknowledge Relays with Digital Input -- 49



Page 5

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Introduction

The PROVU

PD6080/6081 Super Snooper Modbus

digital scanner that can be programmed as a Modbus RTU Master, Slave, or Snooper. It is capable of scanning up to 16 variables generated by any Modbus device, which makes it ideal for tank level monitoring and control. Its superluminous LED digits make it easily readable in smoke, dust, fog, and, with the optional SunBright® display, even direct sunlight. The PD6080 displays in decimal format, while the PD6081 displays in Feet & Inches.

As a master, the PD6080/6081 reads up to 16 slave devices, scales the data from each, displays the result, and operates the internal relays and 4-20 mA output. The PD6080/6081 in Master mode is capable of polling up to 16 process variables (PVs); it displays all the enabled PVs in sequence, at a user programmable scan rate; it also allows other PD6080/6081s in Snooper mode to read any of the variables being polled by the master. As a snooper, the PD6080/6081 listens to the Modbus traffic and picks up a specific register or registers being polled by a master device from a specific slave device and processes the data being read. As a slave, it is controlled by a master device. The data sent to it by the master is scaled, displayed, and used to operate the relays and 4-20 mA output.

The PD6080/6081 Super Snooper is housed in a 1/8 DIN panel scanner enclosure that features a NEMA 4X front panel. Data is displayed on an adjustable intensity, dual-line, six-digit display. The upper display is a 0.6 inch, seven-segment LED display, while the lower display digit height is 0.46 inches. The Super Snooper can be powered from 85-265 VAC or 12-36 VDC. It is available with up to 4 internal relays and is available with 4 additional relays and up to 8 digital inputs/outputs, as well as a dual 4-20 mA output expansion module, as options.

The PD6080/6081 comes equipped with dual analog input channels (4-20 mA and/or 0-10 VDC) for use in Master Mode. These can be assigned to mA or volts by mapping a PV to the internal scanner addresses 256-259, depending on the desired function.

Various math functions may be applied to the Modbus and analog inputs including addition, difference, absolute difference, average, weighted average, multiplication, division, minimum, maximum, draw, ratio, and concentration. This is in addition to the signal input conditioning functions (linear, square root, programmable exponent, or round horizontal tank calculations). The displays, relays, and the analog outputs may be assigned to PVs or to math channels C1, C2, C3, or C4. The digital inputs/outputs can be custom-programmed for specific operations. A digital input (F4) is standard.

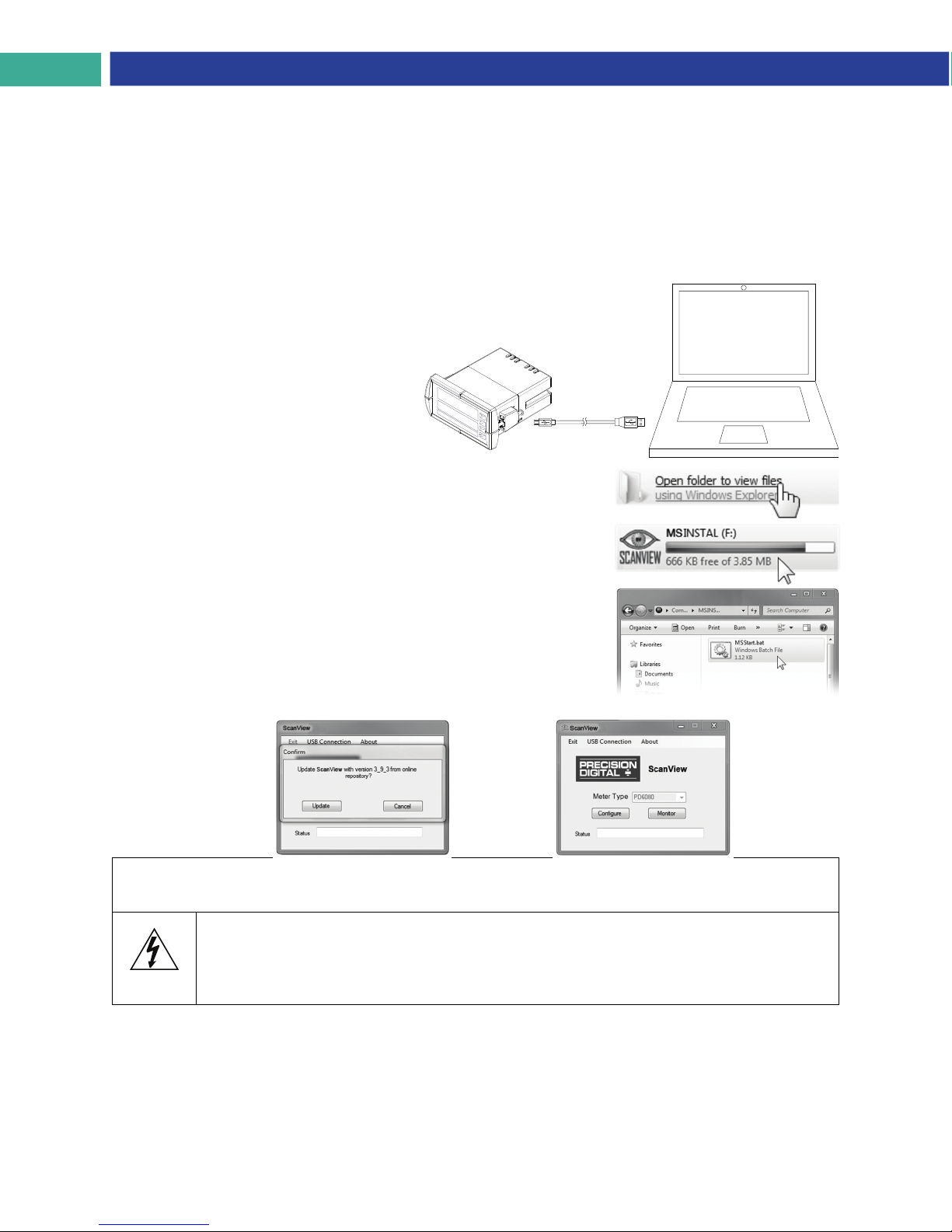

Free ScanView software allows a Super Snooper Modbus Scanner to be accessed with a computer. Configure multiple scanners, conveniently monitor critical information, and Datalog right from a PC with ease, further increasing plant efficiency.

Scanner is a multi-purpose, easy-to-use

Page 6

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual



Ordering Information

SunBright Decimal Display Models

ROVU's SunBright display models have an extraordinarily bright LED display. They are perfect for

applications where the scanner is in direct sunlight or in applications where visibility may be impaired by smoke, fog, dust, or distance.

85-265 VAC Power Model 12-24 VDC Power Model Options Installed

PD6080-6H0 PD6080-7H0 No options PD6080-6H2 PD6080-7H2 2 relays (PD1102*) PD6080-6H3 PD6080-7H3 4-20 mA output (PD1103*) PD6080-6H4 PD6080-7H4 4 relays (PD1104*) PD6080-6H5 PD6080-7H5 2 relays & 4-20 mA output (PD1105*) PD6080-6H7 PD6080-7H7 4 relays & 4-20 mA output (PD1107*) *Model number for replacement option card.

SunBright Feet & Inches Display Models

PD6081-6H0 PD6081-7H0 No options PD6081-6H2 PD6081-7H2 2 relays (PD1102*) PD6081-6H3 PD6081-7H3 4-20 mA output (PD1103*) PD6081-6H4 PD6081-7H4 4 relays (PD1104*) PD6081-6H5 PD6081-7H5 2 relays & 4-20 mA output (PD1105*) PD6081-6H7 PD6081-7H7 4 relays & 4-20 mA output (PD1107*) *Model number for replacement option card.

Accessories

Model Description

PDA1002 DIN rail mounting kit for two expansion modules PDA1004 4 SPST (Form A) relays PDA1011 Dual 4-20 mA expansion module PDA1044 4 digital inputs & 4 digital outputs (2 may be connected) PDA1485 RS-485 serial adapter - (Included with PD6080 and PD6081) PDA7485-I RS-232 to RS-422/485 isolated converter PDA7485-N RS-232 to RS-422/485 non-isolated converter PDA8485-I USB to RS-422/485 isolated converter PDA8485-N USB to RS-422/485 non-isolated converter PDX6901

Suppressor (snubber): 0.01 µF/470

, 250 VAC

Page 7

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Specifications

Except where noted all specifications apply to operation at +25°C.

Operating Modes

Master Processes data read from Modbus RTU

Snooper Listens to the Modbus traffic and picks up a

Slave Processes data sent to it from a Modbus

Note: The relays and the 4-20 mA outputs are functional in

all modes.

slave devices. It polls up to 16 process variables from 1 to 16 slave devices. The Master is capable of scanning the selected PVs, scaling the data, triggering relays, performing math operations, and driving the analog outputs.

specific register or registers being polled by a master device from a specific slave device and processes the data being read. The Snooper mode handles the data the same way as the Master.

RTU master device.

Master & Snooper Settings

PV Number PV1–PV16 Enable or disable the process

Slave Id Assign the slave ID or address (1-247, 256-

Function Code

Data Type Select the data format that the slave device

Poll Time 1.0 to 99.9 sec. Time between read-

Slave Response Timeout

variables to be polled by the Master.

259 for mA or volts inputs) containing the process variables to be displayed by the selected PV.

Select which Modbus function code (03, 04, or 65) to use in reading the slave device.

5 digit: 30001-39999, 40001-49999, or 165,536 6 digit: 300001-365536 or 400001-465536 (Function Code 65 N/A here) Specifies which register(s) to read in the slave device. Range is dependent on Function Code selection (65, 04, or 03) and digits selection (5 or 6).

uses. Select between Short integer (2 byte), Long integer (4 byte), or floating point (4 byte), Signed or Unsigned (integer only) and byte order: 1234, 4321, 2143, or 3412 (bigendian vs. little-endian, or swapped).

commands (Master mode).

0.0 to 99.9 seconds: Time allowed for the slave to respond before the scanner generates a communication break condition. The master polls the slave 3 times before starting the response timeout timer.

Slave/Snooper mode: Time the scanner will wait for new data before going into break condition.

Slave mode: Programming 0 disables the timeout; the last value received will be displayed indefinitely.

Communicati on Break

PV Settings

Tag & Units 6-character, independent tag and units for

PV Format PD6080 default: Decimal format

Display Decimal Point

Float Decimal Point

Pv & Math Scaling

Display Settings

Scan Mode Automatic: 1.0 to 99.9 sec

Display Scan Rate

Display Assignment

Displays “brEAK” after the Master has polled the slave device 3 times and the response timeout has elapsed. The Snooper and Slave modes go into break condition after no new data is received within the response timeout window. Relays can be programmed to go on, off, or ignore the break condition. The analog outputs can be setup to generate a fixed mA current when a break condition is detected.

each PV and math channel

PD6081 default: FT & IN, 1/8 decimal format may be selected for bottom display indication.

Up to five decimal places or none: d . ddddd,

dd . dddd, ddd . ddd, dddd . dd, ddddd . d, or dddddd

Select the number of decimals to use for the floating point data expected from the slave or master device (this is independent from the display decimal point selection).

All PVs and math channels may be scaled to represent the input data in any engineering unit. Example: Level transmitter = 999.999 inches; to display in Ft-In-1/16 2 to display 83 Ft – 4 In – 0/16

Manual: Front panel or digital inputs Go on alarm: Continues scanning after an

alarm is detected Stop on alarm: Goes to the alarmed PV and

stops scanning; press Scan to resume scanning.

Master/Snooper: 1 PV/second to 1 PV every

99.9 seconds Slave: Dependent on master device (e.g. PLC)

Note: The display scan rate is independent of the poll time.

Display line 1 may be assigned to PV (process values), Ch-C (math channel), PV & units, tag & PV, tag-PV-units, C & units, tag-C-unit, Set point 1-8, max/min PV, max/min C.

Line 2 may be assigned to all of the above, tag, tag & units, or off.

The tag and units are displayed alternately for 2 sec max, when selected.

Different tags & PVs may be selected to display on line 1 & 2 at the same time.

or 1/16th;

scale input

Page 8

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Math Functions

Name Math Operation (Examples)

Addition (PV1+PV2+P)*F Difference (PV1-PV2+P)*F Absolute

difference Average (((PV1+PV2)/2)+P)*F Multiplication ((PV1*PV2)+P)*F Division ((PV1/PV2)+P)*F Max PV Max value of all selected PVs Min PV Min value of all selected PVs Draw ((PV1/PV2)-1)*F Weighted

average

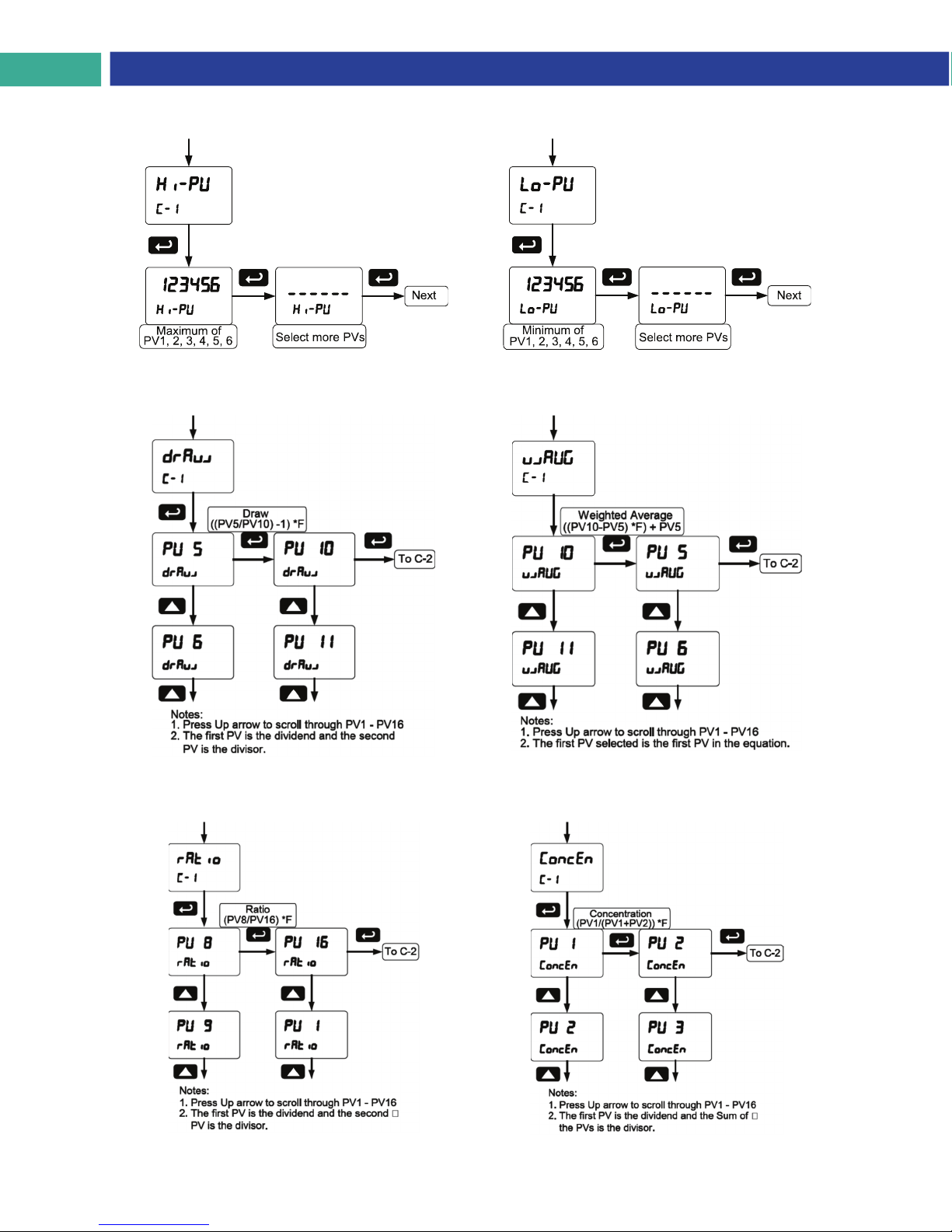

Ratio (PV1/PV2)*F Concentration (PV1/(PV1+PV2))*F Math 2 Math on other math channels

Programmable Constants

(P = Adder, F = Factor)

((Abs(PV1- PV2)+P)*F

((PV2-PV1)*F)+PV1

Constant P (Adder): -99.999 to 999.999, default: 0.000

Constant F (Factor): 0.001 to 999.999, default: 1.000

Setting

Sunm diF diFAbS

AvG Nmulti divide Hi-pv Lo-pv drAuw uwavg

Ratio Concen Nmath2

Serial Communications

Scanner Id 1 – 247 (Scanner Modbus address)

Baud Rate 300 – 19,200 bps

Transmit Time Delay

Data 8 bits (1 start bit, 1 or 2 stop bits)

Parity Even, Odd, or None with 1 or 2 stop bits

Byte-To-Byte Timeout

Turn Around Delay

Note: Refer to the PROVU® Scanner Modbus Register Tables located at www.predig.com.

Programmable 0 to 4999 ms This is the time the scanner will wait for a

slave to respond before sending another request on the bus. This value should be greater than 100 ms to avoid collisions on the bus.

0.01 – 2.54 second

Less than 2 ms (fixed)

General

Input/output Modbus RTU over RS-485, Two analog

Display Upper display: 0.60" (15 mm) high, red

Display Intensity

Overrange Values greater than 999999 cause the

Underrange Values less than -99999 cause the

Programming Methods

inputs (4-20 mA, 10 V)

LEDs Lower display: 0.46" (12 mm) high, red LEDs 6 digits each (-99999 to 999999), with lead zero blanking

Eight user selectable intensity levels

display to flash 999999

display to flash -99999

Four front panel buttons, digital inputs, PC and ScanView software, or Modbus registers.

Max/Min Display

Password

F4 Digital Input Contacts

F4 Digital Input Logic Levels

Non-Volatile Memory

Power Options

Fuse Required external fuse: UL Recognized, 5

Isolated Transmitter Power Supply

Isolation 4 kV input/output-to-power line. 500 V

Overvoltage Category

Environmental Operating temperature range: -40 to 65°C

Connections Removable screw terminal blocks accept

Enclosure 1/8 DIN, high impact plastic, UL 94V-0,

Mounting 1/8 DIN panel cutout required: 3.622” x

Tightening Torque

Overall Dimensions

Weight 9.5 oz (269 g)

Warranty 3 years parts and labor

Max/min readings are stored until reset by the user or when power to the scanner is turned off. User can reset by front panel pushbuttons, digital input, or via Modbus registers.

Three programmable passwords restrict modification of programmed settings.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs.

50k ohm pull-up to 3.3 VDC. Connect normally open contacts across F4

to COM.

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

All programmed settings are stored in nonvolatile memory for a minimum of ten years, with or without power.

85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24 VDC  10%, 15 W max Powered over USB for configuration only.

A max, slow blow; up to 6 scanners may share one 5 A fuse

Terminals P+ & P- : 24 VDC  10%. Selectable for 24, 10, or 5 VDC supply (internal jumper J4).

85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, 5 or 10 VDC supply rated @ 50 mA max.

input-to-output or output-to-P+ supply

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Storage temperature range: -40 to 85°C Relative humidity: 0 to 90% noncondensing

12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.

color: black

1.772” (92 mm x 45 mm) Two panel mounting bracket assemblies are provided.

Screw terminal connectors: 5 lb-in (0.56 Nm)

2.45" x 4.68" x 4.19" (62 mm x 119 mm x 106 mm) (H x W x D)

Page 9

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual



Relays

Rating 2 or 4 SPDT (Form C) internal and/or 4

Noise Suppression

Electrical Noise Suppression

Deadband 0-100% of span, user programmable

High or Low Alarm

Relay Operation

Relay Reset User selectable via front panel buttons,

Time Delay 0 to 999.9 seconds, on & off relay time

Fail-Safe Operation

Auto Initialization

Isolated 4-20 mA Transmitter Output

Output Source PV1-16, math channels C1-4, set points 1-

Scaling Range 1.000 to 23.000 mA for any display range

Calibration Factory calibrated: 4.000 to 20.000 = 4-20

Analog Out Programming

SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise suppression is recommended for each relay contact switching inductive loads.

A suppressor (snubber) should be connected to each relay contact switching inductive loads to prevent disruption to the microprocessor’s operation. Recommended suppressor value:

0.01 µF/470 , 250 VAC (PDX6901).

User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).

Automatic (non-latching) Latching (requires manual acknowledge) Sampling (based on time) Pump alternation control (2 to 8 relays) Off (disable unused relays and enable Interlock feature) Manual on/off control mode

digital inputs, or PC

1. Automatic reset only (non-latching), when the input passes the reset point.

2. Automatic + manual reset at any time (non-latching)

3. Manual reset only, at any time (latching)

4. Manual reset only after alarm condition has cleared (L)

Note: Front panel button or digital input

may be assigned to acknowledge relays programmed for manual reset.

delays Programmable and independent for each relay

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm

condition. In case of power failure, relay will go to alarm state.

When power is applied to the scanner, relays will reflect the state of the input to the scanner.

8, or manual control mode

mA output

23.000 mA maximum for all parameters:

Overrange, underrange, max, min, and break

Communicatio Break

Accuracy ± 0.1% of span ± 0.004 mA

Temperature Drift

Isolated Transmitter Power Supply

External Loop Power Supply

Output Loop Resistance

Programmable mA output when a slave device does not reply within the response timeout.

0.4 µA/C max from 0 to 65C ambient, 0.8 µA/C max from -40 to 0C ambient.

Note: Analog output drift is separate from input drift.

Terminals I+ & R: 24 VDC  10%. May be used to power the 4-20 mA output or other devices. Refer to Figure 5 on page 14 and Figure 13 on page 18. models rated @ 40 mA max.

35 VDC maximum

Power supply Minimum Maximum

24 VDC

35 VDC (external)

10  700 

100  1200 

Dual Process Input

Two Inputs Two non-isolated analog inputs, each

Pv Analog Channel Id

Accuracy ±0.03% of calibrated span ±1 count,

Temperature Drift

Signal Input Conditioning

Multi-Point Linearization

Programmable Exponent

Low-Flow Cutoff

Calibration Range

Input Impedance

Input Overload

separately field selectable: 0-20 mA, 4-20 mA; 10 V (0-5, 1-5, 0-10 V)

Ch-A mA: Assign PV to ID 256 or Ch-A volt: 257;

Ch-B mA: Assign PV to ID 258 or Ch-B volt: 259

square root & programmable exponent accuracy range: 10-100% of calibrated span

0.005% of calibrated span/C max from 0 to 65C ambient,

0.01% of calibrated span/C max from -40 to 0C ambient

Linear, square root, programmable exponent, or

round horizontal tank volume calculation 2 to 32 points for PV1 and PV2

1.0001 to 2.9999

0-999999 (0 disables cutoff function) for PV1 and PV2

Input Range

4-20 mA 0.15 mA

10 V

An error message will appear if the input 1 & input 2 signals are too close together.

Voltage ranges: greater than 500 k Current ranges: 50 - 100  (depending on resettable fuse impedance)

Current input protected by resettable fuse, 30 VDC max. Fuse resets automatically after fault is removed.

Minimum Span Input 1 & Input 2

0.01 V

MeterView Pro

System Requirements

Communicatio ns

Configuration Configure meters one at a time

Microsoft® Windows® XP/Vista/7/8/10

USB 2.0 (Standard USB A to Micro USB B)

Page 10

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Compliance Information

Safety

UL & c-UL LISTED USA & Canada

UL 508 Industrial Control Equipment

UL FILE NUMBER FRONT PANEL LOW VOLTAGE

DIRECTIVE

Electromagnetic Compatibility

EMISSIONS EN 55022:2010

Radiated Emissions

AC Mains Conducted Emissions

IMMUNITY EN 61326-1:2013

RFI - Amplitude Modulated

Electrical Fast Transients

Electrostatic Discharge

RFI - Conducted 10V, 0.15-80 MHz, 1kHz 80% AM AC Surge ±2kV Common, ±1kV Differential Surge 1KV (CM) Power-Frequency

Magnetic Field Voltage Dips

Voltage Interruptions

Note:

Testing was conducted on PD6000 Series meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance.

Declaration of Conformity available at www.predig.com

E160849 UL Type 4X, NEMA 4X, IP65; panel gasket provided EN 61010-1:2010

Safety requirements for measurement, control, and laboratory use

Class A ITE emissions requirements Class A

Class A

Measurement, control, and laboratory equipment EN 61000-6-2:2005 EMC heavy industrial generic immunity standard

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz) ±2kV AC mains, ±1kV other

±4kV contact, ±8kV air

30 A/m 70%V for 0.5 period

40%V for 5 & 50 periods 70%V for 25 periods

<5%V for 250 periods

Page 11

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Safety Information

CAUTION: Read complete instructions prior to

installation and operation of the scanner.

WARNING: Risk of electric shock or

personal injury.

Hazardous voltages exist within enclosure.

Warning!

Installation and service should be performed only by trained service personnel.

Installation

There is no need to remove the scanner from its case to complete the installation, wiring, and setup of the scanner.

Unpacking

Remove the scanner from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier. If any part is missing or the scanner malfunctions, please contact your supplier or the factory for assistance.

Panel Mounting

 Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x 45 mm). Refer to Figure 1 for

more details.

 Clearance: allow at least 6" (152 mm) behind the panel for wiring.  Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).

Recommended minimum panel thickness to maintain Type 4X rating: 0.06" (1.5 mm) steel panel,

0.16" (4.1 mm) plastic panel.

 Remove the two mounting brackets provided with the scanner (back-off the two screws so that there is

¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).

 Insert scanner into the panel cutout.  Install mounting brackets and tighten the screws against the panel. To achieve a proper seal, tighten

the mounting bracket screws evenly until scanner is snug to the panel along its short side. DO NOT OVER TIGHTEN, as the rear of the panel may become damaged.

3.622" (92 mm)

Square Corners to 0.060"

1.772"

(45mm)

(1.5mm) Max Radius

Panel Cutout

to DIN 43700

Tolerances: A: +0.032 (+0.8mm)

-0.000 (-0.0mm) B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

Figure 1. 1/8 DIN Panel Cutout Dimensions & Panel Mounting Details

Page 12

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Mounting Dimensions

Figure 2. Scanner Dimensions - Side View

Figure 3. Scanner Dimensions - Top View

Page 13

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

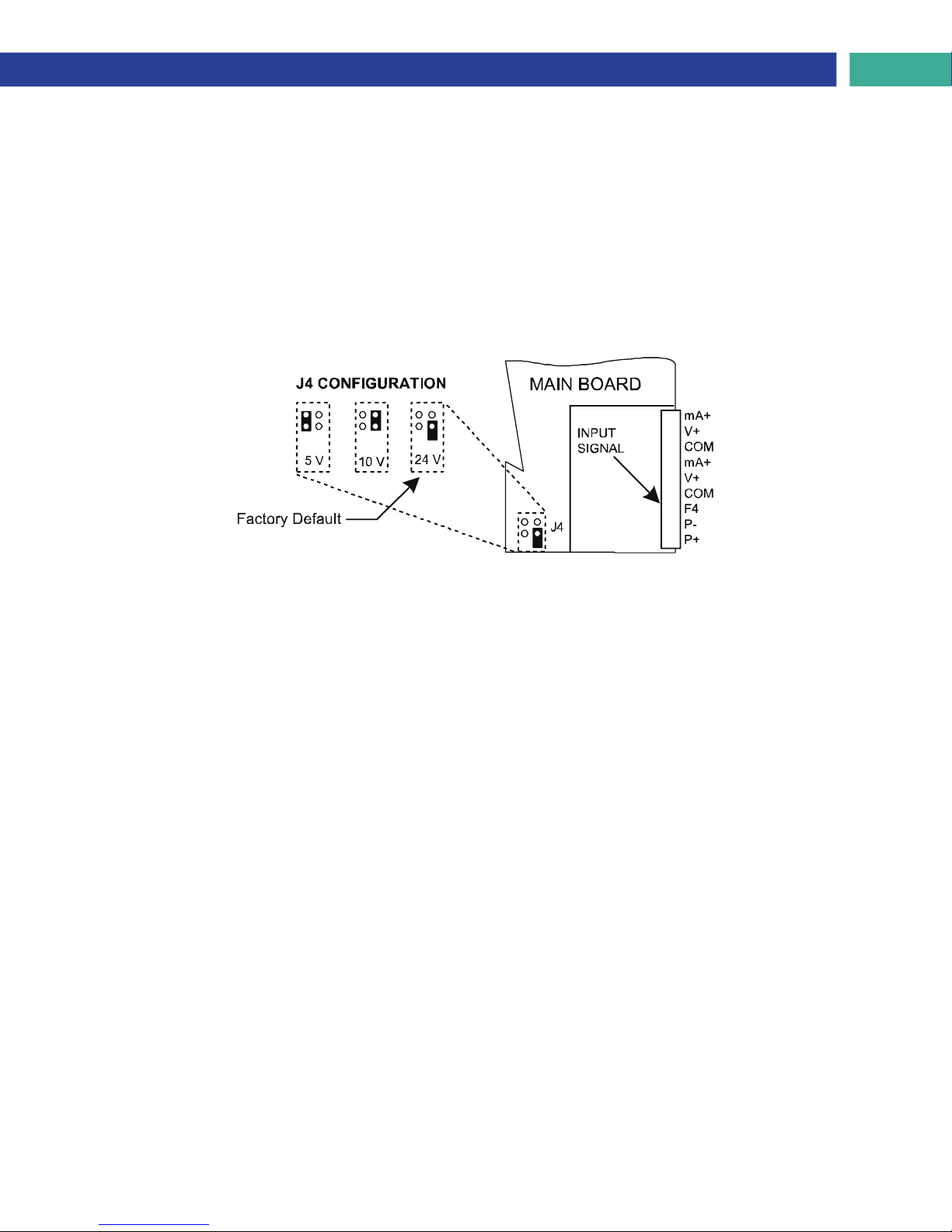

Transmitter Supply Voltage Selection (P+, P-)

All scanners, including models equipped with the 12-24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the transmitter or sensor. If the transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

To access the voltage selection jumper:

1. Remove all the wiring connectors.

2. Unscrew the back cover.

3. Slide out the back cover by about 1 inch.

4. Configure the J4 jumper, located behind the input signal connector, for the desired excitation voltage as shown.

Figure 4. Transmitter Supply Voltage Selection

Page 14

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Connections

All connections are made to removable screw terminal connectors located at the rear of the scanner.

Caution!

Connectors Labeling

The connectors’ label, affixed to the scanner, shows the location of all connectors available with requested configuration.

Warning!

Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent damage to the scanner and ensure personnel safety.

Do not connect any equipment other than Precision Digital’s expansion modules, cables, or scanners to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the scanner.

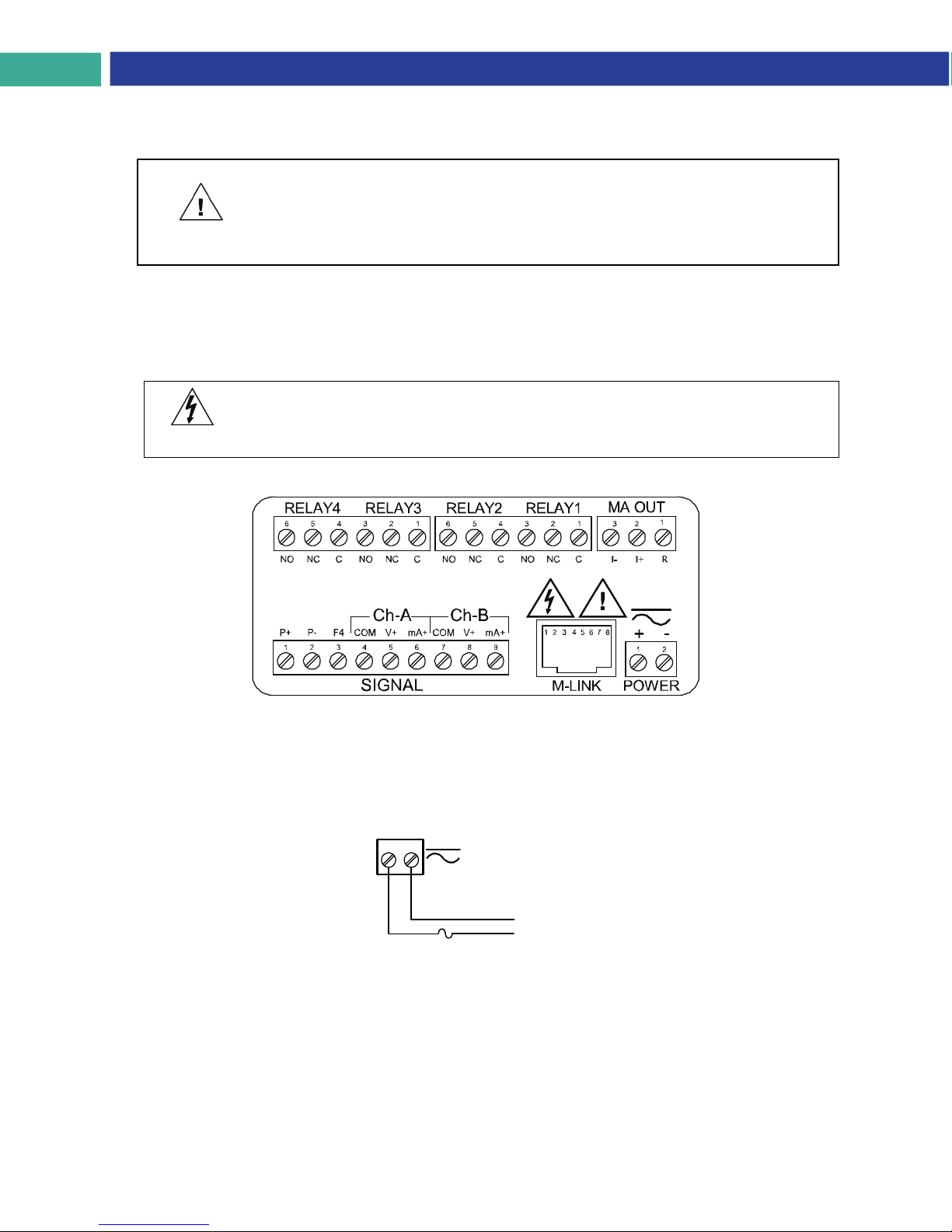

Figure 5. Connector Labeling for Fully Loaded PD6080/6081

Power Connections

Power connections are made to a two-terminal connector labeled POWER on the back of the scanner. The scanner will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention.

POWER

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

Figure 6. Power Connections

Page 15

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Serial Communications Connection

Serial communications connection is made to an RJ45 connector labeled M-LINK on the back of the scanner. The Modbus Scanner uses the PDA1485 RS-485 adapter to interface with other Modbus devices and the PDA8485 RS-485 to USB converter or PDA7485 RS-232 to RS-485 converter to connect to a PC. The same port is used for interfacing with all expansion modules (e.g. external relays, digital I/O).

Figure 7. Serial Communications Connections

Page 16

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Serial Communications Connections Table

The table below shows the terminal connections for 3-wire RS-485 devices.

PD6080/6081

Master

PDA1485

RS-485 Adapter

DODI

Three Wire Connections

In order to wire the 5 pins for use as a 3-wire half-duplex RS-485 connection, it is necessary to create a jumper connection between DI – DO and DI- – DO- as shown below.

PD6080/6081

Snooper

PDA1485

RS-485 Adapter

DODI DODI

Connection

PDA8485

RS-485 to USB

Modbus

Slave Meter

RS-485 RS-485

G GND

D- A (-)

D+ B (+)

Modbus

Level Gauge

F4 COM DI DI DO DO

Figure 8. Three-Wire RS485 Connection

1 2 3 4 51 2

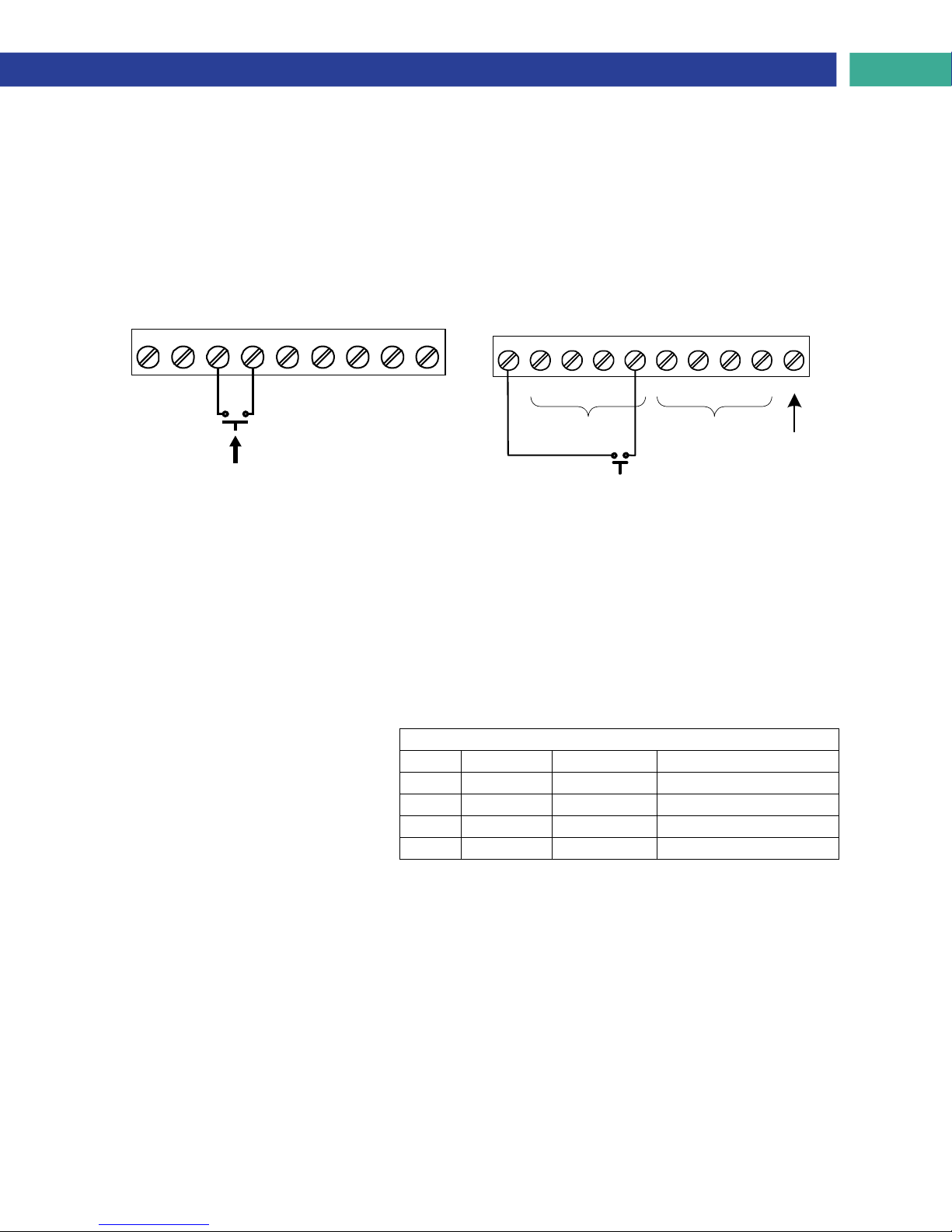

F4 Digital Input Connections

A digital input, F4, is standard on the scanner. This digital input connected with a normally open closure across F4 and COM, or with an active low signal applied to F4.

P- F4P+ COM V+

3412 5

Ack

Figure 9. F4 Digital Input Connections

mA+ COM V+ mA+

7869

Page 17

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4 on the back of the scanner. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

RELAY4 RELAY3

4365 21

CNONO NC NC C

RELAY2 RELAY1

4365 21

CNONO NC NC C

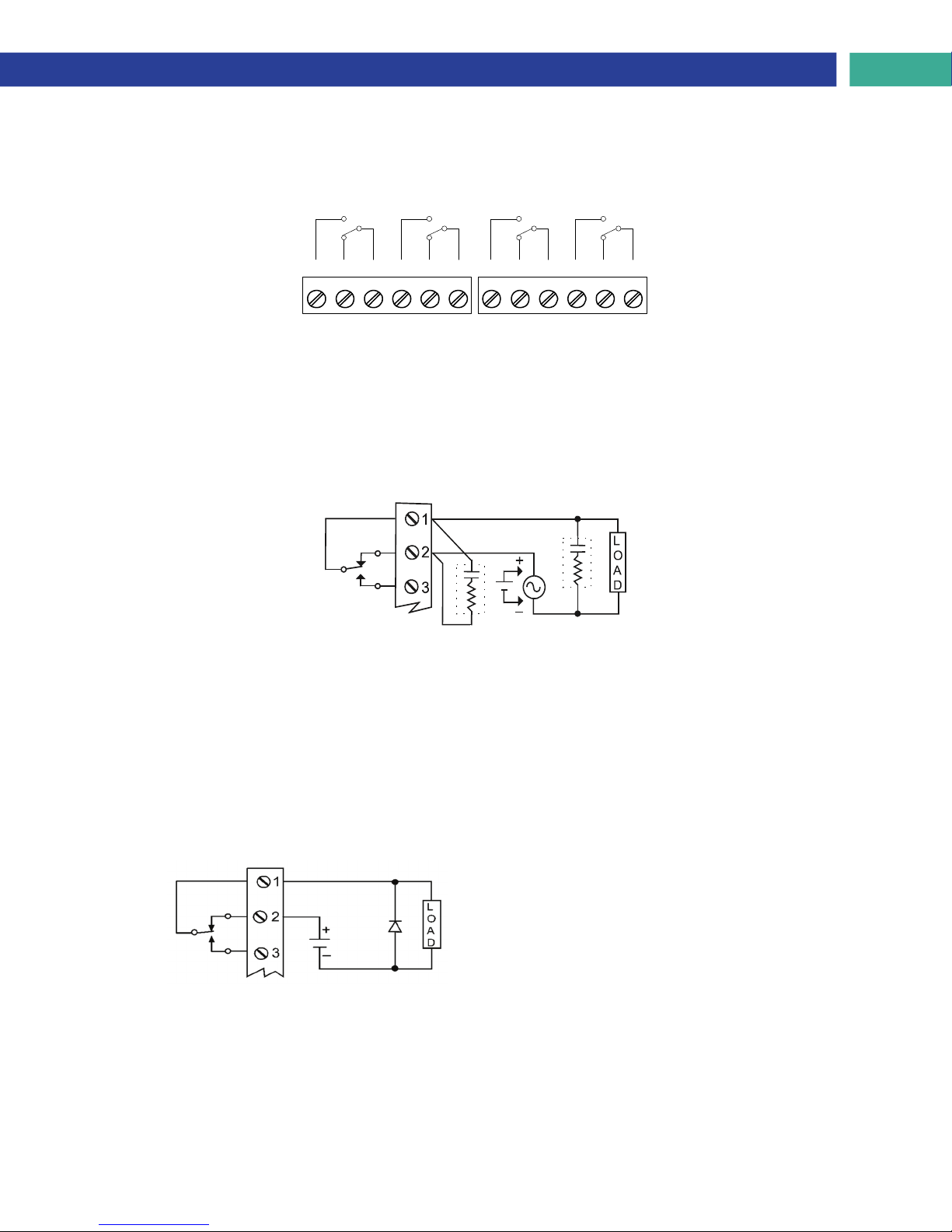

Figure 10. Relay Connections

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 11. AC and DC Loads Protection

Choose R and C as follows:

R: 0.5 to 1 Ω for each volt across the contacts C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the scanner's relay screw terminals. An RC network may also be installed across the load. Experiment for best results.

Figure 12. Low Voltage DC Loads Protection

RC Networks Available from Precision Digital

RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901.

Note: Relays are de-rated to 1/14 HP (50 watts) with an inductive load.

Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current.

Page 18

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered internally or from an external power supply.

24 V

RELAY1

MA OUT

321

4-20 mA Input

Remote Display,

Chart Recorder, Etc.

RI- I+

132

RELAY1

321

4-20 mA

Input Meter

MA OUT

12-35 VDC

Power

Supply

RI- I+

132

Figure 13. 4-20 mA Output Connections

Analog Output Transmitter Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

External Relay, Analog Output, & Digital I/O Connections

The relay, analog out, and digital I/O expansion modules PDA1004, PDA1011, and PDA1044 are connected to the scanner using a CAT5 cable provided with each module. The two RJ45 connectors on the I/O expansion modules are identical and interchangeable; they are used to connect additional modules to the system. See LIM1044, Expansion Module Instruction Manual, for details.

Note: The jumper located between the RJ45 connectors of the PDA1044 must be removed on the second

digital I/O module in order for the system to recognize it as module #2.

Do not connect or disconnect the expansion modules with the power on!

Warning!

More detailed instructions are provided with each optional expansion module.

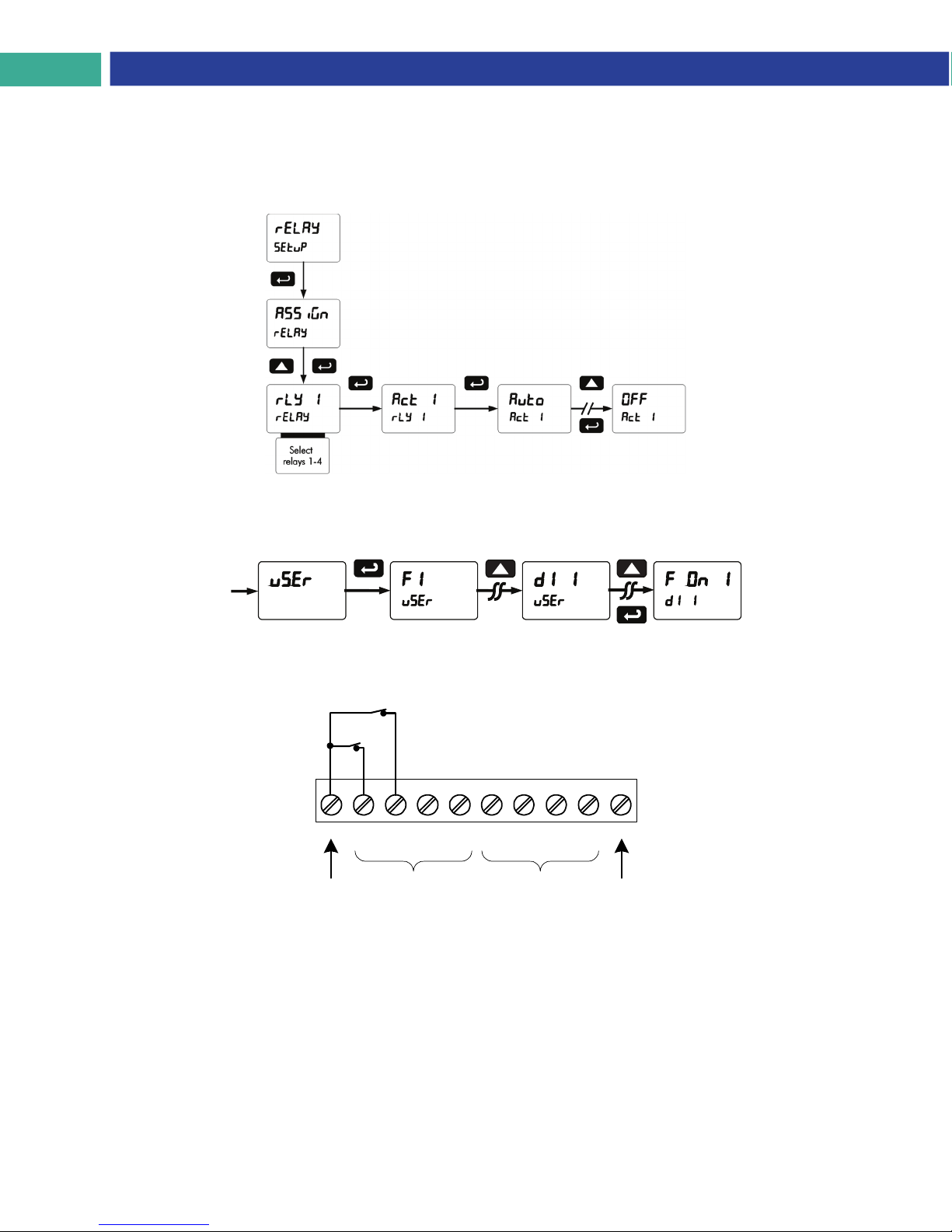

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and trigger the interlock relay. This feature is enabled by configuring the relay and relative digital input(s). In one example, dry interlock contacts are connected in series to one digital input which will be used to force on (energize) the assigned interlock power relay when all interlock contacts are closed (safe). The interlock relay front panel LED flashes when locked out. The interlock relay would be wired in-series with the load (N/O contact). See below.

Figure 14. Interlock Connections

Page 19

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Analog Input Signal Connections

Analog input signal connections are made to a nine-terminal connector labeled SIGNAL on the back of the scanner. The COM (common) terminals are the return for the 4-20 mA and the 10 V input signals. The two COM terminals connect to the same common return, and are not isolated.

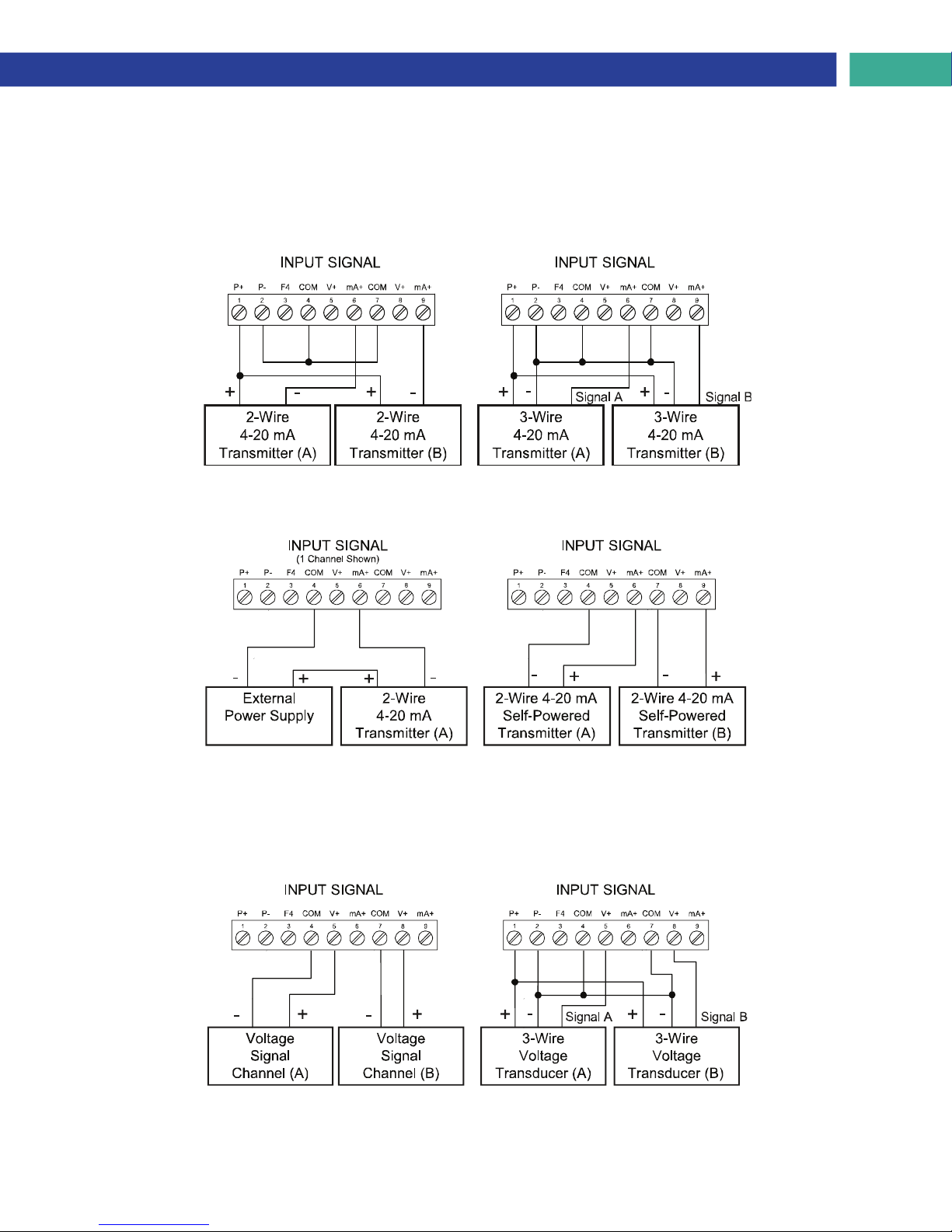

Current and Voltage Connections

The following figures show examples of current and voltage connections. There are no switches or jumpers to set up for current and voltage inputs. Setup and programming is performed through the front panel buttons.

Figure 15. Transmitters Powered by Internal Supply

Figure 16. Transmitter Powered by Ext. Supply or Self-Powered

The current input is protected against current overload by a resettable fuse. The display may or may not show a fault condition depending on the nature of the overload. The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.

Figure 17. Voltage Input Connections

The scanner is capable of accepting any voltage from -10 VDC to +10 VDC.

Page 20

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Setup and Programming

The analog inputs of the scanner are factory calibrated prior to shipment to read in milliamps and volts,

depending on the input selection. The calibration equipment is certified to NIST standards.

Overview

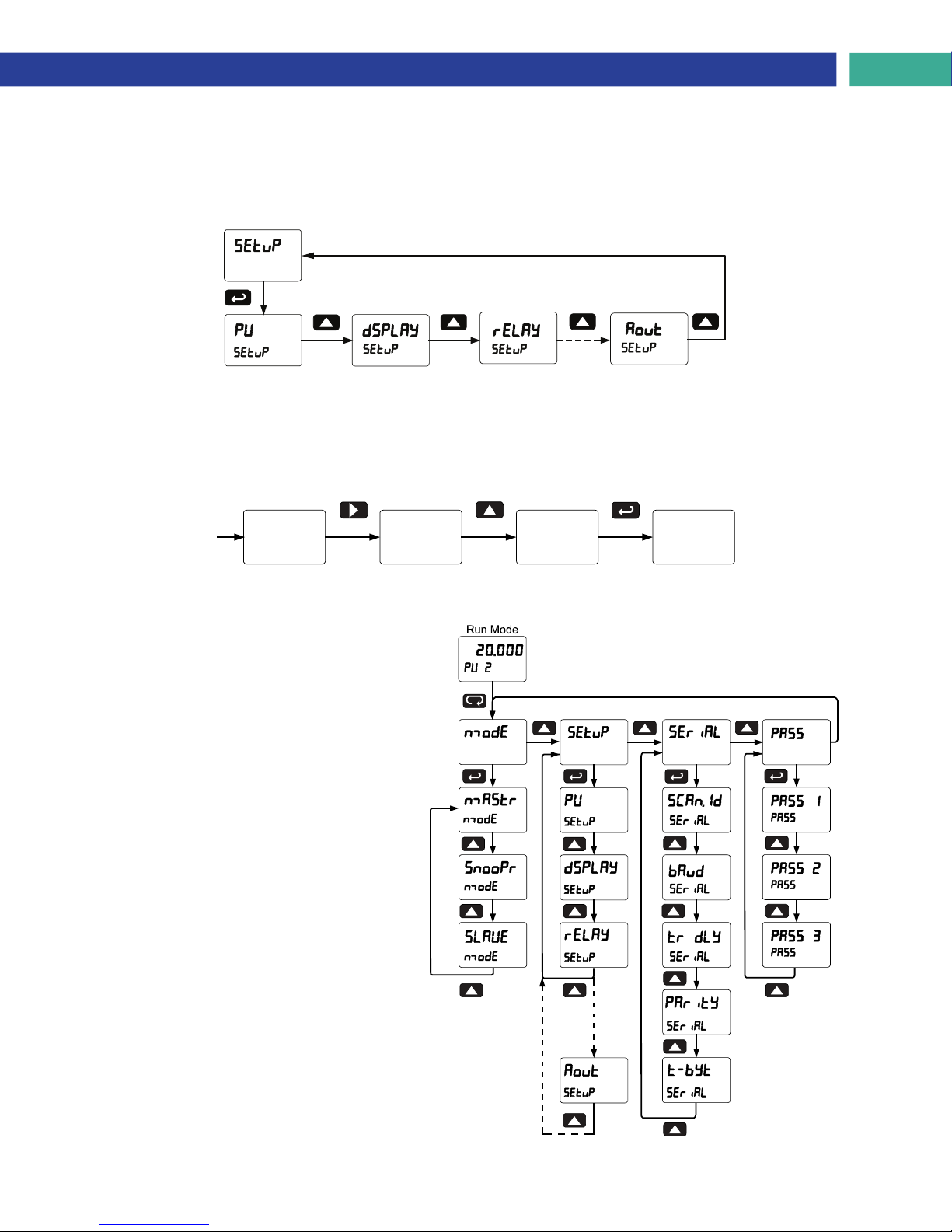

There are no jumpers involved in the scanner setup procedure. Setup and programming is done using ScanView software or through the front panel buttons. After power and signal connections have been completed and verified, apply power to the scanner.

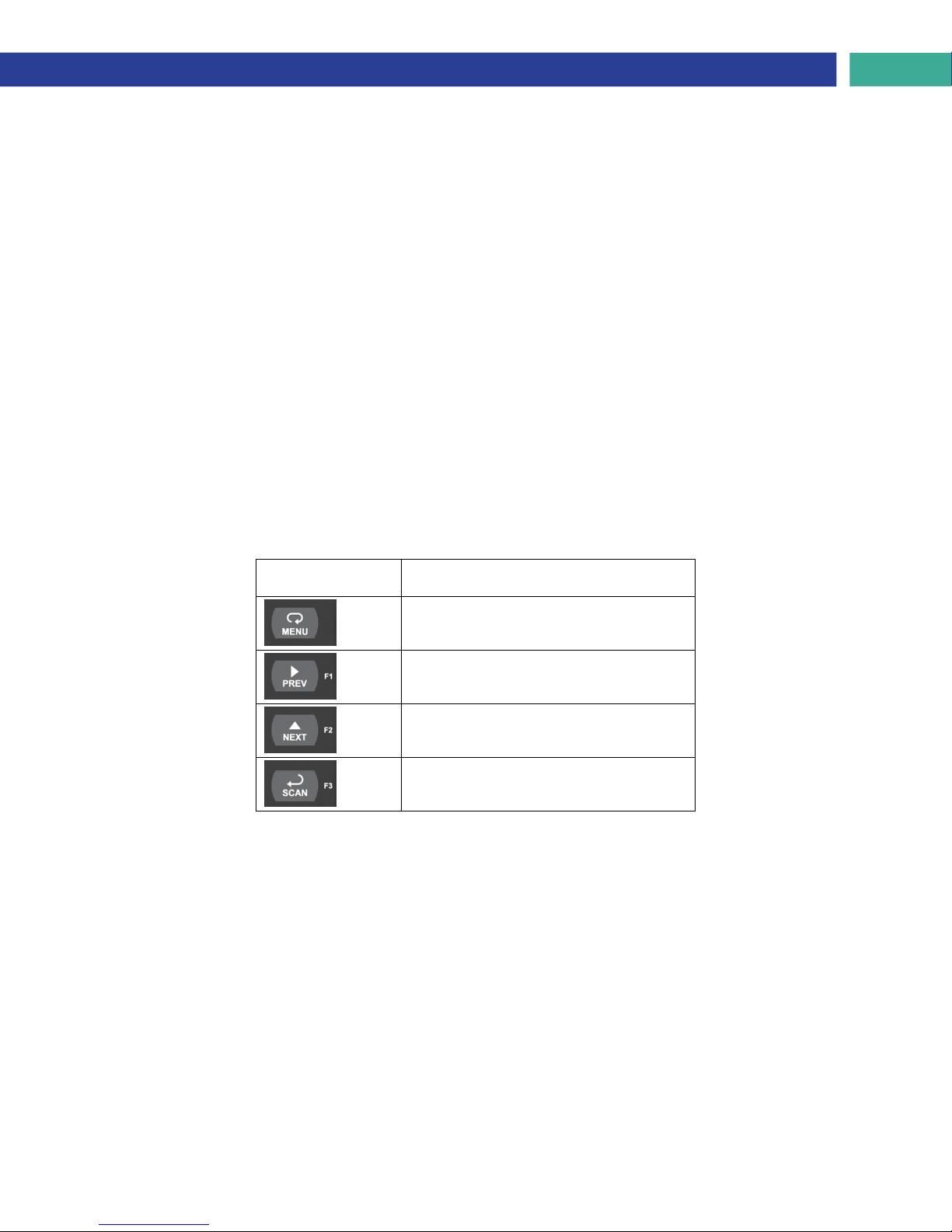

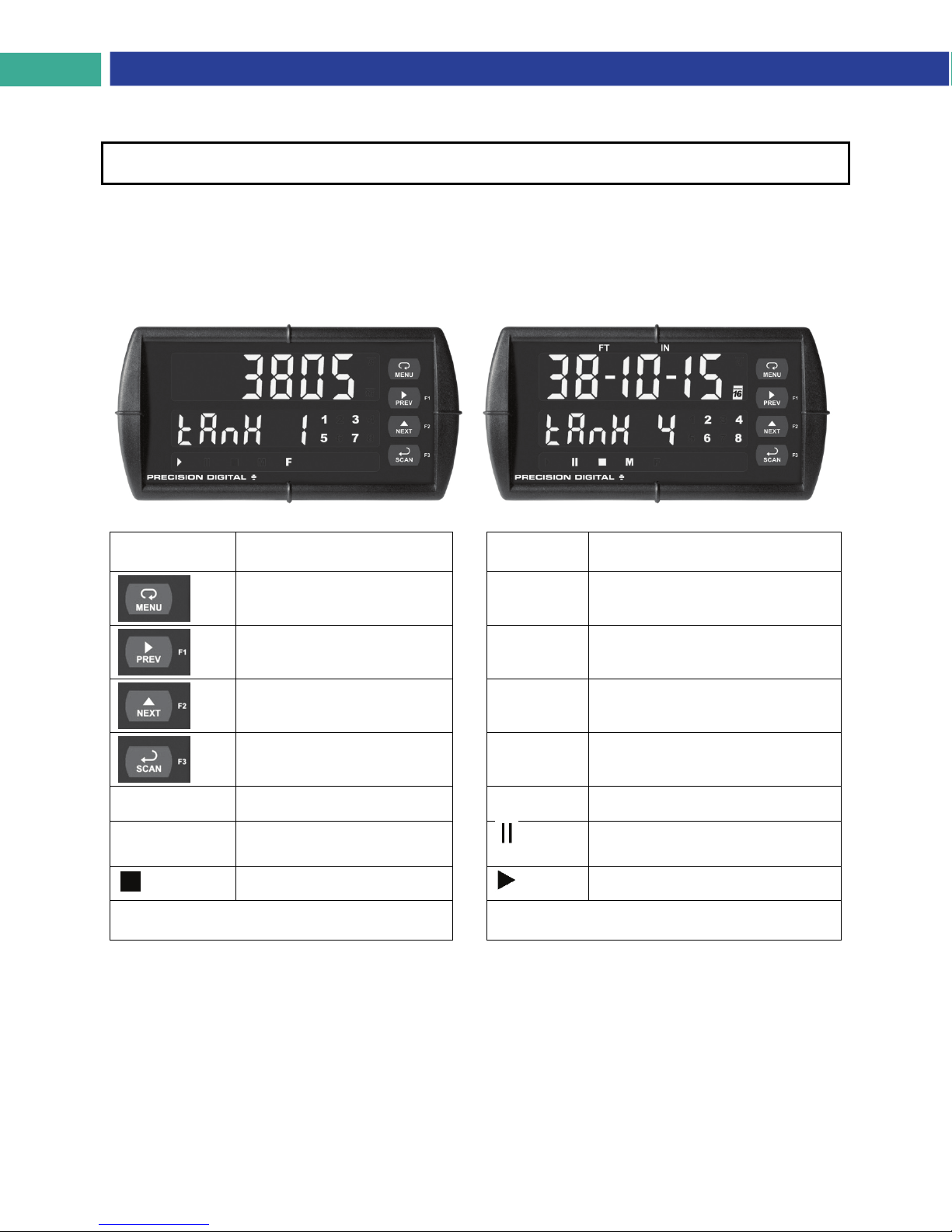

Front Panel Buttons and Status LED Indicators

PD6080 PD6081

Button Symbol/LED

Description LED Status

Menu 1-8 Alarm 1-8 indicator

PREV/Right arrow/F1

NEXT/Up arrow/F2

SCAN/Enter/F3 1-4

STOP

Notes: F4 is a digital input. Alarms 5-8 are enabled when relay expansion module installed.

 Press the Menu button to enter or exit the Programming Mode at any time.  Press the Right arrow button to move to the next digit during digit or decimal point programming.  Press the Up arrow button to scroll through the menus, decimal point, or to increment a digit.  Press the Enter button to access a menu or to accept a setting.  Press and hold the Menu button for three seconds to access the advanced features of the scanner.  Press the SCAN/Enter button once to pause scanning (Pause LED flashes), then press the

SCAN/Enter button again to resume scanning (Play LED turns on).

 Press NEXT to go to the next PV; auto scan resumes after 10 seconds of inactivity.  Press PREV to go to the previous PV; auto scan resumes after 10 seconds of inactivity.

Go to previous PV

Go to next PV

Stop scan on alarm

1-8

/8 /16

PAUSE

PLAY

Note: LEDs for relays in manual mode flash with the “M” LED every 10 seconds.

Flashing: Relay in manual control mode

Displays PV to nearest 1/8

1/16

of an inch

Flashing: Relay interlock switch open

Communications Fault Condition

Press SCAN to pause scanning

Press SCAN to resume scanning

Page 21

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Display Functions & Messages

The following table shows the main menu functions and messages in the order they appear in the menu.

Display Parameter Action/Setting

Description

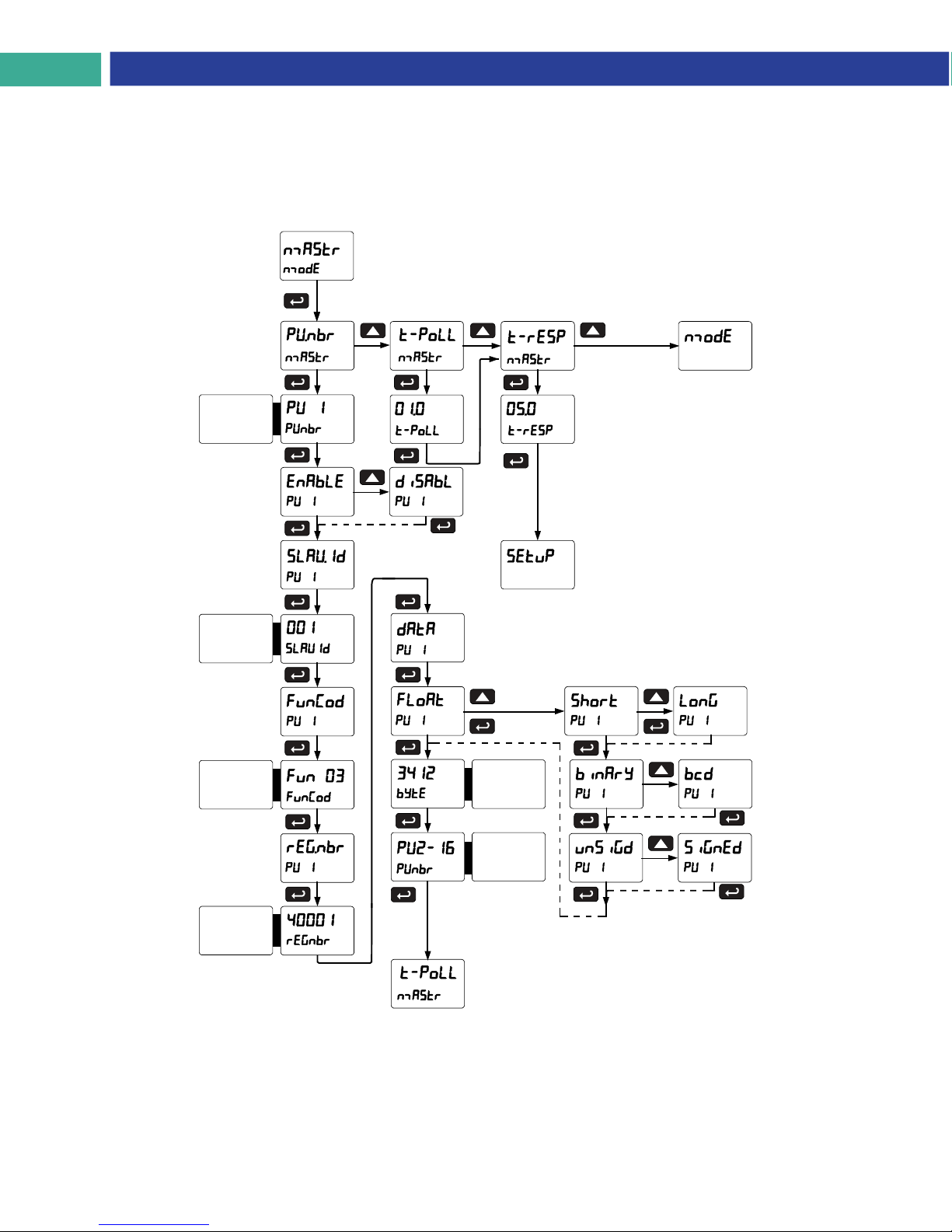

mode master Pv.nbr Pv 1 enable disabl Slav.Id

FunCod

Reg.nbr

data

float

short

long

binary

bcd

signed

unsigd

1234

4321

2413

3412

t-poll

Mode

Master

PV Number

Enable

Disable

Slave ID

Function Code

Data Type

Floating Point Data Type

Short Integer Data Type

Long Integer Data Type

Binary

BCD

Signed

Unsigned

Byte Order

Polling Time

Enter Mode menu Enter Master Mode Select PV Select PV 1-16 Enable PV Disable PV Enter the unique Slave

ID for each PV Enter the Function Code

for each PV

Enter the Register Number for each PV

Enter the Data Type for each PV

Floating Point Data Type. Select

Point

be read from the slave device.

Short Integer Data Type. Select the data type to be read from the slave device.

Long Integer Data Type. Select the data type to be read from the slave device.

Binary Data format. Select Short or Long integers.

BCD Data format. Select

BCD format for Short or

Long integers.

Signed Data. Select

Signed Binary format for

Short or Long integers. Unsigned Data. Select

Unsigned Binary format

for Short or Long integers.

Select big-endian byte order.

Select little-endian byte order.

Select byte-swapped big-endian byte order. Not available for Short integer.

Select byte-swapped little-endian byte order. Not available for Short integer.

Enter Polling Time (the time between read commands). In other words, how often the display is updated in Master mode.

Floating

as the data type to

Short Integer as

Long Integer as

Binary format for

Display Parameter Action/Setting

Description

t-resp

snooper Pv.nbr Pv 1 enable disabl Slav.Id

FunCod

Fun 03

Fun 04

Fun 65

Reg.nbr

5 dig 6 dig

data

float

short

long

binary

bcd

signed

unsigd

1234

4321

Response Time

Snooper

PV Number

Enable

Disable

Slave ID

Function Code

Function Code 03

Function Code 04

Function Code 65

Data Type

Floating Point Data Type

Short Integer Data Type

Long Integer Data Type

Binary

BCD

Signed

Unsigned

Byte Order

Enter the time allowed for a slave device to respond to a command.

Enter Snooper Mode Select PV Select PV 1-16 Enable PV Disable PV Enter the unique Slave

ID of the device to be polled by Master

Enter the Function Code for each PV

Use Function Code 03 to read slave device

Use Function Code 04 to read slave device

Use Function Code 65 to read slave device

Enter the Register Number for each PV

Select either 5 (x0001x9999) or 6 (x00001x65536) digits for the Register Number by pressing the Right Arrow in Register Number menu.

Enter the Data Type for each PV

Floating Point Data Type. Select

Point

be read from the slave device.

Short Integer Data Type. Select the data type to be read from the slave device.

Long Integer Data Type. Select the data type to be read from the slave device.

Binary Data. Select

Binary format for Short

or Long integers. BCD Data. Select BCD

format for Short or Long integers.

Signed Data. Select

Signed Binary format for

Short or Long integers. Unsigned Data. Select

Unsigned Binary format

for Short or Long integers.

Select big-endian byte order.

Select little-endian byte order.

Floating

as the data type to

Short Integer as

Long Integer as

Page 22

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Display Parameter Action/Setting

Description

2413

3412

t-resp

slave data

float

short

long

binary

bcd

signed

unsigd

1234

4321

2413

3412

t-resp

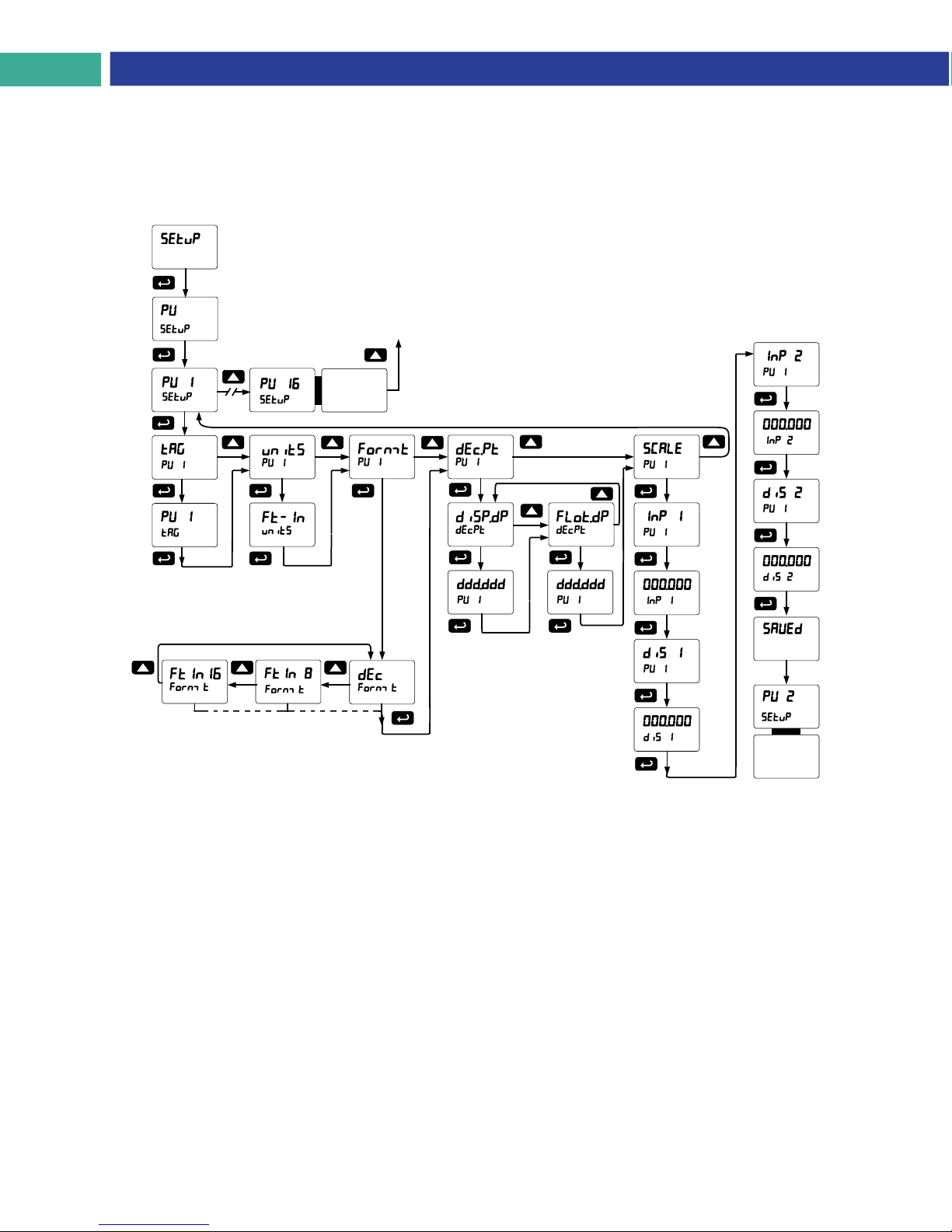

setup pv

Pv 1 tag units formt

dec

Byte Order

Response Time

Slave

Data Type

Floating Point Data Type

Short Integer Data Type

Long Integer Data Type

Binary

BCD

Signed

Unsigned

Byte Order

Response Time

Setup

Process Variable

Tag

Units

Format

Decimal

Select byte-swapped big-endian byte order. Not available for Short.

Select byte-swapped little-endian byte order. Not available for Short.

Enter the time allowed for a slave device to respond to a command.

Enter Slave Mode Enter the Data Type for

each PV

Floating Point Data Type. Select

Point

be read from the slave device.

Short Integer Data Type. Select the data type to be read from the slave device.

Long Integer Data Type. Select the data type to be read from the slave device.

Binary Data. Select

Binary format for Short

or Long integers. BCD Data. Select BCD

format for Short or Long integers.

Signed Data. Select

Signed Binary format for

Short or Long integers.

Unsigned Data. Select

Unsigned Binary format

for Short or Long integers.

Select big-endian byte order.

Select little-endian byte order.

Select byte-swapped big-endian byte order. Not available for Short integer.

Select byte-swapped little-endian byte order. Not available for Short integer.

Enter the time allowed for a slave device to respond to a command.

Enter Setup menu Enter PV Setup menu

Select PV 1-16 Tag Units Format (Decimal,

Eighths, or Sixteenths of an Inch)

Decimal Format

Floating

as the data type to

Short Integer as

Long Integer as

Display Parameter Action/Setting

Description

Ft In 8 Ft In 16 Dec.Pt Disp.dp

flot.dp

SCale

Inp 1

Dis 1 Inp 2

Dis 2

dsplay

Line 1 D pv D Ch-C

Pv.unit

Tg.pvn

Tg.pvn.u

C.unit

Tg. C. u

Dset 1

Hi-pv

Lo-pv

Hi-C

Lo-C

Line 2 D tag D tag.u

D off d-Inty

relay assign Relay 1 Pv 1 m-pv

Rly 1

Eighths

Sixteenths

Decimal Point

Display Decimal Point

Floating Decimal Point

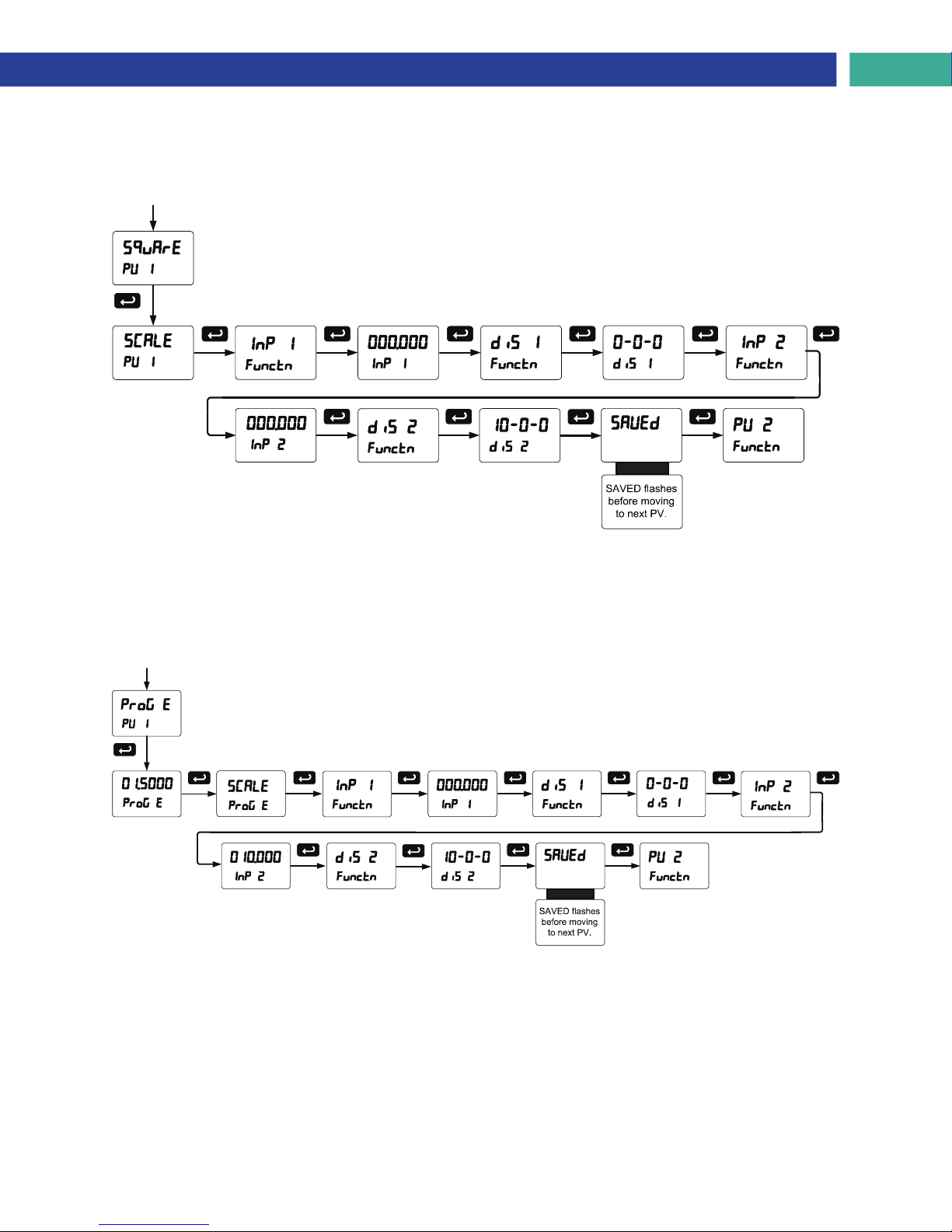

Scale PV

Input 1

Display 1

Input 2

Display 2

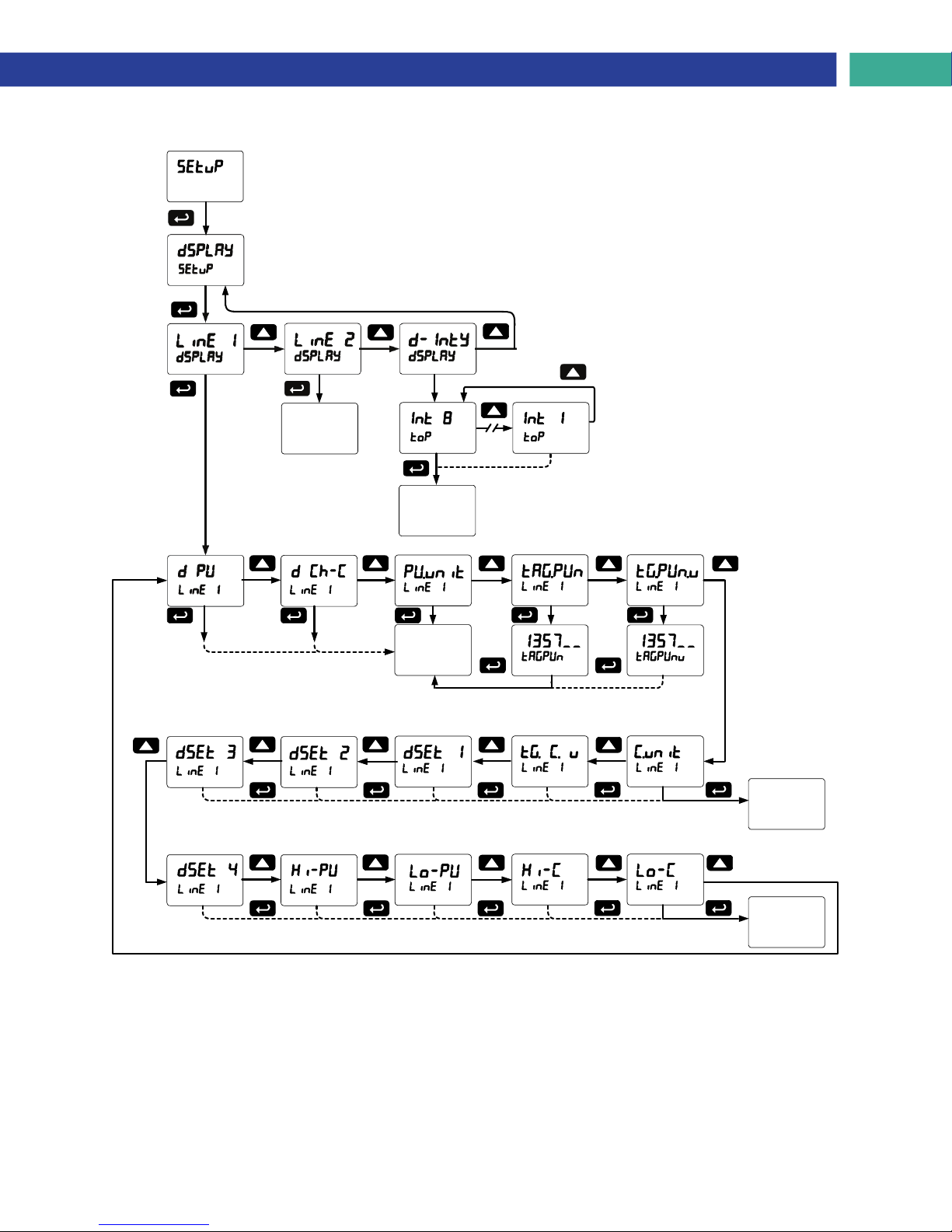

Display

Display Line 1

Display PV

Display C Channel

Display PV & Units

Display Tag, PV Number

Display Tag, PV# & Units

Display C & Units

Display Tag, C, & Units

Display Set Points 1-8

Display Max PV 1-16

Display Min PV 1-16

Display Max Ch C1-C4

Display Min Ch C1-C4

Display Line 2

Display Tag

Display Tag & Units

Display off

Display Intensity

Relay Setup

Assign Relay

Relay 1-8

PV 1-16

Multiple PVs

Relay 1-8

Eighth Inch Format Sixteenth Inch Format Decimal Point menu Set the decimal point

position for the display. This is independent from float decimal point.

Floating Decimal Point. Select the decimal point for the expected floating point data.

Scale PV Calibrate input 1 signal

or program input 1 value

Program display 1 value Calibrate input 2 signal

or program input 2 value (up to 32 points)

Program display 2 value (up to 32 points)

Enter Display Setup menu

Top Display Display PVs 1-16 Display Math Channels

C1-C4 Display PV & Units

Display Tag & PV Number selected

Display Tag, PV Number selected, & Units

Display C1-C4 & Units

Display Tag, C1-C4 & Units

Display Set Points 1-8

Display Maximum value for each enabled PV1-16

Display Minimum value for each enabled PV1-16

Display Maximum for math channels C1-C4

Display Minimum for math channels C1-C4

Bottom Display Display Tag Display Tag & Units

Display Off Display Intensity

Enter Relay Setup menu Assign Relay menu Assign Relay 1-8 Map Relay to PV 1-16 Map Relay to Multiple

PVs Relay 1-8

Page 23

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Display Parameter Action/Setting

Description

act 1

Auto

A-nman

LatCH

Lt-CLr

Altern

SAmpl

Off

FaiLSF

FLS 1

off

DeLAY

DLY 1*

On 1

OFF 1

break

No act

Off

Aout

AOut 1*

Relay Action 18

Automatic

Auto-manual

Latching

Latchingcleared

Alternate

Sample

Off

Fail-safe

Fail-safe 1

Off

Delay

Delay 1*

On 1

Off 1

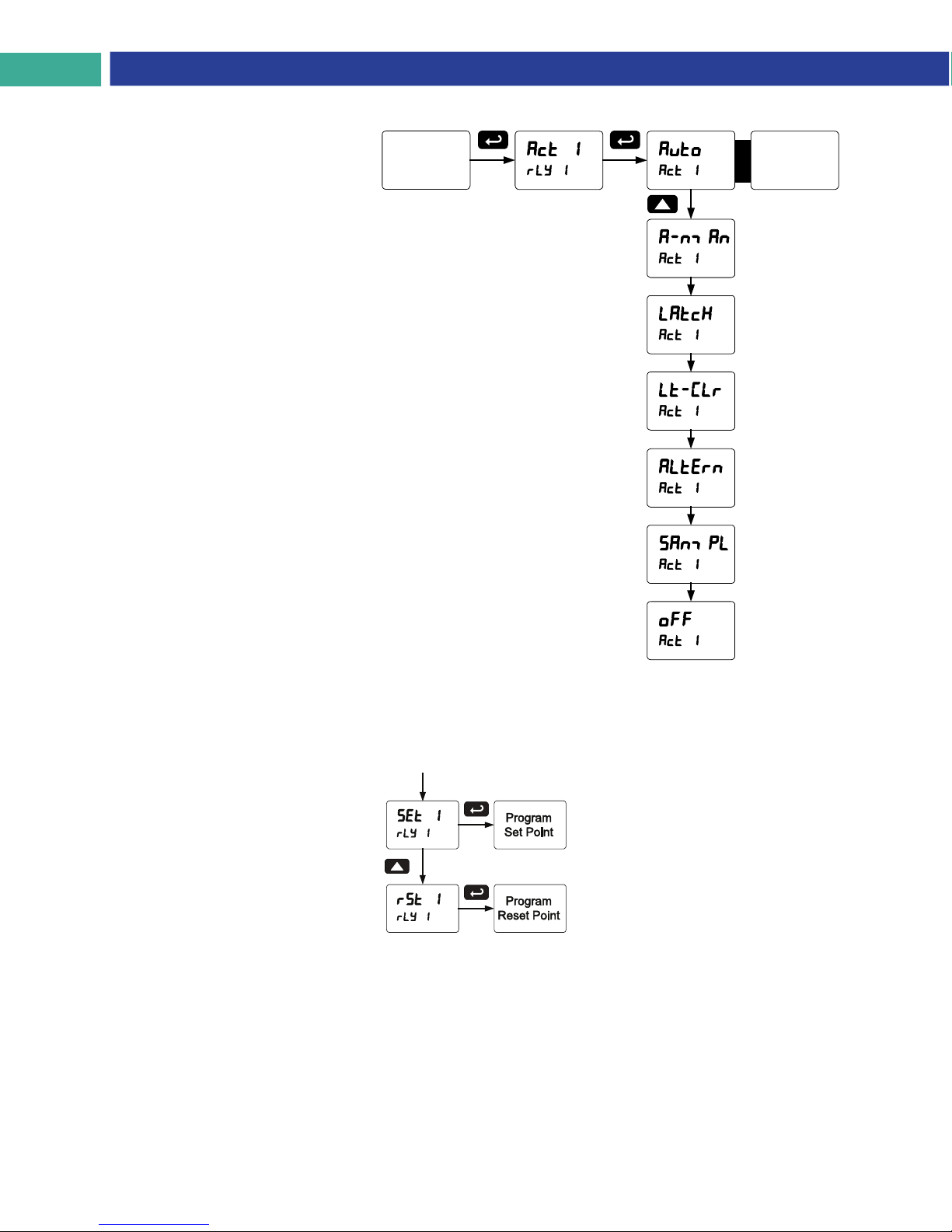

Break

No action

Off

Analog output

Aout channel

Assign Relay Action for relays 1-8

Set relay for automatic reset

Set relay for auto or manual reset any time

Set relay for latching operation

Set relay for latching operation with manual reset only after alarm condition has cleared

Set relay for pump alternation control

Set relay for sample time trigger control

Turn relay off Enter Fail-safe menu Set relay 1-8 fail-safe

operation

Enable fail-safe operation

Disable fail-safe operation

Enter relay Time Delay menu

*Enter relay 1-8 time delay setup

Set relay 1 On time delay

Set relay 1 Off time delay

Set relay condition if communication break detected

Ignore break condition.

No change in relay state

when Communications Break detected.

Relay goes to alarm condition when break detected. Relay turns

on when

Communications Break detected.

Relay goes to non-alarm condition when break detected. Relay turns

off when

Communications Break detected.

Enter the Analog Output scaling menu

Analog Output source channel (*1-3)

Display Parameter Action/Setting

Description

Dis 1

Out 1

Dis 2

Out 2

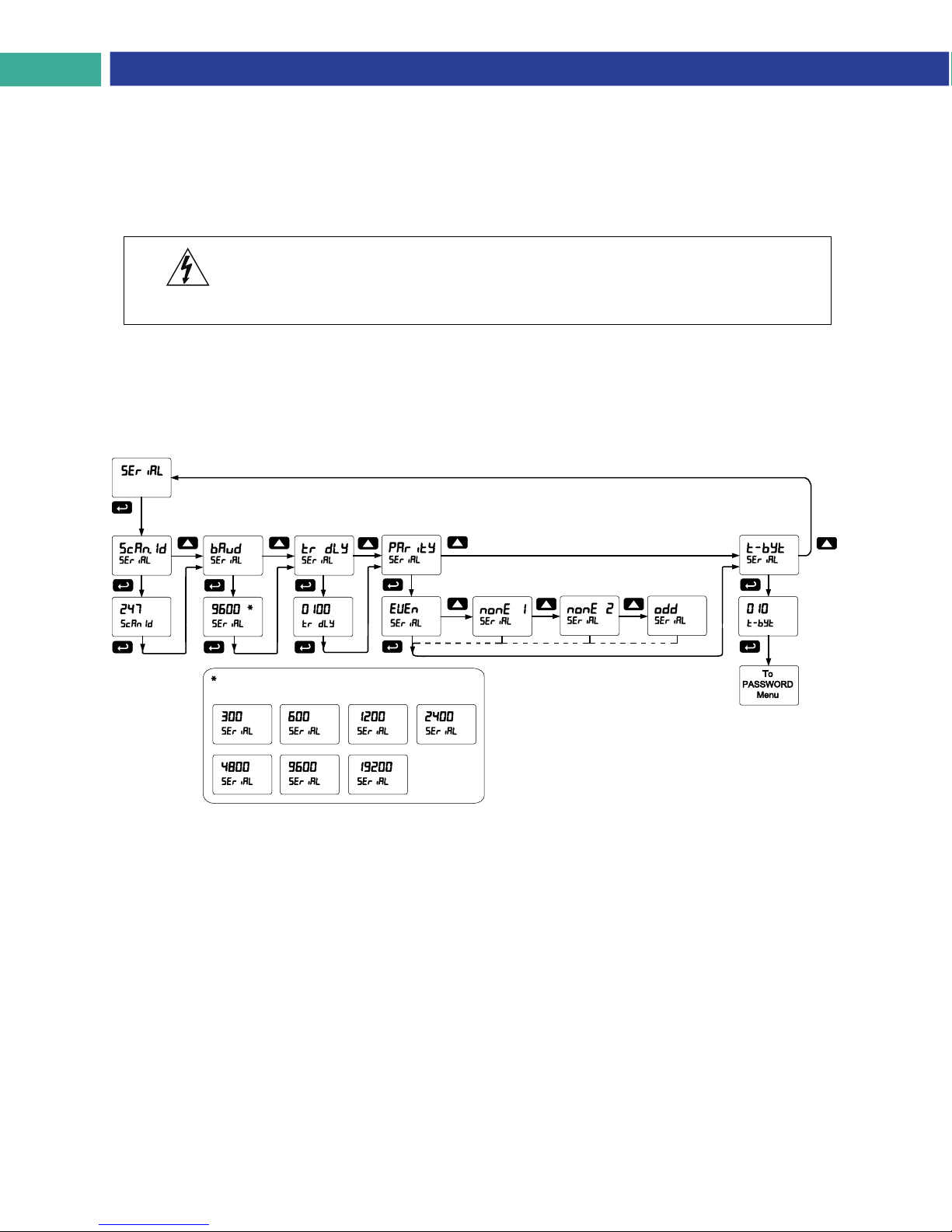

serial SCan.ID

baud

Tr dly

parity

t-byt

pass

Pass 1 Pass 2 Pass 3 unloc

locd

999999

-99999

Display 1

Output 1

Display 2

Output 2

Serial

Scan ID

Baud Rate

Transmit Delay

Parity

Byte-to-byte Timeout

Password

Password 1

Password 2

Password 3

Unlocked

Locked

Flashing

Program the first Display value for the Analog Output.

Program the first Output value that corresponds to the Display the Analog Output. (e.g.

4.000 mA). Program the second

Display value for the

Analog Output. Program the second

Output value that

corresponds to the Display Analog Output. (e.g.

4.000 mA). (e.g. 20.000 mA)

Enter Serial menu Enter Scan ID of the

meter being polled (1-

247) Select Baud Rate

(Choices: 300/600/1200/2400/480 0/9600/19,200)

(Must match that of other devices)

Enter Transmit Delay

(Master’s delay must be greater than Snooper or slave devices)

Select Parity (Even,

Odd, None 1-Stop, or None 2-Stop)

(Must match that of other devices)

Enter the timeout value allowed between received

(This is used to fix communication problems with slow devices).

Enter the Password menu

Set or enter Password 1 Set or enter Password 2 Set or enter Password 3 Program password to

lock scanner Enter password to

unlock scanner

Over/under range condition

1 value for

2 value for the

bytes.

Page 24

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

ScanView Software

The meter can also be programmed using the PC-based ScanView software included with the meter. This software is can be installed on any Microsoft® Windows® (XP/Vista/7/8/10) computer by connecting to the meter’s onboard USB. The meter is powered by the USB connection, so there is no need to wire anything prior to programming the meter, though USB is intended only for meter configuration.

ScanView Installation

1. Connect one end of the provided USB cable to the meter and the other end to the computer.

The computer will automatically install the driver software it needs to talk to the meter.

Only one meter may be connected at a time. Attaching multiple meters will cause a conflict with the meter software.

2. Once the driver is installed, an AutoPlay dialog should appear

for the drive “MSINSTAL.” Click “Open folder to view files.” If the computer does not display an AutoPlay dialog for the drive “MSINSTAL,” you should open My Computer and doubleclick on the drive labeled “MSINSTAL.”

3. Double-click on the file named “MSStart.” The program will

open a few windows and install two programs on your computer. Simply follow the onscreen instructions until you see one of the dialogs below. If you receive a “User Account Control” warning, click “Yes.”

4. If there is an update available, click the “Update” button to

install the new version. Otherwise, click “Configure” to begin programming your meter.

Note: If you decide to update your ScanView installation, once the installation has completed, you will be asked if you want to update the installation files located on the meter itself. This way, you will always have the most current installation version on the meter for future installs.

 Do not unplug the meter while the new installation files are being written to it. The

meter will display notification once the process is complete.

Warning!

Monitoring and data logging for one scanner (Master mode) is available with ScanView software. All the enabled PVs and math channels may be logged to a single .csv file. The ScanView software synchronizes with the scanner in master mode one second after the scanner has completed a polling cycle. Additional information regarding configuration and monitoring of the meter using ScanView software is available online. Go to www.predig.com/ScanView.

Note: The poll time of the scanner must be greater than 5 seconds to prevent collisions on the bus.

 Do not disconnect and reconnect the meter rapidly. Allow at least 10 seconds from

disconnection before reconnecting USB to the meter.

uwrite

during the process and you will receive an onscreen

Page 25

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Menu Navigation Tip

 The Up arrow scrolls through the sub-menus within a menu, after the last item it returns to the top

menu. Press Enter to step into the menu again or press Up arrow to move to the next menu. Note: There are some exceptions (e.g. PV - Enable - - Data type ▲ Next PV).

 Press Menu to exit programming at any time.

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press the Right arrow to select the next digit and the Up arrow to increment the digit’s value. The digit being changed is displayed brighter than the rest. Press and hold the Up arrow to auto-increment the display value. Press the Enter button, at any time, to accept a setting or the Menu button to exit without saving changes.

004.000

dis 1 dis 1 dis 1

Select

004.000

Next Digit

Main Menu

The main menu consists of the most commonly used functions: Mode, Setup, Serial, and Password.

 Press Menu button to enter Scanner

Programming

 Press Up arrow button to scroll through

the menus

 Press Menu, at any time, to exit and

return to Run Mode

 Changes to the settings are saved to

memory only after pressing Enter

 The display moves to the next menu

every time a setting is accepted by pressing Enter

Increment

Digital

Val ue

005.000

Accept Setting

Setting

*Analog Output will only display if installed.

Page 26

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Serial Communications (serial)

The scanner is equipped with RS-485 Modbus RTU serial communications. The Serial menu is used for programming the Scanner ID, Baud Rate, Transmit Delay, Parity, and Byte-to-

Byte Timeout parameters. To communicate with a computer or other data terminal equipment, an RS-485 to USB or RS-485 to RS-232

converter is required; see Ordering Information on page 6 for details.

Do not connect any equipment other than Precision Digital’s expansion

Warning!

When using more than one scanner in a multi-drop mode, each scanner must be provided with its own unique address. The scanner address (Scan ID) may be programmed between 1 and 247.

The transmit delay may be set between 0 and 4999 ms; this value must be less than (Poll Time/# of PVs). The parity can be set to even, odd, or none with 1 or 2 stop bits. Changes made to the Serial menu are initialized after exiting the Serial menu.

modules, cables, or scanners to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the scanner.

Baud Rate for the PD6080/PD6081 is entered here by user, and must match that of other system devices. Choices are seen below.

When setting up the scanner to run on a Modbus system, the devices must be programmed with matching Baud Rate and Parity. Failure to match up the network devices’ parameters may result in communication breaks.

Notes:

1. The byte-to-byte timeout setting may be adjusted to fix communication errors with slow devices.

2. The Transmit Delay of the Master must be greater than the Snooper or the slave devices being

polled.

Page 27

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Scanner Mode Selection

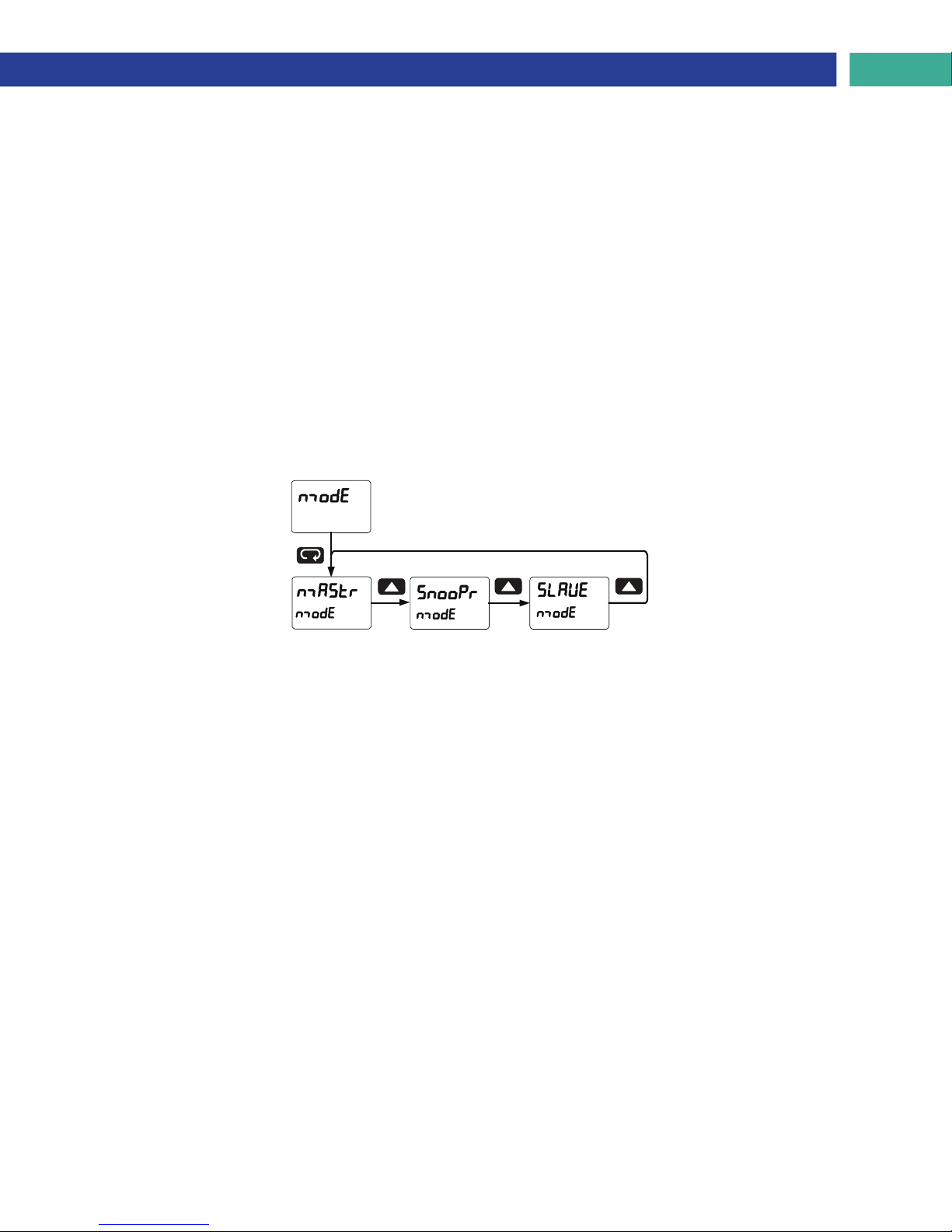

Operating Modes (nmode)

The Mode menu is used to select how the scanner is to function:

1. Master: Reads a slave device, scales the data from it, displays the result, and operates the relays

and 4-20 mA output. The Master polls from 1 to 16 process variables from 1 to 16 slave devices. The Master processes and displays PV1 through PV16 and alternately displays the variables being polled.

2. Snooper: Listens to the Modbus traffic and picks up a specific register or registers being polled by

a Master device from a specific slave device and processes the data being read.

3. Slave: Read and controlled by a master device (PLC, DCS, etc). The data sent to it by the master

is scaled, displayed, and used to operate the relays and 4-20 mA output.

The Master mode requires additional parameter selection to specify how the slave device is to be read and how to interpret the data.

Press Menu to enter Scanner Programming. Press the Enter button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time and return to Run mode.

How to Enable Process Variables (PVs)

In Master or Snooper Mode, navigate to the PV Number menu and press ENTER. From there, the user can scroll through all of the sixteen available PVs. In order to enable a specific PV, simply press ENTER to access the desired PV, then scroll to ENABLE and press ENTER (Follow the same course of action for disabling PVs).

Enter the Slave ID of the device being polled by the Master, followed by the Function Code, Register Number, Data Type, and Byte Order. Analog input channels must be assigned a Slave ID corresponding to the input to be read as indicated here: Ch A = 256 (mA) or 257 (V), Ch B = 258 (mA) or 259 (V).

Once the desired PVs are enabled, navigate to the Setup menu and enter the PV Setup in order to select the PV tag, units, format, and decimal point parameters, as well as to scale the PVs.

Once the user has scaled the final PV, the scanner automatically goes to the Display Setup menu to access line 1 and 2 display assignments.

By default, display line 1 is assigned to Display PV (d pv) and line 2 to display the Tag (d tag) for the corresponding PV.

It is possible to display PVs & Tags on line 1 and 2 simultaneously by selecting Tag & PV Number (tag.pvn). Display line 1 is setup by default to display PV & tag for PV1, 3, 5, 7; while line 2 is setup by default to display PV & tag 2, 4, 6, 8. These can be changed by the user to display any or all PVs. Program either display line 1 or 2 to show the desired parameters and press ENTER. See page 34 for details.

Page 28

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Master Mode (nmastr)

The Master mode contains the PV Number, Poll Time, and Response Timeout menus. PV Number: Enable/disable PVs, select slave ID, function code, register number, data type & byte order. Poll Time: Enter the time interval to poll the slave devices selected. Response timeout: Enter the time interval to wait after three polls before reporting it as a Communications

Break.

Back To

PV can be any

PV from

PV 1-PV 16.

Forward to

Enter Slave ID

of meter to be

polled by master.

Function Code

can be either 03, 04, or 65.

is selected

by user.

Byte order is

dependent upon

data type.

PVs 1-15 move

to next P V. PV16

moves to t-poll

Page 29

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Snooper Mode (Snoopr)

The Snooper mode is used to listen to data being transmitted on the bus. Multiple Snoopers can be connected to the RS-485 bus and display any process variable. The same process variable can be displayed in multiple locations. Use the menu below to configure Snooper Mode parameters.

Back To

PV can be any

PV from

PV 1-PV 16.

Forward to

Enter Slave ID

of meter to be

polled by master.

Function Code

can be either 03, 04, or 65.

is selected

by user.

Byte order is

dependent upon

data type.

PVs 1-15 move

to next PV. PV16

moves to t-resp

Notes:

1. To minimize the possibility of communication errors and communication break conditions, use a poll time of 5 seconds or more with slow baud rates (e.g. 4800 bps or less).

2. The response time for scanners set up for Snooper mode must be greater than the Master’s poll time. This setting corresponds to the time window during which the Snooper listens to the bus for a reply by the slave device being polled by the master device. As soon as the Snooper detects a new reply on the bus, the display is updated. If there is no reply within the response time setting, the Snooper goes into communications break condition.

Page 30

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

How to Select 5 or 6-Digit Registers

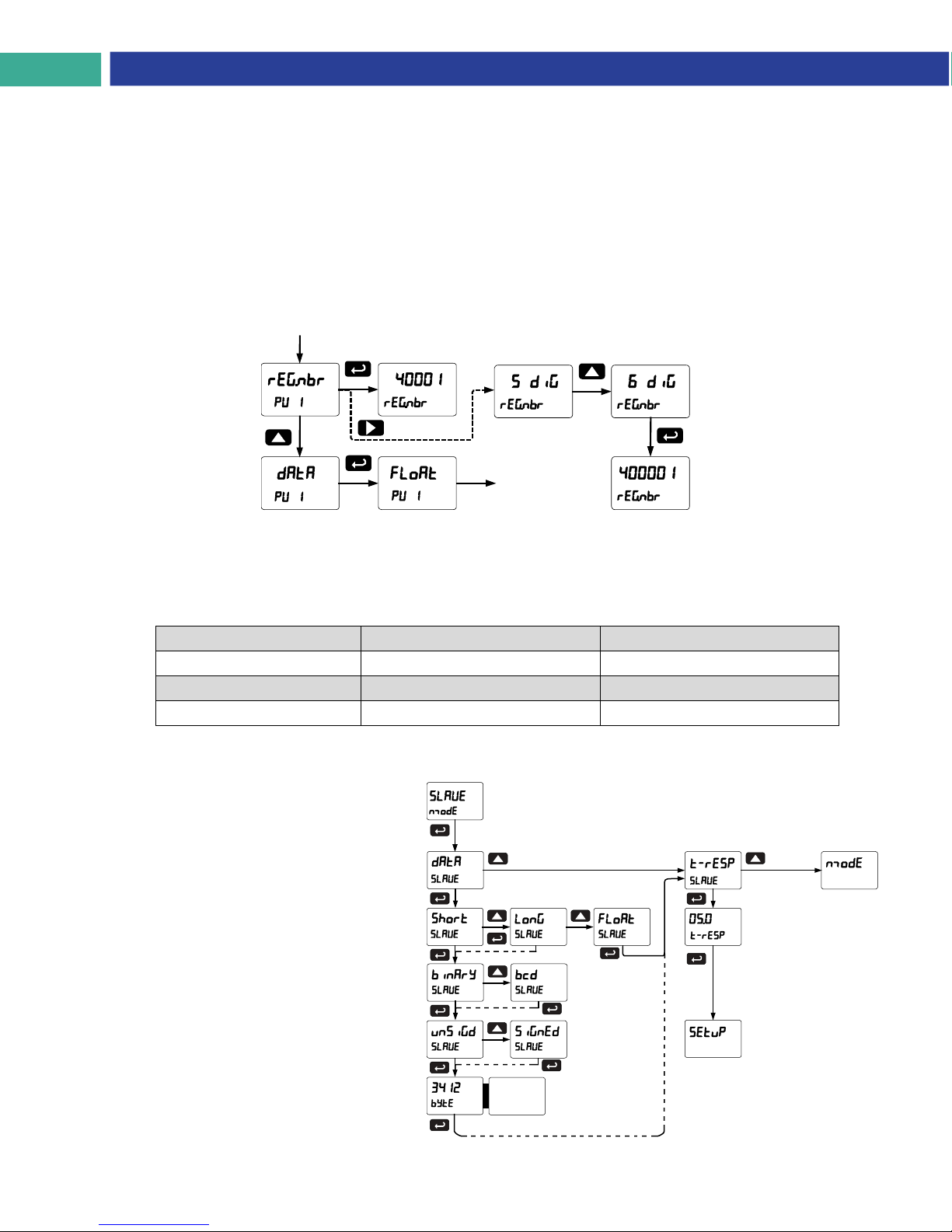

In Master or Snooper Mode, it is possible to select either a five-digit or a six-digit Register Number. Once the operator has enabled a PV, entered a Slave ID, and chosen a Function Code, the scanner will arrive at the Register Number menu (reg.nbr). Press the Right arrow to display and then the Up arrow to change the setting for the number of digits used for the Register Number (5 dig or 6 dig), then press ENTER.

Notes:

1. If Function Code 03 is selected, the Register Number defaults to 40001; if Function Code 04 is

selected, the Register Number defaults to 30001.

2. Default Data Type is Float

3. Default Slave ID for PV1=001, for PV2=002, for PV3=003, etc.

Short Long

The Master ignores the decimal point setting for slave devices that specify a Short or Long integer. For example, a slave that is displaying 12.34 is read as 1,234. Floating point data may or may not utilize the decimal point. Refer to the slave’s operating manual to make sure.

The Register Number range is based on the Function Code and the number of digits selected. See the following table:

Function Code 5 Digit 6 Digit

03 40001 – 49999 400001 – 465536

04 30001 – 39999 300001 – 365536

65 65001-65999 N/A

Slave Mode (Slave)

The Slave mode is capable of accepting Short, Long, and Float data types. Refer to the Modbus Register Tables at www.predig.com for details of all the predefined parameters. Follow the menu below to navigate and set all parameters for Slave Mode.

Forward to

Back To

Byte order i s

dependent upon

data type.

Page 31

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

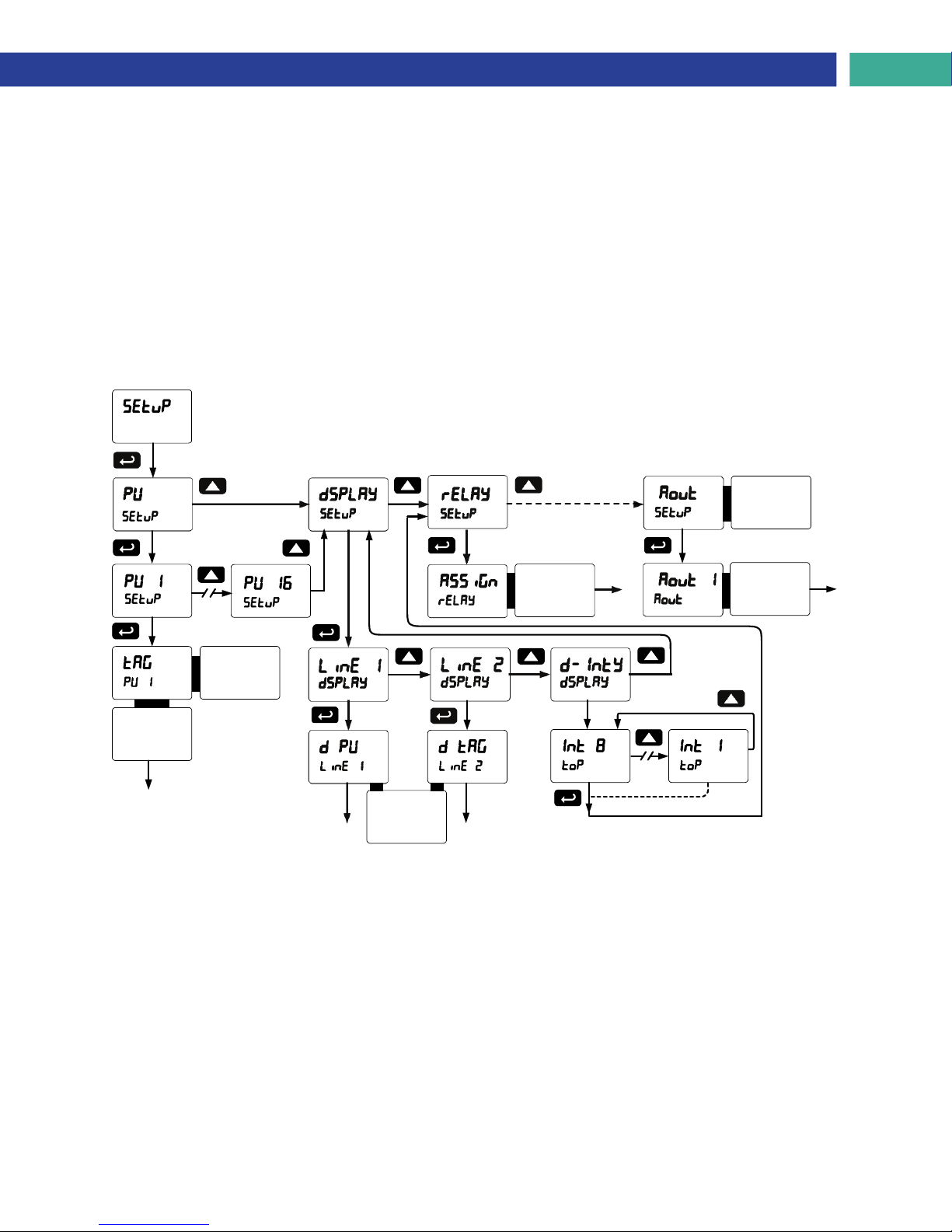

Setting Up the Scanner (setup)

The Setup menu is used to select:

1. PV Setup

a. PV Tags b. PV Units c. Format: Decimal point or Feet & Inches d. Decimal Point e. Scale input data

2. Display assignment & Intensity

3. Relay assignment and operation

4. 4-20 mA analog output scaling

Press the Menu button to exit at any time.

Aout Menu will

only display

if enabled.

Relay Setup

continues from here.

Choose from

Tag, Units,

Format, Dec. Pt.,

and Scale.

PV Setup continues from here.

Display Setup

continues from here.

Aout Setup continues from here.

Page 32

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Setting Up the Process Variables (PVs) (pv setup)

Enter the PV Setup menu to set up all the criteria associated with each enabled PV. Once you have selected the desired PV, you can select parameters for each. These include tag, units, format, display decimal point, float decimal point (resolution), and scaling of the input data.

Note: PV1 and PV2 can have multiple points for linearization. Only two points are available for all other PVs and for either the Square Root or Programmable Exponent functions.

To D is p la y Setup Menu

After last enabled

PV or Channel,

meter will

automatically go

to Display Setup.

Flashes

briefly here.

After last enabled

PV or Channel,

meter will

automatically go

to Display Setup.

Setting the Display Decimal Point (disp.dp)

Decimal point may be set one to five decimal places or with no decimal point at all. Pressing the Up arrow moves the decimal point one place to the right until no decimal point is displayed, and then it moves to the leftmost position. The decimal point is programmable only for the Display Value.

Setting the Float Decimal Point (Flot..dp)

If floating point data type is selected, select the number of decimals to correspond to the expected floating point data; the numbers to right of the LSD will be ignored by the scanner.

Example: If you have a number such as 12.3456, you have to tell the scanner how many digits to the right are of interest to you. In this case selecting 4 places will make use of all the digits. For most applications the display decimal point will be set accordingly (i.e. 4 places). If 2 decimal places are selected, the number 12.3456 is displayed as 12.35; notice that the number is rounded up.

Page 33

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

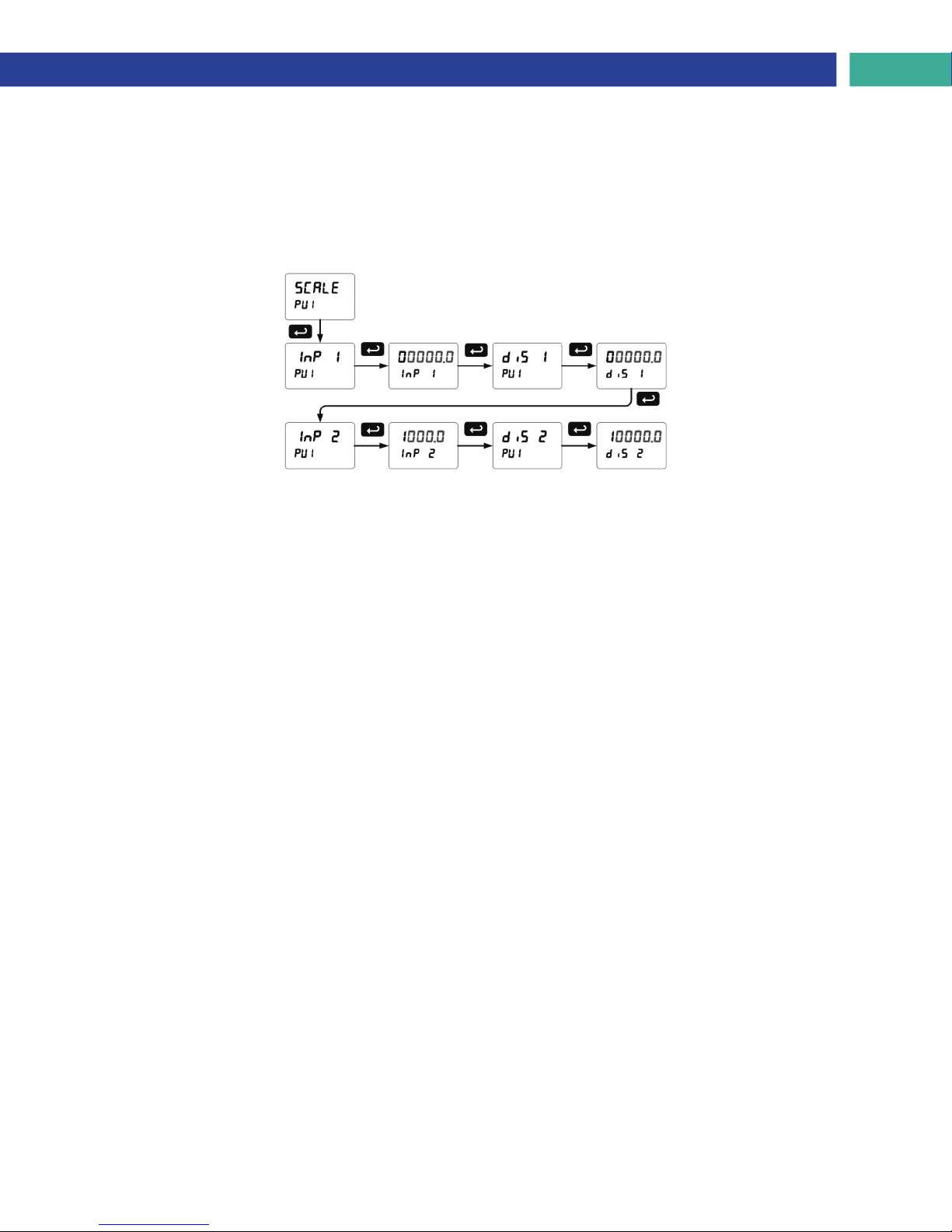

Scaling the PV Display Values (sCale)

The data that the scanner receives can be scaled to display in engineering units. Input 1 must be less than Input 2, Input 2 must be less than Input 3, etc. (known as monotonic values). Press Enter to save the changes or Menu to exit without saving. When the Linear function is selected for PV1 & PV2, up to 32 points may be programmed to handle non-linear data. Only two points are available for all other PVs and for either the Square Root or Programmable Exponent functions. Round Horizontal Tanks are scaled using the length and diameter of the tank.

Scale Menu

The display will show Error if the scaling or calibration process is unsuccessful. Undesired operation may occur if the error is not corrected. Correct the error by either changing one of the inputs in question or changing the number of points to exclude an erroneous input point.

Note 1: For Feet & Inches Display format, the display values will be in the format 99

Make the left digit for inches and 16 Inches, and 8/16 will be displayed as 50

blank if the value is less than 10. Example: 50 Feet, 9

_9 IN _8

16th

instead of 50 FT 09 IN 08

11 IN 15

/16th

or 8th.

Note 2: Scaling Short and Long input values (input 1, input 2, etc.) should be done without the decimal

point.

Multi-Point Linearization (Linear)

The scanner is set up at the factory for 2-point linear scaling. Up to 32 linearization points may be selected for PV1 and PV2. All other PVs have two linearization points available. See page 58 for details.

Page 34

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Setting Up the Displays (dsplay setup)

Display Line 1 Parameters (Line 1 dsplay)

The top display (line 1) can be programmed to display any of the following:

Display Parameter

D pv

D Ch-C

Pv.unit

Tg.pvn

Tg.pvn.u

C.unit

Tg. C. u

Display PV

Display C Channel

Display PV & Units

Display Tag, PV Number

Display Tag, PV# & Units

Display C & Units

Display Tag, C, & Units

Setting Description

Display PVs 1-16

Display Math Channels C1-C4

Display PV & Units

Display Tag & PV Number selected

Display Tag, PV Number selected, & Units

Display C1-C4 & Units

Display Tag, C1-C4 & Units

Display Parameter

Dset 1

Hi-pv

Lo-pv

Hi-C

Lo-C

Display Set Points 1-8

Display Max PV 116

Display Min PV 116

Display Max Ch C1C4

Display Min Ch C1C4

Setting Description

Display Set Points 1-8

Display Maximum value for each enabled PV1-16

Display Minimum value for each enabled PV1-16

Display Maximum for math channels C1-C4

Display Minimum for math channels C1-C4

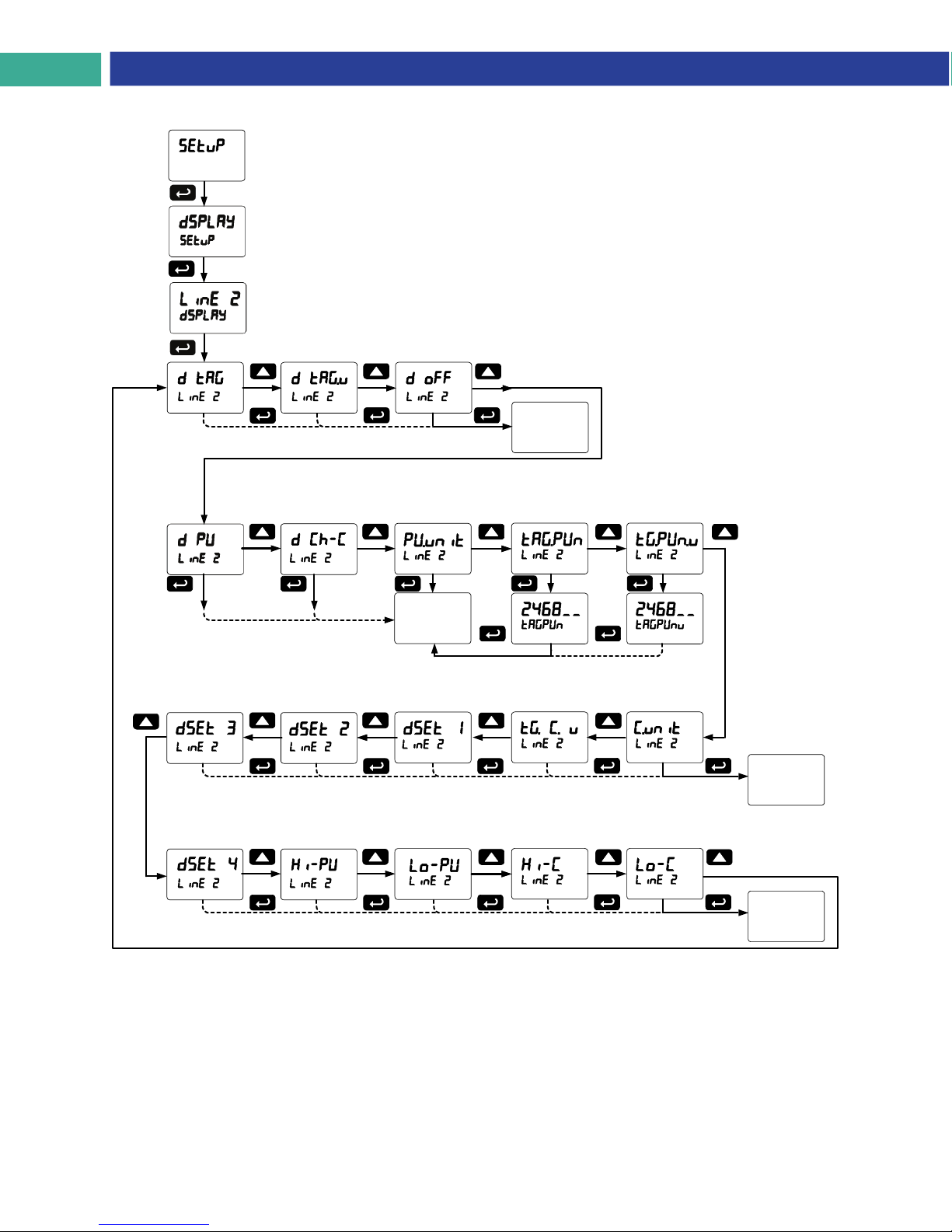

Display Line 2 Parameters (Line 2 dsplay)

The bottom display (line 2) can be programmed to display any of the following:

Display Parameter

Setting

Display Parameter

Description

D pv

D Ch-C

Pv.unit

Tg.pvn

Tg.pvn.u

C.unit

Tg. C. u

Dset 1

Display PV

Display C Channel

Display PV & Units

Display Tag, PV Number

Display Tag, PV# & Units

Display C & Units

Display Tag, C, & Units

Display Set Points 1-8

Display PVs 1-16

Display Math Channels C1-C4

Display PV & Units

Display Tag & PV Number selected

Display Tag, PV Number selected, & Units

Display C1-C4 & Units

Display Tag, C1-C4 & Units

Display Set Points 1-8

Hi-pv

Lo-pv

Hi-C

Lo-C

D tag

D tag.u

D off

Note: Toggling displays use the Scan Time for the value and 2 seconds for Tag and Units.

Display Max PV 116

Display Min PV 116

Display Max Ch C1-C4

Display Min Ch C1-C4

Display Tag

Display Tag & Units

Display off

Setting Description

Display Maximum value for each enabled PV1-16

Display Minimum value for each enabled PV1-16

Display Maximum for math channels C1-C4

Display Minimum for math channels C1-C4

Display Tag (Line 2 only)

Display Tag & Units (Line 2 only)

Display Off (Line 2 only)

Display Intensity (d-IntY)

The scanner has eight display intensity levels to give the best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity setting is 8.

Page 35

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Display Line 1 Menu (Line 1 dsplay)

Line 2 Setup

continues from here.



Continues



to Relay

Setup.

Continues



to Line 2

Setup.

Continues



to Line 2

Setup.

Note: For Tag-PVn and Tag-PVn-U, the default settings for PVs are 1,3,5,&7, followed by two

underscores, which represent empty PVs. These all can be changed to any enabled PVs.

Continues

to Line 2

Setup.



Page 36

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Display Line 2 Menu (Line 2 dsplay)

Continues

to Display

Intensity Setup.

Continues

to Display

Intensity Setup.

Note: For Tag-PVn and Tag-PVn-U, the default settings for PVs are 2,4,6,& 8, followed by two

underscores, which represent empty PVs. These all can be changed to any enabled PVs.

Continues to Display

Intensity Setup.

Continues to Display

Intensity Setup.

Page 37

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Setting the Tags (tAg) & Units (units)

Each PV can be setup with its own tag and units. See the flow charts on the previous pages to access the display menu to show the tag or toggling tag & units. The engineering units and custom tags can be set using the following 7-segment character set:

Display Character Display Character Display Character Display Character

0 1 2 3 4 5 6 7 8 9

A b

Notes: Degree symbol represented by (<) if programming with ScanView. The letters “m” and “w” use two

7-segment LEDs each; when selected the characters to the right are shifted one position. Press and hold up arrow to auto-scroll the characters in the display.

C c d e f g 9 H h I

I j

k l nm n O o p q r

x y z

/ [ ] = !

/ ]

[

Degree(<)

Space

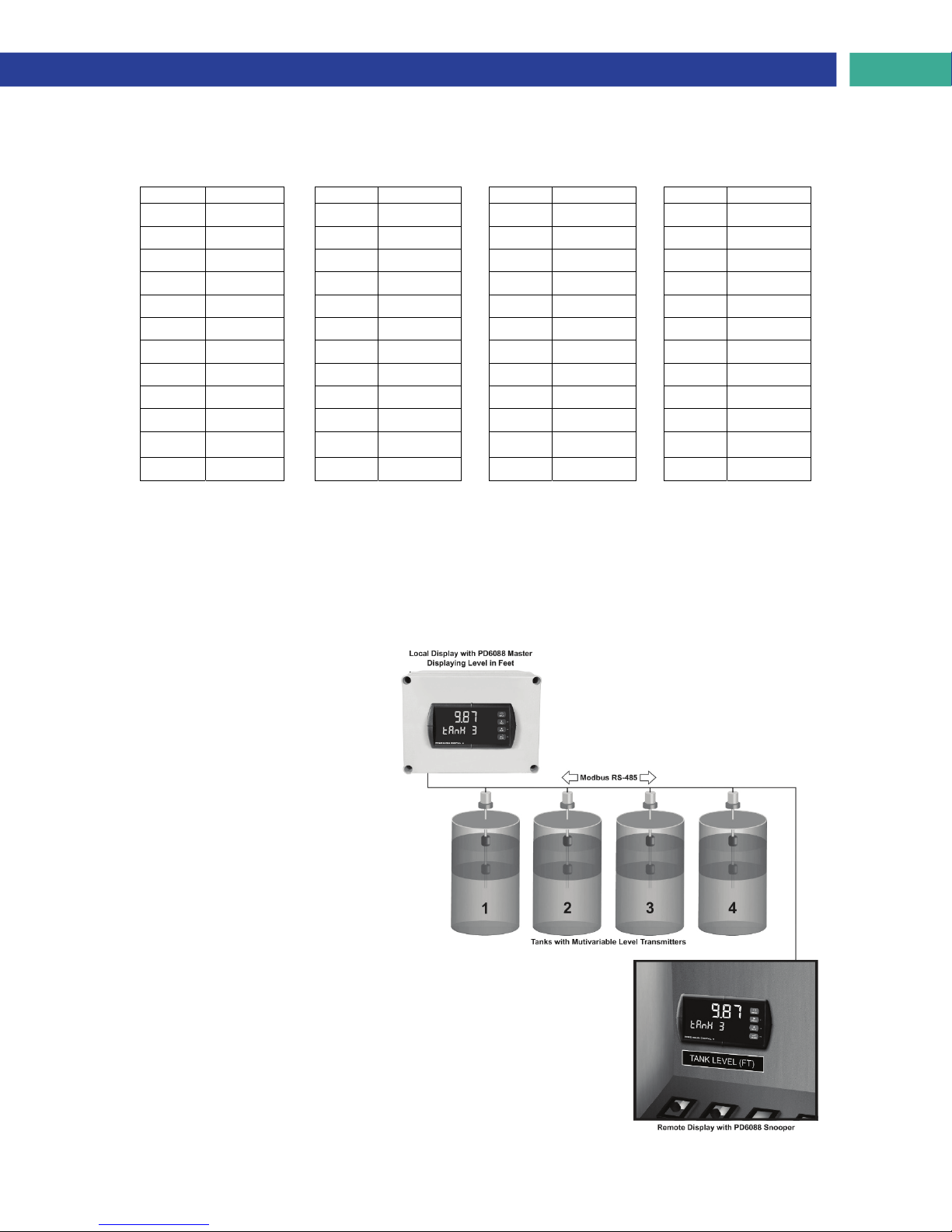

Application Example 1

In this application we have a system consisting of (4) MTS M-Series multivariable tank level gauges connected to (2) PD6080 displaying Product Level, Interface Level, and Average Temperature.

One of the Modbus Scanners is located next to the tanks and the other is located in the control room.

30001 - Product Level 30003 - Interface Level 30017 - Average Temperature

Page 38

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

The following table shows the system setup for the MTS M-Series gauge, one PD6080 Master, and one PD6080 Snooper:

Parameter

Mode Master Snooper

PV1 Slave ID

Function Code

Data Type

Byte Order

PV2 Slave ID

Function Code

Data Type

Byte Order

PV3 Slave ID

Function Code

Data Type

Byte Order

PV4 Slave ID

Function Code

Data Type

PD6080 Master

1 1

04 04

30001 30001

Long integer Binary, Signed

1234

1 1

04 04

30003 30003

Long integer Binary, Signed

1234

1 1

04 04

Long integer Binary, Signed

1234

2 2

04 04

30001 30001

Long integer Binary, Signed

PD6080 Snooper

Long

1234

Long

1234

Long

1234

Long

Description/ Comment

Tank 1 Product Level

Tank 1 Interface

Tank 1 Average Temperature

Tank 2 Product Level

Parameter

Byte Order

PV5 Slave ID

Function Code

Data Type

Byte Order

PV6 Slave ID

Function Code

Data Type

Byte Order

PV7 Slave ID

Function Code

Data Type

Byte Order

PV8 Slave ID

Function Code

Data Type

PD6080 Master

1234

2 2

04 04

30003 30003

Long integer Binary, Signed

1234

2 2

04 04

Long integer Binary, Signed

1234

3 3

04 04

30001 30001

Long integer Binary, Signed

1234

3 3

04 04

30003 30003

Long integer Binary, Signed

PD6080 Snooper

1234

Long

1234

Long

1234

Long

1234

Long

Description/ Comment

Tank 2 Interface

Tank 2 Average Temperature

Tank 3 Product Level

Tank 3 Interface

Page 39

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Parameter

Byte Order

PV9 Slave ID

Function Code

Data Type

Byte Order

PV10 Slave ID

Function Code

Data Type

Byte Order

PV11 Slave ID

Function Code

Data Type

PD6080 Master

1234

3 3

04 04

Long integer Binary, Signed

1234

4 4

04 04

30001 30001

Long integer Binary, Signed

1234

4 4

04 04

30003 30003

Long integer Binary, Signed

PD6080 Snooper

1234

Long

1234

Long

1234

Long

Description/ Comment

Tank 3 Average Temperature

Tank 4 Product Level

Tank 4 Interface

Parameter

Byte Order

PV12 Slave ID

Function Code

Data Type

Byte Order

Scanner ID

Polling Time

Slave Respons e Timeout

Baud 4800 4800

Parity None 1 None 1 1 stop bit

Byte-toByte Timeout

Decimal point

Input 1 000000

Display 1 000000 000000

Input 2 999999

Display 2 83.333 83.333 Feet

PD6080 Master

1234

4 4

04 04

Long integer Binary, Signed

1234

246 245

5.0 sec N/A

10.0 sec

0.01 sec

3 places

PD6080 Snooper

1234

Long

1234

10.0 sec

0.01 sec

3 places

000000

999999

Description/ Comment

Tank 4 Average Temperature

Scaling for Level & Interface

0.001 inch resolution

Page 40

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

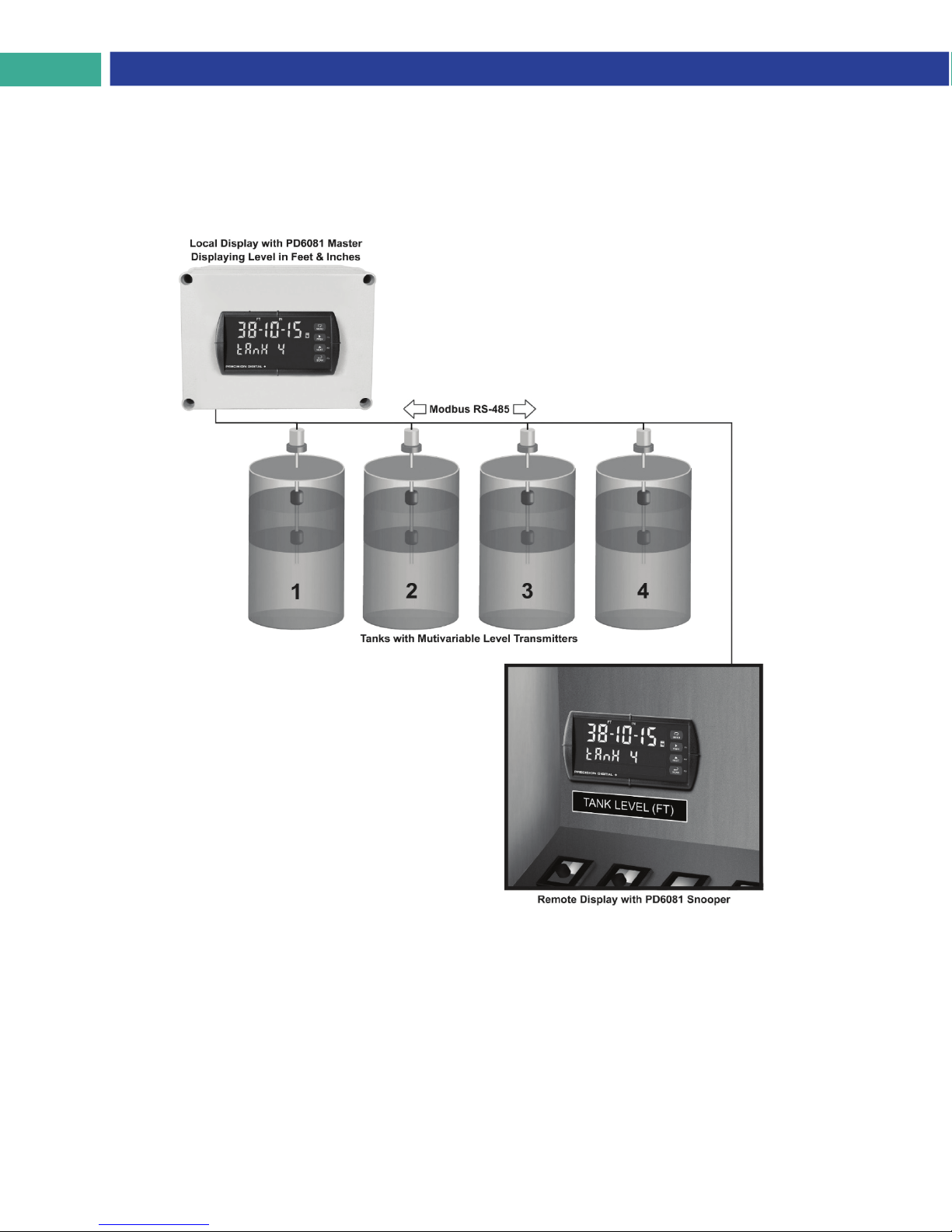

Application Example 2

In this application we have a system consisting of (4) MTS M-Series multivariable tank level gauges connected to (2) PD6081s displaying Product Level, Interface Level, and Average Temperature.

One of the Modbus Scanners is located next to the tanks and the other is located in the control room. The display readout is shown in sixteenths of an inch.

30001 - Product Level 30003 - Interface Level 30017 - Average Temperature

Note: The example above shows the PD6081. The setup of the scanner is the same as the first

example. The PD6081’s Feet & Inches display is clearly visible.

Page 41

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Setting the Relay Operation (relay)

This menu is used to set up the assignment and operation of the relays.

Relay Setup Menu (relay setup)

Up Arrow cycles

through all

available relays.

Up Arrow cycles

through all

enabled PVs and

multiple PVs.

Set Relay

Action Menu

continues

from here.

Note: The setup for relays 2-8 follows the same pattern shown here for relay 1.

During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.

cycles through all

then to BREAK.

Caution!

1. Assign Relay assignment

a. Assign relay to PV b. Assign relay to Math channel c. Assign relay to multiple PVs (2 to 16 PVs)

2. Act 1 Relay action

a. Automatic reset only (non-latching) b. Automatic + manual reset at any time (non-latching) c. Latching (manual reset only) d. Latching with Clear (manual reset only after alarm condition has cleared) e. Pump alternation control (automatic reset only) f. Sampling (the relay is activated for a user-specified time) g. Off (relay state controlled by Interlock feature)

3. Set 1 Set point & Rst 1 Reset point

4. Failsf Fail-safe operation

a. On (enabled) b. Off (disabled)

5. Delay Time delay

a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

6. Break Relay action for communications break or loss of 4-20 mA input

Enter Button

enabled relays

Enter Button

cycles through all

enabled relays then to SETUP.

If Analog Output

is enabled, the

Aout Setup Menu

will appear first.

Page 42

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Setting the Relay Action (act 1)

Operation of the relays is

relay 1

programmed in the Action menu. The relays may be set up for any of the following modes of operation:

1. Auto Automatic reset (non-latching)

2. A-nman Automatic + manual reset at any time (non-latching)

3. latcH Latching (manual reset only, at any time)

4. lt-CLr Latching with Clear (manual reset only after alarm

condition has cleared)

5. Altern Pump alternation control (automatic reset only)

6. Sanmpl Sampling (the relay is activated for a user-specified

time)

7. oFF Off (relay state controlled by Interlock feature)

The following graphic shows relay 1 action setup; relay 2-8 are set up in a similar fashion.

relay 1

relay

Use Up Arrow

to scroll through

the menu

choices below.

Programming Set (set) & Reset (rst) Points

High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is defined as the difference between set and reset points. Minimum deadband is one display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation (failsf)

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation.

Programming Time Delay (delay)

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

Page 43

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Relay Action for Communications Break (break)

The Scanner will poll the slave device three times before reporting a communications break condition. After the third failure, the Response Timeout timer starts and will determine the actual time to report a PV in break condition.

1. Turn On (Go to alarm condition)

2. Turn Off (Go to non-alarm condition)

3. No Action (The relays will maintain the last condition)

Relay Action for Loss of 4-20 mA Input (Loop Break)

The loop break feature is associated with the 4-20 mA input. Each relay may be programmed to go to one of the above conditions when the scanner detects the loss of the input signal (i.e. < 0.005 mA).

Notes:

1. This is not dependent on the Communications Break or Response Timeout setting.

2. This is not a true loop break condition; if the signal drops below 0.005 mA, it is interpreted as a “loop break” condition.

Relay and Alarm Operation Diagrams

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

High Alarm Operation (Set > Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

Low Alarm Operation (Set < Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. For relay to turn back "on", signal must go above set point, and then go below it.

Page 44

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

High Alarm with Fail-Safe Operation (Set > Reset)

Low Alarm with Fail-Safe Operation (Set < Reset)

Note: Relay coil is energized in non-alarm

condition. In case of power failure, relay will go to alarm state.

Pump Alternation Control Operation

Note: Relay coil is energized in non-alarm

condition. In case of power failure, relay will go to alarm state.

Page 45

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

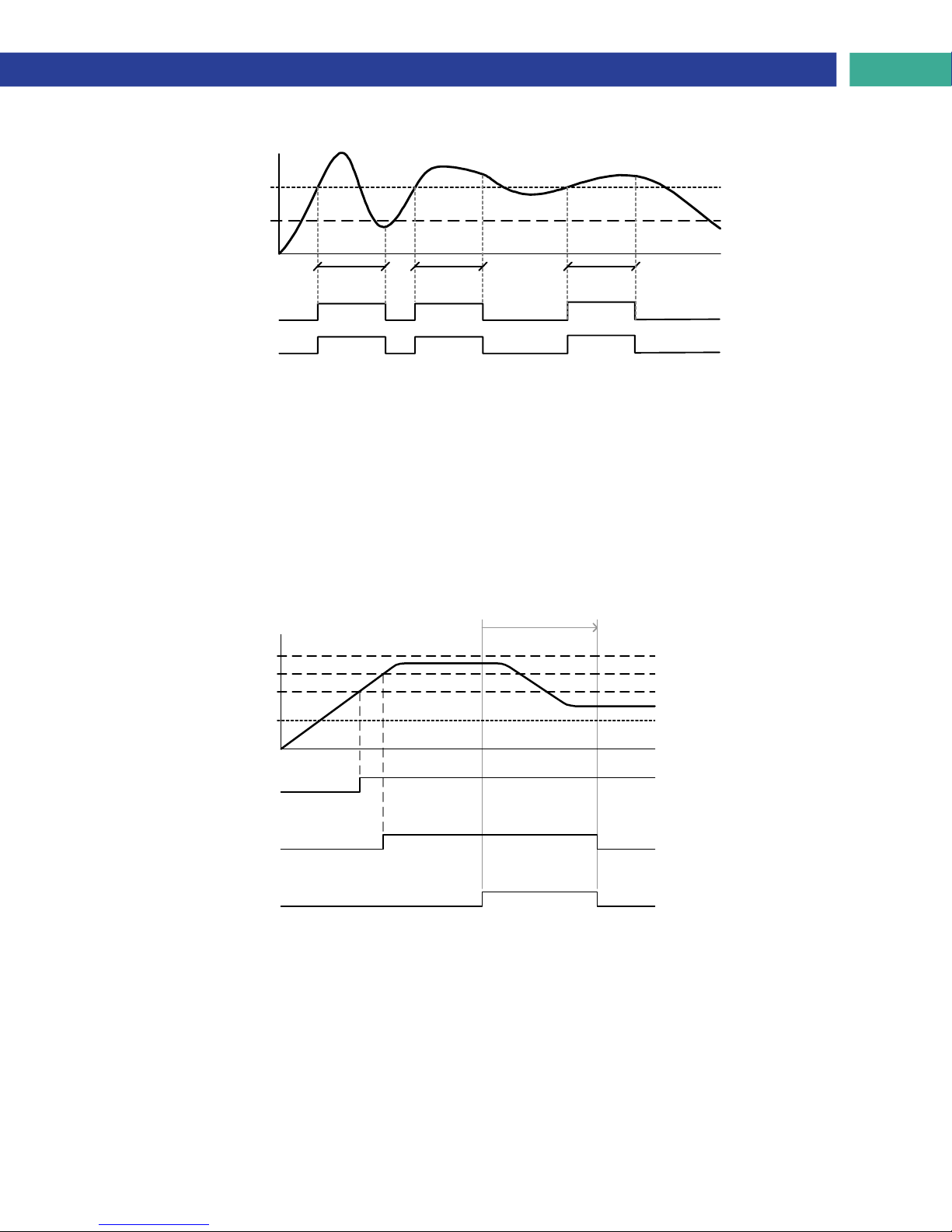

Relay Sampling Operation

Set

Reset

Input

Relay

LED

Sample

Tim e

Sample

Tim e

Sample

Tim e

When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the set point is crossed, going up for high alarms and going down for low alarms.

The sample time can be programmed between 0.1 and 5999.9 seconds.

Relay Operation After Communications Break

When a Master scanner fails to receive a reply from the slave it is called a Communications Break. The relays can be programmed to react to this event by going On, Off, or No Action. After communication is restored the relays are turned off or on, based on their operating mode and their set and reset points, without regard to their prior state. This is similar to the auto initialization on power up. Below is a diagram showing three examples.

The same is true for a scanner set up to operate in Snooper mode.

Relay 3 Set

Relay 2 Set

Relay 1 Set

Relay 1 to 3

Reset

Input

Communic ations

Break

No Serial

Communications

Communic ations Restored

Relay 1

Manual mode

Relay 2

Manual mode

Relay 3

Auto mode

de-ener gized

energized

Communic ations Break: No Action

Communic ations

Break: Relay "on"

Communic ations

Break: Relay "on"

Page 46

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

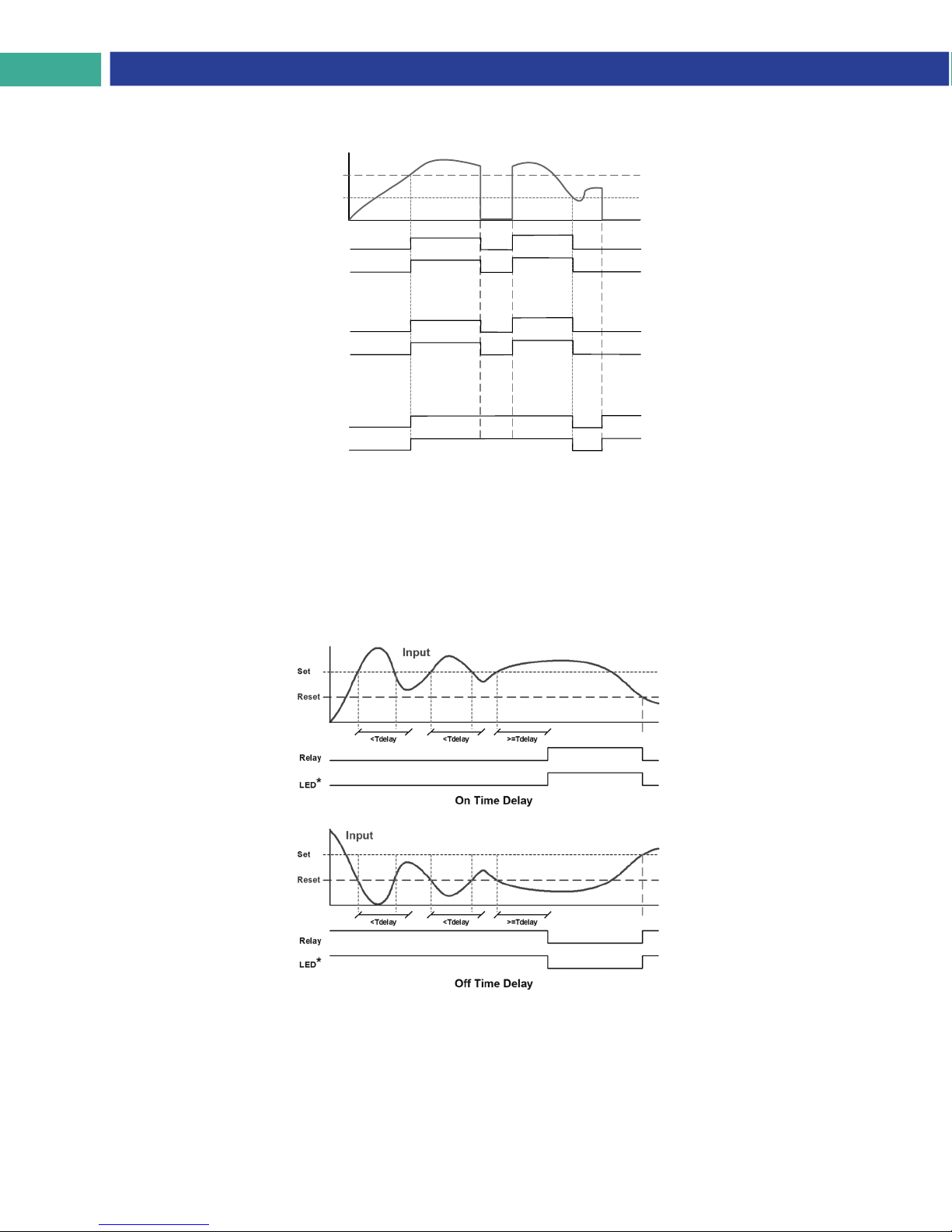

Signal Loss or Loop Break Relay Operation

The following graph shows the loop break relay operation for a high alarm relay.

Input

Set

Reset

de-energized energized

Relay

LED

Relay

LED

Relay

LED

When the scanner detects a break in the 4-20 mA loop, the relay will go to one of the following selected actions:

1. Turn On (Go to alarm condition)

2. Turn Off (Go to non-alarm condition)

3. No action (no Act) (Processed as a low signal condition)

off on

Loop Break = Ignore

Loop Break = Off

Loop Break = On

Time Delay Operation

The following graphs show the operation of the time delay function.

When the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off time delay.

Note: If “Automatic or Manual (A-mAn)” reset mode is selected, the LED follows the reset point and not

the relay state when the relay is acknowledged.

Page 47

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Relay Operation Details

Overview

The relay capabilities of the scanner expand its usefulness beyond simple indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs, as well as either 2 or 4 optional internal relays, and/or 4 external relays via expansion modules. Typical applications include high or low temperature, level, pressure or flow alarms, control applications such as simple on/off pump control, and pump alternation control for up to 8 pumps. There are four basic ways the relays can be used:

1. High or Low Alarms with Latching or Non-Latching Relays

2. Simple On/Off Control with 100% Adjustable Deadband

3. Sampling (Based on Time)

4. Pump Alternation Control for up to 8 Pumps

Relays Auto Initialization

When power is applied to the scanner, the front panel LEDs and alarm relays will reflect the state of the input to the scanner after the first response from the slave device. The following table indicates how the alarm LEDs and relays will react on power-up based on the set and reset points:

Alarm #

1 HI 1000 500 499 Off 2 LO 700 900 499 On 3 LO 250 400 499 Off 4 HI 450 200 499 On

HI or LO

Alarm

Set

Point

Reset

Point

Power-Up

Reading

Relay

& LED

Fail-Safe Operation (failsf)

The following table indicates how the relays behave based on the fail-safe selection for each relay:

Note: NO = Normally Open, NC = Normally Closed. This refers to the condition of the relay contacts when

the power to the scanner is off.

Fail-Safe Selection

Off Open Closed Closed Open Relays go to

On Closed Open Open Closed Relays go to

Non-Alarm State Alarm State Power Failure

NO NC NO NC

non-alarm state

alarm state

Front Panel LEDs

The LEDs on the front panel provide status indication for the following:

The scanner is supplied with four alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. The front panel LEDs respond differently for latching and non-latching relays.

For non-latching relays, the LED is always off during normal condition and always on during alarm condition, regardless of the state of the relay (e.g. Relay acknowledged after alarm condition).

For latching relays, the alarm LEDs reflect the status of the relays, regardless of the alarm condition. The following tables illustrate how the alarm LEDs function in relation to the relays and the acknowledge button (Default: F3 key assigned to ACK):

LED Status LED Status

1 Alarm 1 5 Alarm 5 2 Alarm 2 6 Alarm 6 3 Alarm 3 7 Alarm 7 4 Alarm 4 8 Alarm 8

Page 48

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Latching and Non-Latching Relay Operation

The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation.

The On and Off terminology does not refer to the status of the relay’s coil, which depends on the fail-safe mode selected.

Relay terminology for following tables

Terminology Relay Condition

On Alarm (Tripped) Off Normal (Reset)

Ack Acknowledged

Warning!

In latching relay mode, latched relays will reset (unlatch) when power is cycled.

Non-Latching Relay (Auto)

In this application, the scanner is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

Non-Latching Relay (A-man)

In this application, the scanner is set up for automatic and manual reset at any time (non-latching relay). The LED and the relay automatically reset when the scanner returns to the normal condition. The next time an alarm occurs, the operator acknowledges the alarm manually while the alarm condition still exists. This causes the relay to reset, but the LED stays on until the scanner returns to the normal condition.

Latching Relay (LatcH)

In this application, the scanner is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets the relay and turns off the LED.

Automatic reset only

Condition LED Relay

Normal Off Off Alarm On On Ack (No effect) On On Normal Off Off

Automatic + manual reset at any time

Condition LED Relay

Normal Off Off Alarm On On Normal Off Off Next Alarm On On Ack On Off Normal Off Off

Manual reset any time

Condition LED Relay

Normal Off Off Alarm On On Ack Off Off

Latching Relay (Lt-Clr)

In this application, the scanner is set up for manual reset only after the signal passes the reset point (alarm condition has cleared). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm is acknowledged after it returns to the normal state, the LED and the relay go off. Notice that the LED remains on, even after the scanner returns to the normal condition. This is because, for latching relays, the alarm LED reflects the status of the relay, regardless of the alarm condition.

Manual reset only after alarm

condition has cleared

Condition LED Relay

Normal Off Off Alarm On On Ack (No effect) On On Normal On On Ack Off Off

Page 49

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Acknowledging Relays

There are two ways to acknowledge relays programmed for manual reset:

1. Via the programmable F4 digital input assigned to ACK (Default) and connected to a normally open pushbutton wired across F4 and COM.

2. Remotely via a normally open pushbutton wired across one of the digital inputs and the +5 V terminals on the digital I/O modules, which is triggered with a contact closure to COM, or with an active low signal (see page8).

When the ACK button or the assigned digital input is closed, all relays programmed for manual reset are acknowledged.

P- F4P+ COM V+

3412 5

mA+ COM V+ mA+

7869

PDA1044 Digital I/O Module

12345 678910

+5 I1 I2 I3 I4 O1 O2 O3 O4 G

DO 1-4

GND

Ack

Figure 18. Acknowledge Relays with F4

Function Key

DI 1-4

Figure 19. Acknowledge Relays with Digital

ACK

Input

Pump Alternation Control Applications (Altern)

For pump control applications where two or more similar pumps are used to control the level of a tank or a well, it is desirable to have all the pumps operate alternately. This prevents excessive wear and overheating of one pump over the lack of use of the other pumps.

Up to 8 relays can be set up to alternate every time an on/off pump cycle is completed. The set points and reset points can be programmed, so that the first pump on is the first pump off.

Application #1: Pump Alternation Using Relays 1 & 2

1. Relays 1 and 2 are set up for pump alternation.

2. Relays 3 and 4 are set up for low and high alarm indication.

1. Pump #1 turns on when the level reaches 30.000, when level drops below 10.000 pump #1 turns off.

2. The next time the level reaches 30.000, pump #2 turns on, when the level drops below 10.000, pump #2 turns off.

3. If the level doesn’t reach 35.000 pump #1 and pump #2 will be operating alternately.

4. If pump #1 cannot keep the level below 35.000 pump #2 will turn on at 35.000, then as the level drops to 10.000 pump #1 turns off, pump #2 is still running and shuts off below 5.000.

5. Notice that with the set and reset points of pump #2 outside the range of pump #1, the first pump on is the first pump to go off. This is true for up to 8 alternating pumps, if set up accordingly.

6. Relay #3 will go into alarm if the level drops below 4.000 and relay #4 will go into alarm if the level exceeds 40.000.

7. Adding the 4 external relays expansion module allows using the 4 SPDT internal relays for pump alternation and the 4 SPST external relays for high, high-high, low, and low-low alarm indication.

Set and Reset Point Programming with Pump Alternation Relay Set Point Reset Point Function

1 30.000 10.000 Controls pump 1 & 2 2 35.000 5.000 Sets dual pump trigger 3 4.000 9.000 Controls low alarm 4 40.000 29.000 Controls high alarm

Pump Alternation Operation

Page 50

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the Setup – Relay – Action menu and set the action to off.

2. In the Advanced features – User menu, program any of the digital inputs to Force On any of the

internal relays (1-4). The Advanced Features Menu can be found on page 53.

3. Connect a switch or dry contact between the +5V terminal and the corresponding digital input (dI-1 to

dI-4) terminal.

SW2

SW1

123456

+5 I1 I2 I3 I4 O1

5 VDC GND

DI 1-4 DO 1-4

O2 O3

910

O4 G

Interlock Relay Operation Example

Relays 1 & 2 are configured to energize (their front panel LEDs are off) when SW1 & SW2 switches (above) are closed. If the contacts to these digital inputs are opened, the corresponding front panel LEDs flash, indicating this condition. The processes being controlled by the interlock relay will stop, and will re-start only after the interlock relay is re-activated by the digital inputs (switches).

Note: If multiple digital inputs are assigned to the same relay, then the corresponding logic is (AND) – i.e. both switches must be closed to trip the relay.

Page 51

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog outputs can be scaled to provide a 4-20 mA signal for any display range selected. The Analog Outputs can be mapped to PVs or Math Channels. To select the channel and source assignments the analog outputs are assigned to, see Analog Output Source Programming on page 66.

No equipment is needed to scale the analog outputs; simply program the display values to the corresponding mA output signal.

The Analog Output menu is used to program the 4-20 mA outputs based on display values.

There are three analog outputs available. These only display when they are enabled. See graphic below.

Notes: Changes to the settings are saved to memory only after pressing ENTER. Changes made to settings prior to pressing ENTER are not saved. Once ENTER is pressed, the display moves to the next menu.

* If Installed

Page 52

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

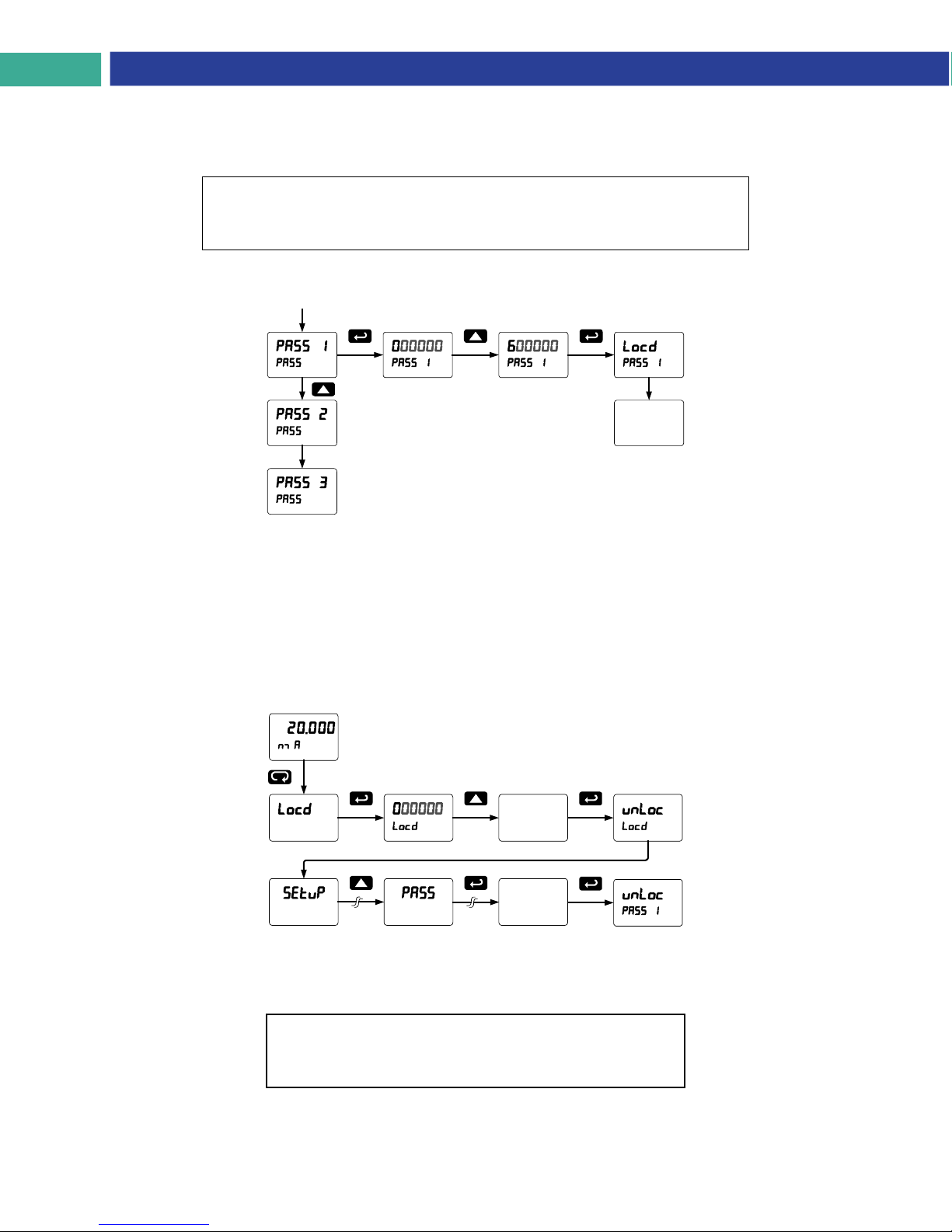

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings.

Protecting or Locking the Scanner

Enter the Password menu and program a six-digit password.

Run Mode

Making Changes to a Password Protected Scanner

If the scanner is password protected, the scanner will display the message Locd (Locked) when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access to the menu. After exiting the programming mode, the scanner returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The scanner is now unprotected until a new password is entered.

Run Mode

Enter

Password

Enter

Password

If the correct six-digit password is entered, the scanner displays the message unLoc (Unlocked) and the protection is disabled until a new password is programmed.

If the password entered is incorrect, the scanner displays the message Locd (Locked) for about two seconds, and then it returns to Run Mode. To try again, press Enter while the Locked message is displayed.

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the scanner.

Did you forget the password?

Page 53

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

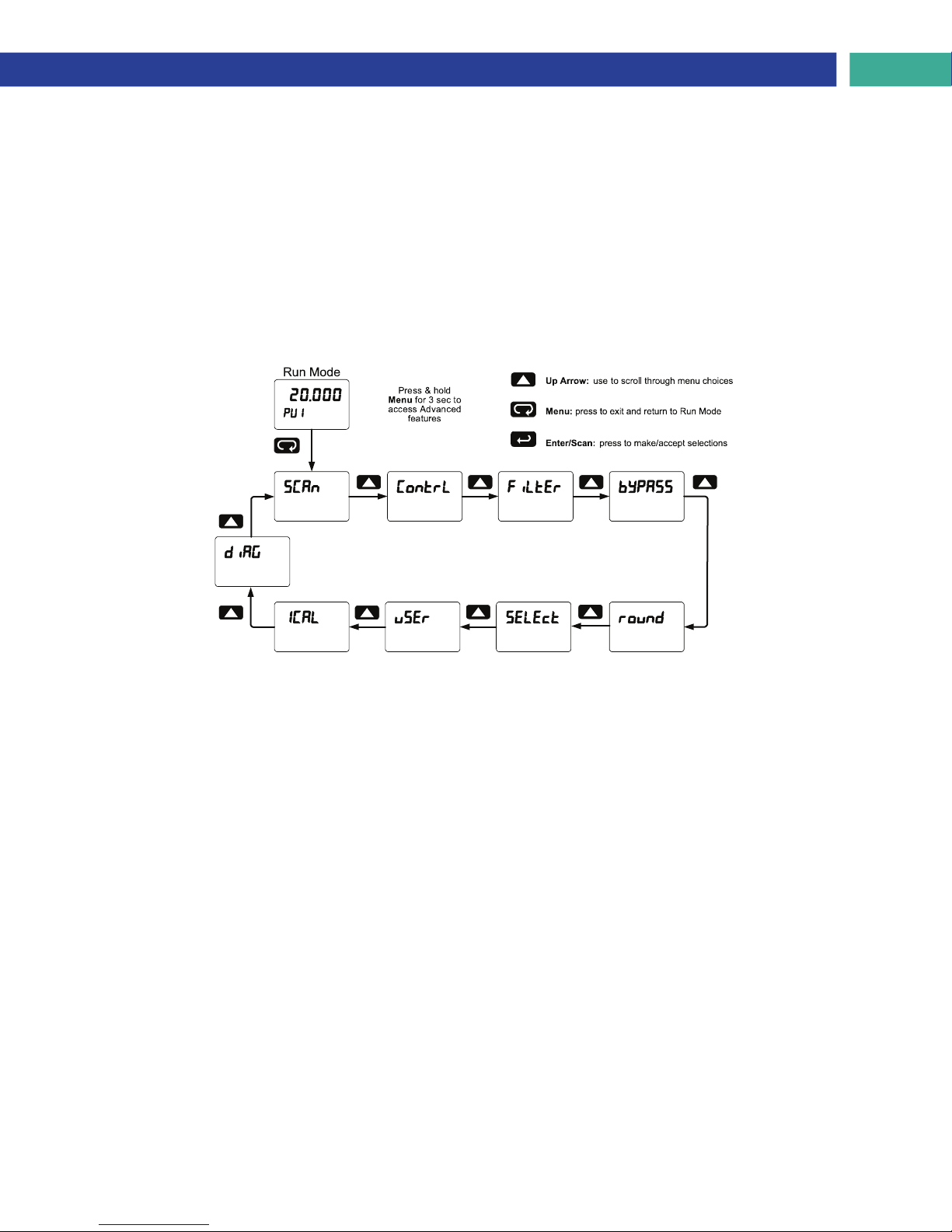

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu:

1. Scan Mode: Auto or manual; Go on alarm or stop on alarm

2. Control relays and analog output

3. Noise Filter

4. Noise Filter Bypass

5. Rounding Feature

6. Select Math, Linearization function, Cutoff

7. User Programming for function keys and digital I/O

8. Analog Channels Input Calibration

9. System Information

Advanced Menu Navigation Tips:

 Press and hold the Menu button for three seconds to access the Advanced Features Menu.  Press the Up arrow button to scroll through the Advanced Features Menu.  Press Menu at any time, to exit and return to Run mode.  Changes made to settings prior to pressing Enter/Scan are not saved.  Changes to the settings are saved to memory only after pressing Enter/Scan.  The display automatically moves to the next menu every time a setting is accepted by pressing

Enter/Scan.

Page 54

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Advanced Features Menu & Display Messages

Display Parameter Action/Setting

sCan mode

Auto

time man Alarm go Stop Contrl

Auto

man

Aout 1

rly 1

on off filter Pv 1

Pv 2

bypass Pv 1

Pv 2

round

select functn

Pv 1*

Ch C1*

Linear No pts

sCale

Inp 1

Dis 1 Inp 2

Scan

Scan Mode

Automatic

Scan Time

Manual

Alarm

Stop

Control

Automatic

Manual

Analog Output 1

Relay 1

Off

Filter

PV 1 Filter

PV 2 Filter

Filter Bypass

PV 1 Filter Bypass

PV 2 Filter Bypass

Rounding Feature

1 Rounding Value

Select

Function

PV 1 Function

Ch C1 Function

Linear

Number of Points

Scale

Input 1

Display 1

Input 2

Enter Scan menu Select Auto or Manual

Scan Mode Select Automatic Scan

Mode Select Scanning Time Select Manual Scan Mode Select Go or Stop Alarm Select Alarm Go Select Alarm Stop Enter Control menu for

relays and analog output 1

Select Automatic Control of Outputs and Relays

Select Manual Control of Outputs and Relays

Select Analog Output 1 for manual control

Select Relay 1-8 for manual control

Select On for Relay 1-8 Select Off for Relay 1-8 Enter Filter menu Program Filter Value for

PV 1 Program Filter Value for

PV 2

Enter Filter Bypass menu Program Filter Bypass

Value for PV 1 Program Filter Bypass

Value for PV 2 Enter Rounding Feature

Program Rounding Value for PV

*(User-selectable & rounds to the nearest 1, 2, 5, 10, 20, 50, 100)

Enter Select menu Enter data Linearization

Function menu

*Enter Linearization

Function menu for all

enabled PVs

*Enter Linearization

Function menu for all

enabled math channels Enter Linear menu Enter Number of

Linearization Points

Scale Number of

Linearization Points

Calibrate input 1 signal or program input 1 value

Program display 1 value Calibrate input 2 signal or

program input 2 value (up to 3 points for PV1 & PV2)

Display Parameter Action/Setting

Dis 2

square Prog e

1.5000

rht

Inch

diamr Length math Ch C1*

Opertn

Const

Adder FACtr sum dif

difabs

avg multi divide Hi-pv

Lo-pv

drauw uwavg

ratio Concen

math2

sum dif

difabs

avg multi divide Cutoff

Pv 1

Display 2

Square Root

Programmable Exponent

Programmable Exponent Value

Round Horizontal Tank

Inch

Centimeters

Diameter

Length

Math

Channel C1

Operation

Constant

Adder

Factor

Sum

Difference

Absolute Difference

Average

Multiply

Divide

Max

Min

Draw

Weighted Average

Ratio

Concentration

Math2

Sum

Difference

Absolute Difference

Average

Multiply

Divide

Cutoff

PV 1 Cutoff

Program display 2 value (u to 32 points for PV1 & PV2)

Enter Square Root menu Enter Programmable

Exponent

Enter the Programmable Exponent Value

Enter Round Horizontal

Tank

Enter to calculate tank values in Inches

Enter to calculate tank values in Centimeters

Enter tank diameter Enter tank length Enter Math menu *Enter Math Channel

C1-C4

Enter Math Operation menu

Enter Math Constant menu

Enter Adder Value Enter Factor Value Math Function Sum Math Function

Difference

Math Function Absolute

Difference

Math Function Average Math Function Multiply Math Function Divide Math Function Maximum

of all selected PVs

Math Function Minimum

of all selected PVs

Math Function Draw Math Function Weighted

verage

Math Function Ratio Math Function

Concentration

Resultant Math

Math operation applied to other math channels (e.g. C3 = C1/C2)

Math2 Function Sum Math2 Function

Difference

Math2 Function Absolute

Difference

Math2 Function Average Math2 Function Multiply Math2 Function Divide Enter Low Flow Cutoff

menu Program Cutoff Value for

PV 1

Channel

Page 55

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Display Parameter Action/Setting

Pv 2

aoutPr

Aout 1*

SourCE

Pv 1*

Ch C1*

Set 1* break

ignore force CALib

mAx

min

O-rang

U-rang

user

F1* prev next SCAn Ack reset Rst Hi Rst Lo Rst HL

relay Set 1* Rly d Rly e O Hold d Hold

PV 2 Cutoff

Analog Output Program

Analog Output 1-3

Analog Output Data Source

Source PV

Source Math Channel

Set Point 1-8

Communication s Break

Ignore Break

Force Break

Calibration

Maximum

Minimum

Overrange

Underrange

User

F1-4

Scan

Acknowledge

Reset

Reset Max

Reset Min

Reset Max-Min

Relay

Set Points 1-8

Relay Disable

Relay Enable

Output Hold

Display Hold

Program Cutoff Value for PV 2

Enter Analog Output

Programmable

parameters menu *Analog Output 1-3 (If

Installed) Enter Analog Output

Data

Source menu

*Select PV for Analog Output Data Source

*Select C1-4 for Analog Output Data Source

*Select Set Points 1-8

Enter the Analog Output value when

Communications Break

is detected Ignore Break Force Break Enter the Analog Output

Calibration menu

Select Maximum value for all Analog Outputs

Select Minimum value for all Analog Outputs

Enter the Analog Output value for an condition

Enter the User menu for assigning function keys and digital I/O

*F1-F4 Function Keys

Previous PV Next PV Scan or pause scan Acknowledge relays Enter Reset menu Reset Maximum Reset Minimum Reset Maximum &

Minimum

Relay menu Set Points 1-8

Relay Disable (all relays) Relay Enable (all relays) Output Hold (all relays) Display Hold (while held

low)

Overrange

Underrange

Display Parameter Action/Setting

disabl Contrl dI 1* menu right up enter F on 1*

dO 1* Alm 1* Ack

reset Rst Hi Rst Lo Rst HL

disabl ICAL

Ch-A Ch-b mA C CAL

C Lo

C Hi

volt v CAL

v Lo

v Hi

error

diag reset

Led t

info

sft

ver

Disable

Control

DI 1-8

Right

Enter

Force On Relay 1

DO 1-8

Alarm 1-8

Acknowledge

Reset

Reset Max

Reset Min

Reset Max-Min

Disable

Input Calibration

Channel A

Channel B

Milliamps

Milliamp Calibration

Milliamp Low Signal

Milliamp High Signal

Volts

Voltage Calibration

Voltage Low Signal

Voltage High Signal

Error

Diagnostic

Reset

LED Test

Info

Software

Software Version

Disable Control menu *Digital Inputs 1-8

Menu Right Up Enter *Force On Relay 1-4

*Digital Outputs 1-8

*Alarm 1-8

Acknowledge Enter Reset menu Reset Maximum Reset Minimum Reset Maximum &

Minimum Disable Enter analog channels

Input Calibration menu

Enter Input Channel A Enter Input Channel B Enter Milliamps Enter Milliamp

Calibration

Enter Milliamp Low

Signal

Enter Milliamp High

Signal

Enter Volts Enter Voltage Calibration

Enter Voltage Low

Signal

Enter Voltage High

Signal

Error Message for

Unsuccessful Calibration

Enter Diagnostics menu Reset to Factory

Defaults

LEDs cycle through all digits, decimal points, and indicators

Displays Scanner information

Displays Software information

Displays Software

Version

information

Page 56

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

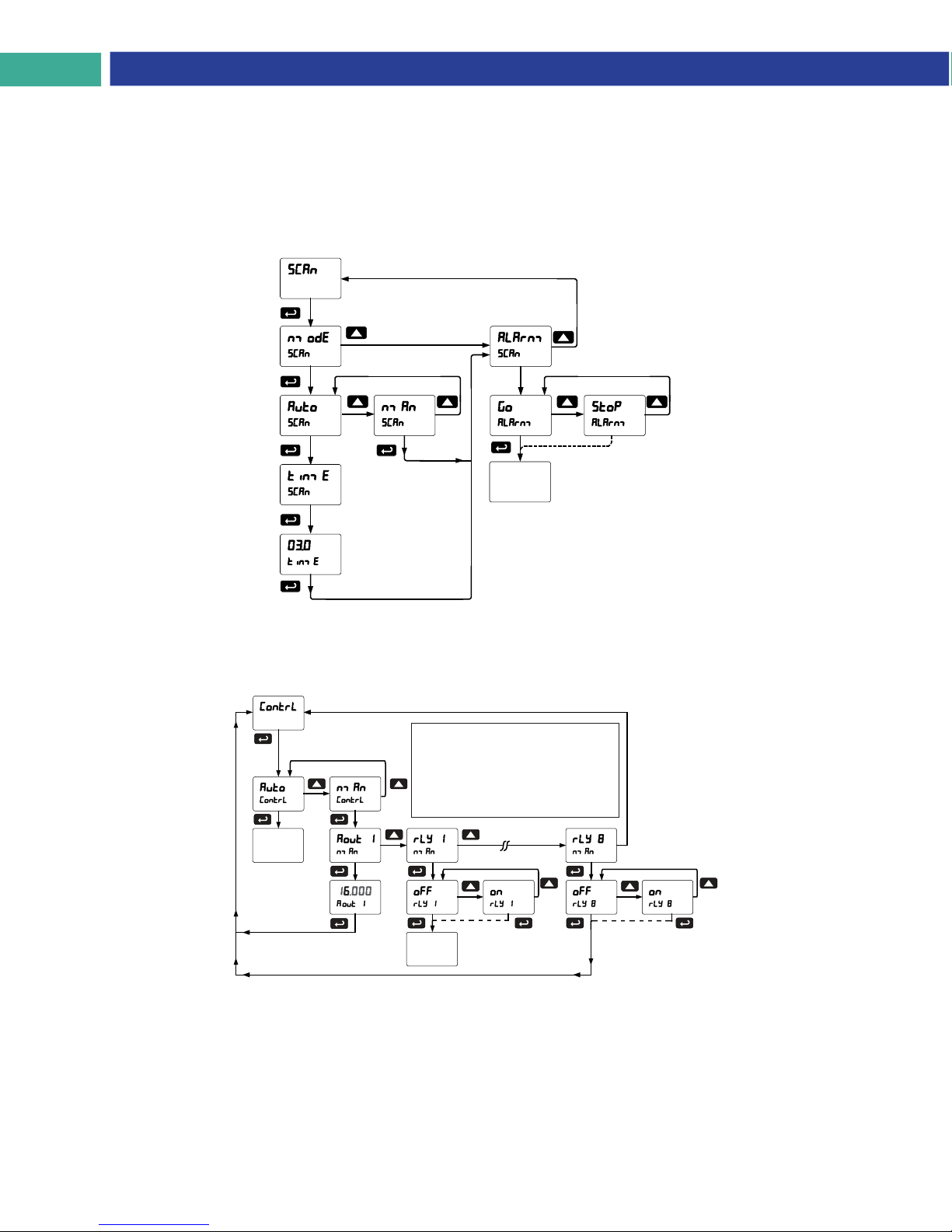

Scan Function (SCan)

The Scan menu is used to program the PV scan mode and the scanner’s behavior on alarm condition. The operator is able to scan automatically based on a time parameter, or scan manually with front panel keys or digital inputs. The operator is also able to set the scanner to stop on alarm or continue scanning on alarm. To resume scanning the operator must press the Next or Previous button. Please follow the menu below for details. In the Stop on Alarm mode, the scanner will go to the alarmed PV and remain there until the operator manually advances to the next PV or returns to the previous PV. If a new alarm is detected the process is repeated. The scanner ignores old alarms.

Continues

Control Menu.

Control Menu (Contrl)

The Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

Once Manual mode is initiated on any relay or

analog output, an LED labeled “M” is turned

on. Every few seconds, all LEDs re presenting

outputs that are in Manua l mode, as well as

the “M” LED flash. This process will continue

as long as any output is in manual mode.

FILTER

Relays 2-8

Page 57

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

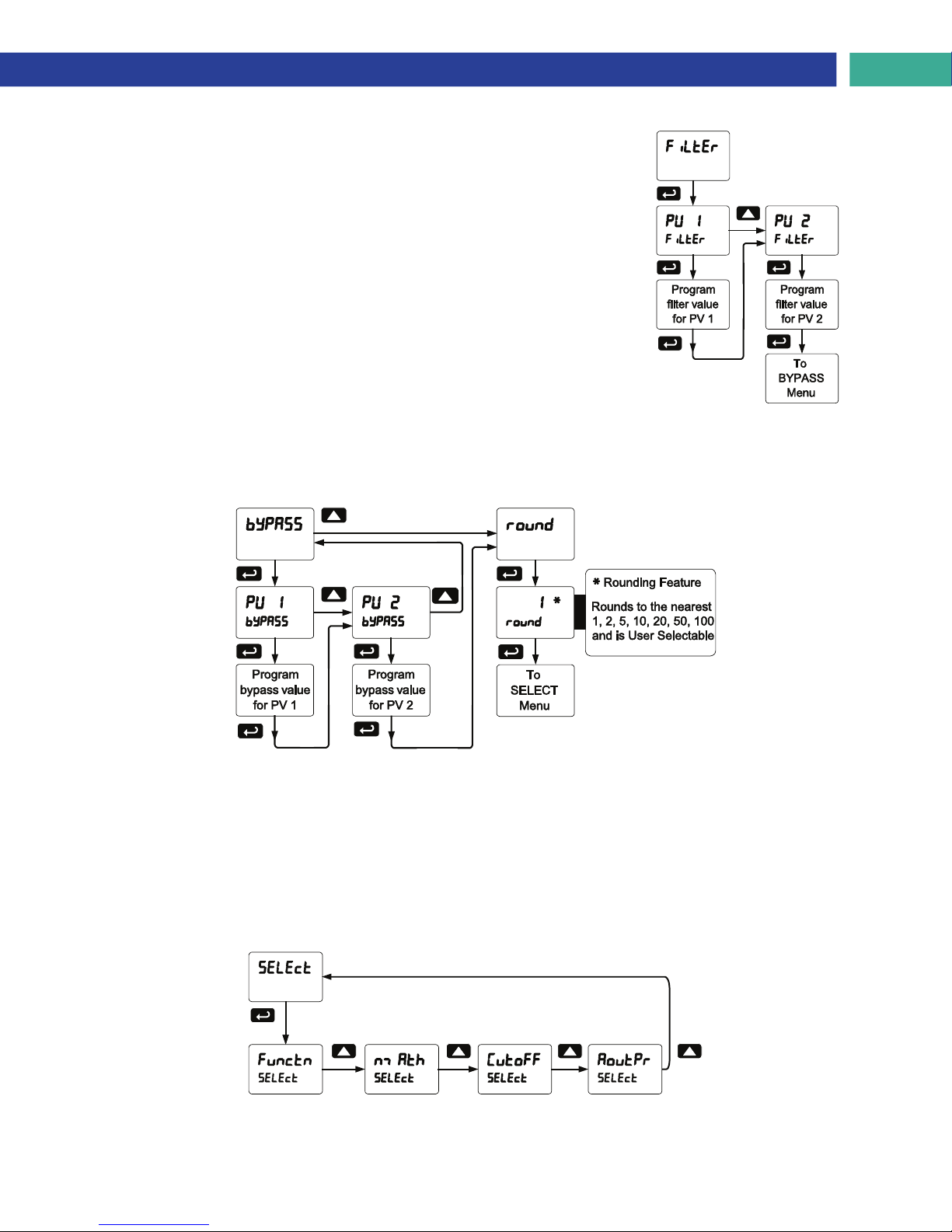

Noise Filter (filter)

Most applications do not require changing this parameter. It is intended to help attain a steady display with unsteady (noisy) input data. The field selectable noise filter averages any minor or quick changes in the input data and displays the reading with greater stability. Increasing the filter value will help stabilize the display. However, this will reduce the display response to changes on the input data. The filter level may be set anywhere from 2 to 199. Setting the filter value to zero disables the filter function, and the bypass setting becomes irrelevant. This parameter is associated with the analog input channels.

Noise Filter Bypass (bypass)

The scanner can be programmed to filter small input changes, but allow larger input changes to be displayed immediately, by setting the bypass value accordingly. If the input signal goes beyond the bypass value, it will be displayed immediately with no averaging done on it. The noise filter bypass value may be set anywhere from 0.2 to 99.9. Increasing the bypass value may slow down the display response to changes on the input signal. This parameter is associated with the analog input channels.

Rounding Feature (round)

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function. Rounding causes the display to round to the nearest value according to the rounding criteria selected by the user. This setting affects the last three digits, regardless of decimal point position.

Select Menu (SELect)

The Select menu is used to select the input data linearization function (linear, square root, programmable exponent, or round horizontal tank), math functions, constants, low-flow cutoff, and analog output programming. Multi-point linearization is part of the linear function selection.

Page 58

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

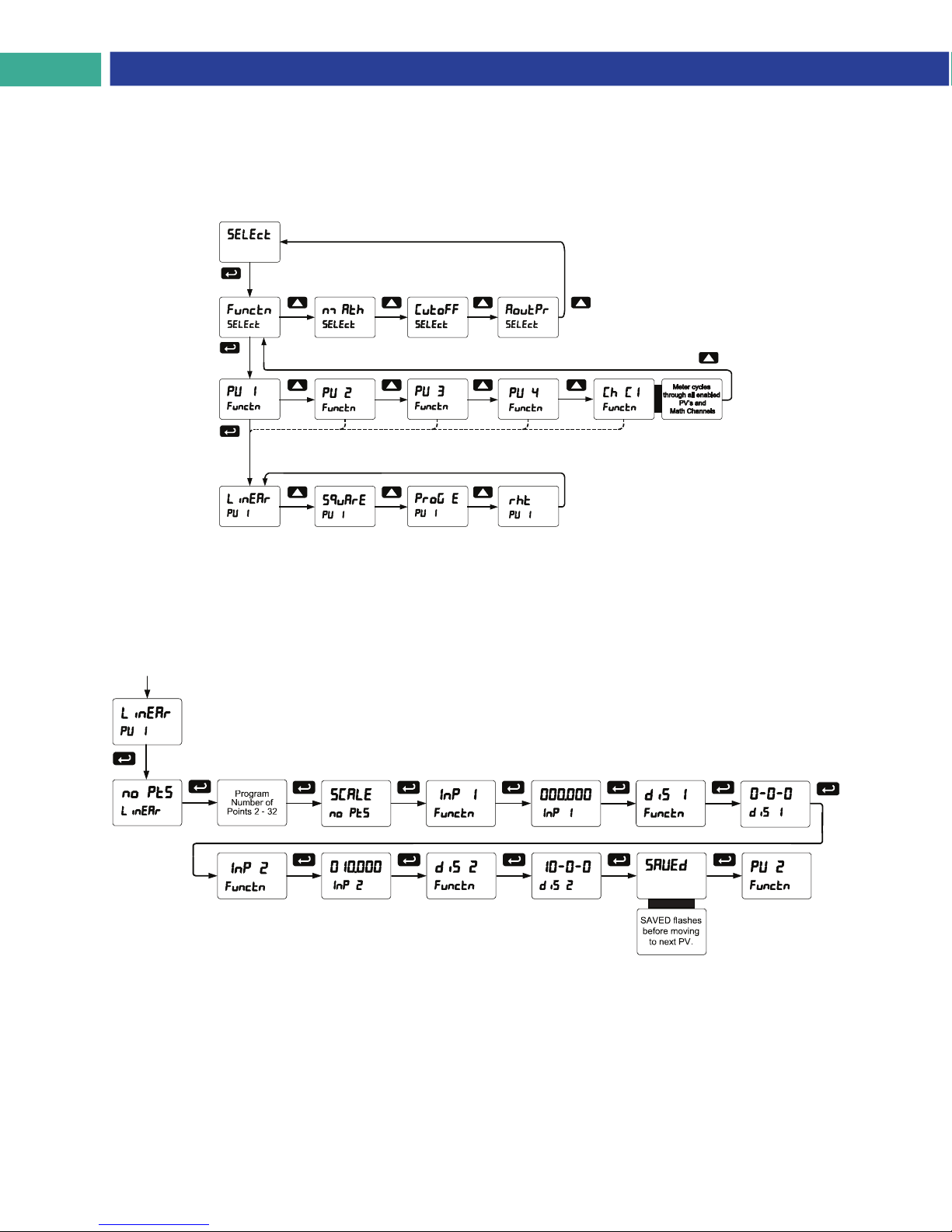

Input Data Conditioning Function Menu (Functn)

The Function menu is used to select the input-to-output transfer function applied to the input data: linear, square root, programmable exponent, or round horizontal tank volume calculation. Multi-point linearization (for PV1 and PV2) is part of the linear function selection. Scanners are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect to the input data (e.g 0.000 = 0.000, 10.000 = 10.000, and then 5.000 = 5.000).

Linear Function Menu (Linear)

Scanners are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected for PV1 and PV2 under the Linear function in the Advanced Features menu. The multipoint linearization can be used to linearize the display for non-linear signals such as those from level transmitters used to measure volume in odd-shaped tanks or to convert level to flow using weirs and flumes with complex exponents.

Note: Multi-point Linearization applies to PV1 and PV2 only. All other PVs use two linearization points.

Page 59

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Square Root Function Menu (Square)

The square root function is used to calculate flow measured with a differential pressure transmitter. The flow rate is proportional to the square root of the differential pressure. Scale the scanner so that the low input signal (e.g. 4 mA) is equal to zero flow and the high input signal (e.g. 20 mA) is equal to the maximum flow.

Programmable Exponent Function Menu (prog e)

The programmable exponent function is used to calculate open-channel flow measured with a level transmitter in weirs and flumes. The flow rate is proportional to the head height. Scale the scanner so that the low input signal (e.g. 4 mA) is equal to zero flow and the high input signal (e.g. 20 mA) is equal to the maximum flow. This method works well for all weirs and flumes that have a simple exponent in the flow calculation formula. For weirs and flumes with complex exponents it is necessary to use a strapping table and the 32-point linearization of the scanner.

Page 60

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

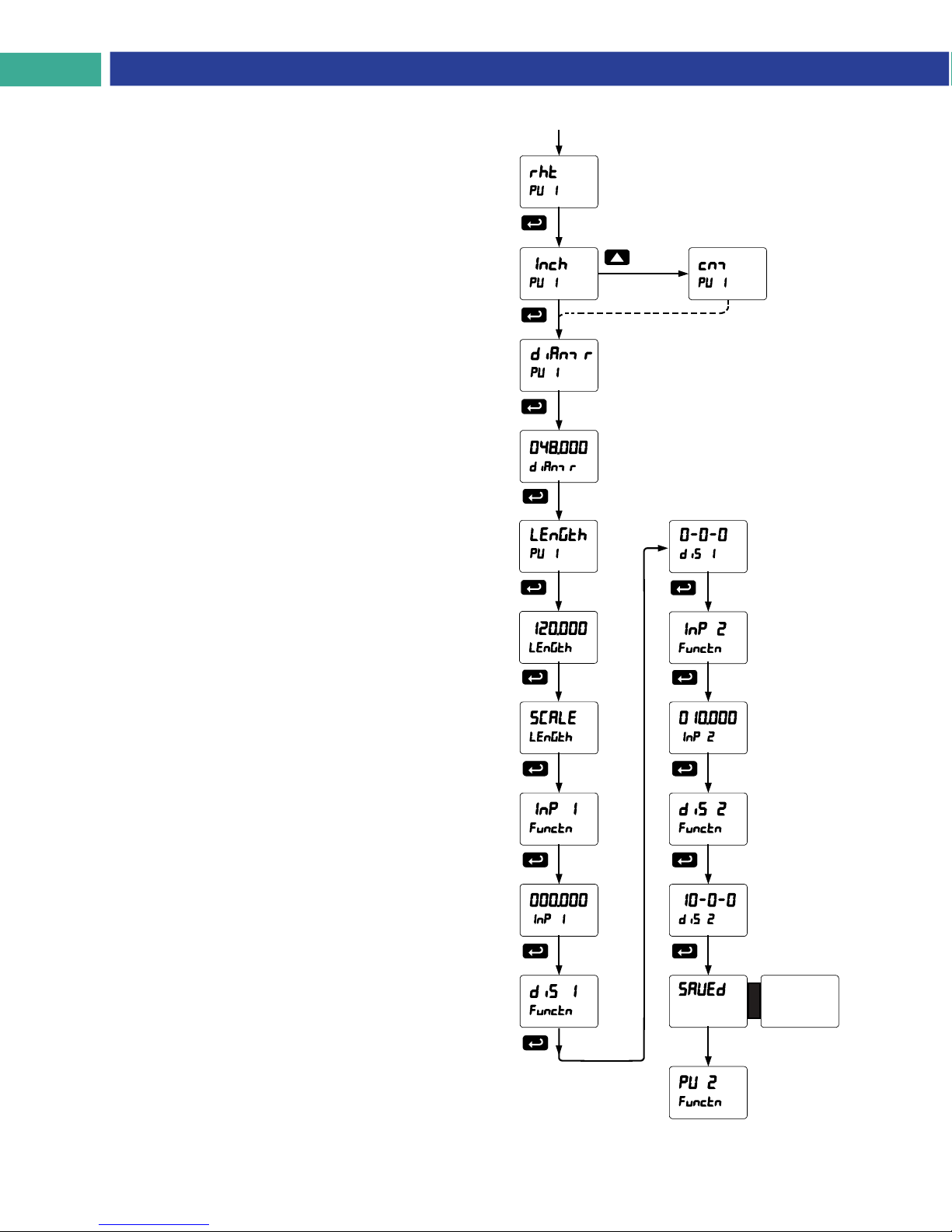

Round Horizontal Tank Function Menu (rht)

This function is used to calculate volume in a round horizontal tank with flat ends. The volume is calculated based on the diameter and length of the tank. The tank’s dimensions can be entered in inches or centimeters; the scanner automatically calculates the volume in gallons or liters. After entering the dimensions, complete the scaling process with the display values calculated by the scanner. The scanner can be re-scaled to display the volume in any engineering unit without the need to re-enter the dimensions again.

Changing the Volume from Gallons to Liters

In the graphic, entering the 48" for the diameter and 120" for the length of the round horizontal tank, the scanner automatically calculates that the volume of the tank is

940.02 gallons.

1. Convert gallons to liters

1 US gallon = 3.7854 L

940.02 gal = 3558.4 L

2. Go to the Setup - PV - Decimal Point menu and

change the decimal point to 1 decimal.

3. Go to the Setup - PV - Scale menu and press Enter

until dis 2 is shown on display line 1.

4. Press Enter and change the display 2 value to

3558.4.

5. The scanner is now displaying the volume in liters.

Note: The display can be scaled to display the volume in

any engineering units.

SAVED flashes

before moving

to next PV.

Page 61

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Math Functions (math)

The Math menu is used to select the math function that will determine the channels’ C1-C4 value. These math functions are applied to PVs and other math channels. The results are displayed by selecting Display Channel C (d Ch C) in the Display menu. Most math functions may be applied to all PVs: For example, it is possible to add up to 16 PVs and calculate the total volume of all the tanks in a field. The Math2 function allows for further calculations on the results of other math channels (e.g. C4 = C2/C1).

The following math functions are available:

Name

Math Operation (Examples)

(P = Adder, F = Factor)

Addition (PV1+PV2+P)*F Difference (PV1-PV2+P)*F Absolute difference ((Abs(PV1- PV2)+P)*F Average (((PV1+PV2)/2)+P)*F Multiplication ((PV1*PV2)+P)*F Division ((PV1/PV2)+P)*F Max PV Max value of all selected PVs Min PV Min value of all selected PVs Draw ((PV1/PV2)-1)*F Weighted average ((PV2-PV1)*F)+PV1 Ratio (PV1/PV2)*F Concentration (PV1/(PV1+PV2))*F Math 2 Math on other math channels

Addition C3 = (C1+C2+P)*F Difference C4 = (C1-C2+P)*F Absolute difference C3 = ((Abs(C1- C2)+P)*F Average C4 = (((C1+C2)/2)+P)*F Multiplication C3 = ((C1*C2)+P)*F Division C4 = ((C1/C2)+P)*F

Setting

Sunm diF diFAbS AvG Nmulti divide Hi-pv Lo-pv drAuw uwavg Ratio Concen Nmath2

Sunm diF diFAbS AvG Nmulti divide

Math Constants (Const)

The Math Constants menu is used to set the constants used in the math channel. The math functions include the selected PVs, as well as the constants P (Adder) and the Factor F (Multiplier) as indicated in the above examples.

The Adder constant (P) may be set from -99.999 to 999.999. The Factor constant (F) may be set from 0.001 to 999.999. The above chart details the math functions that may be selected in the Math Function menu.

Page 62

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

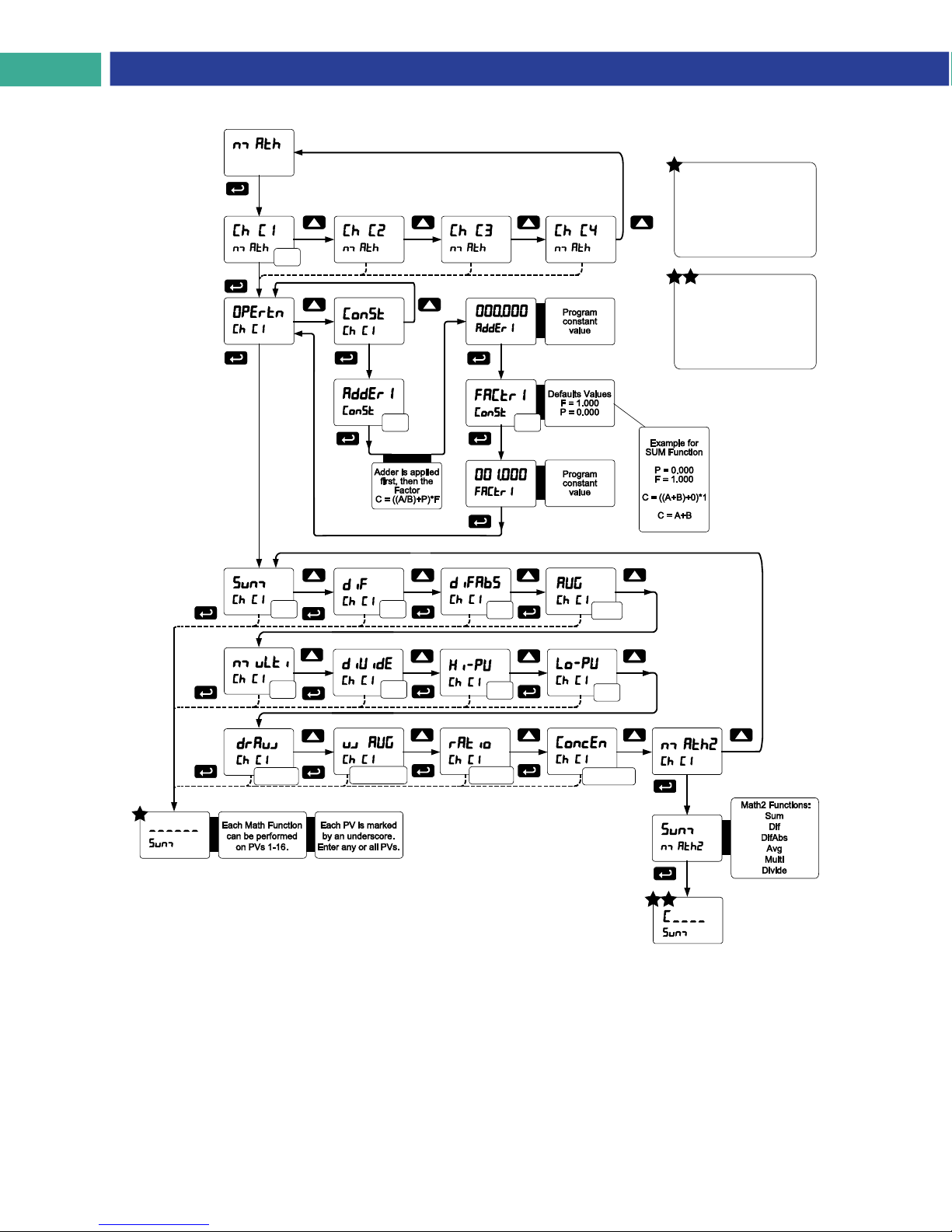

Math Function Menu (math)

P F

Main Math C hannels:

Each PV is represented by an underscore. There are 6 lines

shown and ten lines hidden. Enter

any or all PVs without leaving a

space. Any spaces will signal the

meter to end the equation there.

Move to the next PV by pressing

the Up Arrow.

Math2 Channel:

Each Math Channel C1, C2, C3, C4 is

represented by an underscore. There are 4 lines shown for most equations,

two for others. Enter any or all Math

Channels without leaving a space.

Any spaces will signal the meter

to end the equation there. Move to

the next PV by pressing the Up Arrow.

A+B

A*B

((A/B)-1)*F

A-B

A/B

((B-A)*F)+A

abs A-B

Max

(A/B)*F

(A+B)/2

Min

(A/(A+B))*F

Notes:

1. In the above menu, “A” & “B” in equations can represent any PVs (PV1-PV16). See table above.

2. Each digit represents one PV in hexadecimal format, except PV16 (G).

3. PV1 – PV9 = 1 - 9, PV10 – PV16 = A – G

4. No PV selected = “underscore symbol”

5. Digit range: 1-G, then “_”

6. If there is an empty digit, the scanner will end the equation at that point.

7. For Math2 Channel, “C” is fixed, indicating which Math Channels are being processed.

8. Please refer to the following graphics for details on various Math Functions:

Page 63

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

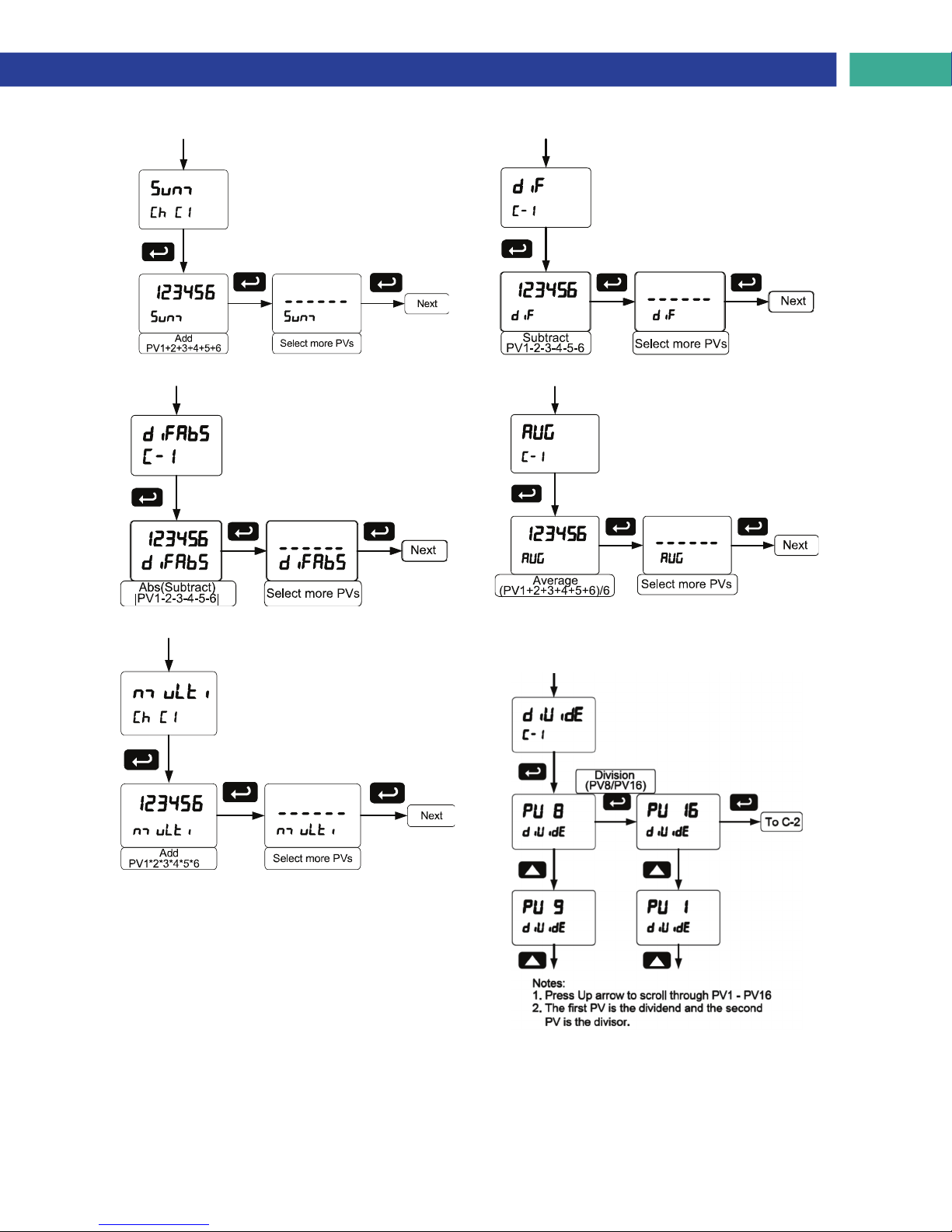

Sum Menu (sunm) Difference Menu (dif)

Difference Absolute Menu (difAbS) Average Menu (avg)

Multiplication Menu (nmulti)

Divide Menu (divide)

Only two PVs at a time will be used for this function.

Page 64

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Maximum PV Menu (Hi-pv) Minimum PV Menu (Lo-pv)

Draw Menu (drauw)

Only two PVs at a time will be used for this function.

Ratio Menu (ratio)

Only two PVs at a time will be used for this function

Weighted Average Menu (uwAvg)

Only two PVs at a time will be used for this function

Concentration Menu (Concen)

Only two PVs at a time will be used for this function

Page 65

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

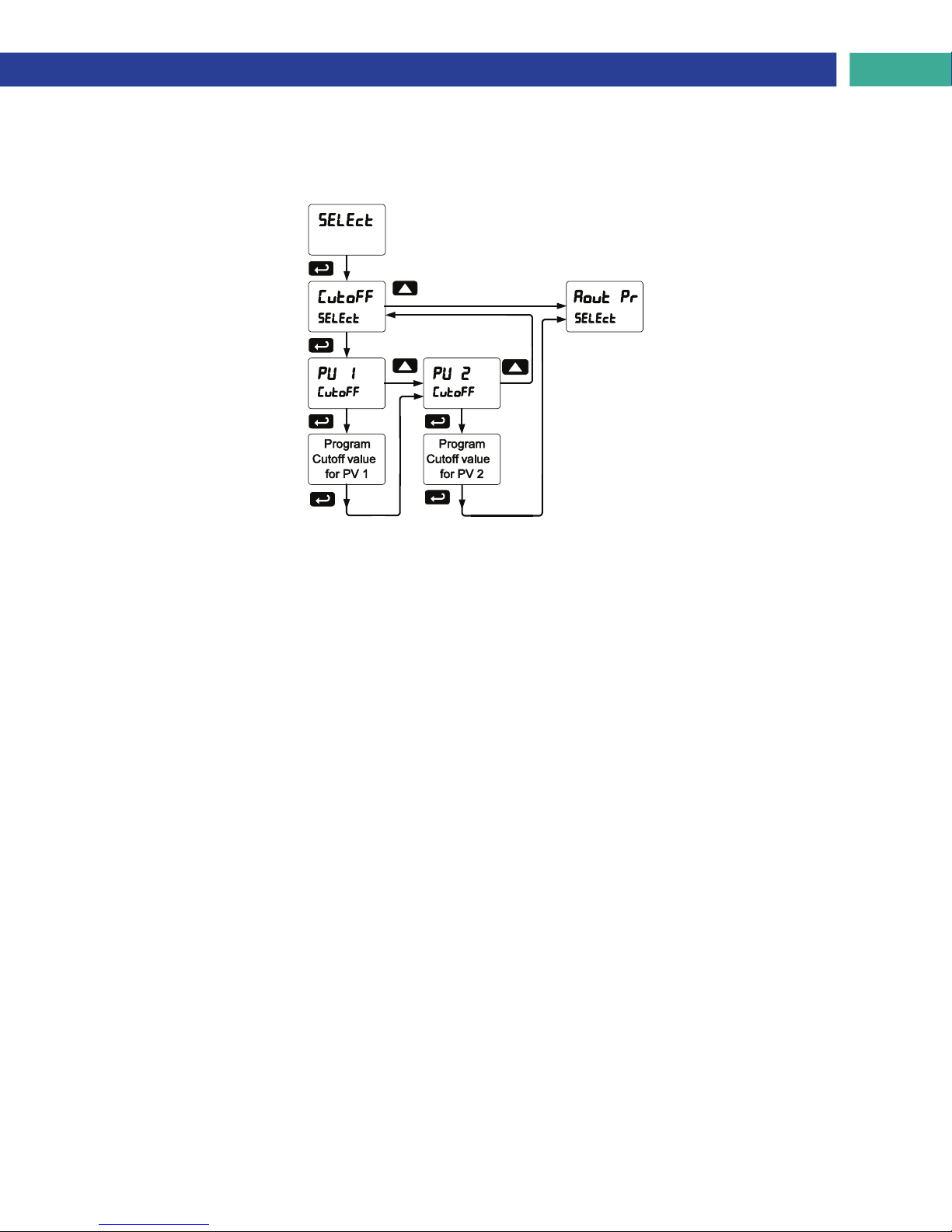

Low-Flow Cutoff (CutofF)

The low-flow cutoff feature allows the scanner to be programmed so that the often unsteady output from a differential pressure transmitter, at low flow rates, always displays zero on the scanner. The cutoff value may be programmed from 0 to 999999. When the input data is below the cutoff value, the scanner will display zero. Programming the cutoff value to zero disables the cutoff feature.

Page 66

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

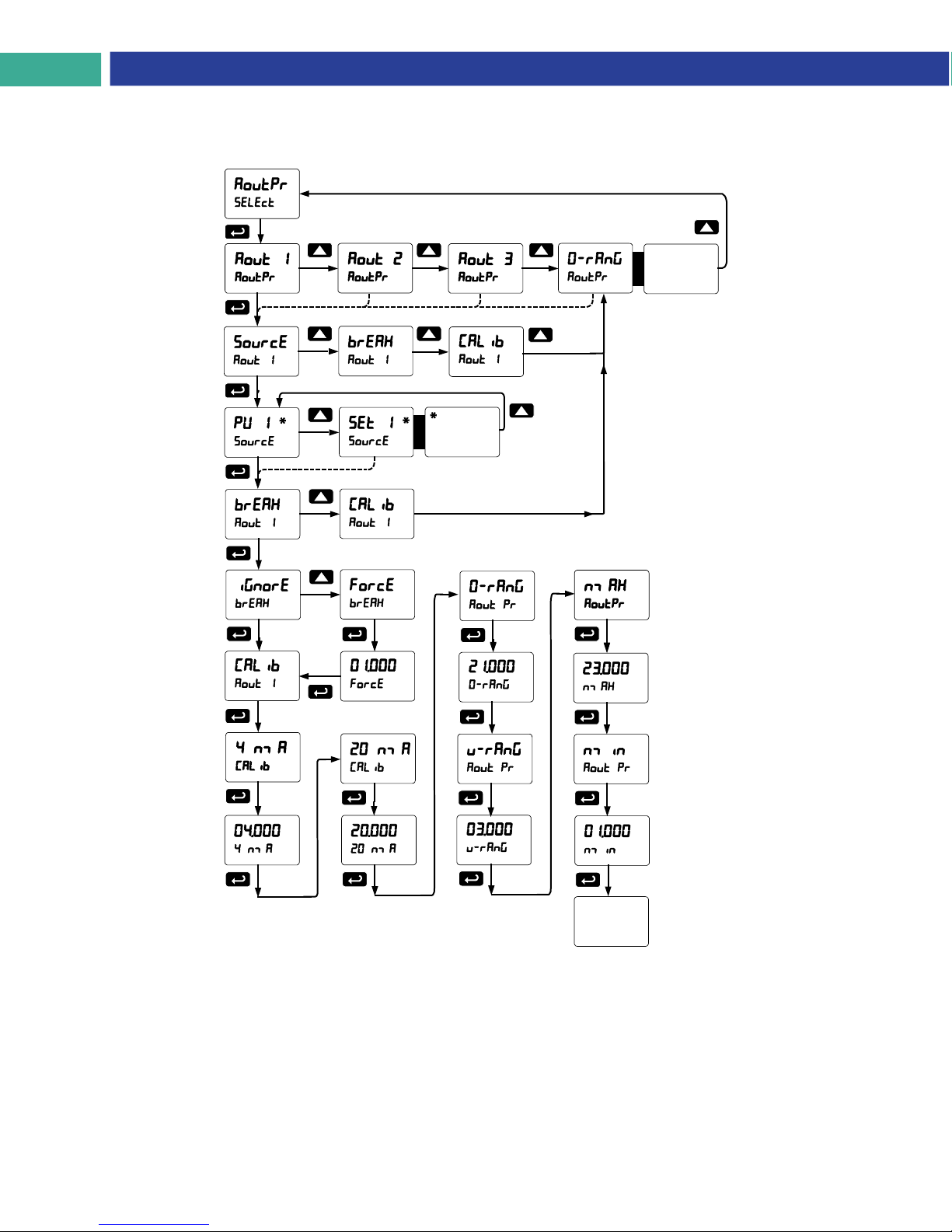

Analog Output Source Programming (aoutpr)

The 4-20 mA analog outputs can be programmed for source of data, overrange and underrange, absolute maximum and minimum output, and communications break values. They can also be recalibrated.

Underrange

Max

Min

All enabled PVs 1-16 & all Set Points 1-8

 To calibrate the analog outputs, follow the graphic above.  The overrange and underrange values are the values that will be output when the display shows an

overrange or underrange condition. This setting is common to all analog outputs.

 The maximum and minimum values are the absolute limits for the 4-20 mA output. This setting is

common to all analog outputs.

 The communications break value determines the mA output when a Slave fails to reply to a command

within the Response time.

RUN

Mode

Page 67

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

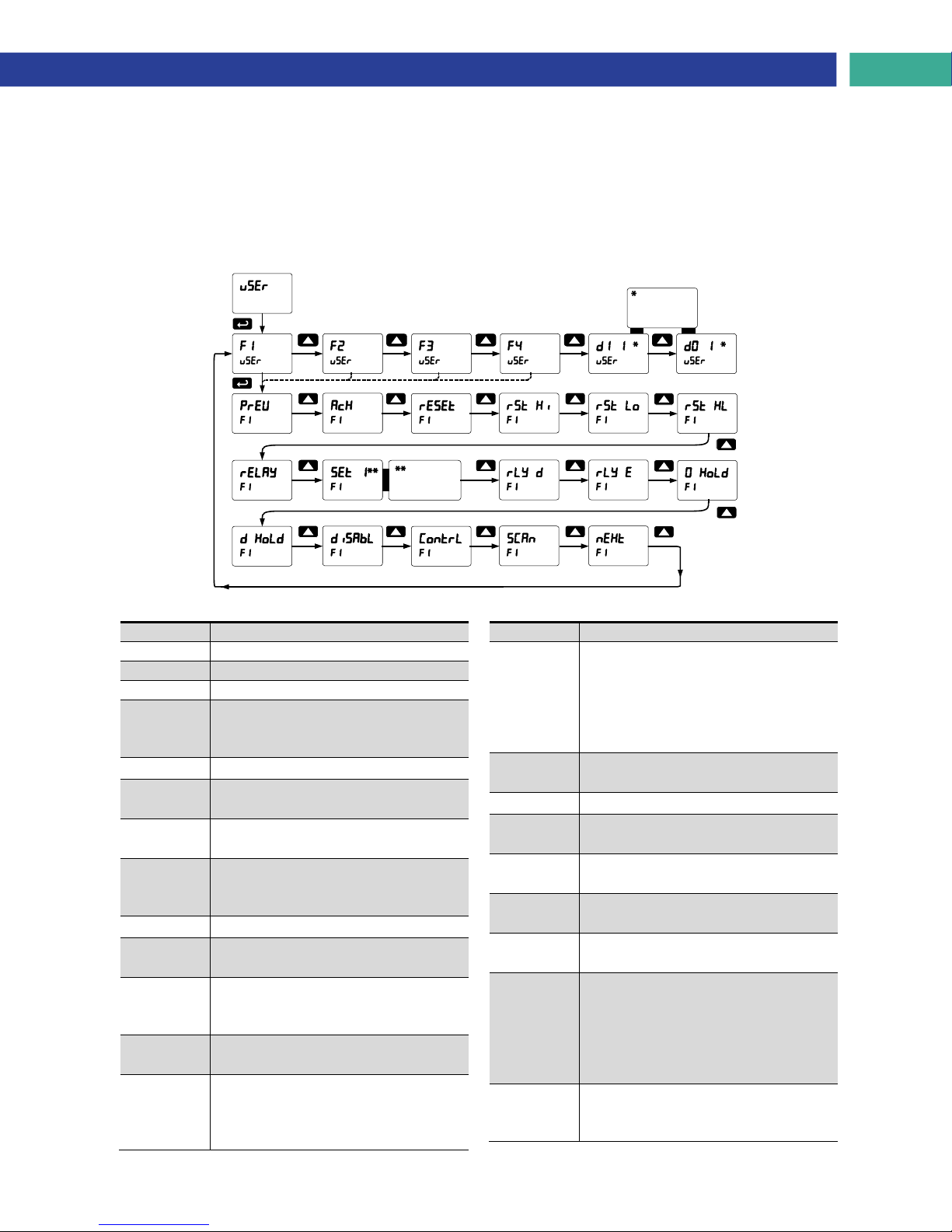

User Menu (user)

The User menu allows the user to assign the front panel function keys F1, F2, and F3, the digital input F4 (a digital input located on the signal input connector), and up to eight additional digital inputs to access most of the menus or to activate certain functions immediately (e.g. reset max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized applications.

Up to eight digital outputs can be assigned to a number of actions and functions executed by the meter (i.e. alarms, relay acknowledgement, reset max, min, or max & min, tare, and reset tare). The digital outputs can be used to trigger external alarms or lights to indicate these specific events.

If installed, there are up to 8 digital inputs and outputs.

There are up

to eight Set

Points available.

Function Keys & Digital I/O Available Settings

Display Description

sCan next prev

Scan through all PVs Skip to the next PV Return to the previous PV Acknowledge all active relays that

Ack

are in a manual operation mode such as auto-manual or latching

reset

Rst Hi

Rst Lo

Directly access the reset menu Reset the stored maximum display

values for all channels Reset the stored minimum display

values for all channels Reset the stored maximum &

Rst HL

minimum display values for all channels

relay

Set 1*

Directly access the relay menu Directly access the set point menu

for relay 1 (*through 8) Disable all relays until a button

Rly d

assigned to enable relays (Rly E) is pressed

Rly E

Enable all relays to function as they have been programmed

Hold current relay states and

O Hold

analog output as they are until a button assigned to enable relays (Rly E) is pressed

Display Description

Hold the current display value, relay states, and analog output

D Hold

momentarily while the function key or digital input is active. The process value will continue to be calculated in the background.

disabl

Contrl

nmenu

Right

Enter

Disable the selected function key or digital I/O

Directly access the control menu Mimic the menu button

functionality (digital inputs only) Mimic the right arrow/F1 button

functionality (digital inputs only) Mimic the up arrow/F2 button

functionality (digital inputs only) Mimic the enter/F3 button

functionality (digital inputs only) Force relay 1 (*through 4) into the

on state. This function is used in

F on 1*

conjunction with a digital input expansion module to achieve interlock functionality. See page 50 for details about interlock relays.

Provide indication when alarm 1

Alrnm 1*

(*through 8) has been triggered (digital outputs only)

Page 68

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

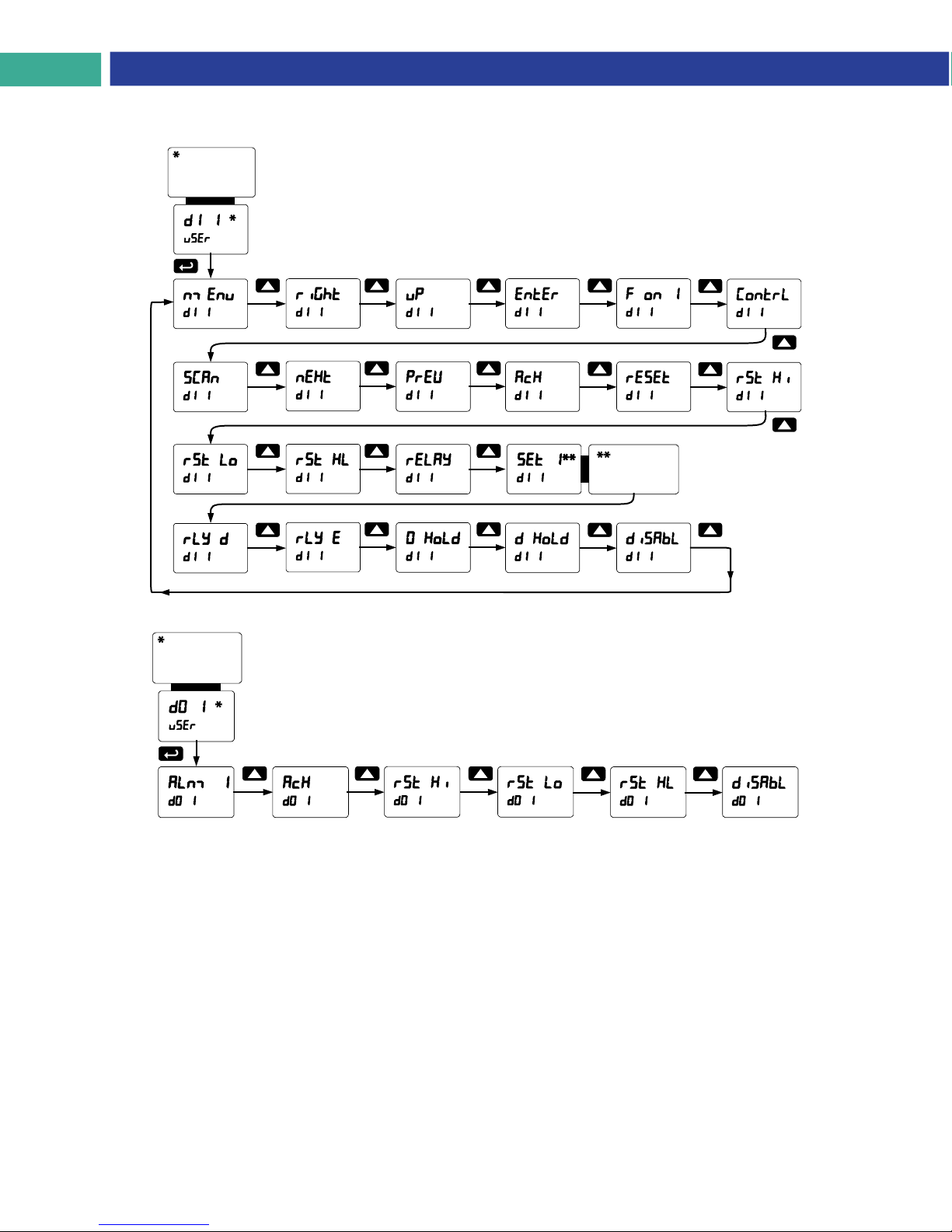

Digital Input Menu (dI 1)

If installed, there are up to 8 digital inputs and outputs.

There are up

to eight Set

Points available.

Digital Output Menu (dO 1)

If installed, there are up to 8 digital inputs and outputs.

Reset Menu (reset)

The Reset menu is used to reset the maximum or minimum reading (peak or valley) reached by the process; both may be reset at the same time by selecting “reset high & low” (rst HL). This is applied to all PVs and math channels.

Resetting is possible by going into the USER menu, selecting a function key or digital input, pressing ENTER to take you to the next level, then pressing the Up arrow until you arrive at the RESET menu. Press ENTER to assign the RESET menu to the selected function key or digital input. Now, when the scanner is in Run Mode, pressing the selected function key will take you to the RESET menu, where you can scroll through Reset Hi (Max), Reset Lo (Min), and Reset HiLo (Reset Max and Min), choosing what value to reset. You can also select the specific reset function (e.g. Reset HiLo) to the selected digital input or function key.

Page 69

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

4-20 mA Output Calibration

 There is no need to recalibrate the 4-20 mA output

when first received from the factory.

 The 4-20 mA outputs is factory calibrated prior to

shipment. The calibration equipment is certified to NIST standards.

CAUTION!

If an uncalibrated meter or a meter with less resolution is used, the calibration of the

4-20 mA output could be adversely affected.

4-20 mA Output Calibration Procedure

1. Wire the PD6080/6081 4-20 mA output to a current loop that includes a power supply (internal or external 12 to 24 VDC), and the mA input on the digital meter. See page 18 for details.

2. Turn on all devices. Allow for a 15 to 30 minute warm-up.

3. Go to the Advanced Features menu, and navigate to the Analog Output Programming (AoutPr)/Calibration (Calib) menu and press Enter.

4. The display will show 4 nmA. The PD6080/6081 mA output should now be close to 4 mA. Press Enter and the display will show 04.000. Enter the actual value read by the digital mA meter and press Enter.

5. The display will show 20 nmA. The PD6080/6081 mA output should now be close to 20 mA. Press Enter and the display will show 20.000. Enter the actual value read by the digital mA meter and press Enter.

6. The PD6080/6081 will now calculate the calibration factors and store them.

7. Press Menu to exit and return to Run mode.

The 4-20 mA output can be recalibrated in the field. A calibrated digital meter with an input range of at least 25 mA and a resolution of 1 μA is recommended.

Page 70

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual



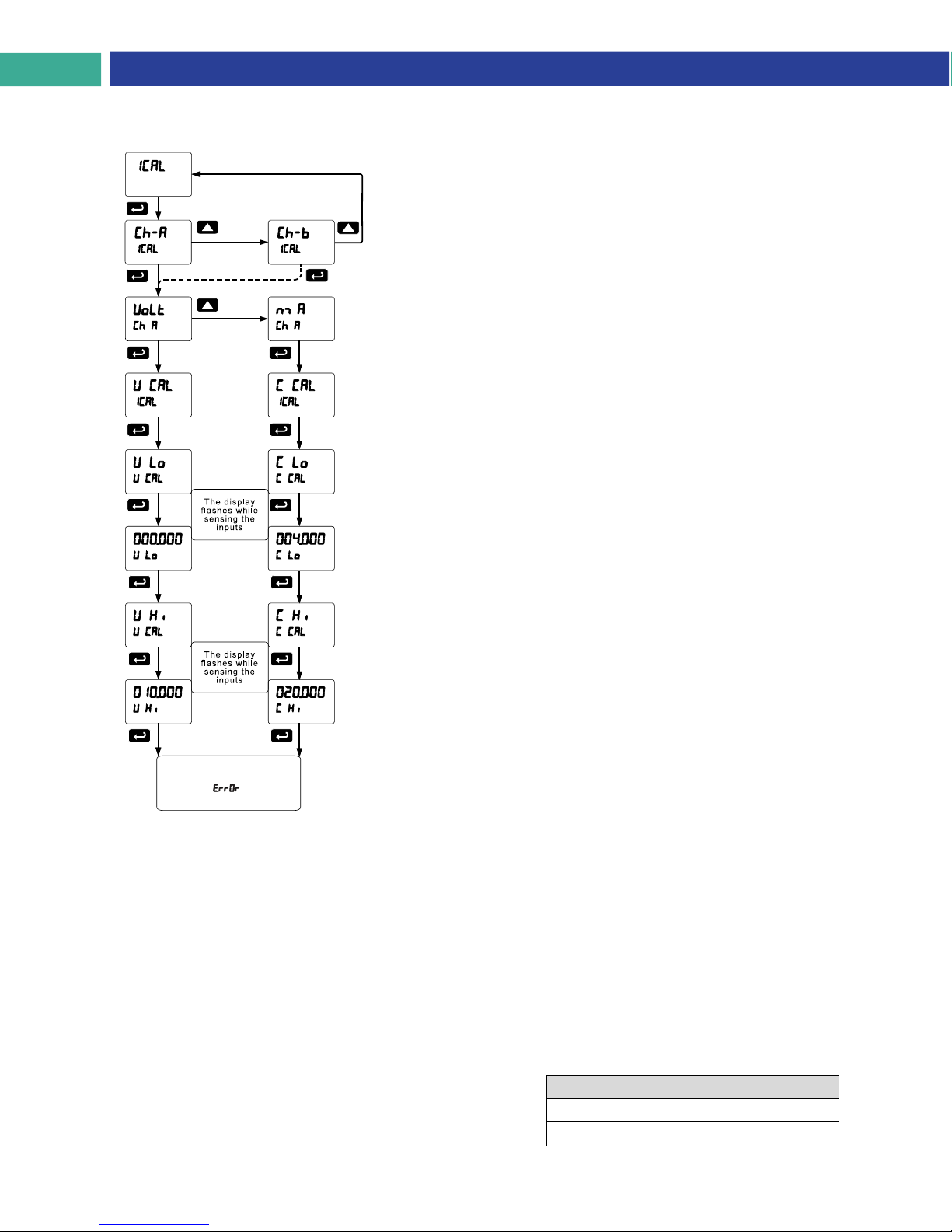

Input Calibration (ICAL)

To Run Mode if calibration is

successful, otherwise an

message will appear.

Recalibrating the Analog Input Channels (Ch-A & Ch-B)

The analog input channels are calibrated at the factory. If recalibration is needed, follow the flowchart menu above and the instructions below.

1. Enter the ICAL menu to calibrate channel A and channel B.

2. Select mA or Volt

3. Apply the low (4 mA or 0 V) and high (20 mA or 10 V) signals as requested.

4. Press Enter to accept the values entered or press Menu to exit calibration without saving the changes.

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the scanner reverts to input 2 during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.

The error message might be caused by any of the following:

1. Input signal is not connected to the proper terminals, or it is connected backwards.

2. Minimum input span requirements not maintained.

Input Range Input 1 & Input 2 Span

4-20 mA 0.15 mA

10 VDC

0.01 VDC

Page 71

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Troubleshooting

Due to the many features and functions of the scanner, it’s possible that the setup of the scanner does not agree with what an operator expects to see. If the scanner is not working as expected, refer to the recommendations below.

Symptom Check/Action

No display at all Not able to change setup or

programming, Locd is displayed Scanner displays error message

during scaling (Error)

Scanner displays

1. 999999

2. -99999 Display stop scanning, ■LED

indicator flashing

Displays break message

Snooper mode not reading the PVs on the RS-485 bus

Scanner experiencing faults and communication breaks

Check power at power connector Scanner is password-protected, enter correct six-digit password to unlock

Check:

Input 2 must greater than Input 1, Input 3 must be greater than Input 2, etc. Indicating overrange or underrange condition Check the input data value and scaling in Setup menu

Check:

1. Stop on alarm feature has been enabled

2. Press PREV or NEXT to resume scanning

Check:

1. RS-485 connection to slave devices

2. Slave Id, register number of slave devices

3. Baud rate and parity of all devices on the bus

4. Scanner Id must be different from other devices

Check:

1. Increase Master’s Transmit Delay (e.g. Snooper delay = 100ms, Master delay = 110ms)

2. Increase Snooper’s byte-to-byte timeout

3. Decrease the slave device’s transmit delay to <10ms

4. Snooper cannot read the same PV twice, check setup

Check:

1. Increase response time (t-resp) and/or transmit delay (tr dly). This may require some trial and error, as these are dependent upon the number of devices on the bus.

2. Internal Scan ID Modbus address. Addresses 256 (mA) or

Scanner not communicating with ScanView software

Display does not respond to input data, reading a fixed number

Display reading is not accurate

Relay operation is reversed

Relay and status LED do not respond to signal

Flashing relay status LEDs

If the display locks up or the scanner does not respond at all

Other symptoms not described above

Check:

1. Serial adapter and cable

2. Serial settings

3. Scanner address, baud rate, and transmit delay

Check:

Display assignment, it might be displaying max/ min

Check:

1. PV Scaling

2. Check format selected: Dec or Ft&In

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts

Check:

1. Relay action in Setup menu

2. Set and reset points

Relays in manual control mode or relay interlock switches opened.

Cycle the power to reboot the microprocessor.

Call Technical Support for assistance.

Page 72

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

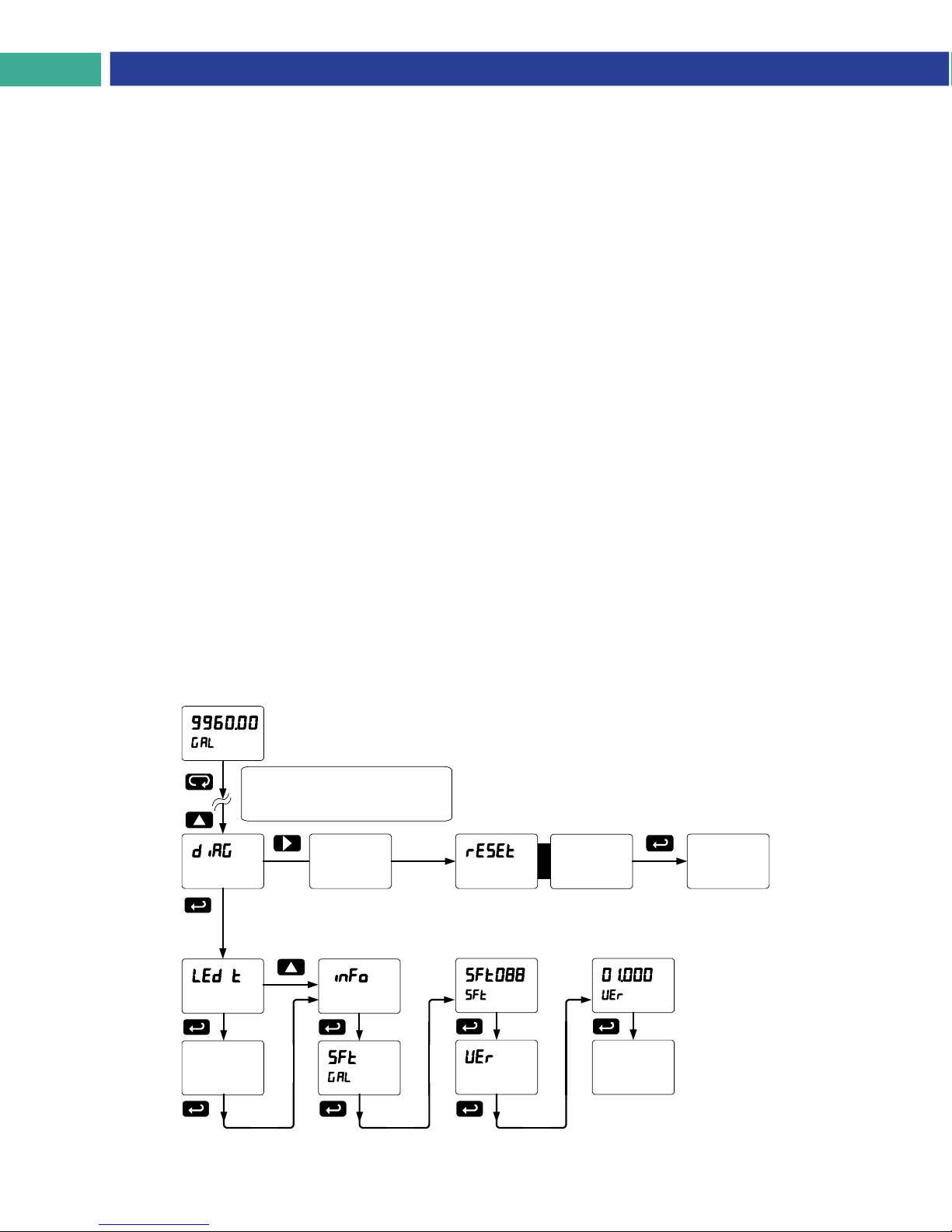

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu, to access Diagnostics menu see page

53. This menu allows the user to test the functionality of all the meter LEDs, check the meter’s software and version information, and erase the MeterView Pro software installation files from the meter. Press the Enter button to view the settings and the Menu button to exit at any time.

Determining Software Version

To determine the software version of a scanner:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to Information menu (Info).

3. Press Enter to access the software number (SFT) and version (UER) information. Write down the

information as it is displayed. Continue pressing Enter until all the information is displayed.

4. The scanner returns to Run Mode after displaying all the settings.

Reset Scanner to Factory Defaults

When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu, see page 53.

2. Press Up arrow to go to Diagnostics menu

3. Press and hold Right arrow for three seconds, press Enter when display flashes reset.

Note: If Enter is not pressed within three seconds, the display returns to Run Mode.

4. The scanner goes through an initialization sequence (similar as on power-up), and loads the factory default settings.

Testing the Display LEDs

Enter the Diagnostic menu and press the ENTER button to get to the LED Test menu (led t). Press the ENTER button to activate the LED Test. The PD6080/6081 will cycle through all digits, decimal points, and relay indicators to enable the operator to see that all are functioning properly. Press the ENTER button again to access the Information menu (info). Press the MENU button to return to Run Mode.

Run Mode

Press & hold MENU Button for 3 seconds

to access the Advanced Features Menu,

then press Up Arrow to scroll through menu

choices until you reach the Diagnostics Menu.

Meter resets

and restarts with factory

default settings

LED Test:

Cycles through all

digits, decimal pts,

& warning lights.

Press & hold right

arrow for 3 seconds

to reset meter.

Press ENTER while

RESET flashes

to reset meter.

RUN Mode

Page 73

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Scanner Operation

The PD6080/6081 scanner is capable of operating as a Modbus Master, Slave or Snooper. As a Slave, the PD6080/6081 requires connection to a Master device: PLC, DCS, etc. As a Master, the PD6080/6081 interfaces up to sixteen slave devices and can alternately display their Process Variables. As a Snooper it can be connected anywhere in the RS-485 bus to read any of the variables being requested by the Master device.

Four math channels (C1-C4) are available to perform operations on any PV or math channel, with adder and factor constants, and display the results. Engineering units or tags may be displayed with all PVs or math channels. Another level of Math functions can be performed on the resultant math channel Math2. For example, the operator can use the Math2 Channel to calculate the Sum of all other Math Channels, which may have each performed a different Math function.

The dual-line display can be customized by the user. Typically, the upper display is used to display the PV, while the lower display is used to display the tag for each PV.

Additionally, the scanner can be set up to display any input or math channel on the upper display and alternate between tag & units on the lower display. The relays and analog output can be programmed to operate based on any PV or math channel.

The scanner is capable of accepting two analog input channels (A and B) of either current (0-20 mA, 4-20 mA) or voltage signals (0-5 V, 1-5 V, 0-10 V,  10 V) and displaying these signals in engineering units from -99999 to 999999 (e.g. a 4-20 mA signal could be displayed as -50.000 to 50.000). The analog input channels must be mapped to PVs using the IDs 256-259.

Front Panel Buttons Operation

Button Symbol Description

Press to enter, exit Programming Mode, or exit max/min readings

Press to move to the previous PV or math channel

Press to move to the next PV or math channel

Press once to pause scanning, press again to resume scanning

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the Advanced Features – User menu.

The table above shows the factory default settings for F1, F2, and F3.

F4 Operation

A digital input, F4, is standard on the scanner. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way is has been programmed in the Advanced Features – User menu. See page 67 for details.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the PVs or math channels can be displayed by assigning the display to max/min through the Display Setup menu.

A digital input should be programmed to reset the max & min readings.

Page 74

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

Factory Defaults & User Settings

The following table shows the factory setting for most of the programmable parameters on the scanner.

Parameter Display Default Setting

Mode

Function Code

PV Number

Slave ID PV1-16

Data Type PV116

Byte Order

Polling Time

Slave Response Timeout

Serial

Scanner ID

Baud

Parity

Byte-to-byte timeout

Setup

Tag PV1-16

Units PV1-16

Units C1-4

Display Format PV1-16

Display

Format C1-4

Display decimal point

Float decimal point

Number of points

Scaling

mode

FunCod

Pv.nbr

Slav.Id

Reg.nbr

Data

1234

t-poll

t-resp

Serial

SCAn.Id

baud

parity

t-byte

Setup

Tag Pv1

Units Pv1

Units Ch C1

Formt Pv1

Formt Ch C1

Disp.dp

Flot.dp

No pts

SCalE

Master

PV1-PV4 Enabled

001 - 016

40001

Float

Big-endian

5.0 second

10.0 second

246

9600

Even

0.01 second

PV 1 – PV 16

FEET

UnitC1 – UnitC4

Dec (PD6080)

Ft-In-16 (PD6081)

Decimal

ddd.ddd

2 (all PVs and C channels)

All

pv 1

Input 1

Display 1

Input 2

Display 2

Math, channel C1-4

InP 1

Dis 1

InP 2

Dis 2 Sum

0.000

10.000

Sum

Parameter Display Default Setting

Adder (constant P)

Factor (constant F)

Filter

Filter, PV 1

Filter, PV 2

Bypass, PV 1

Bypass, PV 2

Round

Cutoff

Cutoff value, PV 1

Cutoff value, PV 2

Display assignment

Line 1

Line 2

Display intensity

Relay 1 assignment

Relay 1 action

Relay 1 set point

Relay 1 reset point

Relay 2 assignment

Relay 2 action

Relay 2 set point

Relay 2 reset point

Relay 3 assignment

Relay 3 action

Relay 3 set point

Relay 3 reset point

Relay 4 assignment

Relay 4 action

Relay 4 set point

Adder

Factor

Filter

Ch-A

Ch-B

bypass

Round

Cutoff

Ch-a

Ch-b

Dsplay

D pv

d tag

d-Inty

Pv 1

Act 1

Set 1

RSt 1

Pv 2

Act 2

Set 2

RSt 2

Pv 3

Act 3

Set 3

RSt 3

Pv 4

Act 4

Set 4

0.000

1.000

0.2

0.000 (disabled)

Display PV

Display tag

PV 1

Automatic

1.000

0.500

PV 2

Automatic

2.000

1.500

PV 3

Automatic

3.000

2.500

PV 4

Automatic

4.000

Page 75

PROVU PD6080/PD6081 Modbus® Scanner Instruction Manual

Parameter Display Default Setting

Relay 4 reset point

Fail-safe relay 1

Fail-safe relay 2

Fail-safe relay 3

Fail-safe relay 4

On delay relay 1

Off delay relay 1

On delay relay 2

Off delay relay 2

On delay relay 3

Off delay relay 3

On delay relay 4

Off delay relay 4

Comm. break relay 1

Comm. break relay 2

Comm. break relay 3

Comm. break relay 4

Display 1 analog out

Output 1 value

Display 2 analog out

Output 2 value

RSt 4

Fls 1

Fls 2

Fls 3

Fls 4

On 1

Off 1

On 2

Off 2

On 3

Off 3

On 4

Off 4

Dis 1

Out 1

Dis 2

Out 2

3.500

Off

0.0 sec

00.00.00

4.000 mA

20.00.00

20.000 mA

Parameter Display Default Setting

Source analog output

Overrange output

Underrange output

Comm. break output

Maximum output

Minimum output

F1 function key

F2 function key

F3 function key

F4 function (digital input)

Digital input 1

Digital input 2

Digital input 3

Digital input 4

Digital output 1

Digital output 2

Digital output 3

Digital output 4

Password 1

Password 2

Password 3

Source

O-rang

u-rang

break

mAx

min

DI 1

DI 2

DI 3

DI 4

DO 1

DO 2

DO 3

DO 4

Pass 1

Pass 2

Pass 3

PV 1

21.000 mA

3.000 mA

1.000 mA

23.000 mA

1.000 mA

Previous PV

Next PV

Scan/Pause

Acknowledge relays

Right arrow

Up arrow

Enter

Alarm 1

Alarm 2

Alarm 3

Alarm 4

000000 (unlocked)

Page 76

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

This Page

Intentionally

Left Blank

Page 77

EU Declaration of Conformity

Issued in accordance with ISO/IEC 17050-1:2004.

We,

Precision Digital Corporation 233 South Street Hopkinton, MA 01748 USA

as the manufacturer, declare under our sole responsibility that the product(s),

Model PD6080 & PD6081 ProVu Super Snooper Modbus Scanners

to which this declaration relates, is in conformity with the European Union Directives shown below:

2014/35/EU Low Voltage Directive 2014/30/EU EMC Directive 2011/65/EU RoHS Directive

This conformity is based on compliance with the application of harmonized or applicable technical standards and, when applicable or required, a European Union notified body certification.

Standards:

EN 55022:2003 EN 61000-6-2:2001 EN 61010-1:2001 EN 61326:2006

The standards EN 55022:2003, EN 61000-6-2:2001, EN 61010-1:2001, and EN 61326:2006 are no longer harmonized. The requirements of these standards have been checked against the harmonized standards EN 55022:2010, EN 61000-6-2:2005, EN 61010-1:2010, and EN 61326:2013 and there were no major technical changes affecting the latest technical knowledge for the products listed above.

Product Markings:

Signed for and on behalf of Precision Digital Corporation:

Name: Jeffrey Peters Company: Precision Digital Corporation Title: President Date: 04/20/2016 Document No: DoC PD6080 {042016}

Page 78

PROVU PD6080/PD6081 Modbus® Scanner Meter Instruction Manual

How to Contact Precision Digital

 For Technical Support:

Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: [email protected]

 For Sales Support or to place an order:

Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: [email protected]

 For the latest version of this manual please visit:

www.predig.com

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990

www.predig.com

SFT088 Ver 2.010 & up

LIM6080_E

03/17
