Page 1
PRECISION DIGITAL CORPORATION
89 October Hill Road • Holliston MA 01746 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com

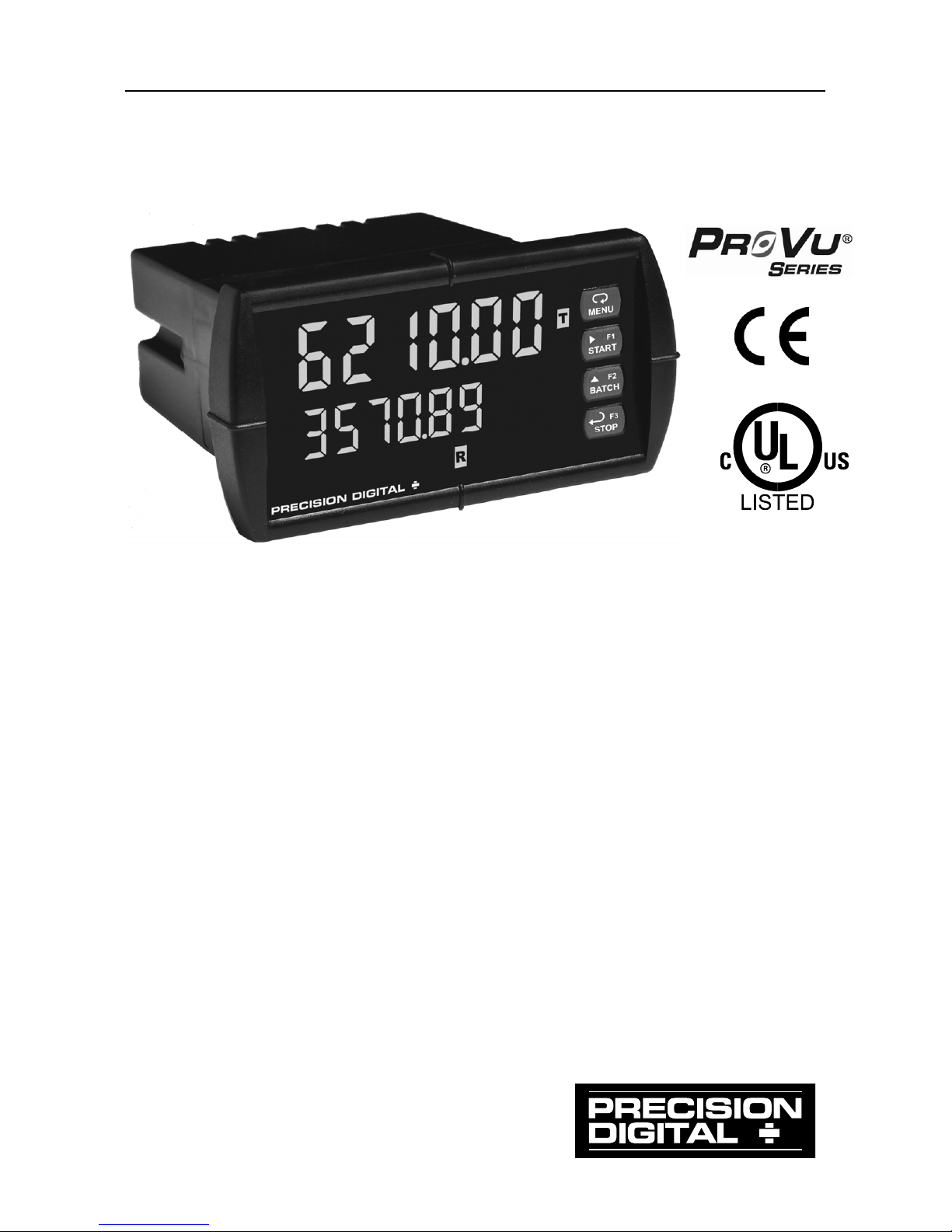

PROVU Batch Controllers
PD6210 Analog Input &
PD6310 Pulse Input
PD6210: 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, 10 V Inputs
PD6310: Pulse, Open Collector, NPN, PNP, TTL, Switch
Contact, Sine Wave (Coil), Square Wave Inputs
NEMA 4X, IP65 Front
Start/Pause/Stop, Change Batch with Front Panel Buttons
Single or Multi-Stage Batch Control (Up to 8 Relays)
Automatic Overrun Correction
Rate in Units per Second, Minute, Hour, or Day
Automatic or Manual Batch Control
Low or High Flow Alarms
9 Digit Grand Total with Overflow Feature
Count Up or Down with Each Batch
Free MeterView
®
Pro Software for Operation, Monitoring,
and Programming
Page 2
Model PD6210 & PD6310 Batch Controllers Instruction Manual
2
Disclaimer
The information contained in this document is subject to change
without notice. Precision Digital makes no representations or warranties with respect to the contents hereof; and specifically disclaims
any implied warranties of merchantability or fitness for a particular
purpose.
!
CAUTION: Read complete
instructions prior to installation
and operation of the controller.
WARNING: Risk of electric
shock or personal injury.
Warning
This product is not recommended for life support applications or
applications where malfunctioning could result in personal injury or
property loss. Anyone using this product for such applications does
so at his/her own risk. Precision Digital Corporation shall not be held
liable for damages resulting from such improper use.
Limited Warranty
Precision Digital Corporation warrants this product against defects in
material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s
liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.
Registered Trademarks
PROVU® and MeterView® Pro are registered trademarks of Precision
Digital Corporation. All other trademarks mentioned in this document
are the property of their respective owners.
© 2011 Precision Digital Corporation. All rights reserved.
www.predig.com
Page 3
Model PD6210 & PD6310 Batch Controllers Instruction Manual
3
Table of Contents
INTRODUCTION ------------------------------------------------------------- 7
ORDERING INFORMATION ---------------------------------------------- 7
SPECIFICATIONS ----------------------------------------------------------- 9
General ------------------------------------------------------------------------------- 9
PD6210 Process Input -------------------------------------------------------- 11
PD6310 Pulse Input ------------------------------------------------------------ 11
Batch Controller Rate/Totalizer Display -------------------------------- 12
Relays ------------------------------------------------------------------------------ 13
Isolated 4-20 mA Transmitter Output ------------------------------------ 14
Modbus® RTU Serial Communications ---------------------------------- 15
PDA1044 Digital Input & Output Expansion Module ---------------- 15
COMPLIANCE INFORMATION ---------------------------------------- 16
Safety ------------------------------------------------------------------------------- 16
Electromagnetic Compatibility --------------------------------------------- 16
SAFETY INFORMATION ------------------------------------------------ 17
INSTALLATION ------------------------------------------------------------ 18
Unpacking ------------------------------------------------------------------------- 18
Panel Mounting Instructions ------------------------------------------------ 18
Configuration for 12 or 24 VDC Power Option ------------------------ 20
Transmitter Supply Voltage Selection (P+, P-) ----------------------- 21
Connections ---------------------------------------------------------------------- 21
Connectors Labeling --------------------------------------------------------- 22
Power Connections ---------------------------------------------------------- 22
PD6210 Signal Connections ----------------------------------------------- 23
PD6310 Signal Connections ----------------------------------------------- 25
Modbus RTU Serial Communications ----------------------------------- 26
Relay Connections ----------------------------------------------------------- 27
Switching Inductive Loads -------------------------------------------------- 27
4-20 mA Output Connections ---------------------------------------------- 28
Analog Output Transmitter Power Supply ------------------------------ 28
External Relay & Digital I/O Connections ------------------------------ 29
Interlock Relay Feature ----------------------------------------------------- 30
BASIC OPERATION AND PROGRAMMING ---------------------- 31

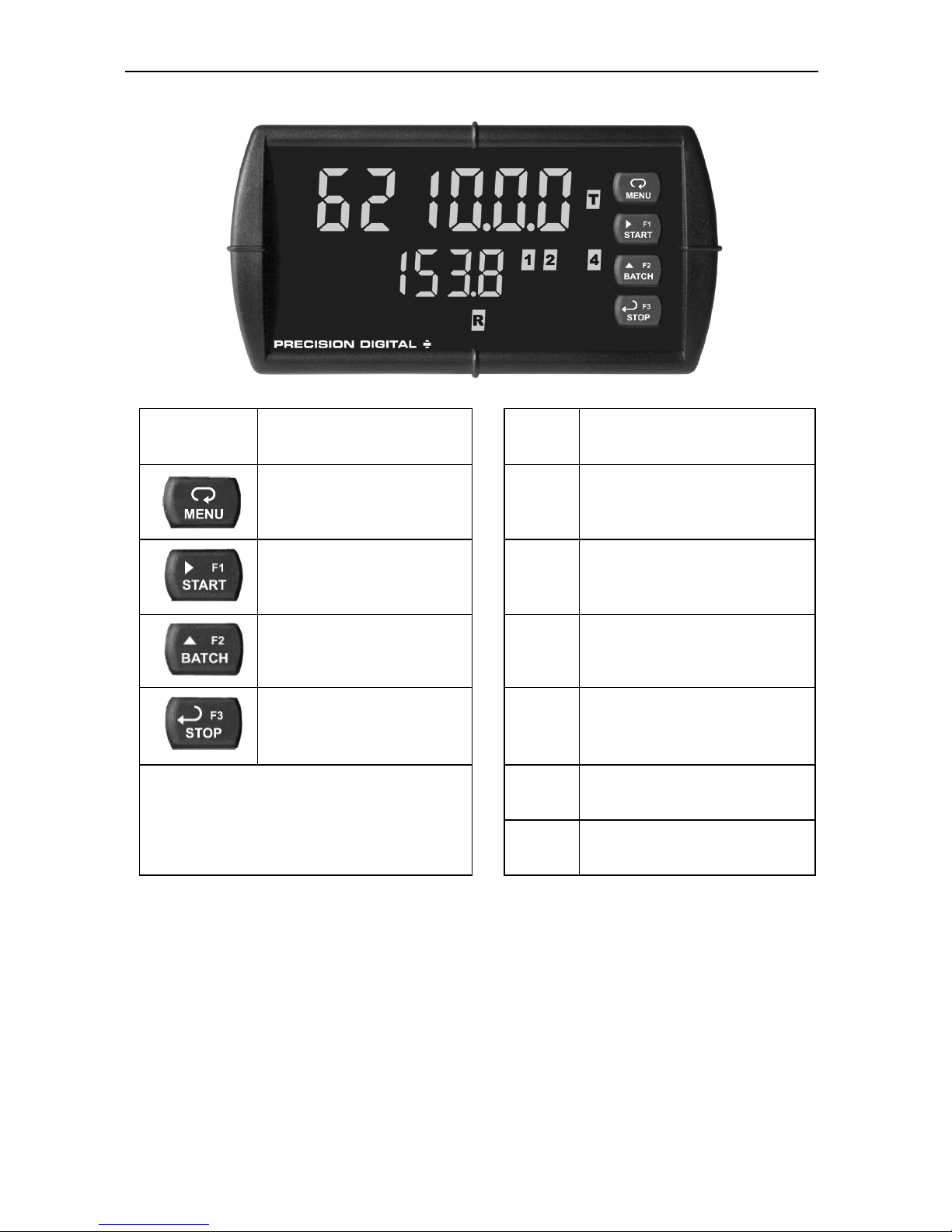

Front Panel Buttons and Status LED Indicators --------------------- 32
Controller Operation ----------------------------------------------------------- 33

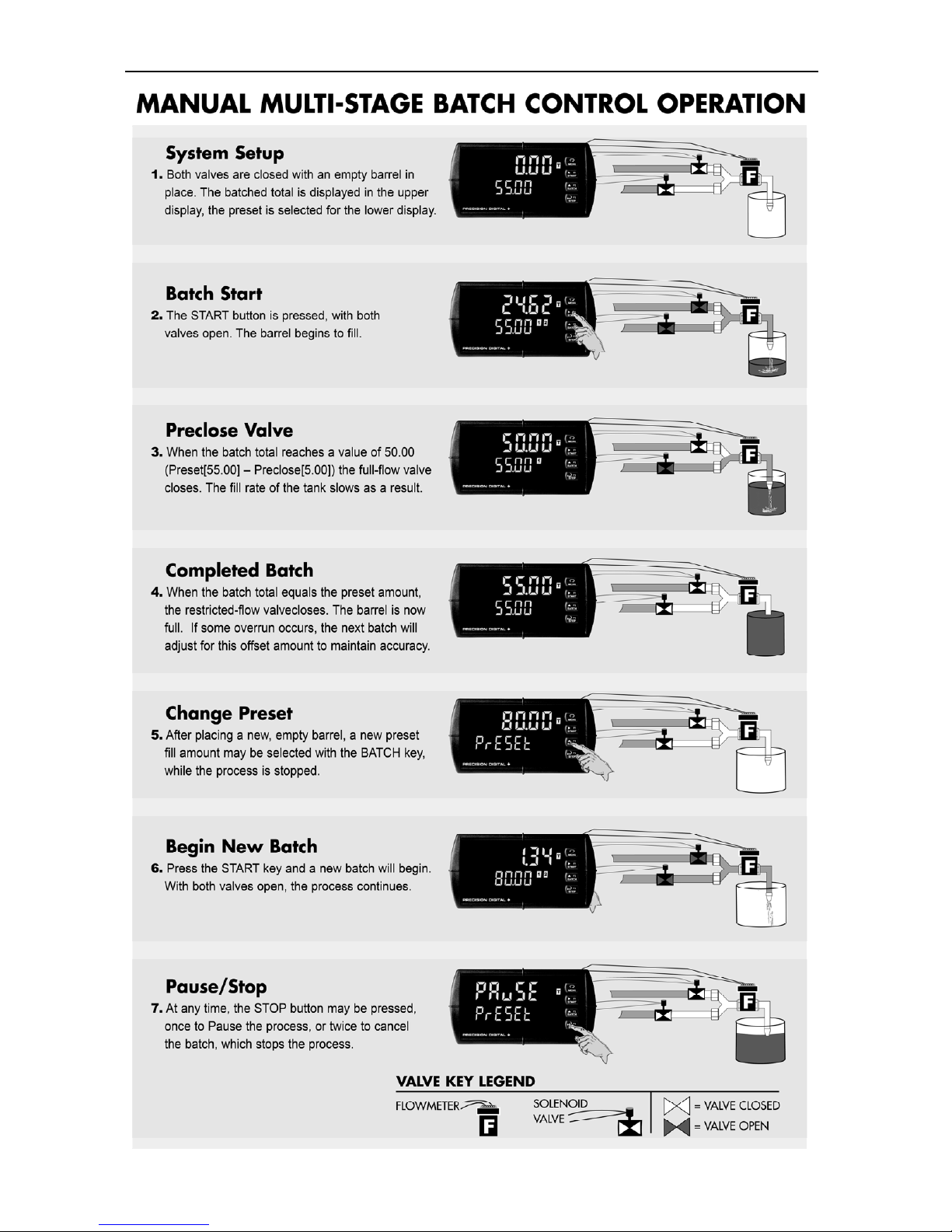

Batch Control Operation Example ---------------------------------------- 34
Setting Numeric Values ------------------------------------------------------ 42
Reset Menu (reset) ------------------------------------------------------------ 42
Page 4
Model PD6210 & PD6310 Batch Controllers Instruction Manual
4
Control Menu (Contrl) -------------------------------------------------------- 42

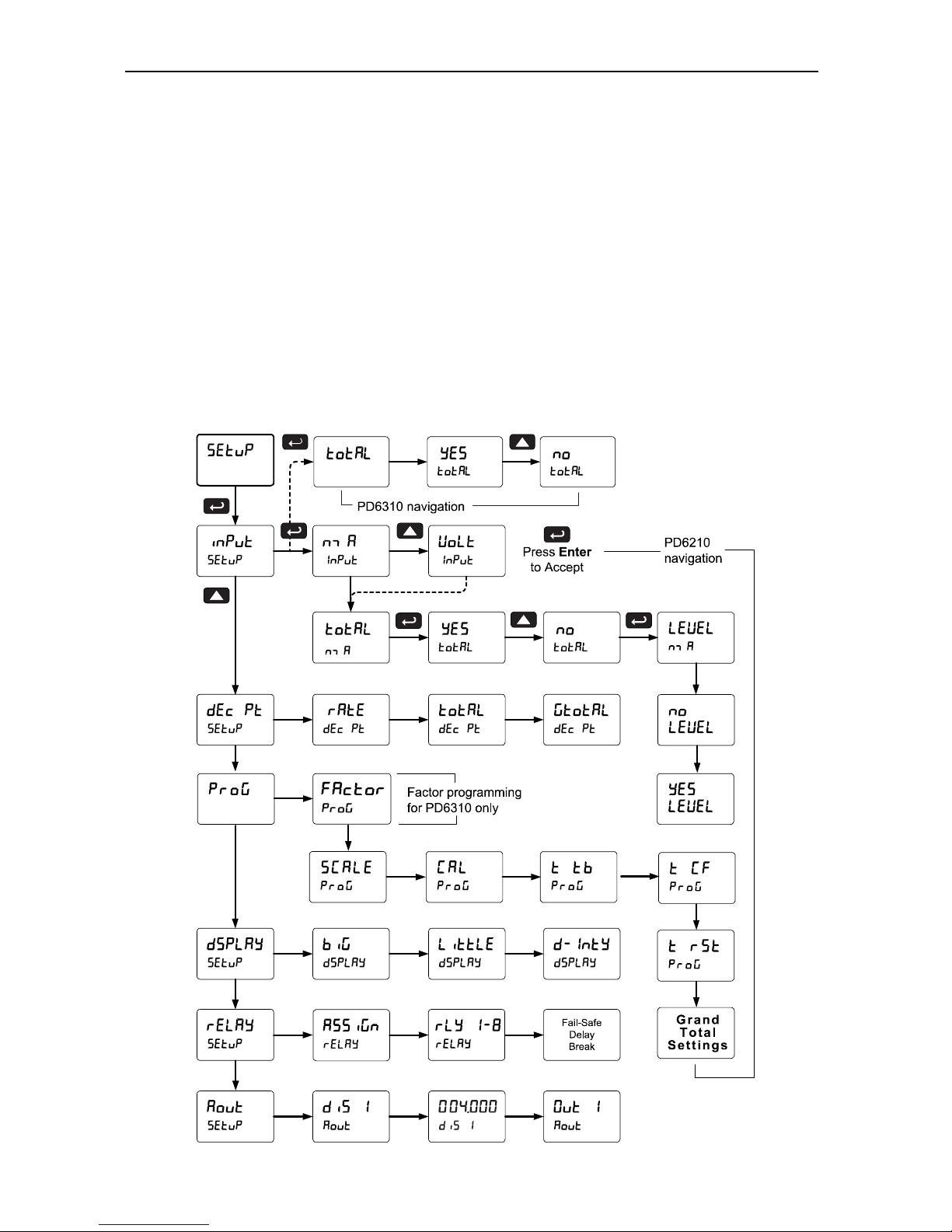

Setting Up the Batch Controller (setup) -------------------------------- 43
Scaling and Calibration ----------------------------------------------------- 44
Setting the Input Signal (input) -------------------------------------------- 45
Setting the Totalizer and Batching Features (total) ---------------- 45
Setting the Decimal Point (dEc pt) -------------------------------------- 45
Programming the Rate/Totalizer (prog) -------------------------------- 46
Scaling the Controller (SCALE) ----------------------------------------- 47

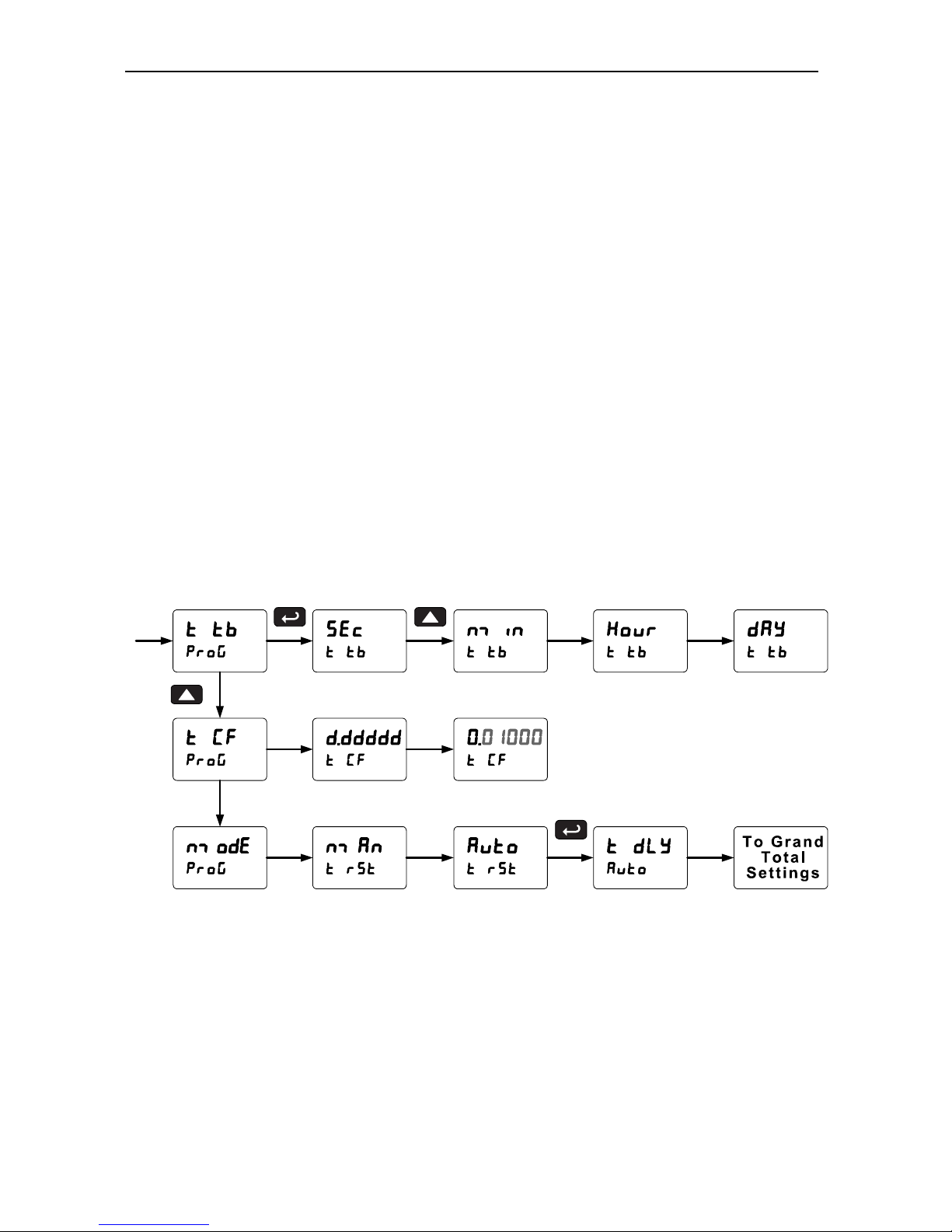

Time Base, Total Conversion Factor & Total Reset -------------- 48
Batch Start Mode (mode) ------------------------------------------------- 48
Calibrating the Controller with External Source (Cal) ----------- 49
Setting the Display Parameter & Intensity (dsplay) ----------------- 50

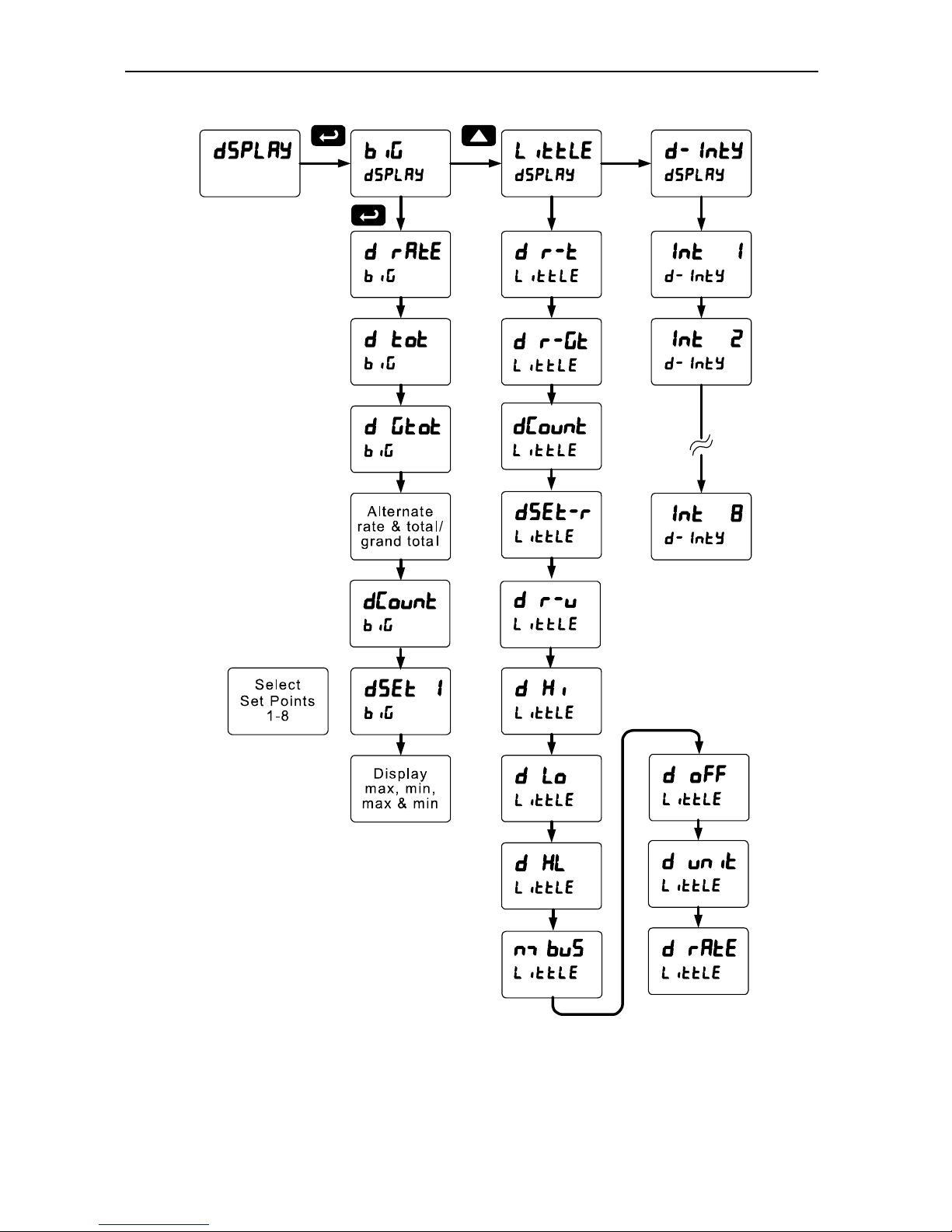

Display Setup Menu --------------------------------------------------------- 51
Character Set for Engineering Units Display (d unit) -------------- 52
Setting the Relay Operation (relay) ------------------------------------- 53

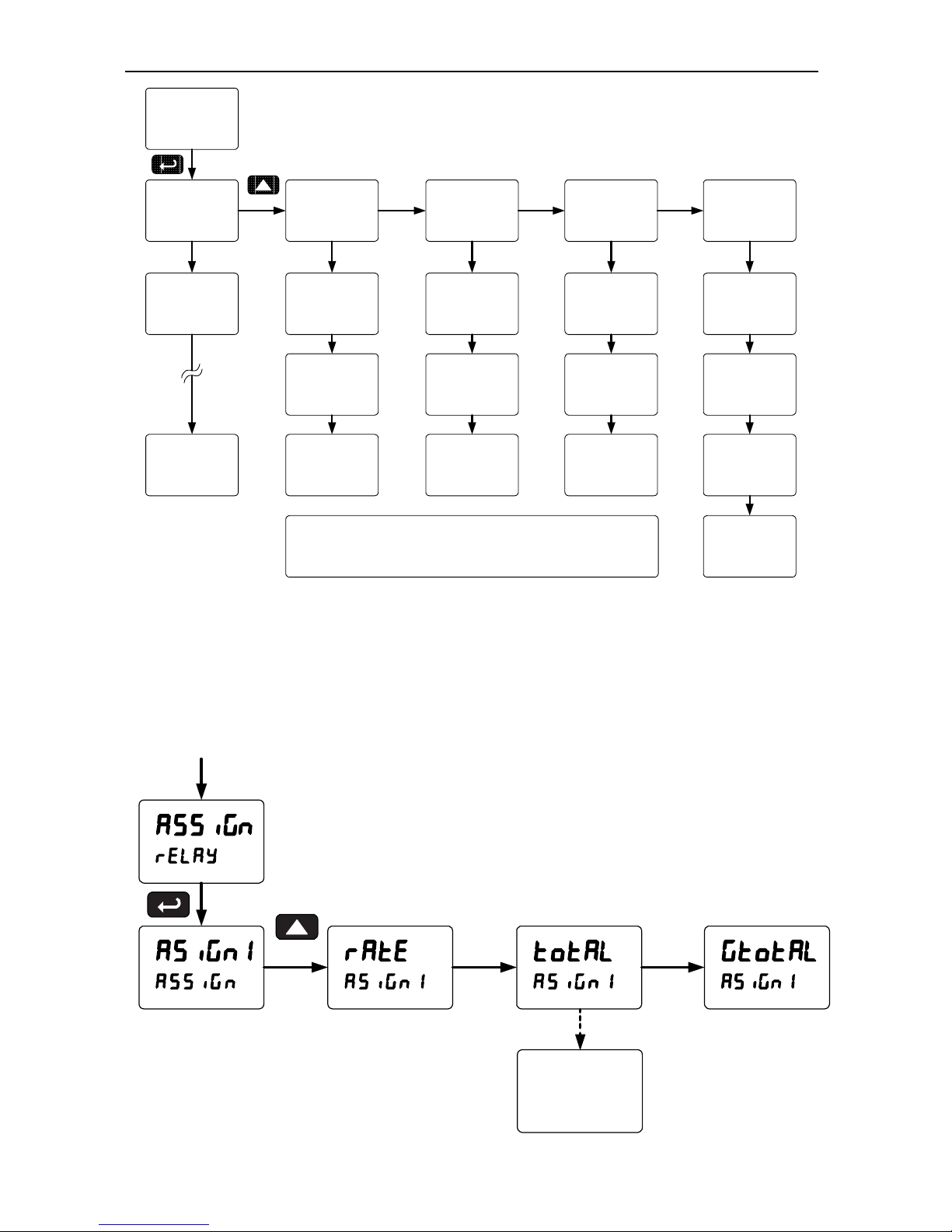

Relay Assignment (Assign) ----------------------------------------------- 54
Setting the Relay Action ---------------------------------------------------- 55
Setting Batch Control Relays ---------------------------------------------- 55
Programming Alarm Set and Reset Points ----------------------------- 56
Setting Fail-Safe Operation ------------------------------------------------ 56
Programming Time Delay -------------------------------------------------- 56
Relay Action for Loss of 4-20 mA Input (Loop Break) --------------- 56
Relay Operation Details ------------------------------------------------------ 57
Overview ------------------------------------------------------------------------ 57
Relays Initialization ----------------------------------------------------------- 57
Fail-Safe Operation ---------------------------------------------------------- 57
Front Panel LEDs ------------------------------------------------------------- 58
Automatic Reset (Auto) ----------------------------------------------------- 58
Pump Alternation Control --------------------------------------------------- 58
Setting Up the Interlock Relay (Force On) Feature ------------------ 59
Sample Relay Operation ---------------------------------------------------- 60

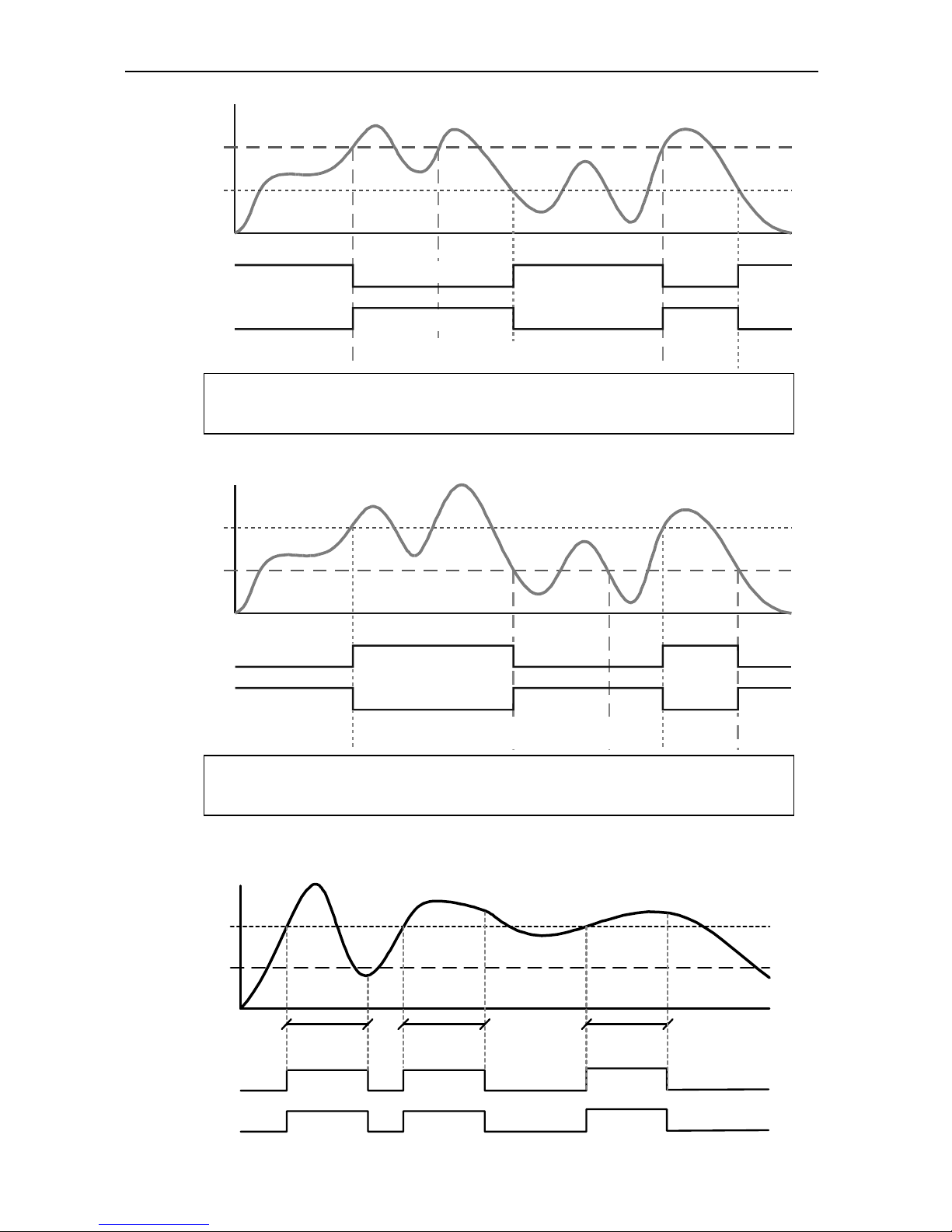

Relay and Alarm Operation Diagrams ----------------------------------- 60
High Alarm Operation (Set > Reset) ------------------------------------- 60
Low Alarm Operation (Set < Reset) -------------------------------------- 60
High Alarm with Fail-Safe Operation (Set > Reset) ------------------ 61
Low Alarm with Fail-Safe Operation (Set < Reset) ------------------- 61
Rate Relay Sampling Operation ------------------------------------------ 61
Total Relay Sampling Operation ------------------------------------------ 62
Signal Loss or Loop Break Relay Operation --------------------------- 63

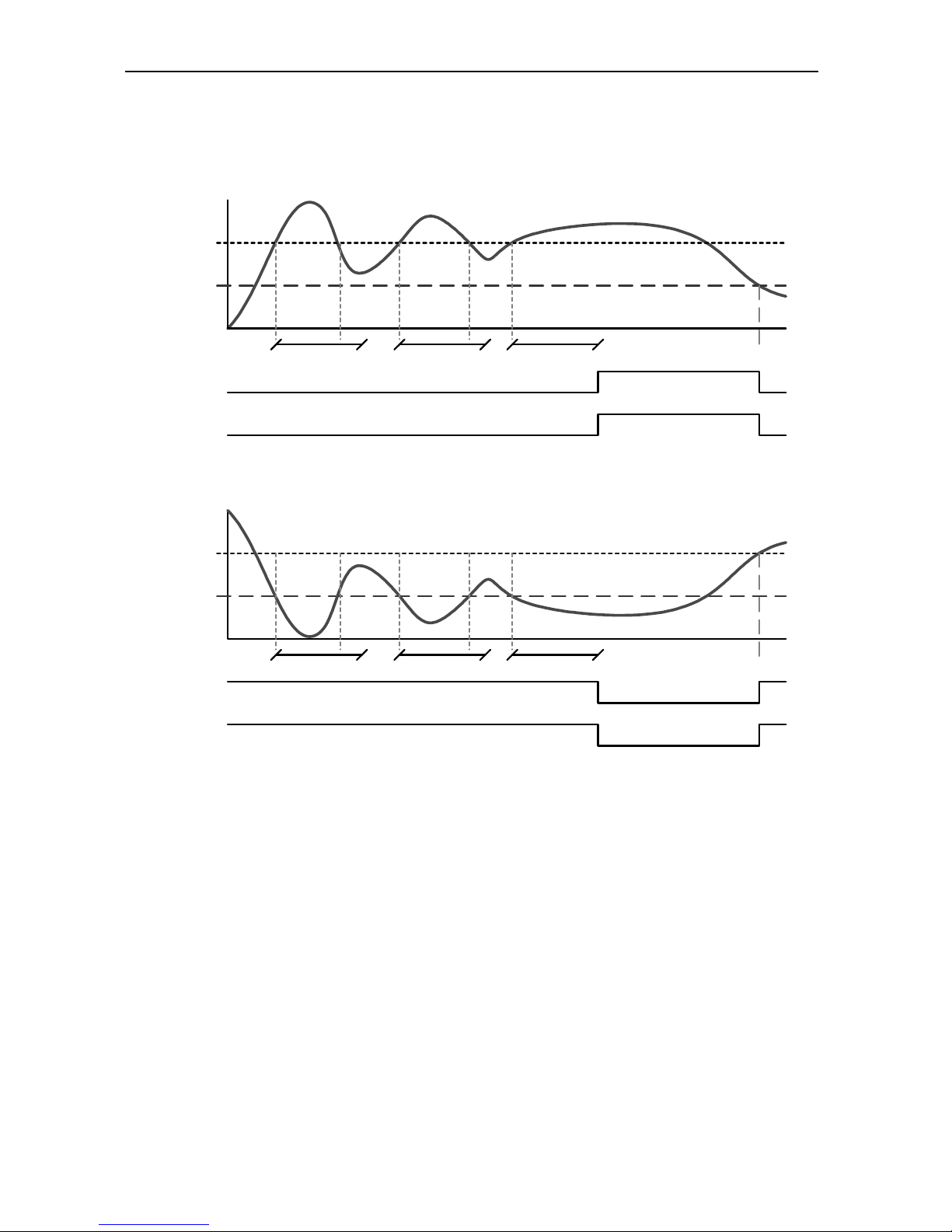

Time Delay Operation ------------------------------------------------------- 64
Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 65
Setting Up the Password (pass) ------------------------------------------- 66
Protecting or Locking the Controller ------------------------------------- 66
Page 5
Model PD6210 & PD6310 Batch Controllers Instruction Manual
5
Grand Total Reset Password & Non-Resettable Total -------------- 67
Making Changes to a Password Protected Controller -------------- 67
Disabling Password Protection -------------------------------------------- 68
ADVANCED OPERATION AND PROGRAMMING --------------- 69
Advanced Features Menu & Display Messages ---------------------- 70
Programmable Function Keys User Menu (user) -------------------- 73
Multi-Point Calibration & Scaling -------------------------------------- 74
MeterView® Pro Software ----------------------------------------------- 74
Noise Filter Bypass (bypass) ---------------------------------------------- 76
Modbus RTU Serial Communications (serial) ---------------------- 77

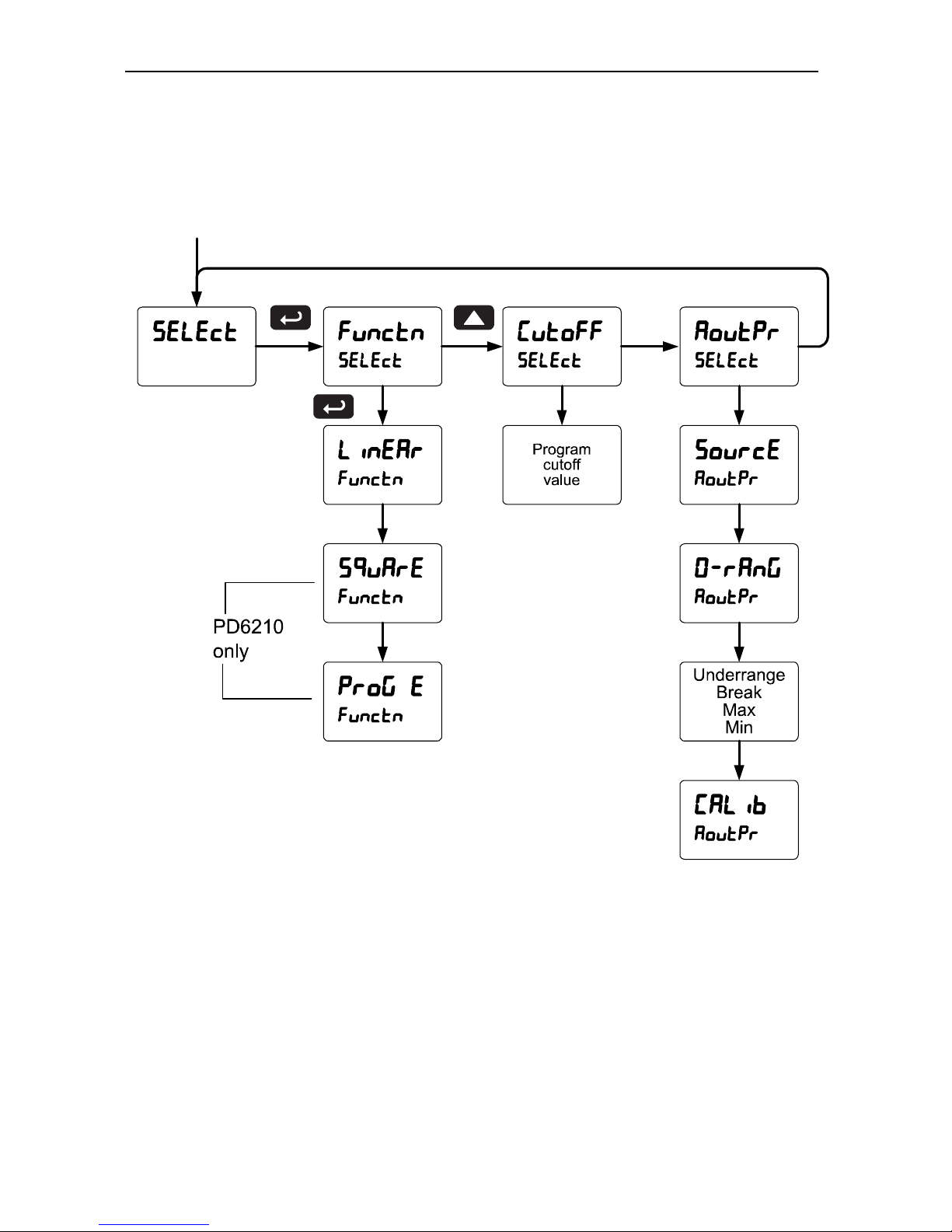

Select Menu (SElEct) ------------------------------------------------------- 78
Signal Conditioning Selection (Functn) --------------------------------- 78
Analog Output Programming (AoutPr) ---------------------------------- 80
PD6210 Only: Internal Source Calibration (ICAL) -------------------- 81
Controller Copy Function (Copy) ------------------------------------------ 84
TROUBLESHOOTING ---------------------------------------------------- 86
Diagnostics Menu (diag) ----------------------------------------------------- 86
Determining Software Version -------------------------------------------- 86

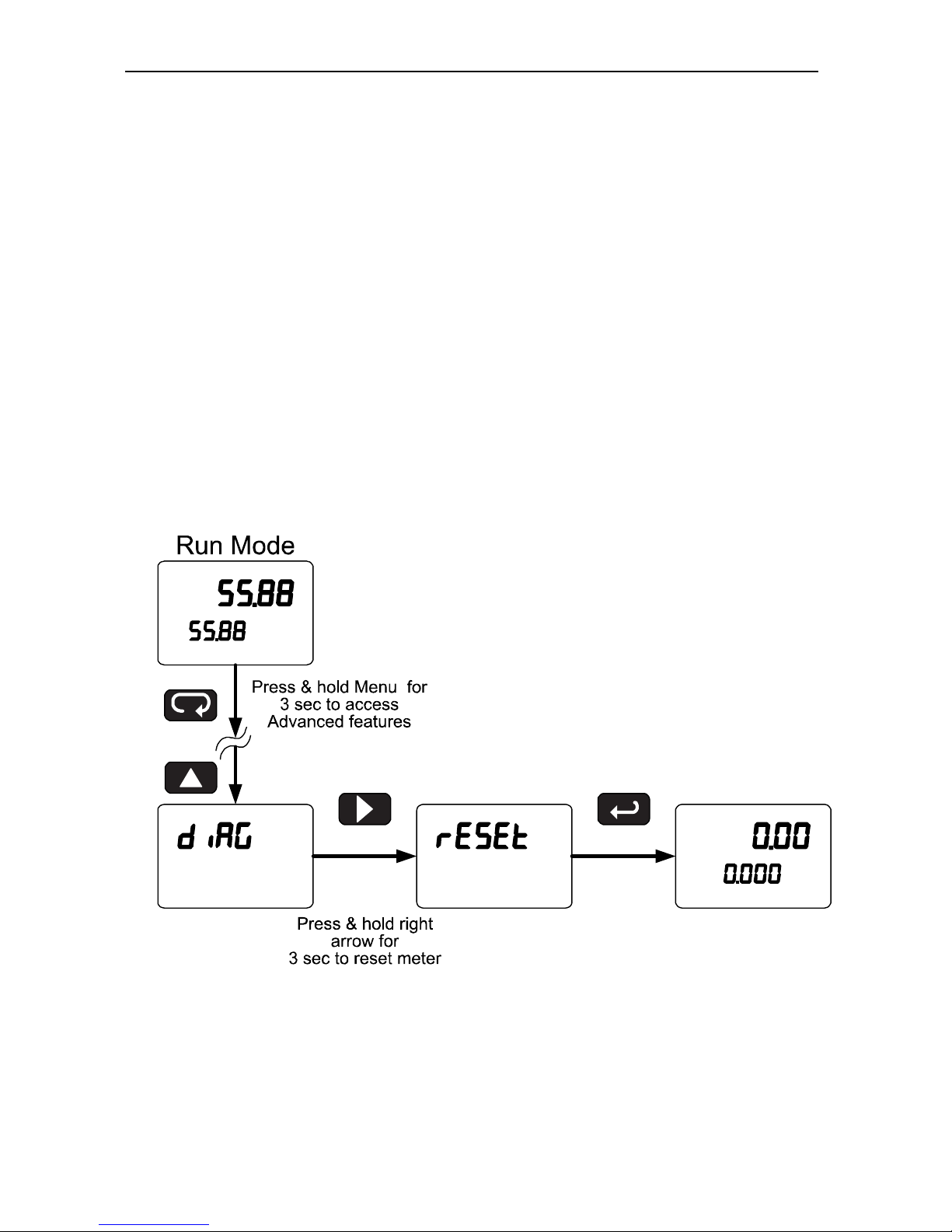

Reset Controller to Factory Defaults ------------------------------------- 87
Factory Defaults & User Settings ----------------------------------------- 88
Troubleshooting Tips --------------------------------------------------------- 92
Alphabetical List of Display Functions & Messages --------------- 93
Page 6
Model PD6210 & PD6310 Batch Controllers Instruction Manual
6
Table of Figures

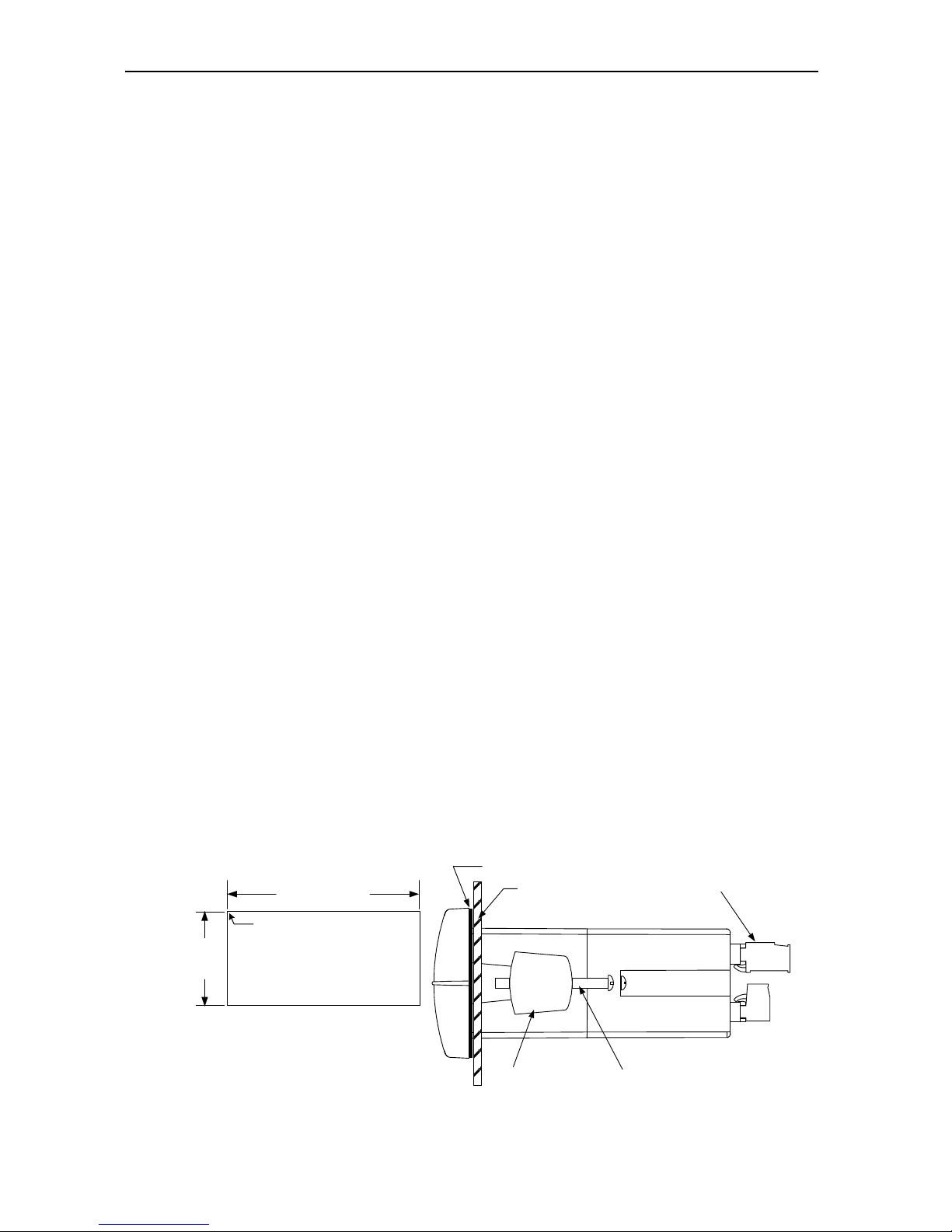

Figure 1: 1/8 DIN Panel Cutout and Mounting ................................... 18

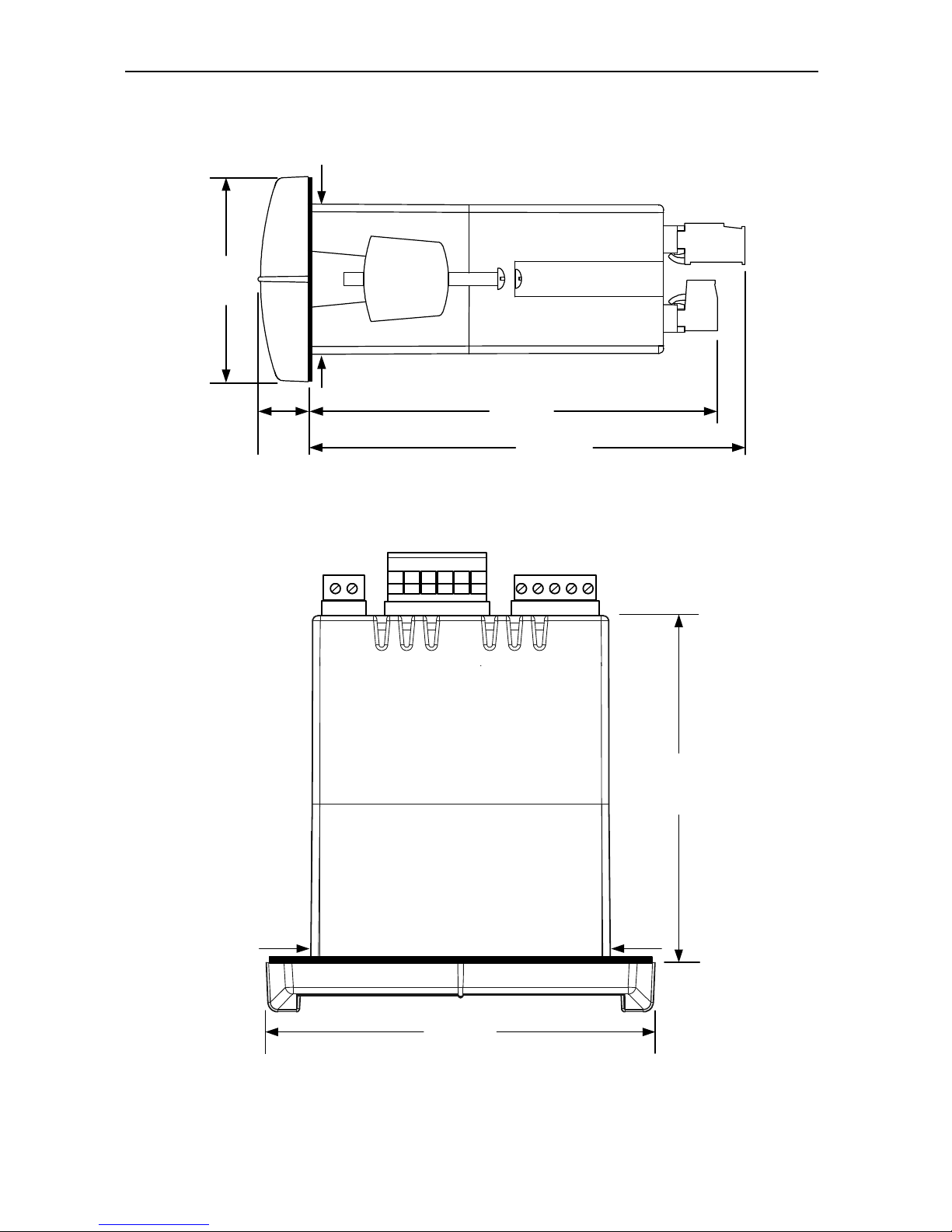

Figure 2: Controller Dimensions - Side View .................................... 19
Figure 3: Controller Dimensions - Top View ..................................... 19

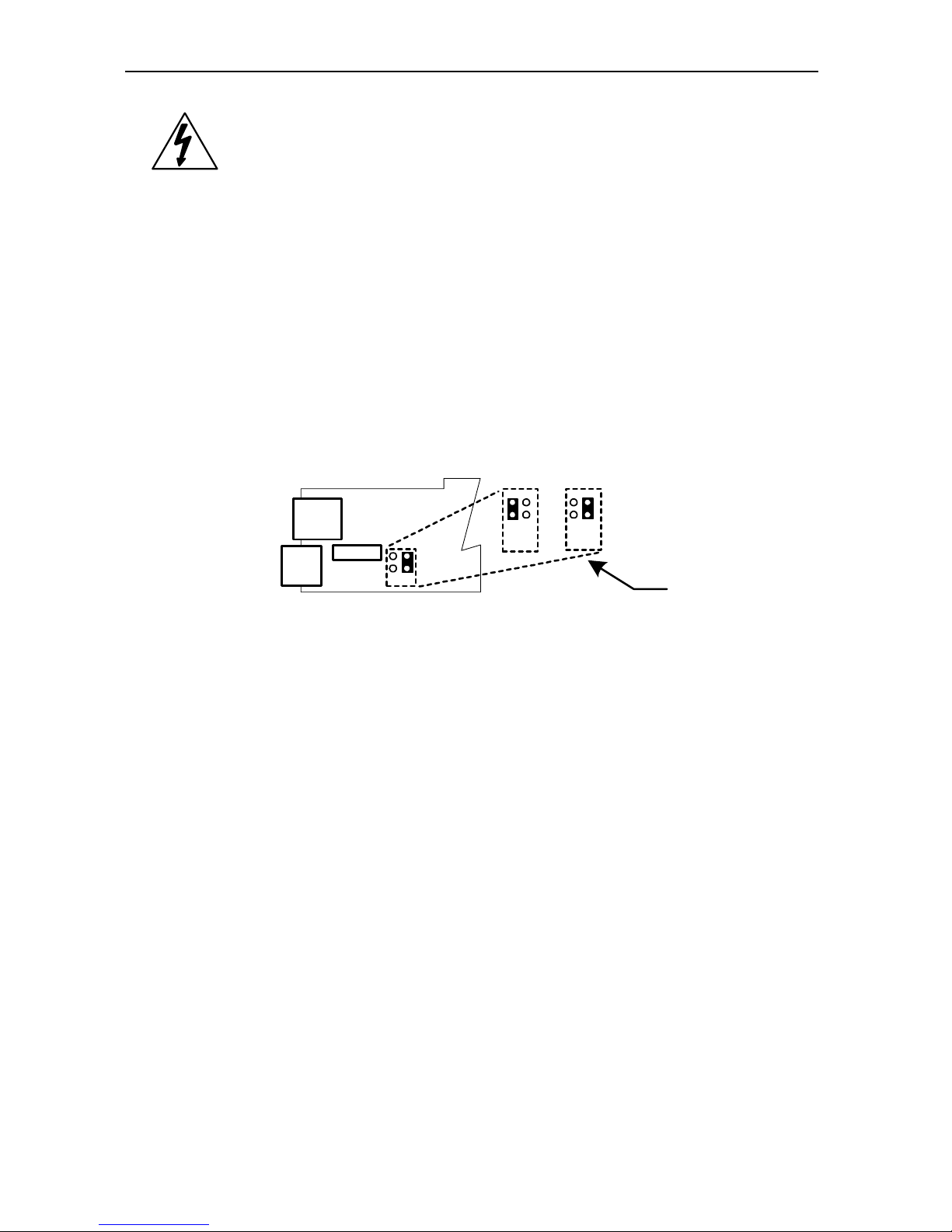

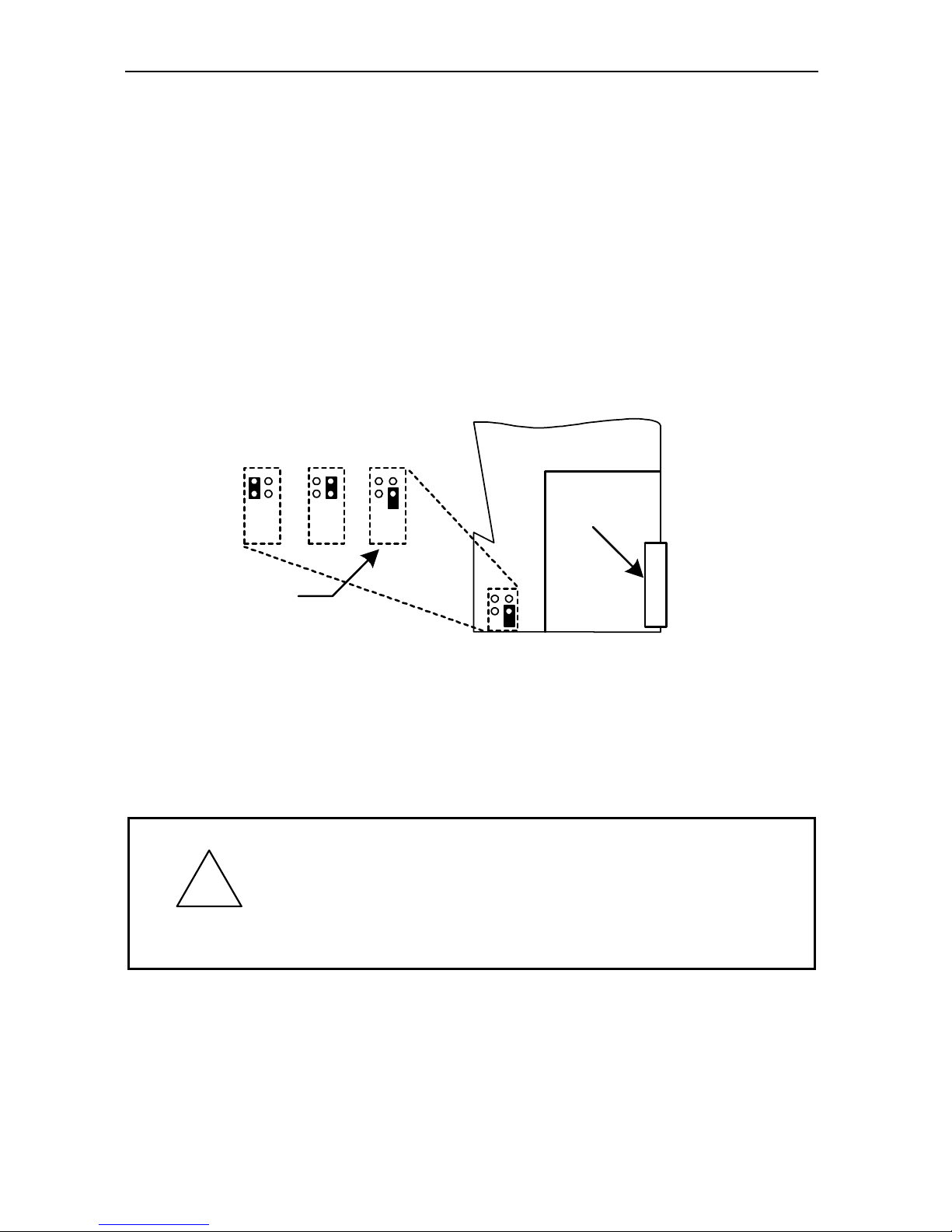

Figure 4: Jumper Configuration for 12/24 VDC Power ..................... 20
Figure 5: Transmitter Supply Voltage Selection ............................... 21

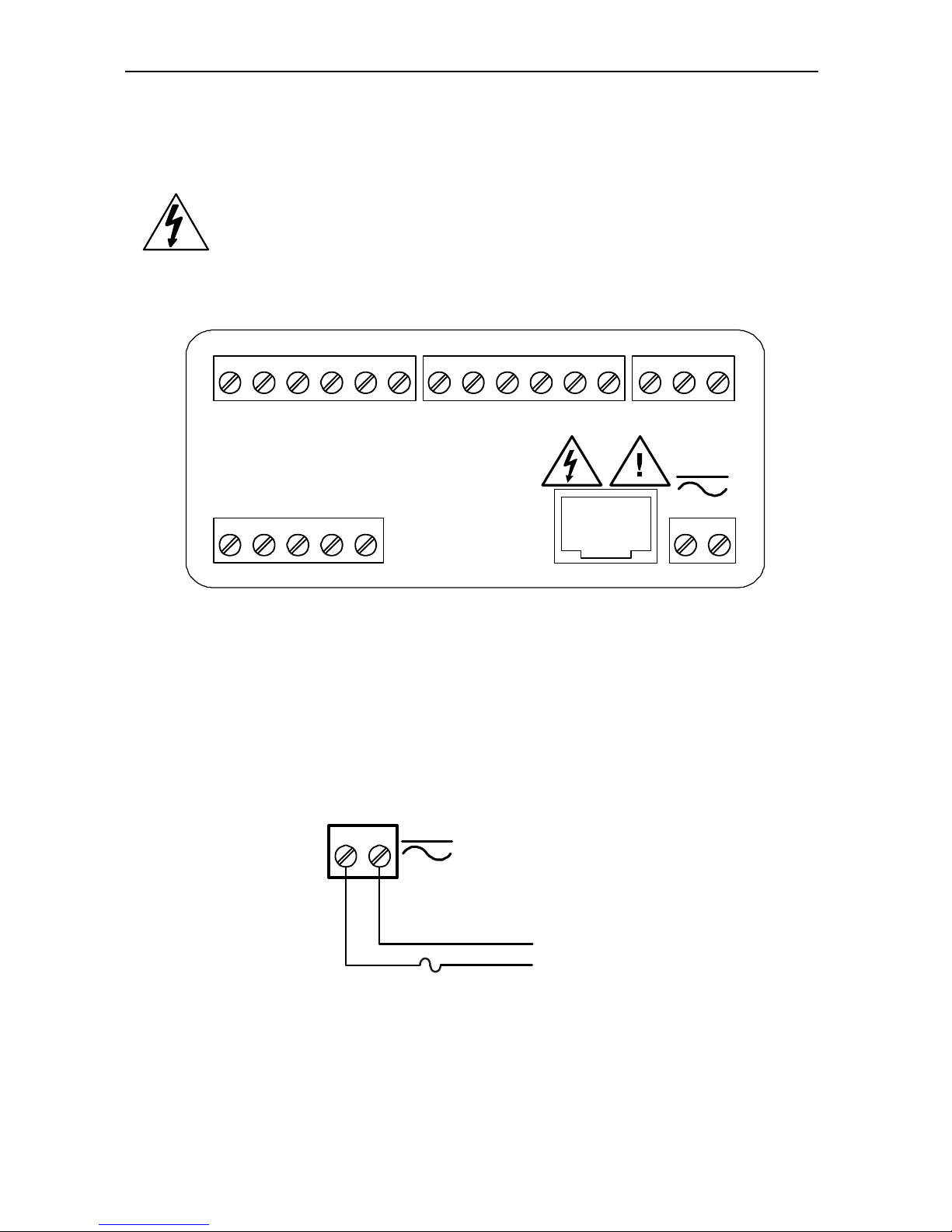

Figure 6: Connector Labeling for Fully Loaded PD6210 .................. 22
Figure 7: Power Connections ............................................................. 22
Figure 8: Transmitters Powered by Internal Supply ......................... 23
Figure 9: Transmitter Powered by Ext. Supply or Self-Powered ..... 23
Figure 10: Voltage Input Connections ............................................... 24

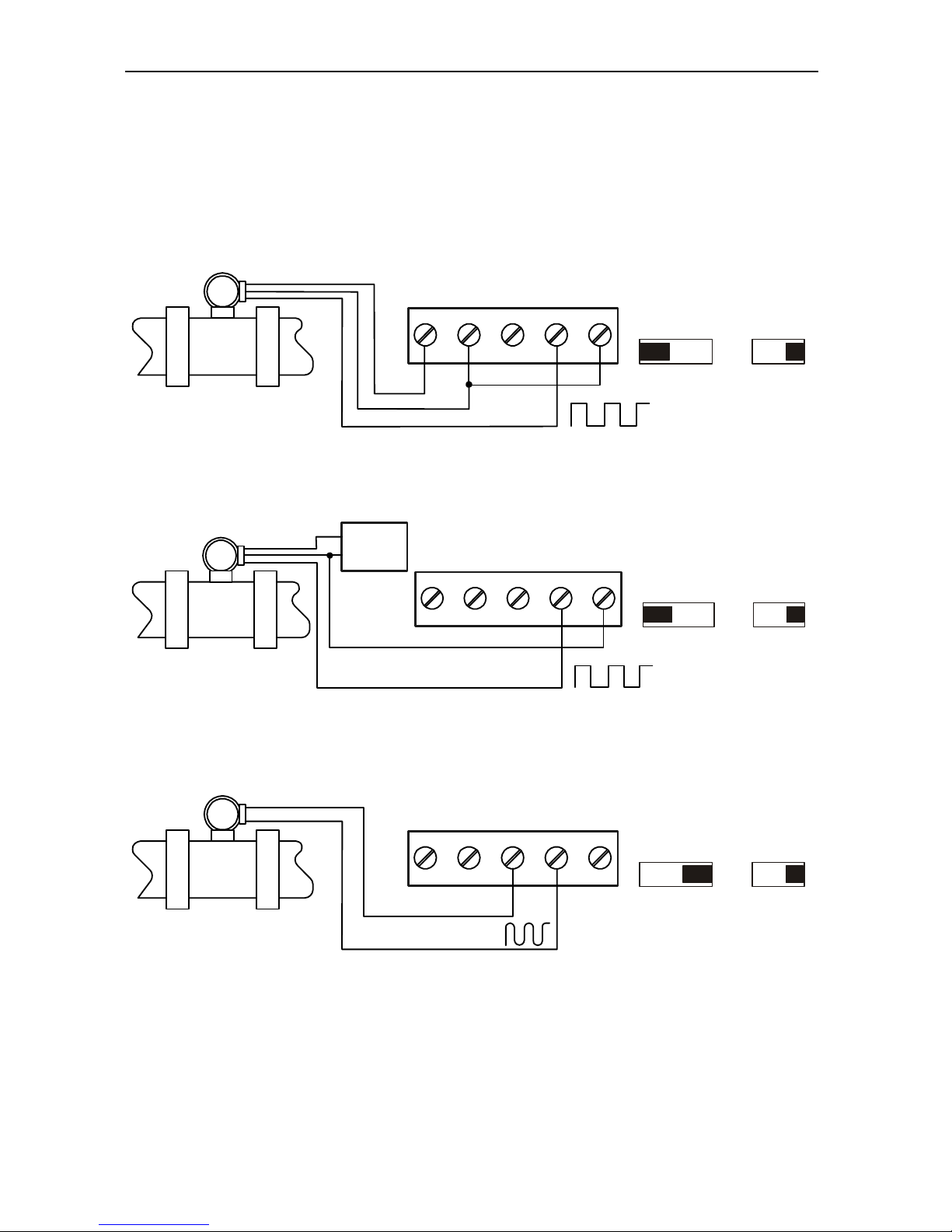

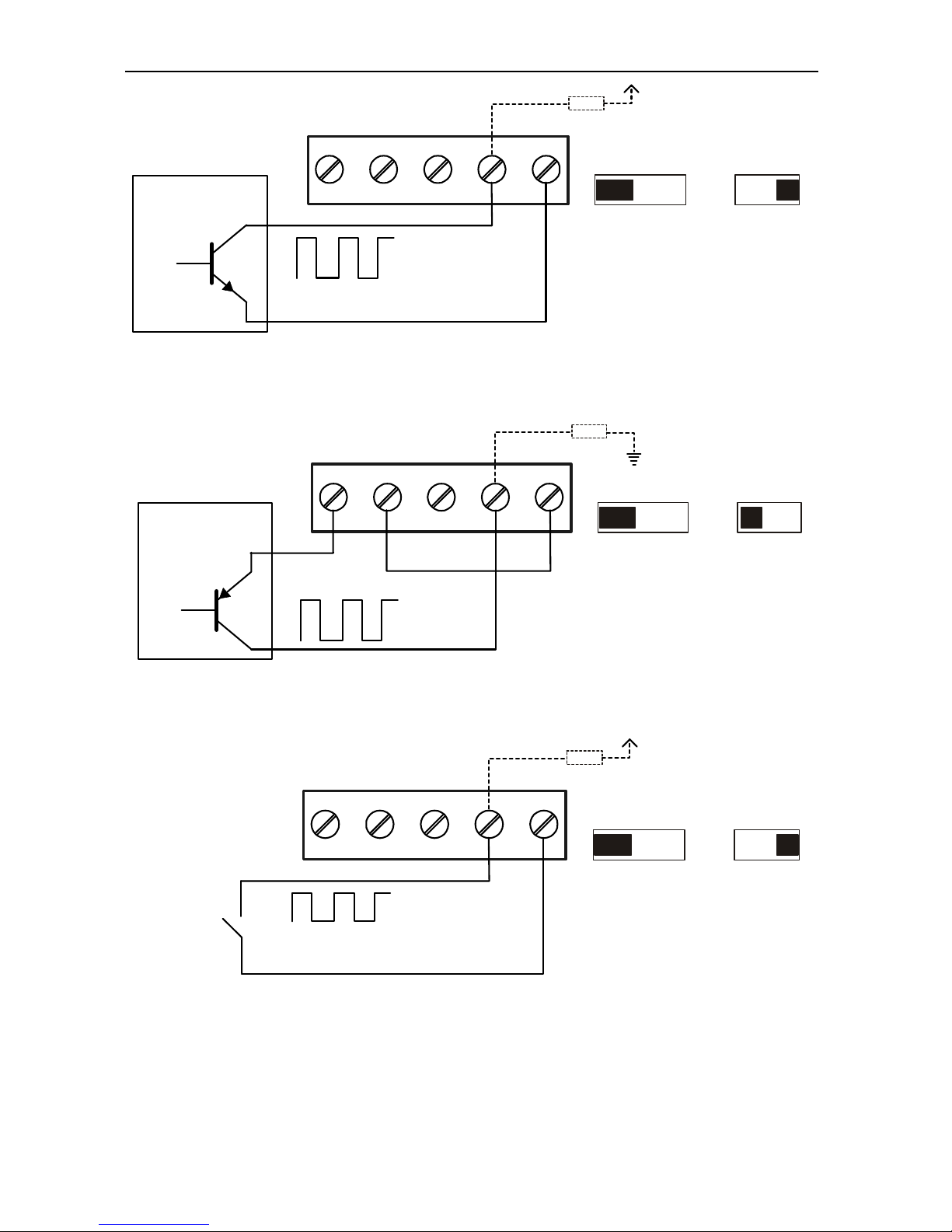

Figure 11: Flowmeter Powered by Internal Power Supply ............... 25
Figure 12: Flowmeter Powered by External Supply ......................... 25
Figure 13: Self-Powered Magnetic Pickup Coil Flowmeter .............. 25

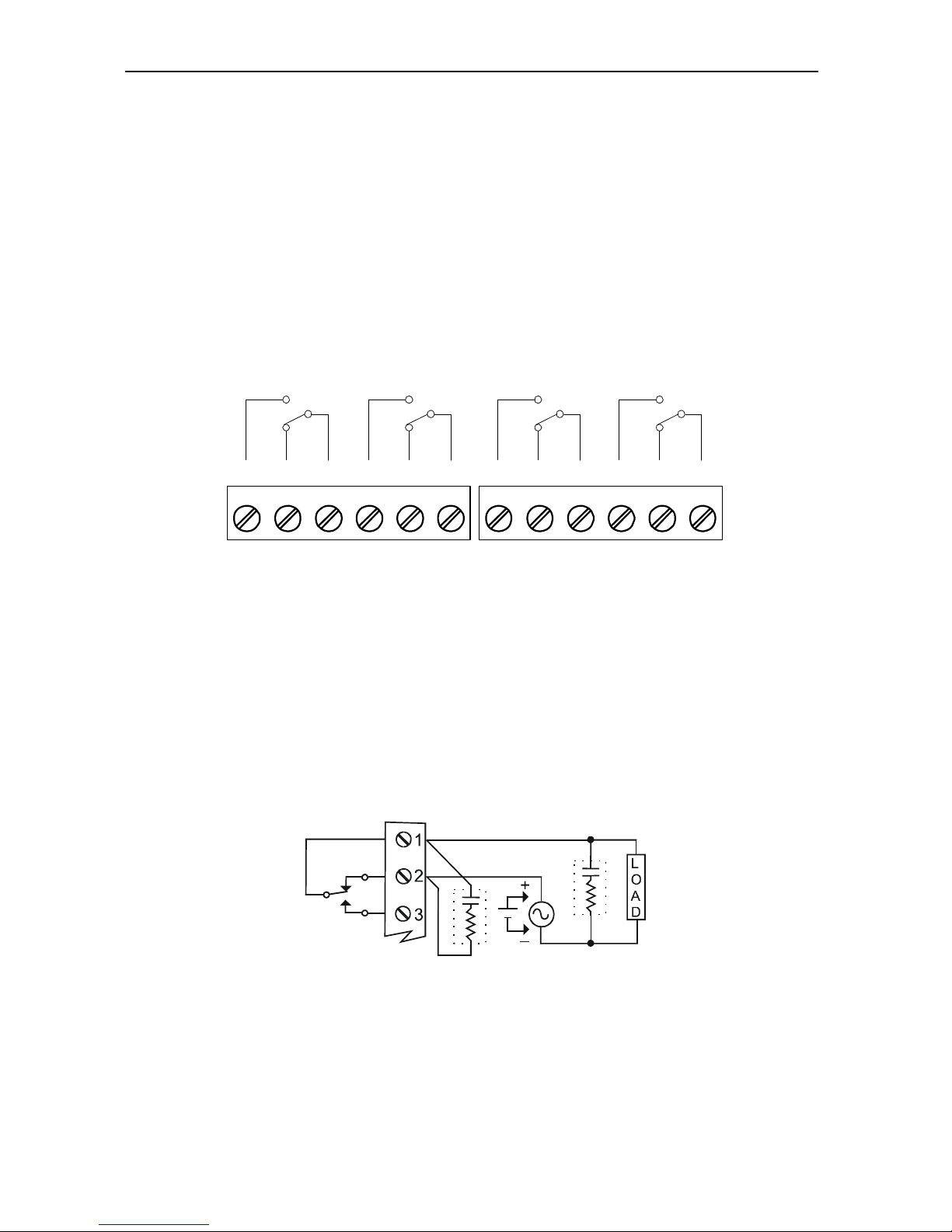

Figure 14: Relay Connections ............................................................ 27

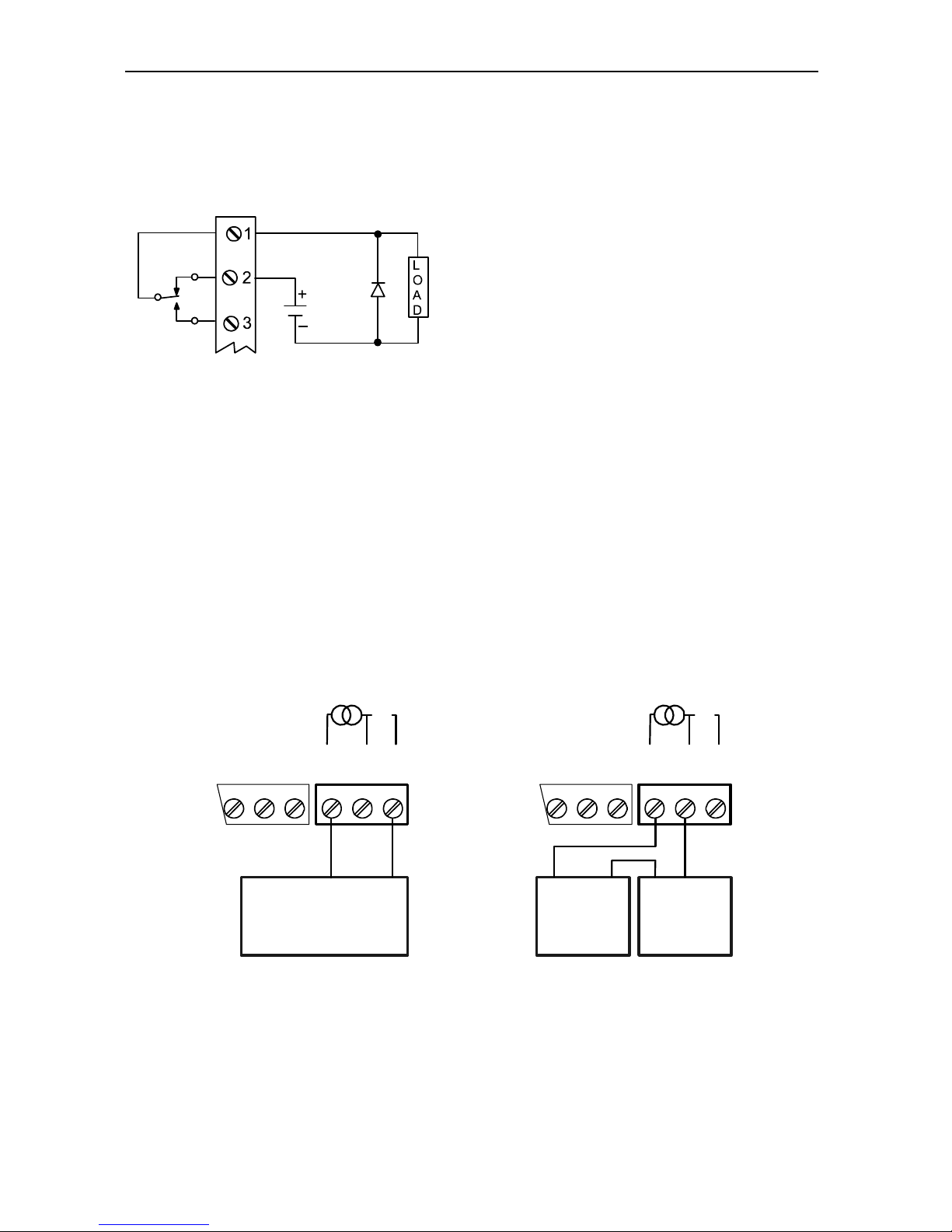

Figure 15: AC and DC Loads Protection ........................................... 27
Figure 16: Low Voltage DC Loads Protection ................................... 28
Figure 17: 4-20 mA Output Connections ........................................... 28

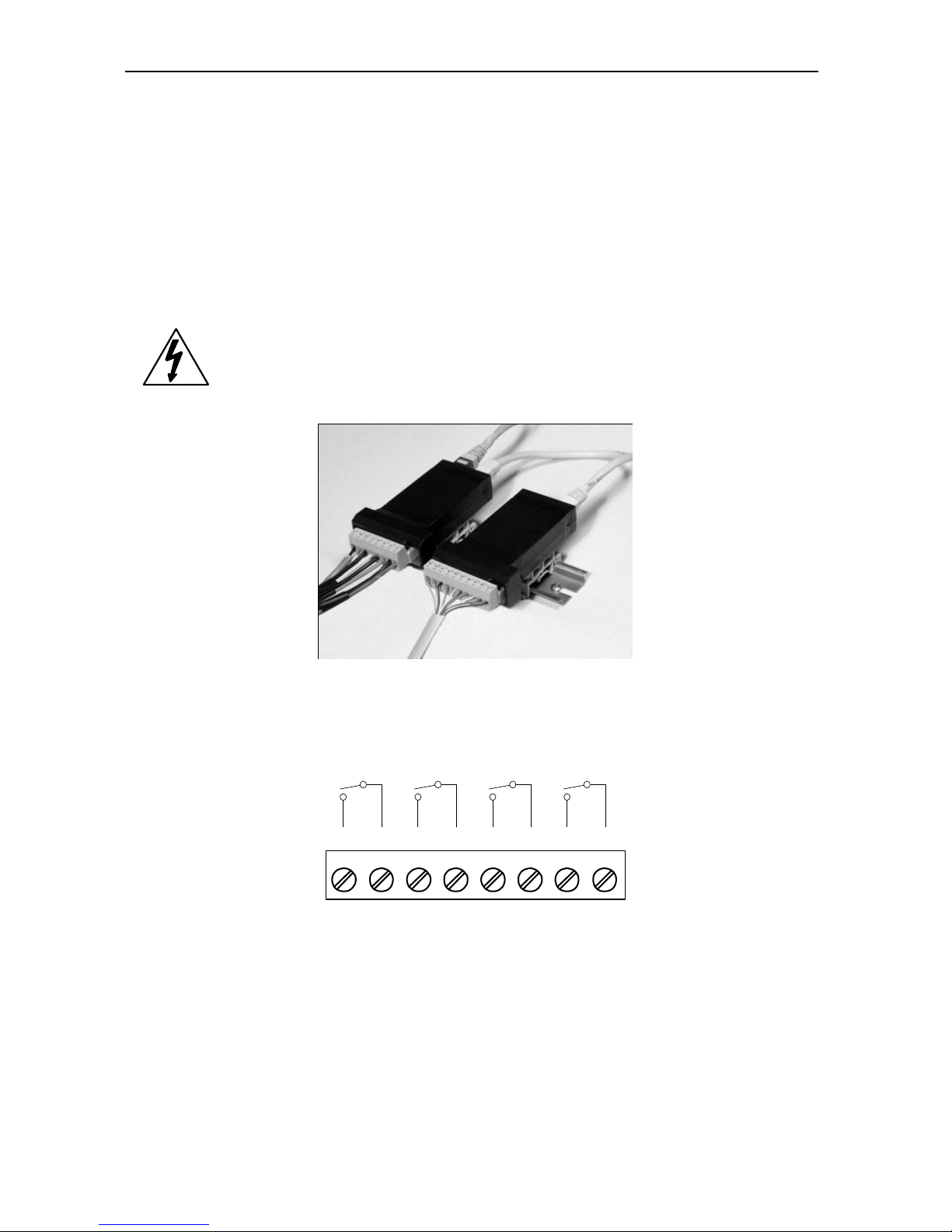

Figure 18: Expansion Modules & DIN Rail Mounting Kit .................. 29
Figure 19: External Relays Module Connections ............................. 29
Figure 20: Digital I/O Module Connections ....................................... 30

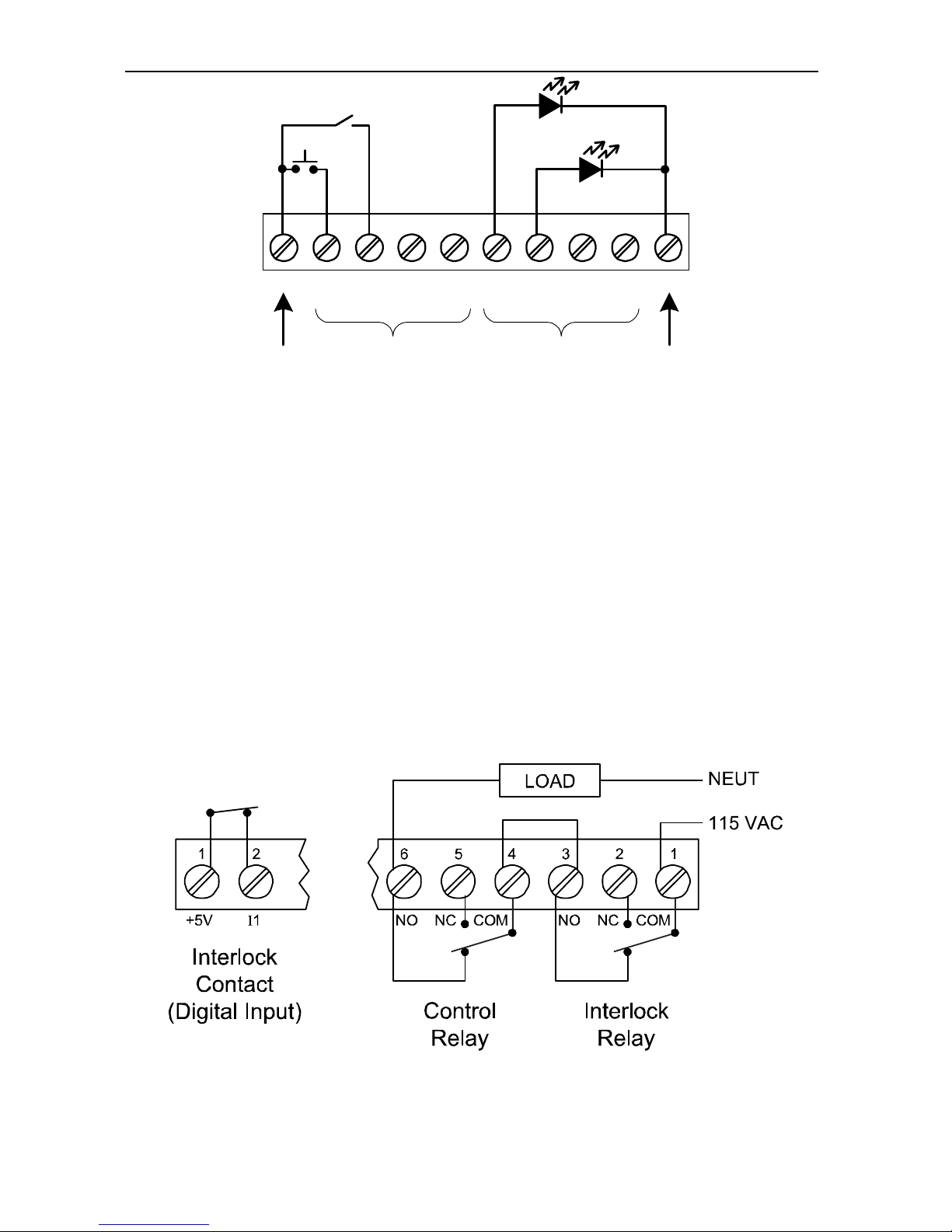

Figure 21: Interlock Connection ......................................................... 30

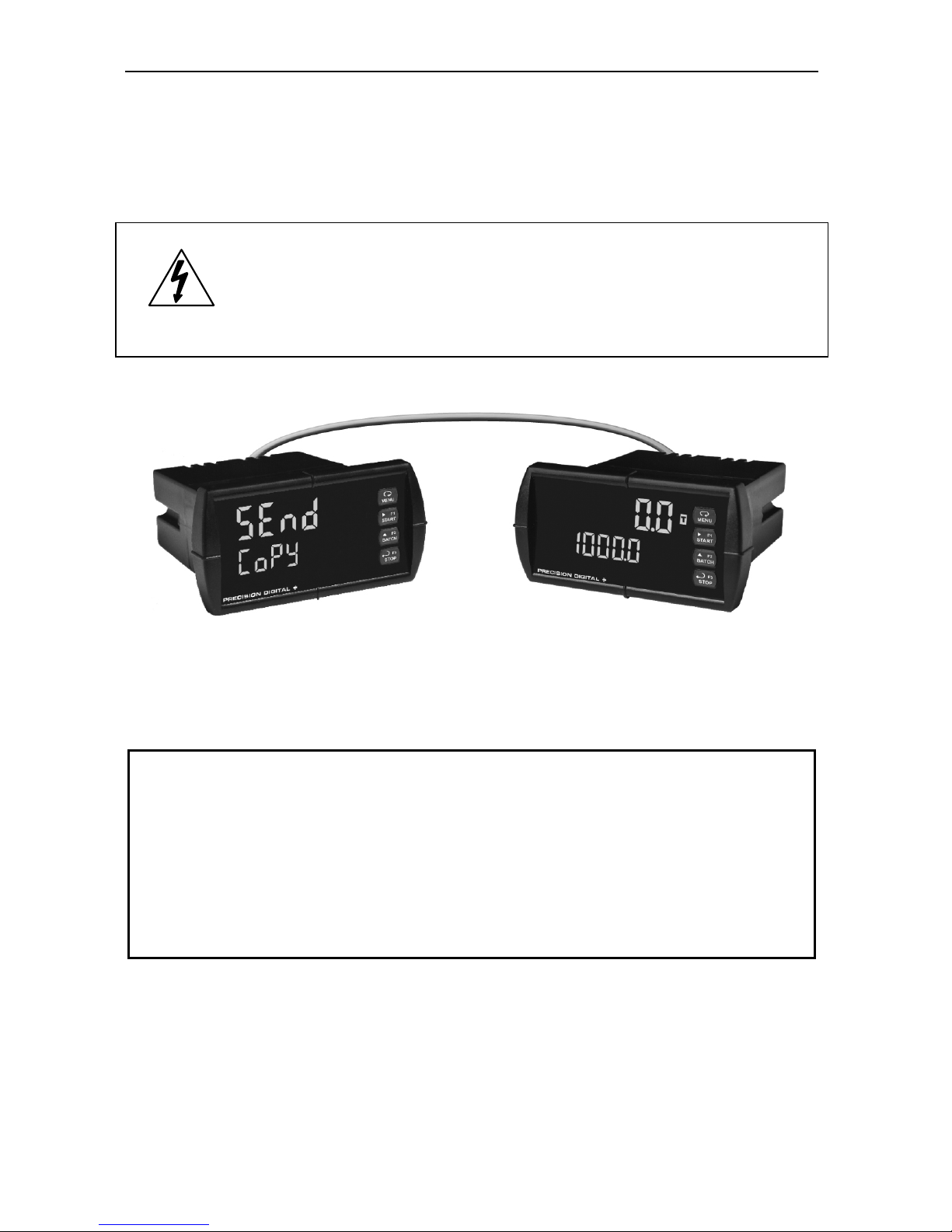

Figure 22: Controller Copy Connection ............................................. 84
Figure 23: 1/8 DIN Panel Cutout Template ...................................... 101
Page 7
Model PD6210 & PD6310 Batch Controllers Instruction Manual
7
INTRODUCTION
The PROVU® PD6210 and PD6310 are easy to use batch controllers ideal for
simplifying independent batch control operations where local control is preferred
to expensive and expansive plant operation systems.
The controller comes programmed for easy front panel start, pause, stop, and
batch size (preset) changes. The bottom display can be programmed to display
rate, grand total, batch count, or preset by cycling the Stop (F3) button.
Single and multi-stage batching is possible with up to 4 on-board relays and 4 with
the external relay module. Each batch control relay may have a unique preclose
amount when used for multi-stage batching.
Manual start batching is default, but automatic batching with a restart after a programmed time delay from the completion of the last batch, is also possible.
Overrun correction adjusts the closing of the batch control relays to adjust for
inaccuracies from batch to batch. This increases accuracy over time as systems
wear out.
At least two SPDT relays are included for use in batch control or rate alarms.
The batch controllers also share all common P
ROVU Series features, including an
isolated 24 VDC transmitter power supply and Modbus RTU Serial communications.
ORDERING INFORMATION
Analog Input Standard Models
85-265 VAC
Model
12/24 VDC
Model
Options Installed
PD6210-6R2 PD6210-7R2 2 relays (PD1102*)
PD6210-6R4 PD6210-7R4 4 relays (PD1104*)
PD6210-6R5 PD6210-7R5 2 relays & 4-20 mA output (PD1105*)
PD6210-6R7 PD6210-7R7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
Analog Input SunBright Display Models
85-265 VAC
Model
12/24 VDC
Model
Options Installed
PD6210-6H2 PD6210-7H2 2 relays (PD1102*)
PD6210-6H4 PD6210-7H4 4 relays (PD1104*)
PD6210-6H5 PD6210-7H5 2 relays & 4-20 mA output (PD1105*)
PD6210-6H7 PD6210-7H7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
Page 8
Model PD6210 & PD6310 Batch Controllers Instruction Manual
8
Pulse Input Standard Models
85-265 VAC
Model
12/24 VDC
Model
Options Installed
PD6310-6R2 PD6310-7R2 2 relays (PD1102*)
PD6310-6R4 PD6310-7R4 4 relays (PD1104*)
PD6310-6R5 PD6310-7R5 2 relays & 4-20 mA output (PD1105*)
PD6310-6R7 PD6310-7R7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
Pulse Input SunBright Display Models
85-265 VAC
Model
12/24 VDC
Model
Options Installed
PD6310-6H2 PD6310-7H2 2 relays (PD1102*)
PD6310-6H4 PD6310-7H4 4 relays (PD1104*)
PD6310-6H5 PD6310-7H5 2 relays & 4-20 mA output (PD1105*)
PD6310-6H7 PD6310-7H7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
Accessories
Model Description
PDA1002 DIN rail mounting kit for two expansion modules
PDA1004 4 SPST (Form A) relays
PDA1044 4 digital inputs & 4 digital outputs (2 may be connected)
PDA1200 Meter copy cable
PDA1232 RS-232 serial adapter
PDA1485 RS-422/485 serial adapter
PDA7485-I RS-232 to RS-422/485 isolated converter
PDA8232-N USB to RS-232 non-isolated converter
PDA8485-I USB to RS-422/485 isolated converter
PDA8008 USB serial adapter
PDA2811 1 Meter Plastic NEMA 4X Enclosure
PDA2812 2 Meter Plastic NEMA 4X Enclosure
PDX6901
Suppressor (snubber): 0.01 µF/470 , 250 VAC
Page 9
Model PD6210 & PD6310 Batch Controllers Instruction Manual
9
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY
Main display: 0.6" (15 mm) high, red LEDs
Second display: 0.46" (12 mm) high, red LEDs
6 digits: each (-99999 to 999999), with lead zero blanking.
DEFAULT
DISPLAY
ASSIGNMENT
The main (Big) display shows batch total. The small (Little)
display shows rate with alternating units, and can be
switched to show grand total, batch count, or preset with
the STOP key.
CUSTOM
DISPLAY
ASSIGNMENT
The main (Big) and small (Little) displays may be assigned
to rate, total, grand total, batch count, preset, set points,
units (lower display only), alternating R & T, R & GT, preset
& rate, max & min, or a Modbus display register. Any rate
display may be programmed to alternate with a custom unit
or tag.
ALTERNATING
DISPLAY
Displays alternate every 10 seconds when display is selected or the batch is paused.
DISPLAY
INTENSITY
Eight user selectable intensity levels
DISPLAY
UPDATE RATE
5/second (200 ms)
OVERRANGE
Display flashes
999999
UNDERRANGE
Display flashes
-99999
FRONT PANEL
NEMA 4X, IP65
PROGRAMMING
METHODS
Four front panel buttons, digital inputs, PC and MeterView
Pro software, or cloning using Copy function.
NOISE FILTER
Programmable from 2 to 199 (0 will disable filter)
FILTER BYPASS
Programmable from 0.1 to 99.9% of calibrated span
RECALIBRATION
All ranges are calibrated at the factory. Recalibration is
recommended at least every 12 months.
MAX/MIN
DISPLAY
Max/min readings reached by the process are stored until
reset by the user or until power to the controller is turned
off.
Page 10
Model PD6210 & PD6310 Batch Controllers Instruction Manual
10
PASSWORD
Three programmable passwords restrict modification of
programmed settings and two prevent resetting the totals.
Pass 1: Allows use of function keys and digital inputs
Pass 2: Allows use of function keys, digital inputs and editing set/reset points
Pass 3: Restricts all programming, function keys, and digital inputs.
Total Password: Prevents resetting the total manually
Gtotal Password: Prevents resetting the grand total manually
NON-VOLATILE
MEMORY
All programmed settings are stored in non-volatile memory
for a minimum of ten years if power is lost.
POWER
OPTIONS
85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
or jumper selectable 12/24 VDC 10%, 15 W max
FUSE
Required external fuse: UL Recognized, 5 A max, slow
blow; up to 6 controllers may share one 5 A fuse
ISOLATED
TRANSMITTER
POWER SUPPLY
Terminals P+ & P-: 24 VDC 5% @ 200 mA max (standard),
(12/24 VDC powered models rated @ 100 mA max).
5 or 10 VDC @ 50 mA max, selectable with internal jumper J4.
NORMAL MODE
REJECTION
Greater than 60 dB at 50/60 Hz
ISOLATION
4 kV input/output-to-power line
500 V input-to-output or output-to-P+ supply
OVERVOLTAGE
CATEGORY
Installation Overvoltage Category II:
Local level with smaller transient overvoltages than Installation Overvoltage Category III.
ENVIRONMENTAL
Operating temperature range: -40 to 65°C
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
CONNECTIONS
Removable screw terminal blocks accept 12 to 22 AWG
wire, RJ45 for external relays, digital I/O, and serial communication adapters.
ENCLOSURE
1/8 DIN, high impact plastic, UL 94V-0, color: black
MOUNTING
1/8 DIN panel cutout required:
3.622" x 1.772" (92 mm x 45 mm)
Two panel mounting bracket assemblies are provided.
TIGHTENING
TORQUE
Screw terminal connectors: 5 lb-in (0.56 Nm)
OVERALL
DIMENSIONS
4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
(W x H x D)
WEIGHT
9.5 oz (269 g)
WARRANTY
3 years parts & labor
Page 11
Model PD6210 & PD6310 Batch Controllers Instruction Manual
11
PD6210 Process Input
INPUTS Field selectable:
0-20, 4-20 mA, 10 V (0-5, 1-5, 0-10 V), Modbus PV (Slave)
ACCURACY
±0.03% of calibrated span ±1 count,
square root & programmable exponent accuracy range:
10-100% of calibrated span
TEMPERATURE
DRIFT
0.005% of calibrated span/C max from 0 to 65C ambient,
0.01% of calibrated span/C max from -40 to 0C ambient
SIGNAL INPUT
CONDITIONING
Linear, square root, or programmable exponent
MULTI-POINT
LINEARIZATION
2 to 32 points
PROGRAMMABLE EXPONENT
1.0001 to 2.9999
LOW-FLOW
CUTOFF
0-999999 (0 disables cutoff function)
DECIMAL POINT
Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd
CALIBRATION
RANGE
Input
Range
Minimum Span
Input 1 & Input 2
4-20 mA 0.15 mA
10 V
0.10 V
An Error message will appear if the input 1 and input 2
signals are too close together.
INPUT
IMPEDANCE
Voltage ranges: greater than 1 M
Current ranges: 50 - 100
(depending on resettable fuse impedance)
INPUT
OVERLOAD
Current input protected by resettable fuse, 30 VDC max.
Fuse resets automatically after fault is removed.
PD6310 Pulse Input
INPUTS
Field selectable: Pulse or square wave 0-5 V, 0-12 V, or
0-24 V @ 30 kHz; TTL; open collector 4.7 k pull-up to 5 V
@ 30 kHz; NPN or PNP transistor, switch contact 4.7 k
pull-up to 5 V @ 40 Hz; Modbus PV (Slave)
LOW VOLTAGE
MAG PICKUP
(Isolated)
Sensitivity: 40 mVp-p to 8Vp-p
MINIMUM INPUT
FREQUENCY
0.001 Hz
Minimum frequency is dependent on high gate setting.
MAXIMUM INPUT
FREQUENCY
30,000 Hz (10,000 for low voltage mag pickup)
Page 12
Model PD6210 & PD6310 Batch Controllers Instruction Manual
12
INPUT
IMPEDANCE
Pulse input: Greater than 300 k @ 1 kHz.
Open collector/switch input: 4.7 k pull-up to 5 V.
ACCURACY
±0.03% of calibrated span ±1 count
TEMPERATURE
DRIFT
Rate display is not affected by changes in temperature.
MULTI-POINT
LINEARIZATION
2 to 32 points
LOW-FLOW
CUTOFF
0-999999 (0 disables cutoff function)
DECIMAL POINT
Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd
CALIBRATION
May be calibrated using K-factor, internal calibration, or by
applying an external calibration signal.
K-FACTOR
Field programmable K-factor converts input pulses to rate in
engineering units. May be programmed from 0.00001 to
999,999 pulses/unit.
CALIBRATION
RANGE
Input 1 signal may be set anywhere in the range of the
controller; input 2 signal may be set anywhere above or
below input 1 setting.
Minimum input span between any two inputs is 10 Hz.
An Error message will appear if the input 1 and input 2
signals are too close together.
FILTER
Programmable contact de-bounce filter: 40 to 999 Hz maximum input frequency allowed with low speed filter.
TIME BASE
Second, minute, hour, or day
GATE
Low gate: 0.1-99.9 seconds
High gate: 2.0-999.9 seconds
Batch Controller Rate/Totalizer Display
RATE DISPLAY
INDICATION
-99999 to 999999, lead zero blanking. “R” LED illuminates
while displaying rate.
BATCH TOTAL &
GRAND TOTAL
DISPLAY
0 to 999,999; automatic lead zero blanking. “T” LED is illuminated while displaying batch total. “GT” LEDs are illuminated
while displaying grand total. Up to 999,999 for batch total/preset. Up to 999,999,999 with grand total-overflow feature. “
oF” is displayed to the left of grand total overflow and
▲ LED is illuminated.
BATCH TOTAL
DECIMAL POINT
Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd
Total decimal point is independent of rate decimal point.
Page 13
Model PD6210 & PD6310 Batch Controllers Instruction Manual
13
TOTALIZER
Calculates total based on rate and field programmable multiplier to display total in engineering units. Time base must
be selected according to the time units in which the rate is
displayed.
GRAND
TOTALIZER
ROLLOVER
Grand totalizer rolls over when display exceeds
999,999,999. Relay status reflects display.
GRAND TOTAL
ALARMS
Up to seven, user selectable under setup menu. Any set
point can be assigned to total and may be programmed
anywhere in the range of the controller for total alarm indication. Relay 1 should always be assigned to batch.
PROGRAMMABLE DELAY
ON RELEASE
0.1 and 999.9 seconds; applied to the first relay assigned to
total or grand total.
If the controller is programmed to reset total to zero automatically when the preset is reached, then a delay will occur before the total is reset.
GRAND TOTAL
RESET
Via front panel button, external contact closure on digital
inputs, automatically via user selectable preset value and
time delay, or through serial communications.
GRAND TOTAL
RESET PASSWORD
Grand total passwords may be entered to prevent resetting
the grand total from the front panel.
NONRESETTABLE
GRAND TOTAL
The grand total can be programmed as a non-resettable
total by entering the password “050873”.
!
Caution!
Once the Grand Total has been programmed
as “non-resettable” the feature cannot
be
disabled.
Relays
RATING
2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A)
external; rated 3 A @ 30 VDC and 125/250 VAC resistive
load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads
NOISE
SUPPRESSION
Noise suppression is recommended for each relay contact
switching inductive loads; see page 27 for details.
RELAY
ASSIGNMENT
Relays may be assigned to batch control, sampling, rate, or
grand total alarms.
PRECLOSE
0-100% of batch size, individually user programmable for
each additional batch control relay beyond the first.
ALARM DEADBAND
0-100% of span, user programmable
HIGH OR LOW
ALARM
User may program any alarm for high or low trip point.
Unused alarm LEDs and relays may be disabled (turn off).
Page 14
Model PD6210 & PD6310 Batch Controllers Instruction Manual
14
RELAY
OPERATION
Batch control
Automatic (non-latching)
1
Sampling
Off (disable unused relays and enable Interlock feature)
Manual on/off control mode
Secondary Functions
2
Pump alternation control (2 to 8 relays)
Latching (requires manual acknowledge)
RELAY RESET
User selectable via front panel buttons, digital inputs, or PC
1. Automatic reset only (non-latching), when the input
passes the reset point or total is reset to zero.
2. Automatic + manual reset at any time (non-latching)
3. Manual reset only, at any time (latching)
4. Manual reset only after alarm condition has cleared (L)
Note: Digital inputs may be assigned to acknowledge relays
programmed for manual reset. It is not recommended to
change the functions of front panel buttons to manual reset.
ALARM TIME
DELAY
0 to 999.9 seconds, on & off relay time delays
Programmable and independent for each relay.
FAIL-SAFE
OPERATION
Programmable and independent for each relay.
Note: Relay coil is energized in non-alarm condition.
In case of power failure, relay will go to alarm state.
ALARM AUTO
INITIALIZATION
When power is applied to the controller, relays will reflect
the state of the input to the controller.
1
1. Alarms are active only when the batch is running.
2. These functions are not functional when the unit is being used as a batch
controller with total set to yes.
Isolated 4-20 mA Transmitter Output
OUTPUT
SOURCE
Rate/process, total, grand total, max, min, set points 1-8,
Modbus register, or manual control mode
SCALING RANGE
1.000 to 23.000 mA for any display range.
CALIBRATION
Factory calibrated: 4.000 to 20.000 = 4-20 mA output
ANALOG OUT
PROGRAMMING
23.000 mA maximum for all parameters:
Overrange, underrange, max, min, and break
ACCURACY
± 0.1% FS ± 0.004 mA
TEMPERATURE
DRIFT
0.4 µA/C max from 0 to 65C ambient,
0.8 µA/C max from -40 to 0C ambient
Note: Analog output drift is separate from input drift.
ISOLATED
TRANSMITTER
POWER SUPPLY
Terminals I+ & R: 24 VDC 5% @ 40 mA maximum; may
be used to power the 4-20 mA output or other devices.
Refer to Figure 6 on page 22 and Figure 17 on page 28.
Page 15
Model PD6210 & PD6310 Batch Controllers Instruction Manual
15
EXTERNAL LOOP
POWER SUPPLY
35 VDC maximum
OUTPUT LOOP
RESISTANCE
Power supply Minimum Maximum
24 VDC
10 700
35 VDC (external)
100 1200
Modbus® RTU Serial Communications
SLAVE ID
1 – 247 (Controller address)
BAUD RATE
300 - 19,200 bps
TRANSMIT
TIME DELAY
Programmable between 0 and 199 ms
or transmitter always on for RS-422 communication
DATA
8 bit (1 start bit, 1 or 2 stop bits)
PARITY
Even, Odd, or None with 1 or 2 stop bits
BYTE-TO-BYTE
TIMEOUT
0.01 – 2.54 second
TURN AROUND
DELAY
Less than 2 ms (fixed)
Note: Refer to the PROVU® Modbus Register Tables located at www.predig.com
for details.
PDA1044 Digital Input & Output Expansion Module
CHANNELS
4 digital inputs & 4 digital outputs per module
SYSTEM
Up to 2 modules for a total of 8 inputs & 8 outputs
DIGITAL INPUT
LOGIC HIGH
3 to 5 VDC
DIGITAL INPUT
LOGIC LOW
0 to 1.25 VDC
DIGITAL OUTPUT
LOGIC HIGH
3.1 to 3.3 VDC
DIGITAL OUTPUT
LOGIC LOW
0 to 0.4 VDC
SOURCE
CURRENT
10 mA maximum output current
SINK CURRENT
1.5 mA minimum input current
+5 V
TERMINAL
To be used as pull-up for digital inputs only
Connect normally open pushbuttons across +5 V & DI 1-4.
Page 16
Model PD6210 & PD6310 Batch Controllers Instruction Manual
16
COMPLIANCE INFORMATION
Safety
UL & c-UL LISTED
USA & Canada
UL 508 Industrial Control Equipment
UL FILE NUMBER
E160849
FRONT PANEL
UL Type 4X, NEMA 4X, IP65; panel gasket provided
LOW VOLTAGE
DIRECTIVE
EN 61010-1:2001
Safety requirements for measurement, control, and
laboratory use
Electromagnetic Compatibility
EMISSIONS
EN 55022:2006/A1:2007
Class A ITE emissions requirements
Radiated
Emissions
Class A
AC Mains
Conducted
Emissions
Class A
IMMUNITY
EN 61326-1:2006
Measurement, control, and laboratory equipment
EN 61000-6-2:2005
EMC heavy industrial generic immunity standard
RFI - Amplitude
Modulated
80 -1000 MHz 10 V/m 80% AM (1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
Electrical Fast
Transients
±2kV AC mains, ±1kV other
Electrostatic
Discharge
±4kV contact, ±8kV air
RFI - Conducted
10V, 0.15-80 MHz, 1kHz 80% AM
AC Surge
±2kV Common, ±1kV Differential
Surge
1KV (CM)
Power-Frequency
Magnetic Field
3 A/m 70%V for 0.5 period
Voltage Dips
40%V for 5 & 50 periods
70%V for 25 periods
Voltage
Interruptions
<5%V for 250 periods
Page 17
Model PD6210 & PD6310 Batch Controllers Instruction Manual
17
Note:
Testing was conducted on PD6200 and PD6300 series meters
installed through the covers of grounded metal enclosures with
cable shields grounded at the point of entry representing
installations designed to optimize EMC performance. All
hardware is identical to the PD6210 and PD6310 controllers.
Declaration of Conformity available at www.predig.com
SAFETY INFORMATION
!
CAUTION: Read complete
instructions prior to installation
and operation of the controller.
WARNING: Risk of electric
shock or personal injury.
Warning!
Hazardous voltages exist within enclosure.
Installation and service should be performed only by
trained service personnel.
Page 18
Model PD6210 & PD6310 Batch Controllers Instruction Manual
18
INSTALLATION
There is no need to remove the controller from its case to complete the installation, wiring, and setup of the controller for most
applications. Instructions are provided for setting up a
12/24 VDC powered controller to operate from 12 VDC and for
changing the transmitter power supply to output 5 or 10 VDC
instead of 24 VDC, see page 20.
Unpacking
Remove the controller from box. Inspect the packaging and
contents for damage. Report damages, if any, to the carrier.
If any part is missing or the controller malfunctions, please contact your supplier or the factory for assistance.
Panel Mounting Instructions
Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x
45 mm). Refer to Figure 1 for more details.
Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.
Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to maintain Type 4X
rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.
Remove the two mounting brackets provided with the controller (back-off the
two screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the
bracket toward the front of the case and remove).
Insert controller into the panel cutout.
Install mounting brackets and tighten the screws against the panel. To
achieve a proper seal, tighten the mounting bracket screws evenly until controller is snug to the panel along its short side. DO NOT OVER TIGHTEN, as
the rear of the panel may be damaged.
Note: See Figure 23 on page 101 for Error! Reference source not found.
3.622" (92mm)
1.772"
(45mm)
Panel Cutout
to DIN 43700
Square Corners to 0.060"
(1.5mm) Max Radius
A
B
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)
Panel
Gasket
Mounting
Bracket
Mounting
Screw
Removable
Connectors
Figure 1: 1/8 DIN Panel Cutout and Mounting
Page 19
Model PD6210 & PD6310 Batch Controllers Instruction Manual
19
Mounting Dimensions
1.76"
(45 mm)
0.59"
(15 mm)
4.77"
(121 mm)
2.45"
(62 mm)
5.05"
(128 mm)
Figure 2: Controller Dimensions - Side View
3.61"
(92 mm)
4.17"
(106 mm)
4.68"
(119 mm)
Figure 3: Controller Dimensions - Top View
Page 20
Model PD6210 & PD6310 Batch Controllers Instruction Manual
20
Configuration for 12 or 24 VDC Power Option
Warning!
Do not exceed voltage rating of the selected
configuration.
Controllers equipped with the 12/24 VDC power option are shipped
from the factory ready to operate from 24 VDC.
To configure the controller for 12 VDC power:
1. Remove all the connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch.
4. Configure the J9 jumper, located behind the power connector, for 12
V as shown below.
MAIN BOARD
24 VDC
12 VDC
POWER
J9
12 V
24 V
J9 CONFIGURATION
Factory
Default
M-LINK
+
_
Figure 4: Jumper Configuration for 12/24 VDC Power
Page 21
Model PD6210 & PD6310 Batch Controllers Instruction Manual
21
Transmitter Supply Voltage Selection (P+, P-)
All controllers, including models equipped with the 12/24 VDC power
option, are shipped from the factory configured to provide 24 VDC
power for the transmitter or sensor.
If the transmitter requires 5 or 10 VDC excitation, the internal jumper
J4 must be configured accordingly.
To access the voltage selection jumper:
1. Remove all the connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch.
4. Configure the J4 jumper, located behind the input signal connector,
for the desired excitation voltage as shown.
MAIN BOARD
INPUT
SIGNAL
J4
5 V
10 V
24 V
J4 CONFIGURATION
Factory Default
P+
P-
mA+
COM
V+
Figure 5: Transmitter Supply Voltage Selection
Connections
All connections are made to removable screw terminal connectors
located at the rear of the controller.
!
Caution!
Use copper wire with 60°C or 60/75°C insulation for
all line voltage connections. Observe all safety regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local
codes to prevent damage to the controller and ensure personnel safety.
Page 22
Model PD6210 & PD6310 Batch Controllers Instruction Manual
22
Connectors Labeling
The connectors’ label, affixed to the controller, shows the location of all
connectors available with requested configuration.
Warning!
Do not connect any equipment other than Precision
Digital’s expansion modules, cables, or controllers to
the RJ45 M-LINK connector. Otherwise damage will
occur to the equipment and the controller.
DW1815
RI- I+
MA OUT
132
POWER
+
-
SIGNAL
P- COMP+ V+ mA+
3412 5
M-LINK
CNONO NC NC C
RELAY4 RELAY3
4365 21
CNONO NC NC C
RELAY2 RELAY1
4365 21
123 45678
21
Figure 6: Connector Labeling for Fully Loaded PD6210
Power Connections
Power connections are made to a two-terminal connector labeled POWER
on Figure 6. The controller will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention.
AC or DC
POWER
Required External Fuse:
5 A max, 250 V Slow Blow
POWER
+
-
Figure 7: Power Connections
Page 23
Model PD6210 & PD6310 Batch Controllers Instruction Manual
23

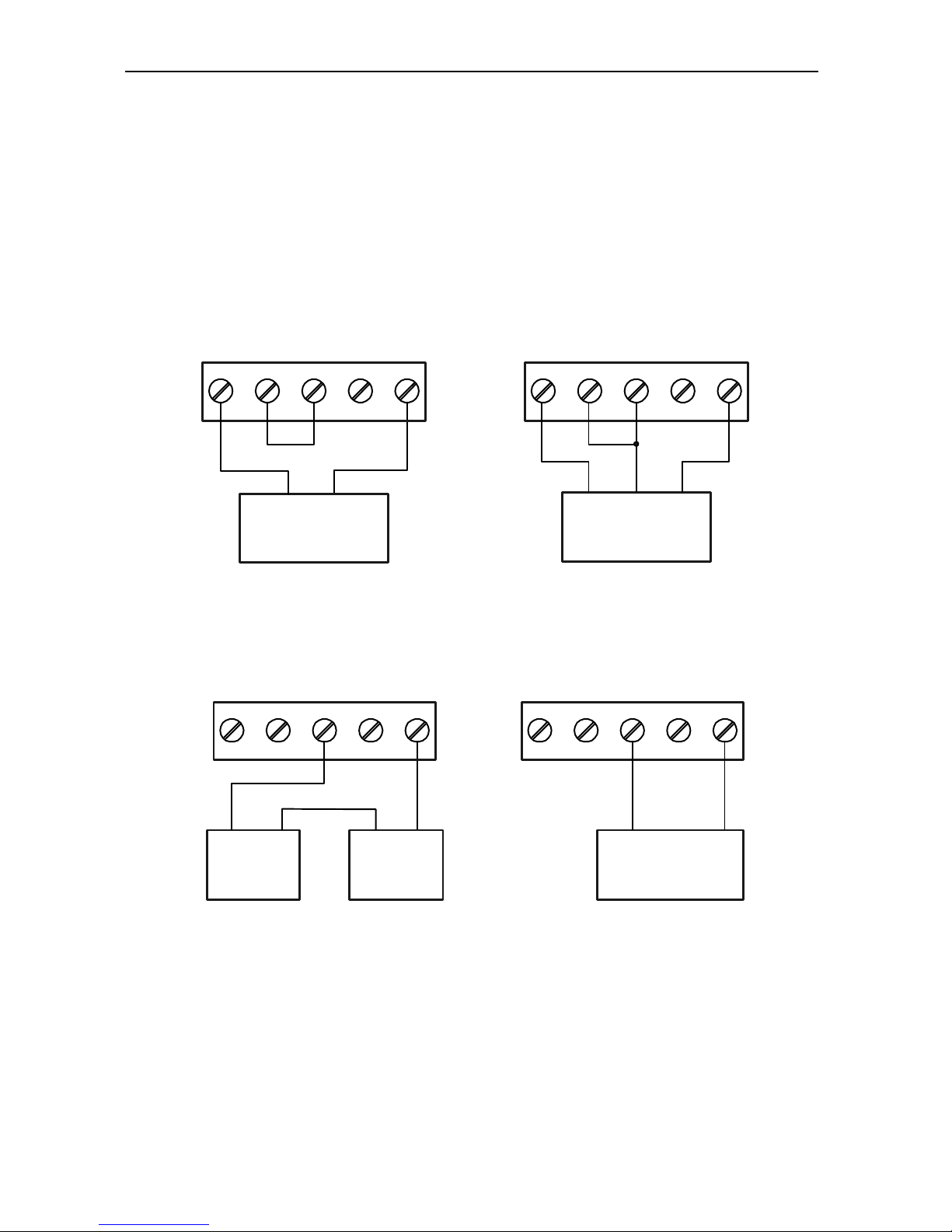

PD6210 Signal Connections
Signal connections are made to a five-terminal connector labeled
SIGNAL on Figure 6. The COM (common) terminal is the return for the
4-20 mA and the 10 V input signals.
Current and Voltage Connections
The following figures show examples of current and voltage connections.
There are no switches or jumpers to set up for current and voltage inputs.
Setup and programming is performed through the front panel buttons.
-+
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
3-Wire 4-20 mA
Transmitter
Signal
+-
2-Wire
4-20 mA
Transmitter
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
Figure 8: Transmitters Powered by Internal Supply
+--+
External
Power
Supply
2-Wire
4-20 mA
Transmitter
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
-+
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
2-Wire 4-20 mA
Self-Powered
Transmitter
Figure 9: Transmitter Powered by Ext. Supply or Self-Powered
Page 24
Model PD6210 & PD6310 Batch Controllers Instruction Manual
24
The current input is protected against current overload by a resettable
fuse. The display may or may not show a fault condition depending on
the nature of the overload.
The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.
-+
+
Voltage
Signal
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
mA+P-
21354
P+ V+
COM
INPUT SIGNAL
3-Wire Voltage
Transducer
Signal
-

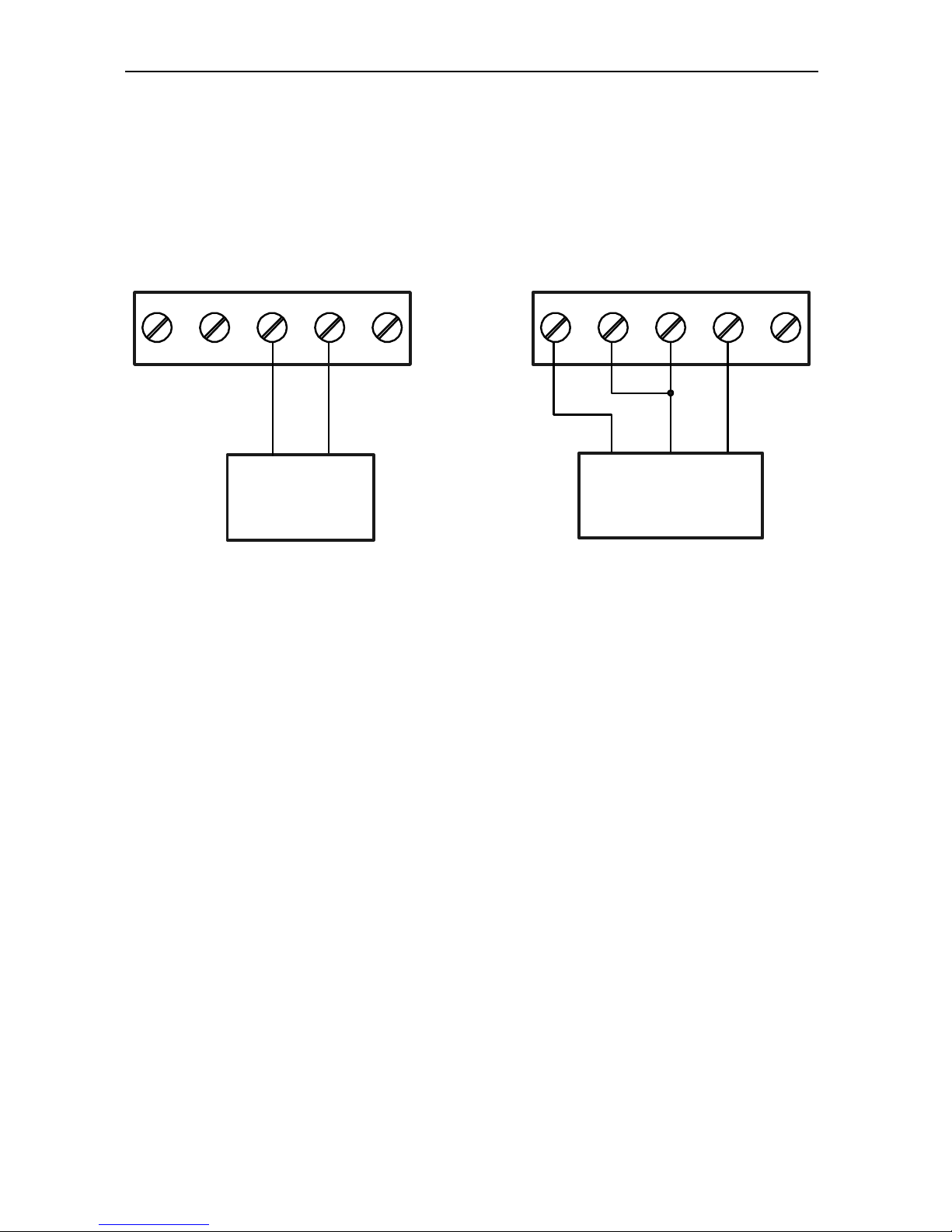

Figure 10: Voltage Input Connections
The controller is capable of accepting any voltage from -10 VDC to
+10 VDC.
Page 25
Model PD6210 & PD6310 Batch Controllers Instruction Manual
25
PD6310 Signal Connections
Signal connections are made to a five-terminal connector labeled
SIGNAL on Figure 6. The COM (common) terminal is the return for the
input signals.
The following figures show examples of signal connections.
Setup and programming is performed through the front panel buttons.
Flowmeter
(Pulse Output)
S-P-
21354
P+ S+
COM
INPUT SIGNAL
VPNPNPNmV
LEVEL TYPE
Figure 11: Flowmeter Powered by Internal Power Supply
S-P-
21354
P+ S+
COM
INPUT SIGNAL
VPNPNPNmV
LEVEL TYPE
External
Power
Supply
Flowmeter
(Pulse Output)
+
-
Figure 12: Flowmeter Powered by External Supply
Flowmeter
(Magnetic
Pickup Coil)
S-P-
21354
P+ S+
COM
INPUT SIGNAL
VPNPNPNmV
LEVEL TYPE
Figure 13: Self-Powered Magnetic Pickup Coil Flowmeter
Page 26
Model PD6210 & PD6310 Batch Controllers Instruction Manual
26
S-P-
21354
P+ S+
COM
INPUT SIGNAL
V PNP NPNmV
LEVEL TYPE
NPN
SENSOR
4.7 k-ohm
Internal pull-up
+5 V
Figure 11: NPN open Collector Input
S-P-
21354
P+ S+
COM
INPUT SIGNAL
V PNP NPNmV
LEVEL TYPE
PNP
SENSOR
4.7 k-ohm
Internal pull-down
Figure 12: PNP Sensor Powered by Internal Supply
S-P-
21354
P+ S+
COM
INPUT SIGNAL
V PNP NPNmV
LEVEL TYPE
SWITCH
INPUT
4.7 k-ohm
Internal pull-up
+5 V
Figure 13: Switch Input Connections
Modbus RTU Serial Communications
Serial communications connection is made to an RJ45 connector labeled
M-LINK on Figure 6. Use the PDA1232 for RS-232 interfacing, the
PDA1485 for RS-422/485 interfacing, or the PDA8008 for USB interfacing.
Page 27
Model PD6210 & PD6310 Batch Controllers Instruction Manual
27
The same port is used for interfacing with all expansion modules (e.g.
external relays, digital I/O).
Use the PDA1200 controller copy cable for meter-to-meter interfacing for
cloning purposes (i.e. copying settings from one controller to other con-
trollers).
Relay Connections
Relay connections are made to two six-terminal connectors labeled
RELAY1 – RELAY4 on Figure 6. Each relay’s C terminal is common only
to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with
the COM (common) terminal of the INPUT SIGNAL connector.
CNONO NC NC C
RELAY4 RELAY3
4365 21
CNONO NC NC C
RELAY2 RELAY1
4365 21
Figure 14: Relay Connections
Switching Inductive Loads
The use of suppressors (snubbers) is strongly recommended when
switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:
C
R
C
R
Figure 15: AC and DC Loads Protection
Choose R and C as follows:
R: 0.5 to 1 for each volt across the contacts
C: 0.5 to 1 µF for each amp through closed contacts
Notes:
1. Use capacitors rated for 250 VAC.
Page 28
Model PD6210 & PD6310 Batch Controllers Instruction Manual
28
2. RC networks may affect load release time of solenoid loads. Check
to confirm proper operation.
3. Install the RC network at the controller's relay screw terminals. An
RC network may also be installed across the load. Experiment for
best results.
Figure 16: Low Voltage DC Loads Protection
RC Networks Available from Precision Digital
RC networks are available from Precision Digital and should be applied
to each relay contact switching an inductive load. Part number:
PDX6901.
Note:
Relays are de-rated to 1/14th HP (50 watts) with an inductive load.
4-20 mA Output Connections
Connections for the 4-20 mA transmitter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered
internally or from an external power supply.
12-35 VDC
Power
Supply
+
4-20 mA
Input Meter
-
+
RI- I+
132
RELAY1
321
24 V
-
4-20 mA Input
Remote Display,
Chart Recorder, Etc.
-
+
RI- I+
MA OUT
132
RELAY1
321
24 V
MA OUT
Figure 17: 4-20 mA Output Connections
Analog Output Transmitter Power Supply
The internal 24 VDC power supply powering the analog output may be
used to power other devices, if the analog output is not used. The I+
terminal is the +24 V and the R terminal is the return. This power supply
is capable of sourcing up to 40 mA.
Use a diode with a reverse
breakdown voltage two to
three times the circuit voltage and forward current at
least as large as the load
current.
Page 29
Model PD6210 & PD6310 Batch Controllers Instruction Manual
29
External Relay & Digital I/O Connections
The relay and the digital I/O expansion modules PDA1004 & PDA1044
are connected to the controller using a CAT5 cable provided with each
module. The two RJ45 connectors on the expansion modules are identical and interchangeable; they are used to connect additional modules
to the system.
Note: The jumper located between the RJ45 connectors of the PDA1044
must be removed on the second digital I/O module in order for the
system to recognize it as module #2.
Warning!
Do not connect or disconnect the expansion modules
with the power on!
More detailed instructions are provided with each optional expansion module.
Figure 18: Expansion Modules & DIN Rail Mounting Kit
12
RLY5 RLY6 RLY7 RLY8
345 678
NO C NO C NO C NO C
Figure 19: External Relays Module Connections
Page 30
Model PD6210 & PD6310 Batch Controllers Instruction Manual
30
123456
+5 I1 I2 I3 I4 O1
78
O2 O3
910
O4 G
DI 1-4 DO 1-4
5 VDC GND
Figure 20: Digital I/O Module Connections
Interlock Relay Feature
As the name implies, the interlock relay feature reassigns one, or more,
alarm/control relays for use as interlock relay(s). Interlock contact(s) are
wired to digital input(s) and trigger the interlock relay. This feature is
enabled by configuring the relay, and relative digital input(s) (see page
59). In one example, dry interlock contacts are connected in series to
one digital input which will be used to force on (energize) the assigned
interlock power relay when all interlock contacts are closed (safe). The
interlock relay front panel LED flashes when locked out. The interlock
relay would be wired in-series with the load (N/O contact). See below.
Figure 21: Interlock Connection
Page 31
Model PD6210 & PD6310 Batch Controllers Instruction Manual
31
BASIC OPERATION AND PROGRAMMING
The PD6210 is factory calibrated prior to shipment to read in milliamps and volts depending on the input selection. The calibration
equipment is certified to NIST standards.
The PD6310 has been factory calibrated to read input frequency
in Hz (pulses/sec). The calibration equipment is certified to NIST
standards.
Overview
There are no jumpers on the PD6210 to set for the controller input selection. There are two switches on the PD6310, located to the right of the
input connector, which must be configured according to the input level
and type. Jumper J4 located inside the controller, behind the input signal
connector, is used to select the excitation voltage (24 V*, 10 V or 5 V)
which is supplied to the P+ and P- wiring terminals.
Setup and programming is done through the front panel buttons.
After power and input signal connections have been completed and veri-
fied, apply power to the controller.
*Default Setting
Page 32
Model PD6210 & PD6310 Batch Controllers Instruction Manual
32
Front Panel Buttons and Status LED Indicators
Button
Symbol
Description LED Status
Menu 1-8 Relay 1 – 8 indicator
START
(Right arrow/F1)
R Rate indicator
BATCH
(Up arrow/F2)
T Batch Total indicator
STOP
(Enter/F3)
G T Grand Total indicator
Note:
Alarms 5-8 enabled when relay
expansion module is installed.
▲
Total overflow
indicator
M
Manual control relays
&/or analog output
Programming
Press the Menu button to enter or exit the Programming Mode at
any time.
Press the Right arrow button to move to the next digit during digit
or decimal point programming.
Press or hold the Up arrow button to scroll through the menus,
decimal point or press or hold to increment the value of a digit.
Press the Enter button to access a menu or to accept a setting.
Press and hold the Menu button for three seconds to access the
advanced features of the controller.
Page 33
Model PD6210 & PD6310 Batch Controllers Instruction Manual
33
Controller Operation
The PD6210 controller is capable of accepting current (0-20 mA,
4-20 mA) and voltage signals (0-5 V, 1-5 V, 0-10 V,
10 V) and the
PD6310 accepts pulses (e.g. ±40mV to
± 8V), square wave (0-5, 0-12V,
or 0-24V), open collector NPN, PNP, TTL, or switch contact signals.
These signals are scaled to represent rate in engineering units from -
99999 to 999999. The pulse signals may be scaled with a K-factor to
represent a total for the batch, and grand total.
The default configuration displays batch total on the big display, and a
selection of rate, grand total, batch count, and preset on the little display.
When in pause or stop mode, the display will alternate the numeric value
with the run status in the big display and the display label for the little
display.
The controller has up to 4 relays on board (and 4 available with an external expansion module) which are used to either control the batch
process in single or multi-stage batch control, or as alarms that will be
active when the batch process is running. A 4-20 mA output option is
also available for retransmitting the process variable analog or pulse
signal.
Default Batch Control Operation
The following describes the operation of the three front panel operating
keys as programmed with default settings.
START Button
Press the START button to begin a new batch process.
BATCH Button
Press the Batch button to access the Preset (batch amount) menu.
Program the batch with the arrow keys, and confirm with the Enter
key.
STOP Button
Press the STOP key once during a batch to pause. Press the STOP
key while paused to stop and cancel the batch. Press the STOP key
while in stop/ready mode cycle lower display values of rate (or other
little display programmed parameter), grand total, batch count, and
preset.
!
Only STOP Button Enabled if a Batch is Running
During a batch process, only the pause/stop functions of
the STOP button will function. No other buttons will be
functional.
Page 34
Model PD6210 & PD6310 Batch Controllers Instruction Manual
34
Batch Control Operation Example
The following example shows how two stage batch control functions with
a PD6210 or PD6310. This setup will establish a 55 gallon preset for the
batch, with a main valve (high flow) that will close at 45 gallons, and a
trickle valve (low or restricted flow) that will close at 55 gallons. After the
batch, the preset will be changed to 100 gallons.
Two-Stage Batch Control Setup Using Relays 1 & 2
The following table shows the parameters as they appear within the
Setup menu entry relay.
Parameter Setting Function
Relay Assign
Press Enter to enter the relay assignment parameters.
Asign1 total
Assign relay 1 to batch total control.
Asign2 total
Assign relay 2 to batch total control.
Precls
Total
Press Enter to access preclose
selection for multi-stage control.
Precls Yes
Yes to enable a preclose value for
relay 2.
Yes 00005..0
Set the preclose value to 5 for
c;closing the valve controlling relay 2
five gallons before reaching the preset.
…
Assignment for optional relays 3-8.
Rly 1
relay
Select relay 1 setup.
Act 1
rly 1
Configure activation of relay 1.
Act 1 Auto
Always set to Auto for batch control
function.
Rly 1 Preset
Set the preset value for batch control.
Preset 00055.0
Set 55 gallons as the preset.
…
Setup for optional relays 3-8.
The operation of relay 2 has already been assigned for multi-stage
control preclose, and will not appear as a selection in the
relay menu.
If only one stage batch control was desired, with one relay for control,
then one would set the assignment of relay 2,
assign2, to off, rate, or
grand total.
The following pages show an illustration of how the above settings
control the batch operation. The display assignment is the default.
Page 35
Model PD6210 & PD6310 Batch Controllers Instruction Manual
35
Batch Control Operation
1. A new container is prepared for the batch. Both valves are closed.
Note that the big display may show the batch total from the last
batch.
2. The START button is pressed. Both valves open. The barrel begins
to fill as the total being dispensed is displayed in the big window. The
lower window shows the rate and units, alternating.
3. When the batch total reaches 60 gallons, the preset (55) minus the
preclose amount (5) for relay 2, relay 2 deactivates to close the main
valve. The barrel fills more slowly as a result, improving accuracy.
4. When the batch total equals the preset, relay 1 deactivates, closing
valve 1. Filling stops.
5. The BATCH button is pressed, and a new preset is entered, 100
gallons, and the enter/STOP button is pressed to confirm it.
6. The new batch begins when the START button is pressed, so both
relays activate and both valves open.
Additional Features
At any time during the batch, the STOP button may be pressed to pause
the batch. When paused, the START button will continue the batch, and
pressing the STOP button again will cancel the batch.
When in STOP mode, the STOP button may be pressed to cycle through
alternative parameters to be displayed on the little display, including the
grand total, batch count, and preset.
The grand total and batch count may be reset in the
reset menu by
pressing the MENU button and entering the reset menu. It may also be
reset with digital inputs.
Page 36
Model PD6210 & PD6310 Batch Controllers Instruction Manual
36
36
36
Page 37
Model PD6210 & PD6310 Batch Controllers Instruction Manual
37

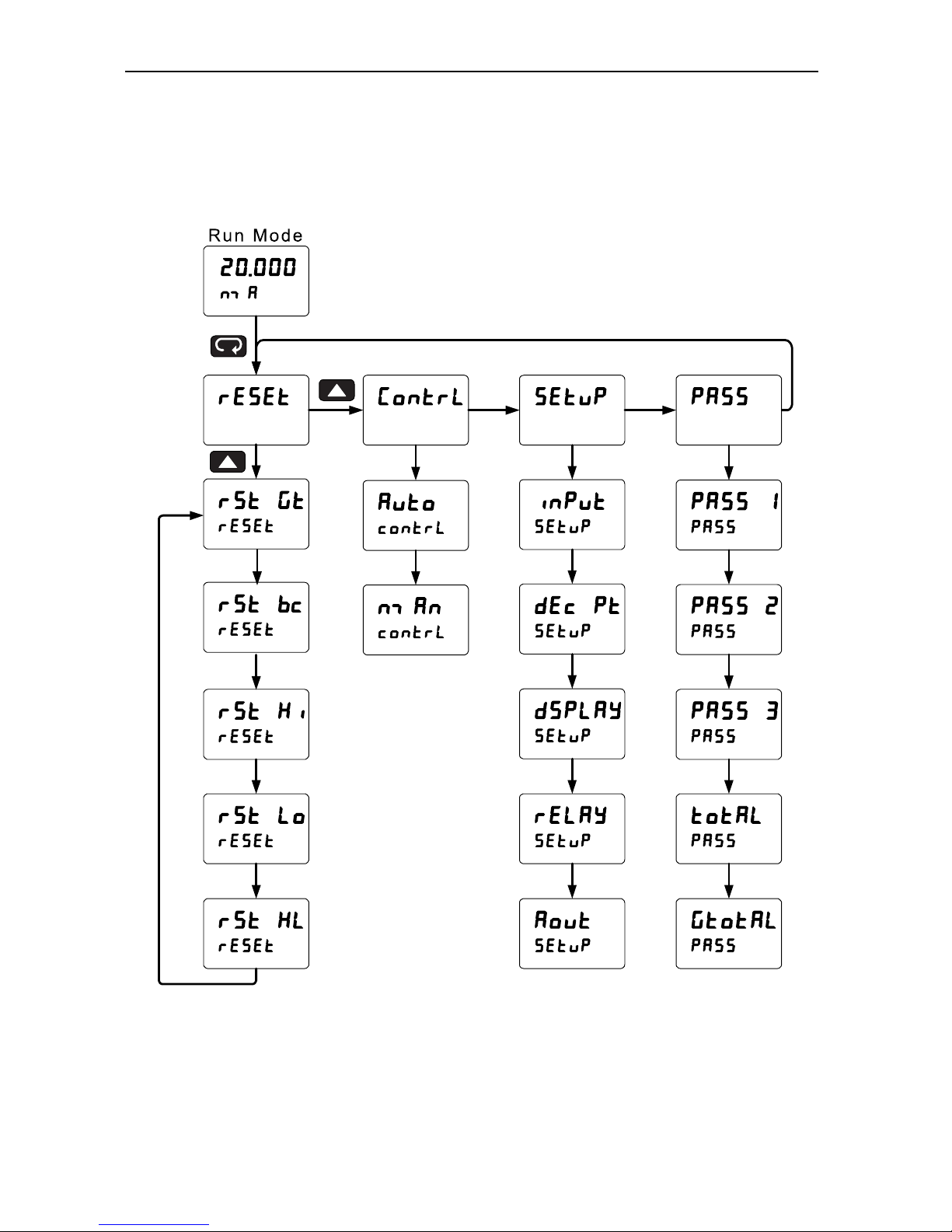

Display Functions and Messages
The controller displays various functions and messages during setup,
programming, and operation. The following table shows the main menu
functions and messages in the order they appear in the menu.
Display Parameter Action/Setting Description
reset
Reset
Press Enter to access the Reset menu
Rst Hi
Reset high
Press Enter to reset max display
Rst Lo
Reset low
Press Enter to reset min display
Rst HL
Reset
high & low
Press Enter to reset max & min displays
Rst t
Reset total
Press Enter to reset total
Rst Gt
Reset
grand total
Press Enter to reset grand total
Rst bc
Reset
batch count
Press Enter to reset batch count
Contrl
Control
Enter Control menu
Auto
Automatic
Press Enter to set controller for automatic
operation
mAn
Manual
Press Enter to manually control relays or
analog output operation
setup
Setup
Enter Setup menu
Input
Input
Enter Input selection menu
mA
4-20 mA
PD6210 Only: Set input for 4-20 mA input
volt
0-10 VDC
PD6210 Only: Set input for 10 VDC input
Total
Total
Enable or disable totalizer features
Dec pt
Decimal point
Set decimal point for rate, total, grand total
prog
Program
Enter the Program menu
sCalE
Scale Enter the Scale menu
factor
K-factor
Scaling
PD6310 Only: Programs unit to convert
input pulse to rate in engineering units
Cal
Calibrate Enter the Calibrate menu
Inp 1
Input 1
Calibrate input 1 signal or program input 1
value
Page 38
Model PD6210 & PD6310 Batch Controllers Instruction Manual
38
Display Parameter Action/Setting Description
Dis 1
Display 1
Program display 1 value
Inp 2
Input 2
Calibrate input 2 signal or program input 2
value (up to 32 points)
Dis 2
Display 2
Program display 2 value (up to 32 points)
Error
Error
Error, calibration not successful, check
signal or programmed value
T tb
Total time
base
Enter totalizer time base for seconds, mi-
nutes, hours or day.
T Cf
Total conversion factor
Enter the conversion factor decimal point
and the conversion factor.
mode
Batch mode
Automatic or manual batch control
T dly
Time delay
Set time delay for automatic batch restart
GT tb
Grand total
time base
Program grand total time base
GT CF
Grand total
conversion
factor
Program grand total conversion factor
GT rst
Grand total
reset
Program grand total reset mode: auto or
manual
dsplay
Display
Enter the Display menu
big
Big display
Press Enter to assign the Main display
parameter (default: PV or rate)
Little
Little display
Press Enter to assign the small display
parameter (default: total)
d-Inty
Display
intensity
Set display intensity level from 1 to 8
RELaY
Relay
Enter the Relay menu
Assign
Assignment
Assign relays to rate, total (batch control),
grand total, or Modbus controlled. Relays
set to total function as batch control re-
lays.
Asign1
Assign 1
Relay 1 assignment
precls
Batch total
relay preclose
For relays beyond the first assigned to
total, a preclose amount may be entered
for that relay.
RLY 1
Relay 1
Relay 1 setup
Page 39
Model PD6210 & PD6310 Batch Controllers Instruction Manual
39
Display Parameter Action/Setting Description
Act 1
Action 1
Set relay 1 action1
Auto
Automatic
Set relay for automatic reset
A-man
Auto-manual1
Set relay for automatic & manual reset
any time
1
LatCH
Latching1
Set relay for latching operation (relays
assigned to rate)
1
Lt-CLr
Latchingcleared
1
Set relay for latching operation with ma-
nual reset only after alarm condition has
cleared (relays assigned to rate)
1
Altern
Alternate2
Set relay for pump alternation control
(relays assigned to rate)
2
Sampl
Sampling
Set relay for sampling operation (rate or
GT)
OFF
Off
Disable relay and front panel status LED
(Select Off to enable Interlock feature)
Set 1
Set 1
Program set point 1
RSt 1
Reset 1
Program reset point 1
RLY 2
Relay 2
Relays 2-8 setup
Note: Relays 5-8 are shown, only if ex-
pansion relay module is installed.
FaiLSF
Fail-safe
Enter Fail-safe menu
FLS 1
Fail-safe 1
Set relay 1 fail-safe operation
on
On
Enable fail-safe operation
off
Fail-safe off
Disable fail-safe operation
DeLAY
Delay
Enter relay Time Delay menu
DLY 1
Delay 1
Enter relay 1 time delay setup
On 1
On
Set relay 1 On time delay
OFF 1
Off
Set relay 1 Off time delay
break
Loop break
Set relay condition if loop break detected
(For mA input only)
iGnorE
Ignore
Ignore loop break condition
(Processed as a low signal condition)
On
On
Relay goes to alarm condition when loop
break is detected
Page 40
Model PD6210 & PD6310 Batch Controllers Instruction Manual
40
Display Parameter Action/Setting Description
OFF
Off
Relay goes to non-alarm condition when
loop break is detected
Aout
Analog output
Enter the Analog output scaling menu
Dis 1
Display 1
Program display 1 value
Out 1
Output 1
Program output 1 value (e.g. 4.000 mA)
Dis 2
Display 2
Program display 2 value
Out 2
Output 2
Program output 2 value (e.g. 20.000 mA)
pass
Password
Enter the Password menu
Pass 1
Password 1
Set or enter Password 1
Pass 2
Password 2
Set or enter Password 2
Pass 3
Password 3
Set or enter Password 3
Total
Total
password
Set or enter password for manual reset
Gtotal
Grand total
password
Set or enter password for manual reset
nonrst
Nonresettable
Non-resettable grand total set after enter-
ing “050873” for Gtotal password
unloc
Unlocked
Program password to lock controller
locd
Locked
Enter password to unlock controller
999999
-99999
Flashing
display
Overrange condition
Underrange condition
1. During operation, only the STOP button will function, to stop/pause
the batch. As a result, relay alarms cannot be manually reset.
2. This setting used for level control applications. It is not appropriate if
using this controller for batching applications.
Page 41
Model PD6210 & PD6310 Batch Controllers Instruction Manual
41

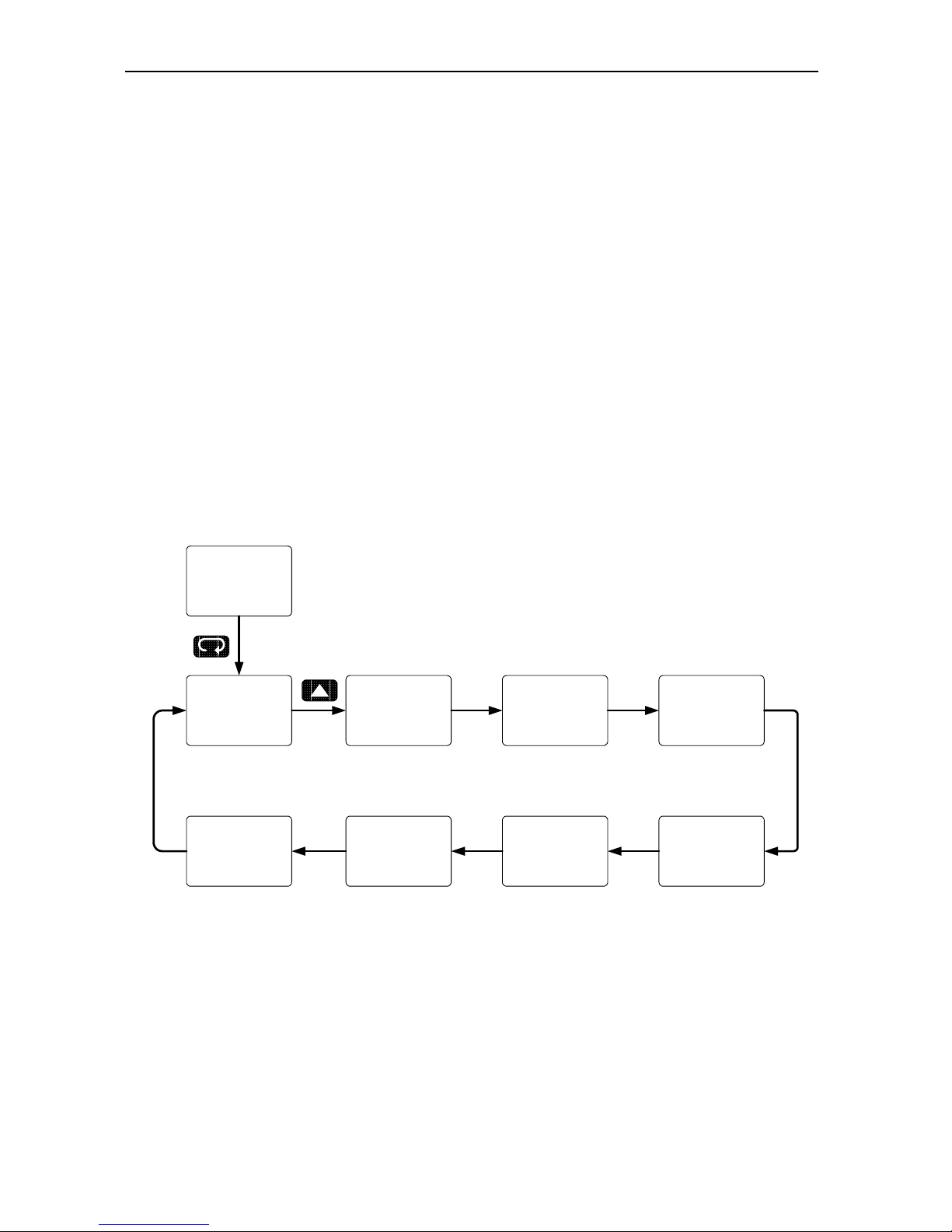

Main Menu Map
The main menu consists of the most commonly used functions: Reset,
Control, Setup
, and Password.
Press Menu button when a batch is not running to enter Program-
ming Mode then press the Up arrow button to scroll main menu.
Press Menu, at any time, to exit and return to Run Mode. Changes
made to settings prior to pressing Enter are not saved.
Changes to the settings are saved to memory only after pressing
Enter.
The display moves to the next menu every time a setting is ac-
cepted by pressing Enter.
Page 42
Model PD6210 & PD6310 Batch Controllers Instruction Manual
42

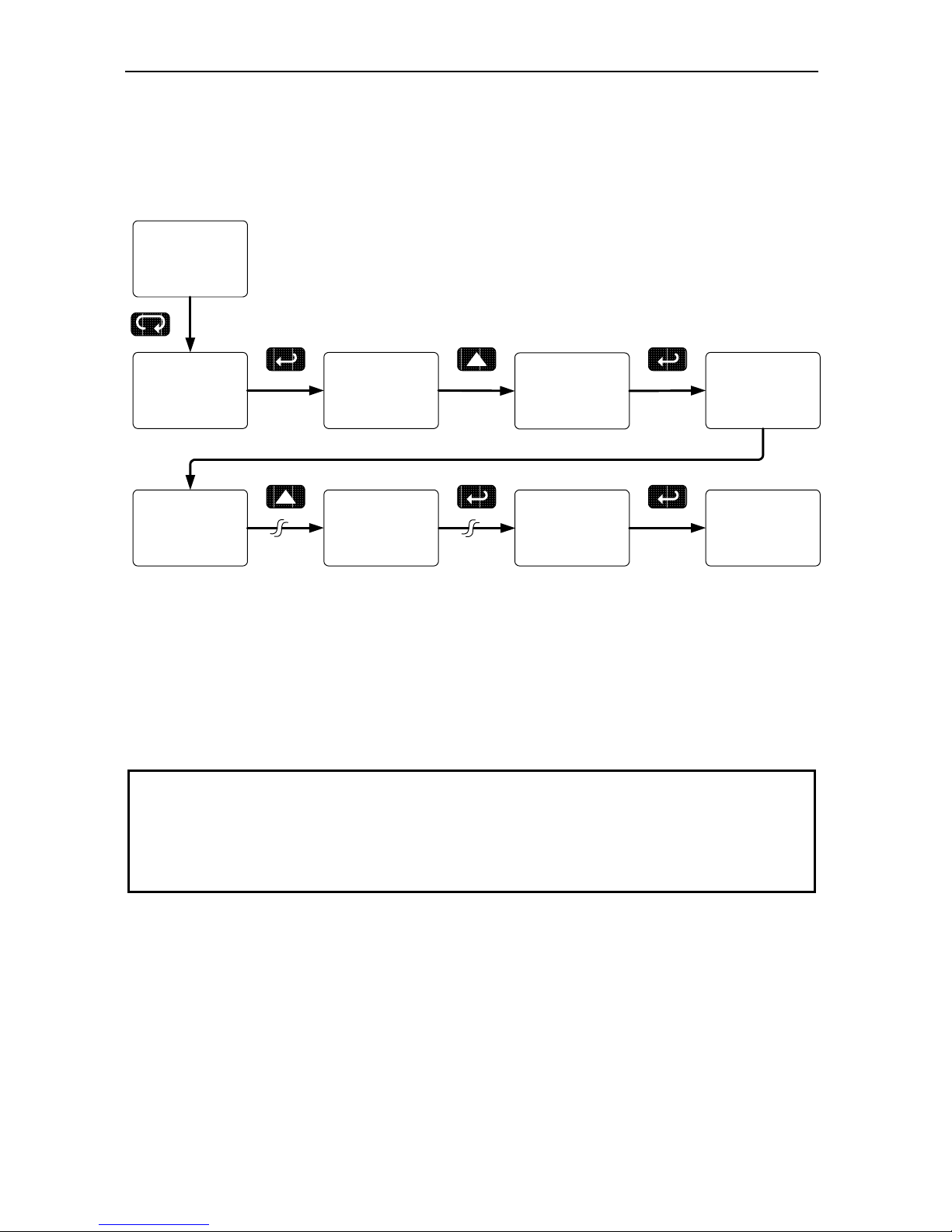

Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons. Press
Right arrow to select next digit and Up arrow to increment digit value.
The digit being changed is displayed brighter than the rest.
Press and hold up arrow to auto-increment the display value.
Press the Enter button, at any time, to accept a setting or Menu button to
exit without saving changes.
Increment Digit
Value
Select Next Digit Accept Setting
004.000
dis 1
004.000
dis 1
Next
Setting
005.000
dis 1
Reset Menu (reset)
The Reset menu is used to reset the total, grand totals, batch count,
maximum, or minimum reading (peak or valley) reached by the process;
both may be reset at the same time by selecting “reset high & low”
(
rst HL).
Control Menu (Contrl)
The Control menu is used to control the 4-20 mA analog output and the
relays manually, ignoring the input. Each relay and analog output can be
programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.
A out
man
Contrl
rly 8
man
rly 1
man
auto
contrl
man
contrl
1 6.000
A out
on
rly 8
oFF
rly 1
Once Manual mode is initiated on any relay or
analog output, an LED labeled “M” is turned
on. Every few seconds, all LEDs representing
outputs that are in Manual mode, as well as
the “M” LED flash. This process will continue
as long as any output is in manual mode.
Page 43
Model PD6210 & PD6310 Batch Controllers Instruction Manual
43
Setting Up the Batch Controller (setup)
The Setup menu is used to select:
1. Input signal the controller will accept
2. Enable or disable totalizer and batching features
3. Decimal point position
4. Program menu for scaling or calibration
5. Display parameter and intensity
6. Relay operation
7. 4-20 mA analog output scaling
Press the Enter button to access any menu or press Up arrow button to
scroll through choices. Press the Menu button to exit at any time.
Page 44
Model PD6210 & PD6310 Batch Controllers Instruction Manual
44
Scaling and Calibration
It is very important to read the following information, before proceeding
to program the controller:
There is no need to recalibrate the controller when first received
from the factory.
All inputs are factory calibrated. The calibration equipment used is
certified to NIST standards.
Use the Scale menu to enter the scaling without a signal source.
Use the Calibrate menu to apply a signal from a calibrator or a
flowmeter for the scaling.
Note: The Scale and Calibrate functions are exclusive of each oth-
er. The controller uses the last function programmed. Only one of
these methods can be employed at a time. The
Scale and Calibrate
functions can use up to 32 points (default is 2). The number of
points should be set in the
Advanced menu under the Multi-Point Li-
nearization (
Linear) menu selection prior to scaling or calibration of
the controller, see page 79 for details.
Page 45
Model PD6210 & PD6310 Batch Controllers Instruction Manual
45
Setting the Input Signal (input)
PD6210: Enter the Input menu to set up the controller to display current
(
mA) or voltage (volt) inputs.
The current input is capable of accepting any signal from 0 to 20 mA.
Select current input to accept 0-20 mA or 4-20 mA signals.
The voltage input is capable of accepting any signal from -10 to +10 VDC.
Select voltage input to accept 0-5, 1-5, 0-10, or
10 VDC signals.
PD6310: There are two switches, located to the right of the input con-
nector, which must be configured according to the input level and type.
Jumper J4 located inside the controller, behind the input signal connector, is used to select the excitation voltage (24 V*, 10 V or 5 V) which is
supplied to the P+ and P- wiring terminals.
The controller may be calibrated using the
K-Factor function. Most flow-
meter manufacturers provide this information with the device. Enter the
K-Factor (Factor) menu and select the decimal point with highest reso-
lution possible and program the K-factor value (
i.e. pulses/gal). The con-
troller will automatically calculate the flow rate using the K-factor and the
time base selected.
*
Default setting
Setting the Totalizer and Batching Features (total)
After the input type is entered, set the total parameter to “Yes” to enable batch control (this is set by default). If the
total features are dis-
abled, all the batching features and functions are hidden from the menus.
Setting the Decimal Point (dEc pt)
The decimal point may be set with up to five decimal places or with no
decimal point at all. The rate, total, and grand total decimal points are
independent.
Pressing the Right arrow moves the decimal point one place to the right
until no decimal point is displayed then it moves to the leftmost position.
Page 46
Model PD6210 & PD6310 Batch Controllers Instruction Manual
46

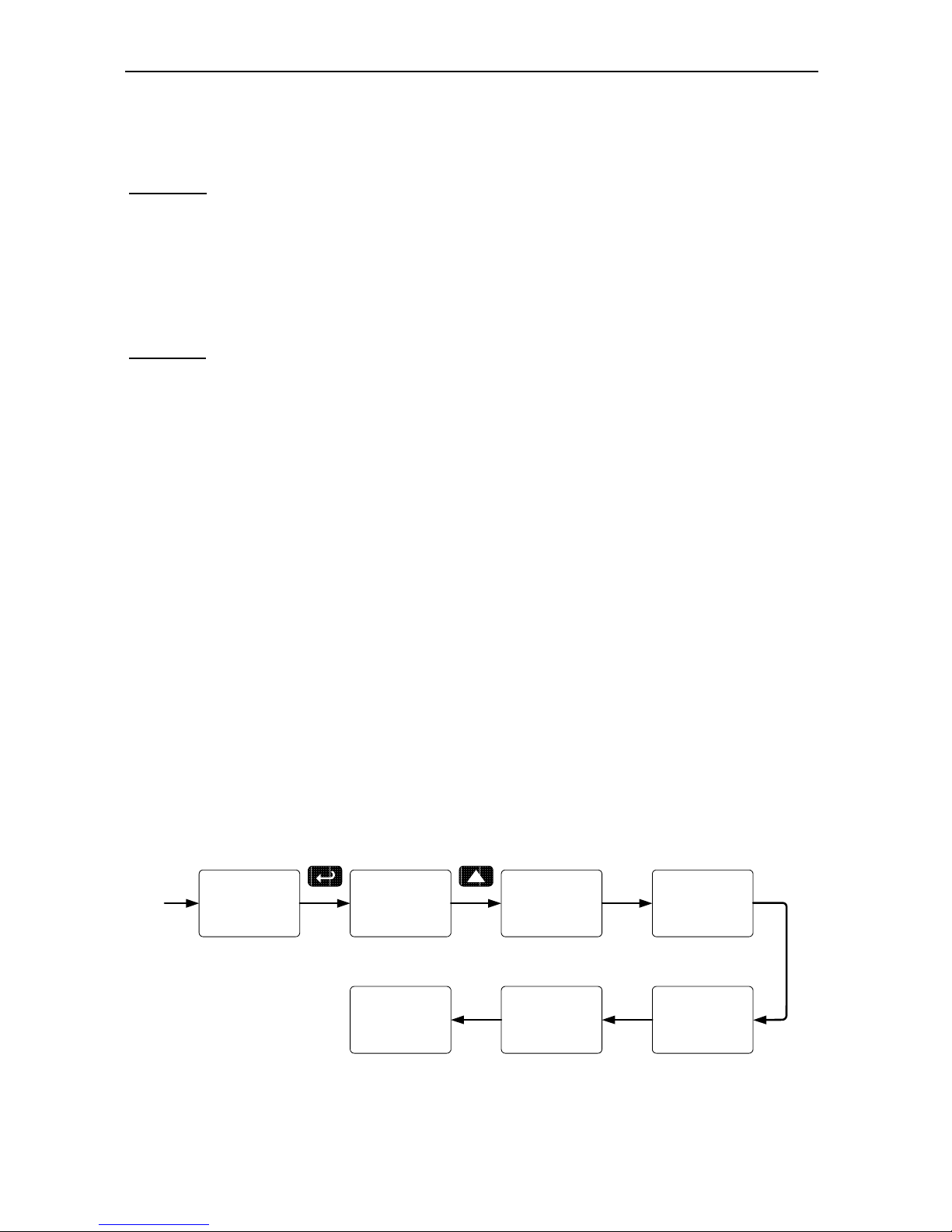

Programming the Rate/Totalizer (prog)
It is very important to read the following information, before proceeding
to program the controller:
PD6210
:
The PD6210 is factory calibrated prior to shipment to read in mil-
liamps and volts depending on the input selection. The calibration
equipment is certified to NIST standards.
Use the Scale menu to scale process inputs (e.g. 4-20 mA). A cali-
brated signal source is not needed to scale the controller.
PD6310
The PD6310 has been factory calibrated to read input frequency in
Hz (pulses/sec). The calibration equipment is certified to NIST standards.
Use the K-Factor menu to match the rate/totalizer with a flowmeter’s
k-factor (pulse/unit of measure).
Or use the Scale menu to scale the pulse input (pulse/sec) without a
signal source.
Or use Cal menu to calibrate the rate/totalizer using a signal source.
The
Program menu contains the following menus:
1. Scale without a signal source
2. Calibrate with a calibrated signal source
3. Total time base & conversion factor
4. Grand total time base & conversion factor
5. Total reset mode for total & grand total
The process inputs may be calibrated or scaled to any display value
within the range of the controller.
prog sCale
Prog
Cal
Prog
t CF
Prog
t tb
Prog
Grand
Total
Settings
t rst
Prog
Additional parameters, not needed for most applications, are programmed in the
Advanced Features menu; see ADVANCED OPERA-
TION AND PROGRAMMING, page 69.
Page 47
Model PD6210 & PD6310 Batch Controllers Instruction Manual
47

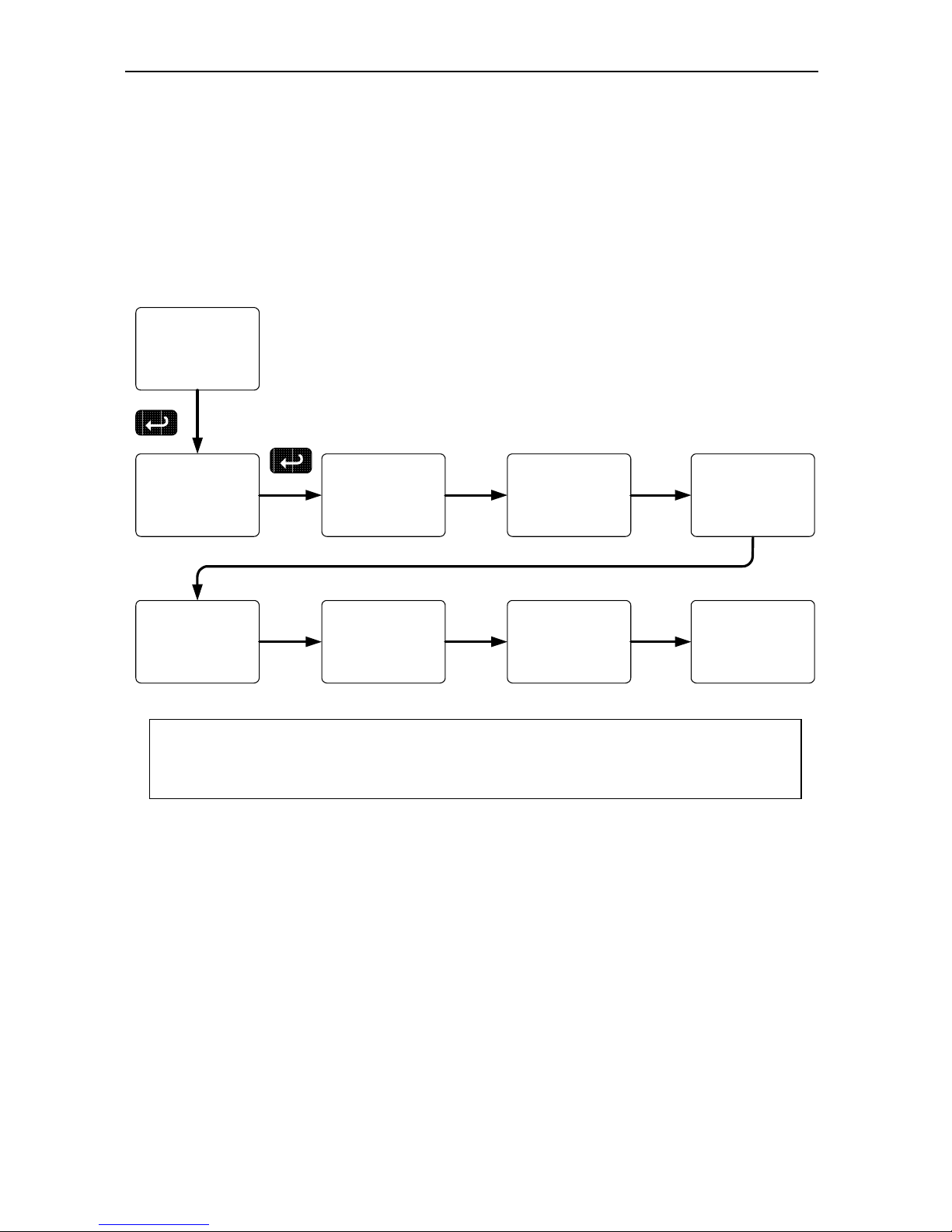

Scaling the Controller (SCALE)
The process inputs (4-20 mA and 10 VDC) can be scaled to display the
process variable in engineering units.
A signal source is not needed to scale the controller; simply program the
inputs and corresponding display values.
SCALE
Prog
Inp 1
SCALe
04.000
Inp 1
Inp 2
SCALe
20.000
Inp 2
dis 1
SCALe
004.000
dis 1
dis 2
SCALe
020.000
dis 2
For instructions on how to program numeric
values see
Setting Numeric Values, page 42.
Error Message (Error)
An error message indicates that the calibration or scaling process was not
successful.
After the error message is displayed, the controller reverts to input 2
during calibration or scaling and to input 1 during internal calibration,
allowing the appropriate input signal to be applied or programmed.
The error message might be caused by any of the following conditions:
1. Input signal is not connected to the proper terminals or it is connected
backwards.
2. Wrong signal selection in
Setup menu.
3. Minimum input span requirements not maintained.
4. Input 1 signal inadvertently applied to calibrate input 2.

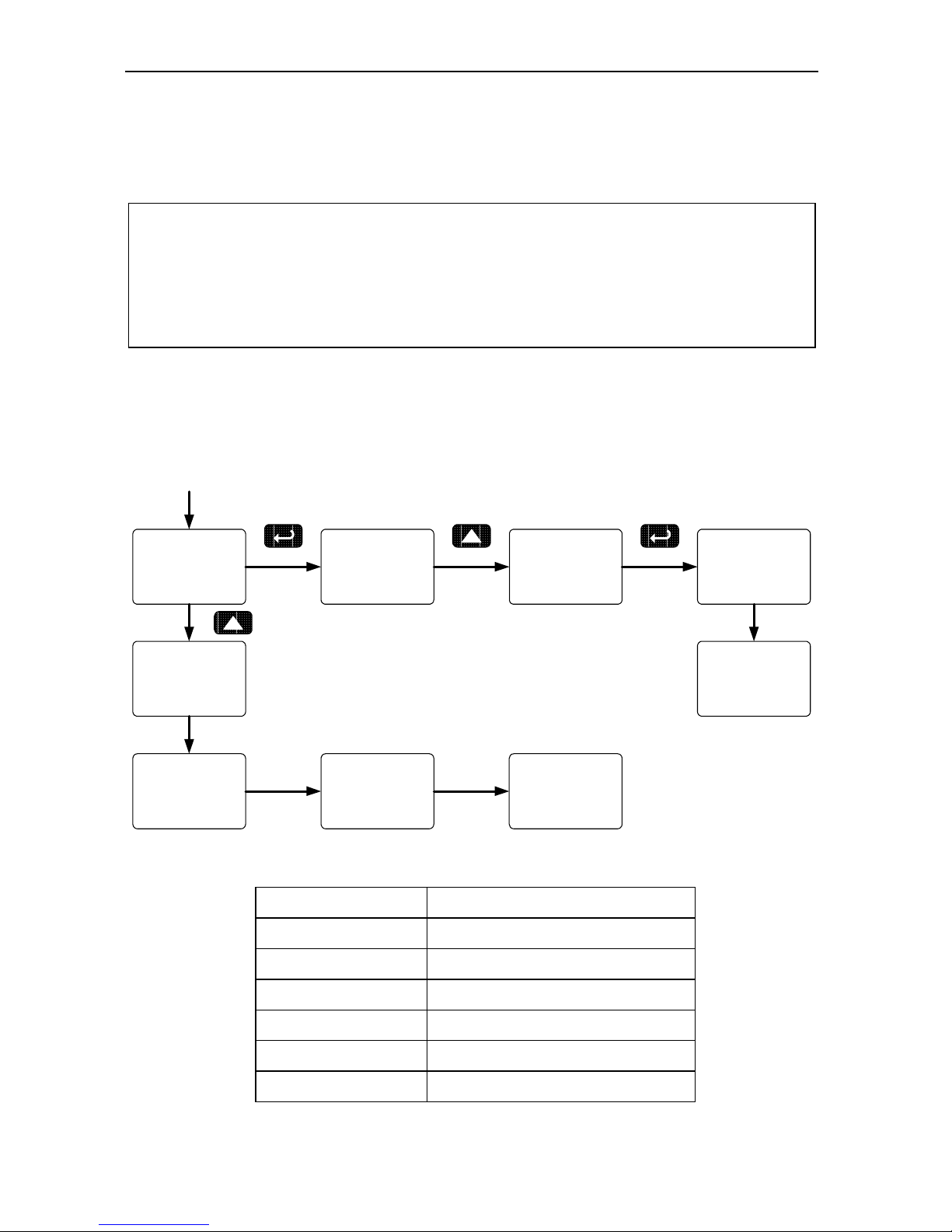

Minimum Input Span
The minimum input span is the minimum difference between input 1 and 2
signals required to complete the calibration or scaling of the controller.
Input range Input 1 & input 2 span
4-20 mA 0.15 mA
10 VDC
0.10 VDC
Page 48
Model PD6210 & PD6310 Batch Controllers Instruction Manual
48
Time Base, Total Conversion Factor & Total Reset
The time base, total conversion factor, and total reset menus are located
in the
Program menu.
The total and grand total have their own independent settings. This
means that one can be displaying the value in gallons while the other
displays in million gallons, liters, m
3
, etc.
Batch Start Mode (mode)
The batch controller may operate in manual or automatic mode. In manual mode, the controller operates as defined in Controller Operation as
described on page 33. In automatic mode, the batch process will automatically begin after a completed batch. The time delay for the restart
may be 0.1 to 999.9 seconds (
t dly). Automatic batch start will only
occur after a successful batch. A manually stopped batch will require a
manual start to begin a new batch process.
Grand Total Reset
The grand total can be programmed for manual or automatic reset. In the
automatic reset mode, a programmable time delay is available to reset
the grand total after the assigned preset is reached.
Non-Resettable Totalizer
The total and grand total can be password-protected to prevent unauthorized resets. The grand total can be programmed as a non-resettable
total, see page 67 for details.
Page 49
Model PD6210 & PD6310 Batch Controllers Instruction Manual
49

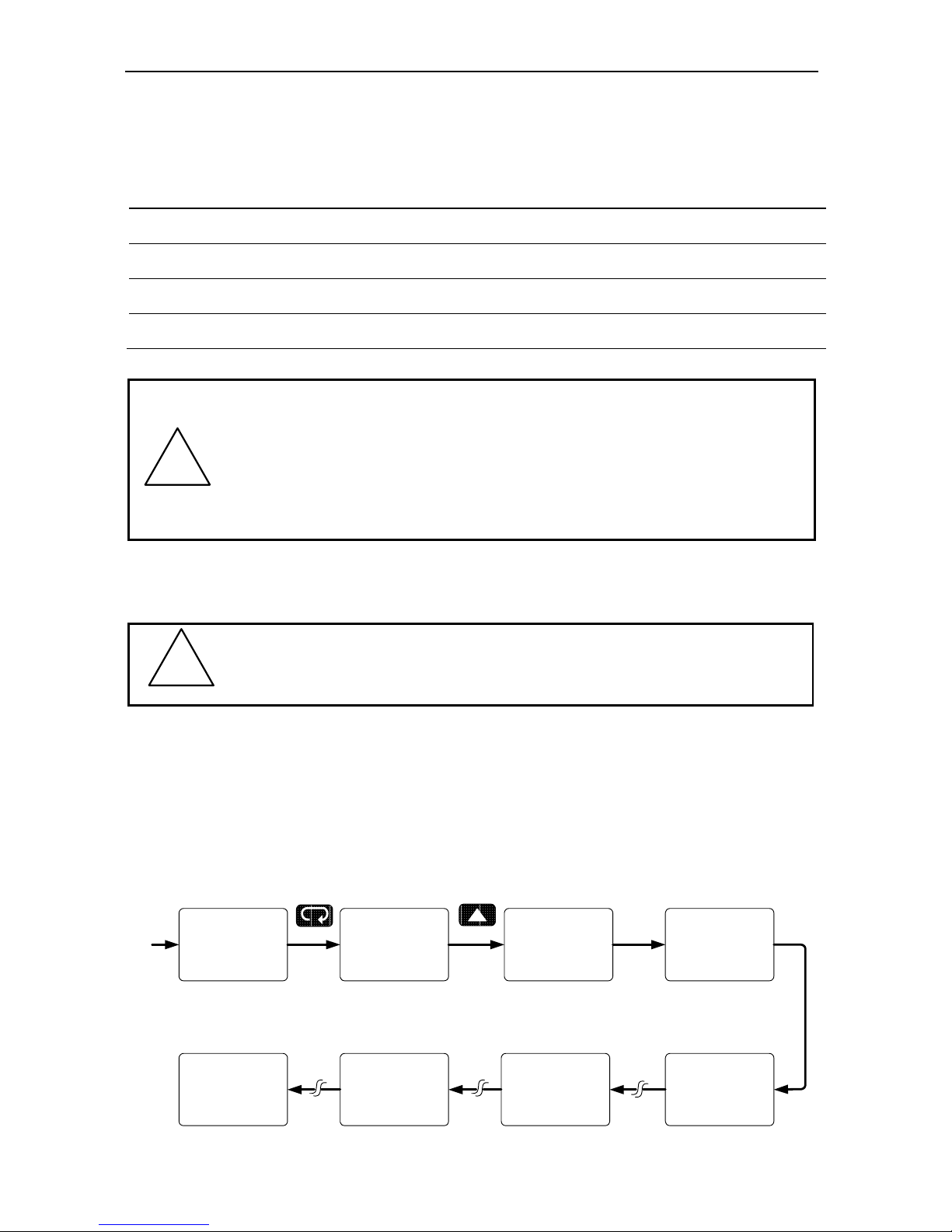

Calibrating the Controller with External Source (Cal)
To scale the controller without a signal source refer to Scaling the
Controller (
SCALE) page 47.
The controller can be calibrated to display the process variable in engineering units by applying the appropriate input signal and following the
calibration procedure.
The use of a calibrated signal source is strongly recommended to calibrate the controller.
CAL
Prog
Inp 1
CAL
Inp 1
Inp 1
Inp 2
CAL
Inp 2
Inp 2
dis 1
Inp 1
000.000
dis 1
dis 2
Inp 2
100.000
dis 2
The display
flashes while
sensing the
inputs
Warm up the controller for at least 15 minutes before performing
calibration to ensure specified accuracy.
Page 50
Model PD6210 & PD6310 Batch Controllers Instruction Manual
50
Setting the Display Parameter & Intensity (dsplay)
The main display (Big) can be programmed to display:
1. Rate value
2. Total or grand total
3. Relay set points
4. Max & min values
5. Modbus input
6. Display rate and units
The small display (
Little) can be programmed to display:
1. Rate value
2. Total or grand total
3. Relay set points
4. Max & min values
5. Engineering units or custom legends
6. Modbus input
7. Off (no display)
8. Display rate and units
Display Intensity: The meter has eight display intensity levels to give the
best performance under various lighting conditions. Select intensity 8 for
outdoor applications.
For direct sunlight readability, Sunbright display models are highly recommended. See Ordering Information on page 7 for details.
Page 51
Model PD6210 & PD6310 Batch Controllers Instruction Manual
51
Display Setup Menu
After setting up the input and the display, press the Menu button to exit
programming and skip the rest of the setup menu. Press the Menu button again and the Up arrow to reach the
Program menu and complete
the scaling or calibration of the meter.
Page 52
Model PD6210 & PD6310 Batch Controllers Instruction Manual
52
Character Set for Engineering Units Display (d unit)
The small display can be programmed to show engineering units or custom legends using the following 7-segment character set:
Display Character Display Character
0
0
k
K
1
1
l
L
2
2
m
m
3
3
n
n
4
4
O
O
5
5
o
o
6
6
p
P
7
7
q
q
8
8
r
r
9
9
s
S
A
A
t
t
b
b
u
u
C
C
v
V
c
c
uw
w
d
d
x
X
e
E
y
Y
f
F
z
Z
g
G
-
-
9
g
/
/
H
H
[
]
h
h
]
[
I
I
=
=
i
i
Space
j
J
!
Degree
The letters “m” and “w” use two 7-segment LEDs each; when selected the
characters to the right are shifted one position.
See the flow chart on page 44 to access the display units menu.
Press and hold up arrow to auto-scroll the characters in the display.
Page 53
Model PD6210 & PD6310 Batch Controllers Instruction Manual
53
Setting the Relay Operation (relay)
This menu is used to set up the operation of the relays.
CAUTION! During setup, the relays do not follow the input and they will
remain in the state found prior to entering the Relay menu.
1. Relay assignment
a. Rate for low and high alarm
b. Total for batch control relays
c. Grand total for grand total alarms
2. Relay action
a. Automatic reset only (non-latching)
b. Automatic + manual reset when not in a batch process
(non-latching)
c. Latching (manual reset when not in a batch process only)
d. Latching with Clear (manual reset when not in a batch
process only after alarm condition has cleared)
e. Pump alternation control (automatic reset only, for level
applications unrelated to batch control)
f. Sampling (the relay is activated for a user-specified time
and may be assigned to rate or grand total)
g. Off (relay state controlled by Interlock feature)
3. Set and reset points
4. Fail-safe operation
a. On (enabled)
b. Off (disabled)
5. Time delay
a. On delay (0-999.9 seconds)
b. Off delay (0-999.9 seconds)
6. Relay action for loss (break) of 4-20 mA input (ignore, on, off)
!
Rate Alarms Only Active During a Batch Process
The rate alarms are active only during a batch process.
As a result, rate alarms should not be programmed with
manual reset, as they cannot be manually reset during a
batch process, the only time they are active.
Page 54
Model PD6210 & PD6310 Batch Controllers Instruction Manual
54
Assign
relay
rly 1
relay
delay
relay
dly 1
delay
on
dly 1
set 1
rly 1
Note: The setup of relays 2-8 follows the same
pattern shown here for relay 1.
Failsf
relay
on
Fls 1
off
Fls 1
Fls 1
Failsf
break
relay
ignore
break1
On
break1
break1
break
Off
break1
off
dly 1
relay
setup
Act 1
rly 1
rst 1
rly 1
Asign1
Assign
Asign8
Assign
Relay Assignment (Assign)
The relays can be assigned to any of the following parameters:
1. Rate for low or high alarm indication
2. Total for batch control relays
3. Grand total for alarm indication
Assign preclose
if multiple relays
assigned.
Page 55
Model PD6210 & PD6310 Batch Controllers Instruction Manual
55
Setting the Relay Action
Operation of the relays is programmed in the Action menu. The relays
are commonly set up for any of the following modes of operation:
1. Always set to Auto for Batch control operation. Also for automatic
reset (non-latching) of alarms.
2. Sampling (the relay is activated for a user-specified time)
3. Off (relay state controlled by Interlock feature)
In addition, the following relay actions may be programmed. These actions are not appropriate for batch control applications, but may be used
then the controller is in other applications.
4. Automatic + manual reset when not in a batch process (non-
latching)
5. Latching (manual reset only, when not in a batch process)
6. Latching with Clear (manual reset only when not in a batch process
after alarm condition has cleared)
7. Pump alternation control (automatic reset only, for level applications,
unrelated to batch control.)
Setting Batch Control Relays
Operation of batch control relays are programmed in the Action menu by
selecting
total as the action. Relays set to total beyond the first will
include a preclose parameter (
precls) option. Selecting yes for precls
will enable multi-stage batching with preclose, and the valve will close
prior to the end of the batch at volume equal to the preset value minus
the preclose amount entered. Selecting
no for precls will have the relay
perform as normal, independent of the first batch control relay set to
to-
tal
.
Page 56
Model PD6210 & PD6310 Batch Controllers Instruction Manual
56
Programming Alarm Set and Reset Points
High alarm indication: program set point above reset point.
Low alarm indication: program set point below reset point.
The deadband is determined by the difference between set and reset
points. Minimum deadband is one display count. If the set and reset
points are programmed with the same value, the relay will reset one
count below the set point.
Note: Changes are not saved until the reset point has been accepted.
set 1
rly 1
rst 1
rly 1
Program
Set Point
Program
Reset Point
Setting Fail-Safe Operation
In fail-safe mode of operation, the relay coil is energized when the process
variable is within safe limits and the relay coil is de-energized when the
alarm condition exists. The fail-safe operation is set independently for each
relay. Select
on to enable or select off to disable fail-safe operation.
Programming Time Delay
The On and Off time delays may be programmed for each relay between
0 and 999.9 seconds. The relays will transfer only after the condition has
been maintained for the corresponding time delay.
The
On time delay is associated with the set point.
The
Off time delay is associated with the reset point.
Relay Action for Loss of 4-20 mA Input (Loop Break)
The loop break feature is associated with the 4-20 mA input. Rate alarm
relays may be programmed to go to one of the following conditions when
the controller detects the loss of the input signal (i.e. < 0.005 mA):
1. Turn
On (Go to alarm condition)
2. Turn
Off (Go to non-alarm condition)
3. Ignore (Process as a low signal condition)
Note: This is not a true loop break condition; if the signal drops below
0.005 mA, it is interpreted as a “loop break” condition.
Page 57
Model PD6210 & PD6310 Batch Controllers Instruction Manual
57
Relay Operation Details
Overview
The relays of the controller can serve two roles, as batch control relays
for single or multi-stage batching, as rate, or grand total alarm, or as a
sampling relay based on grand total or rate alarm.
These capabilities include front panel alarm status LEDs and 2 or 4 internal relays and/or 4 external relays expansion module.
The relays used for batch control (total) are activated when the batching
process starts, and deactivate when the batch total is reached, minus
any preclose amount programmed for batch (total) relays after the first.
For an example of batch control operation, see Batch Control Operation
Example on page 34.
Typical applications for alarms are low and high flow alarms or grand
total limit alarms. Note that rate alarms are only enabled during a batching process, and deactivate when the processes is stopped.
The relays can also be set for sampling, where the relay will activate for
a specific amount of time after a certain grand total has been reached
(ie: 2 second sample relay activation every 100 gallons batched).
There are three basic ways the relays can be used:
1. Batch Control (Total)
2. High or Low Alarms for Rate or Grand Total
3. Sampling (Based on Grand Total and Sample Time)
Relays Initialization
Batch control (total) relays will activate when the start function is
enabled, such as when the START button is pressed. Rate alarm relays
will enable and initialize to their programmed states when the batch
process is started. Grand total alarm relays will initialize to their programmed state at controller power-up.
Fail-Safe Operation
The following table indicates how alarm relays behave based on the failsafe selection for each relay:
Fail-Safe
Selection
De-Energized State Energized State
Power Failure
NO NC NO NC
Off Open Closed Closed Open
Relays in deenergized state
On Closed Open Open Closed
Relays in energized state
Note: NO = Normally Open, NC = Normally Closed. This refers to the
condition of the relay contacts when the power to the controller is off.
Page 58
Model PD6210 & PD6310 Batch Controllers Instruction Manual
58
Front Panel LEDs
The LEDs on the front panel provide status indication for the following:
LED Status LED Status
1 Alarm 1 5 Alarm 5
2 Alarm 2 6 Alarm 6
3 Alarm 3 7 Alarm 7
4 Alarm 4 8 Alarm 8
The controller is supplied with four alarm points that include front panel
LEDs to indicate alarm conditions. This standard feature is particularly
useful for alarm applications that require visual-only indication. The LEDs
are controlled by the set and reset points programmed by the user.
When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset
point the LED will go off. Note that rate alarms are only enabled during a
batching process, and deactivate when the processes is stopped.
Latching relays, or relays with manual reset, are not recommended when
using this controller for batch control, as the manual reset will not be
acknowledged during a batch process, when the rate alarms are active.
For information on latching and manual reset alarms, see the PD6200
and PD6300 instruction manuals available at www.predig.com.
Automatic Reset (Auto)
Automatic reset only
Condition LED Relay
Normal Off Off
Alarm On On
Ack (No effect) On On
Normal Off Off
In this application, the controller is set up for automatic reset (nonlatching relay). Acknowledging the alarm while it is still present has no
effect on either the LED or the relay. When the alarm finally goes away,
the relay automatically resets and the LED also goes off.
Pump Alternation Control
Pump alternation control is not recommended when using this controller
for batch control, as it is used only in level applications, and not with rate,
total, or batching applications. For information on using pump alternation
control for level, see the PD6200 and PD6300 instruction manuals available at www.predig.com.
Page 59
Model PD6210 & PD6310 Batch Controllers Instruction Manual
59

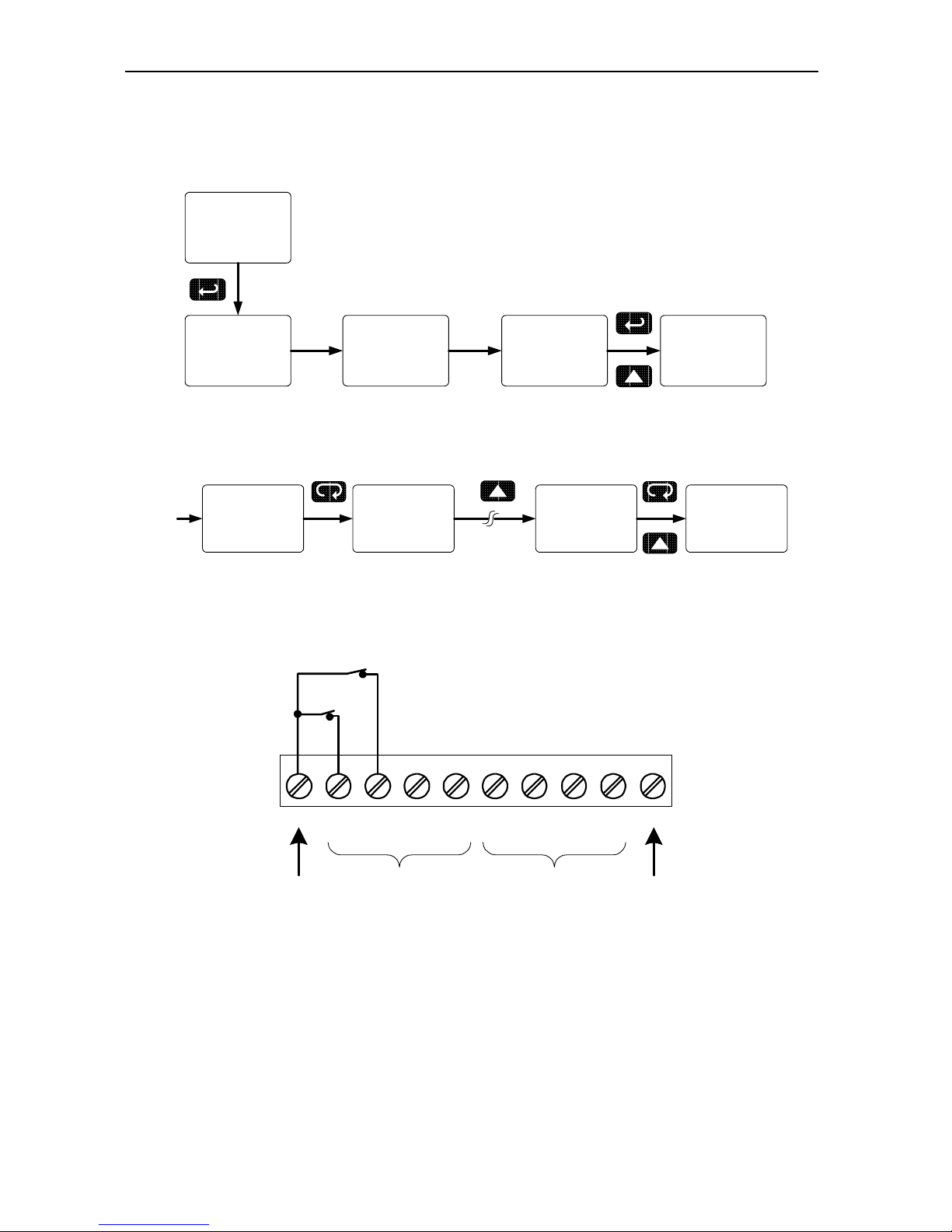

Setting Up the Interlock Relay (Force On) Feature
Relays 1-4 can be set up as interlock relays. To set up the relays for the
interlock feature:
1. Access the
Setup – Relay – Assign the relay to grand total.
Act 1
rly 1
Off
Act 1
setup
relay
setup
rly 1
relay
2. In the Advanced features –
User menu program any of the digital
inputs to
Force On any of the internal relays (1-4).
user
F1
user
F On 1
dI 1
dI 1
user
3. Connect a switch or dry contact between the +5V terminal and the
corresponding digital input (dI-1 to dI-4) terminal.
123456
+5 I1 I2 I3 I4 O1
78
O2 O3
910
O4 G
DI 1-4 DO 1-4
5 VDC GND
SW2
SW1
Interlock Relay Operation Example
Relays 3 & 4 are configured to energize (their front panel LEDs are off)
when SW1 & SW2 switches (above) are closed. If the contacts to these
digital inputs are opened, the corresponding front panel LEDs flash indicating this condition. The processes being controlled by the interlock
relay will stop, and will re-start only after the interlock relay is reactivated by the digital inputs (switches).
Page 60
Model PD6210 & PD6310 Batch Controllers Instruction Manual
60
Sample Relay Operation
The sampling function allows the operator to set a set point for a “sampling” relay. This can be done for the rate or the grand total. Each time
the relay reaches the set point, it will close that relay’s contacts for a
programmed period of time
A rate sampling relay will activate for the sample time (
sam t), up to
600.0 seconds, every time the set point rate is reached.
A total sampling relay will activate for the sample time (
sam t), up to
600.0 seconds every time the process has batched the amount pro-
grammed for the set point, and every time this amount has been batched
afterward. (See the diagram below for more details). The utility of this
function can, of course, be expanded beyond sampling and be used
whenever a timed relay output closure is required when the batch total
interval reaches a certain set point.
Relay and Alarm Operation Diagrams
The following graphs illustrate the common operation of the relays, status LEDs, and ACK button.
High Alarm Operation (Set > Reset)
Relay
LED
Input
de-energized
energized
off
on
Set
Reset
Automatic (non-latching)
Low Alarm Operation (Set < Reset)
Reset
Set
Input
Relay
LED
energized
de-energized
on
off
Automatic (non-latching)
Page 61
Model PD6210 & PD6310 Batch Controllers Instruction Manual
61
High Alarm with Fail-Safe Operation (Set > Reset)
Relay
LED
Input
Automatic (non-latching)
energized
de-energized
off
on
Set
Reset
Note: Relay coil is energized in non-alarm condition.
In case of power failure, relay will go to alarm state.
Low Alarm with Fail-Safe Operation (Set < Reset)
Reset
Set
Input
Relay
LED
Automatic (non-latching)
de-energized
energized
on
off
Note: Relay coil is energized in non-alarm condition.
In case of power failure, relay will go to alarm state.
Rate Relay Sampling Operation
Set
Reset
Relay
LED
Input
Sample
Tim e
Sample
Tim e
Sample
Tim e
Page 62
Model PD6210 & PD6310 Batch Controllers Instruction Manual
62
When the signal crosses the set point, the relay trips and the sample
time starts. After the sample time has elapsed, the relay resets. The
cycle repeats every time the set point is crossed, going up for high
alarms and going down for low alarms.
The sample time can be programmed between 0.1 and 600.0 seconds.
Total Relay Sampling Operation
When the batch total reaches the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The
cycle repeats every time the set point value is added to the batch total.
Set Point = 100
100
Relay
LED
Total
200
300
Sample
Time
Sample
Time
Sample
Time
Page 63
Model PD6210 & PD6310 Batch Controllers Instruction Manual
63

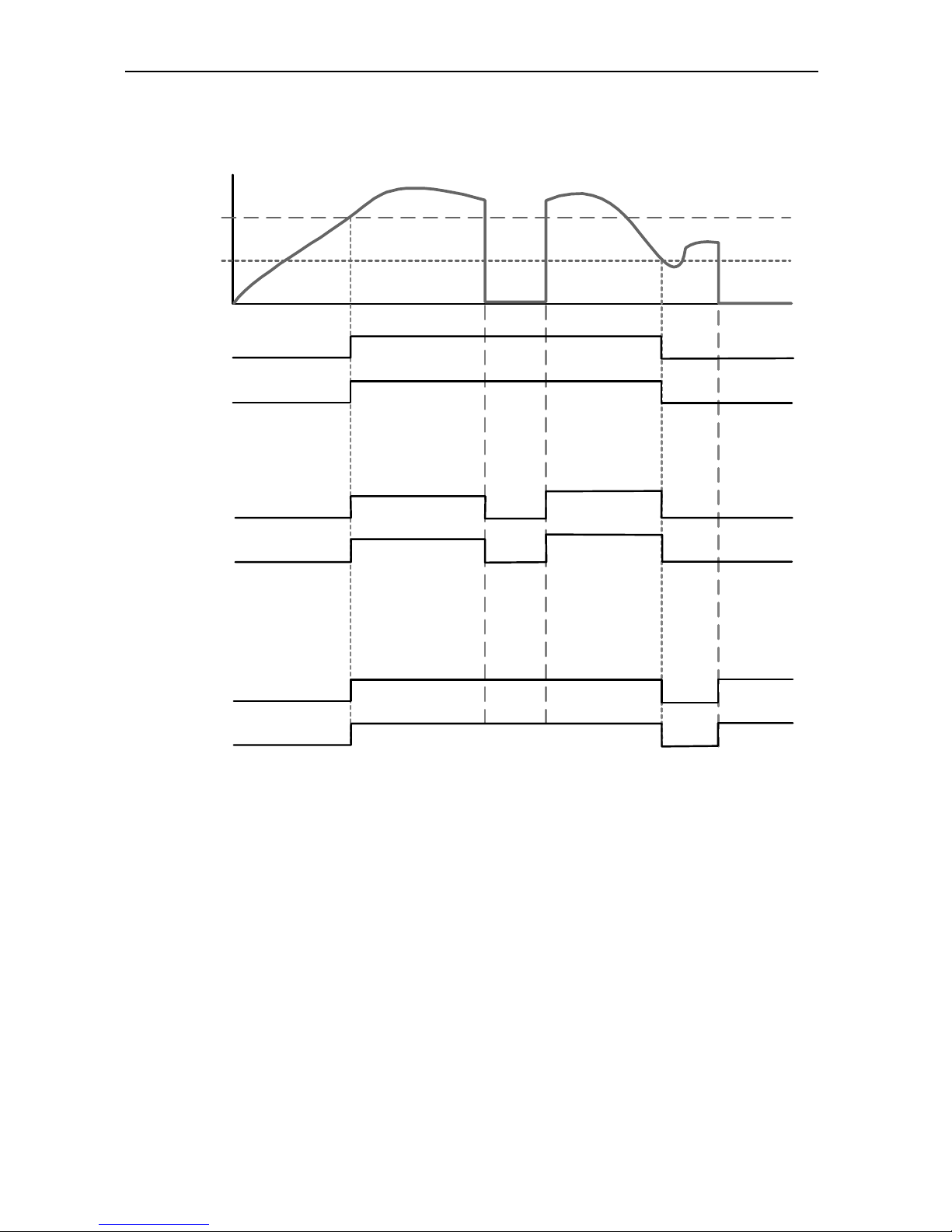

Signal Loss or Loop Break Relay Operation
The following graph shows the loop break operation for a high alarm
relay.
Relay
LED
Input
Loop Break = Ignore
de-energized energized
off on
Relay
LED
Loop Break = Off
Relay
LED
Loop Break = On
Set
Reset
When the controller detects a break in the 4-20 mA loop, the relay will go
to one of the following selected actions:
1. Turn on (Go to alarm condition)
2. Turn off (Go to non-alarm condition)
3. Ignore (Process as a low signal condition)
Page 64
Model PD6210 & PD6310 Batch Controllers Instruction Manual
64
Time Delay Operation
The following graphs show the operation of the time delay function.
Set
Reset
Relay
LED
*
Input
On Time Delay
<Tdelay <Tdelay >=Tdelay
Set
Reset
Relay
Input
Off Time Delay
<Tdelay <Tdelay >=Tdelay
LED
*
When the signal crosses the set point, the
On time delay timer starts and
the relay trips when the time delay has elapsed. If the signal drops below
the set point (high alarm) before the time delay has elapsed, the
On time
delay timer resets and the relay does not change state. The same principle applies to the
Off time delay.
* Note: If “
Automatic or Manual (A-mAn)” reset mode is selected, the
LED follows the reset point and not the relay state when the relay is acknowledged.
Page 65
Model PD6210 & PD6310 Batch Controllers Instruction Manual
65
Scaling the 4-20 mA Analog Output (Aout)
The 4-20 mA analog output can be scaled to provide a 4-20 mA signal
for any display range selected.
No equipment is needed to scale the analog output; simply program the
display values to the corresponding mA output signal.
The
Analog Output menu is used to program the 4-20 mA output based
on display values.
Aout
setup
dis 1
Aout
004.000
dis 1
dis 2
Aout
020.000
dis 2
Out 1
Aout
04.000
Out 1
Out 2
Aout
20.000
Out 2
For instructions on how to program numeric values see
Setting
Numeric Values
, page 42.
Page 66
Model PD6210 & PD6310 Batch Controllers Instruction Manual
66
Setting Up the Password (pass)
The Password menu is used for programming three levels of security to
prevent unauthorized changes to the programmed parameter settings
and to program the non-resettable totalizer.
Pass 1: Allows use of function keys and digital inputs
Pass 2: Allows use of function keys, digital inputs and editing set/reset points
Pass 3: Restricts all programming, function keys, and digital inputs.
Total Password: Prevents resetting the total
manually
Gtotal Password: Prevents resetting the grand total manually
Protecting or Locking the Controller
Enter the Password menu and program a six-digit password.
For instructions on how to program numeric values see Setting Numeric
Values
, page 42.
Pass 1
Pass
Pass 2
Pass
000000
Pass 1
600000
Pass 1
Locd
Pass 1
Run Mode
Pass 3
Pass
Total
Pass
Gtotal
Pass
Record the password for future reference. If appropriate, it may be recorded in the space provided.
Model:
Serial Number:
Password 1: __ __ __ __ __ __
Password 2: __ __ __ __ __ __
Password 3: __ __ __ __ __ __
Total __ __ __ __ __ __
GTotal __ __ __ __ __ __
Page 67
Model PD6210 & PD6310 Batch Controllers Instruction Manual
67

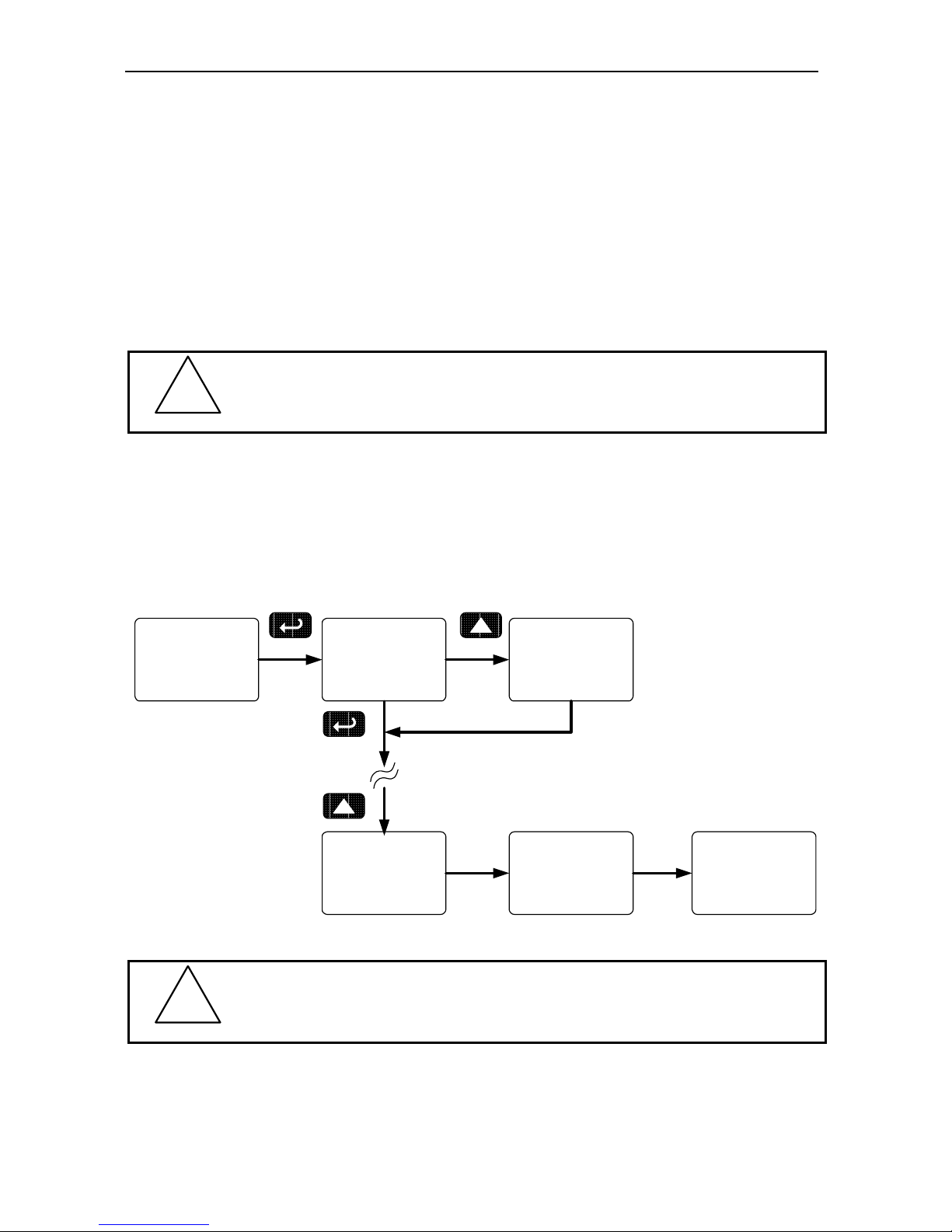

Grand Total Reset Password & Non-Resettable Total
The grand total can be password-protected to prevent unauthorized total resets.
The grand total can be programmed as a non-resettable total by
entering the password “050873”.
!
Caution!
Once the Grand Total has been programmed as “nonresettable” the feature
cannot be disabled.
Making Changes to a Password Protected Controller
If the controller is password protected, the controller will display the
message
Locd (Locked) when the Menu button is pressed. Press the
Enter button while the message is being displayed and enter the correct
password to gain access the menu. After exiting the programming mode,
the controller returns to its password protected condition.
Page 68
Model PD6210 & PD6310 Batch Controllers Instruction Manual
68

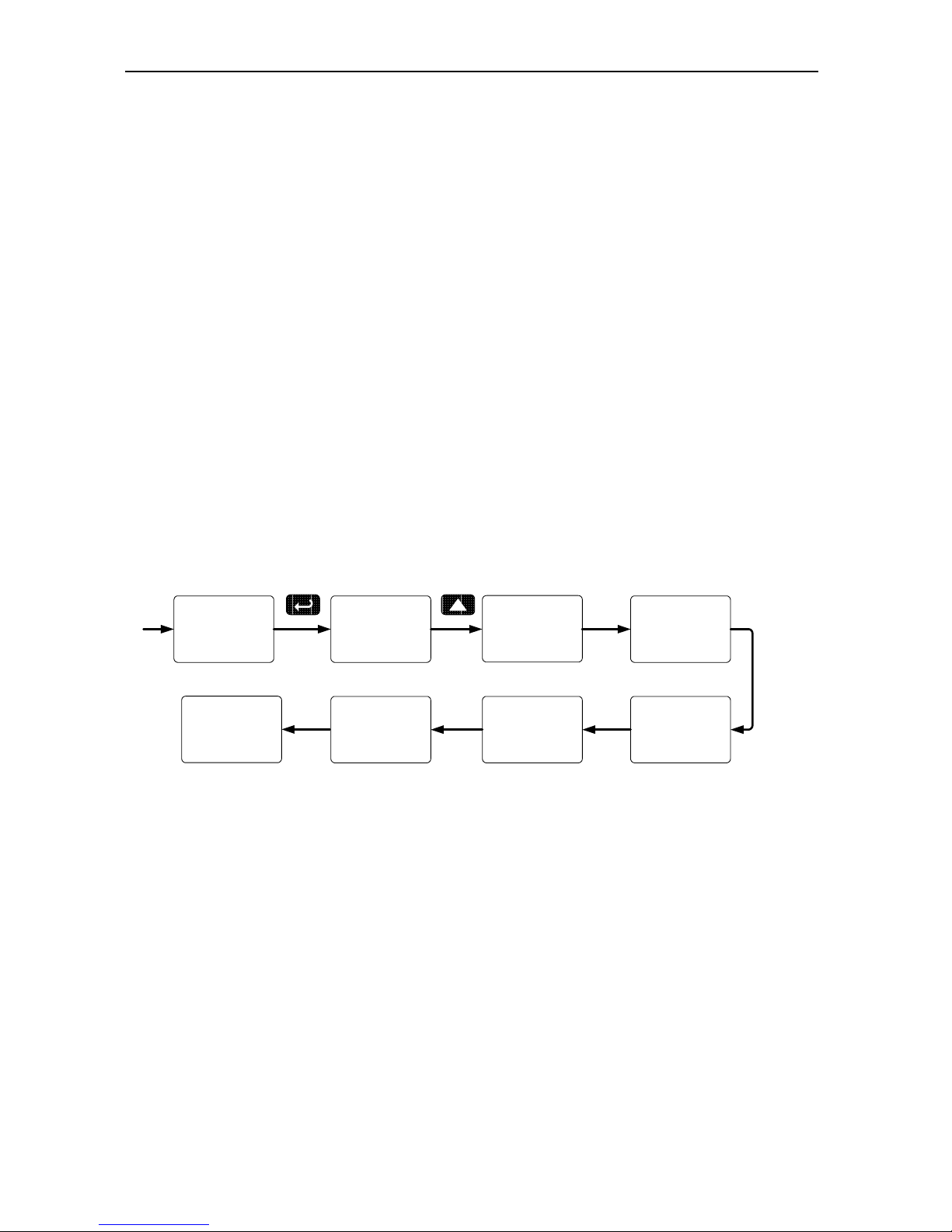

Disabling Password Protection
To disable the password protection, access the Password menu and
enter the correct password twice, as shown below. The controller is now
unprotected until a new password is entered.
Locd 000000
Locd
unLoc
Locd
reset
20.000
mA
Run Mode
Pass
Enter
Password
unLoc
Pass 1
Enter
Password
If the correct six-digit password is entered, the controller displays the
message
unLoc (unlocked) and the protection is disabled until a new
password is programmed.
If the password entered is incorrect, the controller displays the message
Locd (Locked) for about two seconds, and then it returns to Run Mode.
To try again, press Enter while the
Locked message is displayed.
Did you forget the password?
The password may be disabled by entering a master password once. If you
are authorized to make changes, enter the master password 508655 to unlock
the controller.
Page 69
Model PD6210 & PD6310 Batch Controllers Instruction Manual
69
ADVANCED OPERATION AND PROGRAMMING
In addition to the functions described in Controller Operation on page 33,
the following advanced operation and display features may be programmed. Configuring these features may disable some default batch
controller features, or make running a batch operation impossible. These
functions should only be used by users who are sure of their need in
their application.
Advanced Features Menu
To simplify the setup process, functions not needed for most applications
are located in the
Advanced Features menu.
Press and hold the Menu button for three seconds to access the advanced features of the controller. This cannot be done during a back
process as all functions other than STOP are disabled during a batch
process, including the Menu button.
20.000
mA
Run Mode
Filter serial bypass Select
user ICAL Copy diaG
Press & hold
Menu for 3 sec to
access Advanced
features
Page 70
Model PD6210 & PD6310 Batch Controllers Instruction Manual
70
Advanced Features Menu & Display Messages
The following table shows the functions and messages of the Advanced
Features
menu in the order they appear in the menu.
Display Parameter Action/Setting
filtr
Filter
Set noise filter value
bypASs
Bypass
Set filter bypass value
seriAl
Serial
Set serial communication parameters
SlaveId
Slave ID
Set slave ID or controller address
baud
Baud rate
Select baud rate
Tr dLY
Transmit delay
Set transmit delay for serial communication
Parity
Parity
Select parity
Even, Odd, or None with 1 or 2 stop bits
t-byt
Time byte
Set byte-to-byte timeout
SelEct
Select
Enter the Select menu (function, cutoff, out)
Functn
Signal Input
Conditioning
Select linear, square root, or programmable
exponent
Linear
Linear
Set controller for linear function and select
number of linearization points
No PtS
Number of
points
Set controller for 2 to 32-point linearization
Square
Square root
Set controller for square root extraction
Prog E
Programmable
exponent
Set controller for programmable exponent
and enter exponent value
CutofF
Cutoff
Set low-flow cutoff
Count
Count
Set the totals to count up or down from a
set value
Tot C
Total count
Set the batch to count up to or down from
the preset
Gtot C
Grand total
count
Set the grand total to count up or down
from a defined value
C strt
Count start
Set the starting grand total value when
counting down
AoutPr
Analog output
programming
Program analog output parameters
Source
Source
Select source for the 4-20 mA output
Page 71
Model PD6210 & PD6310 Batch Controllers Instruction Manual
71
Display Parameter Action/Setting
O-rang
Overrange
Program mA output for display overrange
u-rang
Underrange
Program mA output for display underrange
Break
Loop Break
Set relay condition if loop break detected
Force
Force output
Force analog output value for loop break
Ignore
Ignore
Ignore loop break condition
mAx
Maximum
Program maximum mA output allowed
min
Minimum
Program minimum mA output allowed
Calib
Calibrate
Calibrate 4-20 mA output (internal reference source used for scaling the output)
4 mA
4 mA output
Enter mA output value read by milliamp
meter with at least 0.001 mA resolution
20 mA
20 mA output
Enter mA output value read by milliamp
meter with at least 0.001 mA resolution
user
User I/O
Assign function keys and digital I/O
F1
F1 function key
Assign F1 function key
F2
F2 function key
Assign F2 function key
F3
F3 function key
Assign F3 function key
dI I
Digital input 1
Assign digital input 1 – 8, if expansion
modules are connected
dO 1
Digital output 1
Assign digital output 1 – 8, if expansion
modules are connected
ICal
Internal source
calibration
Enter internal source calibration (used for
scaling the controller without a signal
source
C CAL
Current
calibration
Calibrating 4-20 mA current input (internal
reference source used for scaling the input)
C lo
Current low
Calibrate low current input (e.g. 4 mA)
C Hi
Current high
Calibrate high current input (e.g. 20 mA)
v CAL
Voltage
calibration
Calibrating voltage input
v Lo
Voltage low
Calibrate low voltage input (e.g. 0 V)
v Hi
Voltage high
Calibrate high voltage input (e.g. 10 V)
Copy
Copy
Enter copy function
Page 72
Model PD6210 & PD6310 Batch Controllers Instruction Manual
72
Display Parameter Action/Setting
send
Send
Send controller settings to another controller
done
Done
Copy function completed
Diag
Diagnostics
Display parameter settings
Input
Input
Input selection
Filter
Filter
Set noise filter level
bypass
Bypass
Set filter bypass level
Functn
Function
Function selected
SCALE
Scale
Scaling parameter
Factor
K-factor
K-factor value
Gate
Gate
Gate settings
Cutoff
Cutoff
Cutoff value
T tb
Total time base
Set time period
T CF
Total correction
factor
Set correction factor
mode
Batch mode
Automatic or manual batch start
T delay
Time delay
Set time delay for automatic batch restart
Gt tb
Grand total
time base
Set grand total time period
Gt Cf
GT correction
factor
Set grand total correction factor
Gt rst
Grand total
Set grand total reset method
Dsplay
Display
Display assignments
RELAY
Relays
Relay settings
Aout
Analog output
Analog output scaling
Aoutpr
Analog output
programming
Analog output programming
LED t
LED test
Test all LEDs
Info
Information
Display software information
Page 73
Model PD6210 & PD6310 Batch Controllers Instruction Manual
73
Function Keys Operation
During operation, the programmable function keys operate according to
the way they have been programmed in the
Advanced Features – User
menu. The following table shows the default setting for each of the function keys.
Function Key/Button Default Setting Action
F1/START
Start
Start batch
F2/BATCH
preset
Change preset
F3/STOP
stop
Pause/stop batch
!
Only STOP Operation Enabled if a Batch is Running.
During a batch process, the only function that can be
performed is the pause/stop functions of the STOP button;
the default programming of the F3 key. No other functions,
including min/max display, manual alarm reset, or total
reset, will function while a batch is running.
Programmable Function Keys User Menu (user)
The
User menu allows the user to assign the front panel function keys
F1, F2, F3 and up to eight digital inputs to access most of the menus or
to activate functions immediately (e.g. Reset max & min). Up to eight
digital outputs can be assigned to a number of actions and functions
executed by the controller (e.g. Alarms, relay acknowledgement, etc.).
user
dI 1
user
dO 8
user
dO 1
user
dI 8
user
F1
user
F3
user
F2
user
!
Changing the programming of the F1-F3 function keys will
disable the default batch operation of these keys, and is
not recommended for batch control applications.
Page 74
Model PD6210 & PD6310 Batch Controllers Instruction Manual
74
Function Keys & Digital I/O Available Settings
Display Description Display Description
Start
Start batch
Lit gt
GT on little display
stop
Pause/stop batch
Lit bc
Batch count display
srtstp
Start/stop combo
disabl
Disable input/button
Rly d
Disable all relays
menu
Enter menu (DI only)
Rly e
Enable all relays
Right
Right/F1(DI only)
O Hold
Output level hold
up
Up/F2 (DI only)
D Hold
Display hold
enter
Enter/F3 (DI only)
big Hi
Max on big display
AcH
Acknowledge relays
big Lo
Min on big display
Rst t
Reset total
big Hl
Max/min on big
display
Rst Gt
Reset grand total
Lit Hi
Max on little display
Rst bc
Reset batch count
Lit Lo
Min on little display
Rst Hi
Reset max
Lit HL
Max/min little display
Rst Lo
Reset min
F On 1
Force relay 1 on
Rst HL
Reset max & min
F On 2
Force relay 2 on
relay
Relay menu
F On 3
Force relay 3 on
Preset
Change preset
F On 4
Force relay 4 on
Set 2
Set point 2 – 8
Advanced Setup and Calibration
Multi-Point Calibration & Scaling
The controller is set up at the factory for 2-point linear calibration. The
number of points for multi-point calibration/scaling is set up in the
Ad-
vanced
Features menu. Up to 32 linearization points may be selected.
See page 79 for details.
MeterView® Pro Software
The controller can be programmed and operated using the PC-based
MeterView Pro software available for free download at www.predig.com.
Batches may be started, paused, and stopped, through the monitoring
window of the MeterView Pro software. Preset and preclose values may
be changed, and the total and grand total reset.
Data logging for one controller at the time is available with MeterView
Pro software. More advanced data acquisition may be accomplished by
using any Modbus RTU compliant software.
Page 75
Model PD6210 & PD6310 Batch Controllers Instruction Manual
75
In order to operate or program the batch controller using a computer, the
controller must be connected using a USB, RS-232, or RS-485 serial
adapter, see Accessories on page 8 for details.
Maximum/Minimum Readings
The max & min readings (peak & valley) reached by the process can be
displayed either continuously or momentary:
1. Display briefly by assigning to the digital inputs in the
User menu.
2. Display continuously by assigning either display to max/min through
the
Display menu.
!
Changing the programming of the F1-F3 function keys will
disable the default batch operation of these keys, and is
not recommended for batch control applications.
Any of the digital inputs can be programmed to reset the max & min
readings.
To display max/min readings continuously:
Assign either display to Max (d Hi), Min (d Lo), or toggle between Max
and Min (
d HL) every 10 seconds.
Dsplay
setup
big
dsplay
Little
dsplay
d Hi
big
d Lo
big
d HL
big
!
Note that changing default the programming of the big or
little displays will interfere with seeing the batch total (upper display) or rate (lower display) of the batch process.
Page 76
Model PD6210 & PD6310 Batch Controllers Instruction Manual
76
Total and Grand Total Count Direction (Count)
By default, the batch total and grand total count up during batch
processes.
Count parameter allows this to change. When set to count
down, the batch total will count down from the preset to 0. When set to
count down, the grand total will count down from a set value up to
999,999.
Noise Filter (filter)
The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal
over a certain period. The filter level determines the length of time over
which the signal is averaged. The filter level can be set between 2 and
199. The higher the filter level, the longer the averaging time and so the
longer it takes the display to settle to its final value. Setting the filter level
to zero disables the filter function.
Noise Filter Bypass (bypass)
The noise filter bypass changes the behavior of the controller so that
small variations in the signal are filtered out but large abrupt changes in
the input signal are displayed immediately. The bypass value determines
the minimum amount of signal change to be displayed immediately. All
signal changes smaller than the bypass value are filtered or averaged by
the controller. The noise filter bypass may be set between 0.1 and 99.9%
of full scale.
Page 77
Model PD6210 & PD6310 Batch Controllers Instruction Manual
77
Modbus RTU Serial Communications (serial)
The controller is equipped with serial communications capability as a
standard feature using Modbus RTU Serial Communication Protocol.
To communicate with a computer or other data terminal equipment, an
RS-232. RS-422/485, or USB adapter option is required; see
Ordering
Information
on page 7 for details.
Warning!
Do not connect any equipment other than Precision
Digital’s expansion modules, cables, or controllers to
the RJ45 M-LINK connector. Otherwise damage will
occur to the equipment and the controller.
Note: More detailed instructions are provided with each optional serial
communications adapter.
Note: Refer to the P
ROVU
®
Modbus Register Tables located at
www.predig.com for details.
baud
Serial
SlavId
Serial
tr dly
Serial
serial
t-byt
Serial
Parity
Serial
When using more than one controller in a multi-drop mode, each controller must be provided with its own unique address. The controller address
(Slave ID) may be programmed between 1 and 247. The transmit delay
may be set between 0 and 199 ms. The parity can be set to even, odd,
or none with 1 or 2 stop bits.
The PD6210 can also be connected to another PD6210 with a special
PDA1200 cable, allowing the user to copy all the settings from one controller to another, using the
Copy function.
Page 78
Model PD6210 & PD6310 Batch Controllers Instruction Manual
78
Select Menu (SElEct)
The Select menu is used to select the signal input conditioning applied to
the input (linear, square root, or programmable exponent, low-flow cutoff,
and analog output programming. The multi-point linearization is part of
the linear function selection.
Signal Conditioning Selection (Functn)
The Function menu is used to select the signal conditioning function applied to the input: linear, square root, or programmable exponent. The
multi-point linearization is part of the linear function selection.
Controllers are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect
to the input signal.
Page 79
Model PD6210 & PD6310 Batch Controllers Instruction Manual
79
Square Root Linearization (Square)
The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units.
Programmable Exponent Linearization (Prog E)
The programmable exponent can be used to linearize the signal from
level transmitters in open-channel flow applications using weirs and
flumes.
Multi-Point Linearization (Linear)
Controllers are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected under the linear
function.
The multi-point linearization can be used to linearize the display
for non-linear signals such as those from level transmitters used to
measure volume in odd-shaped tanks or to convert level to flow using
weirs and flumes with complex exponent.
Program
Number of
Points
Linear
Functn
no Pts
Linear
scALE
Select
Low-Flow Cutoff (CutofF)
The low-flow cutoff feature allows the controller to be programmed so
that the often-unsteady output from a differential pressure transmitter, at
low flow rates, always displays zero on the controller.
The cutoff value may be programmed from 0 to 999999. The controller
will display zero below the cutoff value. Programming the cutoff value to
zero disables the cutoff feature.
Page 80
Model PD6210 & PD6310 Batch Controllers Instruction Manual
80
Analog Output Programming (AoutPr)
The Analog Output Programming menu is used to program the behavior
of the 4-20 mA output. The following parameters and functions are programmed in this menu:
1. Source: Source for generating the 4-20 mA output (e.g. PV)
2. Overrange: Analog output value with display in overrange condition
3. Underrange: Analog output value with display in underrange condition
4. Break: Analog output value when loop break is detected
5. Max: Maximum analog output value allowed regardless of input
6. Min: Minimum analog output value allowed regardless of input
7. Calibrate: Calibrate the internal 4-20 mA source reference used to
scale the 4-20 mA output
Analog Output Source
The source for generating the 4-20 mA output may be assigned to the
rate/process variable, total, grand total, maximum or minimum value
reached by the rate/process, or one of the set points, or the Modbus PV
input.
rate
Source
Source
AoutPr
Set Points
1 - 8
tot
Source
gtotal
Source
min
Source
max
Source
mbus
Source
Analog Output Calibration
To perform the analog output calibration it’s recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output
current. The values saved internally during this procedure are used for
scaling the 4-20 mA output in the
Setup menu.
Page 81
Model PD6210 & PD6310 Batch Controllers Instruction Manual
81
PD6210 Only: Internal Source Calibration (ICAL)
Note: The PD6210 is factory calibrated prior to shipment to read in
milliamps and volts depending on the input selection. The calibration
equipment is certified to NIST standards.
The internal source allows the user to scale the controller without applying a signal.
The use of calibrated signal sources is necessary to perform the internal
source calibration of the controller.
Check calibration of the controller at least every 12 months. Each input
must be recalibrated separately.
Notes:
1. If controller is in operation and it is intended to accept only
one input type (e.g. 4-20 mA),
recalibration of other input is not necessary.
2. Allow the controller to warm up for at least 15 minutes before performing the internal source calibration procedure.
The Internal calibration menu is part of the Advanced Features menu.
1. Press and hold the Menu button for three seconds to access the
advanced features of the controller.
2. Press the Up
arrow button to scroll to the Internal calibration menu
(
ICAL) and press Enter.
3. The controller displays either current calibration (C CAL) or voltage
calibration (
v CAL), according to the input setup. Press Enter to start
the calibration process.
Example of Internal Calibration for current input:
4. The controller displays low input current message (C lo). Apply the
low input signal and press Enter. The display flashes for a moment
while the controller is accepting the low input signal.
5. After the display stops flashing, a number is displayed with the leftmost digit brighter than the rest. The bright digit is the active digit
that can be changed by pressing the Up
arrow button. Press the
Right
arrow button to move to the next digit.
Page 82
Model PD6210 & PD6310 Batch Controllers Instruction Manual
82
6. Set the display value to correspond to the input signal being calibrated, typically 4.000 mA.
7. The display moves to the
high input calibration (C Hi). Apply the
high input signal and press Enter.
8. Set the display for the high input calibration, in the same way as it
was set for the low input calibration, typically 20.000 mA.
C CAL
ICAL
C Lo
C CAL
C Hi
C CAL
004.000
C Lo
020.000
C Hi
The display
flashes while
sensing the
inputs
ICAL
The graphic above shows the calibration of the current input. The voltage
input is calibrated in a similar way.
Tips:
Low and high input signals can be any valid value within the
range of the controller.
Observe minimum input span requirements between input 1
and input 2.
Low input should be less than high input signal.
Page 83
Model PD6210 & PD6310 Batch Controllers Instruction Manual
83
Error Message (Error)
An error message indicates that the calibration or scaling process was not
successful.
After the error message is displayed, the controller reverts to input 2 during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.
The error message might be caused by any of the following conditions:
1. Input signal is not connected to the proper terminals, or it is connected backwards.
2. Wrong signal selection in
Setup menu.
3. Minimum input span requirements not maintained.
Minimum Input Span
The minimum input span is the minimum difference between input 1 and 2
signals required to complete the calibration or scaling of the controller.
Input range Input 1 & input 2 span
4-20 mA 0.15 mA
10 VDC
0.10 VDC
Page 84
Model PD6210 & PD6310 Batch Controllers Instruction Manual
84
Controller Copy Function (Copy)
The Copy function is used to copy (or clone) all the settings from one
controller to other controllers requiring exactly the same setup and programming (
i.e. type of input, scaling, decimal point, filter, bypass, etc.).
Warning!
Only the PDA1200 meter copy cable must be used for
meter-to-meter interfacing. The PDA1200 is a special
eight-conductor flat cable with two wires swapped.
Using standard CAT5 or other cable will cause damage to both controllers.
Figure 22: Controller Copy Connection
Copy Function Requirements
To successfully copy settings from one controller to another, both
controllers must have:
1. Same software version
2. Same baud rate setting
See Determining Software Version, page 86 for instructions.
PDA1200 Controller Copy Cable
Page 85
Model PD6210 & PD6310 Batch Controllers Instruction Manual
85
Controller Copy or Cloning Instructions
!
Caution!
Do not connect the two controllers to the same signal
source while cloning. Internal calibration may be
affected.
1. Connect two controllers using a PDA1200 controller copy cable.
Warning!
Use PDA1200 controller cable only!
Using standard CAT5 or other cable will cause
damage to both controllers.
2. Do not connect the two controllers to the same signal source.
3. Power up both controllers. Leave clone controller in Run Mode.
4. Enter the
Advanced Features menu of the Master controller see
ADVANCED OPERATION AND PROGRAMMING page 69.
5. Scroll to the
Copy function using the Up arrow button then press
Enter.
6. The controller displays the message
Send. Press Enter, the display
flashes while sending data. The message
done is displayed when
copying is completed.
Send
Copy
done
Copy
Display flashes
while sending
data
Copy
7. The Clone controller displays the message CPY rC while being programmed then the message
done when copying is completed. The
controller initializes and returns to Run Mode using the same settings as the Master.
8. If controller to be cloned does not respond to the data being sent,
refer to
Copy Function Requirements above.
Page 86
Model PD6210 & PD6310 Batch Controllers Instruction Manual
86
TROUBLESHOOTING
The rugged design and the user-friendly interface of the controller should
make it unusual for the installer or operator to refer to this section of the
manual. However, due to the many features and functions of the controller, it’s possible that the setup of the controller does not agree with what
an operator expects to see.
If the controller is not working as expected, refer to the
Diagnostics menu
and recommendations below.
Diagnostics Menu (diag)
The Diagnostics menu is located in the Advanced Features menu, to
access
Diagnostics menu see ADVANCED OPERATION AND PRO-
GRAMMING, page 69.
It provides an easy way to view the programmed parameter settings for
troubleshooting purposes. Press the Enter
button to view the settings
and the Menu button to exit at any time.
For a description of the diagnostic messages,
see Advanced Features
Menu &
Display Messages, page 70.
Determining Software Version
To determine the software version of a controller:
1. Go to the
Diagnostics menu (diAG) and press Enter button.
2. Press Up arrow button and scroll to Information menu (
Info).
3. Press Enter to access the software number (
SFT) and ver-
sion (
UER) information. Write down the information as it is
displayed. Continue pressing Enter until all the information is
displayed.
4. The controller returns to Run Mode after displaying all the
settings.
Page 87
Model PD6210 & PD6310 Batch Controllers Instruction Manual
87
Reset Controller to Factory Defaults
When the parameters have been changed in a way that is difficult to
determine what’s happening, it might be better to start the setup process
from the factory defaults.
Instructions to load factory defaults:
1. Enter the Advanced Features menu. See ADVANCED OPERATION
AND PROGRAMMING, page 69.
2. Press Up arrow to go to
Diagnostics menu
3. Press and hold Right arrow for five seconds, press
Enter when display flashes
reset.
Note: If Enter is not pressed within three seconds, the display returns to the
Diagnostics menu.
4. The controller goes through an initialization sequence (similar as on
power-up), and loads the factory default settings.
Page 88
Model PD6210 & PD6310 Batch Controllers Instruction Manual
88
Factory Defaults & User Settings
The following table shows the factory setting for the major programmable
parameters on the controller. Next to the factory setting, the user may
record the new setting for the particular application.
Model: ______________ S/N: _______________ Date: _________
Parameter Display Default Setting User Setting
Input type
input
PD6210: 4-20 mA
PD6310: Pulse
Total
yes
Total enabled
Rate Decimal point
ddd.ddd
3 Places
Total Decimal point
ddddd.d
1 Place
G. Total Decimal
point
dddddd
0 Places
K-factor
Factor
1.000; PD6310 Only
Function
Functn
Linear
Number of points
No Pts
2
Programming
prog
Scale
Input 1
InP 1
PD6210: 4.000 mA
PD6310: 00000.0
Display 1
Dis 1
PD6210: 4.000
PD6310: 00000.0
Input 2
InP 2
PD6210: 20.000 mA
PD6310: 10000.0
Display 2
Dis 2
PD6210: 20.000
PD6310: 10000.0
Display assignment
dSPLAY
Big display (Main)
big
Display total
Little display (Small)
Little
Display rate and
units
Display intensity
d-Inty
8
Total time base
T tb
Second
Total conversion
factor
T CF
1.000
Batch mode
mode
Manual
Page 89
Model PD6210 & PD6310 Batch Controllers Instruction Manual
89
Parameter Display Default Setting User Setting
Grand total time
base
GT tb
Second
Grand total
conversion factor
T CF
1.000
Grand total reset
T rst
Manual
Relay 1 assignment
Asign1
Total
Relay 2 assignment
Asign2
Total
Relay 2 preclose
preCls
No
Relay 3 assignment
Asign3
Rate
Relay 4 assignment
Asign4
Rate
Relay 1 action
Act 1
Automatic
Batch preset
Preset
100.0
Relay 2 action
Act 2
Automatic
Relay 2 set point
Set 2
200.0
Relay 3 action
Act 3
Automatic
Relay 3 set point
Set 3
3.000
Relay 3 reset point
RSt 3
2.500
Relay 4 action
Act 4
Automatic
Relay 4 set point
Set 4
4.000
Relay 4 reset point
RSt 4
3.500
Fail-safe relay 1
Fls 1
Off
Fail-safe relay 2
Fls 2
Off
Fail-safe relay 3
Fls 3
Off
Fail-safe relay 4
Fls 4
Off
On delay relay 1
On 1
0.0 sec
Page 90
Model PD6210 & PD6310 Batch Controllers Instruction Manual
90
Parameter Display Default Setting User Setting
Off delay relay 1
Off 1
0.0 sec
On delay relay 2
On 2
0.0 sec
Off delay relay 2
Off 2
0.0 sec
On delay relay 3
On 3
0.0 sec
Off delay relay 3
Off 3
0.0 sec
On delay relay 4
On 4
0.0 sec
Off delay relay 4
Off 4
0.0 sec
Loop break relay 1
ignore
Ignore,
PD6210 Only
Loop break relay 2
ignore
Ignore,
PD6210 Only
Loop break relay 3
ignore
Ignore,
PD6210 Only
Loop break relay 4
ignore
Ignore,
PD6210 Only
Display 1 analog out
Dis 1
4.000
Output 1 value
Out 1
4.000 mA
Display 2 analog out
Dis 2
20.000
Output 2 value
Out 2
20.000 mA
Source analog
output
Source
Rate/process
Overrange output
O-rang
21.000 mA
Underrange output
u-rang
3.000 mA
Loop break output
break
1.000 mA
Filter
filter
PD6210: 70
PD6310: Hi Spd
Bypass
Bypass
0.2, PD6210 Only
Cutoff value
CutofF
0.000 (disabled)
Maximum output
mAx
23.000 mA
Page 91
Model PD6210 & PD6310 Batch Controllers Instruction Manual
91
Parameter Display Default Setting User Setting
Minimum output
min
0.000 mA
Slave ID (Address)
Slave Id
247
Baud rate
baud
9600
Transmit delay
Tr dly
10 ms
Parity
Parity
Even
Byte-to-byte timeout
t-byt
010 (0.1 sec)
F1 function key
F1
Reset max & min
F2 function key
F2
Big display: Max (Hi)
F3 function key
F3
Acknowledge relays
Digital input 1
dI 1
Menu
Digital input 2
dI 2
Right arrow
Digital input 3
dI 3
Up arrow
Digital input 4
dI 4
Enter
Digital output 1
dO 1
Alarm 1
Digital output 2
dO 2
Alarm 2
Digital output 3
dO 3
Alarm 3
Digital output 4
dO 4
Alarm 4
Password 1
Pass 1
000000 (unlocked)
Password 2
Pass 2
000000 (unlocked)
Password 3
Pass 3
000000 (unlocked)
Total password
Total
000000 (unlocked)
Grand total
password
Gtotal
000000 (unlocked)
Page 92
Model PD6210 & PD6310 Batch Controllers Instruction Manual
92
Troubleshooting Tips
Symptom Check/Action
No display at all
Check power at power connector
Not able to change setup or programming,
Locd is displayed
Controller is password-protected, enter
correct six-digit password to unlock
Controller displays error message
during calibration (
Error)
Check:
1. Signal connections
2. Input selected in
Setup menu
3. Minimum input span requirements
Controller displays
999999
-99999
Check:
1. Input selected in
Setup menu
2. Corresponding signal at Signal
connecto
r
Display is unstable
Check:
1. Input signal stability and value
2. Display scaling vs. input signal
3. Filter and bypass values (increase)
Display response is too slow
Check filter and bypass values
Display reading is not accurate
1. Signal input conditioning selected:
Linear, square root, etc.
2. Scaling or calibration
Display does not respond to input
changes, reading a fixed number
Check:
Display assignment, it might be displaying max, min, or set point.
Display alternates between
1.
Hi and a number
2.
Lo and a numbe
r
Press Menu to exit max/min display
readings.
Relay operation is reversed
Check:
1. Fail-safe in Setup menu
2. Wiring of relay contacts
Relay and status LED do not
respond to signal
Check:
1. Relay action in
Setup menu
2. Set and reset points
Flashing relay status LEDs
Relays in manual control mode or relay
interlock switches opened.
Controller not communicating with
application programs
Check:
1. Serial adapter and cable
2. Serial settings
3. Controller address and baud rate
If the display locks up or the controller does not respond at all
Cycle the power to reboot the
microprocessor.
Other symptoms not described
above
Call Technical Support for
assistance.
Page 93
Model PD6210 & PD6310 Batch Controllers Instruction Manual
93
Alphabetical List of Display Functions & Messages
Display Parameter Action/Setting Description
20 mA
20 mA output
Enter mA output value read by milliamp
meter with at least 0.001 mA resolution
4 mA
4 mA output
Enter mA output value read by milliamp
meter with at least 0.001 mA resolution
999999
-99999
Flashing
display
Overrange condition
Underrange condition
Ack
Acknowledge
Acknowledge relays
Act 1
Action 1
Set relay 1 action
Alm 1
Alarm 1
Assign digital output to Alarm 1 – 8
Altern
Alternate
Set relay for pump alternation control
(relays assigned to rate)
A-nman
Auto-manual
Set relay for automatic & manual reset
any time
Aout
Analog output
Analog output scaling
Aoutpr
Analog output
programming
Analog output programming
Asign1
Assign 1
Relay 1 assignment
Assign
Assignment
Assign relays to rate, total, or grand total
Auto
Automatic
For automatic reset
baud
Baud rate
Select baud rate
big
Big display
Press Enter to assign the Main display
parameter (default: PV or rate)
Big Hi
Max on big
display
Assign digital input to display max on the
main display
Big HL
Max/min big
display
Assign digital input to toggle max/min on
the main display
Big Lo
Min on big display
Assign the digital input to display min on the
main display
break
Loop break
Set relay condition if loop break detected
(For mA input only)
bypASs
Bypass Set filter bypass value
Page 94
Model PD6210 & PD6310 Batch Controllers Instruction Manual
94
Display Parameter Action/Setting Description
C CAL
Current
calibration
Calibrating 4-20 mA current input (internal
reference source used for scaling the input)
C Hi
Current high
Calibrate high current input (e.g. 20 mA)
C lo
Current low
Calibrate low current input (e.g. 4 mA)
C Tare
Capture tare
Capture tare
Cal
Calibrate
Enter the Calibrate menu
Calib
Calibrate
Calibrate 4-20 mA output (internal reference source used for scaling the output)
Contrl
Control
Enter Control menu
Copy
Copy
Enter copy function
Cutoff
Cutoff
Cutoff value
D Hi
Display high
Select to display the max
D HL
Display H&L
Select to display the max & min toggling
D Hold
Display hold
Display hold
D Lo
Display low
Select to display the min
D off
Display off
Select to not turn off display
D rate
Display rate
Select to display rate
D tot
Display total
Select to display batch total
D gtot
Display grand
total
Select to display grand total
D g-t
Display g-t
Select to display grand total and batch total
D r-t
Display r-t
Select to display rate and batch total
D r_u
Display r-u
Select to display rate and units
D unit
Display units
Select to display engineering units or label
dCount
Dec pt
Decimal point
Set decimal point for rate, total, grand total
DeLAY
Delay
Enter relay Time Delay menu
dI 1
Digital input 1
Assign digital input 1-8, if expansion modules are connected
Page 95
Model PD6210 & PD6310 Batch Controllers Instruction Manual
95
Display Parameter Action/Setting Description
Diag
Diagnostics
Display parameter settings
d-Inty
Display
intensity
Set display intensity level from 1 to 8
Dis 1
Display 1
Program display 1 value
Dis 2
Display 2
Program display 2 value
disabl
Disable function key
DLY 1
Delay 1
Enter relay 1 time delay setup
dO 1
Digital
output 1
Assign digital output 1 – 8, if expansion
modules are connected
done
Done
Copy function completed
DSet 1
Display set 1
Select to display set point 1 (1-8)
dsplay
Display
Enter the Display menu
Enter
Enter Button
Assign digital input to Enter button
Error
Error
Error, calibration not successful, check signal
or programmed value
F On 1
Force On 1
Force relay 1 on using digital input (1-4)
F1
F1 function key
Assign F1 function key
F2
F2 function key
Assign F2 function key
F3
F3 function key
Assign F3 function key
factor
K-factor
Scaling
Programs unit to convert input pulse to rate
in engineering units
FaiLSF
Fail-safe
Enter Fail-safe menu
filter
Filter
Set noise filter value
FLS 1
Fail-safe 1
Set relay 1 fail-safe operation
Force
Force
Force analog output value for loop break
Functn
Function
Select linear, square root, or programmable
exponent signal input conditioning
G total
Grand total
Assign relay to grand total
GT CF
Grand total conversion factor
Program grand total conversion factor
Page 96
Model PD6210 & PD6310 Batch Controllers Instruction Manual
96
Display Parameter Action/Setting Description
GT rst
Grand total reset
Program grand total reset mode: auto or
manual
GT tb
Grand total time
base
Program grand total time base
Gtotal
Grand total
password
Set or enter password for manual reset
ICal
Internal source
calibration
Enter internal source calibration (used for
scaling the controller without a signal
source
Ignore
Ignore
Ignore loop break condition
Info
Information
Display software and S/N information
Inp 1
Input 1
Calibrate input 1 signal or program input 1
value
Inp 2
Input 2
Calibrate input 2 signal or program input 2
value (up to 32 points)
Input
Input
Input selection
LatCH
Latching
Set relay for latching operation (relays assigned to rate)
LED t
LED test
Test all LEDs
Linear
Linear
Set controller for linear function and select
number of linearization points
Lit Hi
Max on little
display
Assign digital input to display max on the
small display
Lit HL
Max/min little
display
Assign the digital input to toggle max/min
on the small display
Lit Lo
Min on little display
Assign digital input to display min on the
small display
Little
Little display
To assign the small display parameters
locd
Locked
Enter password to unlock controller
Lt-CLr
Latching-cleared
Set relay for latching operation with manual
reset only after alarm condition has cleared
(relays assigned to rate)
mA
4-20 mA
Set controller for 4-20 mA input
mAn
Manual
To manually control
Page 97
Model PD6210 & PD6310 Batch Controllers Instruction Manual
97
Display Parameter Action/Setting Description
mAx
Maximum
Program maximum mA output allowed
mbus
Modbus
Select to display Modbus input or to assign
Modbus input as the analog output source
menu
Menu button
Assign digital input to Menu button
min
Minimum
Program minimum mA output allowed
No PtS
Number of points
Set controller for 2 to 32-point linearization
nonrst
Non-resettable
Non-resettable grand total set after entering
“050873” for Gtotal password
O Hold
Relays output
hold
Assign digital input to hold all relays state
OFF
Off
Disable relay and front panel status LED,
turn relays off, program off time delay
OFF 1
Off
Set relay 1 Off time delay
On
On
Enable fail-safe operation, turn relays on,
program on time delay
On 1
On
Set relay 1 On time delay
O-rang
Overrange
Program mA output for display overrange
Out 1
Output 1
Program output 1 value (e.g. 4.000 mA)
Out 2
Output 2
Program output 2 value (e.g. 20.000 mA)
pass
Password
Enter the Password menu
Pass 1
Password 1
Set or enter Password 1
Pass 2
Password 2
Set or enter Password 2
Pass 3
Password 3
Set or enter Password 3
preCls
Preclose
The amount before the preset is reached
that multi-stage relays will deactivate.
preset
Preset
Batch control preset
prog
Program
Enter the Program menu
Prog E
Programmable
exponent
Set controller for programmable exponent
and enter exponent value
rATE
Rate
Assign relay to rate
Page 98
Model PD6210 & PD6310 Batch Controllers Instruction Manual
98
Display Parameter Action/Setting Description
RELaY
Relay
Enter the Relay menu
reset
Reset
To access the Reset menu
Right
Right arrow
Assign digital input to Right arrow button/F1
RLY 1
Relay 1
Relay 1 setup
RLY 2
Relay 2
Relays 2-8 setup
Note: Relays 5-8 are shown, only if expansion relay module is installed.
Rly d
Disable relay
Assign digital input to disable all relays
Rly E
Enable relay
Assign digital input to enable all relays
RSt 1
Reset 1
Program reset point 1
Rst bc
Reset batch
count
To reset the batch count
Rst Gt
Reset
grand total
To reset grand total
Rst Hi
Reset high
Press Enter to reset max display
Rst HL
Reset
high & low
Press Enter to reset max & min displays
Rst Lo
Reset low
Press Enter to reset min display
Rst t
Reset Total
Reset total
Sanmpl
Sampling
Set relay for sampling operation
sCalE
Scale
Enter the Scale menu
SelEct
Select
Enter the Select menu (function, cutoff, out)
send
Send
Send controller settings to another
controller
seriAl
Serial
Set serial communication parameters
Set 1
Set 1
Program set point 1
setup
Setup
Enter Setup menu
SlavId
Slave ID
Set Slave ID or controller address
Source
Source
Select source for the 4-20 mA output
Square
Square root
Set controller for square root extraction
Page 99
Model PD6210 & PD6310 Batch Controllers Instruction Manual
99
Display Parameter Action/Setting Description
Start
Start
Begin batch
Stop
Stop
Pause/Stop batch
Tarest
Reset tare
Reset tare
T CF
Total conversion
factor
Program total conversion factor
T dly
Time delay
Program time delay for total auto reset
T rst
Total reset
Program total reset mode: auto or manual
T tb
Total time base
Program total time base
Total
Total
Enable or disable totalizer features
Tr dLY
Transmit delay
Set transmit delay for serial communication
unloc
Unlocked
Program password to lock controller
up
Up arrow button
To assign digital input to up arrow button
u-rang
Underrange
Program mA output for display underrange
user
User I/O
Assign function keys and digital I/O
v CAL
Voltage
calibration
Calibrating voltage input
v Hi
Voltage high
Calibrate high voltage input (e.g. 10 V)
v Lo
Voltage low
Calibrate low voltage input (e.g. 0 V)
volt
0-10 VDC
Set controller for 10 VDC input
Page 100
Model PD6210 & PD6310 Batch Controllers Instruction Manual
100
