Page 1
PRECISION DIGITAL CORPORATION
89 October Hill Road • Holliston MA 01746 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com

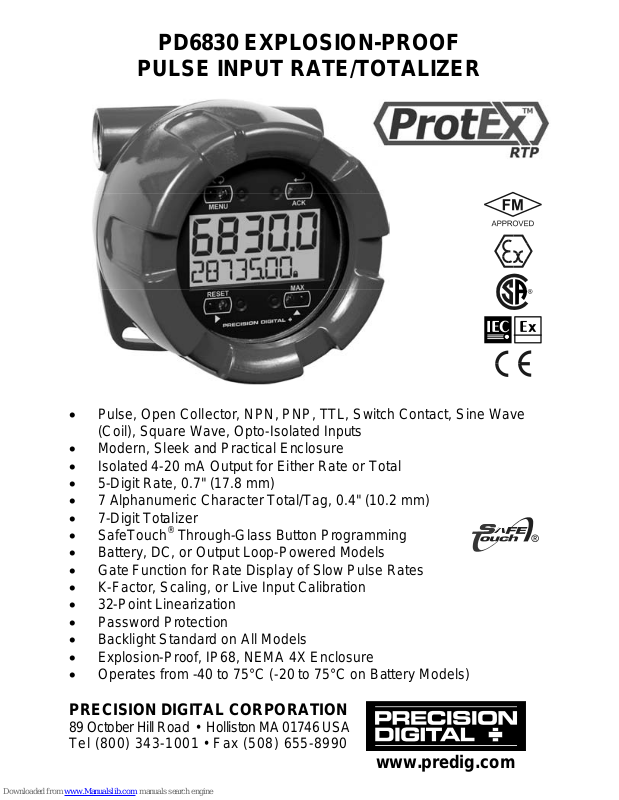

PD6830 EXPLOSION-PROOF
PULSE INPUT RATE/TOTALIZER
Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave
(Coil), Square Wave, Opto-Isolated Inputs
Modern, Sleek and Practical Enclosure
Isolated 4-20 mA Output for Either Rate or Total
5-Digit Rate, 0.7" (17.8 mm)
7 Alphanumeric Character Total/Tag, 0.4" (10.2 mm)
7-Digit Totalizer
SafeTouch
®
Through-Glass Button Programming
Battery, DC, or Output Loop-Powered Models
Gate Function for Rate Display of Slow Pulse Rates
K-Factor, Scaling, or Live Input Calibration
32-Point Linearization
Password Protection
Backlight Standard on All Models
Explosion-Proof, IP68, NEMA 4X Enclosure
Operates from -40 to 75°C (-20 to 75°C on Battery Models)
®
Page 2
PD6830 Pulse Input Rate/Totalizer Instruction Manual
2
Disclaimer
The information contained in this document is subject to change without notice.
Precision Digital makes no representations or warranties with respect to the contents
hereof; and specifically disclaims any implied warranties of merchantability or fitness
for a particular purpose.
!
CAUTION: Read complete
instructions prior to installation
and operation of the meter.
WARNING: Risk of
electric shock or
personal injury.
WARNINGS
• This product is not recommended for life support applications or applications
where malfunctioning could result in personal injury or property loss. Anyone
using this product for such applications does so at his/her own risk. Precision
Digital Corporation shall not be held liable for damages resulting from such
improper use.
• Failure to follow installation guidelines could result in death or serious injury.
Make sure only qualified personnel perform the installation.
• Never remove the meter cover in explosive environments when the circuit is
live.
• Cover must be fully engaged to meet flameproof/explsion-proof requirements.
Limited Warranty
Precision Digital Corporation warrants this product against defects in material or
workmanship for the specified period under “Specifications” from the date of
shipment from the factory. Precision Digital’s liability under this limited warranty shall
not exceed the purchase value, repair, or replacement of the defective unit.
Registered Trademarks
SafeTouch® is a registered trademark of Precision Digital Corporation. All other
trademarks mentioned in this document are the property of their respective owners.
© 2011 Precision Digital Corporation. All rights reserved.
www.predig.com
Page 3
PD6830 Pulse Input Rate/Totalizer Instruction Manual
3
INTRODUCTION
The ProtEX-RTP PD6830 is a rugged, explosion-proof pulse input rate/totalizer fully
featured for demanding applications in hazardous areas or in the harshest
environmental conditions. It is programmed using the four SafeTouch
®
through-glass
buttons, without removing the cover. The numeric rate display will read up to 99999
and the alphanumeric total/tag display will read up to 9999999. The alphanumeric
display can also be programmed to show any combination of numbers and letters up
to seven characters long for use as engineering units and/or the process
identification tag. The backlight makes the display more visible under any lighting
condition. The enclosure is provided with threaded conduit holes and integrated pipe
or wall mounting slotted flanges.
ORDERING INFORMATION
Model Description
PD6830-AP0 9-30 VDC Powered, Backlight
PD6830-APA 9-30 VDC Powered, Backlight, Isolated 4-20 Output
PD6830-BM0 Battery (or DC)-Powered*, Momentary Backlight**
PD6830-BTA
Battery (or DC)-Powered*, Loop-Powered Backlight, Isolated
4-20 Output
PD6830-CTB
4-20 mA Output-Powered, Loop-Powered Backlight,
Non-Isolated 4-20 mA Output
* When DC-powered, battery will provide backup power when DC power is lost.
** Backlight is constant while supplied with DC power and momentary when operating
from battery backup.
Accessories
Model Description
PDAPLUG75 ¾" Metal Conduit/Stopping Plug
PDABAT36D 3.6 V D Cell Lithium Battery
PDA0001 3/4" M-NPT to F-M20 Reducer
PDA0002 3/4" M-NPT to 1/2" F-NPT Reducer
Page 4
PD6830 Pulse Input Rate/Totalizer Instruction Manual
4
Table of Contents
INTRODUCTION ---------------------------------------------------------------------- 3
ORDERING INFORMATION ------------------------------------------------------- 3
SPECIFICATIONS -------------------------------------------------------------------- 6
General ------------------------------------------------------------------------------------------- 6
Rate Input ---------------------------------------------------------------------------------------- 7
Rate/Totalizer ----------------------------------------------------------------------------------- 8
4-20 mA Transmitter Output -------------------------------------------------------------- 9
Product Ratings and Approvals ------------------------------------------------------- 10
Electromagnetic Compatibility --------------------------------------------------------- 11
SAFETY INFORMATION ------------------------------------------------------------------ 11
INSTALLATION ---------------------------------------------------------------------- 12
Unpacking ------------------------------------------------------------------------------------- 12
Pre-Installed Conduit/Stopping Plug -------------- Error! Bookmark not defined.
Mounting --------------------------------------------------------------------------------------- 13
Cover Jam Screw --------------------------------------------------------------------------- 13
Connections ---------------------------------------------------------------------------------- 13
Input Signal Connections ........................................................................... 15
DC Power Connection ............................................................................... 17
External Reset Connection ........................................................................ 17
4-20 mA Transmitter Output Connections ................................................. 18
Battery Replacement ................................................................................. 19
SETUP AND PROGRAMMING -------------------------------------------------- 20
SafeTouch® Buttons ----------------------------------------------------------------------- 21

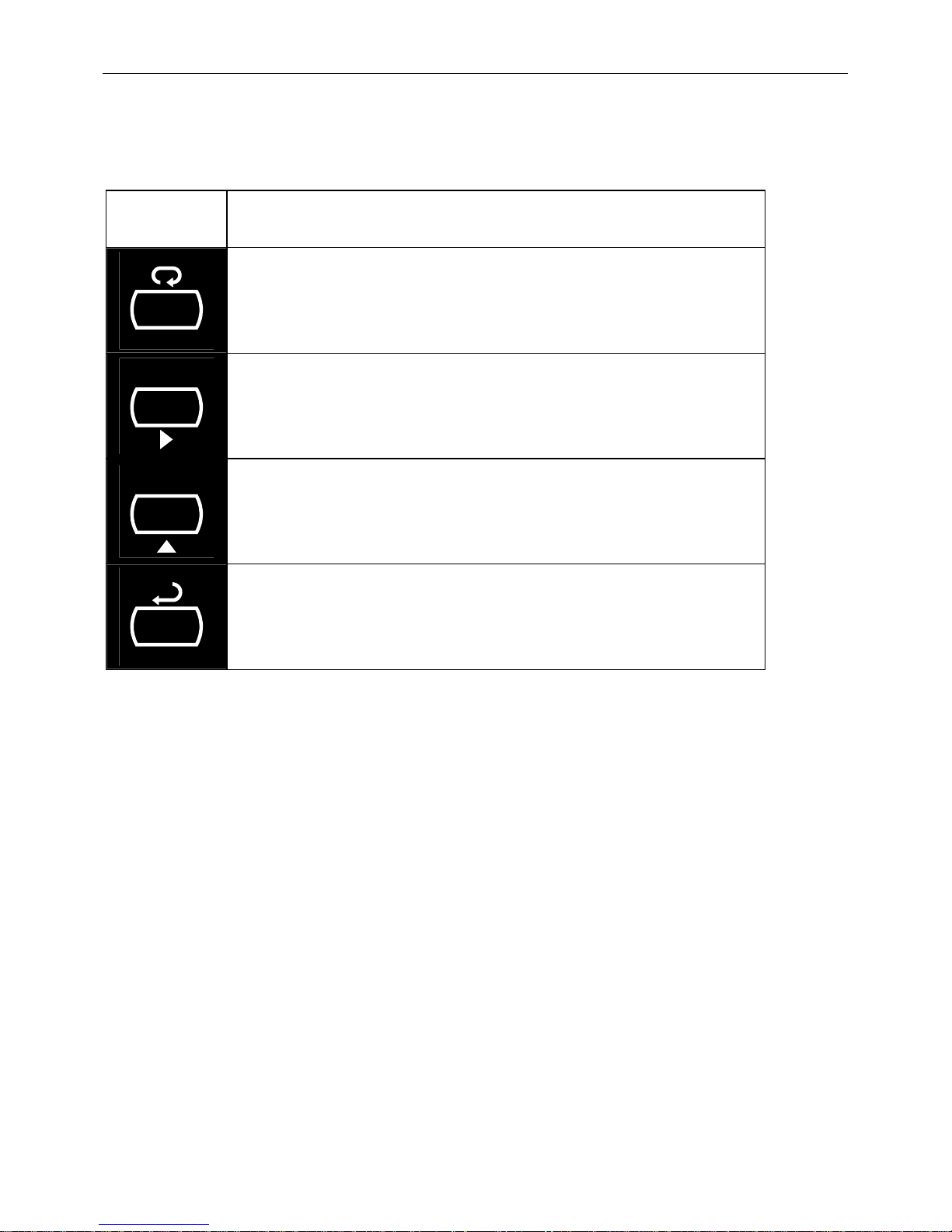

Buttons and Display ----------------------------------------------------------------------- 22
Main Menu Display Functions & Messages ---------------------------------------- 23

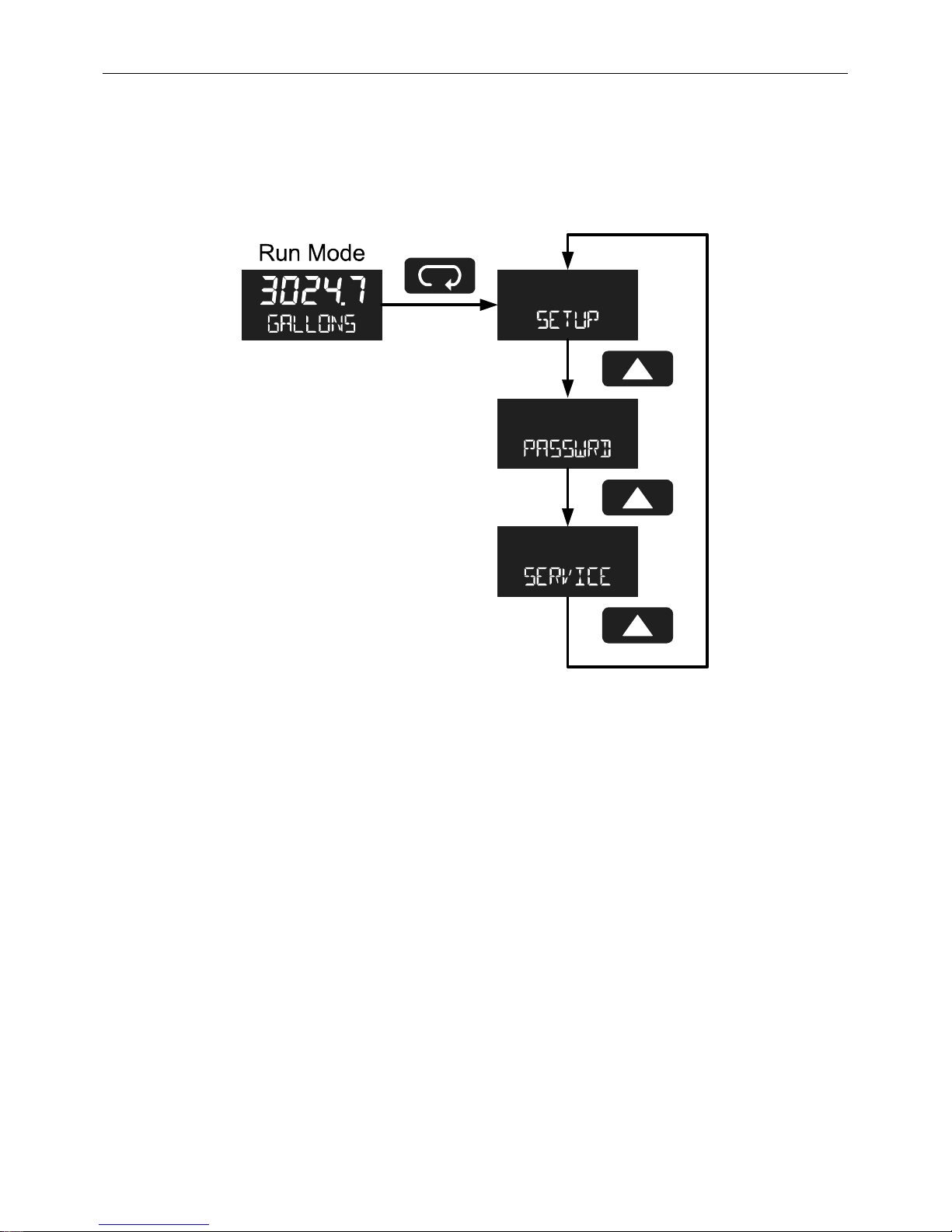

Main Menu ------------------------------------------------------------------------------------- 25

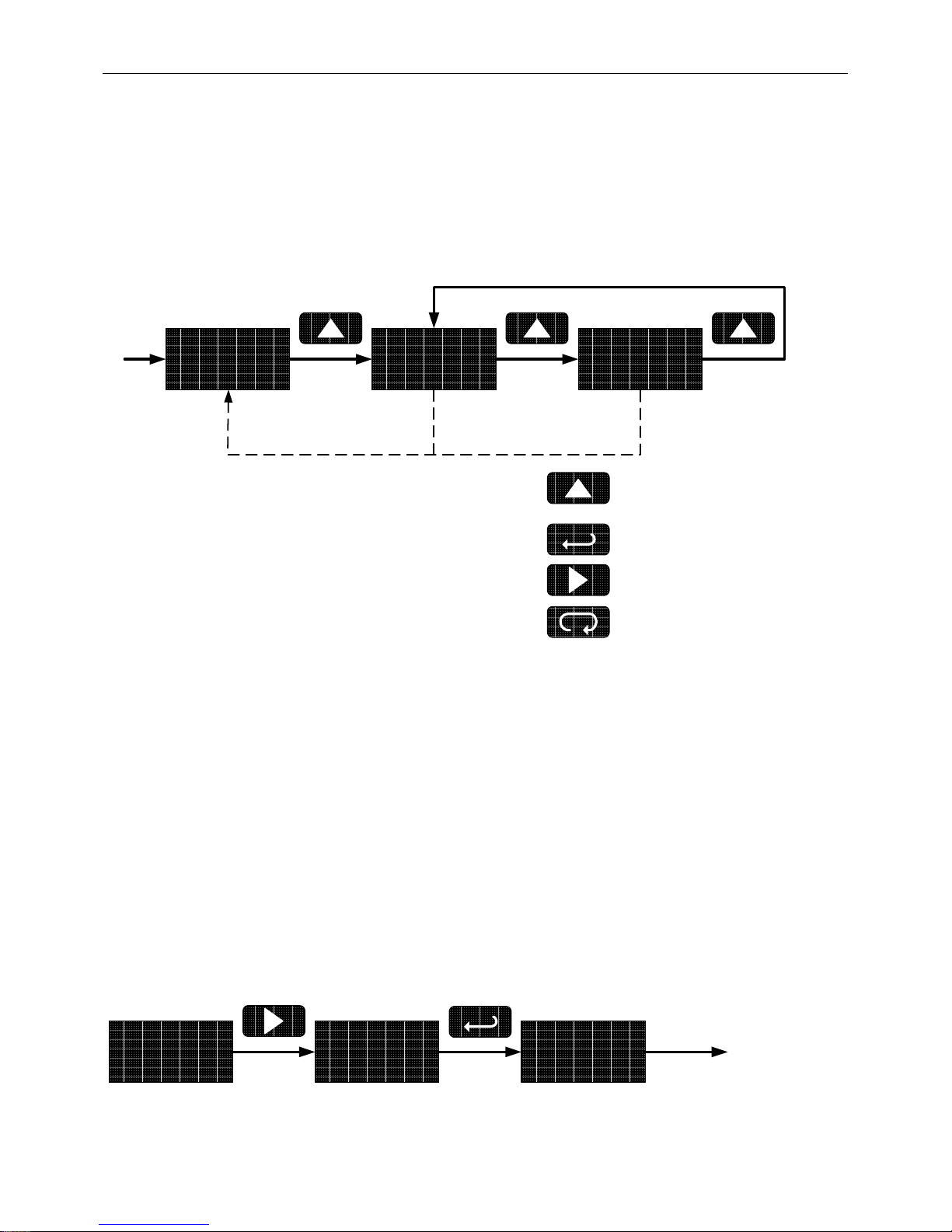

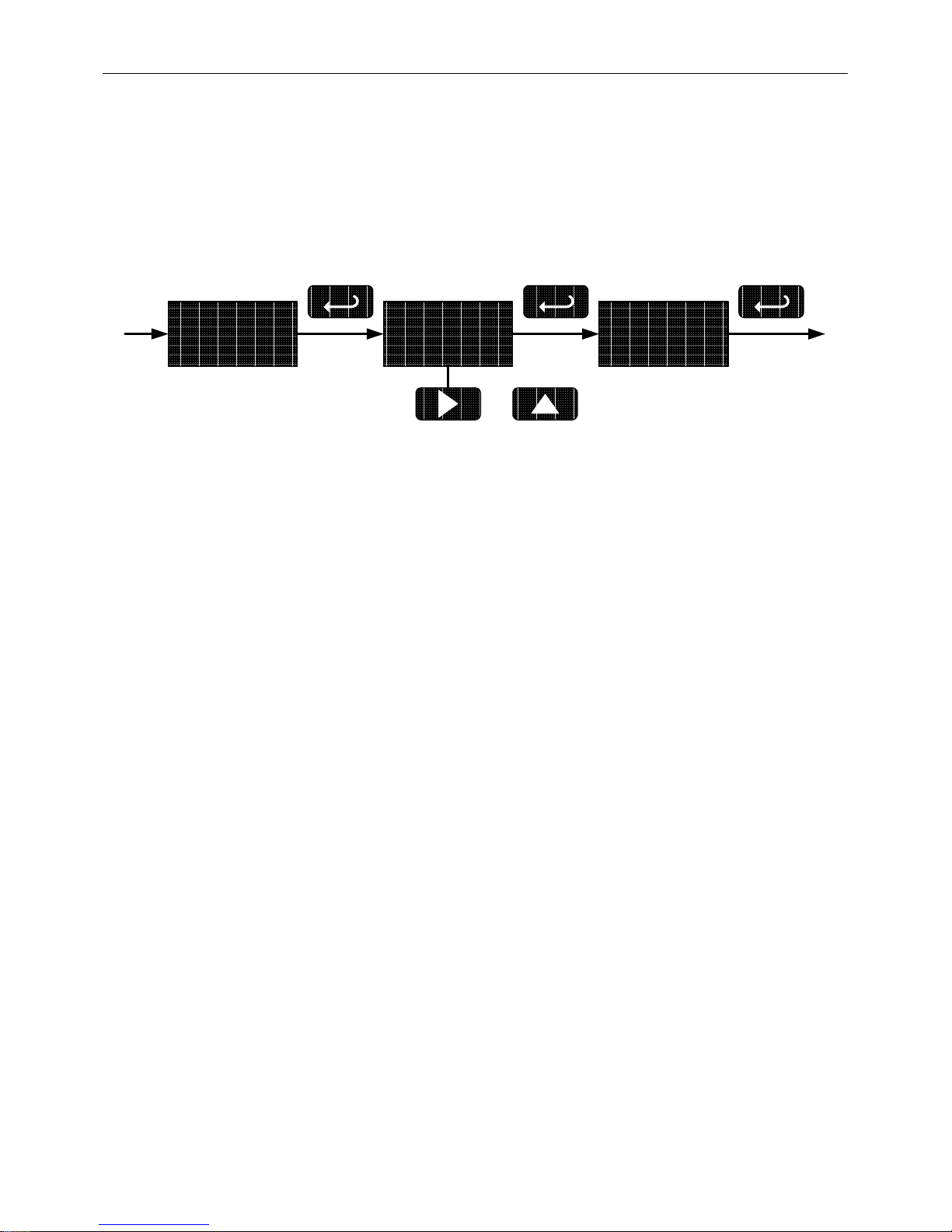

Setting Numeric Values ------------------------------------------------------------------- 26
Setting Up the Meter (SETUP) ------------------------------------------------------------ 27
Setting the Decimal Point (dec.PT) ............................................................. 28

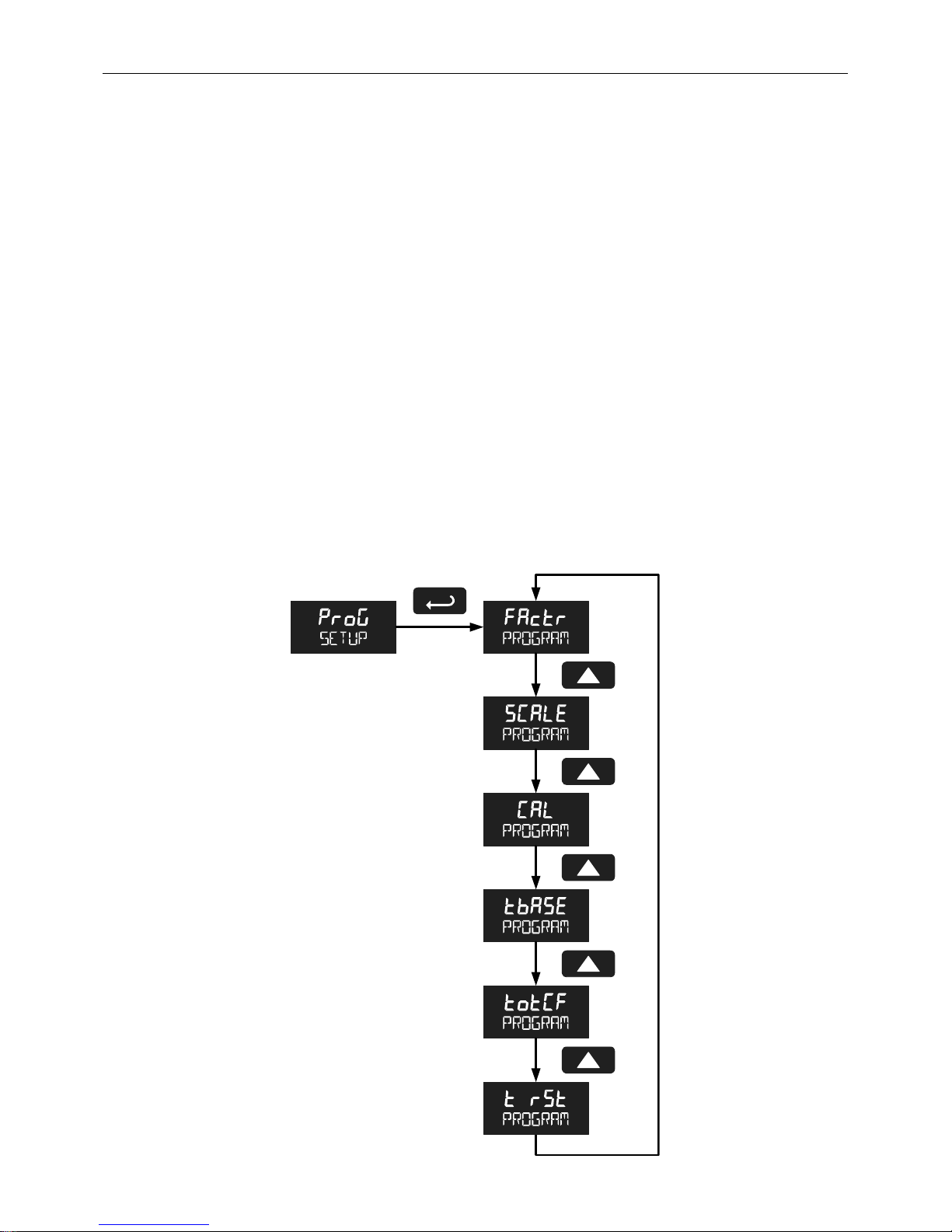

Programming the Meter (PRoG) .................................................................. 29
K-Factor (Factr)---------------------------------------------------------------------- 30
Scaling the Meter (SCale) ---------------------------------------------------------- 31

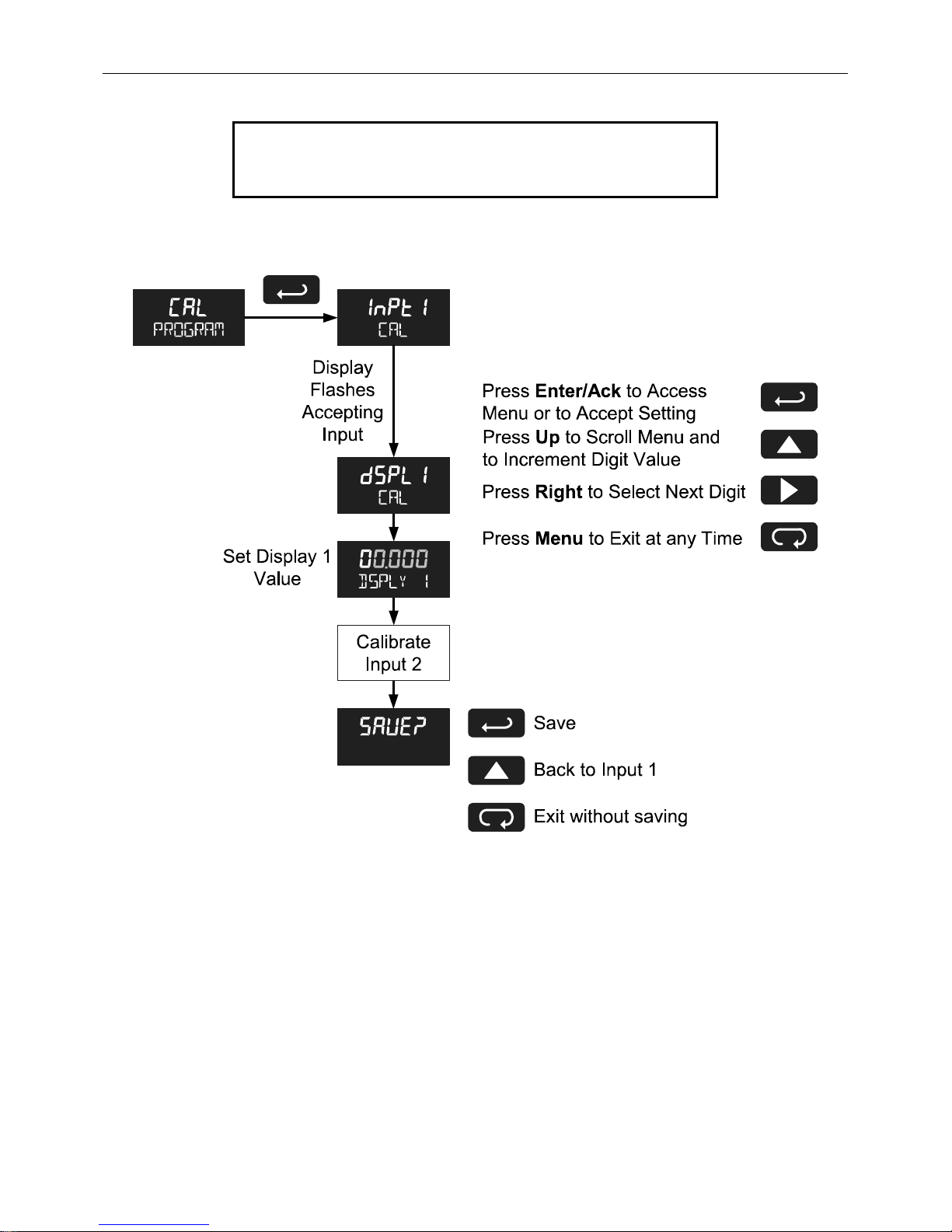

Calibrating the Meter (Cal) -------------------------------------------------------- 32
Setting the Time Base (tbase) --------------------------------------------------- 34
Setting the Total Conversion Factor (totCF) --------------------------------- 34
Manual or Automatic Total Reset Function (t rST) ------------------------- 35
Setting the Tag Display (tag) .................................................................... 36

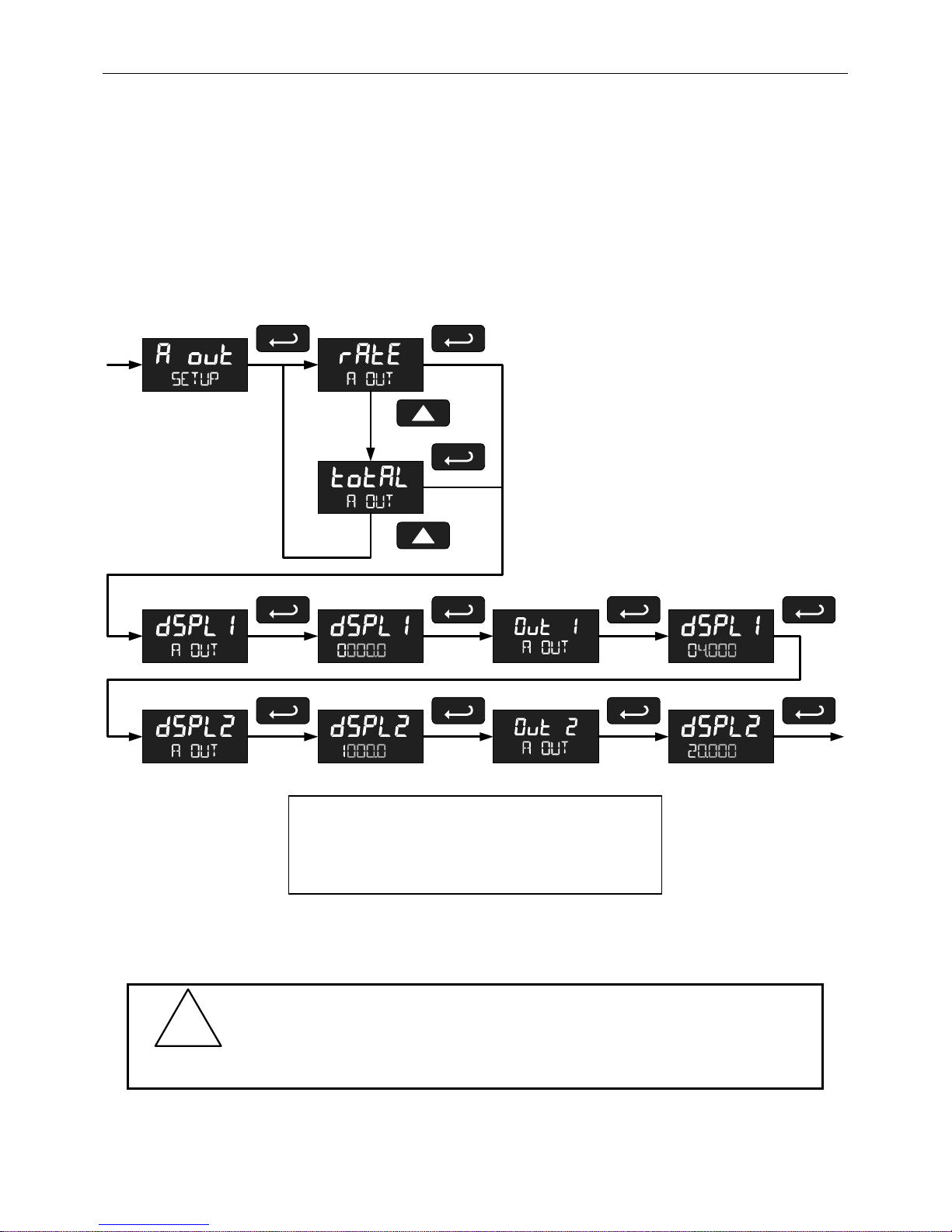

Scaling the 4-20 mA Analog Output (Aout) ............................................... 37
Setting Up the Password (PASSWRD) .......................................................... 38
Locking the Meter ...................................................................................... 38
Page 5
PD6830 Pulse Input Rate/Totalizer Instruction Manual
5
Making Changes to a Password Protected Meter ..................................... 38
Disabling Password Protection .................................................................. 39

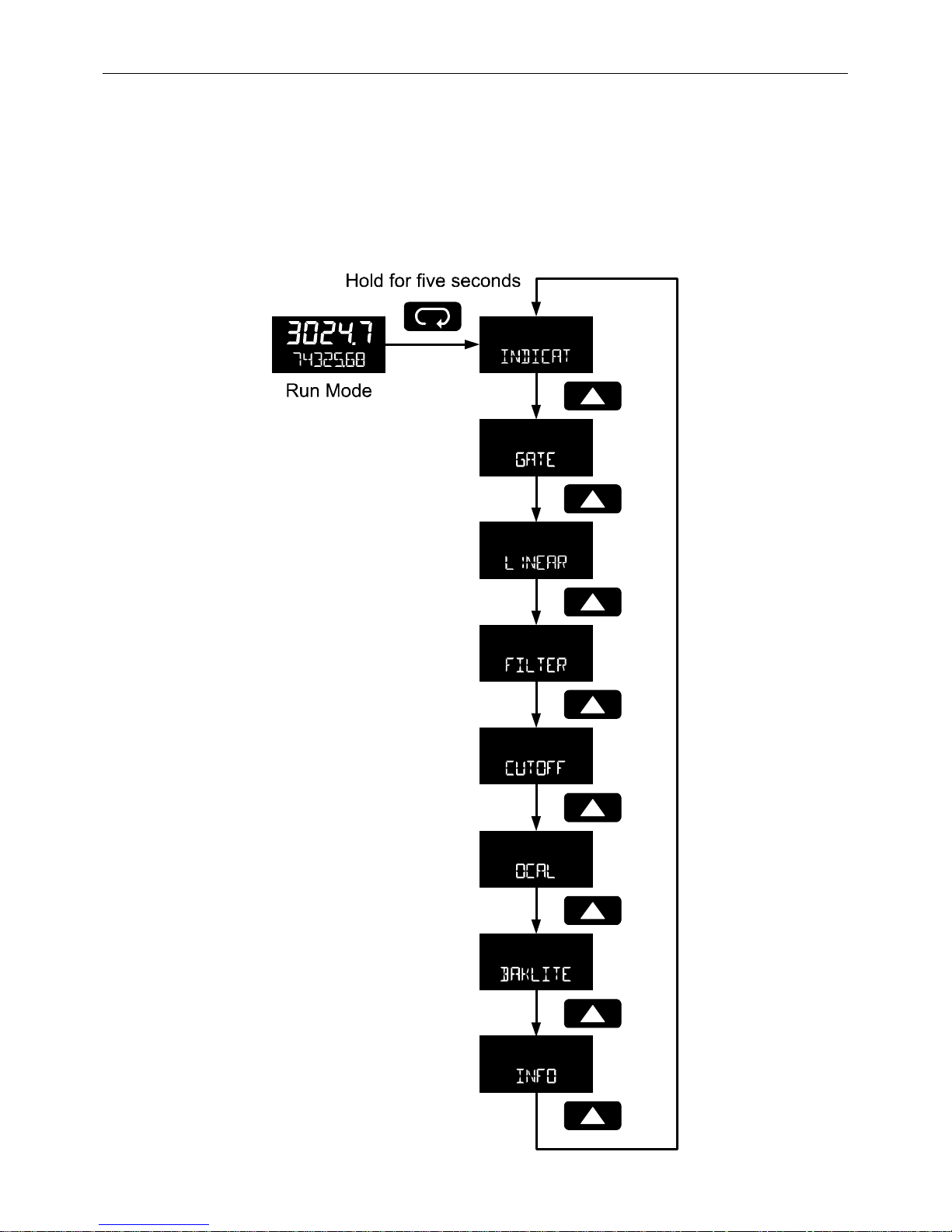

Advanced Features Menu ---------------------------------------------------------------- 40
Advanced Features Menu & Display Messages ........................................ 41
Indication (INDICAT) .................................................................................. 42
Gate Function (Gate) ................................................................................. 43
Multi-Point Linearization (LINEAR) ............................................................. 44
Contact Debounce Filter (FiLter) ............................................................. 46
Low-Flow Cutoff (CUTOFF) ......................................................................... 46
Output Internal Calibration (OCAL) ............................................................. 46
Backlight (BAKLITE) ................................................................................... 46
Information (INFO) ..................................................................................... 46
Servicing the Meter (SERVICE) ---------------------------------------------------------- 47
OPERATION -------------------------------------------------------------------------- 48
Front Panel Buttons Operation -------------------------------------------------------- 48
Resetting the Total ------------------------------------------------------------------------- 48
Maximum & Minimum Readings (MAXIMUM & MINIMUM) ------------------------ 49
Reset Meter to Factory Defaults ------------------------------------------------------- 49
Factory Defaults & User Settings ----------------------------------------------------- 50
TROUBLESHOOTING ------------------------------------------------------------- 51
Troubleshooting Tips ---------------------------------------------------------------------- 51
MOUNTING DIMENSIONS -------------------------------------------------------- 52

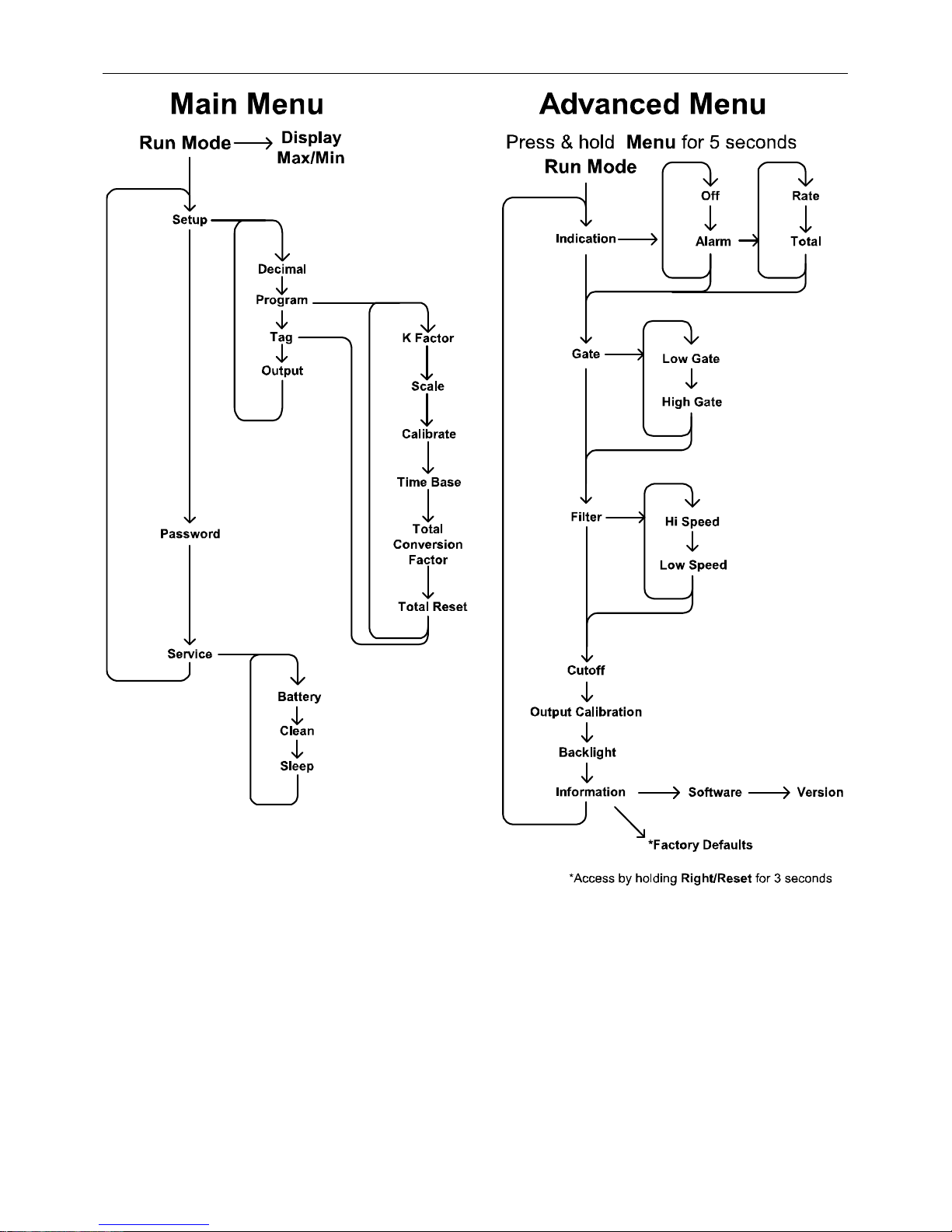

QUICK USER INTERFACE REFERENCE ------------------------------------ 54
EC DECLARATION OF CONFORMITY --------------------------------------- 56
Table of Figures

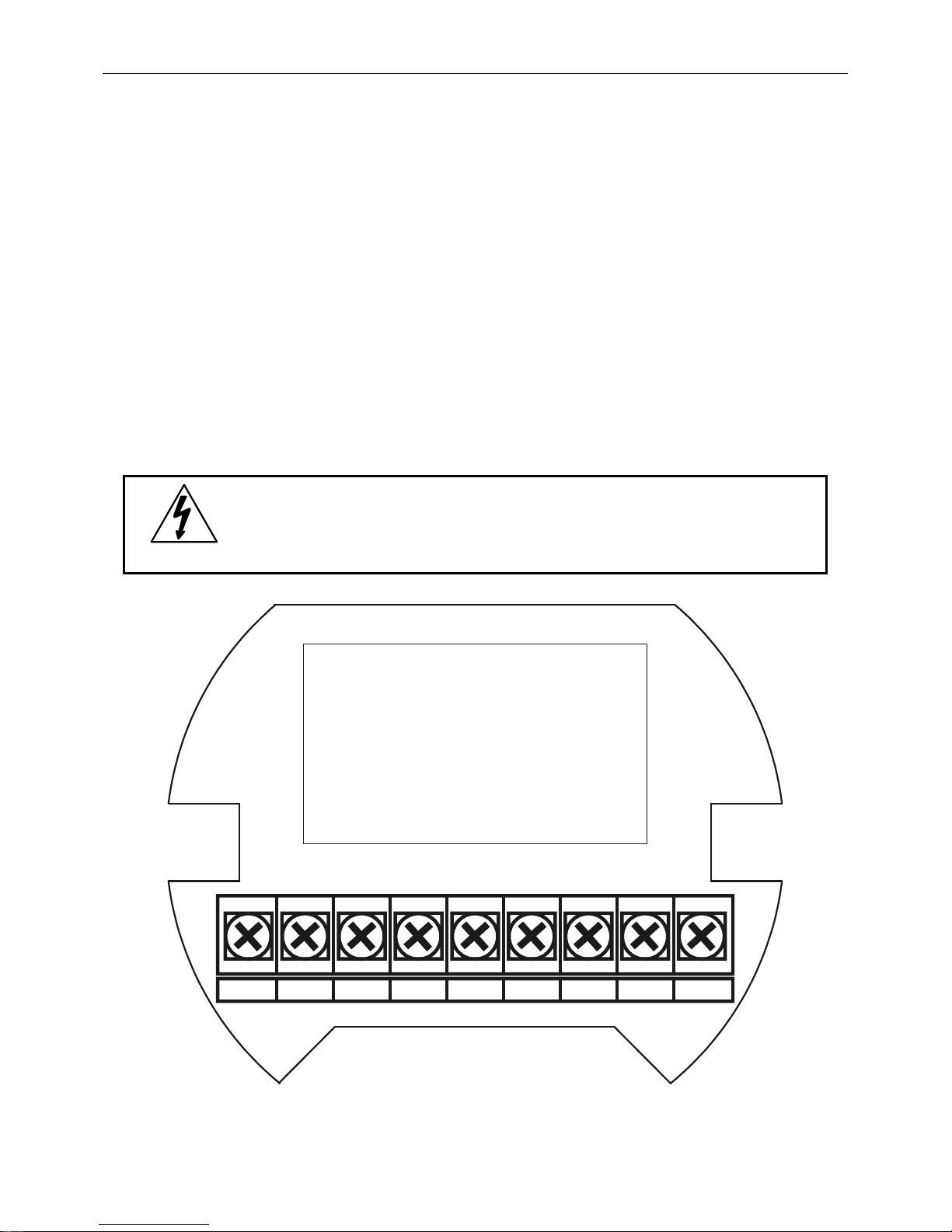

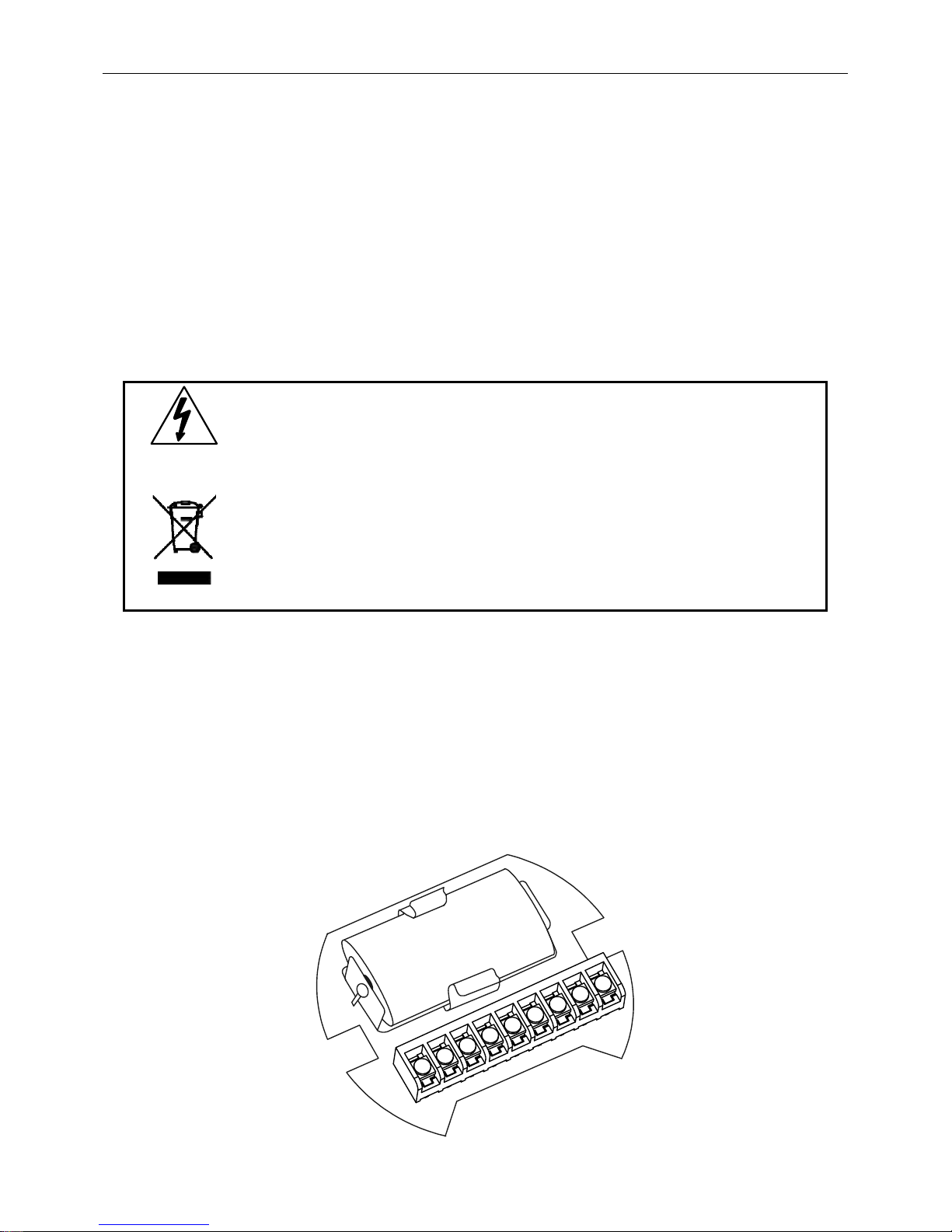

Figure 1. PD6830 Connector Board ........................................................ 14

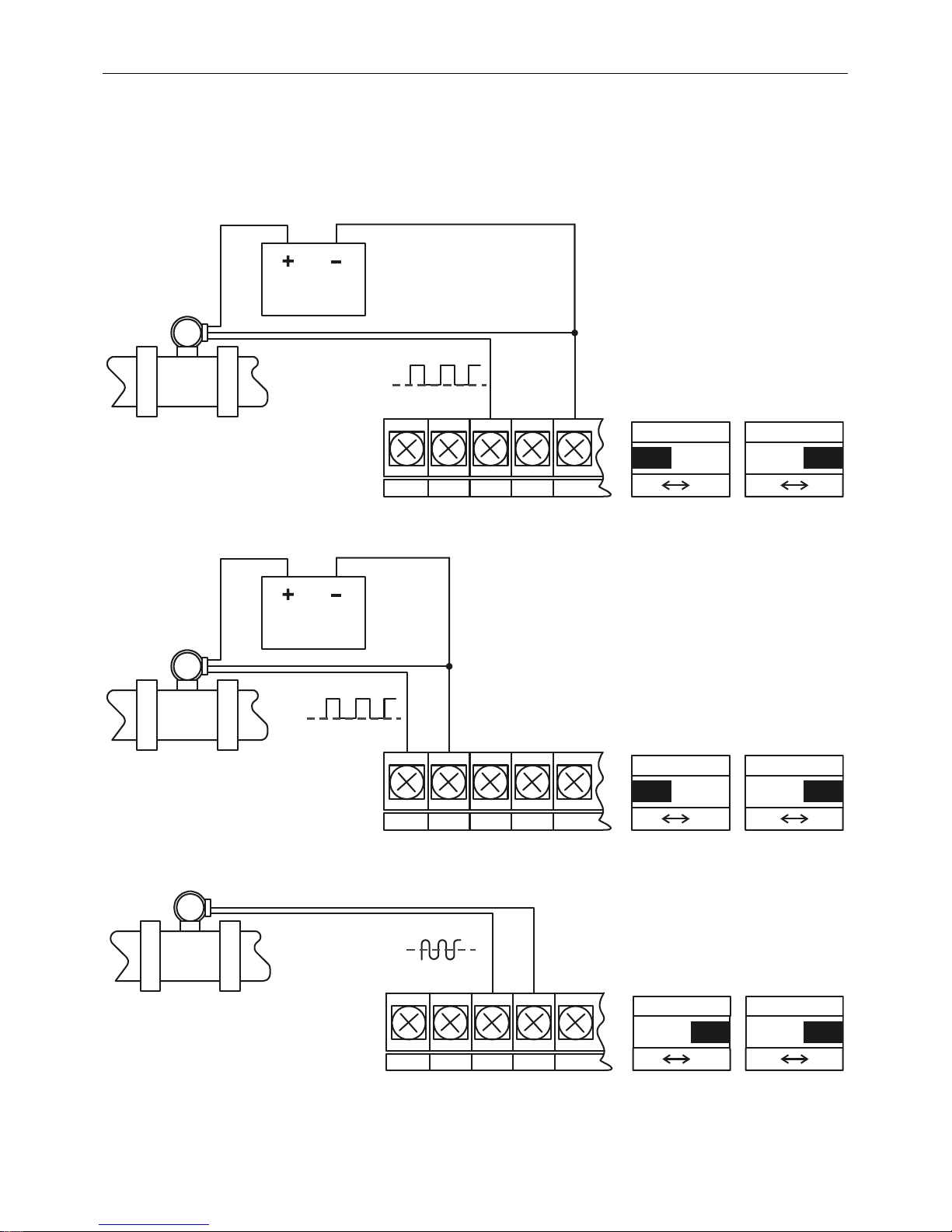

Figure 2. Flowmeter Powered by External Supply ................................ 15
Figure 3. Opto-Isolated Flowmeter Powered by External Supply ........ 15
Figure 4. Self-Powered Magnetic Pickup Coil Flowmeter ..................... 15

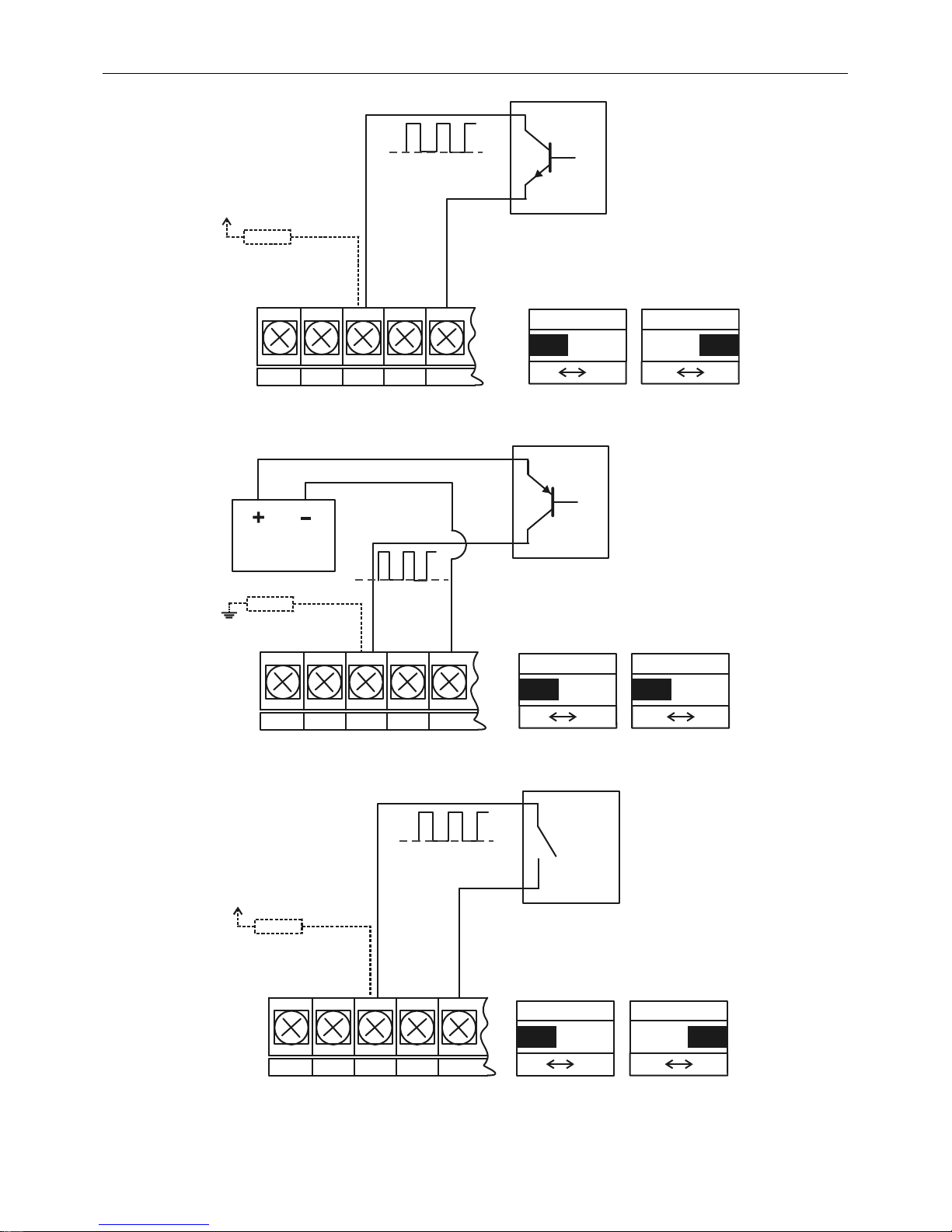

Figure 5. NPN Open Collector Input ....................................................... 16
Figure 6. PNP Sensor with External Power ............................................ 16
Figure 7. Switch Contact Input ................................................................ 16

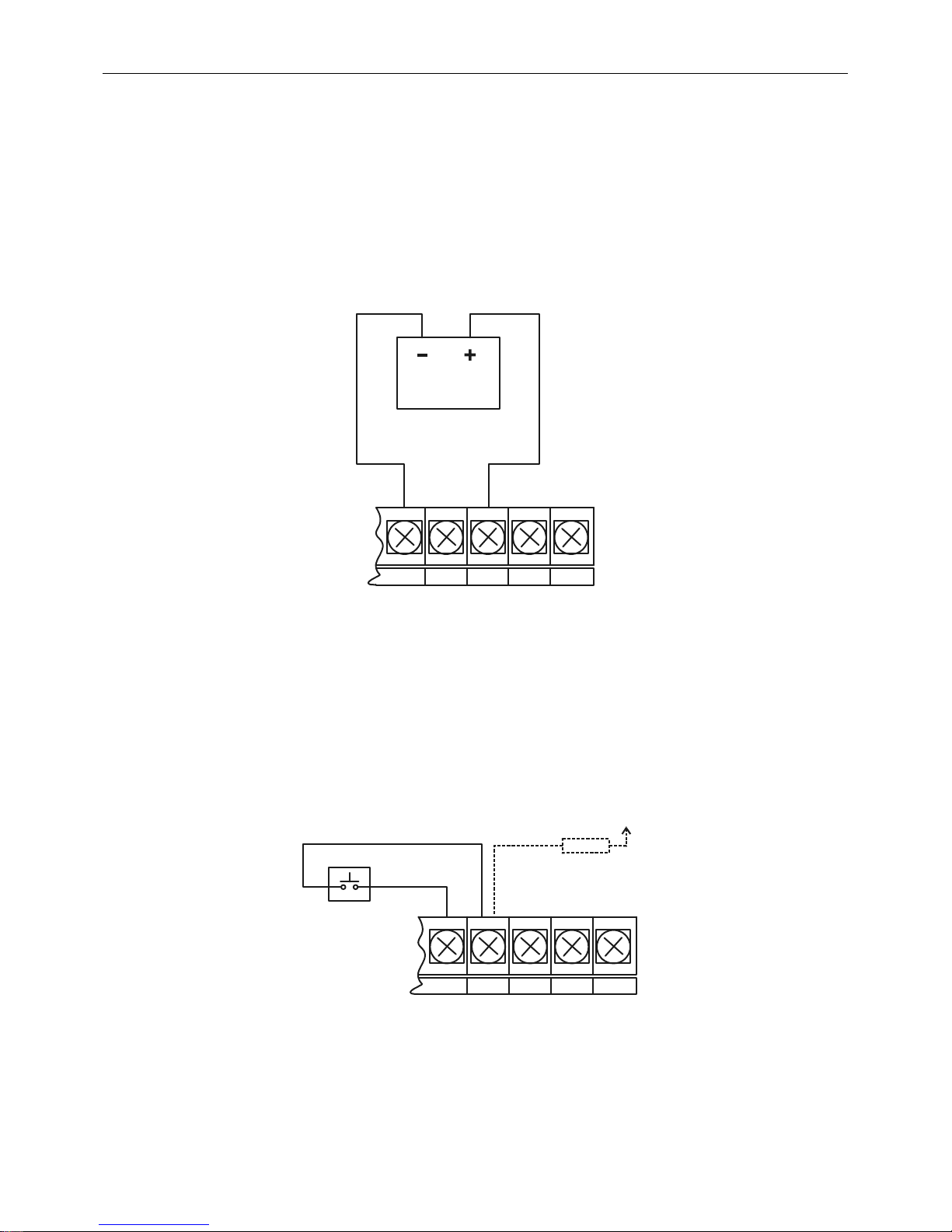

Figure 8. DC Power Connections ............................................................ 17
Figure 9. PD6830 Reset Connections ..................................................... 17

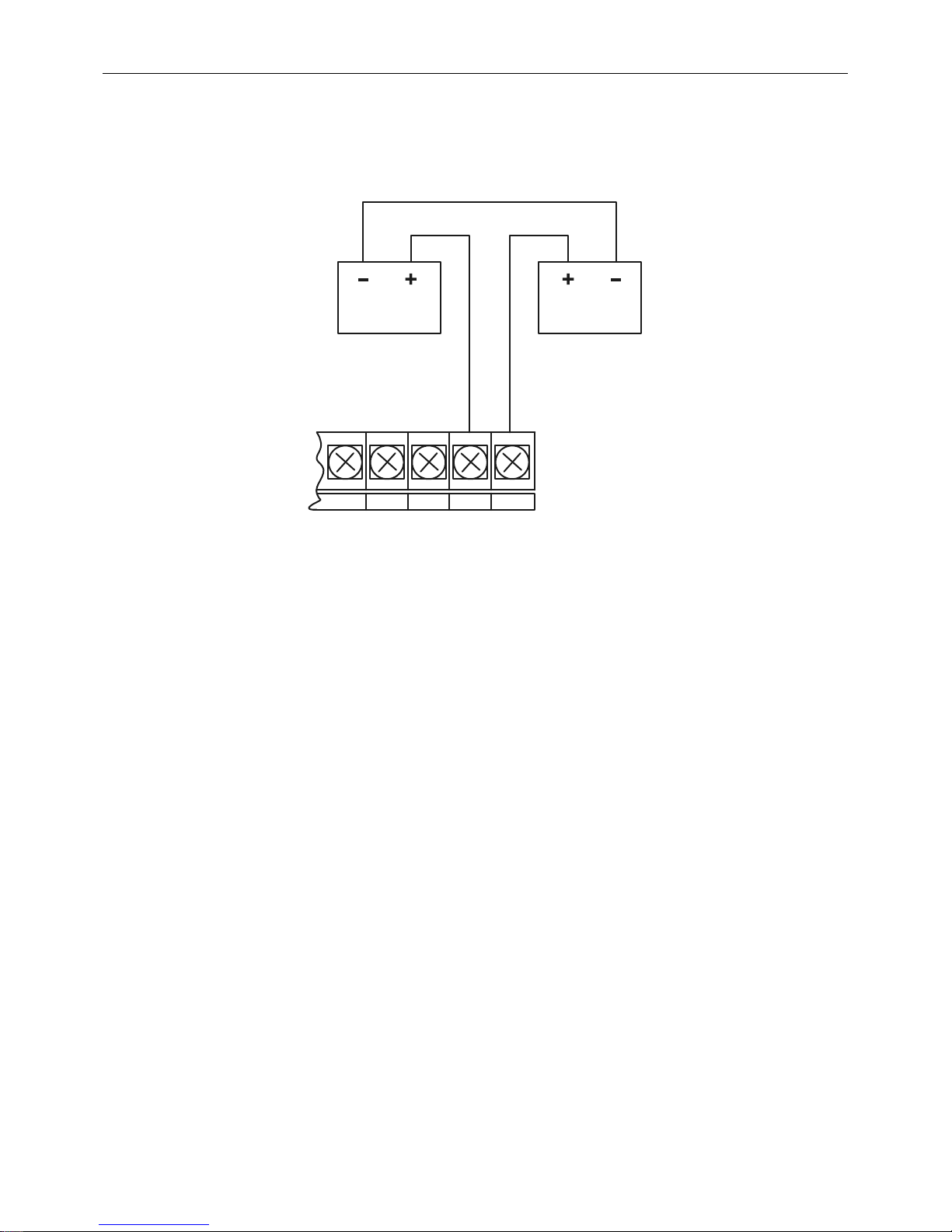

Figure 10. 4-20 mA Output Connections ................................................ 18
Figure 11. Battery Orientation ................................................................. 19
Figure 12. Scale Menu .............................................................................. 31
Figure 13. Multi-Point Linearization Menu ............................................. 45

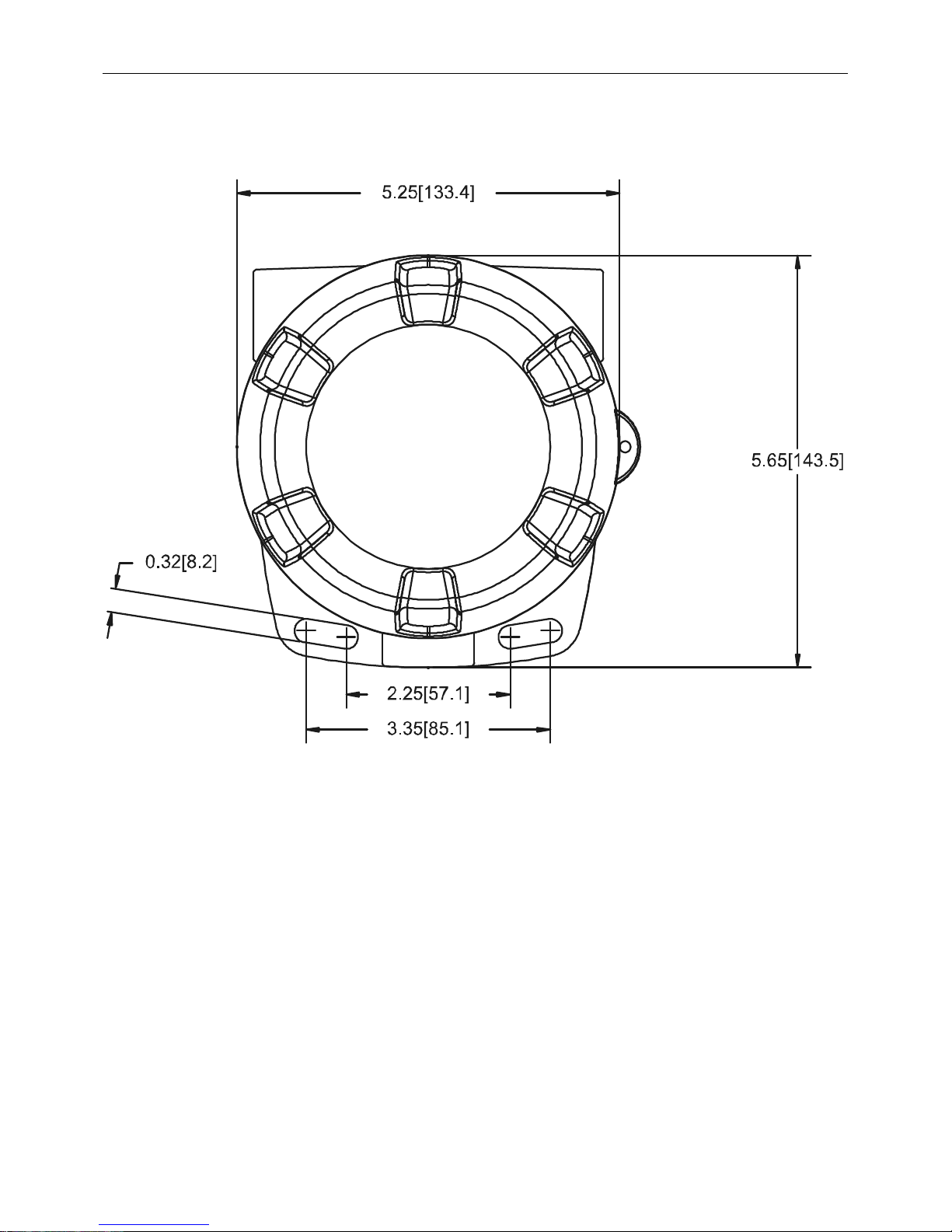

Figure 13. Enclosure Dimensions – Front View..................................... 52

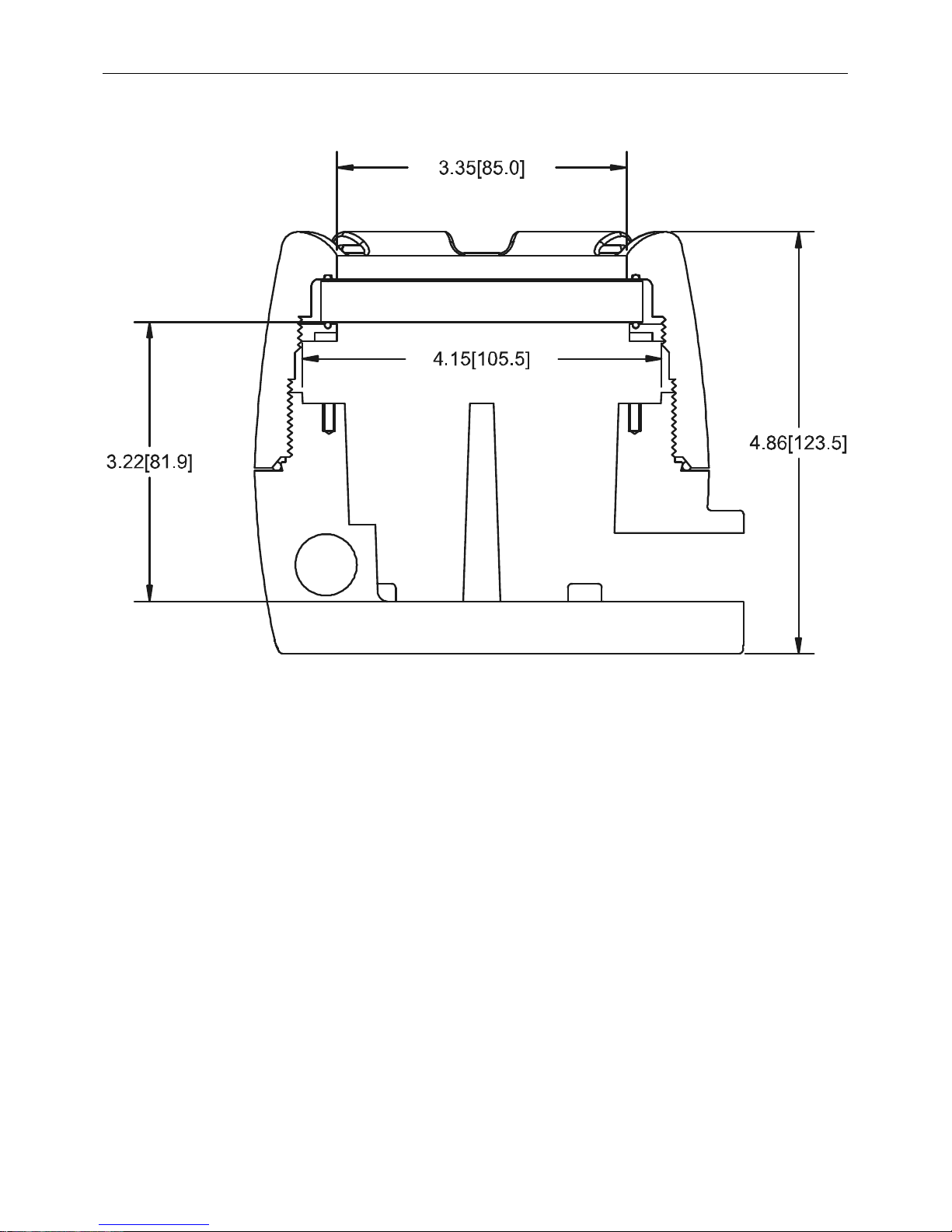

Figure 14. Enclosure Dimensions – Side Cross Section View ............. 53
Page 6
PD6830 Pulse Input Rate/Totalizer Instruction Manual
6
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY Five digits rate
(-9999 to 99999)
0.7" (17.8 mm) high, 7-segment,
automatic lead zero blanking.
Seven characters
Total and/or Tag
0.4" (10.2 mm) high, 14 segment,
automatic lead zero blanking.
Symbols High, Low, & Set Alarm, Password Lock
DISPLAY
UPDATE RATE
Ambient > -25°C: 1 Updates/Second
Ambient < -25°C: 1 Update/5 Seconds
Note: Update is dependent on gate settings.
OVERRANGE
Display flashes
99999
BACKLIGHT White LED, 10 sec auto-off for battery powered models.
PROGRAMMING
METHODS
Four SafeTouch® through-glass buttons when cover is
installed. Four internal pushbuttons when cover is removed.
RECALIBRATION All ranges are calibrated at the factory to read frequency in
Hz. No recalibration required.
MAX/MIN
DISPLAY
Max/Min readings reached by the process are stored until
reset by the user or until power to the meter is cycled.
PASSWORD Programmable password restricts modification of programmed
settings and manual total reset via button interface.
NON-VOLATILE
MEMORY
All programmed settings and total reading are stored in nonvolatile memory for a minimum of ten years if power is lost.
POWER OPTIONS 9-30 VDC, 2.2 W max
4-20 mA Transmitter Output Power, 30 VDC max
Battery Power
DC Power with battery backup
BATTERY 3.6 V Primary Lithium (Li-SOCl2), non-rechargeable
Expected Service Life: 5 Years
Recommended
Replacement Interval:
3 Years when exclusive source
10 Years in backup configuration
Model PDABAT36D
ISOLATION All Models: 500 V opto-isolated input-to-power/output
PD6830-BTA: 500 V input-to-output
PD6830-APA: 500 V input/power-to-output
Note: Requires separate output supply
Page 7
PD6830 Pulse Input Rate/Totalizer Instruction Manual
7
ENVIRONMENTAL Operating temperature range: -40 to 75°C (-20° to 75°C on
battery powered models)
Storage temperature range: -40 to 75°C
Relative humidity: 0 to 90% non-condensing
CONNECTIONS Screw terminals accept 12 to 22 AWG wire
ENCLOSURE
Explosion-proof die cast aluminum with glass window,
corrosion resistant epoxy coating, color: blue. NEMA 4X, 7, &
9, IP68.
Three ¾" NPT threaded conduit openings. One ¾" NPT metal
conduit/stopping plug with 12 mm hex key fitting installed.
MOUNTING May be mounted directly to conduit. Two slotted flanges for
wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe
mounting. See Mounting Dimensions on page 52.
OVERALL
DIMENSIONS
5.65" x 5.25" x 4.86" (W x H x D)
(144 mm x 133 mm x 124 mm)
WEIGHT 5.00 lbs (80 oz, 2.27 kg)
WARRANTY 3 years parts and labor
Rate Input
PULSE/
TRANSISTOR/
CONTACT CLOSURE
INPUT
Field selectable; Sourcing or sinking pulse or square wave
0-5 V, 0-12 V, or 0-24 V; TTL; NPN or PNP transistor;
Open collector 100 kΩ pull-up to 3 V;
Switch contact 100 kΩ pull-up to 3 V;
PNP transistor 100 kΩ pull-down to ground (COM)
Maximum Frequency: 30 kHz
Minimum Pulse Width: 16 µs
OPTO-ISOLATED
INPUT
Sourcing pulse or square wave 0-5 V, 0-12 V, or 0-24 V;
Logic High: 4-30 V, Logic Low: < 1 V
Maximum Frequency: 10 kHz
Minimum Pulse Width: 50 µs
Input Current: 1 mA @ 5 V, 2.5 mA @ 12 V, 5 mA @ 24 V
LOW VOLTAGE MAG
PICKUP INPUT
Sensitivity: 40 mVp-p to 24 Vp-p
Maximum Frequency: 30 kHz
MINIMUM INPUT
FREQUENCY
0.001 Hz
Minimum frequency is dependent on high gate setting.
INPUT
IMPEDANCE
Pulse input: Greater than 300 k @ 1 kHz.
Open collector/switch input: 100 k pull-up to 3 V.
ACCURACY ±0.03% of calibrated span ±1 count
TEMPERATURE
DRIFT
Rate display is not affected by changes in temperature.
Page 8
PD6830 Pulse Input Rate/Totalizer Instruction Manual
8
LOW-FLOW CUTOFF 0-99999 (0 disables cutoff function)
DECIMAL POINT Up to five decimal places or none:
d.dddd, d.ddd, d.dd, d.d, or dddddd
CALIBRATION May be calibrated using K-Factor, scale without signal
source, internal calibration, or by applying an external
calibration signal.
K-FACTOR Field programmable K-Factor converts input pulses to rate in
engineering units. May be programmed from 0.000001 to
9999999 pulses/unit.
CALIBRATION
RANGE
Input 1 signal may be set anywhere in the range of the meter; input 2 signal may be set anywhere above input 1 setting. Minimum input span is 1 Hz.
An Error message will appear if the input 1 and input 2
signals are too close together.
CONTACT
DEBOUNCE FILTER
Programmable contact debounce filter: 40 to 999 Hz maximum input frequency allowed with low speed filter.
TIME BASE Second, minute, hour, or day
GATE Low gate: 1-99 seconds; High gate: 2-999 seconds
Rate/Totalizer
DISPLAY
ASSIGNMENT
The top display is assigned to rate. The bottom display is
programmable to alternate between total for 10 seconds,
then the tag for 2 seconds or to show only the total or to
show only the tag.
TOTAL
DECIMAL POINT
Up to six decimal places or none:
d.dddddd, d.ddddd, d.dddd, d.ddd, d.dd, d.d or
ddddddd
Total decimal point is independent of rate decimal point.
TOTALIZER Calculates total based on rate and field programmable mul-
tiplier to display total in engineering units. Time base must
be selected according to the time units in which the rate is
displayed.
TOTAL RESET Via SafeTouch® RESET button, mechanical button (cover
off), external contact closure, automatically via user selectable preset value and time delay. Manual reset may be
disabled or protected by password.
TOTALIZER
ROLLOVER
Totalizer rolls over when display exceeds 9,999,999.
Page 9
PD6830 Pulse Input Rate/Totalizer Instruction Manual
9
4-20 mA Transmitter Output
OUTPUT
SOURCE
Rate or total
SCALING RANGE 4.000 to 20.000 mA for any display range.
CALIBRATION Factory Calibrated: 0.0 to 1000.0 = 4-20 mA output
UNDERRANGE Output Underrange: 3.8 mA
OVERRANGE Display Overrange: 22.0 mA
Output Overrange: 20.5 mA
ACCURACY ± 0.1% span ± 0.0 04 m A
TEMPERATURE
DRIFT
0.4 µA/C max from 0 to 65C ambient,
0.8 µA/C max from -40 to 0C ambient
Note: Analog output drift is separate from input drift.
EXTERNAL LOOP
POWER SUPPLY
30 VDC maximum
OUTPUT LOOP
RESISTANCE
Power supply Minimum Maximum
24 VDC
10 700
30 VDC
100 1200
Note: loop-powered backlight subtracts 150
from
maximum resistance figures above.
Page 10
PD6830 Pulse Input Rate/Totalizer Instruction Manual
10
Product Ratings and Approvals
FM Class I, Division 1, Groups B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1; T6
Class I, Zone 1, AEx d IIC T6 Gb
Zone 21, AEx tb IIIC T85°C
Ta = -40°C to +75°C
Enclosure: Type 4X & IP66
Certificate number: 3040391
ATEX
II 2 G D
Ex d IIC T6 Gb
Ex tb IIIC T85°C Db IP68
Ta = -40°C to +75°C
ATEX Certificate: Sira 10ATEX1116X
CSA
Class I, Division 1, Groups B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1; T6
Class I, Zone 1, Ex d IIC T6
Ta = -40°C to +75°C
Enclosure: Type 4X & IP66
Certificate number: 11 2325749
IECEx
IECEx SIR 10.0056X
Ex d IIC T6 Gb
Ex tb IIIC T85°C Db IP68
Ta = -40°C to +75°C
Special Conditions for Safe Use:
Use suitably certified and dimensioned cable entry device and/or plug. The
equipment shall be installed such that the supply cable is protected from mechanical
damage. The cable shall not be subjected to tension or torque. If the cable is to be
terminated within an explosive atmosphere, then appropriate protection of the free
end of the cable shall be provided.
Year of Construction
This information is contained within the serial number with the first four digits
representing the year and month in the YYMM format.
For European Community: The PD6830 must be installed in accordance with the
ATEX directive 94/9/EC, and the product certificate Sira 10ATEX1116X.
Page 11
PD6830 Pulse Input Rate/Totalizer Instruction Manual
11
Electromagnetic Compatibility
EMISSIONS
EN 61326:2006
Safety requirements for measurement, control, and
laboratory use – Industrial
Group 1 Class A ISM emissions requirements
Radiated
Emissions
Class A
IMMUNITY
EN 61326:2006
Safety requirements for measurement, control, and
laboratory use
ESD
±4 kV contact,
±8 kV air
RFI – Amplitude
Modulated
80-1000 MHz @ 10 V/m,
1.4-2.0 GHz @ 3 V/m,
2.0-2.7 GHz @ 1 V/m,
80% AM (1 kHz)
EFT
±2 kV DC mains, ±1 kV other
Telco Surge
±1 kV
CRFI
3 V, 0.15-80 MHz, 1 kHz 80% AM
SAFETY INFORMATION
WARNINGS
Read complete instructions prior to installation and operation of the meter.
Installation and service should be performed only by trained service
personnel. Service requiring replacement of internal components must be
performed at the factory.
Disconnect from supply before opening enclosure. Keep cover tight while
circuits are alive. Conduit seals must be installed within 18" (450mm) of
the enclosure.
Verify that the operating atmosphere of the meter is consistent with the
appropriate hazardous locations certifications.
If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead
Page 12
PD6830 Pulse Input Rate/Totalizer Instruction Manual
12
INSTALLATION
For Installation in USA: The PD6830 must be installed in accordance with the
National Electrical Code (NEC) NFPA 70.
For Installation in Canada: The PD6830 must be installed in accordance with the
Canadian Electrical Code CSA 22.1.
For European Community: The PD6830 must be installed in accordance with the
ATEX directive 94/9/EC and the product certificate Sira 10ATEX116X.
WARNING
Disconnect from supply before opening enclosure. Keep cover
tight while circuits are alive. Conduit seals must be installed within
18" (450mm) of the enclosure.
Wiring connectors are accessed by opening the enclosure. Cover jam screw may
need to be loosened on the cover. To access electrical connectors, remove the 2
captive screws, then disconnect the ribbon cable from the display module and set the
display module aside.
Unpacking
Remove the meter from box. Inspect the packaging and contents for damage. Report
damages, if any, to the carrier. If any part is missing or the meter malfunctions,
please contact your supplier or the factory for assistance.
Pre-Installed Conduit/Stopping Plug
The PD6830 is supplied with one pre-installed conduit/stopping plug for installations
that do not require the use of all three conduit entries. The conduit/stopping plug
includes an internal hexagonal socket recess for removal. The pre-installed plug and
its installation are included in the hazardous area approvals for the PD6830. The
conduit/stopping plug has an internal 12 mm hexagonal socket recess for removal.
For additional conduit/stopping plugs, see ORDERING INFORMATION on page 3.
WARNING
In hazardous areas, conduit and conduit/stopping plugs require the
application of non-setting (solvent free) thread sealant. It is critical
that all relevant hazardous area guidelines be followed for the
installation or replacement of conduit or plugs.
Page 13
PD6830 Pulse Input Rate/Totalizer Instruction Manual
13
Mounting
The PD6830 has two slotted mounting flanges that may be used for pipe mounting or
wall mounting. Alternatively, the unit may be supported by the conduit using the
conduit holes provided.
Refer to Mounting Dimensions, page 52 for details.
WARNING
Do not attempt to loosen or remove flange bolts while the meter is
in service.
Cover Jam Screw
The cover jam screw should be properly installed once the meter has been wired and
tested in a safe environment. The cover jam screw is intended to prevent the removal
of the meter cover in a flameproof environment without the use of tools. Using a M2
hex wrench, turn the screw clockwise until the screw contacts the meter. Turn the
screw an additional 1/4 to 1/2 turn to secure the cover. Caution: Excess torque may
damage the threads and/or wrench.
Connections
WARNINGS
Static electricity can damage sensitive components.
Observe safe handling precautions for static-sensitive components.
Use proper grounding procedures/codes.
If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead or
terminal.
To access the connectors, loosen the cover jam screw (if tightened) with an M2 hex
wrench, remove the enclosure cover and unscrew the two captive screws that fasten
the display module into the enclosure. Disconnect the ribbon cable and remove the
display module. Power and signal connections are made to a barrier terminal
connector in the base of the enclosure. Grounding connections are made to the two
ground screws provided on the base – one internal and one external. Use proper
grounding techniques for explosion-proof areas and observe all local and national
electric codes.
Page 14
PD6830 Pulse Input Rate/Totalizer Instruction Manual
14
Connections (continued)
ISO+ Isolated signal input positive terminal connection.
ISO- Isolated signal return/negative terminal connection.
S+ Signal input positive terminal connection.
S- Magnetic pickup (coil) signal return/negative terminal connection.
COM Signal return/negative, DC power return/negative, Contact closure reset
return/negative terminal connection.
RST+ Contact closure reset pull-up to 3 VDC.
P+ DC Power positive terminal connection.
LP+ 4-20 mA transmitter DC power positive terminal connection.
LP- 4-20 mA transmitter regulated current output terminal connection.
Refer to Figure 1 for terminal positions.
WARNING
Observe all safety regulations. Electrical wiring should be
performed in accordance with all agency requirements and
applicable national, state, and local codes to prevent damage to
the meter and ensure personnel safety.
ISO+ ISO- S+ S- COM RST+ P+ LP+ LP-
Figure 1. PD6830 Connector Board
Page 15
PD6830 Pulse Input Rate/Totalizer Instruction Manual
15
Input Signal Connections
Signal connections are made to a barrier terminal mounted in the base of the
enclosure. Input level and type are configured using two slide switches on the bottom
of the display module as shown in the lower right of the following figures.
ISO+ ISO- S+ S- COM
Flowmeter
(Pulse Output)
Power
Supply
V mV
INPUT LEVEL
PNP NPN
INPUT TYPE
Figure 2. Flowmeter Powered by External Supply
ISO+ ISO- S+ S- COM
Flowmeter
(Pulse Output)
Power
Supply
V mV
INPUT LEVEL
PNP NPN
INPUT TYPE
Figure 3. Opto-Isolated Flowmeter Powered by External Supply
V mV
INPUT LEVEL
ISO+
ISO- S+ S- COM
Flowmeter
(Magnetic Pickup Coil)
PNP NPN
INPUT TYPE
Figure 4. Self-Powered Magnetic Pickup Coil Flowmeter
Page 16
PD6830 Pulse Input Rate/Totalizer Instruction Manual
16
ISO+ ISO- S+ S- COM
+3.0 V
100 kOhm
Internal Pullup
NPN
SENSOR
V mV
INPUT LEVEL
PNP NPN
INPUT TYPE
Figure 5. NPN Open Collector Input
ISO+ ISO- S+ S- COM
100 kOhm
Internal Pull-Down
PNP
SENSOR
Power
Supply
V mV
INPUT LEVEL
PNP NPN
INPUT TYPE
Figure 6. PNP Sensor with External Power
ISO+ ISO- S+ S- COM
+3.0 V
100 kOhm
Internal Pullup
SWITCH
CONTACT
V mV
INPUT LEVEL
PNP NPN
INPUT TYPE
Figure 7. Switch Contact Input
Page 17
PD6830 Pulse Input Rate/Totalizer Instruction Manual
17
DC Power Connection
Models configured for DC power (P D68 30-A) are pro vided with a termina l labe led P+
and are wired as shown in Figure 9. Models configured for battery power (PD6830-B)
may optionally be connected to DC power and the battery will function as backup power
when DC is lost. The same power supply may be used to power other circuits including
a PNP-type sensor, however to maintain input isolation, a separate power supply must
be used to power the iso la ted 4-20 m A tra nsmi tter as shown in Figure 10 and/or to
power the Opto-Isolated Flowmeter as shown in Figure 3.
COM RST+ P+ LP+ LP-
Power
Supply
Figure 8. DC Power Connections
External Reset Connection
External reset connections are made between RST+ and COM. Connect to a contact
closure source such as a relay or a pushbutton as shown in Figure 9. Avoid extended
contact closure to preserve battery life. The total is reset when he button is pressed.
The meter will start to totalize immediately. Holding down the button has no effect on
the total.
COM RST+ P+ LP+ LP-
+3.0
V
100 kOhm
Internal Pullup
Figure 9. PD6830 Reset Connections
Page 18
PD6830 Pulse Input Rate/Totalizer Instruction Manual
18
4-20 mA Transmitter Output Connections
Output connections are made to two terminals labeled LP+ and LP-. Connect to an
input device such as a remote display or chart recorder as shown in Figure 10.
COM RST+ P+ LP+ LP-
Power
Supply
4-20 mA Input
Device
Figure 10. 4-20 mA Output Connections
Page 19
PD6830 Pulse Input Rate/Totalizer Instruction Manual
19
Battery Replacement
Battery-equipped models have a battery charge monitor. When the battery is nearing
the end of its capacity the screen will periodically flash the message LO BATTERY. The
recommended replacement interval for models using the battery as a primary power
source (without DC power at P+ termin al) is th ree y ear s or wi thin 30 day s of th e firs t low
battery indication on the screen. Replacement interval on models that use battery as
backup during short and inf requ ent DC power loss is t en year s. The t ota l is ba cked up
in non-volatile memory when the low battery monitor trips. It is recommended that an
updated reading be manually backed up prior to changing out the battery. Refer to
information on preparing the meter for battery change in Servicing the Meter (SERVICE)
on page 47 before changing battery.
WARNING
Fire, explosion and burns may result if not handled properly. Do
not recharge, short circuit, crush, disassemble, heat above 100°C
(212°F), incinerate, or expose contents to water.
Battery disposal should be in accordance with applicable
regulations, which vary by location. In many locations trashing of
used batteries is forbidden and disposal is done through local
battery disposal facilities. Spent batteries should be packaged in
such a way as to prevent short circuits during handling and
transport.
NOTICE: Battery may only be replaced with an original Model PDABAT36D supplie d
by Precision Digital. Do not recharge battery. Do not replace with used battery.
Remove cover and display module and disconnect display module ribbon cable.
Carefully clip and remove the cable ties that were supplied for shipping (if present).
Remove the spent battery and prepare it for disposal.
Install new PDABAT36D into battery clip with polarity as shown in Figure 11.
Reconnect and fasten display module. Install enclosure cover.
Resume operation.
P
D
A
B
A
T
3
6
D
+
-
+
+
+
+
+
+
+
+
+
+
Figure 11. Battery Orientation
Page 20
PD6830 Pulse Input Rate/Totalizer Instruction Manual
20
SETUP AND PROGRAMMING
There is no need to recalibrate the meter for freq uency in
Hz when first received from the factory.
The meter is factory calibrated for Hz prior to shipment.
The calibration equipment is certified to NIST standards.
Overview
Setup and programming is done through the infrared through-glass SafeTouch®
buttons, or using the mechanical buttons when uncovered. There are three slide
switches located on the display module. Two are used to configure the input and the
other is to lock or unlock the SafeTouch
®
Buttons.
Page 21
PD6830 Pulse Input Rate/Totalizer Instruction Manual
21
SafeTouch® Buttons
The PD6830 is equipped with four sensors that operate as through-glass buttons so
that it can be programmed and operated without removing the cover (and exposing
the electronics) in a hazardous area. These buttons can be disabled for security by
selecting the LOCK setting on the switch located on the connector board in the base
of the enclosure. To actuate a button, press and remove one finger to the glass
directly over the marked button area. When the cover is removed, the four
mechanical buttons located next to the sensors are used. The sensors are disabled
when a mechanical button is pressed and will automatically be re-enabled after
60 seconds of inactivity.
The SafeTouch
®
Buttons are designed to filter normal levels of ambient interference
and to protect against false triggering, however, it is recommended that the
SafeTouch
®
Buttons be disabled (slide switch to LOCK) if there is an infrared
interference source in line-of-sight to the display or if the buttons are not needed.
SafeTouch
®
Button Tips:
To remove cover with power applied (safe area only), or to clean the window,
select CLEAN from the SERVICE menu before opening the cover or cleaning the
glass. This will temporarily disable the SafeTouch
®
buttons for 60 seconds to
prevent inadvertent use. Use the mechanical buttons while the meter is open.
To the extent possible, install the display facing away from sunlight, windows,
reflective objects and any sources of infrared interference.
Keep the glass window clean.
Tighten the cover securely.
Use a password to prevent tampering.
After all connections have been completed and verified, connect the ribbon cable to
the display module, fasten the display module to the base, install enclosure cover,
and then apply power.
Page 22
PD6830 Pulse Input Rate/Totalizer Instruction Manual
22
Buttons and Display
A
CK
MAXRESET
MENU
Button
Symbol
Description Symbol Status
MEN
U
Menu HI High Alarm Set
RESET
Right arrow/Reset LO Low Alarm Set
MAX
Up arrow/Max SET Total Alarm Set
ACK
Enter/Ack
Password Enabled
Press the Menu button to enter or exit the Programming Mode at any time.
Press the Right arrow button to move to the next digit or decimal position during
programming.
Press the Up arrow button to scroll through the menus, decimal point,
or to increment the value of a digit.
Press the Enter/Ack button to access a menu or to accept a settin g.
Press and hold the Menu button for five seconds to access the Advanced fea-
tures of the meter.
Page 23
PD6830 Pulse Input Rate/Totalizer Instruction Manual
23
Main Menu Display Functions & Messages
The meter displays various functions and messages during setup, programming, and
operation. The following table shows the main menu functions and messages in the
order they appear in the menu.
Display Parameter Action/Setting
SETUP
Setup
Enter Setup menu
DeC..pt
Decimal point
Enter Decimal Point menu
Rate
Rate decimal
Set rate display decimal point
total
Total decimal
Set total display decimal point
PROG
Program
Enter the Program menu
Factr
K-Factor
Enter the K-Factor menu
sCalE
Scale
Enter the Scale menu
Cal
Calibrate
Enter the Calibrate menu
Inpt1
Input 1
Calibrate input 1 signal or program input 1 value
DspL1
Display 1
Program display 1 value
Inpt2
Input 2
Calibrate input 2 signal or program input 2 value
DsPl2
Display 2
Program display 2 value
Span
Error
Span
Error
Error, calibration not successful, check signal
TbASE
Time Base
Enter the Time Base menu
sec
Second
Units per second
min
Minute
Units per minute
hour
Hour
Units per hour
day
Day
Units per day
TotCF
Conversion
Factor
Enter the Conversion Factor menu
T rST
Total Reset
Enter the Total Reset menu
Auto
Automatic
Automatic Total Reset
T DELAY
Time Delay
Automatic Reset Time Delay
man
Manual
Manual Total Reset
Enabl
Enable
Enable Manual reset
Page 24
PD6830 Pulse Input Rate/Totalizer Instruction Manual
24
Display Parameter Action/Setting
dsabl
Disable
Disable Manual reset
tag
Tag/Units
Enter the Tag/Units Menu
ON
Tag On
Enable Tag/Units
OFF
Tag Off
Disable Tag/Units
togle
Tag Toggle
Toggle Tag and Total
A out
Transmitter
Output
Enter Transmitter Output menu
Rate
Rate output
Set rate as output variable
total
Total output
Set total as output variable
Dspl1
Display 1
Output display 1 value
Out 1
Output 1
Output 1 value
Dspl2
Display 2
Output display 2 value
Out 2
Output 2
Output 2 value
PASSWRD
Password
Enter the Password menu
UNLOCKD
Unlocked
Program password to lock meter
LOCKED
Locked
Enter password to unlock meter
99999
Flashing
display
Overrange condition
SERVICE
Service
Enter the Service menu
batt
Change Battery
Backup data and change battery
sleep
Sleep Mode
Low power sleep mode
CLean
Clean Mode
Select before removing/installing cover for service or to clean the glass window
Page 25
PD6830 Pulse Input Rate/Totalizer Instruction Manual
25
Main Menu
The main menu consists of the most commonly used functions: Setup, Program,
Password, and Service.
Press MENU button to enter Programming Mode then press the Up Arrow button to
scroll through the main menu.
Press MENU, at any time, to exit and return to Run Mode. Changes made to
settings prior to pressing Enter/ACK are not saved.
Changes to the settings are saved to memory only after pressing Enter/ACK.
The display moves to the next menu every time a setting is accepted by
pressing Enter/ACK.
Page 26
PD6830 Pulse Input Rate/Totalizer Instruction Manual
26

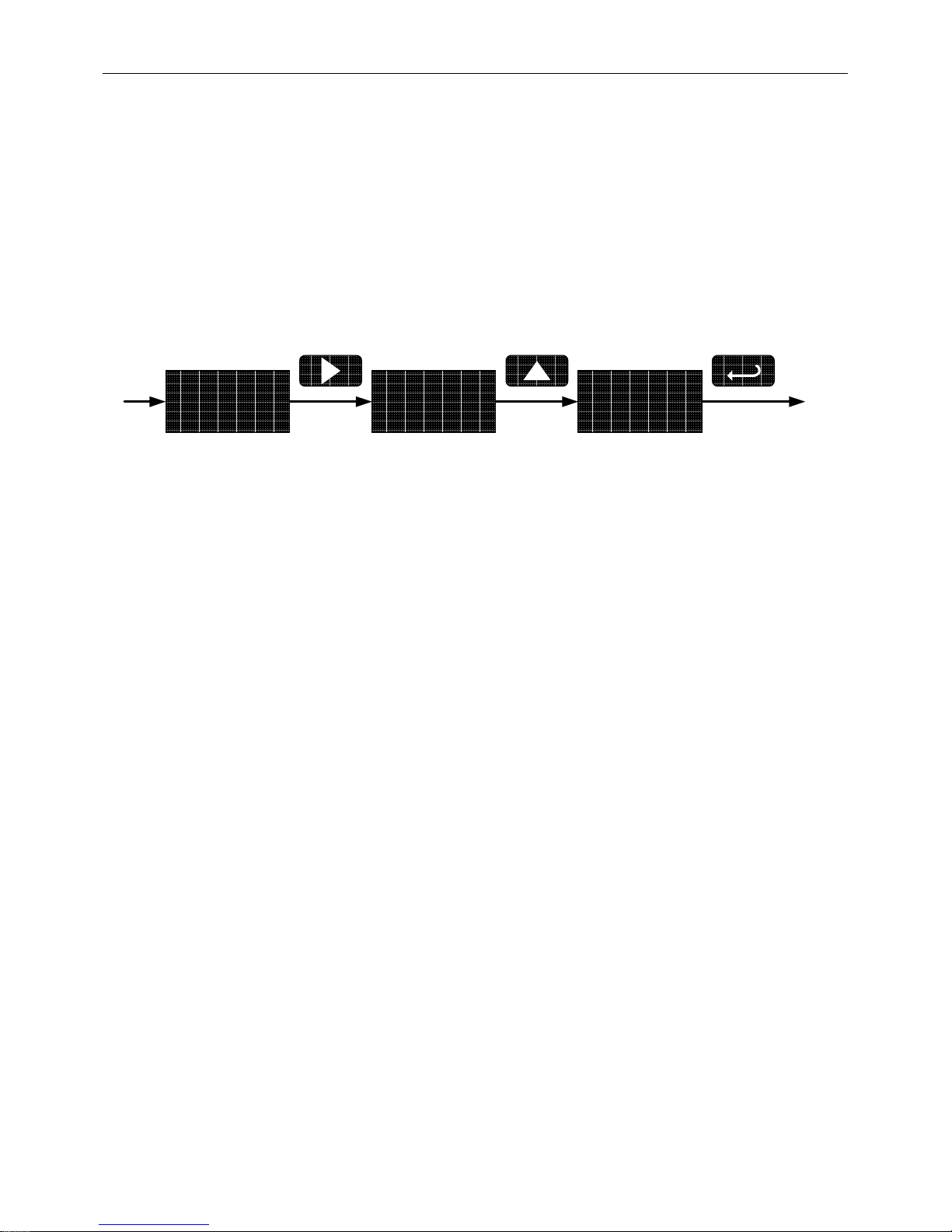

Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons. Press Right
arrow to select next digit and Up arrow to increment digit.
The digit being changed blinks.
Press the Enter/ACK button, at any time, to accept a setting or MENU button to exit
without saving changes.
The decimal point is set using the Right or Up arrow button in the Setup-decimal
point menu.
04.000
Select Next Digit
04.000 05.000
Increment Digit Accept Setting
Page 27
PD6830 Pulse Input Rate/Totalizer Instruction Manual
27
Setting Up the Meter (SETUP)
The Setup menu is used to select:
1. Rate and total decimal point position
2. Program menu
3. Rate and total tag display
4. 4-20 mA transmitter output scaling
Press the Enter/Ack button to access any menu or press Up arrow button to scroll
through choices. Press the Menu button to exit at any time.
A out displays only
for meters with
analog output option
Page 28
PD6830 Pulse Input Rate/Totalizer Instruction Manual
28

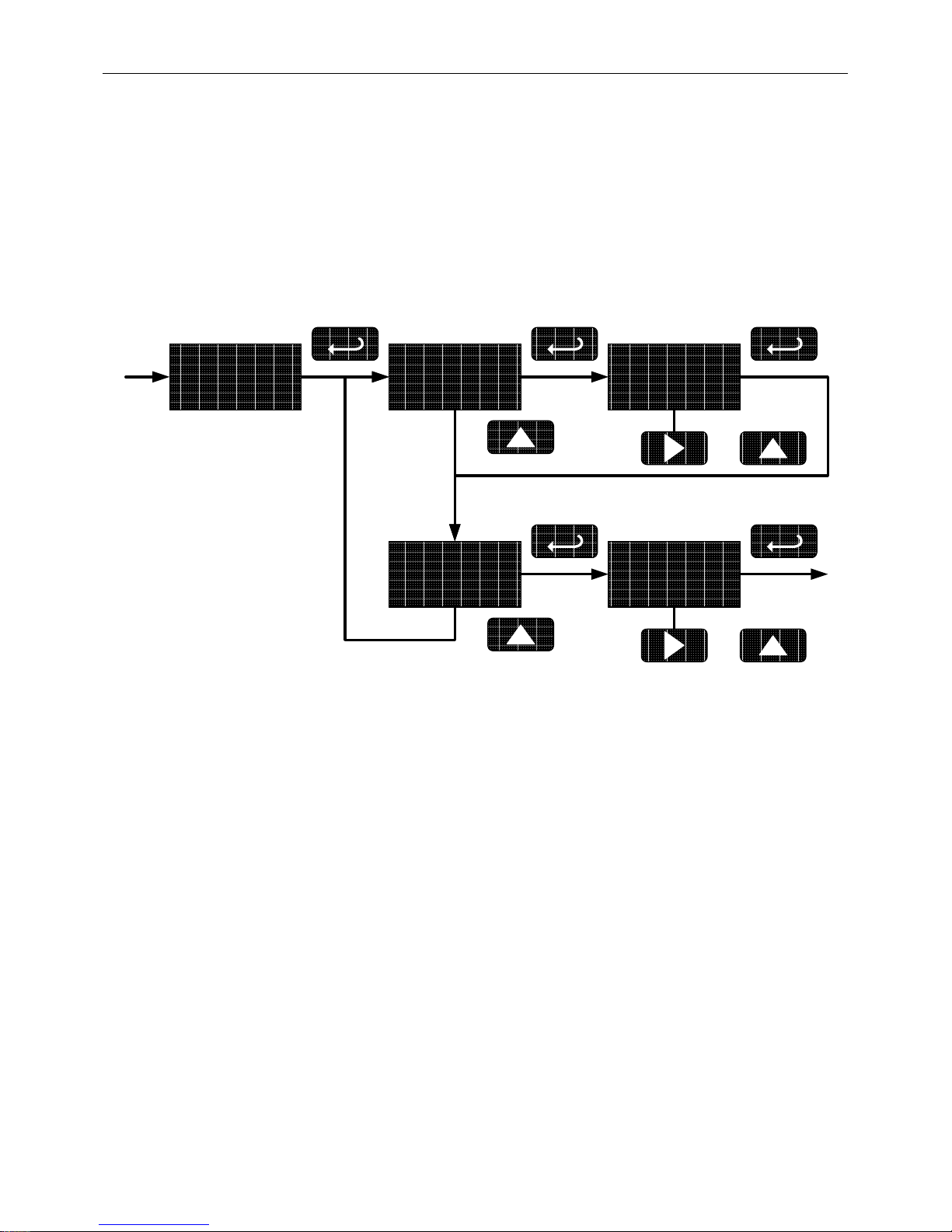

Setting the Decimal Point (dec.PT)
Rate decimal point may be set with up to four decimal places or with no decimal point
at all. Total decimal point may be set with up to six decimal places or with no decimal
point at all. Rate decimal and total decimal are programmed individually.
Pressing the Right arrow moves the decimal point one place to the right until no
decimal point is displayed. Pressing the Up arrow moves the decimal point one place
to the left.
dec.pt
SeTUP
RATE
DECIMAL
dd.ddd
RATE
TOTAL
DECIMAL
Select Total
Decimal Point
ToTAL
ddddd.dd
Select Rate
Decimal Point
or
or
Page 29
PD6830 Pulse Input Rate/Totalizer Instruction Manual
29
Programming the Meter (PRoG)
It is very important to read the following information, before proceeding to program
the meter:
There is no need to recalibrate the meter for frequency in Hz when first
received from the factory.
The meter is factory calibrated for Hz prior to shipment. The calibration
equipment is certified to NIST standards.
Use the Factor menu to enter a K-Factor - or
Use the Scale menu to enter the default 2-point scaling without a signal source - or
Use the Calibrate menu to apply a signal from a calibrator or a flowmeter for the
default 2-point scaling.
Note: The K-Factor, Scale, and Calibrate functions are exclusive of each other.
The meter uses the last function programmed. Only one of these methods can
be employed at a time. The Scale and Calibrate functions can use up to 32
points (default is 2). The number of points should be set in the Advanced menu
under the Multi-Point Linearization (LINEAR) menu selection prior to scaling and
calibration of the meter, see page 44 for details.
Additional parameters, not needed for most applications, are viewed and
programmed in the Advanced menu. See Advanced Features Menu page 40.
Page 30
PD6830 Pulse Input Rate/Totalizer Instruction Manual
30
K-Factor (Factr)
The meter may be scaled using the K-Factor function. Most flowmeter manufacturers
provide this information with the device. Enter the K-Factor (Factr) menu and select
the decimal point with highest resolution possible and program the K-Factor value
(i.e. pulses/gal). The meter will automatically calculate the flow rate using the
K-Factor and the time base selected and the following scaling selection will be
skipped.
Factr
PROGRAM
Factr
0001.000
Factr
dddd.ddd
Select Conversion
Factor Decimal Point
or
Enter
Conversion
Factor
Page 31
PD6830 Pulse Input Rate/Totalizer Instruction Manual
31
Scaling the Meter (SCale)
The pulse input can be scaled to display the process variable in engineering units.
A signal source is not needed to scale the meter; simply program the inputs and
corresponding display values.
Figure 12. Scale Menu
For instructions on how to program numeric values
see Setting Numeric Values, page 26.
Page 32
PD6830 Pulse Input Rate/Totalizer Instruction Manual
32
Calibrating the Meter (Cal)
To scale the meter without a signal source refer to
K-Factor (Factr) or Scaling the Meter (SCale) on
page 30.
The pulse input can be calibrated to display the process in engineering units by
applying the appropriate input signal and following the calibration procedure.
The use of a calibrated signal source is strongly recommended.
1. Press the Up arrow button to scroll to the Calibration menu (cAL) and press
Enter.
2. The meter displays inpt1. Apply a known signal and press Enter. The
display will flash while accepting the signal.
3. After the signal is accepted, the meter displays dspl1 Press Enter. Enter a
corresponding display value for the signal input, and press Enter to accept.
4. The meter displays inpt2. Apply a known signal and press Enter. The
display will flash while accepting the signal.
5. After the signal is accepted, the meter displays dspl2. Press Enter. Enter a
corresponding display value for the signal input and press Enter to accept.
6. After completing calibration the save? display will need to be
acknowledged using the Enter key before calibration will take effect.
Page 33
PD6830 Pulse Input Rate/Totalizer Instruction Manual
33
Error Message (Error)
An error message indicates that the ca libration or scaling process was n ot successful.
After the error message is displayed, the meter reverts to input 2 during calibration or
scaling, allowing the appropriate input signal to be applied or programmed.
The error message might be caused by any of the following conditions:
1. Input signal is not connected to the proper terminals or it is connected backwards.
2. Minimum input span requirements not maintained.
3. Input 1 signal inadvertently applied to calibrate input 2.
Minimum Input Span
The minimum allowed input span is 1 Hz, w hich is the minimum d ifference b etween input
1 and input 2 signals required to complete t he calibration or scaling of the meter.
Page 34
PD6830 Pulse Input Rate/Totalizer Instruction Manual
34

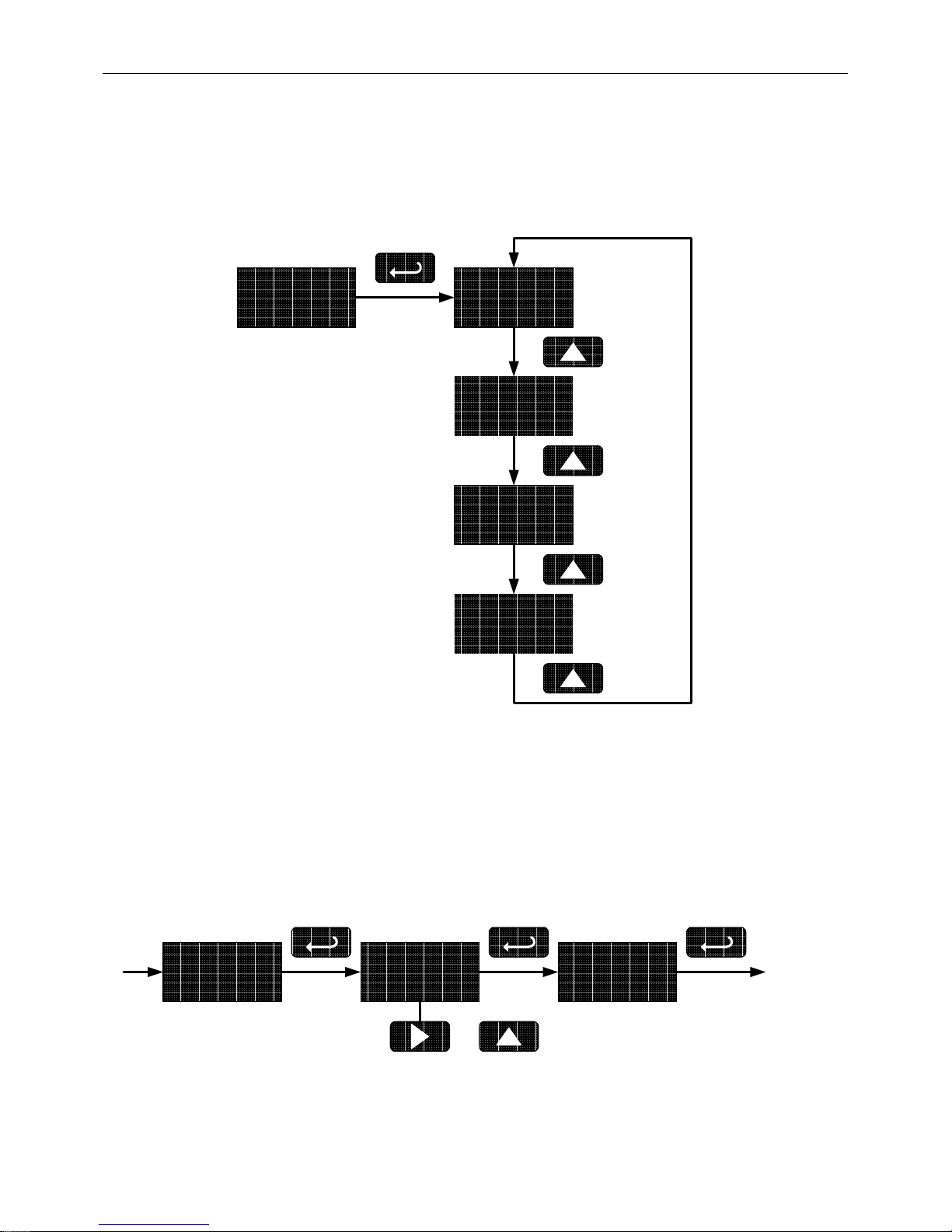

Setting the Time Base (tbase)
The meter calculates rate based on K-Factor and a time base of units per second,
minute, hour, or day.
Press the Enter/Ack button, at any time, to accept a setting or Menu button to exit
without saving changes.
tbase
SETUP
SEC
T BASE
nmin
T BASE
hour
T BASE
Day
T BASE

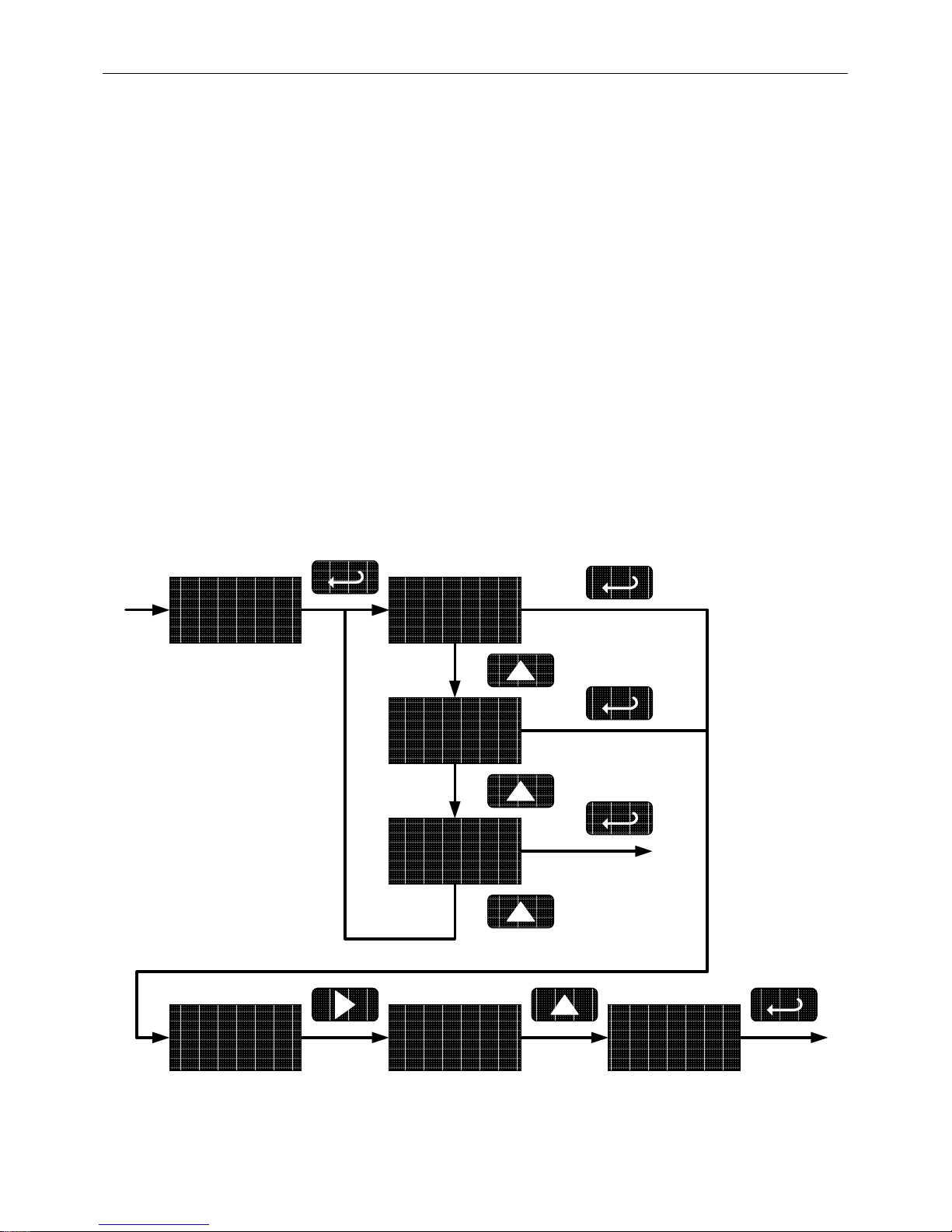

Setting the Total Conversion Factor (totCF)
Total Conversion Factor is used to convert to a different unit of total display. For
example, to display rate in gallons and total in liters, enter a conversion factor of
3.7854. When rate and total units are the same, the Conversion Factor should be
1.0000.
Press the Enter/Ack button, at any time, to accept a setting or Menu button to exit
without saving changes.
TOTCF
SETUP
3.7854
TOT CF
d.dddd
TOT CF
Select Conversion
Factor Decimal Point
or
Enter
Conversion
Factor
Page 35
PD6830 Pulse Input Rate/Totalizer Instruction Manual
35

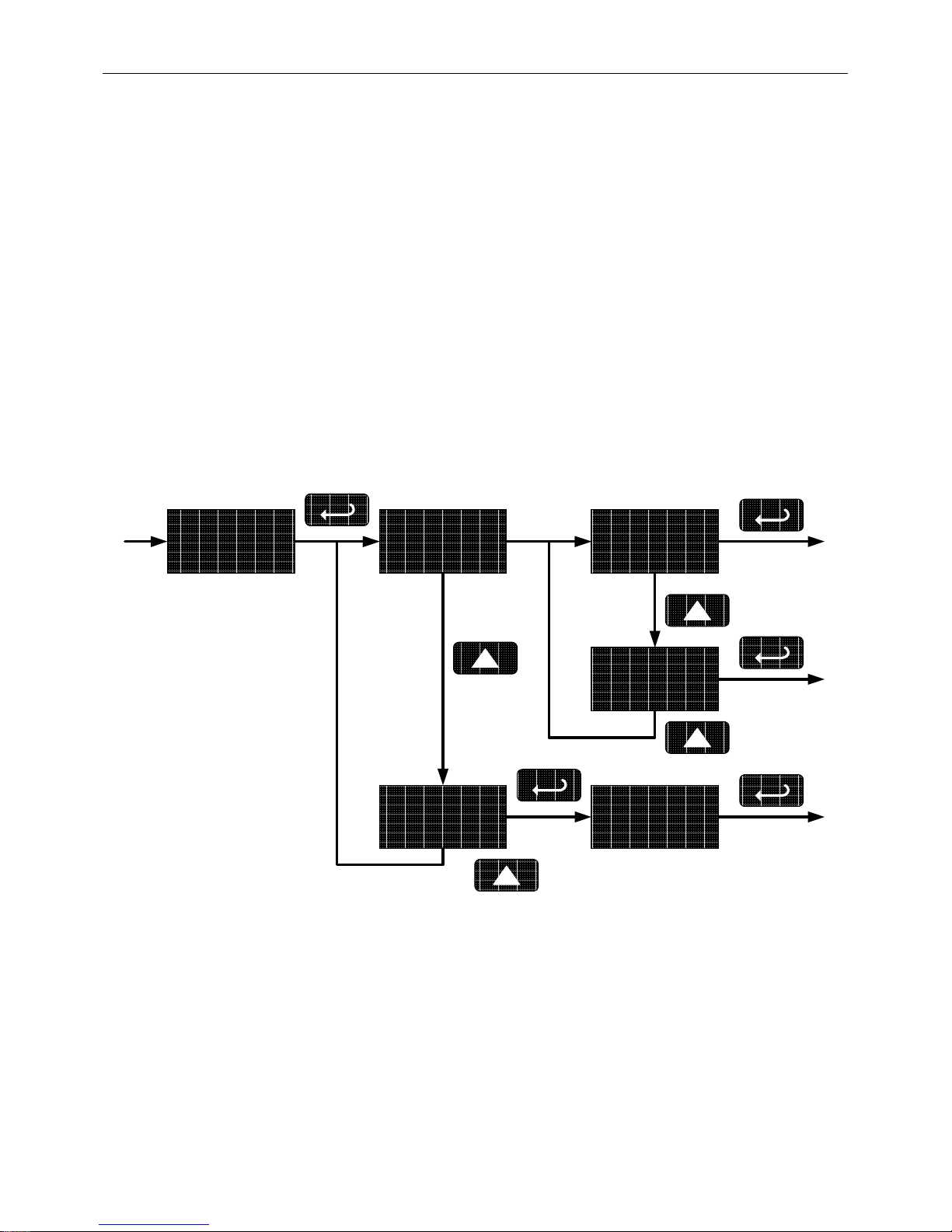

Manual or Automatic Total Reset Function (t rST)
For manual reset, select PROGRAM t rst man and then next select whether
manual reset will be enabled (Enabl) or disabled (dsabl) using the up arrow key and
by then pressing the Enter/Ack button to accept. Disabling reset will avoid
inadvertent resets of the total via the front reset button or external reset contact.

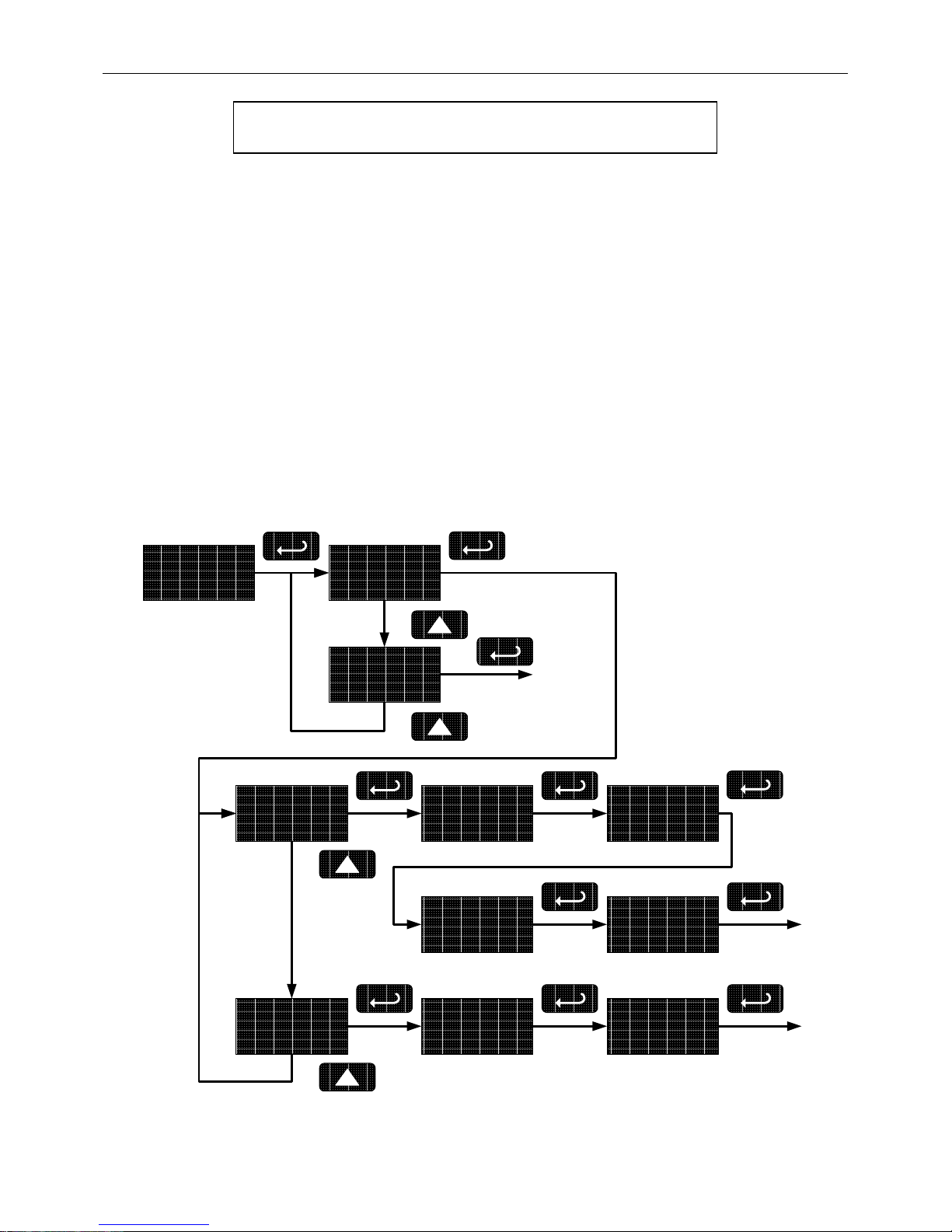

For automatic reset, select PROGRAM t rst Auto T DELAY and enter reset
delay time in seconds. Once the set point is reached, the meter waits for a
programmed amount of time (T DELAY) and then resets the total to zero.
The meter may be automatically reset based on the value programmed in the
Advanced menu: INDICAT alrm total SEt.
Press the Enter/Ack button, at any time, to accept a setting; otherwise press the
Menu button to exit without saving changes.
t rst
SeTUP
nman
T RESET
Auto
T RESET
Enter Reset Delay
(seconds)
00010
T DELAY
enabl
MAN RST
DSABL
MAN RST
Page 36
PD6830 Pulse Input Rate/Totalizer Instruction Manual
36
Setting the Tag Display (tag)
The meter can be set to display a combination of seven alphanumeric characters for
engineering units (e.g. GALLONS); for identification (e.g. TANK 3); or for dual rate/total
units (e.g. GPS/GAL, LPM/LTR,, BPH/BBL). Press Right arro w to select next character
and Up arrow to increment character.
To automatically cycle the lower display between total reading for ten seconds
and tag for two seconds, choose togle.
To disable the tag display and show only total reading uninterrupted on the
lower display, choose Off.
To show tag only on the lower display, choose On. Totalizing continues in the
background, but is not shown while On is selected.
Selecting On or togle prompts for entry of the tag.
The unit being changed blinks.
Press the Enter/ACK button, at any time, to accept a setting or Menu button to exit
without saving changes.
tag
SeTUP
ON
TAG
TAG
ABCDEFG
OFF
TAG
TAG
ABCDEFG
TAG
ACCDEFG
togle
TAG
Page 37
PD6830 Pulse Input Rate/Totalizer Instruction Manual
37
Scaling the 4-20 mA Analog Output (Aout)
The 4-20 mA analog output (if equipped) can be scaled to provide a 4-20 mA signal
for any display range selected for either the rate or the total.
No equipment is needed to scale the analog output; simply program the display
values to the corresponding mA output signal. The meter is factory calibrated for
milliamps.
The Analog Output menu is used to program the 4-20 mA output based on display
values.
For instructions on how to program
numeric values see Setting Numeric
Values, page 26.
!
CAUTION
Please note that when power is removed from the meter, the
analog output will remain at the last value transmitted at the
time of power loss. Take this effect into consideration when
designing any system using the 4-20 mA output.
Page 38
PD6830 Pulse Input Rate/Totalizer Instruction Manual
38

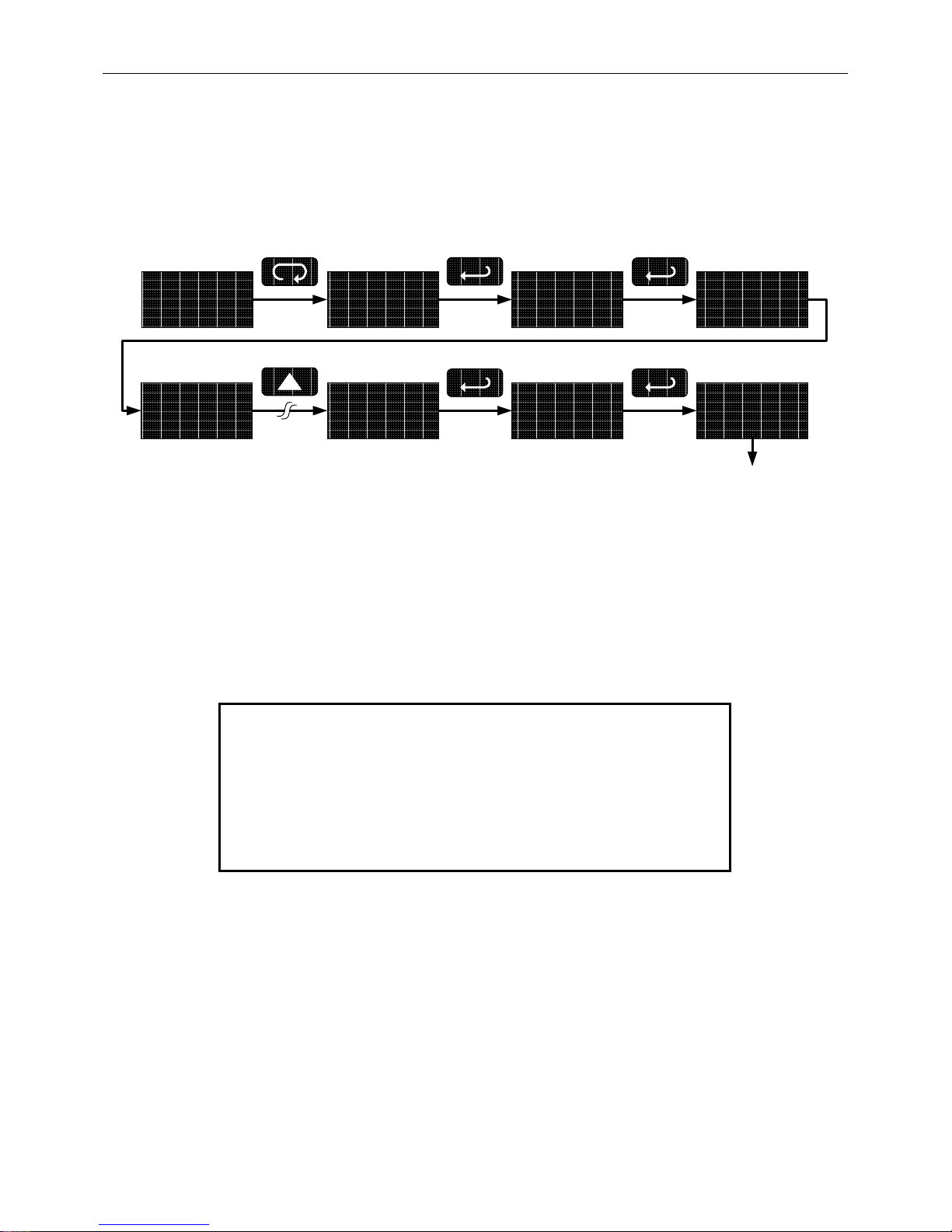

Setting Up the Password (PASSWRD)
The Password menu is used to program a five-digit password to prevent
unauthorized changes to the programmed parameter settings. The lock symbol is
displayed to indicate that settings are protected.

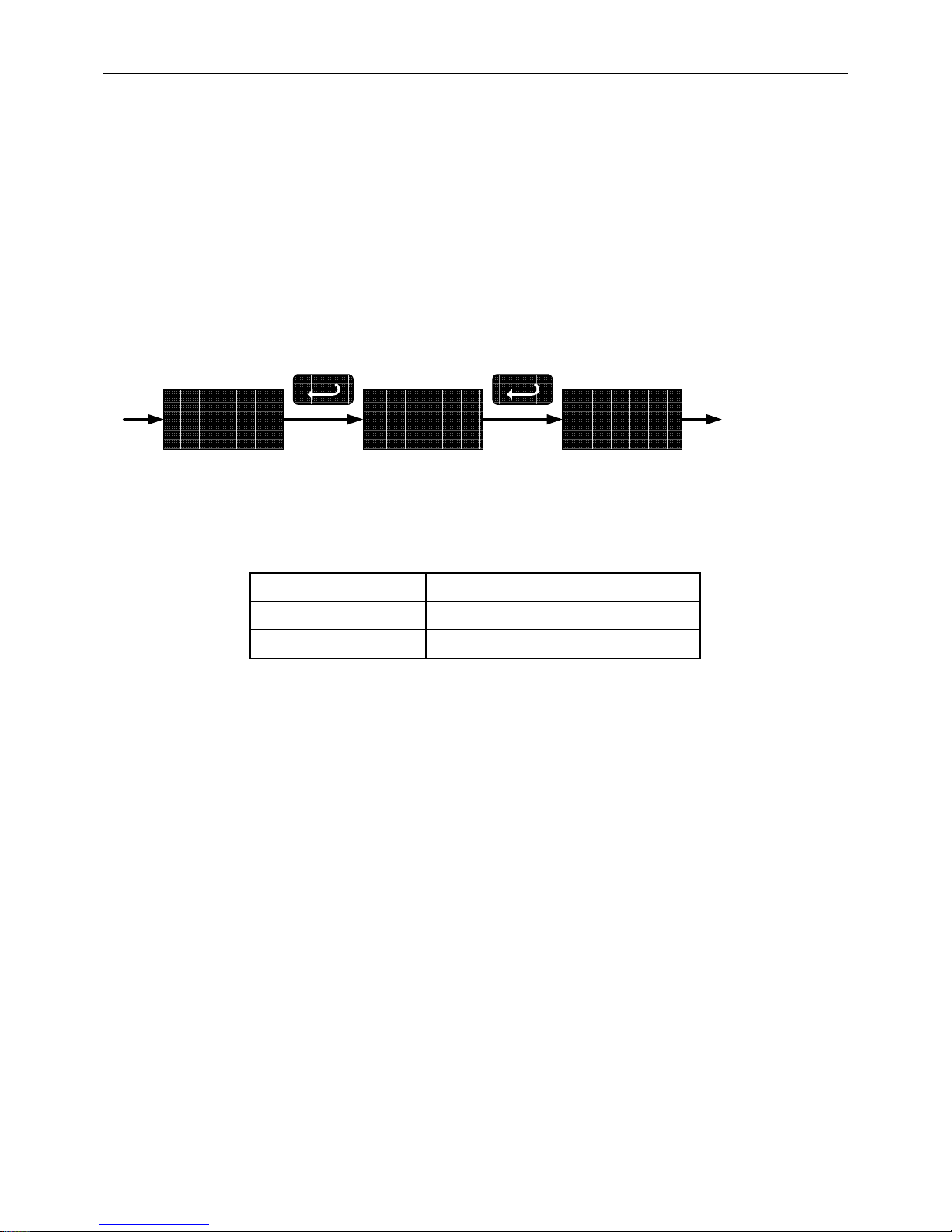

Locking the Meter
Enter the Password menu and program a five-digit password.
For instructions on how to program numeric values see Setting Numeric Values,
page 26.
00000
passWRD
Program
Password
passWRD LOCKED
Run
Mode
Record the password for future reference. If appropriate, it may be
recorded in the space provided.
Model:
Serial Number:
Password: __ __ __ __ __
Making Changes to a Password Protected Meter
If the meter is password protected, the meter will display the message LOCKED when
the Menu button is pressed. Press the Enter button while the message is being
displayed and enter the correct password to gain access to the menu. After exiting
the programming mode, the meter returns to its password protected condition.
Page 39
PD6830 Pulse Input Rate/Totalizer Instruction Manual
39
Disabling Password Protection
To disable the password protection, access the Password menu and enter the correct
password twice, as shown below. The meter is now unprotected until a new
password is entered.
Enter
Password
3024.7
GALLONS
Run Mode
LOCKED
00000
LOCKED
SETUP
00000
PASSWRD
PASSWRD
UNLOCKD
Re-Enter
Password
UNLOCKD
Run Mode
If the correct six-digit password is entered, the meter displays the message UNLOCKD
(unlocked) and the protection is disabled until a new password is programmed.
If the password entered is incorrect, the meter displays the message LOCKED for
about two seconds, and then it returns to Run Mode. To try again, press Enter while
the Locked message is displayed.
Did you forget the password?
The password may be disabled by entering a master
password. If you are authorized to make changes, enter
the master password 50865 to unlock the meter
permanently. Unlike password disabling, the master
password is entered only once to unprotect the meter.
Page 40
PD6830 Pulse Input Rate/Totalizer Instruction Manual
40
Advanced Features Menu
To simplify the setup process, functions not needed for most applications are located
in the Advanced features menu. Press and hold the MENU button for five seconds to
access the Advanced features menu.
Press the Enter/Ack button to access any menu or press Up arrow button to scroll
through choices. Press the Menu button to exit at any time.
Page 41
PD6830 Pulse Input Rate/Totalizer Instruction Manual
41
Advanced Features Menu & Display Messages
The following table shows the Advanced features menu functions and messages in
the order they appear in the menu.
Display Parameter Action/Setting
INDICAT
Indication
Enter Indication menu
OFF
Off
Alarm indication Off
Alrm
Alarm Indication
Enter Alarm menu
Rate
Rate Alarm
Assign alarm to rate
Total
Total
Assign alarm to total
Set
Set Point
Program set point
Reset
Reset Point
Program reset point (rate only)
GATE
Gate
Enter Gate menu
LO
Low Gate
Set Low Gate
HI
High Gate
Set High Gate
LINEAR
Linearization
Enter Linearization menu
NO pTs
Number of Points
Enter number of points
FILTER
Filter
Enter filter menu
HI
High Speed Filter
Set high speed filter
LO
Low Speed Filter
Set low speed (contact debounce) filter
CUTOFF
Low-Flow Cutoff
Set low-flow cutoff
OCAL
Output Calibration
Analog output calibration (Factory use only)
BAKLITE
Backlight
Enable or disable backlight
INFO
Meter
Information
Show software number and version, or reset to
factory defaults
SFT
Software
Software number
ver
Software Version
Software version
RESET
DFALTS?
Reset Defaults
Restore factory default parameter settings
Page 42
PD6830 Pulse Input Rate/Totalizer Instruction Manual
42
For instructions on how to program numeric values
see Setting Numeric Values, page 26.
Indication (INDICAT)
The Indication menu is used to enable and set up a high or low rate alarm or total set
point alarm indication on the screen. When in alarm condition, a HI, LO, or SET
symbol is displayed accompanied by a flashing display until the ACK is pressed or
the condition is cleared (reset).
Rate high alarm trip point: program set point above reset point.
Rate low alarm trip point: program set point below reset point.
Rate alarm deadband is determined by the difference between set and reset
points. Minimum deadband is one display count. If set and reset points are programmed the same, output will reset one count below set point.
Total alarm trip point: program total set point. Alarm reset is triggered by total
reset (There is no reset parameter entered for total). If automatic total reset is
enabled, this setting will be the trigger point for the timer.
INDICAT
ALRNm
INDICAT
off
INDICAT
Accept
Setting
set
RATE
Enter
Set Point
1000.0
SET
reset
RATE
Enter Reset Point
0500.0
RESET
rate
ALARM
total
ALARM
set
TOTAL
SET
001000.0
Enter Set Point
To acknowledge alarm, press the ENTER/ACK button once for acknowledge
prompt and a second time to confirm.
Page 43
PD6830 Pulse Input Rate/Totalizer Instruction Manual
43
Gate Function (Gate)
The gate function is used for displaying slow pulse rates. Using the programmable
gate, the meter is able to display pulse rates as slow as 1 pulse every 999 seconds
(0.001 Hz). The gate function can also be used to obtain a steady display reading
with a fluctuating input signal.
There are two settings for the Gate, low gate (Lo Gate) and high gate (HI Gate).
Low Gate (Lo Gate)
For most applications, low gate setting should be left at 1 second. Increase low gate
setting to obtain a steadier rate display. The rate display will update in accordance
with the low gate setting, for example if low gate is set at 10, the display will update
every 10 seconds; changes in rate between updates will not be reflected until next
display update.
High Gate (HI Gate)
Set the high gate value to correspond to the highest expected pulse period (lowest
pulse rate). For instance if the meter must display a rate when there is 1 pulse
coming into the meter every 10 seconds, set the high gate to 11 seconds. When the
signal is removed from the meter, the display will show the last reading for 11
seconds; then it will read zero.
Page 44
PD6830 Pulse Input Rate/Totalizer Instruction Manual
44
Multi-Point Linearization (LINEAR)
Up to 32 linearization points can be selected under the Linear function. The multipoint linearization can be used to linearize the display for non-linear signals such as
those from level transmitters used to measure volume in odd-shaped tanks or to
convert level to flow using weirs and flumes that require a complex exponent. These
points are established via direct entry (SCALE) or with an external calibration signal
(CAL).
Number of Points (NO PTs)
Enter number of linearization points. The default value is 2 points. After entering the
number of points, the next selection is Scaling (page 31) or Live Input Calibration
(page 32).
Manual Entry (SCALE)
Manual entry of the linearization data is done once the number of points has been
selected (NO PTS). Input signal levels (InP 1-32) for up to 32 points, along with the
desired/corresponding meter reading (dSP 1-32) should be entered for each linearization point. See Figure 13 on page 45.
External Calibration (CAL)
Linearization data can be entered using a known accurate signal source (InP 1-32)
and then entering the desired/corresponding meter reading (disp 1-32) for that
input signal level See Figure 13 on page 45.
Important Navigation Note:
After entering the last display value, the linearization entries must be saved (SAUE?)
before they will be put into effect. However, you may move past this selection using
the Up arrow key if you need to go back and correct and earlier entry. Once confident
in the entries however, the user must navigate back to the Save menu screen
(SAUE?) and press the Enter/Ack key to save the changes.
Page 45
PD6830 Pulse Input Rate/Totalizer Instruction Manual
45
LINEAR PROGRAM PROGRAM
CAL
inP 1
CAL
dsp 1
DSPLY 1
0000.0
CAL
INP 2
Figure 13. Multi-Point Linearization Menu
Page 46
PD6830 Pulse Input Rate/Totalizer Instruction Manual
46
Contact Debounce Filter (FiLter)
The filter function (FiLter) can be used for applications where the meter is set up to
count pulses generated by switch contacts. There are two settings, HI (high speed)
and LO (low speed). High speed disables the contact debounce filter and allows any
pulse of the minimum specified width for the input wired. Press ENTER when LO is
displayed to enable the filter function. Program the filter value for the maximum frequency of the true pulse signal in Hz that is expected plus a small margin. In most
applications, a setting of 40 will be sufficient to debounce a contact closure, yet allow
a pulse train up to 40 Hz.
Low-Flow Cutoff (CUTOFF)
The low-flow cutoff feature allows the meter to be programmed so that the oftenunsteady output from a transmitter at low flow rates, always displays zero on the
meter.
The cutoff value may be programmed from -99999 to 99999. Below the cutoff value,
the meter will display zero. Programming the cutoff value to zero disables the cutoff
feature.
Output Internal Calibration (OCAL)
This feature is only used at the factory and for diagnostic purposes. It is not
recommended to access this menu without instruction from technical support.
Backlight (BAKLITE)
The Backlight menu is used to enable or disable the backlight. This feature is
particularly important for the battery-powered models with momentary backlight.
Information (INFO)
The Information menu is part of the Advanced features menu. It shows software
identification number and version number. To determine the software version of a
meter:
Go to the Information menu (INFO) and press ENTER button.
Continue pressing ENTER to scroll through the software release number and
software version.
Following the information display, the meter will exit the Advanced features menu and
return to run mode.
Page 47
PD6830 Pulse Input Rate/Totalizer Instruction Manual
47

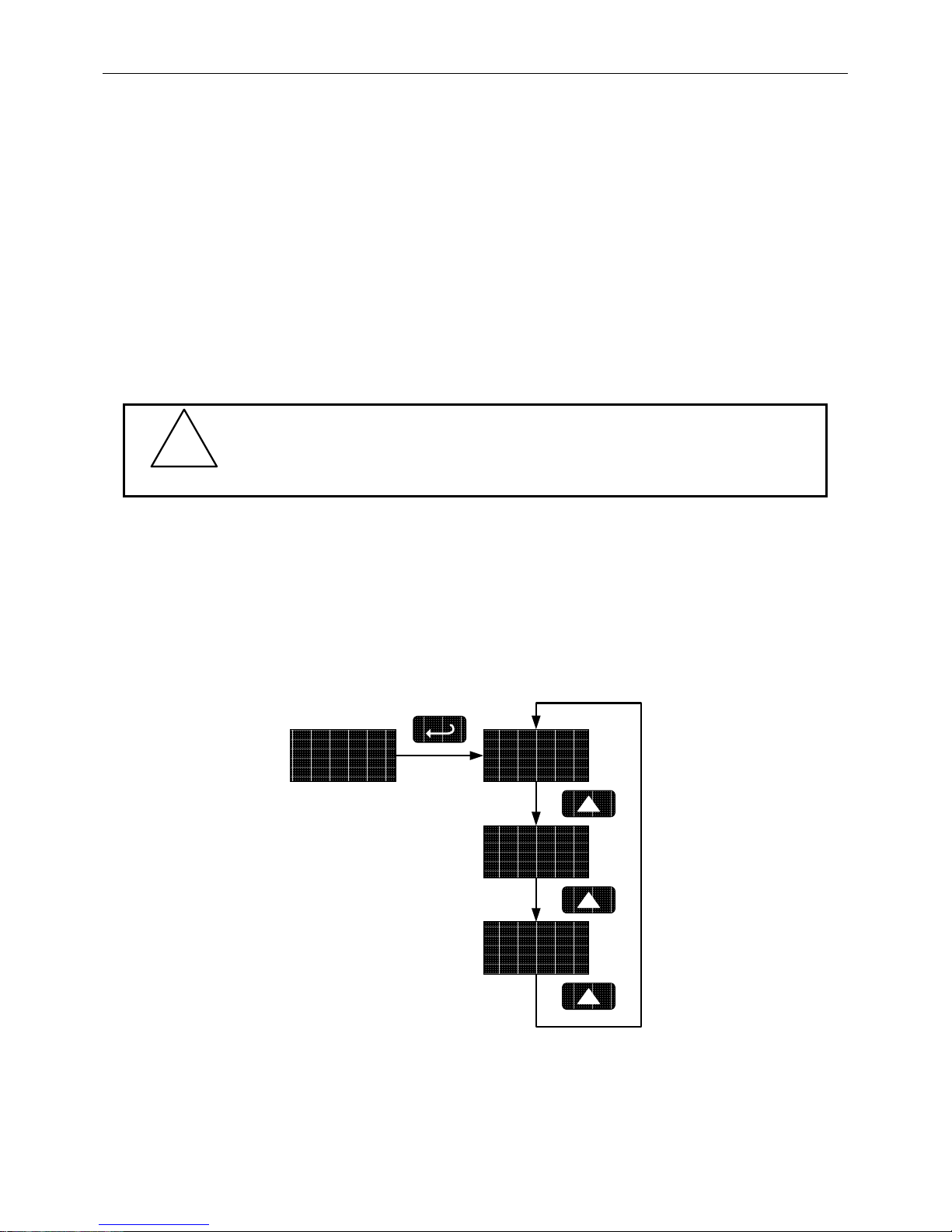

Servicing the Meter (SERVICE)
The Service menu is used to access features used for maintenance. It is
Select batt to backup the current total into nonvolatile memory and prepare for
a battery swap. Once this is selected, the display will flash Chang BATTERY allowing up to 5 minutes for battery removal before it will automatically exit the
menu and return to run mode.
Select Sleep to enter low power sleep mode. In sleep mode, the display elec-
tronics power down to prolong battery life. Incoming pulses are ignored in this
mode. The display and output returns to normal operation with the press of a
mechanical button, SafeTouch
®
button, or external reset contact.
!
CAUTION
The 4-20 mA transmitter output continues at the level it was last
updated before sleep mode was entered.
Select CLEAN from the service menu to temporarily disable the SafeTouch
®
buttons to prevent inadvertent use. Buttons will automatically resume operation after 60 seconds. The display blinks the message CLEAN SERVICE. This should be
used when cleaning the window and when installing or removing the cover while
power is applied (in a safe area only). The clean feature is not shown in the
menu when the SafeTouch
®
buttons are disabled using the slide switch located
on the connector board.
SERVICE
BATT
SERVICE
CLEAN
SERVICE
SLEEP
SERVICE
Page 48
PD6830 Pulse Input Rate/Totalizer Instruction Manual
48
OPERATION
Front Panel Buttons Operation
Button
Symbol
Description
MEN
U
Press to enter or exit Programming Mode or
exit Max/Min readings
RESET
Press to reset total (if enabled)
Press to reset Max/Min readings
MAX
Press to display Max/Min readings
alternately
ACK
Press to acknowledge alarm (if enabled)
Press to display Max or Min reading
indefinitely while displaying Max or Min
Resetting the Total
If manual total reset is enabled in the Program Menu, the total may be reset by pressing the RESET button and then ACK button. Additionally, the total may be reset using
a normally open pushbutton connected across the terminals RST+ and COM.
Note: The total is cleared immediately when ACK button is pressed. Totalization will
then continue, even if the ACK button or external reset button continues to be
pressed.
Page 49
PD6830 Pulse Input Rate/Totalizer Instruction Manual
49
Maximum & Minimum Readings (MAXIMUM & MINIMUM)
The maximum and minimum (peak & valley) readings reached by the rate are stored
in the meter since the last reset or power-up. The meter shows MAXIMUM or MINIMUM
to differentiate between run mode and max/min display. Press ENTER to remain in
Max/Min display mode. If ENTER is not pressed, the Max/Min display reading will
time out after ten seconds. The meter will return to display the actual
reading.
4065.3
MAXIMUM
3024.7
GALLONS
Run Mode
2457.7
MINIMUM
Press Up to Display and to
Toggle Between Max & Min
10 Sec Time Out
Press Enter to hold Max/Min
Press Right to Reset Max/Min
Press Menu to Exit Max/Min
Reset Meter to Factory Defaults
When the parameters have been changed in a way that is difficult to determine
what’s happening, it might be better to start the setup process from the factory
defaults.
Instructions to load factory defaults:
Enter the Advanced features menu.
Press and hold RESET button when INFO is shown.
Press ENTER when RESET DFALTS? prompt is shown
Note: If ENTER is not pressed within three seconds, the prompt will stop flashing
return to showing INFO.
INFO
RESET
DFALTS? LOADING
Press and
Hold for 5 sec
Flashing
Display
Defaults
Restored
Page 50
PD6830 Pulse Input Rate/Totalizer Instruction Manual
50
Factory Defaults & User Settings
The following table shows the factory setting for most of the programmable
parameters on the meter. Next to the factory setting, the user may record the new
setting for the particular application.
Model: ______________ S/N: _______________ Date: _________
Parameter Display Default Setting User Setting
Decimal point rate
Ddddd
1 place
Decimal point total
Ddddddd.d
1 place
Tag
tag
Off
Output variable
A out
Rate
Output Display 1
Dspl1
0000.0
Output 1
Out 1
4.000
Output Display 2
Dspl2
1000.0
Output 2
Out 2
20.000
Scale/Cal Input 1
Inpt1
00000
Scale/Cal Display 1
dspl1
0000.0
Scale/Cal Input 2
Inpt2
1000
Scale/Cal Display 1
Dspl2
1000.0
K-Factor
Factr
1.000
Time Base
tbase
second
Conversion Factor
TotCF
1.000000
Total Reset Function
T rst
Manual - Enabled
Password
PASSWRD
00000 (unlocked)
Advanced Features
Indication
INDICAT
Off
Low Gate
LO GATE
1
High Gate
HI GATE
2
Filter
FILTER
High Speed
Cutoff
CUTOFF
0 (disabled)
Page 51
PD6830 Pulse Input Rate/Totalizer Instruction Manual
51
TROUBLESHOOTING
The rugged design and the user-friendly interface of the meter should make it
unusual for the installer or operator to refer to this section of the manual. If the meter
is not working as expected, refer to the recommendations below.
Troubleshooting Tips
Symptom Check/Action
No display or faint display Check power connection.
Rate display unsteady Increase low gate setting in Advanced
menu.
Meter displays error message during
calibration (Span eRROR)
Verify minimum input span requirements
Meter flashes 99999 Check input signal is within scaled range
of 99999.
Display stuck displaying MAXIMUM or
MINIMUM
Press Menu to exit Max/Min
display readings.
Display response is too slow Check gate settings to see if they can be
lowered.
If the display locks up or the meter
does not respond at all
Perform hard reset by removing and
reconnecting the display module or by
removing external loop or DC power.
Backlight does not appear. Backlight is intended for viewing
assistance in dim lighting conditions. It
may not be noticeable under good lighting
conditions. Battery powered models turn
off the backlight after ten seconds of
button inactivity.
Other symptoms not described above Call Technical Support for
assistance.
SafeTouch® Buttons do not respond Service menu was selected or mechanical
button was pushed. The SafeTouch
®
Buttons will be re-enabled automatically
after a 5 minute delay from the last button
push.
If slide switch on display module is in Lock
position, switch to Unlock.
Sunlight can interfere with the sensors. It
is recommended to shield the window
from sunlight while operating the buttons
by standing so as to block direct sunlight.
Page 52
PD6830 Pulse Input Rate/Totalizer Instruction Manual
52
MOUNTING DIMENSIONS
All units: inches [mm]
Figure 14. Enclosure Dimensions – Front View
Page 53
PD6830 Pulse Input Rate/Totalizer Instruction Manual
53
Figure 15. Enclosure Dimensions – Side Cross Section View
Page 54
PD6830 Pulse Input Rate/Totalizer Instruction Manual
54
QUICK USER INTERFACE REFERENCE
Program
Run
Max &
Min
Advanced
Features
Up Arrow
Menu
Menu
Menu
Menu
Operational Modes
Menu for 5
seconds
Pushbutton Function
Menu Go to Programming Mode or leave Programming, Advanced
Features, and Max/Min Modes.
Right Arrow Move to next digit or decimal point position. Reset Total.
Up Arrow Move to next selection or increment digit. Go to Max/Min Mode.
Enter/Ack Accept selection/value and move to next selection.
Acknowledge Alarm.
Menu held for 5 seconds enters Advanced Features Menu
Max/Min Mode
While in Run Mode, pressing Up Arrow will initiate Max/Min Mode. Up Arrow toggles
between Max & Min displays, and Right Arrow resets the Max/Min to the current
value. Press Menu or wait 10 seconds to return to Run Mode. Pressing Enter/Ack will
disable the 10 second timeout and continuously display Max or Min.
Page 55
PD6830 Pulse Input Rate/Totalizer Instruction Manual
55
Page 56
PD6830 Pulse Input Rate/Totalizer Instruction Manual
56
EC DECLARATION OF CONFORMITY
Issued in accordance with ATEX Directive 94/9/EC
Manufacturer: Precision Digital Corporation
89 October Hill Rd Ste 5
Holliston, MA 01746 USA
Device: PD6830 Series Pulse Input Rate/Totalizer
Notified Body: Sira Certification Service, notified body no. 0518
Rake Lane, Eccleston, Chester, CH4 9JN, England
EC Type Examination Certificate: Sira 10ATEX1116X
Quality Assurance Notification No.: SIRA 10 ATEX M462
Compliance with Standards: Product Markings:
EN 60079-0:2009
II 2 G D
EN 60079-1:2007 Ex d IIC T6 Gb
EN 60079-31:2008 Ex tb IIIC T85°C Db IP68
EN 61326:2006 Tamb -40°C to +75°C
IEC 61010-1:2001 & EN 61010-1:2001, including Group and National
Differences as they apply for AU, CA, US and KR
Community Directives:
94/9/EC ATEX Directive
2004/108/EC EMC Directive
Name: Jeffrey Peters
Company: Precision Digital Corpo ration
Title: President
Date: 1/1/2011
Page 57
PD6830 Pulse Input Rate/Totalizer Instruction Manual
57
NOTES
Page 58
PD6830 Pulse Input Rate/Totalizer Instruction Manual
58
NOTES
Page 59
PD6830 Pulse Input Rate/Totalizer Instruction Manual
59
NOTES
Page 60
PD6830 Pulse Input Rate/Totalizer Instruction Manual
LIM6830_B
SFT050 Ver 1.000 & up
06/11
How to Contact Precision Digital
For Technical Support:
Call: (800) 610-5239 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
For Sales Support:
Call: (800) 343-1001 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
For the latest version of this manual please visit:
www.predig.com
Loading...
