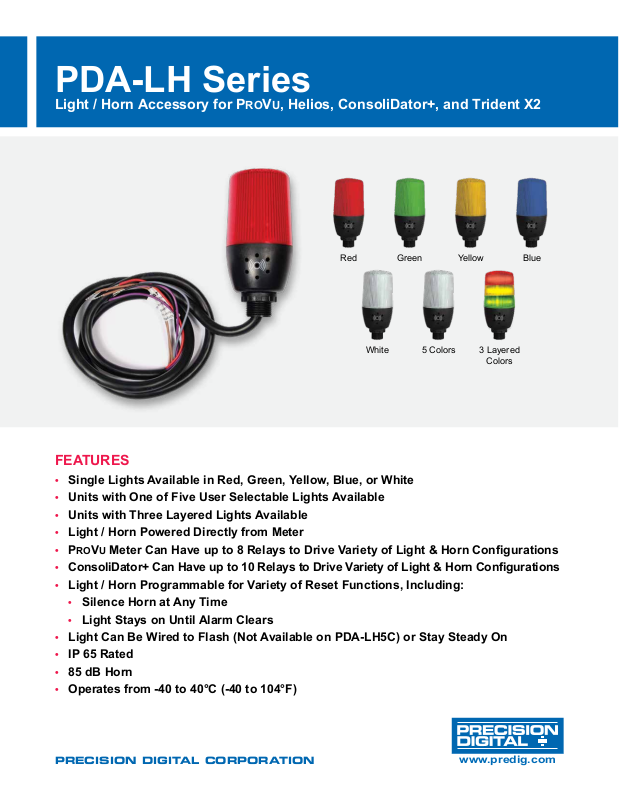

Page 1
PDA-LH Series
Light / Horn Accessory for ProVu, Helios, ConsoliDator+, and Trident X2
Red Green Yellow Blue
White
5 Colors 3 Layered
Colors
FEATURES
• Single Lights Available in Red, Green, Yellow, Blue, or White
• Units with One of Five User Selectable Lights Available
• Units with Three Layered Lights Available
• Light / Horn Powered Directly from Meter
• ProVu Meter Can Have up to 8 Relays to Drive Variety of Light & Horn Congurations
• ConsoliDator+ Can Have up to 10 Relays to Drive Variety of Light & Horn Congurations
• Light / Horn Programmable for Variety of Reset Functions, Including:
• Silence Horn at Any Time
• Light Stays on Until Alarm Clears
• Light Can Be Wired to Flash (Not Available on PDA-LH5C) or Stay Steady On
• IP 65 Rated
• 85 dB Horn
• Operates from -40 to 40°C (-40 to 104°F)
PRECISION DIGITAL CORPORATION
www.predig.com

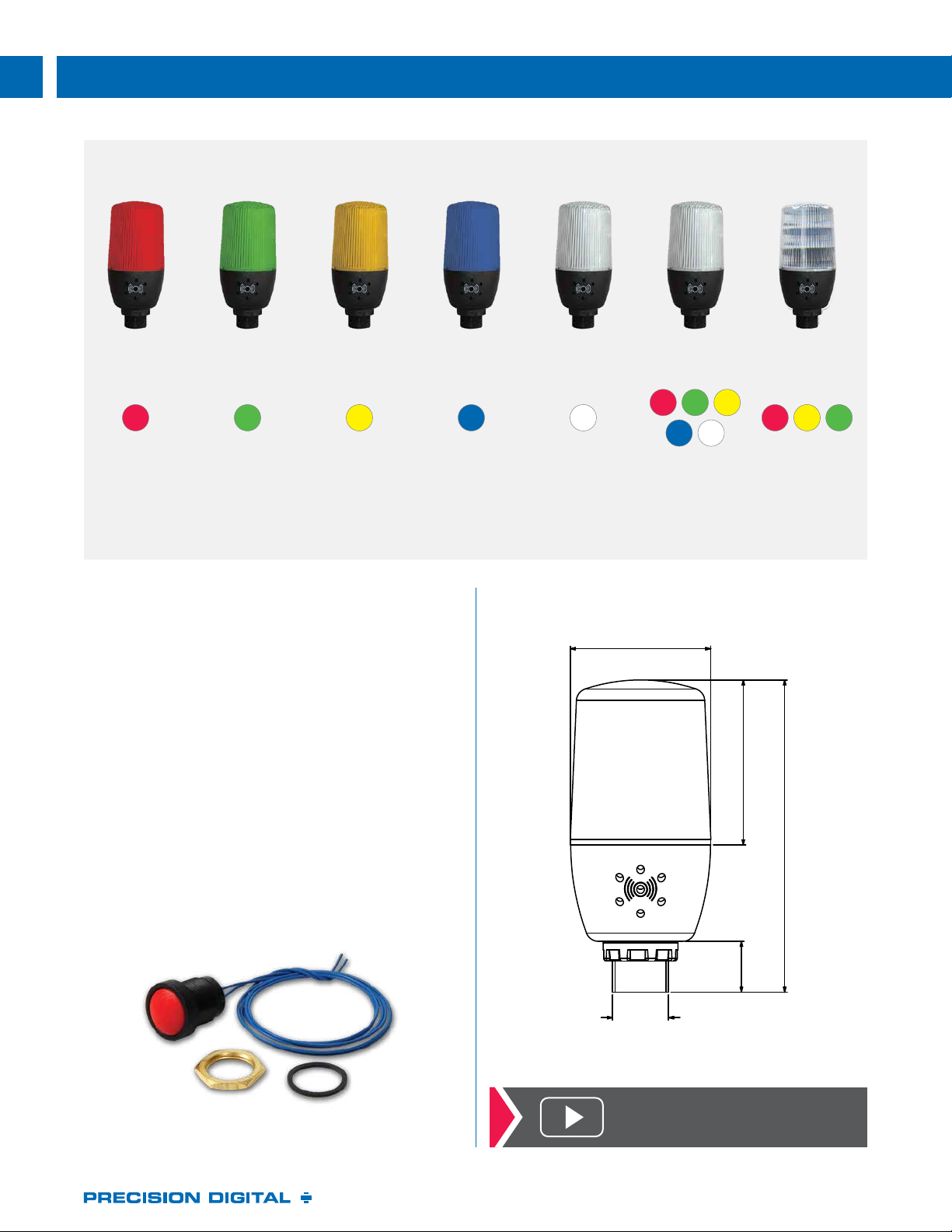

Page 2
PDA-LH Series Light / Horn Accessory
M22 x 1.5
PDA-LHR PDA-LHG PDA-LHY PDA-LHB PDA-LHW PDA-LH5C PDA-LH3LC-RYG
Single color Single color Single color Single color Single color 5 colors 3 layered colors
R G Y B W
Flashing or
steady on
light
Flashing or
steady on
light
Flashing or
steady on
light
Flashing or
steady on
light
OVERVIEW
Precision Digital offers three different light configurations in
its line of Light / Horn devices. The first option is a factory
ordered Light / Horn with a color of either red, green, yellow,
blue, or white. The second option is a Light / Horn the user
determines the light color (red, green, yellow, blue or white)
by connecting the appropriate wire. The third option is a
Light / Horn with red, yellow, and green layers the user can
turn on independently. The light on the Light / Horn can be
wired to flash (not available on PDA-LH5C) or stay steady
on and the horn is rated at 85 dB. The light and horn can be
controlled independently of each other via separate relays
on the Precision Digital meter; and since the meter's relays
can be reset in a variety of ways, there are several ways
the Light / Horn can operate. For instance, the horn can be
programmed to silence at any time via the Reset Button or
F3 front panel button (on
off automatically when the alarm clears.
ProVu models), and light to turn
Flashing or
steady on
light
DIMENSIONS
Ø 2.2
(55)
R G Y
B W
Steady on
light
(65)
R Y G
Flashing or
steady on
Units: Inches (mm)
2.6
4.8
(122)
light
PDA-BUTTON1R RESET BUTTON
Use the PDA-BUTTON1R reset button to silence the horn or
turn off the light (9 labels provided).
0.8
(20)
Click here to watch the
Light / Horn Video
2
www.predig.com
Page 3
PDA-LH Series Light / Horn Accessory

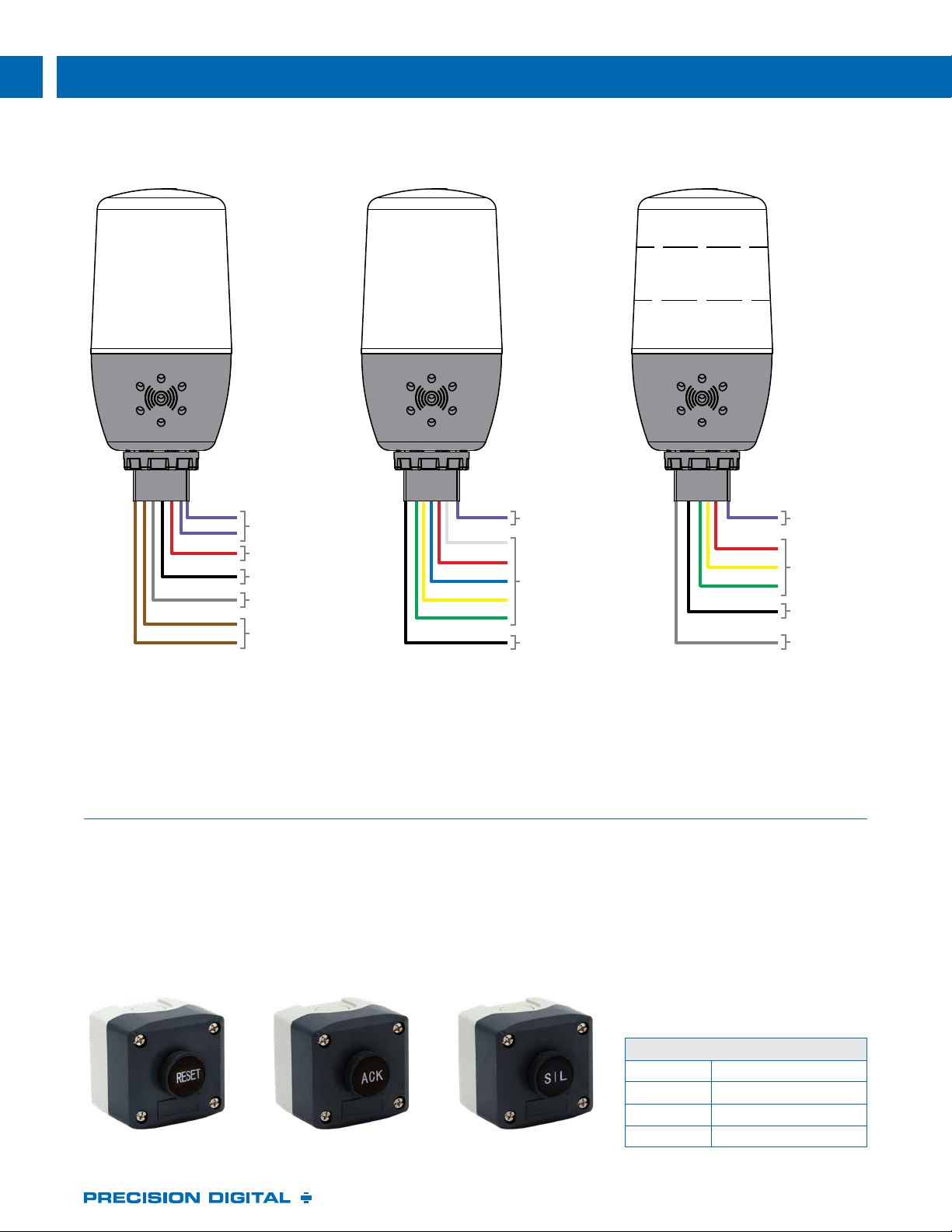

CONNECTIONS
GRAY
BROWN
BROWN
RED
BLACK
PURPLE
PURPLE
Horn
Red LED
Steady On
Flashing
Power
BLACK
BLUE
YELLOW
GREEN
WHITE
RED
PURPLE
Horn
User
Selectable
LED
Minus
PURPLE
RED
YELLOW
GREEN
BLACK
GRAY
Supply
PDA-LH Models
Connections shown for a red light model.
For other PDA-LH models, the red wire is
the color of the light. Connect the red and
black wires for a Steady On light and red
and gray wires for Flashing light.
PDA-LH5C
Connect the LED color to the plus supply
and the black wire to the minus supply to
turn the LED on. Be aware of limitations
for applications requiring different color
lights for different alarm conditions.
PDA-LH3LC-RYG
Connect the LED color to the plus
supply for a Steady On light and LED
color and gray wires to the plus supply
for Flashing light. The black wire should
be connected to the minus supply.
CONTROL STATIONS FOR REMOTE OPERATION OF LIGHT / HORN
The PDA2360 series of plastic control stations provide a convenient way
to remotely control the Light / Horn. The control stations can mimic the
button on the front of MOD-LHX2 for remote control of the Light / Horn.
The PDA2361-R is used to reset an alarm, the PDA2361-A is used to
acknowledge an alarm, and the PDA2361-Q is used to silence an alarm.
• Complete Pre-Assembled Stations
• Normally Open (NO) Spring Return
Plastic Bezel Pushbuttons
• IP65 / NEMA 4, 4X and 13 Rated
• Control Station for Remote Operation
of Light / Horn Reset Button
• Wall Mountable
Horn
Layered
LEDs
Minus
Supply
Flashing
PDA2361-R
PDA2361-A
PDA2361-Q
3
Ordering Information
PDA2360 Series Control Stations
Model Description
PDA2361-R 1 Black Reset Button
PDA2361-A 1 Black Ack Button
PDA2361-Q 1 Black Silence Button
www.predig.com
Page 4
PDA-LH Series Light / Horn Accessory
on Light Cable
on Light Cable

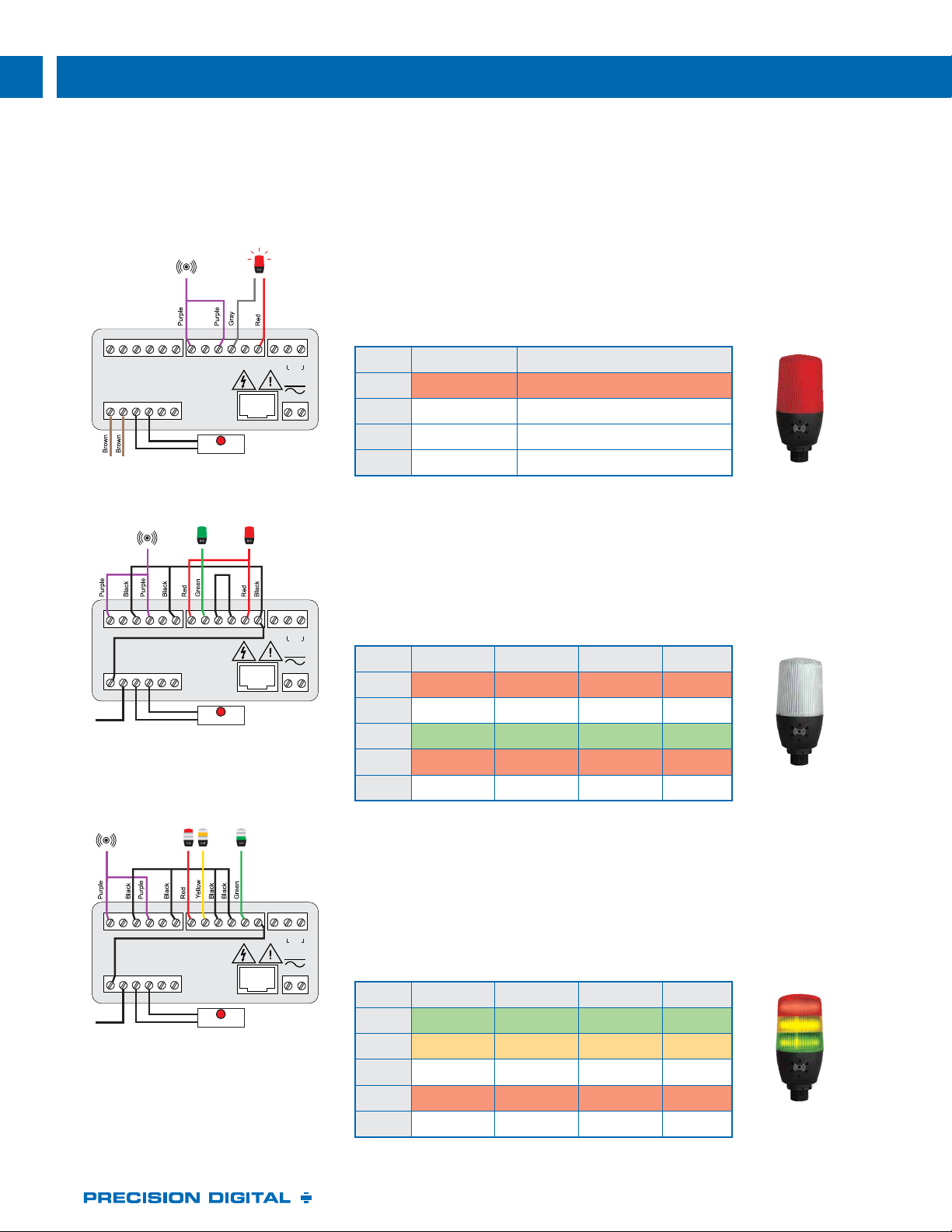

PROVU AND HELIOS APPLICATIONS
There are a wide variety of ways these Light / Horn devices can be controlled by the ProVu’s or Helios's two or four relays to
satisfy visual and audible alarm applications. Up to 8 relays are available on ProVu meters for even more versatility. Please feel
free to contact tech support to discuss your particular application. The following examples illustrate some typical applications.
PDA-LH Models
The PDA-LH models are the simplest devices in the Series and are made up of
a single-color light and horn. A typical way to use the PDA-LH is to program the
ProVu so the horn can be silenced at any time via the Reset Button or F3 front
RELAY4 RELAY3
4 36 5 2 1
C NONO NC NC C
SIGNAL
F4
P- COMP+ V+ mA+
3 41 2 5
RELAY2 RELAY1
6
Reset Button
4 36 5 2 1
C NONO NC NC C
1 2 3 4 5 6 7 8
M-LINK
MA OUT
3 2
+
POWER
1
RI- I+
24 V
-
21
panel button, and light to reset automatically when the alarm clears:
Relay Connected to Default Reset Mode
1 Flashing Light
2 Horn Silence with Reset Button at any time
3 User Device As user desires
4 User Device As user desires
1. Light can b e wired to ash or stay steady on.
(1)
Auto reset
RELAY4 RELAY3
4 36 5 2 1
C NONO NC NC C
SIGNAL
F4
P- COMP+ V+ mA+
3 41 2 5
To Black Wire
RELAY4 RELAY3
4 36 5 2 1
C NONO NC NC C
SIGNAL
F4
P- COMP+ V+ mA+
3 41 2 5
To Black Wire
RELAY2 RELAY1
6
Reset Button
RELAY2 RELAY1
6
Reset Button
4 36 5 2 1
C NONO NC NC C
1 2 3 4 5 6 7 8
M-LINK
4 36 5 2 1
C NONO NC NC C
1 2 3 4 5 6 7 8
M-LINK
MA OUT
3 2
+
POWER
MA OUT
3 2
+
POWER
PDA-LH5C
The PDA-LH5C shows one color at a time and the light color (red, green, yellow,
blue or white) is determined by which wires are connected to power through the
meter’s relays. A typical application for the PDA-LH5C might involve lighting up the
1
RI- I+
24 V
-
21
red light to indicate high and low alarms and the green light to indicate everything is
OK using the meter's four internal relays:
Relay Purpose Range Light/Horn Action
1 Low alarm < 199 Red light Auto
3 Low alarm < 199 Horn Latch
2 All OK 200 to 500 Green light Auto
2 High alarm > 500 Red light Auto
4 High alarm > 500 Horn Latch
PDA-LH3LC-RYG
The PDA-LH3LC-RYG can light up red, yellow or green bands as determined by
which wires are connected to power through the meter's relays. A typical application
for the PDA-LH3LC-RYG (and the default factory setting) might involve lighting
1
RI- I+
24 V
-
21
up the green light to indicate everything is OK, the yellow light to indicate a High
warning, and the red light to indicate a High alarm. The Horn will also sound at both
the Warning and High alarms and can be manually reset at any time with the front
panel reset button:
Relay Purpose Range Light/Horn Action
1 All OK < 199 Green light Auto
2 Warning 200 to 500 Yellow light Auto
3 Warning 200 to 500 Horn Latch
2 High alarm > 500 Red light Auto
4 High alarm > 500 Horn Latch
4
www.predig.com
Page 5
PDA-LH Series Light / Horn Accessory

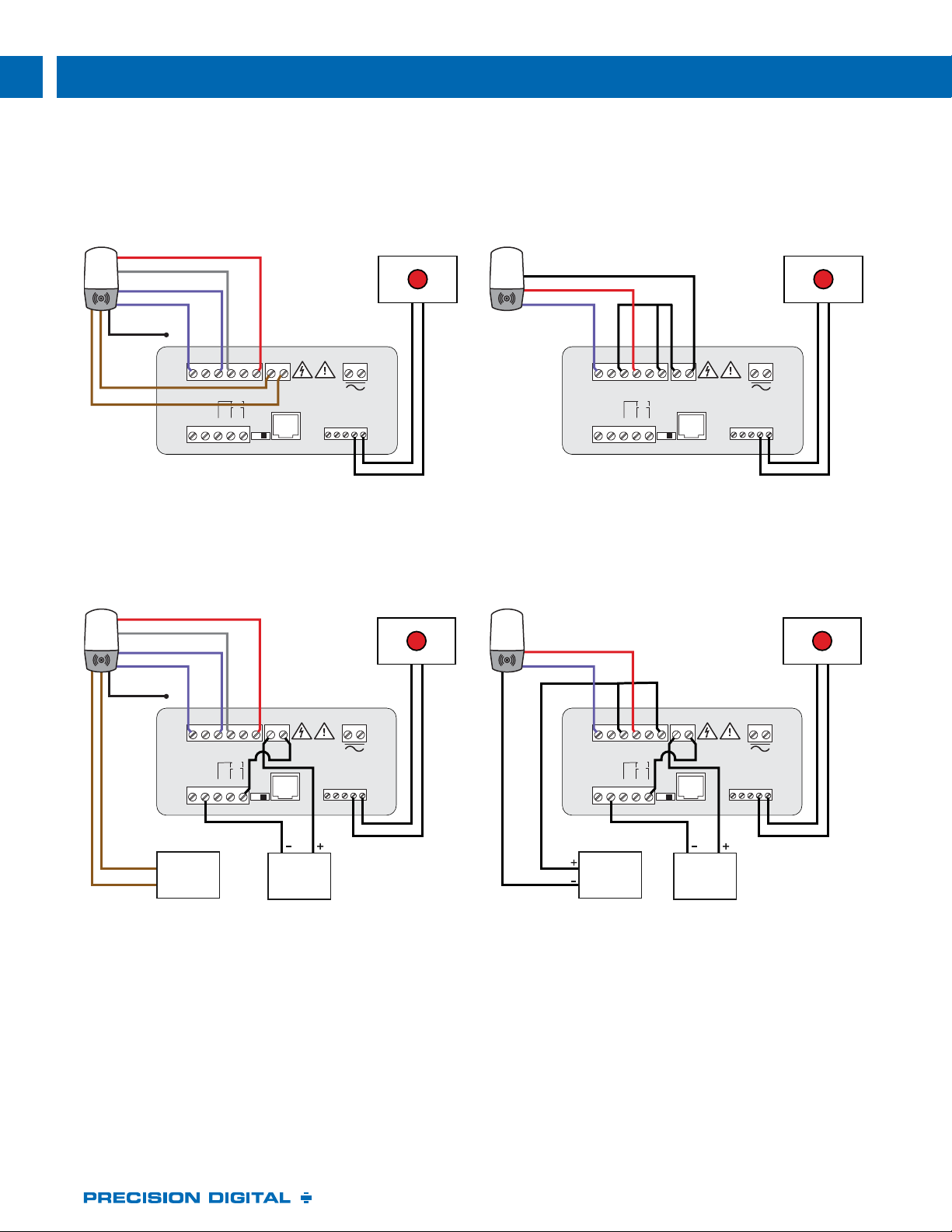

WIRING CONNECTIONS FOR TRIDENT X2 METERS
PDA-LH Using Trident X2's
Internal Power Supply
Blue, Green, Red, White, or Yellow (Light)
Light/
Gray (Flashing Light)
Horn
Beacon
Purple (Horn)
Purple (Horn)
Black (Steady on)
Brown (Power)
Brown (Power)
RELAY2 RELAY1
4 36 5 2 1 2 1
COM NONO NC NC COM
EXC T+V+ mA+ COM
3 41 2 5
• Connecting the light color
and gray wire makes
light flash
• Connecting the light color
and black wire makes
light steady on
24V OUT
P+ P-
RTD
TC
1 2 3 4 5 6
RTD
TC
SWITCH
POWER
2 1
+
3 41 2 C
Front Panel
Reset Push Button
-
PDA-LH Using External Power Supply
(PDA1024 - 01)
Blue, Green, Red, White, or Yellow (Light)
Light/
Gray (Flashing Light)
Horn
Beacon
Purple (Horn)
Purple (Horn)
Black (Steady on)
• Connecting the light color
and gray wire makes
light flash
• Connecting the light color
and black wire makes
light steady on
Front Panel
Reset Push Button
PDA-LH5C Using Trident X2's
Internal Power Supply
Light/
Horn
Black (Minus Supply)
Beacon
Blue, Green, Red, White, or Yellow (Light)
Purple (Horn)
RELAY2 RELAY1
4 36 5 2 1 2 1
COM NONO NC NC COM
RTD
TC
EXC T+V+ mA+ COM
3 41 2 5
RTD
SWITCH
24V OUT
P+ P-
1 2 3 4 5 6
TC
POWER
2 1
+
3 41 2 C
Front Panel
Reset Push Button
-
PDA-LH5C Using External Power Supply
(PDA1024 - 01)
Light/
Horn
Beacon
Blue, Green, Red, White, or Yellow (Light)
Purple (Horn)
Front Panel
Reset Push Button
Brown (Power)
Brown (Power)
RELAY2 RELAY1
PDA1024
24 V External
Power Supply
4 36 5 2 1 2 1
COM NONO NC NC COM
RTD
TC
EXC T+V+ mA+ COM
RTD
3 41 2 5
SWITCH
24V OUT
P+ P-
1 2 3 4 5 6
TC
Transmitter
POWER
2 1
+
3 41 2 C
RELAY2 RELAY1
4 36 5 2 1 2 1
-
Black (Minus Supply)
COM NONO NC NC COM
EXC T+V+ mA+ COM
3 41 2 5
PDA1024
24 V External
Power Supply
24V OUT
P+ P-
RTD
TC
1 2 3 4 5 6
RTD
TC
SWITCH
POWER
2 1
+
3 41 2 C
-
Transmitter
5
www.predig.com
Page 6
PDA-LH Series Light / Horn Accessory

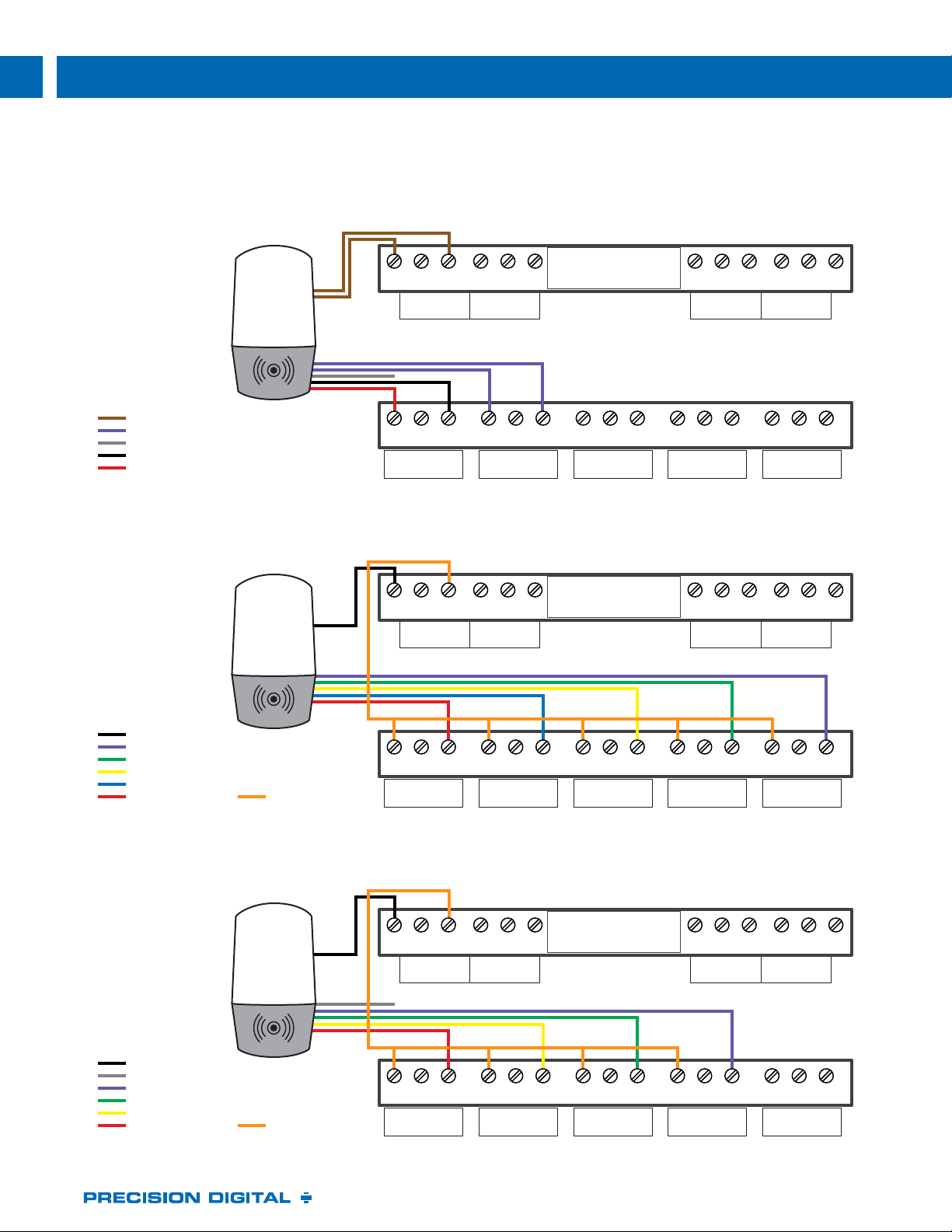

WIRING CONNECTIONS FOR CONSOLIDATOR+
PDA-LH Using ConsoliDator+ Internal Power Supply
• Connecting the light color
and gray wire makes
light flash
• Connecting the light color
and black wire makes
light steady on
Light/
Horn
mA- mA+ 24V mA- mA+ 24V mA- mA+ 24V mA- mA+ 24V
AI-1 AI-2 AI-3 AI-4
Beacon
Light/Horn Wires
Brown (Power)
Purple (Horn)
Gray (Flashing Light)
Black (Steady On Light)
Blue, Green, Red, White, or Yellow (Light)
C NC NO C NC NO C NC NO C NC NO C NC NO
RY-1 R Y- 2 RY-3 R Y- 4 RY-5
PDA-LH5C Using ConsoliDator+ Internal Power Supply
4-20 mA INPUTS
Light/
Horn
mA- mA+ 24V mA- mA+ 24V mA- mA+ 24V mA- mA+ 24V
AI-1 AI-2 AI-3 AI-4
4-20 mA INPUTS
Beacon
Light/Horn Wires
Black (Minus Supply)
Purple (Horn)
Green (Light)
Yellow (Light)
Blue (Light)
Red (Light) 24 V Power
C NC NO C NC NO C NC NO C NC NO C NC NO
RY-1 R Y- 2 RY-3 R Y- 4 RY-5
PDA-LH3LC-RYG Using ConsoliDator+ Internal Power Supply
• Connecting the light color
and gray wire makes
light flash
Light/Horn Wires
Black (Minus Supply)
Gray (Flashing Light)
Purple (Horn)
Green (Light)
Yellow (Light)
Red (Light) 24 V Power
Light/
Horn
Beacon
mA- mA+ 24V mA- mA+ 24V mA- mA+ 24V mA- mA+ 24V
AI-1 AI-2 AI-3 AI-4
C NC NO C NC NO C NC NO C NC NO C NC NO
RY-1 R Y- 2 RY-3 R Y- 4 RY-5
4-20 mA INPUTS
6
www.predig.com
Page 7
PDA-LH Series Light / Horn Accessory

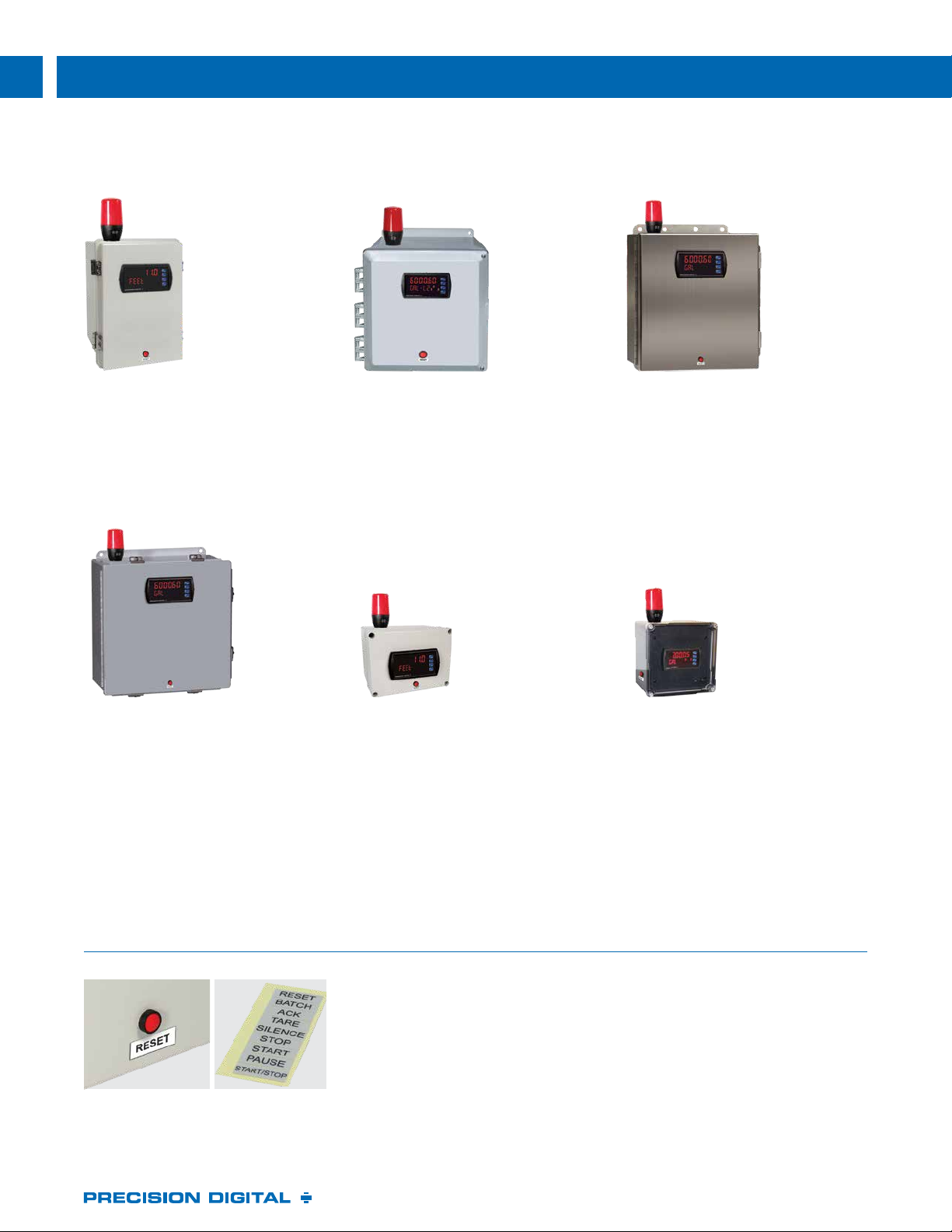

AVAILABLE FOR THESE ENCLOSURES
PDA2300
Economical Plastic
NEMA 4X Enclosures
The PDA-LH Series is available on all
PDA2300 Series Enclosures.
PDA2700
Steel NEMA 4
Enclosures
The PDA-LH Series is available on all
PDA2700 Series Enclosures.
PDA2500
Rugged Plastic NEMA 4X
Enclosures
The PDA-LH Series is available on all
PDA2500 Series Enclosures.
PDA2800 Smallest
Footprint Plastic NEMA 4X
Enclosures
The PDA-LH Series is available on all
PDA2800 Series Enclosures except
PDA2801 and PDA2812.
PDA2600
Stainless Steel NEMA 4X
Enclosures
The PDA-LH Series is available on all
PDA2600 Series Enclosures.
PDA3400 Internally
Mounted Plastic NEMA 4X
Enclosures
The PDA-LH Series is available on all
PDA3400 Series Enclosures except
the PDA3411, PDA3412, PDA3414.
Enclosures shown with a ProVu Meter and MOD-LHRB1 Red Light / Horn and Reset Button.
Meter, Enclosure, and MOD-LHRB1 are Sold Separately. Assembly Required.
RESET BUTTON LABELS
The Light / Horn accessory comes with 9 pre-printed message labels the user can
afx under the red button: RESET, BATCH, ACK, TARE, SILENCE, STOP, START,
PAUSE, START/STOP
7
www.predig.com
Page 8
PDA-LH Series Light / Horn Accessory
SPECIFICATIONS
General
Light Colors: PDA-LHR: Red, PDA-LHG: Green,
PDA-LHY: Yellow, PDA-LHB: Blue, PDA-LHW: White
PDA-LH5C: User selectable: red, green, yellow, blue, white
PDA-LH3LC-RYG: 1 layer each of red, yellow, green
(consult factory for other colors available).
Light Action: Can be wired to flash (not available on
PDA-LH5C) or stay steady on
Horn: 85 dB
Rating: IP 65
Light / Horn Independence: Light and horn can be
controlled via separate relays.
Power Requirement: No additional power required when
wired to a meter. When mounted remote: 24 VDC
Transmitter Power Supply*: The
Trident X2's internal transmitter power supply is capable
of supplying 200 mA to power the transmitter and other
devices such as the Light / Horn. The following table
illustrates how much of this power is required to drive
various Light / Horns. If more power is needed, then
consider the PDA1024-01.
PDA-LH and PDA-LH5C Models:
Color Power Required Color Power Required
Red 17 mA Blue 15 mA
Green 15 mA White 42 mA
Yellow 23 mA Horn 20 mA
Example: 17 mA (Red Light) + 20 mA (Horn) = 37 mA total current
needed from the 200 mA supply. Available current = 163 mA
PDA-LH3LC- RYG:
Power Requirement for the horn and each color that is
turned on:
Color Power Required Color Power Required
Red 34 mA Yellow 33 mA
Green 29 mA Horn 38 mA
Example: 33 mA (Yellow Light) + 38 mA (Horn) = 71 mA total current
needed from the 200 mA supply. Available current = 139 mA
Reset / Silence Button: NEMA 4X; may be wired to F4
terminal on ProVu or Helios. F3 front panel button can also
be used to reset relays on
ProVu or Helios. Reset button
can also be used to reset relays on Trident X2.
Reset Button Labels: The Light / Horn accessory comes
with 9 pre-printed message labels the user can affix under
the red button: RESET, BATCH, ACK, TARE, SILENCE,
STOP, START, PAUSE, START/STOP
Light / Horn Mounting Connection: M22
Hole Sizes: Light / Horn: 0.875" (22 mm)
Cable Length: 3.28 feet (1 meter)
Operating Temperature Range: -40 to 40°C (-40 to 104°F)
* See Con soliDat or+ data sh eet for spe cications fo r its inter nal 24 VDC transmit ter
power supply capabilities.
ProVu's, Helios's, and
Compatibility
PDA-LH & PDA-LH5C Models: ProVu, Helios, Trident X2,
ConsoliDator+
PDA-LH3LC-RYG:
ProVu, Helios, ConsoliDator+
OPTIONAL 24 VDC POWER SUPPLY
PDA1024-01: DIN rail mounted 24 VDC, 1.5 A power supply.
Output Voltage: 21.6 ~ 26.4 VDC; ±10% 1.5A rated current.
Dimensions: 3.07" x 3.66" x 2.20"
(78 mm x 93 mm x 56 mm) (W x H x D)
ORDERING INFORMATION
Model Description
PDA-LHR Red Light / Horn
PDA-LHG Green Light / Horn
PDA-LHY Yellow Light / Horn
PDA-LHB Blue Light / Horn
PDA-LHW White Light / Horn
PDA-LH5C
PDA-LH3LC-RYG
PDA-BUTTON1R Reset Button
PDA1024-01 24 VDC Power Supply for DIN Rail
Your Local Distributor is:
Disclaimer
The info rmatio n contai ned in this d ocument is subjec t to change w ithout n otice. Pr ecisio n
Digital Corporation makes no representations or warranties with respect to the contents
hereof, and specically disclaims any implied warranties of merchantabilit y or tness for
a particular purpose.
©2019 Precision Digital Corporation. All rights reserved.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Light / Horn with User Choice of Red,
Green, Yellow, Blue or White Light
Light / Horn with Red, Yellow, Green
Light Layers
LIMLH_B 11/19
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA • Tel (800) 343-1001
www.predig.com
Loading...
