Page 1

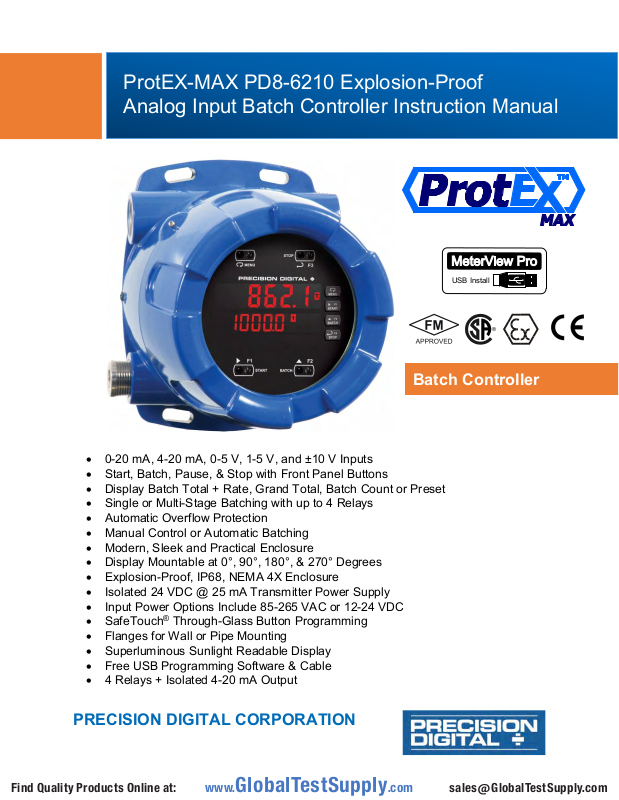

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Batch Controller

• 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs

USB Install

• Start, Batch, Pause, & Stop with Front Panel Buttons

• Display Batch Total + Rate, Grand Total, Batch Count or Preset

• Single or Multi-Stage Batching with up to 4 Relays

• Automatic Overflow Protection

• Manual Control or Automatic Batching

• Modern, Sleek and Practical Enclosure

• Display Mountable at 0°, 90°, 180°, & 270° Degrees

• Explosion-Proof, IP68, NEMA 4X Enclosure

• Isolated 24 VDC @ 25 mA Transmitter Power Supply

• Input Power Options Include 85-265 VAC or 12-24 VDC

• SafeTouch® Through-Glass Button Programming

• Flanges for Wall or Pipe Mounting

• Superluminous Sunlight Readable Display

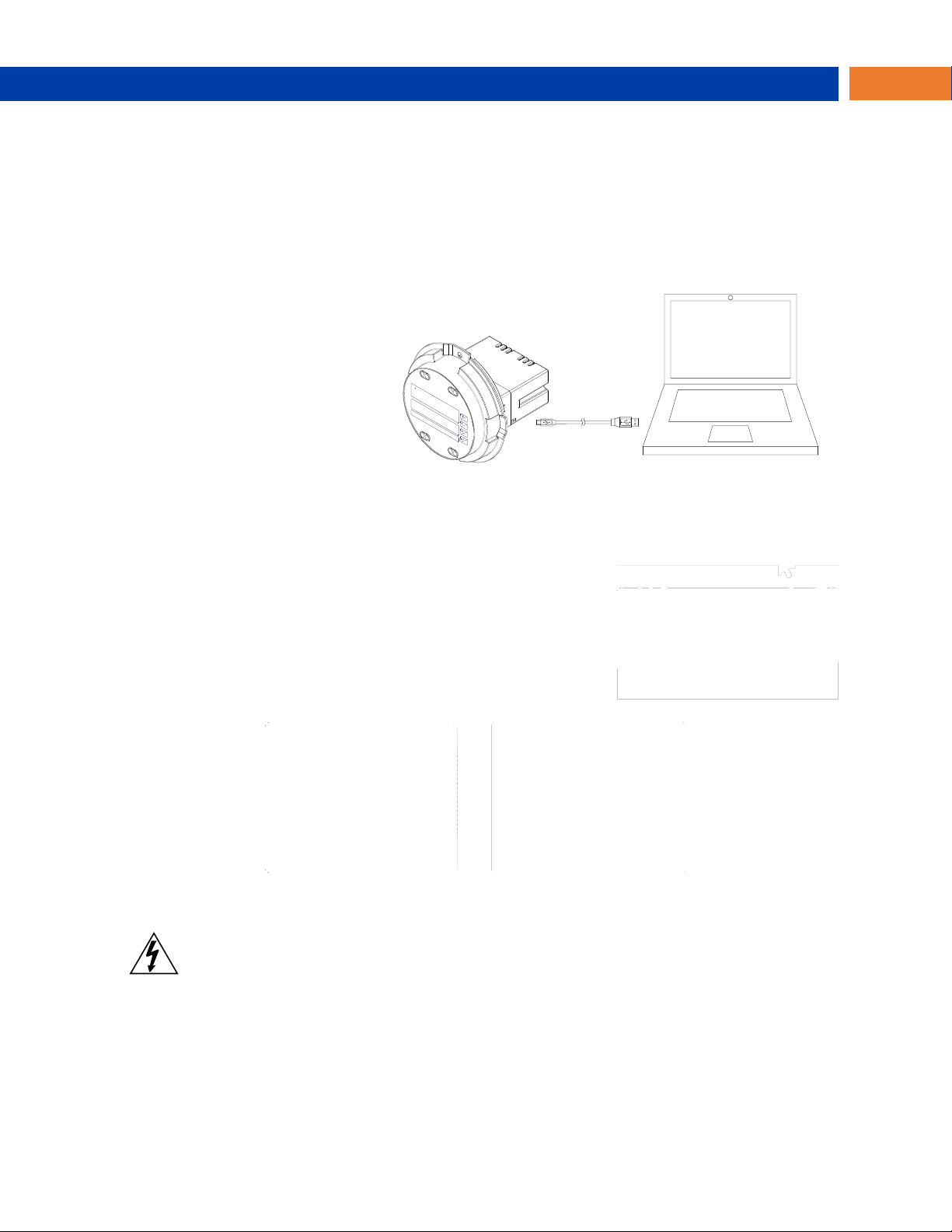

• Free USB Programming Software & Cable

• 4 Relays + Isolated 4-20 mA Output

PRECISION DIGITAL CORPORATION

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 2

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Disclaimer

CAUTION: Read complete

instructions prior to installation and operation of the controller.

WARNING: Risk of electric shock or personal injury.

Warning!

• This product is not recommended for life support applications or applica-

tions where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

• Failure to follow installation guidelines could result in death or serious in-

jury. Make sure only qualified personnel perform the installation.

• Never remove the instrument cover in explosive environments when the

circuit is live.

• Cover must be fully engaged to meet flameproof/explosion-proof require-

ments.

• Information in this manual supersedes all enclosure, compliance, and

agency approval information included in additional product manuals included with this product.

The information contained in this document is subject to change without notice. Precision Digital makes no representations or warranties with respect to the contents hereof; and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.

Registered Trademarks

MeterView® Pro is a registered trademark of Precision Digital Corporation. Modbus® is a Registered Trademark of Schneider Automation Inc. All other trademarks mentioned in this document are the property of their respective owners.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 3

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Table of Contents

Table of Contents ----------------------------------------- 3 Table of Figures ------------------------------------------- 4 Introduction ------------------------------------------------- 4 Ordering Information ------------------------------------ 5 Specifications ---------------------------------------------- 6

General ------------------------------------------------------------ 6 Process Input --------------------------------------------------- 6 Batch Controller Rate/Totalizer Display --------------- 7 Relays ------------------------------------------------------------- 7 Isolated 4-20 mA Transmitter Output ------------------- 8 Serial Communications -------------------------------------- 8 Digital Inputs & Outputs ------------------------------------- 8 MeterView Pro -------------------------------------------------- 8 Product Ratings and Approvals; ------------------------- 9

Compliance Information ------------------------------ 10

Safety ------------------------------------------------------------ 10 Electromagnetic Compatibility -------------------------- 10

Safety Information -------------------------------------- 11 Installation ------------------------------------------------ 11

Unpacking ------------------------------------------------------ 11 Pre-Installed Conduit/Stopping Plug ------------------ 12 Mounting ------------------------------------------------------- 12 Cover Jam Screw -------------------------------------------- 12 Transmitter Supply Voltage Selection (P+, P-) ---- 12 Connections --------------------------------------------------- 13

Required & Factory Wired Connection --------------- 13 Connectors Labeling -------------------------------------- 14 Power Connections --------------------------------------- 14 Signal Connections --------------------------------------- 15 Serial Communications Connections ----------------- 16

Three Wire Connections ----------------------------- 16 Using PROVU Serial Adapters --------------------------- 18 Relay Connections ---------------------------------------- 19 Switching Inductive Loads ------------------------------- 19 F4 Digital Input Connections ---------------------------- 20 4-20 mA Output Connections --------------------------- 20 Analog Output Transmitter Power Supply ----------- 20 Interlock Relay Feature ---------------------------------- 20 Digital I/O Connections ----------------------------------- 21 External Switch Contacts -------------------------------- 21

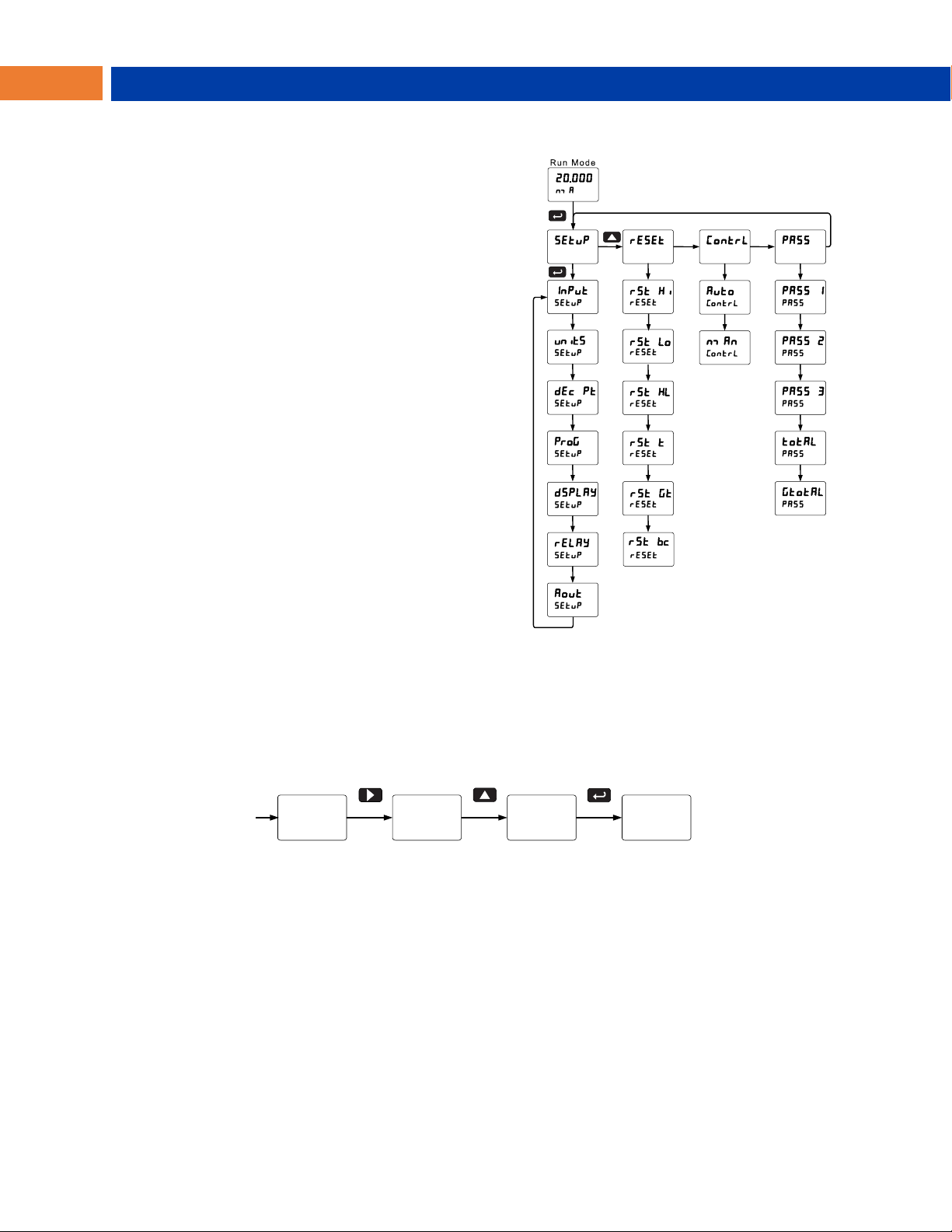

Basic Operation and Programming --------------- 22

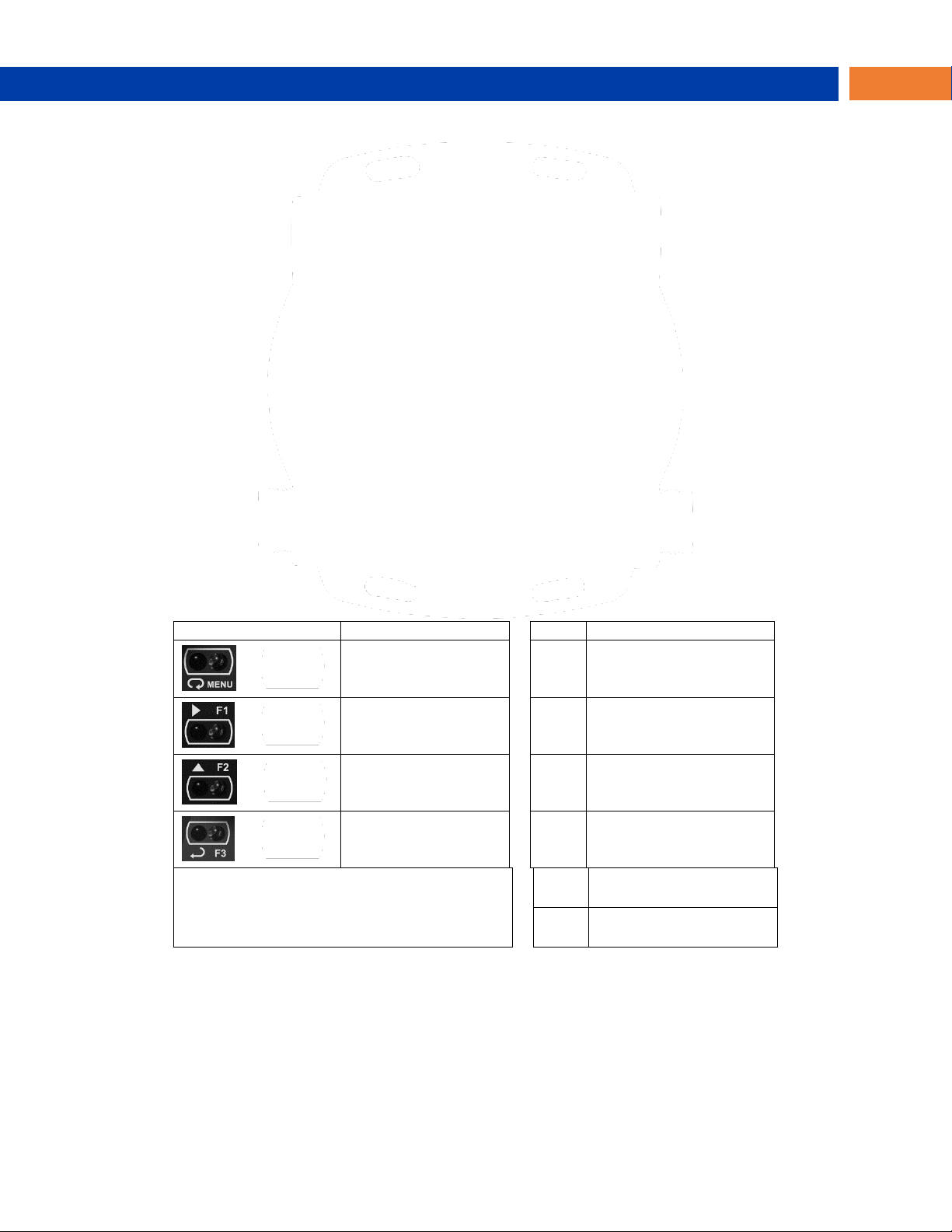

SafeTouch Front Buttons and Status LED Indicators ----------- 23 Controller Operation ---------------------------------------- 24

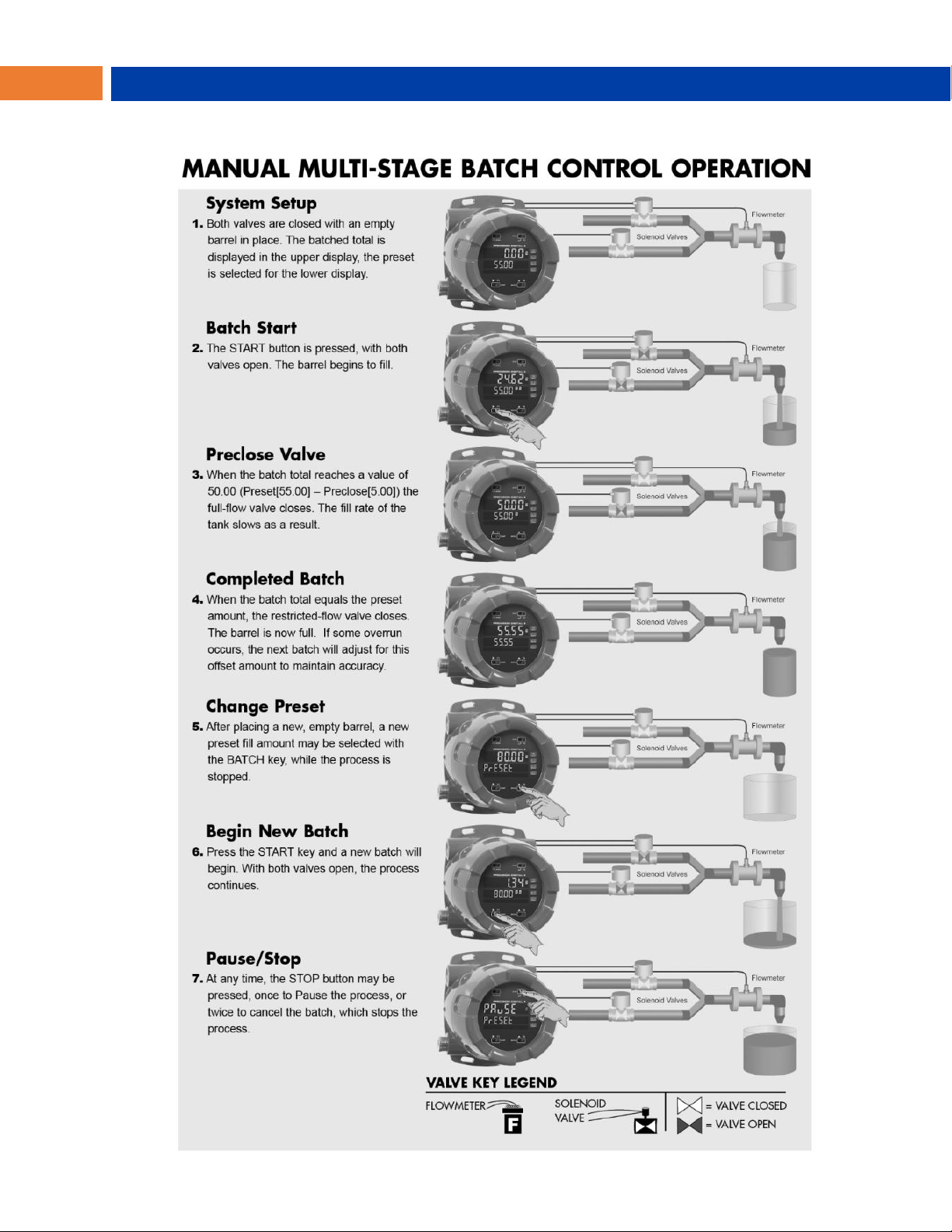

Batch Control Operation Example --------------------- 25

MeterView

MeterView Pro Installation ------------------------------ 27

Display Functions and Messages ---------------------- 28 Setting Numeric Values ----------------------------------- 30 Setting Up the Batch Controller (setup) ------------- 31

Scaling and Calibration ---------------------------------- 32

Setting the Input Signal (Input) ------------------------ 32

Setting the Totalizer and Batching Features (total)

----------------------------------------------------------------- 32 Setting the Input Units or Custom Tags (units)--- 32 Setting the Decimal Point (dEc pt) ------------------- 32

Buttons ---------------------------------------- 22

Pro Software --------------------------------- 27

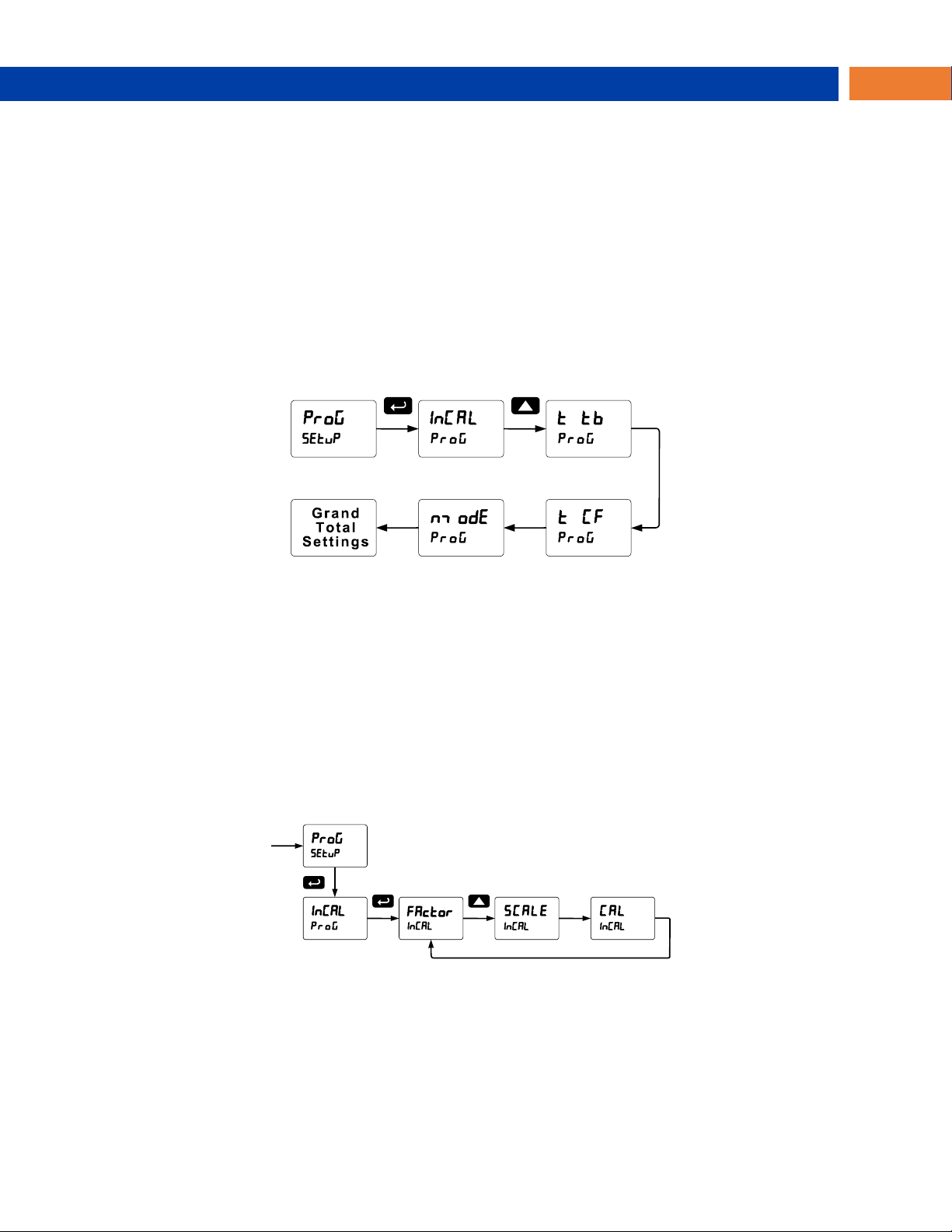

Programming the Batch Controller (prog) ---------- 33

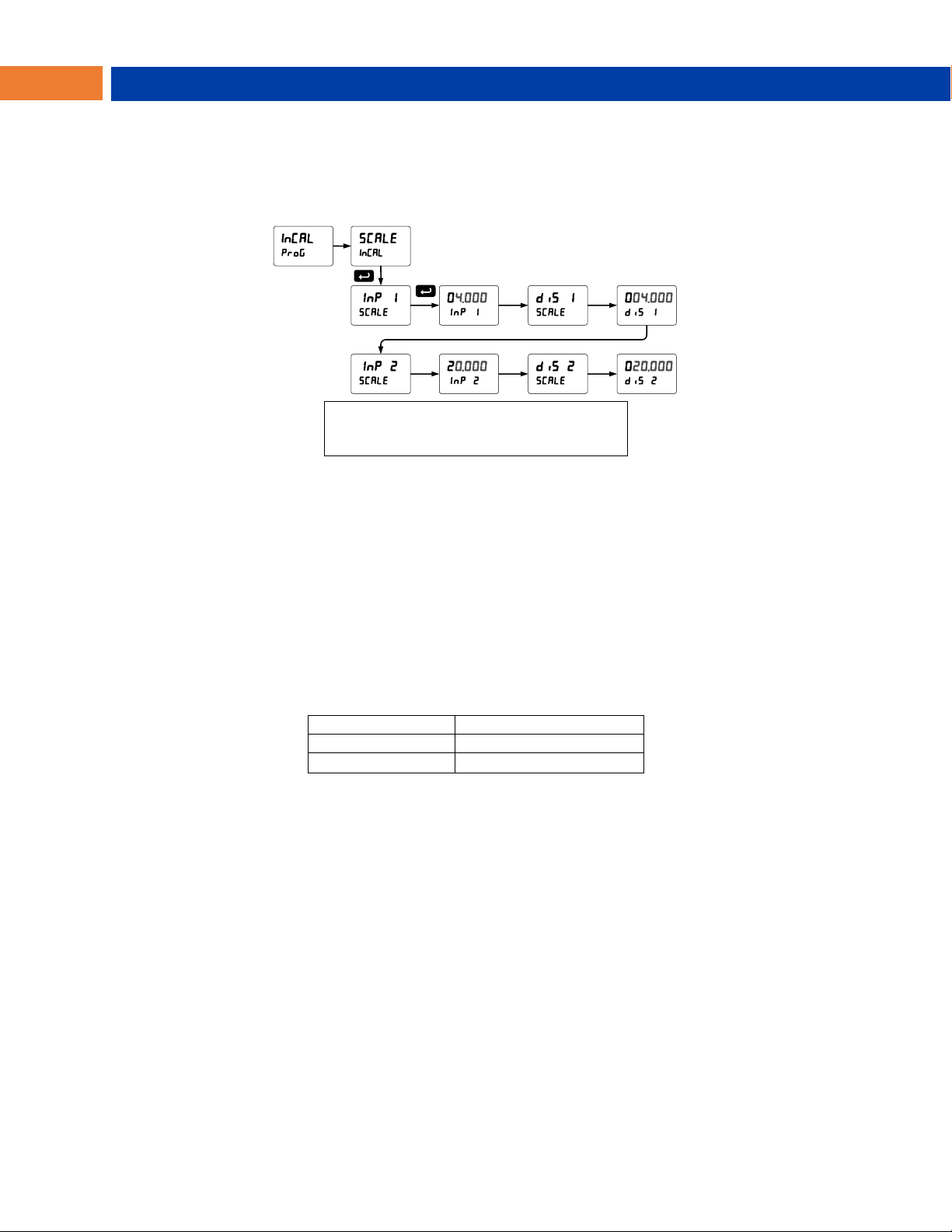

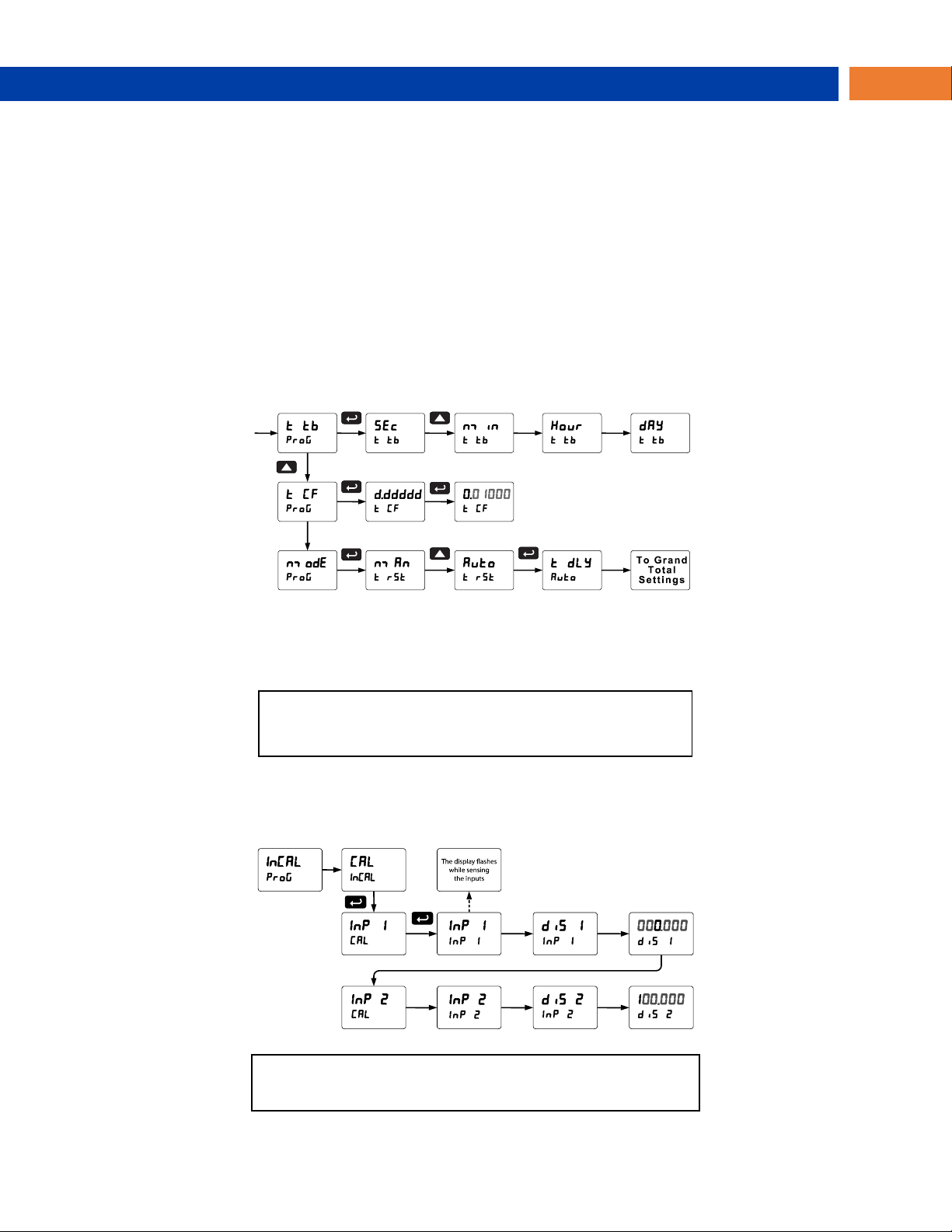

Input Calibration Method (InCAL) ------------------ 33 Scaling the Controller (SCALE) ---------------------- 34 Time Base, Total Conversion Factor & Total

Reset ------------------------------------------------ 35

Batch Start Mode (mode) ------------------------------ 35

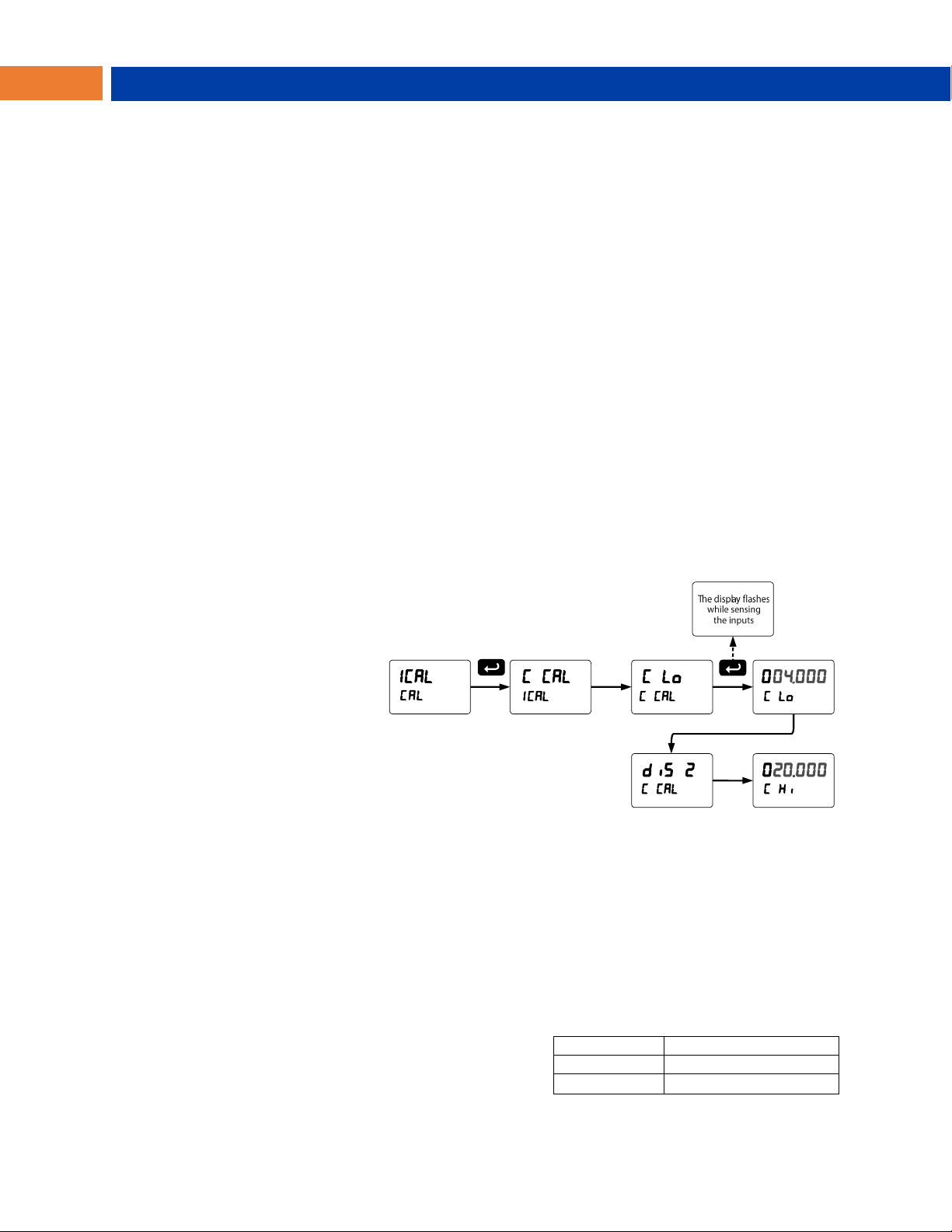

Calibrating the Controller with External Source

(Cal) ------------------------------------------------- 35

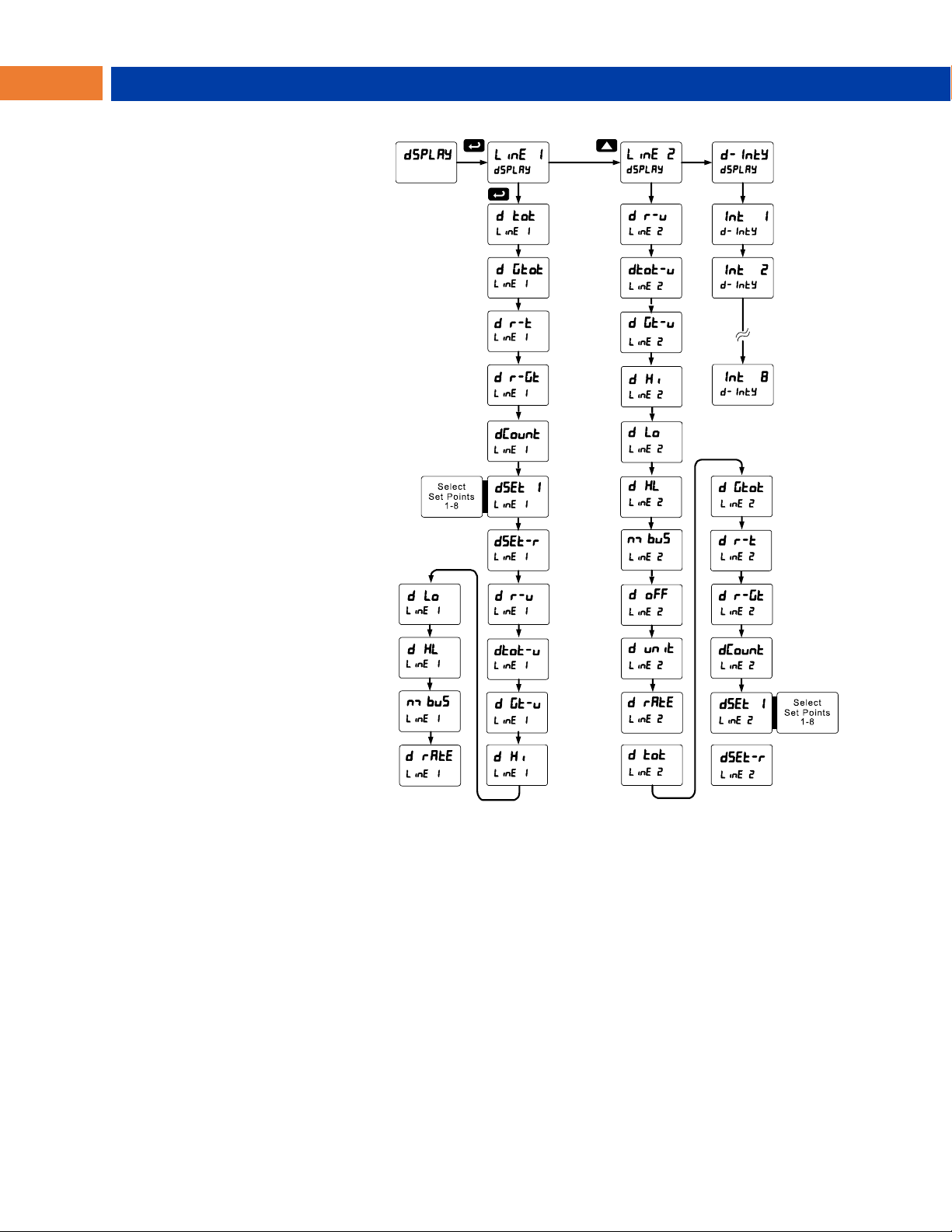

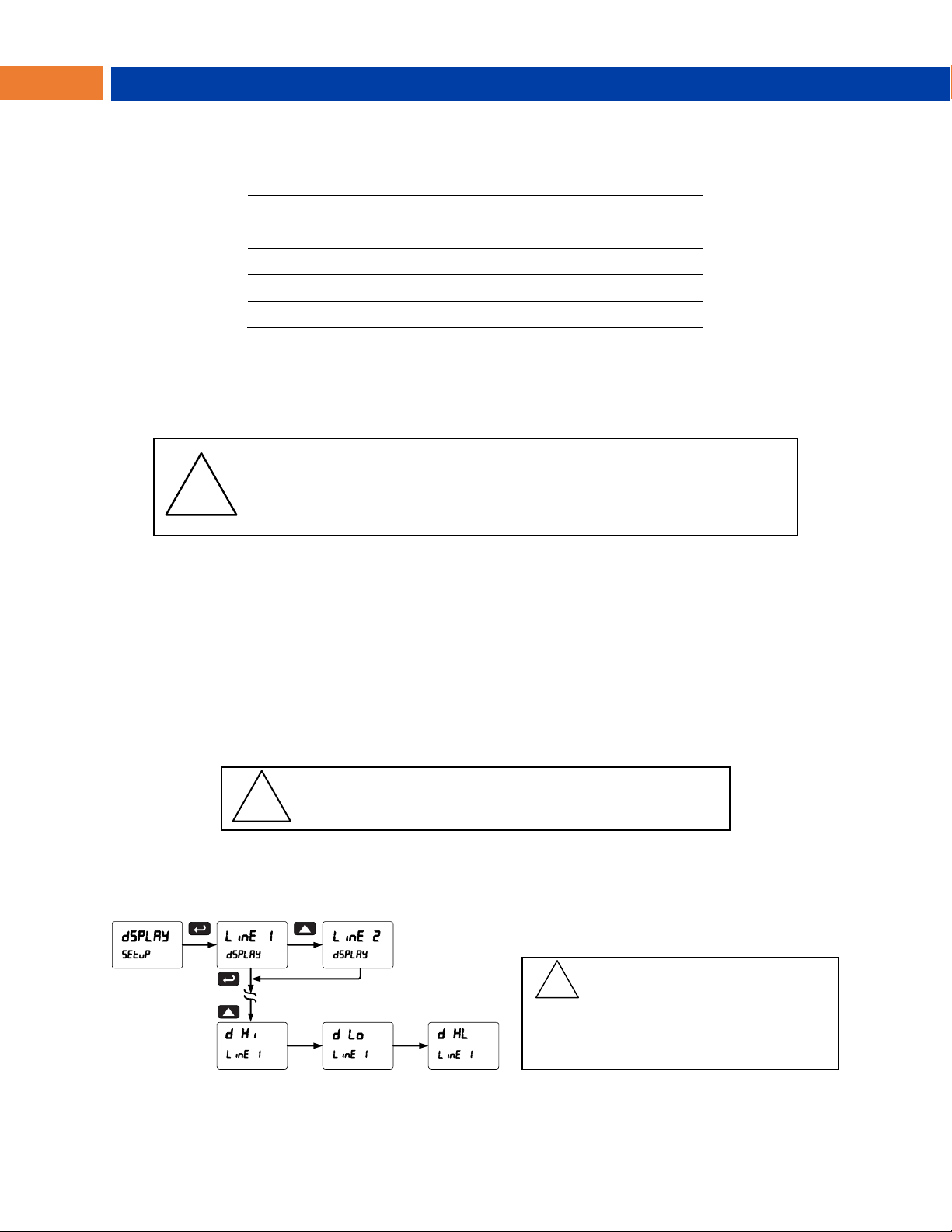

Setting the Display Parameter & Intensity (dsplay)

----------------------------------------------------------------- 36

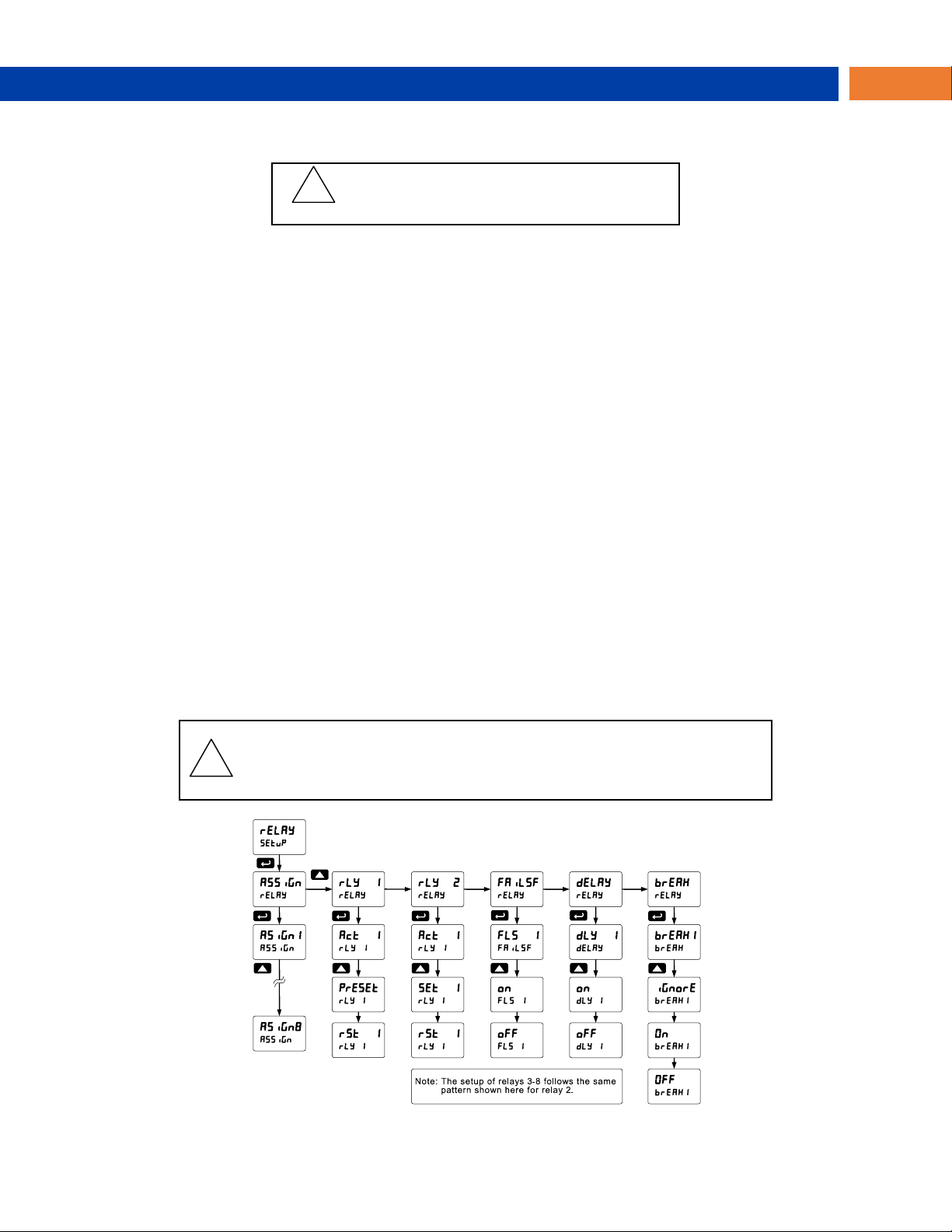

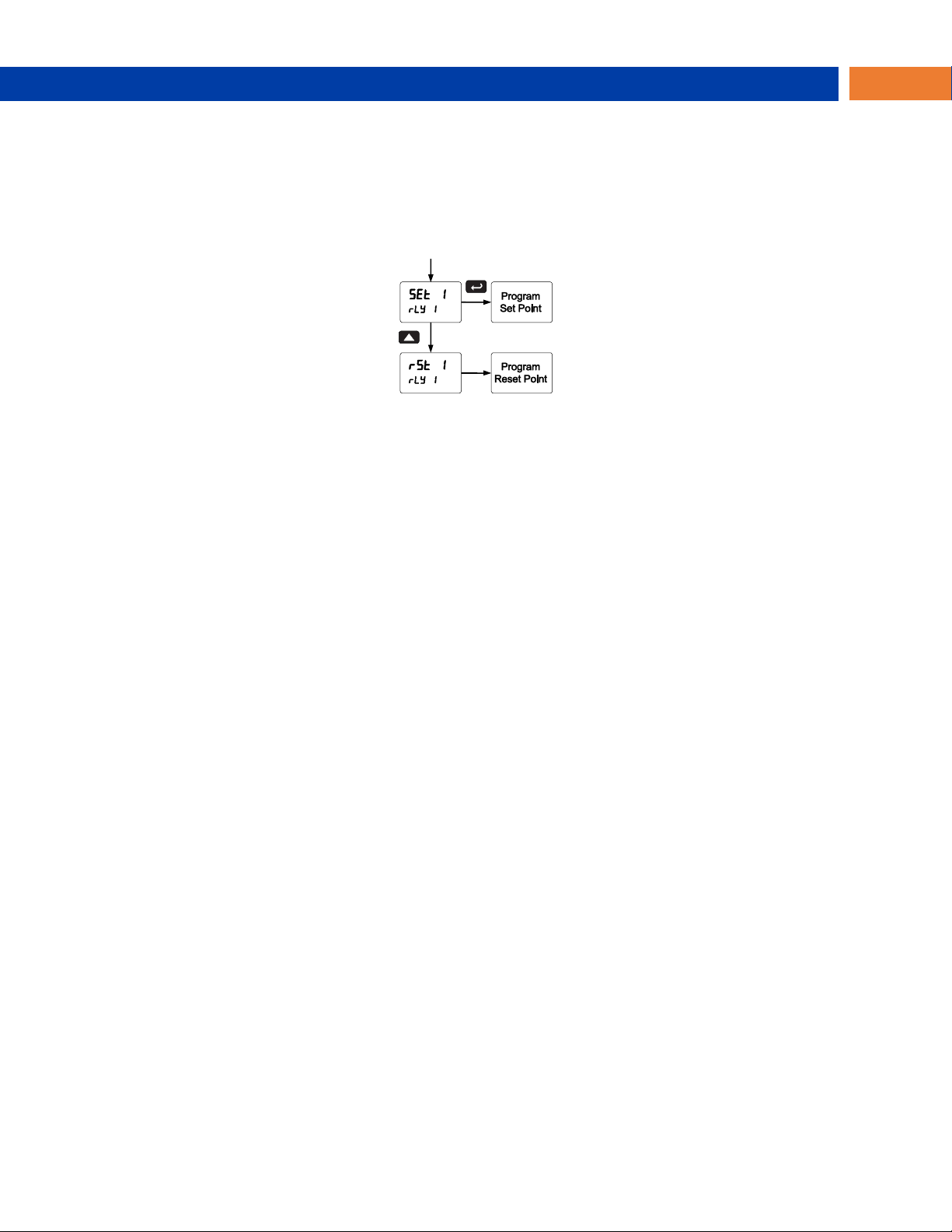

Setting the Relay Operation (relay) ------------------ 37

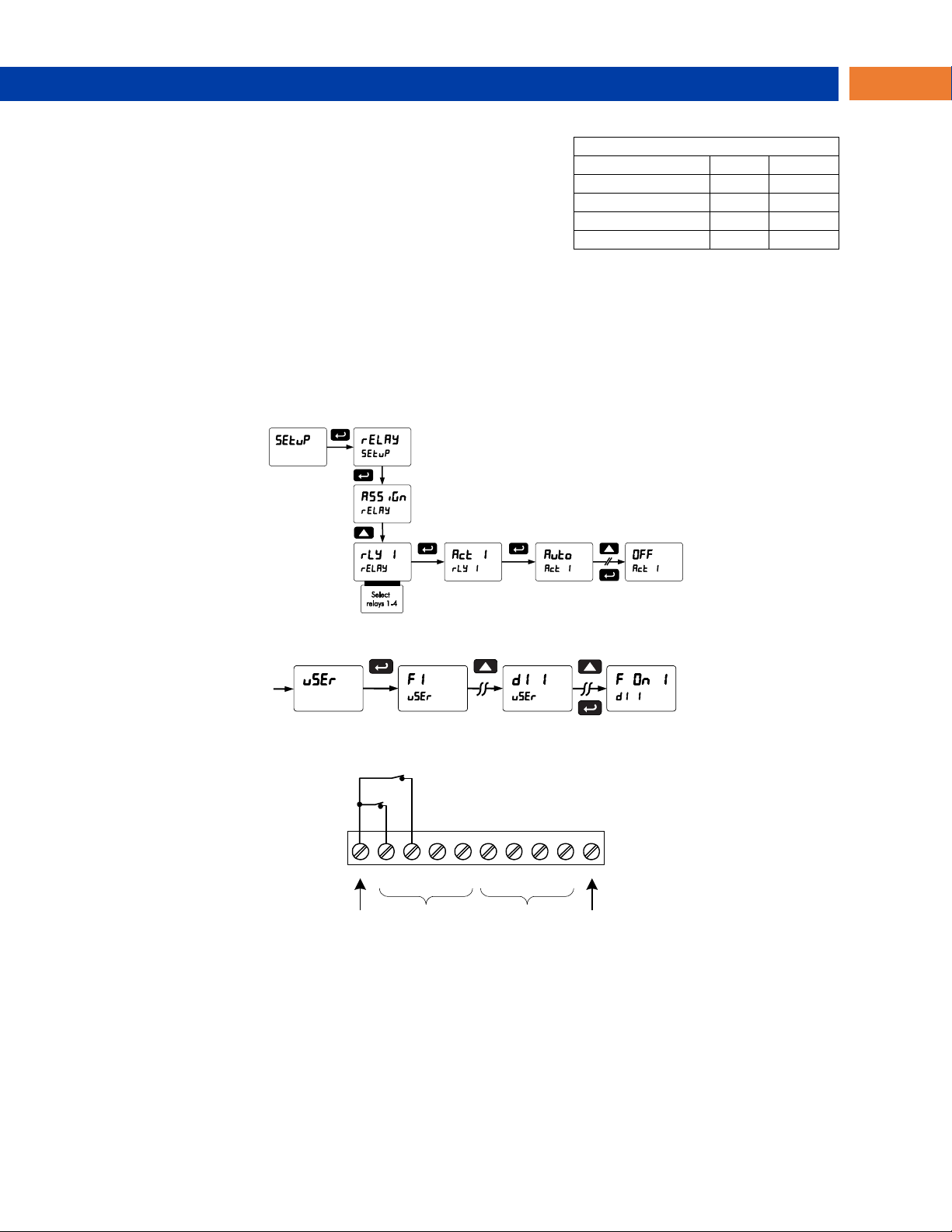

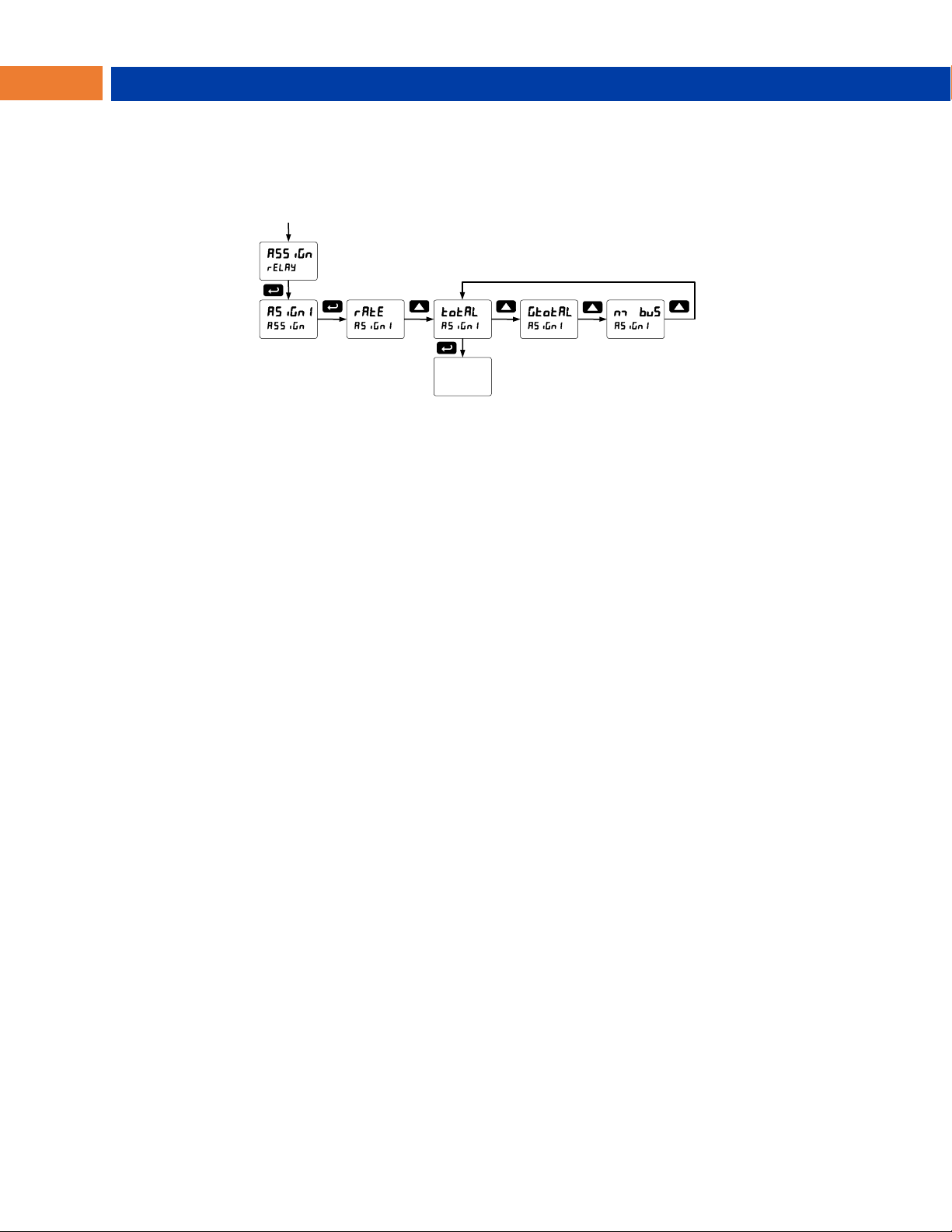

Relay Assignment (Assign) ---------------------------- 38 Setting the Relay Action --------------------------------- 38 Setting Batch Control Relays --------------------------- 38 Programming Alarm Set and Reset Points --------- 39 Setting Fail-Safe Operation ----------------------------- 39 Programming Time Delay ------------------------------- 39 Relay Action for Loss of 4-20 mA Input (Loop Break)

----------------------------------------------------------------- 39

Relay Operation Details ----------------------------------- 40

Overview ----------------------------------------------------- 40 Relays Initialization --------------------------------------- 40 Fail-Safe Operation --------------------------------------- 40 Front Panel LEDs ----------------------------------------- 40 Automatic Reset (Auto) ---------------------------------- 41 Pump Alternation Control -------------------------------- 41 Setting Up the Interlock Relay (Force On) Feature 41 Sample Relay Operation -------------------------------- 42

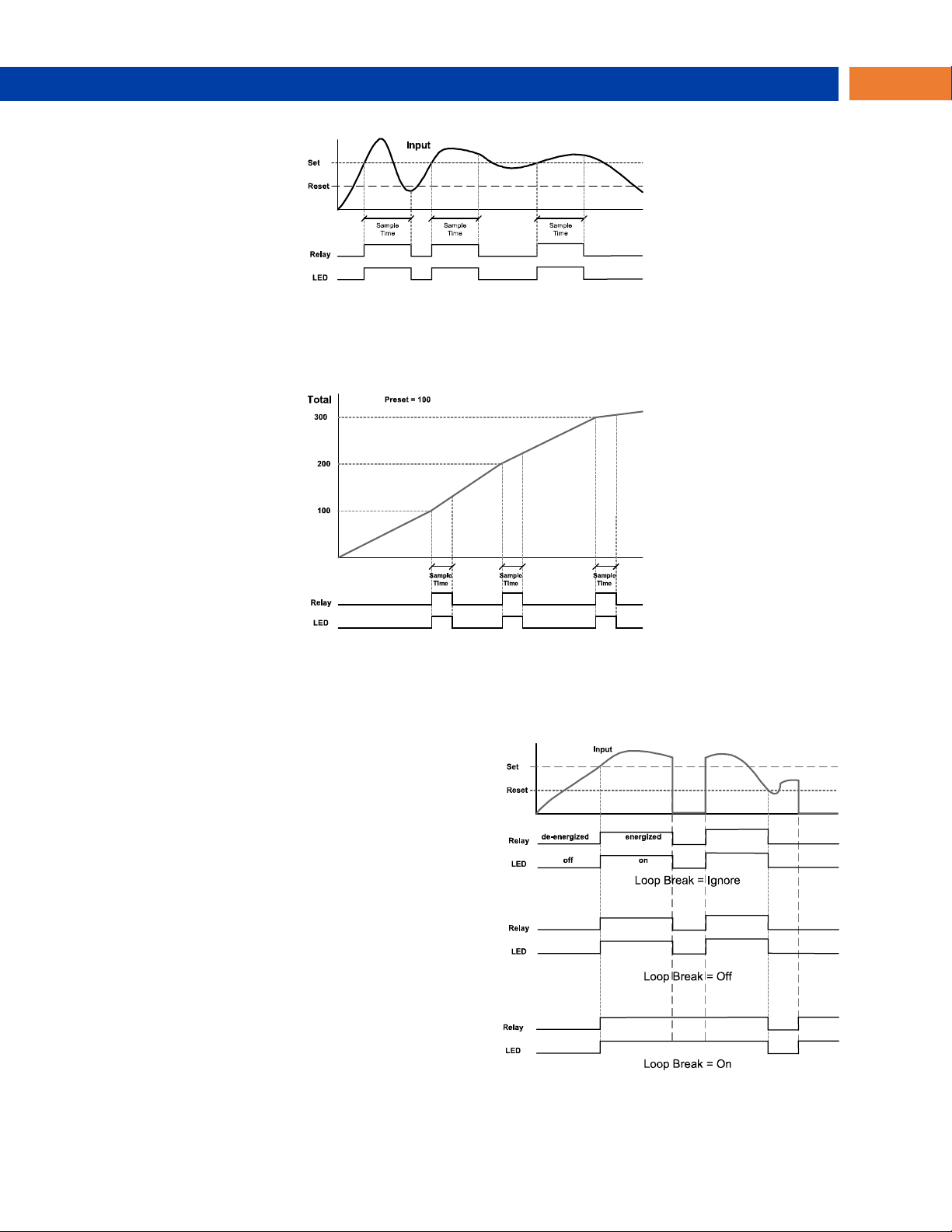

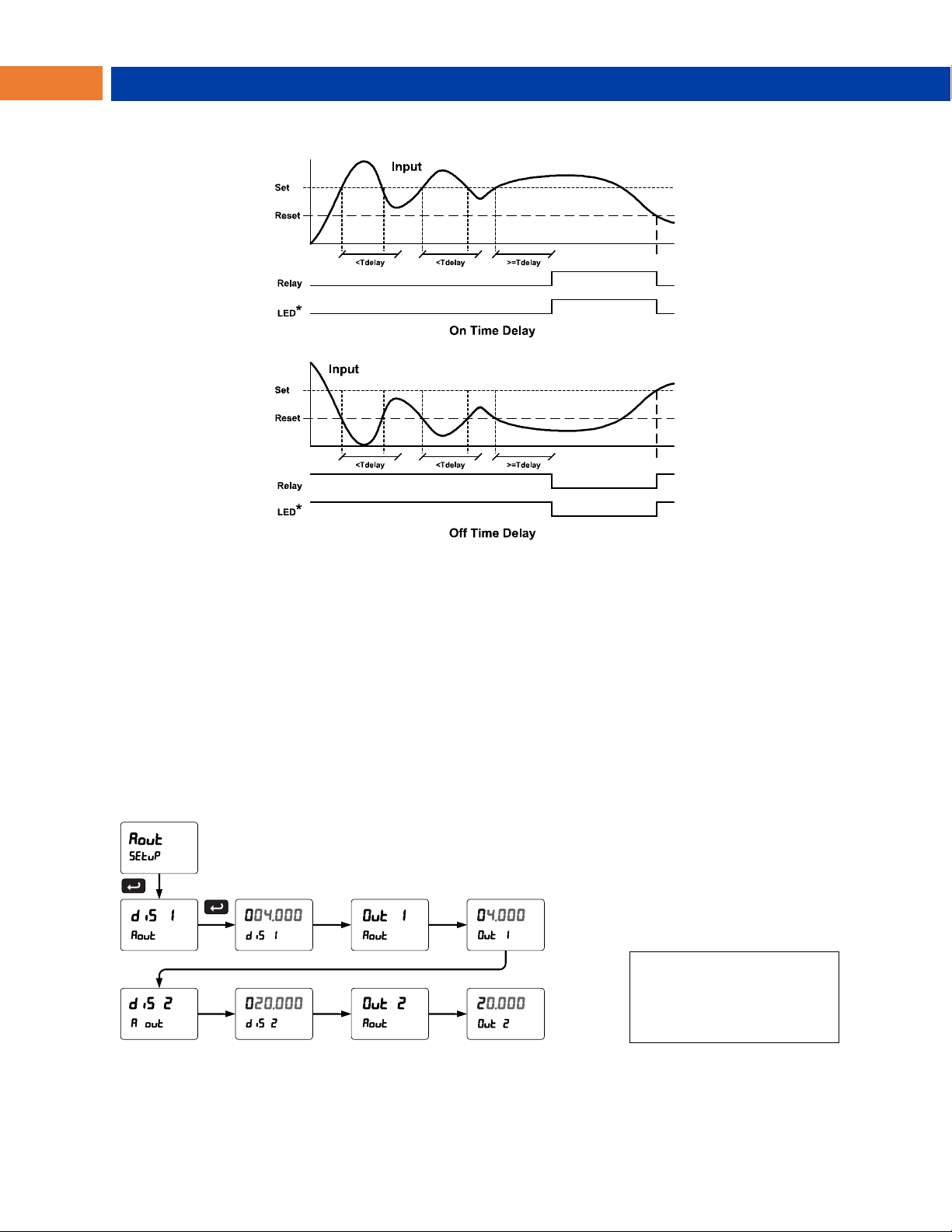

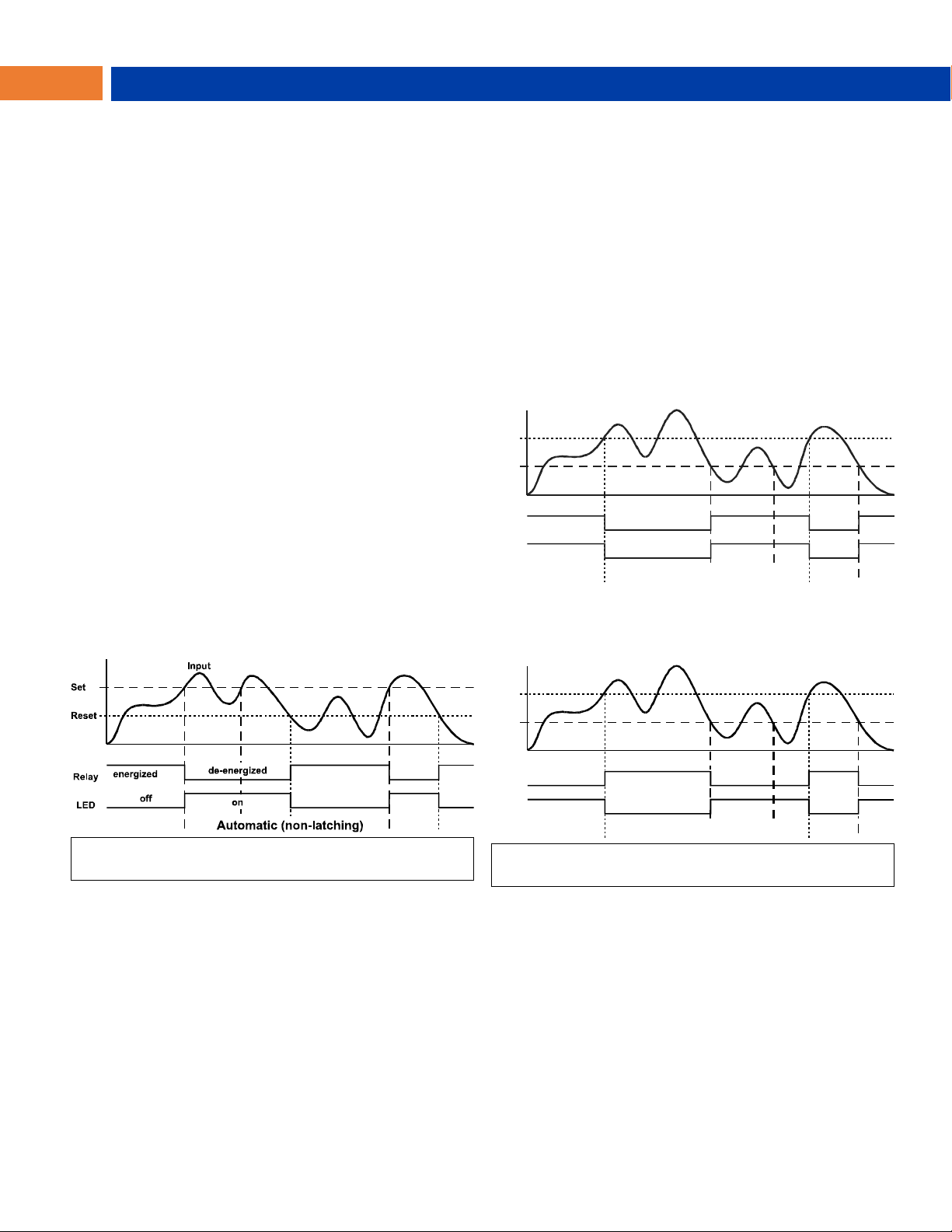

Relay and Alarm Operation Diagrams ---------------- 42

High Alarm Operation (Set > Reset) ------------------ 42 Low Alarm Operation (Set < Reset) ------------------ 42 High Alarm with Fail-Safe Operation (Set > Reset)

----------------------------------------------------------------- 42 Low Alarm with Fail-Safe Operation (Set < Reset) 42 Rate Relay Sampling Operation ----------------------- 43 Total Relay Sampling Operation ----------------------- 43 Signal Loss or Loop Break Relay Operation ------- 43 Time Delay Operation ------------------------------------ 44

Scaling the 4-20 mA Analog Output (Aout) --------- 44 Reset Menu (reset) ----------------------------------------- 45 Control Menu (Contrl) ------------------------------------- 45 Setting Up the Password (pass) ------------------------ 45

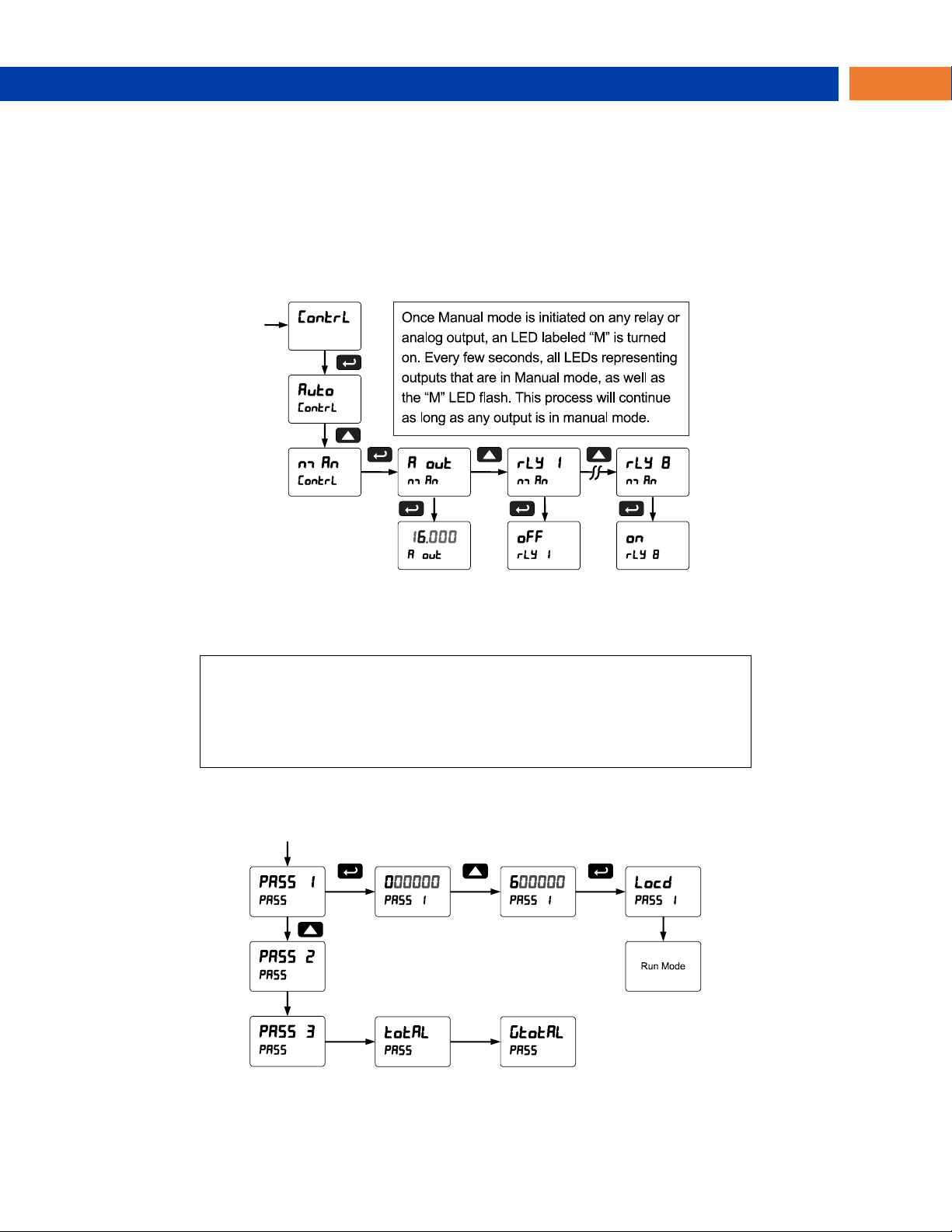

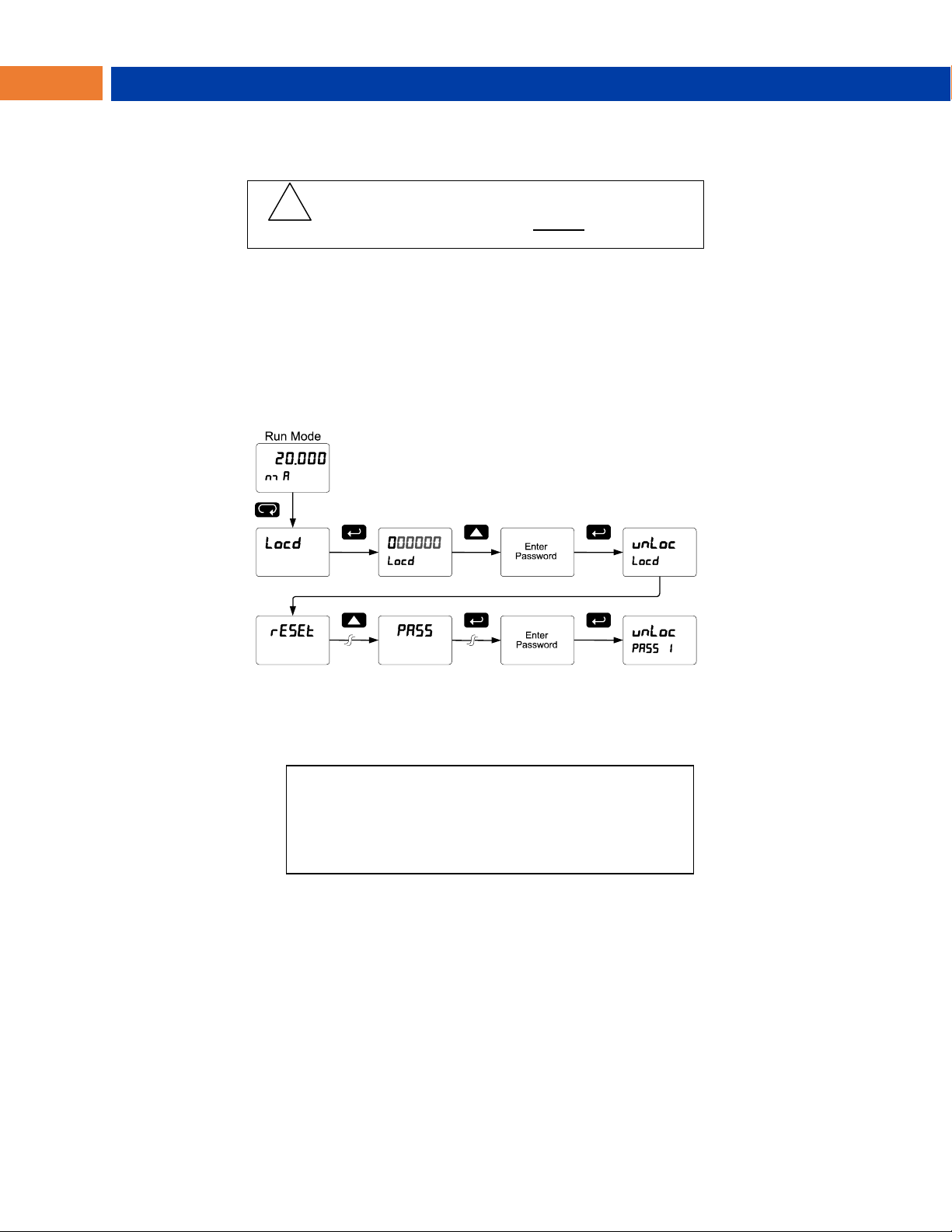

Protecting or Locking the Controller ------------------ 45 Grand Total Reset Password & Non-Resettable Total ---------------------------------------------------------- 46 Making Changes to a Password Protected Controller ---------------------------------------------------- 46 Disabling Password Protection ------------------------ 46

Advanced Operation and Programming --------- 47

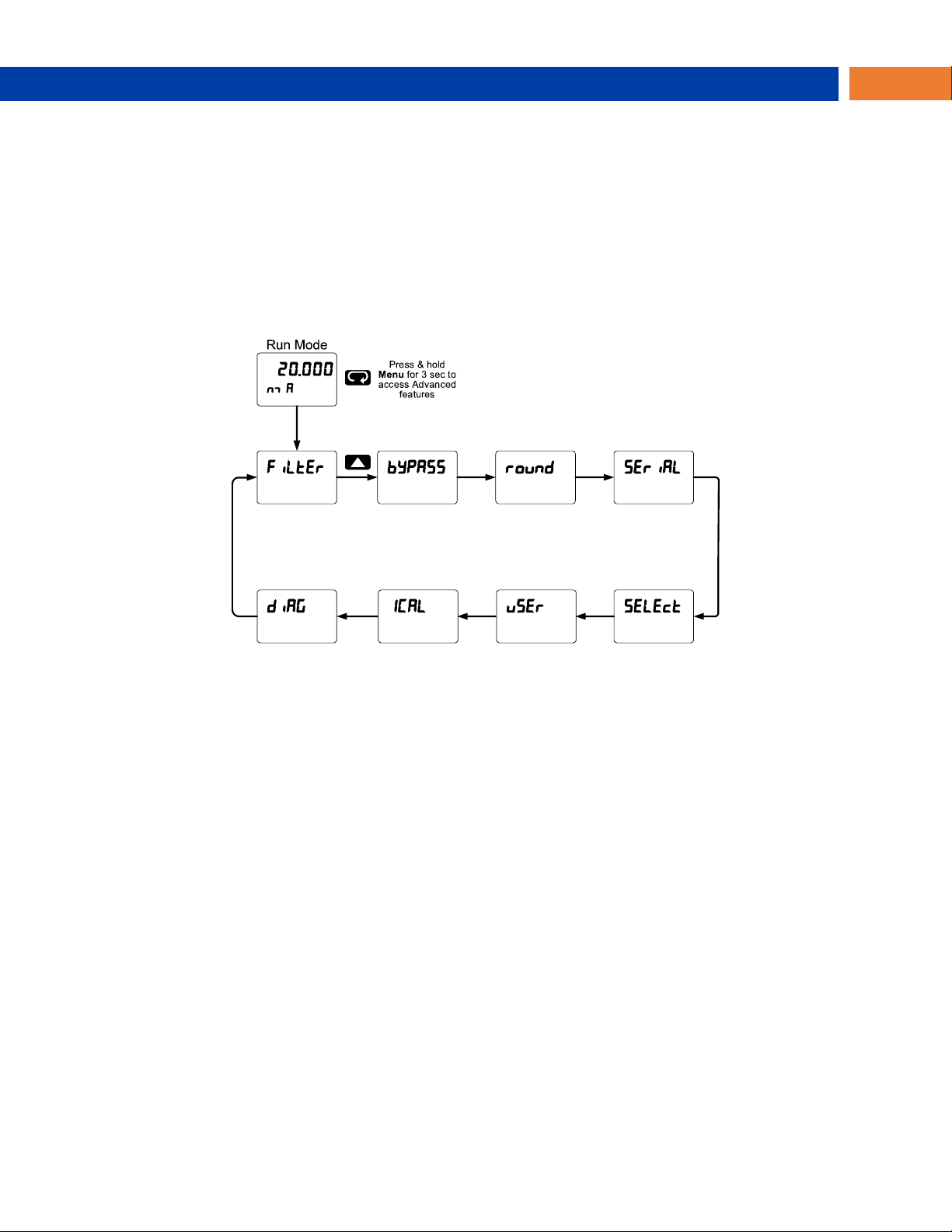

Advanced Features Menu & Display Messages --- 48 Function Keys Operation -------------------------------- 50 F4 Operation ------------------------------------------------ 50 Advanced Setup and Calibration ---------------------- 50

Multi-Point Calibration & Scaling ------------------- 50

Maximum/Minimum Readings -------------------------- 50

Noise Filter (filter) ----------------------------------------- 51

Noise Filter Bypass (bypass) --------------------------- 51 Rounding Feature (round) ------------------------------ 51 Modbus RTU Serial Communications (serial) --- 51

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 4

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

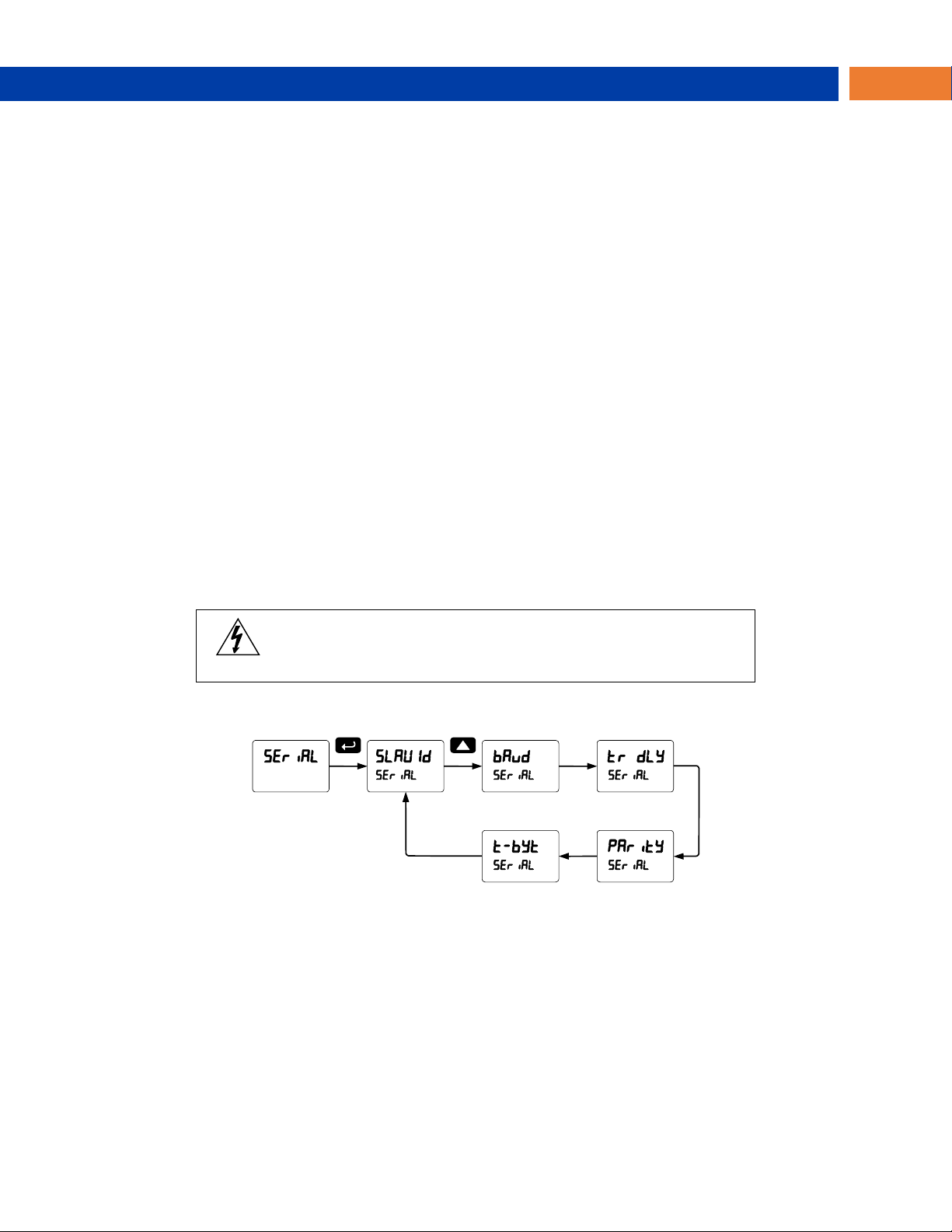

Serial Communications Overview --------------------- 52 Select Menu (SElEct) ------------------------------------ 53

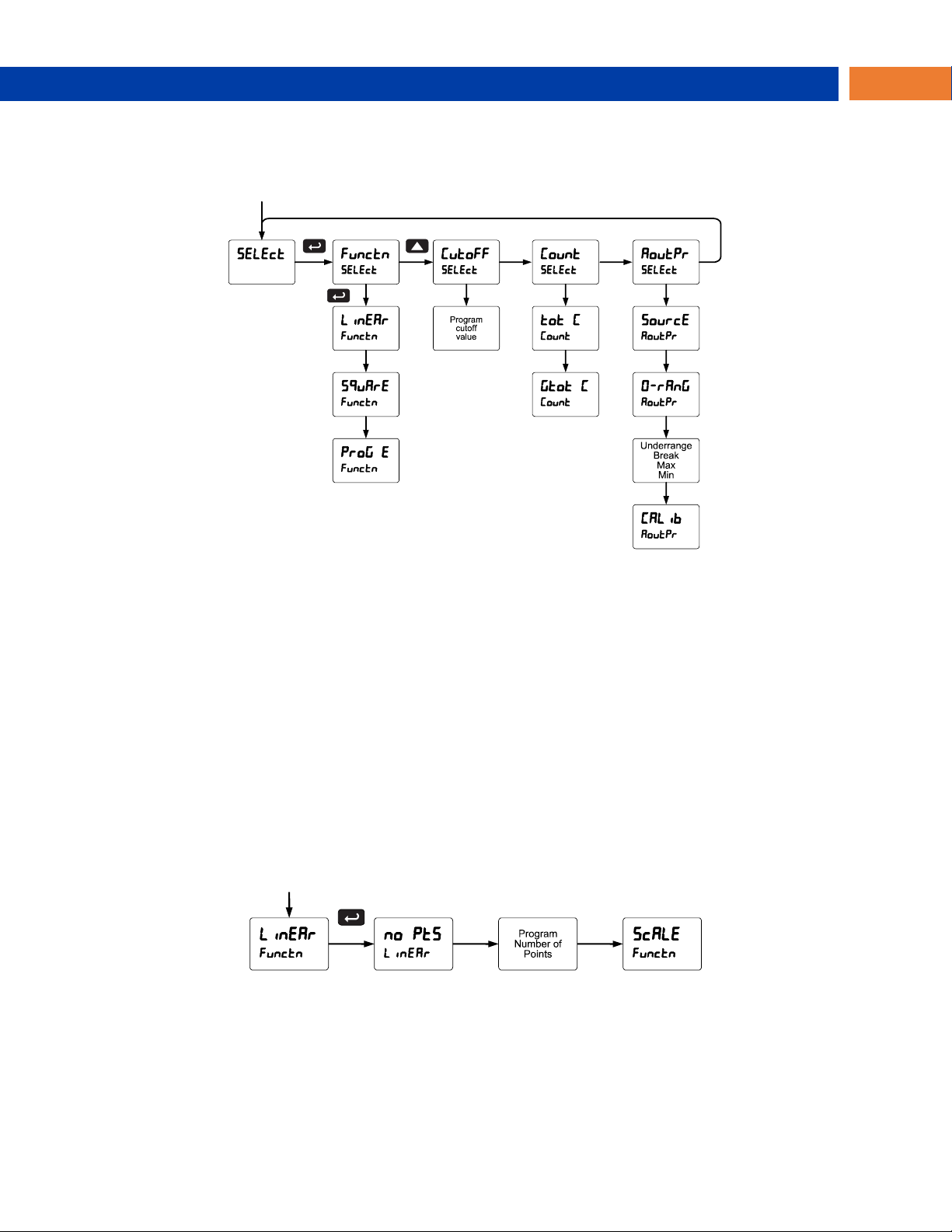

Signal Conditioning Selection (Functn) ---------- 53

Low-Flow Cutoff (CutofF) --------------------------- 53

Total and Grand Total Count Direction (Count) 54

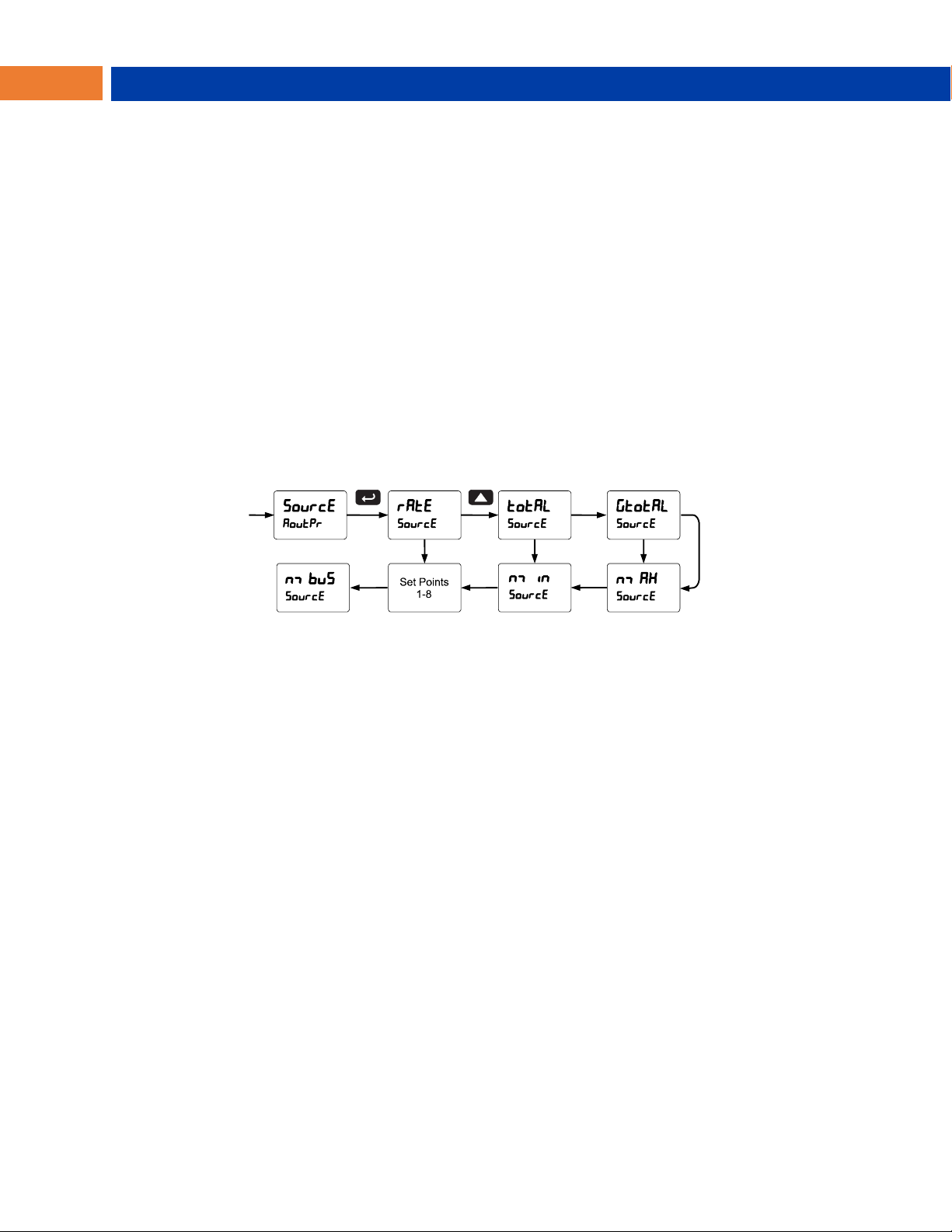

Analog Output Programming (AoutPr) ----------- 54 Programmable Function Keys User Menu (user) - 55 Internal Source Calibration (ICAL) -------------------- 56

Troubleshooting ----------------------------------------- 57

Table of Figures

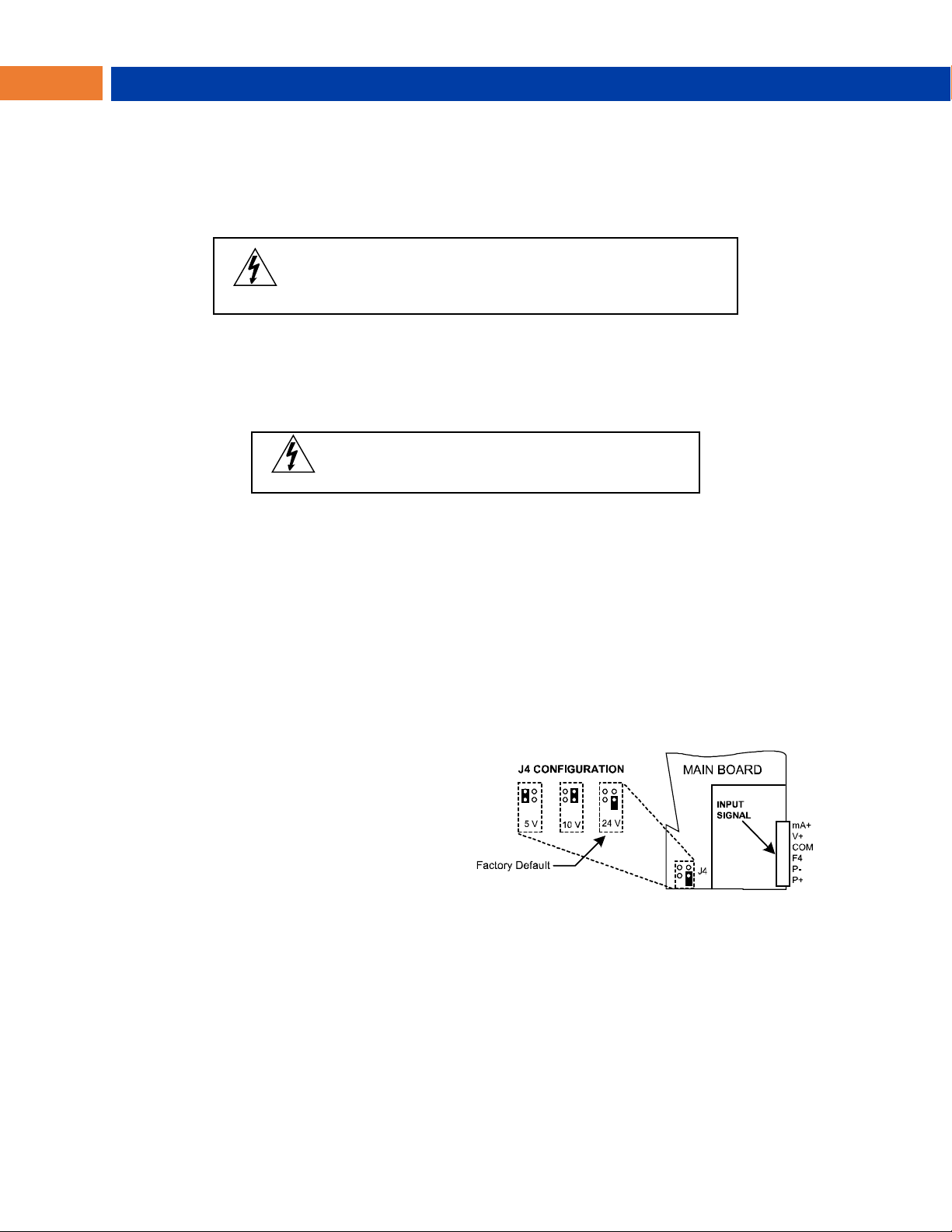

Figure 1: Transmitter Supply Voltage Selection ....... 12

Figure 2: Integrated ProVu Required Connections .. 13 Figure 3: Connector Labeling for Fully Loaded PD8-

6210 ...................................................................... 14

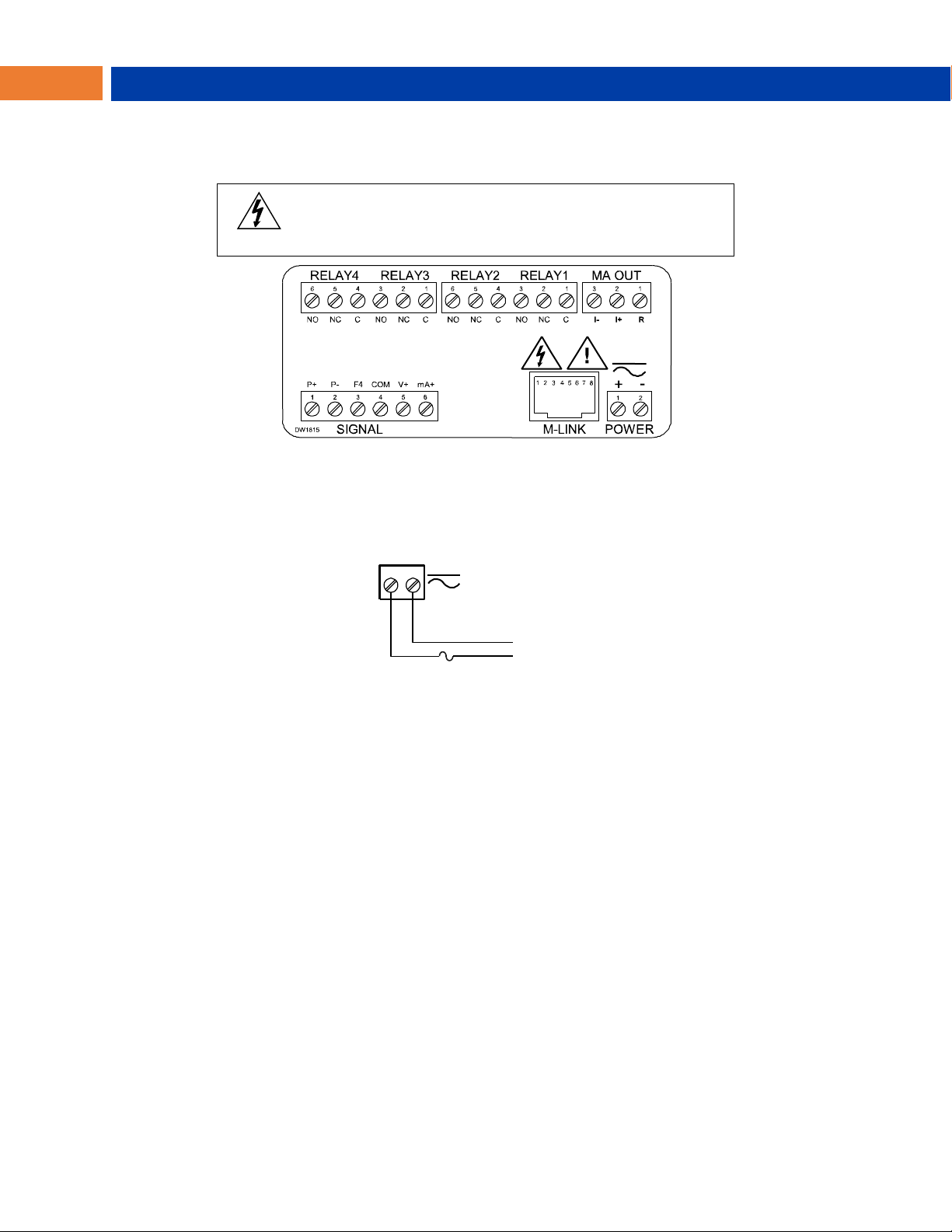

Figure 4: Power Connections..................................... 14

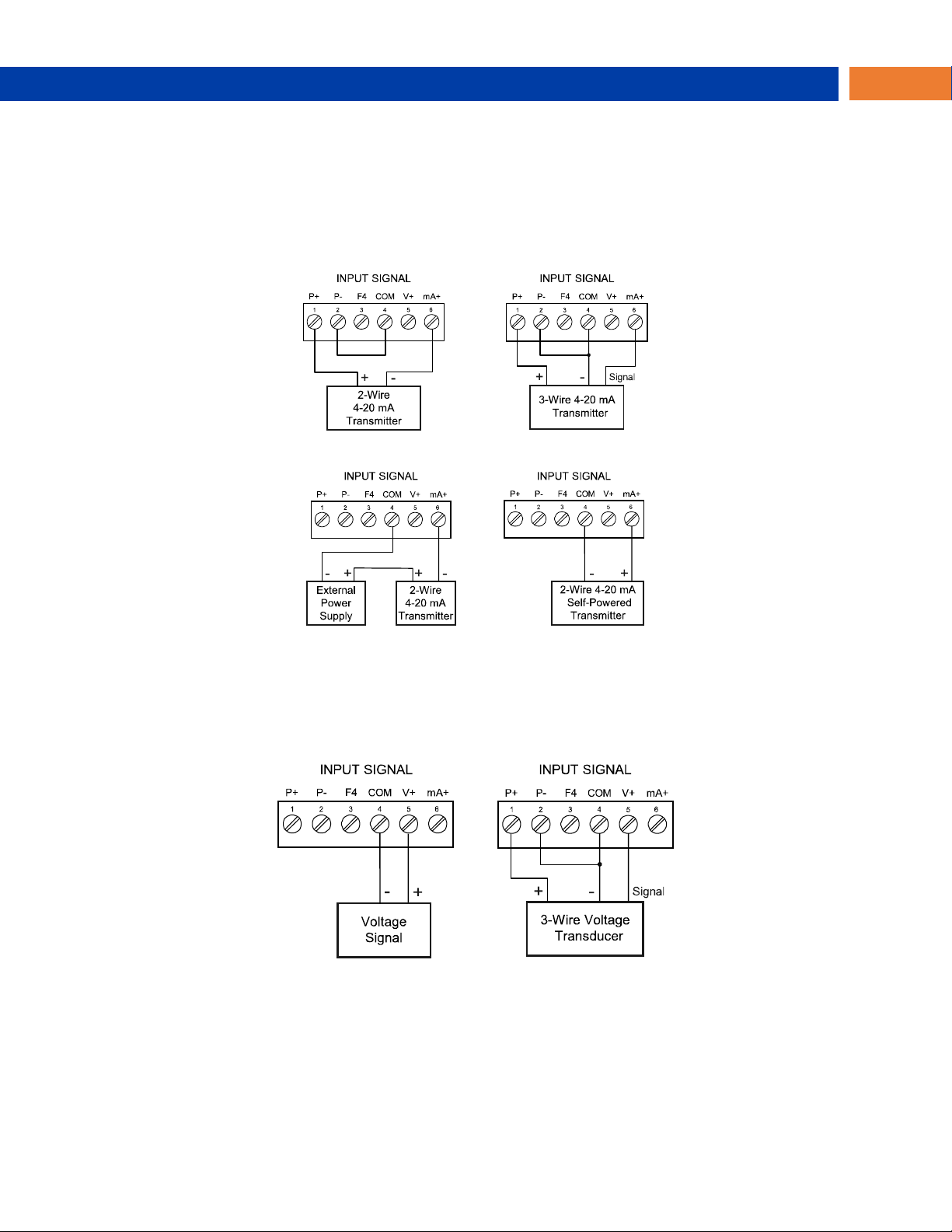

Figure 5: Transmitters Powered by Internal Supply 15 Figure 6: Transmitter Powered by Ext. Supply or Self-

Powered ............................................................... 15

Figure 7: Voltage Input Connections ......................... 15

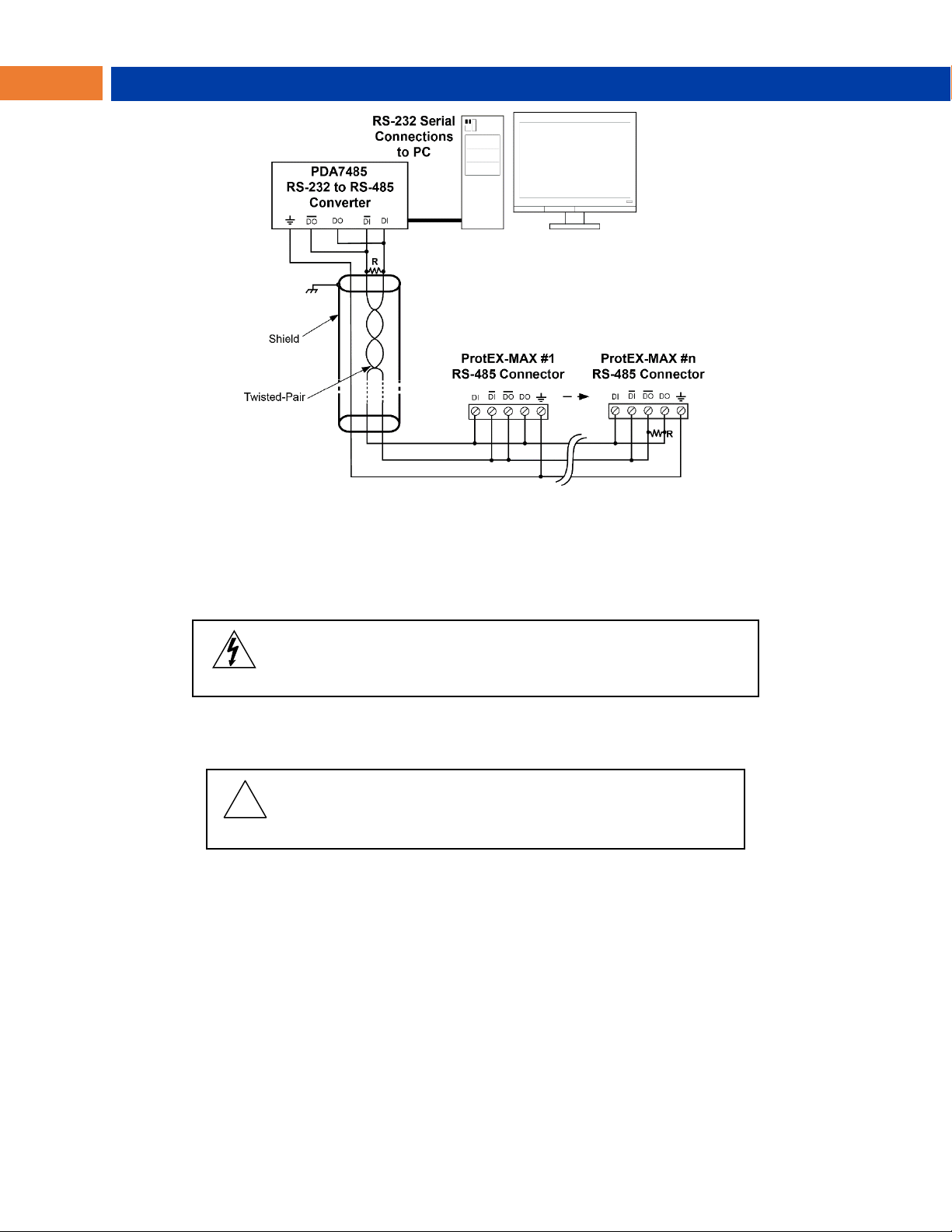

Figure 8: ProtEX-MAX Connections to a Serial

Converter ............................................................. 16

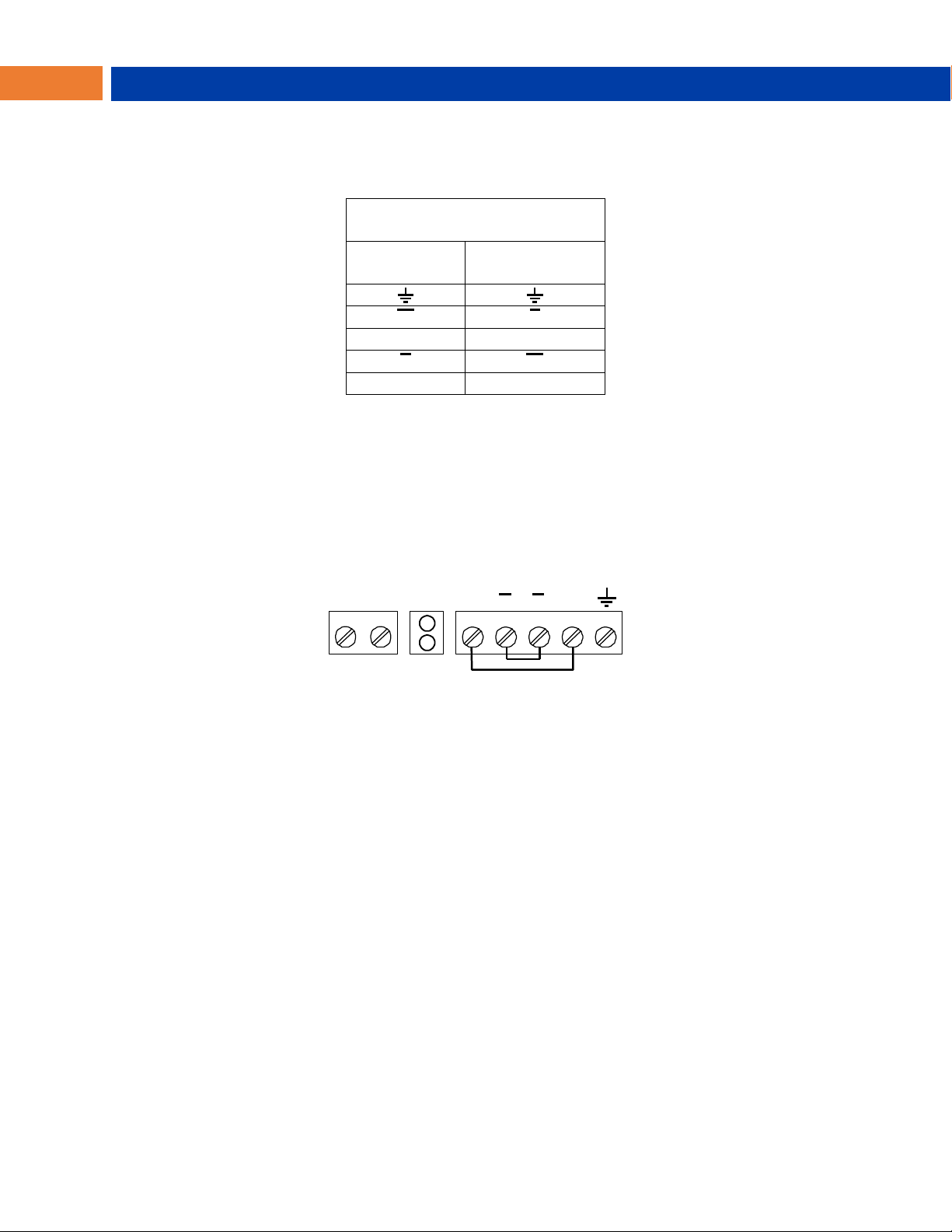

Figure 9. Three-Wire RS485 Connection ................... 16

Figure 10: RS-485 Wiring ............................................ 17

Diagnostics Menu (diag) -------------------------------- 57 Determining Software Version ------------------------- 57

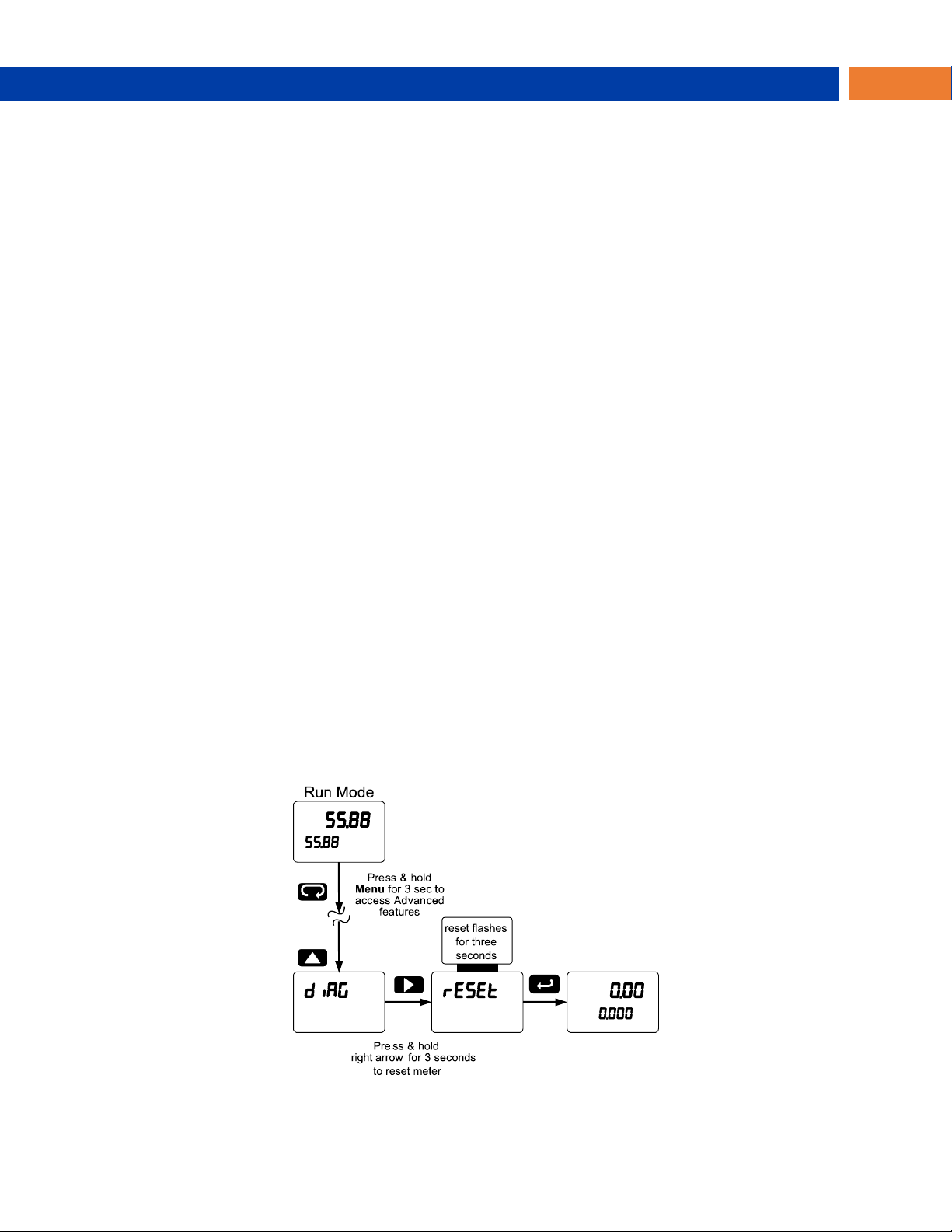

Reset Controller to Factory Defaults ----------------- 57

Factory Defaults & User Settings ---------------------- 58

Troubleshooting Tips -------------------------------------- 59

Service ------------------------------------------------------ 60 Mounting Dimensions --------------------------------- 61 EU Declaration of Conformity ----------------------- 63

Figure 11: RS-485 Two-Wire Multi-Drop Wiring ........ 18

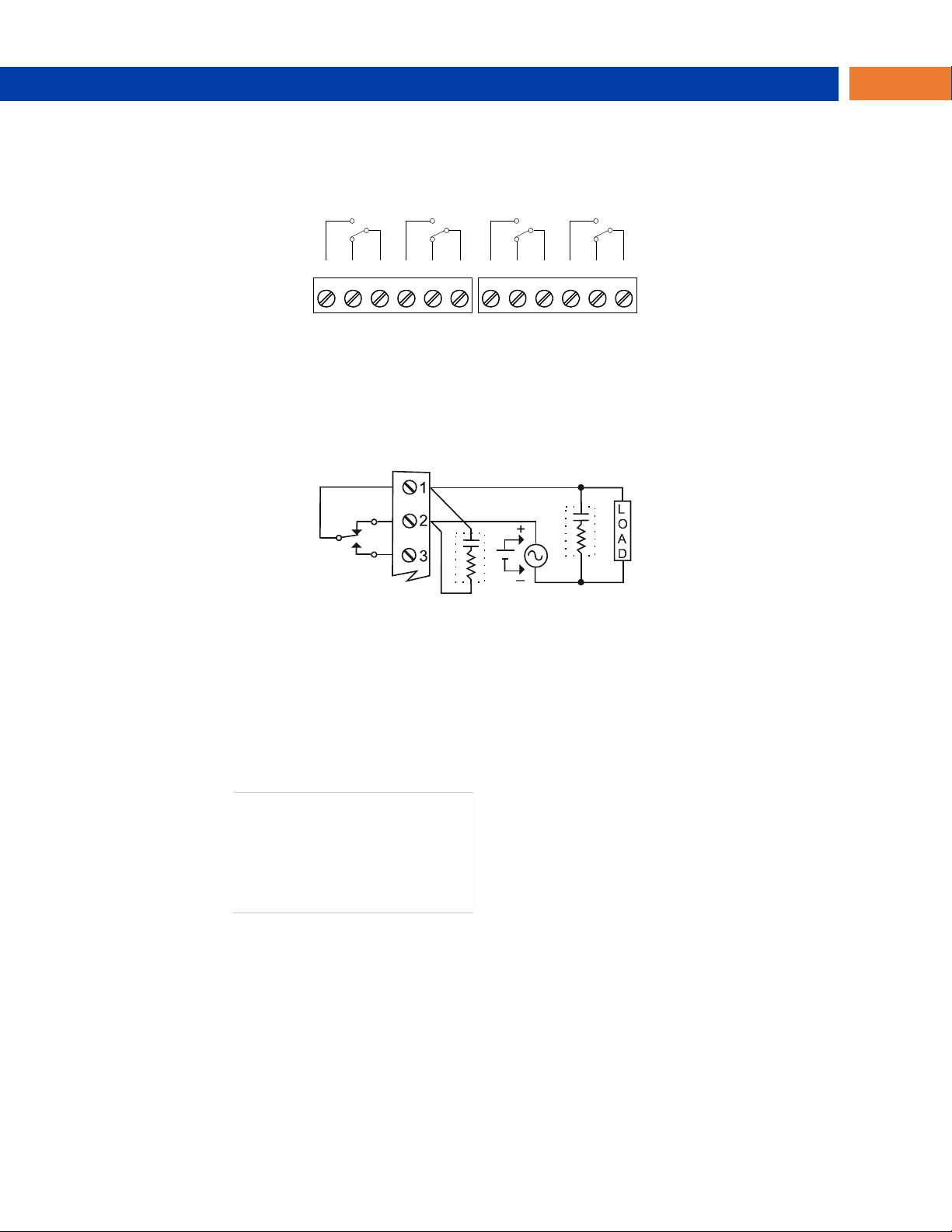

Figure 12: Relay Connections .................................... 19

Figure 13: AC and DC Loads Protection .................... 19

Figure 14: Low Voltage DC Loads Protection ........... 19

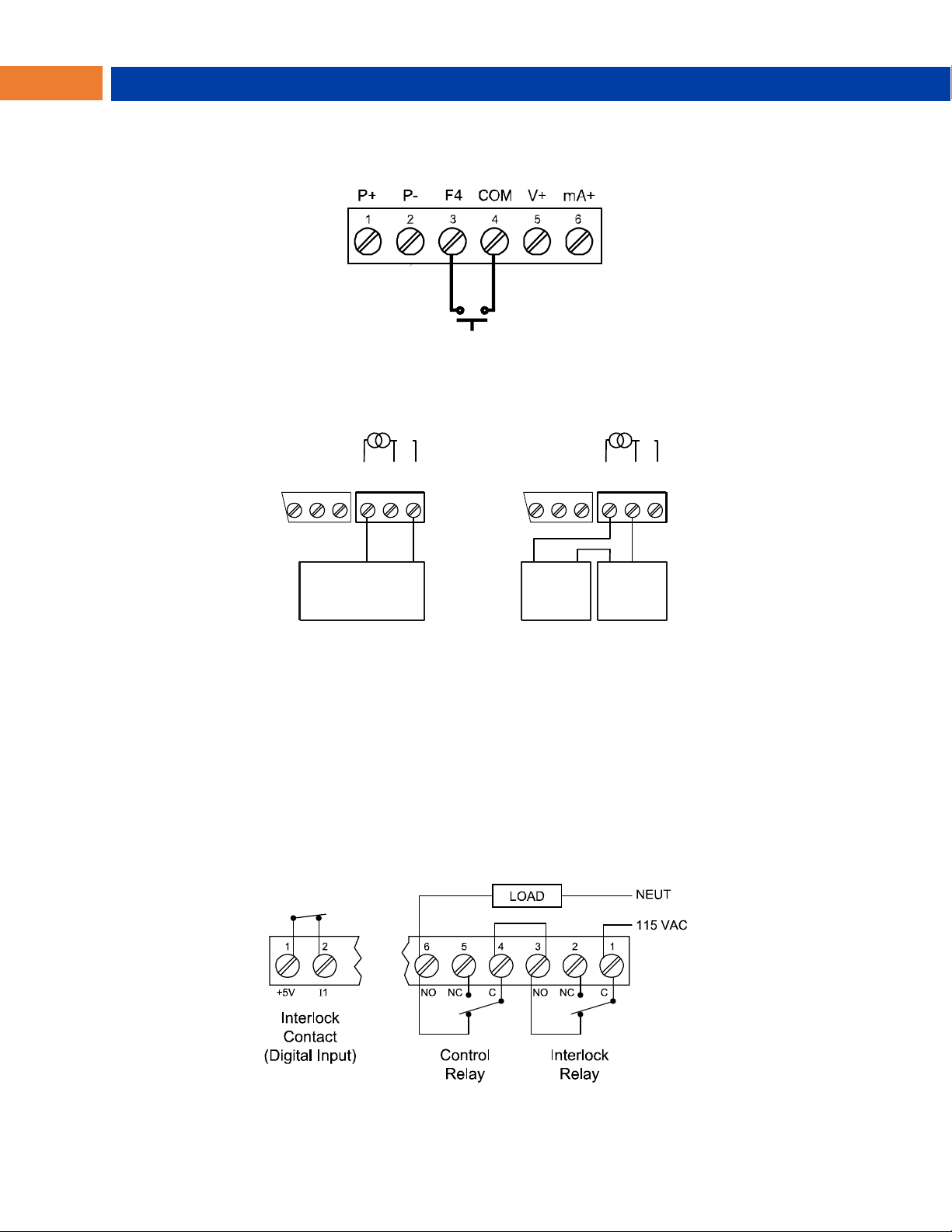

Figure 15: F4 Digital Input Connections .................... 20

Figure 16: 4-20 mA Output Connections ................... 20

Figure 17: Interlock Connection ................................. 20

Figure 18: Digital I/O Connections ............................. 21

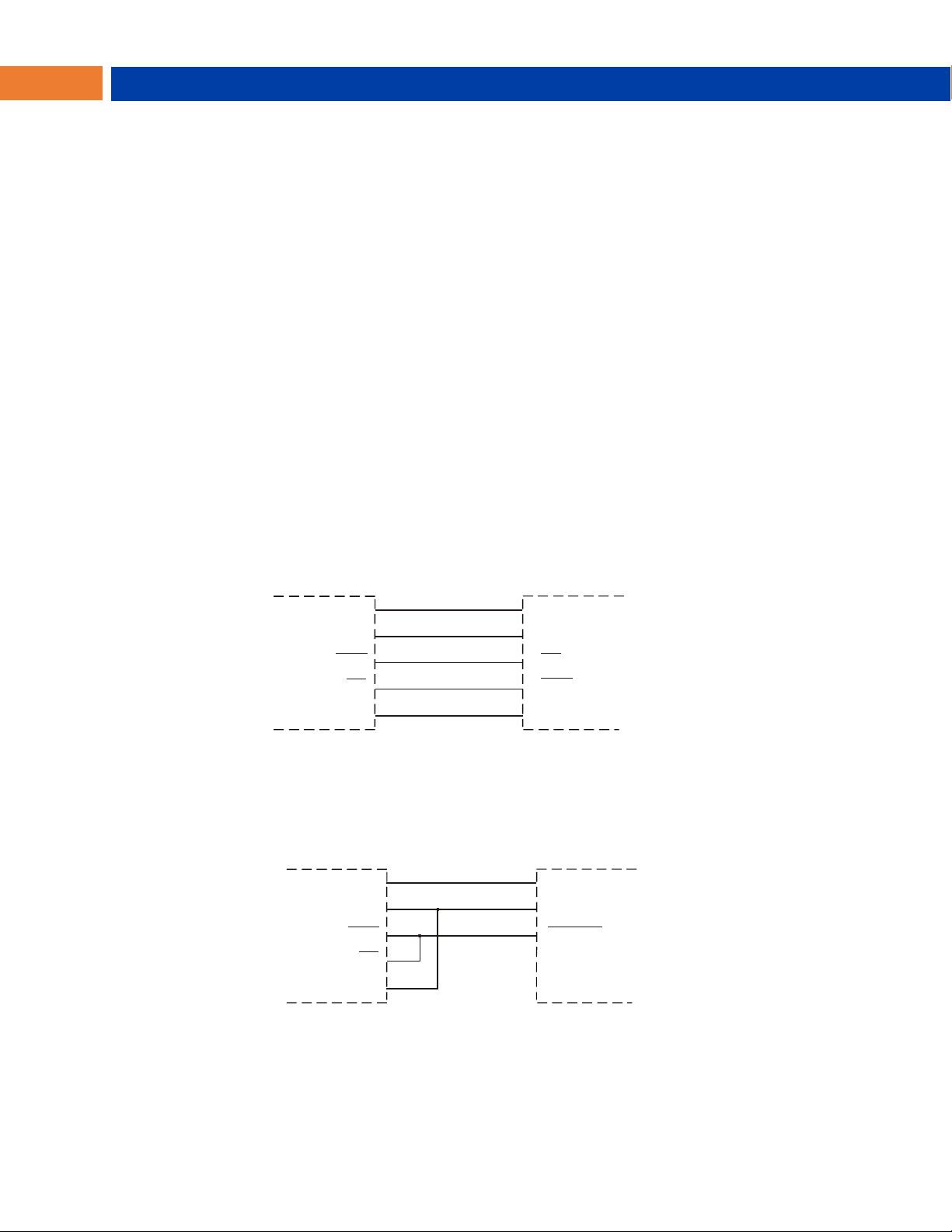

Figure 19: General Four-Wire Network Connection .. 52 Figure 20: General Two-Wire Network Connection... 52

Figure 21: Enclosure Dimensions – Front View ........ 61

Figure 22: Enclosure Dimensions – Side Cross

Section View ......................................................... 61

Introduction

The ProtEX-MAX PD8-6210 offers all the functionality of the ProVu PD6210 as a fully FM, CSA, ATEX, and IECEx approved explosion-proof product. It is an analog input (4-20 mA, 0-5 V, 1-5 V, etc.) digital batch controller specifically designed for single and multi-stage batching applications. It provides excellent but simple batch control capabilities with features such as preclose relays and automatic overrun correction for more accurate batches and convenient SafeTouch® through-glass buttons for simple operation and menu navigation without having to remove the cover. The preclose deactivates a specific relay before the batch is finished in order to allow slower fill rates and increased accuracy. Automatic overrun correction keeps the batch size accurate over time and with system wear.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 5

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

85-265 VAC Model

12-24 VDC Model

Options Installed

PD8-6210-6H7

PD8-6210-7H7

4 relays & 4-20 mA output

Model

Description

PDA1232

RS-232 serial adapter

PDA1485

RS-485 serial adapter

PDA7485-I

RS-232 to RS-422/485 isolated converter

PDA8232-N

USB to RS-232 non-isolated converter

PDA8485-I

USB to RS-422/485 isolated converter

PDX6901

Suppressor (snubber): 0.01 µF/470 , 250 VAC

Ordering Information

SunBright Display Model

Accessories

WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 6

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Specifications

Display

Line 1: 0.6" (15 mm) high, red LEDs Line 2: 0.46" (12 mm) high, red LEDs 6 digits: each (-99999 to 999999), with lead zero blanking.

Default Display Assignment

The Upper display shows batch total. The Lower display shows rate with alternating units, and can be switched to show grand total, batch count, or preset with the STOP key.

Custom Display Assignment

Display lines 1 & 2 may be assigned to rate, total, grand total, batch count, preset, set points, units (line 2 only), alternating R & T, R & GT, preset & rate, max & min, or a Modbus display register. Any rate/total/grand total display may be programmed to alternate with a custom unit or tag.

Alternating Display

Displays alternate every 10 seconds when display is selected or the batch is paused.

Display Intensity

Eight user selectable intensity levels

Display Update Rate

5/second (200 ms)

Overrange

Display flashes 999999

Underrange

Display flashes -99999

Front Panel

NEMA 4X, IP65

Programming Methods

Four front panel buttons, digital inputs, or PC and MeterView Pro software.

Noise Filter

Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

Programmable from 0.1 to 99.9% of calibrated span

Recalibration

All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

Max/min readings reached by the process are stored until reset by the user or until power to the controller is cycled.

Password

Three programmable passwords restrict modification of programmed settings and two prevent resetting the totals.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs. Total Password: Prevents resetting the total manually Gtotal Password: Prevents resetting the grand total manually

Non-Volatile Memory

All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.

Power Options

85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24 VDC  10%, 15 W max

Powered over USB for configuration only

Fuse

Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 controllers may share one 5 A fuse

Isolated Transmitter Power Supply

Terminals P+ & P-: 24 VDC  10%. selectable for 24, 10, or 5VDC supply (internal jumper J4). All models transmitter supply rated @ 25mA max.

Normal Mode Rejection

Greater than 60 dB at 50/60 Hz

Isolation

4 kV input/output-to-power line 500 V input-to-output or output-to-P+ supply

Overvoltage Category

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

T6 Class operating temperature range Ta =

-40 to 60°C T5 Class operating temperature range Ta =

-40 to 65°C

Max Power Dissipation

Maximum power dissipation limited to 15.1 W.

Connections

Screw terminals accept 12 to 22 AWG wire

Enclosure

Explosion-proof die cast aluminum with glass window, corrosion resistant epoxy coating, color: blue. NEMA 4X, 7, & 9, IP68. Default conduit connections: Four ¾" NPT threaded conduit openings and two ¾" NPT metal conduit plugs with 12 mm hex key fitting installed. Additional conduit opening configurations may be available; verify quantity and sizes on specific device labeling during installation.

Mounting

Four slotted flanges for wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe mounting. See Mounting Dimensions on page 61.

Tightening Torque

Screw terminal connectors: 5 lb-in (0.56 Nm)

Overall Dimensions

6.42" x 7.97" x 8.47" (W x H x D) (163 mm x 202 mm x 215 mm)

Weight

16.0 lbs (7.26 kg)

Warranty

3 years parts & labor

Inputs

Field selectable: 0-20, 4-20 mA, 10 V (0-5, 1-5, 0-10 V), Modbus PV (Slave)

Accuracy

±0.03% of calibrated span ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span

Temperature Drift

0.005% of calibrated span/C max from 0 to 65C ambient,

0.01% of calibrated span/C max from -40 to 0C ambient

Except where noted all specifications apply to operation at +25°C.

General

Process Input

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 7

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Signal Input Conditioning

Linear, square root, or programmable exponent

Multi-Point Linearization

2 to 32 points

Programmable Exponent

1.0001 to 2.9999

Low-Flow Cutoff

0-999999 (0 disables cutoff function)

Decimal Point

Up to five decimal places or none:

d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

Calibration Range

Input Range

Minimum Span Input 1 & Input 2

4-20 mA

0.15 mA

10 V

0.01 V

An error message will appear if the input 1 and input 2 signals are too close together.

Input Impedance

Voltage ranges: greater than 500 k Current ranges: 50 - 100  (depending on

resettable fuse impedance)

Input Overload

Current input protected by resettable fuse, 30 VDC max. Fuse resets automatically after fault is removed.

F4 Digital Input Contacts

3.3 VDC on contact. Connect normally open contacts across F4 to COM.

F4 Digital Input Logic Levels

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

HART Transparency

Analog input will not interfere with existing HART communications on the wired 4-20 mA signal

Rate Display Indication

-99999 to 999999, lead zero blanking. “R” LED illuminates while displaying rate.

Batch Total & Grand Total Display

0 to 999,999; automatic lead zero blanking. “T” LED is illuminated while displaying batch total. “GT” LEDs are illuminated while displaying grand total. Up to 999,999 for batch total/preset. Up to 999,999,999 with grand total-overflow feature. “oF” is displayed to the left of grand total overflow and ▲ LED is illuminated.

Batch Total Decimal Point

Up to five decimal places or none:

d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

Total decimal point is independent of rate decimal point.

Totalizer

Calculates total based on rate and field programmable multiplier to display total in engineering units. Time base must be selected according to the time units in which the rate is displayed.

Grand Totalizer Rollover

Grand totalizer rolls over when display exceeds 999,999,999. Relay status reflects display.

Grand Total Alarms

Up to seven, user selectable under setup menu. Any set point can be assigned to grand total and may be programmed anywhere in the range of the controller for grand total alarm indication. Relay 1 should always be assigned to batch.

Programmable Delay on Release

0.1 and 999.9 seconds; applied to the first relay assigned to total or grand total. If the controller is programmed to reset total to zero automatically when the preset is reached, then a delay will occur before the total is reset.

Grand Total Reset

Via front panel button, external contact closure on digital inputs, automatically via user selectable preset value and time delay, or through serial communications.

Grand Total Reset Password

Grand total passwords may be entered to prevent resetting the grand total from the front panel.

NonResettable Grand Total

The grand total can be programmed as a non-resettable total by entering the password “050873”.

Caution!

Once the Grand Total has been programmed as “non-resettable” the feature cannot be disabled.

Rating

4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Relay Assignment

Relays may be assigned to batch control total, sampling, rate, or grand total alarms.

Alarm Deadband

0-100% of span, user programmable

Relay Operation

Batch control Automatic (non-latching)1 Sampling Off (disable unused relays and enable Interlock feature) Manual on/off control mode Secondary Functions2 Pump alternation control (2 to 4 relays) Latching (requires manual acknowledge)

Relay Reset

User selectable via front panel buttons, digital inputs, or PC

1. Automatic reset only (non-latching), when the input passes the reset point or total is reset to zero.

2. Automatic + manual reset at any time (non-latching)

3. Manual reset only, at any time (latching)

4. Manual reset only after alarm condition has cleared (L)

Note: Digital inputs may be assigned to acknowledge relays programmed for manual reset. It is not recommended to change the functions of front panel buttons to manual reset.

Batch Controller Rate/Totalizer Display

Relays

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 8

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

High or Low Alarm

User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).

Preclose

0-100% of batch size, individually user programmable for each additional batch control relay beyond the first.

Alarm Time Delay

0 to 999.9 seconds, on & off relay time delays Programmable and independent for each relay.

Noise Suppression

Noise suppression is recommended for each relay contact switching inductive loads; see page 19 for details.

Fail-Safe Operation

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm

condition. In case of power failure, relay will go to alarm state.

Alarm Auto Initialization

When power is applied to the controller, relays will reflect the state of the input to the controller.1

Output Source

Rate/process, total, grand total, max, min, set points 1-4, Modbus register, or manual control mode

Scaling Range

1.000 to 23.000 mA for any display range.

Calibration

Factory calibrated: 4.000 to 20.000 = 4-20 mA output

Analog Out Programming

23.000 mA maximum for all parameters: Overrange, underrange, max, min, and break

Accuracy

± 0.1% FS ± 0.004 mA

Temperature Drift

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -40 to 0C ambient

Note: Analog output drift is separate from input drift.

Isolated Transmitter Power Supply

Terminals I+ & R: 24 VDC  10% . May be used to power the 4-20 mA output or other devices. Refer to Figure 16 on page 20. All models @ 25mA max.

External Loop Power Supply

35 VDC maximum

Output Loop Resistance

Power supply

Minimum

Maximum

24 VDC

10 

700 

35 VDC (external)

100 

1200 

Compatibility

EIA-485

Connectors

Removable screw terminal connector

Max Distance

3,937' (1,200 m) max

Status Indication

Separate LEDs for Power (P), Transmit (TX), and Receive (RX)

Slave Id

1 – 247 (Controller address)

Baud Rate

300 - 19,200 bps

Transmit Time Delay

Programmable between 0 and 199 ms

Data

8 bit (1 start bit, 1 or 2 stop bits)

Parity

Even, Odd, or None with 1 or 2 stop bits

Byte-To-Byte Timeout

0.01 – 2.54 second

Turn Around Delay

Less than 2 ms (fixed)

Note: Refer to the PROVU® Modbus Register Tables located at www.predig.com for details.

Channels

4 digital inputs & 4 digital outputs

Digital Input Logic High

3 to 5 VDC

Digital Input Logic Low

0 to 1.25 VDC

Digital Output Logic High

3.1 to 3.3 VDC

Digital Output Logic Low

0 to 0.4 VDC

Source Current

10 mA maximum output current

Sink Current

1.5 mA minimum input current

+5 V Terminal

To be used as pull-up for digital inputs only. Connect normally open pushbuttons across +5 V & DI 1-4.

WARNING

DO NOT use +5 V terminal (pin 1) to power external devices.

Function Assignment

The on-board digital inputs (1-4) are designed to mimic the behavior of the front panel buttons (Menu, F1, F2, & F3). If you wish to change their behavior, reassign F1-F3 to the desired function, then change the corresponding digital input to match.

System Requirements

Microsoft® Windows® XP/Vista/7/8/10

Communications

USB 2.0 (Standard USB A to Micro USB B)

Configuration

Configure device settings one at a time

Serial Communications

1. Alarms are active only when the batch is running.

2. These functions are not functional when the unit is being used as a batch controller with total set to yes.

Isolated 4-20 mA Transmitter Output

Digital Inputs & Outputs

MeterView Pro

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 9

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Enclosure: Type 4X; IP66 Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1, T5/T6 Class I, Zone 1, AEx d, IIC Gb T5/T6 Zone 21, AEx tb IIIC T90°C; Ta -40°C to +65°C T6 Ta = -40°C to +60°C; T5 Ta = -40°C to +65°C Certificate Number: 3047283

CSA

Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1 Class I Zone 1 Ex d IIC Zone 21 Ex tb IIIC T90°C

-40°C < Tamb. < +60° C; Temperature Code T6

-40°C < Tamb. < +65° C; Temperature Code T5 Enclosure Type 4X & IP66 Certificate Number: 2531731

ATEX

II 2 G D

Ex d IIC T* Gb Ex tb IIIC T90°C Db IP68 Ta = -40°C to +*°C *T6 = -40°C to +60°C *T5 = -40°C to +65°C Certificate number: Sira 12ATEX1182

IECEx

Ex d IIC T* Gb Ex tb IIIC T90°C Db IP68 Ta = -40°C to +*°C *T6 = -40°C to +60°C *T5 = -40°C to +65°C Certificate Number: IECEx SIR 12.0073

Product Ratings and Approvals;

Special Conditions for Safe Use:

Use suitably certified and dimensioned cable entry device and/or plug. The equipment shall be installed such that the supply cable is protected from mechanical damage. The cable shall not be subjected to tension or torque. If the cable is to be terminated within an explosive atmosphere, then appropriate protection of the free end of the cable shall be provided. Cable must be suitable for 90°C.

Year of Construction

This information is contained within the serial number with the first four digits representing the year and month in the YYMM format.

For European Community: The ProtEX-MAX must be installed in accordance with the ATEX directive 94/9/EC, and the product certificate Sira 12ATEX1182.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 10

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

UL & c-UL Listed

USA & Canada UL 508 Industrial Control Equipment

UL File Number

E160849

Front Panel

UL Type 4X, NEMA 4X, IP65; panel gasket provided

Low Voltage Directive

EN 61010-1:2010 Safety requirements for measurement, control, and laboratory use

Emissions

EN 55022:2010 Class A ITE emissions requirements

Radiated Emissions

Class A

AC Mains Conducted Emissions

Class A

Immunity

EN 61326-1:2013 Measurement, control, and laboratory equipment EN 61000-6-2:2005 EMC heavy industrial generic immunity standard

RFI - Amplitude Modulated

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

Electrical Fast Transients

±2kV AC mains, ±1kV other

Electrostatic Discharge

±4kV contact, ±8kV air

RFI - Conducted

10V, 0.15-80 MHz, 1kHz 80% AM

AC Surge

±2kV Common, ±1kV Differential

Surge

1KV (CM)

Power-Frequency Magnetic Field

30 A/m 70%V for 0.5 period

Voltage Dips

40%V for 5 & 50 periods 70%V for 25 periods

Voltage Interruptions

<5%V for 250 periods

Compliance Information

Safety

Electromagnetic Compatibility

Note:

Testing was conducted on PD6200 and PD6300 series meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance. All hardware is identical to the PD6210 controllers.

Declaration of Conformity available at www.predig.com

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 11

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

WARNINGS

• Read complete instructions prior to installation and operation of the instrument.

• Installation and service should be performed only by trained service personnel. Service

requiring replacement of internal sub-components must be performed at the factory.

• Disconnect from supply before opening enclosure. Keep cover tight while circuits are alive. Conduit seals must be installed within 18" (450mm) of the enclosure or within 2" (50mm) for Zone installations.

• Verify that the operating atmosphere of the instrument is consistent with the appropriate hazardous locations certifications.

• If the instrument is installed in a high voltage environment and a fault or installation error occurs, high voltage may be present on any lead

• Read all product labels completely and follow all instructions and requirements listed on the labels for installation or service.

WARNING

Disconnect from supply before opening enclosure. Keep cover tight while circuits are alive. Conduit seals must be installed within 18" (450mm) of the enclosure or within 2" (50mm) for Zone installations.

Safety Information

Installation

Install in accordance with applicable local and national regulations (e.g. NEC).

For Installation in USA: The ProtEX-MAX must be installed in accordance with the National Electrical Code (NEC) NFPA 70.

For Installation in Canada: The ProtEX-MAX must be installed in accordance with the Canadian Electrical Code CSA 22.1. All power supplies below 36 V and input circuits must be derived from a CSA Approved Class 2 source.

For European Community: The ProtEX-MAX must be installed in accordance with the ATEX directive 94/9/EC and the product certificate Sira 12ATEX1182.

Wiring connectors are accessed by opening the enclosure. To access electrical connectors, remove the 2 captive screws and then remove the electronics module. Connectors are on the rear of the electronics module.

Unpacking

Remove the instrument from packing box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the instrument malfunctions, please contact your supplier or the factory for assistance.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 12

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

WARNING

In hazardous areas, conduit and conduit/stopping plugs require the application of non-setting (solvent free) thread sealant. It is critical that all relevant hazardous area guidelines be followed for the installation or replacement of conduit or plugs.

WARNING

Do not attempt to loosen or remove flange bolts while the instrument is in service.

Pre-Installed Conduit/Stopping Plug

The PD8-6000 is supplied with two pre-installed conduit plugs for installations that do not require the use of all conduit entries. The conduit/stopping plugs include an internal 12mm hexagonal socket recess for removal. The pre-installed plugs and their installation are included in the hazardous area approvals for the PD8 Series enclosure.

Mounting

The ProtEX-MAX has four slotted mounting flanges that should be used for pipe mounting or wall mounting. Refer to Mounting Dimensions, page 61 for details.

Cover Jam Screw

The cover jam screw should be properly installed once the instrument has been wired and tested in a safe environment. The cover jam screw is intended to prevent the removal of the instrument cover in a flameproof environment without the use of tools. Using a M2 hex wrench, turn the screw clockwise until the screw contacts the aluminum enclosure. Turn the screw an additional 1/4 to 1/2 turn to secure the cover. Caution: Excess torque may damage the threads and/or wrench.

Transmitter Supply Voltage Selection (P+, P-)

All controllers, including models equipped with the 12-24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the transmitter or sensor.

If the transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

To access the voltage selection jumper:

1. Remove all the connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch.

4. Configure the J4 jumper, located behind the

input signal connector, for the desired excitation voltage as shown.

Figure 1: Transmitter Supply Voltage Selection

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 13

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

WARNINGS

• Static electricity can damage sensitive components.

• Observe safe handling precautions for static-sensitive components.

• Use proper grounding procedures/codes.

• If the instrument is installed in a high voltage environment and a

fault or installation error occurs, high voltage may be present on any lead or terminal.

• Follow all fusing and wiring precautions requirements for the in- strument integrated to the PD8 Series model number being connected.

WARNING

Observe all safety regulations. Electrical wiring should be performed in accordance with all agency requirements and applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

Connections

To access the connectors, remove the enclosure cover and unscrew the two captive screws that fasten the electronics module. Signal connections are made to de-pluggable connectors on the back of the electronics module.

Some connectors may be provided already connected. These connections are required for proper operation of the ProtEX-MAX, and should not be removed unless instructed to by this manual.

Wires marked as being used for testing purposes should be removed. Grounding connections are made to the two ground screws provided on the base – one internal and one

external. After all connections have been completed and verified, apply power to the unit.

Required & Factory Wired Connection

The ProtEX-MAX comes with a pre-wired connection. This connection is detailed below, and must be maintained in order for the instrument to function properly.

Figure 2: Integrated ProVu Required Connections

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 14

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Warning!

Do not connect any equipment other than Precision Digital’s expansion modules, cables, or controllers to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the controller.

Figure 4: Power Connections

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

Connectors Labeling

The connectors’ label, affixed to the controller, shows the location of all connectors available with requested configuration.

Figure 3: Connector Labeling for Fully Loaded PD8-6210

Power Connections

Power connections are made to a two-terminal connector labeled POWER on Figure 6. The controller will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 15

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Signal Connections

Signal connections are made to a six-terminal connector labeled SIGNAL on Figure 6. The COM (common) terminal is the return for the 4-20 mA and the 10 V input signals.

Current and Voltage Connections

The following figures show examples of current and voltage connections. There are no switches or jumpers to set up for current and voltage inputs. Setup and programming is

performed through the front panel buttons.

Figure 5: Transmitters Powered by Internal Supply

Figure 6: Transmitter Powered by Ext. Supply or Self-Powered

The current input is protected against current overload by a resettable fuse. The display may or may not show a fault condition depending on the nature of the overload.

The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.

Figure 7: Voltage Input Connections

The controller is capable of accepting any voltage from -10 VDC to +10 VDC.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 16

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

ProtEX-MAX to RS-485

Serial Converter Connections

RS-485 Serial Converter

ProtEX-MAX RS485 Connections

DO DI DO DI DI DO DI DO

F4 COM DI DI DO DO

1 2 3 4 51 2

Serial Communications Connections

The ProtEX-MAX has a 5 position terminal block for connecting RS-485 serial devices. Figure 8 details the wiring connections from the ProtEX-MAX to an RS-485 serial converter (such as the

PDA7485 or PDA8485) for a four-wire network.

Figure 8: ProtEX-MAX Connections to a Serial Converter

The ProtEX-MAX has three diagnostic LEDs: a Power (P) LED to show when the module is powered properly, a Transmit Data (TX) LED to show when the module is being transmitted to by the PC side, and a Receive Data (RX) LED to show when the module is sending data to a receiving device.

The following diagrams detail how to connect the RS-485 serial communications from the ProtEX-MAX to a RS-485/RS-232 serial converter (PDA7485) in four wire and two wire configurations.

Three Wire Connections

In order to wire the 5 pins for use as a 3-wire half-duplex RS-485 connection, it is necessary to create a jumper connection between DI – DO and DI- – DO- as shown below.

Figure 9. Three-Wire RS485 Connection

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 17

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

WARNING

Figure 10: RS-485 Wiring

Notes:

1. Termination resistors are optional and values depend on the cable length and characteristic impedance. Consult the cable manufacturer for recommendations.

2. Refer to RS-232 to RS-485 Converter documentation for further details.

3. Use shielded cable, twisted-pairs plus ground. Connect ground shield only at one location.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 18

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

WARNING

NOTICE

PROVU expansion modules and serial adapters are not included in the hazardous area approvals of the ProtEX-MAX. The PDA1232 may be used only while the ProtEX-MAX is in a safe area, and will disable some features while installed.

Notes:

1. Termination resistors are optional and values depend on the cable length and characteristic impedance. Consult the cable manufacturer for recommendations.

2. Refer to RS-232 to RS-485 Converter documentation for further details.

3. Use shielded cable, twisted-pair plus ground. Connect ground shield only at one location.

Figure 11: RS-485 Two-Wire Multi-Drop Wiring

When using more than one instrument in a multi-drop or multi-point mode, each meter must be provided with its own unique address.

Using PROVU Serial Adapters

PROVU expansion modules and serial adapters are not recommended for use with the ProtEX-MAX. It is recommended that any serial protocol conversion required on the RS-485 communications connection be performed using a PDA7485 RS-232 to RS-485 or PDA8485 USB to RS-485 serial converter located in a safe area.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 19

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current.

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4 on Figure 7. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

Figure 12: Relay Connections

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 13: AC and DC Loads Protection

Choose R and C as follows: R: 0.5 to 1  for each volt across the contacts

C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the controller's relay screw terminals. An RC network may also be installed

across the load. Experiment for best results.

Figure 14: Low Voltage DC Loads Protection

RC Networks Available from Precision Digital

RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901.

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 20

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

12-35 VDC

Power

Supply

4-20 mA

Input Meter

RI- I+

13 2

RELAY1

3 2 1

24 V

4-20 mA Input

Remote Display,

Chart Recorder, Etc.

RI- I+

MA OUT

13 2

RELAY1

3 2 1

24 V

MA OUT

F4 Digital Input Connections

A digital input, F4, is standard on the meter. This digital input connected with a normally open closure across F4 and COM, or with an active low signal applied to F4.

Figure 15: F4 Digital Input Connections

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered internally or from an external power supply.

Figure 16: 4-20 mA Output Connections

Analog Output Transmitter Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and trigger the interlock relay. This feature is enabled by configuring the relay, and relative digital input(s) (see page 41). In one example, dry interlock contacts are connected in series to one digital input which will be used to force on (energize) the assigned interlock power relay when all interlock contacts are closed (safe). The interlock relay front panel LED flashes when locked out. The interlock relay would be wired in-series with the load (N/O contact). See below.

Find Quality Products Online at: [email protected]

Figure 17: Interlock Connection

www.GlobalTestSupply.com

Page 21

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

NOTICE

The onboard digital inputs (1-4) are configured at the factory to function identically to the front panel pushbuttons (Menu, F1, F2, & F3) in order to work with the SafeTouch buttons. Changing the programming of the digital inputs will affect the function of the SafeTouch buttons.

If you wish to change the behavior of the digital inputs, re-assign F1-F3 to the desired function, then change the corresponding digital input to match.

WARNING

Digital Input Connection

Factory Default Function

RIGHT arrow

UP arrow

ENTER arrow

NOTICE

The digital inputs are configured at the factory to function identically to the front panel pushbuttons in order to work with the SafeTouch buttons. Changing the programming of the digital inputs will affect the function of the SafeTouch buttons.

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

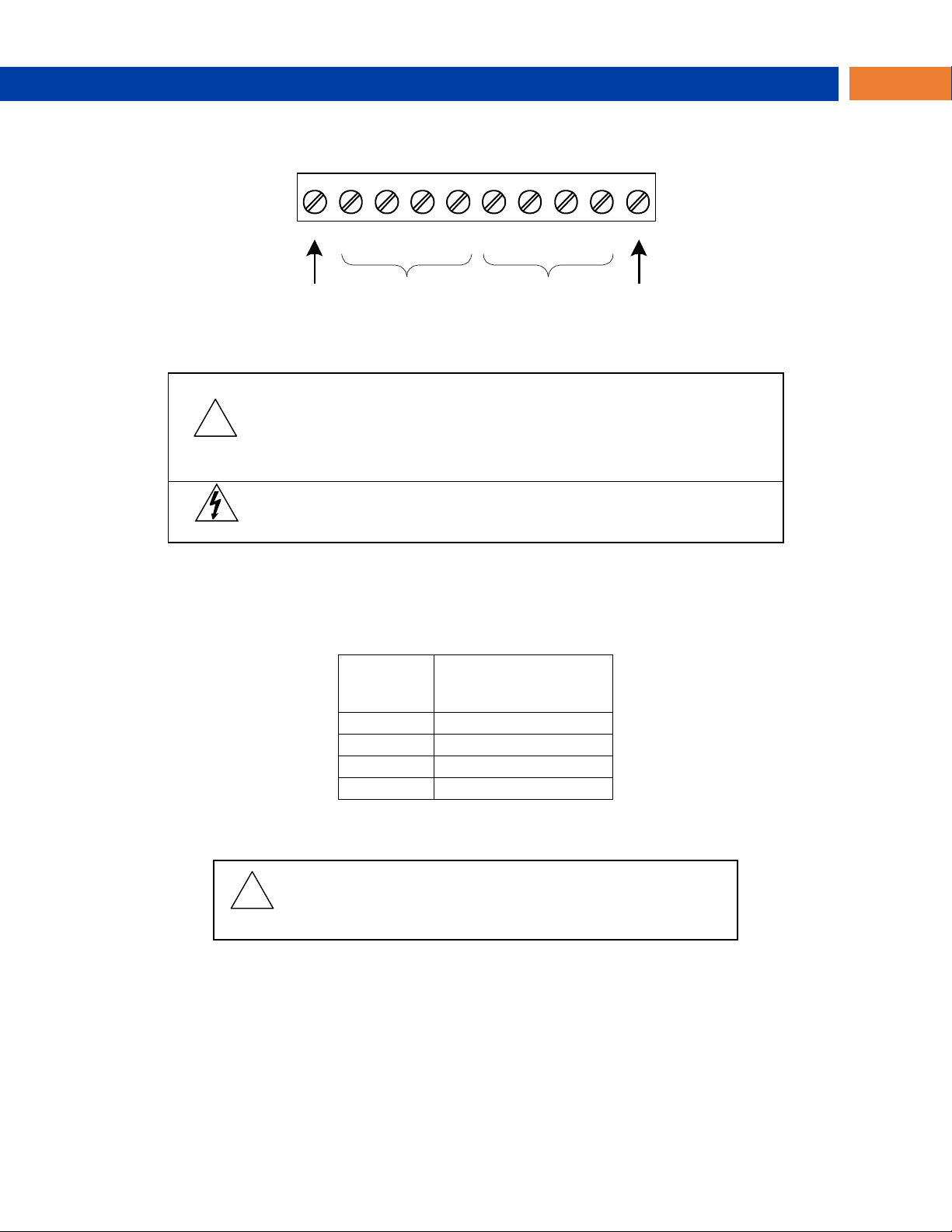

Digital I/O Connections

The ProtEX-MAX has a 10 position terminal block for connecting digital inputs and outputs.

Figure 18: Digital I/O Connections

External Switch Contacts

The ProtEX-MAX includes 4 digital inputs. These digital inputs are preconfigured at the factory to function as external contacts to duplicate the front button functions of the instrument. The factory configuration uses the following corresponding digital input terminals for external switch contacts.

See Digital Inputs & Outputs in the Specification on page 8 for details on the digital inputs.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 22

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

The PD6210 is factory calibrated prior to shipment to read in milliamps and volts depending on the input selection. The calibration equipment is traceable to NIST standards.

WARNING

Take caution when cleaning the window glass as it may result in unintentional SafeTouch button events. Only clean the ProtEX-MAX when the system is safely shut down, and inspect the ProtEX-MAX for proper configuration prior to system restart.

Basic Operation and Programming

Overview

There are no jumpers to set for the meter input selection. Setup and programming may be done through the infrared through-glass SafeTouch buttons, or using the

mechanical buttons when uncovered. There is a slide switch located on the connector board. This is used to enable or disable SafeTouch Buttons.

After power and input signal connections have been completed and verified, apply power to the meter.

SafeTouch® Buttons

The ProtEX-MAX is equipped with four sensors that operate as through-glass buttons so that it can be programmed and operated without removing the cover (and exposing the electronics) in a hazardous area.

These buttons can be disabled for security by selecting DISABLE on the switch labeled NO-CONTACT BUTTONS located on the connector board.

To actuate a button, press one finger to the glass directly over the marked button area. Then retract finger more than three inches from the glass before pressing the next button. When the cover is removed, the four mechanical buttons located next to the sensors are used. The sensors are disabled when a mechanical button is pressed and will automatically be re-enabled after 60 seconds of inactivity.

The SafeTouch Buttons are designed to filter normal levels of ambient interference and to protect against false triggering, however, it is recommended that the SafeTouch Buttons be disabled (slide switch to LOCK) if there is an infrared interference source in line-of-sight to the display.

The SafeTouch Buttons are configured by default to duplicate the function of the front panel mechanical pushbuttons associated with the integrated meter. The symbols by each SafeTouch button correspond to a mechanical button as shown in the table on the next page.

SafeTouch Button Tips:

• To the extent possible, install the display facing away from sunlight, windows, reflective objects and any sources of infrared interference.

• Keep the glass window clean.

• Tighten the cover securely.

• Use a password to prevent tampering.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 23

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Button Symbol

Description

LED

Status

1-8

Relay 1 – 8 indicators

START (Right arrow/F1)

R Rate indicator

BATCH (Up arrow/F2)

T Batch Total indicator

STOP (Enter/F3)

G T

Grand Total indicator

Note: F4 is a digital input.

▲

Total overflow indicator

Manual control relays &/or analog output

Front Buttons and Status LED Indicators

Programming

• Press the Menu button to enter or exit the Programming Mode at any time.

• Press the Right arrow button to move to the next digit during digit

or decimal point programming.

• Press or hold the Up arrow button to scroll through the menus, decimal point or press or hold to increment the value of a digit.

• Press the Enter button to access a menu or to accept a setting.

• Press and hold the Menu button for three seconds to access the advanced features of the controller.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 24

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Only STOP Button Enabled if a Batch is Running During a batch process, only the pause/stop functions of the

STOP button will function. No other buttons will be functional.

Controller Operation

The PD6210 controller is capable of accepting current (0-20 mA, 4-20 mA) and voltage signals (0-5 V, 1-5 V, 0-10 V,  10 V).

These signals are scaled to represent rate in engineering units from -99999 to 999999. The default configuration displays batch total on the upper display, and a selection of rate, grand total,

batch count, and preset on the lower display. When in pause or stop mode, the display will alternate the numeric value with the run status in the upper

display and the display label for the lower display. The controller has up to 4 relays on board which are used to either control the batch process in single or

multi-stage batch control, or as alarms that will be active when the batch process is running. A 4-20 mA output option is also available for retransmitting the process variable analog or pulse signal.

Default Batch Control Operation

The following describes the operation of the three front panel operating keys as programmed with default settings.

START Button

Press the START button to begin a new batch process.

BATCH Button

Press the Batch button to access the Preset (batch amount) menu. Program the batch with the arrow keys, and confirm with the Enter key.

STOP Button

Press the STOP key once during a batch to pause. Press the STOP key while paused to stop and cancel the batch. Press the STOP key while in stop/ready mode cycle lower display values of rate (or other lower display programmed parameter), grand total, batch count, and preset.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 25

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Parameter

Setting

Function

Relay

Assign

Press Enter to enter the relay assignment parameters.

Asign1

total

Assign relay 1 to batch total control.

Asign2

total

Assign relay 2 to batch total control.

Precls Total

Press Enter to access preclose selection for multi-stage control.

Precls

Yes

Yes to enable a preclose value for relay 2.

Yes

00005..0

Set the preclose value to 5 for closing the valve controlling relay 2 five gallons before reaching the preset.

… Assignment for optional relays 3-8.

Rly 1 relay

Select relay 1 setup.

Act 1 rly 1

Configure activation of relay 1.

Act 1

Auto

Always set to Auto for batch control function.

Rly 1

Preset

Set the preset value for batch control.

Preset

00055.0

Set 55 gallons as the preset.

… Setup for optional relays 3-8.

Batch Control Operation Example

The following example shows how two stage batch control functions with a PD6210. This setup will establish a 55 gallon preset for the batch, with a main valve (high flow) that will close at 50 gallons, and a trickle valve (low or restricted flow) that will close at 55 gallons. After the batch, the preset will be changed to 100 gallons.

Two-Stage Batch Control Setup Using Relays 1 & 2

The following table shows the parameters as they appear within the Setup menu entry relay.

The operation of relay 2 has already been assigned for multi-stage control preclose, and will not appear as a selection in the relay menu.

If only one stage batch control was desired, with one relay for control, then one would set the assignment of relay 2, assign2, to off, rate, or grand total.

The following pages show an illustration of how the above settings control the batch operation. The display assignment is the default.

Batch Control Operation

1. A new container is prepared for the batch. Both valves are closed. Note that display line 1 may show

the batch total from the last batch.

2. The START button is pressed. Both valves open. The barrel begins to fill as the total being dispensed

is displayed on line 1. Line 2 shows the rate and units, alternating.

3. When the batch total reaches 50 gallons, the preset (55) minus the preclose amount (5) for relay 2,

relay 2 deactivates to close the main valve. The barrel fills more slowly as a result, improving accuracy.

4. When the batch total equals the preset, relay 1 deactivates, closing valve 1. Filling stops.

5. The BATCH button is pressed, and a new preset is entered, 100 gallons, and the enter/STOP button is

pressed to confirm it.

6. The new batch begins when the START button is pressed, so both relays activate and both valves

open.

Additional Features

At any time during the batch, the STOP button may be pressed to pause the batch. When paused, the START button will continue the batch, and pressing the STOP button again will cancel the batch.

When in STOP mode, the STOP button may be pressed to cycle through alternative parameters to be displayed on the lower display, including the grand total, batch count, and preset.

The grand total and batch count may be reset in the reset menu by pressing the MENU button and entering the reset menu. It may also be reset with digital inputs.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 26

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 27

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Note: If you decide to update your MeterView Pro software, once the installation has completed, you will be asked if you want to update the setup files located on the meter itself. This way, you will always have the most current version on the meter for future installs.

Warn-

ing!

Do not unplug the meter while the new installation files are being written to it. The meter will display

uwrite

during the process and you will receive an onscreen noti-

fication once the process is complete.

MeterView® Pro Software

The meter can also be programmed using the PC-based MeterView Pro software included with the meter. This software can be installed on any Microsoft® Windows® (XP/Vista/7/8/10) computer by connecting the meter’s onboard USB. The meter is powered by the USB connection, so there is no need to wire anything prior to programming the meter, though USB is intended only for meter configuration.

MeterView Pro Installation

1. Connect one end of the provided USB cable to the internal electronics module and the other end

to the computer. The computer will automatically install the driver software it needs to talk to the meter. Only one meter may be connected at a time. Attaching

multiple meters will cause a conflict with the meter software.

2. Once the driver is installed, an AutoPlay dialog should appear

for the drive “MAINSTAL.” Click “Open folder to view files.” If the computer does not display an AutoPlay dialog for the drive “MAINSTAL,” you should open My Computer and doubleclick on the drive labeled “MAINSTAL.”

3. Double-click on the file named “MAStart.” The program will

open a few windows and install two programs on your computer. Simply follow the onscreen instructions until you see one of the dialogs below. If you receive a “User Account Control” warning, click “Yes.”

4. If there is an update available, click the “Update” button to in-

stall the new version. Otherwise, click “Configure” to begin programming your meter.

Data logging for one meter at a time is available with MeterView Pro software. More advanced data acquisition may be accomplished by using any Modbus RTU compliant software. Additional information regarding configuration and monitoring of the meter using MeterView Pro software is available online. Go to www.predig.com/meterview-pro.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 28

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Display

Parameter

Action/Setting Description

setup

Setup

Enter Setup menu

Input

Enter Input selection menu

volt

0-10 VDC

Set input for 10 VDC input

4-20 mA

Set input for 4-20 mA input

Total

Enable or disable totalizer features

unitS

Units

Select the display units/tags

rate

Rate

Select the display units for rate

total

Total

Select the display units for total

Gtotal

Grand Total

Select the display units for grand total

Dec pt

Decimal point

Set decimal point for rate, total, grand total

prog

Program

Enter the Program menu

InCAL

Input Calibration

Enter the Input Calibration menu

sCalE

Scale

Enter the Scale menu

Cal

Calibrate

Enter the Calibrate menu

Inp 1

Input 1

Calibrate input 1 signal or program input 1 value

Dis 1

Display 1

Program display 1 value

Inp 2

Input 2

Calibrate input 2 signal or program input 2 value (up

to 32 points)

Dis 2

Display 2

Program display 2 value (up to 32 points)

Error

Error, calibration not successful, check signal or programmed value

T tb

Total time base

Enter totalizer time base for seconds, minutes, hours or day.

T Cf

Total conversion factor

Enter the conversion factor decimal point and the conversion factor.

mode

Batch mode

Automatic or manual batch control

T dly

Time delay

Set time delay for automatic batch restart

GT tb

Grand total time base

Program grand total time base

Display

Parameter

Action/Setting Description

GT CF

Grand total conversion factor

Program grand total conversion factor

GT rst

Grand total reset

Program grand total reset mode: auto or manual

dsplay

Display

Enter the Display menu

Line 1

Display line 1

Press Enter to assign the Upper display parameter (default: PV or rate)

Line 2

Display Line 2

Press Enter to assign the Lower display parameter (default: total)

d-Inty

Display intensity

Set display intensity level from 1 to 8

RELaY

Relay

Enter the Relay menu

Assign

Assignment

Assign relays to rate, total (batch control), grand total, or Modbus controlled.

Asign1

Assign 1

Relay 1-2 assignment

TotaL

Total

Assign relay to batch control

Gtotal

Grand total

Assign relay to grand total

mbus

Modbus

Assign relay to Modbus input

rate

Rate

Assign relay to rate

precls

Batch total relay preclose

For relays beyond the first assigned to total, a preclose amount may be entered.

RLY 1

Relay 1

Relay 1 setup

Act 1

Action 1

Set relay 1 action1

Auto

Automatic

Set relay for automatic reset

Aman

Automanual1

Set relay for automatic & manual reset any time1 (relays assigned to rate)

LatcH

Latching1

Set relay for latching operation (relays assigned to rate) 1

Lt-CLr

Latchingcleared1

Set relay for latching operation with manual reset only after alarm condition has cleared (relays assigned to rate) 1

Display Functions and Messages

The controller displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 29

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Display

Parameter

Action/Setting Description

Altern

Alternate2

Set relay for pump alternation control (relays assigned to rate) 2

Sampl

Sampling

Set relay for sampling operation (rate or GT)

OFF

Off

Disable relay and front panel status LED (Select Off to enable Interlock feature)

Preset

Set batch preset

Set 1

Program set point 1

RSt 1

Reset 1

Program reset point 1

RLY 2

Relay 2

Relays 2-4 setup.

FaiLSF

Fail-safe

Enter Fail-safe menu

FLS 1

Fail-safe 1

Set relay 1 fail-safe operation

Enable fail-safe operation

off

Fail-safe off

Disable fail-safe operation

DeLAY

Delay

Enter relay Time Delay menu

DLY 1

Delay 1

Enter relay 1 time delay setup

On 1

Set relay 1 On time delay

OFF 1

Off

Set relay 1 Off time delay

break

Loop break

Set relay condition if loop break detected (For mA input only)

iGnorE

Ignore

Ignore loop break condition (Processed as a low signal condition)

Relay goes to alarm condition when loop break is detected

OFF

Off

Relay goes to non-alarm condition when loop break is detected

Aout

Analog output

Enter the Analog output scaling menu

Dis 1

Display 1

Program display 1 value

Out 1

Output 1

Program output 1 value (e.g. 4.000 mA)

Display

Parameter

Action/Setting Description

Dis 2

Display 2

Program display 2 value

Out 2

Output 2

Program output 2 value (e.g. 20.000 mA)

reset

Reset

Press Enter to access the Reset menu

Rst Hi

Reset high

Press Enter to reset max display

Rst Lo

Reset low

Press Enter to reset min display

Rst HL

Reset high & low

Press Enter to reset max & min displays

Rst t

Reset total

Press Enter to reset total

Rst Gt

Reset grand total

Press Enter to reset grand total

Rst bc

Reset batch count

Press Enter to reset batch count

Contrl

Control

Enter Control menu

Auto

Automatic

Press Enter to set controller for automatic operation

mAn

Manual

Press Enter to manually control relays or analog output operation

`pass

Password

Enter the Password menu

Pass 1

Password 1

Set or enter Password 1

Pass 2

Password 2

Set or enter Password 2

Pass 3

Password 3

Set or enter Password 3

Total

Total password

Set or enter password for manual reset

Gtotal

Grand total password

Set or enter password for manual reset

nonrst

Nonresettable

Non-resettable grand total set after entering “050873” for Gtotal password

unloc

Unlocked

Program password to lock controller

locd

Locked

Enter password to unlock controller

999999

-99999

Flashing display

Overrange condition Underrange condition

1. During operation, only the STOP button will function, to stop/pause the batch. As a result, relay alarms cannot be manually

reset.

2. This setting is used for level control applications. It is not appropriate if using this controller for batching applications.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 30

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

0 0 4.000

00 4 .000

00 5 .000

dis 1

Setting

Select

Digit

Increment

Digital

alue

Setting

Main Menu Map

The main menu consists of the most commonly used functions: Setup, Reset, Control, and Password.

• Press Menu button when a batch is not running to enter Programming Mode then press the Up arrow button to scroll main menu.

• Press Menu, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing Enter are not saved.

• Changes to the settings are saved to memory only after pressing Enter.

• The display moves to the next menu every time a setting is accepted by pressing Enter.

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value.

The digit being changed is displayed brighter than the rest. Press and hold up arrow to auto-increment the display value. Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 31

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Line 1 Line 2

Relays 2-8

Fail-Safe

Delay Break

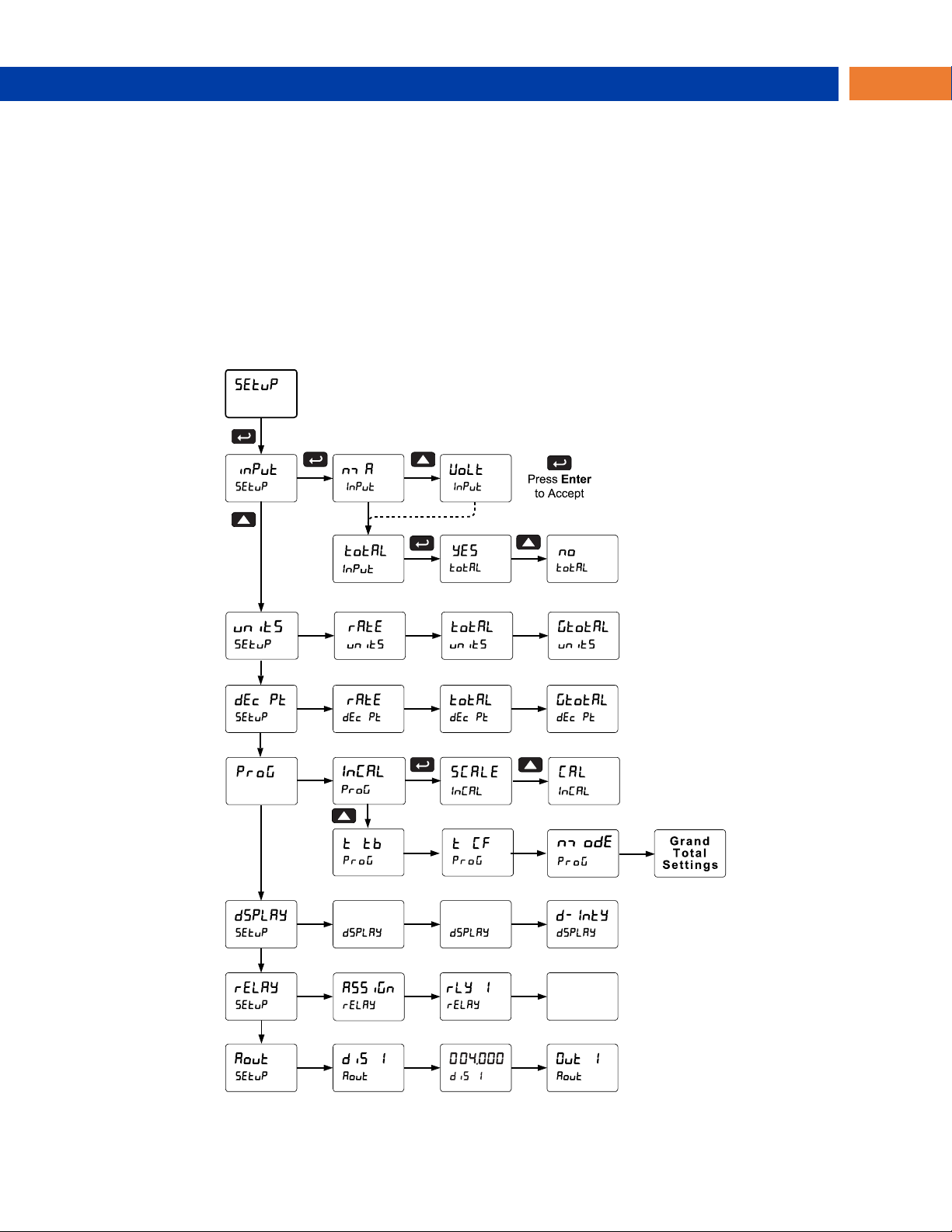

Setting Up the Batch Controller (setup)

The Setup menu is used to select:

1. Input signal the controller will accept

2. Enable or disable totalizer and batching features

3. Select the display units/tags

4. Decimal point position

5. Program menu for scaling or calibration

6. Display parameter and intensity

7. Relay operation

8. 4-20 mA analog output scaling

Press the Enter button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 32

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Display

Character

Display

Character

Display

Character

Display

Character

n m

x X 3

y Y 4

z Z 5

- - 6

/ / 7

[ ] 8

] [ 9

Degree(<)

Space

Scaling and Calibration

It is very important to read the following information, before proceeding to program the controller:

• There is no need to recalibrate the controller when first received from the factory.

• All inputs are factory calibrated. The calibration equipment used is traceable to NIST standards.

• Use the Scale menu to enter the scaling without a signal source.

• Use the Calibrate menu to apply a signal from a calibrator or a flowmeter for the scaling.

Setting the Input Signal (Input)

Enter the Input menu to set up the controller to display current (mA) or voltage (volt) inputs. The current input is capable of accepting any signal from 0 to 20 mA. Select current input to accept 0-20

mA or 4-20 mA signals. The voltage input is capable of accepting any signal from -10 to +10 VDC. Select voltage input to accept 0-

5, 1-5, 0-10, or 10 VDC signals.

Setting the Totalizer and Batching Features (total)

After the input type is entered, set the total parameter to “Yes” to enable batch control (this is set by default). If the total features are disabled, most batching features and functions are hidden from the menus.

Setting the Input Units or Custom Tags (units)

Enter the input unit or custom tag that will be displayed if alternating rate, total, or grand total and units is selected in the units menu, or d unit is selected as the Lower display parameter. See the flow chart on page 36 to access the display menu to show the unit or tag on the Lower display. The engineering units or custom legends can be set using the following 7-segment character set:

Notes: Degree symbol represented by (<) if programming with MeterView® Pro. The letters “m” and “w” use two 7-segment LEDs each; when selected the characters to the right are shifted

one position. Press and hold up arrow to auto-scroll the characters in the display.

Setting the Decimal Point (dEc pt)

The decimal point may be set with up to five decimal places or with no decimal point at all. The rate, total, and grand total decimal points are independent.

Press the Up arrow to move the decimal point one place to the left. Press the Right arrow to move the decimal point one place to the right.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 33

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Programming the Batch Controller (prog)

It is very important to read the following information, before proceeding to program the controller:

• The PD6210 is factory calibrated prior to shipment to read in milliamps and volts depending on the input selection. The calibration equipment is traceable to NIST standards.

• Use the Scale menu to scale process inputs without a signal source. A calibrated signal source is not needed to scale the controller.

The Program menu contains the following menus:

1. Scale without a signal source

2. Calibrate with a calibrated signal source

3. Total time base & conversion factor

4. Grand total time base & conversion factor

5. Total reset mode for total & grand total

The process inputs may be calibrated or scaled to any display value within the range of the controller.

Additional parameters, not needed for most applications, are programmed in the Advanced Features menu; see ADVANCED OPERATION AND PROGRAMMING, page 47.

Input Calibration Method (InCAL)

There are three methods of calibrating (or scaling) the display to show the correct engineering units.

• Use the Factor menu to enter a K-Factor. (Pulse input models only.)

• Use the Scale menu to enter the scaling without a signal source.

• Use the Calibrate menu to apply a signal from a signal source.

Note: The K-Factor, Scale, and Calibrate functions are exclusive of each other. The meter uses the last function programmed. Only one of these methods can be employed at a time. The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set for Scale and Calibrate accordingly under the Number of Points (nopts) menu selection prior to scaling and calibration of the meter, see page 53 for details.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 34

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

For instructions on how to program

numeric values see Setting Numeric

Values, page 30.

Input range

Input 1 & input 2 span

4-20 mA

0.15 mA

10 VDC

0.01 VDC

Scaling the Controller (SCALE)

The process inputs (4-20 mA and 10 VDC) and frequency inputs can be scaled to display the process variable in engineering units.

A signal source is not needed to scale the controller; simply program the inputs and corresponding display values.

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the controller reverts to input 2 during calibration or scaling and to

input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed. The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Wrong signal selection in Setup menu.

3. Minimum input span requirements not maintained.

4. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and 2 signals required to complete the calibration or scaling of the controller.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 35

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

To scale the controller without a signal source, refer to

Scaling the Controller (SCALE) page 33.

Warm up the controller for at least 15 minutes before

performing calibration to ensure specified accuracy.

Time Base, Total Conversion Factor & Total Reset

The time base, total conversion factor, and total reset menus are located in the Program menu. The total and grand total have their own independent settings. This means that one can be displaying the

value in gallons while the other displays in million gallons, liters, m3, etc.

Batch Start Mode (mode)

The batch controller may operate in manual or automatic mode. In manual mode, the controller operates as defined in Controller Operation as described on page 24. In automatic mode, the batch process will automatically begin after a completed batch. The time delay for the restart may be 0.1 to 999.9 seconds (t dly). Automatic batch start will only occur after a successful batch. A manually stopped batch will require a manual start to begin a new batch process.

Grand Total Reset

The grand total can be programmed for manual or automatic reset. In the automatic reset mode, a programmable time delay is available to reset the grand total after the assigned preset is reached.

Non-Resettable Totalizer

The total and grand total can be password-protected to prevent unauthorized resets. The grand total can be programmed as a non-resettable total, see page 46 for details.

Calibrating the Controller with External Source (Cal)

The controller can be calibrated to display the process variable in engineering units by applying the appropriate input signal and the corresponding display value.

The use of a calibrated signal source is strongly recommended to calibrate the controller.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 36

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Setting the Display Parameter & Intensity (dsplay)

Display line 1 (line 1) can be programmed to display:

1. Display total

2. Display grand total

3. Toggle rate and total

4. Toggle rate and grand total

5. Display batch count

6. Relay set points

7. Toggle preset and rate

8. Toggle rate and units

9. Toggle total and units

10. Toggle grand total and units

11. Display max and min values

12. Display Modbus input

13. Display rate value

Display line 2 (line 2) can be programmed to display:

1. Toggle rate and units

2. Toggle total and units

3. Toggle grand total and units

4. Display max and min values

5. Display Modbus input

6. Off (no display)

7. Display rate units

8. Display rate

9. Display total

10. Display grand total

11. Toggle rate and total

12. Toggle rate and grand total

13. Display batch count

14. Relay set points

15. Toggle preset and rate

Display Intensity: The meter has eight display intensity levels to give the best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity setting is 8.

For direct sunlight readability, Sunbright display models are highly recommended. See Ordering Information on page 5 for details.

After setting up the input and the display, press the Menu button to exit programming and skip the rest of the setup menu. Press the Menu button again and the Up arrow to reach the Program menu and complete the scaling or calibration of the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 37

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Caution!

During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.

Rate Alarms Only Active During a Batch Process

The rate alarms are active only during a batch process. As a result, rate alarms should not be programmed with manual reset, as they cannot be manually reset during a batch process, the only time they are active.

Setting the Relay Operation (relay)

This menu is used to set up the operation of the relays.

1. Relay assignment

a. Rate for low and high alarm b. Total for batch control relays c. Grand total for grand total alarms

2. Relay action

a. Automatic reset only (non-latching) b. Automatic + manual reset when not in a batch process (non-latching) c. Latching (manual reset when not in a batch process only) d. Latching with Clear (manual reset when not in a batch process only after alarm condition has

cleared)

e. Pump alternation control (automatic reset only, for level applications unrelated to batch

control)

f. Sampling (the relay is activated for a user-specified time and may be assigned to rate or

grand total)

g. Off (relay state controlled by Interlock feature)

3. Set and reset points; batch preset

4. Fail-safe operation

a. On (enabled) b. Off (disabled)

5. Time delay

a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

6. Relay action for loss (break) of 4-20 mA input (ignore, on, off)

Note: Fail-safe should not be used for relays assigned to batch control.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 38

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Assign preclose

if multiple relays

are assigned.

Relay Assignment (Assign)

The relays can be assigned to any of the following parameters:

1. Rate for low or high alarm indication

2. Total for batch control relays

3. Grand total for alarm indication

Note: Relay 1 should always be assigned to “total” for batch control applications.

Setting the Relay Action

Operation of the relays is programmed in the Action menu. The relays are commonly set up for any of the following modes of operation:

1. Always set to Auto for Batch control operation. Also for automatic reset (non-latching) of alarms.

2. Sampling (the relay is activated for a user-specified time)

3. Off (relay state controlled by Interlock feature)

In addition, the following relay actions may be programmed. These actions are not appropriate for batch control applications, but may be used then the controller is in other applications.

4. Automatic + manual reset when not in a batch process (non-latching)

5. Latching (manual reset only, when not in a batch process)

6. Latching with Clear (manual reset only when not in a batch process after alarm condition has cleared)

7. Pump alternation control (automatic reset only, for level applications, unrelated to batch control.)

Setting Batch Control Relays

Operation of batch control relays are programmed in the Assign menu by selecting total as the assignment. Relays set to total beyond the first will include a preclose parameter (precls) option. Selecting yes for precls will enable multi-stage batching with preclose, and the valve will close prior to the end of the batch at volume equal to the preset value minus the preclose amount entered. Selecting no for precls will have the relay perform identically to the first batch control relay set to total.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 39

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Programming Alarm Set and Reset Points

High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is determined by the difference between set and reset points. Minimum deadband is one

display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation. Failsafe mode should not be used on batch relays assigned to total.

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

Relay Action for Loss of 4-20 mA Input (Loop Break)

The loop break feature is associated with the 4-20 mA input. Rate alarm relays may be programmed to go to one of the following conditions when the controller detects the loss of the input signal (i.e. < 0.005 mA):

1. Turn On (Go to alarm condition)

2. Turn Off (Go to non-alarm condition)

3. Ignore (Process as a low signal condition)

Note: This is not a true loop break condition; if the signal drops below 0.005 mA, it is interpreted as a

“loop break” condition.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 40

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Fail-Safe

Selection

De-Energized State

Energized State

Power Failure

Off

Open

Closed

Open

Relays in deenergized state

Closed

Open

Closed

Relays in energized state

LED

Status

LED

Status

Alarm 1

5 Alarm 5

Alarm 2

6 Alarm 6

Alarm 3

7 Alarm 7

Alarm 4

8 Alarm 8

Relay Operation Details

Overview

The relays of the controller can serve three roles, as batch control relays for single or multi-stage batching, as rate, or grand total alarm, or as a sampling relay based on grand total or rate alarm.

These capabilities include front panel alarm status LEDs and 2 or 4 internal relays. The relays used for batch control (total) are activated when the batching process starts, and deactivate

when the batch total is reached, minus any preclose amount programmed for batch (total) relays after the first.

For an example of batch control operation, see Batch Control Operation Example on page 25. Typical applications for alarms are low and high flow alarms or grand total limit alarms. Note that rate

alarms are only enabled during a batching process, and deactivate when the processes is stopped. The relays can also be set for sampling, where the relay will activate for a specific amount of time after a

certain grand total has been reached (ie: 2 second sample relay activation every 100 gallons batched). There are three basic ways the relays can be used:

1. Batch Control (Total)

2. High or Low Alarms for Rate or Grand Total

3. Sampling (Based on Grand Total and Sample Time)

Relays Initialization

Batch control (total) relays will activate when the start function is enabled, such as when the START button is pressed. Rate alarm relays will enable and initialize to their programmed states when the batch process is started. Grand total alarm relays will initialize to their programmed state at controller power-up.

Fail-Safe Operation

The following table indicates how alarm relays behave based on the fail-safe selection for each relay:

Note: NO = Normally Open, NC = Normally Closed. This refers to the condition of the relay contacts when the power to the controller is off.

Front Panel LEDs

The LEDs on the front panel provide status indication for the following:

The controller is supplied with four alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visual-only indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. Note that rate alarms are only enabled during a batching process, and deactivate when the processes are stopped.

Latching relays, or relays with manual reset, are not recommended when using this controller for batch control, as the manual reset will not be acknowledged during a batch process, when the rate alarms are active. For information on latching and manual reset alarms, see the PD6200 and PD6300 instruction manuals available at www.predig.com.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 41

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

SW2

SW1

Automatic reset only

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Off

Automatic Reset (Auto)

In this application, the controller is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

Pump Alternation Control

Pump alternation control is not recommended when using this controller for batch control, as it is used only in level applications, and not with rate, total, or batching applications. For information on using pump alternation control for level, see the PD6200 and PD6300 instruction manuals available at www.predig.com.

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the Setup – Relay – Action menu and set the action to off.

2. In the Advanced features – User menu program any of the digital inputs to Force On any of the

internal relays (1-4).

3. Connect a switch or dry contact between the +5V terminal and the corresponding digital input (dI-1 to

dI-4) terminal.

Interlock Relay Operation Example Relays 3 & 4 are configured to energize (their front panel LEDs are off) when SW1 & SW2 switches

(above) are closed. If the contacts to these digital inputs are opened, the corresponding front panel LEDs flash indicating this condition. The processes being controlled by the interlock relay will stop, and will restart only after the interlock relay is re-activated by the digital inputs (switches).

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 42

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

High Alarm Operation (Set > Reset)

Low Alarm Operation (Set < Reset)

High Alarm with Fail-Safe Operation (Set >

Reset)

Note: Relay coil is energized in non-alarm condition.

In case of power failure, relay will go to alarm state.

Low Alarm with Fail-Safe Operation (Set <

Reset)

Note: Relay coil is energized in non-alarm condition.

In case of power failure, relay will go to alarm state.

Reset

Set

Input

Relay

LED

energized

de-energized

off

Automatic (non-latching)

Reset

Set

Input

Relay

LED

Automatic (non-latching)

de-energized

energized

off

Sample Relay Operation

The sampling function allows the operator to set a set point for a “sampling” relay. This can be done for the rate, total, or grand total. Each time the relay reaches the set point, it will close that relay’s contacts for a programmed period of time

A rate sampling relay will activate for the sample time (sam t), up to 600.0 seconds, every time the set point rate is reached.

A total sampling relay will activate for the sample time (sam t), up to 600.0 seconds every time the process has batched the amount programmed for the set point, and every time this amount has been batched afterward. (See the diagram below for more details). The utility of this function can, of course, be expanded beyond sampling and be used whenever a timed relay output closure is required when the batch total interval reaches a certain set point.

Relay and Alarm Operation Diagrams

The following graphs illustrate the common operation of the relays, status LEDs, and ACK button.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 43

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Rate Relay Sampling Operation

When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the set point is crossed, going up for high alarms and going down for low alarms.

The sample time can be programmed between 0.1 and 600.0 seconds.

Total Relay Sampling Operation

When the batch total reaches the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the set point value is added to the batch total.

Signal Loss or Loop Break Relay Operation

The following graph shows the loop break operation for a high alarm relay.

When the controller detects a break in the 4-20 mA loop, the relay will go to one of the following selected actions:

1. Turn on (Go to alarm condition)

2. Turn off (Go to non-alarm condition)

3. Ignore (Process as a low signal condition)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 44

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

For instructions on how to

program numeric values

see Setting Numeric

Values, page 30.

Time Delay Operation

The following graphs show the operation of the time delay function.

When the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off time delay.

Note: If “Automatic or Manual (A-mAn)” reset mode is selected, the LED follows the reset point and not

the relay state when the relay is acknowledged.

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any rate display range selected.

No equipment is needed to scale the analog output; simply program the display values to the corresponding mA output signal.

The Analog Output menu is used to program the 4-20 mA output based on rate display values.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 45

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Total Password: Prevents resetting the total manually Gtotal Password: Prevents resetting the grand total manually

Reset Menu (reset)

The Reset menu is used to reset the total, grand totals, batch count, maximum, or minimum reading (peak or valley) reached by the process; both maximum and minimum may be reset at the same time by selecting “reset high & low” (rst HL).

Control Menu (Contrl)

The Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings and to program the non-resettable totalizer.

Protecting or Locking the Controller

Enter the Password menu and program a six-digit password. For instructions on how to program numeric values see Setting Numeric Values, page 30.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 46

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Caution!

Once the Grand Total has been programmed as “non-resettable” the feature cannot be disabled.

Grand Total Reset Password & Non-Resettable Total

The grand total can be password-protected to prevent unauthorized total resets. The grand total can be programmed as a non-resettable total by entering the password “050873”.

Making Changes to a Password Protected Controller

If the controller is password protected, the controller will display the message Locd (Locked) when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access the menu. After exiting the programming mode, the controller returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The controller is now unprotected until a new password is entered.

If the correct six-digit password is entered, the controller displays the message unLoc (unlocked) and the protection is disabled until a new password is programmed.

If the password entered is incorrect, the controller displays the message Locd (Locked) for about two seconds, and then it returns to Run Mode. To try again, press Enter while the Locked message is displayed.

Did you forget the password?

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the controller.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 47

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Advanced Operation and Programming

In addition to the functions described in Controller Operation on page 24, the following advanced operation and display features may be programmed. Configuring these features may disable some default batch controller features, or make running a batch operation impossible. These functions should only be used by users who are sure of their need in their application.

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu.

Press and hold the Menu button for three seconds to access the advanced features of the controller. This cannot be done during a back process as all functions other than STOP are disabled during a batch process, including the Menu button.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 48

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Display

Parameter

Action/Setting

Lo G

Low gate

Program Low gate value

Hi G

High gate

Program High gate value

filter

Filter

Set noise filter value

Hi spd

High Speed Filter

Program High Speed Filter

Lo spd

Low Speed Filter

Program Low Speed Filter

bypASs

Bypass

Set filter bypass value

Round

Set the rounding value for display variables

seriAl

Serial

Set serial communication parameters

SlaveId

Slave ID

Set slave ID or controller address

baud

Baud rate

Select baud rate

Tr dLY

Transmit delay

Set transmit delay for serial communication

Parity

Select parity Even, Odd, or None with 1 or 2 stop bits

t-byt

Time byte

Set byte-to-byte timeout

SelEct

Select

Enter the Select menu (function, cutoff, out)

Functn

Signal Input Conditionin g

Select linear, square root, or programmable exponent

Linear

Set controller for linear function and select number of linearization points

No PtS

Number of points

Set controller for 2 to 32point linearization

Square

Square root

Set controller for square root extraction

Prog E

Programma ble exponent

Set controller for programmable exponent and enter exponent value

CutofF

Cutoff

Set low-flow cutoff

Count

Set the totals to count up or down from a set value

Tot C

Total count

Set the batch to count up to or down from the preset

Set the total to count up

Display

Parameter

Action/Setting

Douwn

Down

Set the total to count down

Gtot C

Grand total count

Set the grand total to count up or down from a defined value

C strt

Count start

Set the starting grand total value when counting down

AoutPr

Analog output programmi ng

Program analog output parameters

Source

Select source for the 420 mA output

O-rang

Overrange

Program mA output for display overrange

u-rang

Underrange

Program mA output for display underrange

Break

Loop Break

Set relay condition if loop break detected

Force

Force output

Force analog output value for loop break

Ignore

Ignore loop break condition

nmAx

Maximum

Program maximum mA output allowed

nmin

Minimum

Program minimum mA output allowed

Calib

Calibrate

Calibrate 4-20 mA output (internal reference source used for scaling the output)

4 nmA

4 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

20 nmA

20 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

user

User I/O

Assign function keys and digital I/O

F1 function key

Assign F1 function key

F2 function key

Assign F2 function key

F3 function key

Assign F3 function key

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced Features menu in the order they appear in the menu.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 49

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Display

Parameter

Action/Setting

F4 function

Assign F4 function (digital input)

dI I

Digital input 1

Assign digital input 1 – 4

dO 1

Digital output 1

Assign digital output 1 – 4

ICal

Internal source calibration

Enter internal source calibration (used for scaling the controller without a signal source

C CAL

Current calibration

Calibrating 4-20 mA current input (internal reference source used for scaling the input)

C lo

Current low

Calibrate low current input (e.g. 4 mA)

Display

Parameter

Action/Setting

C Hi

Current high

Calibrate high current input (e.g. 20 mA)

v CAL

Voltage calibration

Calibrating voltage input

v Lo

Voltage low

Calibrate low voltage input (e.g. 0 V)

v Hi

Voltage high

Calibrate high voltage input (e.g. 10 V)

Diag

Diagnostics

Display parameter settings

LED t

LED test

Test all LEDs

Info

Information

Display software information

erase

Erase

Erase MeterView Pro software stored in meter’s memory

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 50

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Function Key/Button

Default Setting

Action

F1/START

Start

Start batch

F2/BATCH

preset

Change preset

F3/STOP

stop

Pause/stop batch

F4/Digital Input

Srtstp

Start/stop batch

Only STOP Operation Enabled if a Batch is Running. During a batch process, the only function that can be performed is the

pause/stop functions of the STOP button; the default programming of the F3 key. No other functions, including min/max display, manual alarm reset, or total reset, will function while a batch is running.

Changing the programming of the F1-F3 function keys will disable the default batch operation of these keys, and is not recommended for batch control applications.

Note that changing default the programming of the upper or lower displays will interfere with seeing the batch total (upper display) or rate (lower display) of the batch process.

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the Advanced Features – User menu. The following table shows the default setting for each of the function keys.

F4 Operation

A digital input, F4, is standard on the meter. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way is has been programmed in the Advanced Features – User menu.

Advanced Setup and Calibration

Multi-Point Calibration & Scaling

The controller is set up at the factory for 2-point linear calibration. The number of points for multi-point calibration/scaling is set up in the Advanced Features menu. Up to 32 linearization points may be selected. See page 53 for details.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary:

1. Display briefly by assigning to the digital inputs in the User menu.

2. Display continuously by assigning either display to max/min through the Display menu.

Any of the digital inputs can be programmed to reset the max & min readings.

To display max/min readings continuously:

Assign either display to Max (d Hi), Min (d Lo), or toggle between Max and Min (d HL) every 10 seconds.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 51

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Warning!

Do not connect any equipment other than Precision Digital’s expansion modules, cables, or controllers to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the controller.

Noise Filter (filter)

The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal over a certain period. The filter level determines the length of time over which the signal is averaged. The filter level can be set between 2 and 199. The higher the filter level, the longer the averaging time and so the longer it takes the display to settle to its final value. Setting the filter level to zero disables the filter function.

Noise Filter Bypass (bypass)

The noise filter bypass changes the behavior of the controller so that small variations in the signal are filtered out but large abrupt changes in the input signal are displayed immediately. The bypass value determines the minimum amount of signal change to be displayed immediately. All signal changes smaller than the bypass value are filtered or averaged by the controller. The noise filter bypass may be set between 0.1 and 99.9% of full scale.

Rounding Feature (round)

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function.

Rounding causes the display to round to the nearest value according to the rounding selected. This setting affects the last two digits, regardless of decimal point position.

Modbus RTU Serial Communications (serial)

The controller is equipped with serial communications capability as a standard feature using Modbus RTU Serial Communication Protocol.

The meter may be connected to a PC for initial configuration via the onboard micro USB connection. For ongoing digital communications with a computer or other data terminal equipment, an RS-232, or RS-485 option is required; see Ordering Information on page 5 for details.

Note: More detailed instructions are provided with each optional serial communications adapter. Note:

Refer to the ProVu® Modbus Register Tables located at www.predig.com for details.

When using more than one controller in a multi-drop mode, each controller must be provided with its own unique address. The controller address (Slave ID) may be programmed between 1 and 247. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 52

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

PDA8485

DI DI

GND

RS-485 DEVICE

PDA8485

DATA

DATADO

GND GND

RS-485 DEVICE

Serial Communications Overview

RS-232 and RS-485 are standard interfaces approved by the Electronic Industries Alliance (EIA) for connecting serial devices. In EIA terms, the device (e.g. meter) that connects to the interface is called a Data Communications Equipment (DCE) and the device to which it connects (e.g. the computer) is called a Data Terminal Equipment (DTE).

RS-485 can support multi-point connections per line because it uses lower-impedance drivers and receivers.

Line drivers and receivers are used to exchange data between two or more points (nodes) on a serial communications network. Reliable data communications can be difficult in the presence of induced noise, ground level differences, and other hazards associated with installation of a network. When communicating at high data rates, or over long distances in real world environments, RS-232 is often inadequate. The differential data transmission of RS-485 offers superior performance in most applications. Differential signals can help nullify the effects of ground shifts and induced noise signals that can appear as common mode voltages on a network.

A multi-point network consists of multiple drivers and receivers connected on a single bus, where any point (node) can transmit and/or receive data. RS-485 allows multiple drivers and receivers on the same two-wire or four-wire system. The RS-485 standard specifies up to 32 drivers and 32 receivers on a single bus, but with the introduction of "automatic" repeaters and high-impedance drivers/receivers, this number can be extended to hundreds of points (nodes) on a network.

The cabling used for an RS-485 serial communications network should always be a high quality cable such as Belden 8162 or Alpha 6203C. A two-wire system requires two twisted pairs, and a four-wire system requires three twisted pairs (the extra twisted pair is needed for the signal ground).

Figure 19 illustrates how to connect a general four-wire network (a four-wire network actually contains 5 wires).

Figure 19: General Four-Wire Network Connection

Figure 20 illustrates how to connect a general two-wire network (a two-wire network actually contains 3 wires). Note that the PDA7485 and PDA8485 have DIP switches that allow for two-wire connections without the need to externally wire the DO to the DI and the /DO to the /DI (see the converter section for complete details).

Figure 20: General Two-Wire Network Connection

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 53

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Select Menu (SElEct)

The Select menu is used to select the signal input conditioning applied to the input (linear, square root, or programmable exponent, low-flow cutoff, and analog output programming. The multi-point linearization is part of the linear function selection.

Signal Conditioning Selection (Functn)

The Function menu is used to select the signal conditioning function applied to the input: linear, square root, or programmable exponent. The multi-point linearization is part of the linear function selection.

Controllers are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect to the input signal.

Square Root Linearization (Square)

The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units.

Programmable Exponent Linearization (Prog E)

The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow applications using weirs and flumes.

Multi-Point Linearization (Linear)

Controllers are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected under the linear function. The multi-point linearization can be used to linearize the display for non-linear signals such as those from level transmitters used to measure volume in oddshaped tanks or to convert level to flow using weirs and flumes with complex exponent.

Low-Flow Cutoff (CutofF)

The low-flow cutoff feature allows the controller to be programmed so that the often-unsteady output from a differential pressure transmitter, at low flow rates, always displays zero on the controller.

The cutoff value may be programmed from 0 to 999999. The controller will display zero below the cutoff value. Programming the cutoff value to zero disables the cutoff feature.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 54

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Total and Grand Total Count Direction (Count)

By default, the batch total and grand total count up during batch processes. Count parameter allows this to change. When set to count down, the batch total will count down from the preset to 0. When set to count down, the grand total will count down from a set value to zero.

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior of the 4-20 mA output. The following parameters and functions are programmed in this menu:

1. Source: Source for generating the 4-20 mA output (e.g. PV)

2. Overrange: Analog output value with display in overrange condition

3. Underrange: Analog output value with display in underrange condition

4. Break: Analog output value when loop break is detected

5. Max: Maximum analog output value allowed regardless of input

6. Min: Minimum analog output value allowed regardless of input

7. Calibrate: Calibrate the internal 4-20 mA source reference used to scale the 4-20 mA output

Analog Output Source

The source for generating the 4-20 mA output may be assigned to the rate/process variable, total, grand total, maximum or minimum value reached by the rate/process, one of the set points, or the Modbus PV input.

Analog Output Calibration

To perform the analog output calibration, it’s recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the Setup menu.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 55

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Changing the programming of the F1-F3 function keys will disable the default batch operation of these keys, and is not recommended for batch control applications.

Display

Description

Start

Starts the batch process

Stop

Stops the batch process

srtstp

Allows the same function key to both start and stop the batch process

Rly d

Disable all relays until a button assigned to enable relays (Rly E) is pressed

Rly E

Enable all relays to function as they have been programmed

O Hold

Hold current relay states and analog output as they are until a button assigned to enable relays (Rly E) is pressed

d Hold

Hold the current display value, relay states, and analog output momentarily while the function key or digital input is active. The process value will continue to be calculated in the background.

Ln1 Hi

Display maximum display value on line 1

Ln1 Lo

Display minimum display value on line 1

Ln1 HL

Display maximum & minimum display values on line 1

Ln2 Hi

Display maximum display value on line 2

Ln2 Lo

Display minimum display value on line 2

Ln2 HL

Display maximum & minimum display values on line 2

Ln2 gt

Display the grand total on line 2

Ln2 bc

Display the batch count on line 2

Contrl

Directly access the control menu

Display

Description

disabl

Disable the selected function key or digital I/O

AcH

Acknowledge all active relays that are in a manual operation mode such as auto-manual or latching

Reset

Directly access the reset menu

Rst t

Reset the total

Rst gt

Reset the grand total

Rst bc

Reset the batch count

Rst Hi

Reset the maximum display value

Rst Lo

Reset the minimum display value

Rst HL

Reset the maximum & minimum display values

relay

Directly access the relay menu

preset

Change the preset value

Set 2*

Directly access the set point menu for relay 2 (*through 8)

nmenu

Mimic the menu button functionality (digital inputs only)

rigHt

Mimic the right arrow/F1 button functionality (digital inputs only)

Mimic the up arrow/F2 button functionality (digital inputs only)

Enter

Mimic the enter/F3 button functionality (digital inputs only)

F On 1*

Force relay 1 (*through 4) into the on state. This function is used in conjunction with a digital input to achieve interlock functionality. See page 41 for details about interlock relays.

Alnm 1*

Provide indication when alarm 1 (*through 8) has been triggered (digital outputs only)

Programmable Function Keys User Menu (user)

The User menu allows the user to assign the front panel function keys F1, F2, and F3, the digital input F4 (a digital input located on the signal input connector), and up to eight additional digital inputs to access most of the menus or to activate certain functions immediately (e.g. reset max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized applications.

Up to eight digital outputs can be assigned to a number of actions and functions executed by the meter (i.e. alarms, relay acknowledgement, reset max, min, or max & min, tare, and reset tare). The digital outputs can be used to trigger external alarms or lights to indicate these specific events.

Function Keys & Digital I/O Available Settings

Refer to the following table for descriptions of each available function key or digital I/O setting.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 56

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Note: The PD6210 is factory calibrated prior to shipment to read in milliamps and volts depending on the input selection. The calibration equipment is traceable to NIST standards.

Notes:

1. If controller is in operation and it is intended to accept only one input type (e.g. 4-20 mA), recalibration of other input is not necessary.

2. Allow the controller to warm up for at least 15 minutes before performing the internal source calibration procedure.

Input range

Input 1 & input 2 span

4-20 mA

0.15 mA

10 VDC

0.01 VDC

Internal Source Calibration (ICAL)

The use of a calibrated signal source is necessary to calibrate the internal source of the meter. The meter’s internal source is what allows the user to scale the meter without applying a signal.

Check calibration of the controller at least every 12 months. Each input type must be recalibrated separately.

The Internal calibration menu is part of the Advanced Features menu.

1. Press and hold the Menu button for three seconds to access the advanced features of the controller.

2. Press the Up arrow button to scroll to the Internal calibration menu (ICAL) and press Enter.

3. The controller displays either current calibration (C CAL) or voltage calibration (v CAL), according to

the input setup. Press Enter to start the calibration process.

Example of Internal Calibration for current input:

4. The controller displays low input current message (C lo). Apply the low input signal and press Enter.

The display flashes for a moment while the controller is accepting the low input signal.

5. After the display stops flashing, a number is displayed with the leftmost digit brighter than the rest.

The bright digit is the active digit that can be changed by pressing the Up arrow button. Press the Right arrow button to move to the next digit.

6. Set the display value to correspond to the input signal being calibrated, typically 4.000 mA.

7. The display moves to the high input calibration (C Hi). Apply the high input signal and press Enter.

8. Set the display for the high input calibration, in the same way as it was set for the low input calibration, typically 20.000 mA.

The graphic shows the calibration of the current input. The voltage input is calibrated in a similar way.

Tips:

• Low and high input signals can be any valid value within the range of

the controller.

• Observe minimum input span requirements between input 1 and input 2.

• Low input should be less than high input signal.

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the controller reverts to input 2 during calibration or scaling and to

input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed. The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals, or it is connected backwards.

2. Wrong signal selection in Setup menu.

3. Minimum input span requirements not maintained.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and 2 signals required to complete the calibration or scaling of the controller.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 57

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Troubleshooting

Due to the many features and functions of the controller, it’s possible that the setup of the controller does not agree with what an operator expects to see.

If the controller is not working as expected, refer to the Diagnostics menu and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu, to access Diagnostics menu see Advanced Operation and Programming, page 47.

This menu allows the user to test the functionality of all the meter LEDs, check the meter’s software and version information, and erase the MeterView Pro software installation files from the meter. Press the Enter button to view the settings and the Menu button to exit at any time.

For a description of the diagnostic messages, see Advanced Features Menu & Display Messages, page 48.

Determining Software Version

To determine the software version of a controller:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to Information menu (Info).

3. Press Enter to access the software number (SFT) and version (UER) information. Write down

the information as it is displayed. Continue pressing Enter until all the information is displayed.

4. The controller returns to Run Mode after displaying all the settings.

Reset Controller to Factory Defaults

When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Operation and Programming, page 47.

2. Press Up arrow to go to Diagnostics menu

3. Press and hold Right arrow for three seconds, press Enter when display flashes reset. Note: If Enter is not pressed within three seconds, the display returns to the Diagnostics menu.

4. The controller goes through an initialization sequence (similar as on power-up), and loads the factory default settings.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 58

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Parameter

Display

Default Setting

Input type

Input

4-20 mA

Total

yes

Total enabled

Units

units

Rate / total / gr. total mA / mA / mA

Rate decimal point

ddd.ddd

3 Places

Total decimal point

ddddd.d

1 Place

G. Total decimal point

dddddd

0 Places Function

Functn

Linear

Number of points

No Pts

Programming

prog

Scale

Input 1

InP 1

4.000 mA

Display 1

Dis 1

4.000

Input 2

InP 2

20.000 mA

Display 2

Dis 2

20.000

Display line 1

Line 1

Display total

Display line 2

Line 2

Display rate and units

Display intensity

d-Inty

Total time base

T tb

Second

Total conversion factor

T CF

1.000 Batch mode

mode

Manual

Grand total time base

GT tb

Second

Grand total conversion factor

T CF

1.000 Grand total reset

T rst

Manual

Relay 1 assignment

Asign1

Total

Relay 2 assignment

Asign2

Total

Relay 2 preclose

preCls

Relay 3 assignment

Asign3

Rate

Relay 4 assignment

Asign4

Rate

Relay 1 action

Act 1

Automatic

Batch preset

Preset

100.0

Relay 2 action

Act 2

Automatic

Relay 2 set point

Set 2

200.0

Relay 3 action

Act 3

Automatic

Relay 3 set point

Set 3

3.000

Relay 3 reset point

RSt 3

2.500

Relay 4 action

Act 4

Automatic

Relay 4 set point

Set 4

4.000

Parameter

Display

Default Setting

Relay 4 reset point

RSt 4

3.500

Fail-safe relay 1

Fls 1

Off

Fail-safe relay 2

Fls 2

Off

Fail-safe relay 3

Fls 3

Off

Fail-safe relay 4

Fls 4

Off

On delay relay 1

On 1

0.0 sec

Off delay relay 1

Off 1

0.0 sec

On delay relay 2

On 2

0.0 sec

Off delay relay 2

Off 2

0.0 sec

On delay relay 3

On 3

0.0 sec

Off delay relay 3

Off 3

0.0 sec

On delay relay 4

On 4

0.0 sec

Off delay relay 4

Off 4

0.0 sec

Loop break relay 1

ignore

Ignore

Loop break relay 2

ignore

Ignore

Loop break relay 3

ignore

Ignore

Loop break relay 4

ignore

Ignore

Display 1 analog out

Dis 1

4.000 Output 1 value

Out 1

4.000 mA

Display 2 analog out

Dis 2

20.000 Output 2 value

Out 2

20.000 mA

Source analog output

Source

Rate/process Overrange output

O-rang

21.000 mA

Underrange output

u-rang

3.000 mA

Loop break output

break

1.000 mA

Filter

filter

Bypass

0.2

Cutoff value

CutofF

0.000 (disabled)

Maximum output

mAx

23.000 mA

Minimum output

min

1.000 mA

Slave ID (Address)

Slave Id

247

Baud rate

baud

9600

Transmit delay

Tr dly

50 ms

Parity

Even

Byte-to-byte timeout

t-byt

010 (0.1 sec) F1 function key

Start

F2 function key

Preset

Factory Defaults & User Settings

The following table shows the factory setting for the major programmable parameters on the controller.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 59

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Parameter

Display

Default Setting

F3 function key

Stop

F4 function

Start/Stop

Digital input 1

dI 1

Digital input 2

dI 2

Right arrow

Digital input 3

dI 3

Up arrow

Digital input 4

dI 4

Enter

Digital output 1-4

dO 1

Alarm 1-4

Parameter

Display

Default Setting

Password 1

Pass 1

000000 (unlocked)

Password 2

Pass 2

000000 (unlocked)

Password 3

Pass 3

000000 (unlocked)

Total password

Total

000000 (unlocked)

Grand total password

Gtotal

000000 (unlocked)

Symptom

Check/Action

SafeTouch buttons do not respond

If mechanical button was pushed. The SafeTouch buttons will be re-enabled automatically 60 seconds after the last button push.

If slide switch on connector board is in DISABLE position, switch to ENABLE.

Strong direct sunlight may interfere with SafeTouch button operation. It is recommended to operate the buttons by standing so as to block direct sunlight.

Serial Communications Power LED Indicator is off

1. Check modular cable connection

2. Check power to the device

If only the TX (or DATA IN) data status LED is flashing when serial communications attempted

1. Check serial cable

2. Check protocol selected on device

3. Check instrument address & baud rate

4. Check program address & baud rate

If both data status LEDs (TX and RX) are off when trying to communicate

Remove all unnecessary cables and instruments from the bus. Try getting the system to work with only one device (to ease troubleshooting) and then expand the system one device at a time.

Communications slow

Increase the baud rate

Random communication errors

1. Increase the TX delay time

2. Decrease the baud rate

Power LED is off

1. Check modular cable connection

2. Check power to instrument

No display at all

Check power at power connector

Not able to change setup or programming, Locd is displayed

Controller is password-protected, enter correct six-digit password to unlock

Controller displays error message during calibration (Error)

Check:

1. Signal connections

2. Input selected in Setup menu

3. Minimum input span requirements

Controller displays

999999

-99999

Check:

1. Input selected in Setup menu

2. Corresponding signal at Signal connector

Display is unstable

Check:

1. Input signal stability and value

2. Display scaling vs. input signal

3. Filter and bypass values (increase)

Display response is too slow

Check filter and bypass values

Display reading is not accurate

1. Signal input conditioning selected: Linear, square root, etc.

2. Scaling or calibration

Troubleshooting Tips

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 60

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Symptom

Check/Action

Display does not respond to input changes, reading a fixed number

Check:

Display assignment, it might be displaying max, min, or set point.

Display alternates between

1. Hi and a number

2. Lo and a number

Press Menu to exit max/min display readings.

Relay operation is reversed

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts

Relay and status LED do not respond to signal

Check:

1. Relay action in Setup menu

2. Set and reset points

Flashing relay status LEDs

Relays in manual control mode or relay interlock switches opened.

Controller not communicating with application programs

Check:

1. Serial adapter and cable

2. Serial settings

3. Controller address and baud rate

If the display locks up or the controller does not respond at all

Cycle the power to reboot the microprocessor.

Other symptoms not described above

Call Technical Support for assistance.

WARNINGS

• Installation and service should be performed only by trained service personnel. Service requiring replacement of internal sub-components must be performed at the factory.

• Disconnect from supply before opening enclosure. Keep cover tight while circuits are alive. Conduit seals must be installed within 18" (450mm) of the enclosure.

• Verify that the operating atmosphere of the instrument is consistent with the appropriate hazardous locations certifications.

• If the instrument is installed in a high voltage environment and a fault or installation error occurs, high voltage may be present on any lead

• Read all product labels completely and follow all instructions and requirements listed on the labels for installation or service.

Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and map changes ahead of time, rather than at random.

Service

If the enclosure is sound and undamaged, then only the internal electronics housing will need to be returned to the factory for service. Contact the factory for RMA number and return instructions.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 61

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

Figure 21: Enclosure Dimensions – Front View

Figure 22: Enclosure Dimensions – Side Cross Section View

Mounting Dimensions

All units: inches (mm)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 62

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

This Page Intentionally Left Blank

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 63

EU Declaration of Conformity

Issued in accordance with ISO/IEC 17050-1:2004 and ATEX Directive 2014/34/EU.

We,

Precision Digital Corporation 233 South Street Hopkinton, MA 01748 USA

as the manufacturer, declare under our sole responsibility that the product(s),

Model PD8 ProtEX-MAX Series

to which this declaration relates, is in conformity with the European Union Directives shown below:

2014/35/EU Low Voltage Directive 2014/34/EU ATEX Directive 2014/30/EU EMC Directive 2011/65/EU RoHS Directive

This conformity is based on compliance with the application of harmonized or applicable technical standards and, when applicable or required, a European Union notified body certification.

Standards:

EN 55022:2007 EN 61000-6-2:2005 EN 60079-0:2009 EN 61000-6-4:2007 EN 60079-1:2007 EN 61010-1:2001 EN 60079-31:2008 EN 61326:2006

The standards EN 55022:2007, EN 60079-0:2009, EN 60079-1:2007, EN 60079-31:2008, EN 61000-64:2007, EN 61010-1:2001, and EN 61326:2006 are no longer harmonized. The requirements of these standards have been checked against the harmonized standard EN 55022:2010, EN 600790:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014, EN 61000-6-4:2007+A1:2011, EN 610101:2010, and EN 61326:2013 and there were no major technical changes affecting the latest technical knowledge for the products listed above.

EC Type Examination Certificate: Sira 12ATEX1182

Product Markings: II 2 G D

Ex d IIC T* Gb Ex tb IIIC T90°C Db IP68 Tamb = -40°C to +*°C (*T5 = 65°C, *T6 = 60°C)

ATEX Notified Body for EC Type Examination Certificate: Sira Certification Service, NB 0518

Unit 6, Hawarden Industrial Park Hawarden, Deeside, CH5 3US, UK

ATEX Quality Assurance Notification No.: SIRA 10 ATEX M462

ATEX Notified Body for Quality Assurance: Sira Certification Service, NB 0518

Unit 6, Hawarden Industrial Park Hawarden, Deeside, CH5 3US, UK

Signed for and on behalf of Precision Digital Corporation:

Name: Jeffrey Peters Company: Precision Digital Corporation Title: President Date: 02/12/2018 Document No: DoC PD8 {021218}

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 64

ProtEX-MAX PD8-6210 Explosion-Proof Analog Input Batch Controller Instruction Manual

PRECISION DIGITAL CORPORATION

LIM8-6210_D

SFT039 Ver 4.010 & up

12/18

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com
