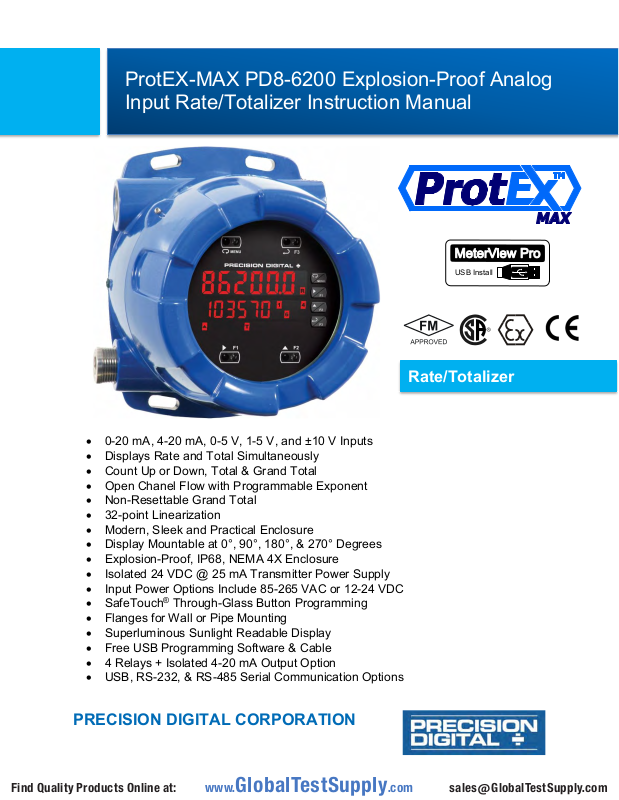

ProtEX-MAX PD8-6200 Explosion-Proof Analog

Rate/Totalizer

USB Install

Input Rate/Totalizer Instruction Manual

• 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs

• Displays Rate and Total Simultaneously

• Count Up or Down, Total & Grand Total

• Open Chanel Flow with Programmable Exponent

• Non-Resettable Grand Total

• 32-point Linearization

• Modern, Sleek and Practical Enclosure

• Display Mountable at 0°, 90°, 180°, & 270° Degrees

• Explosion-Proof, IP68, NEMA 4X Enclosure

• Isolated 24 VDC @ 25 mA Transmitter Power Supply

• Input Power Options Include 85-265 VAC or 12-24 VDC

• SafeTouch® Through-Glass Button Programming

• Flanges for Wall or Pipe Mounting

• Superluminous Sunlight Readable Display

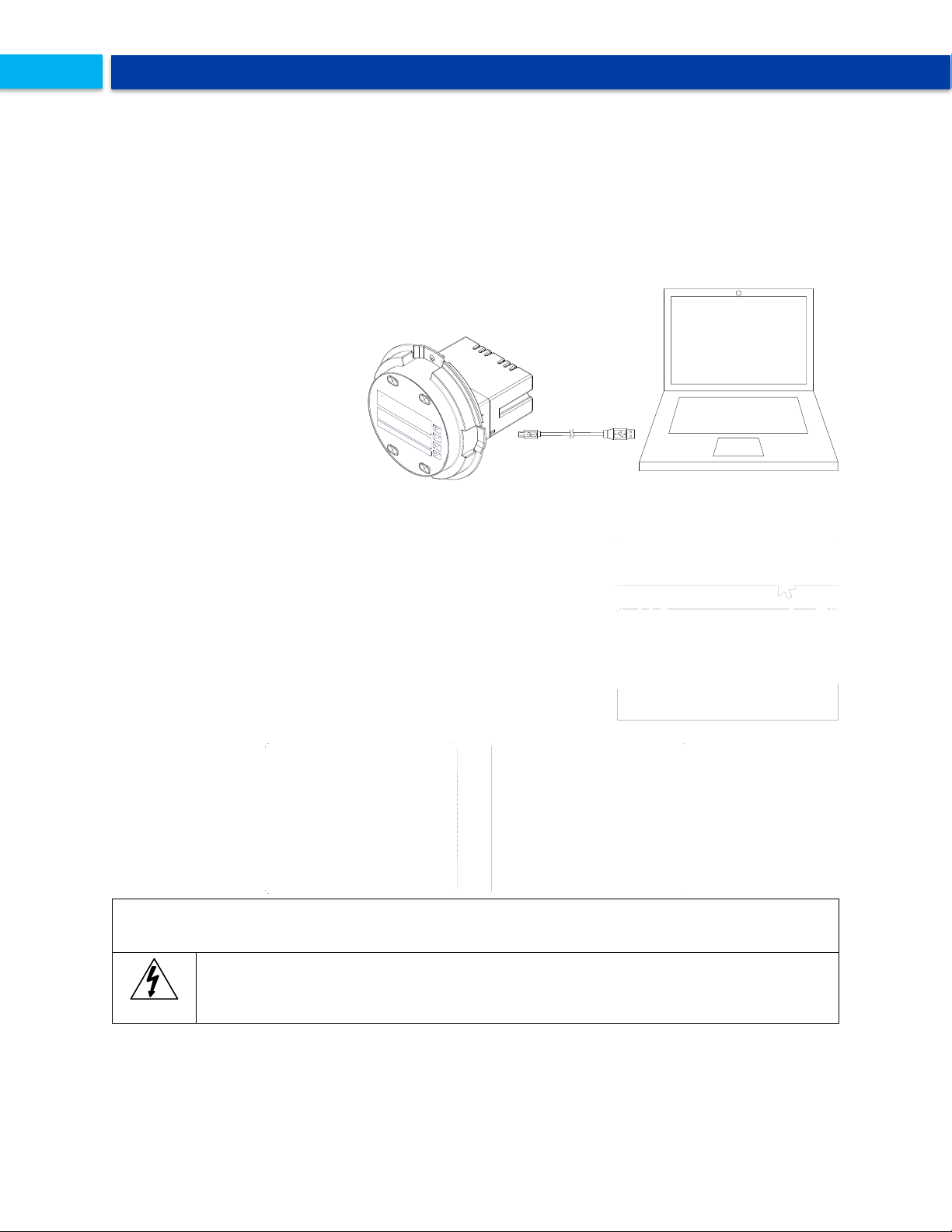

• Free USB Programming Software & Cable

• 4 Relays + Isolated 4-20 mA Output Option

• USB, RS-232, & RS-485 Serial Communication Options

PRECISION DIGITAL CORPORATION

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 2

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Disclaimer

CAUTION: Read complete

instructions prior to installation and operation of the meter.

WARNING: Risk of electric shock or personal injury.

Warning!

• This product is not recommended for life support applications or

applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

• Failure to follow installation guidelines could result in death or serious

injury. Make sure only qualified personnel perform the installation.

• Never remove the instrument cover in explosive environments when the

circuit is live.

• Cover must be fully engaged to meet flameproof/explosion-proof

requirements.

• Information in this manual supersedes all enclosure, compliance, and

agency approval information included in additional product manuals included with this product.

The information contained in this document is subject to change without notice. Precision Digital makes no representations or warranties with respect to the contents hereof; and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.

Registered Trademarks

MeterView® Pro is a registered trademark of Precision Digital Corporation. Modbus® is a Registered Trademark of Schneider Automation Inc. All other trademarks mentioned in this document are the property of their respective owners.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 3

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Table of Contents

Table of Contents ----------------------------------------- 3 Table of Figures ------------------------------------------- 4 Introduction ------------------------------------------------- 4 Ordering Information ------------------------------------ 5 Specifications ---------------------------------------------- 6

General ------------------------------------------------------------ 6 Process Input --------------------------------------------------- 6 Rate/Totalizer --------------------------------------------------- 7 Relays ------------------------------------------------------------- 7 Isolated 4-20 mA Transmitter Output ------------------- 8 Serial Communications -------------------------------------- 8 Digital Inputs & Outputs ------------------------------------- 8 MeterView Pro -------------------------------------------------- 8 Product Ratings and Approvals -------------------------- 9

Compliance Information ------------------------------ 10

Safety ------------------------------------------------------------ 10 Electromagnetic Compatibility -------------------------- 10

Safety Information -------------------------------------- 11 Installation ------------------------------------------------ 11

Unpacking ------------------------------------------------------ 11 Pre-Installed Conduit/Stopping Plug ------------------ 12 Mounting ------------------------------------------------------- 12 Cover Jam Screw -------------------------------------------- 12 Transmitter Supply Voltage Selection (P+, P-) ---- 12 Connections --------------------------------------------------- 13

Required & Factory Wired Connection --------------- 13 Connectors Labeling -------------------------------------- 14 Power Connections --------------------------------------- 14 Signal Connections --------------------------------------- 14 Serial Communications Connections ----------------- 16

Three Wire Connections ----------------------------- 16 Using PROVU Serial Adapters --------------------------- 18 Relay Connections ---------------------------------------- 19 Switching Inductive Loads ------------------------------- 19 F4 Digital Input Connections ---------------------------- 20 4-20 mA Output Connections --------------------------- 20 Analog Output Transmitter Power Supply ----------- 20 Interlock Relay Feature ---------------------------------- 20 Digital I/O Connections ----------------------------------- 21 External Switch Contacts -------------------------------- 21

Setup and Programming------------------------------ 22

SafeTouch Front Buttons and Status LED Indicators ----------- 23 MeterView

MeterView Pro Installation ------------------------------ 24

Display Functions and Messages ---------------------- 25 Main Menu ----------------------------------------------------- 27 Setting Numeric Values ----------------------------------- 27 Setting Up the Rate/Totalizer Meter (setup) -------- 28

Setting the Input Signal (Input) ----------------------- 28 Setting the Totalizer Features (total) --------------- 28 Setting the Input Units or Custom Tags (units)--- 29 Setting the Decimal Point (dEc pt) ------------------- 29 Programming the Rate/Totalizer (prog) ------------- 30

Buttons ---------------------------------------- 22

Pro Software --------------------------------- 24

Multi-Point Calibration & Scaling ------------------- 30

Input Calibration Method (InCAL) ------------------ 30

Scaling the Meter (SCALE) --------------------------- 31 Calibrating the Meter with External Source (Cal)

-------------------------------------------------------- 31

Time Base, Total Conversion Factor & Total

Reset ------------------------------------------------ 32

Setting the Display Parameter & Intensity (dsplay)

----------------------------------------------------------------- 33 Setting the Relay Operation (relay) ----------------- 34 Relay Assignment (Assign) ---------------------------- 35 Setting the Relay Action --------------------------------- 35 Programming Set and Reset Points ------------------ 36 Setting Fail-Safe Operation ----------------------------- 36 Programming Time Delay ------------------------------- 36 Relay Action for Loss of 4-20 mA Input (Loop Break)

----------------------------------------------------------------- 36

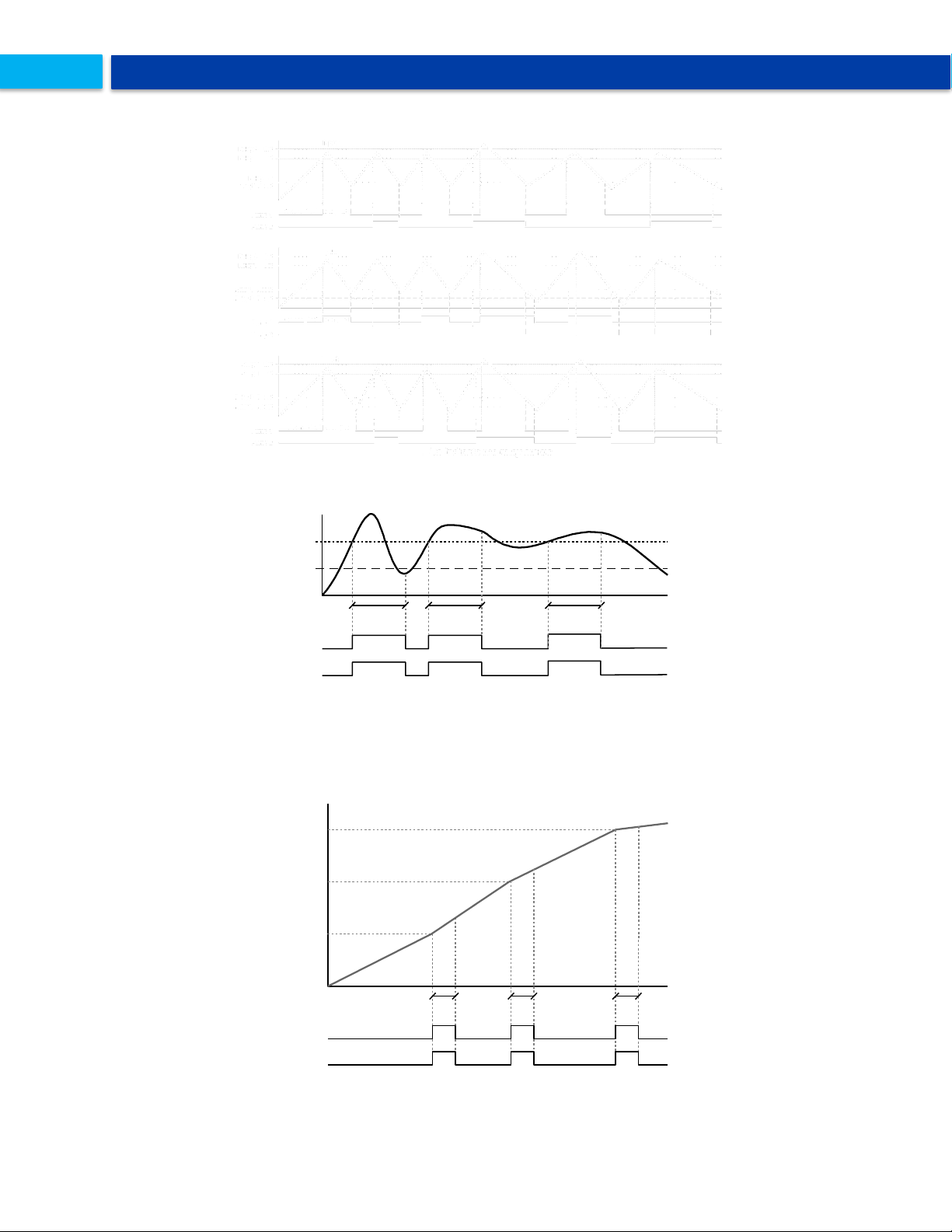

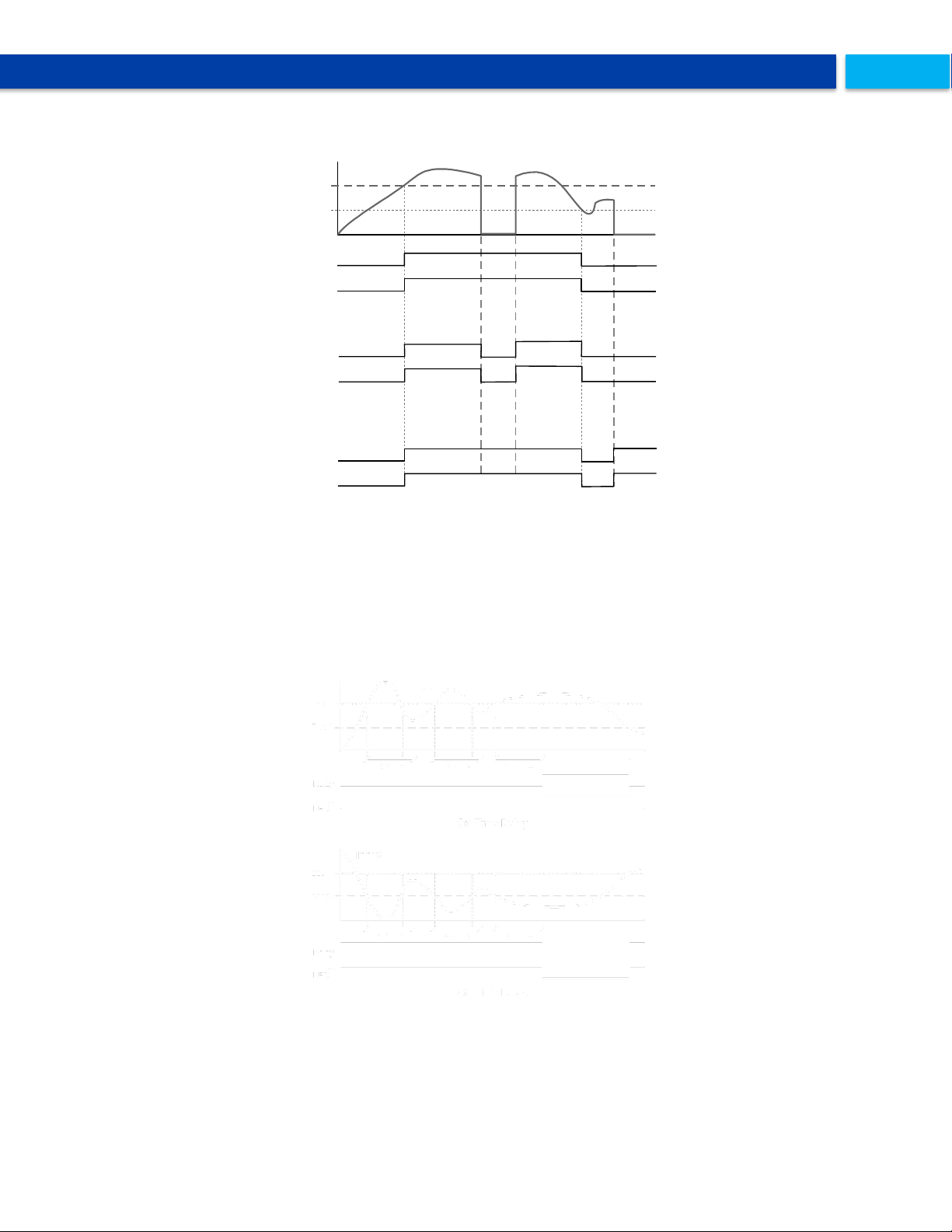

Relay and Alarm Operation Diagrams ---------------- 37

High Alarm Operation (Set > Reset) ------------------ 37 Low Alarm Operation (Set < Reset) ------------------ 37 High Alarm with Fail-Safe Operation (Set > Reset)

----------------------------------------------------------------- 37 Low Alarm with Fail-Safe Operation (Set < Reset) 37 Pump Alternation Control Operation ------------------ 38 Rate Relay Sampling Operation ----------------------- 38 Total Relay Sampling Operation ----------------------- 38 Signal Loss or Loop Break Relay Operation ------- 39 Time Delay Operation ------------------------------------ 39

Relay Operation Details ----------------------------------- 40

Overview ----------------------------------------------------- 40 Relays Auto Initialization -------------------------------- 40 Fail-Safe Operation --------------------------------------- 40 Front Panel LEDs ----------------------------------------- 40 Latching and Non-Latching Relay Operation ------- 41 Non-Latching Relay (Auto) ----------------------------- 41

Non-Latching Relay (A-nman) -------------------------- 41

Latching Relay (LatcH) ---------------------------------- 41 Latching Relay (Lt-Clr) --------------------------------- 41 Acknowledging Relays ----------------------------------- 42 Pump Alternation Control Applications (Altern) -- 42 Setting Up the Interlock Relay (Force On) Feature 44

Interlock Relay Operation Example --------------- 44

Scaling the 4-20 mA Analog Output (Aout) --------- 45 Reset Menu (reset) ----------------------------------------- 45 Control Menu (Contrl) ------------------------------------- 45 Setting Up the Password (pass) ------------------------ 46

Protecting or Locking the Meter ----------------------- 46 Total Reset Password & Non-Resettable Total ---- 46 Making Changes to a Password Protected Meter - 47 Disabling Password Protection ------------------------ 47

Advanced Features Menu -------------------------------- 48

Advanced Features Menu & Display Messages --- 48 Noise Filter (filter) ------------------------------------- 49 Noise Filter Bypass (bypass) --------------------------- 49 Rounding Feature (round) ------------------------------ 50 Modbus RTU Serial Communications (serial) --- 50 Serial Communications Overview --------------------- 51 Select Menu (SElEct) ------------------------------------ 52 Signal Input Conditioning (Functn) ------------------- 52 Low-Flow Cutoff (CutofF) ------------------------------- 53 Totalizer Count Up/Down (Count) --------------------- 53

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 4

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Analog Output Programming (AoutPr) --------------- 54 Programmable Function Keys User Menu (user) - 54 Internal Source Calibration (ICAL) -------------------- 56

Meter Operation ----------------------------------------- 57

Front Buttons Operation ---------------------------------- 57

SafeTouch

F4 Operation -------------------------------------------------- 58 Maximum/Minimum Readings --------------------------- 58

Buttons ---------------------------------------- 57

Diagnostics Menu (diag) ---------------------------------- 59

Determining Software Version ------------------------- 59

Reset Meter to Factory Defaults ------------------------ 59

Factory Defaults & User Settings ---------------------- 60

Troubleshooting Tips -------------------------------------- 61

Service ------------------------------------------------------ 62 Mounting Dimensions --------------------------------- 63 EU Declaration of Conformity ----------------------- 65

Troubleshooting ----------------------------------------- 59

Table of Figures

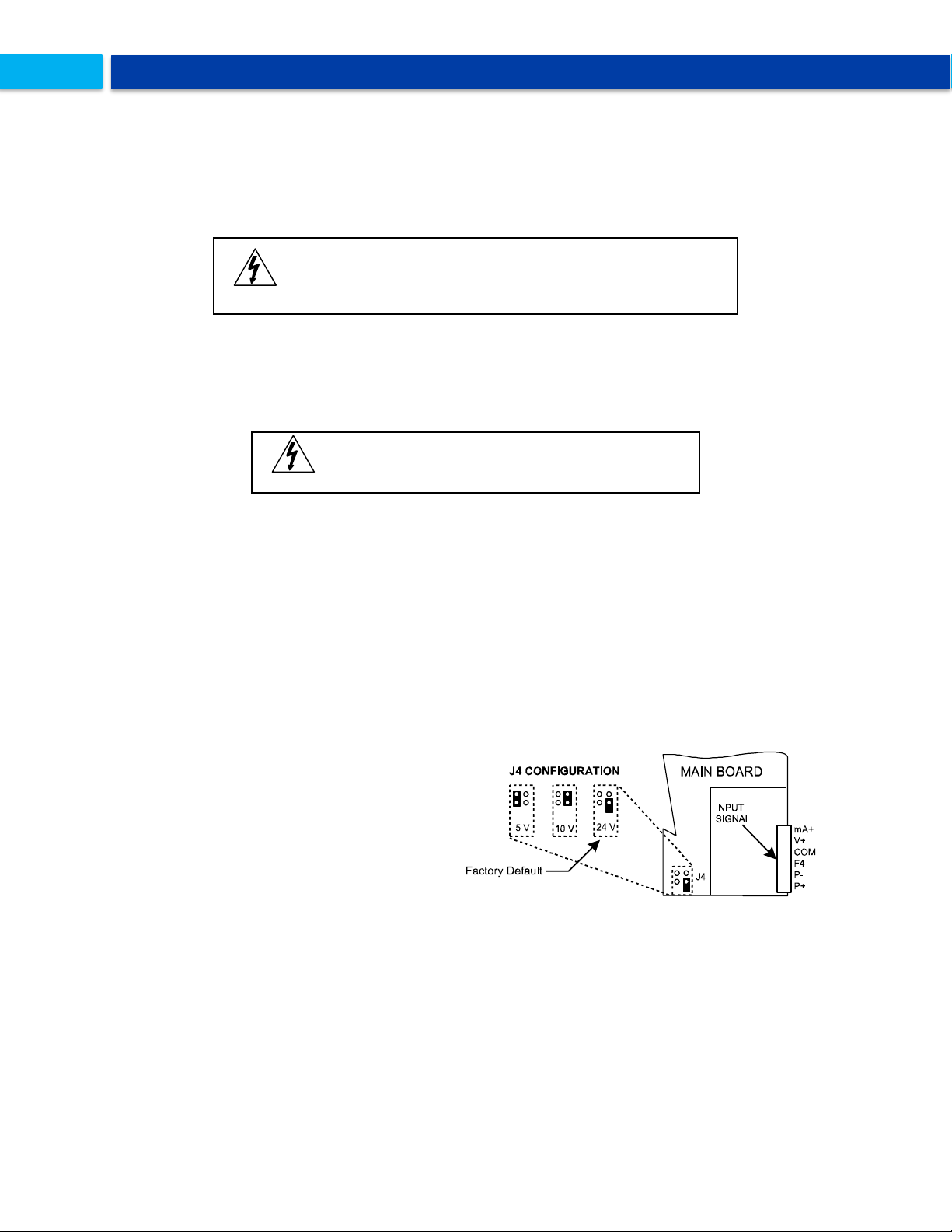

Figure 1: Transmitter Supply Voltage Selection ....... 12

Figure 2: Integrated ProVu Required Connections .. 13

Figure 3: Connector Labeling for Fully Loaded PD8-

6200 ...................................................................... 14

Figure 4: Power Connections..................................... 14

Figure 5: Transmitter Powered by Internal Supply .. 15

Figure 6: Transmitter Powered by Ext. Supply or Self-

Powered ............................................................... 15

Figure 7: Voltage Input Connections ......................... 15

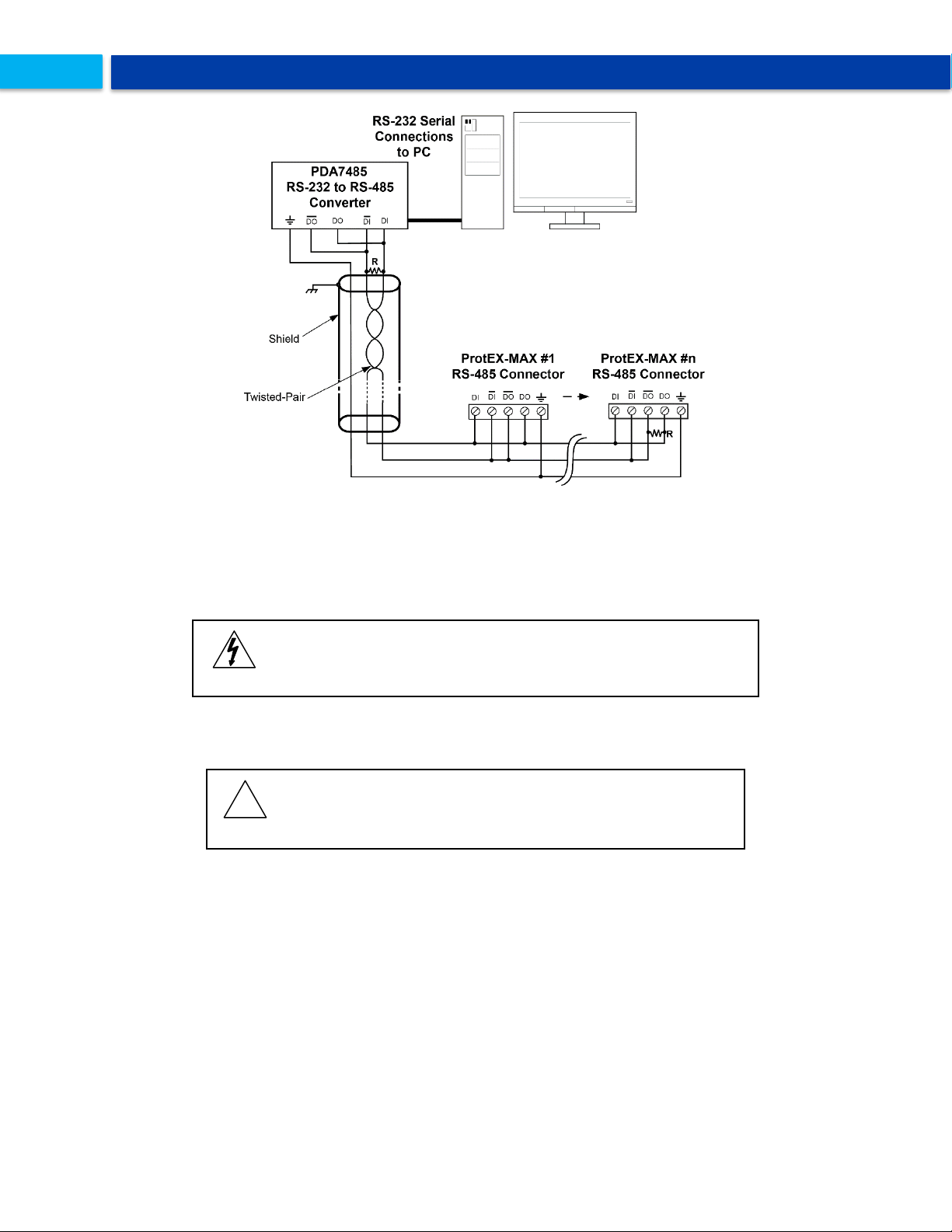

Figure 8: ProtEX-MAX Connections to a Serial

Converter ............................................................. 16

Figure 9. Three-Wire RS485 Connection ................... 16

Figure 10: RS-485 Wiring ............................................ 17

Figure 11: RS-485 Two-Wire Multi-Drop Wiring ........ 18

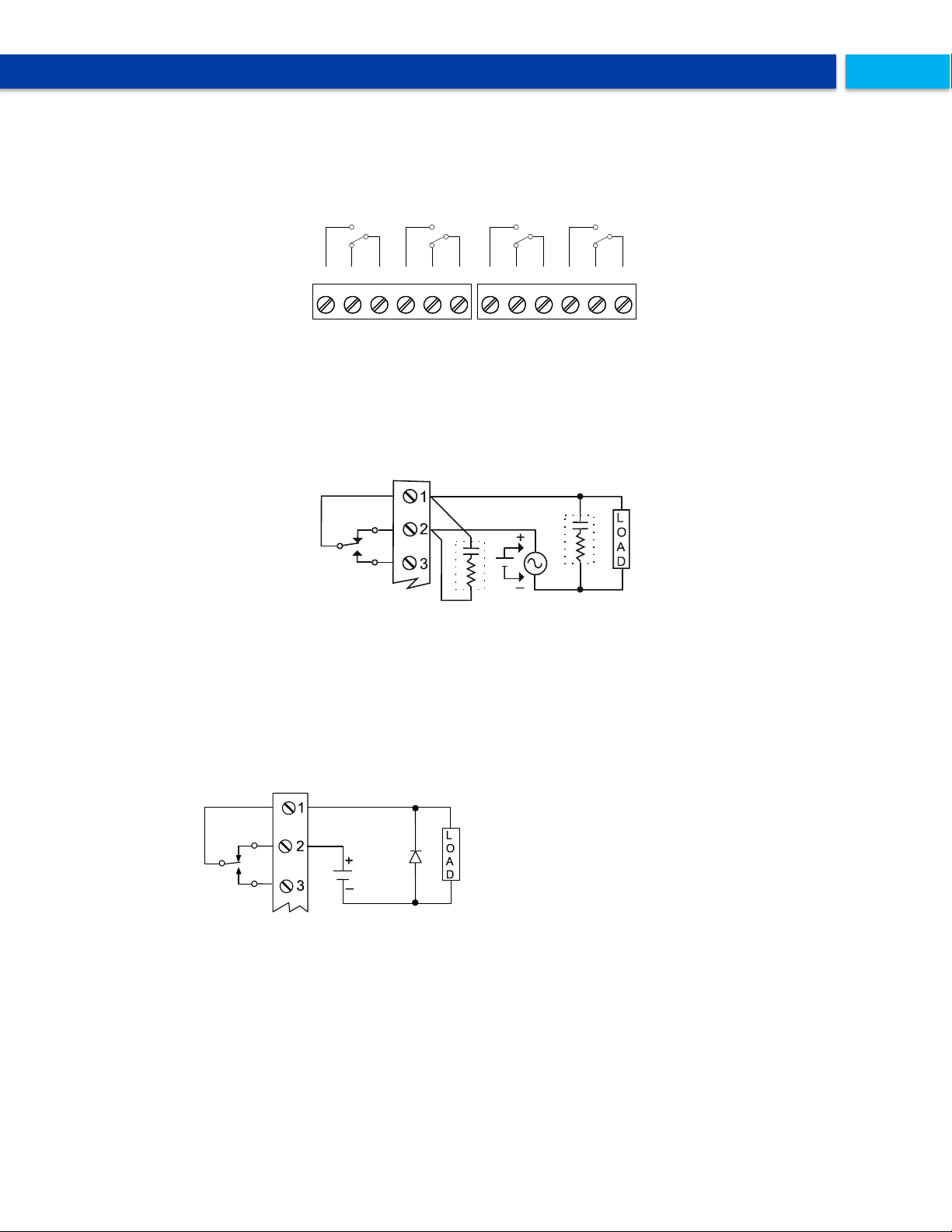

Figure 12: Relay Connections .................................... 19

Figure 13: AC and DC Loads Protection .................... 19

Figure 14: Low Voltage DC Loads Protection ........... 19

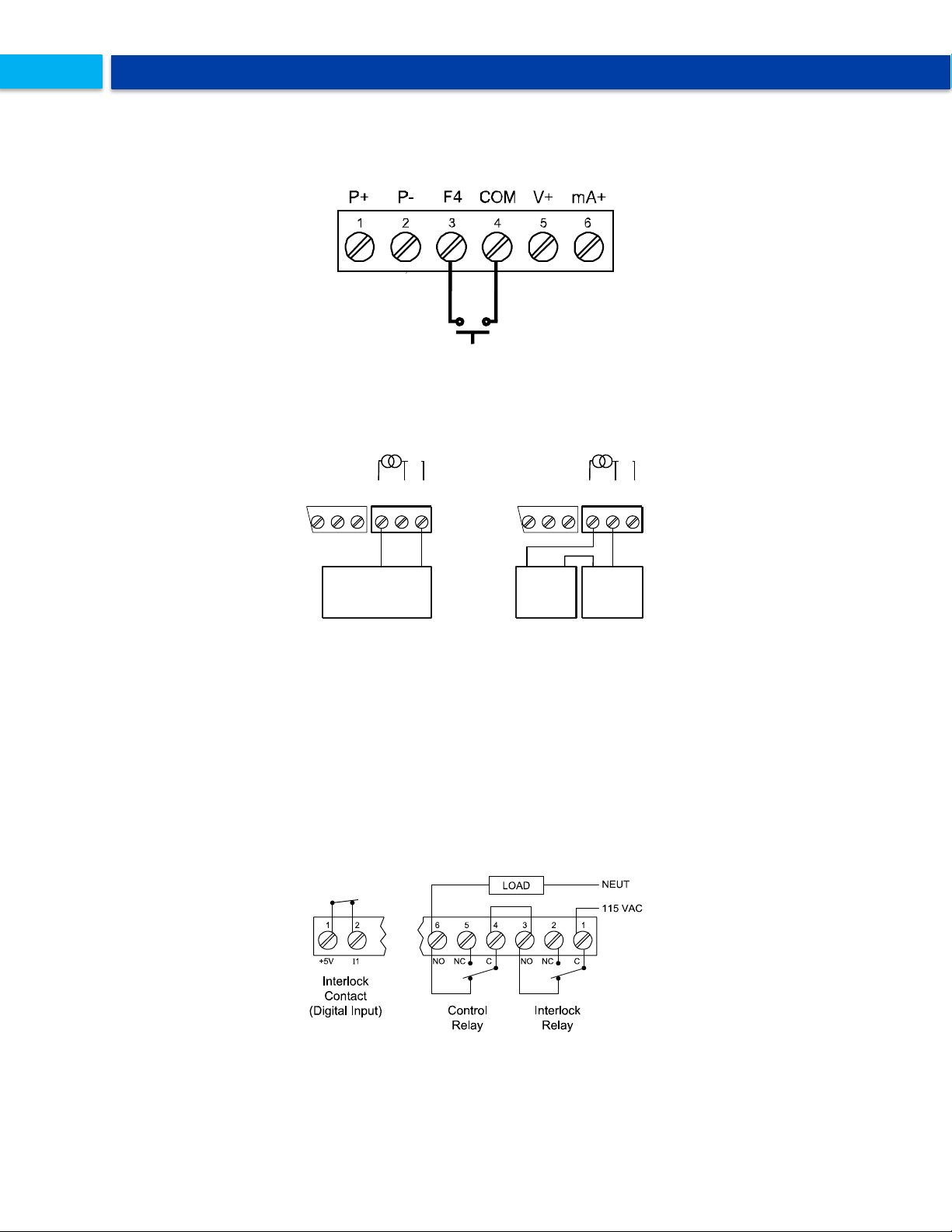

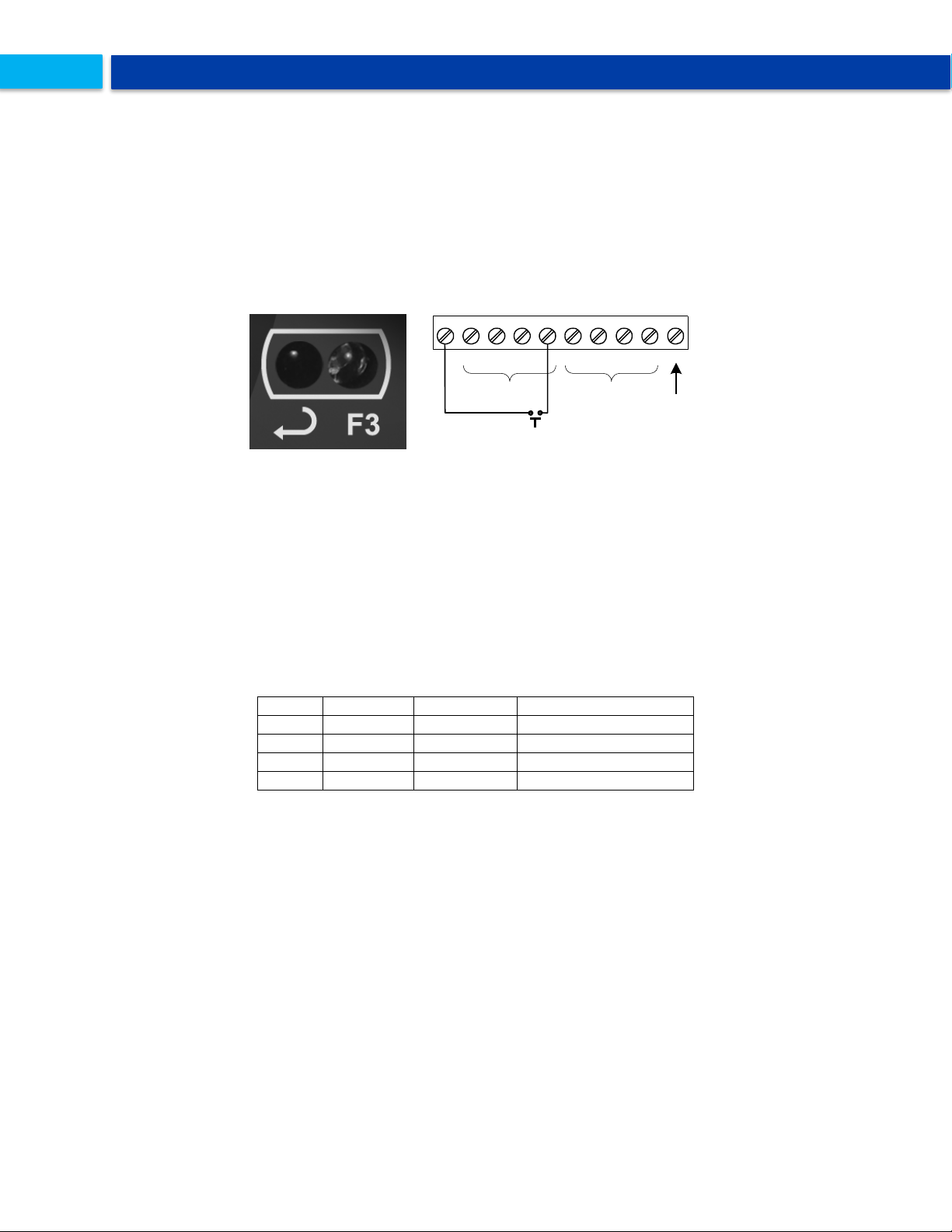

Figure 15: F4 Digital Input Connections .................... 20

Figure 16: 4-20 mA Output Connections ................... 20

Figure 17. Interlock Connection ................................. 20

Figure 18: Digital I/O Connections ............................. 21

Figure 19: Acknowledge Relays w/Function Key or

Digital Input .......................................................... 42

Figure 20: General Four-Wire Network Connection .. 51 Figure 21: General Two-Wire Network Connection... 51

Figure 22: Enclosure Dimensions – Front View ........ 63

Figure 23: Enclosure Dimensions – Side Cross

Section View ......................................................... 63

Introduction

The ProtEX-MAX PD8-6200 offers all the functionality of the ProVu PD6200 as a fully FM, CSA, ATEX, and IECEx approved explosion-proof product. It is specifically designed to display flow rate and total from an analog output (4-20 mA, 0-5 V, 1-5 V, etc.) flowmeter. It displays that signal on a dual-line, 6-digit Sunbright® sunlight readable display. Flow rate is typically displayed on the upper line and the cumulative total is displayed on the lower line. The total overflow feature allows up to a 9-digit total and grand total to be displayed. The PD8-6200 includes a 24 VDC power supply to drive the flowmeter and can be equipped with up to four internal relays and a 4-20 mA analog output. It can be programmed and operated without opening the housing by using the built-in SafeTouch® through-glass buttons or the RS485 serial communication port with free Modbus® protocol.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 5

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

85-265 VAC Model

12-24 VDC Model

Options Installed

PD8-6200-6H0

PD8-6200-7H0

No options

PD8-6200-6H7

PD8-6200-7H7

4 relays & 4-20 mA output

Model

Description

PDA1232

RS-232 serial adapter

PDA1485

RS-485 serial adapter

PDA7485-I

RS-232 to RS-422/485 isolated converter

PDA8232-N

USB to RS-232 non-isolated converter

PDA8485-I

USB to RS-422/485 isolated converter

PDA2811

1 Meter Plastic NEMA 4X Enclosure

PDA2812

2 Meter Plastic NEMA 4X Enclosure

PDX6901

Suppressor (snubber): 0.01 µF/470 , 250 VAC

Ordering Information

SunBright Display Models

WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Accessories

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 6

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Display

Line 1: 0.6" (15 mm) high, red LEDs Line 2: 0.46" (12 mm) high, red LEDs 6 digits: each (-99999 to 999999), with lead zero blanking.

Display Intensity

Eight user selectable intensity levels

Display Update Rate

5/second (200 ms)

Overrange

Display flashes 999999

Underrange

Display flashes -99999

Display Assignment

Display lines 1 & 2 may be assigned to rate, total, grand total, alternate (rate/total, rate/grand total, rate/units, total/units, and grand total/units), set points, max/min, units (line 2 only), and Modbus input. Additional displays are available if parameter total is off, and parameter dSCAL is on: gross, alternating gross/net, PV1, PV2, and PCT (refer to PD6000 instruction manual found on www.predig.com).

Programming Methods

Four front panel buttons, digital inputs, or PC with MeterView Pro software.

Noise Filter

Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

Programmable from 0.1 to 99.9% of calibrated span

Recalibration

All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Password

Three programmable passwords restrict modification of programmed settings and two prevent resetting the totals.

Pass 1: Allows use of function keys and digital inputs Pass 2: Allows use of function keys, digital inputs and editing set/reset points Pass 3: Restricts all programming, function keys, and digital inputs. Total: Prevents resetting the total manually

Gtotal: Prevents resetting the grand total manually

Non-Volatile Memory

All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.

Power Options

85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24 VDC  10%, 15 W max

Powered over USB for configuration only

Fuse

Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse

Isolated Transmitter Power Supply

Terminals P+ & P-: 24 VDC  10%. selectable for 24, 10, or 5 VDC supply (internal jumper J4). All models transmitter supply rated @ 25mA max.

Normal Mode Rejection

Greater than 60 dB at 50/60 Hz

Isolation

4 kV input/output-to-power line 500 V input-to-output or output-to-P+ supply

Overvoltage Category

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

T6 Class operating temperature range Ta =

-40 to 60°C T5 Class operating temperature range Ta =

-40 to 65°C

Max Power Dissipation

Maximum power dissipation limited to

15.1 W.

Connections

Screw terminals accept 12 to 22 AWG wire

Enclosure

Explosion-proof die cast aluminum with glass window, corrosion resistant epoxy coating, color: blue. NEMA 4X, 7, & 9, IP68. Default conduit connections: Four ¾" NPT threaded conduit openings and two ¾" NPT metal conduit plugs with 12 mm hex key fitting installed. Additional conduit opening configurations may be available; verify quantity and sizes on specific device labeling during installation.

Mounting

Four slotted flanges for wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe mounting. See Mounting Dimensions on page 63.

Tightening Torque

Screw terminal connectors: 5 lb-in (0.56 Nm)

Overall Dimensions

6.42" x 7.97" x 8.47" (W x H x D) (163 mm x 202 mm x 215 mm)

Weight

16.0 lbs (7.26 kg)

Warranty

3 years parts & labor

Inputs

Field selectable: 0-20, 4-20 mA, 10 V (0-5, 1-5, 0-10 V), Modbus PV (Slave)

Accuracy

±0.03% of calibrated span ±1 count, square root & programmable exponent accuracy range: 10-100% of calibrated span

Temperature Drift

0.005% of calibrated span/C max from 0 to 65C ambient,

0.01% of calibrated span/C max from -40 to 0C ambient

Signal Input Conditioning

Linear, square root, programmable exponent, or round horizontal tank volume calculation

Multi-Point Linearization

2 to 32 points

Programmable Exponent

1.0001 to 2.9999

Specifications

Except where noted all specifications apply to operation at +25°C.

General

Process Input

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 7

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Round H Tank

Diameter & Length: 999.999 inch or cm calculates volume in gallons or liters respectively.

Low-Flow Cutoff

0-999999 (0 disables cutoff function)

Decimal Point

Up to five decimal places or none:

d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

Calibration Range

Input Range

Minimum Span Input 1 & Input 2

4-20 mA

0.15 mA

10 V

0.01 V

An error message will appear if the input 1 and input 2 signals are too close together.

Input Impedance

Voltage ranges: greater than 500 k Current ranges: 50 - 100  (depending on

resettable fuse impedance)

Input Overload

Current input protected by resettable fuse, 30 VDC max. Fuse resets automatically after fault is removed.

F4 Digital Input Contacts

3.3 VDC on contact. Connect normally open contacts across F4 to COM.

F4 Digital Input Logic Levels

Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC

HART Transparency

Analog input will not interfere with existing HART communications on the wired 4-20 mA signal

Rate Display Indication

-99999 to 999999, lead zero blanking. “R” LED illuminates while displaying rate.

Total Display & Total Overflow

0 to 999,999; automatic lead zero blanking. “T” LED is illuminated while displaying total or grand total. Up to 999,999,999 with total-overflow feature. “oF” is displayed to the left of total overflow and ▲ LED is illuminated.

Total Decimal Point

Up to five decimal places or none:

d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd

Total decimal point is independent of rate decimal point.

Totalizer

Calculates total based on rate and field programmable multiplier to display total in engineering units. Time base must be selected according to the time units in which the rate is displayed.

Totalizer Rollover

Totalizer rolls over when display exceeds 999,999,999. Relay status reflects display.

Total Overflow Override

Program total reset for automatic with 0.1 second delay and set point 1 for 999,999

Totalizer Presets

Up to eight, user selectable under setup menu. Any set point can be assigned to total and may be programmed anywhere in the range of the meter for total alarm indication.

Programmable Delay On Release

0.1 and 999.9 seconds; applied to the first relay assigned to total or grand total. If the meter is programmed to reset total to zero automatically when the preset is reached, then a delay will occur before the total is reset.

Total Reset

Via front panel button, external contact closure on digital inputs, automatically via user selectable preset value and time delay, or through serial communications.

Total Reset Password

Total and grand total passwords may be entered to prevent resetting the total or grand total from the front panel.

Non-Resettable Total

The grand total can be programmed as a non-resettable total by entering the password “050873”.

Caution!

Once the Grand Total has been programmed as “nonresettable” the feature cannot be disabled.

Rating

4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise Suppression

Noise suppression is recommended for each relay contact switching inductive loads; see page 19 for details.

Relay Assignment

Relays may be assigned to rate, total, or grand total.

Deadband

0-100% of span, user programmable

High or Low Alarm

User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turn off).

Relay Operation

Automatic (non-latching) and/or manual reset Latching (requires manual acknowledge) with/without clear Pump alternation control (2 to 4 relays) Sampling (based on time) Off (disable unused relays and enable Interlock feature) Manual on/off control mode

Relay Reset

User selectable via front panel buttons, digital inputs, or PC

1. Automatic reset only (non-latching), when the input passes the reset point or total is reset to zero.

2. Automatic + manual reset at any time (non-latching)

3. Manual reset only, at any time (latching)

4. Manual reset only after alarm condition has cleared (latching)

Note: Front panel button or digital input

may be assigned to acknowledge relays programmed for manual reset.

Time Delay

0 to 999.9 seconds, on & off relay time delays Programmable and independent for each relay.

Fail-Safe Operation

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm

condition. In case of power failure, relay will go to alarm state.

Relays

Rate/Totalizer

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 8

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Auto Initialization

When power is applied to the meter, relays will reflect the state of the input to the meter.

Output Source

Rate/process, total, grand total, max, min, set points 1-8, or manual control mode

Scaling Range

1.000 to 23.000 mA for any display range.

Calibration

Factory calibrated: 4.000 to 20.000 = 4-20 mA output

Analog Out Programming

23.000 mA maximum for all parameters:

Overrange, underrange, max, min, and break

Accuracy

± 0.1% FS ± 0.004 mA

Temperature Drift

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -40 to 0C ambient

Note: Analog output drift is separate from input drift.

Isolated Transmitter Power Supply

Terminals I+ & R: 24 VDC  10%. May be used to power the 4-20 mA output or other devices. Refer to Figure 1 on page 12 and Figure 16 on page 20.

All models @ 25mA max.

External Loop Power Supply

35 VDC maximum

Output Loop Resistance

Power supply

Minimum

Maximum

24 VDC

10 

700 

35 VDC (external)

100 

1200 

Compatibility

EIA-485

Connectors

Removable screw terminal connector

Max Distance

3,937' (1,200 m) max

Status Indication

Separate LEDs for Power (P), Transmit (TX), and Receive (RX)

Slave Id

1 – 247 (Meter address)

Baud Rate

300 - 19,200 bps

Transmit Time Delay

Programmable between 0 and 199 ms

Data

8 bit (1 start bit, 1 or 2 stop bits)

Parity

Even, Odd, or None with 1 or 2 stop bits

Byte-To-Byte Timeout

0.01 – 2.54 second

Turn Around Delay

Less than 2 ms (fixed)

Note: Refer to the PROVU® Modbus Register Tables located at www.predig.com for details.

Channels

4 digital inputs & 4 digital outputs

Digital Input Logic High

3 to 5 VDC

Digital Input Logic Low

0 to 1.25 VDC

Digital Output Logic High

3.1 to 3.3 VDC

Digital Output Logic Low

0 to 0.4 VDC

Source Current

10 mA maximum output current

Sink Current

1.5 mA minimum input current

+5 V Terminal

To be used as pull-up for digital inputs only. Connect normally open pushbuttons across +5 V & DI 1-4.

WARNING

DO NOT use +5 V terminal (pin 1) to power external devices.

Function Assignment

The on-board digital inputs (1-4) are designed to mimic the behavior of the front panel buttons (Menu, F1, F2, & F3). If you wish to change their behavior, reassign F1-F3 to the desired function, then change the corresponding digital input to match.

System Requirements

Microsoft® Windows® XP/Vista/7/8/10

Communications

USB 2.0 (Standard USB A to Micro USB B)

Configuration

Configure device settings one at a time

Isolated 4-20 mA Transmitter Output

Digital Inputs & Outputs

Serial Communications

MeterView Pro

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 9

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Enclosure: Type 4X; IP66 Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1, T5/T6 Class I, Zone 1, AEx d, IIC Gb T5/T6 Zone 21, AEx tb IIIC T90°C; Ta -40°C to +65°C T6 Ta = -40°C to +60°C; T5 Ta = -40°C to +65°C Certificate Number: 3047283

CSA

Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1 Class I Zone 1 Ex d IIC Zone 21 Ex tb IIIC T90°C

-40°C < Tamb. < +60° C; Temperature Code T6

-40°C < Tamb. < +65° C; Temperature Code T5 Enclosure Type 4X & IP66 Certificate Number: 2531731

ATEX

II 2 G D

Ex d IIC T* Gb Ex tb IIIC T90°C Db IP68 Ta = -40°C to +*°C *T6 = -40°C to +60°C *T5 = -40°C to +65°C Certificate number: Sira 12ATEX1182

IECEx

Ex d IIC T* Gb Ex tb IIIC T90°C Db IP68 Ta = -40°C to +*°C *T6 = -40°C to +60°C *T5 = -40°C to +65°C Certificate Number: IECEx SIR 12.0073

Product Ratings and Approvals

Special Conditions for Safe Use:

Use suitably certified and dimensioned cable entry device and/or plug. The equipment shall be installed such that the supply cable is protected from mechanical damage. The cable shall not be subjected to tension or torque. If the cable is to be terminated within an explosive atmosphere, then appropriate protection of the free end of the cable shall be provided. Cable must be suitable for 90°C.

Year of Construction

This information is contained within the serial number with the first four digits representing the year and month in the YYMM format.

For European Community: The ProtEX-MAX must be installed in accordance with the ATEX directive 94/9/EC, and the product certificate Sira 12ATEX1182.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 10

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

UL & c-UL Listed

USA & Canada UL 508 Industrial Control Equipment

UL File Number

E160849

Front Panel

UL Type 4X, NEMA 4X, IP65; panel gasket provided

Low Voltage Directive

EN 61010-1:2010 Safety requirements for measurement, control, and laboratory use

Emissions

EN 55022:2010 Class A ITE emissions requirements

Radiated Emissions

Class A

AC Mains Conducted Emissions

Class A

Immunity

EN 61326-1:2013 Measurement, control, and laboratory equipment EN 61000-6-2:2005 EMC heavy industrial generic immunity standard

RFI - Amplitude Modulated

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

Electrical Fast Transients

±2kV AC mains, ±1kV other

Electrostatic Discharge

±4kV contact, ±8kV air

RFI - Conducted

10V, 0.15-80 MHz, 1kHz 80% AM

AC Surge

±2kV Common, ±1kV Differential

Surge

1KV (CM)

Power-Frequency Magnetic Field

30 A/m 70%V for 0.5 period

Voltage Dips

40%V for 5 & 50 periods 70%V for 25 periods

Voltage Interruptions

<5%V for 250 periods

Compliance Information

Safety

Electromagnetic Compatibility

Note:

Testing was conducted on PD8-6200 meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance.

Declaration of Conformity available at www.predig.com

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 11

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

WARNINGS

• Read complete instructions prior to installation and operation of the instrument.

• Installation and service should be performed only by trained service personnel. Service

requiring replacement of internal sub-components must be performed at the factory.

• Disconnect from supply before opening enclosure. Keep cover tight while circuits are alive. Conduit seals must be installed within 18" (450mm) of the enclosure or within 2" (50mm) for Zone installations.

• Verify that the operating atmosphere of the instrument is consistent with the appropriate hazardous locations certifications.

• If the instrument is installed in a high voltage environment and a fault or installation error occurs, high voltage may be present on any lead

• Read all product labels completely and follow all instructions and requirements listed on the labels for installation or service.

WARNING

Disconnect from supply before opening enclosure. Keep cover tight while circuits are alive. Conduit seals must be installed within 18" (450mm) of the enclosure or within 2" (50mm) for Zone installations.

Safety Information

Installation

Install in accordance with applicable local and national regulations (e.g. NEC).

For Installation in USA: The ProtEX-MAX must be installed in accordance with the National Electrical Code (NEC) NFPA 70.

For Installation in Canada: The ProtEX-MAX must be installed in accordance with the Canadian Electrical Code CSA 22.1. All power supplies below 36 V and input circuits must be derived from a CSA Approved Class 2 source.

For European Community: The ProtEX-MAX must be installed in accordance with the ATEX directive 94/9/EC and the product certificate Sira 12ATEX1182.

Wiring connectors are accessed by opening the enclosure. To access electrical connectors, remove the 2 captive screws and then remove the electronics module. Connectors are on the rear of the electronics module.

Unpacking

Remove the instrument from packing box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the instrument malfunctions, please contact your supplier or the factory for assistance.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 12

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

WARNING

In hazardous areas, conduit and conduit/stopping plugs require the application of non-setting (solvent free) thread sealant. It is critical that all relevant hazardous area guidelines be followed for the installation or replacement of conduit or plugs.

WARNING

Do not attempt to loosen or remove flange bolts while the instrument is in service.

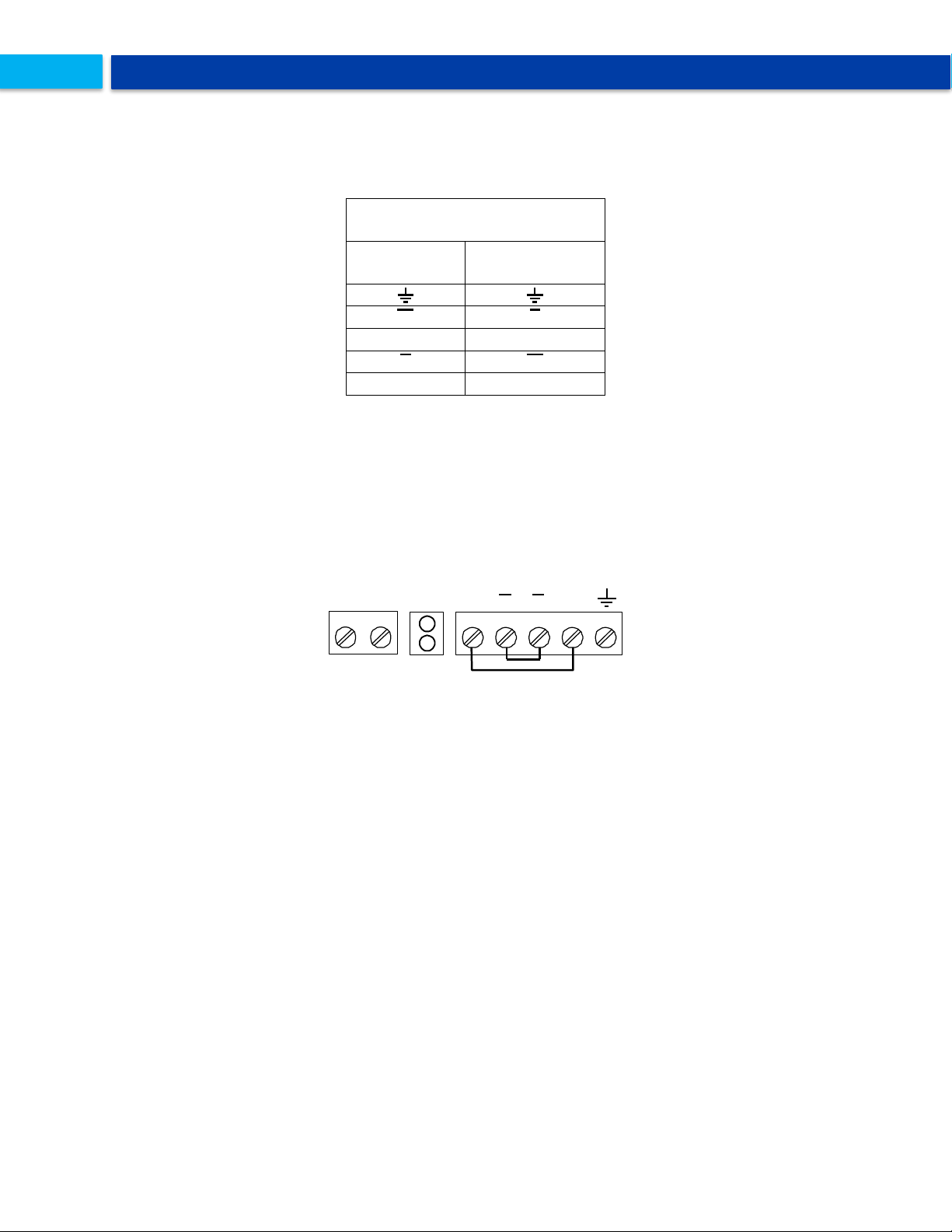

Figure 1: Transmitter Supply Voltage Selection

Pre-Installed Conduit/Stopping Plug

The PD8-6200 is supplied with two pre-installed conduit plugs for installations that do not require the use of all conduit entries. The conduit/stopping plugs include an internal 12mm hexagonal socket recess for removal. The pre-installed plugs and their installation are included in the hazardous area approvals for the PD8 Series enclosure.

Mounting

The ProtEX-MAX has four slotted mounting flanges that should be used for pipe mounting or wall mounting. Refer to Mounting Dimensions, page 63 for details.

Cover Jam Screw

The cover jam screw should be properly installed once the instrument has been wired and tested in a safe environment. The cover jam screw is intended to prevent the removal of the instrument cover in a flameproof environment without the use of tools. Using a M2 hex wrench, turn the screw clockwise until the screw contacts the aluminum enclosure. Turn the screw an additional 1/4 to 1/2 turn to secure the cover. Caution: Excess torque may damage the threads and/or wrench.

Transmitter Supply Voltage Selection (P+, P-)

All meters, including models equipped with the 12-24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the transmitter or sensor.

If the transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

To access the voltage selection jumper:

1. Remove all the connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch.

4. Configure the J4 jumper, located behind the input signal connector, for the desired excitation voltage as shown.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 13

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

WARNINGS

• Static electricity can damage sensitive components.

• Observe safe handling precautions for static-sensitive components.

• Use proper grounding procedures/codes.

• If the instrument is installed in a high voltage environment and a

fault or installation error occurs, high voltage may be present on any lead or terminal.

• Follow all fusing and wiring precautions requirements for the instrument integrated to the PD8 Series model number being connected.

WARNING

Observe all safety regulations. Electrical wiring should be performed in accordance with all agency requirements and applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

Connections

To access the connectors, remove the enclosure cover and unscrew the two captive screws that fasten the electronics module. Signal connections are made to de-pluggable connectors on the back of the electronics module.

Some connectors may be provided already connected. These connections are required for proper operation of the ProtEX-MAX, and should not be removed unless instructed to by this manual.

Wires marked as being used for testing purposes should be removed. Grounding connections are made to the two ground screws provided on the base – one internal and one

external. After all connections have been completed and verified, apply power to the unit.

Required & Factory Wired Connection

The ProtEX-MAX comes with a pre-wired connection. This connection is detailed below, and must be maintained in order for the instrument to function properly.

Figure 2: Integrated ProVu Required Connections

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 14

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Warning!

Do not connect any equipment other than Precision Digital’s expansion modules, cables, or meters to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the meter.

Figure 4: Power Connections

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

Connectors Labeling

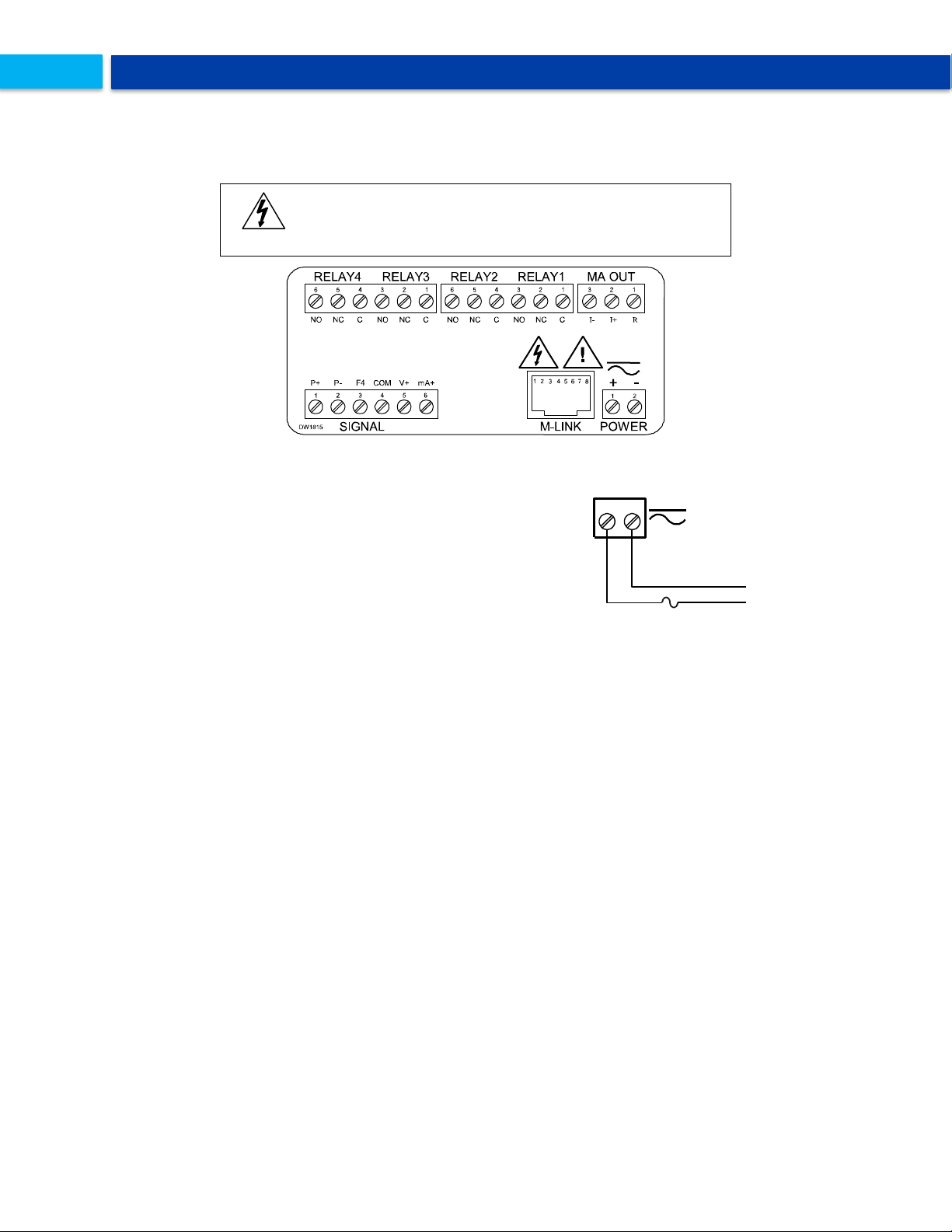

The connectors’ label, affixed to the meter, shows the location of all connectors available with requested configuration.

Figure 3: Connector Labeling for Fully Loaded PD8-6200

Power Connections

Power connections are made to a two-terminal connector labeled POWER on Figure 3. The meter will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention.

Signal Connections

Signal connections are made to a six-terminal connector labeled SIGNAL on Figure 3. The COM (common) terminal is the return for the 4-20 mA and the 10 V input signals.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 15

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

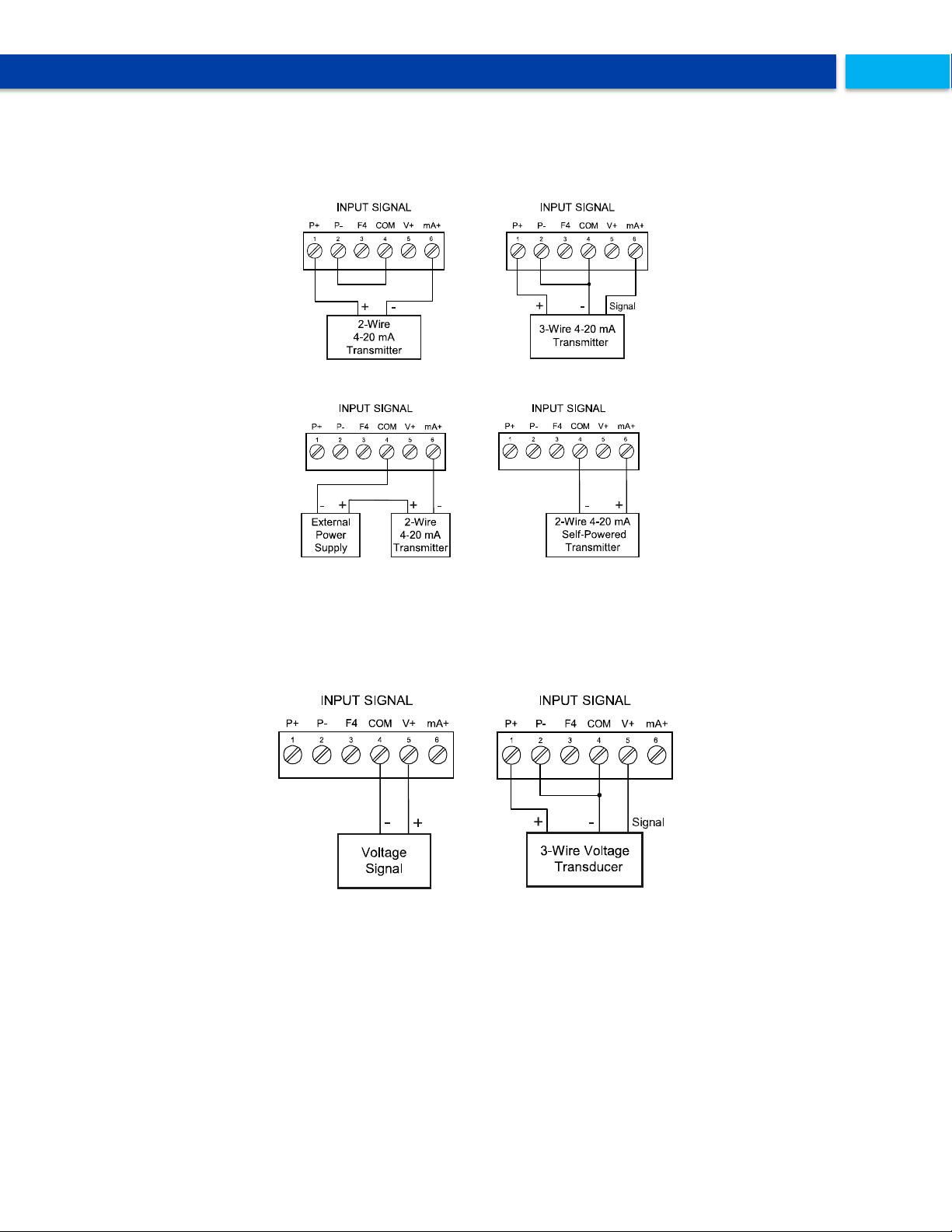

Current and Voltage Connections

The following figures show examples of current and voltage connections. There are no switches or jumpers to set up for current and voltage inputs. Setup and programming is

performed through the front panel buttons.

Figure 5: Transmitter Powered by Internal Supply

Figure 6: Transmitter Powered by Ext. Supply or Self-Powered

The current input is protected against current overload by a resettable fuse. The display may or may not show a fault condition depending on the nature of the overload.

The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.

Figure 7: Voltage Input Connections

The meter is capable of accepting any voltage from -10 VDC to +10 VDC.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 16

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

ProtEX-MAX to RS-485

Serial Converter Connections

RS-485 Serial Converter

ProtEX-MAX RS485 Connections

DO DI DO DI DI DO DI DO

F4 COM DI DI DO DO

1 2 3 4 51 2

Serial Communications Connections

The ProtEX-MAX has a 5 position terminal block for connecting RS-485 serial devices. Figure 8 details the wiring connections from the ProtEX-MAX to an RS-485 serial converter (such as the

PDA7485 or PDA8485) for a four-wire network.

Figure 8: ProtEX-MAX Connections to a Serial Converter

The ProtEX-MAX has three diagnostic LEDs: a Power (P) LED to show when the module is powered properly, a Transmit Data (TX) LED to show when the module is being transmitted to by the PC side, and a Receive Data (RX) LED to show when the module is sending data to a receiving device.

The following diagrams detail how to connect the RS-485 serial communications from the ProtEX-MAX to a RS-485/RS-232 serial converter (PDA7485) in four wire and two wire configurations.

Three Wire Connections

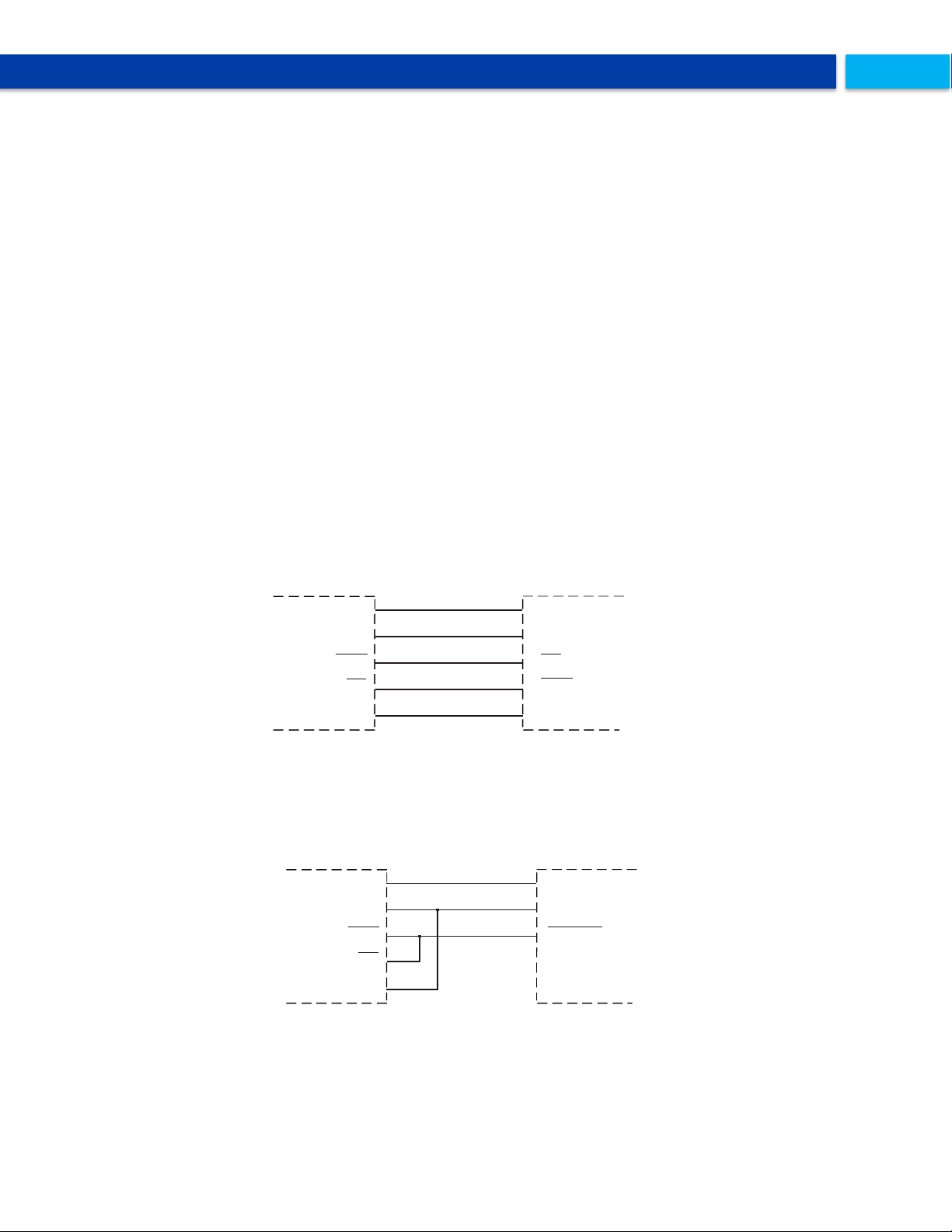

In order to wire the 5 pins for use as a 3-wire half-duplex RS-485 connection, it is necessary to create a jumper connection between DI – DO and DI- – DO- as shown below.

Figure 9. Three-Wire RS485 Connection

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 17

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

WARNING

Figure 10: RS-485 Wiring

Notes:

1. Termination resistors are optional and values depend on the cable length and characteristic impedance. Consult the cable manufacturer for recommendations.

2. Refer to RS-232 to RS-485 Converter documentation for further details.

3. Use shielded cable, twisted-pairs plus ground. Connect ground shield only at one location.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 18

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

WARNING

NOTICE

PROVU expansion modules and serial adapters are not included in the hazardous area approvals of the ProtEX-MAX. The PDA1232 and PDA8008 may be used only while the ProtEX-MAX is in a safe area, and will disable some features while installed.

Notes:

1. Termination resistors are optional and values depend on the cable length and characteristic impedance. Consult the cable manufacturer for recommendations.

2. Refer to RS-232 to RS-485 Converter documentation for further details.

3. Use shielded cable, twisted-pair plus ground. Connect ground shield only at one location.

Figure 11: RS-485 Two-Wire Multi-Drop Wiring

When using more than one instrument in a multi-drop or multi-point mode, each meter must be provided with its own unique address. See Modbus RTU Serial Communications on page 50.

Using PROVU Serial Adapters

PROVU expansion modules and serial adapters are not recommended for use with the ProtEX-MAX. It is recommended that any serial protocol conversion required on the RS-485 communications connection be performed using a PDA7485 RS-232 to RS-485 or PDA8485 USB to RS-485 serial converter located in a safe area.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 19

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current.

Relay Connections

Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4 on Figure 3. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

Figure 12: Relay Connections

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:

Figure 13: AC and DC Loads Protection

Choose R and C as follows: R: 0.5 to 1  for each volt across the contacts C: 0.5 to 1 µF for each amp through closed contacts Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.

3. Install the RC network at the meter's relay screw terminals. An RC network may also be installed

across the load. Experiment for best results.

Figure 14: Low Voltage DC Loads Protection

RC Networks Available from Precision Digital

RC networks are available from Precision Digital and should be applied to each relay contact switching an inductive load. Part number: PDX6901.

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 20

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

12-35 VDC

Power Supply

4-20 mA

Input Meter

RI- I+

13 2

RELAY1

3 2 1

24 V

4-20 mA Input

Remote Display,

Chart Recorder, Etc.

RI- I+

MA OUT

13 2

RELAY1

3 2 1

24 V

MA OUT

F4 Digital Input Connections

A digital input, F4, is standard on the meter. This digital input is connected with a normally open contact across F4 and COM, or with an active low signal applied to F4.

Figure 15: F4 Digital Input Connections

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered internally or from an external power supply.

Figure 16: 4-20 mA Output Connections

Analog Output Transmitter Power Supply

The internal 24 VDC power supply powering the analog output may be used to power other devices, if the analog output is not used. The I+ terminal is the +24 V and the R terminal is the return.

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more, alarm/control relays for use as interlock relay(s). Interlock contact(s) are wired to digital input(s) and trigger the interlock relay. This feature is enabled by configuring the relay, and relative digital input(s) (see page 44). In one example, dry interlock contacts are connected in series to one digital input which will be used to force on (energize) the assigned interlock power relay when all interlock contacts are closed (safe). The interlock relay front panel LED flashes when locked out. The interlock relay would be wired in-series with the load (N/O contact). See below.

Figure 17. Interlock Connection

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 21

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

NOTICE

The onboard digital inputs (1-4) are configured at the factory to function identically to the front panel pushbuttons (Menu, F1, F2, & F3) in order to work with the SafeTouch buttons. Changing the programming of the digital inputs will affect the function of the SafeTouch buttons.

If you wish to change the behavior of the digital inputs, re-assign F1-F3 to the desired function, then change the corresponding digital input to match.

WARNING

Digital Input Connection

Factory Default Function

RIGHT arrow

UP arrow

ENTER arrow

NOTICE

The digital inputs are configured at the factory to function identically to the front panel pushbuttons in order to work with the SafeTouch buttons. Changing the programming of the digital inputs will affect the function of the SafeTouch buttons.

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

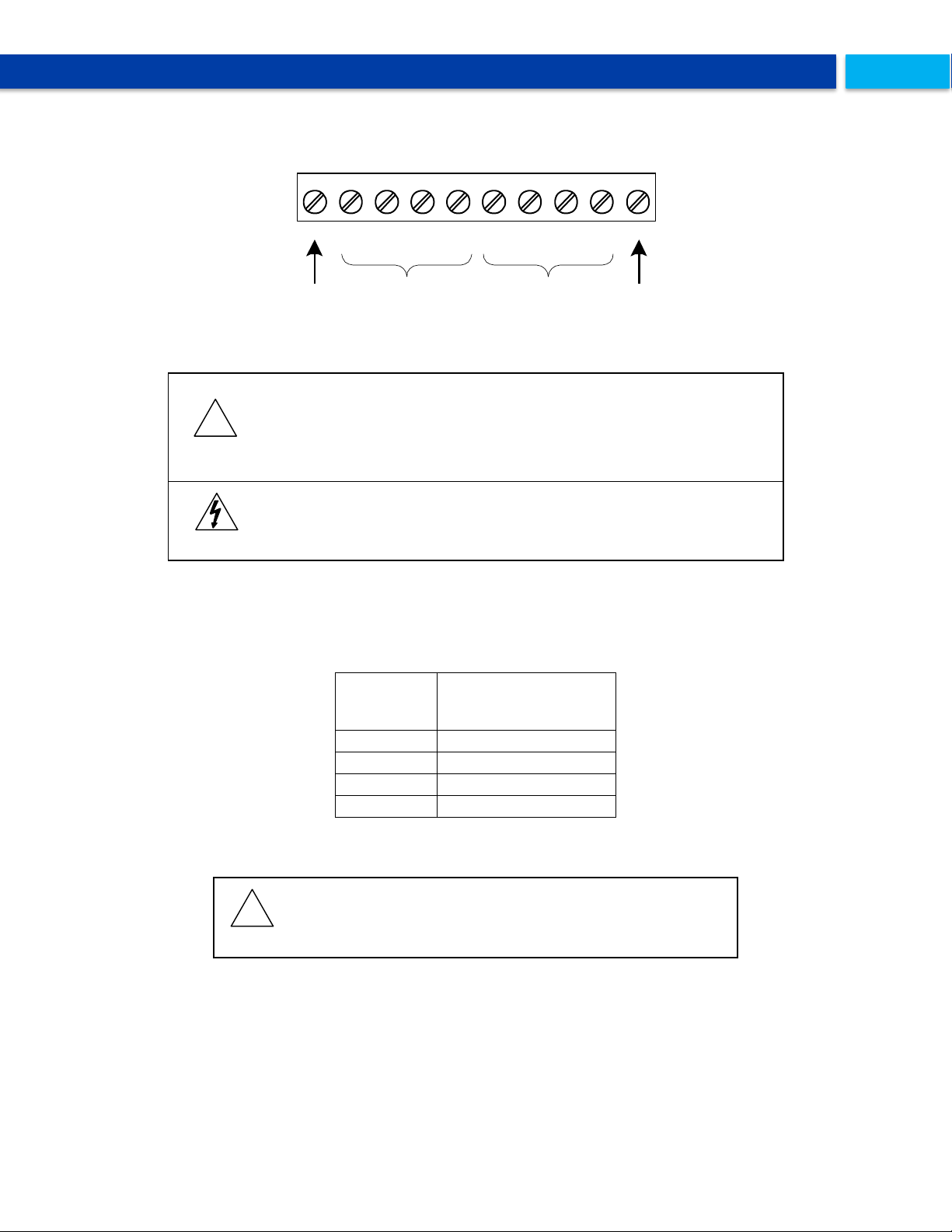

Digital I/O Connections

The ProtEX-MAX has a 10 position terminal block for connecting digital inputs and outputs.

Figure 18: Digital I/O Connections

External Switch Contacts

The ProtEX-MAX includes 4 digital inputs. These digital inputs are preconfigured at the factory to function as external contacts to duplicate the front button functions of the instrument. The factory configuration uses the following corresponding digital input terminals for external switch contacts.

See Digital Inputs & Outputs in the Specification on page 8 for details on the digital inputs.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 22

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

The meter is factory calibrated prior to shipment to read in milliamps and volts depending on the input selection. The calibration equipment is traceable to NIST standards.

WARNING

Take caution when cleaning the window glass as it may result in unintentional SafeTouch button events. Only clean the ProtEX-MAX when the system is safely shut down, and inspect the ProtEX-MAX for proper configuration prior to system restart.

Setup and Programming

Overview

There are no jumpers to set for the meter input selection. Setup and programming may be done through the infrared through-glass SafeTouch buttons, or using the

mechanical buttons when uncovered. There is a slide switch located on the connector board. This is used to enable or disable SafeTouch Buttons.

After power and input signal connections have been completed and verified, apply power to the meter.

SafeTouch® Buttons

The ProtEX-MAX is equipped with four sensors that operate as through-glass buttons so that it can be programmed and operated without removing the cover (and exposing the electronics) in a hazardous area.

These buttons can be disabled for security by selecting DISABLE on the switch labeled NO-CONTACT BUTTONS located on the connector board.

To actuate a button, press one finger to the glass directly over the marked button area. Then retract finger more than three inches from the glass before pressing the next button. When the cover is removed, the four mechanical buttons located next to the sensors are used. The sensors are disabled when a mechanical button is pressed and will automatically be re-enabled after 60 seconds of inactivity.

The SafeTouch Buttons are designed to filter normal levels of ambient interference and to protect against false triggering, however, it is recommended that the SafeTouch Buttons be disabled (slide switch to LOCK) if there is an infrared interference source in line-of-sight to the display.

The SafeTouch Buttons are configured by default to duplicate the function of the front panel mechanical pushbuttons associated with the integrated meter. The symbols by each SafeTouch button correspond to a mechanical button as shown in the table on the next page.

SafeTouch Button Tips:

• To the extent possible, install the display facing away from sunlight, windows, reflective objects and any sources of infrared interference.

• Keep the glass window clean.

• Tighten the cover securely.

• Use a password to prevent tampering.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 23

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Button

Description

LED

Status

1-8

Alarm 1 – 8 indicators. Flashing with M Indicates Manual Control Mode

Right arrow/F1

R Rate indicator

Up arrow/F2

Total indicator or Flashing: Tare

Enter/F3

G T

Grand Total indicator

Note: F4 is a digital input.

▲ Total overflow indicator

Flashing: Manual control of flashing relays. M flashing alone indicates manual analog output. Indicators flash every 10 seconds.

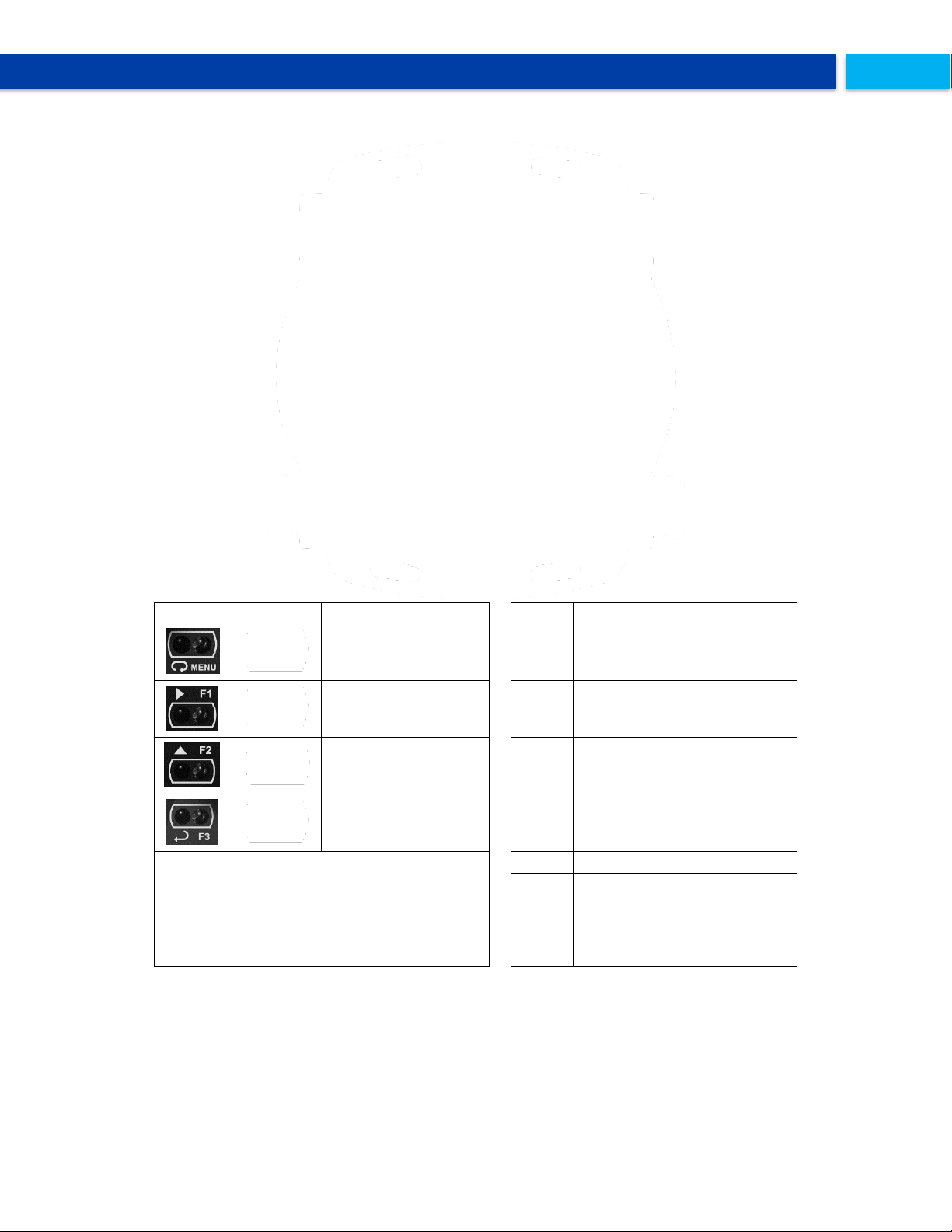

Front Buttons and Status LED Indicators

• Press the Menu button to enter or exit the Programming Mode at any time.

• Press the Right arrow button to move to the next digit during digit

or decimal point programming.

• Press or hold the Up arrow button to scroll through the menus, decimal point, or to increment the value of a digit.

• Press the Enter button to access a menu or to accept a setting.

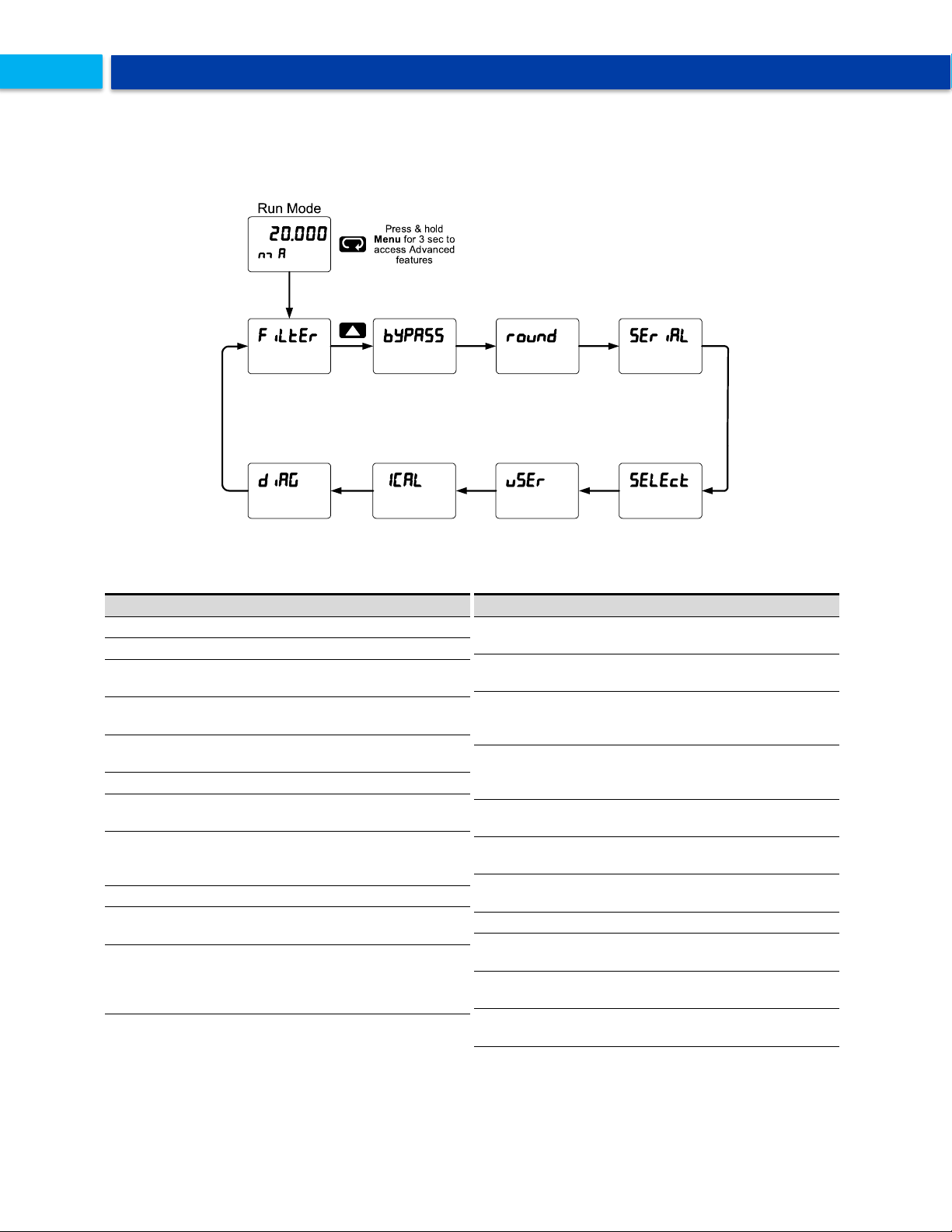

• Press and hold the Menu button for three seconds to access the advanced features of the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 24

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Note: If you decide to update your MeterView Pro software, once the installation has completed, you will be asked if you want to update the setup files located on the meter itself. This way, you will always have the most current version on the meter for future installs.

Warning!

Do not unplug the meter while the new installation files are being written to it. The meter will display

uwrite

during the process and you will receive an onscreen

notification once the process is complete.

MeterView® Pro Software

The meter can also be programmed using the PC-based MeterView Pro software included with the meter. This software can be installed on any Microsoft® Windows® (XP/Vista/7/8/10) computer by connecting the meter’s onboard USB. The meter is powered by the USB connection, so there is no need to wire anything prior to programming the meter, though USB is intended only for meter configuration.

MeterView Pro Installation

1. Connect one end of the provided USB cable to the internal electronics module and the other end

to the computer. The computer will automatically install the driver software it needs to talk to the meter. Only one meter may be connected at a time. Attaching

multiple meters will cause a conflict with the meter software.

2. Once the driver is installed, an AutoPlay dialog should appear

for the drive “MAINSTAL.” Click “Open folder to view files.” If the computer does not display an AutoPlay dialog for the drive “MAINSTAL,” you should open My Computer and doubleclick on the drive labeled “MAINSTAL.”

3. Double-click on the file named “MAStart.” The program will

open a few windows and install two programs on your computer. Simply follow the onscreen instructions until you see one of the dialogs below. If you receive a “User Account Control” warning, click “Yes.”

4. If there is an update available, click the “Update” button to

install the new version. Otherwise, click “Configure” to begin programming your meter.

Data logging for one meter at a time is available with MeterView Pro software. More advanced data acquisition may be accomplished by using any Modbus RTU compliant software. Additional information regarding configuration and monitoring of the meter using MeterView Pro software is available online. Go to www.predig.com/meterview-pro.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 25

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

setup

Setup

Enter Setup menu

Input

Enter Input selection menu

4-20 mA

Set meter for 4-20 mA input

volt

0-10 VDC

Set meter for 10 VDC input

Total

Enable or disable totalizer features

d-SCAL

Dual-scale

Enter d-SCAL menu and select Yes for dual- scale or No for single scale display

units

Units

Select the display units/tags

rate

Rate

Select the display units for rate

total

Total

Select the display units for total

Gtotal

Grand Total

Select the display units for grand total

Dec pt

Decimal point

Set decimal point for rate, total, grand total

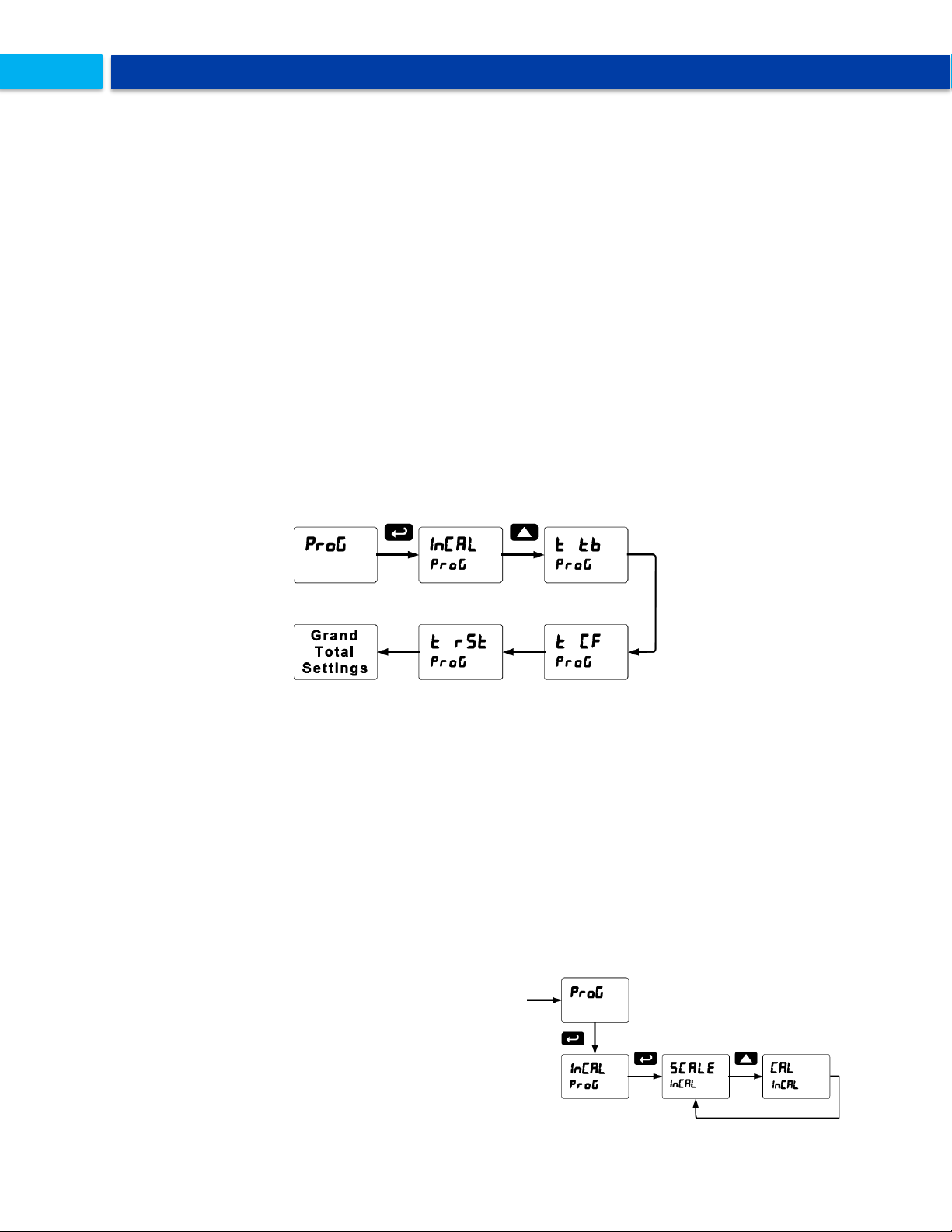

prog

Program

Enter the Program menu

InCAL

Input Calibration

Enter the Input Calibration menu

sCalE

Scale

Enter the Scale menu

Cal

Calibrate

Enter the Calibrate menu

Inp 1

Input 1

Calibrate input 1 signal or program input 1 value

Dis 1

Display 1

Program display 1 value

Inp 2

Input 2

Calibrate input 2 signal or program input 2 value (up

to 32 points)

Dis 2

Display 2

Program display 2 value (up to 32 points)

Error

Error, calibration not successful, check signal or programmed value

T tb

Total time base

Program total time base

T CF

Total conversion factor

Program total conversion factor

T rst

Total reset

Program total rest mode: auto or manual

Display

Parameter

Action/Setting

GT tb

Grand total time base

Program grand total time base

GT CF

Grand total conversion factor

Program grand total conversion factor

GT rst

Grand total reset

Program grand total rest mode: auto or manual

Auto

Automatic

Press Enter to set automatic total reset

T dly

Time delay

Program time delay for total auto reset

mAn

Manual

Press Enter to reset total manually

dsplay

Display

Enter the Display menu

Line 1

Press Enter to assign the Main display parameter (default: PV or rate)

Line 2

Press Enter to assign the small display parameter (default: total)

d-Inty

Display intensity

Set display intensity level from 1 to 8

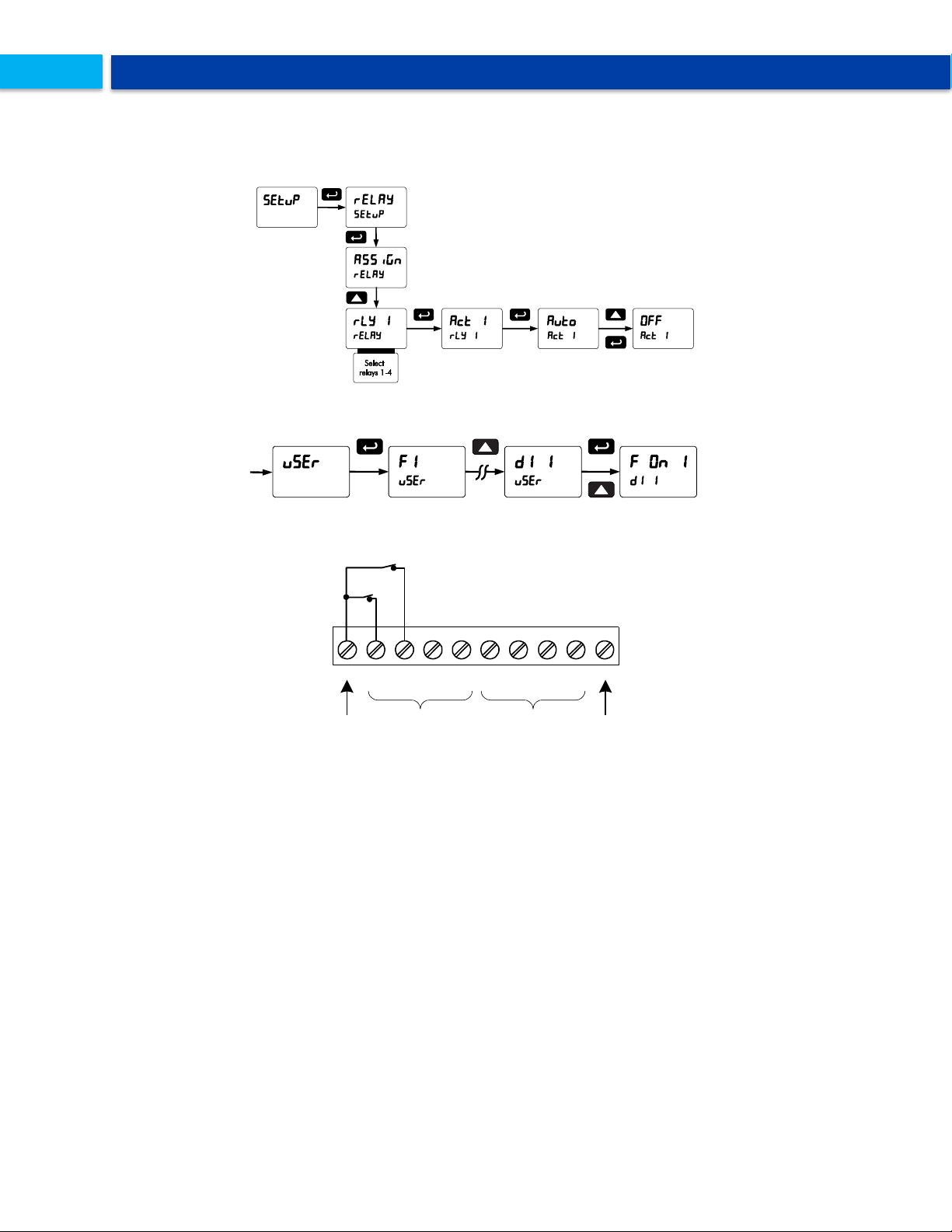

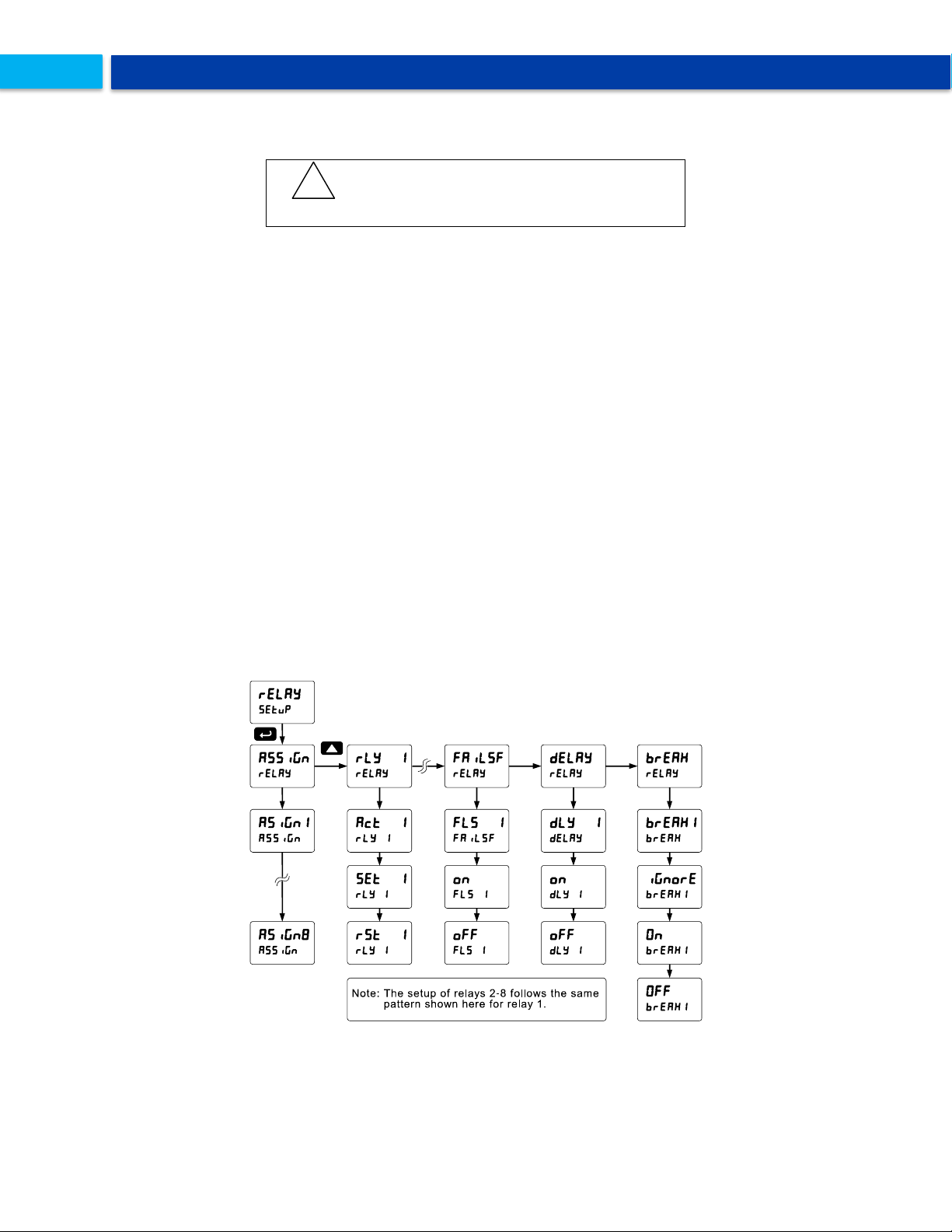

RELaY

Relay

Enter the Relay menu

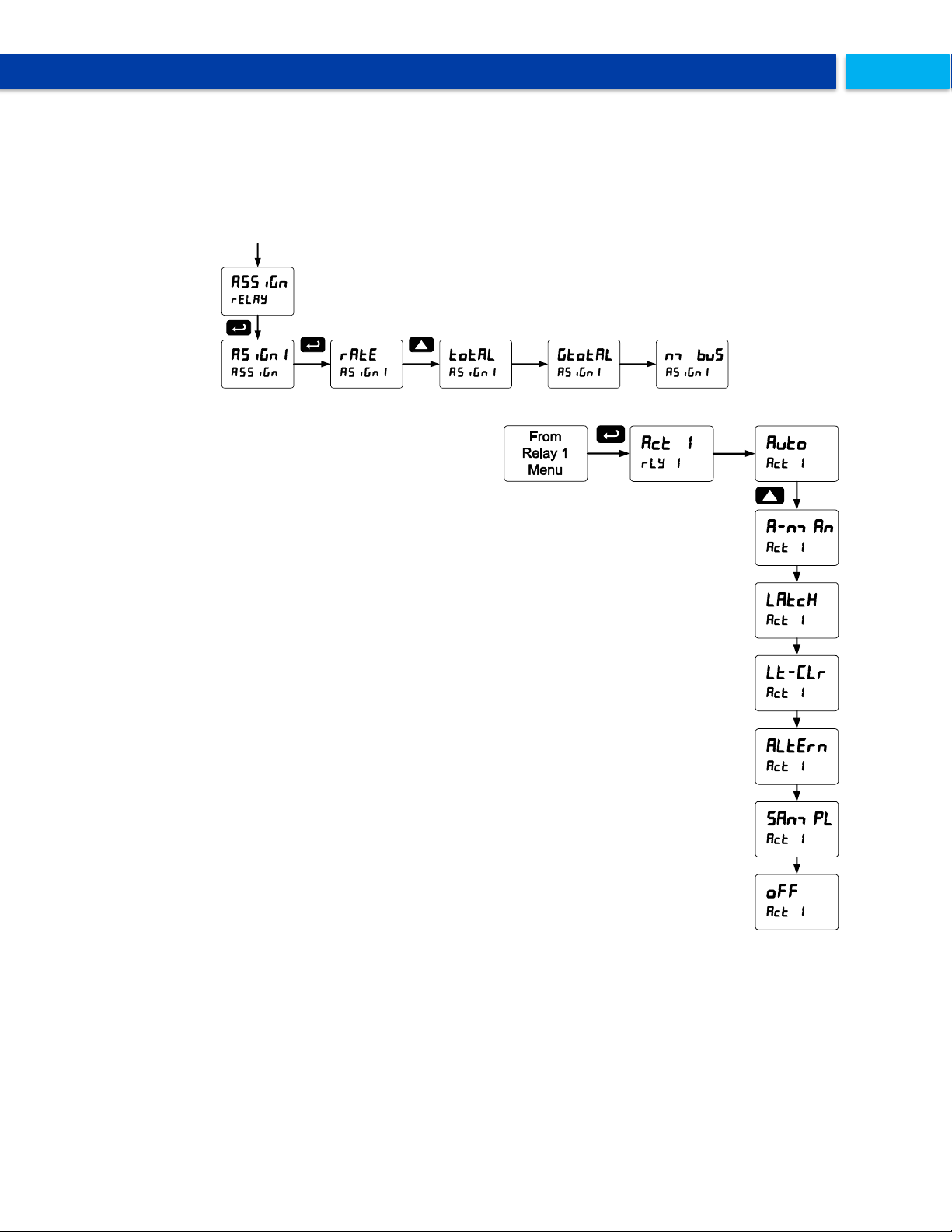

Assign

Assignmen t

Assign relays to rate, total, or grand total

Asign1

Assign 1

Relay 1 assignment

totAL

Total

Assign relay to total

G total

Grand total

Assign relay to grand total

m bus

Modbus

Select to display Modbus input or to assign Modbus input as the analog output source

rate

Rate

Assign relay to rate

RLY 1

Relay 1

Relay 1 setup

Act 1

Action 1

Set relay 1 action

Auto

Automatic

Set relay for automatic reset

A-nman

Automanual

Set relay for automatic & manual reset any time

LatCH

Latching

Set relay for latching operation (relays assigned to rate)

Display Functions and Messages

The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 26

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

Lt-CLr

Latchingcleared

Set relay for latching operation with manual reset only after alarm condition has cleared (relays assigned to rate)

Altern

Alternate

Set relay for pump alternation control (relays assigned to rate)

Sanmpl

Sampling

Set relay for sampling operation

OFF

Off

Disable relay and front panel status LED (Select Off to enable Interlock feature)

Set 1

Program set point 1

RSt 1

Reset 1

Program reset point 1

RLY 2

Relay 2

Relays 2-4 setup

FaiLSF

Fail-safe

Enter Fail-safe menu

FLS 1

Fail-safe 1

Set relay 1 fail-safe operation

Enable fail-safe operation

off

Fail-safe off

Disable fail-safe operation

DeLAY

Delay

Enter relay Time Delay menu

DLY 1

Delay 1

Enter relay 1 time delay setup

On 1

Set relay 1 On time delay

OFF 1

Off

Set relay 1 Off time delay

break

Loop break

Set relay condition if loop break detected (For mA input only)

iGnorE

Ignore

Ignore loop break condition (Processed as a low signal condition)

Relay goes to alarm condition when loop break is detected

OFF

Off

Relay goes to non-alarm condition when loop break is detected

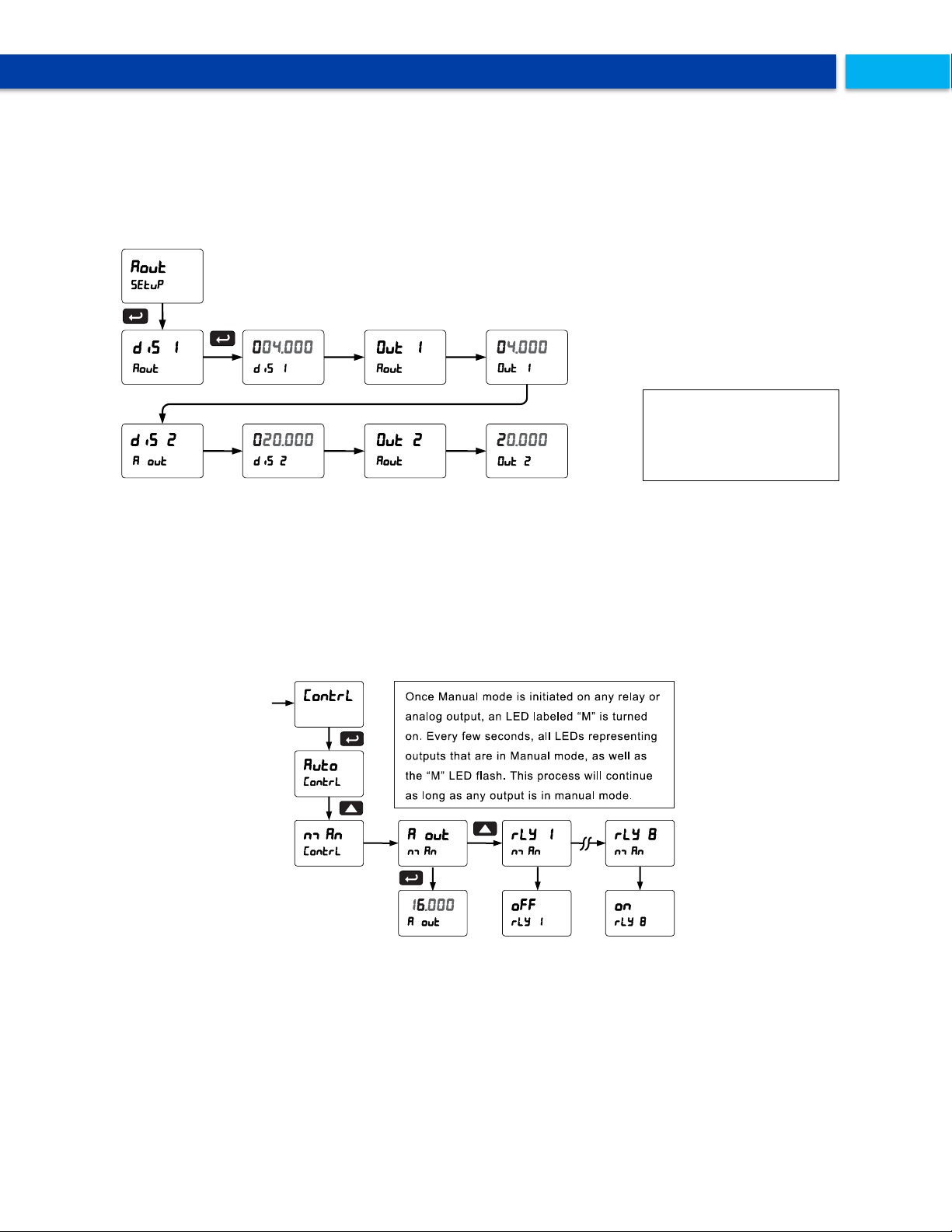

Aout

Analog output

Enter the Analog output scaling menu

Dis 1

Display 1

Program display 1 value

Out 1

Output 1

Program output 1 value (e.g. 4.000 mA)

Display

Parameter

Action/Setting

Dis 2

Display 2

Program display 2 value

Out 2

Output 2

Program output 2 value (e.g. 20.000 mA)

reset

Reset

Press Enter to access the Reset menu

Rst Gt

Reset grand total

Press Enter to reset grand total

Rst Hi

Reset high

Press Enter to reset max display

Rst Lo

Reset low

Press Enter to reset min display

Rst HL

Reset high & low

Press Enter to reset max & min displays

Rst t

Reset total

Press Enter to reset total

Rst tr

Reset tare

Reset tare (Used when

Total is no only)

Contrl

Control

Enter Control menu

Auto

Automatic

Press Enter to set relays and analog output for automatic operation

mAn

Manual

Press Enter to manually control relays or analog output operation

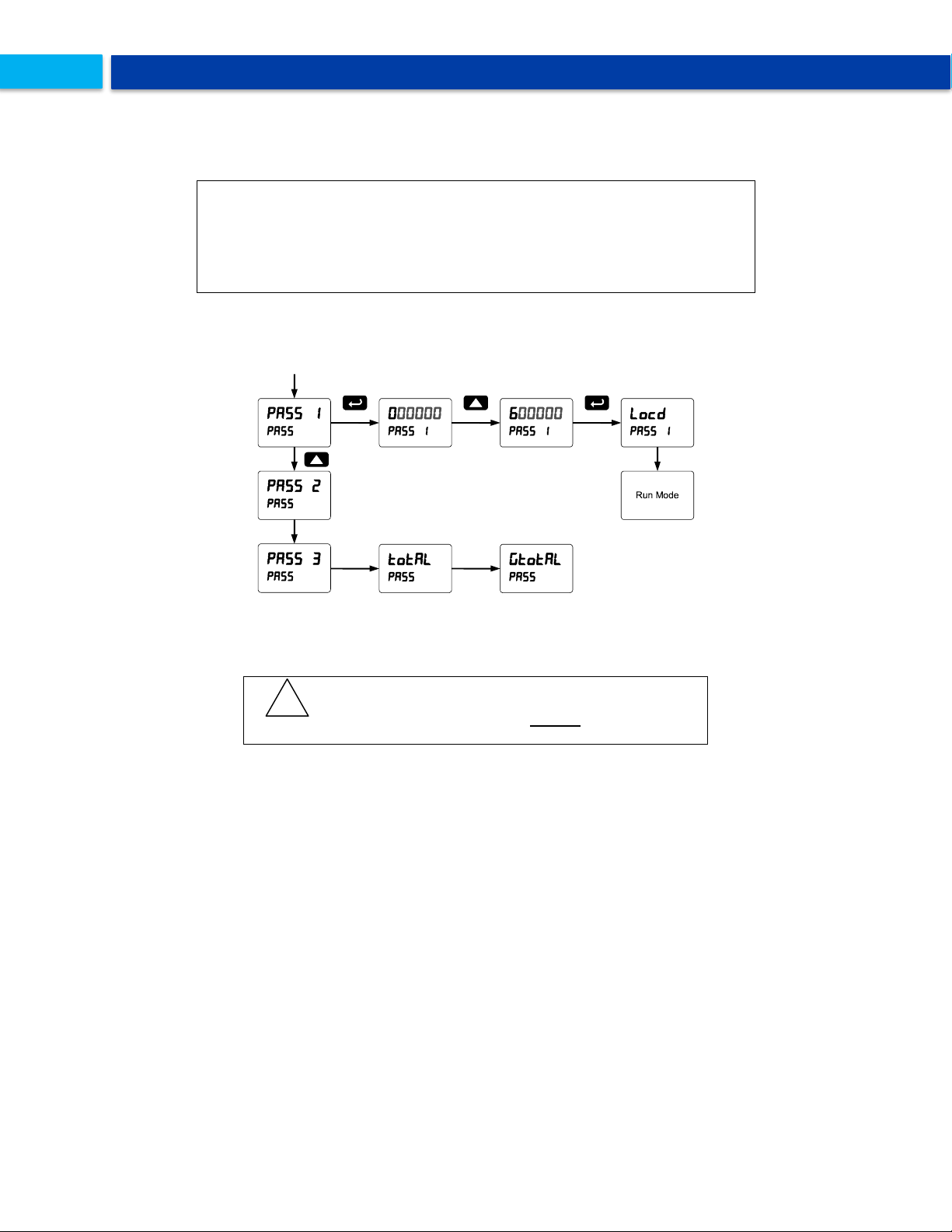

pass

Password

Enter the Password menu

Pass 1

Password 1

Set or enter Password 1

Pass 2

Password 2

Set or enter Password 2

Pass 3

Password 3

Set or enter Password 3

Total

Total password

Set or enter password for manual reset

Gtotal

Grand total password

Set or enter password for manual reset

nonrst

Nonresettable

Non-resettable grand total set after entering “050873” for Gtotal password

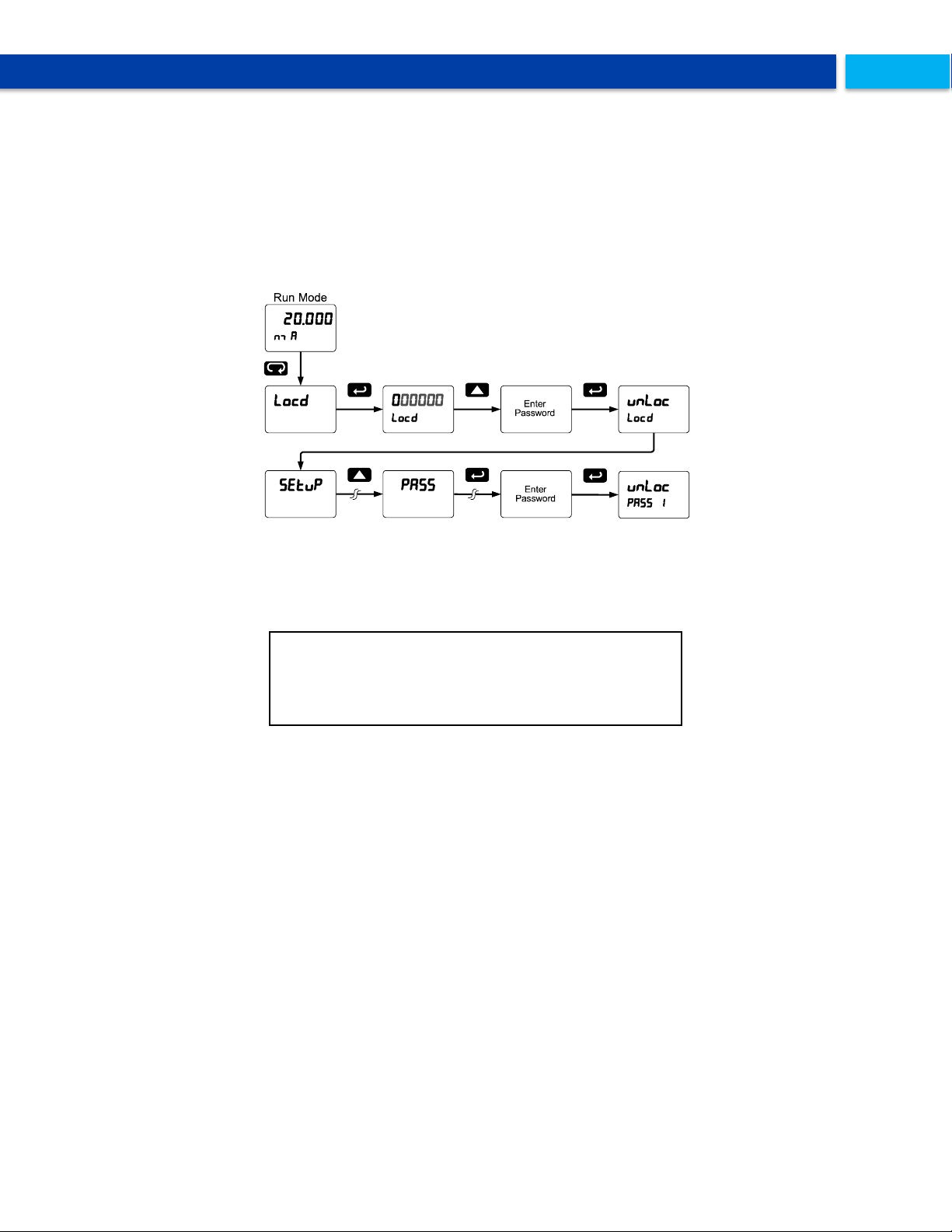

unloc

Unlocked

Program password to lock meter

locd

Locked

Enter password to unlock meter

999999

-99999

Flashing display

Overrange condition Underrange condition

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 27

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

0 0 4.000

00 4 .000

00 5 .000

dis 1

Setting

Select

Digit

Increment

Digital

alue

Setting

Main Menu

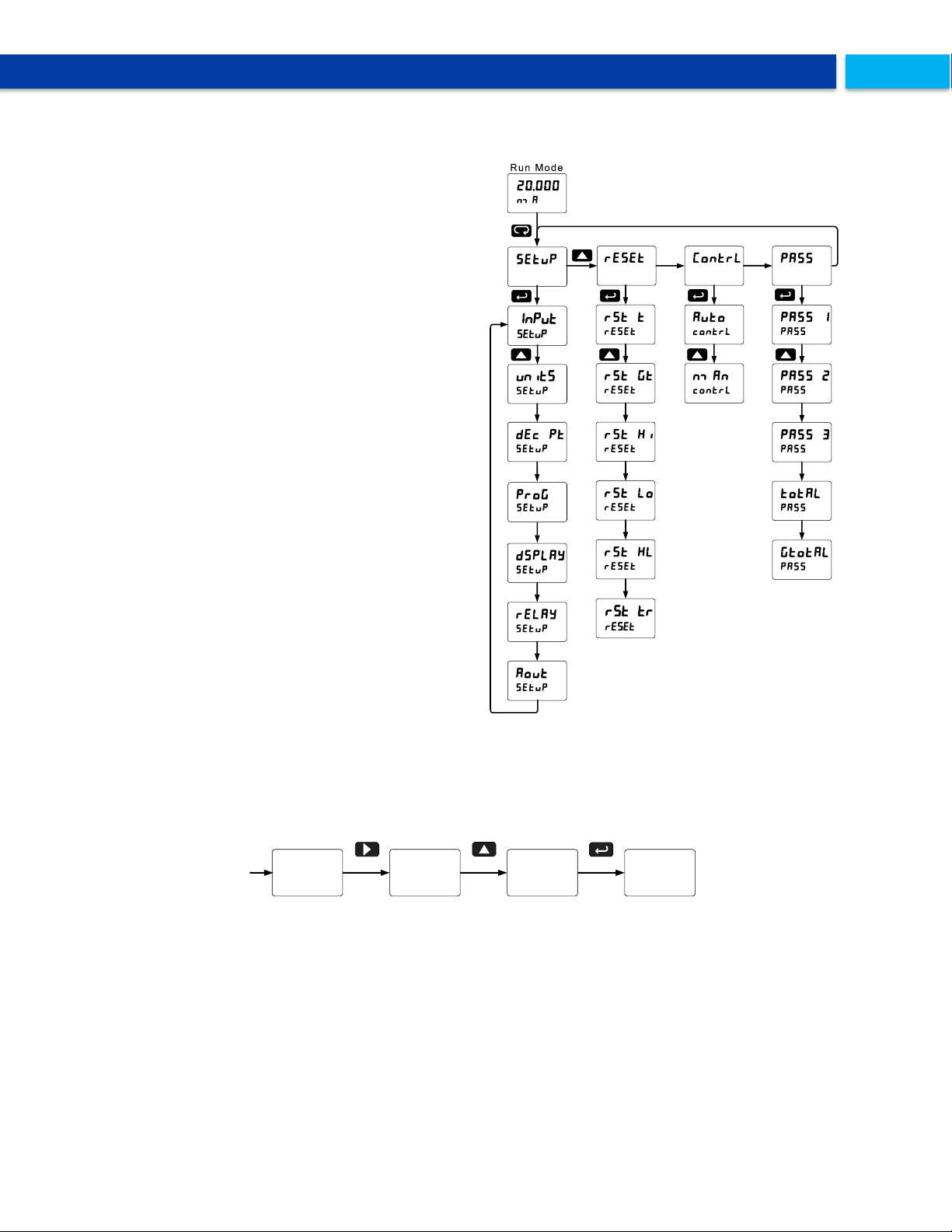

The main menu consists of the most commonly used functions: Reset, Control, Setup, and Password.

• Press Menu button to enter Programming Mode, then press the Up arrow button to scroll main menu.

• Press Menu, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing Enter are not saved.

• Changes to the settings are saved to memory only after pressing Enter/F3.

• The display moves to the next menu every time a setting is accepted by pressing Enter/F3.

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value. The digit being changed is displayed brighter than the rest. Press and hold Up to auto-increment the display value. If negative numbers are allowed, the first digit position will include a negative symbol (-) after the 9.

Press the Enter button, at any time, to accept a setting or Menu button to exit without saving changes.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 28

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

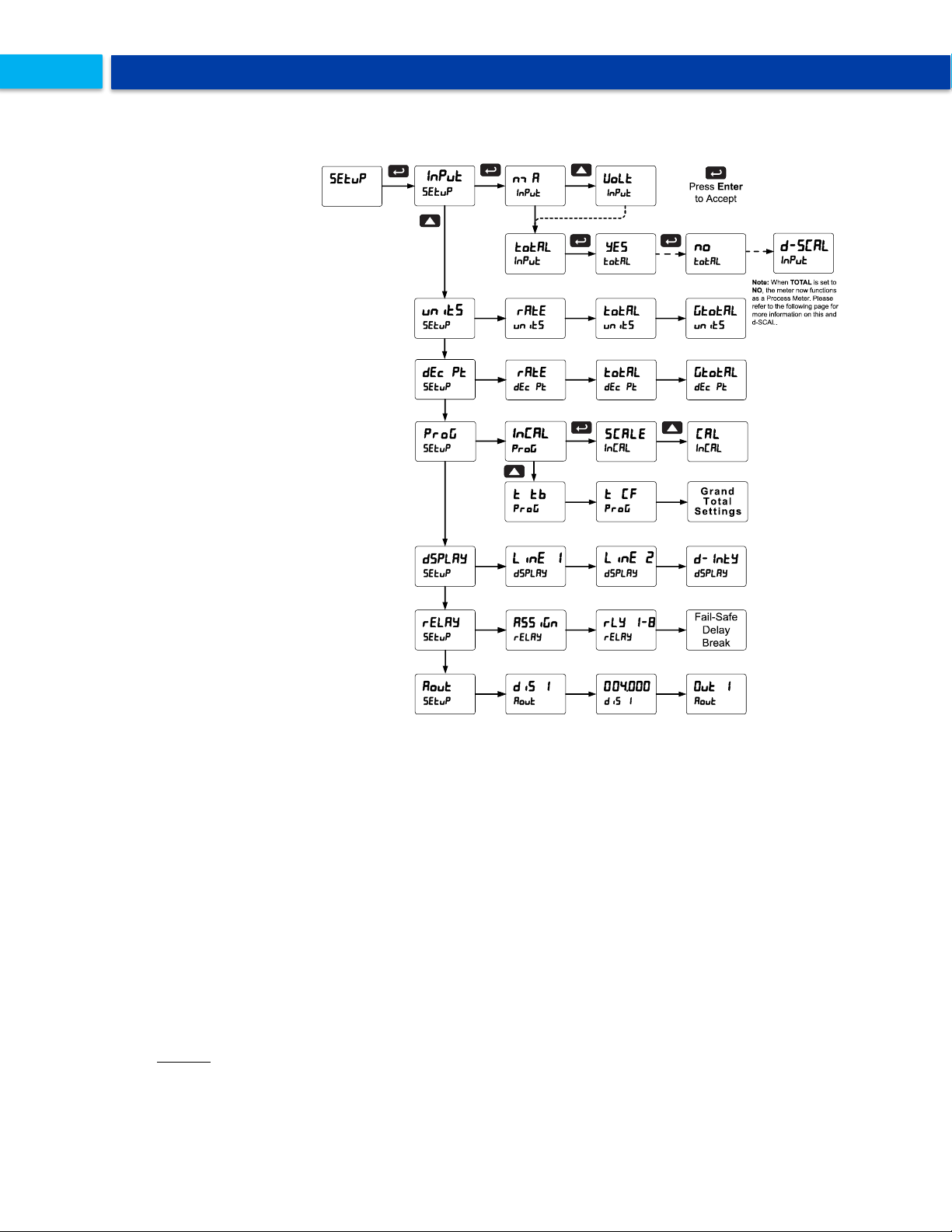

Setting Up the Rate/Totalizer Meter (setup)

The Setup menu is used to select:

1. Input signal the

meter will accept and enable totalizer features

2. Select the display units/tags

3. Select the decimal point position

4. Meter programming & input

calibration

5. Display parameter and intensity

6. Relay operation

7. 4-20 mA analog output scaling

Press the Enter button to access any menu or press Up arrow button to scroll through choices. Press the Menu button to exit at any time.

Setting the Input Signal (Input)

Enter the Input menu to set up the meter to display current (mA) or voltage (volt) inputs. The current input is capable of accepting any signal from 0 to 20 mA. Select current input to accept 0-20

mA or 4-20 mA signals. The voltage input is capable of accepting any signal from -10 to +10 VDC. Select voltage input to accept 0-

5, 1-5, 0-10, or 10 VDC signals.

Setting the Totalizer Features (total)

To simply not display the total, select alternative display parameters in the display (dsplay) menu.

Enable or disable the totalizer features by selecting “Yes” or “no” after the input type has been set up. If the totalizer features are disabled, all the totalizer features and functions are hidden from the menus. Level and process meter features and functions are added to the menus.

If disabling the total parameter by selecting no, please refer to the PD6000 manual available at www.predig.com for instructions on setting up the meter parameters.

Notes: 1. The totalizer continues working in the background.

2. When selecting "no" for Total, the meter now functions as a PD6000 Process Meter. We strongly suggest that you download and use the PD6000 instruction manual from our website (www.predig.com) while in this mode of operation.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 29

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Display

Character

Display

Character

Display

Character

Display

Character

v V 1

uw w 2

n m

x X 3

- - 6

/ / 7

[ ] 8

] [ 9

Degree(<)

Space

Setting the Input Units or Custom Tags (units)

Enter the input unit or custom tag that will be displayed if alternating rate, total, or grand total and units is selected in the units menu, or d unit is selected as the line 2 parameter. See the flow chart on page 33 to access the display menu to show the unit or tag on line 2. The engineering units or custom legends can be set using the following 7-segment character set:

Notes:

Degree symbol represented by (<) if programming with MeterView® Pro. The letters “m” and “w” use two 7-segment LEDs each; when selected the characters to the right are

shifted one position. Press and hold up arrow to auto-scroll the characters in the display.

Setting the Decimal Point (dEc pt)

The decimal point may be set with up to five decimal places or with no decimal point at all. The rate, total, and grand total decimal points are independent.

Pressing the Right arrow moves the decimal point one place to the right until no decimal point is displayed then it moves to the leftmost position. Pressing the Up arrow moves the decimal point one place to the left.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 30

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Programming the Rate/Totalizer (prog)

It is very important to read the following information, before proceeding to program the meter:

• The meter is factory calibrated prior to shipment to read in milliamps and volts depending on the input selection. The calibration equipment is traceable to NIST standards.

• Use the Scale menu to scale process inputs (e.g. 4-20 mA). A calibrated signal source is not needed to scale the meter.

• Use the Calibrate menu to apply a signal from a calibrator or a flowmeter.

The Program menu contains the following menus:

1. Scale without a signal source

2. Calibrate with a calibrated signal source

3. Total time base & conversion factor

4. Grand total time base & conversion factor

5. Total reset mode for total & grand total

Note: The Scale and Calibrate functions are exclusive of each other. The meter uses the last function programmed. Only one of these methods can be employed at a time. The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set in the Advanced menu under the Multi-Point Linearization (Linear) menu selection prior to scaling and calibration of the meter, see page 52 for details.

The process input may be calibrated or scaled to any display value within the range of the meter.

Additional parameters, not needed for most applications, are programmed in the Advanced Features menu; see Advanced Features Menu, page 48.

Multi-Point Calibration & Scaling

The meter is set up at the factory for 2-point linear calibration. The number of points for multi-point calibration/scaling is set up in the Advanced Features menu. Up to 32 linearization points may be selected. See page 52 for details.

on page 4 for details.

Input Calibration Method (InCAL)

There are two methods of calibrating (or scaling) the display to show the correct engineering units.

• Use the Scale menu to enter the scaling without a signal source.

• Use the Calibrate menu to apply a signal from a signal source.

Note: The Scale and Calibrate functions are exclusive of each other. The meter uses the last function programmed. Only one of these methods can be employed at a time. The Scale and Calibrate functions can use up to 32 points (default is 2). The number of points should be set in Scale and Calibrate accordingly under the Number of Points (nopts) menu selection prior to scaling and calibration of the meter, see page 52 for details.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 31

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

For instructions on how to program numeric

values see Setting Numeric Values, page 27.

Input range

Input 1 & input 2 span

4-20 mA

0.15 mA

10 VDC

0.01 VDC

Warm up the meter for at

least 15 minutes before

performing calibration to

ensure specified accuracy.

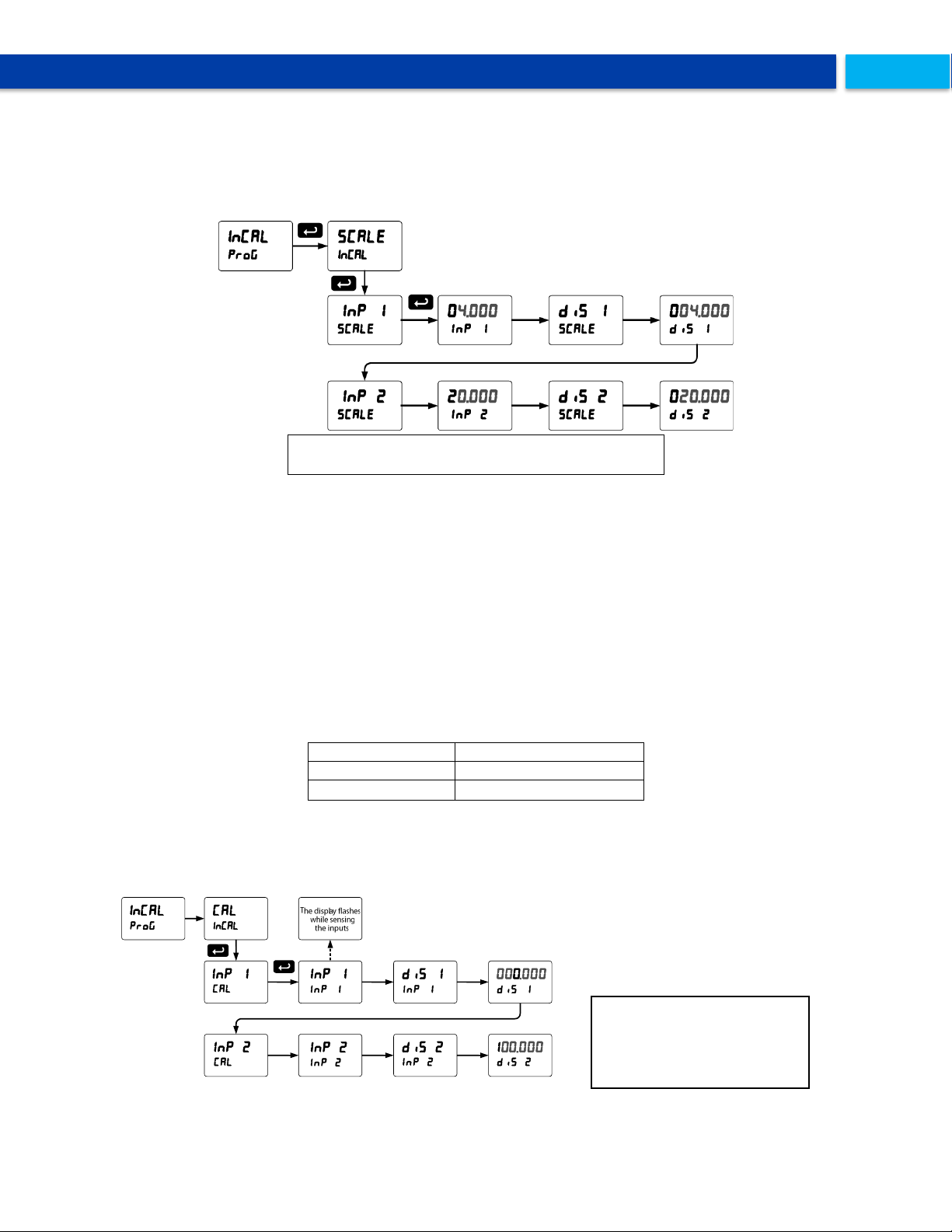

Scaling the Meter (SCALE)

The process inputs (4-20 mA and 10 VDC) can be scaled to display the process variable in engineering units.

A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the meter reverts to the input prior to the failure during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed. The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Wrong signal selection in Setup menu.

3. Minimum input span requirements not maintained.

4. Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter.

Calibrating the Meter with External Source (Cal)

The meter can be calibrated to display the process variable in engineering units by applying the appropriate input signal and following the calibration procedure.

The use of a calibrated signal source is strongly recommended to calibrate the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 32

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

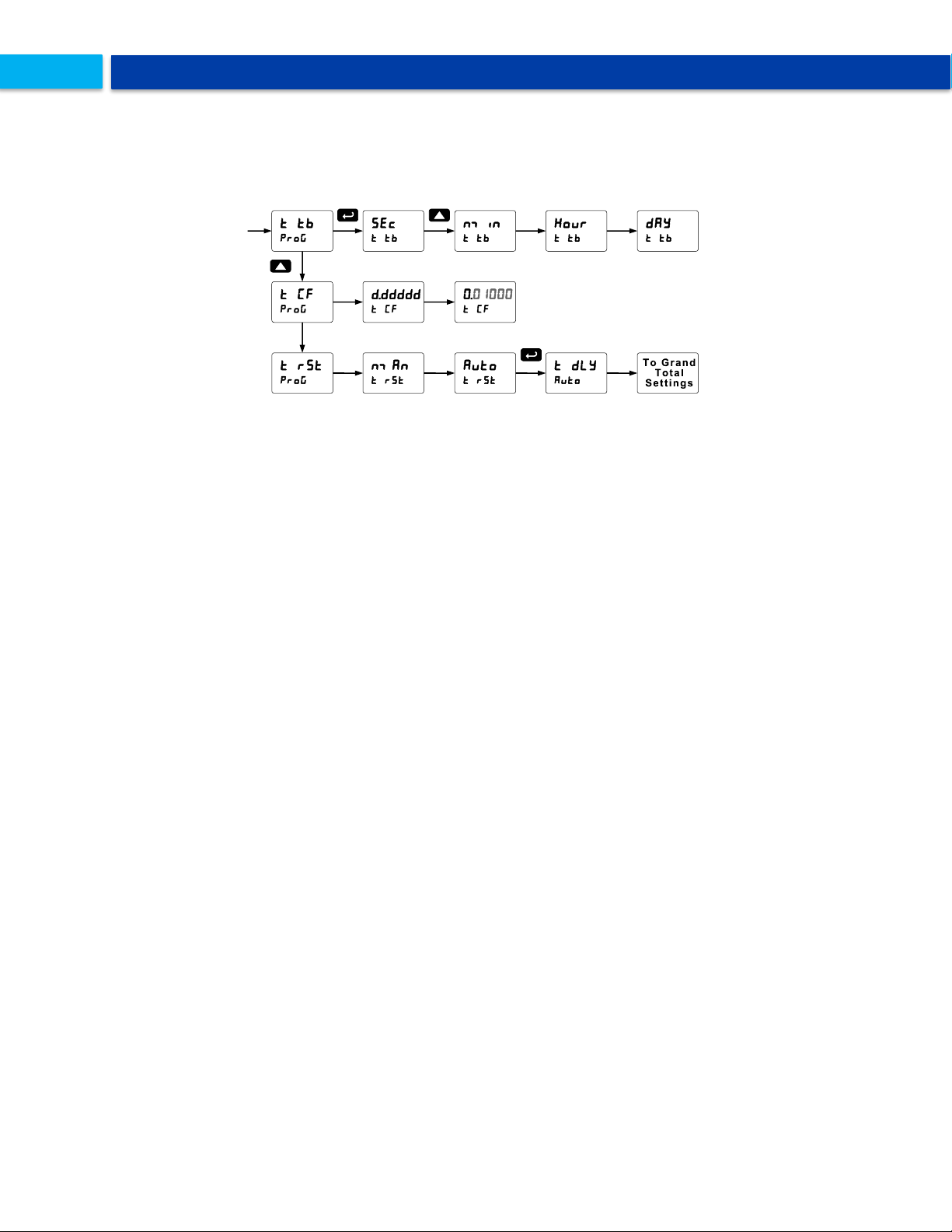

Time Base, Total Conversion Factor & Total Reset

The time base, total conversion factor, and total reset menus are located in the Program menu. The total and grand total have their own independent settings. This means that one can be displaying the

value in gallons while the other displays in million gallons, liters, m3, etc.

Time Base

The time base is the amount of time over which the rate parameter should accrue. For example, if the rate was ten and the time base was in minutes, then the total would increase by ten every one minute.

Total & Grand Total Conversion Factor

The total & grand total conversion factor is the amount by which the rate is multiplied before it is added to the total or grand total. For Example, if the rate was ten per second and the total conversion factor was 100, the total would increase by 1000 every second. This is useful, for instance, if you want to show rate in gallons and total in thousands of gallons.

Total & Grand Total Reset

The totals can be programmed for manual or automatic reset. In the automatic reset mode, a programmable time delay is available to reset the total or grand total after the assigned preset is reached.

Non-Resettable Totalizer

The total and grand total can be password-protected to prevent unauthorized resets. The grand total can be programmed as a non-resettable total, see page 46 for details.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 33

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

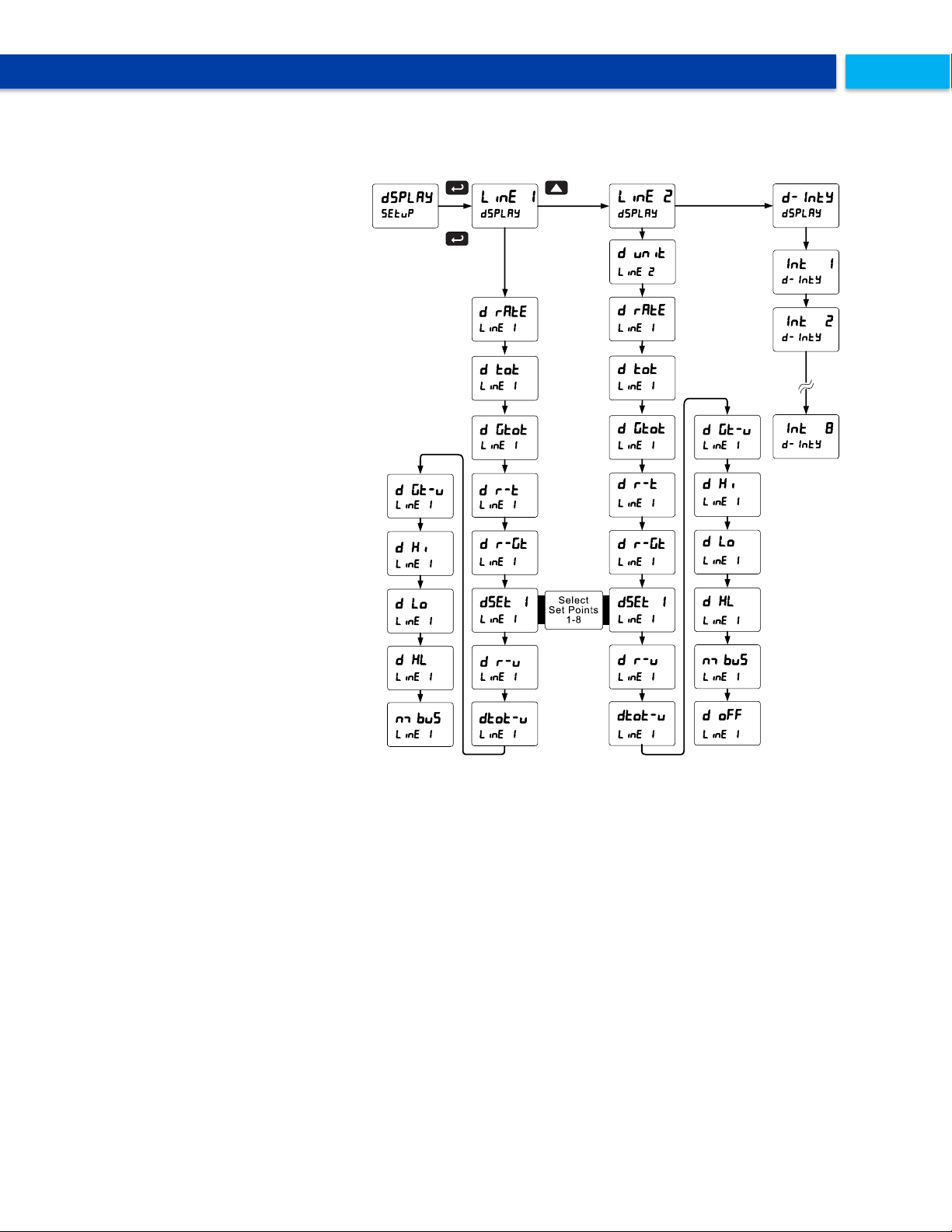

Setting the Display Parameter & Intensity (dsplay)

Display line 1 can be programmed to display:

1. Rate value

2. Total or grand total

3. Toggle rate/total

4. Toggle rate/G-total

5. Relay set points

6. Toggle rate and units

7. Toggle total and units

8. Toggle grand total and units

9. Max, min, or max & min values

10. Modbus input

Display line 2 can be programmed to display:

1. Engineering units or custom legends

for line 1

2. Rate value

3. Total or grand total

4. Toggle rate/total

5. Toggle rate/G-total

6. Relay set points

7. Toggle rate and units

8. Toggle total and units

9. Toggle grand total and units

10. Max, min, or max & min

values

11. Modbus input

12. Off (no display)

Selecting engineering units or custom legends as display line 2 (d unit) will display the unit or tag selected for the rate, total, or grand total displayed on line 1.

For example, if line 1 is set to total, selecting d unit to display on line 2 will have the total appear on line 1, and the total unit appear on line 2.

Display Intensity: The meter has eight display intensity levels to give the best performance under various lighting conditions. Select intensity 8 for outdoor applications. The default intensity setting is 8.

After setting up the input and the display, press the Menu button to exit programming and skip the rest of the setup menu. Press the Menu button again and the Up arrow to reach the Program menu and complete the scaling or calibration of the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 34

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

CAUTION!

During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.

Setting the Relay Operation (relay)

This menu is used to set up the operation of the relays.

1. Relay assignment

a. Rate for low and high alarm b. Total c. Grand total d. Modbus input process variable

2. Relay action

a. Automatic reset only (non-latching) b. Automatic + manual reset at any time (non-latching) c. Latching (manual reset only) d. Latching with Clear (manual reset only after alarm condition has cleared) e. Pump alternation control (automatic reset only) f. Sampling (the relay is activated for a user-specified time) g. Off (relay state controlled by Interlock feature)

3. Set and reset points

4. Fail-safe operation

a. On (enabled) b. Off (disabled)

5. Time delay

a. On delay (0-999.9 seconds) b. Off delay (0-999.9 seconds)

6. Relay action for loss (break) of 4-20 mA input (ignore, on, off)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 35

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Relay Assignment (Assign)

The relays can be assigned to any of the following parameters:

1. Rate for low or high alarm indication

2. Total for alarm indication

3. Grand total for alarm indication

4. Modbus input process variable

Setting the Relay Action

Operation of the relays is programmed in the Action menu. The relays may be set up for any of the following modes of operation:

1. Automatic reset (non-latching)

2. Automatic + manual reset at any time (non-latching)

3. Latching (manual reset only, at any time)

4. Latching with Clear (manual reset only after alarm condition has cleared)

5. Pump alternation control (automatic reset only)

6. Sampling (the relay is activated for a user-specified time)

7. Off (relay state controlled by Interlock feature)

The following graphic shows relay 1 action setup; relay 2-4 are set up in a similar fashion.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 36

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

set 1 rly 1

rst 1 rly 1

Prog ram

Set Point

Prog ram

Rese t Point

Programming Set and Reset Points

High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is determined by the difference between set and reset points. Minimum deadband is one

display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

Note: Changes are not saved until the reset point has been accepted.

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the process variable is within safe limits and the relay coil is de-energized when the alarm condition exists. The fail-safe operation is set independently for each relay. Select on to enable or select off to disable fail-safe operation.

Programming Time Delay

The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay.

The On time delay is associated with the set point. The Off time delay is associated with the reset point.

Relay Action for Loss of 4-20 mA Input (Loop Break)

The loop break feature is associated with the 4-20 mA input. Each relay may be programmed to go to one of the following conditions when the meter detects the loss of the input signal (i.e. < 0.005 mA):

1. Turn On (Go to alarm condition)

2. Turn Off (Go to non-alarm condition)

3. Ignore (Process as a low signal condition)

Note: This is not a true loop break condition; if the signal drops below 0.005 mA, it is interpreted as a

“loop break” condition.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 37

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

High Alarm Operation (Set > Reset)

Low Alarm Operation (Set < Reset)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

High Alarm with Fail-Safe Operation (Set > Reset)

Low Alarm with Fail-Safe Operation (Set < Reset)

Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

Relay and Alarm Operation Diagrams

The following graphs illustrate the operation of the relays, status LEDs, and ACK button.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 38

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Set

Reset

Relay

LED

Input

Sample

Time

Sample

Time

Sample

Time

Preset = 100

100

Relay

LED

Total

200

300

Sample

Time

Sample

Time

Sample

Time

Pump Alternation Control Operation

Rate Relay Sampling Operation

When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the set point is crossed, going up for high alarms and going down for low alarms.

The sample time can be programmed between 0.1 and 5999.9 seconds.

Total Relay Sampling Operation

When the total reaches the preset, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the preset value is added to the total.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 39

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Relay

LED

Input

Loop Break = Ignore

de-energized energized

off on

Relay

LED

Loop Break = Off

Relay

LED

Loop Break = On

Set

Reset

Signal Loss or Loop Break Relay Operation

The following graph shows the loop break operation for a high alarm relay.

When the meter detects a break in the 4-20 mA loop, the relay will go to one of the following selected actions:

1. Turn on (Go to alarm condition)

2. Turn off (Go to non-alarm condition)

3. Ignore (Process as a low signal condition)

Time Delay Operation

The following graphs show the operation of the time delay function.

When the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state. The same principle applies to the Off

Find Quality Products Online at: [email protected]

time delay.

Note: If “Automatic or Manual (A-nmAn)” reset mode is selected, the LED follows the reset point and not

the relay state when the relay is acknowledged.

www.GlobalTestSupply.com

Page 40

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Alarm #

HI or LO

Alarm

Set

Point

Reset

Point

Power-Up

Reading

Relay &

LED 1 HI

1000

500

499

Off 2 LO

700

900

499

On 3 LO

250

400

499

Off 4 HI

450

200

499

Fail-Safe

Selection

Non-Alarm State

Alarm State

Power Failure

Off

Open

Closed

Open

Relays go to non-alarm state

Closed

Open

Closed

Relays go to alarm state

LED

Status

LED

Status

Alarm 1

5 Alarm 5

Alarm 2

6 Alarm 6

Alarm 3

7 Alarm 7

Alarm 4

8 Alarm 8

Relay Operation Details

Overview

The relay capabilities of the meter expand its usefulness beyond simple indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs as well as either 2 or 4 optional internal relays. Typical applications include high or low temperature, level, pressure or flow alarms, control applications such as simple on/off pump control, pump alternation control for up to 4 pumps, and basic batch control. There are four basic ways the relays can be used:

1. High or Low Alarms with Latching or Non-Latching Relays

2. Simple On/Off Control with 100% Adjustable Deadband

3. Sampling (Based on Time)

4. Pump Alternation Control for up to 4 Pumps

Relays Auto Initialization

When power is applied to the meter, the front panel LEDs and alarm relays will reflect the state of the input to the meter. The following table indicates how the alarm LEDs and relays will react on power-up based on the set and reset points:

Fail-Safe Operation

The following table indicates how the relays behave based on the fail-safe selection for each relay:

Note: NO = Normally Open, NC = Normally Closed. This refers to the condition of the relay contacts when the power to the meter is off.

Front Panel LEDs

The LEDs on the front panel provide status indication for the following:

The meter is supplied with four alarm points that include front panel LEDs to indicate alarm conditions. This standard feature is particularly useful for alarm applications that require visualonly indication. The LEDs are controlled by the set and reset points programmed by the user. When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset point the LED will go off. The front panel LEDs respond differently for latching and non-latching relays.

For non-latching relays, the LED is always off during normal condition and always on during alarm condition, regardless of the state of the relay (e.g. Relay acknowledged after alarm condition).

For latching relays, the alarm LEDs reflect the status of the relays, regardless of the alarm condition. The following tables illustrate how the alarm LEDs function in relation to the relays and the acknowledge button (Default: F3 key assigned to ACK):

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 41

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Warning!

In latching relay mode, latched relays will reset (unlatch) when power is cycled.

Relay terminology for following tables

Terminology

Relay Condition

Alarm (Tripped)

Off

Normal (Reset)

Ack

Acknowledged

Automatic reset only

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Off

Automatic + manual reset at any time

Condition

LED

Relay

Normal

Off

Alarm

Normal

Off

Next Alarm

Ack

Off

Normal

Off

Manual reset any time

Condition

LED

Relay

Normal

Off

Alarm

Ack

Off

Manual reset only after alarm

condition has cleared

Condition

LED

Relay

Normal

Off

Alarm

Ack (No effect)

Normal

Ack

Off

Latching and Non-Latching Relay Operation

The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation.

The On and Off terminology does not refer to the status of the relay’s coil, which depends on the fail-safe mode selected.

Non-Latching Relay (Auto)

In this application, the meter is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

Non-Latching Relay (A-nman)

In this application, the meter is set up for automatic and manual reset at any time (non-latching relay). The LED and the relay automatically reset when the meter returns to the normal condition.

The next time an alarm occurs, the operator acknowledges the alarm manually while the alarm condition still exists. This causes the relay to reset, but the LED stays on until the meter returns to the normal condition.

Latching Relay (LatcH)

In this application, the meter is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets the relay and turns off the LED.

Latching Relay (Lt-Clr)

In this application, the meter is set up for manual reset only after the signal passes the reset point (alarm condition has cleared). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm is acknowledged after it returns to the normal state, the LED and the relay go off. Notice that the LED remains on, even after the meter returns to the normal condition. This is because, for latching relays, the alarm LED reflects the status of the relay, regardless of the alarm condition.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 42

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Relay

Set Point

Reset Point

Function

30.000

10.000

Controls pump #1

35.000

5.000

Controls pump #2

4.000

9.000

Controls low alarm

40.000

29.000

Controls high alarm

+5 I1 I2 I3 I4 O1 O2 O3 O4 G

DO 1-4

GND

ACK

PDA1044 Digital I/O Module

1 2 3 4 5 6 7 8 9 10

DI 1-4

Acknowledging Relays

There are two ways to acknowledge relays programmed for manual reset:

1. Via the programmable front panel function keys F1-F3 (Default:

F3 assigned to ACK).

2. Remotely via a normally open pushbutton wired across one of the digital inputs and the +5 V

terminals on the digital I/O modules, or using the F4 digital input, which is triggered with a contact closure to COM, or with an active low signal (see page 20).

When the ACK button or the assigned digital input is closed, all relays programmed for manual reset are acknowledged.

Figure 19: Acknowledge Relays w/Function Key or Digital Input

Pump Alternation Control Applications (Altern)

For pump control applications where two or more similar pumps are used to control the level of a tank or a well, it is desirable to have all the pumps operate alternately. This prevents excessive wear and overheating of one pump over the lack of use of the other pumps.

Up to 4 relays can be set up to alternate every time an on/off pump cycle is completed. The set points and reset points can be programmed, so that the first pump on is the first pump off.

Application #1: Pump Alternation Using Relays 1 & 2

1. Relays 1 and 2 are set up for pump alternation.

2. Relays 3 and 4 are set up for low and high alarm indication.

Set and Reset Point Programming

Pump Alternation Operation

1. Pump #1 turns on when level reaches 30.000, when level drops below 10.000 pump #1 turns off.

2. The next time level reaches 30.000, pump #2 turns on, when level drops below 10.000, pump #2 turns off.

3. If the level doesn’t reach 35.000, pump #1 and pump #2 will be operating alternately.

4. If pump #1 cannot keep the level below 35.000, pump #2 will turn on at 35.000, then as the level drops to 10.000, pump #1 turns off, pump #2 is still running and shuts off below 5.000.

5. Notice that with the set and reset points of pump #2 outside the range of pump #1, the first pump on is the first pump to go off. This is true for up to 4 alternating pumps, if setup accordingly.

6. Relay #3 will go into alarm if the level drops below 4.000 and relay #4 will go into alarm if the level exceeds 40.000.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 43

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Relay

Set Point

Reset Point

Function

495

750

Controls low alarm

7500

6900

Controls high alarm

7000

900

Controls backup pump

6000

1000

Controls main pump

6245

GAL

6245

GAL

7153

GAL

7782

GAL

495

GAL

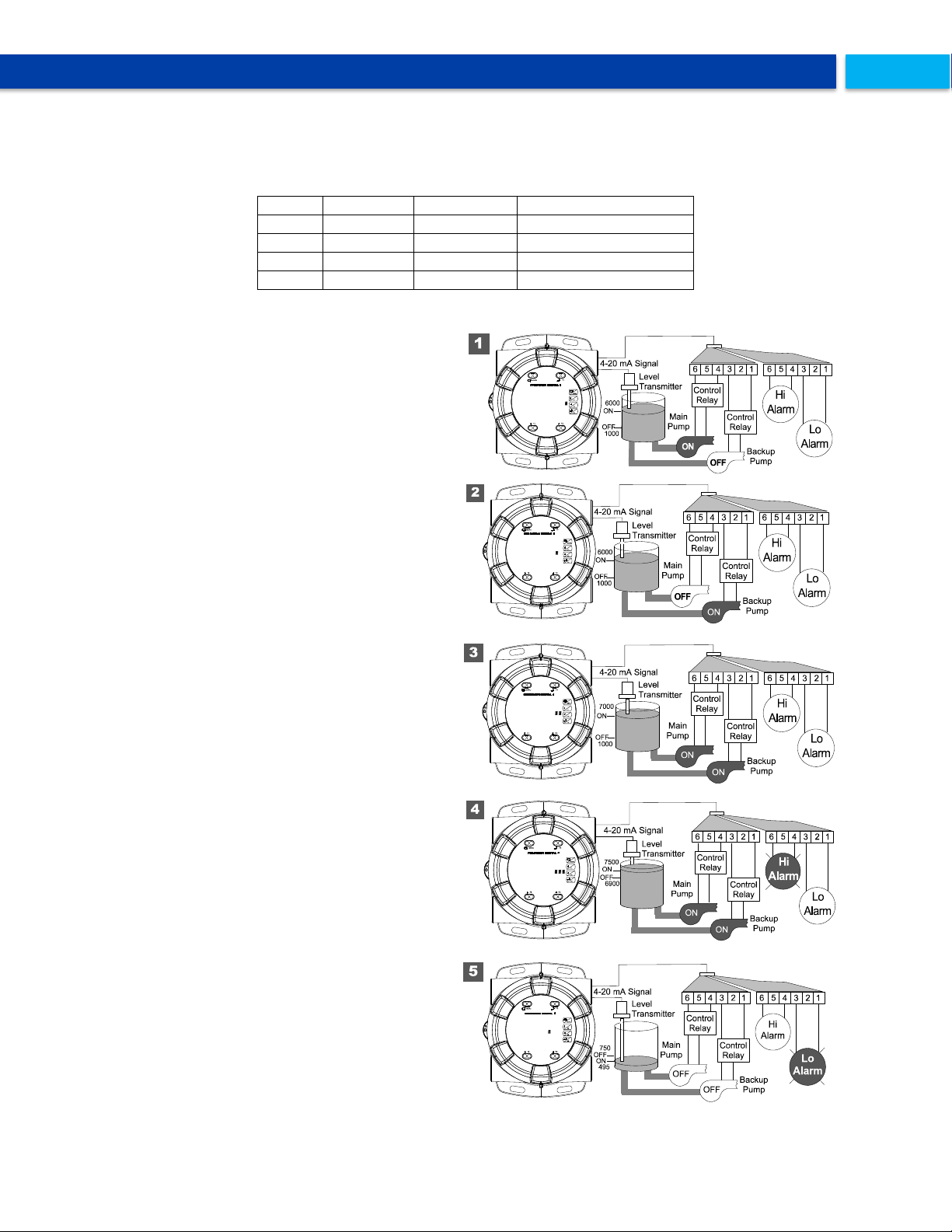

Application #2: Pump Alternation Using Relays 3 & 4

1. Relays 1 and 2 are set up for low and high alarm indication.

2. Relays 3 and 4 are set up for pump alternation.

Set and Reset Point Programming

The following graphics provide a visual representation of a typical pump alternation application with high and low alarm monitoring:

• Relay #4 turns the main pump on at 6000

gallons and turns it off at 1000 gallons.

• With the Pump Alternation feature

activated, the next time the level reaches 6000 gallons, relay #3 transfers and starts the backup pump.

• If the backup pump is not able to keep

up, and the level reaches 7000 gallons, relay #4 transfers and starts the main pump as well.

• Relay #2 trips the High Level Alarm at

7500 gallons and resets at 6900 gallons.

• Relay #1 trips the Low Level Alarm at

495 gallons and resets at 750 gallons.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 44

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

1 2 3 4 5 6

+5 I1 I2 I3 I4 O1

7 8

O2 O3

9 10

O4 G

DI 1-4 DO 1-4

5 VDC GND

SW2

SW1

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the interlock feature:

1. Access the Setup – Relay – Action menu and set the action to off.

2. In the Advanced features – User menu program any of the digital inputs to Force On any of the

internal relays (1-4).

3. Connect a switch or dry contact between the +5V terminal and the corresponding digital input (dI-1 to

dI-4) terminal.

Interlock Relay Operation Example

Relays 1 & 2 are configured to energize (their front panel LEDs are off) when SW1 & SW2 switches (above) are closed. If the contacts to these digital inputs are opened, the corresponding front panel LEDs flash indicating this condition. The processes being controlled by the interlock relay will stop, and will restart only after the interlock relay is re-activated by the digital inputs (switches).

Note: If multiple digital inputs are assigned to the same relay, then the corresponding logic is (AND) – i.e. both switches must be closed to trip the relay.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 45

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

For instructions on how to

program numeric values

see Setting Numeric

Values, page 27.

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any display range selected. No equipment is needed to scale the analog output; simply program the display values to the

corresponding mA output signal. The Analog Output menu is used to program the 4-20 mA output based on display values.

Reset Menu (reset)

The Reset menu is used to reset the totals and maximum or minimum reading (peak or valley) reached by the process; both may be reset at the same time by selecting “reset high & low” (rst HL). If total is set to no, the tare value used to zero the display may be reset by selecting “reset tare” (rst tr).

Control Menu (Contrl)

The Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 46

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Gtotal: Prevents resetting the grand total manually

Caution!

Once the Grand Total has been programmed as “non-resettable” the feature cannot be disabled.

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings and to program the non-resettable totalizer.

Protecting or Locking the Meter

Enter the Password menu and program a six-digit password. For instructions on how to program numeric values see Setting Numeric Values, page 27.

Total Reset Password & Non-Resettable Total

The total and the grand total can be password-protected to prevent unauthorized total resets. The grand total can be programmed as a non-resettable total by entering the password “050873”.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 47

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Did you forget the password?

The password may be disabled by entering a master password once. If you are authorized to make changes, enter the master password 508655 to unlock the meter.

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message Locd (Locked) when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access the menu. After exiting the programming mode, the meter returns to its password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The meter is now unprotected until a new password is entered.

If the correct six-digit password is entered, the meter displays the message unLoc (unlocked) and the protection is disabled until a new password is programmed.

If the password entered is incorrect, the meter displays the message Locd (Locked) for about two seconds, and then it returns to Run Mode. To try again, press Enter while the Locked message is displayed.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 48

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

filter

Filter

Set noise filter value

bypASs

Bypass

Set filter bypass value

Round

Set the rounding value for display variables

seriAl

Serial

Set serial communication parameters

SlaveId

Slave ID

Set slave ID or meter address

baud

Baud rate

Select baud rate

Tr dLY

Transmit delay

Set transmit delay for serial communication

Parity

Select parity Even, Odd, or None with 1 or 2 stop bits

t-byt

Time byte

Set byte-to-byte timeout

SelEct

Select

Enter the Select menu (function, cutoff, out)

Functn

Signal input conditioning

Select linear, square root, programmable exponent, or round horizontal tank function

Linear

Set meter for linear function and select number of linearization points

Display

Parameter

Action/Setting

No PtS

Number of points

Set meter for 2 to 32point linearization

Square

Square root

Set meter for square root extraction

Prog E

Programmabl e exponent

Set meter for programmable exponent and enter exponent value

rht

Round horizontal tank

Set meter for round horizontal tank volume calculation

Inch

Dimension(c m)

Calculate volume in gallons or meters

diamr

Diameter

Enter the tank’s diameter in inches

Length

Enter the tank’s length in inches

CutofF

Cutoff

Set low-flow cutoff

Count

Set total and grand total count direction

Tot C

Total Count

Set total to count up or down

Gtot C

Grand Total Count

Set grand total to count up or down

C Strt

Count Start

Set start for total or grand total countdown

Advanced Features Menu

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu.

Press and hold the Menu button for three seconds to access the advanced features of the meter.

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced Features menu in the order they appear in the menu.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 49

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

AoutPr

Analog output programming

Program analog output parameters

Source

Select source for the 420 mA output

O-rang

Overrange

Program mA output for display overrange

u-rang

Underrange

Program mA output for display underrange

Break

Loop Break

Set relay condition if loop break detected

Force

Force analog output value for loop break

Ignore

Ignore loop break condition

mAx

Maximum

Program maximum mA output allowed

min

Minimum

Program minimum mA output allowed

Calib

Calibrate

Calibrate 4-20 mA output (internal reference source used for scaling the output)

4 mA

4 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

20 mA

20 mA output

Enter mA output value read by milliamp meter with at least 0.001 mA resolution

user

User I/O

Assign function keys and digital I/O

F1 function key

Assign F1 function key

F2 function key

Assign F2 function key

Display

Parameter

Action/Setting

F3 function key

Assign F3 function key

F4 function

Assign F4 function (digital input)

dI I

Digital input 1

Assign digital input 1 – 4

dO 1

Digital output 1

Assign digital output 1 – 4

ICal

Internal source calibration

Enter internal source calibration (used for scaling the meter without a signal source

C CAL

Current calibration

Calibrating 4-20 mA current input (internal reference source used for scaling the input)

C lo

Current low

Calibrate low current input (e.g. 4 mA)

C Hi

Current high

Calibrate high current input (e.g. 20 mA)

v CAL

Voltage calibration

Calibrating voltage input

v Lo

Voltage low

Calibrate low voltage input (e.g. 0 V)

v Hi

Voltage high

Calibrate high voltage input (e.g. 10 V)

Diag

Diagnostics

Display parameter settings

LED t

LED test

Test all LEDs

Info

Information

Display software and S/N information

Erase

Erase MeterView Pro software stored in meter’s memory

Noise Filter (filter)

The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal over a certain period. The filter level determines the length of time over which the signal is averaged. The filter level can be set between 2 and 199. The higher the filter level, the longer the averaging time and so the longer it takes the display to settle to its final value. Setting the filter level to zero disables the filter function.

Noise Filter Bypass (bypass)

The noise filter bypass changes the behavior of the meter so that small variations in the signal are filtered out but large abrupt changes in the input signal are displayed immediately. The bypass value determines the minimum amount of signal change to be displayed immediately. All signal changes smaller than the bypass value are filtered or averaged by the meter. The noise filter bypass may be set between 0.1 and

99.9% of full scale.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 50

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Rounding Selection

Actual Value

Display Value

Actual Value

Display Value

12.022

12.023

12.022

12.020

12.023

12.025

12.024

12.020

12.025

12.030

Warning!

Do not connect any equipment other than Precision Digital’s expansion modules, cables, or meters to the RJ45 M-LINK connector. Otherwise damage will occur to the equipment and the meter.

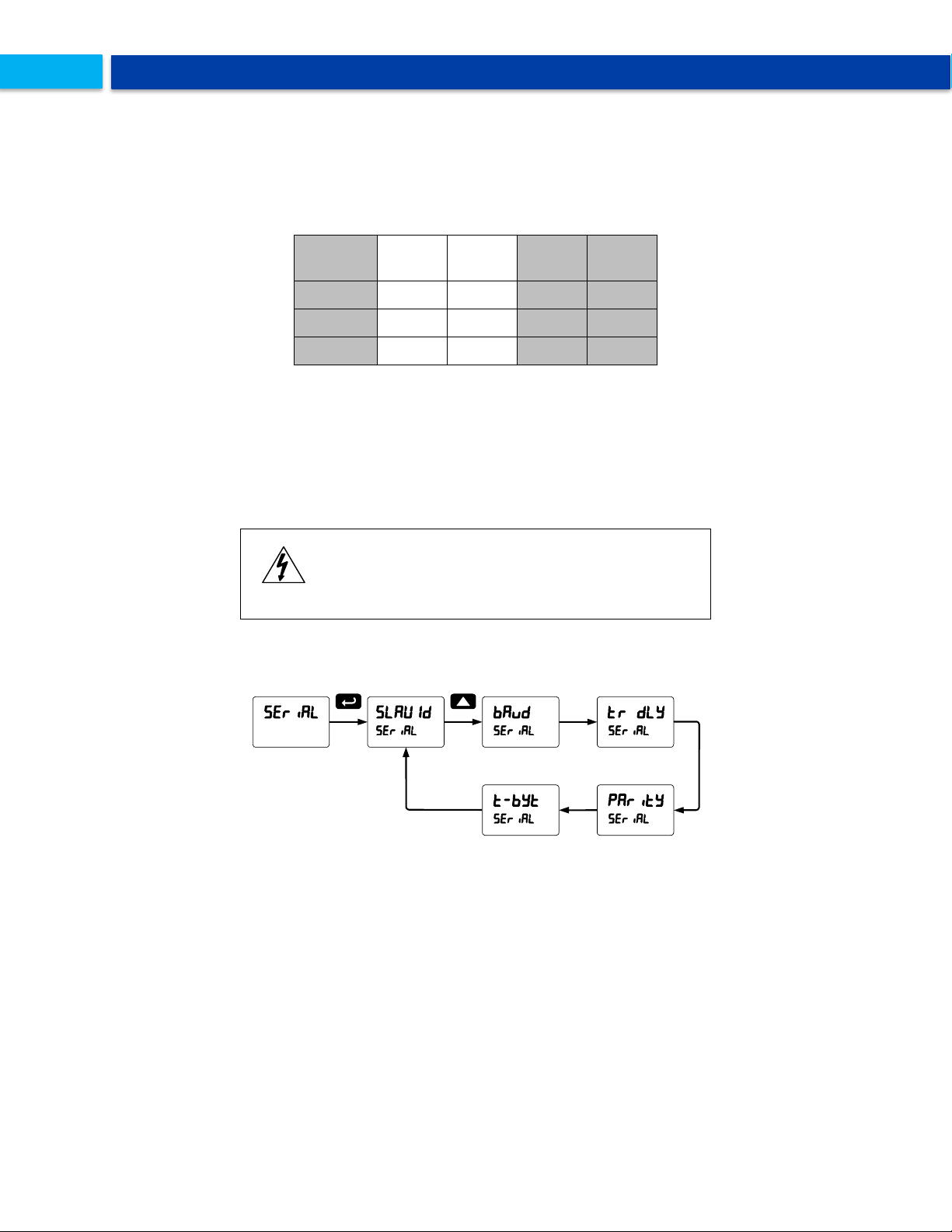

Rounding Feature (round)

The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function.

Rounding causes the display to round to the nearest value according the rounding selected. See examples below:

Modbus RTU Serial Communications (serial)

The meter is equipped with serial communications capability as a standard feature using Modbus RTU Serial Communication Protocol.

The meter may be connected to a PC for initial configuration via the onboard micro USB connection. For ongoing digital communications with a computer or other data terminal equipment, an RS-232, or RS-485 option is required; see Ordering Information on page 4 for details.

Note: More detailed instructions are provided with each optional serial communications adapter.

Note: Refer to the PROVU® Modbus Register Tables located at www.predig.com for details.

When using more than one meter in a multi-drop mode, each meter must be provided with its own unique address. The meter address (Slave ID) may be programmed between 1 and 247. The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 51

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

PDA8485

DI DI

GND

RS-485 DEVICE

PDA8485

DATA

DATADO

GND GND

RS-485 DEVICE

Serial Communications Overview

RS-232 and RS-485 are standard interfaces approved by the Electronic Industries Alliance (EIA) for connecting serial devices. In EIA terms, the device (e.g. meter) that connects to the interface is called a Data Communications Equipment (DCE) and the device to which it connects (e.g. the computer) is called a Data Terminal Equipment (DTE).

RS-485 can support multi-point connections per line because it uses lower-impedance drivers and receivers.

Line drivers and receivers are used to exchange data between two or more points (nodes) on a serial communications network. Reliable data communications can be difficult in the presence of induced noise, ground level differences, and other hazards associated with installation of a network. When communicating at high data rates, or over long distances in real world environments, RS-232 is often inadequate. The differential data transmission of RS-485 offers superior performance in most applications. Differential signals can help nullify the effects of ground shifts and induced noise signals that can appear as common mode voltages on a network.

A multi-point network consists of multiple drivers and receivers connected on a single bus, where any point (node) can transmit and/or receive data. RS-485 allows multiple drivers and receivers on the same two-wire or four-wire system. The RS-485 standard specifies up to 32 drivers and 32 receivers on a single bus, but with the introduction of "automatic" repeaters and high-impedance drivers/receivers, this number can be extended to hundreds of points (nodes) on a network.

The cabling used for an RS-485 serial communications network should always be a high quality cable such as Belden 8162 or Alpha 6203C. A two-wire system requires two twisted pairs, and a four-wire system requires three twisted pairs (the extra twisted pair is needed for the signal ground).

Figure 20 illustrates how to connect a general four-wire network (a four-wire network actually contains 5 wires).

Figure 20: General Four-Wire Network Connection

Figure 21 illustrates how to connect a general two-wire network (a two-wire network actually contains 3 wires). Note that the PDA7485 and PDA8485 have DIP switches that allow for two-wire connections without the need to externally wire the DO to the DI and the /DO to the /DI (see the converter section for complete details).

Figure 21: General Two-Wire Network Connection

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 52

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

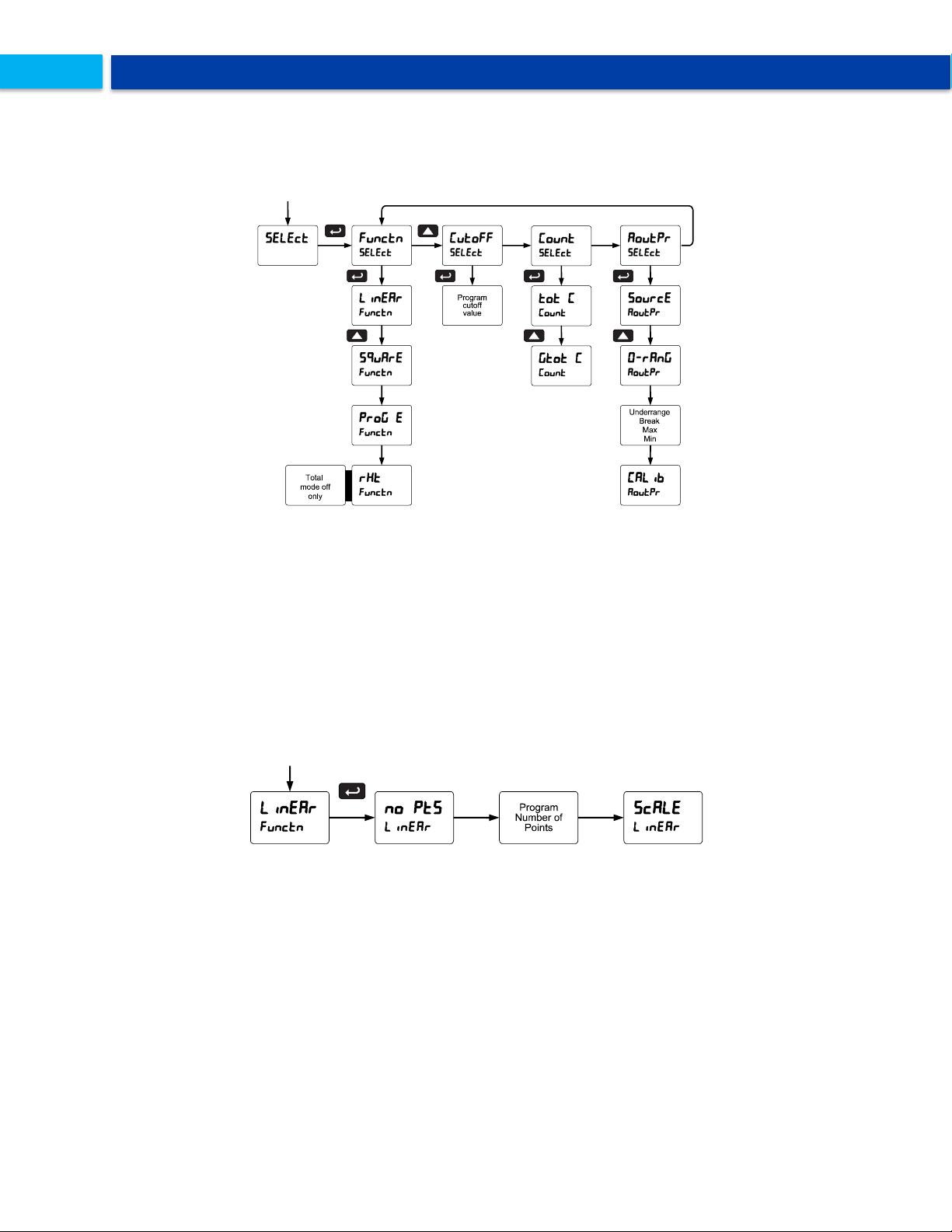

Select Menu (SElEct)

The Select menu is used to select the signal input conditioner applied to the input (linear, square root, programmable exponent, or round horizontal tank), low-flow cutoff, and analog output programming. The multi-point linearization is part of the linear function selection.

Signal Input Conditioning (Functn)

The Function menu is used to select the signal input conditioner applied to the input: linear, square root, programmable exponent, or round horizontal tank volume calculation. The multi-point linearization is part of the linear function selection.

Meters are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect to the input signal.

Multi-Point Linearization (Linear)

Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected under the linear function. The multi-point linearization can be used to linearize the display for non-linear signals such as those from level transmitters used to measure volume in odd-shaped tanks or to convert level to flow using weirs and flumes with complex exponent.

Square Root Linearization (Square)

The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units.

Programmable Exponent Linearization (Prog E)

The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow applications using weirs and flumes.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 53

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

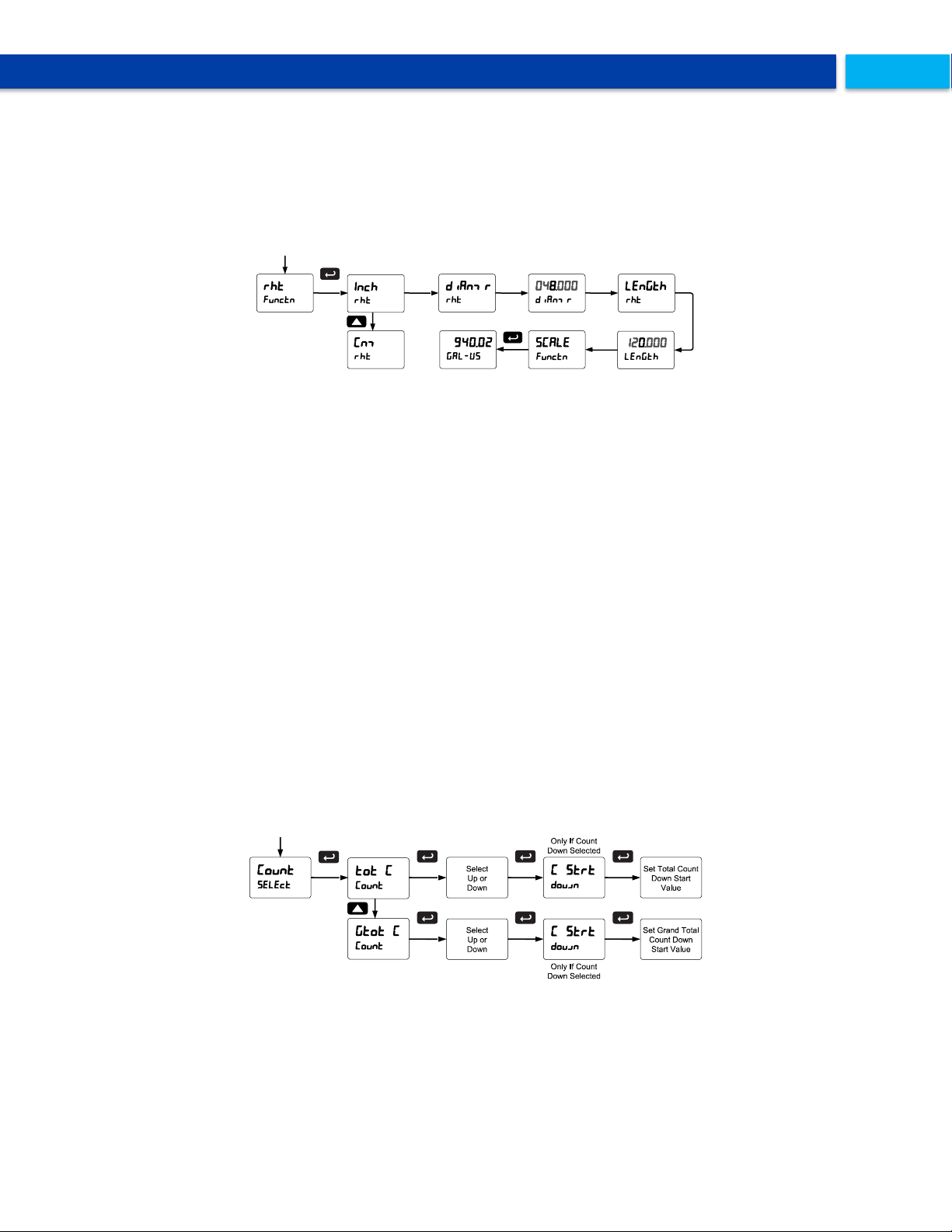

Round Horizontal Tank Linearization (rHt)

This function automatically calculates the volume in a round horizontal tank with flat ends. This function is only used when Total is set to no.

Set the display for the desired decimal point and engineering units before entering the round horizontal tank function. Select units, inches or cm for the tank dimension. Enter the diameter and the length in inches and the results are given in US gallons.

The meter can be scaled to display the volume in any engineering unit.

Note: After Scale is displayed continue pressing the Enter button until the meter completes the scaling of

the input and display values.

Changing the Volume from Gallons to Liters

In the above graphic, entering the 48" for the diameter and 120" for the length of the round horizontal tank, the meter automatically calculates that the volume of the tank is 940.02 gallons.

1. Convert gallons to liters 1 US gallon = 3.7854 L

940.02 gal = 3558.4 L

2. Go to the Setup menu and change the decimal point to 1 decimal.

3. Go to the Program – Scale menu and press Enter until dis 2 is shown on the main display.

4. Press Enter and change the display 2 value to 3558.4.

5. The meter is now displaying the volume in liters.

Note: The display can be scaled to display the volume in any engineering units.

Low-Flow Cutoff (CutofF)

The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a differential pressure transmitter, at low flow rates, always displays zero on the meter.

The cutoff value may be programmed from 0 to 999999. The meter will display zero below the cutoff value. Programming the cutoff value to zero disables the cutoff feature.

Totalizer Count Up/Down (Count)

The totalizer count up/down menu may be used to program the total and grand total to either count up from 0 when reset or count down from a programmed value when reset. Total and grand total may have their countdown numbers programmed individually from 0 to 999999.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 54

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

*If installed

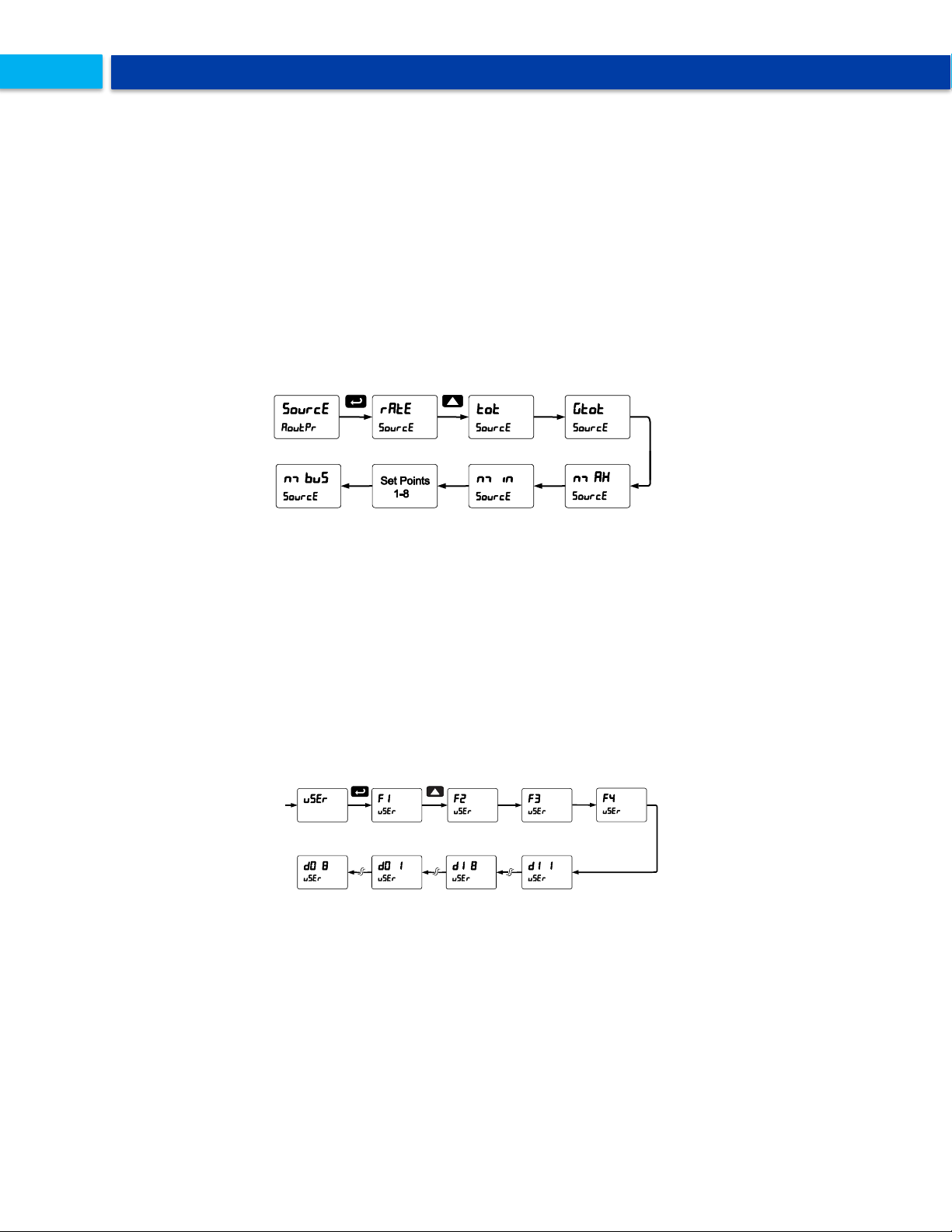

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior of the 4-20 mA output. The following parameters and functions are programmed in this menu:

1. Source: Source for generating the 4-20 mA output (e.g. PV)

2. Overrange: Analog output value with display in overrange condition

3. Underrange: Analog output value with display in underrange condition

4. Break: Analog output value when loop break is detected

5. Max: Maximum analog output value allowed regardless of input

6. Min: Minimum analog output value allowed regardless of input

7. Calibrate: Calibrate the internal 4-20 mA source reference used to scale the 4-20 mA output

Analog Output Source

The source for generating the 4-20 mA output may be assigned to the rate/process variable, total, grand total, maximum or minimum value reached by the rate/process, or one of the set points, or the Modbus PV input.

Analog Output Calibration

To perform the analog output calibration, it’s recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the Setup menu.

Programmable Function Keys User Menu (user)

The User menu allows the user to assign the front panel function keys F1, F2, and F3, the digital input F4 (a digital input located on the signal input connector), and up to eight additional digital inputs to access most of the menus or to activate certain functions immediately (e.g. reset max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized applications.

Up to eight digital outputs can be assigned to a number of actions and functions executed by the meter (i.e. alarms, relay acknowledgement, reset max, min, or max & min, tare, and reset tare). The digital outputs can be used to trigger external alarms or lights to indicate these specific events.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 55

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Display

Description

relay

Directly access the relay menu

Set 1*

Directly access the set point menu for relay 1 (*through 8)

Rly d

Disable all relays until a button assigned to enable relays (Rly E) is pressed

Rly E

Enable all relays to function as they have been programmed

O Hold

Hold current relay states and analog output as they are until a button assigned to enable relays (Rly E) is pressed

d Hold

Hold the current display value, relay states, and analog output momentarily while the function key or digital input is active. The process value will continue to be calculated in the background.

Ln1 Hi

Display maximum display value on line 1

Ln1 Lo

Display minimum display value on line 1

Ln1 HL

Display maximum & minimum display values on line 1

Ln2 Hi

Display maximum display value on line 2

Ln2 Lo

Display minimum display value on line 2

Ln2 HL

Display maximum & minimum display values on line 2

Ln2 gt

Display the grand total on line 2

Display

Description

F On 1*

Force relay 1 (*through 4) into the on state. This function is used in conjunction with a digital input to achieve interlock functionality. See page 44 for details about interlock relays.

Contrl

Directly access the control menu

disabl

Disable the selected function key or digital I/O

AcH

Acknowledge all active relays that are in a manual operation mode such as auto-manual or latching

Reset

Directly access the reset menu

Rst t

Reset the total

Rst gt

Reset the grand total

Rst Hi

Reset the stored maximum display value

Rst Lo

Reset the stored minimum display value

Rst HL

Reset the stored maximum & minimum display values

nmenu

Mimic the menu button functionality (digital inputs only)

rigHt

Mimic the right arrow/F1 button functionality (digital inputs only)

Mimic the up arrow/F2 button functionality (digital inputs only)

Enter

Mimic the enter/F3 button functionality (digital inputs only)

Alnm 1*

Provide indication when alarm 1 (*through 8) has been triggered (digital outputs only)

Function Keys & Digital I/O Available Settings

Refer to the following table for descriptions of each available function key or digital I/O setting.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 56

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

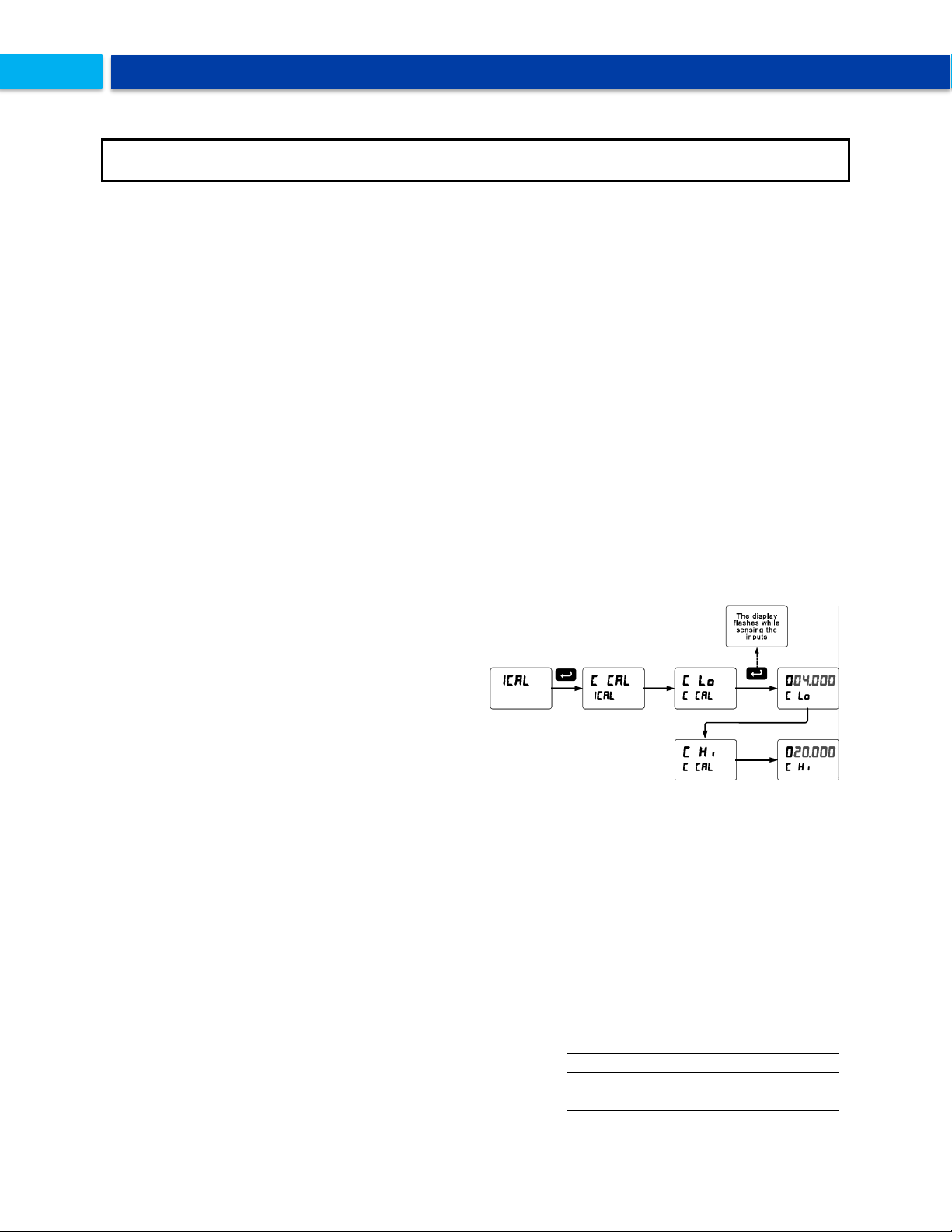

Notes:

1. If meter is in operation and it is intended to accept only one input type (e.g. 4-20 mA), recalibration of other input is not necessary.

2. Allow the meter to warm up for at least 15 minutes before performing the internal source calibration procedure.

Input range

Input 1 & input 2 span

4-20 mA

0.15 mA

10 VDC

0.01 VDC

Internal Source Calibration (ICAL)

The meter is factory calibrated prior to shipment to read in milliamps and volts, depending on the input selection. The calibration equipment is traceable to NIST standards.

The use of calibrated signal sources is necessary to calibrate the internal source of the meter. The meter’s internal source is what allows the user to scale the meter without applying a signal.

Check calibration of the meter at least every 12 months. Each input must be recalibrated separately.

The Internal calibration menu is part of the Advanced Features menu.

1. Press and hold the Menu button for three seconds to access the advanced features of the meter.

2. Press the Up arrow button to scroll to the Internal calibration menu (ICAL) and press Enter.

3. The meter displays either current calibration (C CAL) or voltage calibration (v CAL), according to the

input setup. Press Enter to start the calibration process.

Example of Internal Calibration for current input:

4. The meter displays low input current message (C lo). Apply the low input signal and press Enter. The

display flashes for a moment while the meter is accepting the low input signal.

5. After the display stops flashing, a number is displayed with the leftmost digit brighter than the rest.

The bright digit is the active digit that can be changed by pressing the Up arrow button. Press the Right arrow button to move to the next digit.

6. Set the display value to correspond to the input signal being calibrated, typically 4.000 mA.

7. The display moves to the high input calibration (C Hi). Apply the high input signal and press Enter.

8. Set the display for the high input calibration, in the same way as it was set for the low input calibration, typically 20.000 mA.

The graphic shows the calibration of the current input. The voltage input is calibrated in a similar way.

Tips:

• Low and high input signals can be any valid

values within the range of the meter.

• Observe minimum input span requirements

between input 1 and input 2.

• Low input should be less than high input signal.

Error Message (Error)

An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the meter reverts to the input prior to the failure during calibration or

scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.

The error message might be caused by any of the following conditions:

1. Input signal is not connected to the proper terminals or it is connected backwards.

2. Wrong signal selection in Setup menu.

3. Minimum input span requirements not maintained.

Input 1 signal inadvertently applied to calibrate input 2.

Minimum Input Span

The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 57

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Button Symbol

Description

Press to enter or exit Programming Mode, view settings, or exit max/min readings

Press to reset max/min readings or other parameter/function assigned through the User menu

Press to display max/min readings or other parameter/function assigned through the User menu

Press to acknowledge relays or other parameters/function assigned through the User menu

WARNING

Meter Operation

The meter is capable of accepting current (0-20 mA, 4-20 mA) and voltage signals (0-5 V, 1-5 V, 0-10 V,  10 V) and displaying these signals in engineering units from -99999 to 999999 (e.g. a 4-20 mA signal could be displayed as -50.000 to 50.000).

The dual-line display can be customized by the user to operate in such a way as to satisfy a specific application. Typically, the main display is used for the process variable; while the second display is used for engineering units, custom legend, total, grand total, or set point indication.

The meter can be set up to display the analog input on the main display and the Modbus input on the second display. The relays and analog output can be programmed to operate from the Modbus PV input.

Front Buttons Operation

SafeTouch® Buttons

These buttons can be disabled for security by selecting DISABLE on the switch labeled NO-CONTACT BUTTONS located on the connector board.

SafeTouch Button Tips:

• To the extent possible, install the display facing away from sunlight, windows, reflective objects and any sources of infrared interference.

• Keep the glass window clean.

• Tighten the cover securely.

• Use a password to prevent tampering.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 58

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

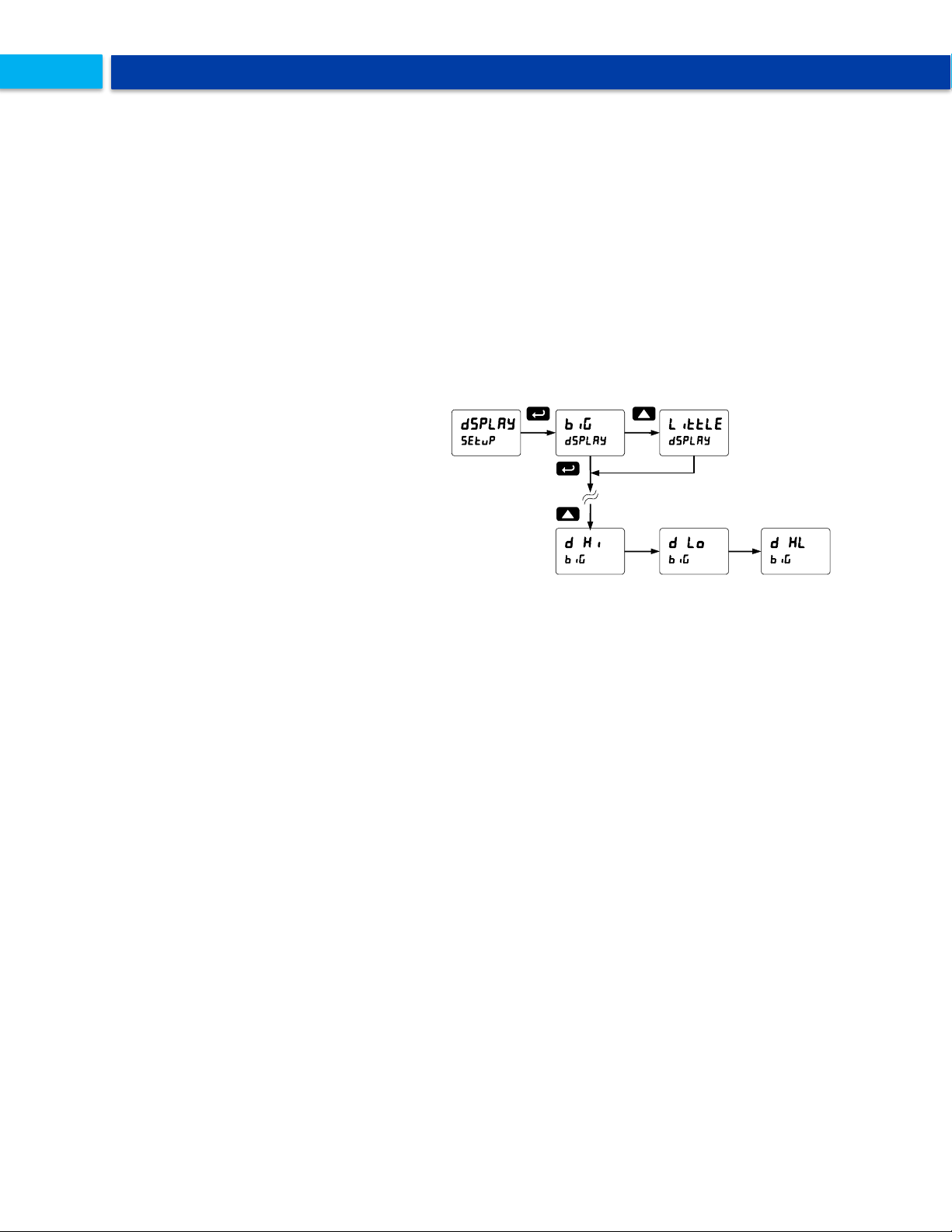

F4 Operation

A digital input, F4, is standard on the meter. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure to COM, or with an active low signal. During operation, F4 operates according to the way it has been programmed in the Advanced Features – User menu.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary:

1. Display briefly by assigning to the F1-F3 function keys or to the digital inputs in the User menu.

2. Display continuously by assigning either display to max/min through the Display menu.

Any of the F1-F3 function keys (buttons) and the digital inputs can be programmed to reset the max & min readings. The meters are set at the factory to display the max reading by pressing the Up arrow/F2 button and to use the Right arrow/F1 button to access the Reset menu.

To display max reading using function key with factory defaults:

1. Press Up arrow/F2 button to display maximum reading since the last reset/power-up.

2. To reset max/min press Right arrow/F1 button to access the Reset menu. The max & min displays are reset to actual values.

3. Press Menu to exit max/min display reading.

To display max/min readings continuously:

Assign either display to Max (d Hi), Min (d Lo), or toggle between Max and Min (d HL) every 10 seconds.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 59

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Troubleshooting

Due to the many features and functions of the meter, it’s possible that the setup of the meter does not agree with what an operator expects to see.

If the meter is not working as expected, refer to the Diagnostics menu and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu, to access Diagnostics menu see Advanced Features Menu, page 48.

It provides an easy way to view the programmed parameter settings for troubleshooting purposes. Press the Enter button to view the settings and the Menu button to exit at any time.

For a description of the diagnostic messages, see Advanced Features Menu & Display Messages, page

48.

Determining Software Version

To determine the software version of a meter:

1. Go to the Diagnostics menu (diAG) and press Enter button.

2. Press Up arrow button and scroll to Information menu (Info).

3. Press Enter to access the software number (SFT) and version (UER) information. Write down the

information as it is displayed. Continue pressing Enter until all the information is displayed.

4. The meter returns to Run Mode after displaying all the settings.

Reset Meter to Factory Defaults

When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Features Menu, page 48.

2. Press Up arrow to go to Diagnostics menu

3. Press and hold Right arrow for three seconds, press Enter when display flashes reset. Note: If Enter is not pressed within three seconds, the display returns to the Diagnostics menu.

4. The meter goes through an initialization sequence (similar as on power-up), and loads the factory default settings.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 60

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Parameter

Display

Default Setting

Input type

Input

4-20 mA

Total

total

Yes

Units

units

Rate / total / gr. total mA / mA / mA

Filter

filter

Bypass

bypass

0.2

Function

Functn

Linear

Number of points

No Pts

Programming

prog

Scale

Input 1

InP 1

4.000 mA

Display 1

Dis 1

4.000

Input 2

InP 2

20.000 mA

Display 2

Dis 2

20.000

Decimal point

ddd.ddd

3 places

Cutoff value

CutofF

0.000 (disabled)

Display line 1

Line 1

Rate/Process

Display line 2

Line 2

Total value

Display intensity

d-Inty

Total time base

T tb

Second

Total conversion factor

T CF

1.000 Total reset

T rst

Manual

Grand total time base

GT tb

Second

Grand total conversion factor

gT CF

1.000 Grand total reset

gT rst

Manual

Total count up/down

Tot C

Up Grand tot count

Gtot C

Relay 1 assignment

Asign1

Total

Relay 2 assignment

Asign2

Total

Relay 3 assignment

Asign3

Rate

Parameter

Display

Default Setting

Relay 4 assignment

Asign4

Rate Relay 1 action

Act 1

Automatic

Relay 1 set point

Set 1

1.000

Relay 1 reset point

RSt 1

0.000 Relay 2 action

Act 2

Automatic

Relay 2 set point

Set 2

2.000

Relay 2 reset point

RSt 2

0.000 Relay 3 action

Act 3

Automatic

Relay 3 set point

Set 3

3.000

Relay 3 reset point

RSt 3

2.500 Relay 4 action

Act 4

Automatic

Relay 4 set point

Set 4

4.000

Relay 4 reset point

RSt 4

3.500 Fail-safe relay 1

Fls 1

Off

Fail-safe relay 2

Fls 2

Off

Fail-safe relay 3

Fls 3

Off

Fail-safe relay 4

Fls 4

Off

Display 1 analog out

Dis 1

4.000 Output 1 value

Out 1

4.000 mA

Display 2 analog out

Dis 2

20.000 Output 2 value

Out 2

20.000 mA

Source analog output

Source

Rate/process Overrange output

O-rang

21.000 mA

Underrange output

u-rang

3.000 mA

Loop break output

break

1.000 mA Maximum output

mAx

23.000 mA

Minimum output

min

1.000 mA

F1 function key

Reset max & min

Factory Defaults & User Settings

The following table shows the factory setting for most parameters.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 61

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Parameter

Display

Default Setting

Password 1

Pass 1

000000 (unlocked)

Password 2

Pass 2

000000 (unlocked)

Password 3

Pass 3

000000 (unlocked)

Parameter

Display

Default Setting

Total password

Total

000000 (unlocked)

Grand total password

Gtotal

000000 (unlocked)

Symptom

Check/Action

SafeTouch buttons do not respond

If mechanical button was pushed. The SafeTouch buttons will be re-enabled automatically 60 seconds after the last button push.

If slide switch on connector board is in DISABLE position, switch to ENABLE. Strong direct sunlight may interfere with SafeTouch button operation. It is

recommended to operate the buttons by standing so as to block direct sunlight.

Serial Communications Power LED Indicator is off

1. Check modular cable connection

Check power to the device

If only the TX (or DATA IN) data status LED is flashing when serial communications attempted

1. Check serial cable

2. Check protocol selected on device

3. Check instrument address & baud rate

Check program address & baud rate

If both data status LEDs (TX and RX) are off when trying to communicate

Remove all unnecessary cables and instruments from the bus. Try getting the system to work with only one device (to ease troubleshooting) and then expand the system one device at a time.

Communications slow

Increase the baud rate

Random communication errors

1. Increase the TX delay time Decrease the baud rate

Power LED is off

1. Check modular cable connection Check power to instrument

No display at all

Check power at power connector

Not able to change setup or programming, Locd is displayed

Meter is password-protected, enter correct six-digit password to unlock

Meter displays error message during calibration (Error)

Check:

1. Signal connections

2. Input selected in Setup menu

3. Minimum input span requirements

Meter displays

999999

-99999

Check:

1. Input selected in Setup menu

2. Corresponding signal at Signal connector

Display is unstable

Check:

1. Input signal stability and value

2. Display scaling vs. input signal

3. Filter and bypass values (increase)

Display response is too slow

Check filter and bypass values

Display reading is not accurate

Check:

1. Signal input conditioner selected: Linear, square root, etc.

2. Scaling or calibration

Display does not respond to input changes, reading a fixed number

Check:

Display assignment, it might be displaying max, min, or set point.

Display alternates between

1. Hi and a number

2. Lo and a number

Press Menu to exit max/min display readings.

Troubleshooting Tips

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 62

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Symptom

Check/Action

Relay operation is reversed

Check:

1. Fail-safe in Setup menu

2. Wiring of relay contacts

Relay and status LED do not respond to signal

Check:

1. Relay action in Setup menu

2. Set and reset points

Flashing relay status LEDs

Relays in manual control mode or relay interlock switches opened.

Meter not communicating with application programs

Check:

1. Serial adapter and cable

2. Serial settings

3. Meter address and baud rate

If the display locks up or the meter does not respond at all

Cycle the power to reboot the microprocessor.

Other symptoms not described above

Call Technical Support for assistance.

WARNINGS

• Installation and service should be performed only by trained service personnel. Service requiring replacement of internal sub-components must be performed at the factory.

• Disconnect from supply before opening enclosure. Keep cover tight while circuits are alive. Conduit seals must be installed within 18" (450mm) of the enclosure.

• Verify that the operating atmosphere of the instrument is consistent with the appropriate hazardous locations certifications.

• If the instrument is installed in a high voltage environment and a fault or installation error occurs, high voltage may be present on any lead

• Read all product labels completely and follow all instructions and requirements listed on the labels for installation or service.

Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and map changes ahead of time, rather than at random.

Service

If the enclosure is sound and undamaged, then only the internal electronics housing will need to be returned to the factory for service. Contact the factory for RMA number and return instructions.

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 63

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

Figure 22: Enclosure Dimensions – Front

View

Figure 23: Enclosure Dimensions – Side

Cross Section View

Mounting Dimensions

All units: inches (mm)

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 64

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

This Page Intentionally Left Blank

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 65

EU Declaration of Conformity

Issued in accordance with ISO/IEC 17050-1:2004 and ATEX Directive 2014/34/EU.

We,

Precision Digital Corporation 233 South Street Hopkinton, MA 01748 USA

as the manufacturer, declare under our sole responsibility that the product(s),

Model PD8 ProtEX-MAX Series

to which this declaration relates, is in conformity with the European Union Directives shown below:

2014/35/EU Low Voltage Directive 2014/34/EU ATEX Directive 2014/30/EU EMC Directive 2011/65/EU RoHS Directive

This conformity is based on compliance with the application of harmonized or applicable technical standards and, when applicable or required, a European Union notified body certification.

Standards:

EN 55022:2007 EN 61000-6-2:2005 EN 60079-0:2009 EN 61000-6-4:2007 EN 60079-1:2007 EN 61010-1:2001 EN 60079-31:2008 EN 61326:2006

The standards EN 55022:2007, EN 60079-0:2009, EN 60079-1:2007, EN 60079-31:2008, EN 61000-64:2007, EN 61010-1:2001, and EN 61326:2006 are no longer harmonized. The requirements of these standards have been checked against the harmonized standard EN 55022:2010, EN 600790:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014, EN 61000-6-4:2007+A1:2011, EN 610101:2010, and EN 61326:2013 and there were no major technical changes affecting the latest technical knowledge for the products listed above.

EC Type Examination Certificate: Sira 12ATEX1182

Product Markings: II 2 G D

Ex d IIC T* Gb Ex tb IIIC T90°C Db IP68 Tamb = -40°C to +*°C (*T5 = 65°C, *T6 = 60°C)

ATEX Notified Body for EC Type Examination Certificate: Sira Certification Service, NB 0518 Unit 6, Hawarden Industrial Park Hawarden, Deeside, CH5 3US, UK

ATEX Quality Assurance Notification No.: SIRA 10 ATEX M462

ATEX Notified Body for Quality Assurance: Sira Certification Service, NB 0518

Unit 6, Hawarden Industrial Park Hawarden, Deeside, CH5 3US, UK

Signed for and on behalf of Precision Digital Corporation:

Name: Jeffrey Peters Company: Precision Digital Corporation Title: President Date: 02/12/2018 Document No: DoC PD8 {021218}

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com

Page 66

ProtEX-MAX PD8-6200 Explosion-Proof Analog Input Rate/Totalizer Instruction Manual

PRECISION DIGITAL CORPORATION

LIM8-6200_D

SFT039 Ver 4.010 & up

12/18

Find Quality Products Online at: [email protected]

www.GlobalTestSupply.com
