PD663 Loop-Powered Meter Instruction Manual
Disclaimer
The information contained in this document is subject to change without notice. Precision Digital makes no representations or warranties with respect to the contents hereof; and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
!
CAUTION: Read complete
instructions prior to installation and operation of the meter.
WARNING: Risk of electric shock or personal injury.
WARNINGS
• This product is not recommended for life support applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.
• Failure to follow installation guidelines could result in death or serious injury. Make sure only qualified personnel perform the installation.
• Never remove the meter cover in explosive environments when the circuit is live.
• Cover must be fully engaged to meet flameproof/explosion-proof requirements.
2
PD663 Loop-Powered Meter Instruction Manual Limited Warranty
Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.
Registered Trademarks
All trademarks mentioned in this document are the property of their respective owners.
© 2013-2014 Precision Digital Corporation. All rights reserved.
www.predig.com
3
PD663 Loop-Powered Meter Instruction Manual
INTRODUCTION
The ProtEX-Lite PD663 is a rugged, NEMA 4X loop-powered meter in an explosion-proof enclosure ideal for applications where a simple, inexpensive display is required in a hazardous area. The PD663 is scaled using four push buttons and can be done without applying an actual calibration signal. Programming may also be done through the explosion-proof enclosure with optional magnetic reed switches and a magnet key. The PD663’s display will read up to 2999; we call this 3½+ digits! The loop-powered backlighting option lets you see the display under any lighting condition and is powered completely from the 4-20 mA loop. This means there is no need for additional wiring and never any batteries to change. Multi-point linearization with up to 32 points and the square root function allow for conditioning of signals from non-linear transmitters without adding external components to the system.
The PD663 is housed in a rugged, explosion-proof, cast aluminum, NEMA 4X enclosure and is provided with two threaded conduit holes and integrated pipe or wall mounting holes.
ORDERING INFORMATION
Model Options Installed
PD663-0L0-00 None
PD663-0K0-00 Loop-Powered Backlight
PD663-0LA-00 Reed Switch
PD663-0KA-00 Loop-Powered Backlight and Reed Switch
Accessories
Model Description
PDA-MAG Magnet Assembly for Reed Switches
PDA0003 ½" M-NPT to ¾" F-NPT Adapter
PDA6863 2" Pipe Mounting Kit
4
PD663 Loop-Powered Meter Instruction Manual
Table of Contents
INTRODUCTION----------------------------------------------------------------------- 4 ORDERING INFORMATION ------------------------------------------------------- 4 SPECIFICATIONS -------------------------------------------------------------------- 7
General ------------------------------------------------------------------------------------------- 7 Input ----------------------------------------------------------------------------------------------- 8 Product Ratings and Approvals---------------------------------------------------------- 9 Electromagnetic Compatibility --------------------------------------------------------- 10
SAFETY INFORMATION ---------------------------------------------------------- 11 INSTALLATION---------------------------------------------------------------------- 12
Unpacking ------------------------------------------------------------------------------------- 12 Pre-Installed Conduit Plug --------------------------------------------------------------- 12 Mounting --------------------------------------------------------------------------------------- 13 Cover Jam Screw---------------------------------------------------------------------------- 13 Connections ---------------------------------------------------------------------------------- 13
4-20 mA Input Connections & Wiring Diagrams ........................................ 15
SETUP AND PROGRAMMING -------------------------------------------------- 16
Buttons and Display ----------------------------------------------------------------------- 17 Setting Numeric Values ------------------------------------------------------------------- 18
Programming the Meter ............................................................................. 18
Main Menu ------------------------------------------------------------------------------------- 19
Main Menu Display Functions & Messages .............................................. 20
Setting the Decimal Point (dP) ................................................................... 20
Scaling the Meter (SCL) ............................................................................. 21
Calibrating the Meter (Cal) ........................................................................ 22
Re-calibrating the Internal Calibration Reference (ICal) .......................... 22
Advanced Features Menu ---------------------------------------------------------------- 23
Advanced Features Menu & Display Messages ........................................ 24
Signal Input Conditioning Function (Fnc) .................................................. 25
Information Menu (info) ............................................................................. 25
Input Signal Filter (FIL) ............................................................................. 25
Internal Calibration (ICal) ......................................................................... 26
OPERATION -------------------------------------------------------------------------- 27
Front Panel Buttons Operation --------------------------------------------------------- 27 Maximum & Minimum Readings (HI & LO) ----------------------------------------- 28 Reset Meter to Factory Defaults ------------------------------------------------------- 29 Factory Defaults & User Settings ------------------------------------------------------ 30
TROUBLESHOOTING ------------------------------------------------------------- 31
Troubleshooting Tips ---------------------------------------------------------------------- 31
MOUNTING DIMENSIONS ------------------------------------------------------- 32 QUICK USER INTERFACE REFERENCE ----------------------------------- 34 EC DECLARATION OF CONFORMITY --------------------------------------- 35
5
PD663 Loop-Powered Meter Instruction Manual
Table of Figures
Figure 1. PD663 Meter Assembly, Rear View ................................... 14
Figure 2. PD663 Input Connections without Backlight ................... 15
Figure 3. PD663 Input Connections with Backlight ......................... 15
Figure 4. Enclosure Dimensions – Front View ................................. 32

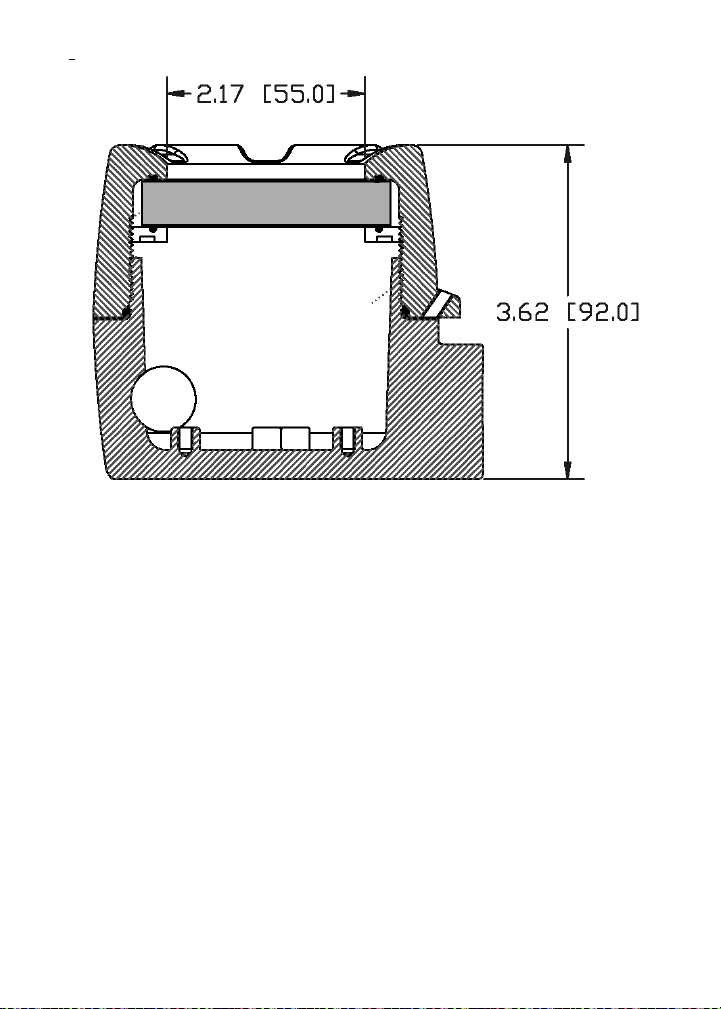

Figure 5. Enclosure Dimensions – Side Cross Section View ......... 33
6
PD663 Loop-Powered Meter Instruction Manual
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY 0.6" (15.24 mm) LCD, 3½+ digits; -1999 to 2999 DISPLAY
UPDATE RATE OVERRANGE UNDERRANGE PROGRAMMING
METHOD NOISE FILTER Programmable HI, LO, or OFF RECALIBRATION Recalibration is recommended at least every 12 months. MAX/MIN
DISPLAY NON-VOLATILE
MEMORY NORMAL MODE
REJECTION ENVIRONMENTAL Operating temperature range: -40 to 75°C
CONNECTIONS Removable screw terminals accept 12 to 22 AWG wire ENCLOSURE Explosion-proof die cast aluminum with glass window,
MOUNTING May be mounted directly to conduit. Two mounting holes
TIGHTENING TORQUE
OVERALL DIMENSIONS
WEIGHT 2.45 lbs (40 oz, 1.13 kg) WARRANTY 3 years parts and labor
2 Updates/Second
Display flashes
Display flashes
Four internal pushbuttons, optional magnetic reed switches.
Max/Min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
64 dB at 50/60 Hz
Storage temperature range: -40 to 75°C Relative humidity: 0 to 90% non-condensing
0.30% max copper content, corrosion resistant epoxy coating, color: blue. NEMA 4X, 7, & 9, IP68.
Two ½” NPT threaded conduit openings. One ½” NPT nickel plated brass conduit plug with 10 mm hex key fitting installed.
for 1.5” pipe or wall mounting. See Mounting Dimensions
on page 32.
Screw terminal electrical connectors: 4.5 lb-in (0.5 Nm)
4.84" x 4.29" x 3.62" (123 mm x 109 mm x 92 mm) (W x H x D)
2999
-1999
7
PD663 Loop-Powered Meter Instruction Manual
Input
ACCURACY FUNCTION TEMPERATURE
DRIFT DECIMAL POINT
MINIMUM SPAN CALIBRATION
RANGE
±1 count
Linear (2 to 32 points) or square root
50 PPM/C from -40 to 75C ambient
User selectable decimal point
Input 1 & Input 2: 0.40 mA
An Error message will appear if input 1 and input 2 signals
are too close together.
Input Range
4-20 mA 0.40 mA
Minimum Span Input 1 & Input 2
MAXIMUM VOLTAGE DROP
EQUIVALENT RESISTANCE
LOOP-POWERED BACKLIGHT OPTION
INPUT OVERLOAD
Without Backlight With Backlight
1.7 VDC @ 20 mA 4.7 VDC @ 20 mA
85 Ω @ 20 mA 185 Ω @ 20 mA
Factory installed only. Powered directly from the 4-20 mA loop, no batteries required. Backlight can be enabled or disabled via alternative wiring of terminal block. The display brightness will increase as the input signal current increases.
Over current protection to 2 A max.
8
PD663 Loop-Powered Meter Instruction Manual
Product Ratings and Approvals
FM Class I, Division 1, Groups B, C, D
ATEX
CSA
IECEx
Special Conditions for Safe Use:
Use suitably certified and dimensioned cable entry device and/or plug. The equipment shall be installed such that the supply cable is protected from mechanical damage. The cable shall not be subjected to tension or torque. If the cable is to be terminated within an explosive atmosphere, then appropriate protection of the free end of the cable shall be provided.
Year of Construction
This information is contained within the serial number with the first four digits representing the year and month in the YYMM format.
For European Community: The PD663 must be installed in accordance with the ATEX directive 94/9/EC and the product certificate Sira 10ATEX1116X.
Class II, Division 1, Groups E, F, G Class III, Division 1; T6 Class I, Zone 1, AEx d IIC T6 Gb Zone 21, AEx tb IIIC T85°C Ta = -40°C to +75°C Enclosure: Type 4X & IP66 Certificate number: 3040391
II 2 G D
Ex d IIC T6 Gb Ex tb IIIC T85°C Db IP68 Ta = -40°C to +75°C ATEX Certificate: Sira 10ATEX1116X
Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1; T6 Class I, Zone 1, Ex d IIC T6 Ta = -40°C to +75°C Enclosure: Type 4X & IP66 Certificate number: 11 2325749
IECEx SIR 10.0056X Ex d IIC T6 Gb Ex tb IIIC T85°C Db IP68 Ta = -40°C to +75°C
9
PD663 Loop-Powered Meter Instruction Manual
Electromagnetic Compatibility
EMISSIONS
EN 61326:2006 Safety requirements for measurement, control, and laboratory use – Industrial Group 1 Class A ISM emissions requirements
Radiated Emissions
IMMUNITY
ESD
RFI – Amplitude Modulated
EFT
Telco Surge
CRFI
Class A
EN 61326:2006 Safety requirements for measurement, control, and laboratory use
±4 kV contact, ±8 kV air
80-1000 MHz @ 10 V/m,
1.4-2.0 GHz @ 3 V/m,
2.0-2.7 GHz @ 1 V/m, 80% AM (1 kHz)
±2 kV DC mains, ±1 kV other
±1 kV
3 V, 0.15-80 MHz, 1 kHz 80% AM
10
PD663 Loop-Powered Meter Instruction Manual
SAFETY INFORMATION
!
Read complete instructions prior to installation and operation of the meter.
WARNINGS
Installation and service should be performed only by trained service
personnel. Service requiring replacement of internal components must be performed at the factory.
Disconnect from supply before opening enclosure. Keep cover tight while
circuits are alive. Conduit seals must be installed within 18" (450mm) of the enclosure.
Verify that the operating atmosphere of the meter is consistent with the
appropriate hazardous locations certifications.
If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead
11
PD663 Loop-Powered Meter Instruction Manual
INSTALLATION
For Installation in USA: The PD663 must be installed in accordance with the National Electrical Code (NEC) NFPA 70.
For Installation in Canada: Install in accordance with applicable local and national regulations (e.g. NEC). The PD663 must be installed in accordance with the Canadian Electrical Code CSA 22.1. All input circuits must be derived from a CSA approved Class 2 source.
For European Community: The PD663 must be installed in accordance with the ATEX directive 94/9/EC and the product certificate Sira 10ATEX1116X.
All pushbuttons and wiring connectors are accessed by opening the enclosure. To access electrical connectors, remove the 2 captive screws and remove the meter assembly. Pushbuttons may also be accessed using the magnet assembly if reed switches are installed.
WARNING: Disconnect from supply before opening enclosure. Keep cover tight while circuits are alive. Conduit seals must be installed within 18" (450 mm) of the enclosure.
Unpacking
Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.
Pre-Installed Conduit Plug
The PD663 is supplied with one pre-installed optional conduit plug for installations that do not require the use of both conduit entries. The conduit plug includes an internal hexagonal socket recess for removal. The pre-installed plug and installation are included in all hazardous area approvals of the PD663.
WARNING: Installations of the supplied conduit plug require the application of non-setting (solvent free) thread sealant. If the pre-installed conduit plug is removed or replaced all relevant hazardous area guidelines must be followed for its installation or replacement conduit.
12
PD663 Loop-Powered Meter Instruction Manual
Mounting
The PD663 has two mounting holes that may be used for a 1.5” pipe mounting or wall mounting. Alternatively, the unit may be supported by the conduit using the conduit holes provided.
It can also be pipe mounted by using the PDA6863 pipe mount kit for 2" pipe.
Refer to Mounting Dimensions, page 32 for details on wall or panel space
requirements
WARNING: Do not attempt to loosen or remove flange bolts while the meter is in service.
Cover Jam Screw
The cover jam screw should be properly installed once the meter has been wired and tested in a safe environment. The cover jam screw is intended to prevent the removal of the meter cover in a flameproof environment without the use of tools. Using a M2 hex wrench, turn the screw clockwise until the screw contacts the meter. Turn the screw an additional 1/4 to 1/2 turn to secure the cover. Caution: Excess torque may damage the threads and/or wrench.
Connections
WARNINGS
To access the connectors, remove the enclosure cover and unscrew the two captive stainless steel screws. Remove the meter assembly from the enclosure. Signal connections are made to a three-terminal removable connector on the back of the meter assembly. Grounding connections are made to the two ground screws provided on the base – one internal and one external.
Static electricity can damage sensitive components.
Observe safe handling precautions for static-sensitive components.
Use proper grounding procedures/codes.
If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead or terminal.
13
PD663 Loop-Powered Meter Instruction Manual
Connections (continued)
S+ 4-20 mA signal input positive terminal connection
S- 4-20 mA signal return/negative terminal connection
X Not connected (no backlight option)
B- 4-20 mA signal return/negative terminal when using the installed loop
powered backlight option
See Figure 1 for terminal positions on the rear of the meter assembly.
WARNING
Observe all safety regulations. Electrical wiring should be performed in accordance with all agency requirements and applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

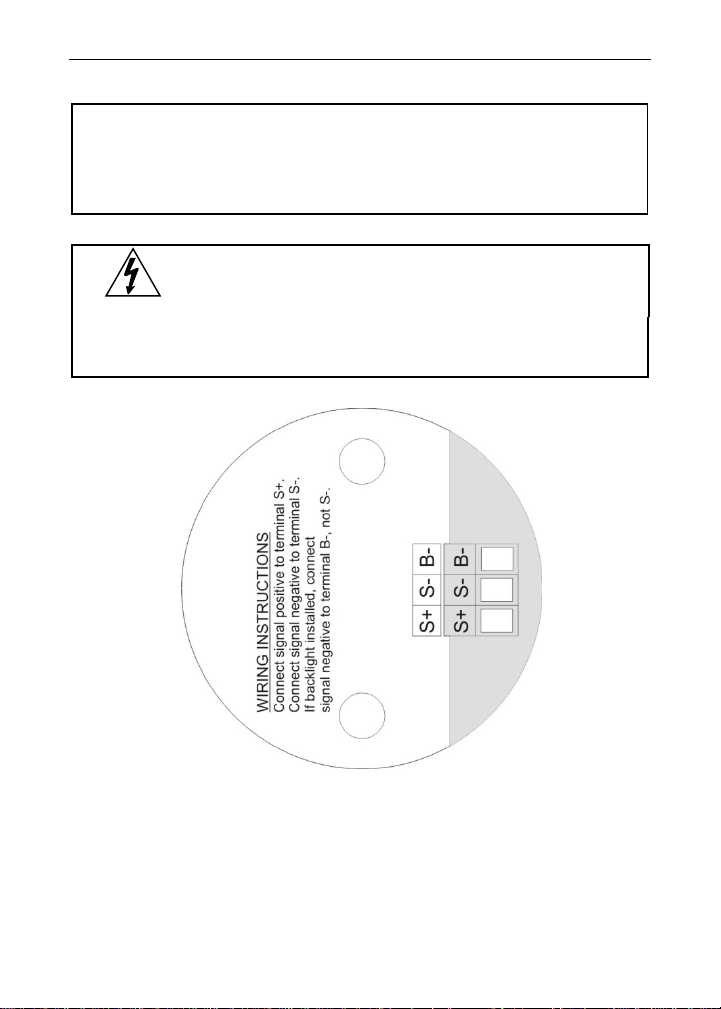

Figure 1. PD663 Meter Assembly, Rear View
14
PD663 Loop-Powered Meter Instruction Manual
4-20 mA Input Connections & Wiring Diagrams
Signal input connections are made to a three-terminal connector labeled S+|S-|X for models without a backlight and S+|S-|B- for models with a backlight. The enclosure also provides one internal and one external earth grounding screw. The 4-20 mA input with no backlight has a maximum voltage drop of 1.7 V and is wired as shown in Figure 2. The loop-powered backlight configuration requires a total maximum voltage drop of 4.7 V. The backlight is recommended for dim lighting conditions and is enabled when wired as shown in Figure 3. The enclosure also provides one internal and one external earth grounding screw.
S+ S- X
4-20 mA
Power
Supply
Transmitter

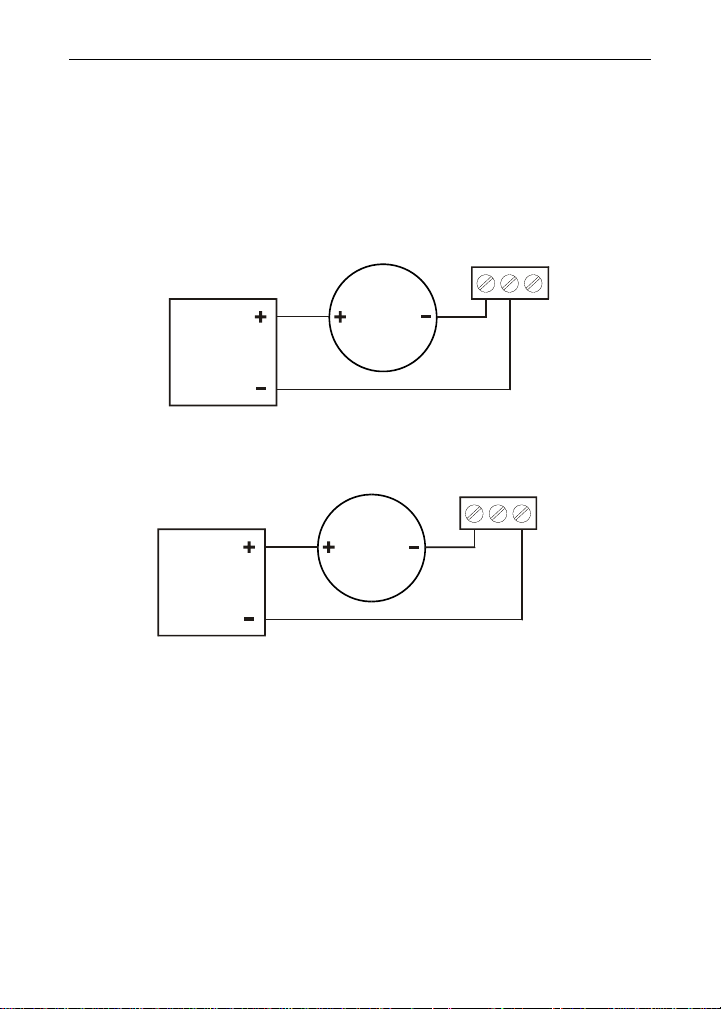

Figure 2. PD663 Input Connections without Backlight
S+ S- B-
4-20 mA
Power
Supply
Transmitter
Figure 3. PD663 Input Connections with Backlight
15
PD663 Loop-Powered Meter Instruction Manual
SETUP AND PROGRAMMING
There is no need to recalibrate the meter for milliamps when first received from the factory.
The meter is factory calibrated for milliamps prior to shipment. The calibration equipment is certified to NIST standards.
Overview
There are no jumpers involved in the setup process of the meter. Setup and programming is done through the front panel buttons.
After all connections have been completed and verified, apply power to the loop.

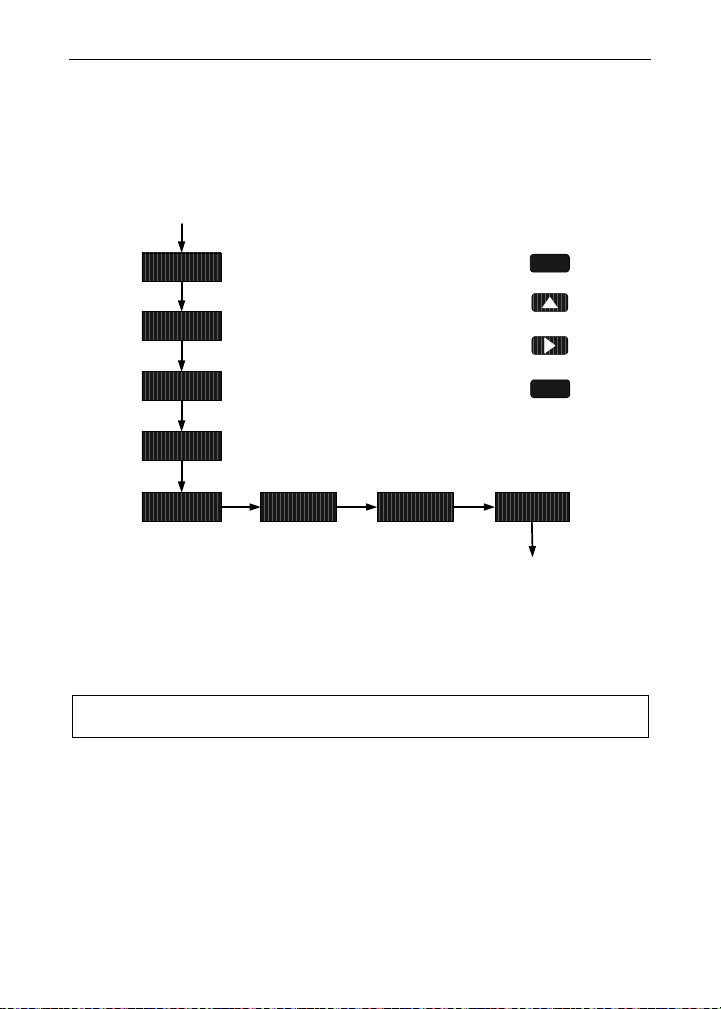

Quick User Interface Reference
For
go to page 34
16
PD663 Loop-Powered Meter Instruction Manual

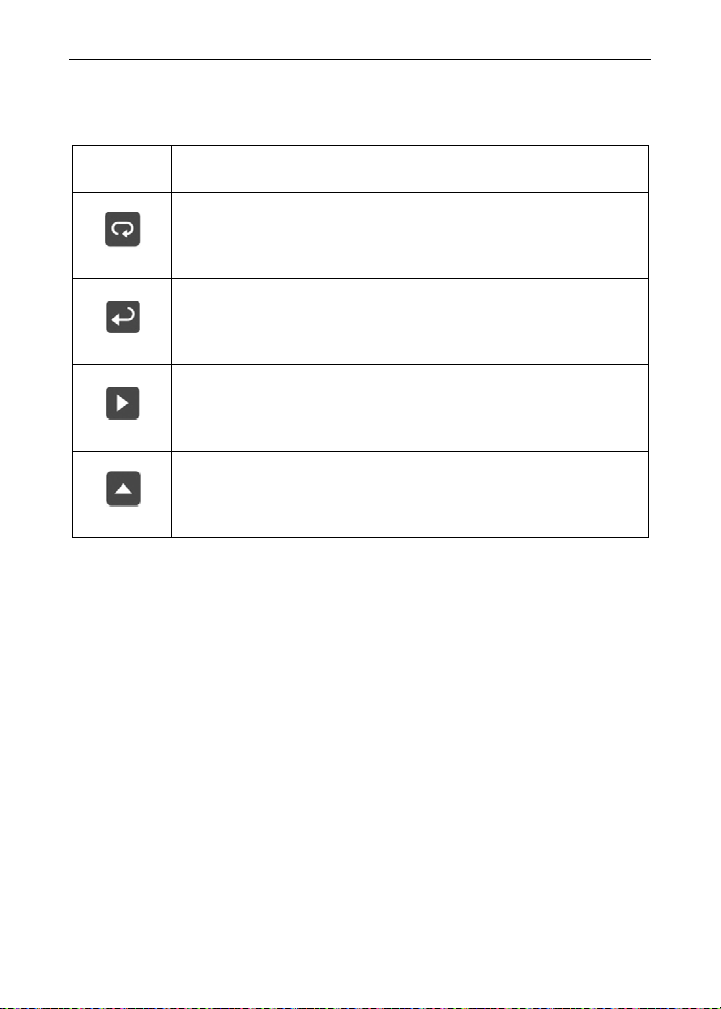

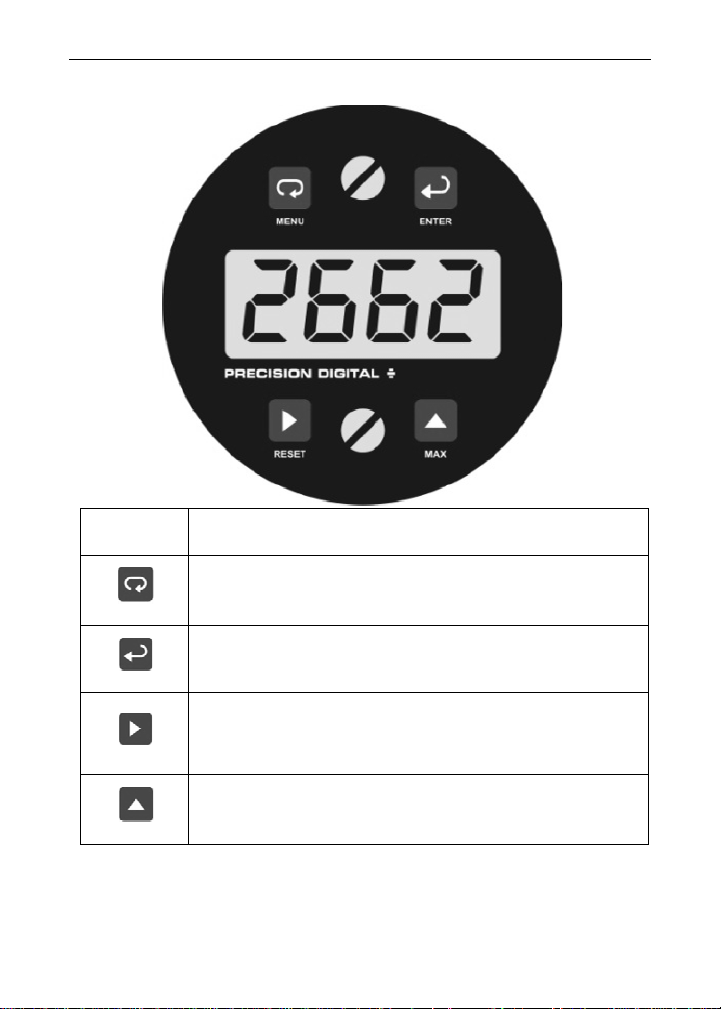

Buttons and Display
Button/ Symbol
MENU
Description
Menu button to enter programming mode. Press and hold for
5 seconds to access the Advanced features of the meter.
ENTER
RESET
MAX
Enter button to access a menu or accept a setting.
Right arrow to scroll through the menus or move to the next digit or decimal position during programming.
Resets the Max or Min display value when pressed while showing Max or Min value.
Up arrow to scroll through the menus, decimal point, or to increment the value of a digit. Displays the Max then Min display values when pressed during normal run mode.
17
PD663 Loop-Powered Meter Instruction Manual
Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons. Press the Right arrow to select next digit and the Up arrow to increment digit. The two left-
most digits on the display are set as a single digit, able to display -19 to 29. The digit being changed blinks. Press the Enter button, at any time, to accept a setting or Menu button to exit
without saving changes.
The decimal point is set using the Right or Up arrow button in the Setup-decimal point menu.
Programming the Meter
It is very important to read the following information, before proceeding to program the meter:
There is no need to recalibrate the meter for milliamps when first received from the factory.
The meter is factory calibrated for milliamps prior to shipment. The calibration equipment is certified to NIST standards.
Use the Scale (SCL) menu to enter scale parameters without applying a live
signal.
Alternatively, use the Calibrate (CAL) menu to apply a signal from a calibrator or a
4-20 mA transmitter to calibrate the meter. Inputs may be calibrated or scaled to any display within the range of the meter. Additional parameters, not needed for most applications, are viewed and
programmed with the Advanced features menu, see Advanced Features Menu,
page 24.
18
PD663 Loop-Powered Meter Instruction Manual
Main Menu

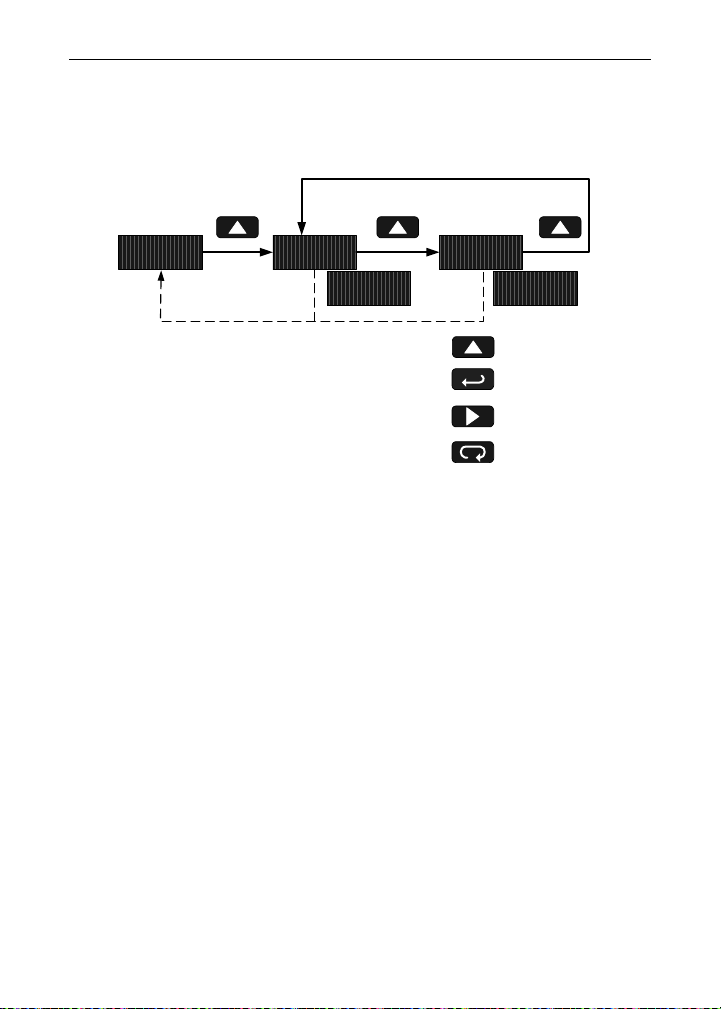

The main menu consists of the most commonly used functions: Decimal Point Location, Scale, and Calibration.
Press Menu button to enter Programming Mode then press the Up Arrow button to scroll through the main menu.
Run
Mode
26.62 dP SCl CAL
Press Menu, at any time, to exit and return to Run Mode. Changes made to settings prior to pressing Enter are not saved.
Changes to the settings are saved to memory only after pressing Enter. The display moves to the next menu every time a setting is
accepted by pressing Enter.
19
PD663 Loop-Powered Meter Instruction Manual
Main Menu Display Functions & Messages
The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

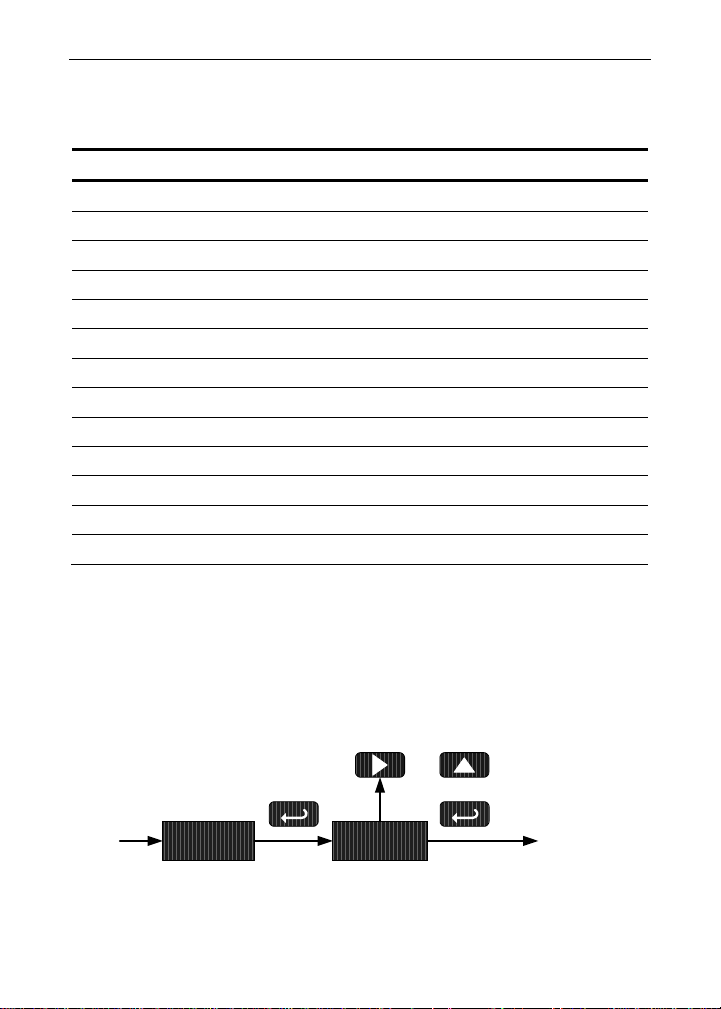

Display Parameter Action/Setting
dp
Decimal point
SCL
Scale
Npt
Number of Points
in1
Scale Input 1
D1
Scale Display 1
in2
Scale Input 2
D2
Scale Display 2
CAL
Calibrate
Npt
Number of Points
in1
Calibrate Input 1
D1
Calibrate Display 1
in2
Calibrate Input 2
D2
Calibrate Display 2
Set decimal point
Enter the Scale menu
Set number of linearization points
Input signal 1 value (mA)
Scaled value for input 1
Input signal 2 value (mA)
Scaled value for input 2
Enter the Calibrate menu
Set number of linearization points
Read input signal 1
Enter value for input 1
Read input signal 2
Enter value for input 2
Setting the Decimal Point (dP)
Decimal point may be set with up to three decimal places or with no decimal point at all.
Pressing the Right or Up arrow moves the decimal point one place to the right until no decimal point is displayed, then it moves to the left most position.
Select Decimal Point
dP dd.dd
or
Next
20
PD663 Loop-Powered Meter Instruction Manual

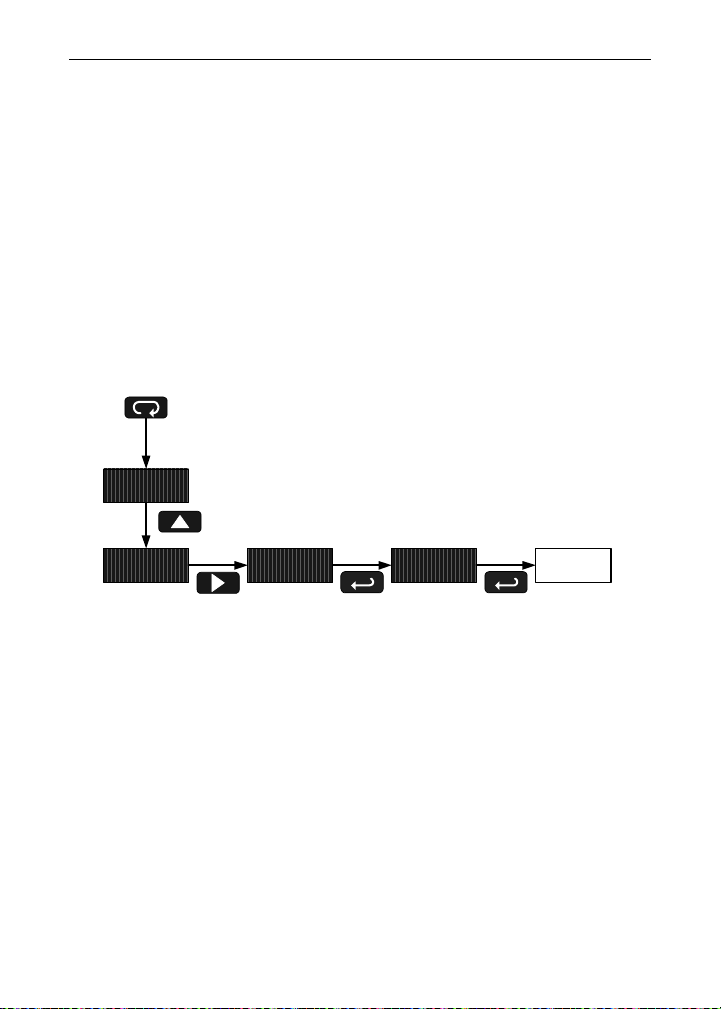

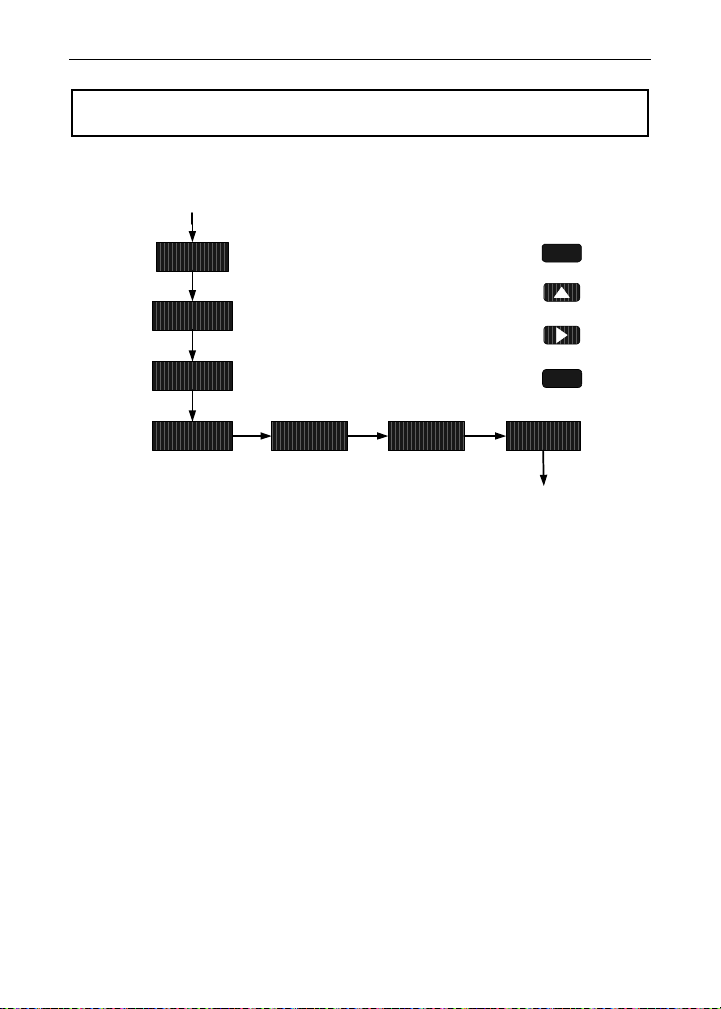

Scaling the Meter (SCL)
The 4-20 mA input can be scaled to display the process in engineering units. A signal source is not needed to scale the meter; simply program the inputs and
corresponding display values. If using linear signal input conditioning, enter the number of scale points (2-32),
followed by the input values and display values. If using square root signal input conditioning, the number of points input menu will not be present.
SCL
npt
002
Number of Points menu not displayed for square root input conditioning.
Set Number of Scale Points
Press Enter to Accept Setting
Press Up to Set Digit Value
Press Right to Select Next Digit
Press Menu to Exit at any Time
ENTER
MENU
in1
04.00
Set Input 1
Value
d1
000.0
Set Display 1
Value
Number of Points (npt)
Set the number of linearization points used in the Scale menu. 2 to 32 points may be used. The Scale menu is entered after entering the number of points
For instructions on how to program numeric values see
Setting Numeric Values, page 18.
Minimum Input Span
The minimum input span is the minimum difference between input 1 and input 2 signals required to complete the calibration or scaling of the meter. The minimum span is 0.40 mA.
If the minimum span is not maintained, the meter reverts to input 2, allowing the appropriate input signals to be applied.
in2
Scale
Input 2
21
PD663 Loop-Powered Meter Instruction Manual
Calibrating the Meter (Cal)
To scale the meter without a signal source refer to Scaling the Meter (SCL), page 21.
The meter can be calibrated to display the process in engineering units by applying the appropriate input signal and following the calibration procedure.
The use of a calibrated signal source is strongly recommended.
Cal
Number of Points menu
npt
002
in1
Display Flashes Accepting Input
Press the Up arrow button to scroll to the Calibration menu (CAL) and press Enter.
If using linear signal input conditioning, enter the number of calibration points (2-
32).
The meter displays in1. Apply a known signal and press Enter. The display will flash while accepting the signal.
When the meter displays d1, press Enter. Enter a corresponding display value for the signal input, and press Enter to accept.
The meter displays in2. Apply a known signal and press Enter. The display will flash while accepting the signal.
When the meter displays d2, press Enter. Enter a corresponding display value for the signal input, and press Enter to accept.
not displayed for square root input conditioning.
Set Number of Scale Points
d1
Press Enter to Accept Setting
Press Up to Set Digit Value
Press Right to Select Next Digit
Press Menu to Exit at any Time
000.0
Set Display 1
Value
ENTER
MENU
in2
Calibrate
Input 2
Re-calibrating the Internal Calibration Reference (ICal)
The Internal Calibration (ICAL) menu, located in the Advanced features menu, is
used to recalibrate the internal calibration reference. Recalibration is recommended at least every twelve months. Refer to Internal Calibration (ICal), page 26 for instructions.
22
PD663 Loop-Powered Meter Instruction Manual

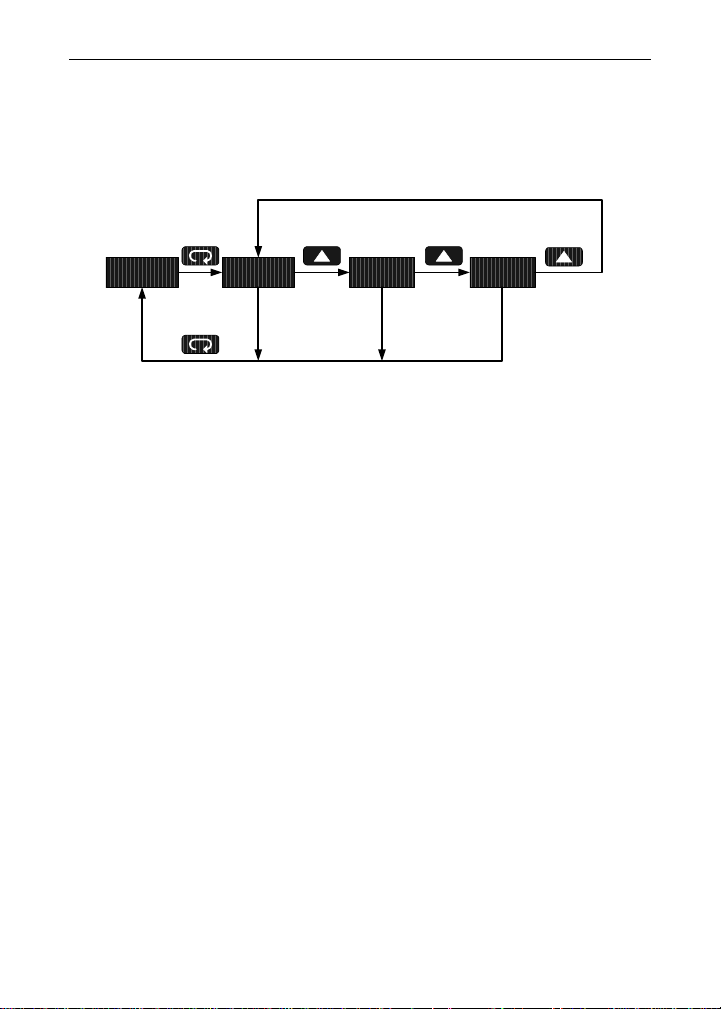

Advanced Features Menu
To simplify the setup process, functions not needed for most applications are
located in the Advanced features menu. Press and hold the Menu button for five seconds to access the Advanced features menu

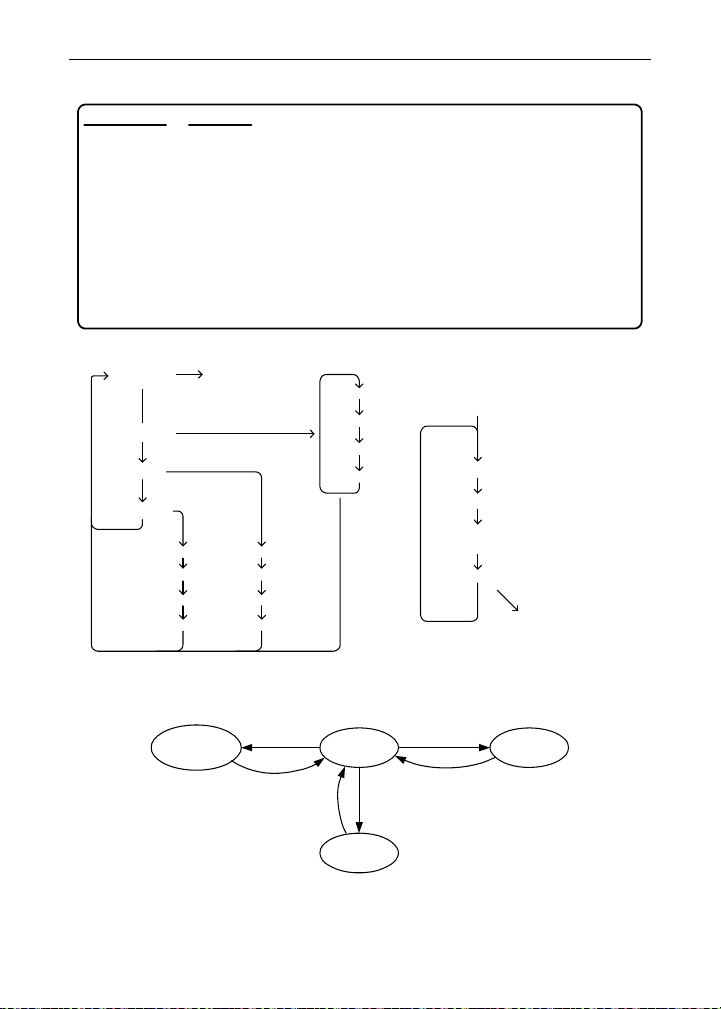

Run Mode
26.62
MENU
Press and hold for five seconds
fnc
inFo
FIL
ICAL
Press Enter to Access Menu
or to Accept Setting
Press Up to Scroll Menu and
to Increment Digit Value
Press Menu to Exit at any Time
ENTER
MENU
23
PD663 Loop-Powered Meter Instruction Manual
Advanced Features Menu & Display Messages
The following table shows the Advanced features menu functions and messages
in the order they appear in the menu.
Display Parameter Action/Setting
Fnc
Input Function
Lnr
Linear
Sqr
Square Root
info
ICAL
For instructions on how to program numeric values see
Setting Numeric Values, page 18.
Information
Sft
Software Information
ver
Version
*C
Calibration Temp (°C) Temperature at time of I-calibration (°C)
*F
Calibration Temp (°F) Temperature at time of I-calibration (°F)
FIL
Filter I-Calibration
rst
Reset Defaults
Set linear or square root input conditioning function
Set linear scaling
Set square root input conditioning func­tion
Enter the Information menu
Software release number
Meter firmware version
Set filter function level
Internal master factory calibration
Restore factory default parameter settings
24
PD663 Loop-Powered Meter Instruction Manual
Signal Input Conditioning Function (Fnc)
The PD663 provides linear and squar root signal input conditioning functions for inputs from linear and non-linear transmitters.
Linear (Lnr)
Meters are set up at the factory for linear function using two-point linearization. Multi-point linearization with up to 32 points may be used. The linear function provides a display that is linear with respect to the input signal between each set of input points.
Square Root (sqr)
The square root function is used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units.
Information Menu (info)
The Information menu is located in the Advanced features menu, to access Information menu see Advanced Features Menu, page 23.
It shows software identification number, version number, and calibration temperatures. To determine the software version of a meter:
Go to the Information menu (info) and press Enter button.
The meter will automatically scroll through the software release number and software version. The meter temperatures at the time of last internal calibration in
°C and °F are displayed for calibration troubleshooting. Pressing the Enter, Right, or Up buttons will progress the information display.
Following the information display, the meter will exit the Advanced features menu
and return to run mode.
Input Signal Filter (FIL)
The noise filter is available for unusually noisy signals that cause an unstable process variable display. The noise filter averages the input signal over a certain period. The filter level can be set to low (LO), high (HI), or off (OFF). The higher the filter setting, the longer the averaging time and so the longer the display may take to find its final value.
The filter contains a noise filter bypass feature so that while small variations in the signal will be filtered out, large, abrupt changes to the input signal are displayed immediately.
25
PD663 Loop-Powered Meter Instruction Manual
Internal Calibration (ICal)
There is no need to recalibrate the meter for milliamps when first received from the factory.
The meter is factory calibrated for milliamps prior to shipment. The calibration equipment is certified to NIST standards.
The internal calibration allows the user to scale the meter without applying a signal. The use of a calibrated signal source is necessary to perform the internal calibration of the meter. Check calibration of the meter at least every 12 months.
Notes: The signal source must have a full-scale accuracy of 0.01% or better between
4 and 20 mA in order to maintain the specified accuracy of the meter. Allow the meter to warm up for at least 15 minutes before performing the
internal calibration procedure.
The Internal calibration menu is part of the Advanced features menu. Press and hold the Menu button for 5 seconds to enter the Advanced features
menu. Press the Up arrow button to scroll to the Internal Calibration menu (ICAL) and press Enter.
The meter displays 4.00 mA. Apply a 4.00 mA signal and press Enter. The display flashes for a moment while the meter is accepting the signal.
After the signal is accepted, the meter displays 20.00 mA. Apply a 20.00 mA signal and press Enter. The display flashes for a moment while the meter is accepting the signal.
Error Message (Err)
An error message indicates that the calibration process was not successful. After the error message is displayed, the meter will revert to input 2 calibration settings. The error message might be caused by inadvertently leaving the signal at the previous level or not maintaining a 0.40 mA minimum span. Press the Menu button to cancel the current calibration process if necessary.
26
PD663 Loop-Powered Meter Instruction Manual
OPERATION
Front Panel Buttons Operation
Button Symbol
MENU
ENTER
RESET
MAX
Description
Press to enter or exit Programming Mode or exit Max/Min readings.
Press to indefinitely display Max or Min until Menu button is pressed.
Press to reset Max or Min reading.
Press to display Max/Min readings alternately.
27
PD663 Loop-Powered Meter Instruction Manual
Maximum & Minimum Readings (HI & LO)
The maximum and minimum (peak & valley) readings reached by the process are stored in the meter since the last reset or power-up. The meter flashes HI or LO to differentiate between run mode and max/min display.
Run Mode
16.62
HI LO
19.45 5.34
10 Sec Time Out
Press Up to Display and to Toggle Between Max & Min
Press Enter to Hold Max/Min Press Right to Reset Max/Min Press Menu to Exit Max/Min
Press Up arrow button to display maximum reading since the last reset/power­up.
Press Up arrow again to display the minimum reading since the last reset/power­up.
Press Enter to continue to display the Max or Min display reading by disabling the Max/Min timeout. The meter will continue to track new Max/Min readings. Press MENU to exit the Max/Min reading.
If Enter is not pressed, the Max/Min display reading will continue to flash and time out after ten seconds. The meter will return to display the actual reading.
Press Right arrow button while in Max/Min Mode to reset both Max and Min. Max/Min display readings are reset to the current reading.
28
PD663 Loop-Powered Meter Instruction Manual

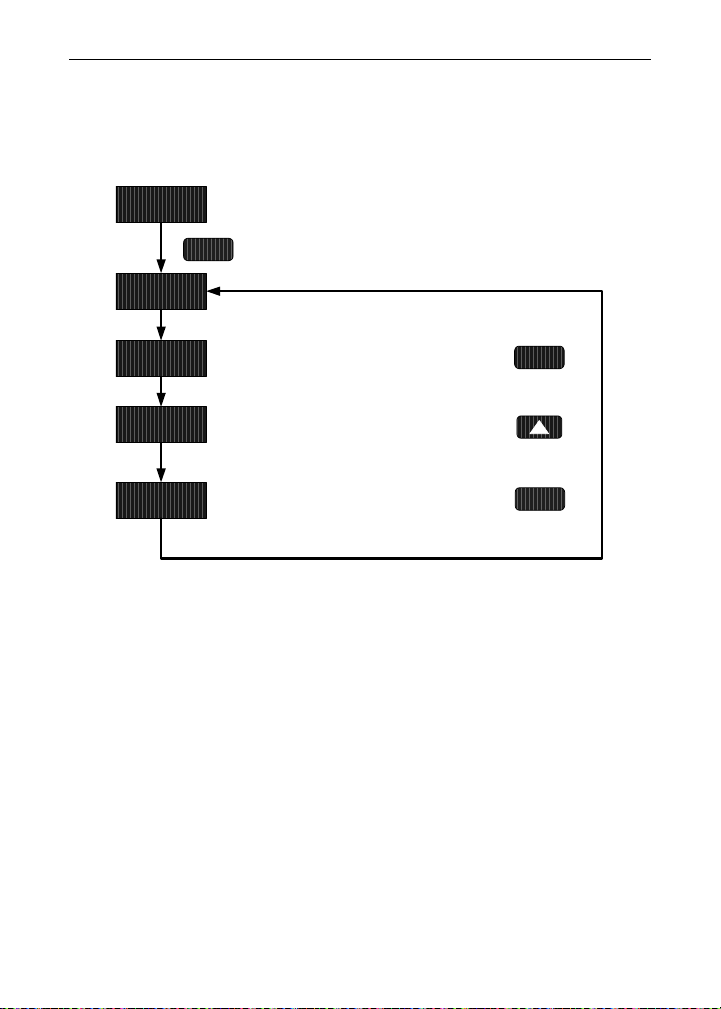

Reset Meter to Factory Defaults
When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults.
Instructions to load factory defaults:
Enter the Advanced features menu. See Advanced Features Menu, page 23. Press Up arrow button to display info menu. Press Right arrow button when info is shown. Press Enter button when rSt is shown.
Press Enter again when display flashes rSt. Note: If Enter is not pressed a second time within three seconds, rSt will stop flashing and the last Enter press cancelled.
The meter goes through an initialization sequence (same as on power-up), and loads the factory default settings.
Press and Hold for 5 Sec
FNc
Flashing Display
info
rSt
rSt
Meter Re­Initializes
29
PD663 Loop-Powered Meter Instruction Manual
Factory Defaults & User Settings
The following table shows the factory setting for most of the programmable parameters on the meter. Next to the factory setting, the user may record the new setting for the particular application.
Model: ______________ S/N: _______________ Date: ______________
Parameter Display Default
User Setting
Setting
Decimal point Scale
Number of Points Input 1 Display 1 Input 2 Display 2
Advanced Features
Input Conditioning Function
Filter
Dd.dd
SCL
NPT in1
D1
in2
D2
Fnc
FIL
2 places
2
4.00 mA
4.00
20.00 mA
20.00
Linear
Off
30
PD663 Loop-Powered Meter Instruction Manual
TROUBLESHOOTING
The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. If the meter is not working as expected, refer to the recommendations below.
Troubleshooting Tips
Symptom Check/Action
No display or faint display Check input signal connections.
Perform hard reset by shorting S+ and S­terminals.
Rate display unsteady Increase filter setting in Advanced menu.
Meter displays error message during calibration (err)
Meter flashes 2999 or -1999
Display stuck flashing a number and HI or LO
Display response is too slow Check filter setting to see if it can be
If the display locks up or the meter does not respond at all
Backlight does not appear. Verify backlight is installed.
Other symptoms not described above
Check signal connections. Verify minimum input span requirements
Check input signal within scaled range of 2999 and -1999.
Press Menu to exit Max/Min display readings.
lowered to LO or OFF.
Perform hard reset by shorting S+ and S­terminals.
Check signal connections are as shown in Figure 3 on page 15.
Call Technical Support for assistance.
31
PD663 Loop-Powered Meter Instruction Manual
MOUNTING DIMENSIONS
All units: inches [mm]

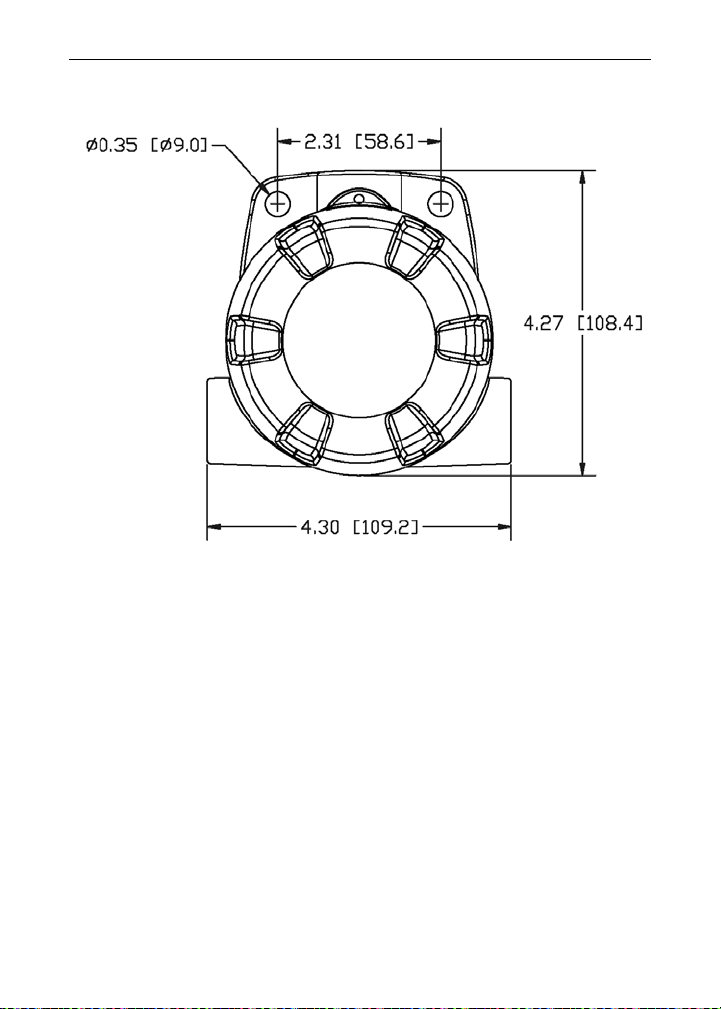

Figure 4. Enclosure Dimensions – Front View
32
PD663 Loop-Powered Meter Instruction Manual
Figure 5. Enclosure Dimensions – Side Cross Section View
Note: The supplied conduit plug may extend up to 0.6 in [15 mm] from the conduit opening when installed.
33
PD663 Loop-Powered Meter Instruction Manual
QUICK USER INTERFACE REFERENCE
Pushbutton Function Menu Go to Programming Mode, leave Programming Mode, and Max/Min
Right Arrow Mov e to next digit or decimal point position. Reset Min/Max. Up Arrow Move to next selection or increment digit. Go to Max/Min Mode. Enter Accept selection/v alue and move to next selection.
Max/Min Mode
While in Run Mode, pressing Up Arrow will initiate Max/Min Mode. Up Arrow toggles between Max & Min displays, and Right Arrow resets the Max/Min to the current value. Press Menu or wait 10 seconds to return to Run Mode. Pressing Enter will disable the 10 second timeout and continuously flash Max or Min.
Mode. Hold for 5 seconds to access Advanced Features.
Run Mode
Decimal
Scale
Calibrate
Display
Max/Min
in1
d1
in2
d2
Advanced
Features
Menu
in1
d1
in2
d2
Operational Modes
Hold
Menu
Menu
Program
dd.dd
ddd.d
dddd
d.ddd
Run
Press & hold Menu for 5 seconds to access Advanced Features Menu
Function
Filter
Initial
Calibrate
Information
Up Arrow
Menu
*Factory Defaults
*Access by pressing Right arrow twice
Max &
Min
Menu
34
PD663 Loop-Powered Meter Instruction Manual
EC DECLARATION OF CONFORMITY
Issued in accordance with ATEX Directive 94/9/EC
Manufacturer: Precision Digital Corporation 89 October Hill Rd Ste 5 Holliston, MA 01746 USA
Device: PD663 Series Process Meter Notified Body: Sira Certification Service, notified body no. 0518
Rake Lane, Eccleston, Chester, CH4 9JN, England
EC Type Examination Certificate: Sira 10ATEX1116X Quality Assurance Notification No.: SIRA 10 ATEX M462
Compliance with Standards: Product Markings:
EN 60079-0:2009 II 2 G D EN 60079-1:2007 Ex d IIC T6 Gb EN 60079-31:2008 Ex tb IIIC T85°C Db IP68 EN 61326:2006 Tamb -40°C to +75°C IEC 61010-1:2010 & EN 61010-1:2010, including Group and National Differences as they apply for AU, CA, US and KR
The standard EN 60079-0:2009 is no longer harmonized. The requirements of this standard have been checked against the harmonized standard EN 60079-0:2012 and there were no major technical changes affecting the latest technical knowledge for the products listed above.
Community Directives:
94/9/EC ATEX Directive 2004/108/EC EMC Directive
Name: Jeffrey Peters Company: Precision Digital Corporation Title: President Date: 08/01/2014
35
PD663 Loop-Powered Meter Instruction Manual
How to Contact Precision Digital
For Technical Support please
Call: (800) 610-5239 or (508) 655-7300
Fax: (508) 655-8990
Email: support@predig.com
For Sales Support or to place an order please
contact your local distributor or
Call: (800) 343-1001 or (508) 655-7300
Fax: (508) 655-8990
Email: sales@predig.com
For the latest version of this manual please visit
www.predig.com
SFT054 Ver 1.800 & up
LIM663_K
12/14
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
