Page 1

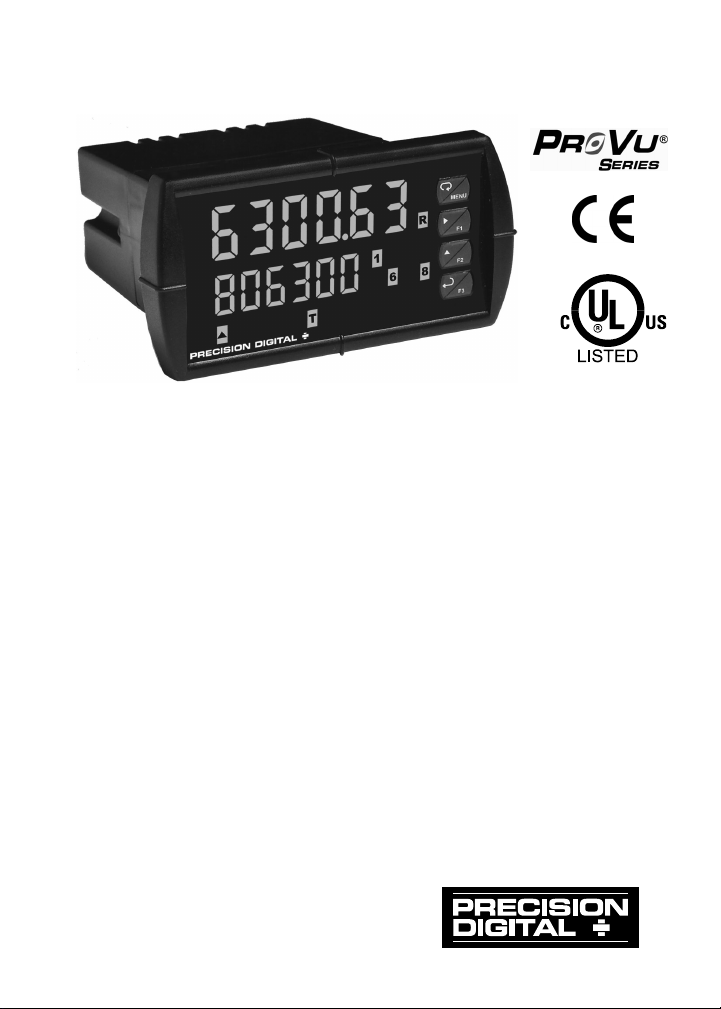

PD6300 Pulse Input Rate/Totalizer
Instruction Manual
Pulse, Open Collector, NPN, PNP, TTL, Switch Contact,
Sine Wave (Coil), Square Wave Inputs
Gate Function for Rate Display of Slow Pulse Rates
NEMA 4X, IP65 Front
Universal 85-265 VAC or 12/24 VDC Input Power
Large Dual-Line 6-Digit Display, 0.60" & 0.46"
Isolated 24 VDC @ 200 mA Transmitter Power Supply
Programmable Displays & Function Keys
Rate Displayed as Units per Second, Minute, Hour, or Day
Total, Grand Total or Non-Resettable Grand Total
9-Digit Totalizer with Total Overflow Feature
K-Factor Calibration or Scale with up to 32-Point Linearization
2 or 4 Relays + Isolated 4-20 mA Output for Rate or Total
External 4-Relays & Digital I/O Expansion Modules
RS-232 & RS-422/485 Serial Communication Options
Modbus® RTU Communication Protocol Standard
PRECISION DIGITAL CORPORATION
89 October Hill Road • Holliston MA 01746 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
Page 2
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Disclaimer
The information contained in this document is subject to change
without notice. Precision Digital makes no representations or warranties with respect to the contents hereof; and specifically disclaims
any implied warranties of merchantability or fitness for a particular
purpose.
!
CAUTION: Read complete
instructions prior to installation and operation of the
meter.
WARNING: Risk of
electric shock or
personal injury.
Warning
This product is not recommended for life support applications or applications where malfunctioning could result in personal injury or
property loss. Anyone using this product for such applications does
so at his/her own risk. Precision Digital Corporation shall not be held
liable for damages resulting from such improper use.
Limited Warranty
Precision Digital Corporation warrants this product against defects in
material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s
liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.
Registered Trademarks
PROVU® and MeterView® Pro are registered trademarks of Precision
Digital Corporation. All other trademarks mentioned in this document are
the property of their respective owners.
© 2010 Precision Digital Corporation. All rights reserved.
www.predig.com
2
Page 3
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Table of Contents
INTRODUCTION ------------------------------------------------------------- 7
ORDERING INFORMATION ---------------------------------------------- 8
SPECIFICATIONS ----------------------------------------------------------- 9
General ------------------------------------------------------------------------------- 9
Rate Input ------------------------------------------------------------------------- 10
Rate/Totalizer -------------------------------------------------------------------- 11
Relays ------------------------------------------------------------------------------ 12
Isolated 4-20 mA Transmitter Output ------------------------------------ 13
Modbus® RTU Serial Communications ---------------------------------- 14
PDA1044 Digital Input & Output Expansion Module ---------------- 14
COMPLIANCE INFORMATION ---------------------------------------- 15
Safety ------------------------------------------------------------------------------- 15
Electromagnetic Compatibility --------------------------------------------- 15
SAFETY INFORMATION ------------------------------------------------ 16
INSTALLATION ------------------------------------------------------------ 17
Unpacking ------------------------------------------------------------------------- 17
Panel Mounting Instructions ------------------------------------------------ 17
Configuration for 12 or 24 VDC Power Option ------------------------ 19
Transmitter Supply Voltage Selection (P+, P-) ----------------------- 20
Connections ---------------------------------------------------------------------- 20
Connectors Labeling --------------------------------------------------------- 21
Power Connections ---------------------------------------------------------- 21
Signal Connections ---------------------------------------------------------- 22
Modbus RTU Serial Communications ----------------------------------- 24
Relay Connections ----------------------------------------------------------- 24
Switching Inductive Loads -------------------------------------------------- 25
4-20 mA Output Connections ---------------------------------------------- 26
Analog Output Transmitter Power Supply ------------------------------ 26
External Relay & Digital I/O Connections ------------------------------ 27
Interlock Relay Feature ----------------------------------------------------- 28
SETUP AND PROGRAMMING ----------------------------------------- 29

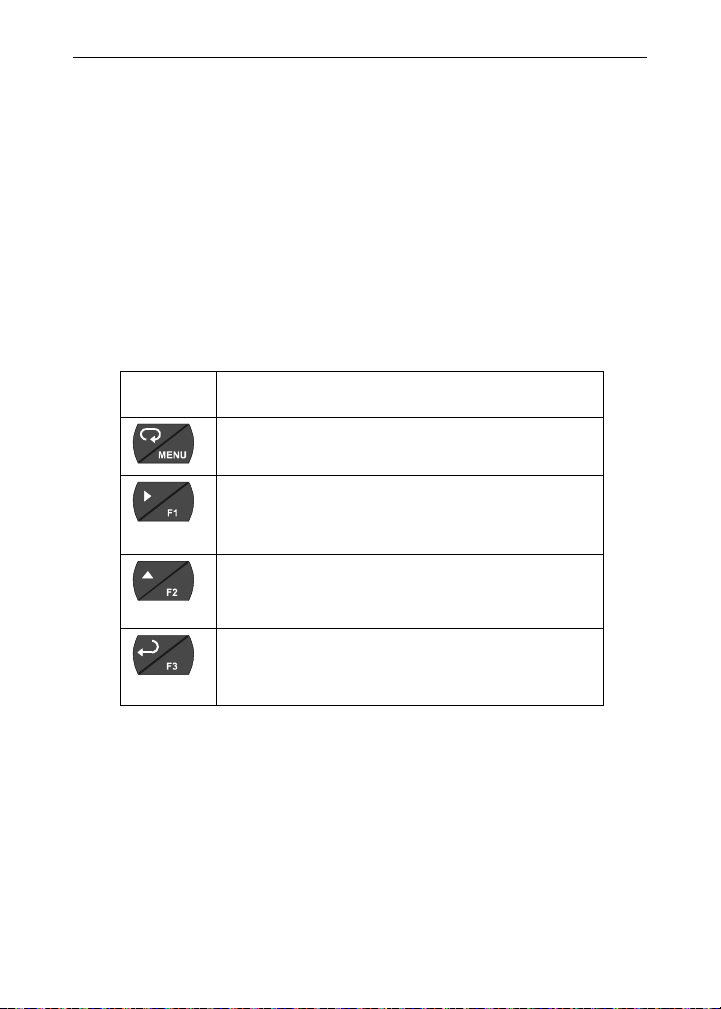

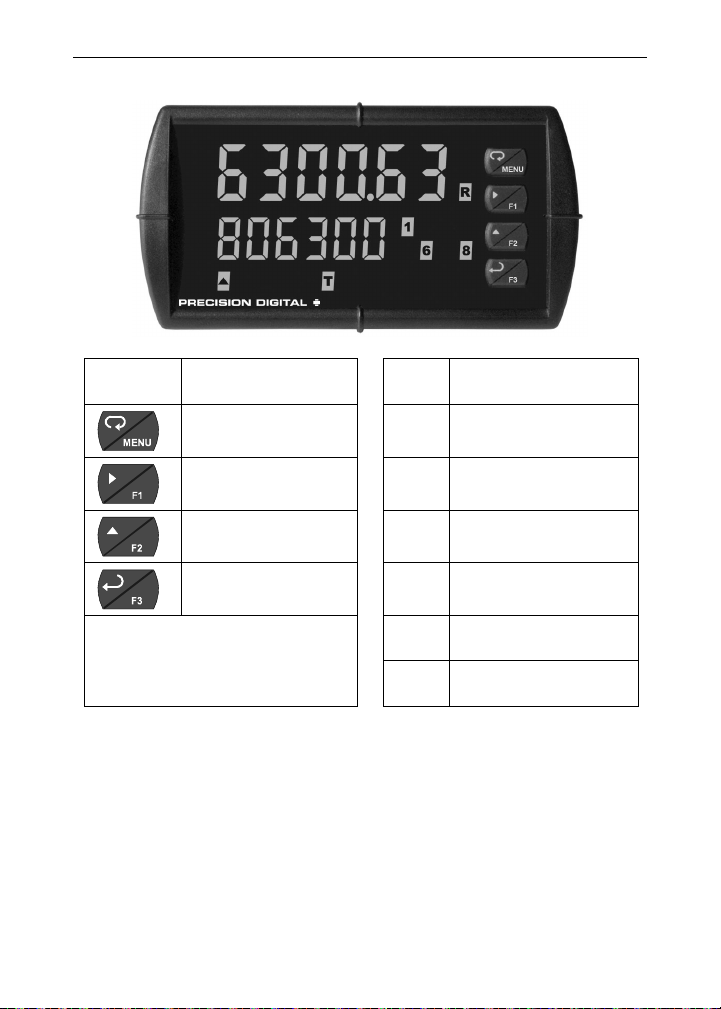

Front Panel Buttons and Status LED Indicators --------------------- 30
Display Functions and Messages ----------------------------------------- 31
Main Menu ------------------------------------------------------------------------ 35
Setting Numeric Values ------------------------------------------------------ 36
3
Page 4
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Reset Menu (reset) ------------------------------------------------------------ 36
Control Menu (Contrl) -------------------------------------------------------- 36
Setting Up the Rate/Totalizer Meter (setup) --------------------------- 37
Setting the Input Signal (Input) ------------------------------------------ 38
Setting the Totalizer Features (total) ---------------------------------- 38
Setting the Decimal Point (dEc pt) -------------------------------------- 38
Setting the Display Parameter & Intensity (dsplay) ----------------- 39
Display Setup Menu --------------------------------------------------------- 40
Character Set for Engineering Units Display (d unit) -------------- 41
Programming the Rate/Totalizer (prog) --------------------------------- 42
K-Factor Calibration (Factor) --------------------------------------------- 43
Multi-Point Calibration & Scaling ----------------------------------------- 43

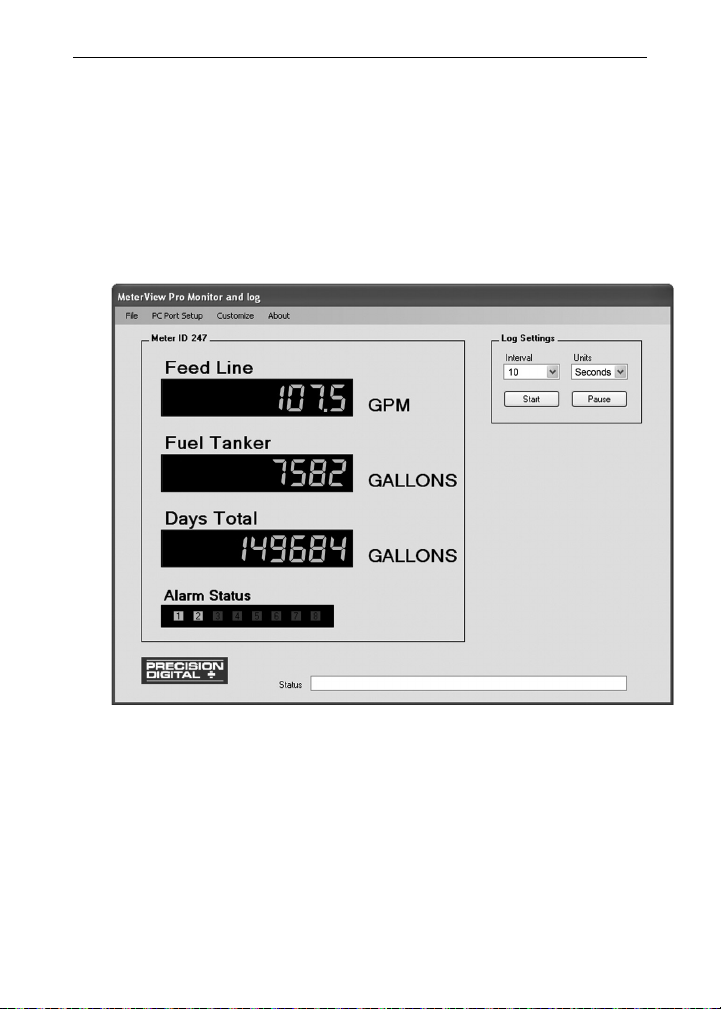

MeterView® Pro Software -------------------------------------------------- 44
Scaling the Meter (SCALE) -------------------------------------------------- 45
Gate Function (Gate) -------------------------------------------------------- 46
Contact De-Bounce Filter (FiLter) -------------------------------------- 47
Time Base, Total Conversion Factor & Total Reset ----------------- 48
Calibrating the Meter with External Source (Cal) -------------------- 49
Setting the Relay Operation (relay) ------------------------------------- 50
Relay Assignment (Assign) ----------------------------------------------- 51
Setting the Relay Action ---------------------------------------------------- 52
Programming Set and Reset Points ------------------------------------- 53
Setting Fail-Safe Operation ------------------------------------------------ 53
Programming Time Delay -------------------------------------------------- 53

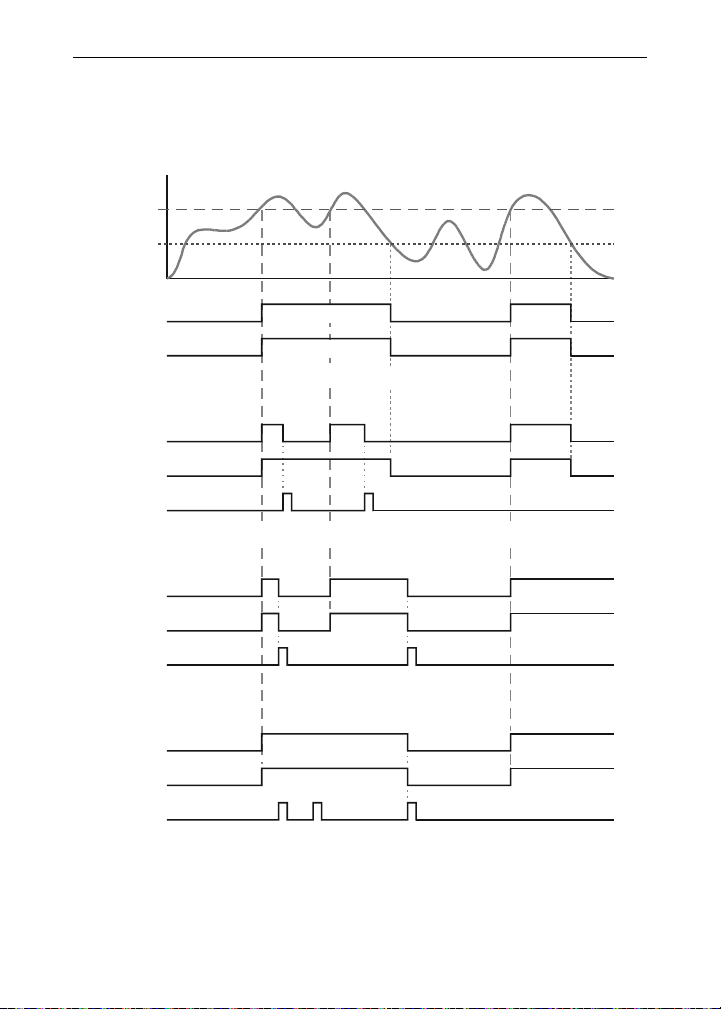

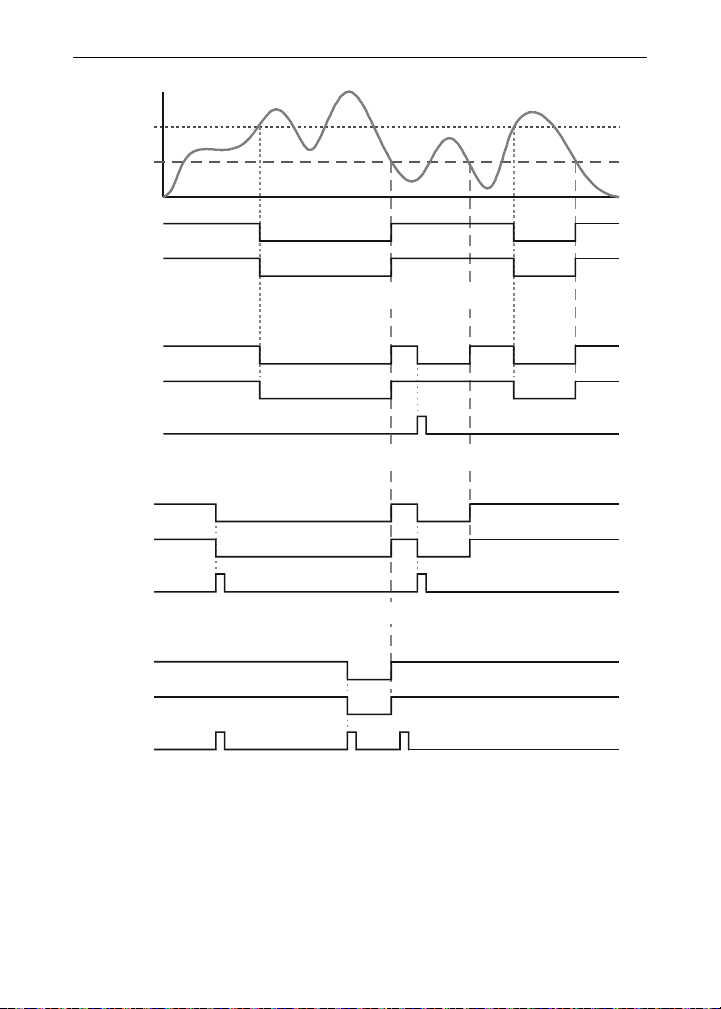

Relay and Alarm Operation Diagrams ----------------------------------- 54
High Alarm Operation (Set > Reset) ------------------------------------- 54
Low Alarm Operation (Set < Reset) -------------------------------------- 55
High Alarm with Fail-Safe Operation (Set > Reset) ------------------ 56
Low Alarm with Fail-Safe Operation (Set < Reset) ------------------- 57

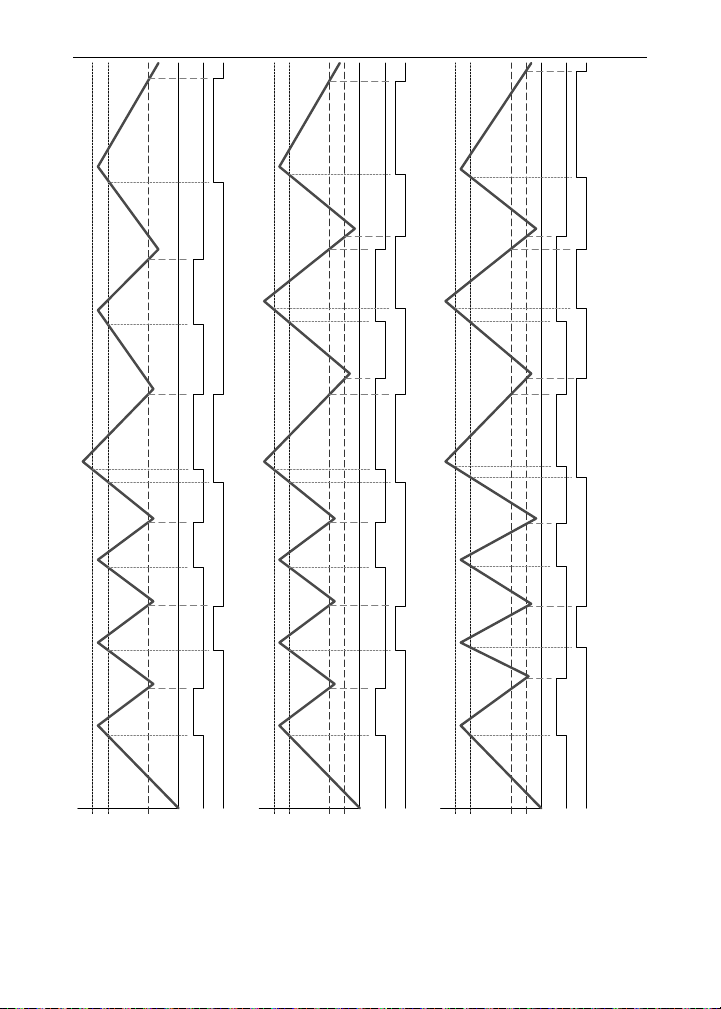

Alternation Control Operation --------------------------------------------- 58
Rate Relay Sampling Operation ------------------------------------------ 59
Total Relay Sampling Operation ------------------------------------------ 59
Time Delay Operation ------------------------------------------------------- 60
Relay Operation Details ------------------------------------------------------ 61
Overview ------------------------------------------------------------------------ 61
Relays Auto Initialization ---------------------------------------------------- 61
Fail-Safe Operation ---------------------------------------------------------- 61
Front Panel LEDs ------------------------------------------------------------- 62
Latching and Non-Latching Relay Operation -------------------------- 62
Non-Latching Relay (Auto) ------------------------------------------------- 63
Non-Latching Relay (A-nman) --------------------------------------------- 63
Latching Relay (LatcH) ----------------------------------------------------- 63
Latching Relay (Lt-Clr) ---------------------------------------------------- 64
4
Page 5
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Acknowledging Relays ------------------------------------------------------ 64
Setting Up the Interlock Relay Feature --------------------------------- 65
Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 66
Setting Up the Password (pass) ------------------------------------------- 67
Protecting or Locking the Meter ------------------------------------------- 67
Total Reset Password & Non-Resettable Total ----------------------- 68
Making Changes to a Password Protected Meter -------------------- 69
Disabling Password Protection -------------------------------------------- 69
Advanced Features Menu ---------------------------------------------------- 70
Advanced Features Menu & Display Messages ---------------------- 71
Modbus RTU Serial Communications (serial) ---------------------- 74
Select Menu (SElEct) ------------------------------------------------------- 75
Math Function Selection (Functn) --------------------------------------- 75
Low-Flow Cutoff (CutofF) -------------------------------------------------- 77
Analog Output Programming (AoutPr) ---------------------------------- 77
Programmable Function Keys User Menu (user) -------------------- 78
Meter Copy Function (Copy) ----------------------------------------------- 79
METER OPERATION ----------------------------------------------------- 81
Front Panel Buttons Operation -------------------------------------------- 81
Function Keys Operation ---------------------------------------------------- 81
Maximum/Minimum Readings ---------------------------------------------- 82
TROUBLESHOOTING ---------------------------------------------------- 83
Diagnostics Menu (diag) ----------------------------------------------------- 83
Determining Software Version -------------------------------------------- 83
Reset Meter to Factory Defaults ------------------------------------------- 84
Factory Defaults & User Settings ----------------------------------------- 85
Troubleshooting Tips --------------------------------------------------------- 88
Alphabetical List of Display Functions & Messages --------------- 89
5
Page 6
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Table of Figures

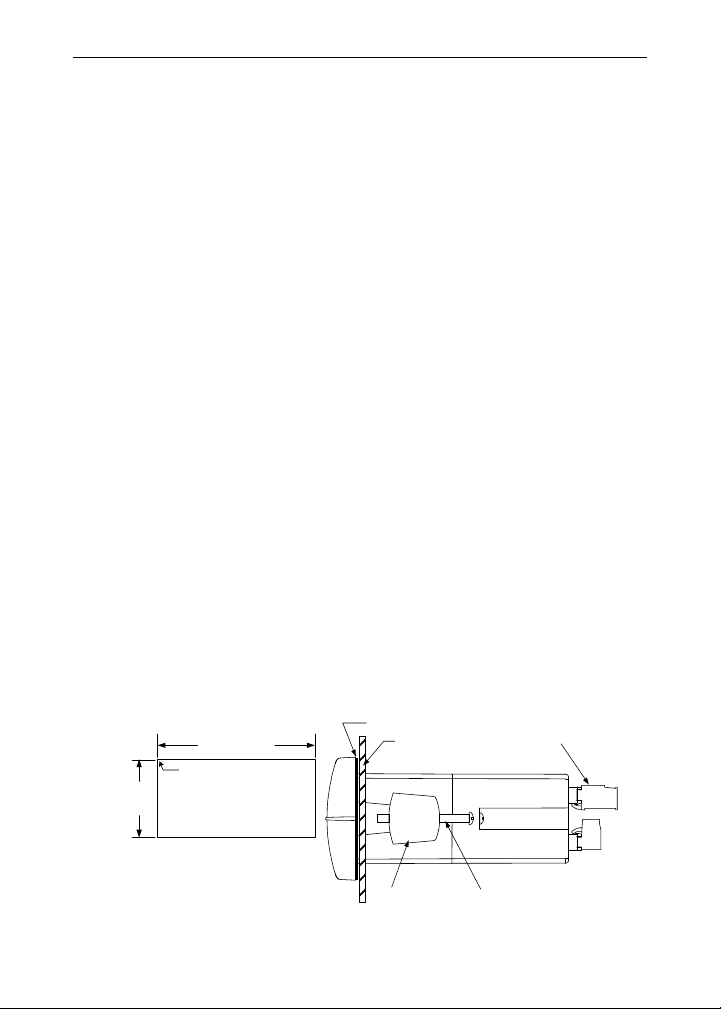

Figure 1: 1/8 DIN Panel Cutout and Mounting ................................... 17

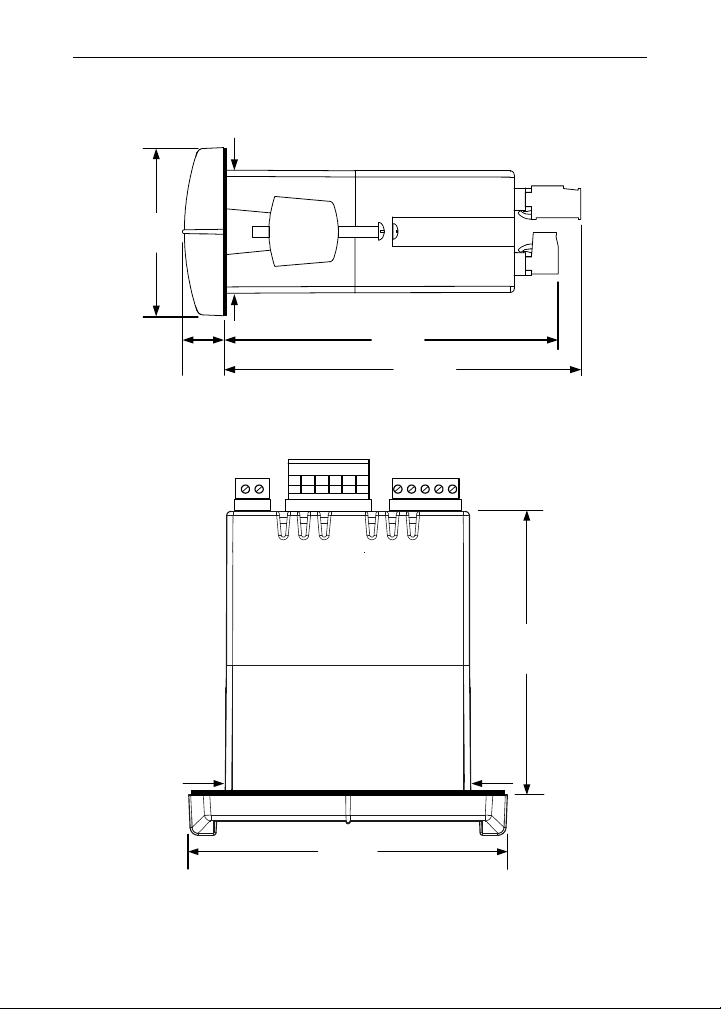

Figure 2: Meter Dimensions - Side View ............................................ 18
Figure 3: Meter Dimensions - Top View ............................................. 18

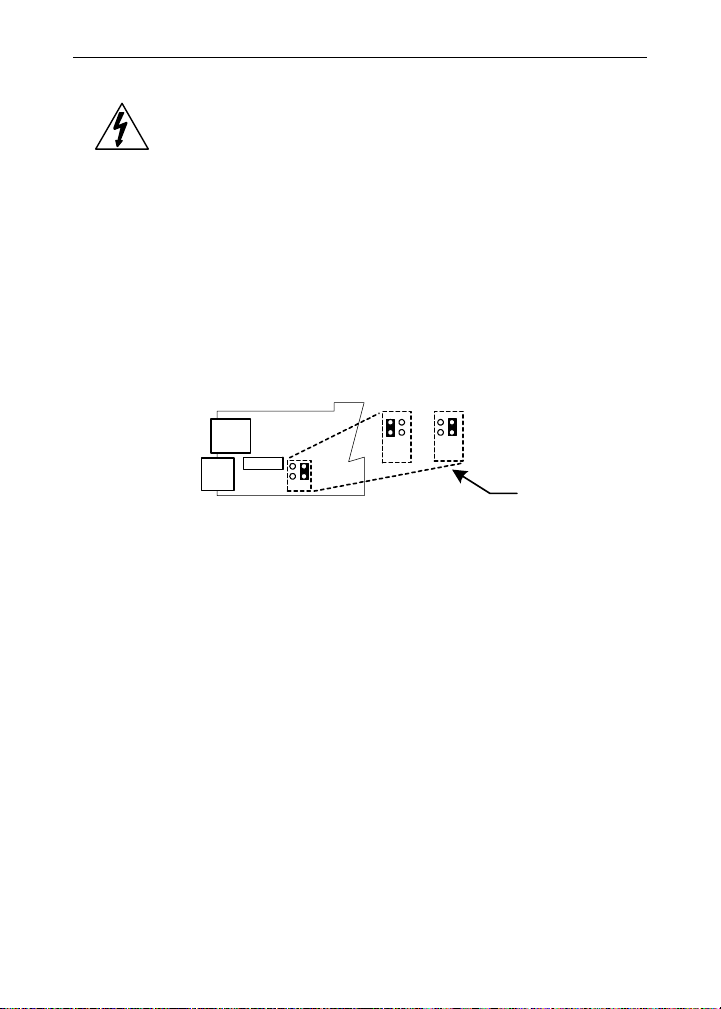

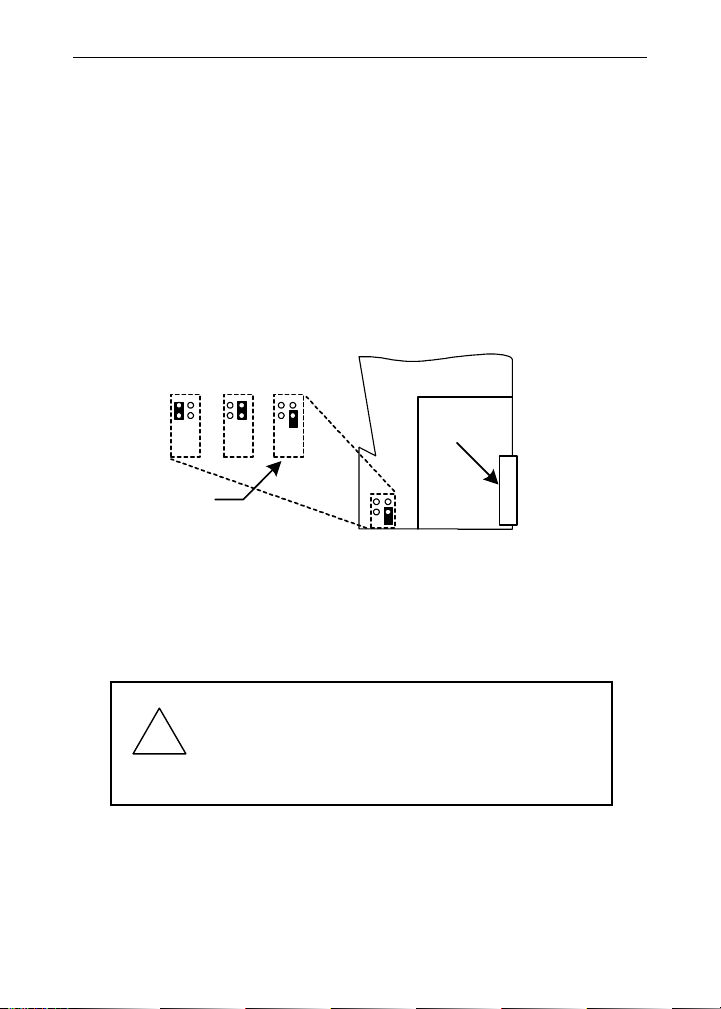

Figure 4: Jumper Configuration for 12/24 VDC Power ..................... 19
Figure 5: Transmitter Supply Voltage Selection ............................... 20

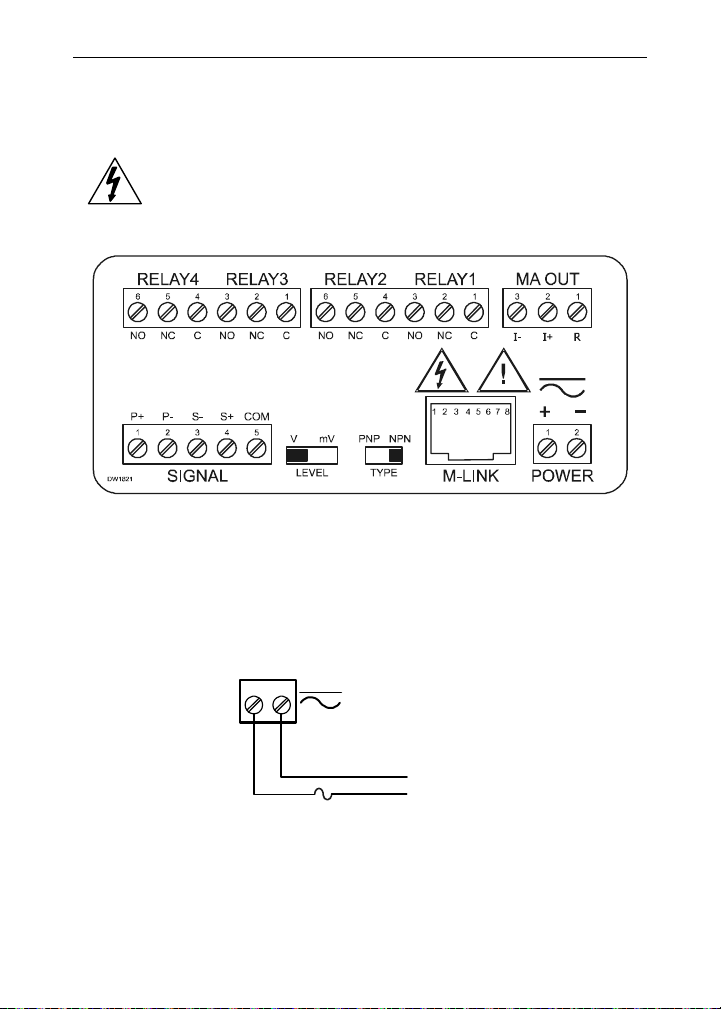

Figure 6: Connector Labeling for Fully Loaded PD6300 .................. 21
Figure 7: Power Connections ............................................................. 21

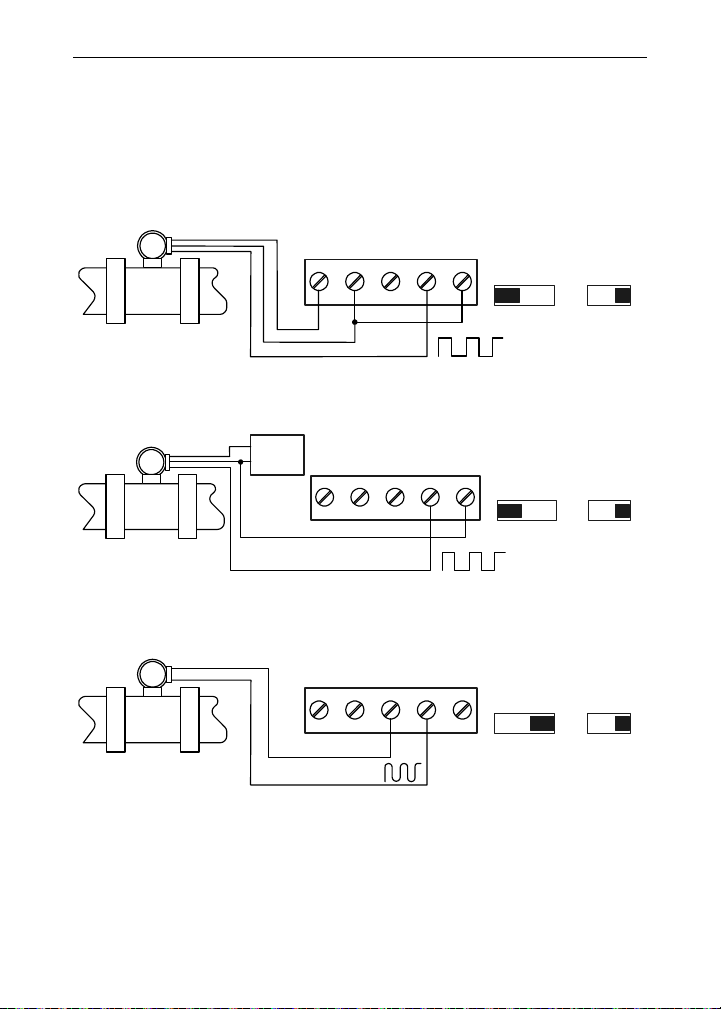

Figure 8: Flowmeter Powered by Internal Power Supply ................. 22
Figure 9: Flowmeter Powered by External Supply ........................... 22
Figure 10: Self-Powered Magnetic Pickup Coil Flowmeter .............. 22

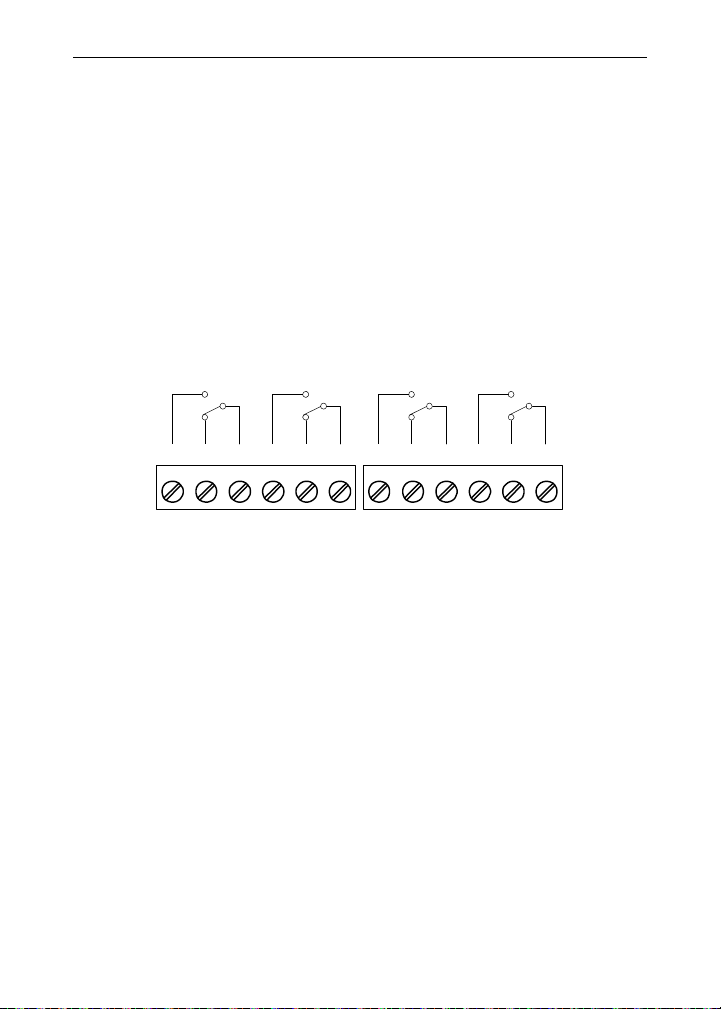

Figure 11: Relay Connections ............................................................ 24

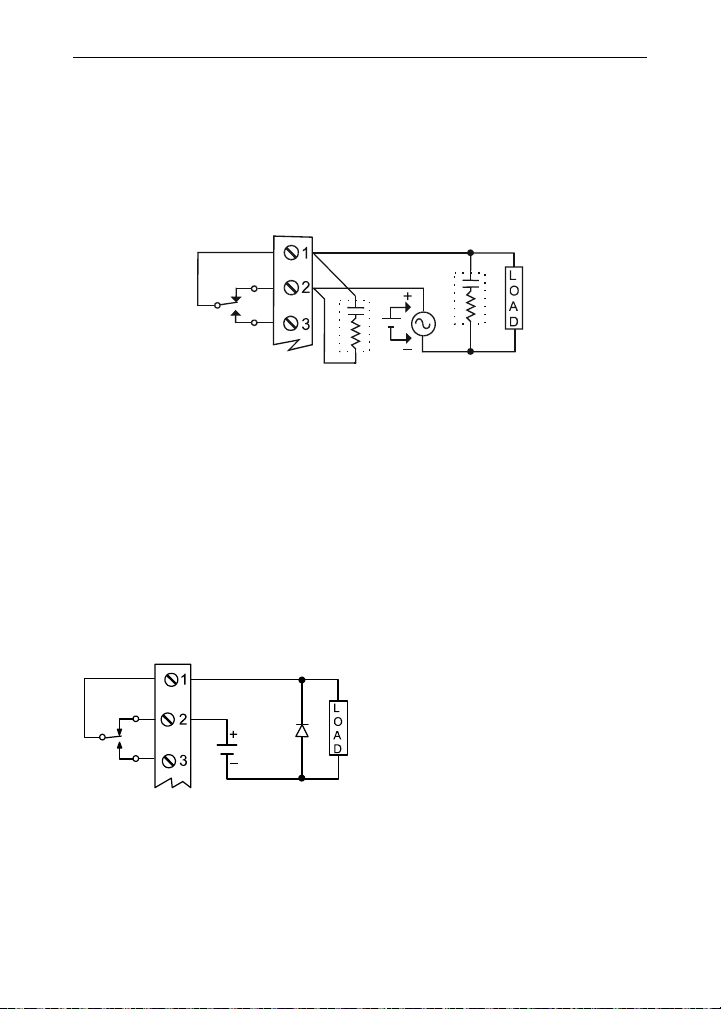

Figure 12: AC and DC Loads Protection ........................................... 25
Figure 13: Low Voltage DC Loads Protection ................................... 25
Figure 14: 4-20 mA Output Connections ........................................... 26

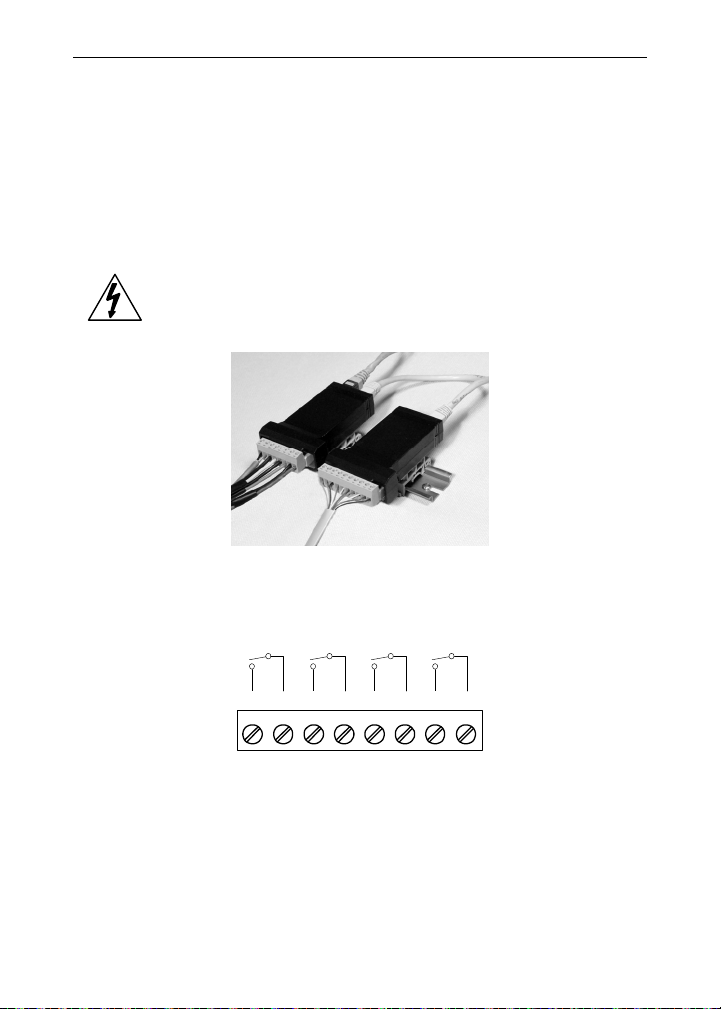

Figure 15: Expansion Modules & DIN Rail Mounting Kit .................. 27
Figure 16: External Relays Module Connections ............................. 27
Figure 17: Digital I/O Module Connections ....................................... 28

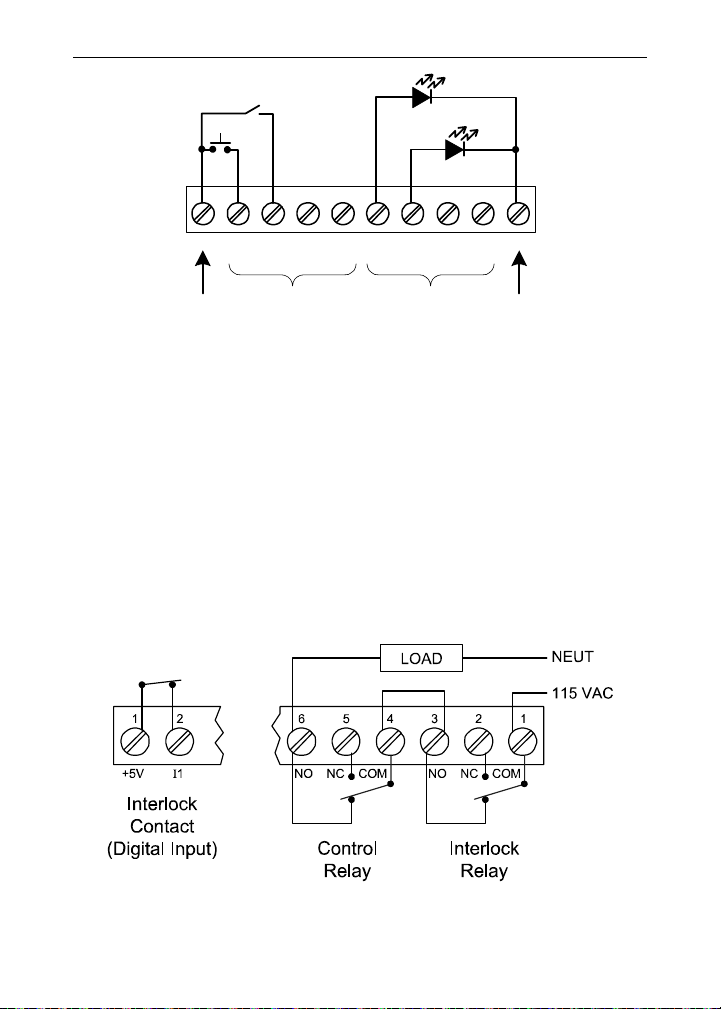

Figure 18. Interlock Connections ....................................................... 28

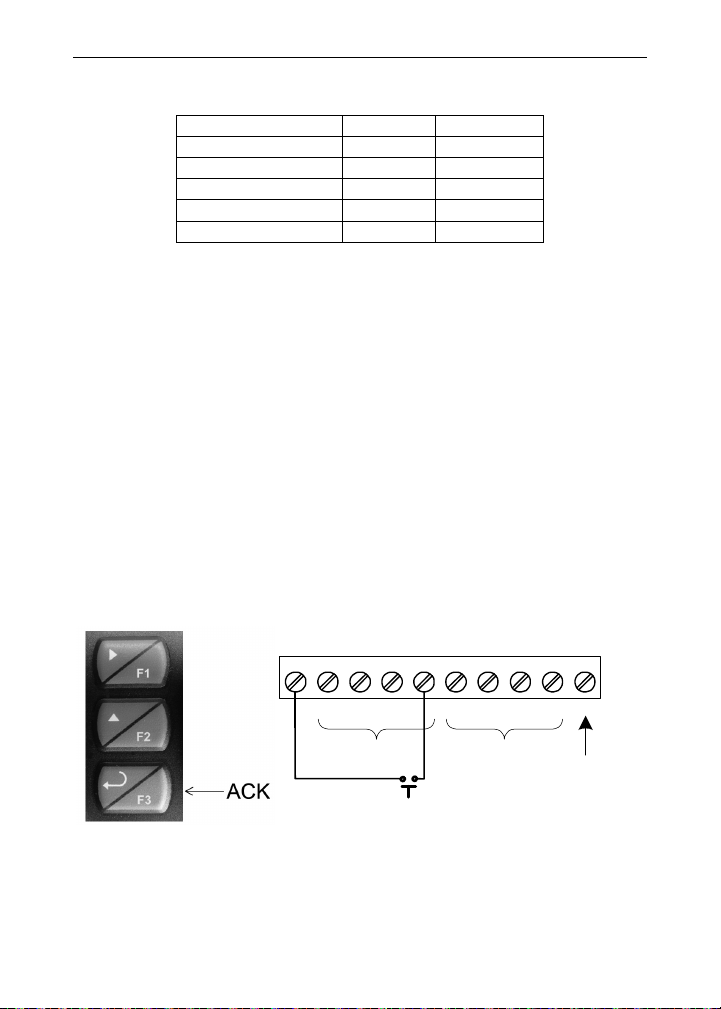

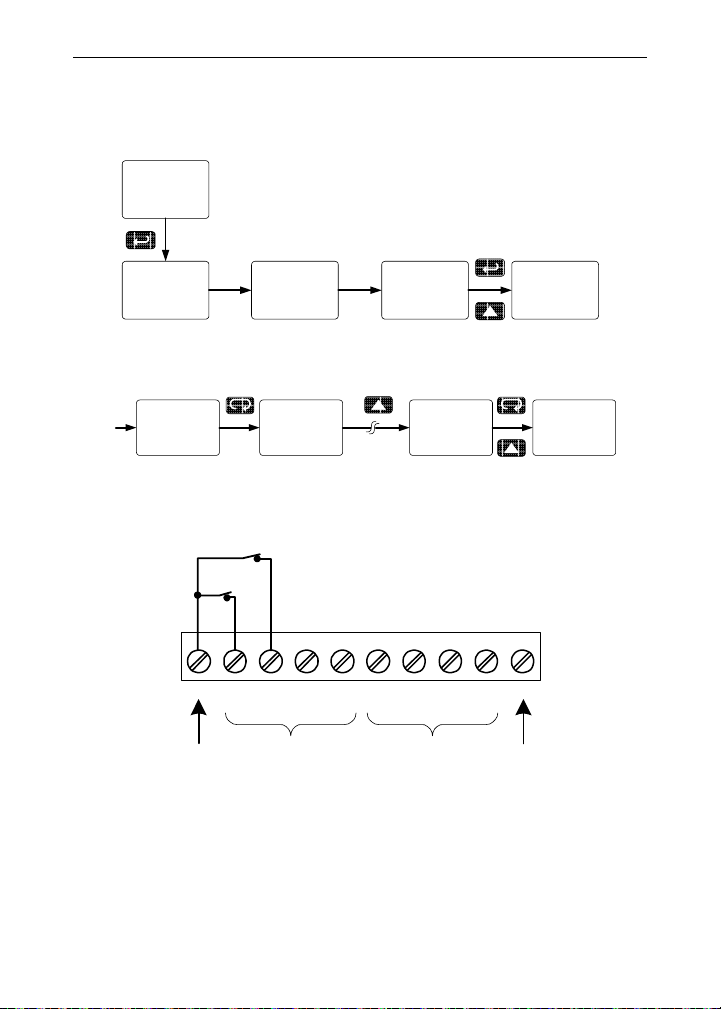

Figure 19: Acknowledge Relays w/Function Key or Digital Input ... 64

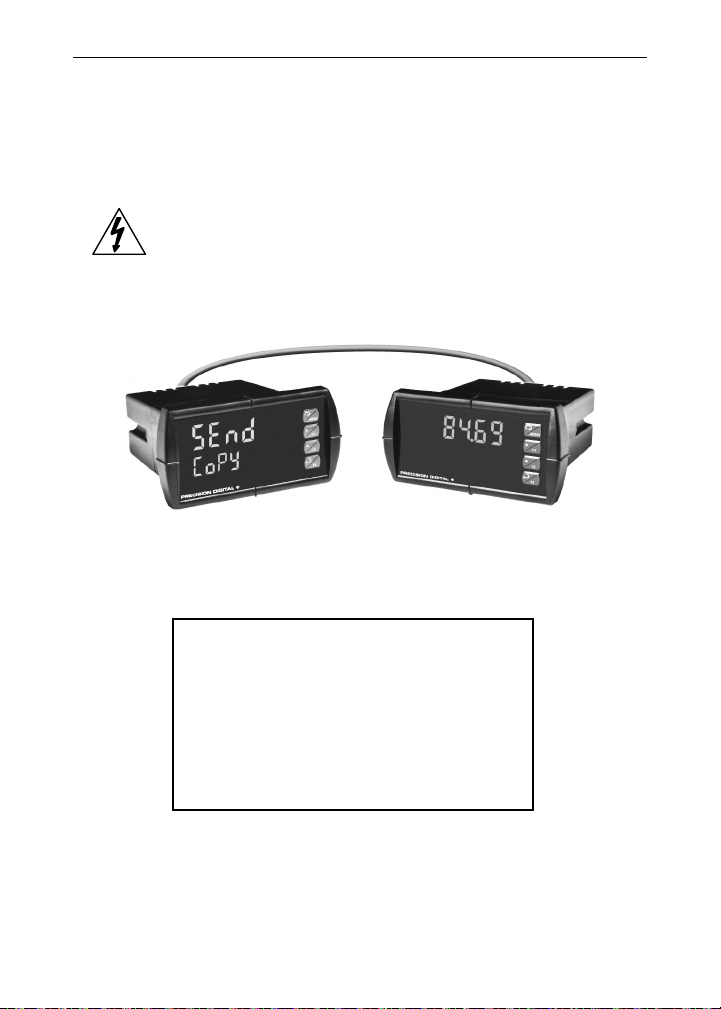

Figure 20: Meter Copy Connection .................................................... 79
6
Page 7
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
INTRODUCTION
The PROVU® PD6300 is a multipurpose, easy to use pulse rate/totalizer ideal for
flow rate, total, and control applications. It accepts pulse (e.g. ±40 mV to ±8 V),
square wave (0-5 V, 0-12 V, or 0-24 V), open collector, NPN, PNP, TTL or switch
contact signals. Three of the front panel buttons can be custom-programmed for
specific operation.
The basic model includes an isolated 24 VDC transmitter power supply that can
be used to power the input transmitter or other devices. An additional isolated
24 VDC power supply is included with the 4-20 mA output option.
A fully loaded PD6300 pulse rate/totalizer meter has the following: four SPDT relays,
4-20 mA output, and two 24 VDC power supplies. The PD6300 capabilities may be
enhanced by adding the following external expansion modules: four SPST relays
(creating an eight-relay rate/totalizer), two digital I/O modules with four inputs and
four outputs each, and RS-232 or RS-485 communication adapters.
The eight relays can be used for alarm indication or process control applications.
The 4-20 mA isolated output, Modbus RTU serial communications, and digital I/O
options make the PD6300 an excellent addition to any system.
7
Page 8
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
A
ORDERING INFORMATION
Standard Models
85-265 VAC
Model
PD6300-6R0 PD6300-7R0 No options
PD6300-6R2 PD6300-7R2 2 relays (PD1102*)
PD6300-6R3 PD6300-7R3 4-20 mA output (PD1103*)
PD6300-6R4 PD6300-7R4 4 relays (PD1104*)
PD6300-6R5 PD6300-7R5 2 relays &4-20 mA output (PD1105*)
PD6300-6R7 PD6300-7R7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
SunBright Display Models
85-265 V
Model
PD6300-6H0 PD6300-7H0 No options
PD6300-6H2 PD6300-7H2 2 relays (PD1102*)
PD6300-6H3 PD6300-7H3 4-20 mA output (PD1103*)
PD6300-6H4 PD6300-7H4 4 relays (PD1104*)
PD6300-6H5 PD6300-7H5 2 relays &4-20 mA output (PD1105*)
PD6300-6H7 PD6300-7H7 4 relays & 4-20 mA output (PD1107*)
*Model number for replacement option card.
Accessories
Model Description
PDA1002 DIN-Rail mounting kit for two expansion modules
PDA1004 4 SPST (Form A) relays
PDA1044 4 digital inputs & 4 digital outputs (2 may be connected)
PDA1200 Meter copy cable
PDA1232 RS-232 serial adapter
PDA1485 RS-422/485 serial adapter
PDA7485-I RS-232 to RS-422/485 isolated converter
PDA8232-N USB to RS-232 non-isolated converter
PDA8485-I USB to RS-422/485 isolated converter
PDA2811 1 Meter Plastic NEMA 4X Enclosure
PDA2812 2 Meter Plastic NEMA 4X Enclosure
PDX6901
12/24 VDC
Model
C
12/24 VDC
Model
Suppressor (snubber): 0.01 µF/470 , 250 VAC
Options Installed
Options Installed
8
Page 9
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY
DISPLAY
INTENSITY
DISPLAY
UPDATE RATE
OVERRANGE
DISPLAY
ASSIGNMENT
PROGRAMMING
METHODS
RECALIBRATION
MAX/MIN
DISPLAY
PASSWORD
NON-VOLATILE
MEMORY
POWER
OPTIONS
FUSE
ISOLATED
TRANSMITTER
POWER SUPPLY
ISOLATION
Main display: 0.6" (15 mm) high, red LEDs
Second display: 0.46" (12 mm) high, red LEDs
6 digits: each (-99999 to 999999), with lead zero blanking.
Eight user selectable intensity levels
Rate: 10 per second; up to 1 per 100 seconds (and is a
function of Low Gate setting)
Total: 10 per second (fixed)
Display flashes
The main (Big) and small (Little) displays may be assigned
to rate, total, grand total, alternate rate & total, max/min,
units (small display only), set points, and Modbus input.
Four front panel buttons, digital inputs, PC and MeterView Pro
software, Modbus registers, or cloning using Copy function.
All ranges are calibrated at the factory to read frequency in
Hz. No recalibration required.
Max/min readings reached by the process are stored until
reset by the user or until power to the meter is turned off.
Three programmable passwords restrict modification of
programmed settings and two prevent resetting the totals.
Pass 1: Allows use of function keys and digital inputs
Pass 2: Allows use of function keys, digital inputs and editing set/reset points
Pass 3: Restricts all programming, function keys, and digital inputs.
Total: Prevents resetting the total manually
Gtotal: Prevents resetting the grand total manually
All programmed settings are stored in non-volatile memory
for a minimum of ten years if power is lost.
85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
or jumper selectable 12/24 VDC 10%, 15 W max
Required external fuse: UL Recognized, 5 A max, slow
blow; up to 6 meters may share one 5 A fuse
Terminals P+ & P-: 24 VDC 10% @ 200 mA max (standard),
(12/24 VDC powered models rated @ 100 mA max).
5 or 10 VDC @ 50 mA max, selectable with internal jumper J4.
4 kV input/output-to-power line
500 V input-to-output or output-to-P+ supply
999999
9
Page 10
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
OVERVOLTAGE
CATEGORY
ENVIRONMENTAL
CONNECTIONS
ENCLOSURE
MOUNTING
TIGHTENING
TORQUE
OVERALL
DIMENSIONS
WEIGHT
WARRANTY
Installation Overvoltage Category II:
Local level with smaller transient overvoltages than Installation Overvoltage Category III.
Operating temperature range: -40 to 65°C
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing
Removable screw terminal blocks accept 12 to 22 AWG
wire, RJ45 for external relays, digital I/O, and serial communication adapters.
1/8 DIN, high impact plastic, UL 94V-0, color: black
1/8 DIN panel cutout required:
3.622" x 1.772" (92 mm x 45 mm)
Two panel mounting bracket assemblies are provided.
Screw terminal connectors: 5 lb-in (0.56 Nm)
4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
(W x H x D)
9.5 oz (269 g)
3 years parts & labor
Rate Input
INPUTS
LOW VOLTAGE
MAG PICKUP
(Isolated)
MINIMUM INPUT
FREQUENCY
MAXIMUM INPUT
FREQUENCY
INPUT
IMPEDANCE
ACCURACY
TEMPERATURE
DRIFT
MULTI-POINT
LINEARIZATION
LOW-FLOW
CUTOFF

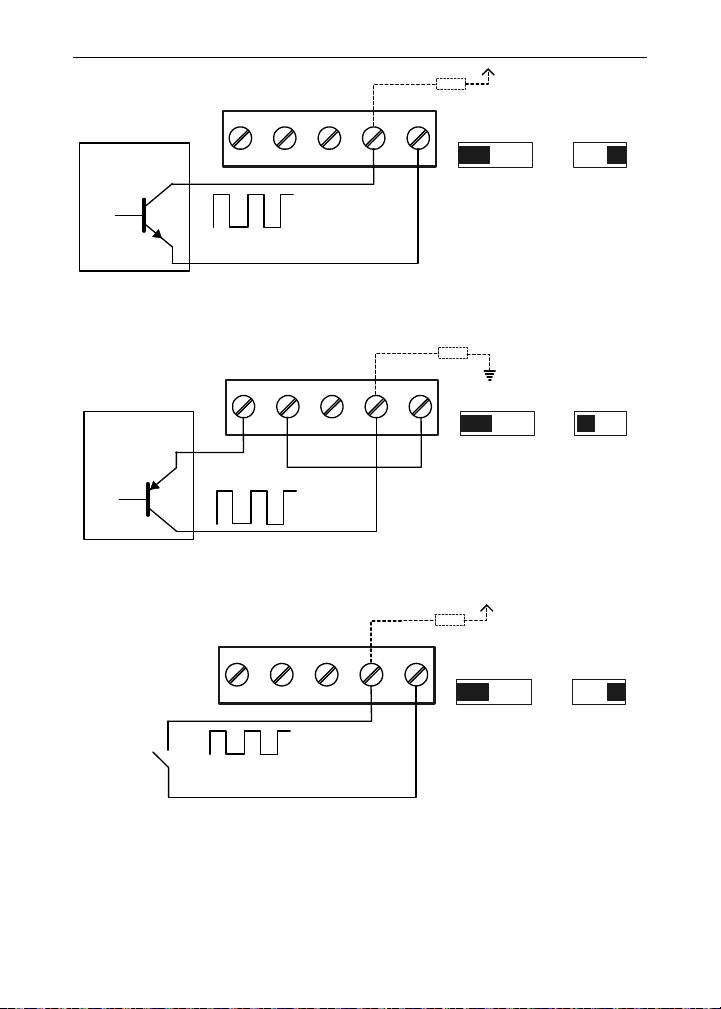

Field selectable: Pulse or square wave 0-5 V, 0-12 V, or
0-24 V @ 30 kHz; TTL; open collector 4.7 k pull-up to 5 V
@ 30 kHz; NPN or PNP transistor, switch contact 4.7 k
pull-up to 5 V @ 40 Hz; Modbus PV (Slave)
Sensitivity: 40 mVp-p to 8Vp-p
0.001 Hz
Minimum frequency is dependent on high gate setting.
30,000 Hz (10,000 for low voltage mag pickup)
Pulse input: Greater than 300 k @ 1 kHz.
Open collector/switch input: 4.7 k pull-up to 5 V.
±0.03% of calibrated span ±1 count
Rate display is not affected by changes in temperature.
2 to 32 points
0-999999 (0 disables cutoff function)
10
Page 11
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
DECIMAL POINT
Up to five decimal places or none:
d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd
CALIBRATION
K-FACTOR
CALIBRATION
RANGE
FILTER
TIME BASE
GATE
May be calibrated using K-factor, internal calibration, or by
applying an external calibration signal.
Field programmable K-factor converts input pulses to rate in
engineering units. May be programmed from 0.00001 to
999,999 pulses/unit.
Input 1 signal may be set anywhere in the range of the
meter; input 2 signal may be set anywhere above or below
input 1 setting.
Minimum input span between any two inputs is 10 Hz.
An Error message will appear if the input 1 and input 2
signals are too close together.
Programmable contact de-bounce filter: 40 to 999 Hz maximum input frequency allowed with low speed filter.
Second, minute, hour, or day
Low gate: 0.1-99.9 seconds
High gate: 2.0-999.9 seconds
Rate/Totalizer
DISPLAY
ASSIGNMENT
RATE DISPLAY
INDICATION
TOTAL DISPLAY
& TOTAL
OVERFLOW
ALTERNATING
DISPLAY
TOTAL
DECIMAL POINT
TOTALIZER
TOTALIZER
ROLLOVER
The main (Big) and small (Little) displays may be assigned
to rate, total, grand total, alternate R & T, units, and set
point.
-99999 to 999999, lead zero blanking. “R” LED illuminates
while displaying rate or frequency.
0 to 999,999; automatic lead zero blanking. “T” LED is illuminated while displaying total or grand total.
Up to 999,999,999 with total-overflow feature. “
played to the left of total overflow and ▲ LED is illuminated.
Either display may be programmed to alternate between
rate and total or rate and grand total every 10 seconds.
Up to five decimal places or none:
oF” is dis-
d.ddddd, d.dddd, d.ddd, d.dd, d.d, or dddddd
Total decimal point is independent of rate decimal point.
Calculates total based on rate and field programmable multiplier to display total in engineering units. Time base must
be selected according to the time units in which the rate is
displayed.
Totalizer rolls over when display exceeds 999,999,999.
Relay status reflects display.
11
Page 12
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
TOTAL
OVERFLOW
OVERRIDE
TOTALIZER
PRESETS
PROGRAMMABLE DELAY
ON RELEASE
TOTAL RESET
TOTAL RESET
PASSWORD
NONRESETTABLE
TOTAL
Program total reset for automatic with 0.1 second delay and
set point 1 for 999,999
Up to eight, user selectable under setup menu. Any set
point can be assigned to total and may be programmed
anywhere in the range of the meter for total alarm indication.
0.1 and 999.9 seconds; applied to the first relay assigned to
total or grand total.
If the meter is programmed to reset total to zero automatically when the preset is reached, then a delay will occur
before the total is reset.
Via front panel button, external contact closure on digital
inputs, automatically via user selectable preset value and
time delay, or through serial communications.
Total and grand total passwords may be entered to prevent
resetting the total or grand total from the front panel.
The grand total can be programmed as a non-resettable
total by entering the password “050873”.
Once the Grand Total has been programmed
!
as “non-resettable” the feature cannot be
Caution!
disabled.
Relays
RATING
NOISE
SUPPRESSION
RELAY
ASSIGNMENT
DEADBAND
HIGH OR LOW
ALARM
RELAY
OPERATION
2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A)
external; rated 3 A @ 30 VDC and 125/250 VAC resistive
load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads
Noise suppression is recommended for each relay contact
switching inductive loads; see page 25 for details.
Relays may be assigned to rate, total, or grand total.
0-100% of span, user programmable
User may program any alarm for high or low trip point.
Unused alarm LEDs and relays may be disabled (turn off).
Automatic (non-latching)
Latching (requires manual acknowledge)
Sampling (based on time)
Alternation control (2 to 8 relays)
Off (disable unused relays and enable Interlock feature)
Manual on/off control mode
12
Page 13
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

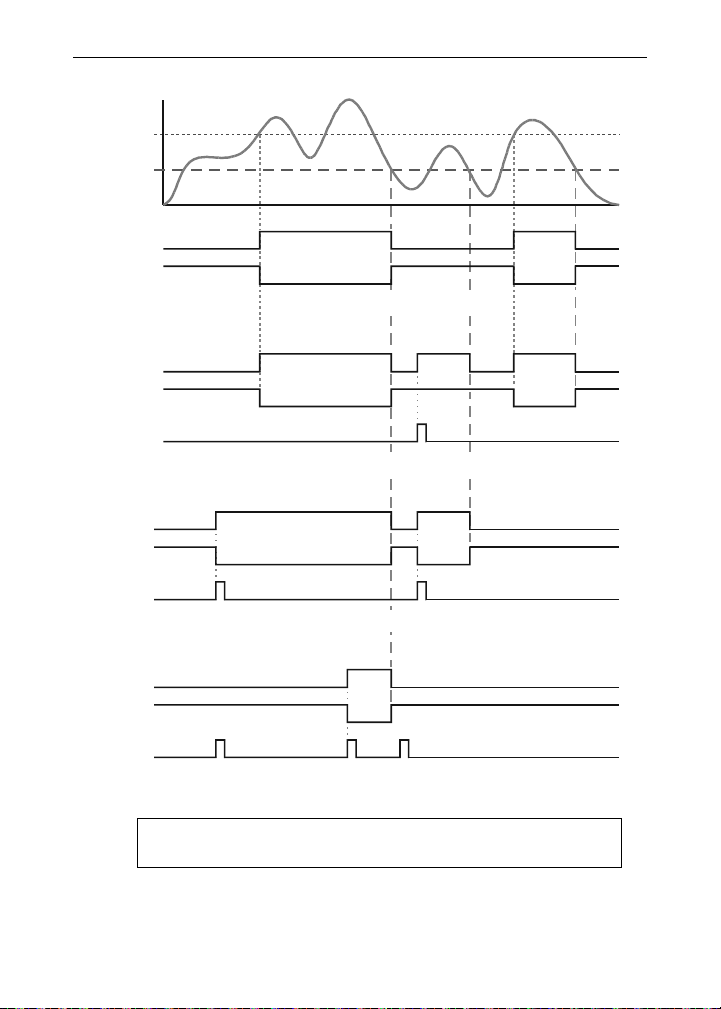

RELAY RESET
TIME DELAY
FAIL-SAFE
OPERATION
AUTO
INITIALIZATION
User selectable via front panel buttons, digital inputs, or PC
1. Automatic reset only (non-latching), when the input passes the reset point or total is reset to zero.
2. Automatic + manual reset at any time (non-latching)
3. Manual reset only, at any time (latching)
4. Manual reset only after alarm condition has cleared
(L)
Note: Front panel button or digital input may be assigned to
acknowledge relays programmed for manual reset.
0 to 999.9 seconds, on & off relay time delays
Programmable and independent for each relay.
Programmable and independent for each relay.
Note: Relay coil is energized in non-alarm condition.
In case of power failure, relay will go to alarm state.
When power is applied to the meter, relays will reflect the
state of the input to the meter.
Isolated 4-20 mA Transmitter Output
OUTPUT
SOURCE
SCALING RANGE
CALIBRATION
ANALOG OUT
PROGRAMMING
ACCURACY
TEMPERATURE
DRIFT
ISOLATED
TRANSMITTER
POWER SUPPLY
EXTERNAL LOOP
POWER SUPPLY
OUTPUT LOOP
RESISTANCE
Rate/process, total, grand total, max, min, set points 1-8,
Modbus input or manual control mode
1.000 to 23.000 mA for any display range.
Factory calibrated: 0.0 to 1000.0 = 4-20 mA output
23.000 mA maximum for all parameters:
Overrange, underrange, max, min, and break
± 0.1% FS ± 0.004 mA
0.4 µA/C max from 0 to 65C ambient,
0.8 µA/C max from -40 to 0C ambient
Note: Analog output drift is separate from input drift.
Terminals I+ & R: 24 VDC 10% @ 40 mA maximum; may
be used to power the 4-20 mA output or other devices.
Refer to Figure 6 on page 21 and Figure 14 on page 26.
35 VDC maximum
Power supply Minimum Maximum
24 VDC
35 VDC (external)
10 700
100 1200
13
Page 14
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Modbus® RTU Serial Communications
SLAVE ID
BAUD RATE
TRANSMIT
TIME DELAY
DATA
PARITY
BYTE-TO-BYTE
TIMEOUT
TURN AROUND
DELAY
Note: Refer to the PD6000/PD7000 Modbus Register Tables located at
www.predig.com for details.
1 – 247 (Meter address)
300 - 19,200 bps
Programmable between 0 and 199 ms
or transmitter always on for RS-422 communication
8 bit (1 start bit, 1 or 2 stop bits)
Even, Odd, or None with 1 or 2 stop bits
0.01 – 2.54 second
Less than 2 ms (fixed)
PDA1044 Digital Input & Output Expansion Module
CHANNELS
SYSTEM
DIGITAL INPUT
LOGIC HIGH
DIGITAL INPUT
LOGIC LOW
DIGITAL OUTPUT
LOGIC HIGH
DIGITAL OUTPUT
LOGIC LOW
SOURCE
CURRENT
SINK
CURRENT
+5 V
TERMINAL
4 digital inputs & 4 digital outputs per module
Up to 2 modules for a total of 8 inputs & 8 outputs
3 to 5 VDC
0 to 1.25 VDC
3.1 to 3.3 VDC
0 to 0.4 VDC
10 mA maximum output current
1.5 mA minimum input current
To be used as pull-up for digital inputs only.
Connect normally open contacts across +5 V & DI 1-4.
14
Page 15
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
COMPLIANCE INFORMATION
Safety
UL & c-UL LISTED
UL FILE NUMBER
FRONT PANEL
LOW VOLTAGE
DIRECTIVE
Electromagnetic Compatibility
EMISSIONS
Radiated
Emissions
AC Mains
Conducted
Emissions
IMMUNITY
RFI - Amplitude
Modulated
Electrical Fast
Transients
Electrostatic
Discharge
RFI - Conducted
AC Surge
Surge
Power-Frequency
Magnetic Field
Voltage Dips
Voltage
Interruptions
USA & Canada
UL 508 Industrial Control Equipment
E160849
UL Type 4X, NEMA 4X, IP65; panel gasket provided
EN 61010-1:2001
Safety requirements for measurement, control, and
laboratory use
EN 55022:2006/A1:2007
Class A ITE emissions requirements
Class A
Class A
EN 61326-1:2006
Measurement, control, and laboratory equipment
EN 61000-6-2:2005
EMC heavy industrial generic immunity standard
80 -1000 MHz 10 V/m 80% AM (1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
±2kV AC mains, ±1kV other
±4kV contact, ±8kV air
10V, 0.15-80 MHz, 1kHz 80% AM
±2kV Common, ±1kV Differential
1KV (CM)
3 A/m 70%V for 0.5 period
40%V for 5 & 50 periods
70%V for 25 periods
<5%V for 250 periods
15
Page 16
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Note:
Testing was conducted on PD6300 meters installed through the covers of grounded metal enclosures with cable shields grounded at the
point of entry representing installations designed to optimize EMC
performance.
Declaration of Conformity available at www.predig.com
SAFETY INFORMATION
Warning!
!
CAUTION: Read complete
instructions prior to installation and operation of the
meter.
Hazardous voltages exist within enclosure.
Installation and service should be performed only by
trained service personnel.
16
WARNING: Risk of
electric shock or
personal injury.
Page 17
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
INSTALLATION
There is no need to remove the meter from its case to complete
the installation, wiring, and setup of the meter for most applications. Instructions are provided for setting up a 12/24 VDC powered meter to operate from 12 VDC and for changing the
transmitter power supply to output 5 or 10 VDC instead of 24
VDC, see page 19.
Unpacking
Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact
your supplier or the factory for assistance.
Panel Mounting Instructions
Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x
45 mm). Refer to Figure 1 for more details.
Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.
Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).
Recommended minimum panel thickness to maintain Type 4X
rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.
Remove the two mounting brackets provided with the meter (back-off
the two screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the bracket toward the front of the case and remove).
Insert meter into the panel cutout.
Install mounting brackets and tighten the screws against the panel.
To achieve a proper seal, tighten the mounting bracket screws
evenly until meter is snug to the panel along its short side. DO NOT
OVER TIGHTEN, as the rear of the panel may be damaged.
A
3.622" (92mm)
Square Corners to 0.060"
1.772"
B
(45mm)
(1.5mm) Max Radius
Panel Cutout
to DIN 43700
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)
Figure 1: 1/8 DIN Panel Cutout and Mounting
17
Gasket
Mounting
Bracket
Panel
Mounting
Screw
Removable
Connectors
Page 18
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Mounting Dimensions
1.76"
(45 mm)
2.45"
(62 mm)
0.59"
(15 mm)
4.77"
(121 mm)
5.05"
(128 mm)
Figure 2: Meter Dimensions - Side View
3.61"
(92 mm)
4.68"
(119 mm)
Figure 3: Meter Dimensions - Top View
4.17"
(106 mm)
18
Page 19
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Configuration for 12 or 24 VDC Power Option
Do not exceed voltage rating of the selected
Warning!
Meters equipped with the 12/24 VDC power option are shipped from
the factory ready to operate from 24 VDC.
To configure the meter for 12 VDC power:
1. Remove all the connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch.
4. Configure the J9 jumper, located behind the power connector, for 12
V as shown below.
configuration.
J9 CONFIGURATION
+
_
MAIN BOARD
J9
12 V
24 V
Factory
Default
M-LINK
24 VDC
12 VDC
POWER
Figure 4: Jumper Configuration for 12/24 VDC Power
19
Page 20
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Transmitter Supply Voltage Selection (P+, P-)
All meters, including models equipped with the 12/24 VDC power
option, are shipped from the factory configured to provide 24 VDC
power for the transmitter or sensor.
If the transmitter requires 5 or 10 VDC excitation, the internal jumper
J4 must be configured accordingly.
To access the voltage selection jumper:
1. Remove all the connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch.
4. Configure the J4 jumper, located behind the input signal connector,
for the desired excitation voltage as shown.
J4 CONFIGURATION
5 V
Factory Default
10 V
24 V
MAIN BOARD
INPUT
SIGNAL
J4
COM
S+
SPP+
Figure 5: Transmitter Supply Voltage Selection
Connections
All connections are made to removable screw terminal connectors
located at the rear of the meter.
Use copper wire with 60°C or 60/75°C insulation
for all line voltage connections. Observe all safe-
!
Caution!
ty regulations. Electrical wiring should be performed in accordance with all applicable national,
state, and local codes to prevent damage to the
meter and ensure personnel safety.
20
Page 21
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Connectors Labeling
The connectors’ label, affixed to the meter, shows the location of all connectors available with requested configuration.
Do not connect any equipment other than Precision
Digital’s expansion modules, cables, or meters to the
Warning!
RJ45 M-LINK connector. Otherwise damage will occur
to the equipment and the meter.
Figure 6: Connector Labeling for Fully Loaded PD6300
Power Connections
Power connections are made to a two-terminal connector labeled POWER
on Figure 6. The meter will operate regardless of DC polarity connection.
The + and - symbols are only a suggested wiring convention.
POWER
-
+
AC or DC
POWER
Required External Fuse:
5 A max, 250 V Slow Blow
Figure 7: Power Connections
21
Page 22
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Signal Connections
Signal connections are made to a five-terminal connector labeled
SIGNAL on Figure 6. The COM (common) terminal is the return for the
input signals.
The following figures show examples of signal connections.
Setup and programming is performed through the front panel buttons.
INPUT SIGNAL
P+ S+
Flowmeter
(Pulse Output)
Figure 8: Flowmeter Powered by Internal Power Supply
External
+
Power
-
Supply
P+ S+
Flowmeter
(Pulse Output)
Figure 9: Flowmeter Powered by External Supply
P+ S+
S-P-
21354
INPUT SIGNAL
S-P-
21354
INPUT SIGNAL
S-P-
21354
COM
V PNP NPNmV
LEVEL TYPE
COM
V PNP NPNmV
LEVEL TYPE
COM
V PNP NPNmV
Flowmeter
(Magnetic
Pickup Coil)
Figure 10: Self-Powered Magnetic Pickup Coil Flowmeter
22
LEVEL TYPE
Page 23
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
INPUT SIGNAL
P+ S+
S-P-
21354
COM
+5 V
V PNP NPNmV
4.7 k-ohm
Internal pull-up
NPN
SENSOR
SENSOR
SWITCH
INPUT
LEVEL TYPE
Figure 11: NPN open Collector Input
INPUT SIGNAL
P+ S+
PNP
S-P-
21354
COM
V PNP NPNmV
LEVEL TYPE
Figure 12: PNP Sensor Powered by Internal Supply
INPUT SIGNAL
P+ S+
S-P-
21354
COM
+5 V
V PNP NPNmV
LEVEL TYPE
4.7 k-ohm
Internal pull-down
4.7 k-ohm
Internal pull-up
Figure 13: Switch Input Connections
23
Page 24
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Modbus RTU Serial Communications
Serial communications connection is made to an RJ45 connector labeled
M-LINK on Figure 6. Use the PDA1232 for RS-232 interfacing or the
PDA1485 for RS-422/485 interfacing. The same port is used for interfacing with all expansion modules (e.g. external relays, digital I/O).
Use the PDA1200 meter copy cable for meter-to-meter interfacing for
cloning purposes (i.e. copying settings from one meter to other meters).
Relay Connections
Relay connections are made to two six-terminal connectors labeled
RELAY1 – RELAY4 on Figure 6. Each relay’s C terminal is common only
to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with
the COM (common) terminal of the INPUT SIGNAL connector.
RELAY4 RELAY3
4365 21
CNONO NC NC C
Figure 11: Relay Connections
RELAY2 RELAY1
4365 21
CNONO NC NC C
24
Page 25
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Switching Inductive Loads
The use of suppressors (snubbers) is strongly recommended when
switching inductive loads to prevent disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies. Refer to the following circuits for RC network assembly and installation:
C
C
R
R
Figure 12: AC and DC Loads Protection
Choose R and C as follows:
R: 0.5 to 1 for each volt across the contacts
C: 0.5 to 1 µF for each amp through closed contacts
Notes:
1. Use capacitors rated for 250 VAC.
2. RC networks may affect load release time of solenoid loads. Check
to confirm proper operation.
3. Install the RC network at the meter's relay screw terminals. An RC
network may also be installed across the load. Experiment for best
results.
Use a diode with a reverse
breakdown voltage two to
three times the circuit voltage and forward current at
least as large as the load
current.
Figure 13: Low Voltage DC Loads Protection
RC Networks Available from Precision Digital
RC networks are available from Precision Digital and should be applied
to each relay contact switching an inductive load. Part number:
PDX6901.
Relays are de-rated to 1/14th HP (50 watts) with an inductive load.
Note:
25
Page 26
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
4-20 mA Output Connections
Connections for the 4-20 mA transmitter output are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered
internally or from an external power supply.
24 V
24 V
RELAY1
321
MA OUT
+
4-20 mA Input
Remote Display,
Chart Recorder, Etc.
RI- I+
132
-
RELAY1
321
+
4-20 mA
Input Meter
-
MA OUT
-
+
12-35 VDC
Power
Supply
RI- I+
132

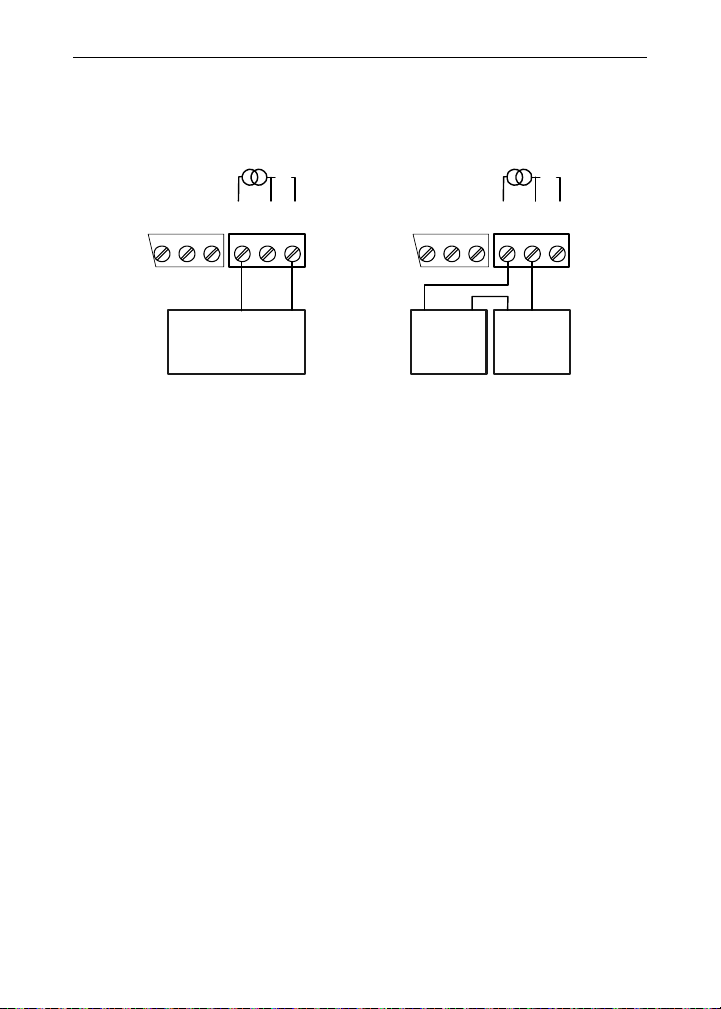

Figure 14: 4-20 mA Output Connections
Analog Output Transmitter Power Supply
The internal 24 VDC power supply powering the analog output may be
used to power other devices, if the analog output is not used. The I+
terminal is the +24 V and the R terminal is the return. This power supply
is capable of sourcing up to 40 mA.
26
Page 27
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
External Relay & Digital I/O Connections
The relay and digital I/O expansion modules PDA1004 & PDA1044 are
connected to the meter using the CAT5 cable provided with each module. The two RJ45 connectors on the expansion modules are identical
and interchangeable; they are used to connect additional modules to the
system.
Note: The jumper located between the RJ45 connectors of the PDA1044
must be removed on the second digital I/O module in order for the
system to recognize it as module #2.
Do not connect or disconnect the expansion modules
with the power on!
Warning!
More detailed instructions are provided with each optional expansion module.
Figure 15: Expansion Modules & DIN Rail Mounting Kit
RLY5 RLY6 RLY7 RLY8
12
NO C NO C NO C NO C
345678
Figure 16: External Relays Module Connections
27
Page 28
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
123456
+5 I1 I2 I3 I4 O1
5 VDC GND
DI 1-4 DO 1-4
78
O2 O3
910
O4 G
Figure 17: Digital I/O Module Connections
Interlock Relay Feature
As the name implies, the interlock relay feature reassigns one, or more,
alarm/control relays for use as interlock relay(s). Interlock contact(s) are
wired to digital input(s) and trigger the interlock relay. This feature is
enabled by configuring the relay, and relative digital input(s) (see page
65). In one example, dry interlock contacts are connected in series to
one digital input which will be used to force on (energize) the assigned
interlock power relay when all interlock contacts are closed (safe). The
interlock relay front panel LED flashes when locked out. The interlock
relay would be wired in-series with the load (N/O contact). See below.
Figure 18. Interlock Connections
28
Page 29
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
SETUP AND PROGRAMMING
The meter has been factory calibrated to read input
frequency in Hz (pulses/sec). The calibration equipment is certified to NIST standards.
Use the K-Factor menu to match the rate/totalizer with
a flowmeter’s k-factor (pulse/unit of measure).
Or use the Scale menu to scale the pulse input
(pulse/sec) without a signal source.
Or use Cal menu to calibrate the rate/totalizer using a
signal source.
Overview
There are two switches, located to the right of the input connector, which
must be configured according to the input level and type. Jumper J4 located inside the meter, behind the input signal connector, is used to select the excitation voltage (24 V*, 10 V or 5 V) which is supplied to the
P+ and P- wiring terminals.
Setup and programming is done through the front panel buttons.
After power and input signal connections have been completed and veri-
fied, apply power to the meter.
Default setting
*
29
Page 30
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Front Panel Buttons and Status LED Indicators
Button
Symbol
Note:
Alarms 5-8 are enabled when
relay expansion module is installed.
Description LED Status
Menu 1-8 Alarm 1 – 8 indicator
Right arrow/F1 R Rate indicator
Up arrow/F2 T Total indicator
Enter/F3 G T Grand Total indicator
▲
M
Total overflow
indicator
Manual control relays
&/or analog output
Press the Menu button to enter or exit the Programming Mode at
any time.
Press the Right arrow button to move to the next digit during digit or
decimal point programming.
Press the Up arrow button to scroll through the menus, decimal
point, or to increment the value of a digit.
Press the Enter button to access a menu or to accept a setting.
Press and hold the Menu button for three seconds to access the
advanced features of the meter.
30
Page 31
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Functions and Messages
The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu
functions and messages in the order they appear in the menu.
Display Parameter Action/Setting Description
reset
Rst t
Rst Gt
Rst Hi
Rst Lo
Rst HL
Contrl
Auto
nmAn
setup
Input
Total
Dec pt
dsplay
big
Little
d-Inty
RELaY
Reset
Reset total
Reset
grand total
Reset high
Reset low
Reset
high & low
Control
Automatic
Manual
Setup
Input
Total
Decimal point
Display
Big display
Little display Press Enter to assign the small display
Display
intensity
Relay
Press Enter to access the Reset menu
Press Enter to reset total
Press Enter to reset grand total
Press Enter to reset max display
Press Enter to reset min display
Press Enter to reset max & min displays
Enter Control menu
Press Enter to set meter for automatic
operation
Press Enter to manually control relays or
analog output operation
Enter Setup menu
Enter Input selection menu
Enable or disable totalizer features
Set decimal point for rate, total, grand total
Enter the Display menu
Press Enter to assign the Main display
parameter (default: PV or rate)
parameter (default: total)
Set display intensity level from 1 to 8
Enter the Relay menu
31
Page 32
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting Description
Assign
Asign1
rATE
totAL
G total
RLY 1
Act 1
Auto
A-nman
LatCH
Lt-CLr
Altern
Sampl
OFF
Set 1
Assignment
Assign 1
Rate
Total
Grand total
Relay 1
Action 1
Automatic
Auto-manual
Latching
Latchingcleared
Alternate
Sampling
Off
Set 1
Assign relays to rate, total, or grand total
Relay 1 assignment
Assign relay to rate
Assign relay to total
Assign relay to grand total
Relay 1 setup
Set relay 1 action
Set relay for automatic reset
Set relay for automatic & manual reset
any time
Set relay for latching operation (relays
assigned to rate)
Set relay for latching operation with manual reset only after alarm condition has
cleared (relays assigned to rate)
Set relay for alternation control (relays
assigned to rate)
Set relay for sampling operation
Disable relay and front panel status LED
(Select Off to enable Interlock feature)
Program set point 1
RSt 1
RLY 2
FaiLSF
FLS 1
on
Reset 1
Relay 2
Fail-safe
Fail-safe 1
On
Program reset point 1
Relays 2-8 setup
Note: Relays 5-8 are shown, only if expansion relay module is installed.
Enter Fail-safe menu
Set relay 1 fail-safe operation
Enable fail-safe operation
32
Page 33
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting Description
off
DeLAY
DLY 1
On 1
OFF 1
Aout
Dis 1
Out 1
Dis 2
Out 2
prog
factor
sCalE
Cal
Inp 1
Dis 1
Fail-safe off
Delay
Delay 1
On
Off
Analog output
Display 1
Output 1
Display 2
Output 2
Program
K-factor
Scaling
Scale
Calibrate
Input 1
Display 1
Disable fail-safe operation
Enter relay Time Delay menu
Enter relay 1 time delay setup
Set relay 1 On time delay
Set relay 1 Off time delay
Enter the Analog output scaling menu
Program display 1 value
Program output 1 value (e.g. 4.000 mA)
Program display 2 value
Program output 2 value (e.g. 20.000 mA)
Enter the Program menu
Programs unit to convert input pulse to
rate in engineering units
Enter the Scale menu
Enter the Calibrate menu
Calibrate input 1 signal or program input 1
value
Program display 1 value
Inp 2
Dis 2
Error
T tb
T CF
Input 2
Display 2
Error
Total time
base
Total conversion factor
Calibrate input 2 signal or program input 2
value (up to 32 points)
Program display 2 value (up to 32 points)
Error, calibration not successful, check
signal or programmed value
Program total time base
Program total conversion factor
33
Page 34
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting Description
T rst
GT tb
GT CF
GT rst
Auto
T dly
nmAn
pass
Pass 1
Pass 2
Pass 3
Total
Gtotal
nonrst
unloc
Total reset
Grand total
time base
Grand total
conversion
factor
Grand total
reset
Automatic
Time delay
Manual
Password
Password 1
Password 2
Password 3
Total
password
Grand total
password
Nonresettable
Unlocked
Program total reset mode: auto or manual
Program grand total time base
Program grand total conversion factor
Program grand total reset mode: auto or
manual
Press Enter to set automatic total reset
Program time delay for total auto reset
Press Enter to reset total manually
Enter the Password menu
Set or enter Password 1
Set or enter Password 2
Set or enter Password 3
Set or enter password for manual reset
Set or enter password for manual reset
Non-resettable grand total set after entering “050873” for Gtotal password
Program password to lock meter
locd
999999
Locked
Flashing
display
Enter password to unlock meter
Overrange condition
34
Page 35
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

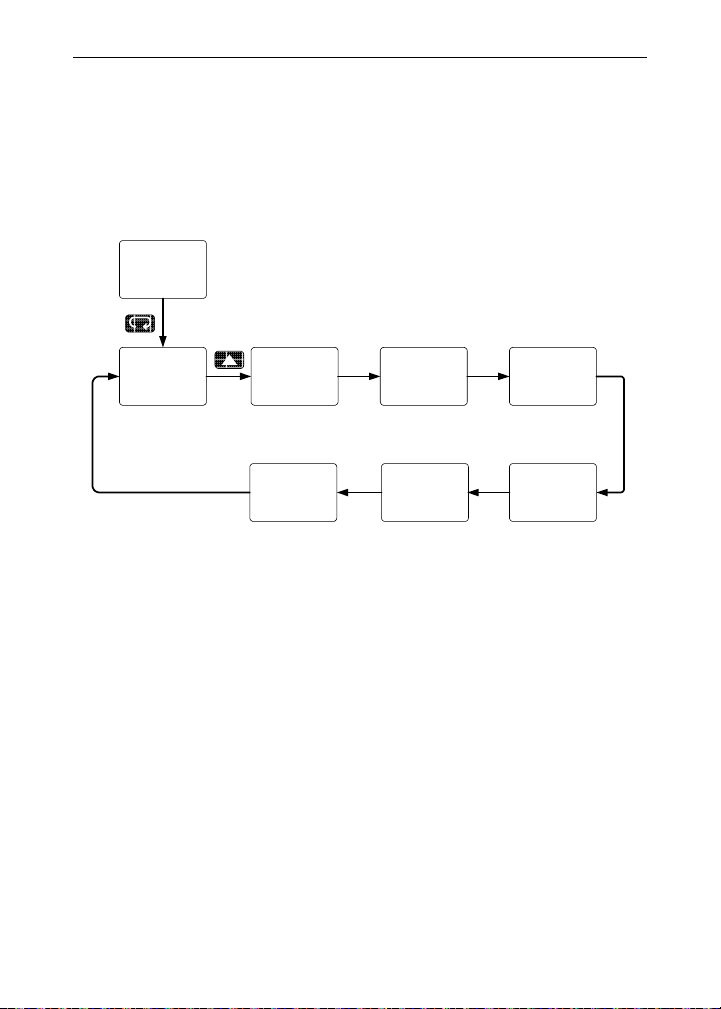

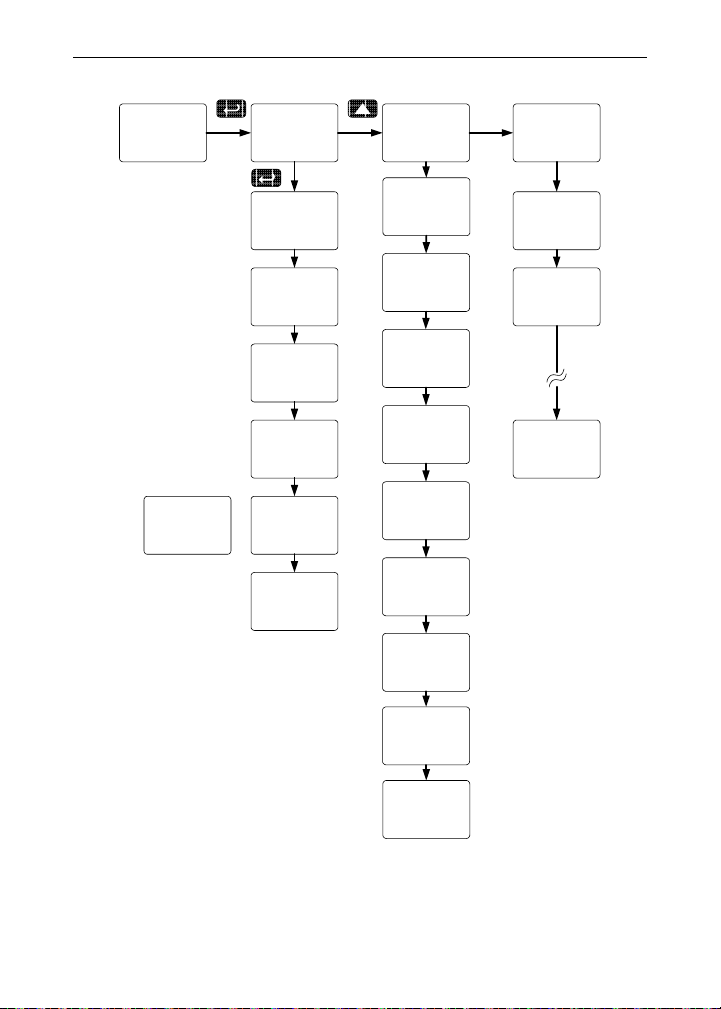

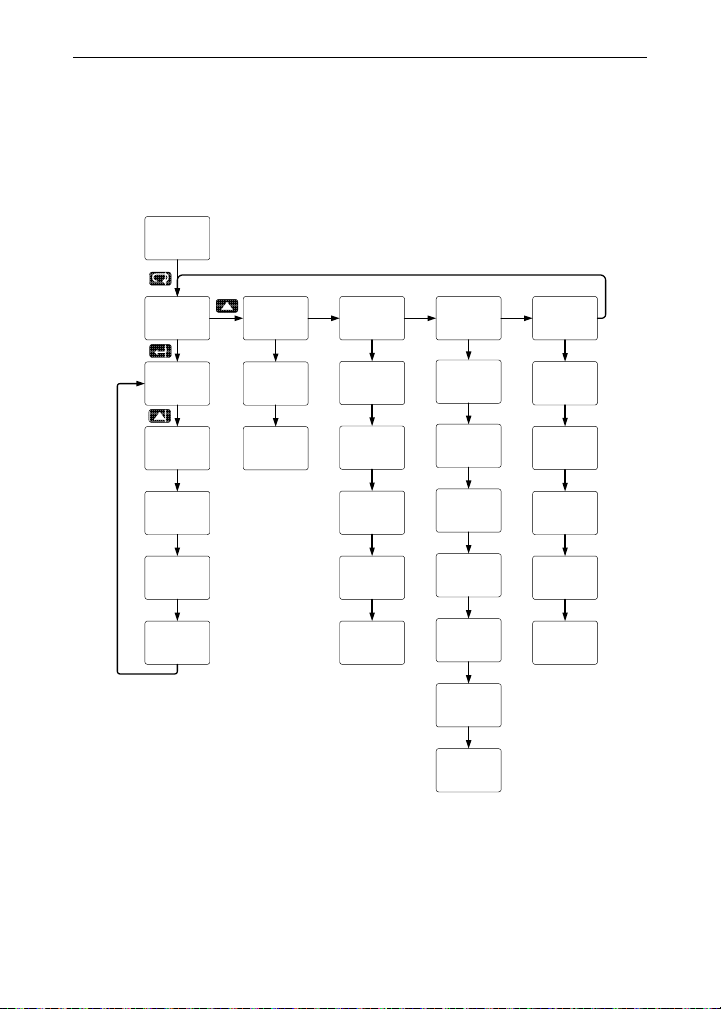

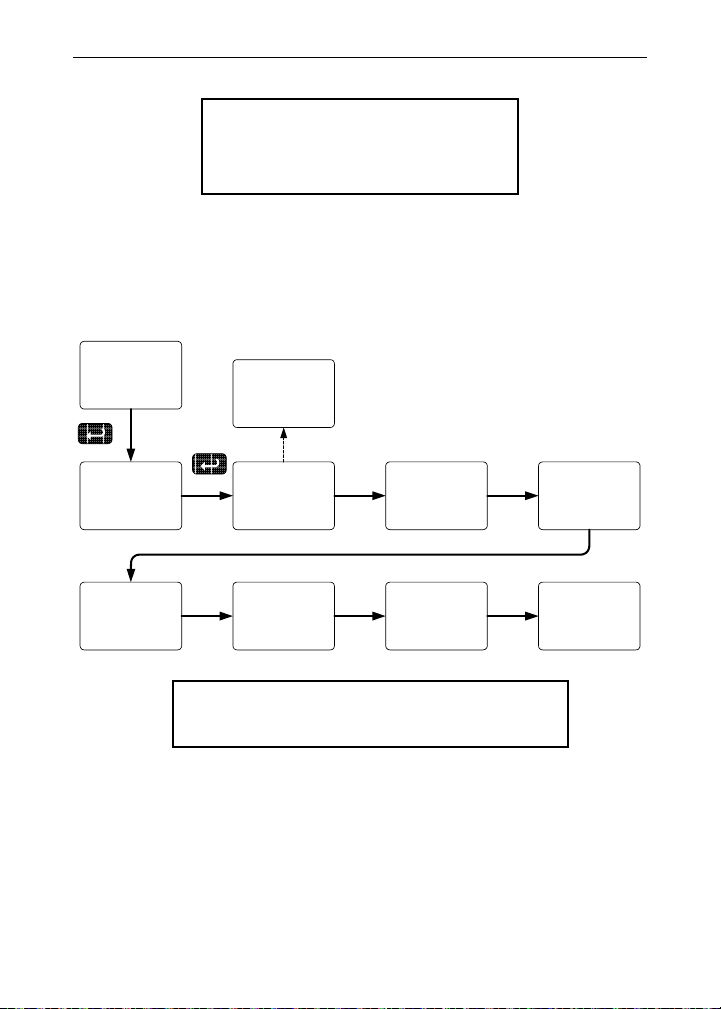

Main Menu
The main menu consists of the most commonly used functions: Reset,
Control, Setup
Press Menu button to enter Programming Mode then press the Up
arrow button to scroll through the main menu.
, Program, and Password.
Run Mode
2000.0
Pulse
reset setup Contrl Pass prog
rst Hi
reset
rst Lo
reset
rst HL
reset
rst t
reset
rst Gt
reset
auto
ontrl
C
nman
ontrl
C
Input
setup
dec pt
setup
dsplay
setup

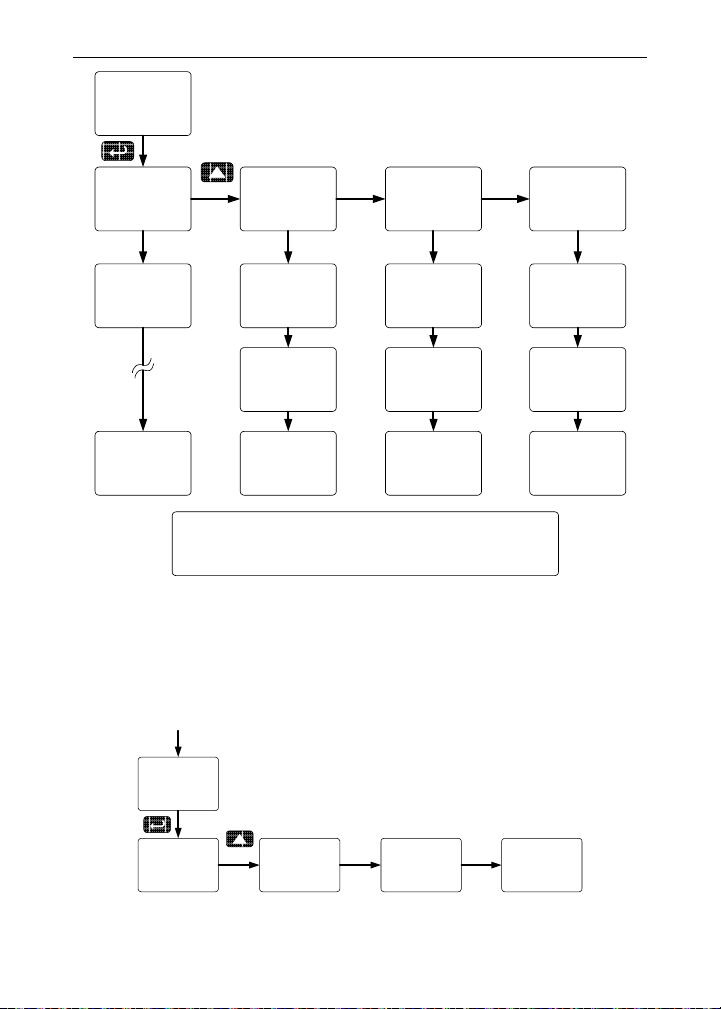

relay
setup
aout
setup
FActor
Prog
sCale
Prog
Cal
Prog
t tb
Prog
t CF
Prog
t rst
Prog
Grand
Total
Settings
Pass 1
Pass
Pass 2
Pass
Pass 3
Pass
total
Pass
Gtotal
Pass
Press Menu, at any time, to exit and return to Run Mode. Changes
made to settings prior to pressing Enter are not saved.
Changes to the settings are saved to memory only after pressing
Enter.
The display moves to the next menu every time a setting is ac-
cepted by pressing Enter.
35
Page 36
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

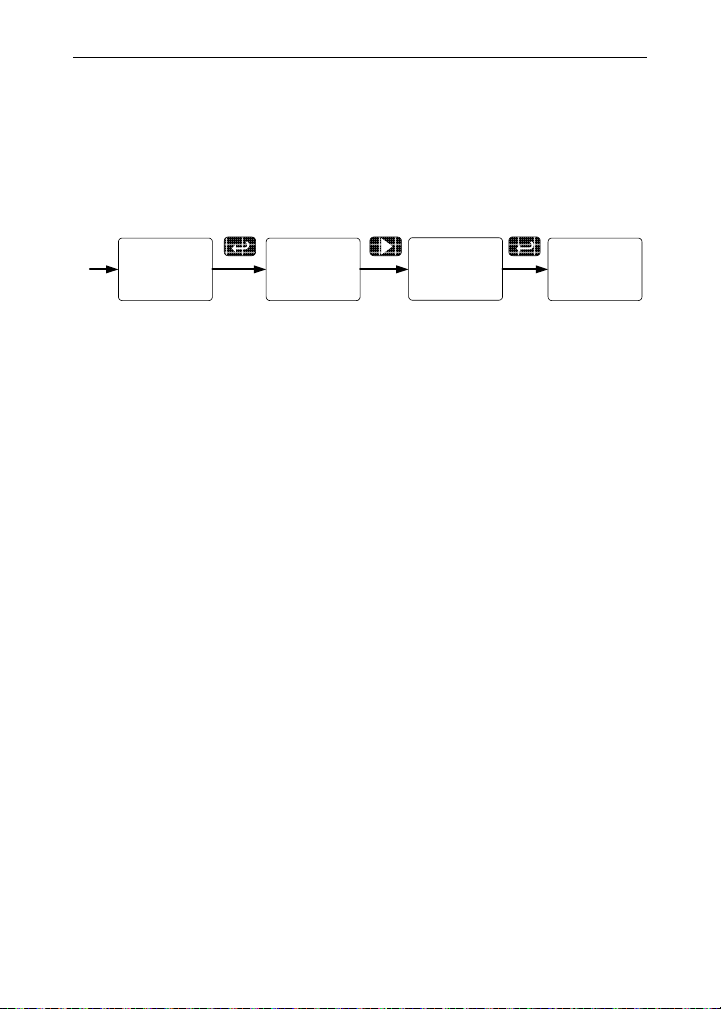

Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons. Press
the Right arrow to select the next digit and Up arrow to increment digit
value.
The digit being changed is displayed brighter than the rest.
Press the Enter button, at any time, to accept a setting or Menu button to
exit without saving changes.
004.000
dis 1
004.000
dis 1
Select Next Digit Accept Setting
Increment Digit
005.000
dis 1
Value
Next
Setting
Note: The decimal point is set in the Setup-decimal point menu.
Reset Menu (reset)
The Reset menu is used to reset the totals, maximum or minimum reading (peak or valley) reached by the process; both may be reset at the
same time by selecting “reset high & low” (
rst HL).
Control Menu (Contrl)
The Control menu is used to control the 4-20 mA analog output and the
relays manually, ignoring the input. Each relay and analog output can be
programmed independently for manual control. Selecting automatic control sets all relays and the analog output for automatic operation.
Contrl
auto
contrl
nman
contrl
Once Manual mode is initiated on any relay or
analog output, an LED labeled “M” is turned
on. Every few seconds, all LEDs representing
outputs that are in Manual mode, as well as
the “M” LED flash. This process will continue
as long as any output is in manual mode.
A out
nman
rly 1
nman
rly 8
nman
1 6 .000
A out
36
oFF
rly 1
on
rly 8
Page 37
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

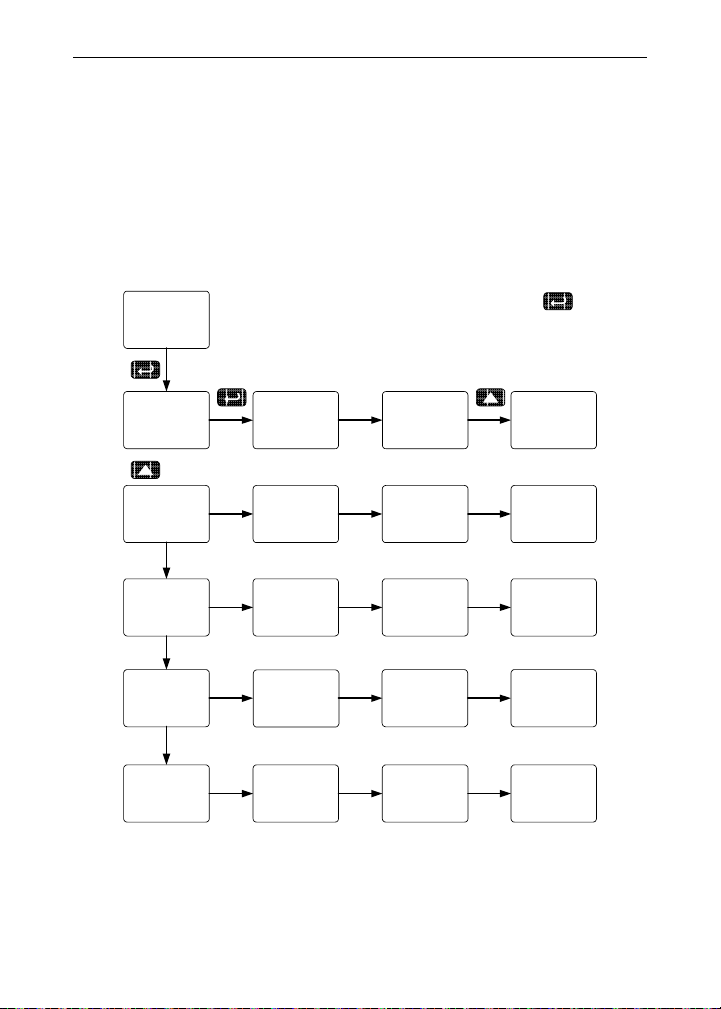

Setting Up the Rate/Totalizer Meter (setup)
The Setup menu is used to select:
1. Enable or disable totalizer features
2. Decimal point position
3. Display parameter and intensity
4. Relay operation
5. 4-20 mA analog output scaling
Press the Enter button to access any menu or press Up arrow button to
scroll through choices. Press the Menu button to exit at any time.
setup
Input
setup
dec pt
setup
Dsplay
setup
relay
setup
Aout
setup
total
rate
dec pt
big
dsplay
Assign
relay
dis 1
Aout
yes
total
total
dec pt
Little
dsplay
rly 1-8
relay
0 04.000
dis 1
Press Enter
to Accept
no
total
Gtotal
dec pt
d-Inty
dsplay
Fail-Safe
Delay
Break
Out 1
Aout
37
Page 38
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Setting the Input Signal (Input)
There are two switches, located to the right of the input connector, which
must be configured according to the input level and type. Jumper J4 located inside the meter, behind the input signal connector, is used to select the excitation voltage (24 V*, 10 V or 5 V) which is supplied to the
P+ and P- wiring terminals.
Default setting
*
Enter the Input menu to enable or disable the totalizer features.
Setting the Totalizer Features (total)
Enable or disable the totalizer features by selecting “Yes” or “no” after
the input type has been set up. If the totalizer features are disabled, all
the totalizer features and functions are hidden from the menus.
Note: The totalizer continues working in the background.
Setting the Decimal Point (dEc pt)
The decimal point may be set with up to five decimal places or with no
decimal point at all. The rate, total, and grand total decimal points are
independent.
Pressing the Right arrow moves the decimal point one place to the right
until no decimal point is displayed then it moves to the leftmost position.
38
Page 39
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Setting the Display Parameter & Intensity (dsplay)
The main display (Big) can be programmed to display:
1. Rate value
2. Total or grand total
3. Relay set points
4. Max & min values
5. Modbus input
The small display (
1. Rate value
2. Total or grand total
3. Relay set points
4. Max & min values
5. Engineering units or custom legends
6. Modbus input
7. Off (no display)
Display Intensity: The meter has eight display intensity levels to give the
best performance under various lighting conditions. Select intensity 8 for
outdoor applications.
Little) can be programmed to display:
39
Page 40
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

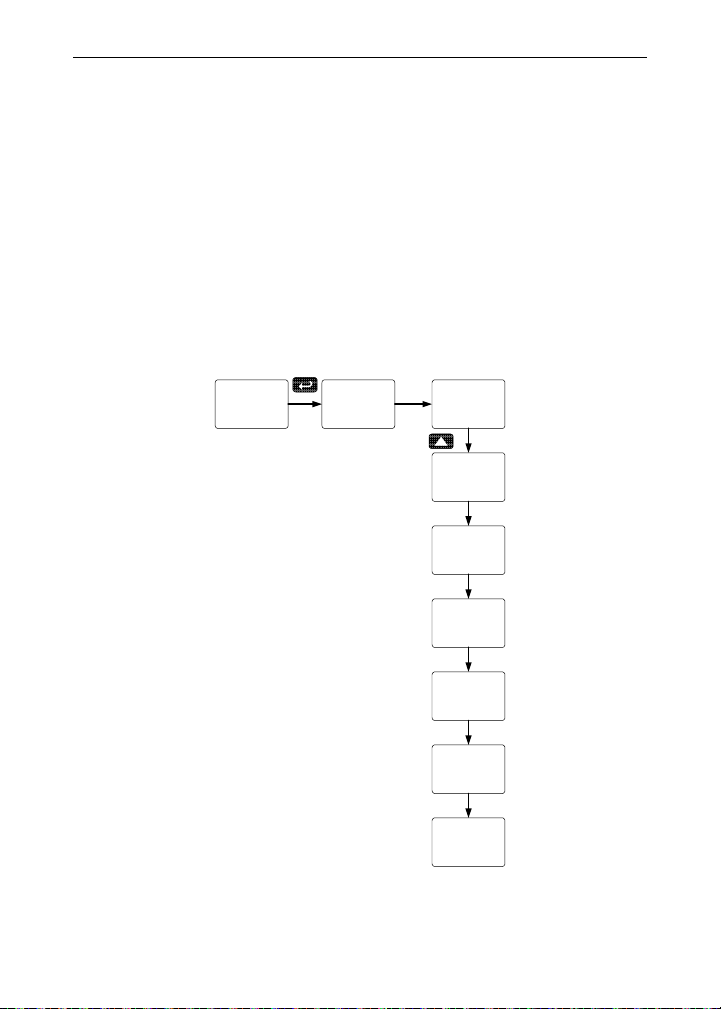

Display Setup Menu
Dsplay
setup
Select
Set Points
1-8
big
dsplay
d rate
big
d tot
big
d Gtot
big
Alternate
rate & total/
grand total
dset 1
big
Display
max, min,
max & min
Little
dsplay
Rate
Total
Grand total
Batch
dset 1
Little
d Hi
Little
d Lo
Little
d HL
Little
nmbus
Little
d off
Little
d-Inty
dsplay
Int 1
d-Inty
Int 2
d-Inty
Int 8
d-Inty
d unit
Little
d rate
Little
After setting up the input and the display, press the Menu button to exit
programming and skip the rest of the setup menu. Press the Menu button again and the Up arrow to reach the
Program menu and complete
the scaling or calibration of the meter.
40
Page 41
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Character Set for Engineering Units Display (d unit)
The small display can be programmed to show engineering units or custom legends using the following 7-segment character set:
Display Character Display Character
0
1
2
3
4
5
6
7
8
9
A
b
C
c
d
e
f
g
9
H
h
I
i
j
*Degree symbol (special non-ASCII character used)
The letters “m” and “w” use two 7-segment LEDs each; when selected the
characters to the right are shifted one position.
See the flow chart on page 40 to access the display units menu.
0
1
2
3
4
5
6
7
8
9
A
b
C
c
d
E
F
G
g
H
h
I
i
J
k
l
nm
n
O
o
p
q
r
s
t
u
v
uw
x
y
z
/
[
]
=
!
K
L
m
n
O
o
P
q
r
S
t
u
V
w
X
Y
Z
-
/
]
[
=
Space
<*
41
Page 42
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Programming the Rate/Totalizer (prog)
It is very important that one reads the following information before programming the meter:
The meter has been factory calibrated to read input frequency in Hz
(pulses/sec). The calibration equipment is certified to NIST standards.
Use the K-Factor menu to match the rate/totalizer with a flowmeter’s
k-factor (pulse/unit of measure).
Or use the Scale menu to scale the pulse input (pulse/sec) without a
signal source.
Or use Cal menu to calibrate the rate/totalizer using a signal source.
The
Program menu contains the following menus:
1. K-Factor calibration
2. Scale without a signal source
3. Calibrate with a calibrated signal source
4. Total time base & conversion factor
5. Grand total time base & conversion factor
6. Total reset mode for total & grand total
The process inputs may be calibrated or scaled to any display value
within the range of the meter.
prog Cal
Grand
Total
Settings
FActor
Prog
t rst
Prog
sCale
Prog
t CF
Prog
Prog
t tb
Prog
Additional parameters, not needed for most applications, are programmed in the
, page 70.
Menu
Advanced Features menu; see Advanced Features
42
Page 43
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
K-Factor Calibration (Factor)
The meter may be calibrated using the K-Factor function. Most flowmeter
manufacturers provide this information with the device. Enter the
K-Factor (Factor) menu and select the decimal point with highest reso-
lution possible and program the k-factor value (
ter will automatically calculate the flow rate using the k-factor and the
time base selected.
i.e. pulses/gal). The me-
d.ddddd
factor
1.89256
factor
Factor
prog
ddd.ddd
factor
Multi-Point Calibration & Scaling
The meter is set up at the factory for 2-point linear calibration. The number of points for multi-point calibration/scaling is set up in the
Features menu. Up to 32 linearization points may be selected. See page
76 for details.
Advanced
43
Page 44
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
MeterView® Pro Software
The meter can also be programmed using the PC-based MeterView Pro
software available for free download at www.predig.com.
Data logging for one meter at the time is available with MeterView Pro
software. More advanced data acquisition may be accomplished by using any Modbus RTU compliant software.
In order to program the meter using a computer, the meter must be connected using an RS-232 or RS-485 serial adapter, see ORDERING INFORMATION on page 8 for details.
44
Page 45
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

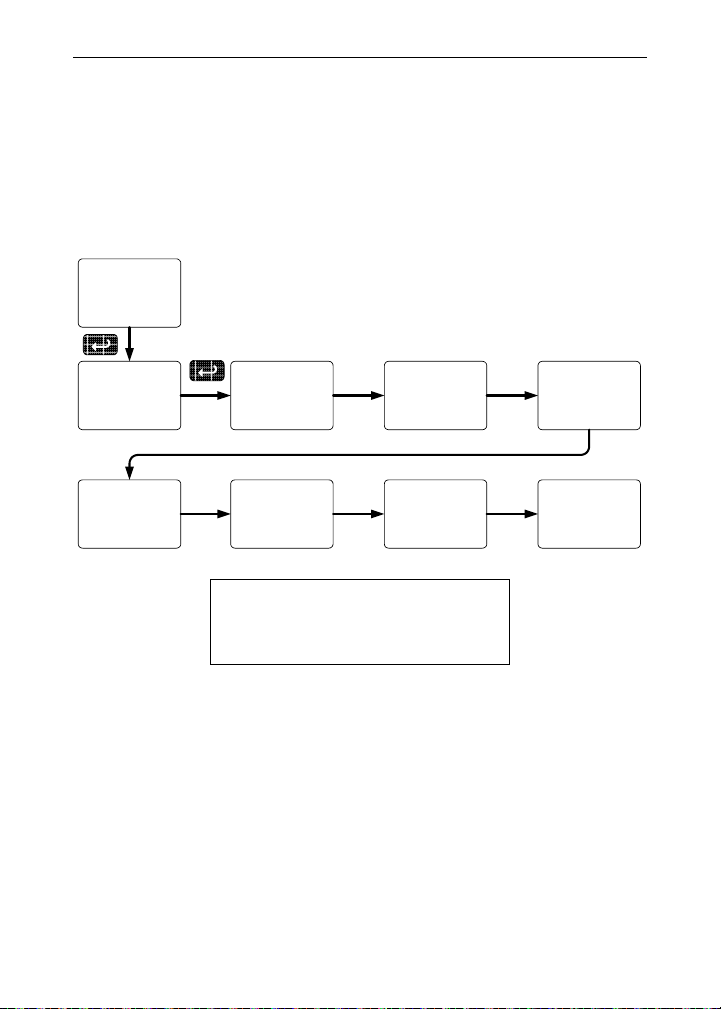

Scaling the Meter (SCALE)
The pulse inputs can be scaled to display the process variable in engineering units.
A signal source is not needed to scale the meter; simply program the
inputs and corresponding display values.
SCALE
Prog
Inp 1
SCALE
Inp 2
SCALE
00000.0
Inp 1
1000.0
Inp 2
For instructions on how to program numeric
values see
Setting Numeric Values, page 36.
dis 1
SCALE
dis 2
SCALE
00000.0
dis 1
10000.0
dis 2
45
Page 46
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Error Message (Error)
An error message indicates that the calibration or scaling process was not
successful. After the error message is displayed, the meter reverts to
input 2 during calibration or scaling, allowing the appropriate input signal
to be applied or programmed.
The error message might be caused by any of the following conditions:
1. Input signal is not connected to the proper terminals or it is connected
backwards.
2. Minimum input span requirements not maintained.
3. Input 1 signal inadvertently applied to calibrate input 2.
Minimum Input Span
The minimum allowed input span is 1.0 Hz, which is the minimum difference
between input 1 and input 2 signals required to complete the calibration or
scaling of the meter.
Gate Function (Gate)
The gate function is used for displaying slow pulse rates. Using the programmable gate, the meter is able to display pulse rates as slow as
1 pulse every 999.9 seconds (0.001 Hz). The gate function can also be
used to obtain a steady display reading with a fluctuating input signal.
The gate function (
menu. There are two settings for the
Hi G).
(
Low Gate (Lo G)
For most applications, low gate setting should be left at 1.0 second. Increase low gate setting to obtain a steadier rate display. The rate display
will update in accordance with the low gate setting, for example if low
gate is set at 10.0, the display will update every 10 seconds; changes in
rate between updates will not be reflected until next display update.
High Gate (Hi G)
Set the high gate value to correspond to the highest expected pulse period (lowest pulse rate). For instance if the meter must display a rate
when there is 1 pulse coming into the meter every 10 seconds, set the
high gate to 11.0 seconds. When the signal is removed from the meter,
the display will show the last reading for 11 seconds; then it will read
zero.
Gate) is the first option in the Advanced Features
Gate, low gate (Lo G) and high gate
46
Page 47
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Gate Settings
Slow Pulse Rate
Low Gate* (sec) High Gate (sec) Min Freq** (Hz)
1.0 2.0 0.5000
1.0 10.0 0.1000
1.0 20.0 0.0500
1.0 100.0 0.0100
1.0 200.0 0.0050
1.0 400.0 0.0025
1.0 800.0 0.0012
1.0 999.9 0.0010
*The low gate setting corresponds to the display update rate and is
used to stabilize the display reading with a fluctuating signal.
**The minimum frequency is dependent on high gate setting.
Contact De-Bounce Filter (FiLter)
The filter function (FiLter) can be used for applications where the meter
is set up to count pulses generated by switch contacts. The filter value
can be set anywhere between 2 and 50, the higher the value, the greater
the filtering.
The filter function (
tures menu. There are two settings,
(low speed), press
function. Program the filter value, so that there are no extra counts when
a contact closure is completed.
Filter) is the second option in the Advanced Fea-
Hi SPd (high speed) and Lo SPd
ENTER when Lo SPd is displayed to enable the filter
Filter Settings
Contact De-Bounce Filter
Filter Setting Speed Setting Max Freq (Hz)
2 Lo SPd 999
4 Lo SPd 499
8 Lo SPd 249
16 Lo SPd 124
32 Lo SPd 62
40 Lo SPd 50
50 Lo SPd 40
N/A Hi SPd 30,000
47
Page 48
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Time Base, Total Conversion Factor & Total Reset

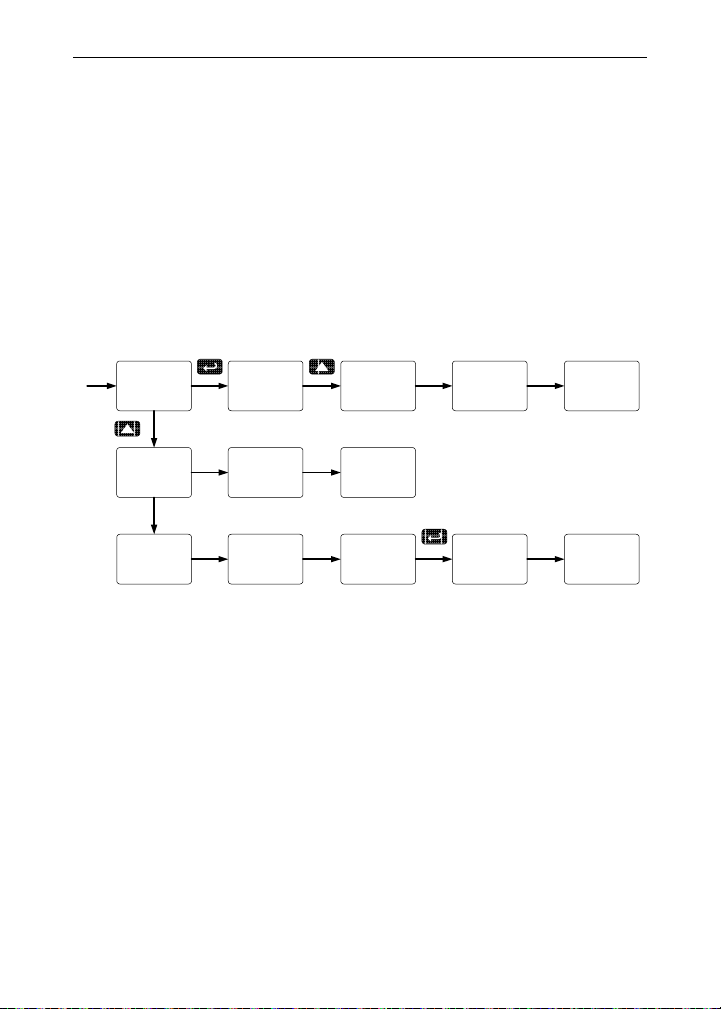

The time base, total conversion factor, and total reset menus are located
Program menu.
in the
The total and grand total have their own independent settings. This
means that one can be displaying the value in gallons while the other
displays in million gallons, liters, m
Total & Grand Total Reset
The totals can be programmed for manual or automatic reset. In the automatic reset mode, a programmable time delay is available to reset the
total or grand total after the assigned preset is reached.
t tb
Prog
sec
t tb
3
, etc.
nmin
t tb
Hour
t tb
day
t tb
t CF
Prog
t rst
Prog
d.ddddd
t CF
nman
t rst
0.01000
t CF
Auto
t rst
t dly
Auto
To Grand
Total
Settings
Non-Resettable Totalizer
The total and grand total can be password-protected to prevent unauthorized resets. The grand total can be programmed as a non-resettable
total, see page 68 for details.
48
Page 49
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

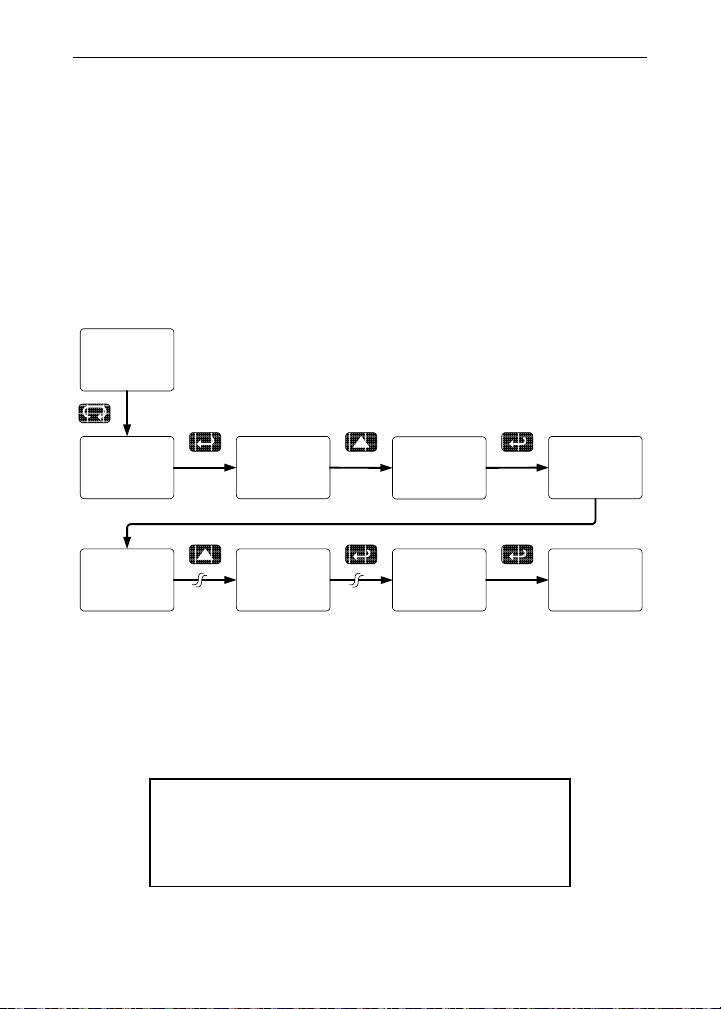

Calibrating the Meter with External Source (Cal)
To scale the meter without a signal
source refer to K-Factor Calibration
Factor) on page 43 or Scaling the
(
SCALE) on page 45
Meter (
The meter can be calibrated to display the process variable in engineering units by applying the appropriate input signal and following the calibration procedure.
The use of a calibrated signal source is strongly recommended to calibrate the meter.
CAL
Prog
Inp 1
CAL
Inp 2
CAL
The display
flashes while
sensing the
inputs
Inp 1
Inp 1
Inp 2
Inp 2
There is no need to warm up the meter before
performing the calibration procedure.
dis 1
Inp 1
dis 2
Inp 2
00000.0
10000.0
dis 1
dis 2
49
Page 50
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Setting the Relay Operation (relay)
This menu is used to set up the operation of the relays.
CAUTION! During setup, the relays do not follow the input and they will
remain in the state found prior to entering the Relay menu.
1. Relay assignment
a. Rate for low and high alarm
b. Total
c. Grand total
2. Relay action
a. Automatic reset only (non-latching)
b. Automatic + manual reset at any time (non-latching)
c. Latching (manual reset only)
d. Latching with Clear (manual reset only after alarm condi-
tion has cleared)
e. Alternation control (automatic reset only)
f. Sampling (the relay is activated for a user-specified time)
g. Off (relay state controlled by Interlock feature)
3. Set and reset points
4. Fail-safe operation
a. On (enabled)
b. Off (disabled)
5. Time delay
a. On delay (0-999.9 seconds)
b. Off delay (0-999.9 seconds)
50
Page 51
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
relay
setup
Assign
relay
Asign1
Assign
Asign8
Assign
Note: The setup of relays 2-8 follows the same
pattern shown here for relay 1.
rly 1
relay
Act 1
rly 1
set 1
rly 1
rst 1
rly 1
Failsf
relay
Fls 1
Failsf
on
Fls 1
off
Fls 1
delay
relay
dly 1
delay
on
dly 1
off
dly 1

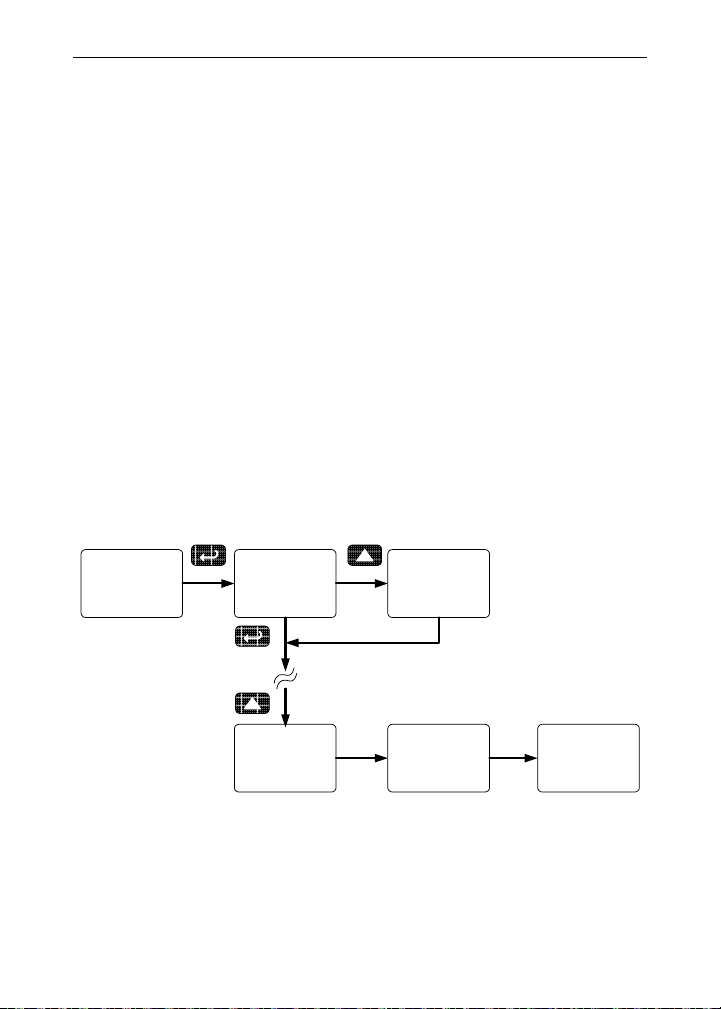

Relay Assignment (Assign)
The relays can be assigned to any of the following parameters:
1. Rate for low or high alarm indication
2. Total for alarm indication
3. Grand total for alarm indication
Assign
relay
Asign1
Assign
rate
Asign1
51
total
Asign1
Gtotal
Asign1
Page 52
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

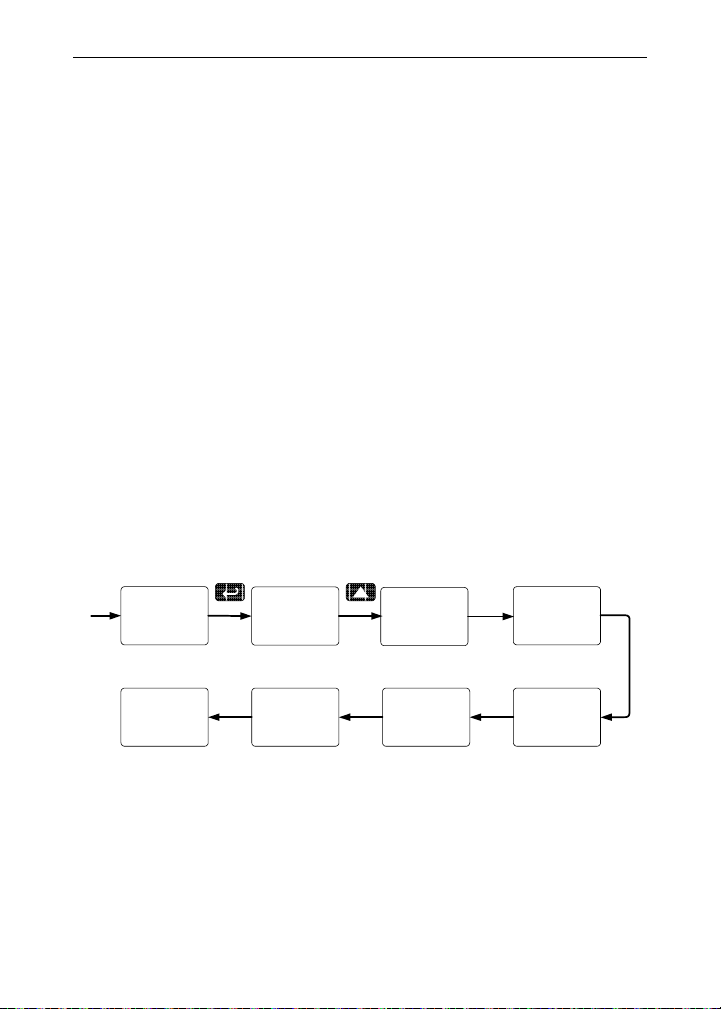

Setting the Relay Action
Operation of the relays is programmed in the Action menu. The relays
may be set up for any of the following modes of operation:
1. Automatic reset (non-latching)
2. Automatic + manual reset at any time (non-latching)
3. Latching (manual reset only, at any time)
4. Latching with Clear (manual reset only after alarm condition has
cleared)
5. Alternation control (automatic reset only)
6. Sampling (the relay is activated for a user-specified time)
7. Off (relay state controlled by Interlock feature)

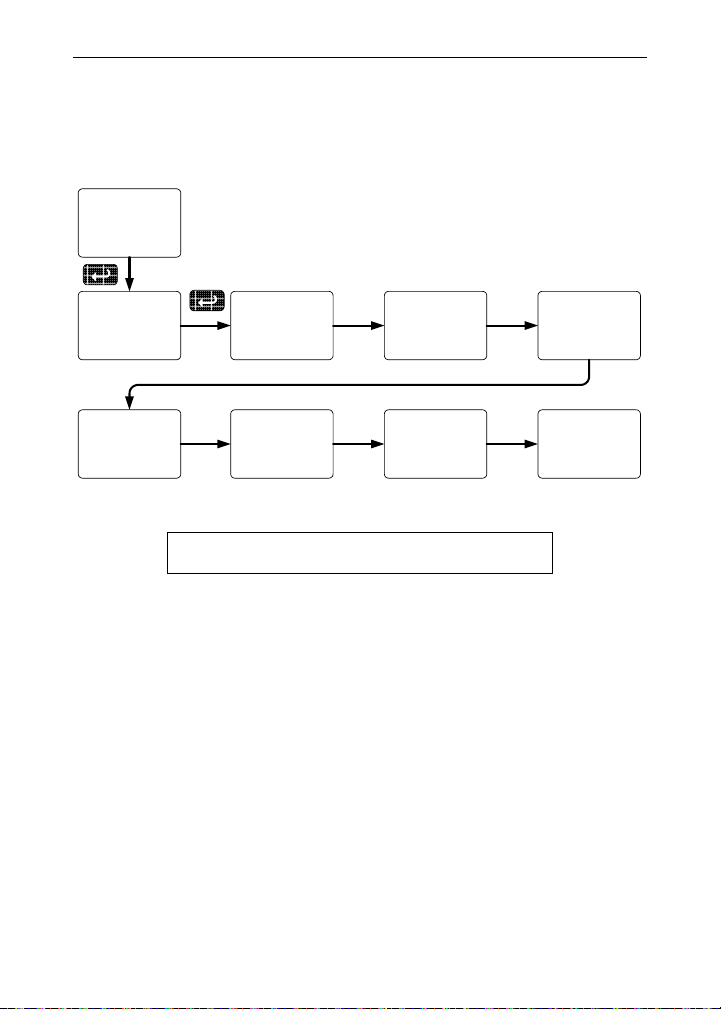

The following graphic shows relay 1 action setup; relay 2-8 are set up in
a similar fashion.
From
Relay 1
Menu
Act 1
rly 1
Auto
Act 1
A-nmAn
Act 1
LatcH
Act 1
Lt-Clr
Act 1
52
Altern
Act 1
Sanmpl
Act 1
OFF
Act 1
Page 53
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Programming Set and Reset Points
High alarm indication: program set point above reset point.
Low alarm indication: program set point below reset point.
The deadband is determined by the difference between set and reset
points. Minimum deadband is one display count. If the set and reset
points are programmed with the same value, the relay will reset one
count below the set point.
Note: Changes are not saved until the reset point has been accepted.
set 1
rly 1
rst 1
rly 1
Program
Set Point
Program
Reset Point
Setting Fail-Safe Operation
In fail-safe mode of operation, the relay coil is energized when the process
variable is within safe limits and the relay coil is de-energized when the
alarm condition exists. The fail-safe operation is set independently for each
relay. Select
on to enable or select off to disable fail-safe operation.
Programming Time Delay
The On and Off time delays may be programmed for each relay between
0 and 999.9 seconds. The relays will transfer only after the condition has
been maintained for the corresponding time delay.
On time delay is associated with the set point.
The
The
Off time delay is associated with the reset point.
53
Page 54
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
A

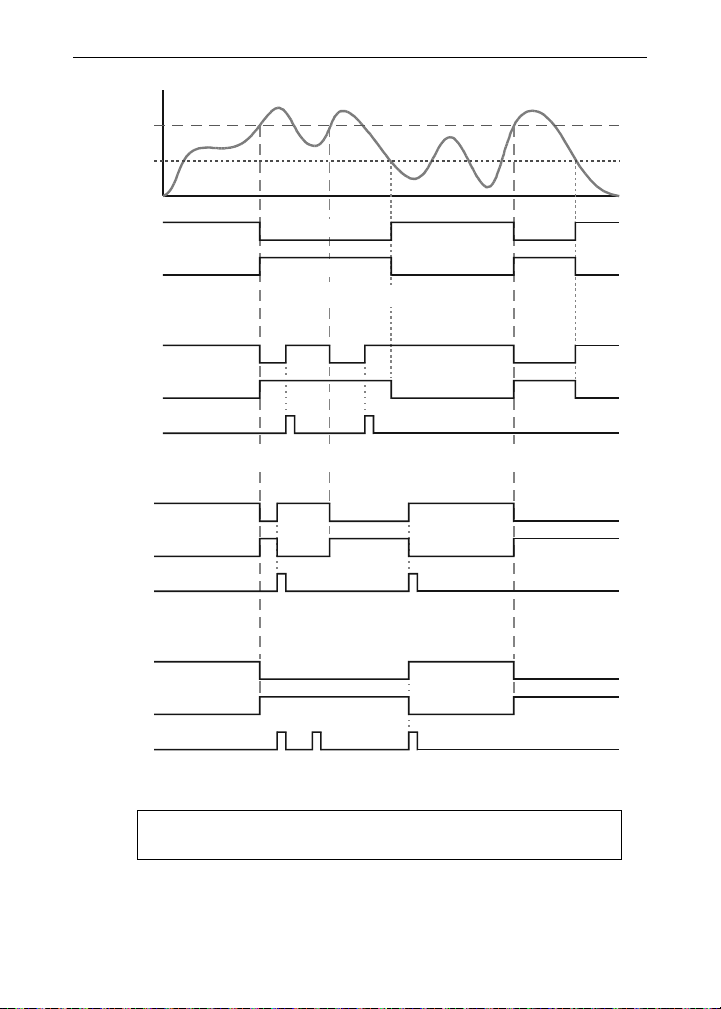

Relay and Alarm Operation Diagrams
The following graphs illustrate the operation of the relays, status LEDs,
and ACK button.
High Alarm Operation (Set > Reset)
Input
Set
Reset
Relay
LED
de-energized
off
energized
on
Automatic (non-latching)
Relay
LED
ACK
pressed
utomatic or Manual (non-latching)
Relay
LED
ACK
pressed
Manual (latching)
Relay
LED
ACK
pressed
Manual only after passing below Reset (latching with clear)
For Manual reset mode, ACK can be pressed anytime to turn "off" relay.
To detect a new alarm condition, the signal must go below the set point,
and then go above it.
54
Page 55
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Low Alarm Operation (Set < Reset)
Input
Reset
Set
Relay
LED
energized
on
de-energized
off
Automatic (non-latching)
Relay
LED
ACK
pressed
Automatic or Manual (non-latching)
Relay
LED
ACK
pressed
Manual (latching)
Relay
LED
ACK
pressed
Manual only after passing above Reset (latching with clear)
For Manual reset mode, ACK can be pressed anytime to turn "off" relay.
For relay to turn back “on”, signal must go above set point and then go
below it.
55
Page 56
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
High Alarm with Fail-Safe Operation (Set > Reset)
Input
Set
Reset
Relay
LED
energized
off
de-energized
on
Automatic (non-latching)
Relay
LED
ACK
pressed
Automatic or Manual (non-latching)
Relay
LED
ACK
pressed
Manual (latching)
Relay
LED
ACK
pressed
Manual only after passing below Reset (latching with clear)
Note: Relay coil is energized in non-alarm condition.
In case of power failure, relay will go to alarm state.
56
Page 57
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Low Alarm with Fail-Safe Operation (Set < Reset)
Input
Reset
Set
Relay
LED
de-energized
on
energized
off
Automatic (non-latching)
Relay
LED
ACK
pressed
Automatic or Manual (non-latching)
Relay
LED
ACK
pressed
Manual (latching)
Relay
LED
ACK
pressed
Manual only after passing above Reset (latching with clear)
Note: Relay coil is energized in non-alarm condition.
In case of power failure, relay will go to alarm state.
57
Page 58
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Alternation Control Operation
LEDs indicate the relay status
Input
Relay2 Set
Relay1 Set
Relay1 &
Relay2 Reset
de-energized energized
Pump 1
Pump 2
Input
Relay2 Set
Relay1 Set
Relay2 Reset
Relay1 Reset
58
de-energized energized
Pump 1
Pump 2
Input
Relay2 Set
Relay1 Set
Relay2 Reset
Relay1 Reset
de-energized energized
Pump 1
Pump 2
Page 59
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

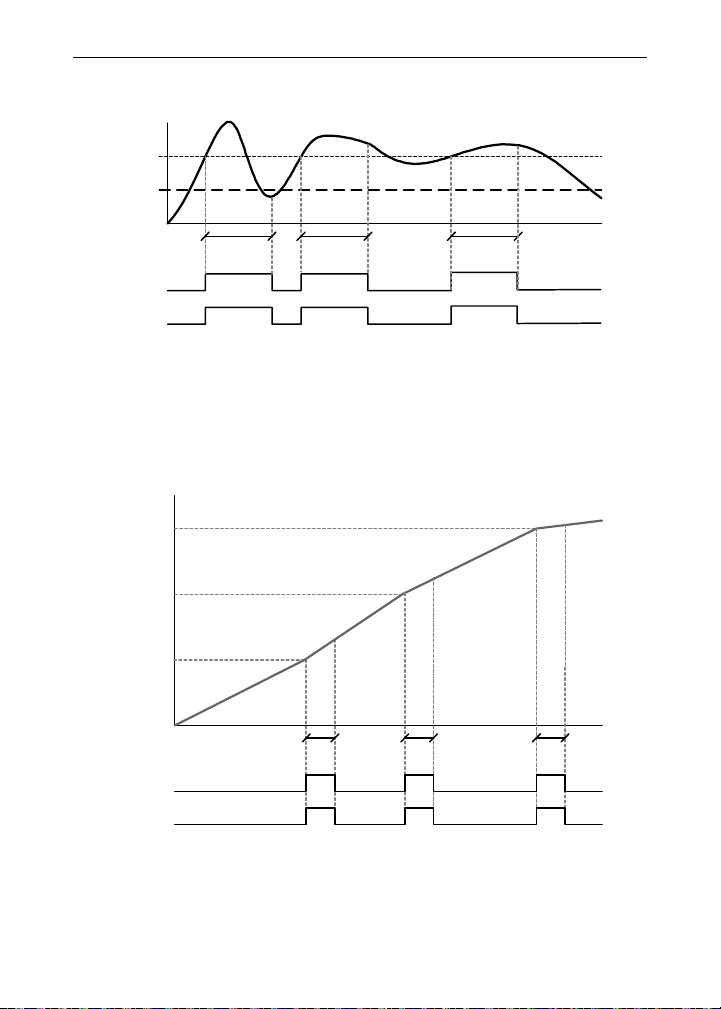

Rate Relay Sampling Operation
Input
Set
Reset
Relay
LED
Sample
Tim e
Sample
Tim e
Sample
Tim e
When the signal crosses the set point, the relay trips and the sample
time starts. After the sample time has elapsed, the relay resets. The
cycle repeats every time the set point is crossed, going up for high
alarms and going down for low alarms.
The sample time can be programmed between 0.1 and 5999.9 seconds.
Total Relay Sampling Operation
Total
300
200
100
Relay
LED
When the total reaches the preset, the relay trips and the sample time
starts. After the sample time has elapsed, the relay resets. The cycle
repeats every time the preset value is added to the total.
Preset = 100
Sample
Time
Sample
Time
Sample
Time
59
Page 60
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Time Delay Operation
The following graphs show the operation of the time delay function.
Input
Set
Reset
<Tdelay <Tdelay >=Tdelay
Relay
*
LED
On Time Delay
Input
Set
Reset
<Tdelay <Tdelay >=Tdelay
Relay
LED
*
Off Time Delay
When the signal crosses the set point, the
On time delay timer starts and
the relay trips when the time delay has elapsed. If the signal drops below
the set point (high alarm) before the time delay has elapsed, the
delay timer resets and the relay does not change state. The same principle applies to the
Off time delay.
* Note: If “
Automatic or Manual (A-nmAn)” reset mode is selected, the
LED follows the reset point and not the relay state when the relay is acknowledged.
On time
60
Page 61
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Relay Operation Details
Overview
The relay capabilities of the meter expand its usefulness beyond simple
indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs as well as either 2 or 4 optional internal relays and/or 4 external relays expansion module. Typical
applications include high or low flow alarms and basic batch control.
There are four basic ways the relays can be used:
1. High or Low Alarms with Latching or Non-Latching Relays
2. Simple On/Off Control with 100% Adjustable Deadband
3. Sampling (Based on Time)
4. Alternation Control for up to 8 Relays
Relays Auto Initialization
When power is applied to the meter, the front panel LEDs and alarm
relays will reflect the state of the input to the meter. The following table
indicates how the alarm LEDs and relays will react on power-up based
on the set and reset points:
Alarm #
1 HI 1000 500 499 Off
2 LO 700 900 499 On
3 LO 250 400 499 Off
4 HI 450 200 499 On
HI or LO
Alarm
Fail-Safe Operation
The following table indicates how the relays behave based on the failsafe selection for each relay:
Fail-Safe
Selection
Off Open Closed Closed Open
On Closed Open Open Closed
Note: NO = Normally Open, NC = Normally Closed. This refers to the
condition of the relay contacts when the power to the meter is off.
Non-Alarm State Alarm State
NO NC NO NC
Set
Point
Reset
Point
Power-Up
Reading
Power Failure
Relays go to
non-alarm state
Relays go to
alarm state
Relay &
LED
61
Page 62
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Front Panel LEDs
The LEDs on the front panel provide status indication for the following:
LED Status LED Status
1 Alarm 1 5 Alarm 5
2 Alarm 2 6 Alarm 6
3 Alarm 3 7 Alarm 7
4 Alarm 4 8 Alarm 8
The meter is supplied with four alarm points that include front panel
LEDs to indicate alarm conditions. This standard feature is particularly
useful for alarm applications that require visual-only indication. The LEDs
are controlled by the set and reset points programmed by the user.
When the display reaches a set point for a high or low alarm, the corresponding alarm LED will turn on. When the display returns to the reset
point the LED will go off. The front panel LEDs respond differently for
latching and non-latching relays.
For non-latching relays, the LED is always off during normal condition
and always on during alarm condition, regardless of the state of the relay
(e.g. Relay acknowledged after alarm condition).
For latching relays, the alarm LEDs reflect the status of the relays, regardless of the alarm condition. The following tables illustrate how the
alarm LEDs function in relation to the relays and the acknowledge button
(Default: F3 key assigned to ACK):
Latching and Non-Latching Relay Operation
The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation.
Relay terminology for following tables
Terminology Relay Condition
On Alarm (Tripped)
Off Normal (Reset)
Ack Acknowledged
The On and Off terminology does not refer to the status of the relay’s
coil, which depends on the fail-safe mode selected.
Warning!
In latching relay mode, latched relays will reset (unlatch) when power is cycled.
62
Page 63
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Non-Latching Relay (Auto)
Automatic reset only
Condition LED Relay
Normal Off Off
Alarm On On
Ack (No effect) On On
Normal Off Off
In this application, the meter is set up for automatic reset (non-latching
relay). Acknowledging the alarm while it is still present has no effect on
either the LED or the relay. When the alarm finally goes away, the relay
automatically resets and the LED also goes off.
Non-Latching Relay (A-nman)
Automatic + manual reset at any time
Condition LED Relay
Normal Off Off
Alarm On On
Normal Off Off
Next Alarm On On
Ack On Off
Normal Off Off
In this application, the meter is set up for automatic and manual reset at
any time (non-latching relay). The LED and the relay automatically reset
when the meter returns to the normal condition.
The next time an alarm occurs, the operator acknowledges the alarm
manually while the alarm condition still exists. This causes the relay to
reset, but the LED stays on until the meter returns to the normal condition.
Latching Relay (LatcH)
Manual reset any time
Condition LED Relay
Normal Off Off
Alarm On On
Ack Off Off
In this application, the meter is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets
the relay and turns off the LED.
63
Page 64
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Latching Relay (Lt-Clr)
Manual reset only after alarm condition has cleared
Condition LED Relay
Normal Off Off
Alarm On On
Ack (No effect) On On
Normal On On
Ack Off Off
In this application, the meter is set up for manual reset only after the
signal passes the reset point (alarm condition has cleared). Acknowledging the alarm while it is still present has no effect on either the LED or
the relay. When the alarm is acknowledged after it returns to the normal
state, the LED and the relay go off. Notice that the LED remains on,
even after the meter returns to the normal condition. This is because, for
latching relays, the alarm LED reflects the status of the relay, regardless
of the alarm condition.
Acknowledging Relays
There are two ways to acknowledge relays programmed for manual reset:
Via the programmable front panel function keys F1-F3 (Default:
F3 assigned to ACK)
Remotely via a normally open pushbutton wired across one of the
digital inputs and the +5 V terminals on the digital I/O modules.
When the ACK button or the assigned digital input is closed, all relays
programmed for manual reset are acknowledged.
PDA1044 Digital I/O Module
12345678910
+5 I1 I2 I3 I4 O1 O2 O3 O4 G
DI 1-4
DO 1-4
GND
ACK
Figure 19: Acknowledge Relays w/Function Key or Digital Input
64
Page 65
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Setting Up the Interlock Relay Feature
Relays 1-4 can be set up as interlock relays. To set up the relays for the
interlock feature:
1. Access the
Setup – Relay – Action menu and set the action to off.
setup
relay
setup
rly 1
relay
Act 1
rly 1
Off
Act 1
2. In the Advanced features –
inputs to
Force On any of the internal relays (1-4).
user
F1
User menu program any of the digital
dI 1
user
user
F On 1
dI 1
3. Connect a switch or dry contact between the +5V terminal and the
corresponding digital input (dI-1 to dI-4) terminal.
SW2
SW1
123456
+5 I1 I2 I3 I4 O1
5 VDC GND
DI 1-4 DO 1-4
78
O2 O3
910
O4 G
Interlock Relay Operation Example
Relays 1 & 2 are configured to energize (their front panel LEDs are off)
when SW1 & SW2 switches (above) are closed. If the contacts to these
digital inputs are opened, the corresponding front panel LEDs flash indicating this condition. The processes being controlled by the interlock
relay will stop, and will re-start only after the interlock relay is reactivated by the digital inputs (switches).
65
Page 66
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Scaling the 4-20 mA Analog Output (Aout)
The 4-20 mA analog output can be scaled to provide a 4-20 mA signal
for any display range selected.
No equipment is needed to scale the analog output; simply program the
display values to the corresponding mA output signal.
The
Analog Output menu is used to program the 4-20 mA output based
on display values.
Aout
Setup
dis 1
Aout
dis 2
Aout
00000.0
dis 1
1000.0
dis 2
For instructions on how to program
numeric values see
ic Values
Out 1
Aout
Out 2
Aout
Setting Numer-
, page 36.
66
04.000
Out 1
20.000
Out 2
Page 67
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

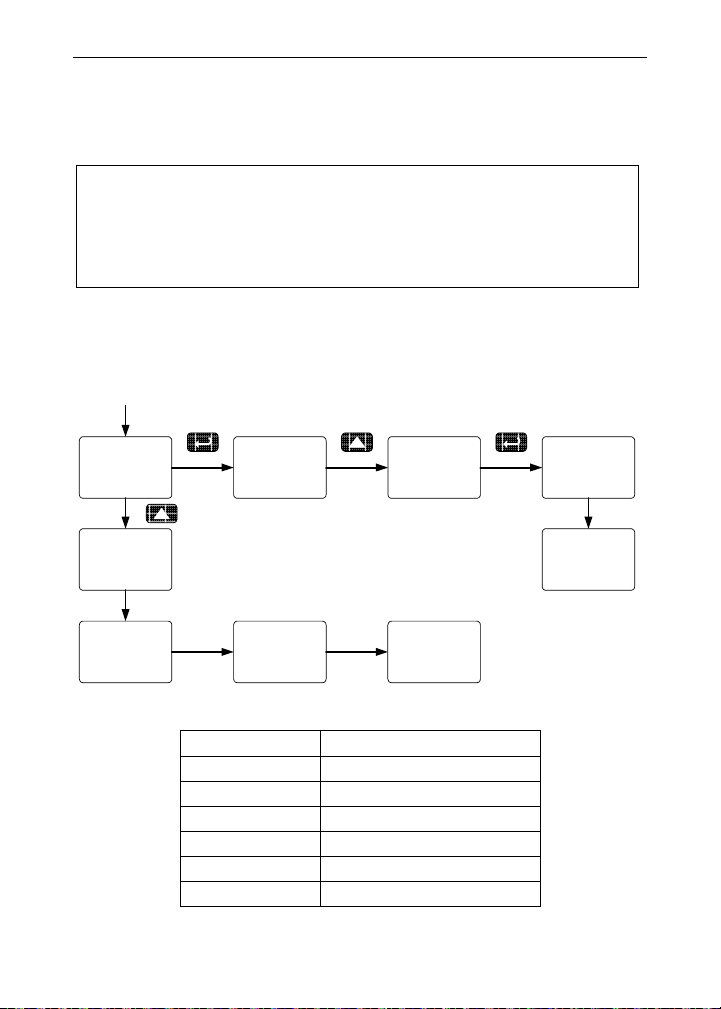

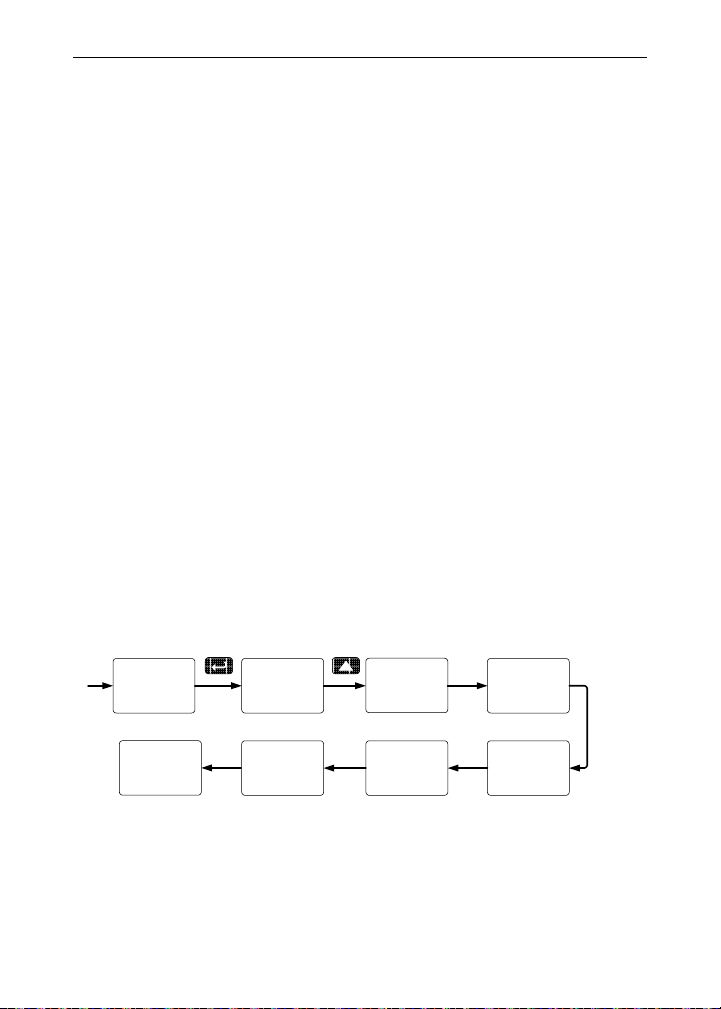

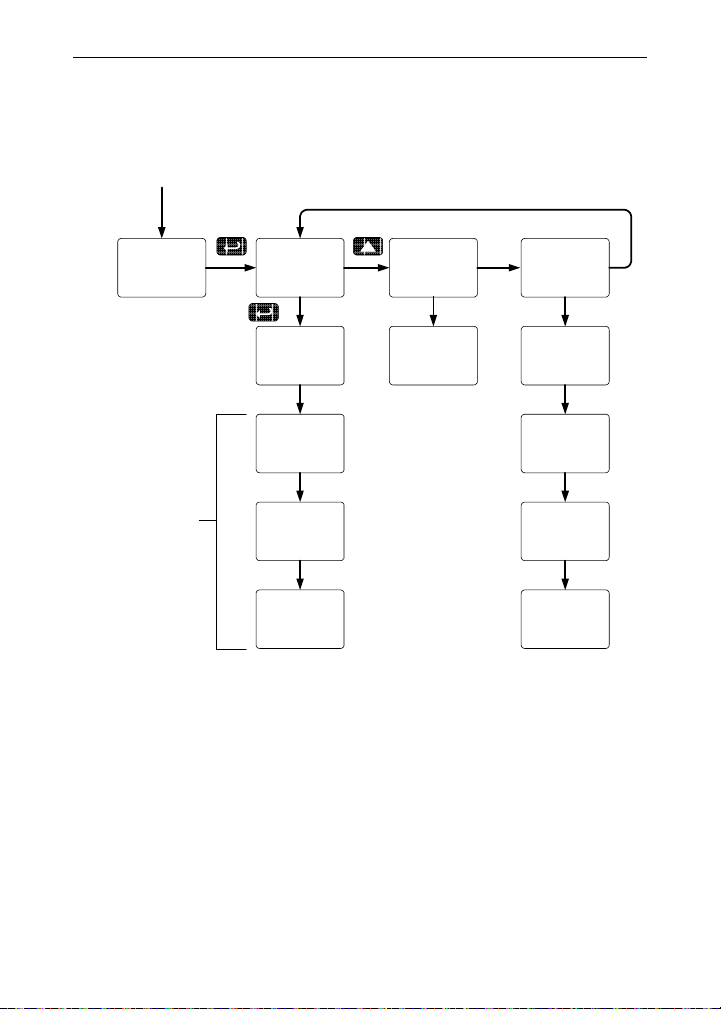

Setting Up the Password (pass)
The Password menu is used for programming three levels of security to
prevent unauthorized changes to the programmed parameter settings
and to program the non-resettable totalizer.
Pass 1: Allows use of function keys and digital inputs
Pass 2: Allows use of function keys, digital inputs and editing set/reset points
Pass 3: Restricts all programming, function keys, and digital inputs.
Total: Prevents resetting the total manually
Gtotal: Prevents resetting the grand total manually
Protecting or Locking the Meter
Enter the Password menu and program a six-digit password.
For instructions on how to program numeric values see
, page 36.
Values
Setting Numeric
Pass 1
Pass
Pass 2
Pass
Pass 3
Pass
000000
Pass 1
Total
Pass
600000
Pass 1
Gtotal
Pass
Locd
Pass 1
Run Mode
Record the password for future reference. If appropriate, it may be recorded in the space provided.
Model:
Serial Number:
Password 1: __ __ __ __ __ __
Password 2: __ __ __ __ __ __
Password 3: __ __ __ __ __ __
Total __ __ __ __ __ __
GTotal __ __ __ __ __ __
67
Page 68
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Total Reset Password & Non-Resettable Total
The total and the grand total can be password-protected to prevent unauthorized total resets.
The grand total can be programmed as a non-resettable total by
entering the password “050873”.
!
Caution!
Once the Grand Total has been programmed as “nonresettable” the feature
cannot be disabled.
68
Page 69
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

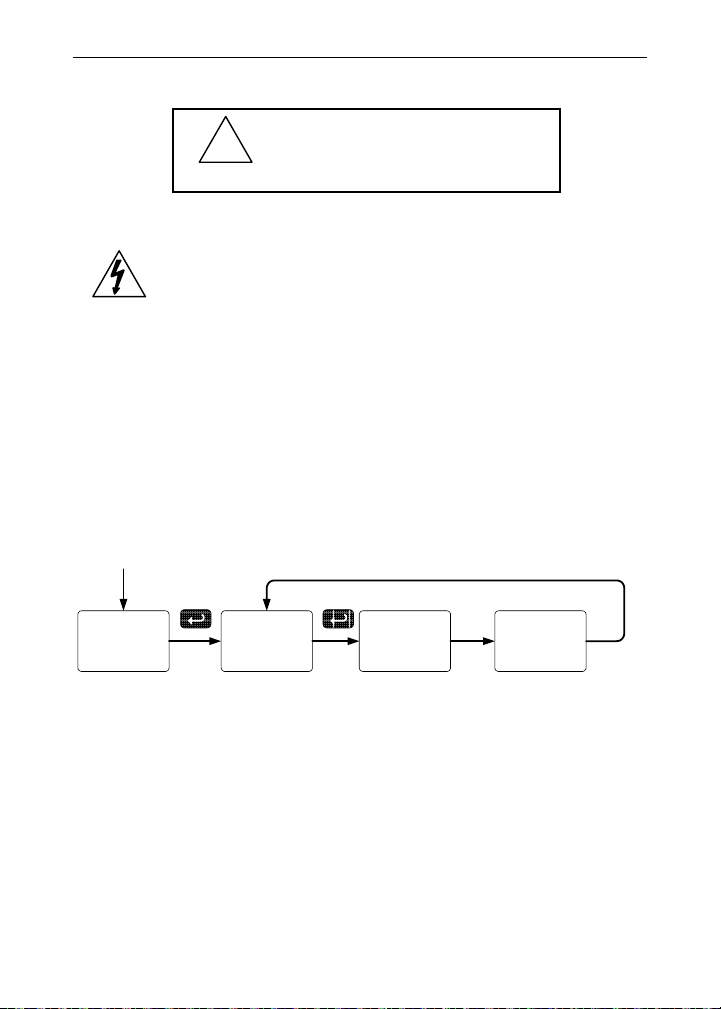

Making Changes to a Password Protected Meter
If the meter is password protected, the meter will display the message
Locd (Locked) when the Menu button is pressed. Press the Enter button
while the message is being displayed and enter the correct password to
gain access the menu. After exiting the programming mode, the meter
returns to its password protected condition.

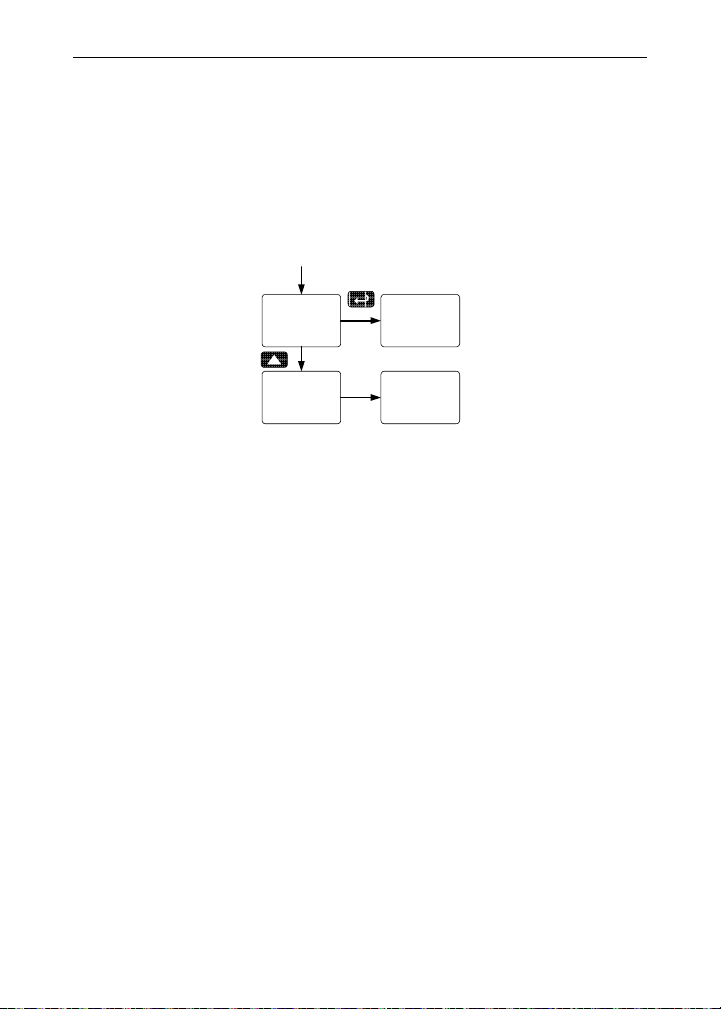

Disabling Password Protection
To disable the password protection, access the Password menu and
enter the correct password twice, as shown below. The meter is now
unprotected until a new password is entered.
Run Mode
20.000
Pulse
Locd 000000
Locd
reset
Pass
Enter
Password
Enter
Password
unLoc
Locd
unLoc
Pass 1
If the correct six-digit password is entered, the meter displays the mes-
unLoc (unlocked) and the protection is disabled until a new pass-
sage
word is programmed.
If the password entered is incorrect, the meter displays the message
Locd (Locked) for about two seconds, and then it returns to Run Mode.
To try again, press Enter while the
Locked message is displayed.
Did you forget the password?
The password may be disabled by entering a master
password. If you are authorized to make changes, enter
the master password 508655 to unlock the meter.
69
Page 70
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Advanced Features Menu
To simplify the setup process, functions not needed for most applications
are located in the
Press and hold the Menu button for three seconds to access the advanced features of the meter.
Run Mode
20.000
Pulse
GAtE serial Filter Select
Advanced Features menu.
Press & hold
Menu for 3 sec to
access Advanced
features
70
Copy diaG
user
Page 71
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Advanced Features Menu & Display Messages
The following table shows the functions and messages of the Advanced
Features
menu in the order they appear in the menu.
Display Parameter Action/Setting
Gate
Lo G
Hi G
filter
Lo Spd
Hi Spd
seriAl
SlaveId
baud
Tr dLY
Parity
t-byt
SelEct
Functn
Linear
No PtS
CutofF
Gate
Low gate
High gate
Filter
Low speed
High speed
Serial
Slave ID
Baud rate
Transmit delay
Parity
Time byte
Select
Math Function
Linear
Number of
points
Cutoff
Enter Gate function menu
Program Low gate value
Program High gate value
Enter the Filter menu
Set the contact de-bounce filter value
Select high speed filter
Set serial communication parameters
Set slave ID or meter address
Select baud rate
Set transmit delay for serial communication
Select parity
Even, Odd, or None with 1 or 2 stop bits
Set byte-to-byte timeout
Enter the Select menu (function, cutoff, out)
Select linear only, other functions are not
applicable to pulse input
Set meter for linear function and select
number of linearization points
Set meter for 2 to 32-point linearization
Set low-flow cutoff
AoutPr
Source
Analog output
programming
Source
Program analog output parameters
Select source for the 4-20 mA output
71
Page 72
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting
O-rang
u-rang
nmAx
nmin
Calib
4 nmA
20 nmA
user
F1
F2
F3
dI I
dO 1
Copy
send
Overrange
Underrange
Maximum
Minimum
Calibrate
4 mA output
20 mA output
User I/O
F1 function key
F2 function key
F3 function key
Digital input 1
Digital output 1
Copy
Send
Program mA output for display overrange
Program mA output for display underrange
Program maximum mA output allowed
Program minimum mA output allowed
Calibrate 4-20 mA output (internal reference source used for scaling the output)
Enter mA output value read by milliamp
meter with at least 0.001 mA resolution
Enter mA output value read by milliamp
meter with at least 0.001 mA resolution
Assign function keys and digital I/O
Assign F1 function key
Assign F2 function key
Assign F3 function key
Assign digital input 1 – 8, if expansion
modules are connected
Assign digital output 1 – 8, if expansion
modules are connected
Enter copy function
Send meter settings to another meter
done
Diag
Filter
Functn
SCALE
Factor
Gate
Done
Diagnostics
Filter
Function
Scale
K-factor
Gate
Copy function completed
Display parameter settings
Display filter selection
Function selected
Scaling parameter
K-factor value
Gate settings
72
Page 73
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting
Cutoff
T tb
T CF
T rst
Gt tb
Gt Cf
Gt rst
Dsplay
RELAY
Aout
Aoutpr
SEriaL
LED t
Info
Cutoff
Total time base
Total conversion factor
Total reset
Grand total
time base
GT conversion
factor
Grand total
Display
Relays
Analog output
Analog output
programming
Serial
LED test
Information
Cutoff value
Set time period
Set conversion factor
Set reset method
Set grand total time period
Set grand total conversion factor
Set grand total reset method
Display assignments
Relay settings
Analog output scaling
Analog output programming
Serial communication settings
Test all LEDs
Display software and S/N information
73
Page 74
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Modbus RTU Serial Communications (serial)
The meter is equipped with serial communications capability as a standard feature using Modbus RTU Serial Communication Protocol.
To communicate with a computer or other data terminal equipment, an
RS-232 or RS-422/485 adapter option is required; see
on page 8 for details.
tion
Do not connect any equipment other than Precision
Digital’s expansion modules, cables, or meters to the
Warning!
Note: More detailed instructions are provided with each optional serial
Note: Refer to the PD6000/PD7000 Modbus Register Tables located at
RJ45 M-LINK connector. Otherwise damage will occur
to the equipment and the meter.
communications adapter.
www.predig.com for details.
Ordering Informa-
74
baud
Serial
t-byt
Serial
tr dly
Serial
Parity
Serial
serial
When using more than one meter in a multi-drop mode, each meter must
be provided with its own unique address. The meter address (Slave ID)
may be programmed between 1 and 247. The transmit delay may be set
between 0 and 199 ms. The parity can be set to even, odd, or none with
1 or 2 stop bits.
The PD6300 can also be connected to another PD6300 with a special
PDA1200 cable, allowing the user to copy all the settings from one meter
to another, using the
SlavId
Serial
Copy function.
Page 75
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Select Menu (SElEct)
The Select menu is used to select the math function applied to the input
(linear), low-flow cutoff, and analog output programming. The multi-point
linearization is part of the linear function selection.
select Functn
Linear
Square
Not applicable to
pulse input meter
Prog E
rHt
Select
Functn
Functn
Functn
Functn
Cutoff
Select
Program
cutoff
value
AoutPr
Select
Source
AoutPr
O-rang
AoutPr
Underrange
Break
Max
Min
Calib
AoutPr
Math Function Selection (Functn)
The Function menu is used to select the math function applied to the
input: linear, where the multi-point linearization is part of the linear function selection.
Meters are set up at the factory for linear function with 2-point linearization. The linear function provides a display that is linear with respect to
the input signal.
The other functions (
pulse input meter.
square, Prog E, and RHT) are not applicable to the
75
Page 76
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Multi-Point Linearization (Linear)
Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected under the linear func-
The multi-point linearization can be used to linearize the display for
tion.
non-linear signals.
Linear
Functn
Square Root Linearization (Square)
Note: Although this option may appear in the menu the functionality is
not available in the PD6300 series products.
Programmable Exponent Linearization (Prog E)
Note: Although this option may appear in the menu the functionality is
not available in the PD6300 series products.
Round Horizontal Tank Linearization (rHt)
Note: Although this option may appear in the menu the functionality is
not available in the PD6300 series products.
!
Caution!
no Pts
Linear
Attempting to program any of the three functions noted
above may affect any multi-point linearization
previously programmed.
Program
Number of
Points
sCALE
Select
76
Page 77
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Low-Flow Cutoff (CutofF)
The low-flow cutoff feature allows the meter to be programmed so that
the often-unsteady output from a differential pressure transmitter, at low
flow rates, always displays zero on the meter.
The cutoff value may be programmed from 0 to 999999. The meter will
display zero below the cutoff value. Programming the cutoff value to zero
disables the cutoff feature.
Analog Output Programming (AoutPr)
The Analog Output Programming menu is used to program the behavior
of the 4-20 mA output. The following parameters and functions are programmed in this menu:
1. Source: Source for generating the 4-20 mA output (e.g. PV)
2. Overrange: Analog output value with display in overrange condition
3. Underrange: Analog output value with display in underrange condition
4. Max: Maximum analog output value allowed regardless of input
5. Min: Minimum analog output value allowed regardless of input
6. Calibrate: Calibrate the internal 4-20 mA source reference used to
scale the 4-20 mA output
Analog Output Source
The source for generating the 4-20 mA output may be assigned to the
rate/process variable, total, grand total, maximum or minimum value
reached by the rate/process, one of the set points, or the Modbus PV
input.
Source
AoutPr
rate
Source
tot
Source
gtotal
Source
mbus
Source
Set Points
1 - 8
min
Source
max
Source
Analog Output Calibration
To perform the analog output calibration it’s recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output
current. The values saved internally during this procedure are used for
scaling the 4-20 mA output in the
Setup menu.
77
Page 78
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Programmable Function Keys User Menu (user)
The User menu allows the user to assign the front panel function keys
F1, F2, F3 and up to eight digital inputs to access most of the menus or
to activate functions immediately (e.g. Reset max & min). Up to eight
digital outputs can be assigned to a number of actions and functions
executed by the meter (e.g. Alarms, relay acknowledgement, etc.).
user
dO 8
user
F1
user
dO 1
user
F2
user
dI 8
user
F3
user
dI 1
user
Function Keys & Digital I/O Available Settings
Display Description Display Description
AcH
Reset
Rst t
Rst Gt
Rst Hi
Rst Lo
Rst HL
relay
Set 1
Rly d
Rly E
O Hold
Dsplay
Big
Big Hi
Big Lo
Acknowledge relays
Reset menu
Reset total
Reset grand total
Reset max
Reset min
Reset max & min
Relay menu
Set point 1 - 8
Disable relay
Enable relay
Relay output hold
Display menu
Big display menu
Max on big display
Min on big display
Big HL
Little
Lit Hi
Lit Lo
Lit HL
disabl
nmenu
Right
up
Enter
Alnm 1
F on 1
F on 2
F on 3
F on 4
Max/min big display
Little display menu
Max on little display
Min on little display
Max/min little display
Disable function key
Menu button
Right arrow button
Up arrow button
Enter button
Alarm 1 – 8
Force on relay 1
Force on relay 2
Force on relay 3
Force on relay 4
78
Page 79
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Meter Copy Function (Copy)
The Copy function is used to copy (or clone) all the settings from one
meter to other meters requiring exactly the same setup and program-
i.e. type of input, scaling, decimal point, filter, gate, etc.).
ming (
Only the PDA1200 meter copy cable must be used for
meter-to-meter interfacing. The PDA1200 is a special
eight-conductor flat cable with two wires swapped.
Warning!
Using standard CAT5 or other cable will cause damage to both meters.
PDA1200 Meter Copy Cable
Figure 20: Meter Copy Connection
Copy Function Requirements
To successfully copy settings from one
meter to another, both meters must have:
1. Same software version
2. Same baud rate setting
See Determining Software Version,
page 83 for instructions.
79
Page 80
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

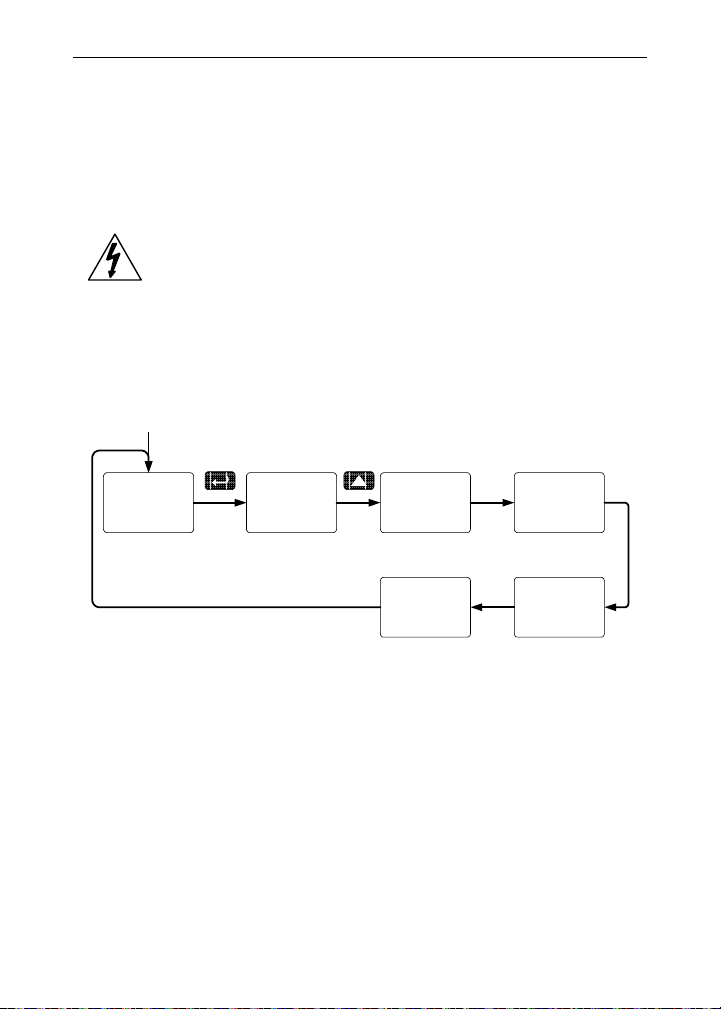

Meter Copy or Cloning Instructions
Do not connect the two meters to
!
Caution!
1. Connect two meters using a PDA1200 meter copy cable.
Use PDA1200 meter copy cable only!
Using standard CAT5 or other cable will cause
Warning!
2. Do not connect the two meters to the same signal source.
3. Power up both meters. Leave Clone meter in Run Mode.
4. Enter the
vanced Features Menu
5. Scroll to the
Enter.
6. The meter displays the message
flashes while sending data. The message
copying is completed.
damage to both meters.
Advanced Features menu of the Master meter see Ad-
Copy function using the Up arrow button then press
the same signal source while
cloning. Internal calibration may
be affected.
page 70.
Send. Press Enter, the display
done is displayed when
Copy
7. The Clone meter displays the message CPY rC while being pro-
grammed then the message
meter initializes and returns to Run Mode using the same settings
as the Master.
8. If meter to be cloned does not respond to the data being sent, refer
Copy Function Requirements above.
to
Send
Copy
Display flashes
while sending
data
done when copying is completed. The
80
done
Copy
Page 81
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
METER OPERATION
The meter accepts pulses (e.g. ±40mV to ± 8V), square wave (0-5, 012V, or 0-24V), open collector NPN, PNP, TTL, or switch contact signals
and displays these signals in engineering units from -99999 to 999999.
The dual-line display can be customized by the user to operate in such a
way as to satisfy a specific application. Typically the main display is used
for the process variable; while the second display is used for engineering
units, custom legend, total, grand total, or set point indication.
The meter can be set up to display the pulse input on the main display
and the Modbus input on the second display. The relays and analog output can be programmed to operate from the Modbus PV input.
Front Panel Buttons Operation
Button
Symbol
Description
Press to enter or exit Programming Mode,
view settings, or exit max/min readings
Press to reset max/min readings or other
parameter/function assigned through the
User menu
Press to display max/min readings or other parameter/function assigned through
the
User menu
Press to acknowledge relays or other parameters/function assigned through the
User menu
Function Keys Operation
During operation, the programmable function keys operate according to
the way they have been programmed in the
menu.
The table above shows the factory default settings for F1, F2, and F3.
81
Advanced Features – User
Page 82
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Maximum/Minimum Readings
The max & min readings (peak & valley) reached by the process can be
displayed either continuously or momentarily:
1. Display briefly by assigning to the F1-F3 function keys or to the digi-
tal inputs in the
2. Display continuously by assigning either display to max/min through
Display menu.
the
Any of the F1-F3 function keys (buttons) and the digital inputs can be
programmed to reset the max & min readings. The meters are set at the
factory to display the max reading by pressing the Up arrow/F2 button
and to use the Right arrow/F1 button to access the
To display max reading using function key with factory defaults:
1. Press Up arrow/F2 button to display maximum reading since the last
reset/power-up.
2. To reset max/min press Right arrow/F1 button to access the Reset
menu. The max & min displays are reset to actual values.
3. Press Menu to exit max/min display reading.
To display max/min readings continuously:
Assign either display to Max (d Hi), Min (d Lo), or toggle between Max
and Min (
d HL) every 10 seconds.
User menu.
Reset menu.
Dsplay
setup
big
dsplay
d Hi
big
Little
d Lo
82
dsplay
big
d HL
big
Page 83
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
TROUBLESHOOTING
The rugged design and the user-friendly interface of the meter should
make it unusual for the installer or operator to refer to this section of the
manual. However, due to the many features and functions of the meter,
it’s possible that the setup of the meter does not agree with what an operator expects to see.
If the meter is not working as expected, refer to the
and recommendations below.
Diagnostics Menu (diag)
The Diagnostics menu is located in the Advanced Features menu, to
access
It provides an easy way to view the programmed parameter settings for
troubleshooting purposes. Press the Enter
and the Menu button to exit at any time.
For a description of the diagnostic messages,
Menu &
To determine the software version of a meter:
Diagnostics menu see Advanced Features Menu, page 70.
button to view the settings
Display Messages, page 71.
Determining Software Version
1. Go to the
2. Press Up arrow button and scroll to Information menu (
3. Press Enter to access the software number (
UER), and serial number (Sn) information. Write down the in-
(
formation as it is displayed. Continue pressing Enter until all
the information is displayed.
4. The meter returns to Run Mode after displaying all the settings.
Diagnostics menu (diAG) and press Enter button.
Diagnostics menu
see Advanced Features
Info).
SFT), version
83
Page 84
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual

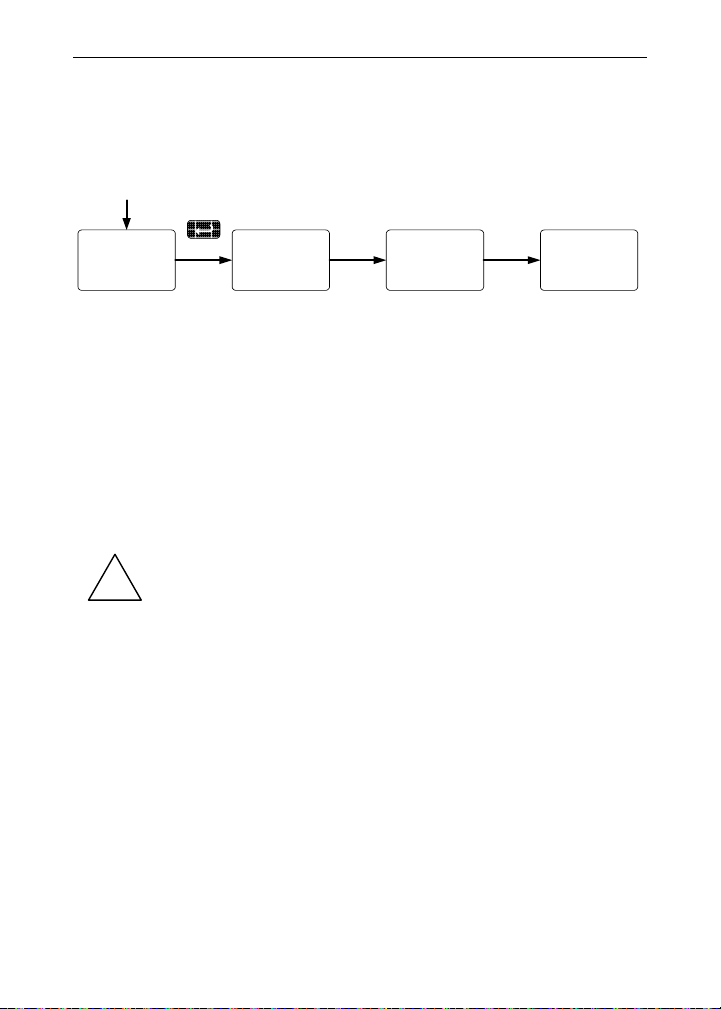

Reset Meter to Factory Defaults
When the parameters have been changed in a way that is difficult to
determine what’s happening, it might be better to start the setup process
from the factory defaults.
Instructions to load factory defaults:
1. Enter the Advanced Features menu. See Advanced Features Menu,
page 70.
2. Press Up arrow to go to
3. Press and hold Right arrow for five seconds, press
Enter when display flashes
Note: If Enter is not pressed within three seconds, the display returns to the
4. The meter goes through an initialization sequence (similar as on
power-up), and loads the factory default settings.
Diagnostics menu.
Diagnostics menu
reset.
Run Mode
996000
GPd
Press & hold Menu for
3 sec to access
Advanced features
reset diaG
Press & hold right
arrow for
3 sec to reset meter
84
20.000
34568.9
Page 85
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Factory Defaults & User Settings
The following table shows the factory setting for most of the programmable parameters on the meter. Next to the factory setting, the user may
record the new setting for the particular application.
Model: ______________ S/N: _______________ Date: _________
Parameter Display Default Setting User Setting
Input type
Total
Filter
K-factor
Function
Number of points
Input 1
Display 1
Input 2
Display 2
Decimal point
Cutoff value
Display assignment
Big display (Main)
Little display (Small)
Display intensity
Total time base
Total conversion
factor
Total reset
Grand total time base
Grand total
conversion factor
Grand total reset
Relay 1 assignment
Relay 2 assignment
input
yes
filter
Factor
Functn
No Pts
InP 1
Dis 1
InP 2
Dis 2
Ddddd.d
CutofF
dSPLAY
big
Little
d-Inty
T tb
T CF
T rst
GT tb
T CF
T rst
Asign1
Asign2
Pulse
Total enabled
Hi Spd
1.000
Linear
2
00000.0
00000.0
10000.0
10000.0
1 place
0.000 (disabled)
Rate/Process
Total value
6
Second
1.000
Manual
Second
1.000
Manual
Total
Total
85
Page 86
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Parameter Display Default Setting User Setting
Relay 3 assignment
Relay 4 assignment
Relay 1 action
Relay 1 set point
Relay 1 reset point
Relay 2 action
Relay 2 set point
Relay 2 reset point
Relay 3 action
Relay 3 set point
Relay 3 reset point
Relay 4 action
Relay 4 set point
Relay 4 reset point
Fail-safe relay 1
Fail-safe relay 2
Fail-safe relay 3
Fail-safe relay 4
On delay relay 1
Off delay relay 1
On delay relay 2
Off delay relay 2
On delay relay 3
Off delay relay 3
On delay relay 4
Off delay relay 4
Display 1 analog out
Output 1 value
Display 2 analog out
Output 2 value
Asign3
Asign4
Act 1
Set 1
RSt 1
Act 2
Set 2
RSt 2
Act 3
Set 3
RSt 3
Act 4
Set 4
RSt 4
Fls 1
Fls 2
Fls 3
Fls 4
On 1
Off 1
On 2
Off 2
On 3
Off 3
On 4
Off 4
Dis 1
Out 1
Dis 2
Out 2
Rate
Rate
Automatic
100.0
000.0
Automatic
200.0
000.0
Automatic
300.0
250.0
Automatic
400.0
350.0
Off
Off
Off
Off
0.0 sec
0.0 sec
0.0 sec
0.0 sec
0.0 sec
0.0 sec
0.0 sec
0.0 sec
0.0
4.000 mA
1000.0
20.000 mA
86
Page 87
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Parameter Display Default Setting User Setting
Source analog output
Overrange output
Underrange output
Maximum output
Minimum output
Slave ID (Address)
Baud rate
Transmit delay
Parity
Byte-to-byte timeout
F1 function key
F2 function key
F3 function key
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Digital output 1
Digital output 2
Digital output 3
Digital output 4
Password 1
Password 2
Password 3
Total password
Grand total password
Source
O-rang
u-rang
nmAx
nmin
Slave Id
baud
Tr dly
Parity
t-byt
F1
F2
F3
dI 1
dI 2
dI 3
dI 4
dO 1
dO 2
dO 3
dO 4
Pass 1
Pass 2
Pass 3
Total
Gtotal
Rate/process
21.000 mA
3.000 mA
23.000 mA
0.000 mA
247
9600
10 ms
Even
010 (0.1 sec)
Reset max & min
Big display: Max (Hi)
Acknowledge relays
Menu
Right arrow
Up arrow
Enter
Alarm 1
Alarm 2
Alarm 3
Alarm 4
000000 (unlocked)
000000 (unlocked)
000000 (unlocked)
000000 (unlocked)
000000 (unlocked)
87
Page 88
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Troubleshooting Tips
Symptom Check/Action
No display at all
Not able to change setup or programming,
Meter displays error message
during calibration (
Meter displays
Display is unstable
Display response is too slow
Display reading is not accurate
Display does not respond to input
changes, reading a fixed number
Display alternates between
1.
2.
Relay operation is reversed
Relay and status LED do not
respond to signal
Flashing relay status LEDs
Meter not communicating with
application programs
If the display locks up or the meter
does not respond at all
Other symptoms not described
above
Locd is displayed
Error)
999999
-99999
Hi and a number
Lo and a number
Check power at power connector
Meter is password-protected, enter
correct six-digit password to unlock
Check:
1. Signal connections
2. Minimum input span requirements
Check:
1. Input selected in
2. Corresponding signal at Signal
connector
Check:
1. Input signal stability and value
2. Display scaling vs. input signal
3. Filter and gate values
Check filter and gate values
Check:
Scaling or calibration
Check:
Display assignment, it might be dis-
playing max, min, or set point.
Press Menu to exit max/min display
readings.
Check:
1. Fail-safe in
2. Wiring of relay contacts
Check:
1. Relay action in
2. Set and reset points
Relays in manual control mode or relay
interlock switches opened.
Check:
1. Serial adapter and cable
2. Serial settings
3. Meter Slave ID and baud rate
Cycle the power to reboot the
microprocessor.
Call Technical Support for
assistance.
Setup menu
Setup menu
Setup menu
88
Page 89
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Alphabetical List of Display Functions & Messages
Display Parameter Action/Setting Description
20 nmA
4 nmA
999999
AcH
Act 1
Alnm 1
Altern
A-nman
Aout
Aoutpr
Asign1
Assign
Auto
Auto
baud
big
Big Hi
Big HL
Big Lo
Cal
20 mA output
4 mA output
Flashing
display
Acknowledge
Action 1
Alarm 1
Alternate
Auto-manual
Analog output
Analog output
programming
Assign 1
Assignment
Automatic
Automatic
Baud rate
Big display
Max on big display
Max/min big
display
Min on big display
Calibrate Enter the Calibrate menu
Enter mA output value read by milliamp
meter with at least 0.001 mA resolution
Enter mA output value read by milliamp
meter with at least 0.001 mA resolution
Overrange condition
Acknowledge relays
Set relay 1 action
Assign digital output to Alarm 1 – 8
Set relay for alternation control (relays assigned to rate)
Set relay for automatic & manual reset
any time
Analog output scaling
Analog output programming
Relay 1 assignment
Assign relays to rate, total, or grand total
Press Enter to set meter for automatic operation
For automatic reset
Select baud rate
Press Enter to assign the Main display
parameter (default: PV or rate)
Assign digital input to display max on the
main display
Assign digital input to toggle max/min on
the main display
Assign the digital input to display min on the
main display
89
Page 90
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting Description
Calib
Contrl
Copy
Cutoff
D Hi
D HL
D Lo
D PCt
D Pv
D Pv1
D Pv2
D unit
Dec pt
DeLAY
dI 1
Diag
dianmr
d-Inty
Dis 1
Dis 2
disabl
DLY 1
dO 1
done
Calibrate
Control
Copy
Cutoff
Display high Select to display the max
Display H&L Select to display the max & min toggling
Display low Select to display the min
Display PCT Select to display percent of PV1 (dual scale
Display PV Select to display PV
Display PV1 Select to display PV1 (dual scale display)
Display PV2 Select to display PV2 (dual scale display)
Display units Select to display engineering units or label
Decimal point
Delay
Digital input 1
Diagnostics
Diameter
Display
intensity
Display 1
Display 2
Delay 1
Digital
output 1
Done
Calibrate 4-20 mA output (internal reference source used for scaling the output)
Enter Control menu
Enter copy function
Cutoff value
display)
Set decimal point for rate, total, grand total
Enter relay Time Delay menu
Assign digital input 1-8, if expansion modules are connected
Display parameter settings
Not applicable
Set display intensity level from 1 to 8
Program display 1 value
Program display 2 value
Disable function key
Enter relay 1 time delay setup
Assign digital output 1 – 8, if expansion
modules are connected
Copy function completed
90
Page 91
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting Description
DSet 1
dsplay
Enter
Error
F On 1
F1
F2
F3
FaiLSF
filter
FLS 1
Force
Functn
G total
GT CF
GT rst
GT tb
Gtotal
Info
Inp 1
Inp 2
Input
Display set 1 Select to display set point 1 (1-8)
Display
Enter Button
Error
Force On 1
F1 function key
F2 function key
F3 function key
Fail-safe
Filter
Fail-safe 1
Force
Function
Grand total
Grand total conversion factor
Grand total reset
Grand total time
base
Grand total
password
Information
Input 1
Input 2
Input
Enter the Display menu
Assign digital input to Enter button
Error, calibration not successful, check signal
or programmed value
Force relay 1 on using digital input (1-4)
Assign F1 function key
Assign F2 function key
Assign F3 function key
Enter Fail-safe menu
Set noise filter value
Set relay 1 fail-safe operation
Force analog output value for loop break
Select linear only, other functions are not
applicable
Assign relay to grand total
Program grand total conversion factor
Program grand total rest mode: auto or manual
Program grand total time base
Set or enter password for manual reset
Display software and S/N information
Calibrate input 1 signal or program input 1
value
Calibrate input 2 signal or program input 2
value (up to 32 points)
Input selection
91
Page 92
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting Description
LatCH
LED t
Length
Linear
Lit Hi
Lit HL
Lit Lo
Little
locd
Lt-CLr
nmAn
nmAx
mbus
nmenu
nmin
No PtS
nonrst
O Hold
OFF
OFF 1
On
Latching
LED test
Length
Linear
Max on little
display
Max/min little
display
Min on little display
Little display
Locked
Latching-cleared
Manual
Maximum
Modbus Select to display Modbus input or to assign
Menu button
Minimum
Number of points
Non-resettable
Off
Off
On
Set relay for latching operation (relays assigned to rate)
Test all LEDs
Not applicable
Set meter for linear function and select
number of linearization points
Assign digital input to display max on the
small display
Assign the digital input to toggle max/min
on the small display
Assign digital input to display min on the
small display
To assign the small display parameters
Enter password to unlock meter
Set relay for latching operation with manual
reset only after alarm condition has cleared
(relays assigned to rate)
To manually control
Program maximum mA output allowed
Modbus input as the analog output source
Assign digital input to Menu button
Program minimum mA output allowed
Set meter for 2 to 32-point linearization
Non-resettable grand total set after entering
“050873” for Gtotal password
Relay output hold
Disable relay and front panel status LED,
turn relays off, program off time delay
Disable relay and front panel status LED,
turn relays off, program off time delay
Enable fail-safe operation, turn relays on,
program on time delay
92
Page 93
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting Description
On 1
O-rang
Out 1
Out 2
pass
Pass 1
Pass 2
Pass 3
prog
Prog E
rATE
RELaY
reset
rht
Right
RLY 1
RLY 2
Rly d
Rly E
RSt 1
Rst Gt
Rst Hi
Rst HL
Rst Lo
On
Overrange
Output 1
Output 2
Password
Password 1
Password 2
Password 3
Program
Programmable
exponent
Rate
Relay
Reset
Round horizontal
tank
Relay 1
Relay 2
Reset 1
Reset
grand total
Reset high
Reset
high & low
Reset low
Set relay 1 On time delay
Program mA output for display overrange
Program output 1 value (e.g. 4.000 mA)
Program output 2 value (e.g. 20.000 mA)
Enter the Password menu
Set or enter Password 1
Set or enter Password 2
Set or enter Password 3
Enter the Program menu
Set meter for programmable exponent and
enter exponent value
Assign relay to rate
Enter the Relay menu
To access the Reset menu
Set meter for round horizontal tank volume
calculation
Right arrow button
Relay 1 setup
Relays 2-8 setup
Note: Relays 5-8 are shown, only if expansion relay module is installed.
Disable relay
Enable relay
Program reset point 1
To reset grand total
Press Enter to reset max display
Press Enter to reset max & min displays
Press Enter to reset min display
93
Page 94
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
Display Parameter Action/Setting Description
Rst t
Sanmpl
sCalE
SelEct
send
seriAl
Set 1
setup
SlavId
Source
Square
T CF
T dly
T rst
T tb
Total
Tr dLY
unloc
up
u-rang
user
Reset Total
Sampling
Scale
Select
Send
Serial
Set 1
Setup
Slave ID
Source
Square root
Total conversion
factor
Time delay
Total reset
Total time base
Total
Transmit delay
Unlocked
Up arrow button
Underrange
User I/O
Reset total
Set relay for sampling operation
Enter the Scale menu
Enter the Select menu (function, cutoff, out)
Send meter settings to another meter
Set serial communication parameters
Program set point 1
Enter Setup menu
Set Slave ID or meter address
Select source for the 4-20 mA output
Not applicable
Program total conversion factor
Program time delay for total auto reset
Program total rest mode: auto or manual
Program total time base
Enable or disable totalizer features
Set transmit delay for serial communication
Program password to lock meter
To assign digital input to up arrow button
Program mA output for display underrange
Assign function keys and digital I/O
94
Page 95
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
NOTES
95
Page 96
Model PD6300 Pulse Input Rate/Totalizer Instruction Manual
How to Contact Precision Digital
For Technical Support please
Call: (800) 610-5239 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
For Sales Support or to place an order please
Call: (800) 343-1001 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
For the latest version of this manual please visit
www.predig.com
LIM6300_D.doc
SFT039 Ver 2.000 & up
08/10
