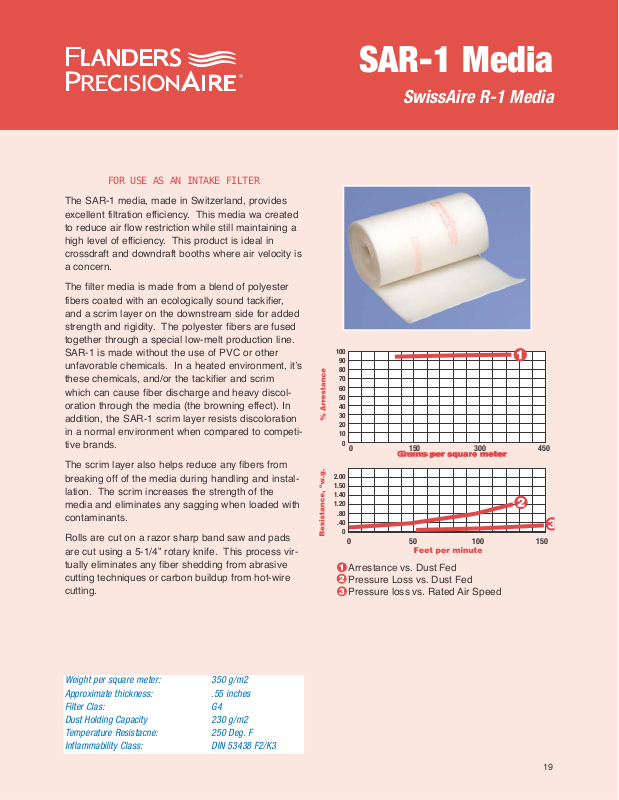

Precisionaire SAR-1 User Manual
19
FOR USE AS AN INTAKE FILTER
The SAR-1 media, made in Switzerland, provides
excellent filtration efficiency. This media wa created
to reduce air flow restriction while still maintaining a
high level of efficiency. This product is ideal in
crossdraft and downdraft booths where air velocity is
a concern.
The filter media is made from a blend of polyester
fibers coated with an ecologically sound tackifier,
and a scrim layer on the downstream side for added
strength and rigidity. The polyester fibers are fused
together through a special low-melt production line.
SAR-1 is made without the use of PVC or other
unfavorable chemicals. In a heated environment, it’s
these chemicals, and/or the tackifier and scrim
which can cause fiber discharge and heavy discoloration through the media (the browning effect). In
addition, the SAR-1 scrim layer resists discoloration
in a normal environment when compared to competitive brands.
The scrim layer also helps reduce any fibers from
breaking off of the media during handling and installation. The scrim increases the strength of the
media and eliminates any sagging when loaded with
contaminants.
Rolls are cut on a razor sharp band saw and pads
are cut using a 5-1/4” rotary knife. This process virtually eliminates any fiber shedding from abrasive
cutting techniques or carbon buildup from hot-wire
cutting.
Weight per square meter: 350 g/m2
Approximate thickness: .55 inches
Filter Clas: G4
Dust Holding Capacity 230 g/m2
Temperature Resistacne: 250 Deg. F
Inflammability Class: DIN 53438 F2/K3
0 150 300 450
0 50 100 150
100
90
80
70
60
50
40
30
20
10
0
2.00
1.50
1.40
1.20
.80
.40
0
Arrestance vs. Dust Fed
Pressure Loss vs. Dust Fed
Pressure loss vs. Rated Air Speed
SAR-1 Media
SwissAire R-1 Media
20
SAR1 Media Pads and Blankets
PA2826 SAR1M-22056 22"X56" MEDIA PAD SWISS'A R-1 10
PA1838 SAR1M-24108 24"X108" MEDIA PAD SWISS'A R-1 4
PA1839 SAR1M-24111 24"X111" MEDIA PAD SWISS'A R-1 5
PA1840 SAR1M-24156 24"X156" MEDIA PAD SWISS'A R-1 4
PA1841 SAR1M-25072 25"X72" MEDIA PAD SWISS'A R-1 2
PA1842 SAR1M-35035 35"X35" MEDIA PAD SWISS'A R-1 2
PA1843 SAR1M-37070 37"X70" MEDIA PAD SWISS'A R-1 3
PA2514 SAR1M-50068 50"X68" MEDIA PAD SWISS'A R-1 4
PA1844 SAR1M-51108 51"X108" MEDIA PAD SWISS'A R-1 4
PA1845 SAR1M-51156 51"X156" MEDIA PAD SWISS'A R-1 4
PA2924 SAR1M-52065 52"X65" MEDIA PAD SWISS'A R-1 3
PA1846 SAR1M-55108 55"X108" MEDIA PAD SWISS'A R-1 4
PA1847 SAR1M-55156 55"X156" MEDIA PAD SWISS'A R-1 4
PA1848 SAR1M-58058 58"X58" MEDIA PAD SWISS'A R-1 3
PA1849 SAR1M-58096 58"X96" MEDIA PAD SWISS'A R-1 3
PA1850 SAR1M-61108 61"X108" MEDIA PAD SWISS'A R-1 4
PA1851 SAR1M-61156 61"X156" MEDIA PAD SWISS'A R-1 4
PA1852 SAR1M-80100 80"X100" MEDIA PAD SWISS'A R-1 2
SAR1 Media Rolls
PA2459 SAR1R-20 20"X100' MEDIA SWISSAIRE R-1 1
PA2460 SAR1R-22 22"X100' MEDIA SWISSAIRE R-1 1
PA2461 SAR1R-25 25"X100' MEDIA SWISSAIRE R-1 1
PA2462 SAR1R-30 30"X100' MEDIA SWISSAIRE R-1 1
PA2463 SAR1R-36 36"X100' MEDIA SWISSAIRE R-1 1
PA2464 SAR1R-40 40"X100' MEDIA SWISSAIRE R-1 1
PA2465 SAR1R-48 48"X100' MEDIA SWISSAIRE R-1 1
PA2466 SAR1R-45 45"X100' MEDIA SWISSAIRE R-1 1
PA2467 SAR1R-55 55"X100' MEDIA SWISSAIRE R-1 1
PA2468 SAR1R-60 60"X100' MEDIA SWISSAIRE R-1 1
PA2469 SAR1R-80 80"X100' MEDIA SWISSAIRE R-1 1
PA2470 SAR1R-90.55 90.55"X100' MEDIA SWISSAIRE R-1 1
SAR1 Custom Media Pads
PA2952 SAR1M-CUSTOM MEDIA PAD SWISS'A R-1 CUSTOM SQ IN
SAR-1 Media
SwissAire R-1 Media
Item No. Model Description Qty/Case
21
FOR USE AS AN INTAKE FILTER
These self-supportive panels are made from the
SAR-1 media. A wire support is sealed between the
SAR-1 media layer and a 1/2” polyester prefilter
layer.
The filter media is made from a blend of polyester
fibers coated with an ecologically sound tackifier and
a scrim layer on the downstream side for added
strength and rigidity. The polyester fibers are fused
together through a special low-melt production line.
SAR-1 is made without the use of PVC or other
unfavorable chemicals. In a heated environment, it’s
these chemicals and/or the tackifier and scrim which
can cause fiber discharge and heavy discoloration
through the media (the “browning effect.”) In addition, the SAR-1 scrim layer resists discoloration in a
normal environment when compared to competitive
brands.
The scrim layer also helps reduce any fibers from
breaking off of the media during handling and installation. The scrim increases the strength of the
media and eliminates any sagging when loaded with
contaminants.
The wire support is made from a 9 gauge galvanized
wire with one to two cross pieces per frame. The
two media layers are dielectrically welded together
which seals the wire support inside the media layers.
The panels are available in single panels using one
single wire frame up to 2-” x 50” or in link panels
using two or more wire frames and one continuous
piece of media for easy installation. Special sizes
are available upon request.
One important feature of a panel is the quality of the
seal. If the media layers are not properly bonded
together, the filter can break apart during use and
cause mechanical problems in the booth. To prevent
this possiblity, the SAR-1 uses a full 1/4” sealing surface for the is filter. Competitive products traditionally use a 1/8” seal.
Weight per square meter: 350 g/m2
Approximate thickness: .55 inches
Filter Clas: G4
Dust Holding Capacity 230 g/m2
Temperature Resistacne: 250 Deg. F
Inflammability Class: DIN 53438 F2/K3
0 150 300 450
0 50 100 150
100
90
80
70
60
50
40
30
20
10
0
2.00
1.50
1.40
1.20
.80
.40
0
Arrestance vs. Dust Fed
Pressure Loss vs. Dust Fed
Pressure loss vs. Rated Air Speed
SAR-1 Panel
SwissAire Premium R-1 Panels
22
SAR1 Standard Size Single Panels
PA2046 SAR1P-1224 12X24 MEDIA PANEL SWISS'A R-1 24
PA2047 SAR1P-1520 15X20 MEDIA PANEL SWISS'A R-1 24
PA2048 SAR1P-1524 15X24 MEDIA PANEL SWISS'A R-1 24
PA2049 SAR1P-1616 16X16 MEDIA PANEL SWISS'A R-1 24
PA2050 SAR1P-1618 16X18 MEDIA PANEL SWISS'A R-1 24
PA2051 SAR1P-1620 16X20 MEDIA PANEL SWISS'A R-1 24
PA2052 SAR1P-1624 16X24 MEDIA PANEL SWISS'A R-1 24
PA2053 SAR1P-1625 16X25 MEDIA PANEL SWISS'A R-1 24
PA2054 SAR1P-1824 18X24 MEDIA PANEL SWISS'A R-1 24
PA2505 SAR1P16-2020 20X20 MEDIA PANEL SWISS'A R-1 16
PA2056 SAR1P20-2020 20X20 MEDIA PANEL SWISS'A R-1 20
PA2055 SAR1P-2020 20X20 MEDIA PANEL SWISS'A R-1 24
PA2057 SAR1P-2024 20X24 MEDIA PANEL SWISS'A R-1 24
PA2058 SAR1P-2024-20 20X24 MEDIA PANEL SWISS'A R-1 20
PA2059 SAR1P-2025 20X25 MEDIA PANEL SWISS'A R-1 24
PA2060 SAR1P-2025-18 20X25 MEDIA PANEL SWISS'A R-1 18
PA2061 SAR1P20-2025 20X25 MEDIA PANEL SWISS'A R-1 20
PA2062 SAR1P16-2025 20X25 MEDIA PANEL SWISS'A R-1 16
PA2063 SAR1P-2424 24X24 MEDIA PANEL SWISS'A R-1 24
PA2064 SAR1P-2424-20 24X24 MEDIA PANEL SWISS'A R-1 20
PA2065 SAR1P-2525 25X25 MEDIA PANEL SWISS'A R-1 24
SAR1 Standard Size Single Panels
Continously Linked
PA2066 SAR1P-1224C 12X24 SAR1 CONTINUOUS LINK 24
PA2067 SAR1P-1520C 15X20 SAR1 CONTINUOUS LINK 24
PA2068 SAR1P-1524C 15X24 SAR1 CONTINUOUS LINK 24
PA2069 SAR1P-1616C 16X16 SAR1 CONTINUOUS LINK 24
PA2070 SAR1P-1618C 16X18 SAR1 CONTINUOUS LINK 24
PA2071 SAR1P-1620C 16X20 SAR1 CONTINUOUS LINK 24
PA2072 SAR1P-1624C 16X24 SAR1 CONTINUOUS LINK 24
PA2073 SAR1P-1625C 16X25 SAR1 CONTINUOUS LINK 24
SAR-1 Panel
SwissAire Premium R-1 Panels
Item No. Model Description Qty/Case
