For use as a pre-filter
The 425T panels are manufactured from
two distinct 100% resin bonded polyester
media layers with a wire support frame
sealed between the two layers. This
provides a self-supportive, self-sealing
panel filter which significantly decreases
air bypass when installed in the entire filter track.
The first layer is a 1.5” polyester media
which uses 45 denier polyester fibers
with an open weave on the entry side, 15
denier fibers with slightly tighter weave in
the middle, and 6 denier fibers with an
even tighter weave on the downstream
side. This triple denier entry media combination provides three stages of filtration against particulate. The downstream side of
the media is treated with a special non-migrating tackifier which significantly increases
the filter’s efficiency. The second media layer is made from 6 denier polyester fibers
heavily needled to a dense 1/4” depth. This adds a final layer of defense against
small particulate.
The progressive density media structure is what makes the 325T panel so effective.
The particles are “funneled” out of the airstream. Large particles are captured on the
outer layer and finer particles are captured in the second and third layers.
425T panel filters are available as single panels with one single wire support covering the entire filter area, or link panels utilizing multiple wire support pieces inside a single piece of media. Both the single panels and the
link panels are available in custom sizes.

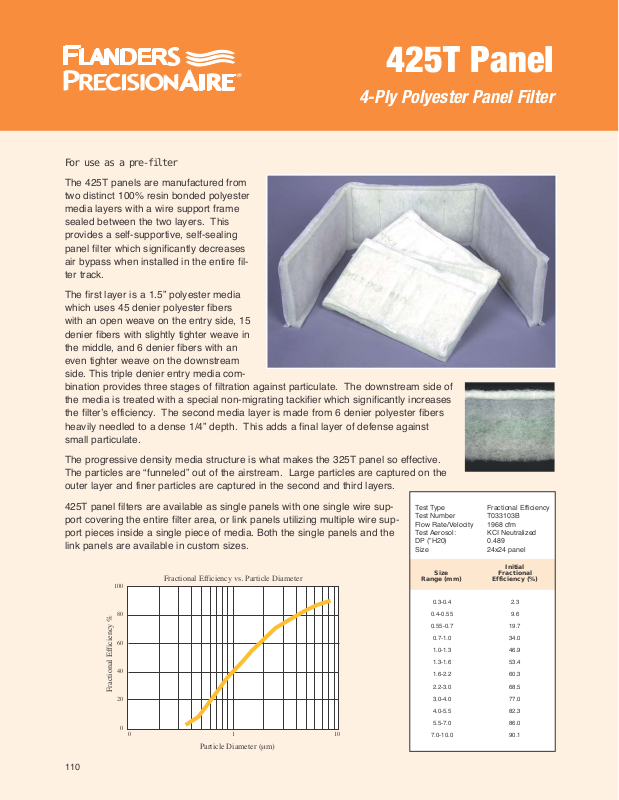

425T Panel
4-Ply Polyester Panel Filter
Fractional Efficiency vs. Particle Diameter
Fractional Efficiency %
100
80
60
40
20
0
Particle Diameter (µm)
0110
Test Type Fractional Efficiency
Test Number T033103B
Flow Rate/Velocity 1968 cfm
Test Aerosol: KCI Neutralized
DP (”H20) 0.489
Size 24x24 panel
Initial
Size Fractional
Range (mm) Efficiency (%)
0.3-0.4 2.3
0.4-0.55 9.6
0.55-0.7 19.7
0.7-1.0 34.0
1.0-1.3 46.9
1.3-1.6 53.4
1.6-2.2 60.3
2.2-3.0 68.5
3.0-4.0 77.0
4.0-5.5 82.3
5.5-7.0 86.0
7.0-10.0 90.1
111
425T 4-Ply Standard Single Panels
PA0843 425RT-1224 12X24 RING PANEL 425T SINGLE 24
PA0844 425RT-1520 15X20 RING PANEL 425T SINGLE 24
PA0845 425RT-1524 15X24 RING PANEL 425T SINGLE 24
PA0846 425RT-1616 16X16 RING PANEL 425T SINGLE 24
PA0847 425RT-1618 16X18 RING PANEL 425T SINGLE 24
PA0848 425RT-1620 16X20 RING PANEL 425T SINGLE 24
PA0849 425RT-1624 16X24 RING PANEL 425T SINGLE 24
PA0850 425RT-1625 16X25 RING PANEL 425T SINGLE 24
PA0851 425RT-1824 18X24 RING PANEL 425T SINGLE 24
PA0852 425RT-2020 20X20 RING PANEL 425T SINGLE 24
PA0853 425RT-2020-20 20X20 RING PANEL 425T SINGLE 20
PA0854 425RT-2024 20X24 RING PANEL 425T SINGLE 24
PA0855 425RT-2024-20 20X24 RING PANEL 425T SINGLE 20
PA0857 425RT-2025-16 20X25 RING PANEL 425T SINGLE 16
PA0858 425RT-2025-18 20X25 RING PANEL 425T SINGLE 18
PA0856 425RT-2025 20X25 RING PANEL 425T SINGLE 24
PA0859 425RT-2424 24X24 RING PANEL 425T SINGLE 24
PA0860 425RT-2424-20 24X24 RING PANEL 425T SINGLE 20
PA0861 425RT-2525 25X25 RING PANEL 425T SINGLE 24
425T 4-Ply Continous Single Panels
PA0862 425RT-1224C 12X24 425T CONTINUOUS LINK 24
PA0863 425RT-1520C 15X20 425T CONTINUOUS LINK 24
PA0864 425RT-1524C 15X24 425T CONTINUOUS LINK 24
PA0865 425RT-1616C 16X16 425T CONTINUOUS LINK 24
PA0866 425RT-1618C 16X18 425T CONTINUOUS LINK 24
PA0867 425RT-1620C 16X20 425T CONTINUOUS LINK 24
PA0868 425RT-1624C 16X24 425T CONTINUOUS LINK 24
PA0869 425RT-1625C 16X25 425T CONTINUOUS LINK 24
PA0870 425RT-1816C 18x16 425T CONTINUOUS LINK 24
PA0871 425RT-1824C 18X24 425T CONTINUOUS LINK 24
PA0872 425RT-2015C 20X15 425T CONTINUOUS LINK 24
425T Panel
4-Ply Polyester Panel Filter
Item No. Model Description Qty/Case
112
PA0873 425RT-2016C 20X16 425T CONTINUOUS LINK 24
PA0874 425RT-2020C 20X20 425T CONTINUOUS LINK 24
PA0875 425RT-2024C 20X24 425T CONTINUOUS LINK 24
PA0876 425RT-2025C 20X25 425T CONTINUOUS LINK 24
PA0877 425RT-2412C 24X12 425T CONTINUOUS LINK 24
PA0878 425RT-2415C 24X15 425T CONTINUOUS LINK 24
PA0879 425RT-2416C 24X16 425T CONTINUOUS LINK 24
PA0880 425RT-2418C 24X18 425T CONTINUOUS LINK 24
PA0881 425RT-2420C 24X20 425T CONTINUOUS LINK 24
PA0882 425RT-2424C 24X24 425T CONTINUOUS LINK 24
PA0883 425RT-2516C 25X16 425T CONTINUOUS LINK 24
PA0884 425RT-2520C 25X20 425T CONTINUOUS LINK 24
PA0885 425RT-2525C 25X25 425T CONTINUOUS LINK 24
425T Standard Link Panels
PA0702 425LT-1248-24 12X48 RING PANEL 425T LINK 12
PA0703 425LT-1272-24 12X72 RING PANEL 425T LINK 8
PA0704 425LT-1296-24 12X96 RING PANEL 425T LINK 6
PA0705 425LT-12120-24 12X120 RING PANEL 425T LINK 4
PA0706 425LT-12144-24 12X144 RING PANEL 425T LINK 4
PA0707 425LT-1540-20 15X40 RING PANEL 425T LINK 12
PA0708 425LT-1548-24 15X48 RING PANEL 425T LINK 12
PA0709 425LT-1560-20 15X60 RING PANEL 425T LINK 8
PA0710 425LT-1572-24 15X72 RING PANEL 425T LINK 8
PA0711 425LT-1580-20 15X80 RING PANEL 425T LINK 6
PA0712 425LT-1596-24 15X96 RING PANEL 425T LINK 6
PA0713 425LT-15100-20 15X100 RING PANEL 425T LINK 4
PA0714 425LT-15120-20 15X120 RING PANEL 425T LINK 4
PA0715 425LT-15120-24 15X120 RING PANEL 425T LINK 4
PA0716 425LT-15144-24 15X144 RING PANEL 425T LINK 4
PA0717 425LT-1632-16 16X32 RING PANEL 425T LINK 12
PA0718 425LT-1636-18 16X36 RING PANEL 425T LINK 12
PA0719 425LT-1640-20 16X40 RING PANEL 425T LINK 12
PA0720 425LT-1648-24 16X48 RING PANEL 425T LINK 12
PA0721 425LT-1650-25 16X50 RING PANEL 425T LINK 12
PA0722 425LT-1654-18 16X54 RING PANEL 425T LINK 8
Item No. Model Description Qty/Case
425T Panel
4-Ply Polyester Panel Filter
113
PA0723 425LT-1660-20 16X60 RING PANEL 425T LINK 8
PA0724 425LT-1664-16 16X64 RING PANEL 425T LINK 6
PA0725 425LT-1672-18 16X72 RING PANEL 425T LINK 6
PA0726 425LT-1672-24 16X72 RING PANEL 425T LINK 8
PA0727 425LT-1675-25 16X75 RING PANEL 425T LINK 8
PA0728 425LT-1680-20 16X80 RING PANEL 425T LINK 6
PA0729 425LT-1696-24 16X96 RING PANEL 425T LINK 6
PA0730 425LT-16100-20 16X100 RING PANEL 425T LINK 4
PA0731 425LT-16100-25 16X100 RING PANEL 425T LINK 6
PA0732 425LT-16120-20 16X120 RING PANEL 425T LINK 4
PA0733 425LT-16120-24 16X120 RING PANEL 425T LINK 4
PA0734 425LT-16125-25 16X125 RING PANEL 425T LINK 4
PA0735 425LT-16140-20 16X140 RING PANEL 425T LINK 3
PA0736 425LT-16144-24 16X144 RING PANEL 425T LINK 4
PA0737 425LT-16150-25 16X150 RING PANEL 425T LINK 4
PA0738 425LT-1832-16 18X32 RING PANEL 425T LINK 12
PA0739 425LT-1848-16 18X48 RING PANEL 425T LINK 8
PA0740 425LT-1848-24 18X48 RING PANEL 425T LINK 12
PA0741 425LT-1864-16 18X64 RING PANEL 425T LINK 6
PA0742 425LT-1872-24 18X72 RING PANEL 425T LINK 6
PA0743 425LT-1880-16 18X80 RING PANEL 425T LINK 4
PA0744 425LT-1896-16 18X96 RING PANEL 425T LINK 4
PA0745 425LT-1896-24 18X96 RING PANEL 425T LINK 6
PA0746 425LT-18120-24 18X120 RING PANEL 425T LINK 4
PA0747 425LT-18144-24 18X144 RING PANEL 425T LINK 4
PA0748 425LT-2032-16 20X32 RING PANEL 425T LINK 12
PA0749 425LT-2040-20 20X40 RING PANEL 425T LINK 12
PA0750 425LT-2045-15 20X45 RING PANEL 425T LINK 8
PA0751 425LT-2048-16 20X48 RING PANEL 425T LINK 12
PA0752 425LT-2048-24 20X48 RING PANEL 425T LINK 8
PA0753 425LT-2050-25 20X50 RING PANEL 425T LINK 12
PA0754 425LT-2060-15 20X60 RING PANEL 425T LINK 6
PA0755 425LT-2060-20 20X60 RING PANEL 425T LINK 8
PA0756 425LT-2064-16 20X64 RING PANEL 425T LINK 6
PA0758 425LT-2072-24 20X72 RING PANEL 425T LINK 8
Item No. Model Description Qty/Case
425T Panel
4-Ply Polyester Panel Filter
114
PA0757 425LT-2072-24-6 20X72 RING PANEL 425T LINK 6
PA0759 425LT-2075-25 20X75 RING PANEL 425T LINK 8
PA0760 425LT-2080-16 20X80 RING PANEL 425T LINK 4
PA0761 425LT-2080-20 20X80 RING PANEL 425T LINK 6
PA0762 425LT-2090-15 20X90 RING PANEL 425T LINK 4
PA0763 425LT-2096-16 20X96 RING PANEL 425T LINK 4
PA0764 425LT-2096-24 20X96 RING PANEL 425T LINK 6
PA0765 425LT-20100-20 20X100 RING PANEL 425T LINK 4
PA0766 425LT-20105-15 20X105 RING PANEL 425T LINK 3
PA0767 425LT-20112-16 20X112 RING PANEL 425T LINK 3
PA0768 425LT-20120-15 20X120 RING PANEL 425T LINK 3
PA0769 425LT-20120-20 20X120 RING PANEL 425T LINK 4
PA0770 425LT-20120-24 20X120 RING PANEL 425T LINK 4
PA0771 425LT-20125-25 20X125 RING PANEL 425T LINK 4
PA0772 425LT-20140-20 20X140 RING PANEL 425T LINK 3
PA0773 425LT-20144-24 20X144 RING PANEL 425T LINK 4
PA0774 425LT-20150-25 20X150 RING PANEL 425T LINK 4
PA0775 425LT-2430-15 24X30 RING PANEL 425T LINK 12
PA0776 425LT-2432-16 24X32 RING PANEL 425T LINK 12
PA0777 425LT-2436-12 24X36 RING PANEL 425T LINK 8
PA0778 425LT-2436-18 24X36 RING PANEL 425T LINK 12
PA0779 425LT-2440-20 24X40 RING PANEL 425T LINK 12
PA0780 425LT-2445-15 24X45 RING PANEL 425T LINK 8
PA0781 425LT-2448-16 24X48 RING PANEL 425T LINK 8
PA0782 425LT-2448-24 24X48 RING PANEL 425T LINK 12
PA0783 425LT-2454-18 24X54 RING PANEL 425T LINK 8
PA0784 425LT-2460-15 24X60 RING PANEL 425T LINK 6
PA0785 425LT-2460-20 24X60 RING PANEL 425T LINK 8
PA0786 425LT-2464-16 24X64 RING PANEL 425T LINK 6
PA0787 425LT-2472-12 24X72 RING PANEL 425T LINK 4
Item No. Model Description Qty/Case
425T Panel
4-Ply Polyester Panel Filter
115
425T Standard Link Panels
PA0788 425LT-2472-18 24X72 RING PANEL 425T LINK 6
PA0790 425LT-2472-24 24X72 RING PANEL 425T LINK 8
PA0789 425LT-2472-24-6 24X72 RING PANEL 425T LINK 6
PA0791 425LT-2475-15 24X75 RING PANEL 425T LINK 4
PA0792 425LT-2480-16 24X80 RING PANEL 425T LINK 4
PA0793 425LT-2480-20 24X80 RING PANEL 425T LINK 6
PA0794 425LT-2484-12 24X84 RING PANEL 425T LINK 3
PA0795 425LT-2490-18 24X90 RING PANEL 425T LINK 4
PA0796 425LT-2496-12 24X96 RING PANEL 425T LINK 3
PA0797 425LT-2496-16 24X96 RING PANEL 425T LINK 4
PA0798 425LT-2496-24 24X96 RING PANEL 425T LINK 6
PA0799 425LT-24108-18 24X108 RING PANEL 425T LINK 4
PA0800 425LT-24120-24 24X120 RING PANEL 425T LINK 4
PA0801 425LT-24140-20 24X140 RING PANEL 425T LINK 3
PA0802 425LT-24144-24 24X144 RING PANEL 425T LINK 4
PA0803 425LT-2532-16 25X32 RING PANEL 425T LINK 12
PA0804 425LT-2540-20 25X40 RING PANEL 425T LINK 12
PA0805 425LT-2548-16 25X48 RING PANEL 425T LINK 8
PA0806 425LT-2550-25 25X50 RING PANEL 425T LINK 12
PA0807 425LT-2560-20 25X60 RING PANEL 425T LINK 8
PA0808 425LT-2564-16 25X64 RING PANEL 425T LINK 6
PA0809 425LT-2572-24-6 25X72 RING PANEL 425T LINK 6
PA0810 425LT-2575-25 25X75 RING PANEL 425T LINK 8
PA0811 425LT-2580-16 25X80 RING PANEL 425T LINK 4
PA0812 425LT-2580-20 25X80 RING PANEL 425T LINK 6
PA0813 425LT-2596-16 25X96 RING PANEL 425T LINK 4
PA0814 425LT-25100-20 25X100 RING PANEL 425T LINK 4
PA0815 425LT-25100-25 25X100 RING PANEL 425T LINK 6
PA0816 425LT-25112-16 25X112 RING PANEL 425T LINK 3
PA0817 425LT-25120-20 25X120 RING PANEL 425T LINK 4
PA0818 425LT-25125-25 25X125 RING PANEL 425T LINK 4
PA0819 425LT-25140-20 25X140 RING PANEL 425T LINK 3
PA0820 425LT-25150-25 25X150 RING PANEL 425T LINK 4
Item No. Model Description Qty/Case
425T Panel
4-Ply Polyester Panel Filter
116
PA0821 425RCST-099 0-99 RING PANEL 425T CUSTOM 12
PA0822 425RCST-149 100-149 RING PANEL 425T CUSTOM 12
PA0823 425RCST-199 150-199 RING PANEL 425T CUSTOM 12
PA0824 425RCST-249 200-249 RING PANEL 425T CUSTOM 12
PA0825 425RCST-299 250-299 RING PANEL 425T CUSTOM 12
PA0826 425RCST-349 300-349 RING PANEL 425T CUSTOM 12
PA0827 425RCST-399 350-399 RING PANEL 425T CUSTOM 12
PA0828 425RCST-449 400-449 RING PANEL 425T CUSTOM 12
PA0829 425RCST-499 450-499 RING PANEL 425T CUSTOM 12
PA0830 425RCST-549 500-549 RING PANEL 425T CUSTOM 12
PA0831 425RCST-599 550-599 RING PANEL 425T CUSTOM 12
PA0832 425RCST-649 600-649 RING PANEL 425T CUSTOM 12
PA0833 425RCST-699 650-699 RING PANEL 425T CUSTOM 12
PA0834 425RCST-799 700-799 RING PANEL 425T CUSTOM 12
PA0835 425RCST-899 800-899 RING PANEL 425T CUSTOM 12
PA0836 425RCST-999 900-999 RING PANEL 425T CUSTOM 12
PA0837 425RCST-1099 1000-1099 CUST RING PANEL 425T 12
PA0838 425RCST-1199 1100-1199 CUST RING PANEL 425T 12
PA0839 425RCST-1299 1200-1299 CUST RING PANEL 425T 12
PA0840 425RCST-1399 1300-1399 CUST RING PANEL 425T 12
PA0841 425RCST-1499 1400-1499 CUST RING PANEL 425T 12
PA0842 425RCST-1599 1500-1599 CUST RING PANEL 425T 12
425T Custom Link Panels
PA0662 425LCST-099 CUSTOM 425T LINK 0-99 SQ" 6
PA0663 425LCST-199 CUSTOM 425T LINK 100-199 SQ" 6
PA0664 425LCST-299 CUSTOM 425T LINK 200-299 SQ" 6
PA0665 425LCST-399 CUSTOM 425T LINK 300-399 SQ" 6
PA0666 425LCST-499 CUSTOM 425T LINK 400-499 SQ" 6
PA0667 425LCST-599 CUSTOM 425T LINK 500-599 SQ" 6
PA0668 425LCST-699 CUSTOM 425T LINK 600-699 SQ" 6
PA0669 425LCST-799 CUSTOM 425T LINK 700-799 SQ" 6
PA0670 425LCST-899 CUSTOM 425T LINK 800-899 SQ" 6
PA0671 425LCST-999 CUSTOM 425T LINK 900-999 SQ" 6
PA0672 425LCST-1099 CUSTOM 425T LINK 1000-1099 SQ" 6
PA0673 425LCST-1199 CUSTOM 425T LINK 1100-1199 SQ" 6
Item No. Model Description Qty/Case
425T Panel
4-Ply Polyester Panel Filter
117
PA0674 425LCST-1299 CUSTOM 425T LINK 1200-1299 SQ" 6
PA0675 425LCST-1399 CUSTOM 425T LINK 1300-1399 SQ" 6
PA0676 425LCST-1499 CUSTOM 425T LINK 1400-1499 SQ" 6
PA0677 425LCST-1599 CUSTOM 425T LINK 1500-1599 SQ" 6
PA0678 425LCST-1699 CUSTOM 425T LINK 1600-1699 SQ" 6
PA0679 425LCST-1799 CUSTOM 425T LINK 1700-1799 SQ" 6
PA0680 425LCST-1899 CUSTOM 425T LINK 1800-1899 SQ" 6
PA0681 425LCST-1999 CUSTOM 425T LINK 1900-1999 SQ" 6
PA0682 425LCST-2099 CUSTOM 425T LINK 2000-2099 SQ" 6
PA0683 425LCST-2199 CUSTOM 425T LINK 2100-2199 SQ" 6
PA0684 425LCST-2299 CUSTOM 425T LINK 2200-2299 SQ" 6
PA0685 425LCST-2399 CUSTOM 425T LINK 2300-2399 SQ" 6
PA0686 425LCST-2499 CUSTOM 425T LINK 2400-2499 SQ" 6
PA0687 425LCST-2599 CUSTOM 425T LINK 2500-2599 SQ" 6
PA0688 425LCST-2699 CUSTOM 425T LINK 2600-2699 SQ" 6
PA0689 425LCST-2799 CUSTOM 425T LINK 2700-2799 SQ" 6
PA0690 425LCST-2899 CUSTOM 425T LINK 2800-2899 SQ" 6
PA0691 425LCST-2999 CUSTOM 425T LINK 2900-2999 SQ" 6
PA0692 425LCST-3099 CUSTOM 425T LINK 3000-3099 SQ" 6
PA0693 425LCST-3199 CUSTOM 425T LINK 3100-3199 SQ" 6
PA0694 425LCST-3299 CUSTOM 425T LINK 3200-3299 SQ" 6
PA0695 425LCST-3399 CUSTOM 425T LINK 3300-3399 SQ" 6
PA0696 425LCST-3499 CUSTOM 425T LINK 3400-3499 SQ" 6
PA0697 425LCST-3599 CUSTOM 425T LINK 3500-3599 SQ" 6
PA0698 425LCST-3699 CUSTOM 425T LINK 3600-3699 SQ" 6
PA0699 425LCST-3799 CUSTOM 425T LINK 3700-3799 SQ" 6
PA0700 425LCST-3899 CUSTOM 425T LINK 3800-3899 SQ" 6
PA0701 425LCST-3999 CUSTOM 425T LINK 3900-3999 SQ" 6
Item No. Model Description Qty/Case
425T Panel
4-Ply Polyester Panel Filter
Loading...
