Page 1
12
Manufacture’s Limited Warranty for Pull Behind Sprayer
The limited warranty set forth below is given by Precision
Products, Incorporated with respect to new merchandise
purchased and used in the United States, its possessions
and territories.
Precision Products, Incorporated warranties the product
(s) listed against defects in material and workmanship,
and will at our option, repair or replace, free of charge,
any part found to be defective in materials or
workmanship. This limited warranty shall only apply if
this product has been assembled, operated, and
maintained in accordance with the owner’s manual
furnished with the product, and has not been subject to
misuse, abuse, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage
because of other peril or natural disaster.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear parts or
component failures will be covered on the product for a
period of one year. Parts found to be defective within the
warranty period will be replaced at our expense. Our
obligation under this warranty is expressly limited to the
replacement or repair, at our option, of parts found to be
defective in material and workmanship.
Contacting Service
Warranty parts replacements are available, only with
Proof of Purchase, through our Customer Service
Department. Call 1 (800) 225-5891
This limited warranty does not provide coverage in the
following cases:
1. Routine maintenance items such as lubricants and
filters.
2. Normal deterioration of the exterior finish due to use
or exposure.
3. Transportation and/or labor charges.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies
after the applicable period of express written warranty
above as to the part as identified below. No other
express warranty whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind Precision Products, Inc. During the period of
the warranty, the exclusive remedy is repair or
replacement of the product as set forth above.
The provisions as set forth in this warranty provide the
soleand exclusive remedy arising from the sale.
Precision Products, Inc. will not be liable for incidental or
consequential loss or damage including, without
limitation, expenses incurred for substitute or
replacement lawn care services or for rental expenses to
temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on
how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you.
During the warranty period, the exclusive remedy is
replacement of the part. In no event shall recovery of
any kind be greater that the amount of the purchase
price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk
and liability for loss, damage, or injury to you and your
property and/or to others and their property arising out
of the misuse or inability to use this product.
This limited warranty shall not extend to anyone other
than the original purchaser or to the person for whom it
was purchased as a gift.
Local Law to this Warranty
This limited warranty gives you specific legal rights, and
you may also have other rights which vary from state to
state.
Warranty Period
The Warranty period stated below begins with the Proof
of Purchase. Without the proof of purchase, the
Warranty period begins from the date of manufacture.
Sprayer Warranty Period
The warranty period for this unit is as follows: All parts
are covered one year from date of sale.

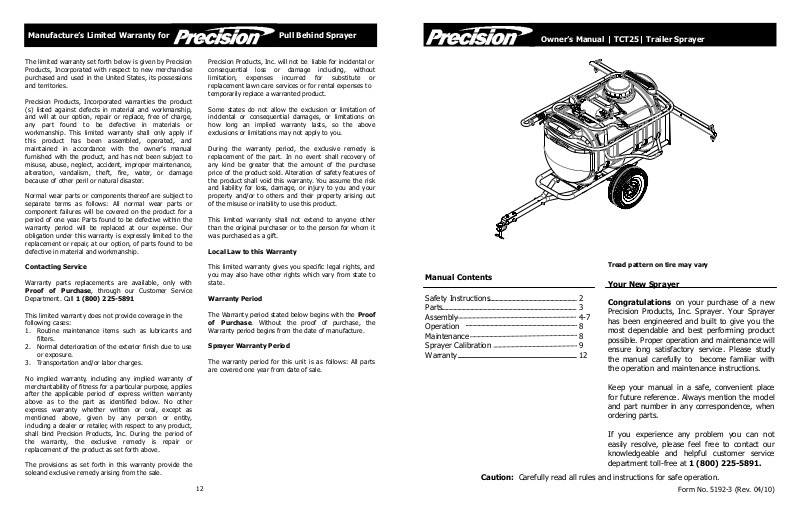

Owner’s Manual | TCT25| Trailer Sprayer
Caution: Carefully read all rules and instructions for safe operation.
Manual Contents
Your New Sprayer
Congratulations on your purchase of a new
Precision Products, Inc. Sprayer. Your Sprayer
has been engineered and built to give you the
most dependable and best performing product
possible. Proper operation and maintenance will
ensure long satisfactory service. Please study
the manual carefully to become familiar with
the operation and maintenance instructions.
Keep your manual in a safe, convenient place
for future reference. Always mention the model
and part number in any correspondence, when
ordering parts.
If you experience any problem you can not
easily resolve, please feel free to contact our
knowledgeable and helpful customer service
department toll-free at 1 (800) 225-5891.
Form No. 5192-3 (Rev. 04/10)
Safety Instructions
Parts
Assembly
Operation
Maintenance
Sprayer Calibration
Warranty
2
3
4-7
8
8
9
12
Tread pattern on tire may vary
Page 2
2
Rules for Safe Operation
The following safety precautions are suggested. This Sprayer is designed, engineered and tested to
offer reasonably safe and effective service, provided that it is operated in strict accordance with
these instructions. Failure to do so may result in personal injury. Always observe the rules of safe
operation. Please read and retain this manual.
Read and understand your tractor’s owner’s manual and towing safety rules, know how to
operate your tractor before using any attachment.
Do not allow anyone to ride or sit on tow behind equipment during operation.
Be alert for holes in the terrain and other hazards. This could cause you to lose control of the
cart and lawn tractor.
Follow maintenance and lubrication instructions as outlined in this manual.
Tractor braking and stability may be affected with the attachment of this unit. Be aware of
changing conditions on slopes. Refer to safety rules in your tractor owner’s manual concerning
safe operation on slopes. Stay Off Steep Slopes.
Always operate up and down a slope, never across the face of a slope.
Do not drive close to creeks, ditches or public highways.
Always wear substantial footwear. Do not wear loose fitting clothing that may get caught in
moving parts.
Avoid extremely sharp turns.
Follow the maintenance instructions as outlined in this owner’s manual.
Do not exceed maximum towing speed of 4 M.P.H.
Warning of danger of improper use of the Sprayer. This unit is intended for use only with
Riding Mowers or Garden Tractors. It is definitely not for Highway use, being pulled at high
speeds, or transporting passenger(s) of any sort. Such use could result in injuries for which we
cannot be held responsible.

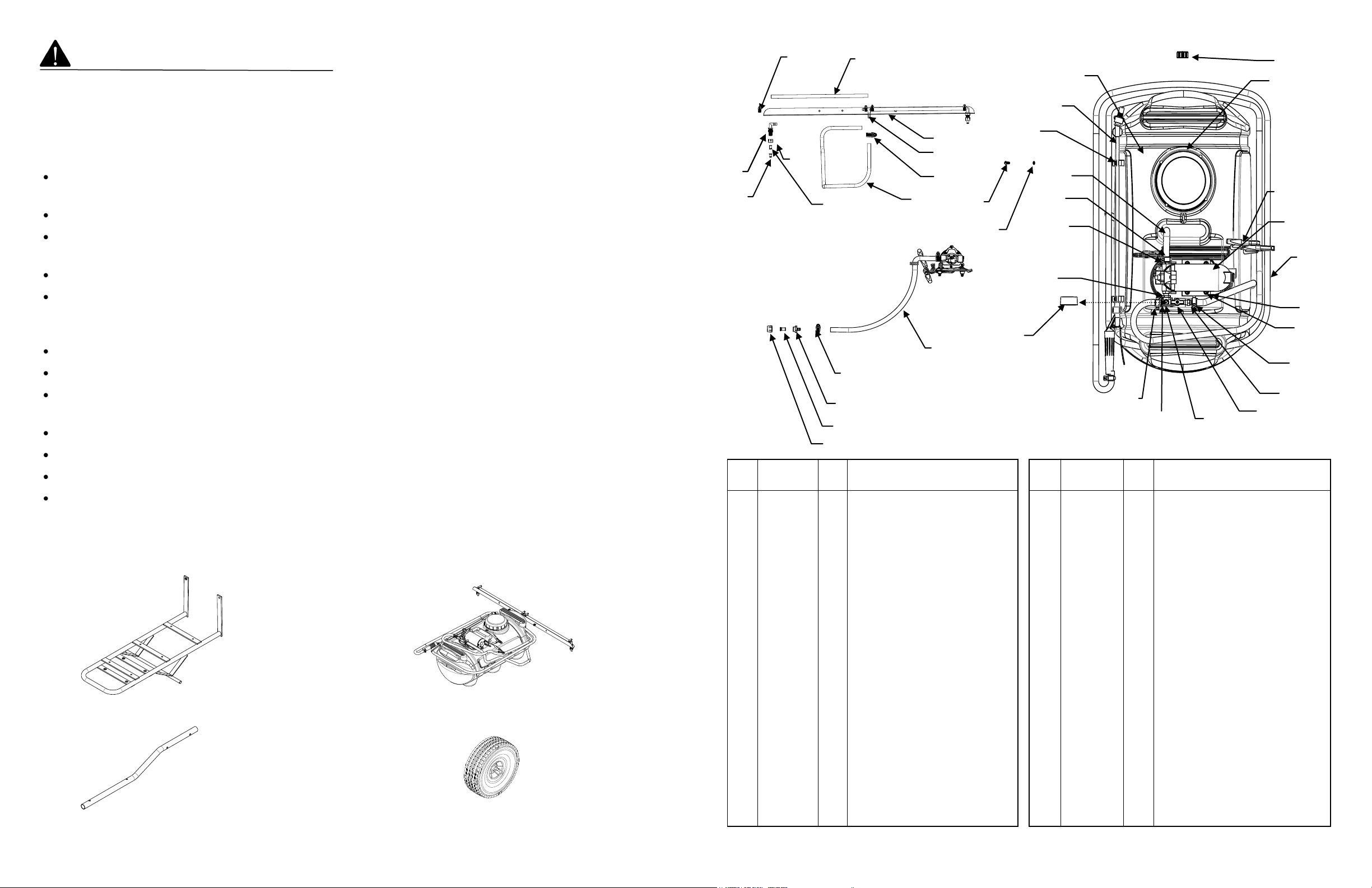

1
3 4
2
Tank Assembly comes
attached to Frame
11
Ref
No.
Qty. Description Part No.
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
2
3
3
1
1
2
1
1
1
1
1
1
1
1
1
1
1
2
2
2
1
1
1
1
Wand Holder
Nozzle Cap
Suction Strainer
1/2” Rubber Hose 24”
3/8” MPT x 1/2” HB
10-24 x 1/2” Bolt
Tank Lid
Electric Pump Motor (1.8 w/Switch)
3/8”MPT x 1/4”MPT Nipple
Nylon Tee, 1/4” w/branch
1/4” MPT x 3/8” HB
3/8” Rubber Hose 15’
Sprayer Wand & Nozzle
1/4” MPT x 1/4” FPT Valve
1/4” MPT x 1/2” HB Hose Barb
1/2” Clear Hose 40”
Nylon Tee, 1/2”
1/2” Clear Hose 19-1/2”
11/16” MPS x 1/2” HB ELB HB w/nut
Nozzle 2.5” Blue
Boom Angle
Drain Cap w/Washer
11/16” MPT x 1/2” HB
Pressure Gauge
3784
3620
3619
3774
3603
3613
3601
3609
3728
3688
3731
3773
3658
3730
3729
3775
3723
3776
3725
3719
3724GY
3733
3764
3687
Ref
No.
Qty. Description Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
1
2
2
1
2
6
2
4
12
6
8
4
2
6
4
1
2
1
2
8
4
4
6
1
1
TCT Frame
Tank Assembly
Tow Bar Tube
Wheel
Clevis Pin 1/2” x3-1/2” 1” Head
5/16” x 2” Hex Head Bolt
5/16” x 3/4” Hex Head Bolt
1/4” x 3” Hex Head Bolt
1/4” x 2” Hex Head Bolt
1/4” Flat Washer
5/16” Flat Washer
5/16” Lock Washer
5/8” Flat Washer
Cotter Pin 1/8” x 3/4”
1/4” Nylock Nut
5/16” Hex Head Nut
Hitch Pin Clip
1” Tube Plug
5/16” Spacer
Clevis Plate
Hose Clamp (Stainless Steel)
10-24 x 1-1/4” Round Head Screw
#10 Flat Washer
#10 Lock Washer
Wire Harness
25 Gallon Sprayer Tank
5190GY
****
5191GY
2029
4289
4041
1248
2179
1086
1817
1044
1276
1646
5195
1558
1275
1042
3060
5153
4265G
3632
3604
3605
3636
3780
3626
32
41
21
23
22
34
25
33
48
24
50
35
38
21
37
36
40
30
21
31
39
26
27
Not all parts shown
21
30
21
49
29
28
44
47
42
29
43
21
45 45
46
28
Page 3
10
7
12
10
16
5
1
9
15
20
8
10
15
13
14
10
4
19
3
6
7
12
16
17
11
12
18
45 45
46
3
Ref
No.
Qty Description Part No.
1
2
3
4
5
6
7
8
9
10
1
1
2
2
1
2
6
2
4
12
TCT Frame
Tank Assembly
Tow Bar Tube
Wheel
Clevis Pin 1/2” x3-1/2” 1” Head
5/16” x 2” Hex Head Bolt
5/16” x 3/4” Hex Head Bolt
1/4” x 3” Hex Head Bolt
1/4” x 2” Hex Head Bolt
1/4” Flat Washer
5190GY
****
5191GY
2029
4289
4041
1248
2179
1086
1817
11
10
9
8
7
6
5
20
19 18
17
16 15
12
14
13
Ref
No.
Qty Description Part No.
11
12
13
14
15
16
17
18
19
20
2
8
4
2
6
4
1
2
1
2
5/16” Flat Washer
5/16” Lock Washer
5/8” Flat Washer
Cotter Pin 1/8” x 3/4”
1/4” Nylock Nut
5/16” Hex Head Nut
Hitch Pin Clip
1” Tube Plug
5/16” Spacer
Clevis Plate
1044
1276
1646
5195
1558
1275
1042
3060
5153
4265G
Page 4
4
Assembly Instructions
Tools Needed For Cart Assembly
(2) 1/2” Wrenches
(1) Pair Needle Nose Pliers
Remove from Carton
Remove all parts and hardware packages from the carton. Lay out all parts and hardware and identify them using the illustrations pages 2-3.
Assembly Tip: Loosely tighten all nuts and bolts at first. Fully tighten when the unit is completely
assembled.

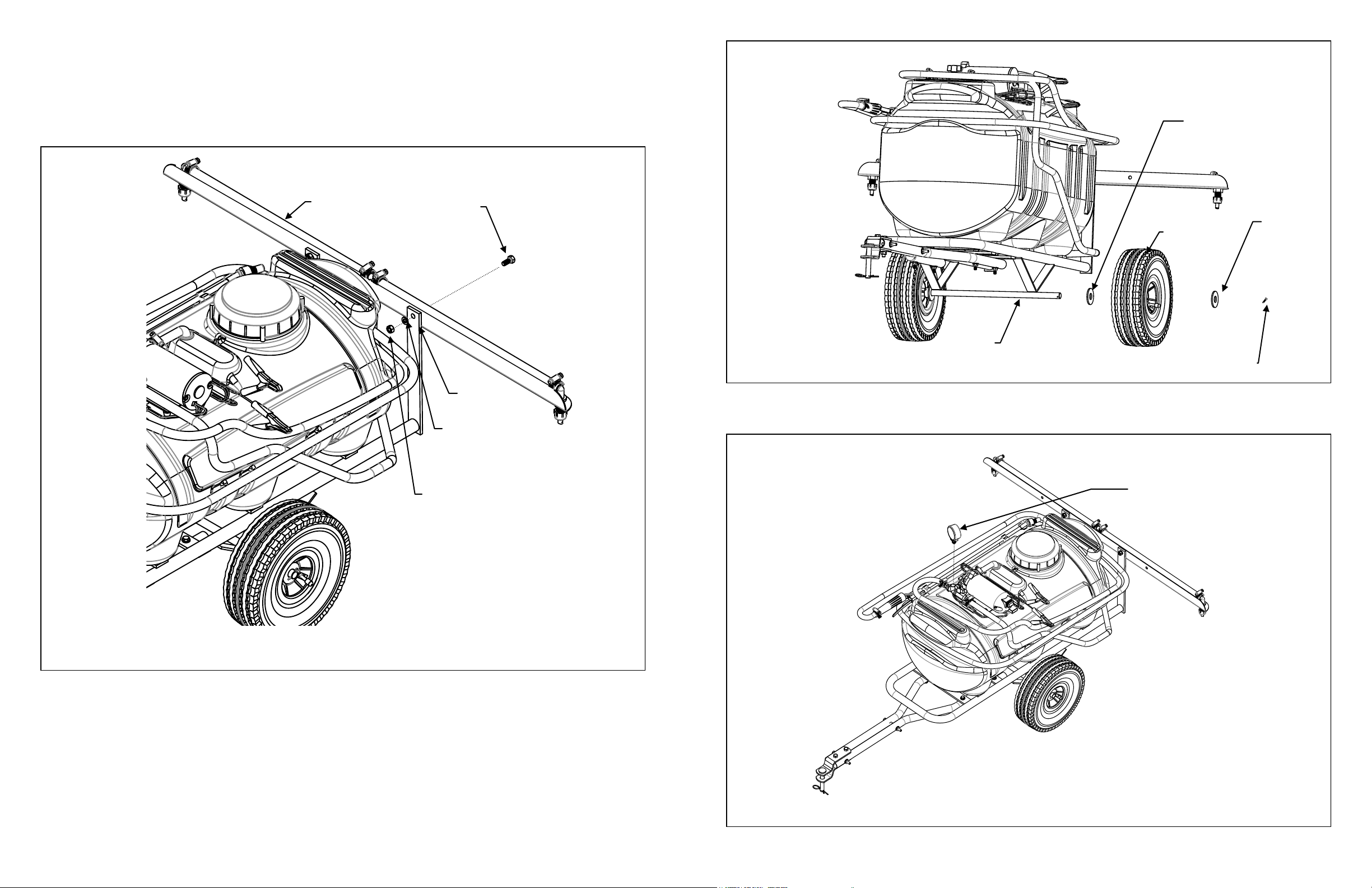

1. Place the Tow Bar Tubes under the front of TCT Cart Frame. Take four 1/4” x 2” Hex Head Bolts,
place a 1/4” Flat Washer on each bolt, insert the bolts into the first two frame holes on each side.
Insert the bolt through the Frame holes and through the Tow Bar Tubes, add one more 1/4” Flat
Washer to each bolt and secure with 1/4” Nylock Nuts. Insert 1” Tube Plugs into front holes of Tow
Bar Tubes. See Figure 1.
Figure 1
TCT Cart
Frame
Tow Bar
Tube
1/4”
Nylock
Nut
1/4” Flat
Washer
1/4” Flat
Washer
1/4” x 2” Hex
Head Bolt
1’ Tube Plug
9
Sprayer Calibration
Proper calibration is one of the most important parts of spraying. Properly calibrated sprayers will save you
both time and money.
How to determine the gallons per minute (per nozzle).
GPM=GPA x MPH x W
5940
GPM—Gallons Per Minute
GPA—Gallons Per Acre
MPH—Miles Per Hour
W—Nozzle spacing (in boom spraying)
This formula is useful to determine which tip to use on your boom, especially when your nozzle spacing is
different from the standard 20” or 40” nozzle spacing on Precision Products, Inc. Sprayers. For example: You
know you want to travel 3 MPH., apply the chemical at a rate of 20GPA. The nozzle spacing’s are 33” on cen-
ter. By using the formula you will determine how many gallons per minute (GPM) per tip will be required to
give you the correct application.
Example: 20 GPA x 3 MPH = 60 x 33” (nozzle spacing) = 1980 divided by 5940 + .333 GPM
You have now determined that you need a tip with GPM of .333. Find the type of tip you want to use. For
example, an 80 degree flat fan spray tip and then determine what pressure you plan to spray at. Let’s say 30
PSI. How do you check this calibration? By using this formula.
GPA = 5940 x GPM (Per Nozzle)
MPH x W
Multiply 5940 x .333 GPM + 1783.8. Multiply 3 MPH x 33 (nozzle spacing) = 99. Divide 1783.8 by 99 = 18.06
gallons per acre.
By simply adjusting your pressure or your tractor speed, you will obtain the 20 GPA rate.
The second formula is used to determine whether an old tip (one on which you cannot identify the number)
is still spraying the right amount of chemicals. You can determine how many GPM a tip is spraying, with the
use of a catch jar and stop watch. Hold the jar under the tip so you catch the total spray for one minute. The
amount in the jar indicates the GPM.
Calibrate your sprayer carefully. If your tips are worn, replace them. New tips are a fraction of the cost of using either too much or too little chemicals. Also, you can use these formulas to help determine if the intended
pump has the volume capacity to meet your spraying needs.
