The Reliant 5000 Series is the Exit Device of choice when an economical and reliable exit device is required. All Reliant 5000
Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. The Reliant Series is
available in durable powder coat finishes with a variety of trim styles and functions. The chassis is constructed of stainless steel
and covers the standard type 161 door preparation.
Trim Dimensions ............................................................5, 7
Touchbar Clearance
The Reliant Exit Devices accommodate doors with vision lites or glass windows, where the vision lite frames or moldings project up to 1/4" beyond the face of the door. Active Case and End Cap Mounting Bracket are mounted on the face of the door
without any shims or cutting off the glass molding. These devices have a 1/4" gap between the face of the door and the
Touchbar Assembly. This gap allows proper functioning of the devices even on doors which are not perfectly flat. Since the
Active Case is mounted directly on the face of the door, it accommodates standard lengths of through bolting screws, lever, and
cylinder tail pieces.
Exit Device
1/4" Gap
Door (Top View)
Quiet Operation
Sound Dampeners reduce the noise associated with Exit Device operation on the depression and return stroke of the
Touchpad.
2
R E L I A N T 5 0 0 0 S
Device Dimensions
2-3/8"
4-7/16"
2-3/16"
3-1/2"
Touchbar
Neutral
2-5/8"
Touchbar
Depressed
2-1/2"
Finishes
ANSI/BHMADescription
600Primed for Paint – mullions only
689Aluminum Paint
695Dark Bronze Paint
Fasteners
Furnished standard with machine screws and full thread
wood/sheet metal screws. Specify Sex Nuts and Bolts (SNB)
where recommended or required by the door
manufacturer.
Device Active Case
Active Case covers ANSI A115.2
(Type 161) or ANSI A115.18
cylinder lock preparation. Active
Case through bolts in ANSI
A115.18 preparation without
additional machining. Specify
Cover Plate or Trim to cover
outside cutout.
Door Sizes
Stock sizes for door widths and heights are listed below. If
required, cut to size in the field.
Door WidthsStock Sizes
2'-7" to 3'-0"3'-0"
3'-1" to 4'-0"4'-0"
Vertical Rod Devices
DeviceDoor HeightsStock Sizes
Surface Verticalup to 7'-0"7'-0"
Rod Device*7'-1" to 8'-0"8'-0"
8'-1" to 10'-0"10'-0"
GENERAL INFORMATION
Sex Nuts & Bolts
(not furnished std.)
Hand of Doors
Sex Nuts & Bolts are
furnished with No. 10-24 x 1"
Inside
OHMS (1-1/2" long screws
required for guides).
1-5/8"
LHRB Shown
Outside
Type and DoorExit DeviceUL Fire Door Rating
ApplicationOpeningSeries
Rim Device 4'-0" W x 10'-0" HFL5100
(A)(B)(C)(D)(E)20
31-1/23/41-1/23/4min.
HourHourHourHourH
• • • •••
Two Rim Devices
with Mullion
8'-0" W x 8'-0" H
Two Surface Vertical Rod
Devices Swinging in the
8'-0" W x 10'-0" H
Same or Opposite Direction
All Fire Exit Hardware conforms to UL10C and UBC 7-2.
Consult with Door Manufacturer for specific limitations on Fire Door Assemblies.
FL5100 x
FL822, FLKR822
FL5200,
FL5200LBR
• • • •••
• • • •••
RHRB Shown
ourDoor
FIRE LABEL RATING
3
RIM EXIT DEVICES
RIM ExIT DEVICESHOW TO ORDER 5100
S300
Standard
Reliant 5100 Series –
Reliant FL5100 Fire Exit Series –
DOORS - For all types of single and double doors with a mullion.
For mullions, see page 8. Available for 1-3/4" to 2-1/4" thick,
up to 4'-0" wide openings. For thicker doors, consult factory.
Furnished standard for 1-3/4" thick, 3'-0" wide openings.
ACTIVE CASE & TRIM - Covers ANSI A115.2 (Type 161) or
ANSI A115.18 cylinder lock preparation. Active Case through
bolts in ANSI A115.18 preparation without additional
machining.
FUNCTIONS - Universal Exit Device, add Trim for the desired
function.
ACTIVE CASE COVER & ENDCAP - High Impact
Thermoplastic.
ACTIVE CASE - Stainless Steel.
TOUCHBAR SUB-ASSEMBLY - Zinc Dichromate plated Heavy
Wrought Steel.
TOUCHBAR ASSEMBLY - Powder Coated Heavy Wrought
Steel.
STRIKES - No. S300, Investment Cast Stainless Steel, Black
Powder Coated furnished standard. No. S988, optional strike
for use on Aluminum Door applications, specify when ordering.
No. S458, optional strike for use on Mullion applications,
specify when ordering. For optional strike information see
page 9.
5101– exit only
5102– dummy trim
5103– key retracts
latchbolt
5108– key locks/
unlocks
lever
5114– no cylinder
lever always
active
Device Only: Device no., hand, finish, strike, and door size including thickness: (e.g. FL5108 x RHRB x 689 x S300 x 3'-0" x7'-0" x 1-3/4" )
Trim Only: Trim no., hand, finish, and door thickness: (e.g. 808A x RHRB x 689 x 1-3/4" ) * 5103 & FL5103 Cylinder Only Application includes
Cylinder Attachment Kit “CA-03”.
4
ALK
Device
options
See above
Trim No.
501 – cover plate
602 – trim no key
603 – trim w/key
702A – handle no key
703A – handle w/key
808A – lever w/key
814A – lever no key
R E L I A N T 5 0 0 0 S
RH
LH
RHRB
LHRB
Finish
689
695
S300 – rim/top
S301 – rim/top (opt.)
S458 – rim (optional)
S459 – non fire
(optional)
S460 – bottom (std.)
S988 – roller (opt.)
S300
Strike
(std.)
3' 0" x7' 0" x 1 3/4"
Trims are certified to ANSI/BHMA A156.3, Grade 1.
TRIMS
501
Cover Plate
1/8"
2-3/4"
4"
602
Entrance by trim when
touchbar is dogged down.
5-7/8"
603
2-3/4"1"
Entrance by trim when latchbolt is retracted
by key. Key removable only when locked.
10"
6"
702A
Entrance by trim when
touchbar is dogged down.
808A
Entrance by lever, key
locks or unlocks lever.
703A
Entrance by trim when latchbolt is
retracted by key. Key removable
only when locked.
814A
Entrance by lever. Always
active – No cylinder
Notes:
CYLINDERS - Not furnished standard. For Cylinder details see page 11.
Rim Cylinder - Required for 603 & 703A Trim.
Mortise Cylinder - Required for 808A Trim. Use 1-1/4" long standard mortise cylinder.
LEVER TRIMS - (808A, 814A) are handed, but are field reversible. Specify Handing when ordering.
TRIMS - are through bolted and will cover 161 cutouts.
2-3/4"2"
4-3/4"
2-13/16"
6-5/8"
2-3/4"
The measurement from the Trim Horizontal Centerline to the Lever Horizontal Centerline is 1-7/16".
5
SURFACE VERTICLE ROD EXIT DEVICES
S300
Reliant 5200 Series –
Reliant FL5200 Fire Exit Series –
DOORS - For all types of single and double door
applications. Available for 1-3/4" to 2-1/4" thick, up to
4-0" wide by 10'-0" high openings. For thicker doors,
consult factory. Furnished standard for 1-3/4" thick,
3'-0" wide by 7'-0" high openings.
ACTIVE CASE & TRIM - Covers ANSI A115.2 (Type
161) or ANSI A115.18 cylinder lock
case through bolts in ANSI A115.18 preparation without
additional machining.
FUNCTIONS - Universal Exit Device, add Trim for the
desired function.
ACTIVE CASE COVER, LATCH COVERS & ENDCAP -
High Impact Thermoplastic.
ACTIVE CASE & TOUCHBAR SUB-ASSEMBLY - Zinc
Dichromate plated Heavy Wrought Steel.
TOUCHBAR ASSEMBLY - Powder Coated Heavy
Wrought Steel.
VERTICAL RODS - Powder Coated Stee
Reversible
Reversible
preparation. Active
l.
TOUCHBAR HEIGHT - 40-5/16" from floor standard.
Specify required height if other than standard.
REVERSIBLE - Reversible for all functions and trims.
Standard packaging RHRB.
UL LISTED - Panic and Fire Exit Hardware. For FIRE
EXIT HARDWARE Ratings see page 3. Conforms to
UL10C and UBC 7-2.
ANSI/BHMA - Devices are BHMA certified for ANSI 156.3,
Grade 1.
FINISHES - 689 Aluminum Powder Coat, 695 Dark
Bronze P
STILE WIDTH - See Stile information on page 11.
CYLINDERS - See page 11.
LESS BOTTOM ROD (LBR) OPTION - Specify suffix
“LBR” (e.g. 5200LBR). See UL FIRE LABEL Rating
Chart on page 11. Fire Rated Devices include FB277
Fire Bolt Assembly.
5201– exit only
5202– dummy trim
5203– key retracts
latchbolt
5208– key locks/
unlocks
lever
5214– no cylinder
lever always
active
Device Only: Device no., hand, finish, strike, and door size including thickness:
(e.g. FL5208RALK x RHRB x 689 x S300 x 3-0 x 7-0 x 1-3/4)
Trim Only: Trim no., hand, finish, and door thickness:
(e.g. 808A RHRB 689 1-3/4) * 5203 & FL5203 Cylinder Only Application includes Cylinder Attachment Kit “CA-03”.
See above
Trim No.
501 – cover plate
602 – trim no key
603 – trim w/key
702A – handle no key
703A – handle w/key
808A – lever w/key
814A – lever no key
HandingDoor Size
RH
LH
RHRB
LHRB
Finish
689
695
S300
Strike
S300 – rim/top (std.)
S301 – rim/top (opt.)
S458 – rim (opt.)
S459 – non fire (opt.)
S460 – bottom (std.)
S988 – roller (opt.)
3' 0" x7' 0" x 1 3/4"
............10
6
R E L I A N T 5 0 0 0 S
Trims are certified to ANSI/BHMA A156.3, Grade 1.
TRIMS
501
Cover Plate
1/8"
2-3/4"
4"
602
Entrance by trim when
touchbar is dogged
down.
603
Entrance by trim when latchbolt is
retracted by key. Key removable
only when locked.
6"
2-3/4"1"
5-7/8"
10"
702A
Entrance by trim when
touchbar is dogged
down.
808A
Entrance by lever, key
locks or unlocks lever.
703A
Entrance by trim when latchbolt is
retracted by key. Key removable
only when locked.
814A
Entrance by lever. Always
active – No cylinder
CYLINDERS - Not furnished standard. For Cylinder details see page 11.
Rim Cylinder - Required for 603 & 703A Trim.
Mortise Cylinder - Required for 808A Trim. Use 1-1/4" long standard mortise cylinder.
LEVER TRIMS - (808A, 814A) are handed, but are field reversible. Specify Handing when ordering.
TRIMS - are through bolted and will cover 161 cutouts.
2-3/4"2"
4-3/4"
2-13/16"
6-5/8"
2-3/4"
7

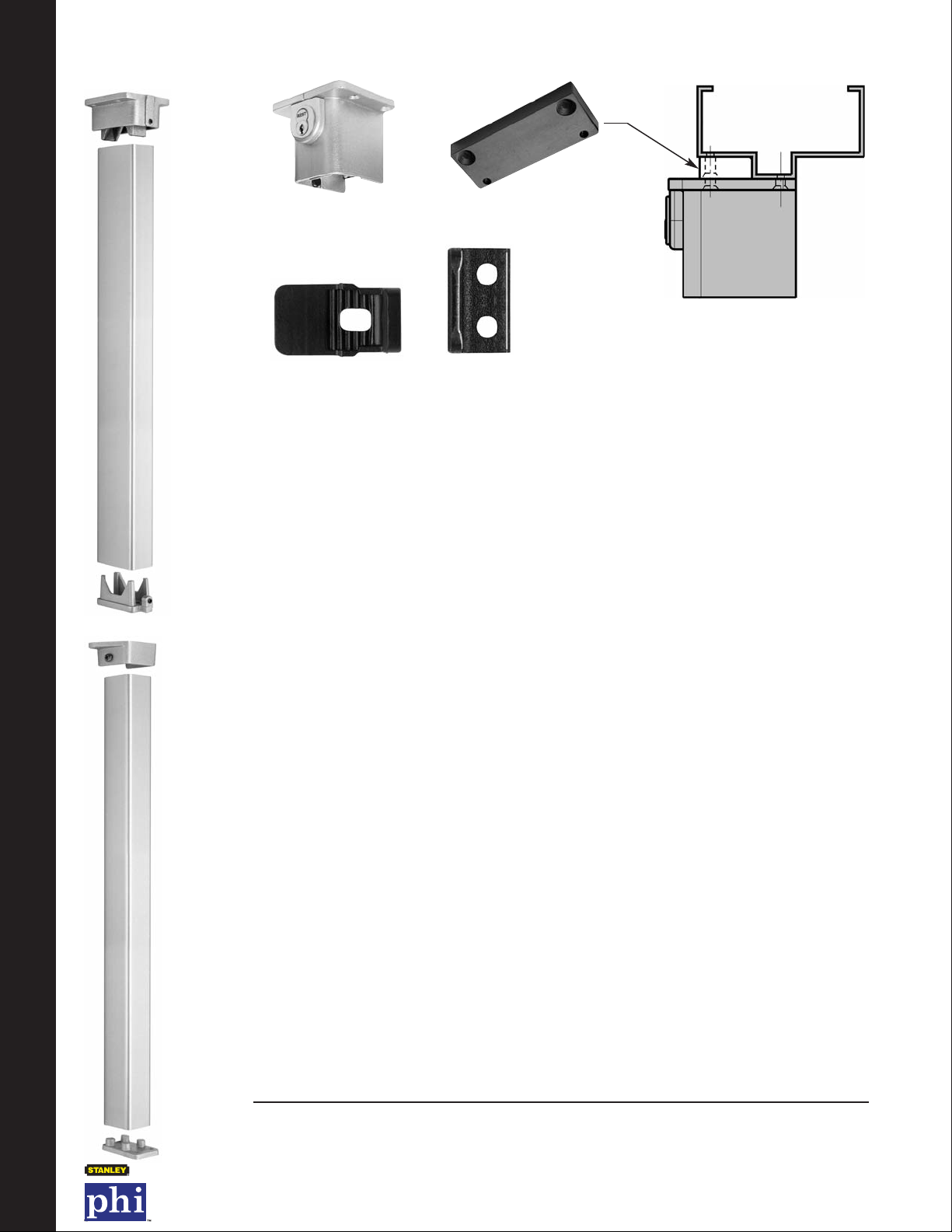

MULLIONS
MULLIONS
Mullion
Cap
MC822
Key Removable
Mullion Cap
KMC822
(Rim Cylinder required)
Mullion Cap Spacer
MCS822
Mullion
Base
MB822
Mullion
Cap
MC811
Interlock
S1447
Stabilizer
ST989
Removable Mullions
The Mullion is used to adapt a double door opening to two single door openings with Rim Exit Devices.
When the full width of an opening is required, the mullion may be removed.
Key Removable Mullion (KR) – Provides a secure yet quick & easy means of removing the 822 or
FL822 Mullion. The mullion can be reinstalled and locked without the need of the key.
Stock Size– For openings 8'-0" high. For openings less than 8'-0" high the mullion can be cut down.
For openings greater than 8'-0" high using the 822, KR822 or 811 mullions, consult factory.
Finishes – 600, 689, 695. For Finish description see page 3.
822, FL822, KR822, FLKR822 Mullion
U.L. Listed – FL822 and FLKR822 listed for Fire Exit Hardware. For FIRE LABEL RATING Chart see
page 11.
Mullion – 2" x 3" Steel.
Mullion Base – Investment Cast Steel, 2" wide 3-1/2" deep. Furnished with steel anchors for concrete
floors.
Interlock - Black Powder Coated Investment Cast Stainless Steel. Furnished standard for FL822 and
FLKR822 Mullions. It interlocks the mullion to the Rim Active Case and S300 or S301 Strike.
Stabilizers – Black Powder Coated Steel. Stabilizers are furnished standard for FL822 and FLKR822
Mullions.
Mullion Cap Spacer – Minimum width 3-1/2". For 2-1/4" frame spacer specify part no. MCS822.
KR822, FLKR822 KEY Removable Mullion Cap Assembly - Investment Cast Steel - can be
ordered to convert existing 822 or FL822 mullions to Keyed Removable Mullions. Retrofits to the hole
pattern of an MC822 Mullion Cap. To order specify KMC822 or KMC822F. For wire run information,
please consult factory.
Cylinder – Not furnished standard - Rim Type required. See page 11 for cylinder details.
811 Mullion
MULLION – 2" x 2" Steel Mullion.
MULLION CAP – Cast 4-1/2" wide x 2-5/16", furnished with machine screws for metal frames.
MULLION BASE – Cast 2" wide x 2-3/4", furnished with sheet metal screws and plastic anchors.
Mullion
Base
MB811
8
To Order: Specify Mullion No. x Height x Finish (e.g. 822 x 8'-0" x 600)
R E L I A N T 5 0 0 0 S
Cylinder Dogging
Available for all Reliant Series Devices except for Fire Exit Hardware.
Cylinder Dogging provides the ability to lock down the touchbar with
a key cylinder so the door can be used in the push pull mode. To
order, specify suffix “CD” (e.g. 5100CD). Requires the use of a 1-1/4"
mortise cylinder, not furnished standard. Specify when required.
Available for all Reliant Series Devices except Fire Exit
Strikes
1-1/8"
S300 Standard
For Rim and Top Strike for
SVR Devices. Black
Powder Coated Investment
Cast Stainless Steel.
1-1/8"
2-
1/2"
3/4"
7/8"
1-1/8"
S301 Optional
For Rim and Top Strike for
SVR Devices. Black Powder
Coated Investment Cast,
Stainless Steel Base and
Roller.
3/4"
2-
7/8"
Cylinder Dogging Kit
To convert from hex key dogging to cylinder dogging in the field,
a cylinder dogging kit is available. The kit consists of a channel
filler, blocking ring, cylinder locator and lock nut. Requires the use
of a 1-1/4" mortise cylinder, not furnished standard. Specify when
required.
To order specify: RCDK-3, for up to 3'-0" and RCDK-4 for
devices up to 4'-0".
Miscellaneous
End Cap
REC999 For Hinge Stile end
of all Reliant Devices.
Mounting Bracket
MB305 For Hinge Stile end
of all Reliant Devices.
ACCESSORIES
S458 Optional
For Rim Devices. Black
Powder Coated Investment
Cast, Stainless Steel Base
and Roller.
1-5/8"
2-
S460 Bottom Strike
For Vertical Rod Devices,
Surface or Concealed.
Black Powder Coated
Steel.
1-3/4"
2-
7/8"
S988 Standard
For Narrow Stile Rim
Devices. Black Powder
Coated Investment Cast,
Stainless Steel Base and
Roller. Includes Rub Strip.
1/8"
3/8"
2"
S459 Optional Rim Strike
For Non Fire Rated 100 & R100
Rim x Vertical Rod Device on a
Pair of Doors without a Mullion.
Black Powder Coated
Investment Cast Stainless Steel.
1/2"
Dogging Key
2"
DK220 - 7/32" standard hex.
Rod Guide
RRG123 For surface vertical
rod devices.
Top Rod - 5200 Series.
Three stock lengths available for 7'-0", 8'-0", and 10'-0" high
doors.
RTR1860 - For 7'-0" doors, rod is 37-3/8" long.
5/8"
RTR1861 - For 8'-0" doors, rod is 49-3/8" long.
RTR1863 - For 10'-0" doors, rod is 73-3/8" long.
For doors of lesser heights rods are cut on job. Specify finish
689 or 695. Includes Rod Pin.
2-
3/8"
Bottom Rod - 5200 Series.
RBR1864 - For Touchbar location at 40-5/16 from finished
floor, bottom rod is 34-7/8 long. Specify finish 689 or 695.
Includes Rod Pin.
9
ExIT ALARM
EXIT ALARM
RALK - Battery Operated, provided with a 9 Volt battery and
has an audible low battery indicator. Specify WH495
Wire harness for Remote Arm/Disarm or alternate input
Activation options.
RALW - Remote Powered 12 to 24 VDC at 0.25 Amp., a (2)
wire power transfer hinge is required (furnished by
others). Specify WH495 Wire harness for Remote
Arm/Disarm or alternate input Activation options.
The Exit Alarm provides a simple way to audibly monitor the use of
an exit device. The unit contains a Piezo Alarm which will sound
when the touchbar is depressed. Alarm sounds at 80db at 10 feet.
It is also equipped with an LED indicator. The LED flashes GREEN
for 20 seconds when the unit is arming and flashes RED every 20
seconds when the unit is armed.
Note: Touchbar Monitoring Switch (TS) is recommended when
using Alarm option with 5200 Series Surface Vertical Rod devices.
Cylinder
The ALK and ALW requires a standard 1-1/4" Mortise Cylinder
which is used as a key switch to perform the following functions:
• To turn on (Arm) - it will allow 20 seconds to exit before
alarm sounds.
• Silence and reset the alarm after unauthorized egress.
• To turn off (Disarm) the alarm for continuous unmonitored
egress.
• Engage mechanical Dogging for Non-Fire Rated Devices.
Available for all Reliant Devices from 3'-0" to 4'-0" wide
doors. Furnished with Touchbar decal which states:
!! E MERGE NCY EXIT O N LY! !
PUSH TO OPENALARM WILL SOUND
Wiring Harness - WH495
Can be wired for one or both of the options listed below.
• Exit Alarm can be turned on (Armed) with alternate inputs.
For other than our Door Position Switch a (2) wire power
transfer hinge is required (furnished by others).
• Exit alarm can be turned on (Armed) or off (Disarmed) from a
remote location. A Mortise Cylinder or Dummy Cylinder is
required. A (2) wire power transfer hinge is required
(furnished by others).
To Order: specify WH495.
To Order: Device with Alarm - add suffix “ALK”, “ALW” (e.g.
5100ALK)
Exit Alarm Kits
The Exit Alarm is available in kits for retrofit on existing devices.
Specify finish when ordering, see page 3.
3'-0"RALK-3, RALW-3
4'-0"RALK-4, RALW-4
• WH495 Wiring Harness - Required for Remote Arming/
Disarming the Alarm.
• Reliant Series, kits are available in 689 or 695 Finishes.
• To order specify Kit No. and Finish (e.g. ALK-3 689).
* For Battery operated kits a 9 Volt Battery is included.
Weatherized Exit Alarm
Available for all Reliant Series Devices. The Weatherized Exit
Alarm is identical in operation to the standard Exit Alarm but
incorporates a weatherized design for use on a variety of
applications where contact with the elements may occur.
WALW - Remote Powered 12 to 24 VDC at 0.25 Amp., a (2) wire
power transfer is required, not furnished standard. Specify
WH495 Wire Harness for Remote Arm/Disarm or alternate
Input Activation options.
Weather resistant loss prevention hardware designed for use
in outdoor or wet environments
• Meets the requirements of MIL-STD 810F, Method 506.4,
Driving Rain Test (simulating 4 in./hr. rain with 40 mph wind)
• Meets the requirements of MIL-STD 810F, Method 509.4,
Salt Fog test (simulating effects of corrosive environments
similar to atmospheric conditions found in costal regions)
To Order: Device with Weatherized Exit Alarm - add suffix
“WALW” to Device No. (e.g. 5208WALW)
Touchbar Monitoring
Available for all Reliant Series Devices. The Touchbar
Monitoring Switch is an internally mounted switch that is used
to signal electromagnetic locks, horns, monitoring stations or
other electronic components.
• UL Listed for Panic and Fire for Class II Circuitry.
• TS and TDS can be used in combination with all options.
TS (SPDT - Single Pole, Double Throw) version allows for
interface with one external component. A (2) wire power
transfer is required, not furnished standard.
TDS (DPDT - Double Pole, Double Throw) version allows for
interface with two external components. A (4) wire power
transfer is required, not furnished standard.
To Order: specify prefix TS or TDS (e.g. TS5108)
Electrical Ratings:
TS:Switch rated to 2 Amps at 24VDC SPDT
TDS: Switch rated to 2 Amps at 24VDC DPDT
Weatherized Touchbar Monitoring
Available for all Reliant Series Devices. Weatherized Touchbar
Switch WTS/WTDS is designed for use on a variety of exit
device applications where contact with the elements may
occur. Provided with identical functions as the standard
Touchbar monitoring.
• Meets the requirements of MIL-STD 810F, Method 506.4,
Driving Rain Test (simulating 4 in./hr. rain with 40 mph wind)
• Meets the requirements of MIL-STD 810F, Method 509.4,
Salt Fog test (simulating effects of corrosive environments
similar to atmospheric conditions found in costal regions)
To Order: specify prefix WTS or WTDS (e.g. WTS5108)
10
R E L I A N T 5 0 0 0 S
Single Doors – Rim Devices
Stile Width
4-
1/2" Min.
2-3/4"
Backset
2-
1/4"
Stile Width
3/4" Min.
3-
1-15/16"
Backset
1/16"
2-
Strike
Rim Device with
S300 or S301 Strike
Mullion
2"
Stile Width
4-
7/8" Min.
3-
1/8"
Backset
1/4"
2-
Strike
Stile Width
7/8" Min.
4-
3-1/8"
Backset
2-1/4"
Rim Devices with S300 or S301
Strike and Mullion
Stile Width
5/8" Min.
4-
3-1/8"
Backset
Stile Width
4-
5/8" Min.
3-
1/8"
Backset
Strike
Strike
Rim Device with
S988 Strike
For 3-3/4" Stile Aluminum doors and
frames. Consult factory.
Pair of Doors, Rim Devices
Stile Width
1/2" Min.
4-
2-
1/4"
Backset
Strike
Rim Device and Surface Vertical
Rod Device with S459 Strike
Stile Width
3-
3/4" Min.
2"
Stile Width
4-1/2" Min.
2-
1/4"
Backset
Stile Width
3-3/4" Min.
2"
MINIMUM STILE WIDTH
Mullion
Strike
2-1/16"
2"
2-
Rim Devices with S300 or S301
Strike and Mullion
Strike
1/16"
Rim Device and Surface Vertical
Rod Device with S459 Strike
Cylinders
®
Cylinders are not furnished standard with the device or trim. BEST
when ordering. (e.g. 1E74 x 630)
1/16"
1-1/8"
.075"
1-1/4"
1/4"
Rim Cylinder - 1E72 x Finish
Rim Cylinder - 1E74
Required for: • Rim Exit Device Outside Trims• Vertical Rod Exit Device Outside Trims• Key Removable Mullion
7 pin standard. Available in 612 finish. Specify Type and finish
.300"
1-5/32"
1-1/4"
Mortise Cylinder - 1E74-C4 x Finish
.703"
11
PRECISION HARDWARE
For more information on Stanley Security Solutions’ products, services, and office locations visit our web site at www.stanleysecuritysolutions.com
Product information contained in this catalog has been com piled and presented with as much care and com plete ness as is reasonably possible. Errors
or mistakes may be present, and in many cases, reliance has been placed on information supplied by other manufacturers which may be in
which may be subject to changes or mod i fi ca tions by the man u fac tur er with out no tice and without obligation. Therefore, no guar an tee can be made or
should be assumed or implied with regards to product in for ma tion con tained in this catalog.
