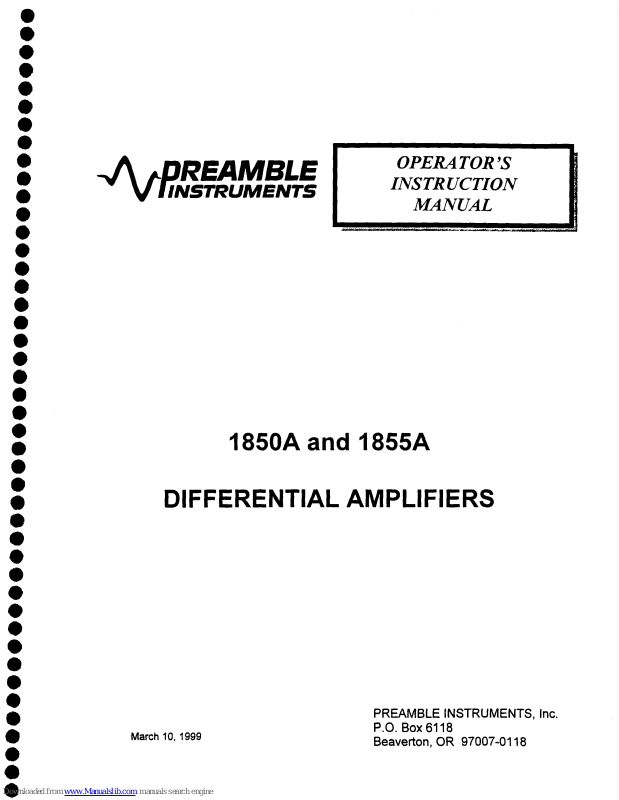

pREAMBLE

- VIINSTRUMENTS

1850A and 1855A

DIFFERENTIAL AMPLIFIERS

March 10, 1999

PREAMBLE INSTRUMENTS, Inc,
P.O. Box 6118
Beaverton, OR 97007-0118
