RX 10/16 GEL
THE LIGHT STACKER
MONO MAST STACKER

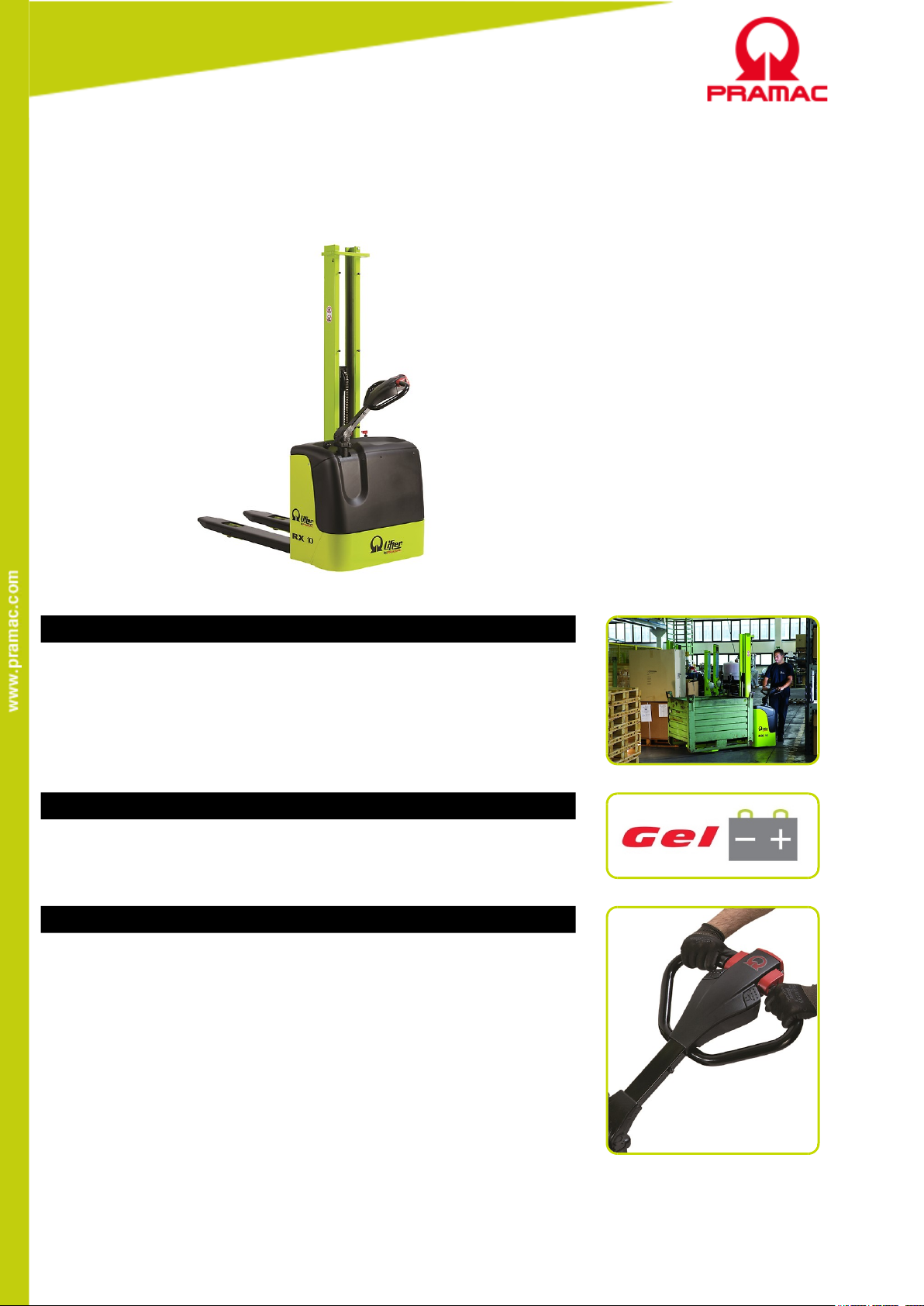

RX is the most compact in the stackers’ range, single mast, completely electric,
suitable for loads up to 1.000 kg, allowing a comfortable, safe use, with low
maintenance costs, thanks to robust design with easy access for maintenance. RX
combines compactness and ergonomics, covering a wide range of daily applications in
the "light duty" area (not for continuous use).
GEL
This version is equipped with GEL batteries allowing a high number of charging cycle,
a tiller made with metal tube and ergonomic controls.
TILLER
Fully integrated ergonomic tiller system including finger tip throttle and fork
controls, safety pushbutton, horn and turtle button.
Page 2

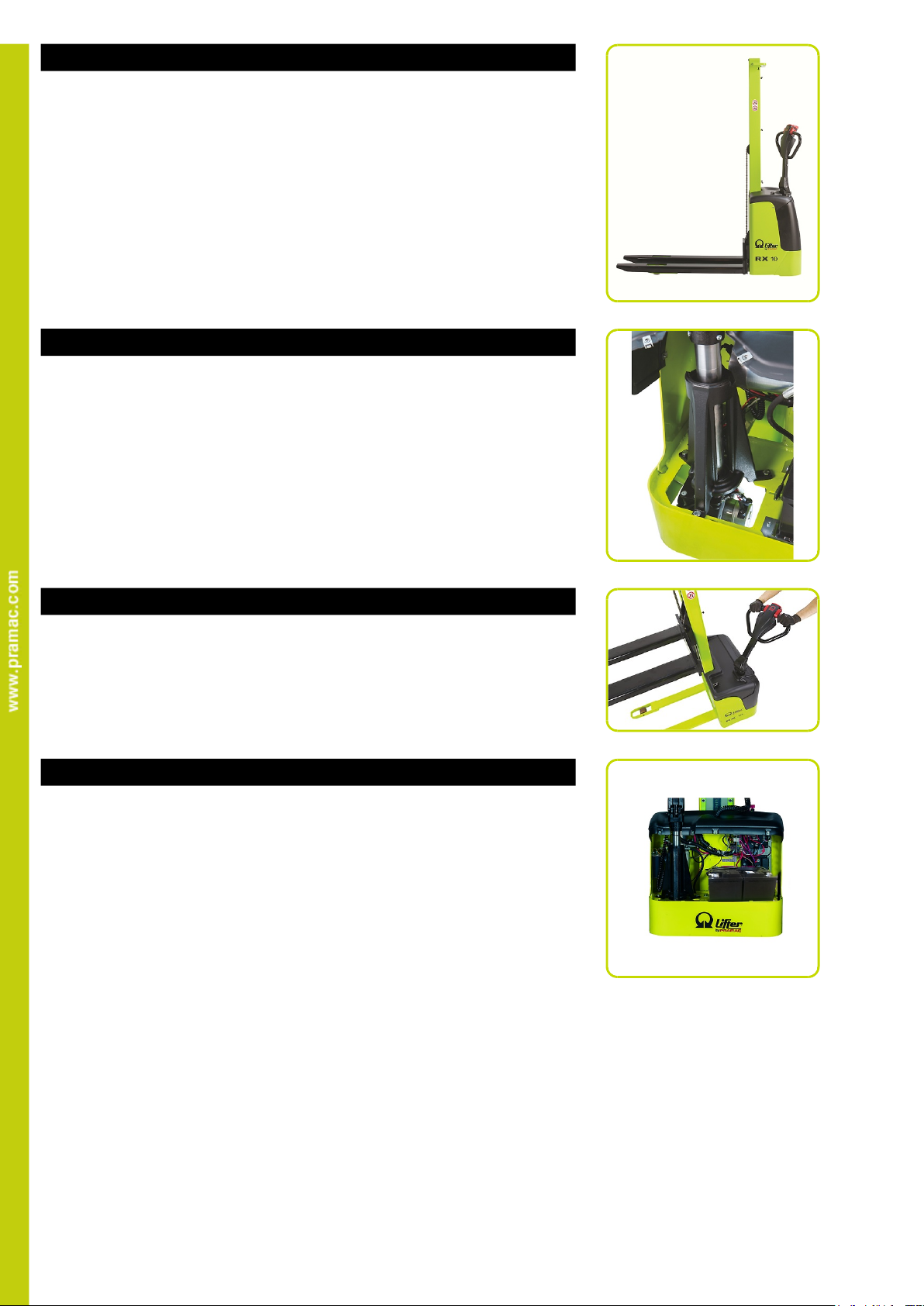

VERSATILITY
It's ideal to move, even horizontally, palletized goods and at the same time it can be
used as an adjustable workable, reducing stress for the operator who must place
goods on a shelf. Forks thickness 60 mm for an easier entrance inside pallet, while
working in elevation.
EASY MAINTENANCE
Strong ABS carter/cover with storage compartments on top.
Easily removable to speed up maintenance operations.
The bottom access opening allows an immediate disassembly of motor wheel, portal
and tiller without lifting the machine.
ERGONOMICS
Ergonomic tiller placed laterally to increase visibility, ensuring an optimal arrangement
of components inside the motor compartment. RX 10 solves perfectly the problem of
handling goods in narrow spaces and corridors.
BATTERY PACK GEL
The use of powerful high energy throughput GEL batteries makes the machine
extremely flexible in every application, thanks to the multiples benefits of GEL
technology, such as:
• Maintenance-free (no topping up)
• Long service life
• High number of cycles (IEC 60254-1)
• Extraordinary deep discharge protection
• Low self discharge rate
• Superior shelf life
• No acid stratification
Page 3

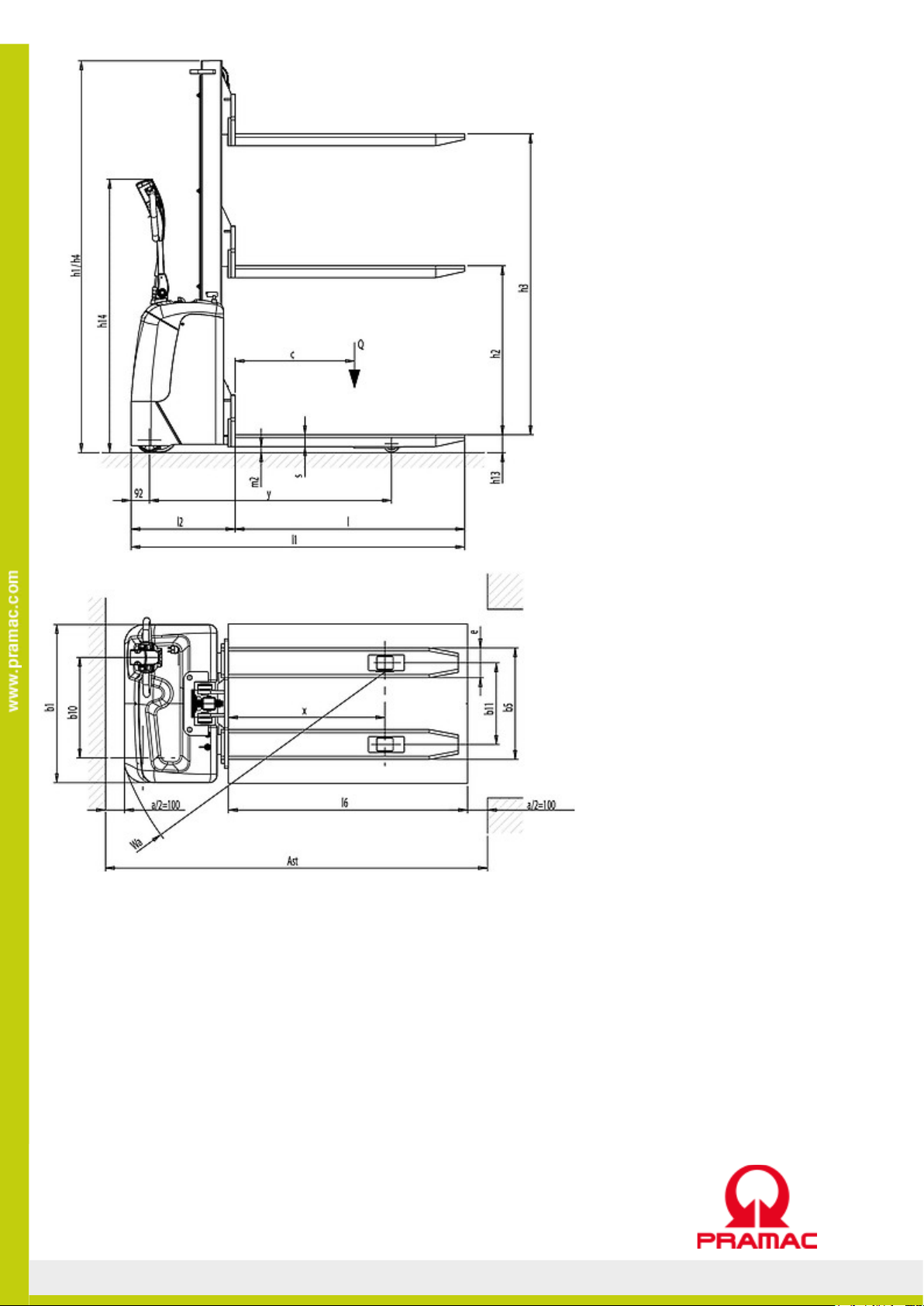

Description
1.1 Manufacturer PR
INDUSTRIAL
1.3 Drive Electric
1.4 Operator type Pedestrian
1.5 Load capacity Q Kg 1000
1.6 Load centre distance c mm 600
1.8 Load axle to end forks x mm 786
1.9 Wheel base y mm 1165
Weights
2.1 Service weight (battery included) Kg 371
2.2 Axle load, laden rear Kg 937
2.2 Axle load, laden front Kg 434
2.3 Axle load, unladen front Kg 269
2.3 Axle load, unladen rear Kg 102
Tyres/Chassis
3.1 Tyres: front wheels RUBBER
3.1 Tyres: stabilizers wheels - front POLY C.
3.1 Tyres: rear wheels POLY C.
3.2 Tyre size: Steering wheels - Width mm 50
3.2 Tyre size: Steering wheels - Diameter mm 186
3.3 Tyre size: Load rollers - Diameter mm 82
3.3 Tyre size: Load rollers - Width mm 70
3.4 Tyre size: stabilizers wheels front - Diameter mm 125
3.4 Tyre size: stabilizers wheels front - Width mm 45
3.5 Tyre size: rear wheels - Q.ty (X=driven) nr 2
3.5 Tyre size: front wheels - Q.ty (X=driven) nr 1x
3.6 Tread, front b10 mm 505
3.7 Tread, rear b11 mm 410
Page 4
Dimensions
4.2 Height, mast lowered h1 mm 1970
4.3 Normal free lifting h2 mm 1510
4.4 Lift height h3 mm 1510
4.5 Height, mast extended h4 mm 1970
4.9 Height of tiller in drive position max h14 mm 1310
4.9 Height of tiller in drive position min h14 mm 915
4.15 Height, lowered h13 mm 90
4.19 Overall lenght l1 mm 1675
4.20 Lenght to face of forks l2 mm 522
4.21 Overall width b1 mm 794
4.22 Fork dimensions - Thickness s mm 60
4.22 Fork dimensions - Width e mm 150
4.22 Fork dimensions - Lenght l mm 1153
4.24 Fork carriage width b3 mm 650
4.25 Distance between fork arms b5 mm 560
4.32 Ground clearance, centre of wheelbase m2 mm 30
4.34 Aisle width Ast mm 2120
4.35 Turning radius Wa mm 1344
Performance data
5.1 Travel speed laden Km/h 3.7
5.1 Travel speed unladen Km/h 4.3
5.2 Lifting speed laden m/s 0.12
5.2 Lifting speed unladen m/s 0.21
5.3 Lowering speed laden m/s 0.18
5.3 Lowering speed unladen m/s 0.18
5.8 Max gradeability laden % 10
5.8 Max gradeability unladen % 15
5.10 Service brake Electric
Electric motors
6.1 Drive motor power kW 0.35
6.2 Lift motor power kW 2.2
Battery Type Type GEL
6.4 Battery voltage V 24
6.4 Battery capacity, Min Ah 50
6.4 Battery capacity, Max Ah 50
6.5 Battery weight, Min Kg 38
6.5 Battery weight, Max Kg 38
6.6 Energy consumption according to VDI cycle kWh/h 0.45
8.4 Sound level at driver's ear dB(A) 63
Page 5
Battery and battery charger integrated
The information is aligned with the Data file at the time of download. Printed on 01/10/2021 (ID 14608)
