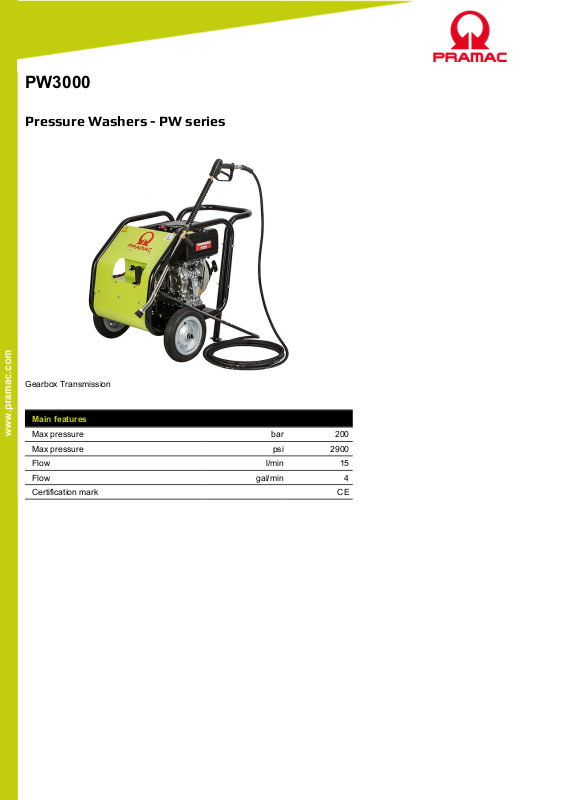

PW3000
Pressure Washers - PW series
Gearbox Transmission
Main features
Max pressure bar 200
Max pressure psi 2900
Flow l/min 15
Flow gal/min 4
Certification mark CE
Page 2
Engine specifications
Model L100
Displacement cm³ 435
Fuel Diesel
Starting system Electric
Pump specifications
Manufacturer Annovi
Reverberi
Model RK 15.20 H N
Type Triplex plunger
Rotation speed rpm 1450
Max pressure bar 200
Max flow l/min 15.0
Drive Gear Box
Gear box manufacturer Annovi
Reverberi
Gear box model 1689
Gear box ratio 1 : 2.24
Dimensional data
Length with trolley mm 1040
Width with trolley mm 590
Height with trolley mm 790
Dry weight with trolley kg 117
Consumption, running time and noise
Fuel tank capacity l 5.4
Running time h 3.6
Noise level at 7 m dB(A) 83
Guaranteed noise level (LWA) dB(A) 108
Standard equipment
Transportation kit Standard
Lance pressure washer Standard
Chemical injection Standard
Pressure hose Standard
Suction hose with strainer Standard
Inline filter Standard
