LP12
Light and reliable platform with electric lifting
LIFTING PLATFORM
The LP mobile platform allows to operate safely up to 5 meters with a maximum load
of 120 kg. Equipped with 4 steering wheels with central locking system and 2
stabilizers, the unit is extremely lightweight thanks to the aluminum construction.
The ergonomic design and the small size allow easy transport into the van and the
workplace.
LIGHTWEIGHT
The construction of the cage, mast and frame in aluminum together with the possibility
to remove the ballast allow an easy product handling thanks to the extremely low
weight.
COMPACT DESIGN
The reduced overall product size and the ergonomic handles make the lifting platform
easy to be carried through doors and elevators.
Page 2
SAFETY
The 4 heavy-duty castors with polyurethane ring are equipped with a central locking
system easy to be operated through the dedicated foot pedal. The bubble surface
level shows the operator the correct platform positioning.
REMOVABLE BALLAST
The 4 ballast lower the platform center of gravity durign the operation and are
equipped with a fast disconnecting system to reduce the weight during the transport.
OPERATOR CONTROL PANEL
Control Panel with key, lift / lowering control and emergency stop button offer an IP 54
protection for outdoor uses.
BATTERY COMPARTMENT
The step is made of heavy-duty aluminum corrugated sheet that contains gel battery,
on-board battery charger, main switch, emergency button, and a button to lower the
cage.
STABILIZERS
Once positioned in the working area, stability is guaranteed by installing the special
lateral stabilizers that the machine is equipped with.
Page 3
Description
Material Aluminum
Lift Electric
Drive Manual
Load capacity Kg 120
Removable ballast 4 x 15 kg
Self-closing door Yes
Weight
Service weight (with/without ballasts) Kg 150/90
Tyres/Chassis
Tyres (Front/Rear) PU/PU
Wheels, number front, rear (x=drive wheels) n. 2/2
Central locking system Yes
Stabilizers n. 2

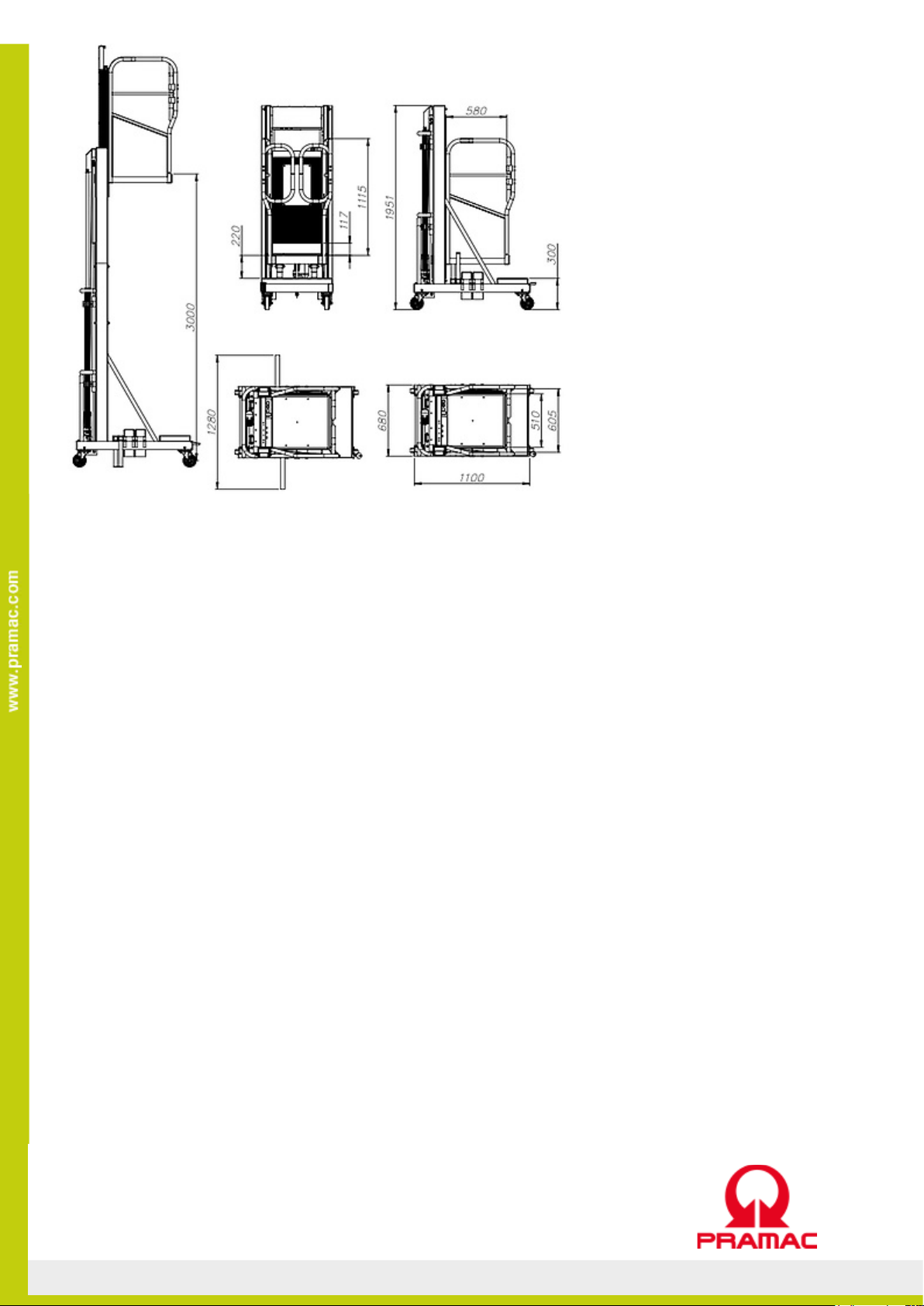

Dimensions
Max platform height m 3
Overall dimensions cm 70 x 118 x 195
made
ELECTRIC ENGINE
Battery Gel
Battery voltage/nominal capacity V/Ah 12/39 C20
Built-in charger Yes
Electric actuator N 1700
Gas spring N 1500
