PR MERLIN PR-2473 User Manual

c

MERLIN

PR-2473

The user manual contains important information about the safe installation and use of a projector. Please read and follow these instructions carefully and keep the manual in a safe place for future reference.

PR LIGHTING LTD.

http: // www. pr- light ing. co m

1/28

INDEX

Name

Quantity

Unit Remark

G clamp

2

Pcs

XLR

Connectors

1

Set with plug

and socket

Safety cord

1 Pc User manual

1 Pc Ω clamps

2

Pcs Optional

1. SAFETY AND WARNINGS

2. INSTUCTIONS

●CLEANING AND MAINTENANCE

●LUBRICATION

●TROUBLESHOOTING

3. APPEARANCE

4. INSTALLATION

●RIGGING

●POWER CONNECTIONS

●DMX CONTROL CONNECTIONS

●DMX TERMINATOR

●ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP

●GOBO/COLOR FILTER REPLACEMENT

5. SETUP AND CONFIGURATION

●FRONT PANEL OPERATION

●DMX START ADDRESS

●DMX WIRELSESS CONTROL

●STAND-ALONE MODE

●MASTER/SLAVE MODE

6.OPERATION MENU

7. DMX PROTOCOL

8. LOGOS OF THE TOUCH SCREEN

9. ERROR MESSAGES

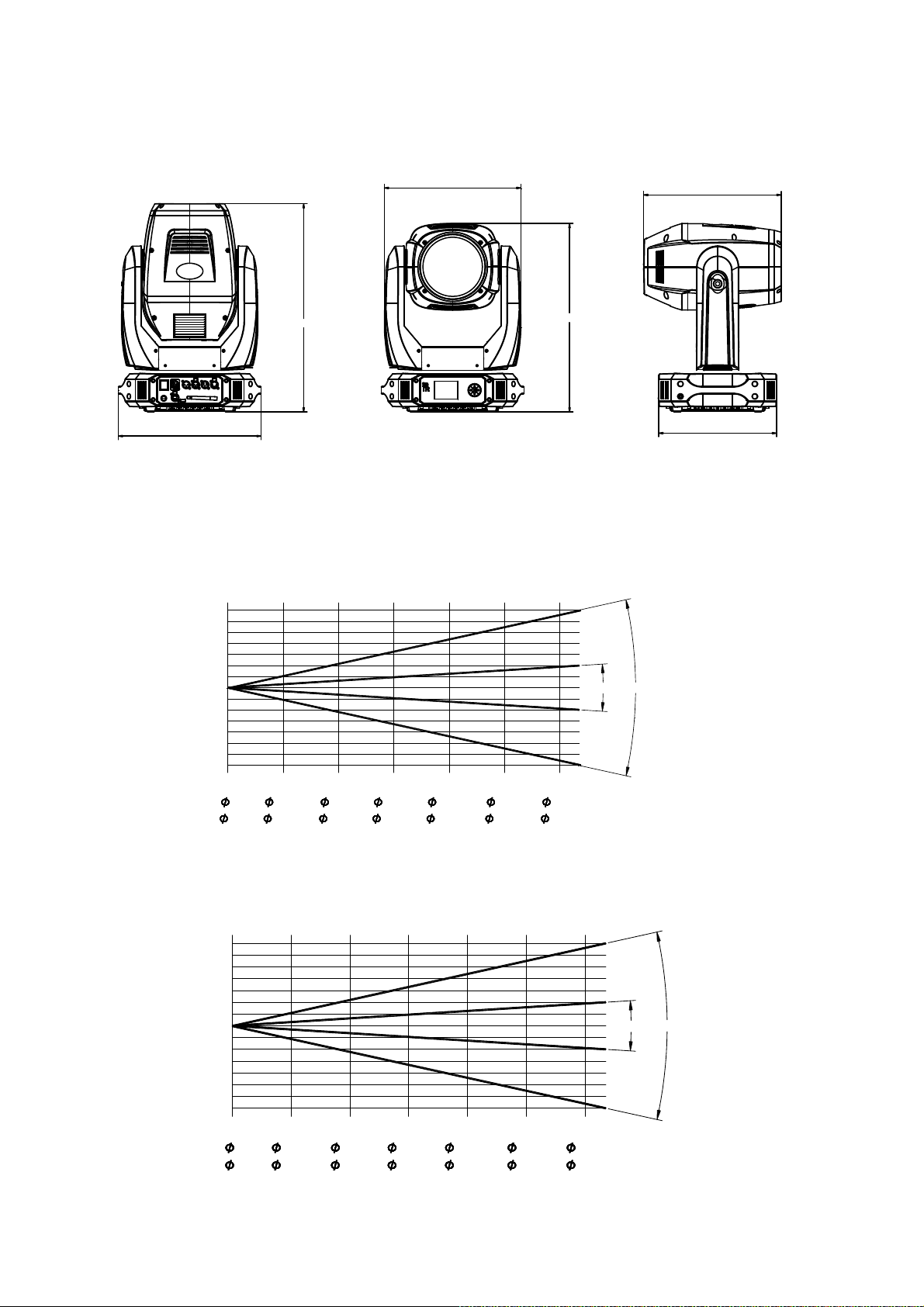

10.TECHNICAL DATA

11.CIRCUIT DIAGRAM AND PCB CONNECTIONS

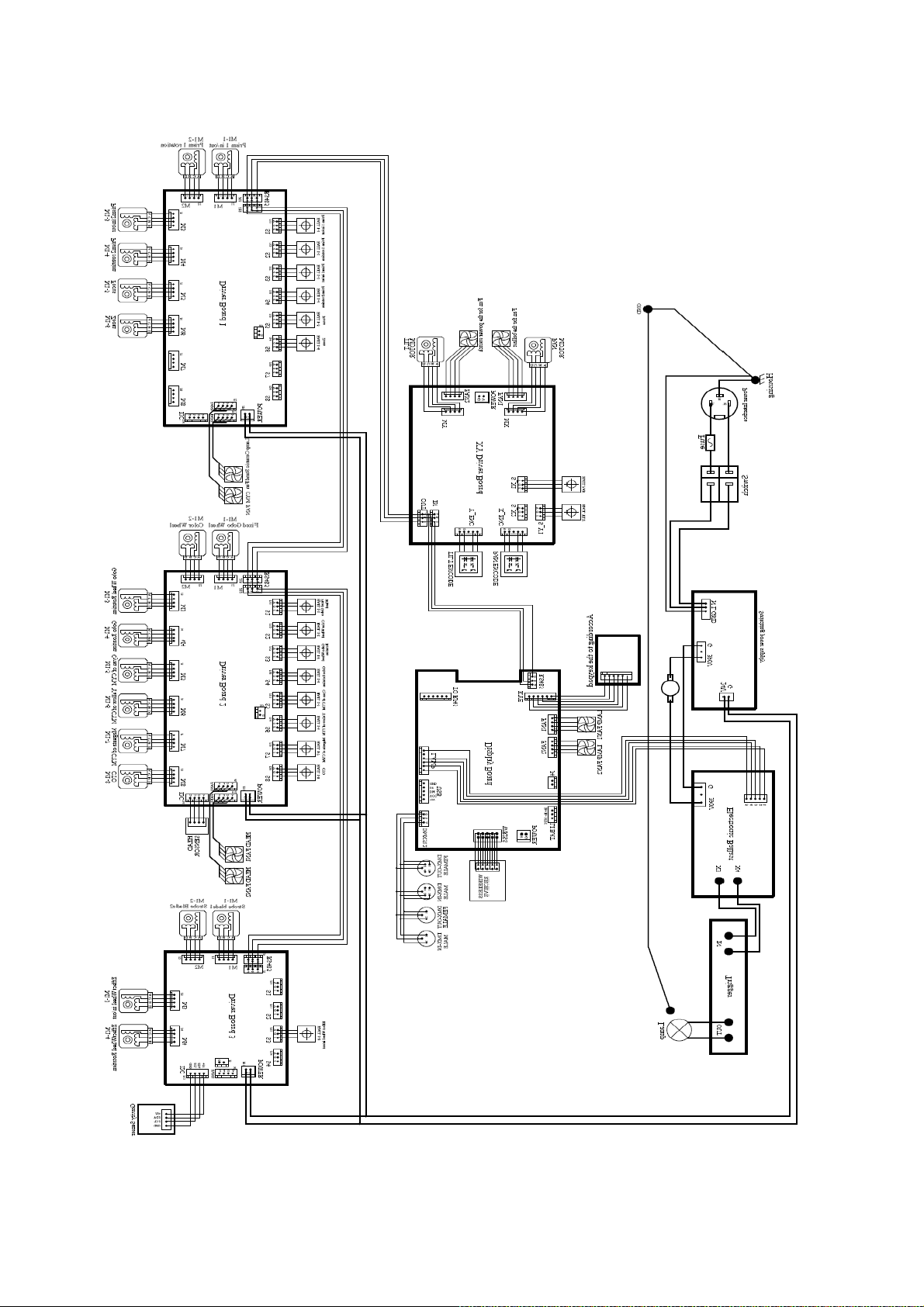

●CIRCUIT DIAGRAM

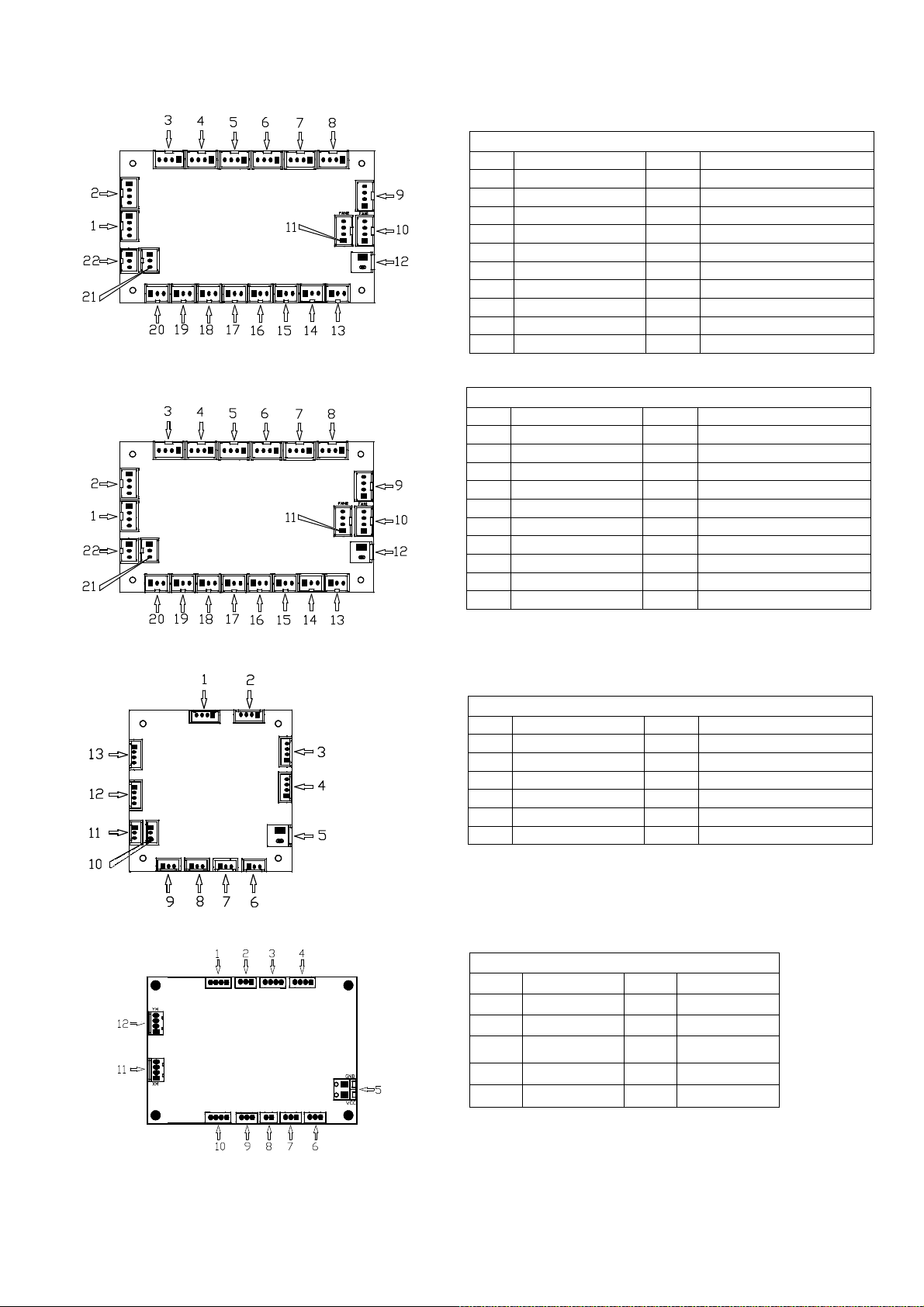

●PCB CONNECTIONS

12.COMPONENT ORDER CODES

ACCESSORIES

The following items are supplied with the projector and please check:

3 4 4 4 4 5 5 5 6 7 7 8 8 9 9 9 9 10 10 10 16 19 20 21 25 25 26 27

Please note that as part of our ongoing commitment to continuous product development, spec ifications are subject to change without notice.

Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product

improvement. The publishers cannot be held responsible for the accuracy of the infor mation herein, or any consequence arising from

them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good

condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit.

Any damage cause d by improper use will not be assumed by the manufact urer and / o r dealer.

Any future technic al change in the user manual won’t be with any notice.

Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date

but the light source is not within the warranty.

2/28

1. SAFETY AND WARNINGS

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety information hereinafter!

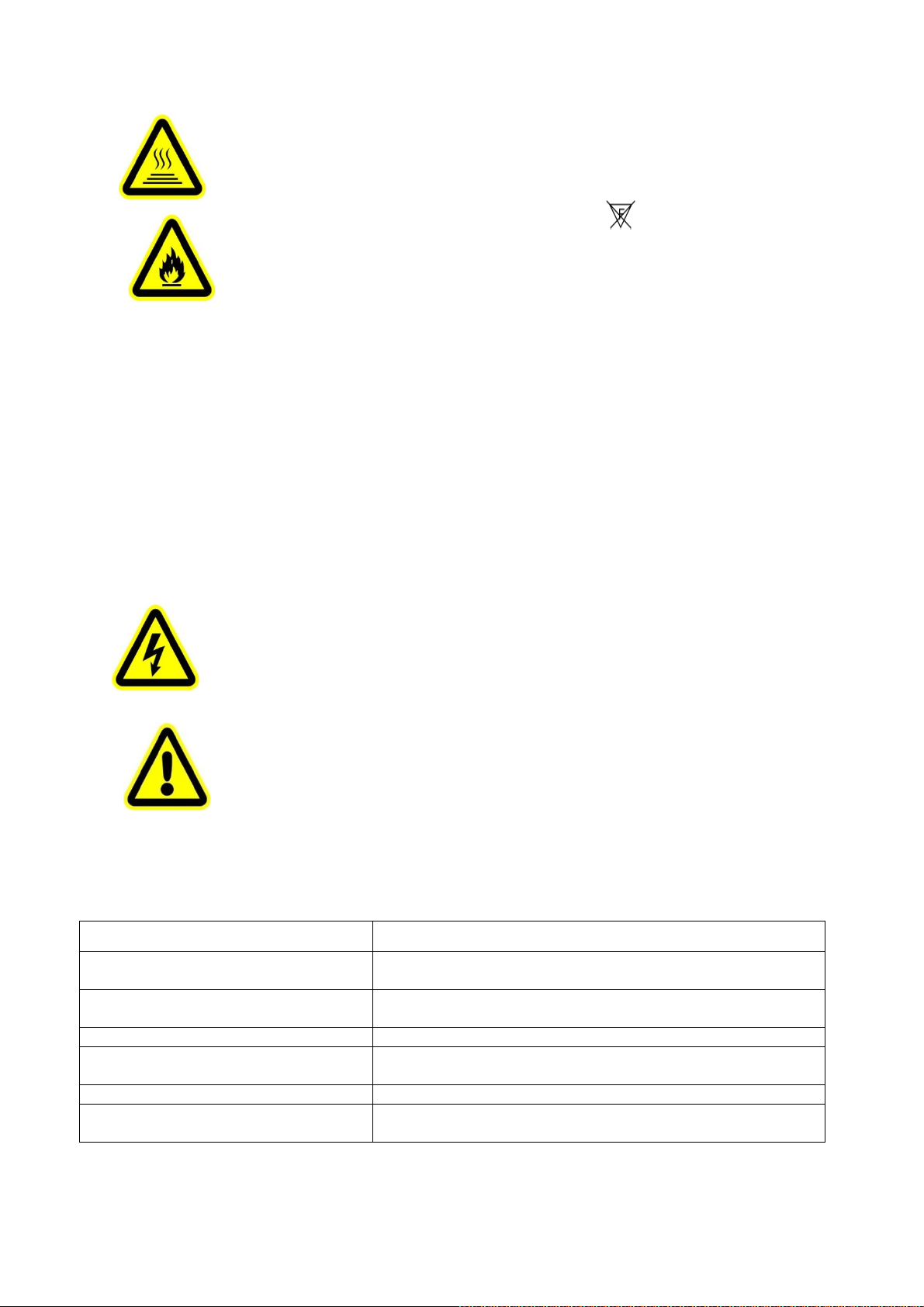

The following safety signs are used in the user manual.

NOTE

Warning

User

Manua

Electrical

shock

Goggles

Protective

Gloves

Flames

When unpacking , check if there is transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use it.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector

as he/she likes.

●Please be noted that the damage caused by changing the projector at will is not warranted..

● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.

● The projector is for indoor use only, IP20.

● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not

allow contact with water or any other liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated.

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operation must strictly follow the procedures in the manual.

●No repairable parts in the projector and do not open covers for maintenance by yourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.

●Do not connect this device to any type of dimmer pack.

●After lamp switched on, the minimum distance between the projector and illuminated surface is 18m.

●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the

light output will be compromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector while covers(housing)are off.

●Keep the lamp clean and do not touch it with bare hands.

●While operating it, wear protective items.

●Any electrical connection must be carried out by a qualified person .

●Before installation, please confirm the voltage supplied matches what is required for the projector.

●Each projector must be properly earthed and installed as per related electrical standards.

●Do not use power cord with its insulator damaged and connect the power cord with other cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully

or by pulling the power cable.

●All power cords must confirm to related safety and regulations.

●While being operated, the projector should not be under rains or in humidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electrical parts’ life will be shortened .

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety

cord supplied through the safety cord holes for safety support.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

High

Temperature

3/28

power mains.

●After running for 30minutes, the temperature of the housing of the projector is 45℃.After stable operation ,

its temperature is90℃.

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not

mean the projector has some defects.

●Do not mount the projector directly on inflammable surface..

●Do not project the beam straightly on combustible items and the minimum distance between the

projector and illuminated items is 18m.

●A projector should be installed with good ventilation and the minimum distance between the projector

and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.

2. INSTRUCTIONS

●CLEANING AND MAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved, restart the projector.

The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to

ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned periodically to optimize light output.

Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning

work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean and do not touch optical parts with bare hands.

●Before any maintenance and cleaning, please ensure the project is off the power.

●Only qualified person is allowed to do maintenance.

●During maintenance and before maintenance, the projector must be off power.

●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether it runs or not.

●Do not use alcohol or other organic solvent to clean the housing to avoid damage.

●Do not use any solvent with chemical elements to clean color filters or hot mirror.

●LUBRICATION

To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 4 slide rails for zoom and focus lens be lubricated every 2 months. High quality and high temperature lubricant/grease is advised.

●TROUBLESHOOTING

PROBLEM ACTION

The projector doesn’t switch on

The lamp is on but the projector doesn’t respond to the controller

 Check the fuse on the power socket.  Check the lamp.  Make sure that the fixture’s start address is right  Replace or repair the XLR signal cable.

The projector functions intermittently  Make sure the fan is working well or fans and their shields are not blocked

Beam appears dim, Low in brightness

 Make sure the lamp is within its lifespan.  Remove dust or grease from the lenses.

The project image appears to have a halo  Carefully clean the lamp, optical lenses and other components.

Heavily Defective Beam

 Check if lens are in good condition(not cracked).  Clean dust or grease on the lens.

4/28

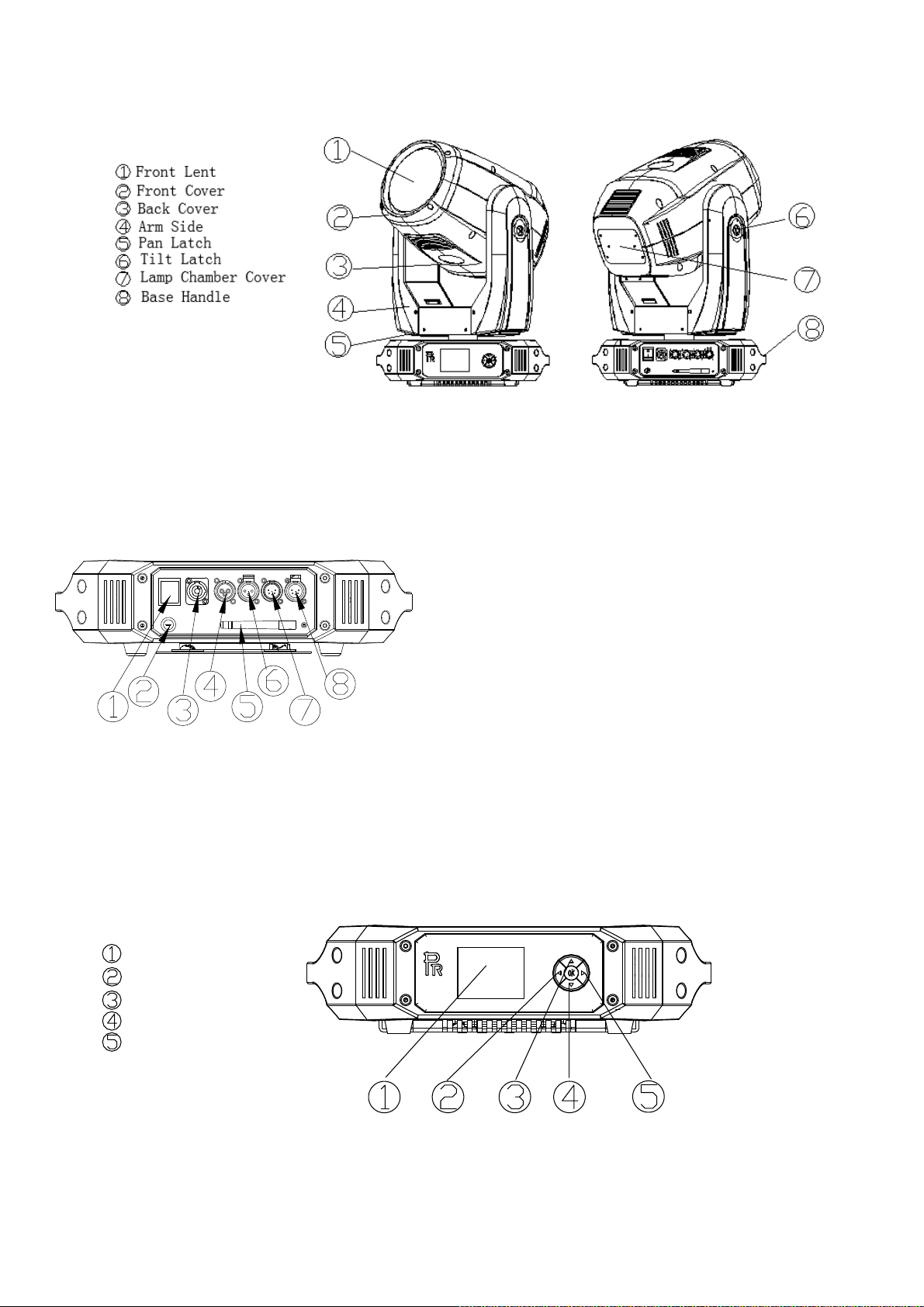

3. APPEARANCE

While transportation, the head should be locked-Tilt Latch(6) and Pan Latch(5) should be at locking positions. Before the use of the projector, unlock both.

Rear Panel of the Base

Front Panel of the Base

Touch Screen

Escape/Left Key Up key Down Key Right Key

1. Power Switch

2. Fuse Holder

3. Power Socket

4. 3-Pin XLR Socket(Male)

5. Wireless Antenna

6. 3-Pin XLR Socket(Female)

7. 5-Pin XLR Socket(Male)

8. 5-Pin XLR Socket(Female)

5/28

4. INSTALLATION

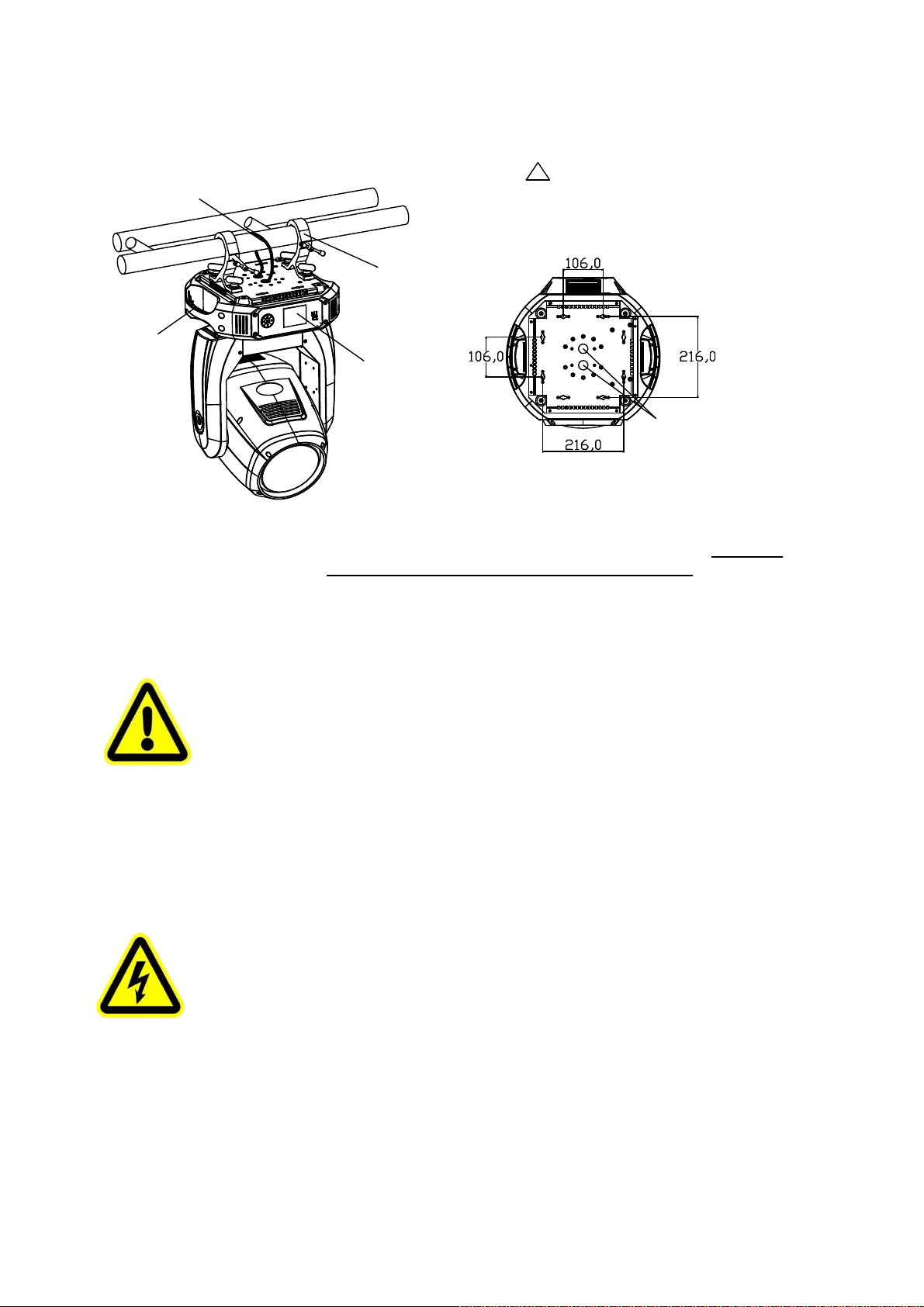

● RIGGING

Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a projector with power while it is locked.

!

Safety Cord

Warning

Please run the safety cord through the two holes for safety

Clamp

Handle

Control Menu

safety cord holes

Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector to is secure and strong enough to support the weight of a Phantom.

WARNING:

●The projector MUST be lifted or carried by the HANDLES instead of clamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

● POWER CONNECTION

Connect the power cord as follows:

L (live) =brown E (earth) =yellow/green N (neutral) =blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each projector be connected with power separately so that they may be individually switched on and off.

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

accordance with the standards concerned.

●If any questions about the electrical installation, do not continue but consult a qualified electrician.

6/28

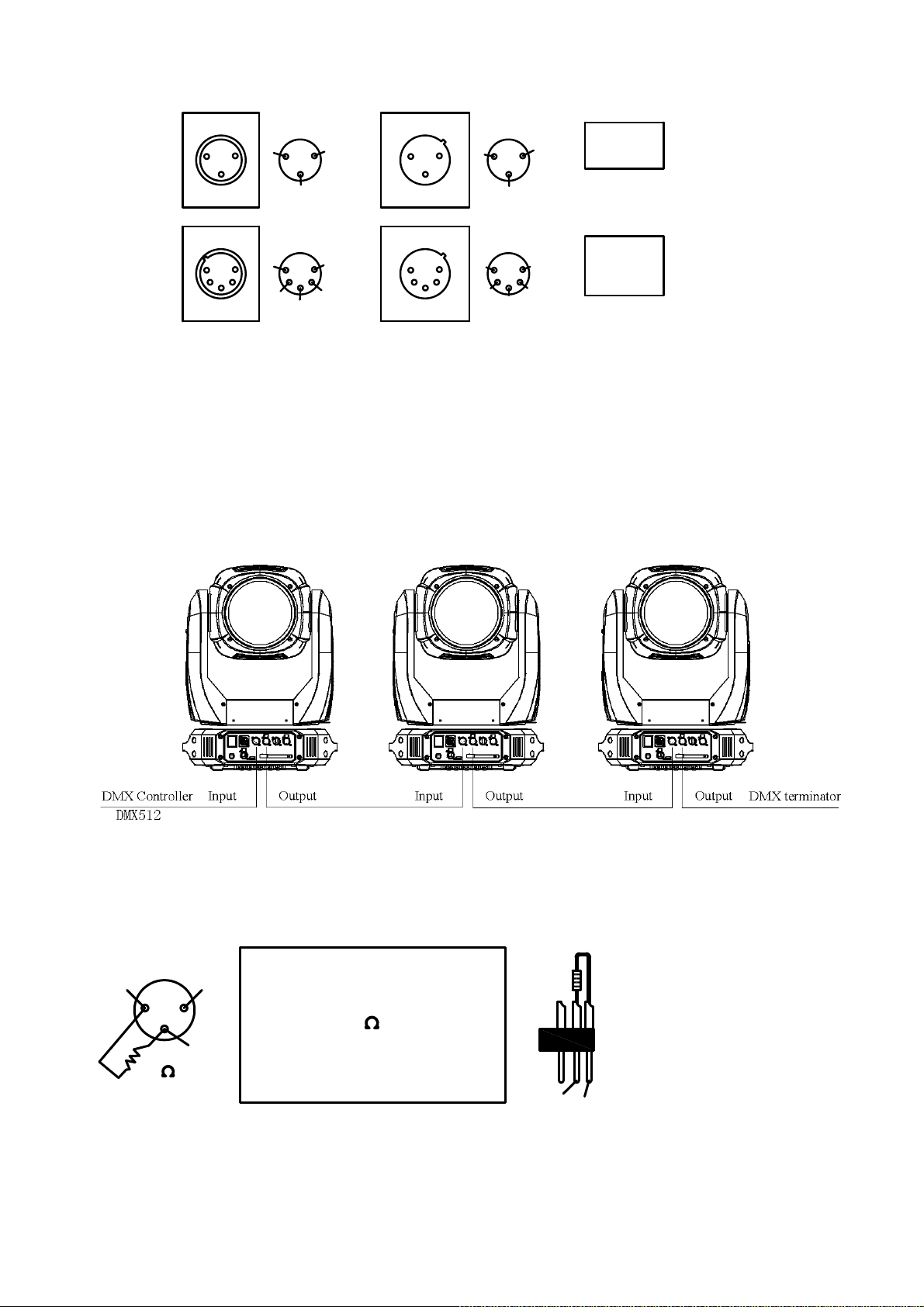

●DMX CONTROL CONNECTION:

DMX OUT DMX IN

三芯

3 pins

3

DMX 512

FUNCTION

1

2

1 GND

2 DATA-

DATA+3

五芯

5 pins

5

4

2

DMX OUT

1

2

3

DMX IN

1

2

5

4

3

DMX 512

FUNCTION

GND1

DATA-2 3 DATA+ 4 N/C

N/C5

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol DMX512 (1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator as shown in the figure below.

●DMX TERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. The connections are illustrated below.

DMX TERMINATOR

2

1

CONNECTION

Connect a 120 (OHM) resistor

3

120

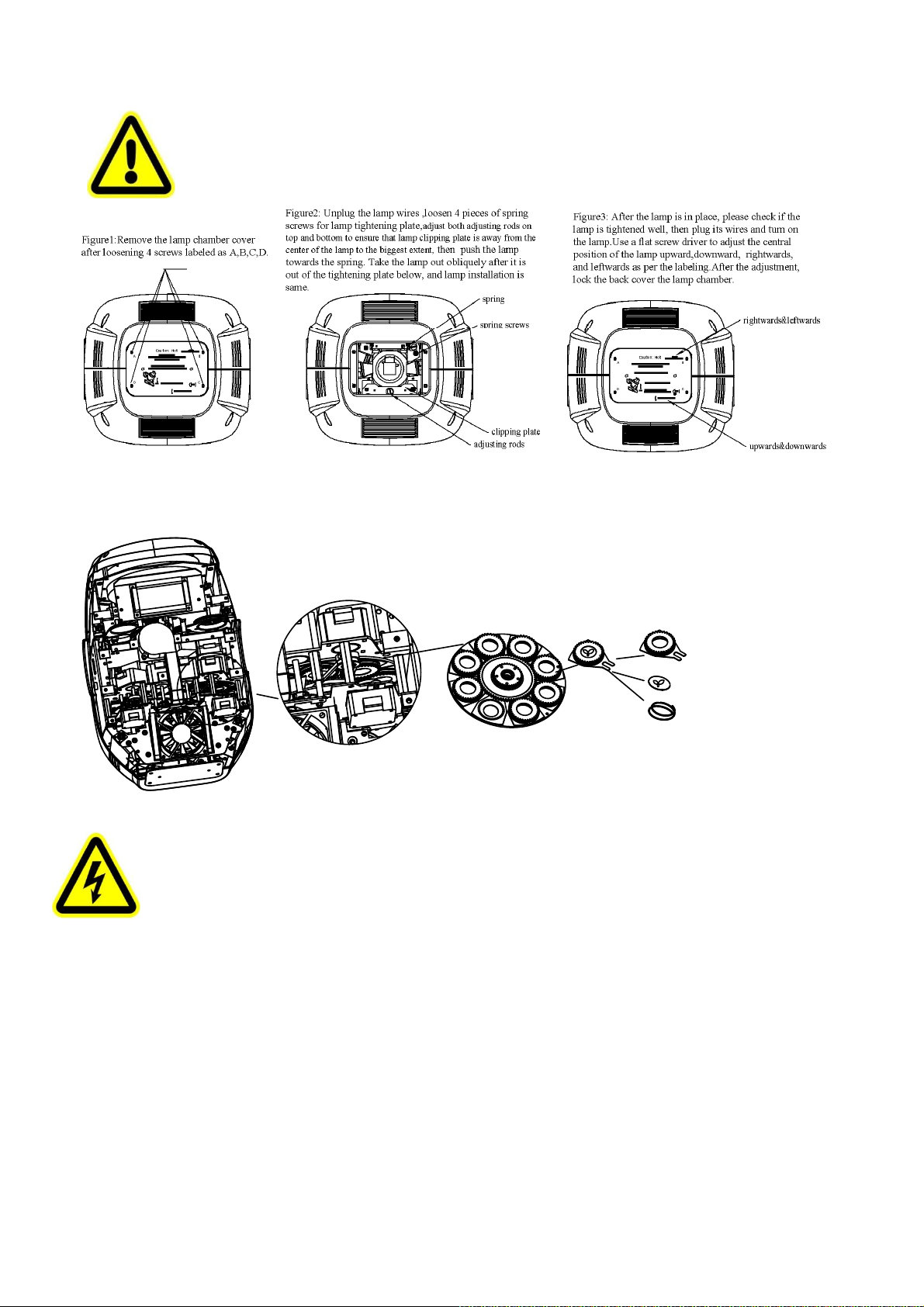

● ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP

across pins 2 and 3 in an XLR plug and insert into the DMX out socket

on the last unit in the chain.

PIN 2

PIN 3

Lock the yoke before fitting/replacing the lamp. Just as Shown by Figure 1, after opening the cover at the rear of the projector by loosening 4 fastfit screws, you can open the head. To adjust the lamp as per Figure 2. Take out the lamp as per the figure 3.

7/28

Before removing the lamp, unplug its power wires. After the lamp in, plug its power wires.

●Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to impair

the beam output. While lamp’s installation, do not damage the metal wire around the burner.

●Please read "Instructions " enclosed with the lamp.

●Do not operate the projector while adjusting the lamp.

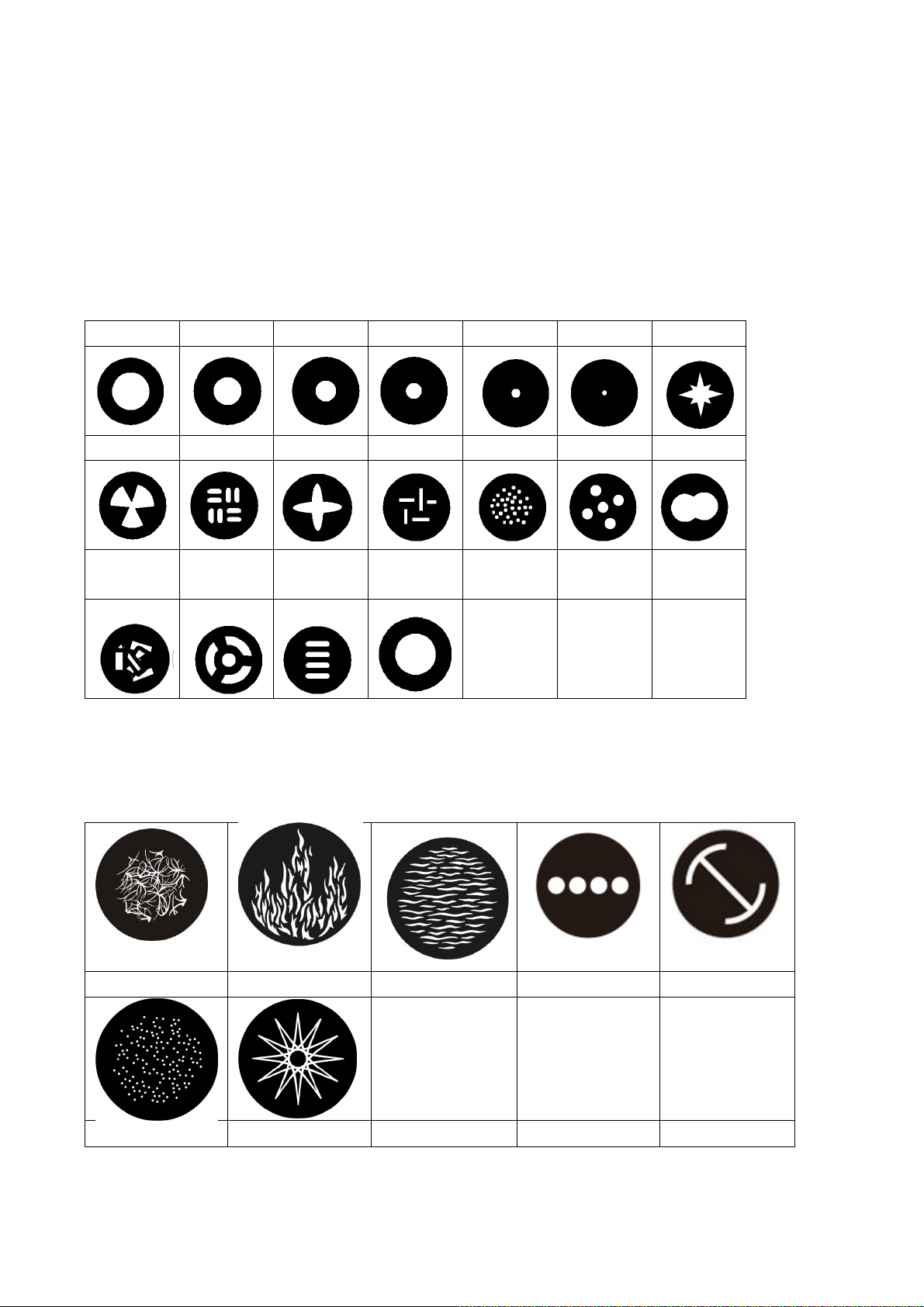

●GOBO REPLACEMENT

DANGER!

Before replacement of gobos, the projector must be off the power completely.

Rotating gobo replacement:

which its gobo needs to be replaced, out of the rotating gobo wheel. After the rotator is sliding out of the wheel, pull it gently. After the gobo replaced, insert the rotator into the wheel and ensure it is secured and not loose.

Open the head cover, and push the rotator of

Rotating Gobo Wheel

Rotator

Gobo

Gobo Pressure Spring

8/28

5. SETUP AND CONFIGURATION

●FRONT PANEL OPERATION

The projector configuration can be set conveniently via push buttons and color touch screen.

To browse through or change the projector ’s settings, touch the white area of the touch screen or press OK button for more than 3s(Only powered by the battery, pressing the OK button) to unlock the screen , then press ► key to enter the projector ’s function menus. Each main menu has its sub-menus. And each menu stands for special function. For the details, please see the following 6th point ”Operation Menu”.:

1. At the page to set the fixture’s functions, press ◄,►,▲,▼ keys or their respective icons to select the functions desired.

2. While at 2nd,3rd and 4th level of menus, the◄ key is for ESCAPE, but ► key won’t work, and OK key is used for ENTER.

Press OK key to save the changes or enter into the sub menus. Press ▲or ▼ keys to change the numbers(minus or plus). Or touch the option needed for change.

Shortcut keys: After the Function Menu is entered into, there are all options for the functions on the top of the screen. On the right there are 4 shortcut keys like ←,→ Lamp Control and English/Chinese.

● DMX START ADDRESS

Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start

address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the

controller. The projector has 3DMX modes. There are standard mode ,short mode and extended mode. For example standard mode

has 30 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 031, No. 3 projector’s address 061,No. 4

projector’s address 091, and so on.

Switch on the Projector . Press OK key more than 3 seconds to unlock panel, then press ► key to enter into the fixture’s operation

menus.

Select DMX Address icon and press OK key or touch the icon directly on the display and select DMX address at the 2nd level menu

for the address setting. Press▲ or ▼ keys or touch<、>displayed for the DMX address desired.

Press OK key to confirm. Press the◄ key to go back to the upper level menu.

.

●DMX WIRELESS CONTROL

The projector has wireless control function with wireless receiver module and antenna for remote control.

The setup of it is below:

1. Press OK for more than 3s to unlock the control panel, then press ► key to enter into the operation menu and select

“Config Settings”.

2. Select “Wireless First” or “Wireless Only” from the menu of “Signal Select”.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,

Press “Enter” for the menu of Un-link Wireless under the upper level menu of Config Settigns , then the fixture is unlinked

9/28

with the wireless transmitter.

●STAND-ALONE MODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the projector will run in Stand-Alone mode automatically. DMX address can be set at any number within 512.

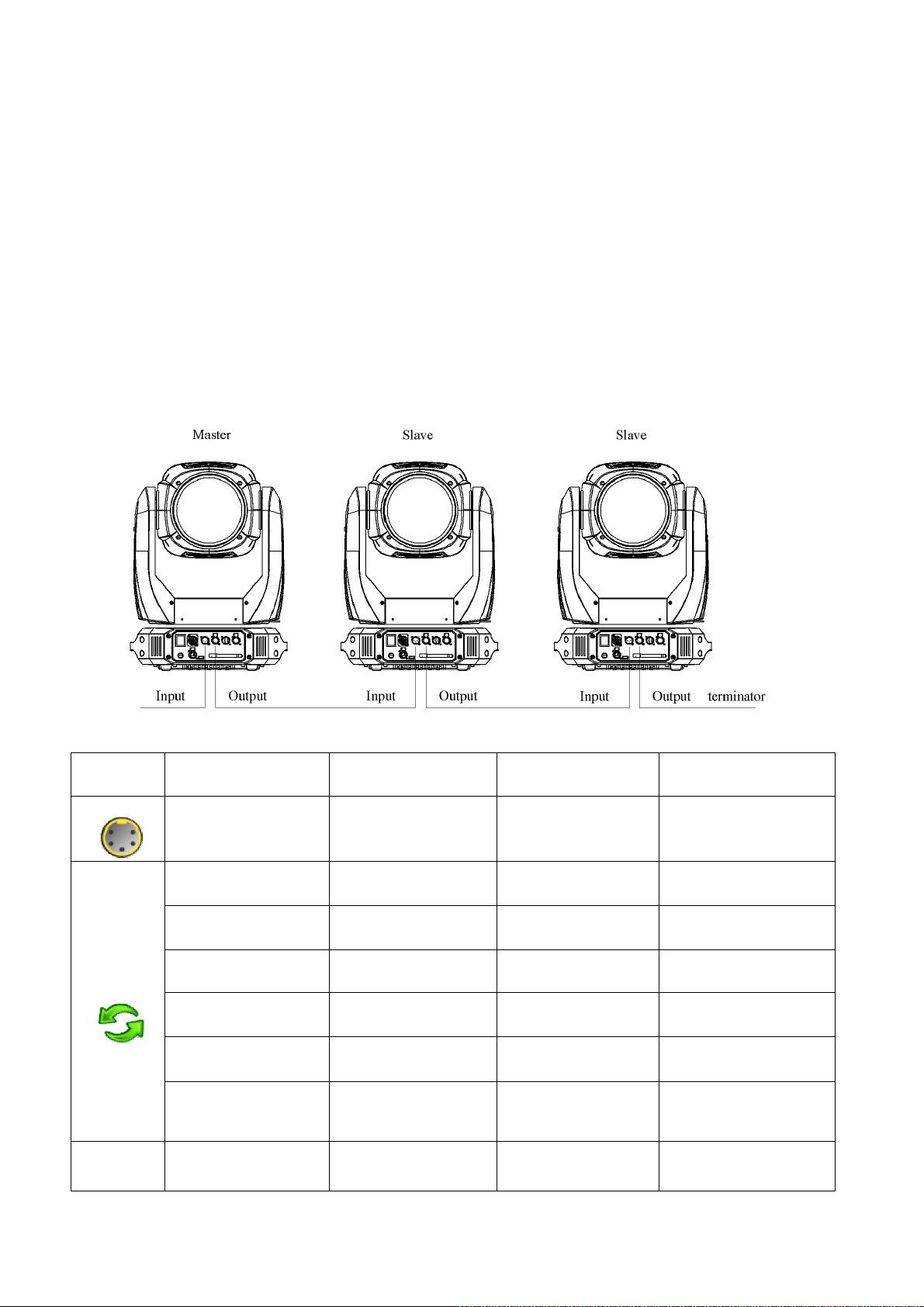

●MASTER/SLAVE MODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First, connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can be set accordingly.

After Powered on, the group will run in Master/Slave Mode.

6. OPERATION MENU

1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL

Address

1-512

Really Reset?

Confirm or Cancel

Really Reset?

Confirm or Cancel

Really Reset?

Confirm or Cancel

Really Reset?

Confirm or Cancel

Really Reset?

Confirm or Cancel

Really Reset?

Confirm or Cancel

Short Mode

Reset

DMX Address

Total Reset

Pan&Tilt Reset

Colour System Reset

Gobo Reset

Dimmer/Shutter reset

Zo. Fo. Fr. Pr. Reset

DMX Channel Mode

10/28

Ch.01 Strobe

Config Settings

Lamp Control

Standard Mode

Extended Mode

Ch.02 Dimmer Ch.03 CYM Macro Ch.04 Cyan Ch.05 Yellow Ch.06 Magenta Ch.07 CTO Ch.08 Color Wheel Ch.09 Fixed Gobo Wheel Ch.10 Rot. Gobo Wheel1 Ch.11 Rot. Gobo1 Rotation Ch.12 Effect Wheel

View Selected Mode

Lamp Control

On By Power On OFF/ ON

Control By DMX OFF/ ON

Lamp Half Power OFF/ ON

Ch.13 Effect Wheel Rotation Ch.14 Prism1 Ch.15 Prism1 Rotation Ch.16 Prism2 Ch.17 Prism2 Rotation Ch.18 Focus Ch.19 Zoom Ch.20 Pan Ch.21 Tilt Ch.22 Power/Special Fun. Ch.23 Lamp Fan Ch.24 Lamp Fan2 Ch.25 Ceramic Fan

OFF/ ON

Signal Select

Loss of DMX

Display Config

XLR Only

XLR First

Wireless Only

Wireless First

Wireless In/XLR Out

Normal time out

Hold Last Value

Off After Delay

Display Mode

On Always

Invert OFF

Display Invert

Invert ON

11/28

Invert Auto

Option Settings

Temperature Unit

Un-Link Wireless

Defaults

Pan/Tilt Settings

Language Setting

Touch Calibration

Celsius Degree

Fahrenheit Degree

Really Un-Link?

Confirm or Cancel

Restore Defaults?

Confirm or Cancel

Pan DMX Invert OFF/ ON

Tilt DMX Invert OFF/ ON

Pan Tilt Swap OFF/ ON

XY Feedback OFF/ ON

Pan/Tilt mode Speed/Time

English\Chinese

Note: "Speed Mode" means Pan and Tilt will move from

Point A to Point B at their

respective maximum

speeds."Time Mode" means

both Pan and Tilt will arrive at

designated point at the same

time. It's advised Time Mode be

used if the projector runs circles

or in oblique lines.

Information

Invert Settings

Defaults

View DMX Values

Dimmer Invert OFF/ ON

Zoom Invert OFF/ ON

CYM Invert OFF/ ON

Restore Defaults?

Confirm or Cancel

Channel Value Strobe XXX Dimmer XXX CYM Macro XXX Cyan XXX Yellow XXX Magenta XXX CTO XXX Color Wheel XXX Fixed Gobo Wheel XXX Rot. Gobo Wheel1 XXX Rot. Gobo1 Rotation XXX Effect Wheel XXX Effect Wheel Rotation XXX Prism1 XXX Prism1 Rotation XXX Prism2 XXX Prism2 Rotation XXX

12/28

Focus XXX

Zoom XXX

Strobe

XXX

Dimmer Fine XXX

CYM Macro XXX

Cyan XXX

Cyan Fine XXX

Yellow XXX

Yellow Fine XXX

Magenta XXX

Magenta Fine XXX

CTO XXX

CTO Fine XXX

Color Wheel XXX

Color Wheel

Fine XXX

Fixed Gobo Wheel XXX

Rot. Gobo Wheel 1 XXX

Rot. Gobo1Rotation XXX

Rot. Gobo1Rotation F. XXX

Effect Wheel XXX

Effect Wheel Rotation XXX

Prism 1 XXX

Prism 1 Rotation XXX

Prism 2XXX

Prism 2 Rotation

XXX

Pan XXX Tilt XXX Power/Special Fun. XXX Lamp Fan XXX Lamp Fan2 XXX

Ceramic Fan XXX

Lamp Hours

XXX H

Reset Lamp Hours

Total Hours ××××H

Display Board=×××C

Pan & Tilt board=×××C

Temperature

Driver Board1=×××C Driver Board 2=×××C Driver Board 3=×××C

Head Sensor=×××C

PCB Sys Boot Display Board xxx xxx

Software Version

Pan & Tilt board xxx xxx Driver Board1 xxx xxx Driver Board 2 xxx xxx Driver Board 3 xxx xxx

Electronic SN XXXXXX

Service

RDM Device Label

Fan Status

Acceleration Sensor

Manual Effect Control

XR 440 B BWS

ANSI E1.20 RDM

Fan Speed Status Lamp Fan xxx on/off Lamp Fan2 xxx on/off Ceramic Fan xxx on/off CYM Fan xxx on/off Head Fan xxx on/off Head Fan2 xxx on/off Basic Fan xxx on/off

X Axis: XXX Y Axis: XXX

Z Axis: XXX

Dimmer XXX

13/28

Focus XXX

Focus Fine XXX

Zoom XXX

Zoom Fine XXX

Pan XXX

Pan Fine XXX

Tile XXX

Tilt Fine XXX

Pan & Tilt Speed &Time

XXX

Power/ Special Fun.

XXX

Lamp Fan

Lamp Fan2

XXX

Ceramic Fan

Dimmer Fine XXX

CYM Macro XXX

Cyan XXX

Cyan Fine XXX

Yellow XXX

Yellow Fine XXX

Magenta XXX

Magenta Fine XXX

CTO XXX

CTO Fine XXX

Color Wheel XXX

Color Wheel Fine XXX

Fixed Gobo Wheel

XXX Rot. Gobo Wheel 1 XXX

Rot. Gobo1Rotation XXX

Rot. Gobo1Rotation F. XXX

Effect Wheel XXX

XXX

Operation

Mode

Position Calibrations XXX

DMX Mode

Master Mode

Stand-Alone Mode

Static Scene

Change Operation Mode?

Confirm or Cancel

Preset Memory

User Memory 1

User Memory 2

Preset Memory

User Memory 1

User Memory 2

Change Operation Mode?

Confirm or Cancel

…

Change Operation Mode?

Confirm or Cancel

Change Operation Mode?

Confirm or Cancel

Change Operation Mode?

Confirm or Cancel

Change Operation Mode?

Confirm or Cancel

Change Operation Mode?

Confirm or Cancel

Change Operation Mode?

Confirm or Cancel

User

Memories

Edit User Memory

Edit User Memory 1

/

Edit User Memory 2

14/28

Strobe XXX

Dimmer XXX

（1~200Scenes）

Scene XX

（1~200 Scenes）

Effect Wheel Rotation XXX

Prism 1 XXX

Prism 1 Rotation XXX

Prism 2XXX

Prism 2 Rotation XXX

Focus XXX

Focus

Fine XXX

Zoom XXX

Zoom Fine XXX

Pan XXX

Pan Fine XXX

Tile XXX

Power/ Special Fun.

Delay Time XXX

Delay Unit XXX

Link to Step XXX

Dimmer XXX

Dimmer Fine XXX

CYM Macro XXX

Cyan XXX

Cyan Fine XXX

Yellow XXX

Yellow Fine XXX

Magenta XXX

Magenta Fine XXX

CTO XXX

CTO Fine

XXX Color Wheel XXX

Color Wheel Fine XXX

Fixed Gobo Wheel XXX

Rot. Gobo Wheel 1 XXX

Rot. Gobo1Rotation XXX

Rot. Gobo1Rotation F. XXX

Effect Wheel XXX

Effect Wheel Rotation XXX

Prism 1 XXX

Prism 1 Rotation

XXX

Prism 2XXX

Prism 2 Rotation XXX

Focus XXX

Focus Fine XXX

Zoom XXX

Zoom Fine XXX

Pan XXX

Pan Fine XXX

Tile XXX

Tilt Fine XXX

Pan & Tilt Speed &Time

Power/ Special Fun.

Delay Time

XXX

Delay Unit XXX

Link to Step XXX

Edit Static Scene

Strobe XXX

XXX

Tilt Fine XXX

Pan & Tilt Speed &Time XXX

XXX

Init User Memory

Reset User Memory 1

Reset User Memory 2

Reset Static Scene

15/28

Reset User Memory?

Confirm or Cancel

Reset User Memory?

Confirm or Cancel

Reset Static Scene?

Confirm or Cancel

7. DMX PROTOCOL

2 2 2

3 3

Short mode

1 1 1 Strobe

3 4 4 CYM Macro

4 5 5

6

5 6 7

8

6 7 9

10

7 8 11

12

8 9 13

Standard

mode

10 14

Extended

Mode

FUNCTION DMX DESCRIPTION

Dimmer

Dimmer Fine

Cyan Fine

Yellow

Yellow Fine

Magenta

Magenta Fine

CTO Fine

Color Wheel

Color wheel Fine

Cyan

CTO

000-010

011-025

026-225

226-246

247-255

000-005

006-255

000-255

000-016

017-035

036-054

055-073

074-092

093-111

112-128

129-255

000-255

000-005

006-255

000-255

0-63

64-68

69-73

74-78

79-83

84-88

89-93

94-98

99-103

104-108

109-113

114-118

119-123

124-127

128-191

192-255

0-255

Close

Open

Strobe speed from slow to fast

Random strobe from slow to fast

Open

Close Linear dimming（0-100%）

Dimmer in 16 bit

White

Yellow+ Magenta=Red

Yellow

Yellow +Cyan=Green

Cyan

Cyan + Magenta= Violet

Magenta

CYM color mixing from slow to fast

Cyan (linear 0~100%)

Cyan in 16 Bit

Yellow (linear 0~100%)

Yellow in 16 Bit

Magenta (linear 0~100%)

Magenta in 16 Bit

White

CTO (linear 0~100%)

CTO in 16 Bit

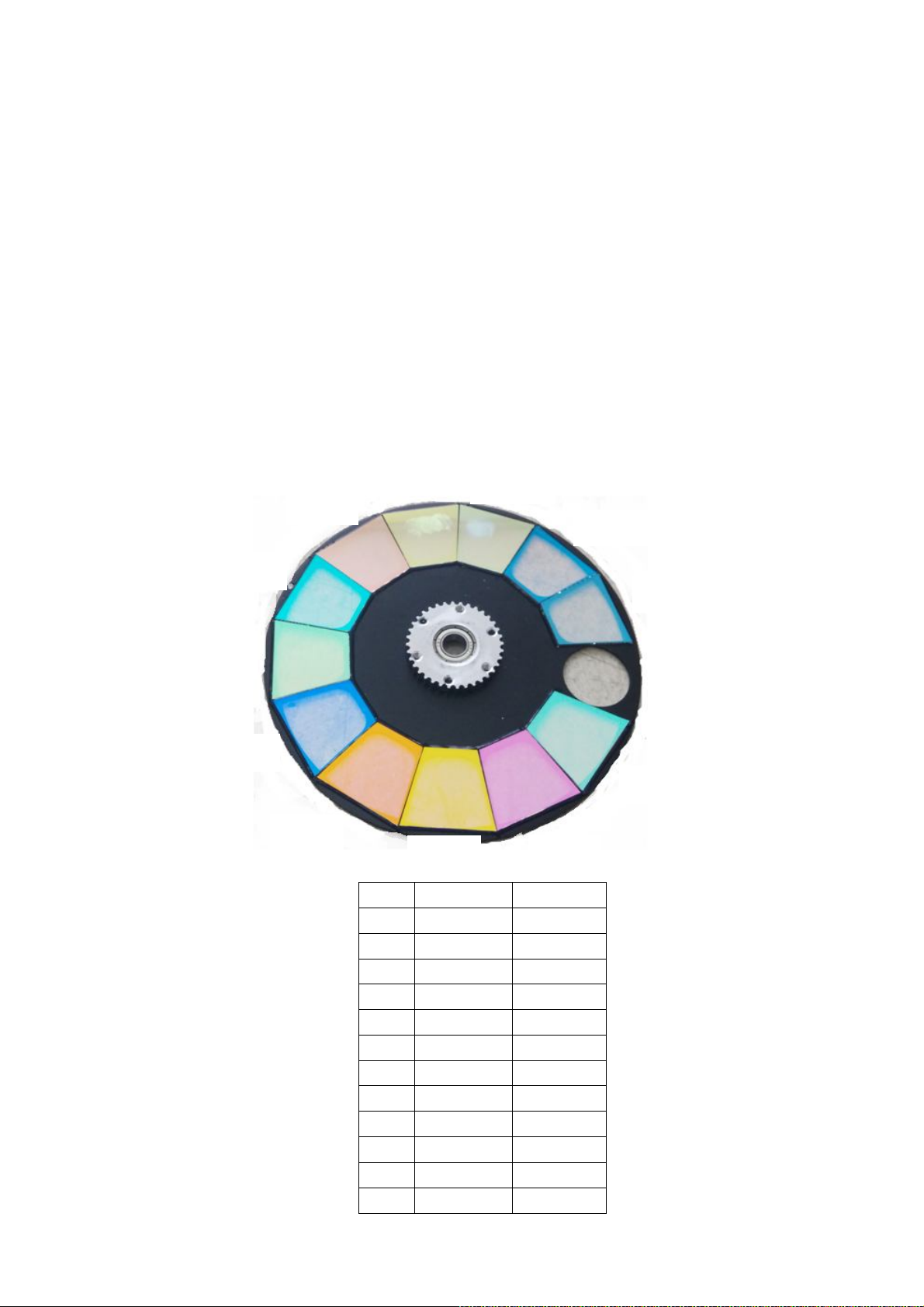

Indexing(0-360degrees)

Color1(Red)

Color2(Light Green)

Color3(Blue)

Color4(Cyan)

Color5(Yellow)

Color6(Magetna) Color7（Orange）

Color8(Green)

Color9(Dark Blue)

Color10(UV)

Color11(Light Yellow)

Color12(Dark Yellow)

White

Rotation ,Clockwise from slow to fast

Rotation ,Anti-Clockwise from fast to slow

Color Wheel in 16 Bit

16/28

9 11 15

10 12 16

Fixed Gobo

Wheel

Rotating Gobo

Wheel l

0-19

20-25

26-31

32-37

38-43

44-49

50-55

56-61

62-67

68-73

74-79

80-85

86-91

92-97

98-103

104-109

110-115

116-121

122-127

128-155

156-183

184-187

188-191

192-195

196-199

200-203

204-207

208-211

212-215

216-219

220-223

224-227

228-231

232-235

236-239

240-243

244-247

248-251

252-255

0-15

16-31

32-47

48-63

64-79

White

Gobo1

Gobo2

Gobo3

Gobo4

Gobo5

Gobo6

Gobo7

Gobo8

Gobo9

Gobo10

Gobo11

Gobo12

Gobo13

Gobo14

Gobo15

Gobo16

Gobo17

Gobo18

Clockwise rotation from slow to fast

Anti Clockwise rotation from slow to fast

Shake effect 1 from slow to fast

Shake effect 2 from slow to fast

Shake effect 3 from slow to fast

Shake effect 4 from slow to fast

Shake effect 5 from slow to fast

Shake effect 6 from slow to fast

Shake effect 7 from slow to fast

Shake effect 8 from slow to fast

Shake effect 9 from slow to fast

Shake effect 10 from slow to fast

Shake effect 11 from slow to fast

Shake effect 12 from slow to fast

Shake effect 13 from slow to fast

Shake effect 14 from slow to fast

Shake effect 15 from slow to fast

Shake effect 16 from slow to fast

Shake effect 17 from slow to fast

Shake effect 18 from slow to fast

White

Gobo 1

Gobo 2

Gobo 3

Gobo 4

17/28

to Fast

11 13 17

Gobo Rotation

80-95

96-111

112-127

128-156

157-185

186-195

196-215

216-225

226-235

236-245

246-255

000-128

129-188

189-195

196-255

Gobo 5

Gobo 6

Gobo 7 Rotation （clockwise From slow to Fast）

Reverse Rotation（anti-clockwise From slow

）

Shake of Gobo 1 from slow to fast

Shake of Gobo 2 from slow to fast

Shake of Gobo 3 from slow to fast

Shake of Gobo 4 from slow to fast

Shake of Gobo 5 from slow to fast

Shake of Gobo 6 from slow to fast

Shake of Gobo 7 from slow to fast

Gobo Indexing(0~360degrees) Rotation （Clockwise From slow to Fast）

Stop Rotation （Anti-Clockwise From slow to Fast）

14 18

12 15 19

13

14 17 21

15 18 22

16 19 23

17 20 24

18 21 25

22 26

19 23 27

24 28

16

20

Fine

Graphic Effect

Wheel

Graphic Effect

Wheel Rotation

Prism Group1

Rotation

Prism Group2

Rotation

Focus

Focus Fine

Zoom

Zoom Fine

000-255

000-020

021-255

0-127

128-255

000-016

017-127

128-255

000-128

129-191

192

193-255

000-016

017-127

128-255

000-128

129-191

192

193-255

000-255

Gobo Rotation in 16 Bit

NO

Effect Wheel In

Rotation from slow to fast

Reverse Rotation from slow to fast

Open

Prism1

Prism2

Prism Indexing

Rotation(Clockwise from slow to fast)

Stop

Rotation(Anti- Clockwise from slow to fast)

White

Prism3

Frost In

Prism Indexing

Rotation(Clockwise from slow to fast)

Stop

Rotation(Anti- Clockwise from slow to fast)

Linear Focus

Focus in 16 bit precision

Linear Zoom

Zoom in 16 bit precision

20 25 29

26 30

21 27 31

Pan

Pan Fine

Tilt

18/28

000-255

Pan(0°~540°)

Pan in 16 bit precision

Tilt(0°~270°)

28 32

Tilt Fine

000-255

Tilt in 16 bit precision

29 33

22 30 34

1. The projector can’t be turned on within 1 minute after the lamp-off.

2. Fan error can cause lamp-off.

3. Note: "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time Mode" means both Pan and Tilt will arrive at designated point at the same time. It's advised Time Mode be used if the projector runs circles or in oblique lines.

Pan & Tilt Speeds

Control

000-255

000-019

The following functions will be activated after the DMX value

has been held for more than 5s. And the following settings are

void if the lamp is off.

020-024

025-029

030-034

035-039

040-044

045-089

090-094

095-099

100-129

130-139

140-149

150-159

160-169

170-179

180-189

190-199

200-209

210-229

230-239

240-255

Pan & Tilt Speed from Fast to Slow

Reserved

Display On

Display Off

Reserved

Lamp Half Power

Lamp Full Power

Reserved

Pan & Tilt Speed Mode

Pan & Tilt Time Mode

Reserved

Lamp On

Pan & Tilt Reset

Color System Reset

Gobo Wheel Reset

Dimmer/Shutter Reset

Zoom/Frost/Focus/Prism Reset

Reserved

Total Reset

Reserved

Lamp Off

Reserved

8. LOGOS OF THE TOUCH SCREEN

Lamp Control

Option Settings

Chinese/English

Service

Information

Error Messages

Operation Mode

Address

Reset

User Memories

Config Settings

19/28

Effect Wheel

Lamp Off[Fan

9.Error messages

The system can detect some errors during the reset, if displayed, touch the logo to view the error. The error messages are as follows:

Name Type Correction

Pan Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal

Tilt Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal

Cyan

Yellow

Magenta

Timeout Check if wiring, positioning parts and motors are normal

CT Timeout Check if wiring, positioning parts and motors are normal

Color Wheel Timeout Check if wiring, positioning parts and motors are normal

Fixed gobo wheel Timeout Check if wiring, positioning parts and motors are normal

Rot. Gobo Wheel 1 Timeout Check if wiring, positioning parts and motors are normal

Rot. Gobo1Rotation Timeout Check if wiring, positioning parts and motors are normal

Dimmer Timeout Check if wiring, positioning parts and motors are normal

Prism 1 Timeout Check if wiring, positioning parts and motors are normal

Prism 1 Rotation Timeout Check if wiring, positioning parts and motors are normal

Prism 2 Timeout Check if wiring, positioning parts and motors are normal

Prism 2 Rotation

Focus

Zoom

Timeout Check if wiring, positioning parts and motors are normal

Effect Wheel Timeout Check if wiring, positioning parts and motors are normal

Rotation

Timeout

Check if wiring, positioning parts and motors are normal

Ceramic Fan Error Check if fan and its wiring are normal

CMY Fan Error Check if fan and its wiring are normal

Head Fan Error Check if fan and its wiring are normal

Head Fan 2 Error Check if fan and its wiring are normal

Basic Fan Error

Check if fan and its wiring are normal

Pan and Tilt Board Error Check signal wire

Driver Board 1 Error Check signal wire

Driver Board2 Error Check signal wire

Driver Board 3 Error Check signal wire

Acceleration Sensor Error Check signal wire

Lamp on Timeout Check if he lamp is damaged

Lamp Life Timeout Warning

Error]

Error Check if all fans are normal

Lapsed Time Timeout

Time IC Error

Lapsed time X days

Use hours Setting successfully

20/28

10. TECHNICAL DATA

480W

INPUT VOLTAGES

100V~240V AC, 50/60Hz

RATED POWER

690W@220V

LAMP SPECIFICATIONS

Lamp

Color Temperature

6800K

Manufacturers Rated Lamp Life 1500 hours

COLORS

1 color wheel: 12colors+ Open

Rainbow effect with bi-directional and variable speeds

Stepping/linear color changing

Color 9

Color 8

Color 10

Color 11

Color 7

Color 12

Color 6

Open

Color 5

Color 1

Color 4

Color 3

Color 2

No. Code No. Color

1 092550001A Red

2 092550002A Light Green

3 092550003A Blue

4 092550004A Cyan

5 092550005A Yellow

6 092550006A Magenta

7 092550007A Orange

8 092550008A Green

9 092550009A Dark blue

10 092550010A UV

11 092550011A Light Yellow

12

090071258

Dark Yellow

21/28

CMY COLOR MIXING SYSTEM

CMY linear color mixing with macros

INDEPENDENT CTO SYSTEM

0-100% Linear CTO

FIXED GOBO WHEEL

1 fixed gobo wheel: 18 gobos +open

bi-directionally rotatable, and shakable at variable speeds

Dot Dot2 Dot3 Dot4 Dot5 Dot6 Ping

Fan 8 Bars Flower Rectangles Stars Five Dots Eight

Quadrangles Steering Wheel 4 paralleled

Big Dot

Bars

ROTATING GOBO WHEEL

1 Rotating gobo wheel:7 interchangeable gobos+1white

bi-directionally rotatable, and shakable at variable speeds.

Gobo Replaceable, Gobo outer diameter: Φ22.5mm ,Gobo image diameter: Φ9mm 1.5mm thick

Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5

Gobo 6 Gobo 7

PRISM

22/28

3pcs of independent prisms (STD setup: 2 8-facet circular Prisms and 1 4-facet linear prism):Bi-directional rotation with variable

speeds(options: 3-facet, 16- facet circular prism, liner prisms, gradient prism )

GRAPHIC EFFECT WHEEL

1 graphic effect wheel, bi-directional rotation with variable speeds, overlap with fixed gobos and rotating gobos.

FROST

1pc frost filter

FOCUS

DMX linear Focus

ZOOM

DMX linear Zoom

DIMMER/STROBE

0-100% linearly adjustable/ Double shutter blades, 0.3~25 F.P.S

HEAD MOVEMENT

Pan 540º, Tilt 270º with auto position correction

BEAM ANGLE

Beam Effect: Beam angle 0°-- 2.8°,linear adjustment

Spot Effect: Beam angle 2.8°-- 60°,linear adjustment

Wash Effect: Beam angle 10°-- 60°,linear adjustment

CONTROL

International DMX512 Signal, 3 pin and 5 pin interfaces

22channels in short mode, 30channels in standard mode and 34channels in extended mode Self-test mode

OTHER FUNCTIONS

Adjustable Pan & Tilt speed

Lamp’s and fixture’s hours displayed

Modular Structure for easy maintenance

DMX512 wirless reciever

Optional DMX512 Wireless Transmitter

HOUSING

High temperature ABS, IP20

WEIGHT

Net weight: 25Kg

Gross weight: 84.6Kg in flight case(2pcs/case) and accessories

29.3Kg in carton(1pc/ctn) and accessories

23/28

WORKING TEMPERATURE

Maximum ambient temperature: 40°C

SIZES

392

395

410

LIGHT OUTPUT

60° Lux

2.8°Lux

601

544

338

Beam、Spot mode

0

2651

0

1821580

663

455395

295 166 202390

113840

106

72863

74

50599

2.8°

60°

2.8° Diameter(m) 60° Diameter(m)

Distance(m)

10°Diameter(m) 60°Diameter(m)

Distance(m)

60° Lux 10° Lux

0m 5m 10m 15m 20m 25m 30m

0.25

0

5.30

0

0.50 0.74 0.99

10.60 15.90 21.20

1.24

26.50

1.49

31.80

Wash mode

0

1479

0

37688

0m 5m 10m 15m 20m 25m 30m

0.89

0

5.32

0

370 9422

1.77

10.63

164

4188 2356

2.66 3.55

15.95

92

21.26

24/28

59 1508

4.43

26.58

41 1047

5.32

31.89

10°

60°

11. CIRCUIT DIAGRAM AND PCB CONNECTIONS

●CIRCUIT DIAGRAM

25/28

●PCB CONNECTIONS

8 channel board1

8 channel board

4 channel board

● 8 channel board1：P/N230060609

● 8 channel board 2：P/N230060610

● 4 channel board 3：P/N230060611

1 M1-1 Motor 12 24V power input

2 M1-2 Motor 13 Reserved

3 M1-3 Motor 14 Reserved

4 M1-4 Motor 15 HALL1-6 Magnet Sensor

5 M1-5 Motor 16 HALL1-5 Magnet Sensor

6 M1-6 Motor 17 HALL1-4 Magnet Sensor

7 Reserved 18 HALL1-3 Magnet Sensor

8 Reserved 19 HALL1-2 Magnet Sensor

9 Reserved 20 HALL1-1 Magnet Sensor

10 Lamp ceramic stand fan 21 Signal output

11 CYM Fan 22 Signal Input

2

1 M2-1 Motor 12 24V power input

2 M2-2 Motor 13 HALL2-8 Magnet Sensor

3 M2-3 Motor 14 HALL2-7 Magnet Sensor

4 M2-4 Motor 15 HALL2-6 Magnet Sensor

5 M2-5 Motor 16 HALL2-5 Magnet Sensor

6 M2-6 Motor 17 HALL2-4 Magnet Sensor

7 M2-7 Motor 18 HALL2-3 Magnet Sensor

8 M2-8 Motor 19 HALL2-2 Magnet Sensor

9 Thermal Sensor 20 HALL2-1 Magnet Sensor

10 Head Fan 1 21 Signal output

11 Head Fan 2 22 Signal Input

● XY Board：P/N230060620

3

1 M3-3 Motor 8 Reserved

2 M3-4 Motor 9 Reserved

3 MEMS Sensor board 10 Signal Input

4 Reserved 11 Reserved

5 24V power input 12 M3-1 Motor

6 Reserved 13 M3-2 Motor

7 HALL3-3 Magnet Sensor

XY Board

1 Tilt Encoder 7 Signal Output

2 SY Magnet Sensor 8 Reserved

3 FAN2(Ballast Fan) 9 SX Magnet Sensor

4 PAN1(Power Switch

Fan)

5 24V power input 11 J1PAN motor

6 Signal Input 12 TILT Motor

10 Pan Encoder

26/28

12. COMPONENT ORDER CODES

030040233

A 1

030040233

A 1

030040121

2

030040212A

1

030040073

1

030040221A

1

030040224

B 1

030040213A

1

030040213A

1

030040254

2

030040214

2

0300600

75 4

030060102

3

head

030060089

1

0400701

27 1

1000700

41 1

120110828

1

120110827

1

23002

0684 1

230060609

1

230060610

1

230060611

1

2300606

90 1

270030005

1

290151415

1

290151313

2

290151

405 1

290151355

1

290151414

1

290151392

1

290151386

1

NAME PART NO. QUANTITY REMARK

PAN MOTOR TILT MOTOR DIMMER/STROBE MOTORS ROTATING GOBO WHEEL MOTOR GOBO ROTATION MOTOR FIXED GOBO WHEEL MOTOR COLOR WHEEL MOTOR FOCUS MOTOR GRAPHIC EFFECT WHEEL IN/OUT

030040167

MOTOR GRAPHIC EFFECT WHEEL

030040257 1

ROTATION MOTOR ZOOM MOTOR PRISM ROTATION MOTOR PRISM IN/OUT MOTOR FAN TURBO- FAN

FAN 030060098

1

Head Fan1 &2, 2 base fans 2 lamp fans Small turbo-fan in the back of the

FAN LAMP BALLAST LAMP ROTATINGGOBOWHEEL ACCESSORY

120110826

COLOR WHEEL ACCESSORY FIXEDGOBO WHEEL ACCESSORY POWER SWITCH

MASTER BOARD 230060607 8 CHANNEL DRIVER BOARD1

8 CHANNEL DRIVER BOARD2 4 CHANNEL DRIVER BOARD3 XY DRIVER BOARD FUSE TILT BELT ZOOM BELT PRISM IN/OUT BELT ROTATING GOBO WHEEL BELT GOBO ROTATION BELT PAN BELT FOCUS BELT

Exhaust fan in the base

1

27/28

PR LIGHTING LTD.

1582 Xingye Avenue, Nancun Panyu

Guangzhou, 511442 China

TEL: +86-20-3995 2888

PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted!

P/N: 320020468

Version: 20170524 (Preliminary）

28/28
