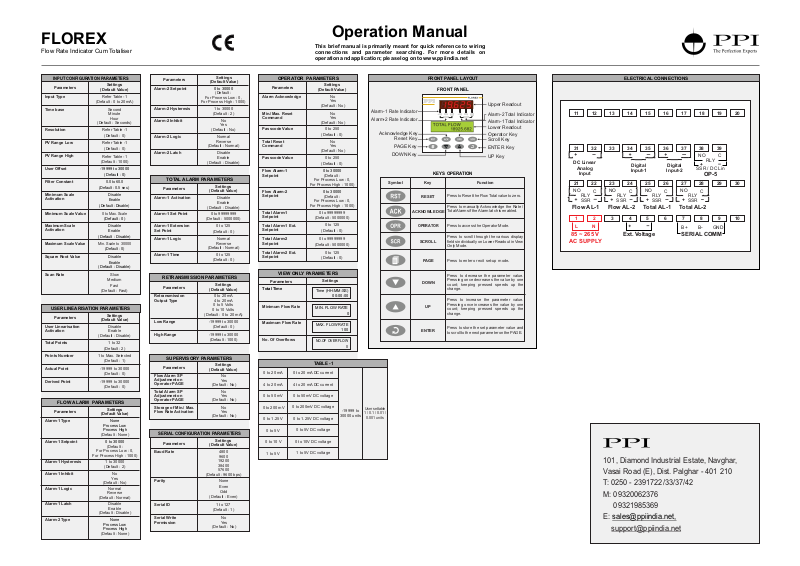

PPI FLOREX Operation Manual

FLOREX

Flow Rate Indicator Cum Totaliser

Operation Manual

This brief manual is primarily meant for quick reference to wiring
connections and pa rameter sear ching. For more details o n
operation and application; please log on to www.ppiindia.net

INPUT CONFIGURATION PARAMETERS

Parameters

Input Type

Time base

Resolution

PV Range Low

PV Range High

User Offset

Filter Constant

Minimum Scale
Activation

Minimum Scale Value

Maximum Scale
Activation

Maximum Scale Value

Square Root Value

Scan Rate Slow

Settings

(Default Value)

Refer Table -1

(Default : 0 to 20mA)

Second

Minute

Hour

(Default : Seconds)

Refer Table -1

(Default : 0)

Refer Table -1

(Default : 0)

Refer Table -1

(Default : 1000)

-19999 to 30000
(Default : 0)

0.0 to 60.0

(Default : 0.5 sec.)

Disable

Enable

(Default : Disable)

0 to Max. Scale

(Default : 0)

Disable
Enable

(Default : Disable)

Min. Scale to 30000

(Default : 0)

Disable

Enable

(Default : Disable)

Medium

Fast

(Default : Fast)

USER LINEARISATION PARAMETERS

Parameters

User Linearisation
Activation

Total Points

Points Number

Actual Point

Derived Point

Settings

(Default Value)

Disable
Enable

(Default : Disable)

1 to 32

(Default : 2)

1 to Max. Selected

(Default : 1)

-19999 to 30000
(Default : 0)

-19999 to 30000
(Default : 0)

FLOW ALARM PARAMETERS

Parameters

Alarm-1 Type

Alarm-1 Setpoint

Alarm-1 Hysteresis

Alarm-1 Inhibit

Alarm-1 Logic

Alarm-1 Latch

Alarm-2 Type

Settings

(Default Value)

None
Process Low
Process High

(Default : None)

0 to 30000

(Default :

For Process Low : 0,

For Process High : 1000)

1 to 30000

(Default : 2)

No

Yes

(Default : No)

Normal

Reverse

(Default : Normal)

Disable

Enable

(Default : Disable)

None
Process Low

Process High

(Default : None)

Parameters

Alarm-2 Setpoint

Alarm-2 Hysteresis

Alarm-2 Inhibit

Alarm-2 Logic

Alarm-2 Latch

Settings

(Default Value)

0 to 30000

(Default :

For Process Low : 0,

For Process High : 1000)

1 to 30000

(Default : 2)

No

Yes

(Default : No)

Normal

Reverse

(Default : Normal)

Disable
Enable

(Default : Disable)

TOTAL ALARM PARAMETERS

Parameters

Alarm-1 Activation

Alarm-1 Set Point

Alarm-1 Extension
Set Point

Alarm-1 Logic

Alarm-1 Time

Settings

(Default Value)

Disable
Enable

(Default : Disable)

0 to 99999999

(Default : 5000000)

0 to 125

(Default : 0)

Normal

Reverse

(Default : Normal)

0 to 125

(Default : 0)

RETRANSMISSION PARAMETERS

Parameters

Retransmission
Output Type

Low Range

High Range

Settings

(Default Value)

0 to 20 mA
4 to 20 mA

0 to 5 Volts

0 to 10 Volts

(Default : 0 to 20 mA)

-19999 to 30000
(Default : 0)

-19999 to 30000

(Default : 1000)

SUPERVISORY PARAMETERS

Parameters

Flow Alarm SP
Adjustment on
Operator PAGE

Total Alarm SP
Adjustment on
Operator PAGE

Storage of Min./ Max.
Flow Rate Activation

Settings

(Default Value)

No

Yes

(Default : No)

No

Yes

(Default : No)

No

Yes

(Default : No)

SERIAL CONFIGURATION PARAMETERS

Parameters

Baud Rate

Parity

Serial ID

Serial Write
Permission

Settings

(Default Value)

4800

9600
19200
38400
57600

(Default : 9600 bps)

None

Even

Odd

(Default : Even)

1 to 127

(Default : 1)

No

Yes

(Default : No)

OPERATOR PARAMETERS

Parameters

Alarm Acknowledge

Min./Max. Reset
Command

Passcode Value

Total Reset
Command

Passcode Value

Flow Alarm-1
Setpoint

Flow Alarm-2
Setpoint

Total Alarm-1
Setpoint

Total Alarm-1 Ext.
Setpoint

Total Alarm-2
Setpoint

Total Alarm-2 Ext.
Setpoint

For Process Low : 0,

For Process High : 1000)

For Process Low : 0,

For Process High : 1000)

VIEW ONLY PARAMETERS

Parameters

Total Time

Minimum Flow Rate

Maximum Flow Rate

No. Of Overflows

TABLE -1

0 to 20 mA

4 to 20 mA

0 to 50 mV

0 to 200 mV

0 to 1.25 V

0 to 5 V

0 to 10 V

1 to 5 V

0 to 20 mA DC current

4 to 20 mA DC current

0 to 50mV DC voltage

0 to 200mV DC voltage

0 to 1.25V DC voltage

0 to 5V DC voltage

0 to 10V DC voltage

1 to 5V DC voltage

Settings

(Default Value)

No

Yes

(Default : No)

No

Yes

(Default : No)

0 to 250

(Default : 0)

No

Yes

(Default : No)

0 to 250

(Default : 0)

0 to 30000

(Default :

0 to 30000

(Default :

0 to 99999999

(Default : 5000000)

0 to 125

(Default : 0)

0 to 99999999

(Default : 5000000)

0 to 125

(Default : 0)

Settings

Time (HH:MM:SS)
00:00:00

MIN. FLOW RATE
0

MAX. FLOW RATE
100

NO.OF OVER FLOW
0

-19999 to

30000 units

Alarm-1 Rate Indicator

Alarm-2 Rate Indicator

Acknowledge Key

Reset Key

PAGE Key

DOWN Key

Symbol

User settable
1 / 0.1 / 0.01 /

0.001 units

FRONT PANEL LAYOUT

FRONT PANEL

KEYS OPERATION

Key

RESET

ACKNOWLEDGE

OPERATOR

SCROLL

PAGE

DOWN

UP

ENTER

Upper Readout

Alarm-2 TotaI Indicator
Alarm-1 TotaI Indicator
Lower Readout

Operator Key
Scroll Key

ENTER Key

UP Key

Function

Press to Reset the Flow Total value to zero.

Press to manually Acknowledge the Rate /
Total Alarms if the Alarm latch is enabled.

Press to access the Operator Mode.

Press to scroll through the various display
fields individually on Lower Readout in View
Only Mode.

Press to enter or exit set-up mode.

Press to decrease the parameter value.
Pressing once decreases the value by one
count; keeping pressed spe eds up the
change.

Press to increase the parameter value.
Pressing once increases the value by one
count; keeping pressed spe eds up the
change.

Press to store the set parameter value and
to scroll to the next parameter on the PAGE.

11

12

31

32

DC Linear

Analog

Input

21

22

NO

C
RLY
SSR

Flow AL-1

2

1

L

N

85 ~ 265 V

AC SUPPLY

ELECTRICAL CONNECTIONS

14 15

13

34 35

33

Digital

Input-1

23 24 25

NO

C
RLY
SSR

Flow AL-2

3

4

Ext. Voltage

16

36

26

NO

C
RLY
SSR

Total AL-1

5

6

17

37

Digital

Input-2

27

NO

Total AL-2

7

B+

SERIAL COMM

18

38

NO

RLY

SSR / DC Lin

OP-5

28

C
RLY
SSR

8 9 10

B-

19

39

29

GND

20

C

30

101, Diamond Industrial Estate, Navghar,
Vasai Road (E), Dist. Palghar - 401 210
T: 0250 - 2391722/33/37/42
M: 09320062376
09321985369
E: [e-mail],
[e-mail]

ENCLOSURE ASSEMBLY

JUMPER SETTINGS

OUTPUT-1

MOUNTING DETAILS

SERIAL COMM. MODULE

Placing Back

Latching Slot

Removal

PulloutLatch

FLOREX

PPI

B

4

3

2

1

Output Type

Jumper

Setting - B

Jumper

Setting - C

Output-1

Jumper Settings

Relay

4

3

2

1

1 2 3 4

OUTPUT-1

Pins

CPU PCB

A

1 2

3

Output PCB

C

1

2 3 4

SSR Drive

4

3

2

1

1 2 3 4

Shorting

Link

Input

Jumper Settings

Output-1

Jumper Settings

DC Linear

Current (or Voltage)

4

3

2

1

1 2 3 4

Input

For Input Types: V

For Input Types:
DC Linear Current (mA)

1 2 3

1 2 3

Power-Supply
PCB

8 Pin Male Plug

Serial Communication

Module

8 Pin Female

Socket

Output PCB

Placing Back

OP4

OP5

Power-Supply

PCB

Removal

OP2

OP3

CPU PCB

(For Retransmission Only)

MOUNTING DETAILS

OUTPUT MODULE

Jumper Setting ‘A’ - Viewed
facing module

1 2 3

Jumper Setting-A

Jumper Setting ‘B’ - Viewed

facing module

1 2 3

Jumper Setting-B

Output Type Jumper Setting - A Jumper Setting - B

Relay

SSR

5-Pin Female

Socket

Relay/SSR Module - Bottom View

Output PCB

OP4

OP5

4-Pin Male Plug

4-Pin Female

Socket

OP2

OP3

CPU PCB

5-Pin Male
Plug

4-Pin Male
Plug

5-Pin Male

Plug
