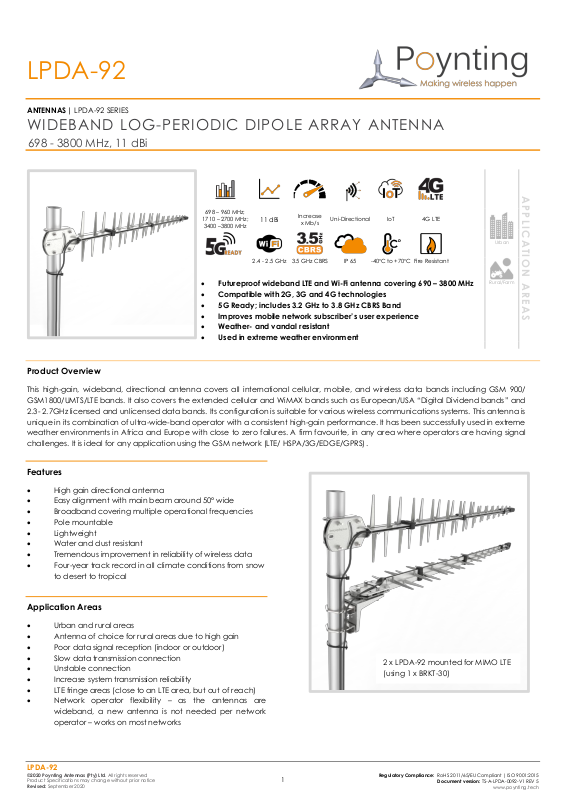

POYNTING POY LPDA-92 Datasheet

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-LPDA-0092-V1 REV 5

www.poynting.tech

1

LPDA-92

Product Specifications may change without prior notice Revised: September 2020

LPDA-92

ANTENNAS | LPDA-92 SERIES

WIDEBAND LOG-PERIODIC DIPOLE ARRAY ANTENNA

698 - 3800 MHz, 11 dBi

Urban

Rural/Farm

A P P L I C A T I O N A R E A S

698 – 960 MHz;

1710 – 2700 MHz;

3400 –3800 MHz

11 dBi

Increase

x Mb/s

Uni-Directional

IoT

4G LTE

2.4 - 2.5 GHz

3.5 GHz CBRS

IP 65

-40°C to +70°C

Fire Resistant

• Futureproof wideband LTE and Wi-Fi antenna covering 690 – 3800 MHz

• Compatible with 2G, 3G and 4G technologies

• 5G Ready; includes 3.2 GHz to 3.8 GHz CBRS Band

• Improves mobile network subscriber’s user experience

• Weather- and vandal resistant

• Used in extreme weather environment

Product Overview

This high-gain, wideband, directional antenna covers all international cellular, mobile, and wireless data bands including GSM 900/ GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and

2.3- 2.7GHz licensed and unlicensed data bands. Its configuration is suitable for various wireless communications systems. This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures. A firm favourite, in any area where operators are having signal challenges. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS).

Features

• High gain directional antenna

• Easy alignment with main beam around 50° wide

• Broadband covering multiple operational frequencies

• Pole mountable

• Lightweight

• Water and dust resistant

• Tremendous improvement in reliability of wireless data

• Four-year track record in all climate conditions from snow

to desert to tropical

Application Areas

• Urban and rural areas

• Antenna of choice for rural areas due to high gain

• Poor data signal reception (indoor or outdoor)

• Slow data transmission connection

• Unstable connection

• Increase system transmission reliability

• LTE fringe areas (close to an LTE area, but out of reach)

• Network operator flexibility – as the antennas are

wideband, a new antenna is not needed per network operator – works on most networks

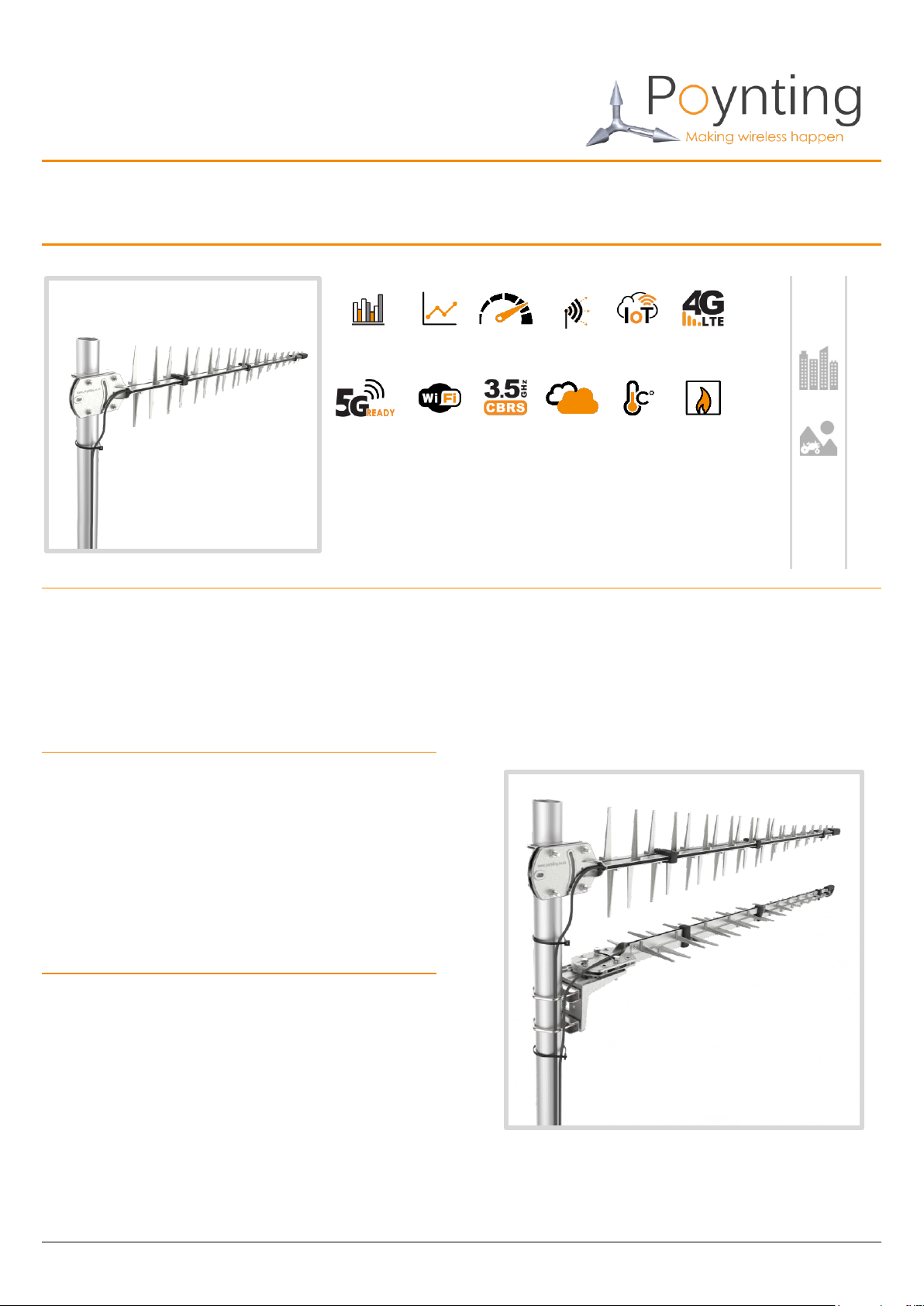

2 x LPDA-92 mounted for MIMO LTE (using 1 x BRKT-30)

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-LPDA-0092-V1 REV 5

www.poynting.tech

2

LPDA-92

Product Specifications may change without prior notice

Revised: September 2020

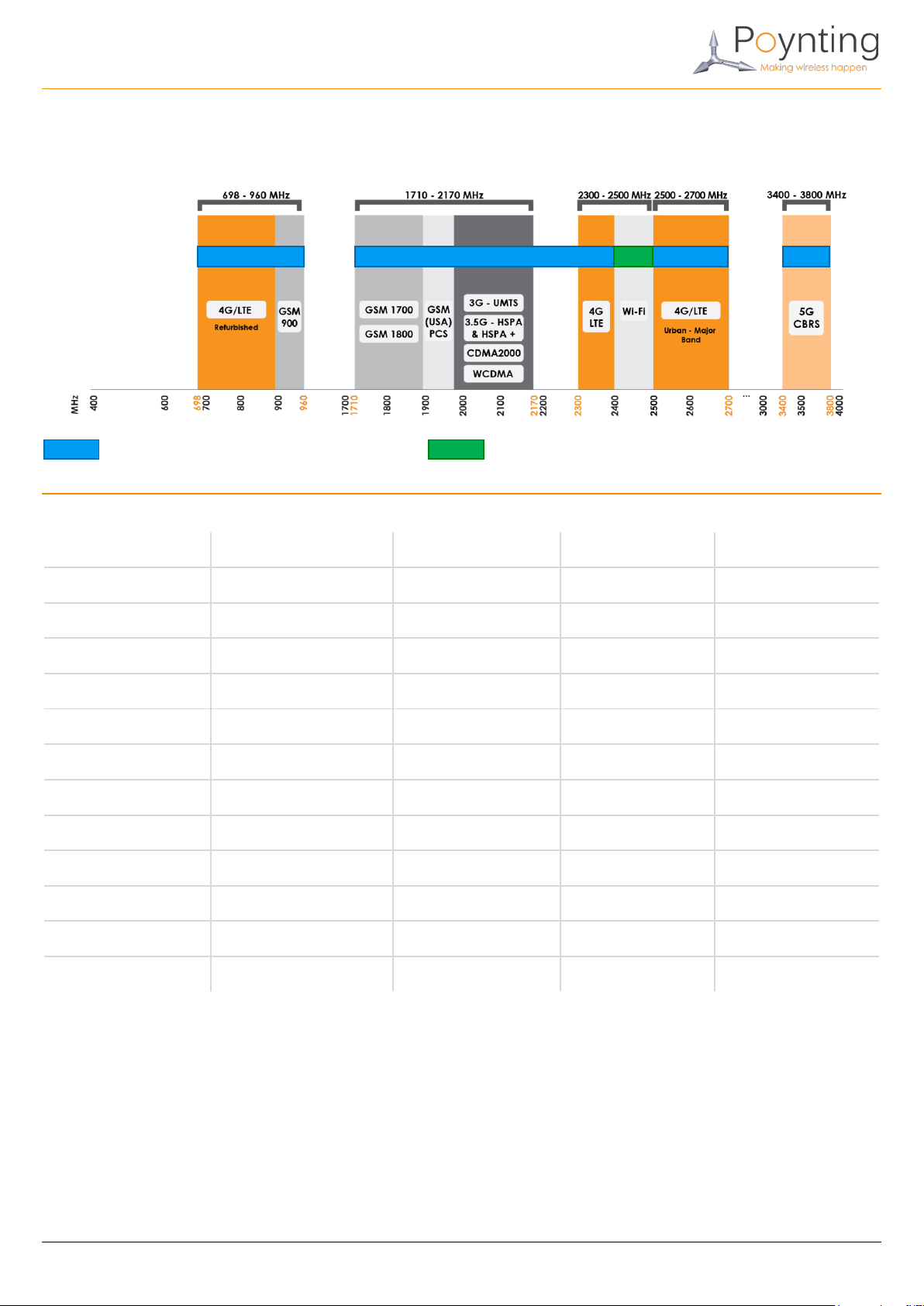

Frequency Bands

The LPDA-92 is a directional antenna that works from 698 – 960 MHz | 1710 – 2700 MHz | 3400 –3800 MHz

Indicates the LTE bands on which LPDA-92 works

Indicates the Wi-Fi bands on which LPDA-92 works

Antenna Derivatives

Product Order Code (SKU)

A-LPDA-0092

A-LPDA-0092-04

A-LPDA-0092-LTE

A-LPDA-0092-30-LTE

Ports/Antennas Included

1 1 2

2

Coax Cable Type

HDF 195

Coax Cable Length

7m

0.3 m

7m

Connector Type

SMA (M)

N-Type (F)

SMA (M)

Included Mounting Bracket

N/A

A-BRKT-033

A-BRKT-030

Antenna Unit Weight

1.63 Kg

1.55 Kg

1.63 Kg

Bracket Weight

N/A

990 g

293 g

Antenna Dimensions

1112 x 200 x 47 mm

Bracket Dimensions

N/A

414 x 166 x 120 mm

127 x 100 x 97 mm

Packaged Weight

2.02 Kg

1.94 Kg

5.01 Kg

4.46 Kg

Packaged Dimensions

1120 x 210 x 60 mm

Quantity Dependent

EAN

6009693810556

0707273469120

6009710921166

6009710921180

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-LPDA-0092-V1 REV 5

www.poynting.tech

3

LPDA-92

Product Specifications may change without prior notice

Revised: September 2020

Electrical Specifications

Frequency bands:

698 – 960 MHz

1710 – 2700 MHz

3400 –3800 MHz

Gain (max):

10.8 dBi @ 698-960 MHz

11 dBi @ 1710-2700 MHz

2.3 dBi @ 3400-3800 MHz

VSWR:

<1.5:1 across 95% of the bands

Feed power handling:

10 W

Input impedance:

50 Ohm (nominal)

Polarisation:

directional Linear

Coax cable loss:

0.385 dB/m @ 900 MHz

0.565 dB/m @ 1800 MHz

0.666 dB/m @ 2400 MHz

0.788 dB/m @3000 MHz

DC short:

Yes

Product Box Contents

Antenna:

A-LPDA-0092

Mounting bracket:

Econo brackets, U-bolts, and

fasteners suitable for pole

mounting

Mechanical Specifications

Plastics material:

Nylon 6

Plastics colour:

Black

Frame material:

Passivated ADC12

Frame colour:

Aluminium grey

Mounting Type:

Pole Mount

Environmental Specifications, Certification & Approvals

Wind Survival:

≤160 km/h

Temperature Range (Operating):

-40°C to +70°C

Environmental Conditions:

Outdoor/Indoor

Water ingress protection ratio/standard:

IP 65

Salt Spray:

MIL-STD 810F/ASTM B117

Operating Relative Humidity:

Up to 98%

Storage Humidity:

5% to 95% - non-condensing

Storage Temperature:

-40°C to +70°C

Enclosure Flammability Rating:

UL 94-HB

Impact resistance:

IK 08

Product Safety & Environmental:

Complies with CE and RoHS standards

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-LPDA-0092-V1 REV 5

www.poynting.tech

4

LPDA-92

Product Specifications may change without prior notice

Revised: September 2020

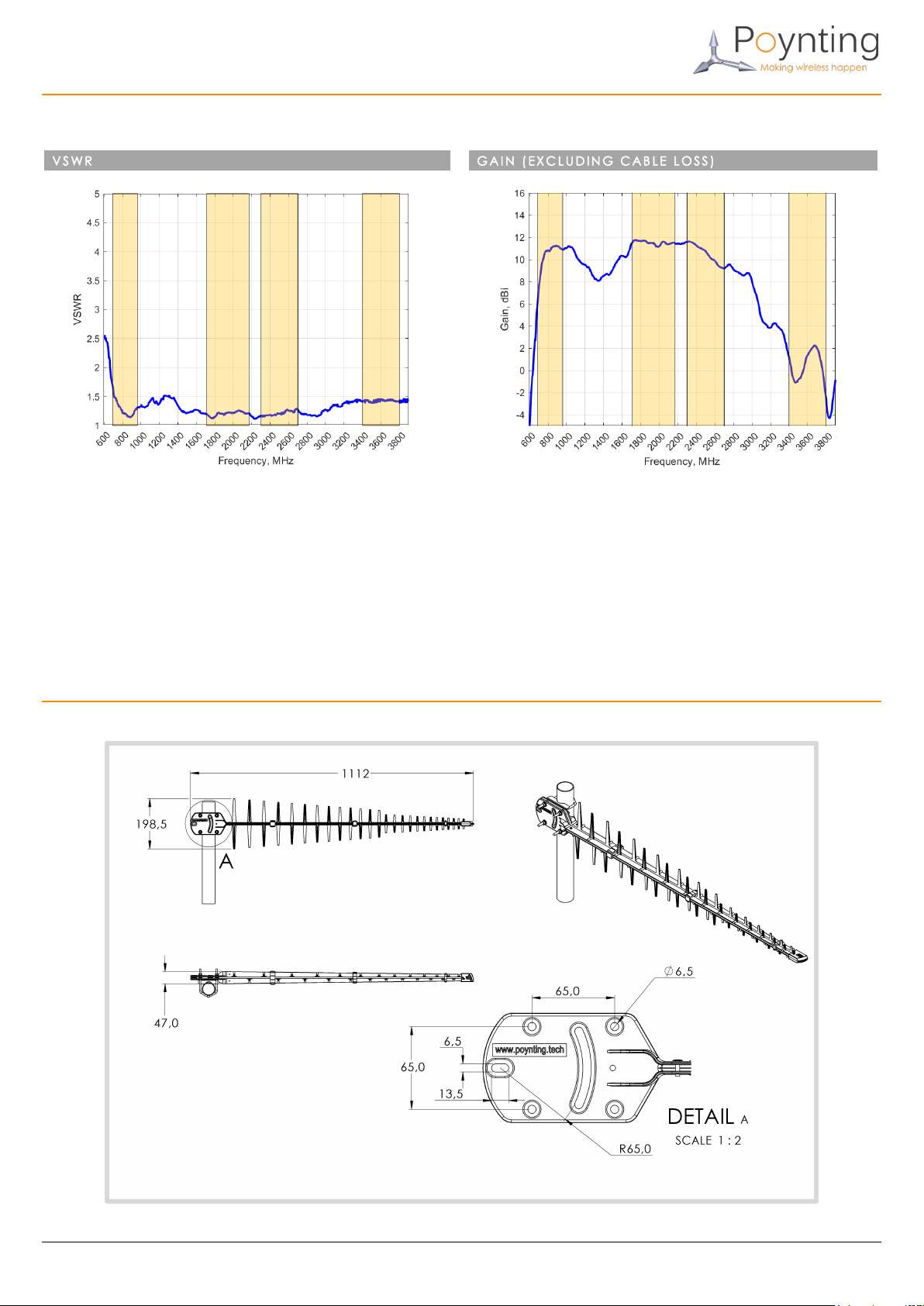

Antenna Performance Plots

Voltage Standing Wave Ratio (VSWR)

VSWR is a measure of how efficiently radio-frequency power is transmitted from a power source, through a transmission line, into a load. In an ideal system, 100% of the energy is transmitted which corresponds to a VSWR of 1:1.

The LPDA-92 delivers superior performance across all bands with a VSWR of <1.5:1 across 95% of the bands.

Gain in dBi

11 dBi is the peak gain across all bands from 698 – 3800 MHz

Gain @ 698 – 960 MHz:

Gain @ 1710 – 2700 MHz:

Gain @ 3400 –3800 MHz:

**Antenna gain measured with polarisation aligned standard antenna

10.8 dBi

11 dBi

2.3 dBi

Technical Drawings

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-LPDA-0092-V1 REV 5

www.poynting.tech

5

LPDA-92

Product Specifications may change without prior notice

Revised: September 2020

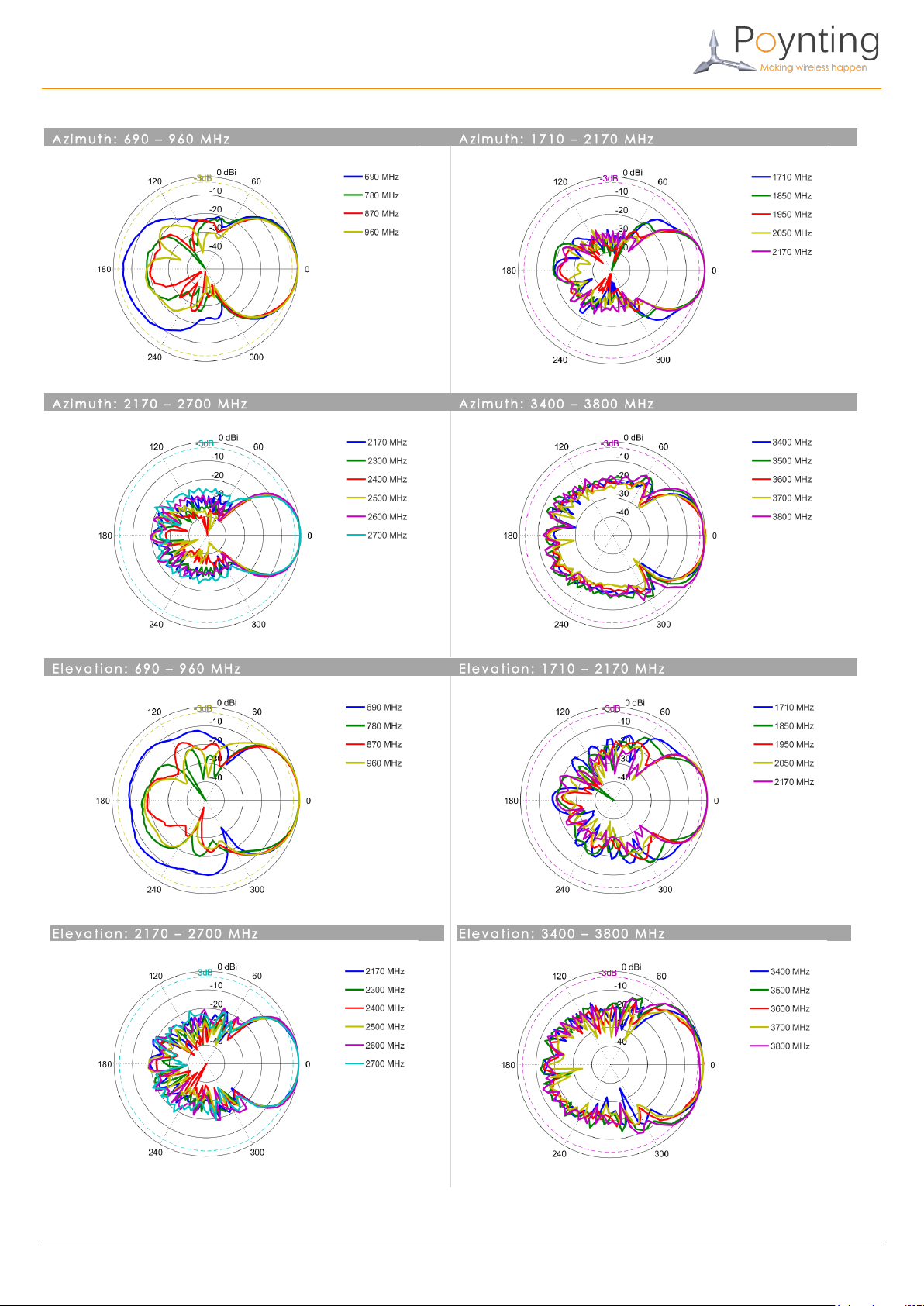

Radiation Patterns

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-LPDA-0092-V1 REV 5

www.poynting.tech

6

LPDA-92

Product Specifications may change without prior notice

Revised: September 2020

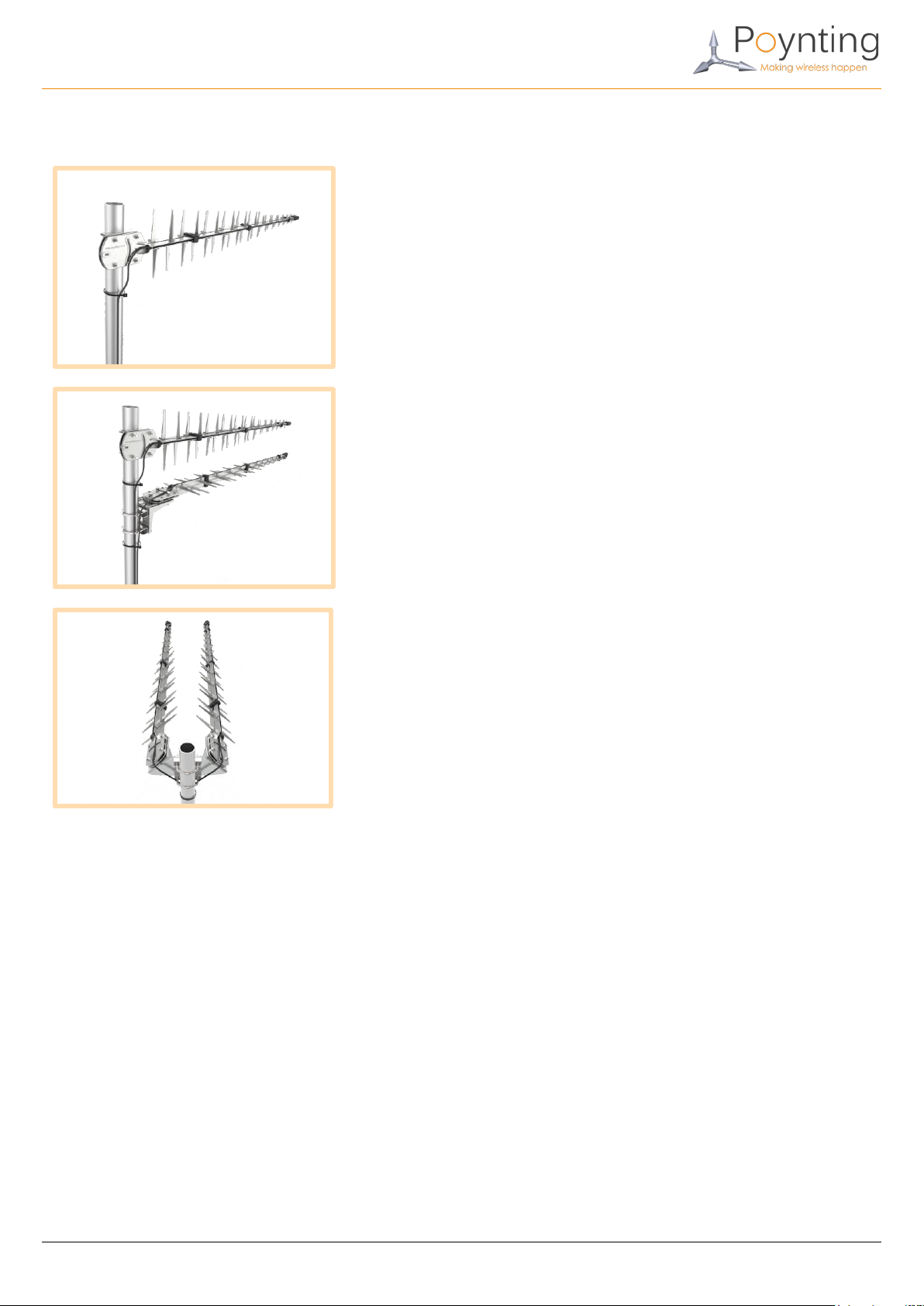

Mounting Options

Pole Mount

Pole mounted vertically using U-bolts

A-LPDA-0092-30-LTE Mount

Pole mounted vertically and horizontally using U-bolts and a BRKT-030

A-LPDA-0092-LTE Mount

Pole mounted at ± 45° using U-bolts and a BRKT-033

LPDA-92

Contact Poynting

Poynting Antennas (Pty) Ltd - Head Office

Unit 4, N1 Industrial Park

Landmarks Avenue,

Samrand, 0157

South Africa

Phone: +27 (0) 12 657 0050

E-mail: [email protected]

Poynting Europe

Regus Business Center Neue Messe Riem

Kronstadter Straße 4

81677 München

Germany

Phone: +49 89 208026538

E-mail: [email protected]

Additional Accessories

Extension Cables: Up to 10m HDF 195 Various connectors available Installation poles and brackets available

See accessories technical specifications on www.poynting.tech
