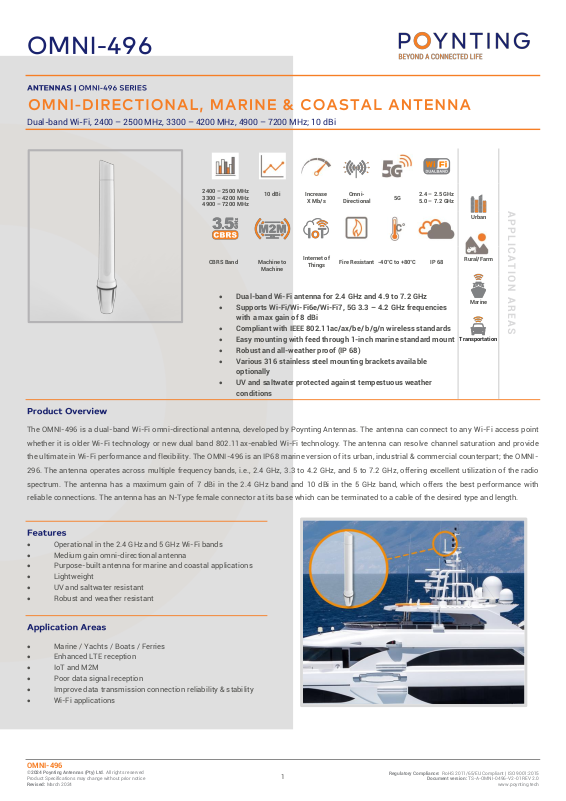

Poynting OMNI-496 Specification

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-OMNI-0496-V2-01 REV 2.0

www.poynting.tech

1

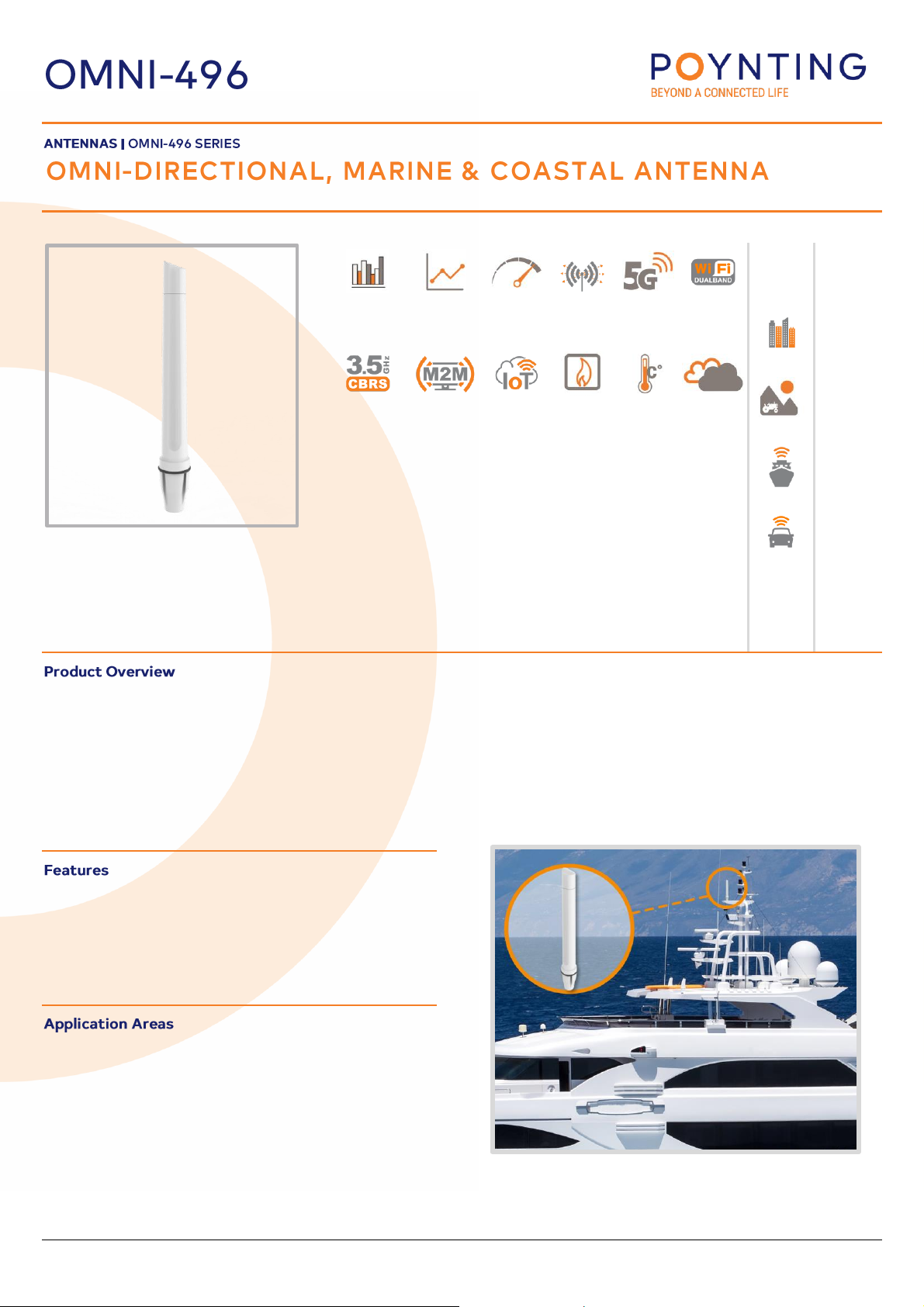

OMNI-496

Product Specifications may change without prior notice Revised: March 2024

Dual-band Wi-Fi, 2400 – 2500 MHz, 3300 – 4200 MHz, 4900 – 7200 MHz; 10 dBi

Urban

Rural/Farm

Marine

Transportation

APPL I C A T IO N

A RE A S

2400 – 2500 MHz 3300 – 4200 MHz 4900 – 7200 MHz

10 dBi

Increase

X Mb/s

Omni-

Directional

5G

2.4 – 2.5 GHz

5.0 – 7.2 GHz

CBRS Band

Machine to

Machine

Internet of

Things

Fire Resistant

-40°C to +80°C

IP 68

• Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz

• Supports Wi-Fi/Wi-Fi6e/Wi-Fi7, 5G 3.3 – 4.2 GHz frequencies

with a max gain of 8 dBi

• Compliant with IEEE 802.11ac/ax/be/ b/g/n wireless standards

• Easy mounting with feed through 1-inch marine standard mount

• Robust and all-weather proof (IP 68)

• Various 316 stainless steel mounting brackets available

optionally

• UV and saltwater protected against tempestuous weather

conditions

The OMNI-496 is a dual-band Wi-Fi omni-directional antenna, developed by Poynting Antennas. The antenna can connect to any Wi-Fi access point

whether it is older Wi-Fi technology or new dual band 802.11ax-enabled Wi-Fi technology. The antenna can resolve channel saturation and provide

the ultimate in Wi-Fi performance and flexibility. The OMNI-496 is an IP68 marine version of its urban, industrial & commercial counterpart; the OMNI-

296. The antenna operates across multiple frequency bands, i.e., 2.4 GHz, 3.3 to 4.2 GHz, and 5 to 7.2 GHz, offering excellent utilization of the radio

spectrum. The antenna has a maximum gain of 7 dBi in the 2.4 GHz band and 10 dBi in the 5 GHz band, which offers the best performance with

reliable connections. The antenna has an N-Type female connector at its base which can be terminated to a cable of the desired type and length.

• Operational in the 2.4 GHz and 5 GHz Wi-Fi bands

• Medium gain omni-directional antenna

• Purpose-built antenna for marine and coastal applications

• Lightweight

• UV and saltwater resistant

• Robust and weather resistant

• Marine / Yachts / Boats / Ferries

• Enhanced LTE reception

• IoT and M2M

• Poor data signal reception

• Improve data transmission connection reliability & stability

• Wi-Fi applications

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-OMNI-0496-V2-01 REV 2.0

www.poynting.tech

2

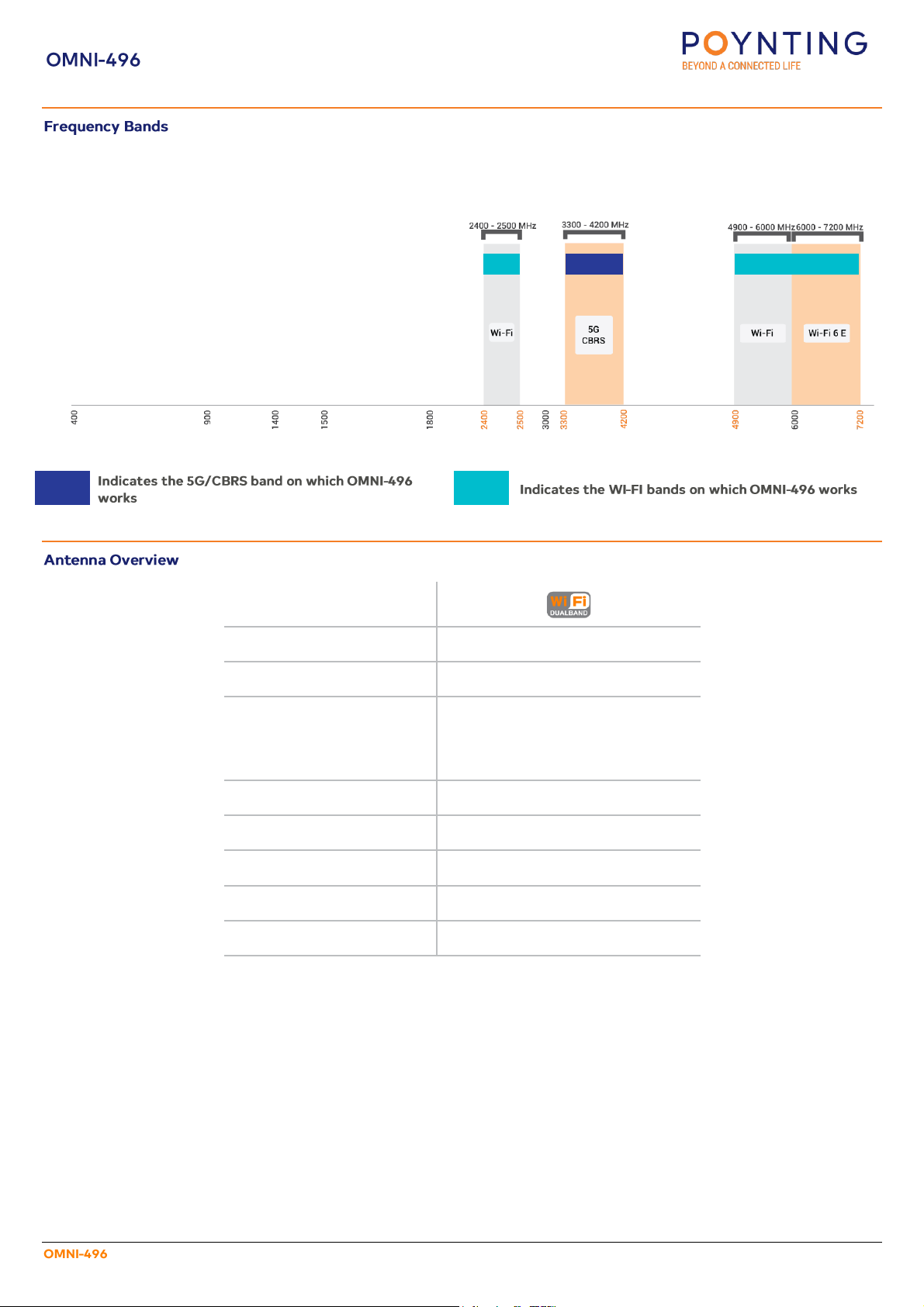

The OMNI-496 is an omni-directional antenna that works from | 2400 – 2500 MHz | 3300 – 4200 MHz | and | 4900 – 7200 MHz |

Ports

1

SISO / MIMO

SISO

Frequency Bands

2400 – 2500 MHz

3300 – 4200 MHz

4900 -7200 MHz

Polarisation

Linear Vertical

Peak Gain

10 dBi

Connector Type N-Type (F)

Coax Cable Type

N/A

Coax Cable Length

N/A

*The connector is factory mounted to the antenna

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-OMNI-0496-V2-01 REV 2.0

www.poynting.tech

3

Revised: March 2024

Frequency Bands:

2400 – 2500 MHz 3300 – 4200 MHz 4900 – 7200 MHz

Gain (Max):

7 dBi @ 2400 – 2500 MHz

8 dBi @ 3300 – 4200 MHz

10 dBi @ 4900 – 7200 MHz

VSWR:

<2:1

Feed Power Handling:

10 W

Input Impedance:

50 Ohm (nominal)

DC Short:

Yes

Antenna:

A-OMNI-0496

Mounting Bracket:

Marine Adapter (1'' -14 TPI)

& L-bracket (Ø30-50mm Pole)

Commercial Name:

OMNI-496

Order Product Code:

A-OMNI-0496-V2-01

EAN Number:

6009710925768

Product Dimensions:

560 mm x 75 mm (Incl. BRKT-40)

Packaged Dimensions:

580 mm x 95 mm x 95 mm

Weight:

0.57 Kg

Packaged Weight:

1.3 Kg

Radome Material:

UV Stable Marine ASA

Radome Colour:

Brilliant White

Pantone P 179-1C

Mounting Type:

Standard 1'' -14 TPI marine mount &

Wall/pole mount

Wind Survival:

≤186 km/h

Temperature Range (Operating):

-40°C to +80°C

Environmental Conditions:

Outdoor/Indoor

Water Ingress Protection Ratio/Standard:

IP 68

Salt Spray:

MIL-STD 810G/ASTM B117

Operating Relative Humidity:

Up to 98%

Storage Humidity:

5% to 95% - non-condensing

Storage Temperature:

-40°C to +80°C

Enclosure Flammability Rating:

UL 94-HB

Impact Resistance:

IK 08

Product Safety & Environmental:

Complies with CE and RoHS standards

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-OMNI-0496-V2-01 REV 2.0

www.poynting.tech

4

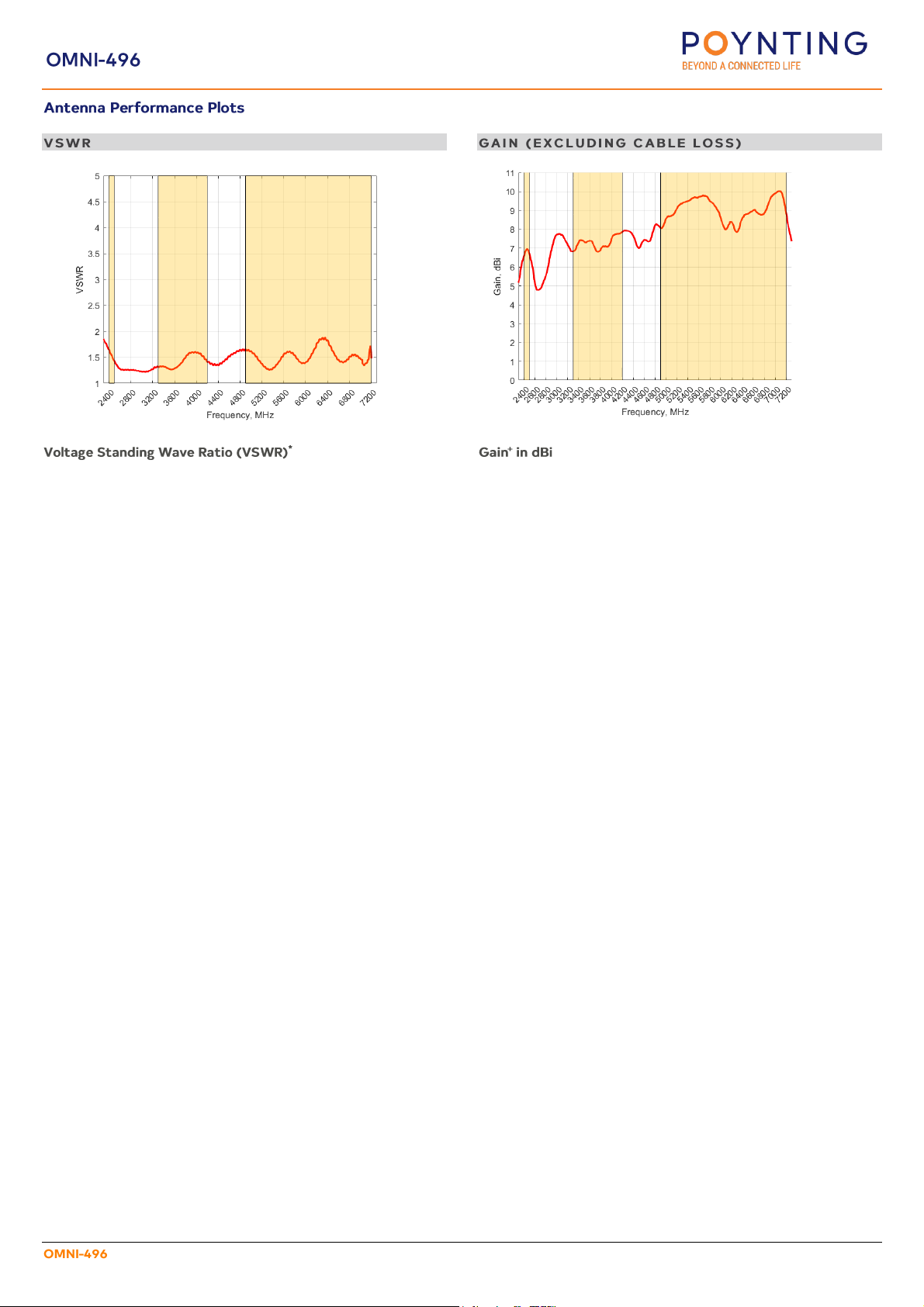

VSWR is a measure of how efficiently radio-frequency power is transmitted from a power source, through a transmission line, into a load. In an ideal system, 100% of the energy is transmitted which corresponds to a VSWR of 1:1.

The OMNI-496 delivers superior performance across all bands with a VSWR of <2:1.

*

VSWR measured without a cable.

10 dBi is the peak gain across all bands from 2400 – 7200 MHz

Gain @ 2400 – 2500 MHz:

Gain @ 3300 – 4200 MHz:

Gain @ 4900 – 7200 MHz:

+

Antenna gain measured with polarisation aligned standard

antenna

7 dBi

8 dBi

10 dBi

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-OMNI-0496-V2-01 REV 2.0

www.poynting.tech

5

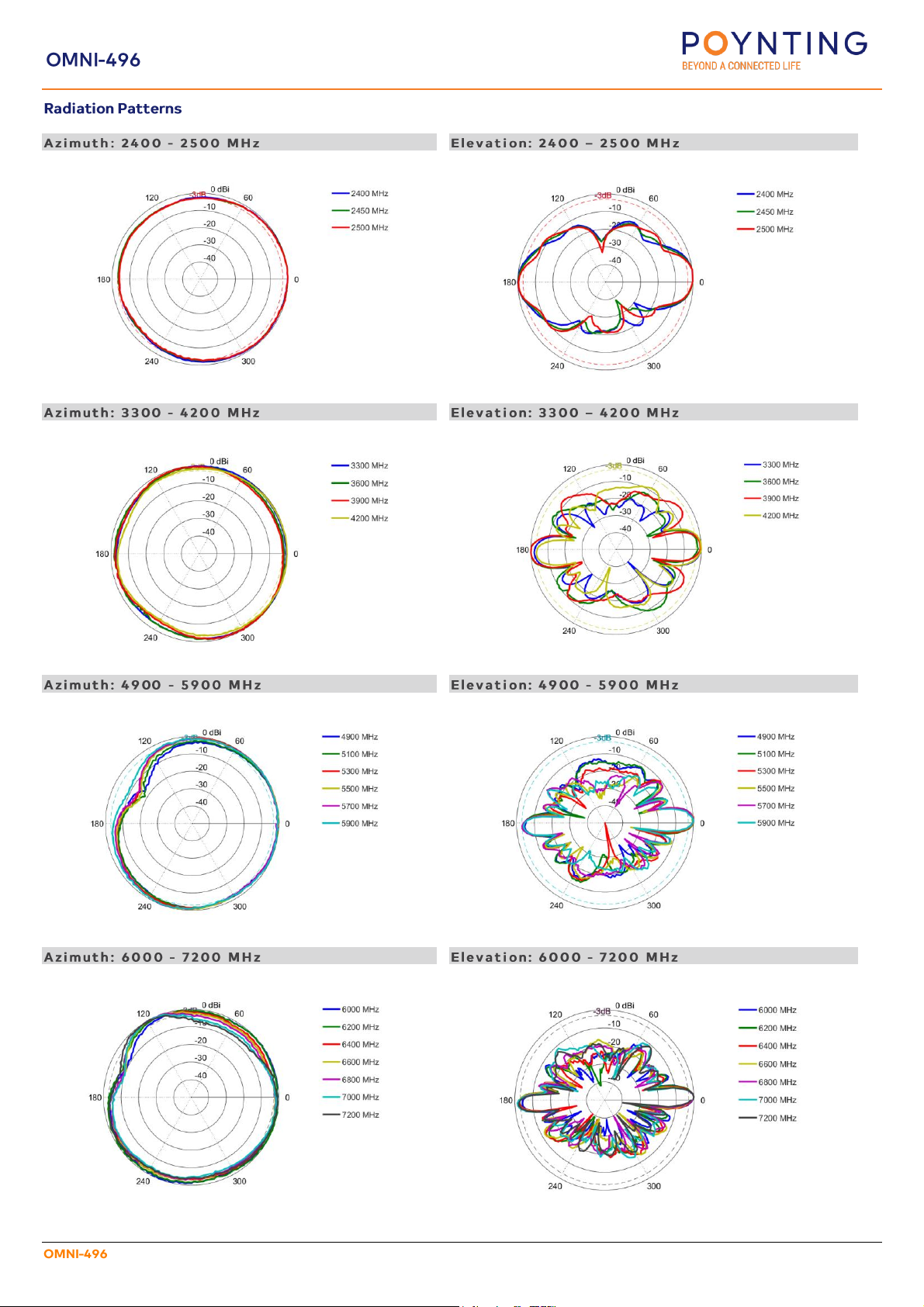

Revised: March 2024

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-OMNI-0496-V2-01 REV 2.0

www.poynting.tech

6

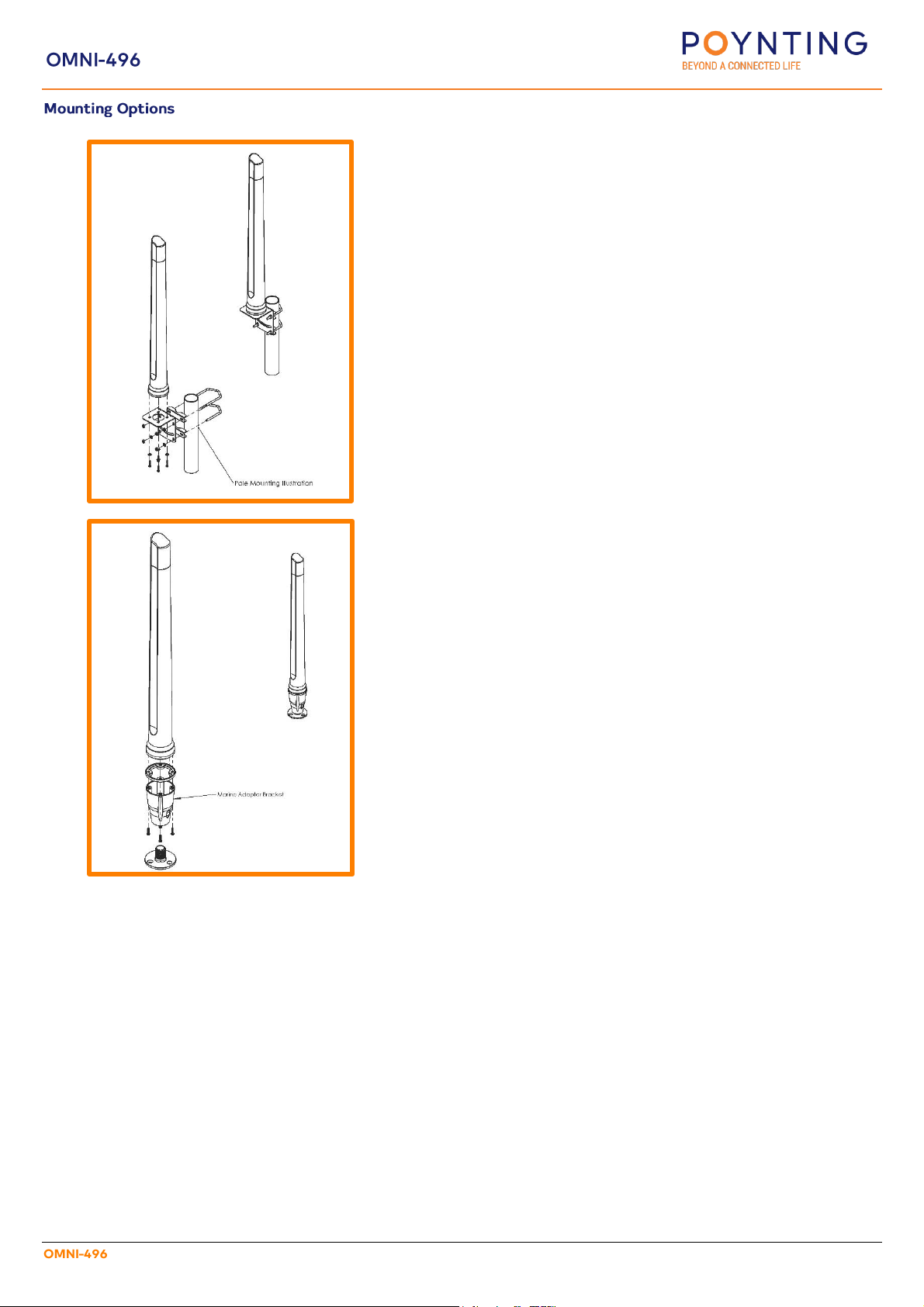

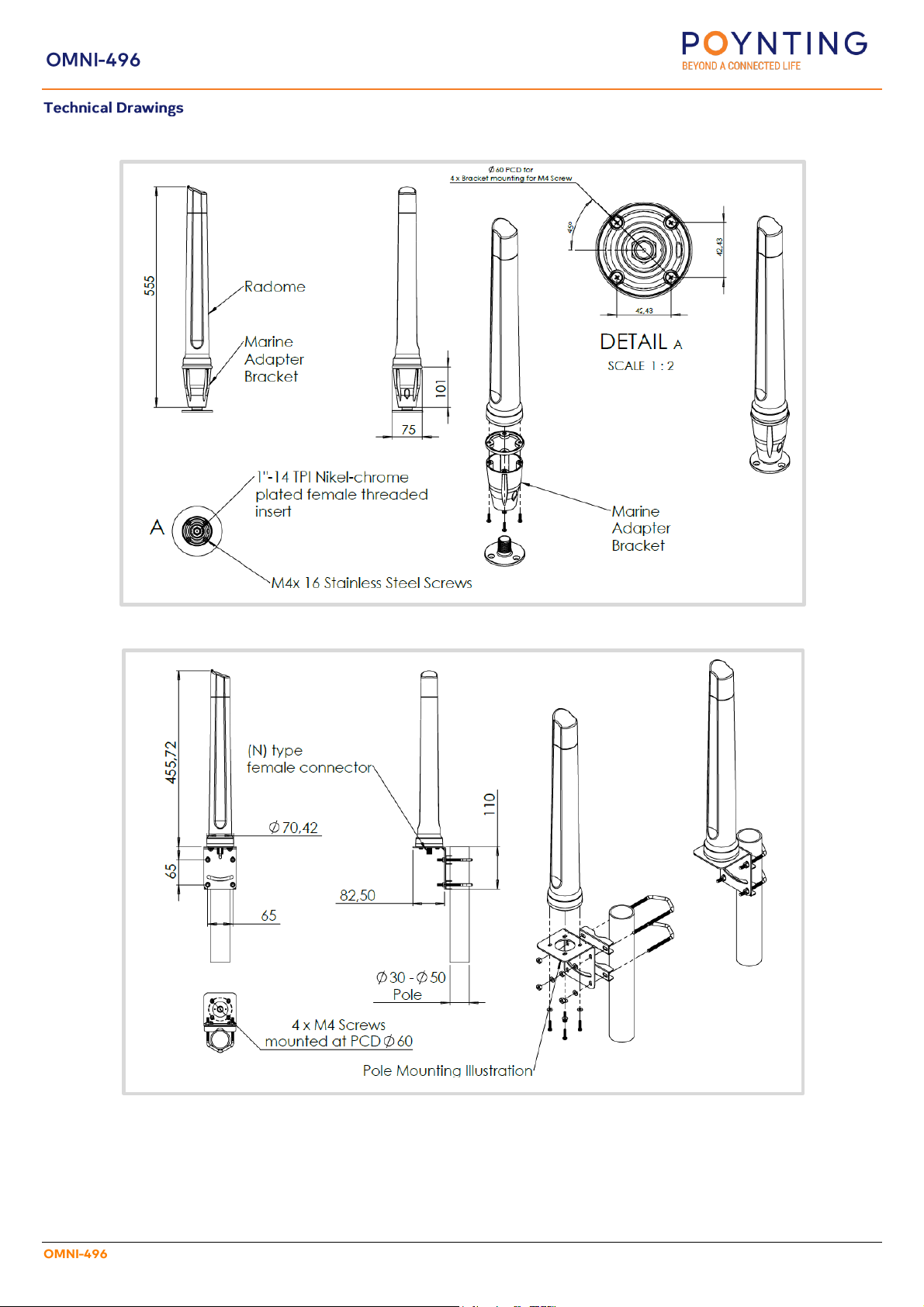

With Standard Marine Mounting:

With Standard L-Bracket Mounting:

Regulatory Compliance: RoHS 2011/65/EU Compliant | ISO 9001:2015

Document version: TS-A-OMNI-0496-V2-01 REV 2.0

www.poynting.tech

7

Revised: March 2024

Pole Mount

L-Bracket 316 Stainless Steel – included

(for Ø 30-50mm pole)

Marine Bracket Mount

1” -14 TPI female adapter – included

Mounts to standard marine brackets:

• BRKT-37: Flat Mount - Optional

• BRKT-38: Ratchet Mount - Optional

• BRKT-39: Rail Mount - Optional

See Optional Accessories below

Also available: BRKT-41 with 1.25” – 11TPI female adapter (Optional)

See Accessories below

Unit 4, N1 Industrial Park,

Landmarks Avenue, Samrand, 0157, South Africa

Phone: +27 (0) 12 657 0050 E-mail: [email protected]

International Email [email protected]

Regus Business Center Neue Messe Riem

Kronstadter Straße 4 81677 München

Germany

Phone: +49 89 7453 9002

E-mail: [email protected]

1804 Owen Court, Suite 104,

Mansfield, TX 76063

USA

Phone: +1 817 533-8130

E-mail: [email protected]

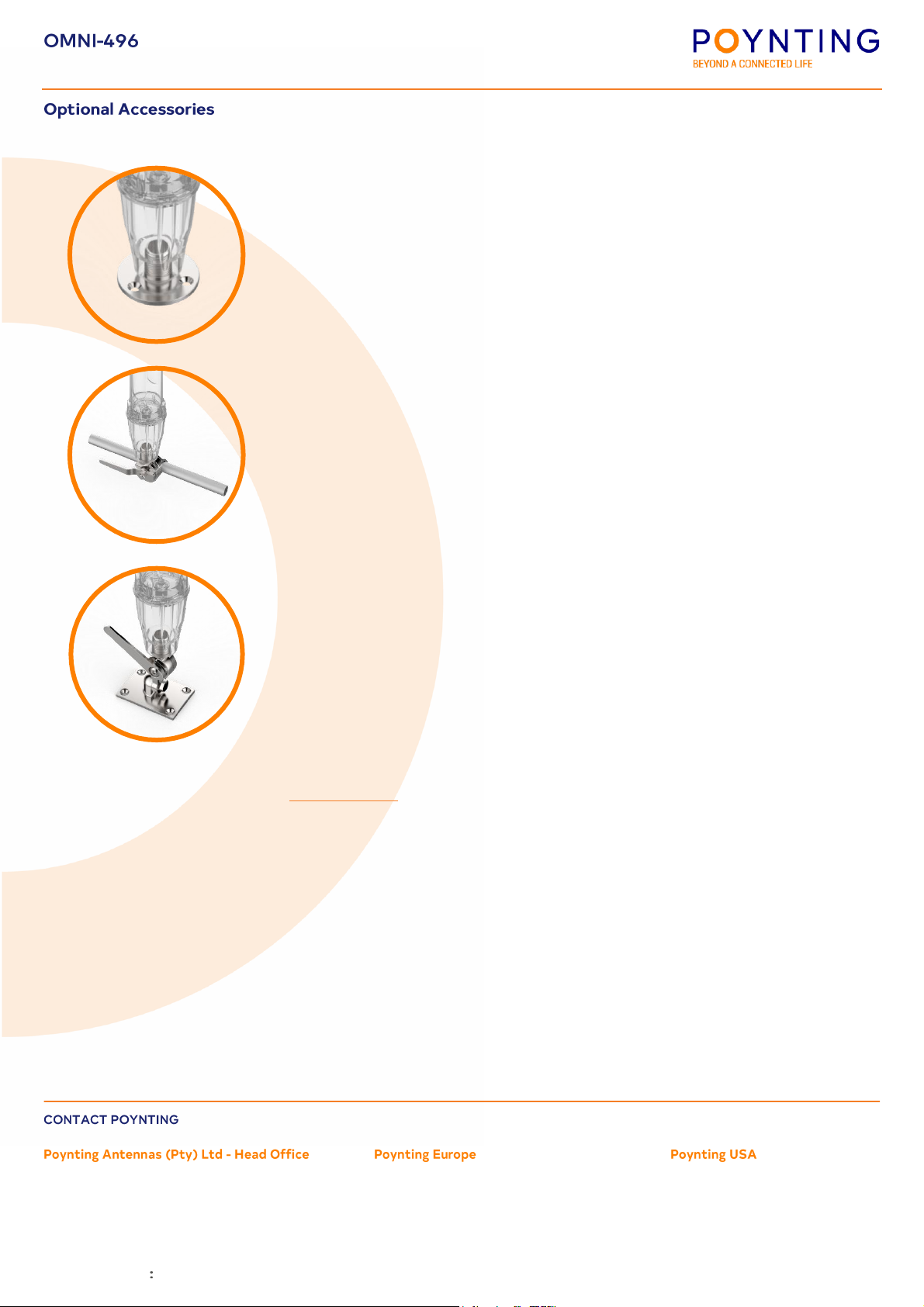

See accessories technical specifications on www.poynting.tech

BRKT-37

Marine flat mount antenna bracket 1”-14 TPI 316 Stainless Steel

BRKT-38

Marine ratchet rail mount antenna bracket 1”-14 TPI 316 Stainless Steel

BRKT-39

Heavy duty marine mount antenna bracket 1”-14 TPI 316 Stainless Steel
